Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

72 part groups · 15 illustrations

Illustrations

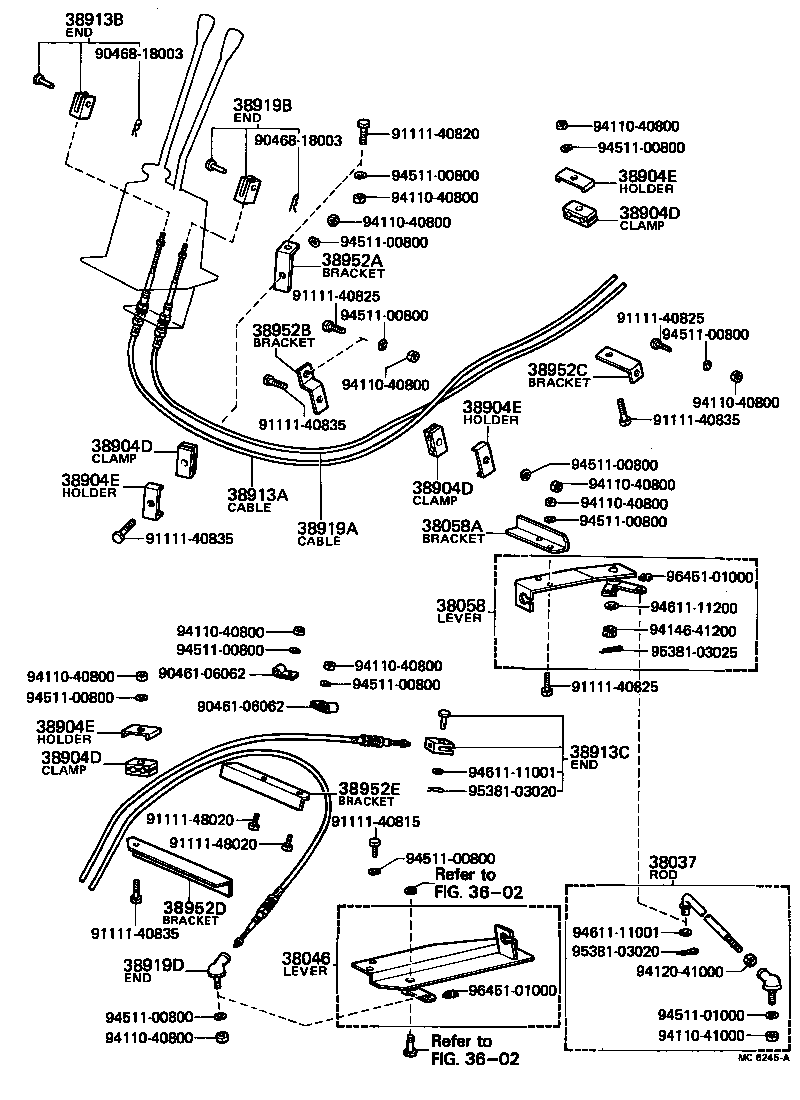

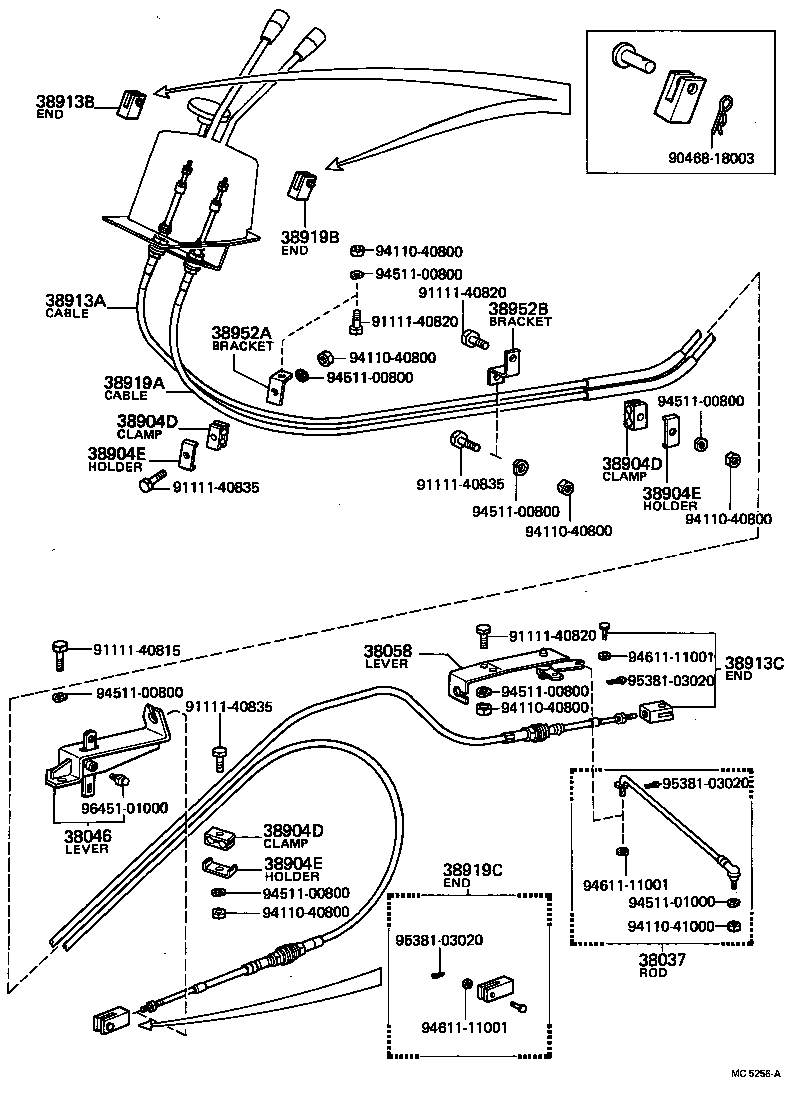

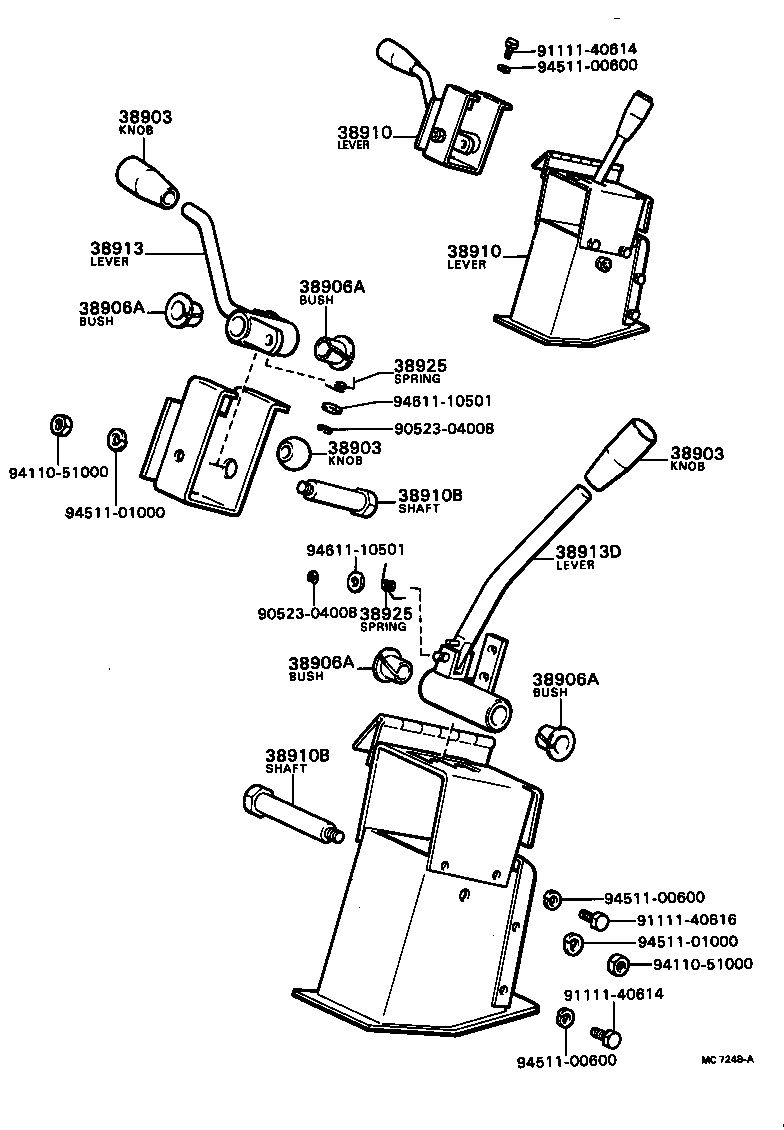

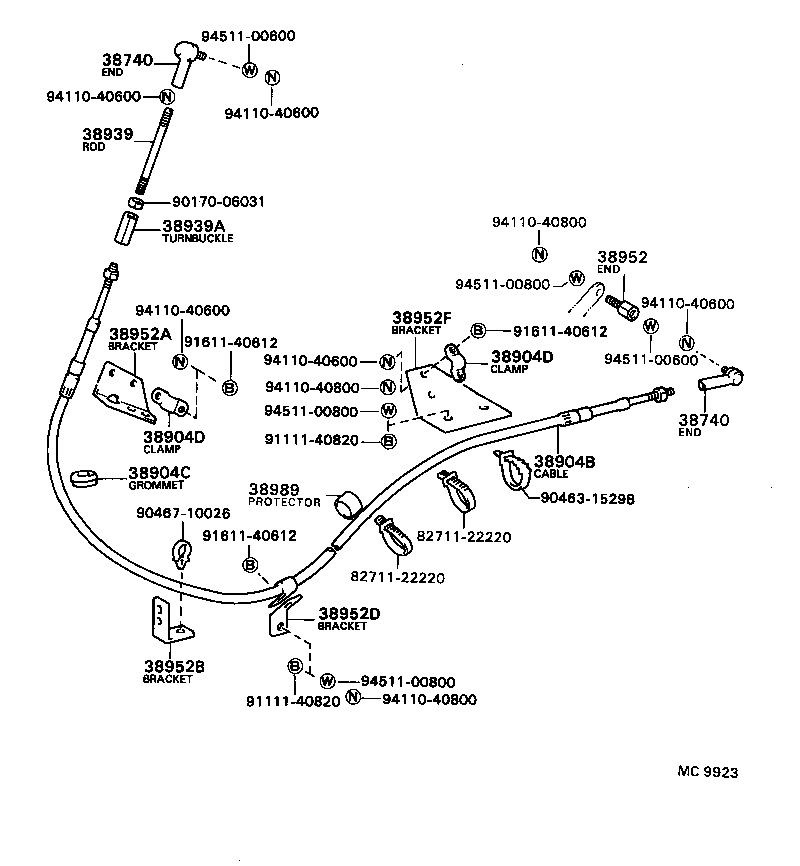

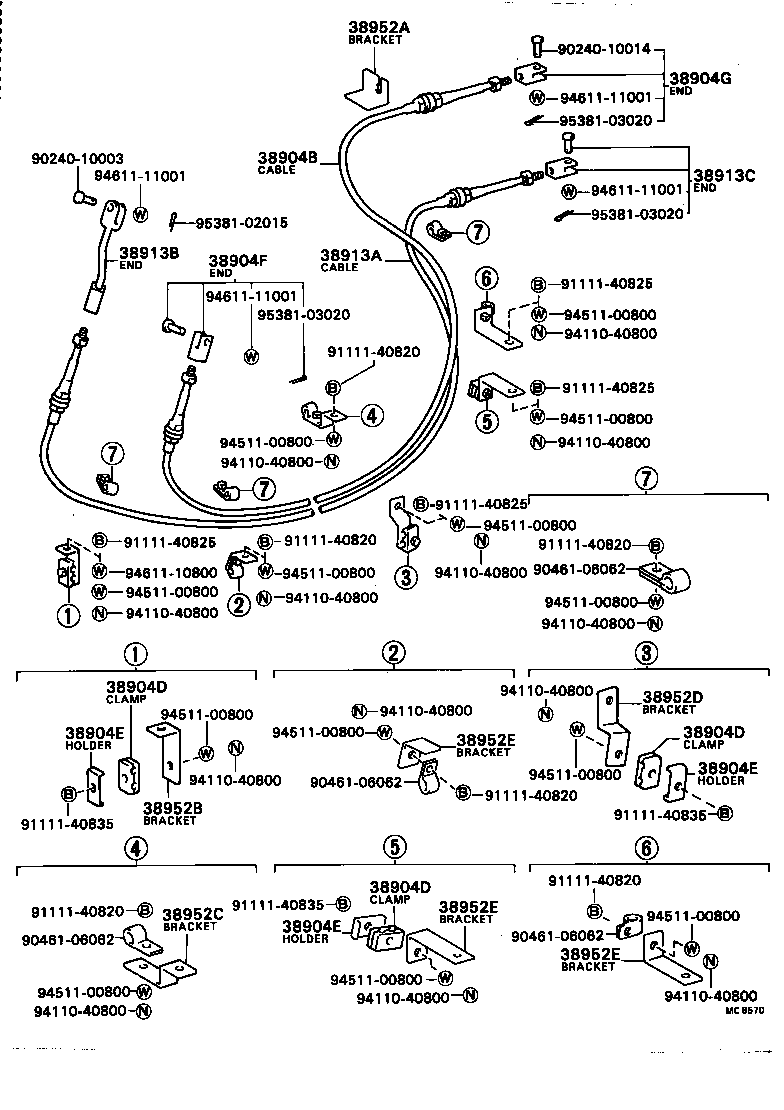

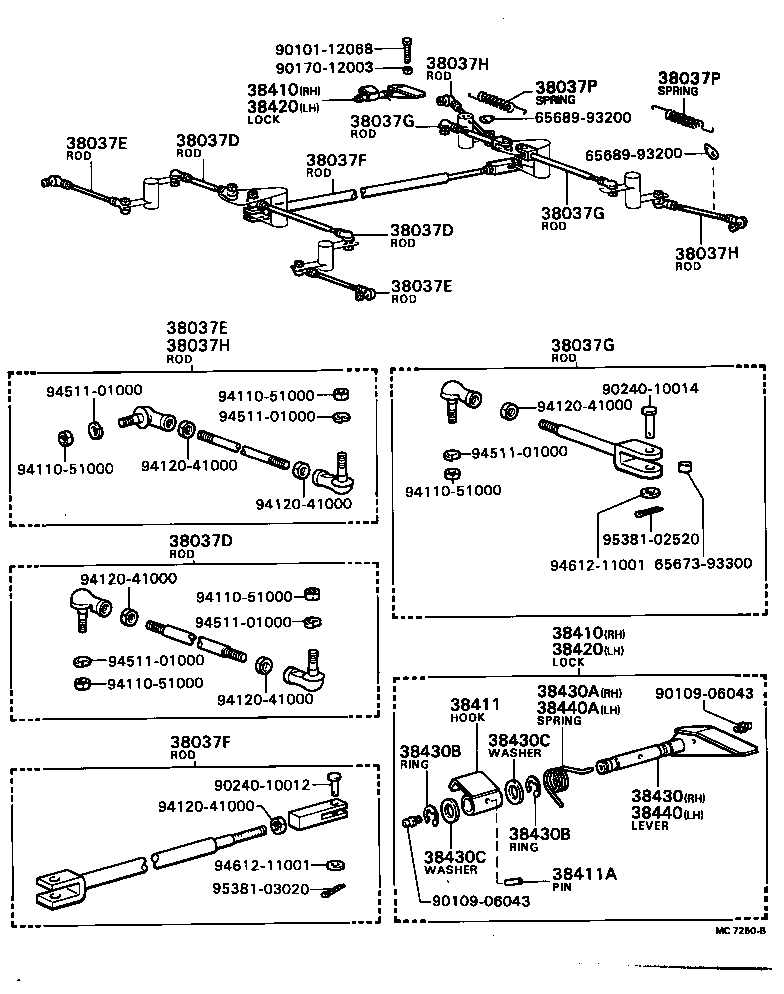

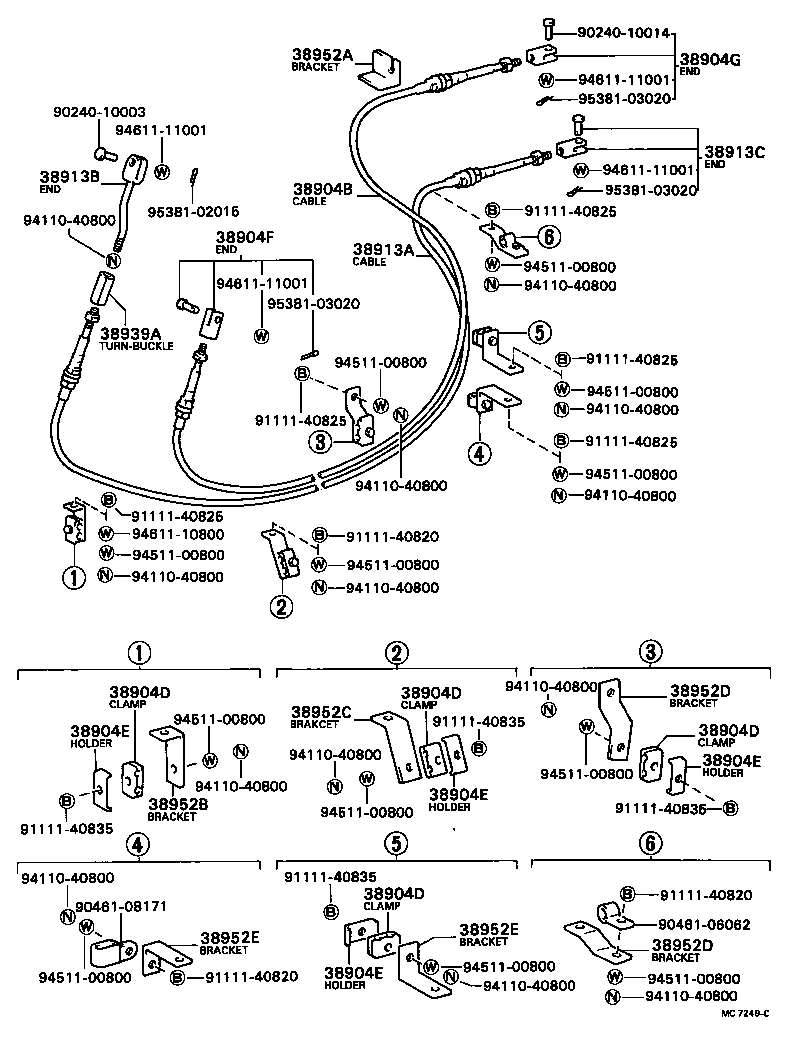

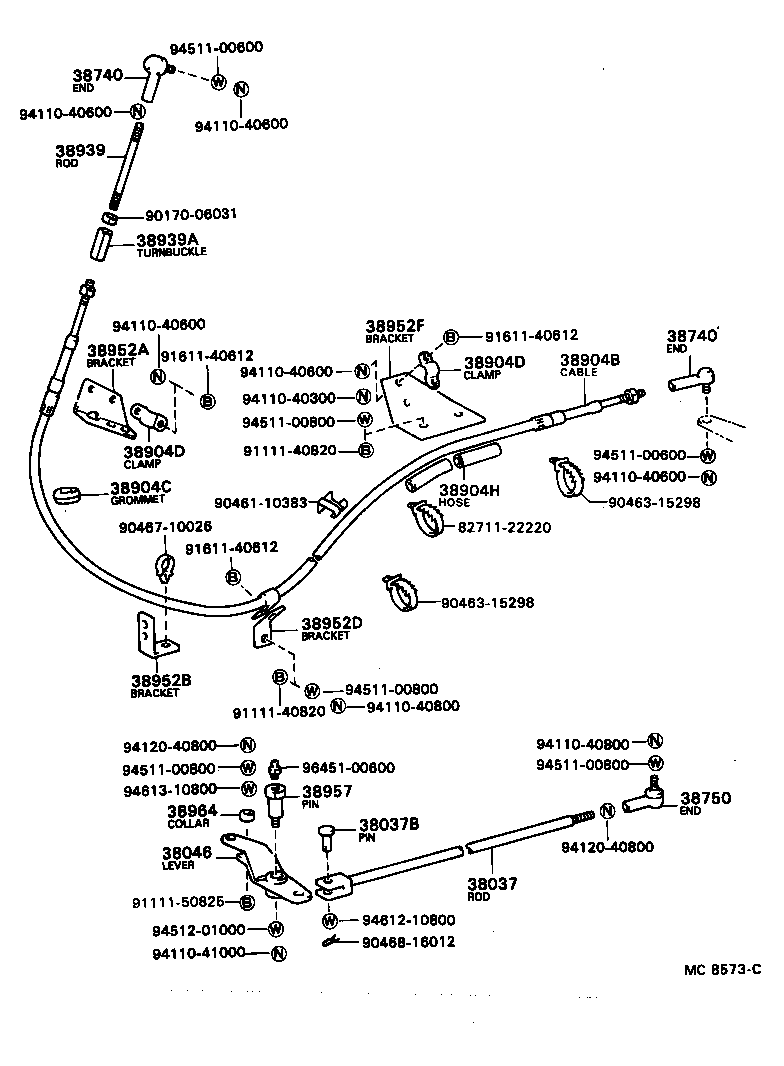

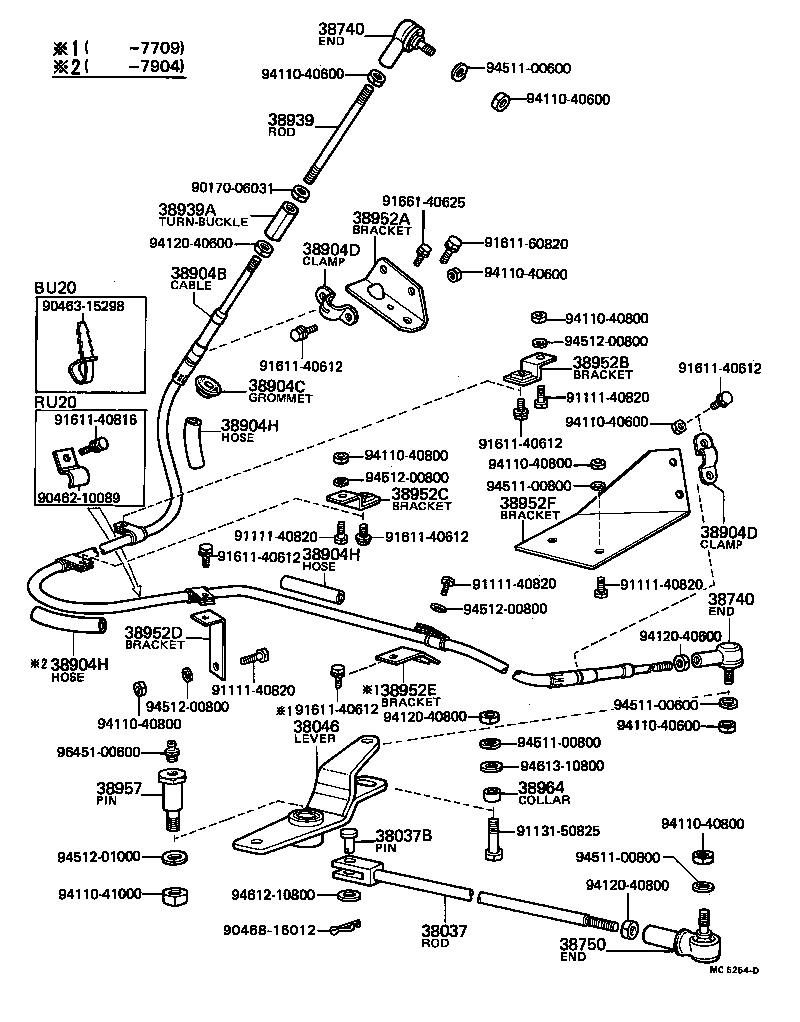

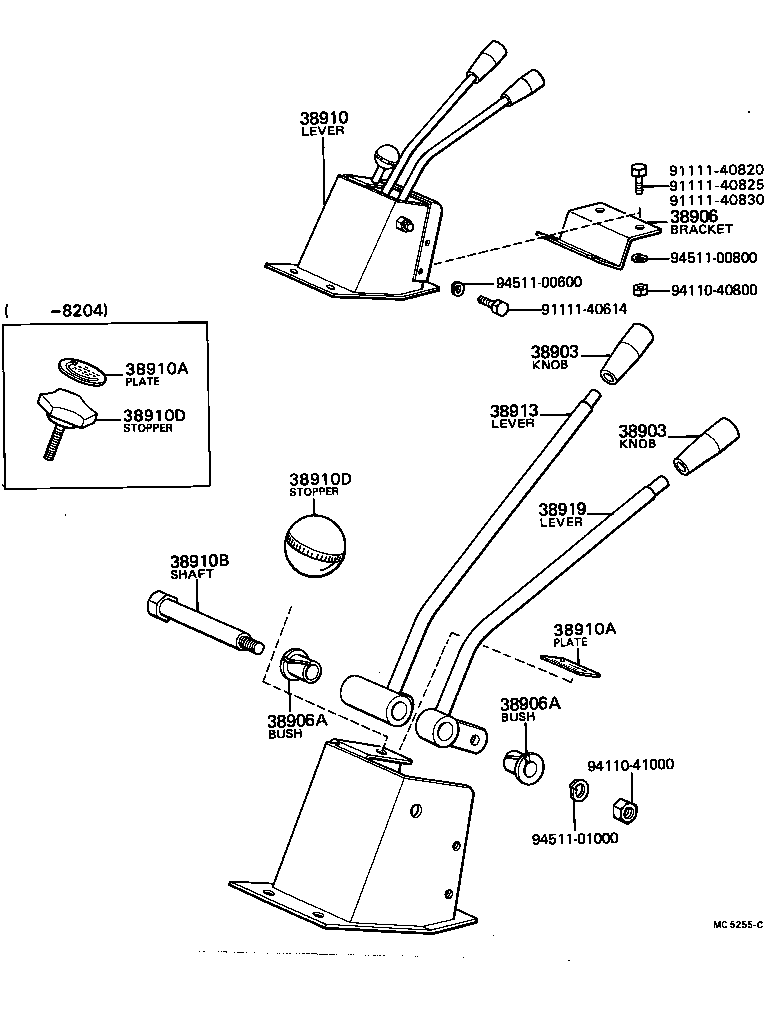

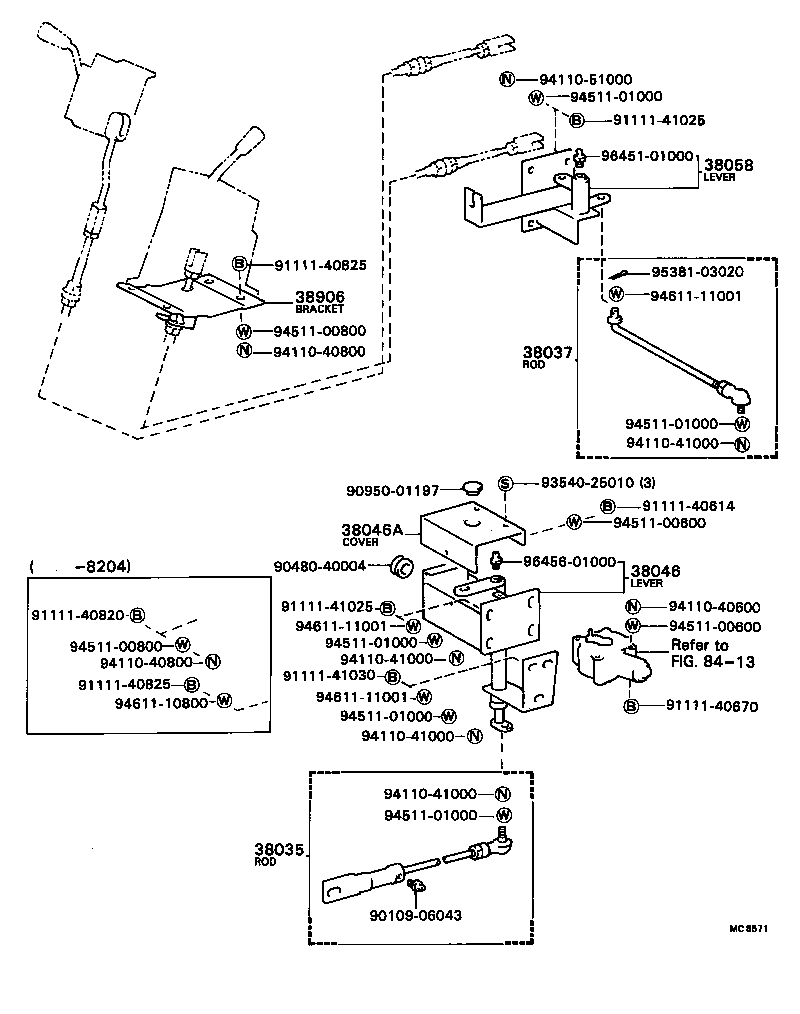

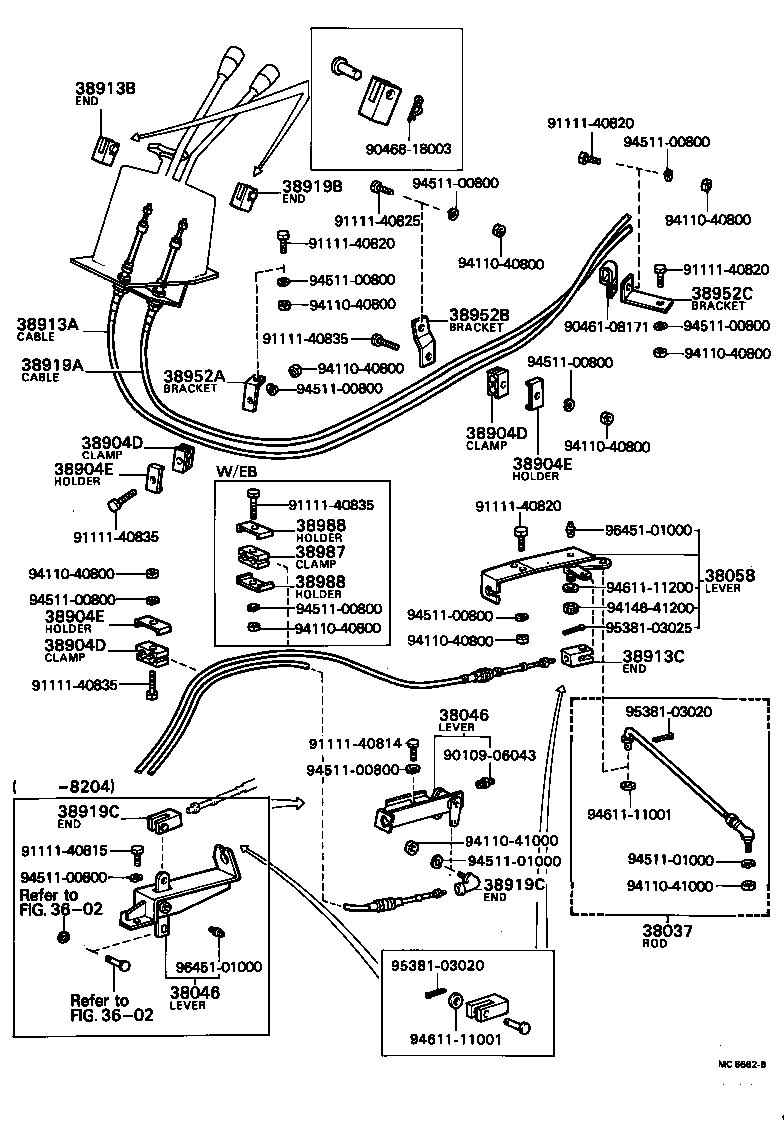

Figure MC5253C MC5253C 1977-08 → — Figure MC5253C MC5253C 1982-04 → — Figure MC5254D MC5254D 1977-08 → 1982-04 Figure MC8573C MC8573C 1982-04 → — Figure MC9923 MC9923 1982-04 → — Figure MC5255C MC5255C 1977-08 → 1980-08 Figure MC5255C MC5255C 1980-08 → — Figure MC5256A MC5256A 1977-08 → 1979-04 Figure MC6662B MC6662B 1979-04 → — Figure MC6245A MC6245A 1979-04 → 1980-08 Figure MC7248A MC7248A 1980-08 → — Figure MC7249C MC7249C 1980-08 → 1982-04 Figure MC8570 MC8570 1982-04 → — Figure MC8571 MC8571 1980-08 → — Figure MC7250B MC7250B 1980-08 → —

Part groups

PNCDescription
38035 Rod Assy, Power Take-off Control
38037 Rod Sub-assy, Valve Control, Rear
38037B Pin, Valve Control Rear Rod
38037D Rod, Select Control NO.1
38037E Rod Assy, Select Control Front NO.2
38037F Rod, Select Control NO.3
38037G Rod, Select Control NO.4
38037H Rod, Select Control NO.5
38037P Spring, Tension (FOR SELECT CONTROL ROD)
38046 Lever Sub-assy, Power Take-off Control
38046A Cover, Power Take-off Control Lever
38058 Lever Sub-assy, Valve Control Center
38058A Bracket, Control Center Lever
38410 Lock Assy, Rear Hinge, RH
38411 Hook, Rear Hinge Lock
38411A Pin, Slotted Spring
38420 Lock Assy, Rear Hinge, LH
38430 Lever Assy, Rear Hinge Lock, RH
38430A Spring, Torsion, RH
38430B Ring, E (FOR HINGE LOCK LEVER)
38430C Washer, Plate (FOR HINGE LOCK LEVER)
38440 Lever Assy, Rear Hinge Lock, LH
38440A Spring, Torsion
38740 End Assy, Connecting Rod
38750 End Assy, Connecting Rod
38901 Shaft Sub-assy, Control
38902 Bracket Sub-assy, Control Shaft, Upper
38903 Knob Sub-assy, Control
38904B Cable Assy, Push Pull
38904C Grommet, Push Pull Cable
38904D Clamp, Cable Push Pull
38904E Holder, Cable Push Pull Clamp
38904F End Assy, Push Pull Cable, NO.1
38904G End Assy, Push Pull Cable, NO.2
38904H Hose, Push Pull Cable Protector
38906 Bracket Sub-assy, Control Shaft, Lower
38906A Bush, Control Link
38910 Lever Assy, Dump
38910A Plate, Dump Lever Lock Caution
38910B Shaft, Control Lever
38910D Stopper, Control Lever
38910E Seat, Dump Lever Caution Plate
38913 Lever, Pump Control
38913A Cable Sub-assy, Push Pull (FOR PUMP CONTROL)
38913B End Assy, Control Cable, NO.1 (FOR PUMP CONTROL)
38913C End Assy, Control Cable, NO.2 (FOR PUMP CONTROL)
38913D Lever, Select Control
38919 Lever, Power Take-off Control
38919A Cable Sub-assy, Push Pull (FOR POWER TAKE-OFF CONTROL)
38919B End Assy, Control Cable, NO.1(FOR POWER TAKE-OFF CONTROL)
38919C End Assy, Control Cable, NO.2(FOR POWER TAKE-OFF CONTROL)
38919D Joint Assy, Ball (FOR POWER TAKE-OFF CONTROL CABLE)
38925 Spring, Control Link Set
38931 Lever, Valve Link
38931B Pin, Valve Link Lever
38931D Rod (FOR VALVE LINK LEVER)
38939 Rod, Cable Connecting
38939A Turnbuckle(FOR CABLE CONNECTING ROD)
38952 Bracket, Control Link
38952A Bracket, Control Cable Clamp, NO.1
38952B Bracket, Control Cable Clamp, NO.2
38952C Bracket, Control Cable Clamp, NO.3
38952D Bracket, Control Cable Clamp, NO.4
38952E Bracket, Control Cable Clamp, NO.5
38952F Bracket, Control Cable Clamp, NO.6
38957 Pin, Control Lever
38964 Collar, Control Lever
38987 Clamp, Cable Push Pull
38988 Holder, Clamp Cable Push Pull
38989 Protector, Control Cable
38993 Washer, Control Shaft, NO.2
38995 Cover, Lock Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
