Toyota Dyna

1977-08 → 1984-08 · chassis BU2#,3#,4#,5# · catalogue 751120 · Japan

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

60 part groups · 20 illustrations

Illustrations

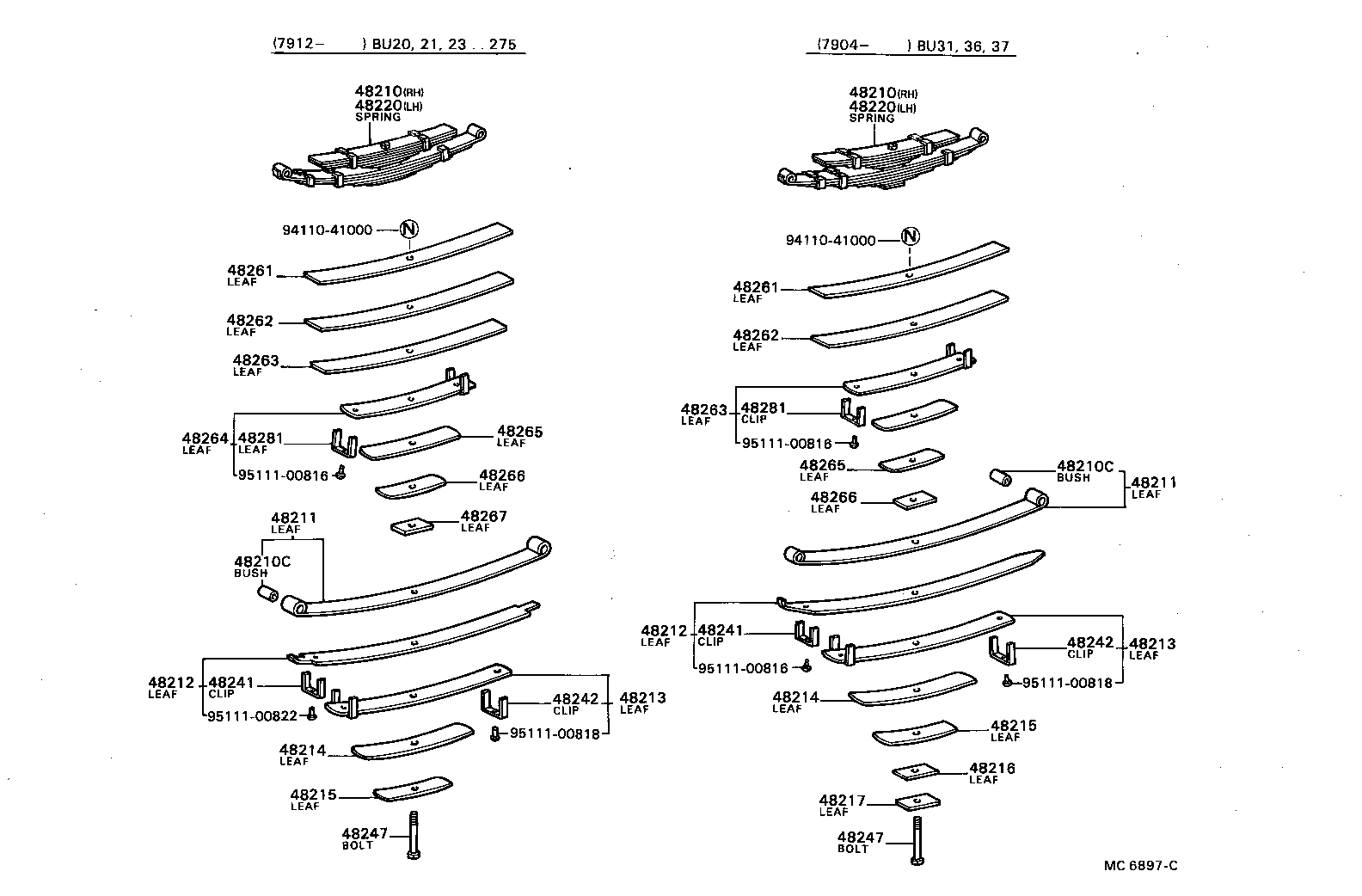

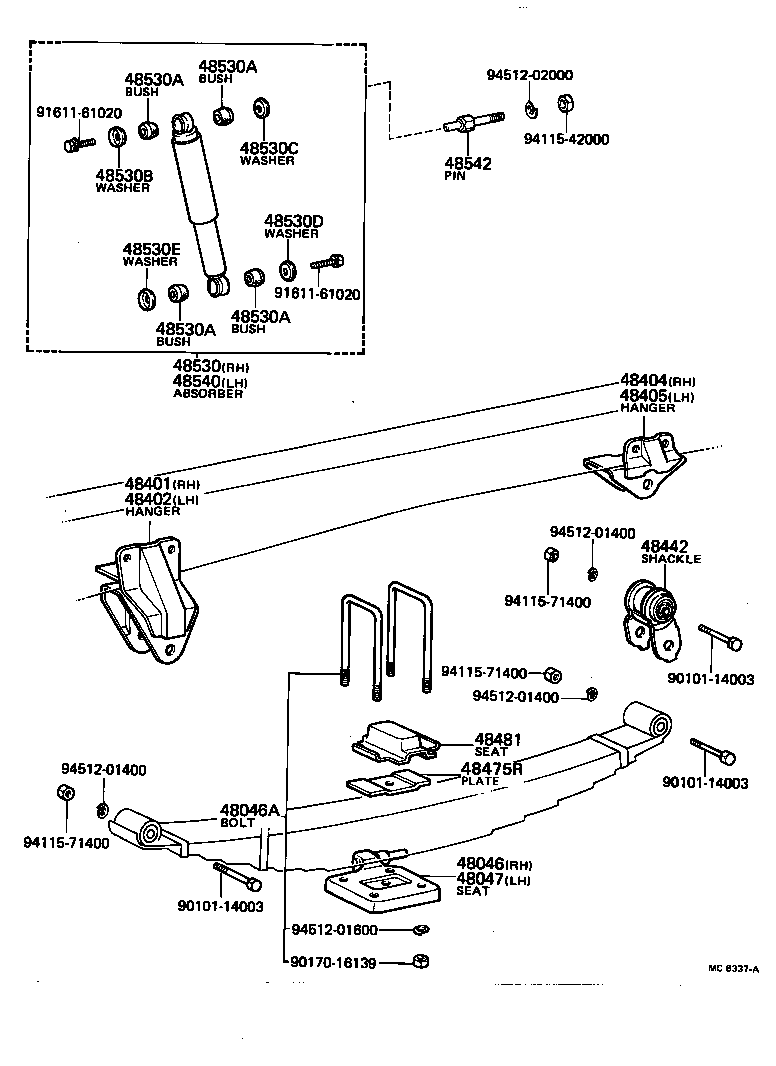

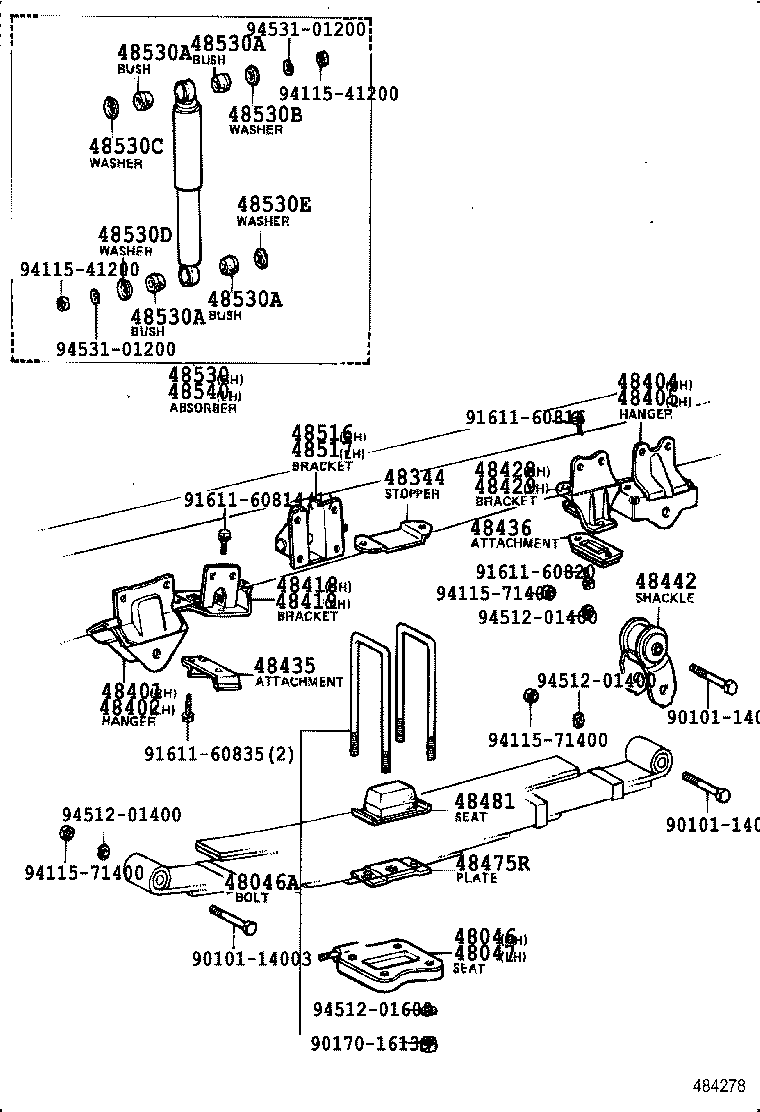

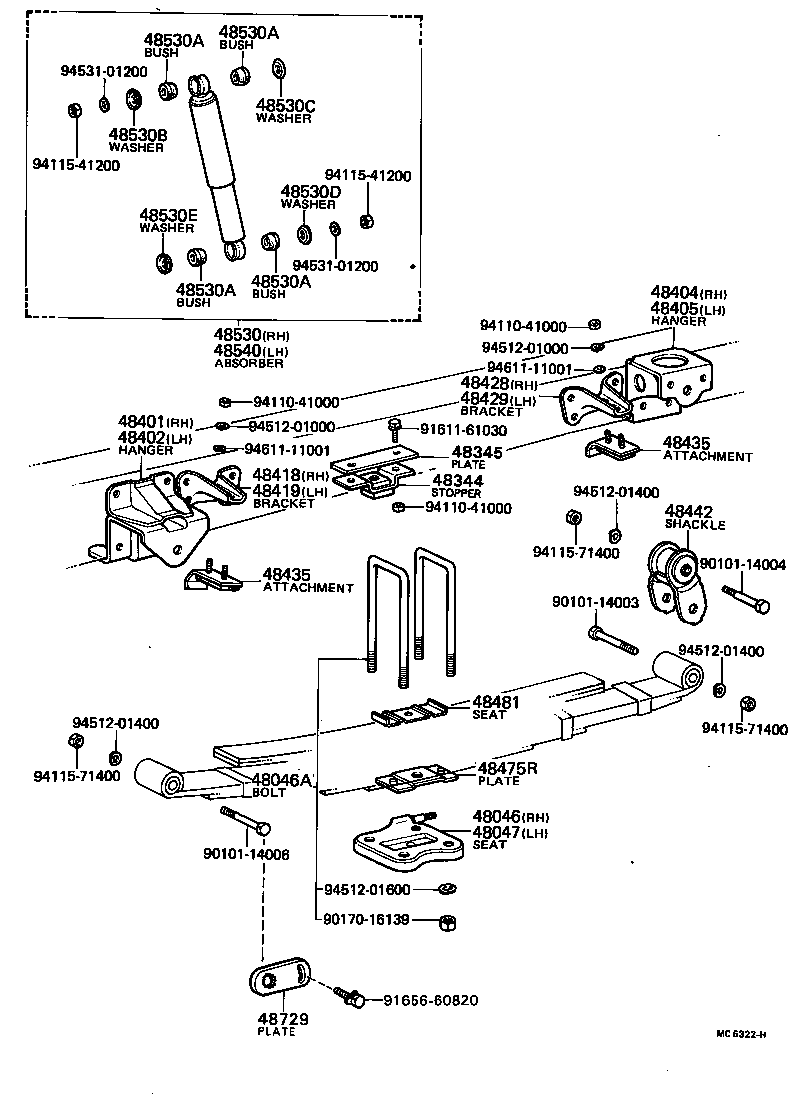

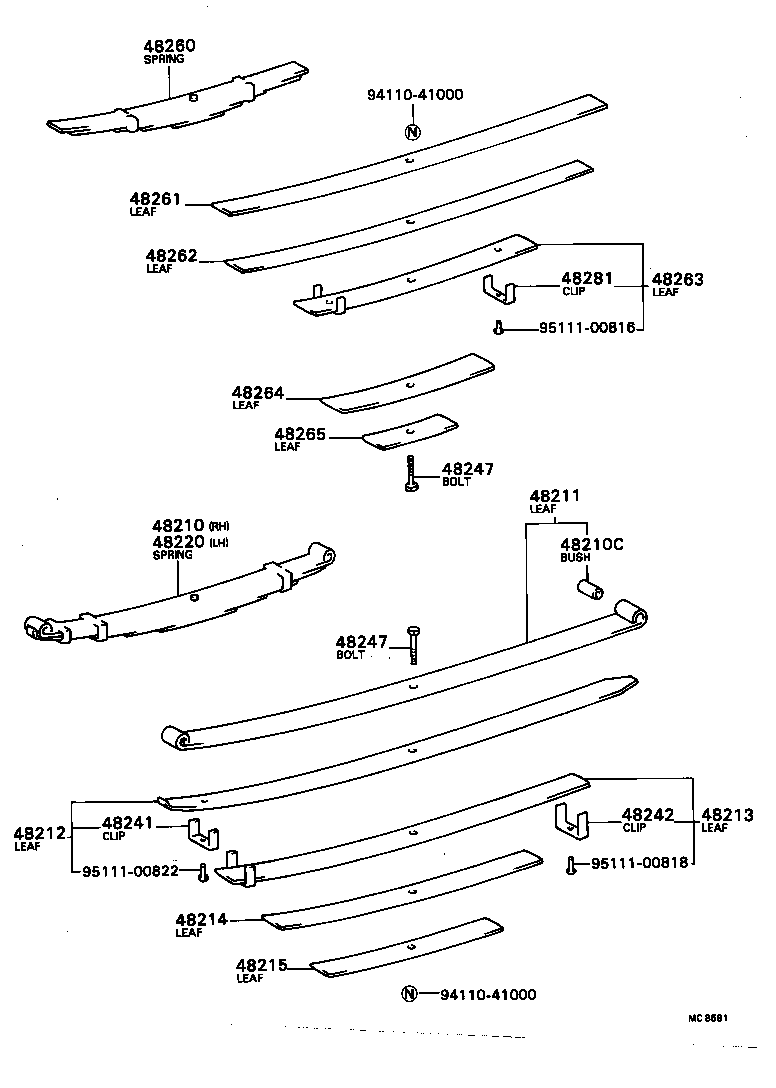

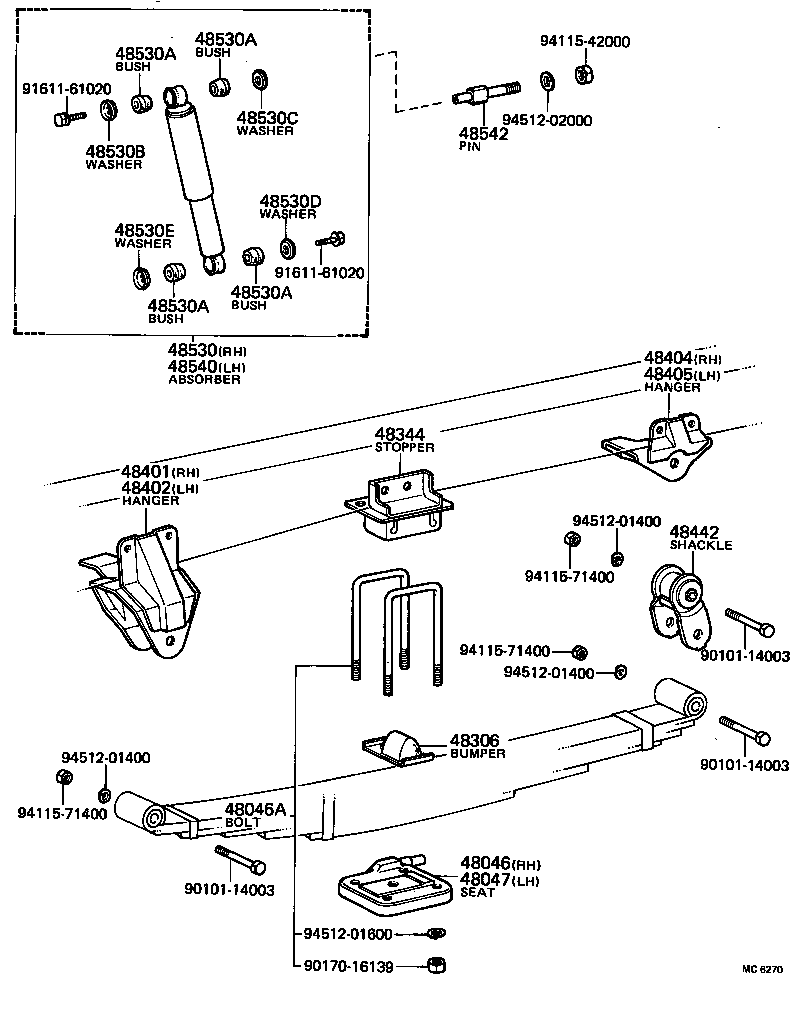

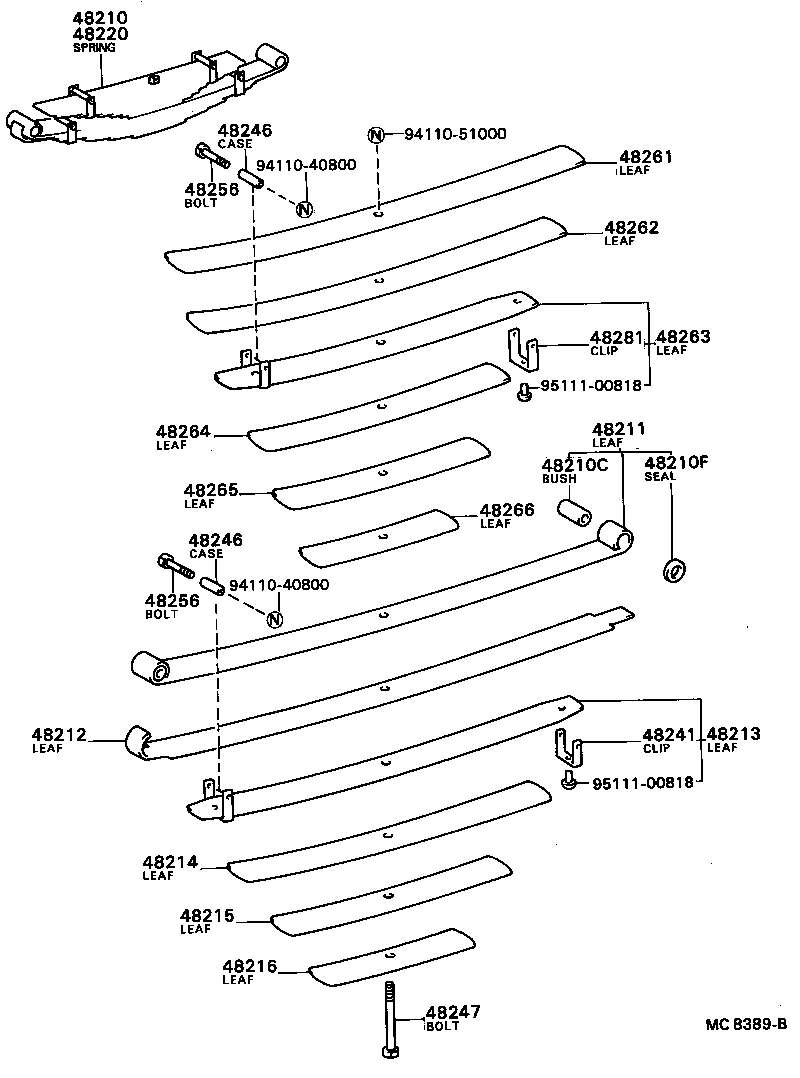

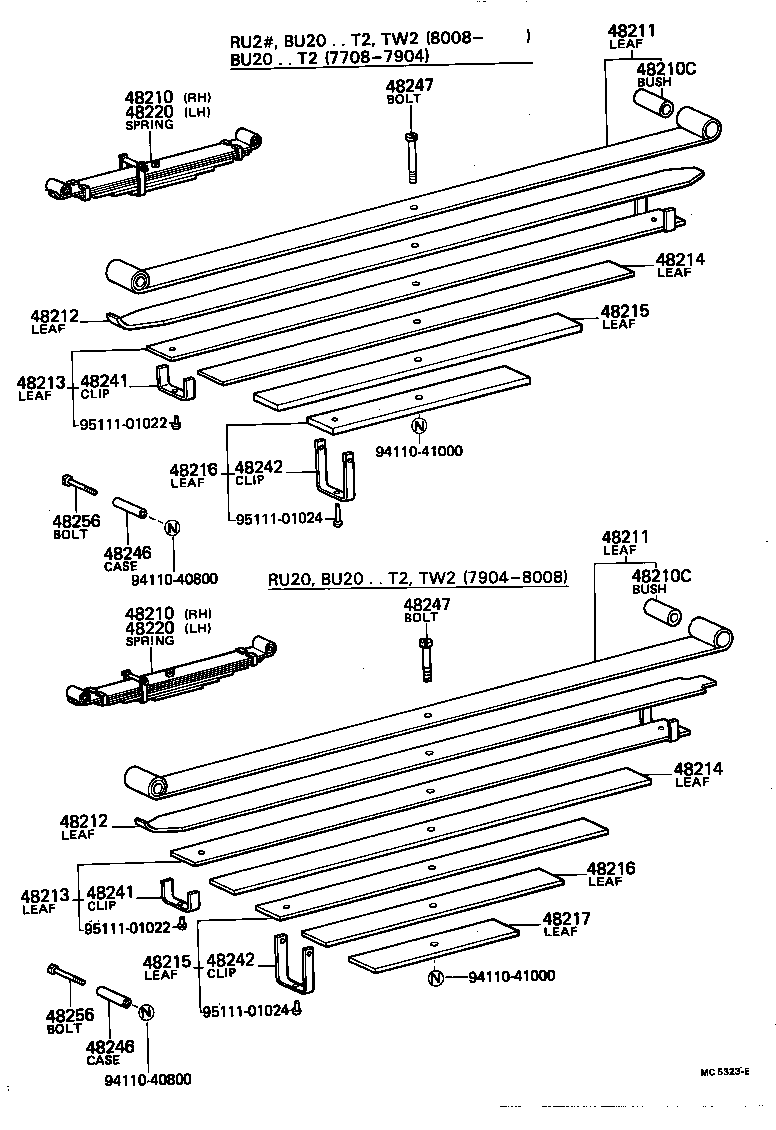

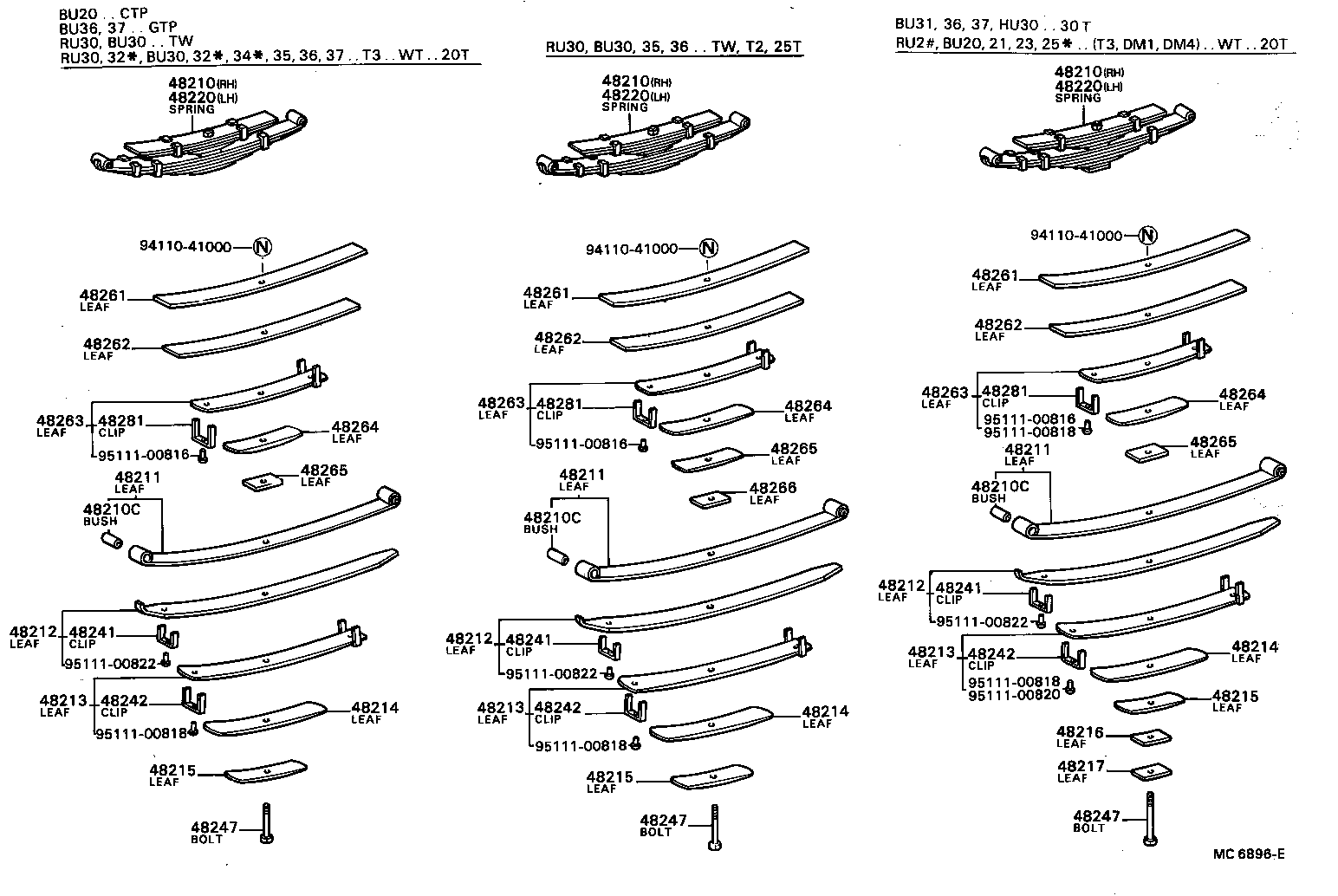

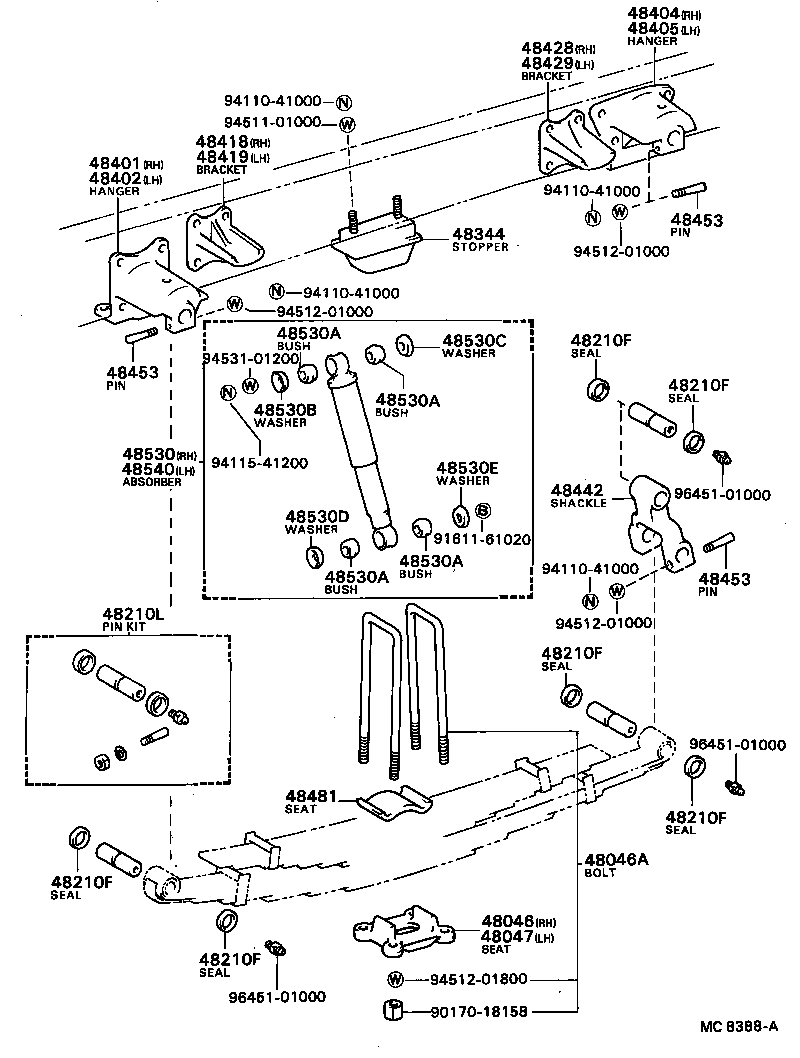

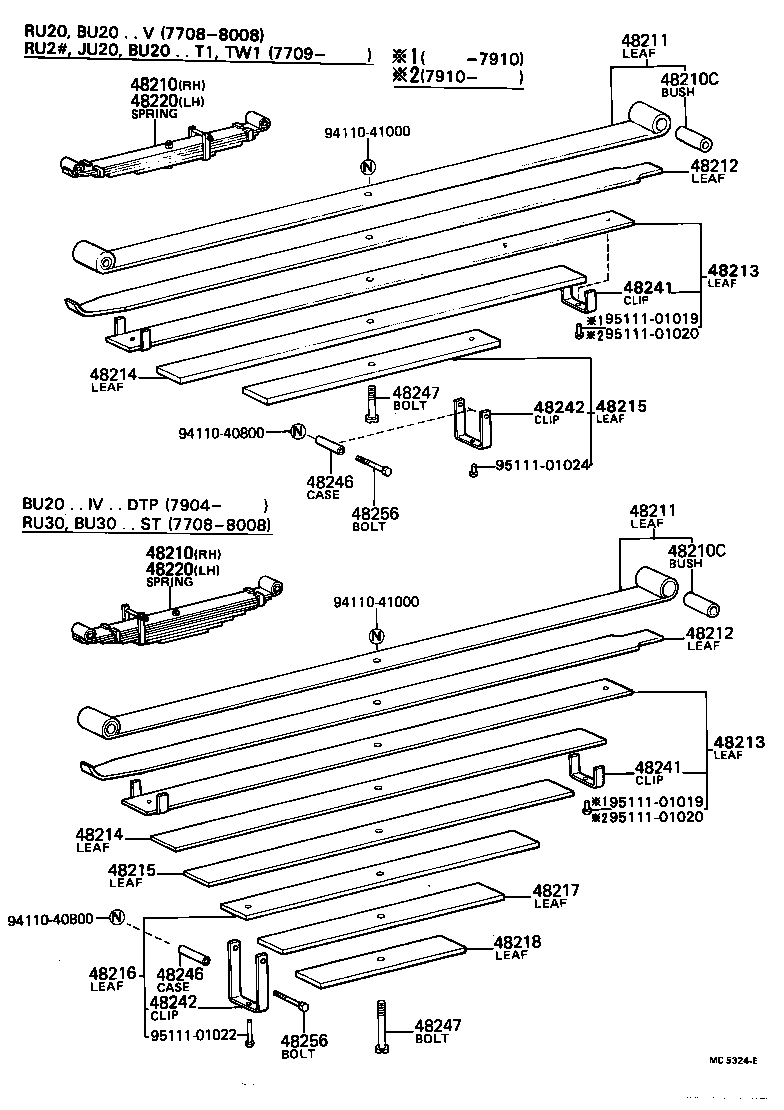

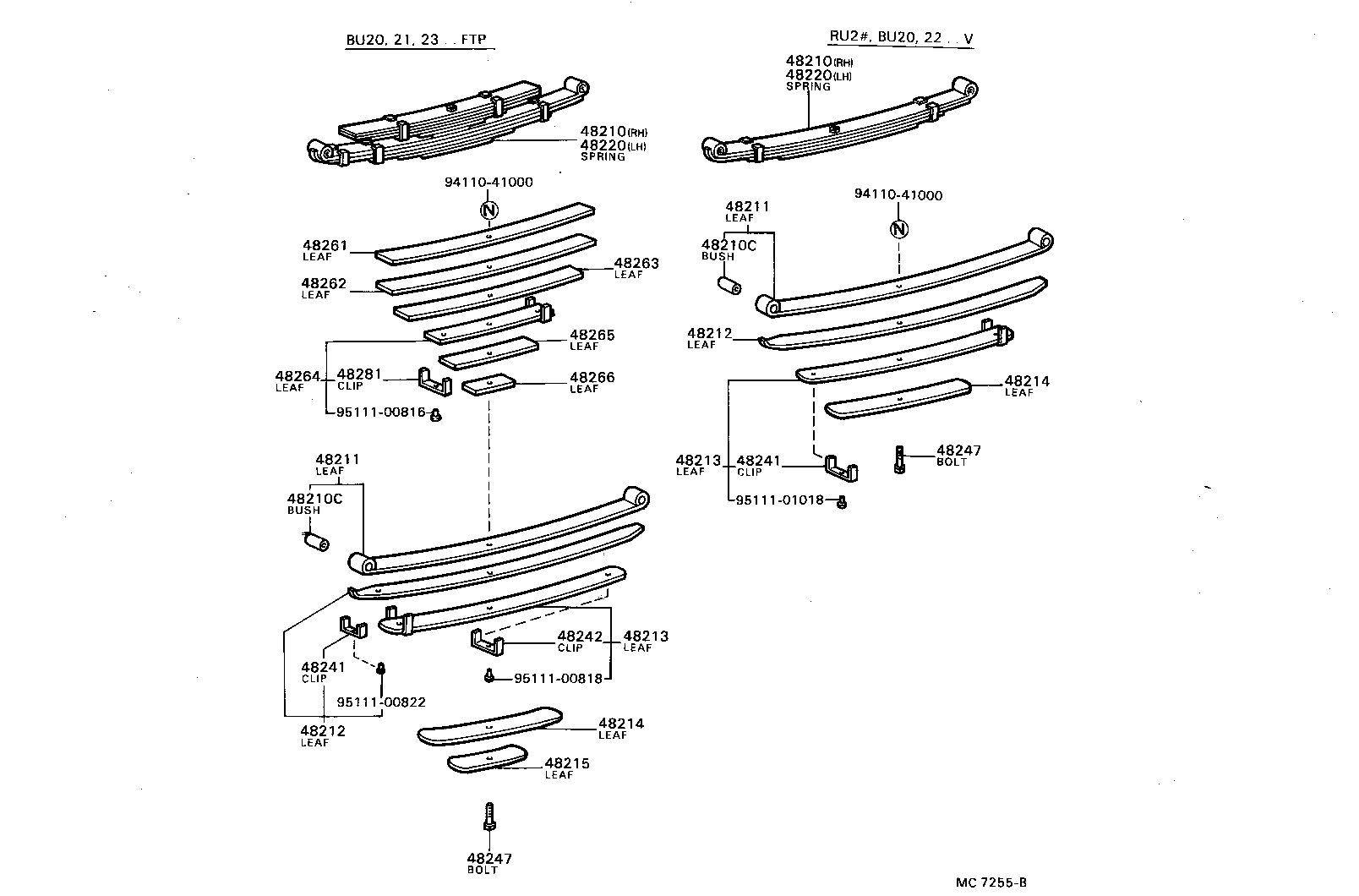

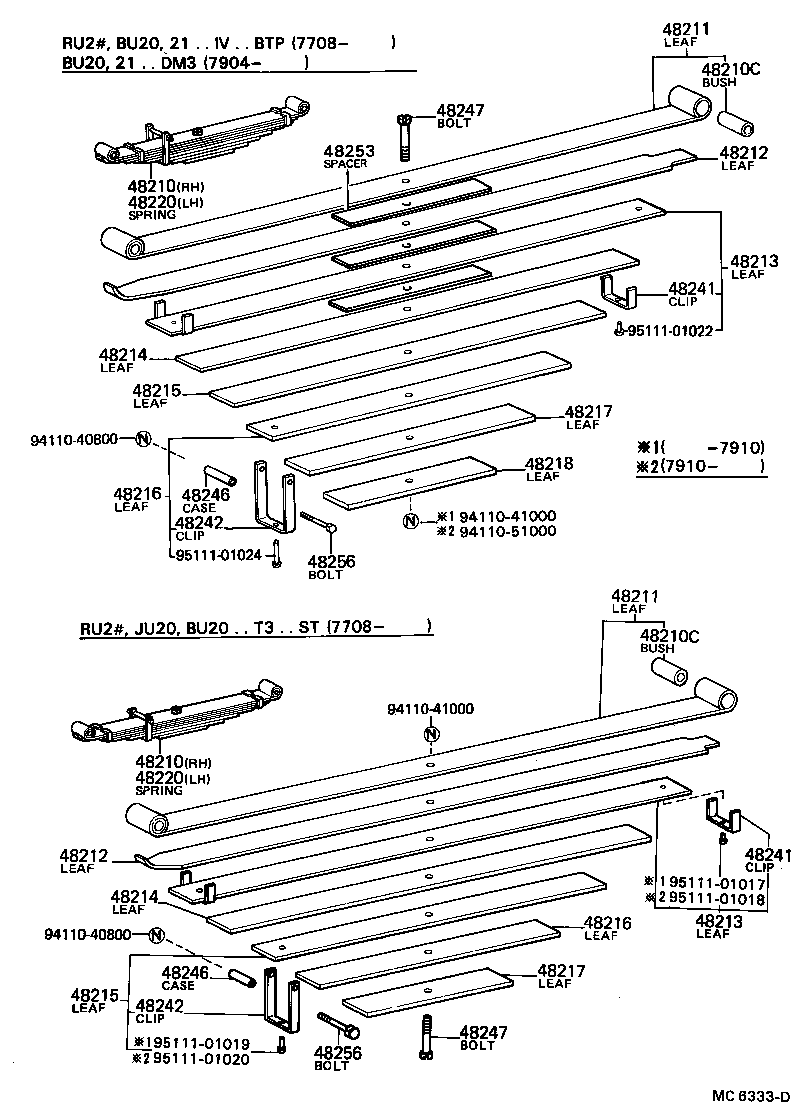

Figure MC5321D MC5321D 1977-08 → — Figure MC5322H MC5322H 1977-08 → — Figure MC5322H MC5322H 1978-03 → — Figure 484278 484278 1977-08 → — Figure 484278 484278 1978-03 → — Figure MC6270 MC6270 1977-08 → — Figure MC6337A MC6337A 1977-08 → — Figure MC6337A MC6337A 1979-04 → — Figure MC8388A MC8388A 1982-04 → — Figure MC5323E MC5323E 1977-08 → — Figure MC6333D MC6333D 1977-08 → — Figure MC6333D MC6333D 1977-08 → — Figure MC5324E MC5324E 1977-08 → 1980-08 Figure MC5324E MC5324E 1977-08 → 1982-04 Figure MC5324E MC5324E 1977-09 → — Figure MC6896E MC6896E 1977-08 → — Figure MC6897C MC6897C 1977-08 → — Figure MC7255B MC7255B 1980-08 → — Figure MC8581 MC8581 1982-04 → — Figure MC8389B MC8389B 1982-04 → —

Part groups

PNCDescription
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210F Seal, Dust(FOR REAR SPRING PIN)
48210L Pin Kit, Rear Spring
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48220 Spring Assy, Rear LH
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48253 Spacer, Rear Spring, NO.1
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48260 Spring Assy, Rear Helper
48261 Leaf, Rear Helper Spring, NO.1
48262 Leaf, Rear Helper Spring, NO.2
48263 Leaf, Rear Helper Spring, NO.3
48264 Leaf, Rear Helper Spring, NO.4
48265 Leaf, Rear Helper Spring, NO.5
48266 Leaf, Rear Helper Spring, NO.6
48267 Leaf, Rear Helper Spring, NO.7
48281 Clip, Rear Helper Spring, NO.1
48306 Bumper Sub-assy, Rear Spring
48343 Bracket, Rear Axle Cushion
48344 Stopper, Bumper, Rear
48345 Plate, Bumper Sub
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48418 Bracket, Helper Spring, Front RH
48419 Bracket, Helper Spring, Front LH
48428 Bracket, Helper Spring, Rear RH
48429 Bracket, Helper Spring, Rear LH
48435 Attachment, Helper Spring Bracket, NO.1
48436 Attachment, Helper Spring Bracket, NO.2
48442 Shackle, Spring, NO.2
48453 Pin, Rear Spring Pin Lock
48475R Plate, Distance(FOR REAR)
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
48542 Pin, Shock Absorber Upper Pivot, Rear
48729 Plate, Lower Control Arm Bolt Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
