Toyota Dyna/Toyoace

1987-08 → 1988-08 · chassis BU6#,7#,8#,9# · catalogue 751140 · Japan

Discontinued model Data version 1989-04

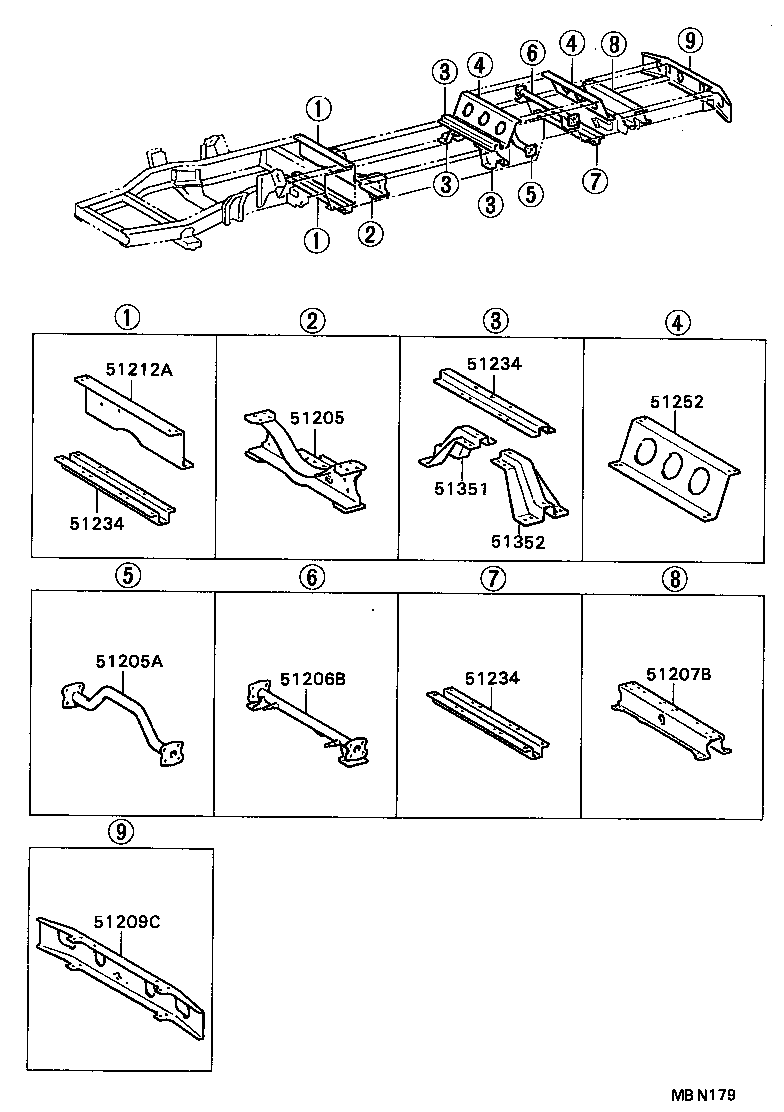

Frame

39 part groups · 4 illustrations

PNC	Description
51025	Member Sub-assy, Engine Front Mounting
51100F	Frame Sub-assy
51141	Reinforcement, Side Rail, RH
51142	Reinforcement, Side Rail, LH
51145	Stiffener, Frame Side Rail
51155	Stiffener, Frame Side Rail, Rear RH
51156	Stiffener, Frame Side Rail, Rear LH
51201A	Crossmember Sub-assy, Frame, Front
51203	Crossmember Sub-assy, Frame, NO.2
51204	Crossmember Sub-assy, Frame, NO.3
51205	Crossmember Sub-assy, Frame, NO.4
51205A	Bracket Sub-assy, Differential Support
51206B	Crossmember Sub-assy, Frame, NO.6
51207B	Crossmember Sub-assy, Frame, NO.7
51209C	Crossmember Sub-assy, Frame, Rear
51212A	Crossmember, Frame, Front NO.2
51234	Crossmember, Frame Auxiliary
51252	Member, Rear Suspension, Rear
51351	Gusset, Crossmember, NO.5 RH
51352	Gusset, Crossmember, NO.5 LH
51401	Bracket Sub-assy, Engine Front Mounting, RH
51402	Bracket Sub-assy, Engine Front Mounting, LH
51701	Bracket Sub-assy, Cab Mounting, NO.1 RH
51702	Bracket Sub-assy, Cab Mounting, NO.1 LH
51703	Bracket Sub-assy, Cab Mounting, NO.2, RH
51704	Bracket Sub-assy, Cab Mounting, NO.2 LH
51721	Bracket, Cab Front Mounting, RH
51722	Bracket, Cab Front Mounting, LH
51731	Bracket, Cab Rear Mounting, RH
51732	Bracket, Cab Rear Mounting, LH
51741	Bracket, Rear Body Mounting, NO.1
51751	Bracket, Body Support, NO.1
51767A	Bracket, Frame Body Mounting, NO.8 RH
51768A	Bracket, Frame Body Mounting, NO.8 LH
51769	Bracket, Body Rear End Mounting
65289A	Support, Vessel Hinge
66358	Plate, Frame End
75133	Base, Combination Rear Lamp Bracket, RH
75134	Base, Combination Rear Lamp Bracket, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
