Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan
Discontinued model
Data version 1995-11

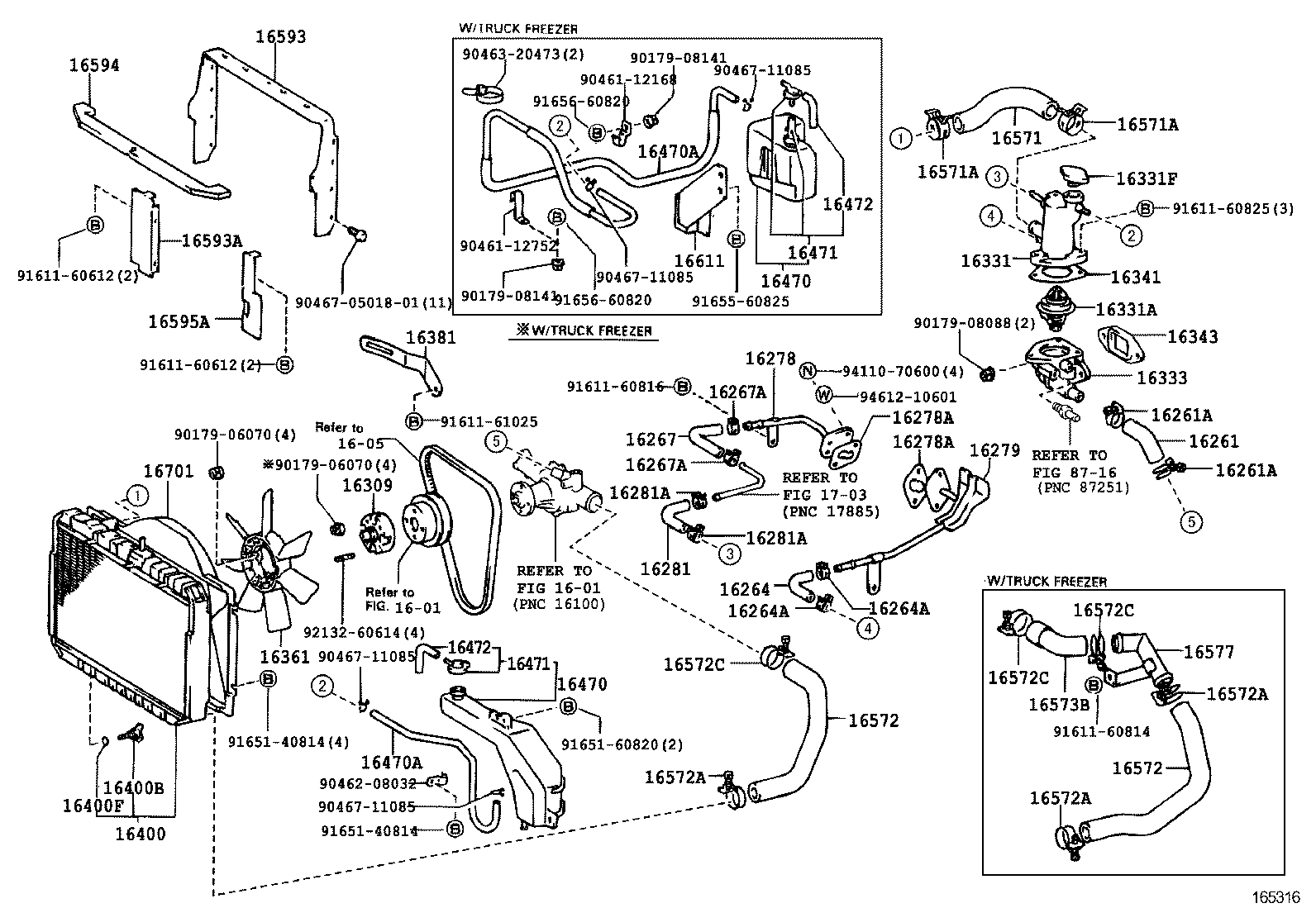

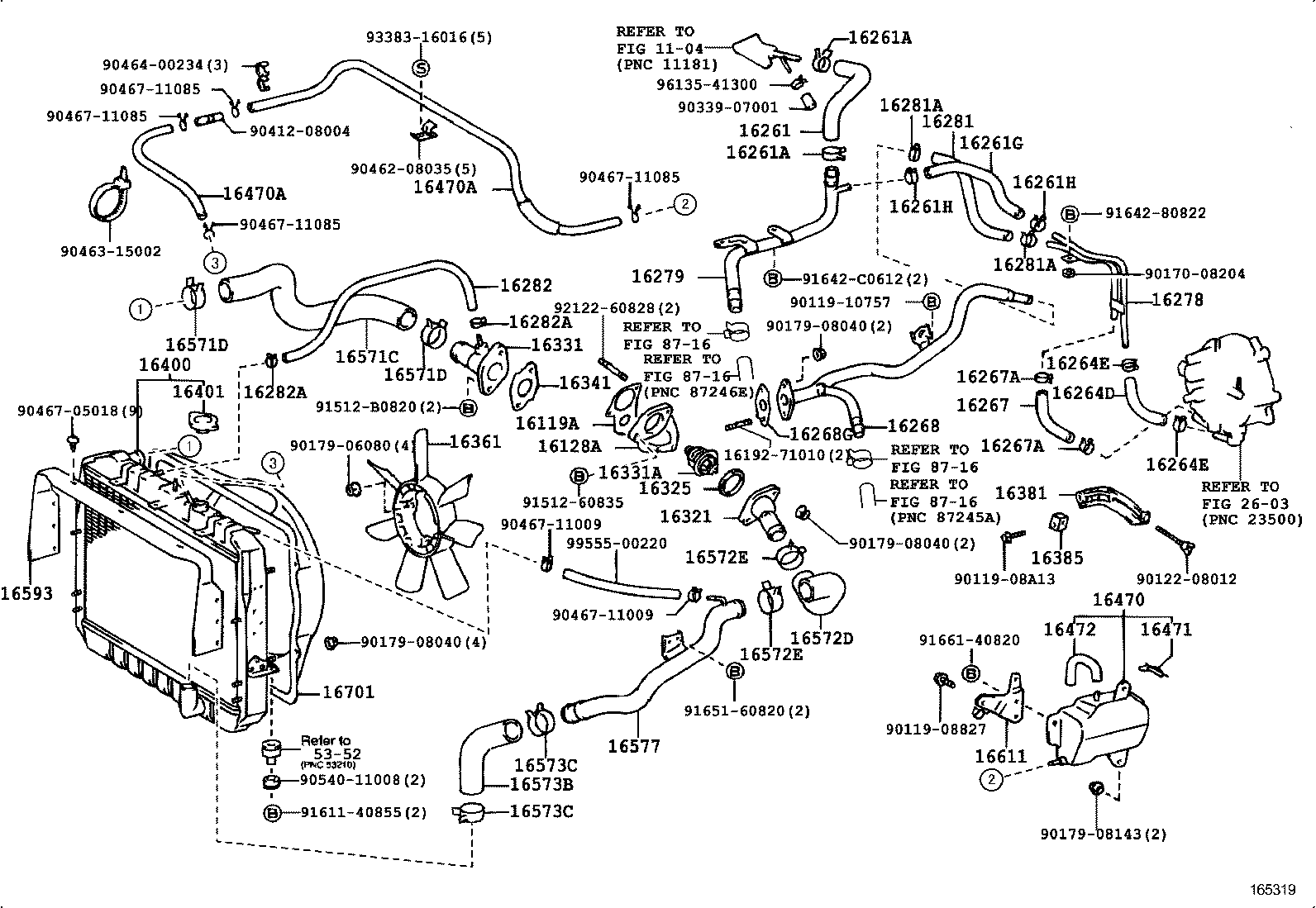

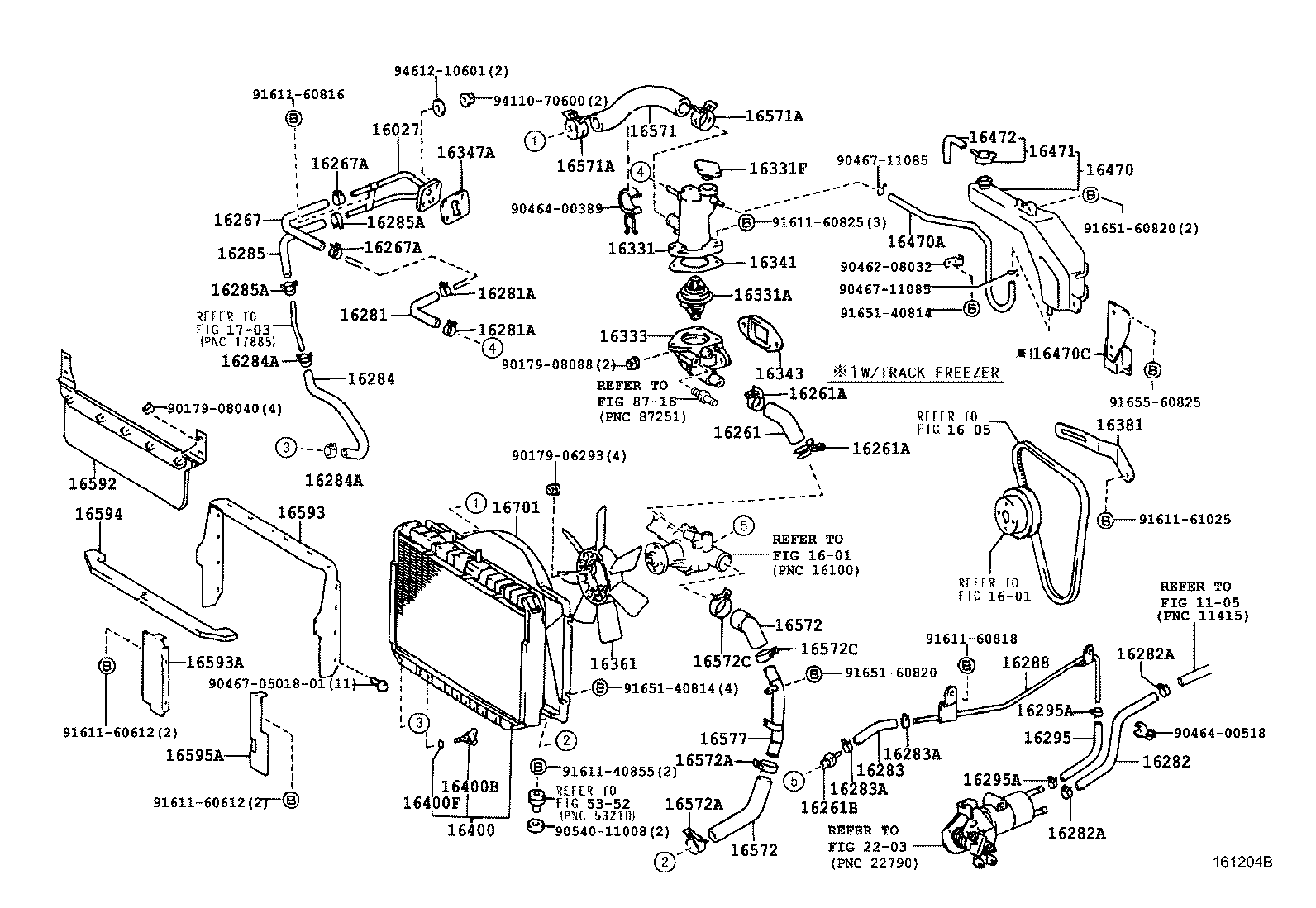

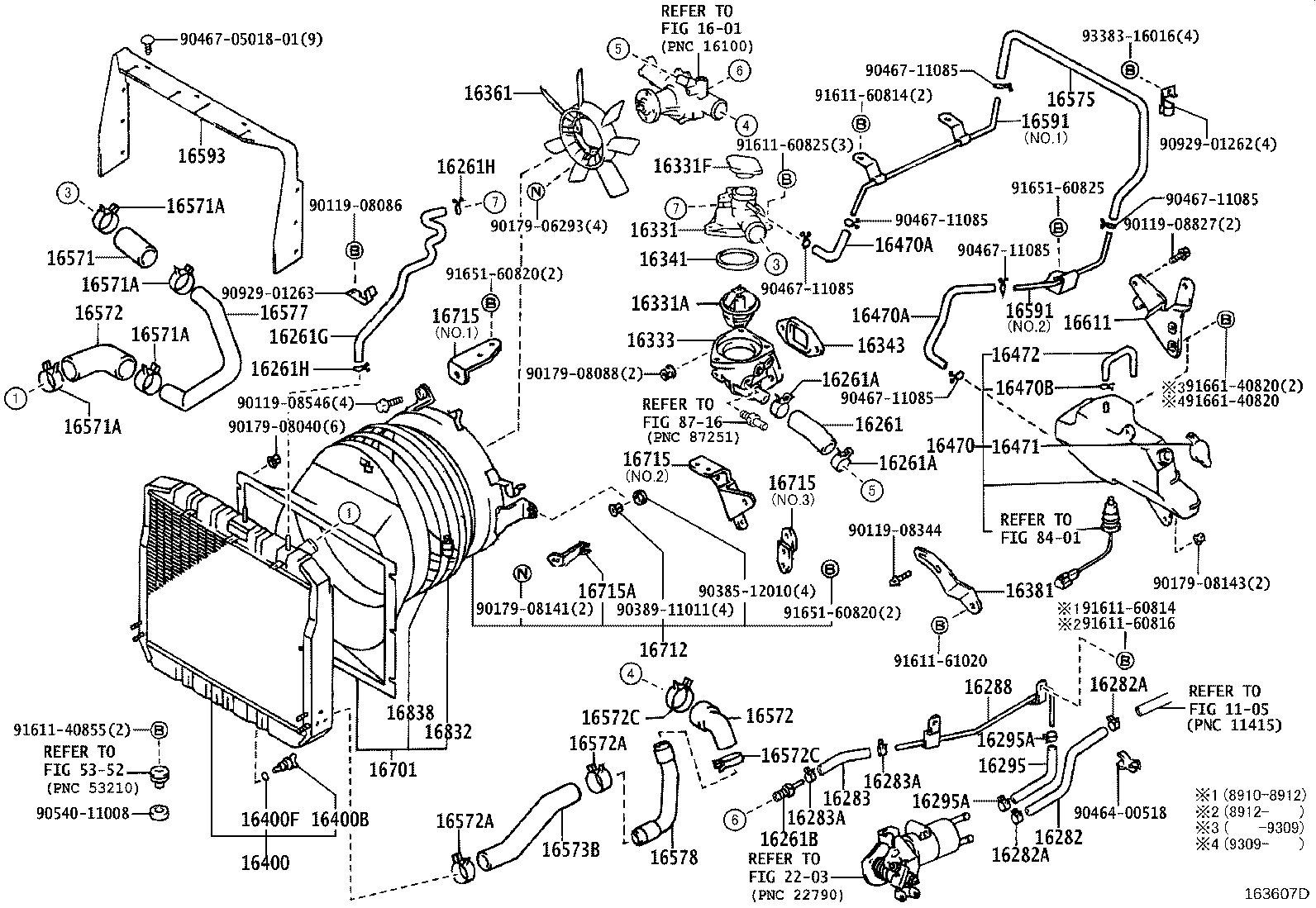

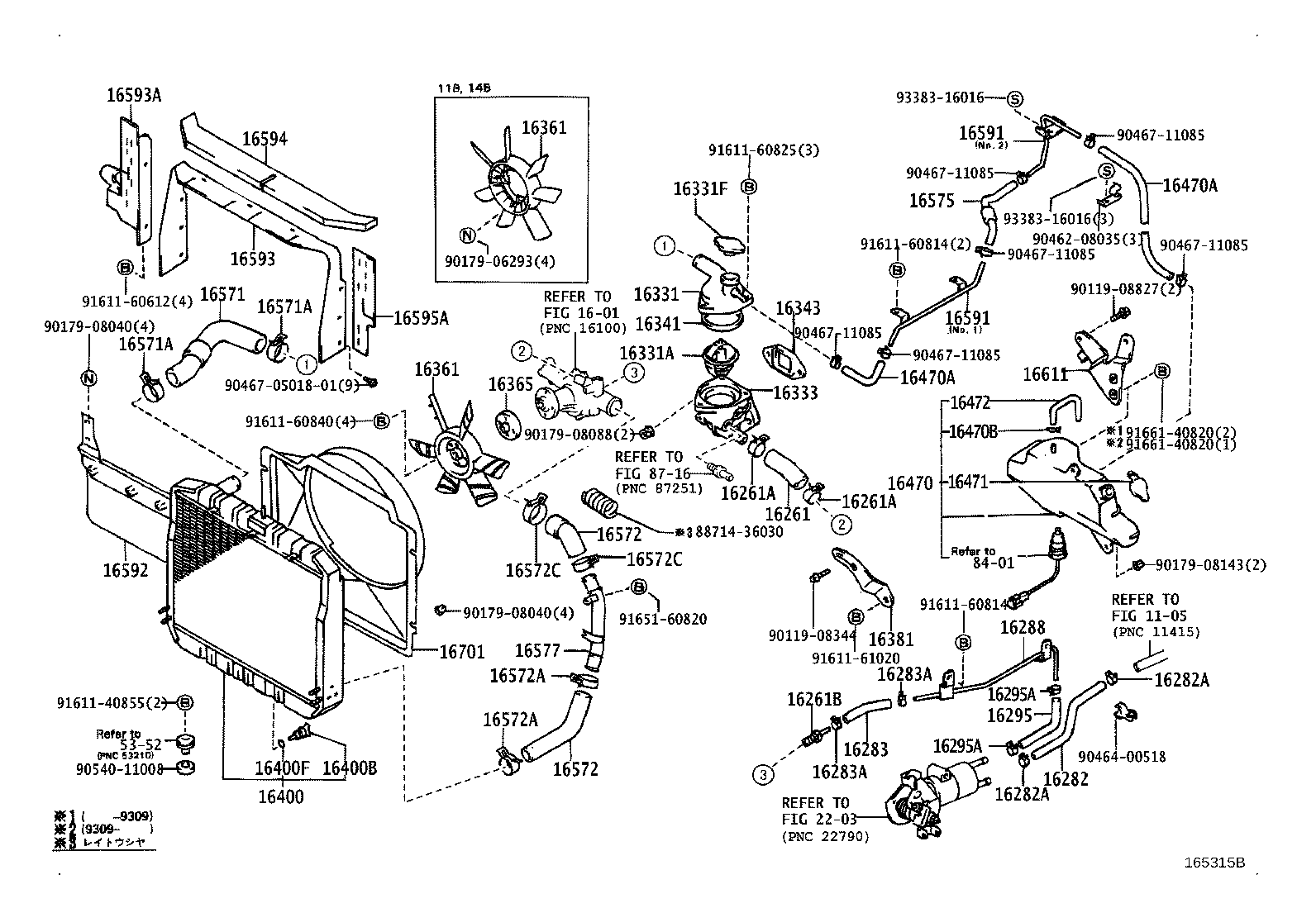

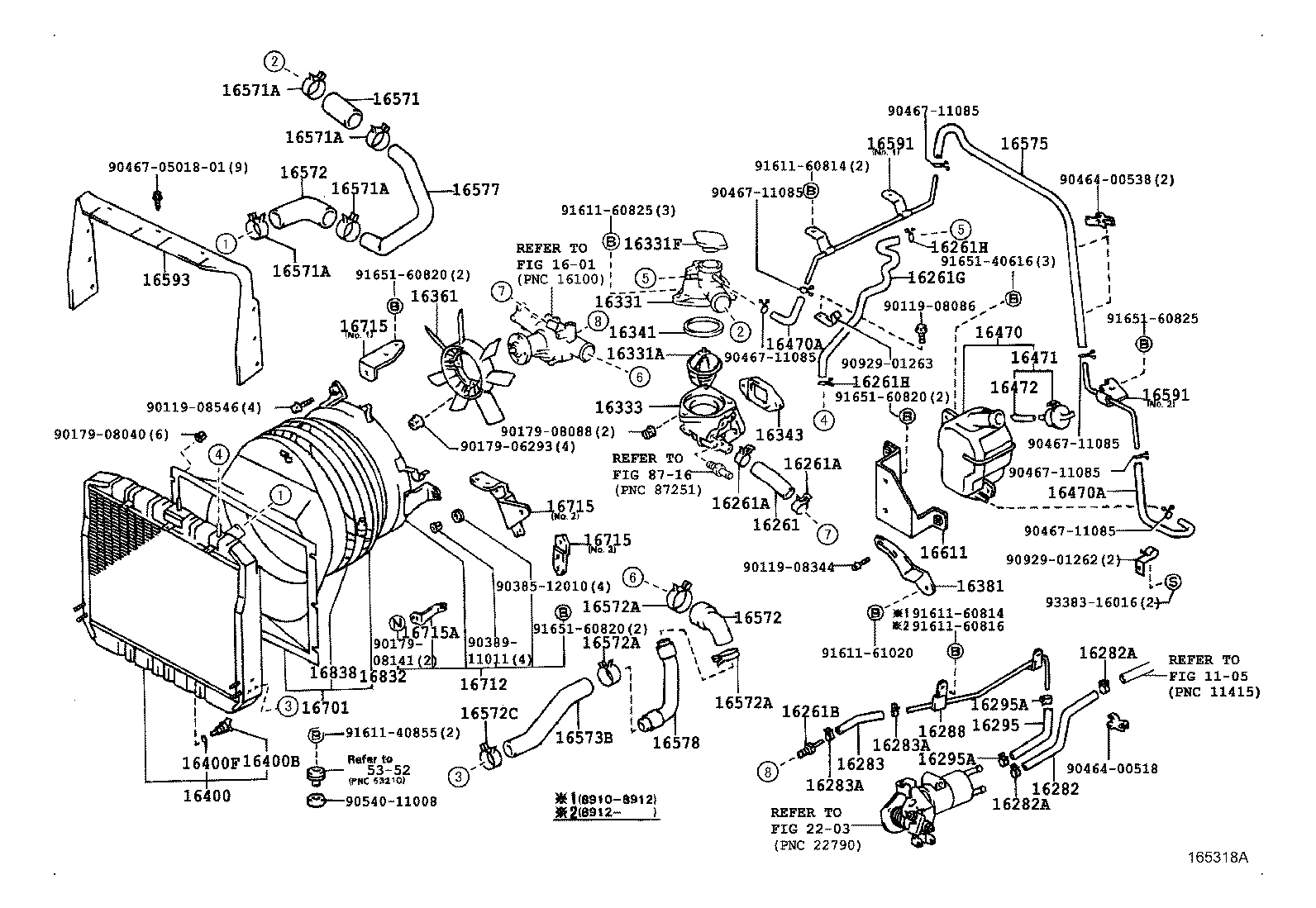

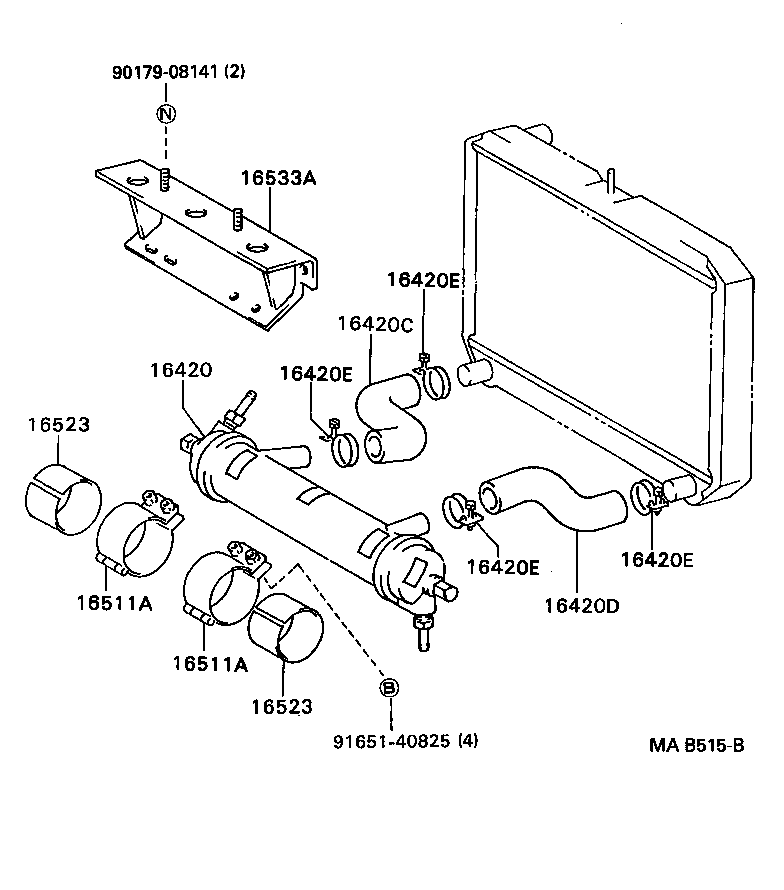

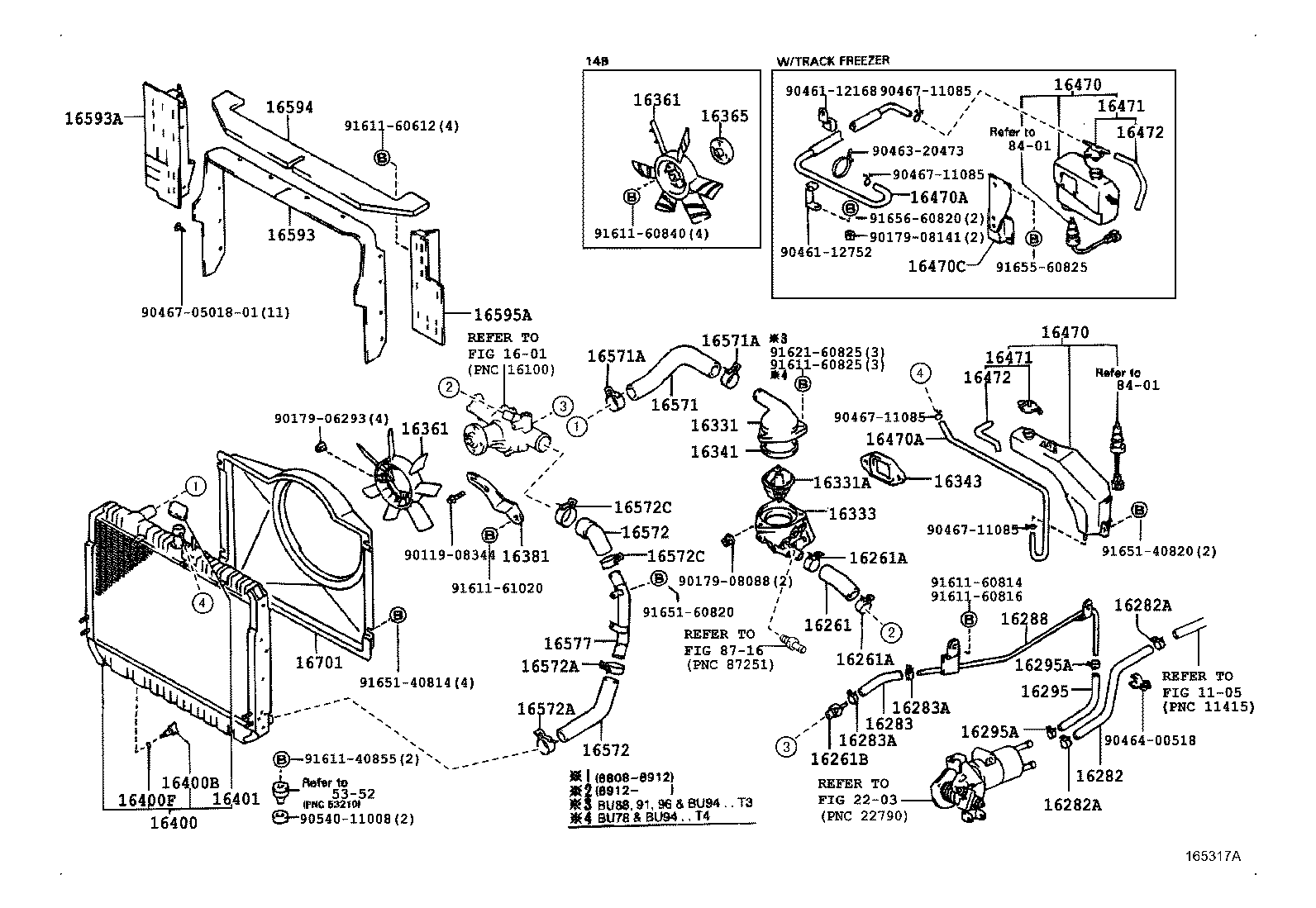

Radiator & Water Outlet
91 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16119A | Gasket, Thermostat Guide |
| 16128A | Plate, Water Pump Thermostat Guide |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268G | Gasket(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278A | Gasket, Water By-pass |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16288 | Pipe, Water By-pass, NO.4 |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16309 | Shaft Sub-assy, Fan Drive |
| 16321 | Inlet, Water |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331F | Cap Sub-assy(FOR WATER OUTLET) |
| 16333 | Housing, Water Outlet |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16347A | Gasket(FOR TURBO WATER PIPE) |
| 16361 | Fan |
| 16365 | Spacer, Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16420 | Radiator Assy, Sub |
| 16420C | Hose, Sub Radiator, NO.1 |
| 16420D | Hose, Sub Radiator, NO.2 |
| 16420E | Clamp OR Clip, Sub Radiator Hose |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470C | Bracket(FOR RADIATOR RESERVE TANK) |
| 16470E | Grommet, Radiator Reserve Tank Hose |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16511A | Bracket, Sub-radiator |
| 16523 | Cushion, Sub-radiator Support |
| 16533A | Support, Sub-radiator |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572C | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16575 | Hose, Radiator, NO.5 |
| 16577 | Pipe, Radiator, NO.7 |
| 16578 | Pipe, Radiator, NO.2 |
| 16591 | Pipe, Radiator |
| 16592 | Guide, Radiator Air, NO.3 |
| 16593 | Guide, Radiator Air, NO.1 |
| 16593A | Guide, Radiator Air, NO.1 RH |
| 16594 | Guide, Radiator Air, NO.2 |
| 16595A | Guide, Radiator Air, NO.1 LH |
| 16611 | Bracket, Radiator Reserve Tank |
| 16701 | Shroud Sub-assy, Fan |
| 16712 | Shroud, Fan, NO.2 |
| 16715 | Bracket, Fan Shroud |
| 16715A | Bracket, Fan Shroud, NO.2 |
| 16832 | Seal, Fan Shroud |
| 16838 | Clamp, Fan Shroud |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
