Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Case & Gear

125 part groups · 13 illustrations

Illustrations

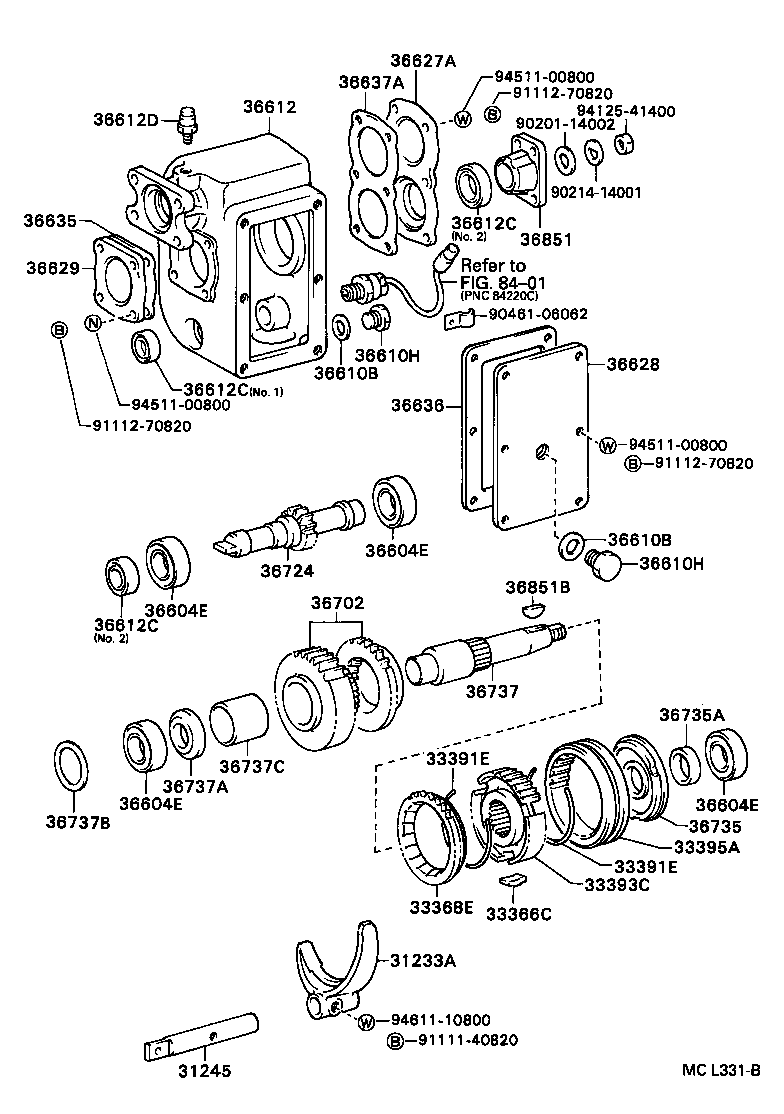

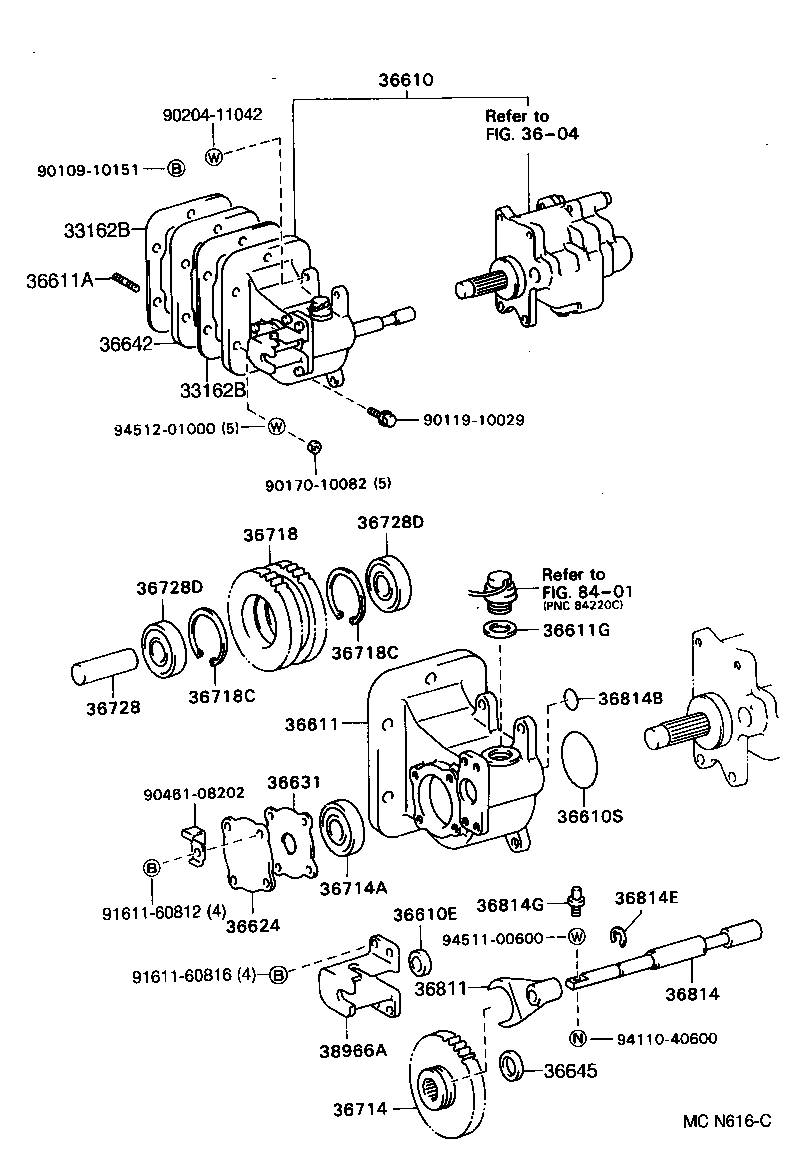

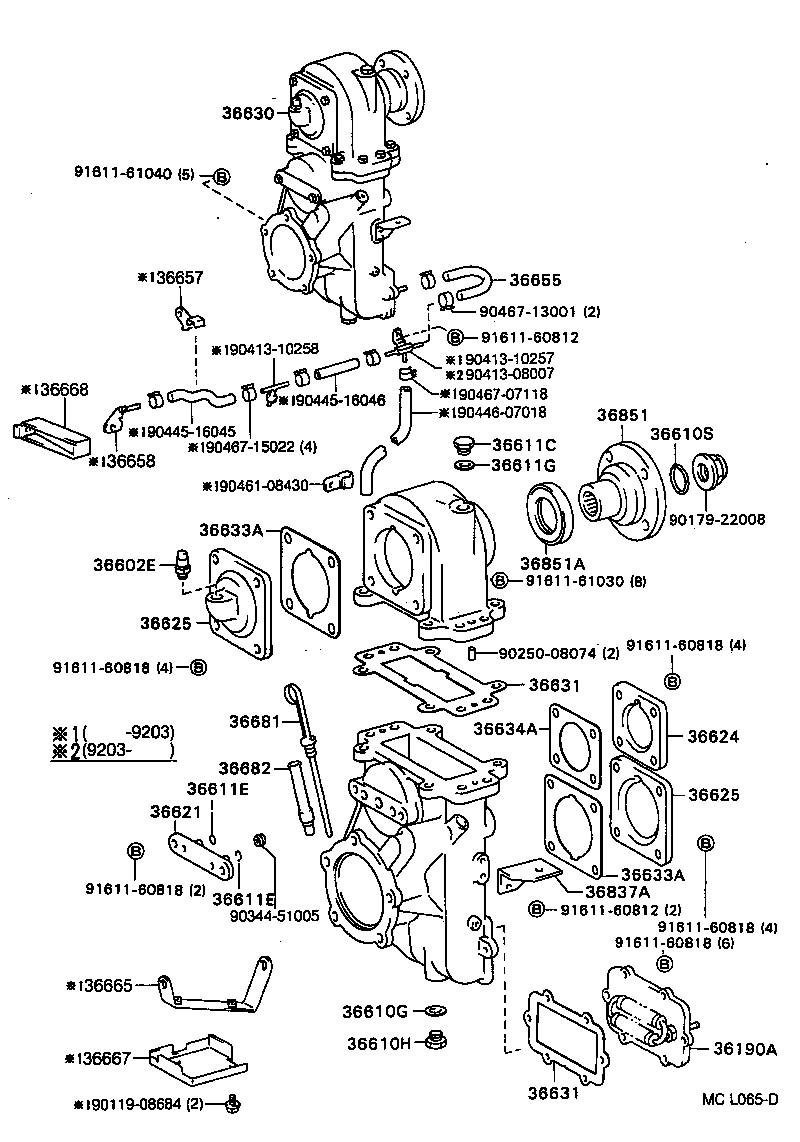

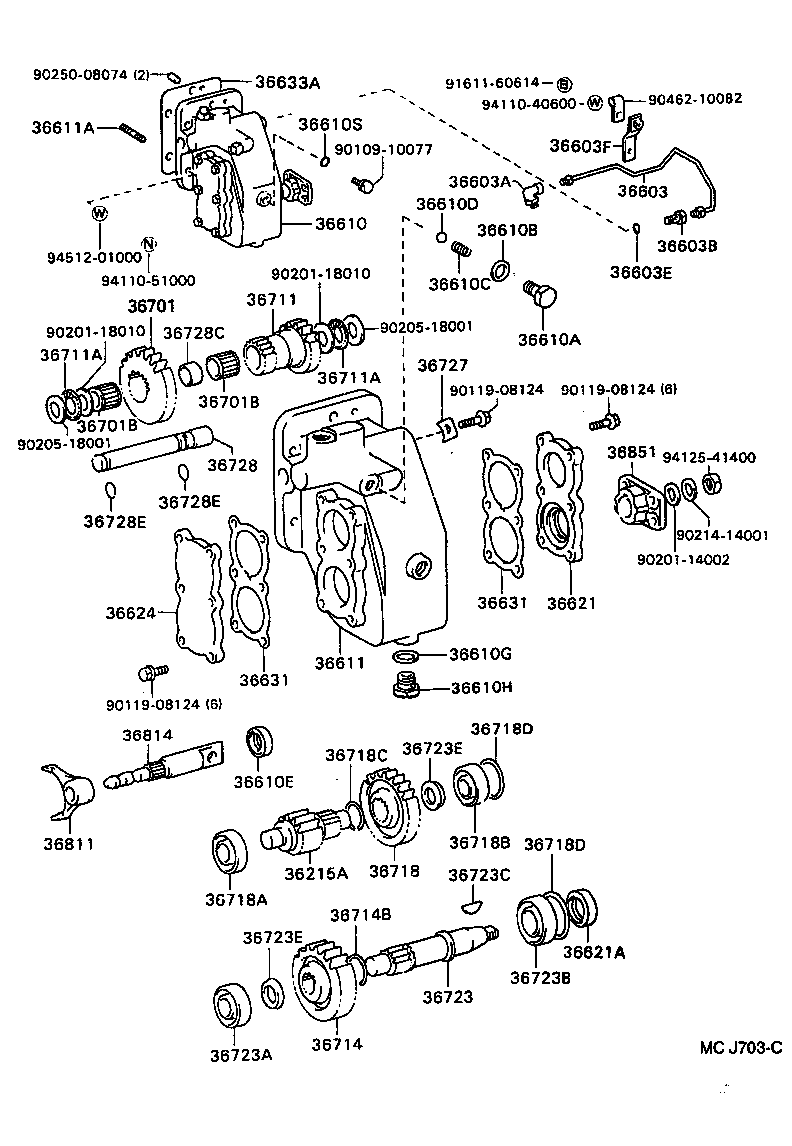

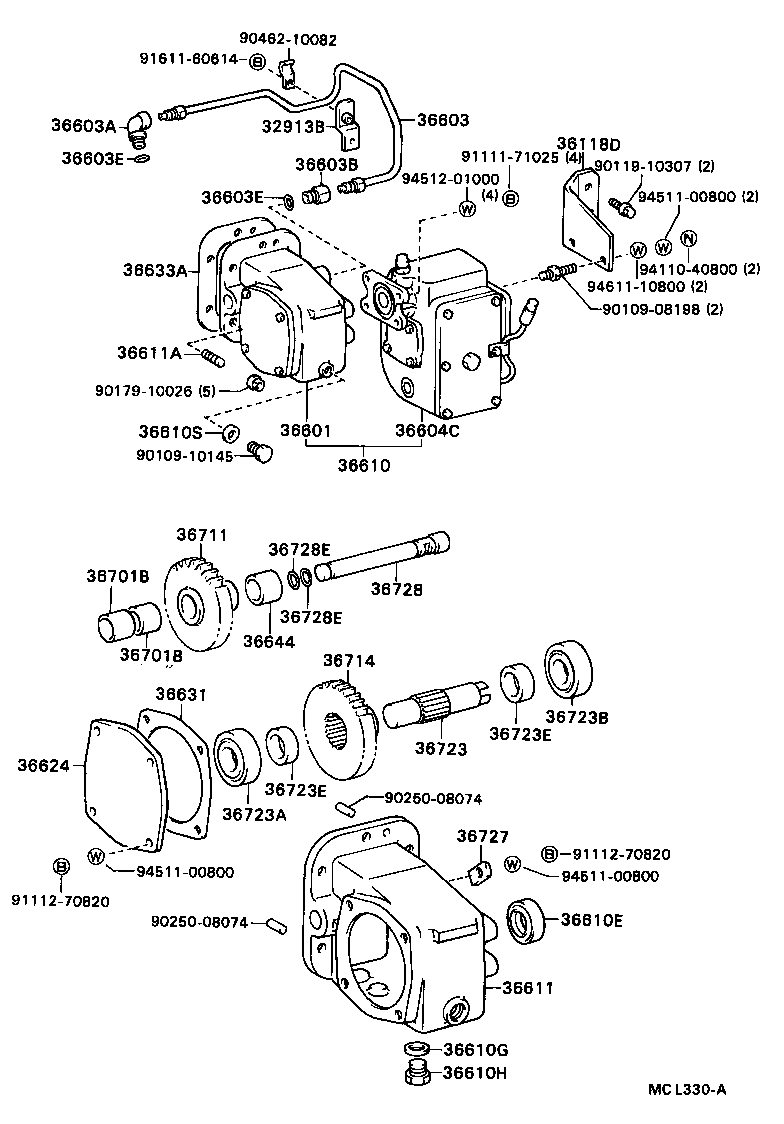

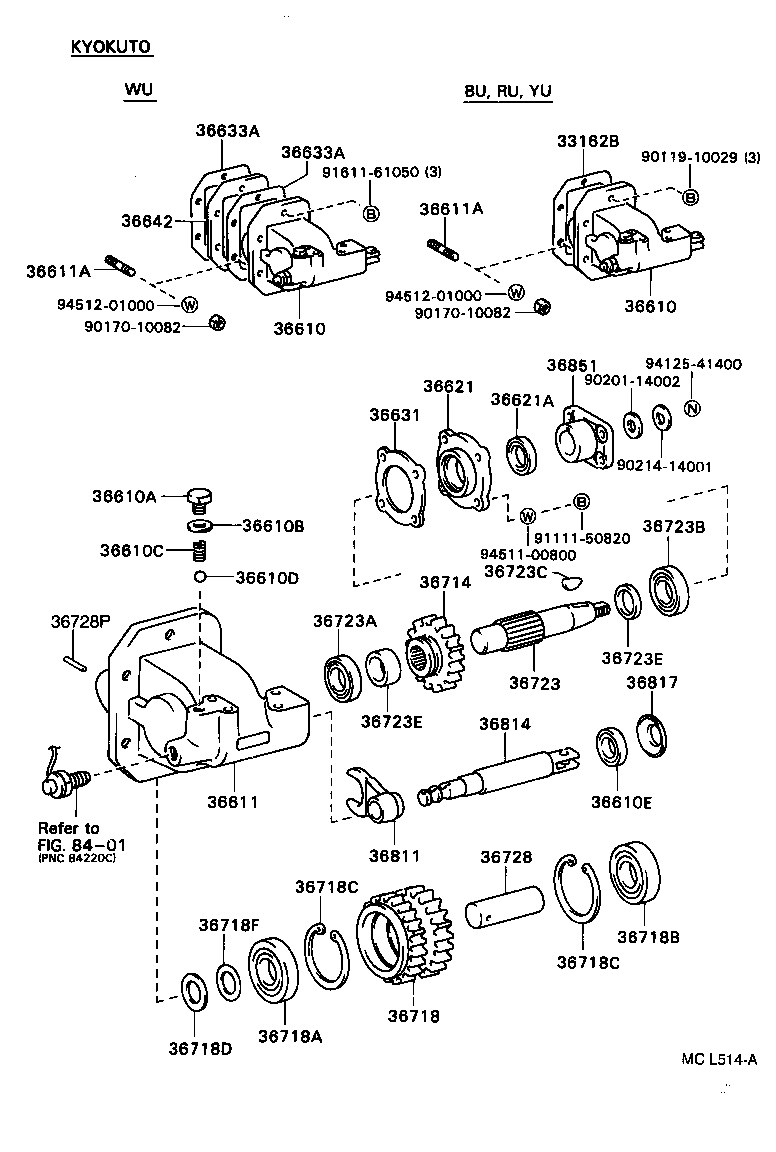

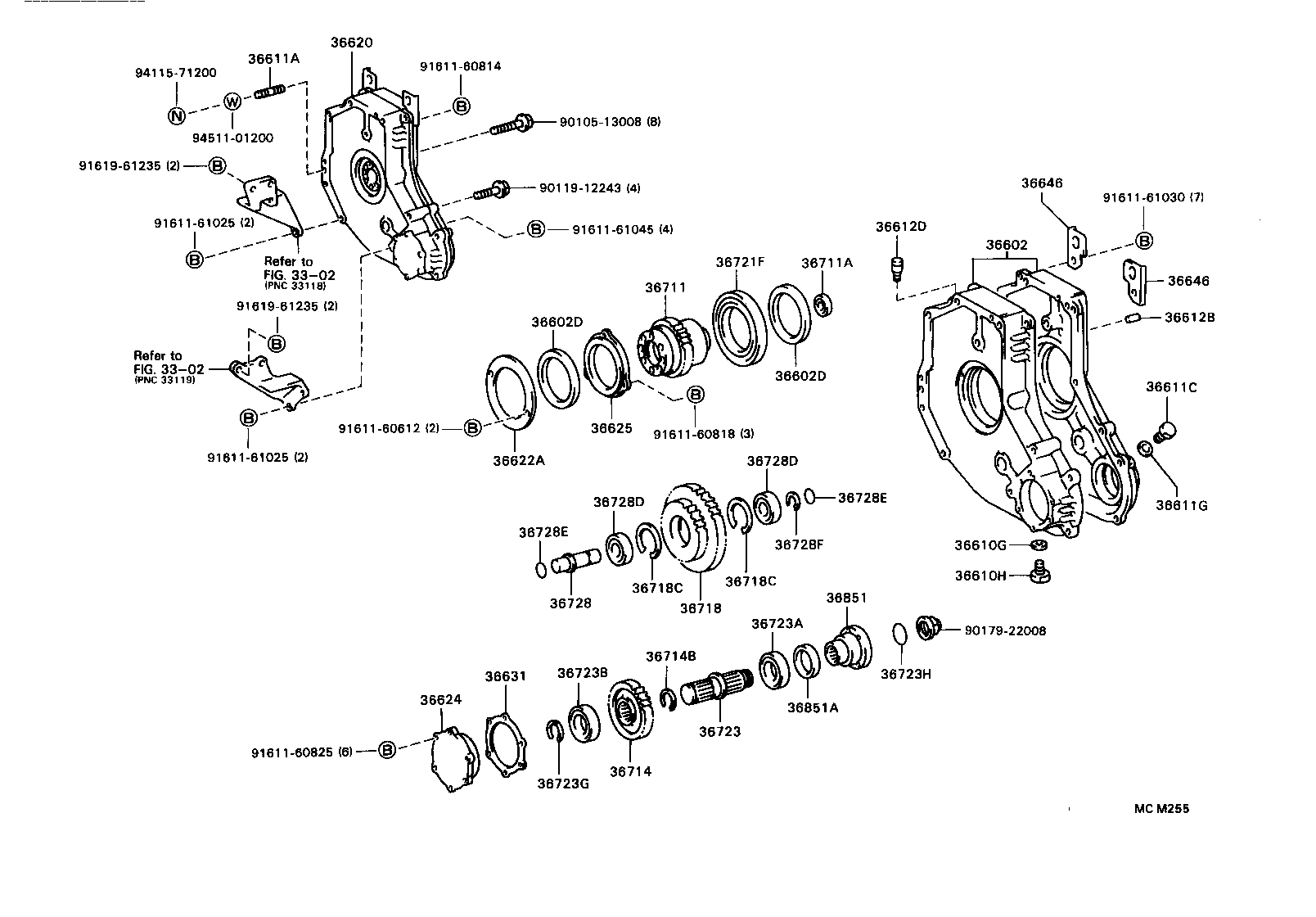

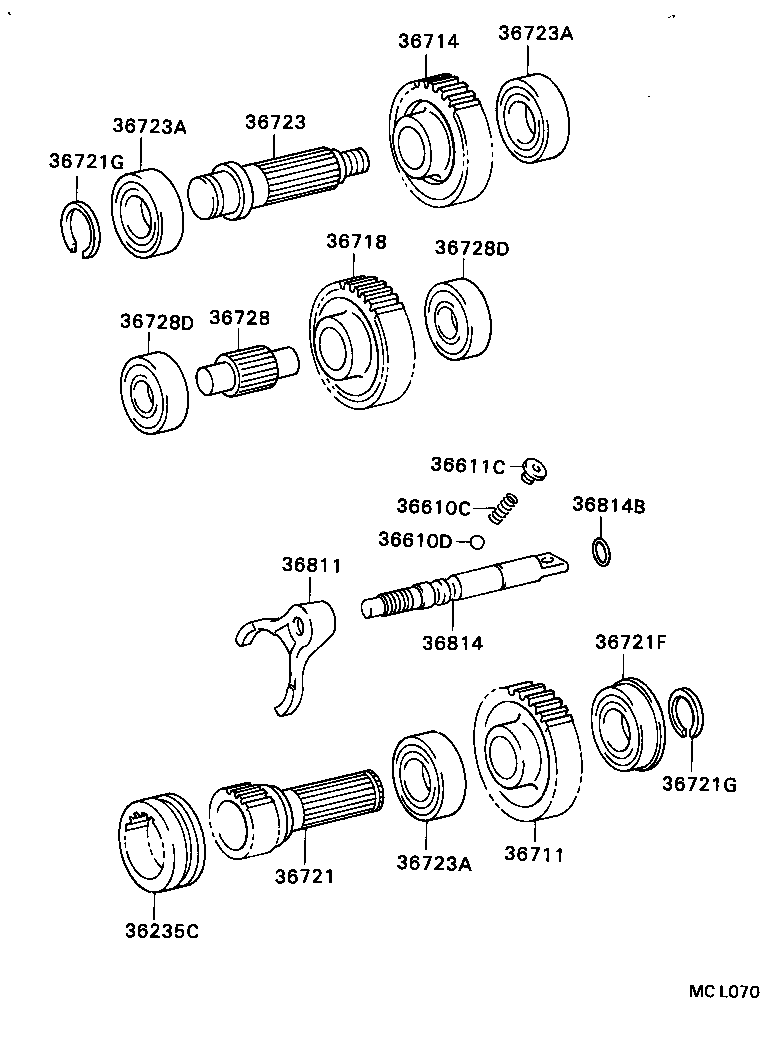

Figure MCF261C MCF261C 1988-08 → 1991-09 Figure MCF261C MCF261C 1989-10 → 1991-09 Figure MCF261C MCF261C 1991-09 → — Figure MCN616C MCN616C 1991-09 → — Figure MCJ703C MCJ703C 1988-08 → 1990-08 Figure MCJ703C MCJ703C 1988-08 → — Figure MCL330A MCL330A 1990-08 → — Figure MCL331B MCL331B 1990-08 → — Figure MCF263A MCF263A 1988-08 → — Figure MCL514A MCL514A 1988-08 → — Figure MCL065D MCL065D 1990-05 → — Figure MCL070 MCL070 1990-05 → — Figure MCM255 MCM255 1991-09 → —

Part groups

PNCDescription
31233A Fork, Power Take-off Clutch Release
31245 Shaft, Power Take-off Clutch Release Fork
32913B Bracket, Transmission Oil Cooler, NO.2
33162B Gasket, Power Take-off Cover
33366C Key, Power Take-off SYNCHR0MESH Shifting
33368E Ring, Power Take-off SYNCHR0NIZER
33391E Spring, Power Take-off Synchromesh Shifting Key
33393C Hub, Power Take-off Clutch
33395A Sleeve, Power Take-off Hub
36118D Bracket, Power Take-off
36190A Cooler Assy, Transfer Oil
36215A Gear, Power Take-off Drive
36235C Sleeve, Transfer High & Low Clutch
36601 Power TAKE-0FF Sub-assy
36602 Case Sub-assy, Center Power Take-off
36602C Union (FOR CENTER POWER TAKE-OFF CASE)
36602D Seal, Oil (FOR CENTER POWER TAKE-OFF CASE)
36602E Plug, Breather (FOR CENTER POWER TAKE-OFF CASE)
36603 Tube Sub-assy, Power Take-off Lubrication
36603A Elbow (FOR POWER TAKE-OFF LUBRICATION TUBE)
36603B Union (FOR POWER TAKE-OFF LUBRICATION TUBE)
36603E Ring, O (FOR POWER TAKE-OFF LUBRICATION TUBE)
36603F Bracket, Power Take-off Lubrication Tube
36604C Clutch Sub-assy, Power Take-off
36604E Bearing (FOR POWER TAKE-0FF CLUTCH SUB-ASSY)
36610 Power Take-off Assy
36610A Bolt, Lock Ball (FOR POWER TAKE-OFF)
36610B Gasket, Seat (FOR POWER TAKE-OFF)
36610C Spring, Gear Shift Fork Lock Ball (FOR POWER TAKE-OFF)
36610D Ball, Gear Shift Fork Lock (FOR POWER TAKE-OFF)
36610E Seal, Oil (FOR POWER TAKE-OFF)
36610G Gasket (FOR FRONT POWER TAKE-OFF DRAIN)
36610H Plug (FOR FRONT POWER TAKE-OFF DRAIN)
36610S Ring, O (FOR POWER TAKE-OFF)
36611 Case, Power Take-off
36611A Bolt, Stud (FOR POWER TAKE-OFF CASE)
36611C Plug, W/Head Straight Screw (FOR POWER TAKE-OFF CACE)
36611E Ring,O(FOR POWER TAKE-OFF CASE)
36611G Gasket (FOR POWER TAKE-OFF CASE PLUG)
36612 Case, Power Take-off Rear
36612B Pin, Straight (FOR POWER TAKE-OFF COVER)
36612C Seal, Type T Oil (FOR POWER TAKE-OFF COVER)
36612D Plug, Breather (FOR POWER TAKE-OFF COVER)
36620 Power Take-off Assy, Center
36621 Retainer, Power Take-off Bearing
36621A Seal, Oil (FOR POWER TAKE-OFF BEARING RETAINER)
36622A Cover, Power Take-off
36624 Cap, Power Take-off Bearing
36625 Cover, Power Take-off Bearing
36627 Cover, Center Powr Take-off Water Inlet
36627A C0VER, Power Take-off Clutch, NO.1
36628 C0VER, Power Take-off Clutch, NO.2
36629 Cover, Power Take-off Clutch, NO.3
36630 Power Take-off Assy, RR
36631 Gasket, Power Take-off Bearing Retainer
36633A Gasket, Power Take-off Cover
36634A Gasket, Power Take-off Cover, NO.2
36635 Gasket, Power Take-off Clutch, NO.1
36636 Gasket, Power Take-off Clutch, NO.2
36637 Gasket, Center Power Take-off, RR
36637A Gasket, Power Take-off Clutch, NO.3
36642 Spacer, Power Take-off Cover
36644 Spacer, Power Take-off Input Shaft
36645 Spacer, Power Take-off Output Shaft
36646 Plate, Power Take-off Hanger
36655 Hose, Power Take-off Oil Cooler
36657 Clamp,Power Take-off Oil Cooler,NO.1
36658 Clamp, Power Take-off Oil Cooler, NO.2
36665 Stay, Power Take-off Oil Cooler
36667 Cover,Power Take-off Oil Cooler,NO.1
36668 Cover, Power Take-off Oil Cooler, NO.2
36681 Gage, Power Take-off Oil Level
36682 Tube, Power Take-off Oil Level Gage
36701 Gear Sub-assy, Power Take-off Input
36701B Bearing (FOR POWER TAKE-OFF INPUT GEAR)
36702 Gear Sub-assy, Power Take-off Output
36711 Gear, Power Take-off Input
36711A Bearing (FOR POWER TAKE-OFF INPUT GEAR)
36714 Gear, Power Take-off Output
36714A Bearing (FOR POWER TAKE-OFF OUTPUT GEAR)
36714B Ring (FOR POWER TAKE-OFF OUTPUT GEAR)
36718 Gear, Power Take-off Idler
36718A Bearing(FOR POWER TAKE-OFF IDLER GEAR FRONT)
36718B Bearing(FOR POWER TAKE-OFF IDLER GEAR REAR)
36718C Ring, Hole Snap(FOR POWER TAKE-OFF IDLER GEAR)
36718D Spacer(FOR POWER TAKE-OFF IDLER GEAR)
36718F Spacer, Power Take-off Bearing Retainer
36721 Shaft, Power Take-off Input Gear
36721F Bearing (FOR POWER TAKE-OFF INPUT SHAFT)
36721G Ring, Shaft Snap (FOR POWER TAKE-OFF INPUT SHAFT)
36721H Ring, O (FOR POWER TAKE-OFF INPUT SHAFT)
36723 Shaft, Power Take-off Output, NO.1
36723A Bearing (FOR OUTPUT SHAFT FRONT)
36723B Bearing (FOR OUTPUT SHAFT REAR)
36723C Key, Woodruff (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723E Spacer (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)
36723G Ring, Shaft Snap (FOR OUTPUT SHAFT REAR BEARING)
36723H Ring, O (FOR POWER TAKE-OFF OUTPUT SHAFT)
36724 Shaft, Power Take-off, Clutch
36727 Stopper, Power Take-off Input Shaft
36728 Shaft, Power Take-off Idler
36728C Coller (FOR POWER TAKE-OFF IDLER SHAFT)
36728D Bearing (FOR POWER TAKE-OFF IDLER SHAFT)
36728E Ring, 0 (FOR POWER TAKE-OFF IDLER)
36728F Ring, Shaft Snap (FOR POWER TAKE-OFF IDLER SHAFT)
36728P Pin (FOR POWER TAKE-OFF IDLER SHAFT)
36735 Stopper, Power Take-off Clutch Key
36735A Spacer (FOR POWER TAKE-OFF CLUTCH KEY ST0PPER)
36737 Shaft, Power Take-off Clutch Output
36737A Spacer (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
36737B Shim (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
36737C Bearing (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
36811 Fork, Powr Take-off Shift, NO.1
36814 Shaft, Powr Take-off Fork, NO.1
36814B Ring, O (FOR FRONT POWER TAKE-OFF SHAFT)
36814D Bolt, Serration (FOR POWER TAKE-OFF SHAFT)
36814E Ring, E (FOR POWER TAKE-OFF SHIFT SHAFT)
36814F Plug, Tight (FOR POWER TAKE-OFF SHIFT SHAFT)
36814G Bolt (FOR POWER TAKE-OFF SHIFT SHAFT)
36817 Cover, Power Take-off Shaft
36837A Bracket, Power Take-off Shift Lever
36851 Retainer, Power Take-off Joint
36851A Seal, Oil (FOR POWER TAKE-OFF JOINT RETAINER)
36851B Key, Wood Ruff (FOR POWER TAKE-OFF JOINT RETAINER)
38966A Bracket, Cable Clamp, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
