Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

88 part groups · 31 illustrations

Illustrations

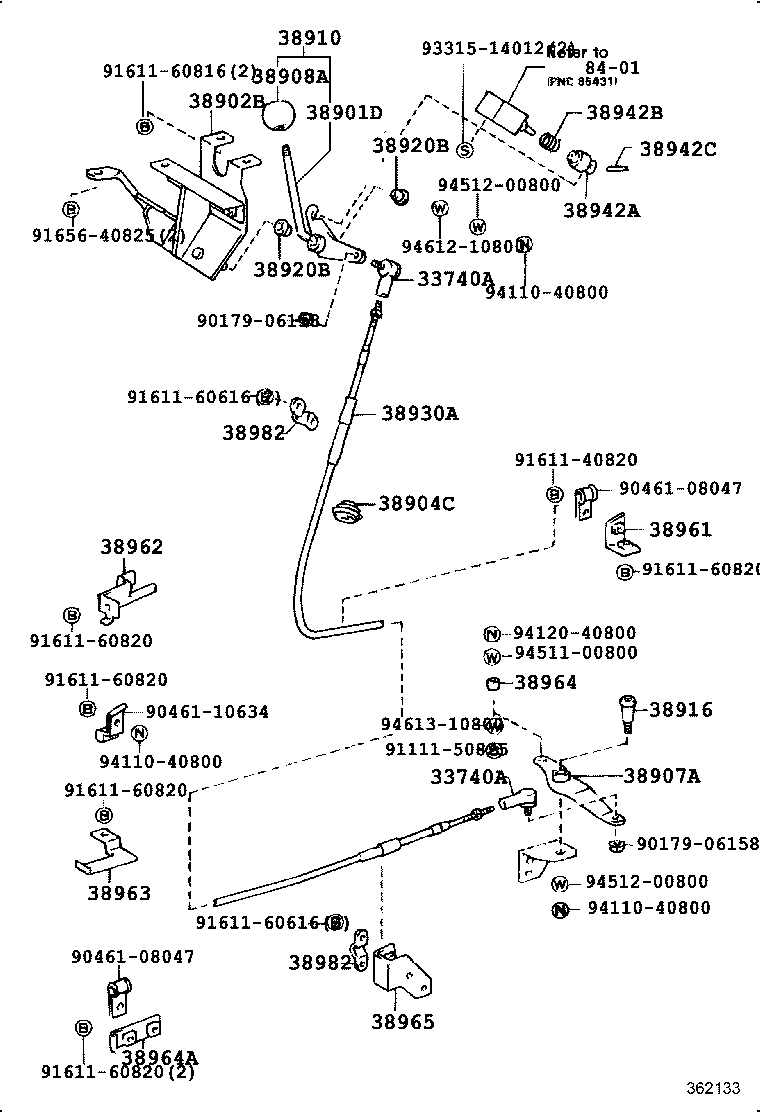

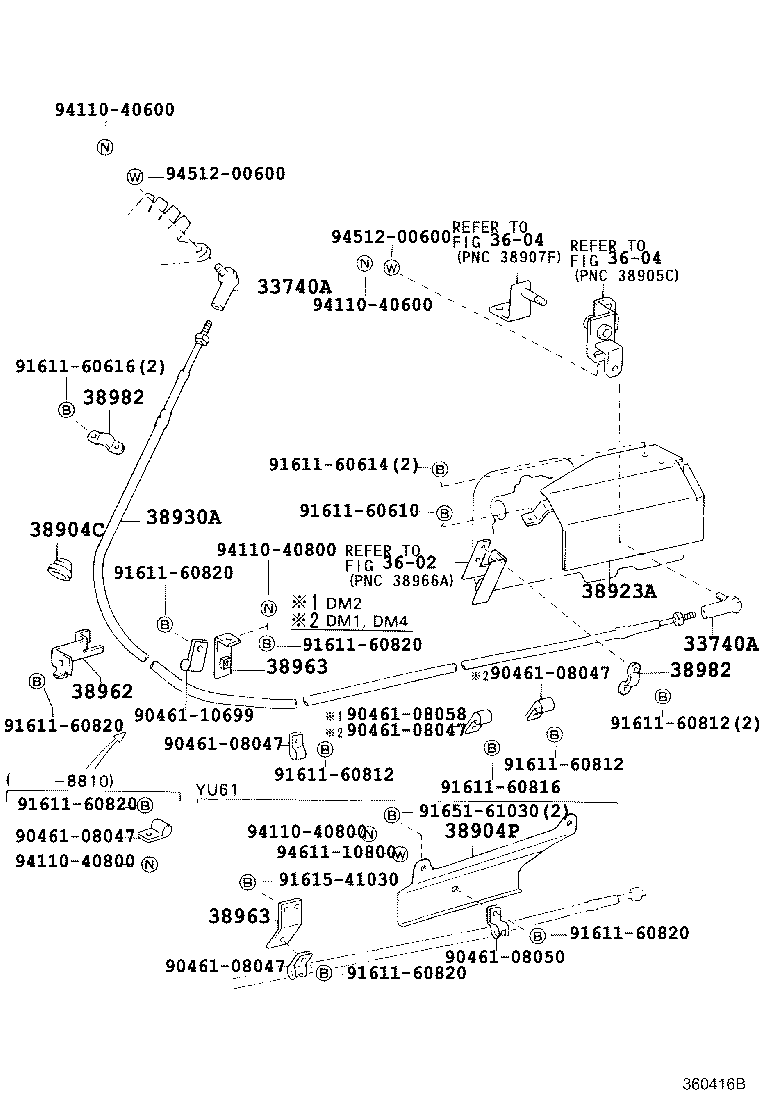

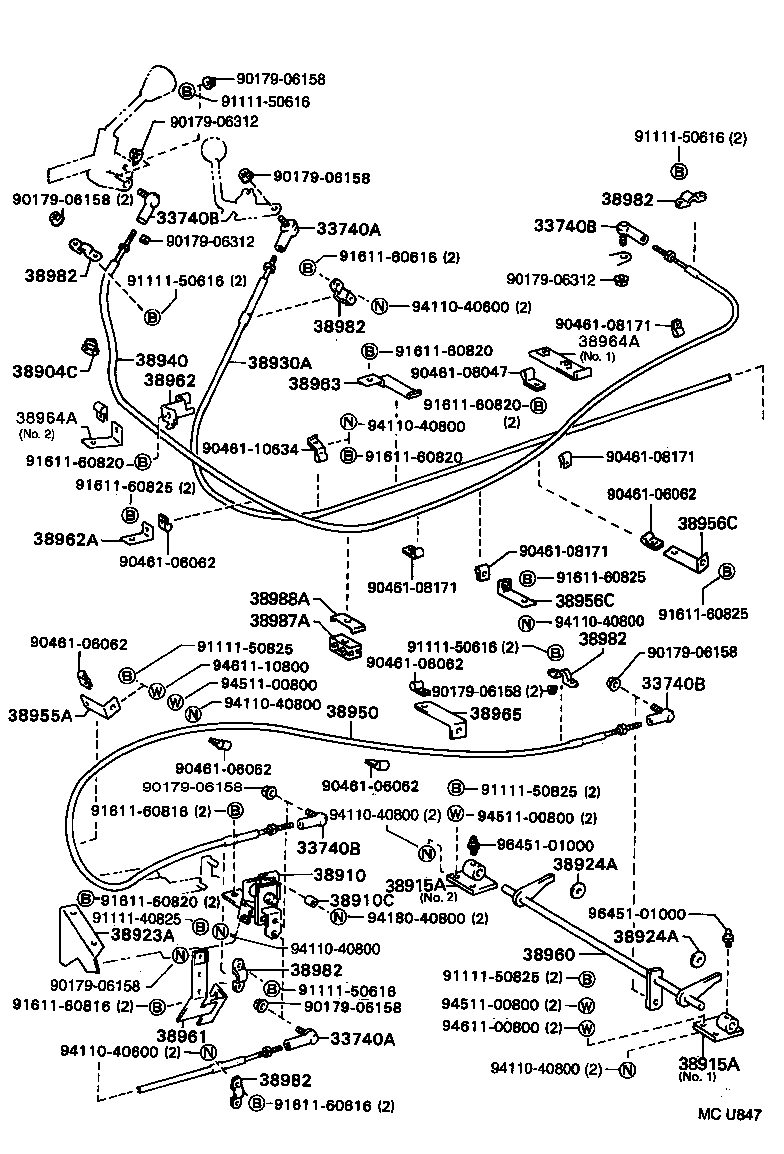

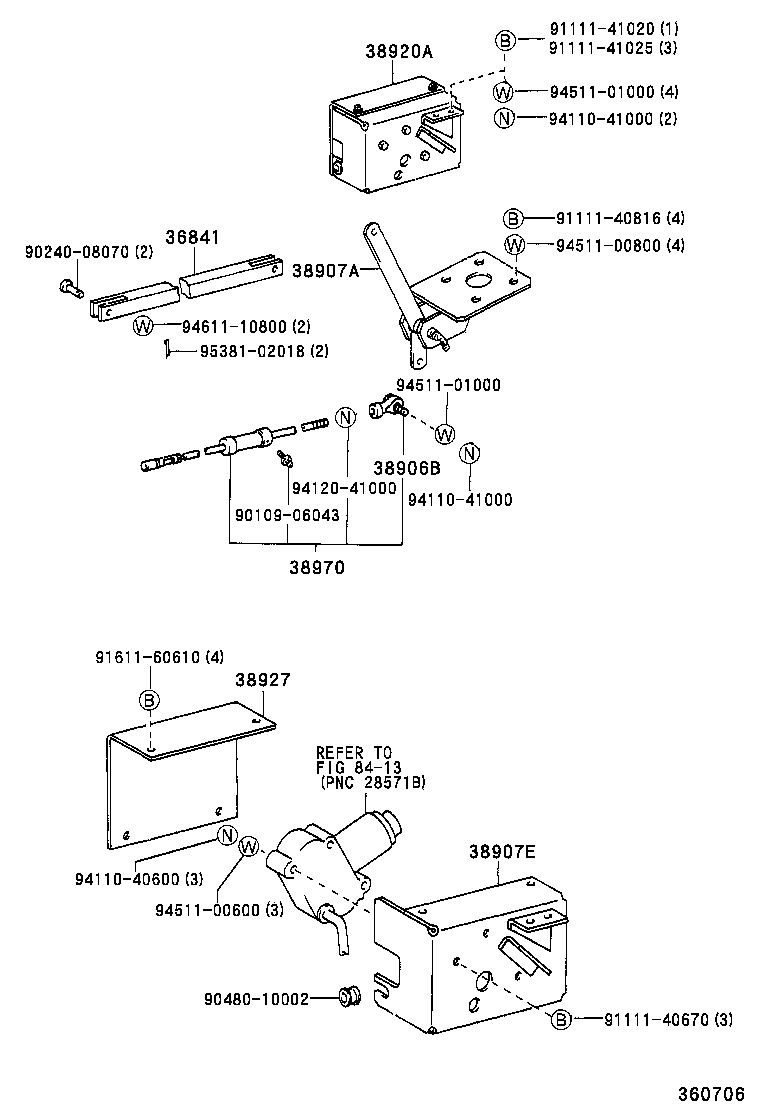

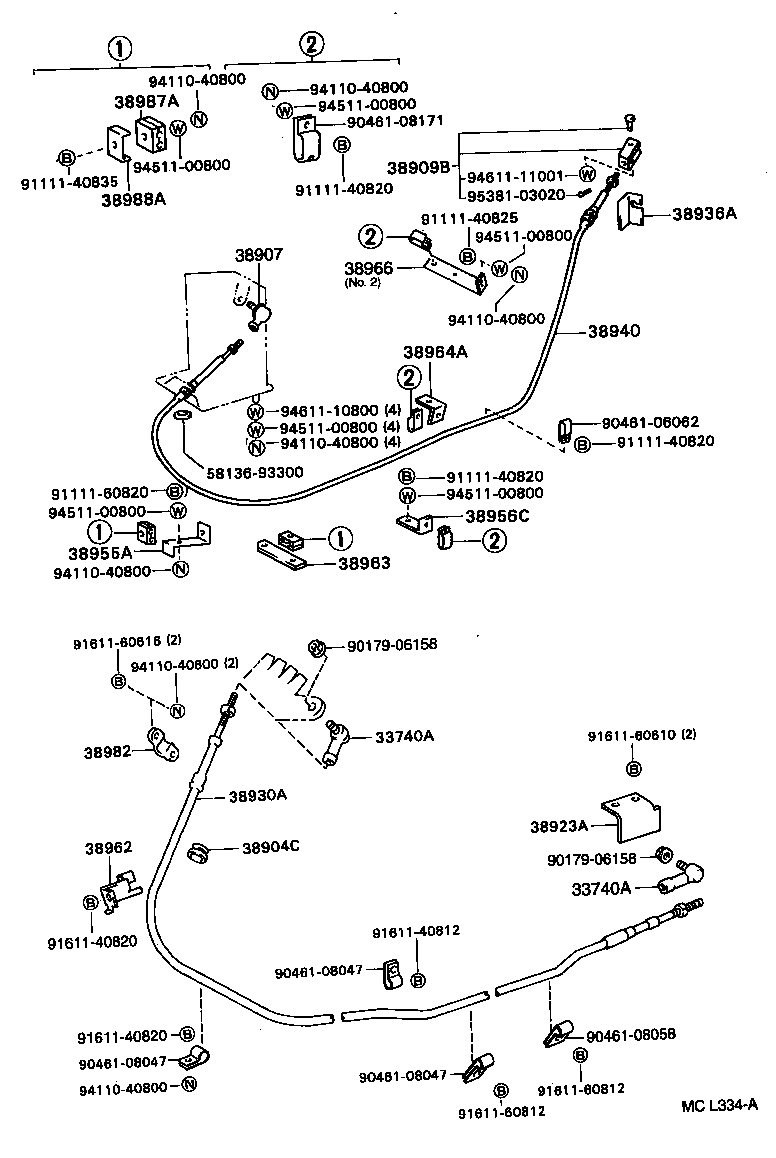

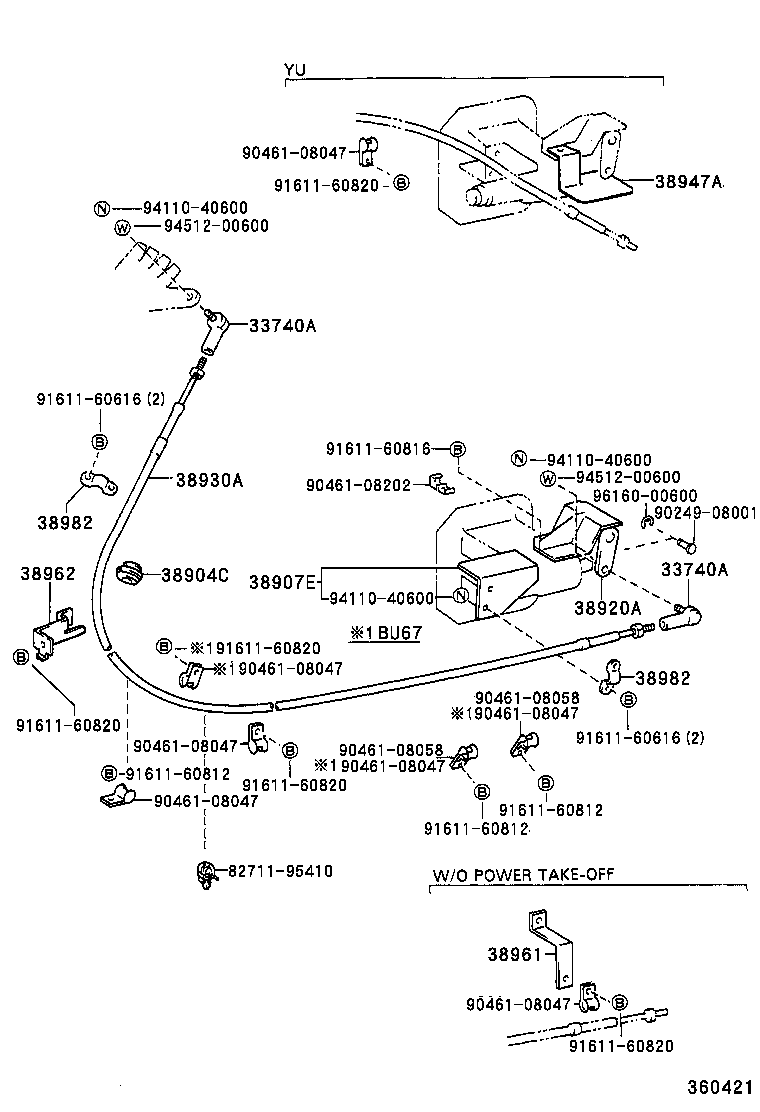

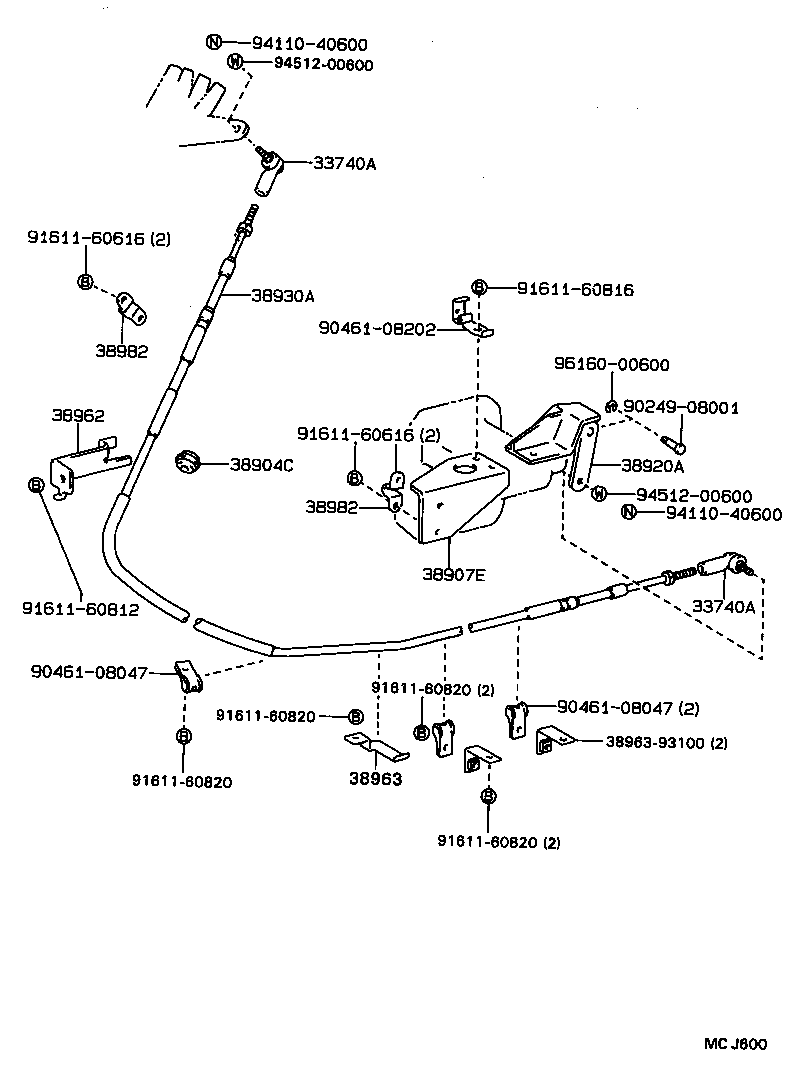

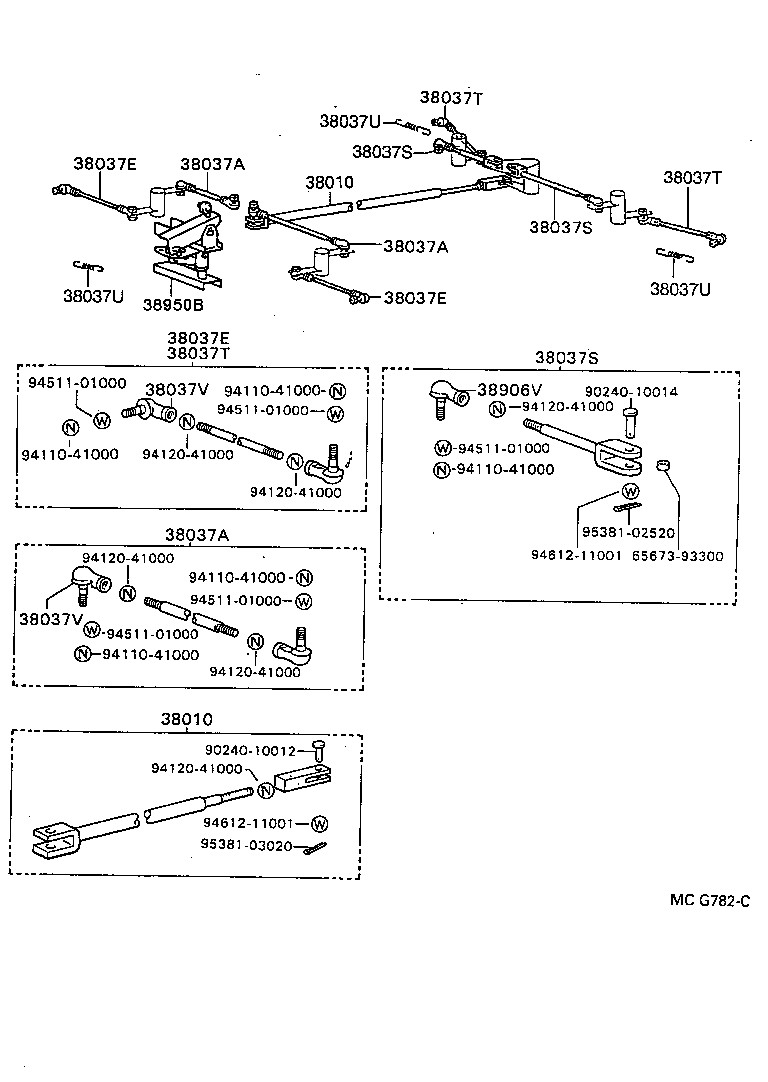

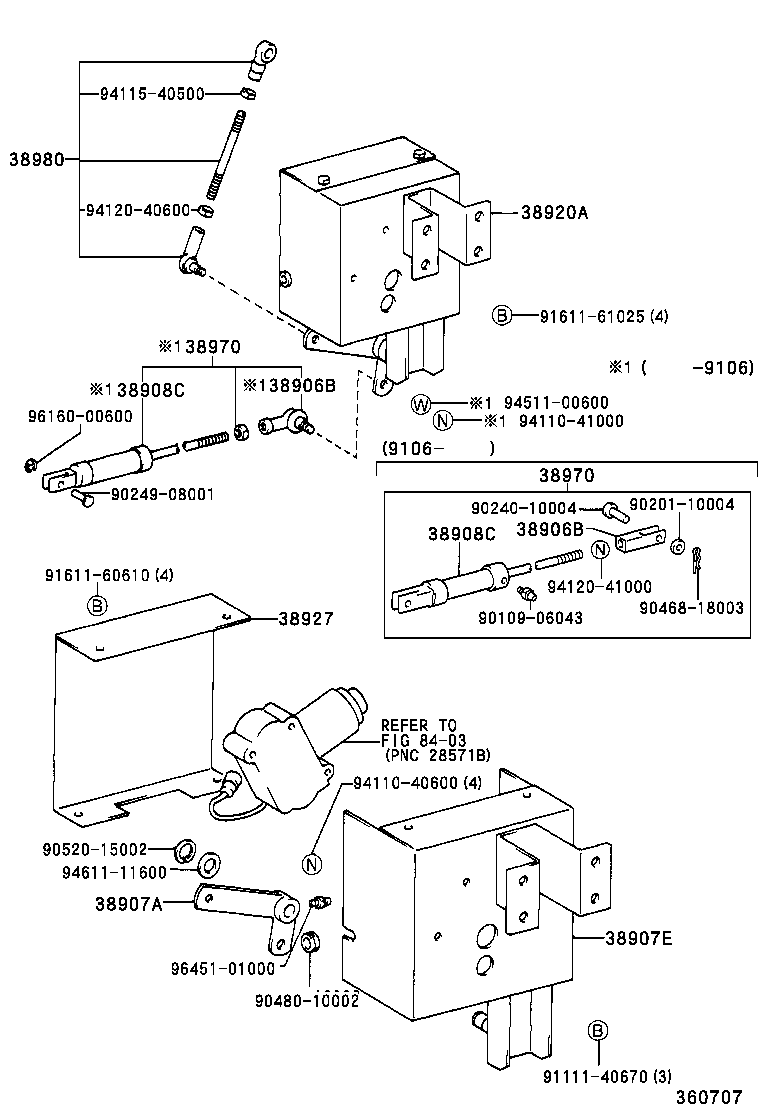

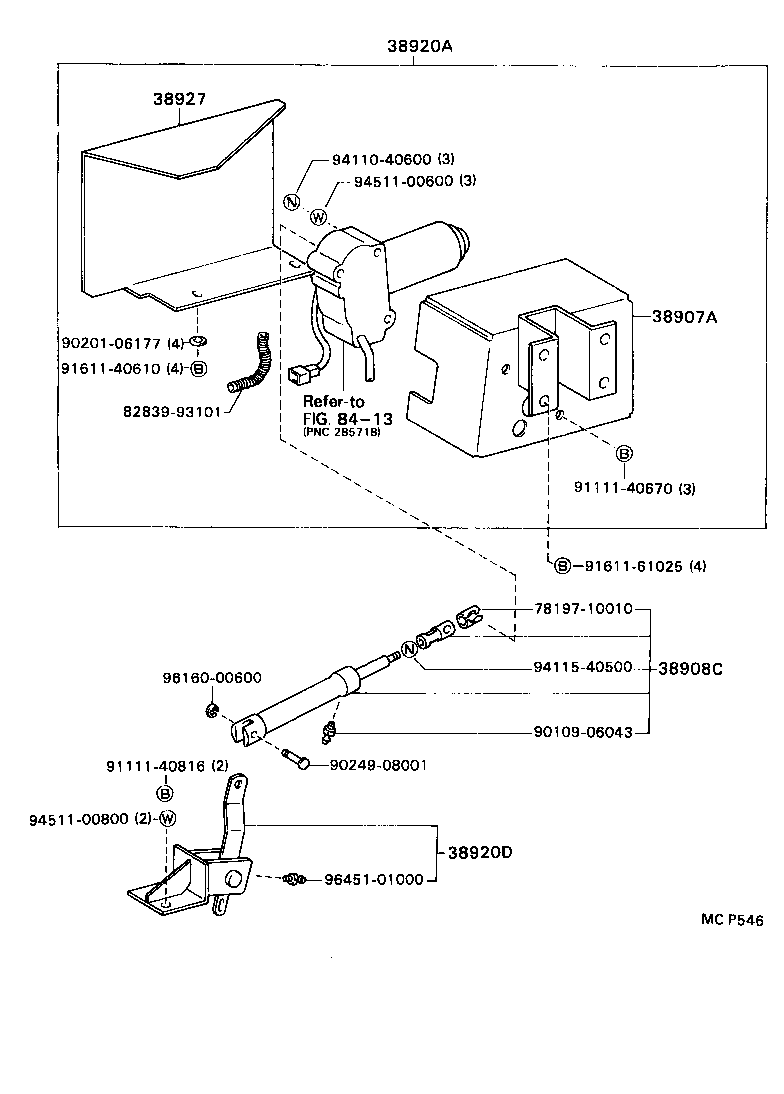

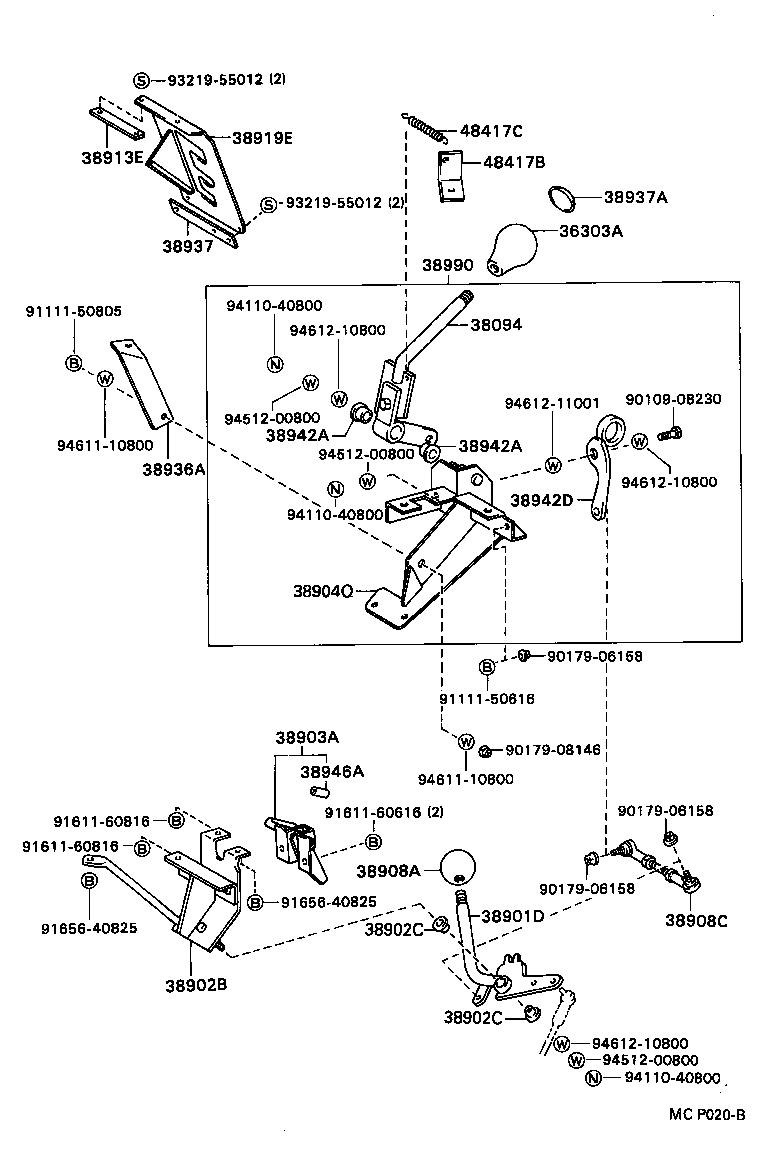

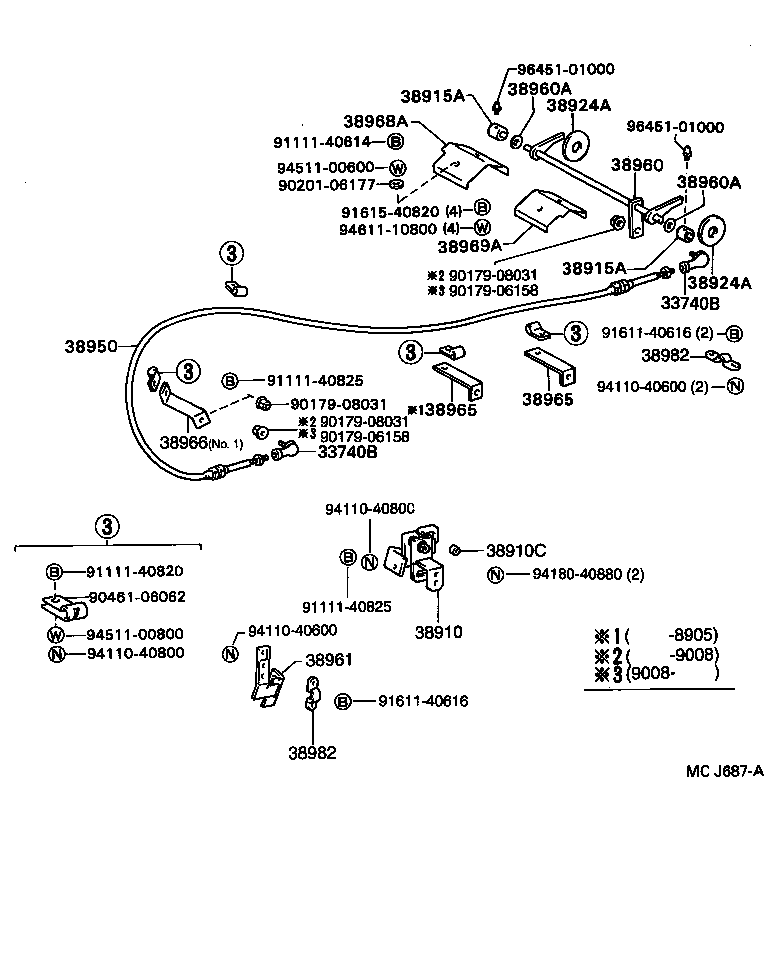

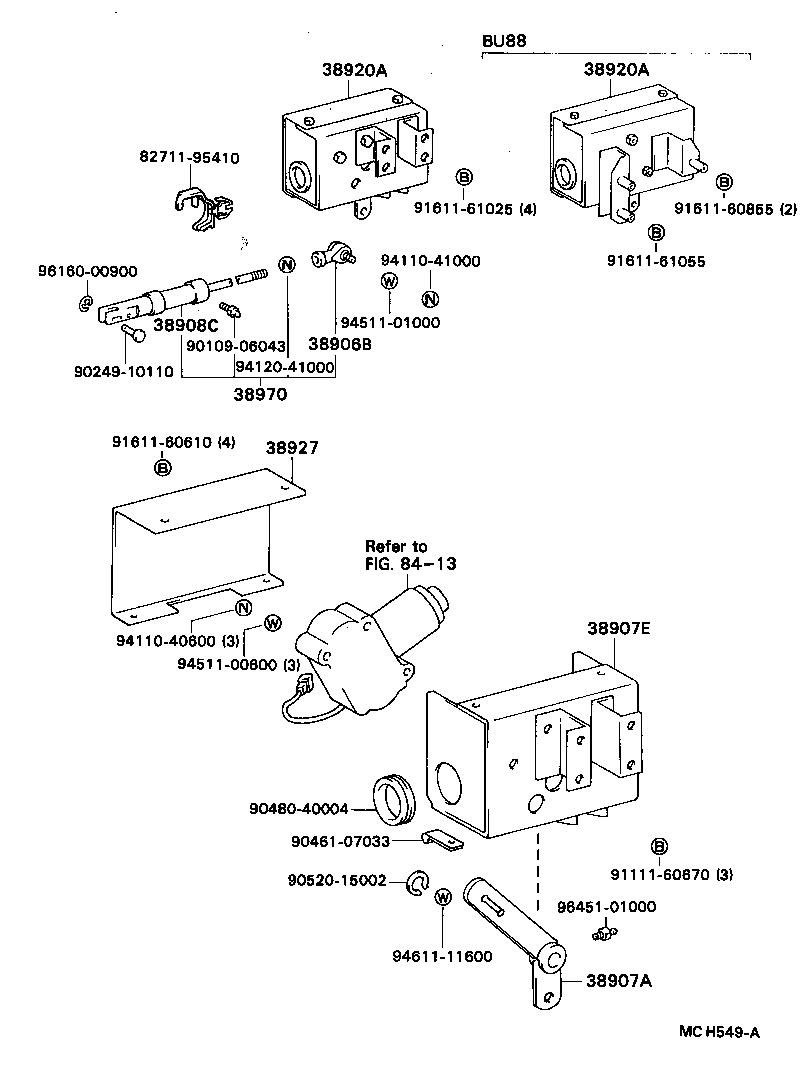

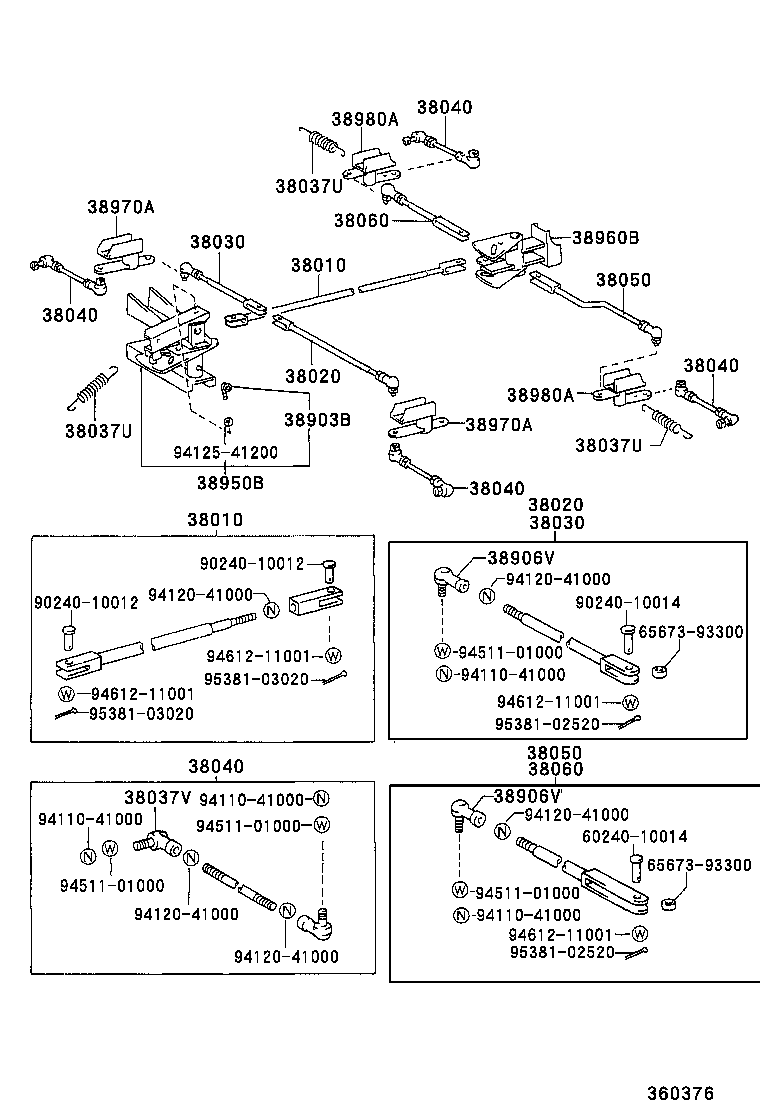

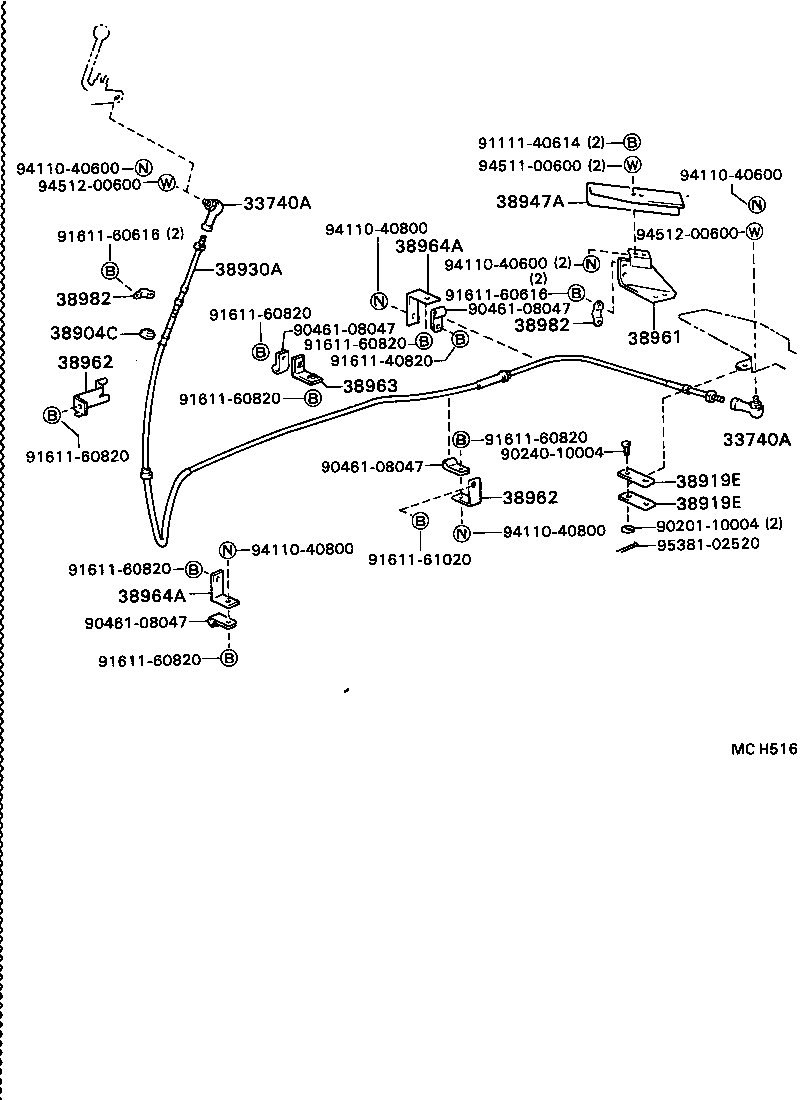

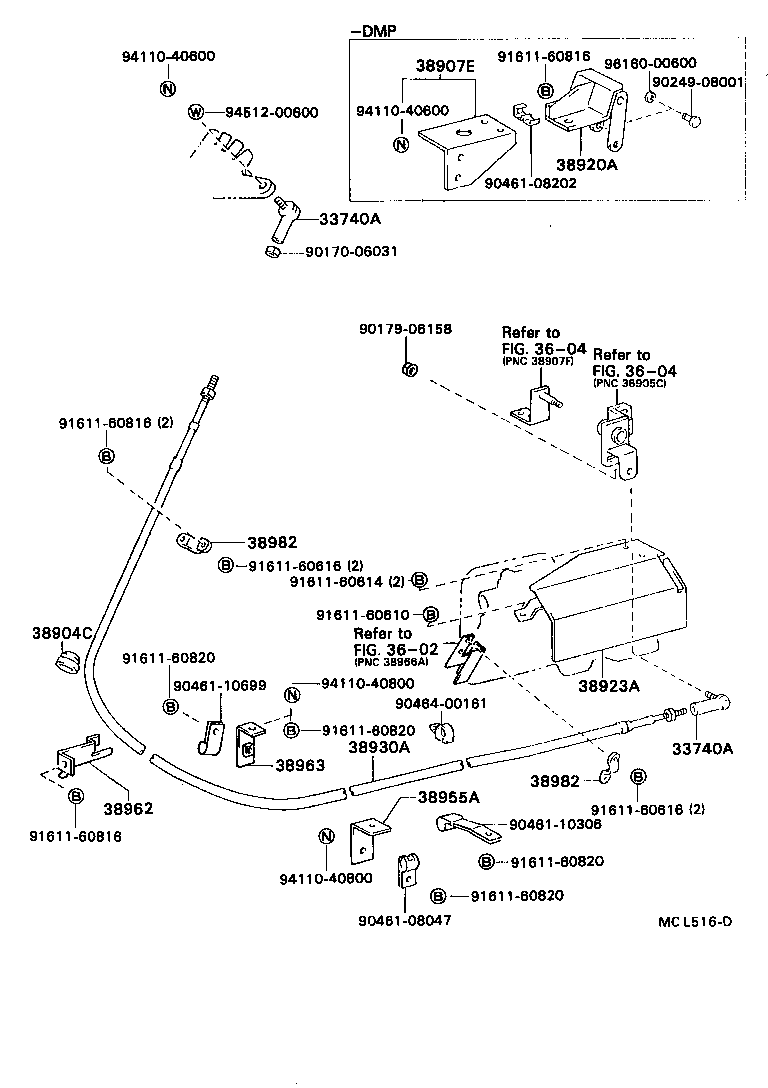

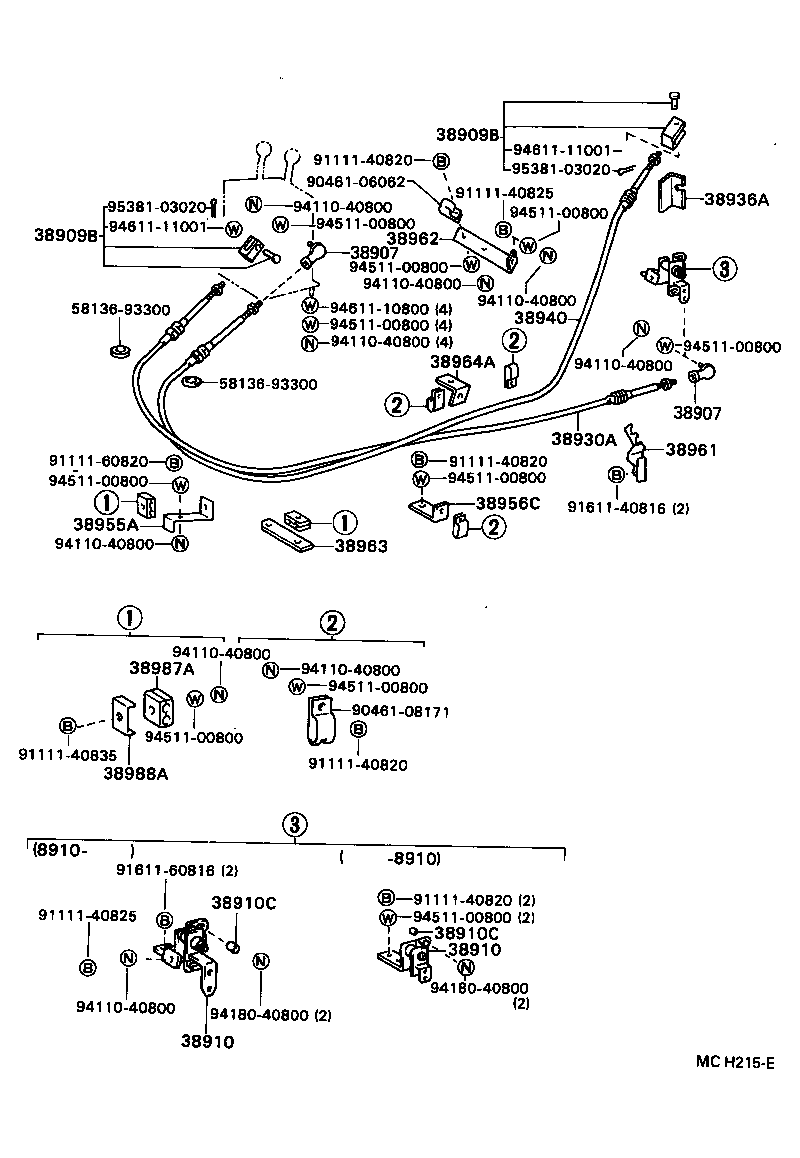

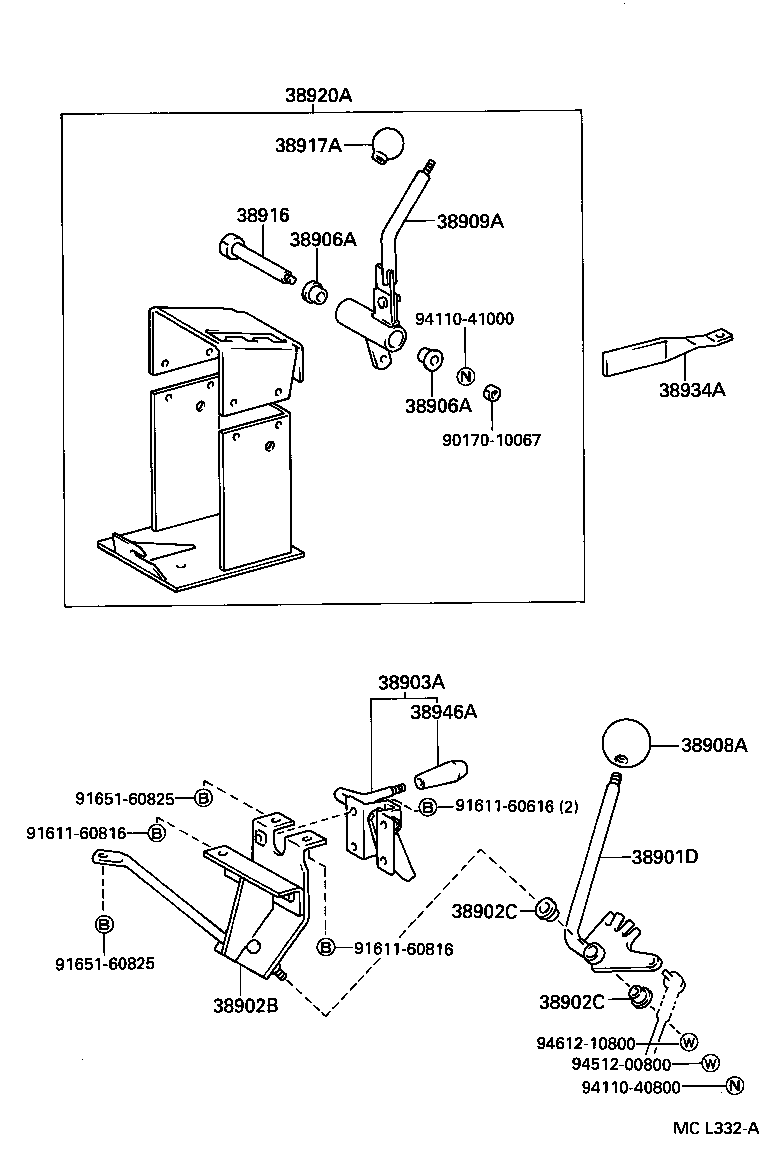

Figure MCE658A MCE658A 1988-08 → — Figure MCE658A MCE658A 1989-10 → — Figure 360421 360421 1988-08 → — Figure 360421 360421 1988-08 → — Figure 360421 360421 1991-09 → — Figure 360416B 360416B 1988-08 → 1991-09 Figure MCM266 MCM266 1991-09 → — Figure MCJ600 MCJ600 1989-10 → — Figure MCJ601A MCJ601A 1989-10 → — Figure MCL516D MCL516D 1988-08 → — Figure MCH549A MCH549A 1988-08 → 1990-08 Figure MCH549A MCH549A 1988-08 → — Figure MCH549A MCH549A 1988-08 → — Figure 360706 360706 1990-08 → — Figure MCU662 MCU662 1988-08 → — Figure MCH516 MCH516 1988-08 → 1990-08 Figure MCL323 MCL323 1990-08 → — Figure 360707 360707 1990-08 → 1993-06 Figure MCP546 MCP546 1993-06 → — Figure MCE664A MCE664A 1988-08 → 1990-08 Figure MCH215E MCH215E 1988-08 → 1990-08 Figure MCL332A MCL332A 1990-08 → 1991-09 Figure MCL334A MCL334A 1990-08 → 1991-09 Figure MCJ687A MCJ687A 1988-08 → 1991-09 Figure MCG782C MCG782C 1988-08 → 1991-09 Figure MCP020B MCP020B 1991-09 → — Figure 360423A 360423A 1991-09 → — Figure MCU847 MCU847 1991-09 → — Figure 360376 360376 1991-09 → — Figure MCE662A MCE662A 1988-08 → — Figure 362133 362133 1990-05 → —

Part groups

PNCDescription
33740A End Assy, Push-pull Control Cable
33740B End Assy, Control
36303A Knob Sub-assy, Shift Lever (FOR POWER TAKE-OFF)
36837 Bracket, Power Take-off Shift Lever
36841 Rod, Power Take-off Shift
38010 Rod Assy, Select Contorol
38020 Rod Assy, Select Control, NO.2
38030 Rod Assy, Select Control, NO.3
38037A Rod Assy, Select Control, Front NO.1
38037E Rod Assy, Select Control Front NO.2
38037S Rod Assy, Select Control, Rear NO.1
38037T Rod Assy, Select Control, Rear NO.2
38037U Spring, Tention (FOR SELECT CONTROL ROD)
38037V Joint Assy, Ball (FOR SELECT CONTROL ROD)
38040 Rod Assy, Select Control, NO.4
38050 Rod Assy, Select Control, NO.5
38060 Rod Assy, Select Control, NO.6
38094 Lever Sub-assy, Power Take-off Select Control
38901D Lever Sub-assy, Valve Control
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38903A Bracket Sub-assy, Valve Control Lever Lock
38903B Roller, Lever Lock
38904C Grommet, Push Pull Cable
38904Q Bracket Sub-assy, Select Control Lever
38906A Bush, Control Link
38906B Joint Assy, Ball (FOR POWER TAKE-0FF CONTROL ROD)
38906V Joint Assy, Ball (FOR SELECT CONTROL ROD)
38907 Rod Assy, Ball Joint, NO.2
38907A Lever Sub-assy, Power Take-off Control
38907E Stay Sub-assy, Power Teke-off Control
38908A Knob Sub-assy, Control Lever
38908C Rod Sub-assy, Power Take-off Control
38909A Lock Sub-assy, Valve Control
38909B End Set, Push-pull Control Cable, NO.2
38910 Lever Assy, Dump
38910C Spacer, Control Lever
38913E Support, Valve Control Lever
38915A Boss, Valve Control Lever
38916 Pin, Control Shift
38916A Knob, Control Lever
38917A Knob, Valve Control Lever
38919E Plate, Valve Control Lever Position
38920A Lever Assy, Power Take-off Control, NO.1
38920B Bush (FOR POWER TAKE-OFF CONTROL LEVER)
38920D Lever Assy, Power Take-off Control, NO.2
38923A Protector, Power Take-off Control
38924A Gide, Puwer Take-off
38927 Cover, Valve Control Lever
38930A Cable Assy, Push Pull
38934A Stay, Valve Control Lever Bracket
38936A Bracket, Select Contorol
38937 Sheet, Valve Lever Caution Plate, NO.1
38937A Sheet, Valve Lever Caution Plate, NO.2
38940 Cable Assy, Push Pull
38942A Bush, Control Shaft
38942B Spring, Compression (FOR CONTROL SHAFT)
38942C Pin, Slotted Spring (FOR CONTROL SHAFT)
38942D Stopper, Power Take-off Select Control Lever
38946A Knob, Valve Lock Lever
38947A Insulator, Control Cable
38950 Cable Assy, Push Pull
38950B Bellcrank Assy, Select Control
38955A Bracket, Control Cable, NO.5
38956C Bracket, Control Cable, NO.6
38960 Lever Assy, Valve Control
38960A Shim (FOR VALVE CONTROL LEVER ASSY)
38960B Lever Assy, Valve Control, NO.2
38961 Bracket, Cable Clamp, NO.1
38962 Bracket, Cable Clamp, NO.2
38962A Bracket, Cable Clamp, NO.7
38963 Bracket, Cable Clamp, NO.3
38964 Collar, Control Lever
38964A Bracket, Cable Clamp, NO.4
38965 Bracket, Cable Clamp, NO.5
38966 Bracket, Cable Clamp, NO.6
38968A Protector, Control Cable, NO.1
38969A Protector, Control Cable NO.2
38970 Rod Assy, Power Take-off Control
38970A Bellcrank Assy, Select Control, NO.3
38980 Rod Assy, Valve Control
38980A Bellcrank Assy, Select Control, NO.4
38982 Clamp, Push Pull Cable, NO.1
38987A Clamp, Push Pull Cable
38988A Holder, Push Pull Cable
38990 Lever Assy, Select Contorol
48417B Bracket, Spring
48417C Spring, Tension(FOR SPRING BRACKET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
