Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan
Discontinued model
Data version 1995-11

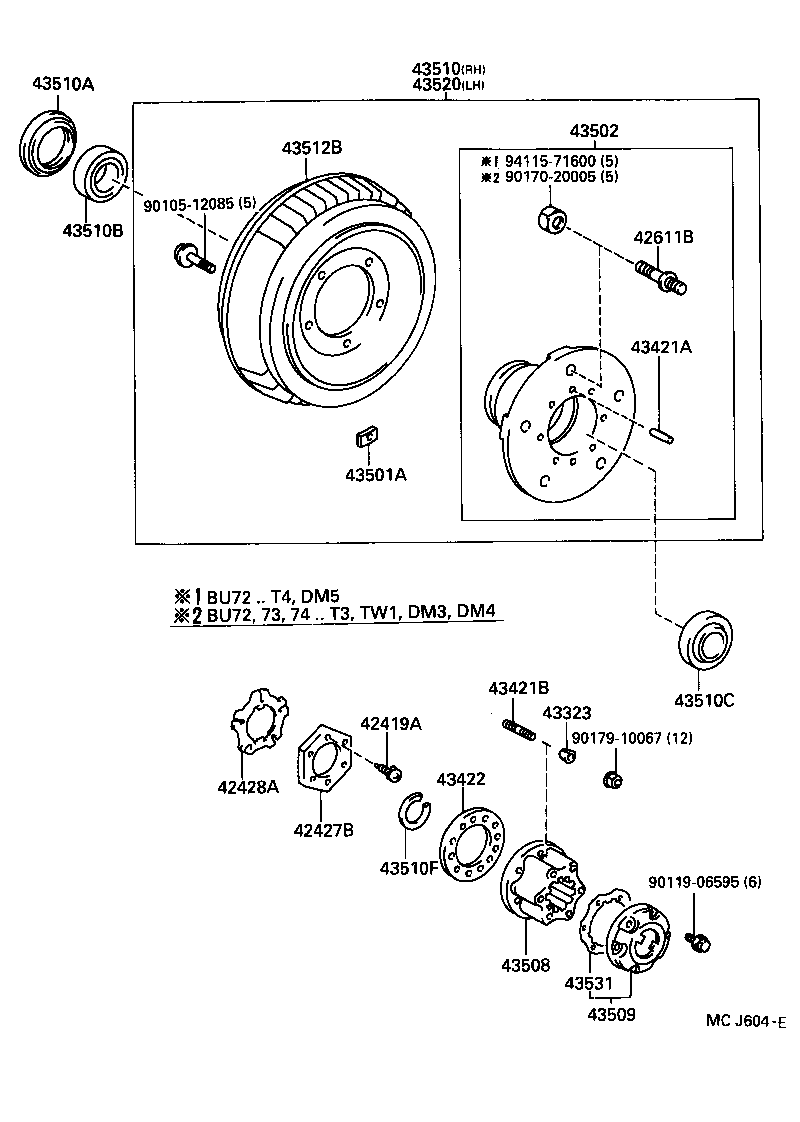

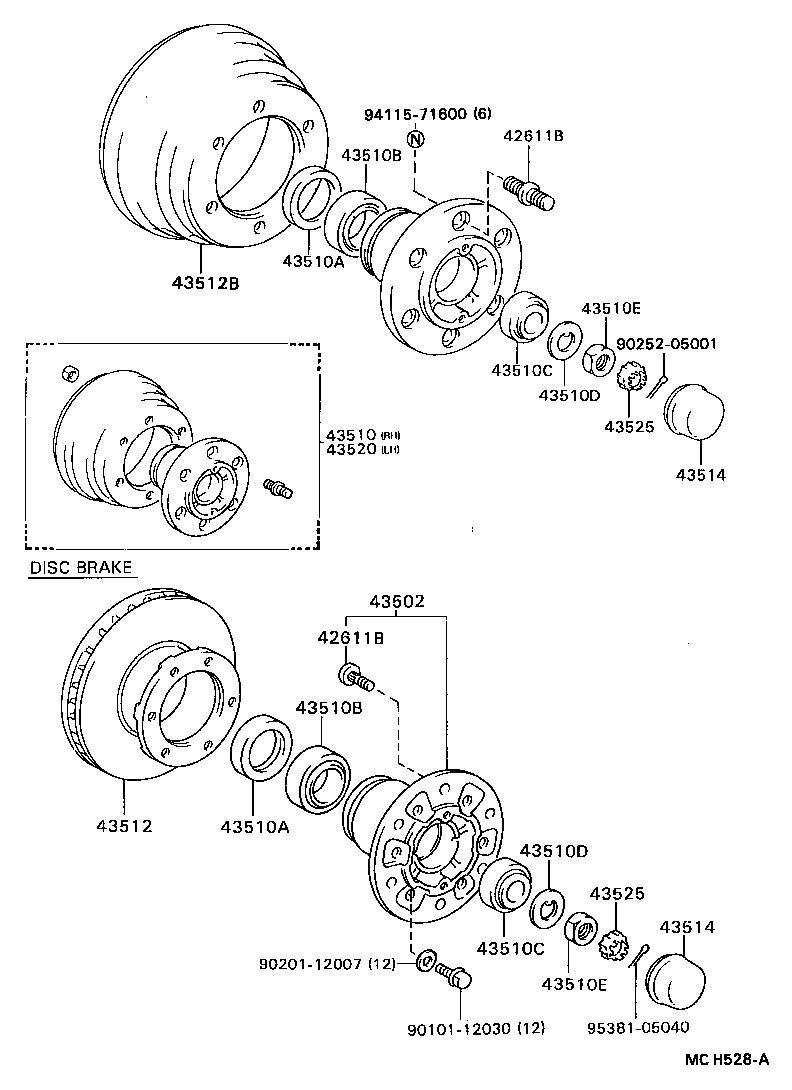

Front Axle Hub
27 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 42419A | Screw, Front Axle Bearing Lock Nut |
| 42427B | Nut, Front Axle Bearing Lock |
| 42428A | Plate, Front Axle Lock Nut |
| 42611B | Bolt, Hub (FOR FRONT AXLE) |
| 43226 | Spacer, Steering Knuckle |
| 43323 | Washer, Cone (FOR FRONT AXLE SHAFT) |
| 43421A | Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE) |
| 43421B | Bolt, Stud (FOR FRONT AXLE OUTER SHAFT FLANGE) |
| 43422 | Gasket, Front Axle Outer Shaft Flange |
| 43501A | Piece, Balance (FOR FRONT BRAKE DRUM) |
| 43501B | Bolt, Set (FOR FRONT BRAKE DRUM SETTING) |
| 43502 | Hub Sub-assy, Front Axle |
| 43508 | Body Sub-assy, Free Wheel Hub |
| 43509 | Cover Sub-assy, Free Wheel Hub |
| 43510 | Hub And Brake Drum Assy, Front Axle, RH |
| 43510A | Seal, Oil (FOR FRONT AXLE HUB) |
| 43510B | Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING) |
| 43510C | Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING) |
| 43510D | Washer, Claw (FOR STEERING KNUCKLE WASHER) |
| 43510E | Nut (FOR STEERING KNUCKLE) |
| 43510F | Ring, Shaft Snap (FOR FRONT AXLE HUB) |
| 43512 | Disc, Front |
| 43512B | Drum, Brake |
| 43514 | Cap, Front Hub Grease |
| 43520 | Hub And Brake Drum Assy, Front Axle, LH |
| 43525 | Cap, Front Wheel Adjusting Lock |
| 43531 | Gasket, Free Wheel Hub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
