Toyota Dyna/Toyoace
1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan
Discontinued model
Data version 1995-11
Frame
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

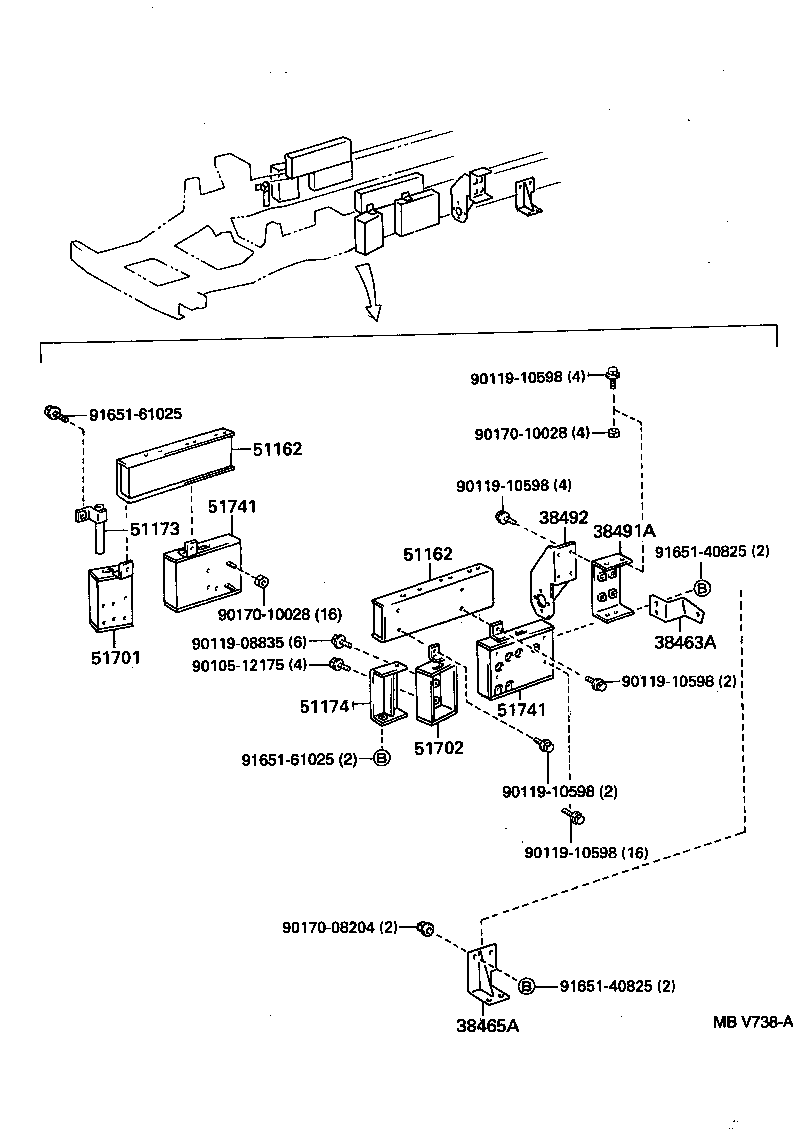

| 38463A | Bracket, Power Oil Pump Hose Clamp |
| 38465A | Bracket, Power Oil Pump Hose Clamp, NO.2 |
| 38491A | Bracket, Power Oil Pump, NO.1 |
| 38492 | Bracket, Power Oil Pump, NO.2 |
| 38493 | Bracket, Power Oil Pump, NO.3 |
| 38976 | Stay, Power Take-off Control |
| 51017 | Reinforcement Sub-assy, Side Rail, NO.1 RH |
| 51018 | Reinforcement Sub-assy, Side Rail, NO.1 LH |
| 51025 | Member Sub-assy, Engine Front Mounting |
| 51100F | Frame Sub-assy |
| 51141 | Reinforcement, Side Rail, RH |
| 51142 | Reinforcement, Side Rail, LH |
| 51145 | Stiffener, Frame Side Rail |
| 51162 | Reinforcement, Side Rail, Upper NO.1 |
| 51173 | Reinforcement, Front Inner Channel, RH |
| 51174 | Reinforcement, Front Inner Channel, LH |

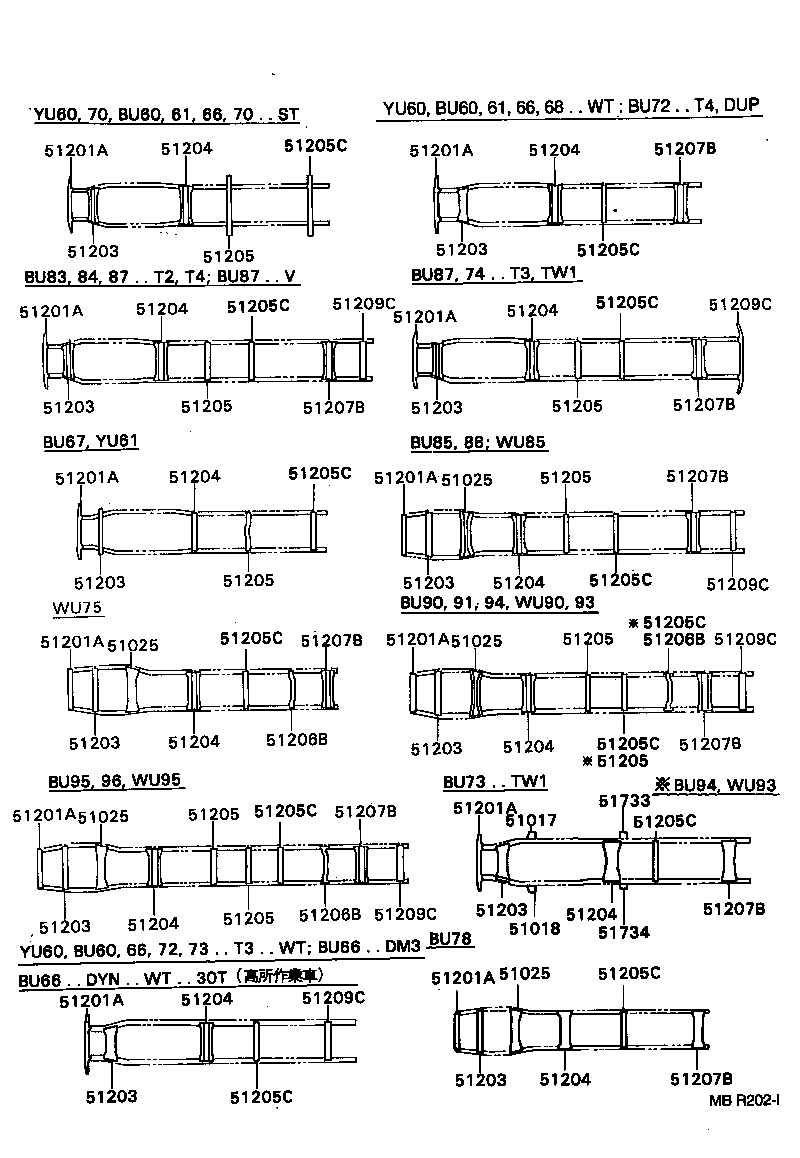

| 51201A | Crossmember Sub-assy, Frame, Front |
| 51203 | Crossmember Sub-assy, Frame, NO.2 |
| 51204 | Crossmember Sub-assy, Frame, NO.3 |
| 51205 | Crossmember Sub-assy, Frame, NO.4 |
| 51205C | Crossmember Sub-assy, Frame, NO.5 |
| 51206B | Crossmember Sub-assy, Frame, NO.6 |
| 51207B | Crossmember Sub-assy, Frame, NO.7 |
| 51209C | Crossmember Sub-assy, Frame, Rear |

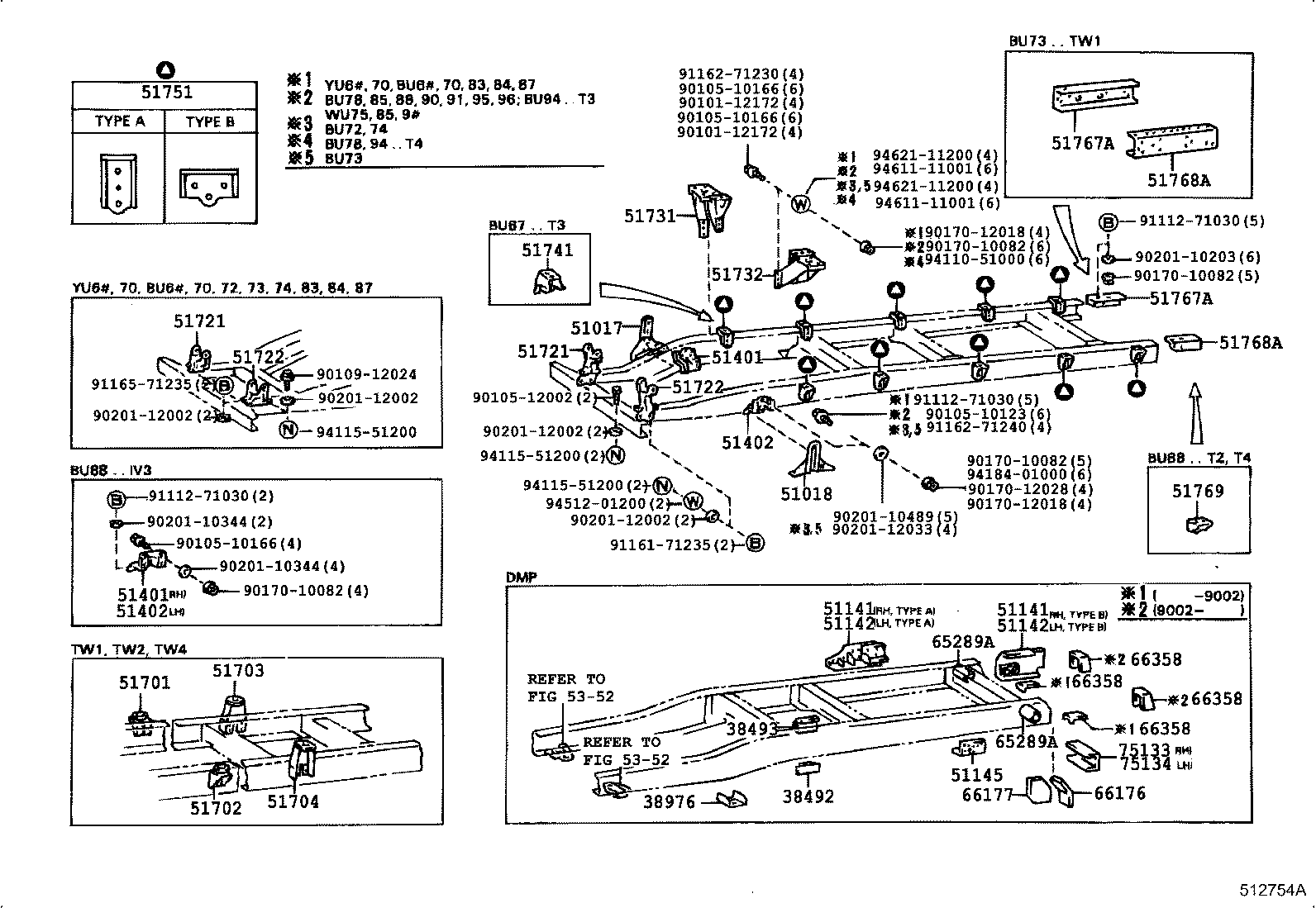

| 51401 | Bracket Sub-assy, Engine Front Mounting, RH |
| 51402 | Bracket Sub-assy, Engine Front Mounting, LH |
| 51701 | Bracket Sub-assy, Cab Mounting, NO.1 RH |
| 51702 | Bracket Sub-assy, Cab Mounting, NO.1 LH |
| 51703 | Bracket Sub-assy, Cab Mounting, NO.2, RH |
| 51704 | Bracket Sub-assy, Cab Mounting, NO.2 LH |
| 51721 | Bracket, Cab Front Mounting, RH |
| 51722 | Bracket, Cab Front Mounting, LH |
| 51731 | Bracket, Cab Rear Mounting, RH |
| 51732 | Bracket, Cab Rear Mounting, LH |
| 51733 | Bracket, Cab Rear Mounting, NO.2 RH |
| 51734 | Bracket, Cab Rear Mounting, NO.2 LH |
| 51741 | Bracket, Rear Body Mounting, NO.1 |
| 51751 | Bracket, Body Support, NO.1 |
| 51767A | Bracket, Frame Body Mounting, NO.8 RH |
| 51768A | Bracket, Frame Body Mounting, NO.8 LH |
| 51769 | Bracket, Body Rear End Mounting |
| 65289A | Support, Vessel Hinge |
| 66358 | Plate, Frame End |
| 75133 | Base, Combination Rear Lamp Bracket, RH |
| 75134 | Base, Combination Rear Lamp Bracket, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
