Toyota Dyna/Toyoace

1988-08 → 1995-05 · chassis BU6#,7#,8#,9# · catalogue 751150 · Japan

Discontinued model Data version 1995-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

16 part groups · 14 illustrations

Illustrations

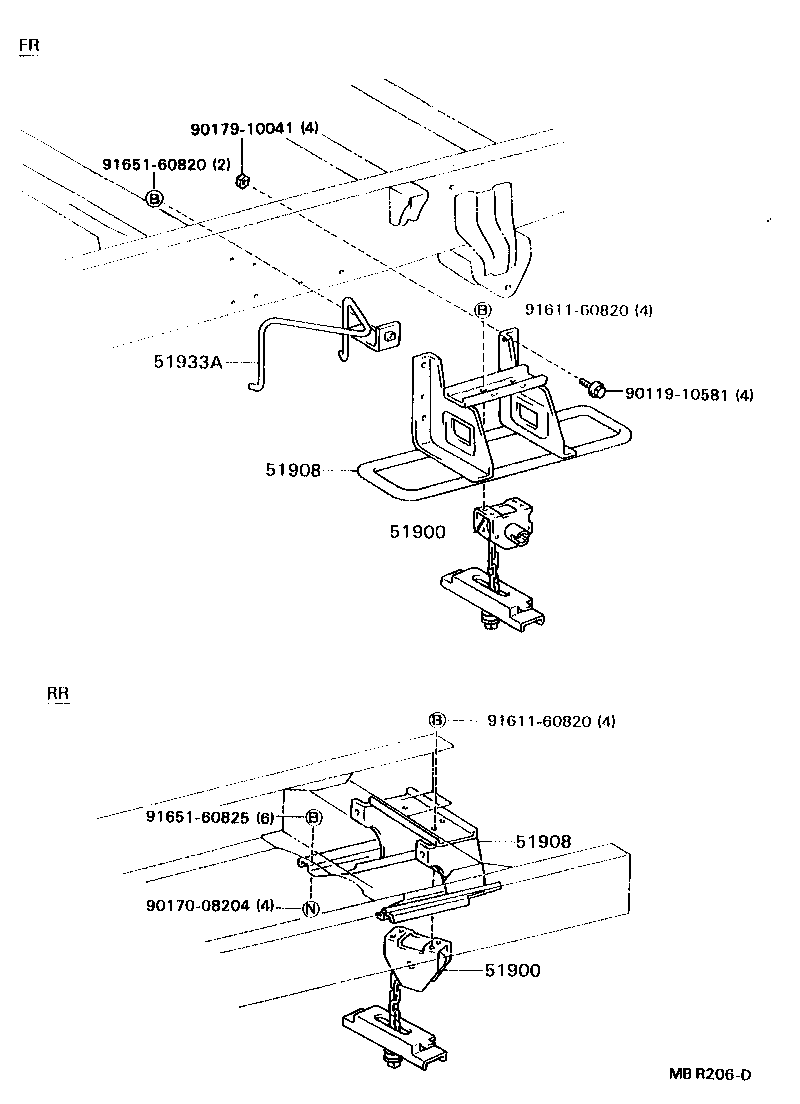

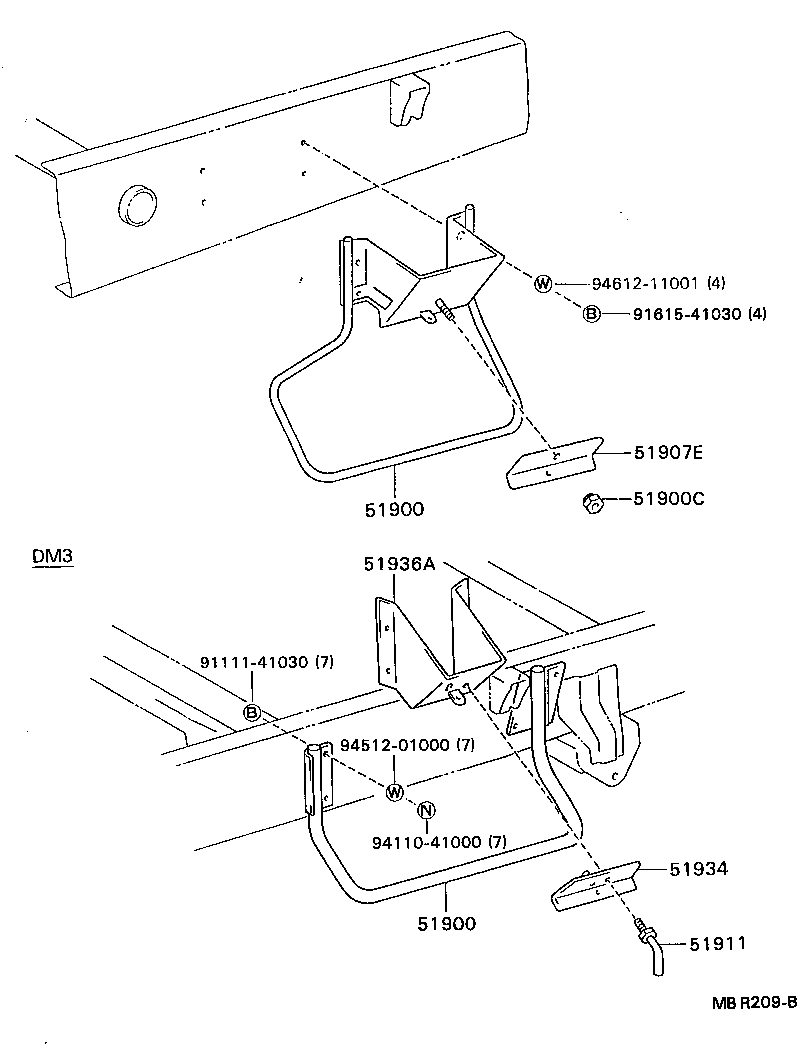

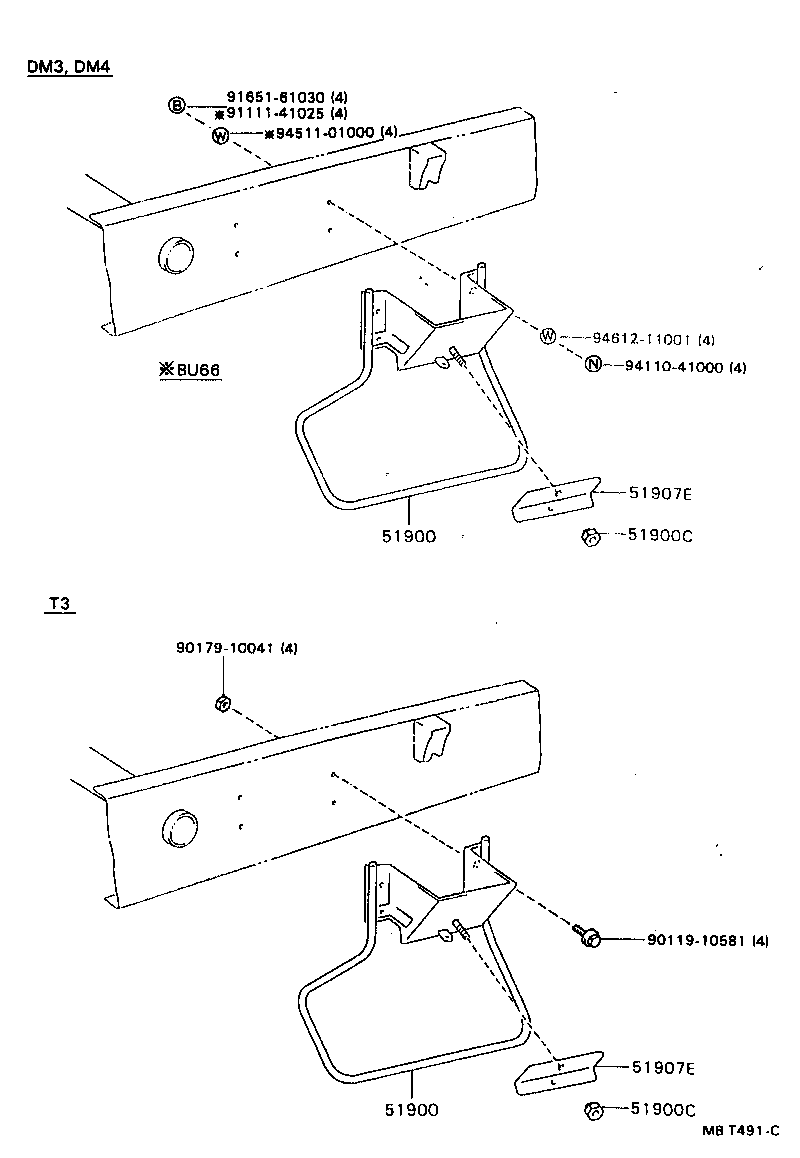

Figure MBR205 MBR205 1988-08 → — Figure MBR206D MBR206D 1988-08 → — Figure MBR207D MBR207D 1988-08 → — Figure MBR207D MBR207D 1989-10 → — Figure MBR208D MBR208D 1988-08 → — Figure MBR209B MBR209B 1988-08 → 1989-10 Figure MBR209B MBR209B 1988-08 → 1990-08 Figure MBR209B MBR209B 1990-08 → — Figure MBR211B MBR211B 1988-08 → 1990-08 Figure MBR212C MBR212C 1988-08 → — Figure MBR212C MBR212C 1988-11 → — Figure MBR212C MBR212C 1989-10 → — Figure MBT491C MBT491C 1989-10 → — Figure 511551 511551 1991-09 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51900C Nut, Spare Wheel, Hub
51907E Retainer Sub-assy, Spare Tire Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51911 Bolt Assy, Spare Wheel Mounting
51923A Guide, Spare Whell Carrier Handle
51933 Bolt, Spare Wheel Carrier Eye
51933A Stopper, Spare Wheel, NO.1
51934 Seat, Eye Bolt Clamp
51934A Stopper, Spare Wheel, NO.2
51935 Nut, Spare Wheel Carrier Eye
51936A Plate, Spare Wheel Carrier Keep
51943 Bracket, Spare Wheel Carrier, NO.1
51944 Bracket, Spare Wheel Carrier, NO.2
51948 Stopper, Spare Wheel Carrier Auxiliary
66273 Guide, Spare Tire Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
