Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

30 part groups · 20 illustrations

Illustrations

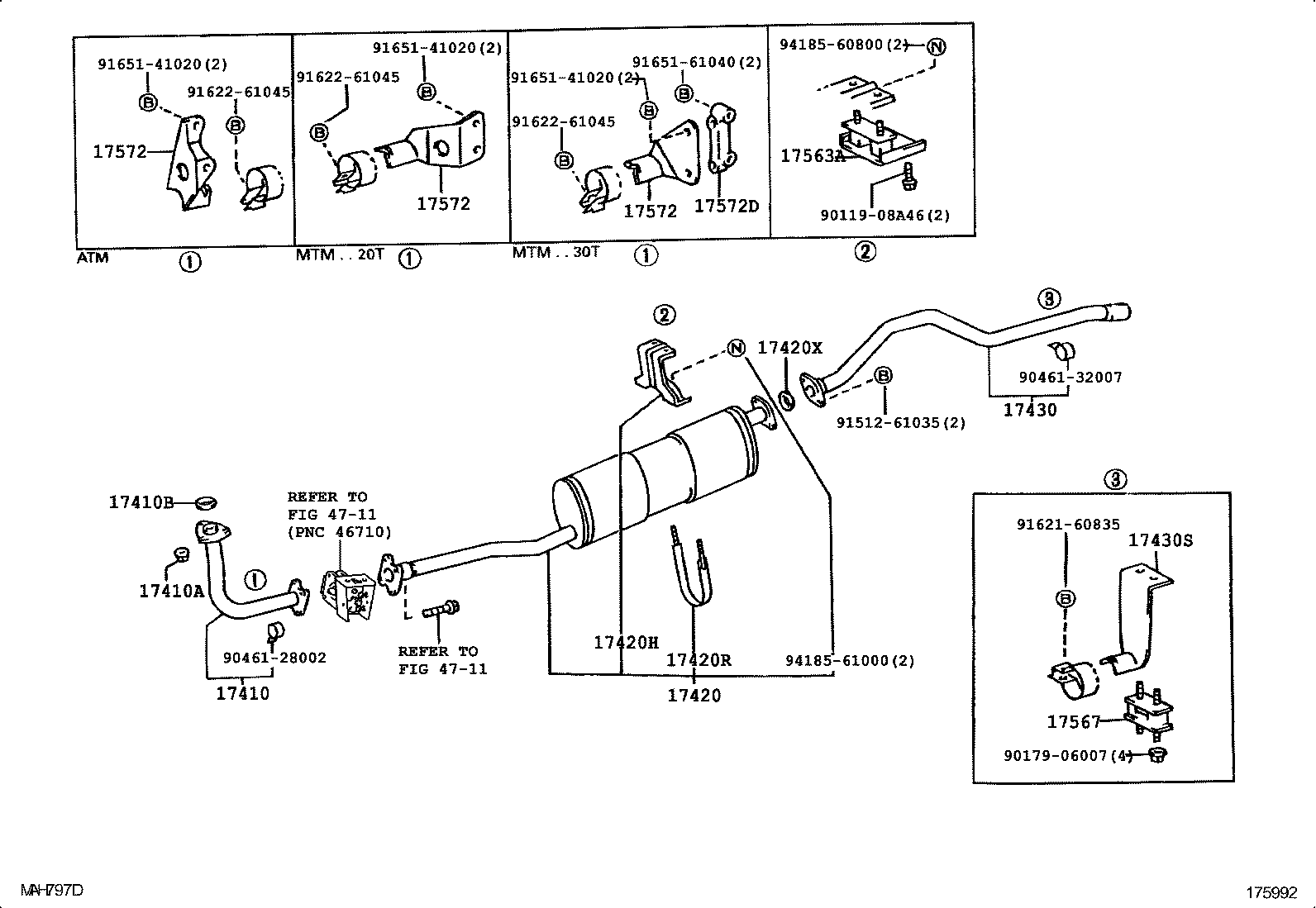

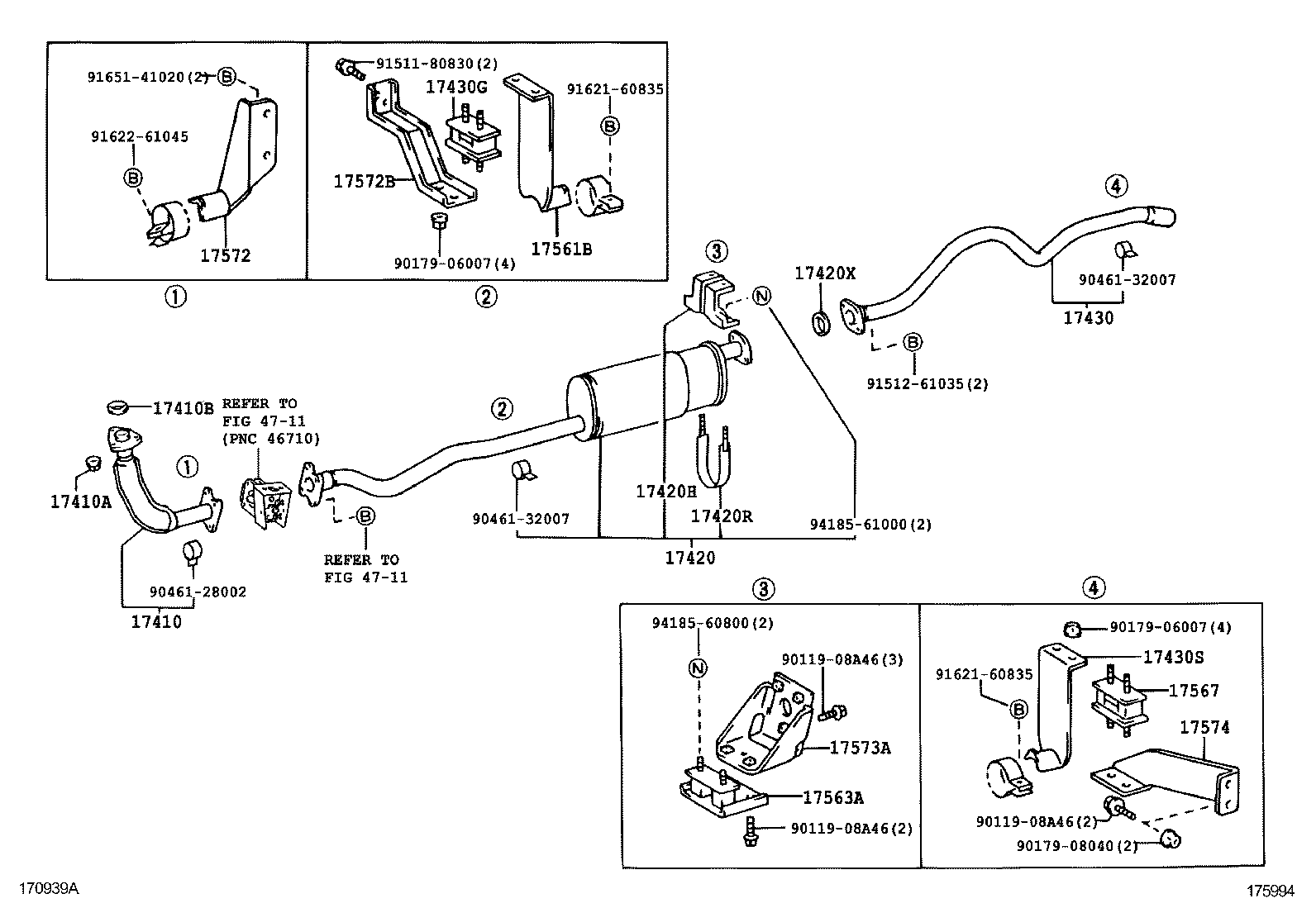

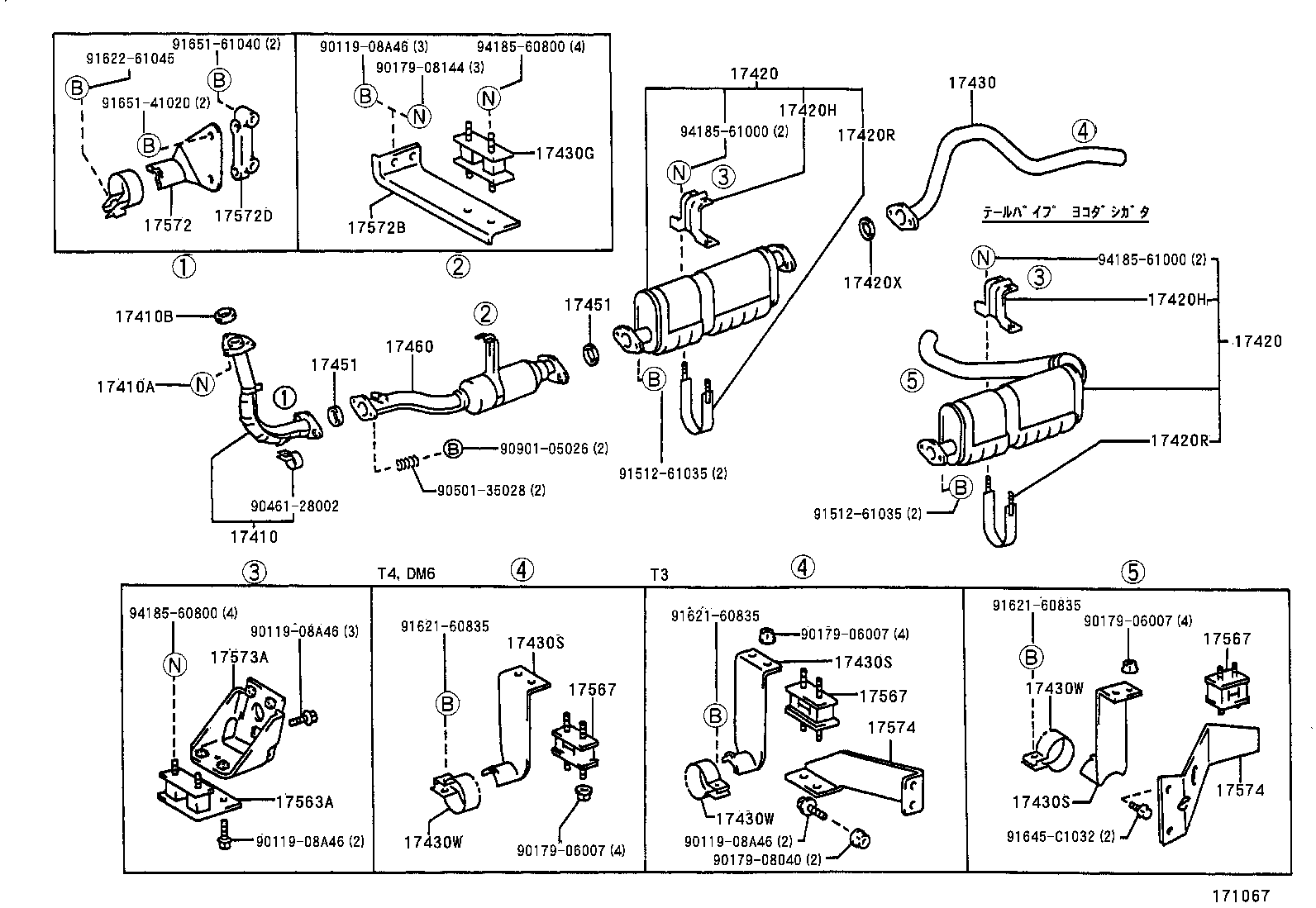

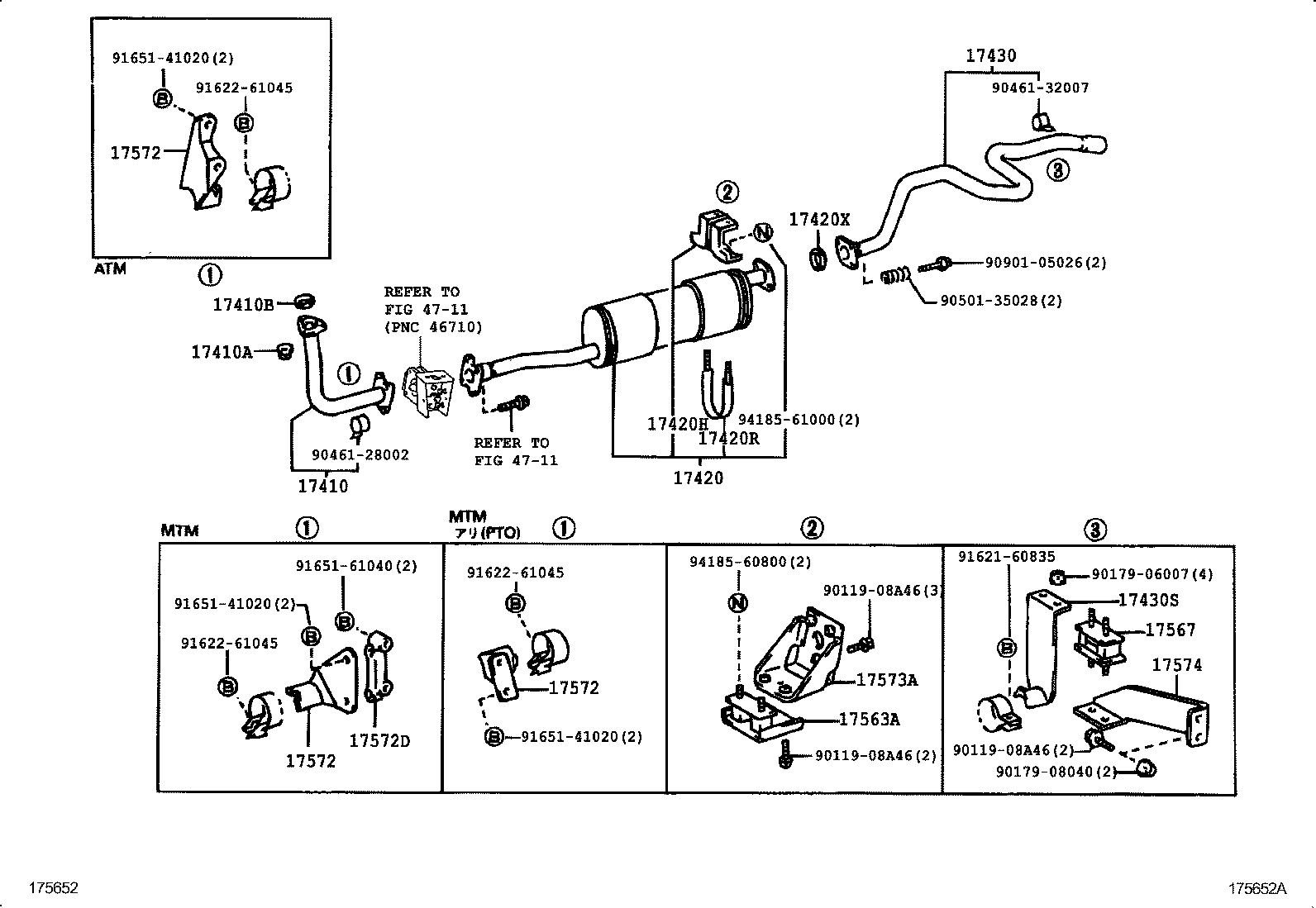

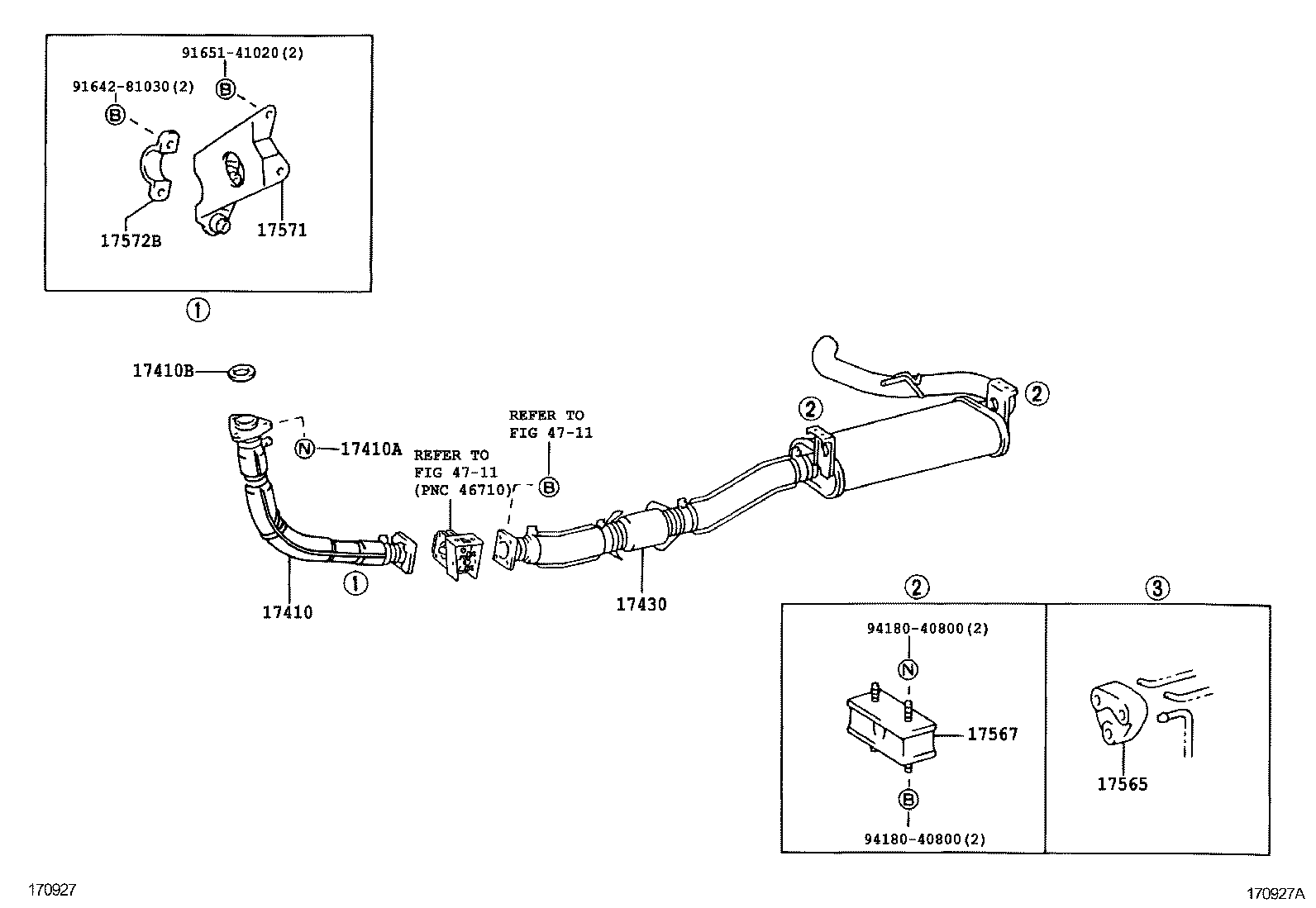

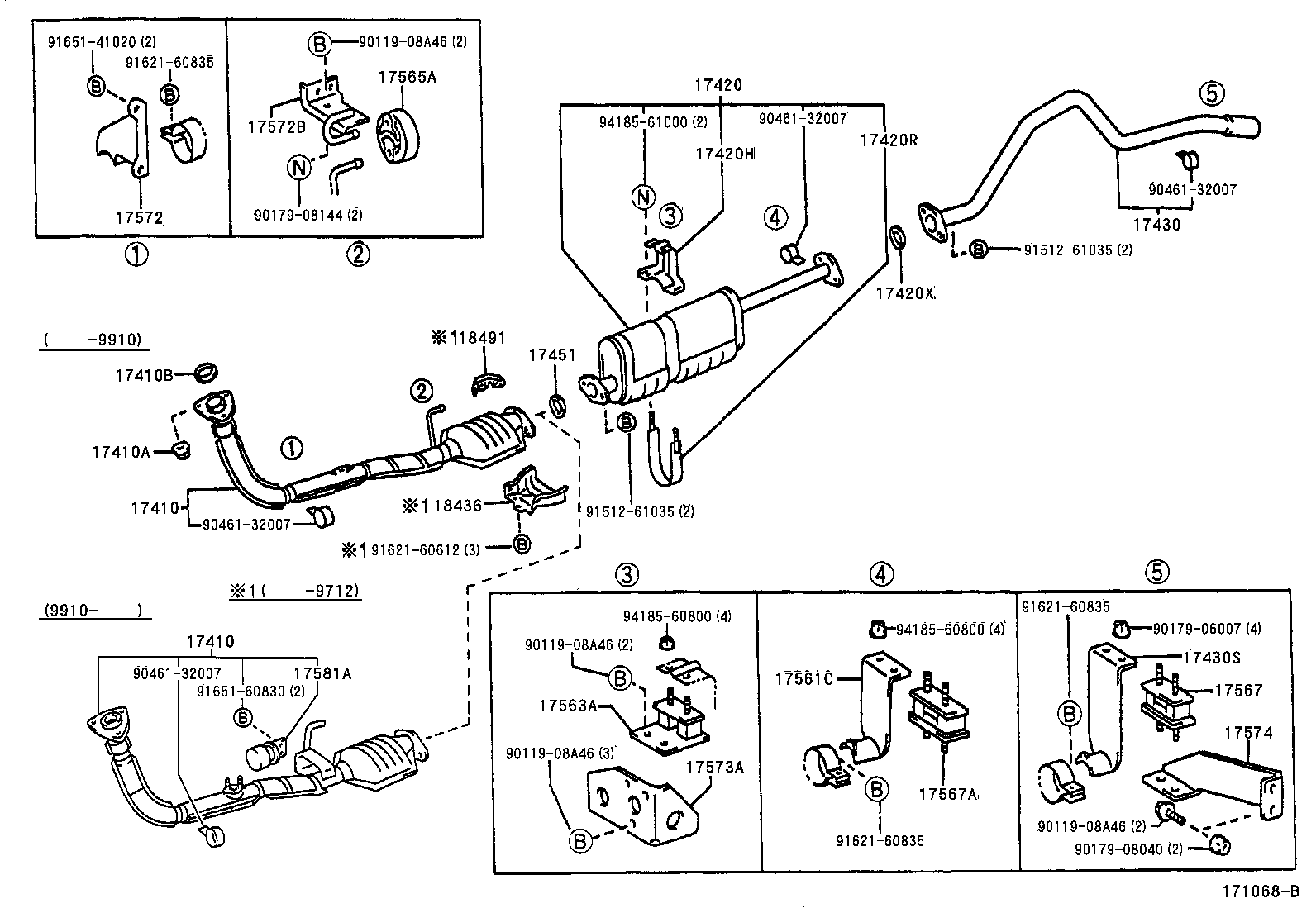

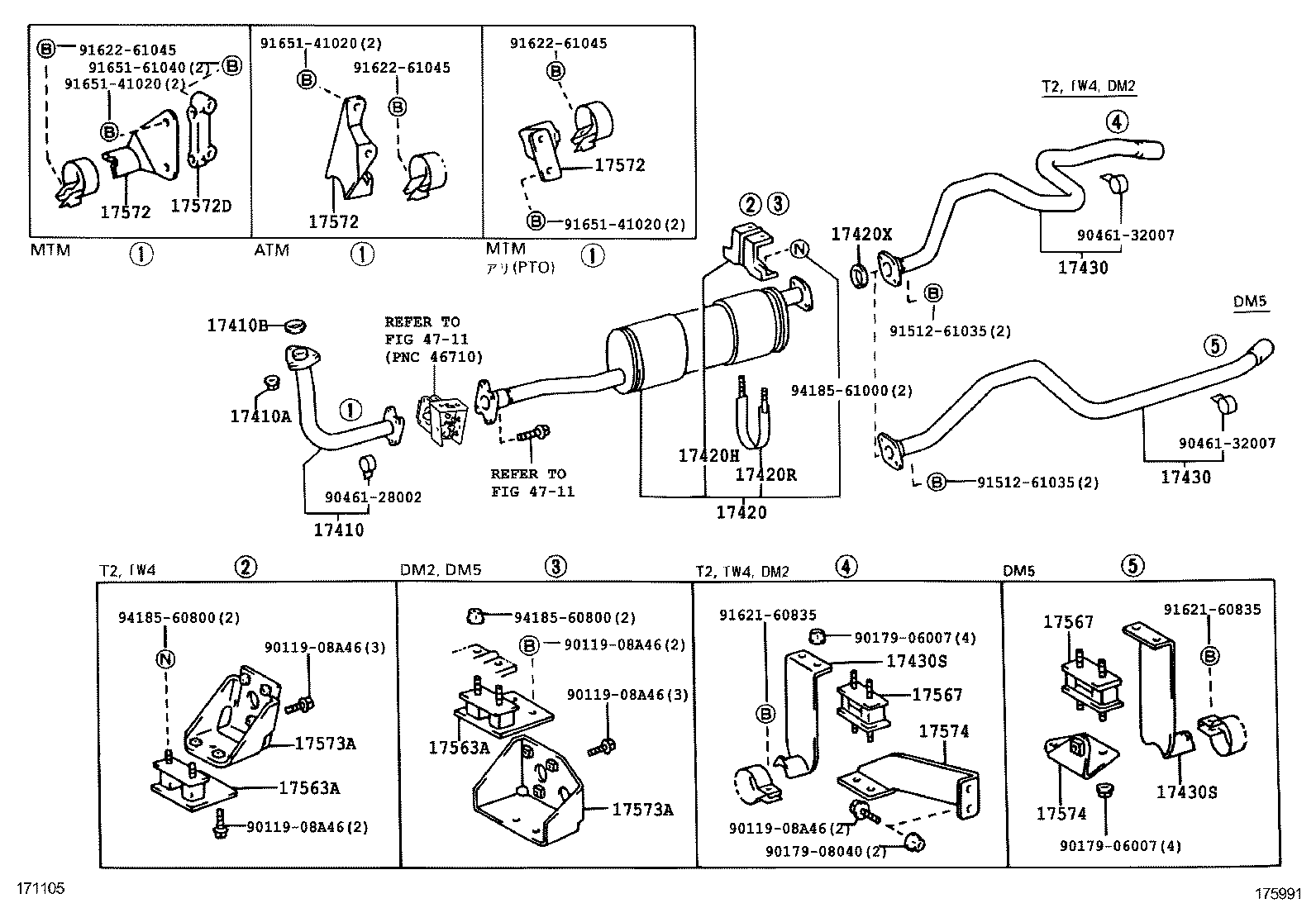

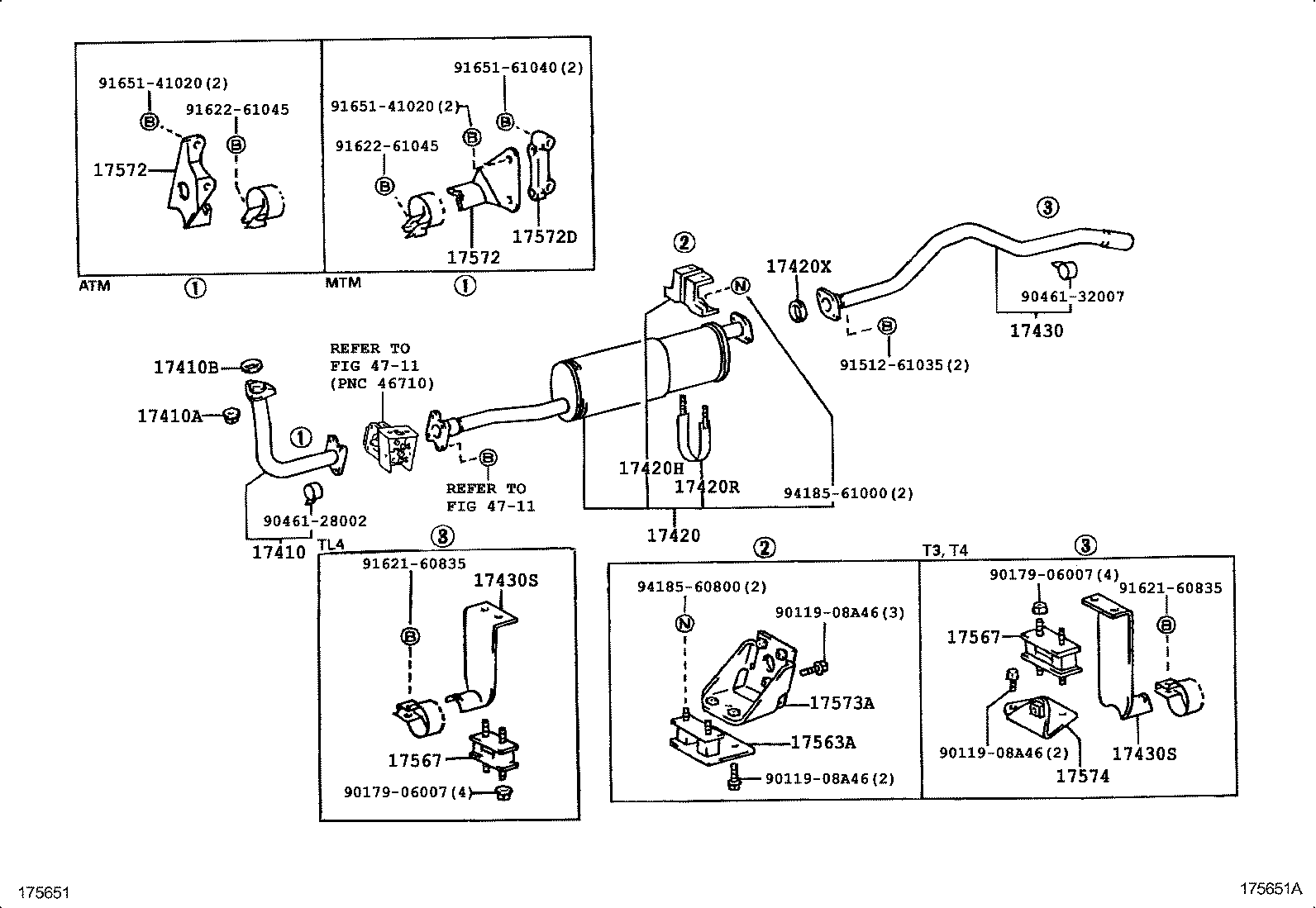

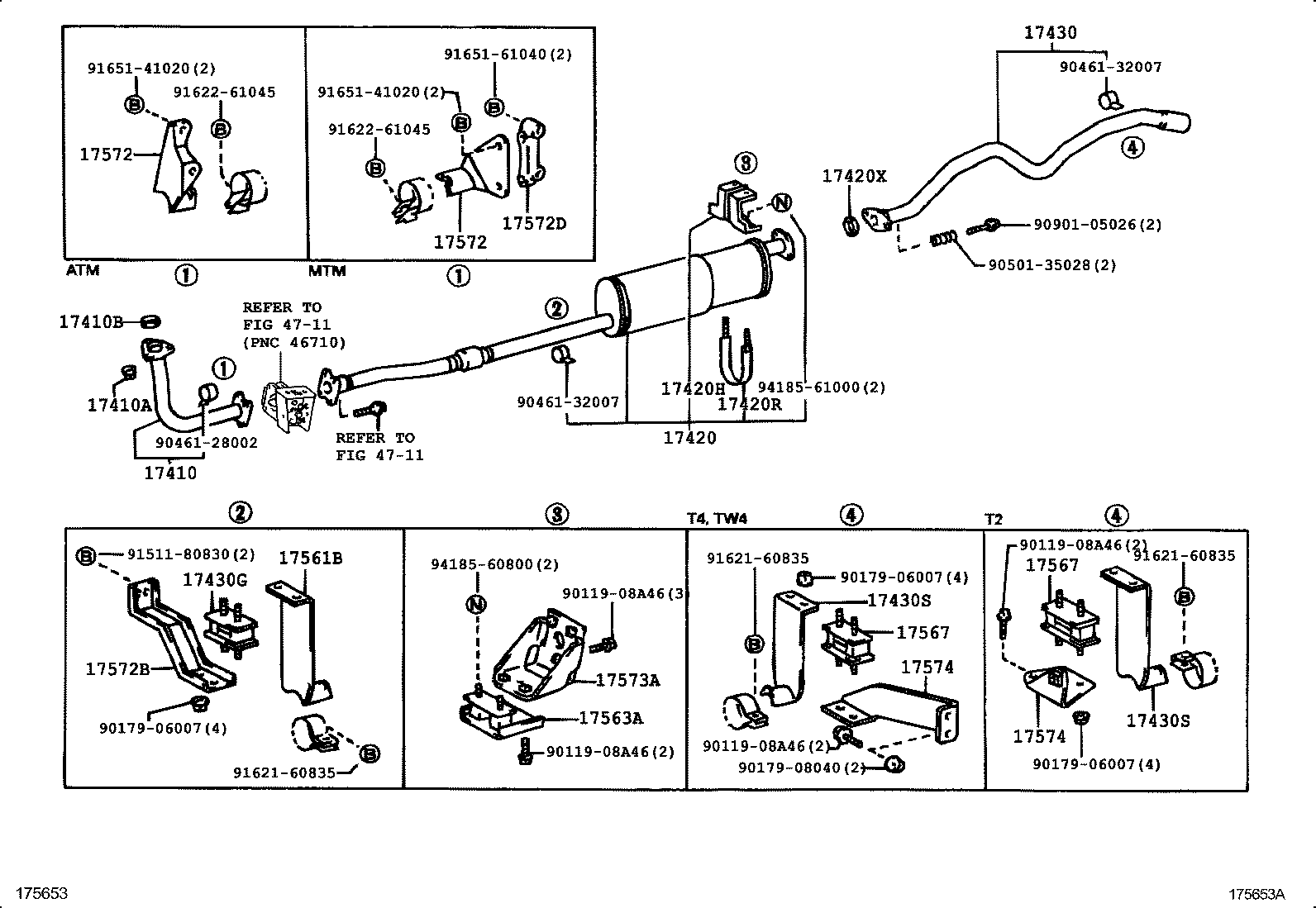

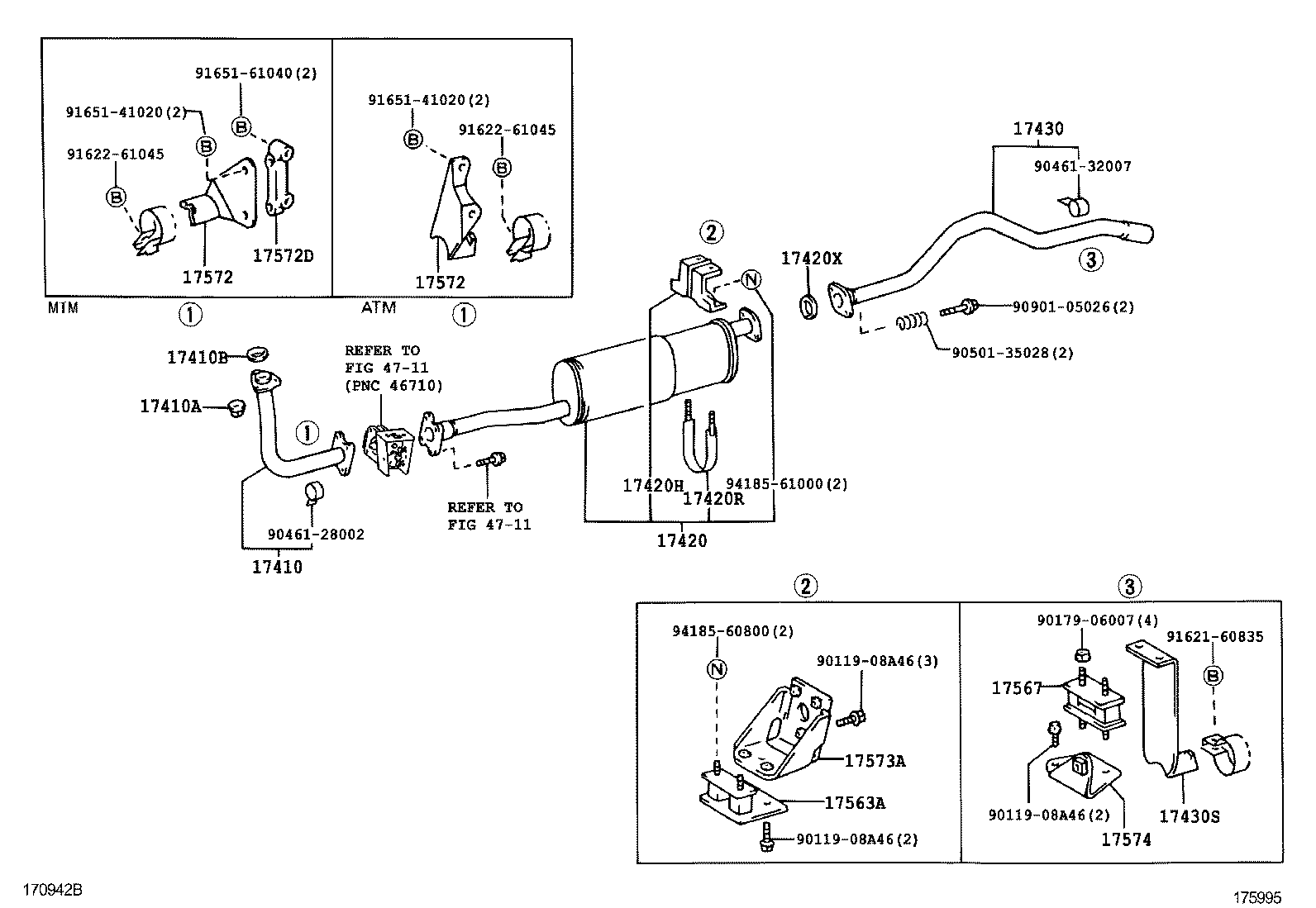

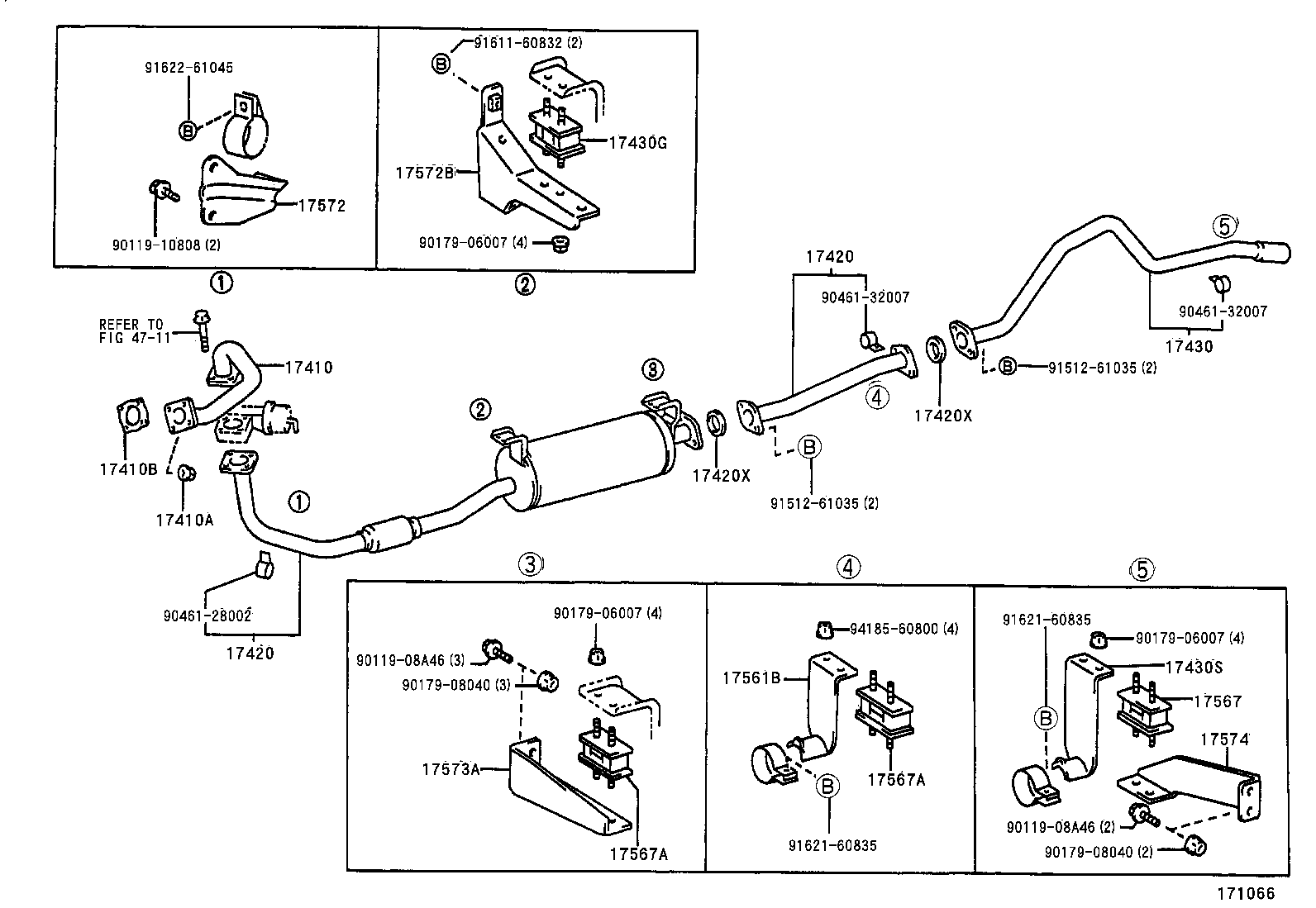

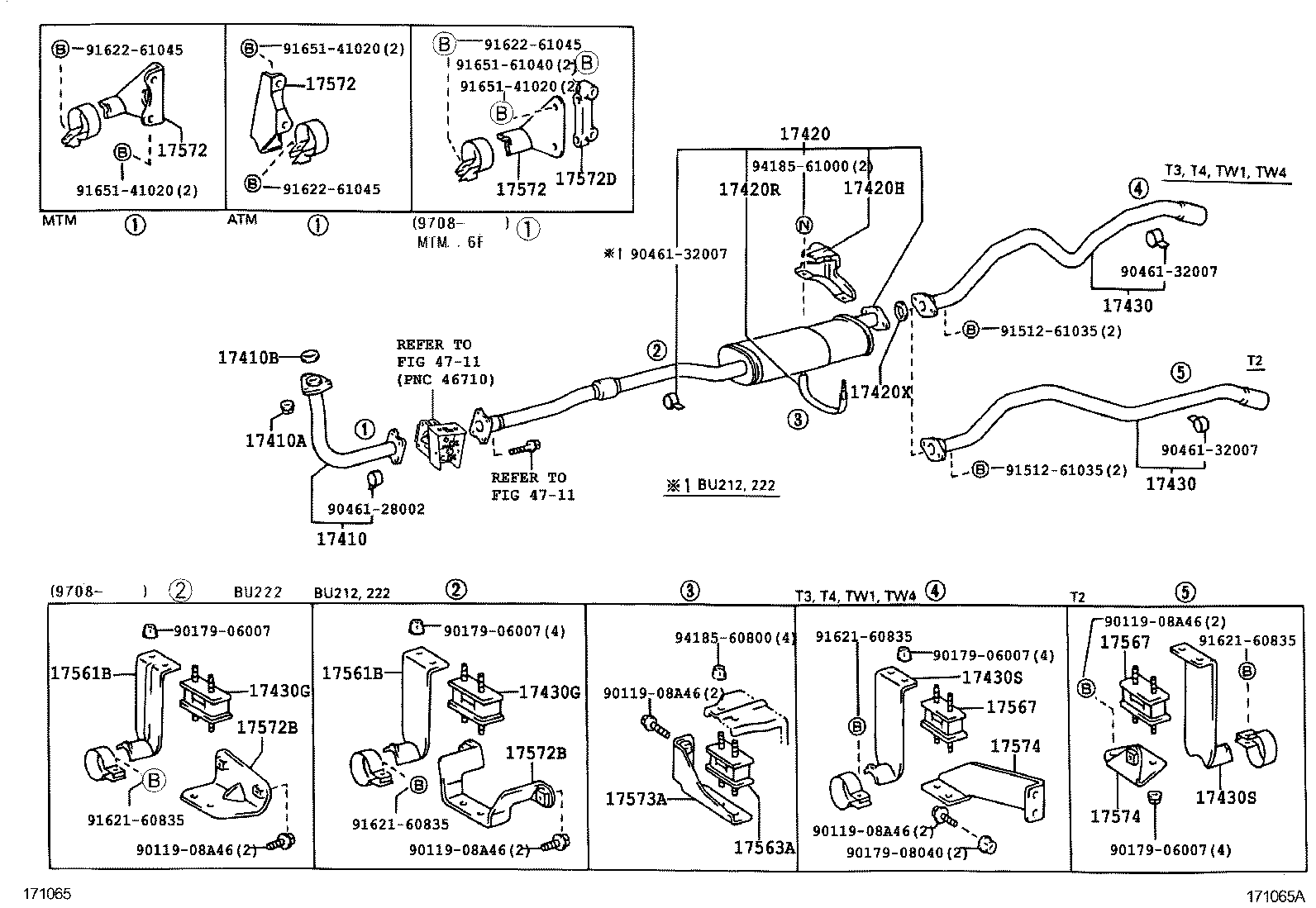

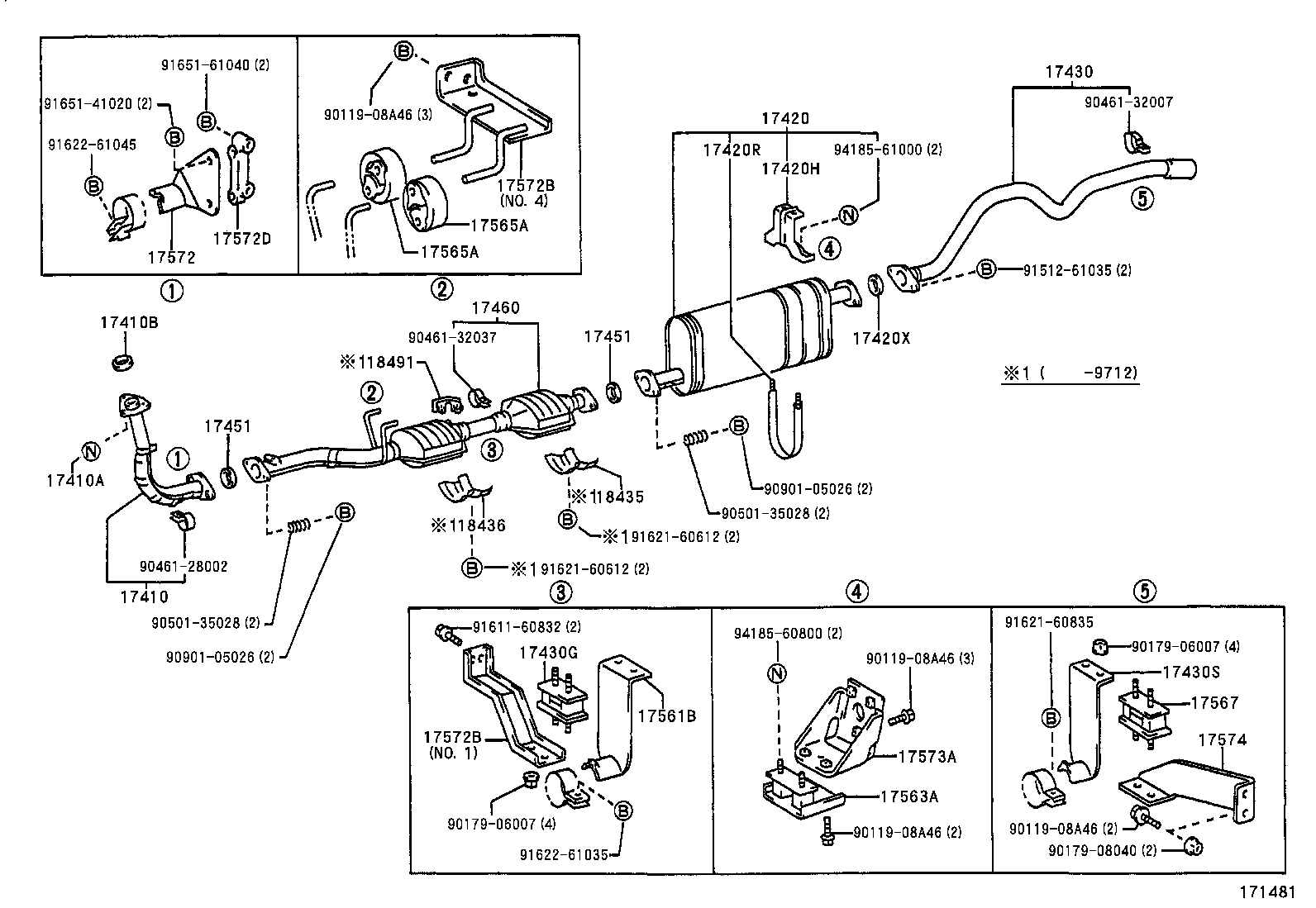

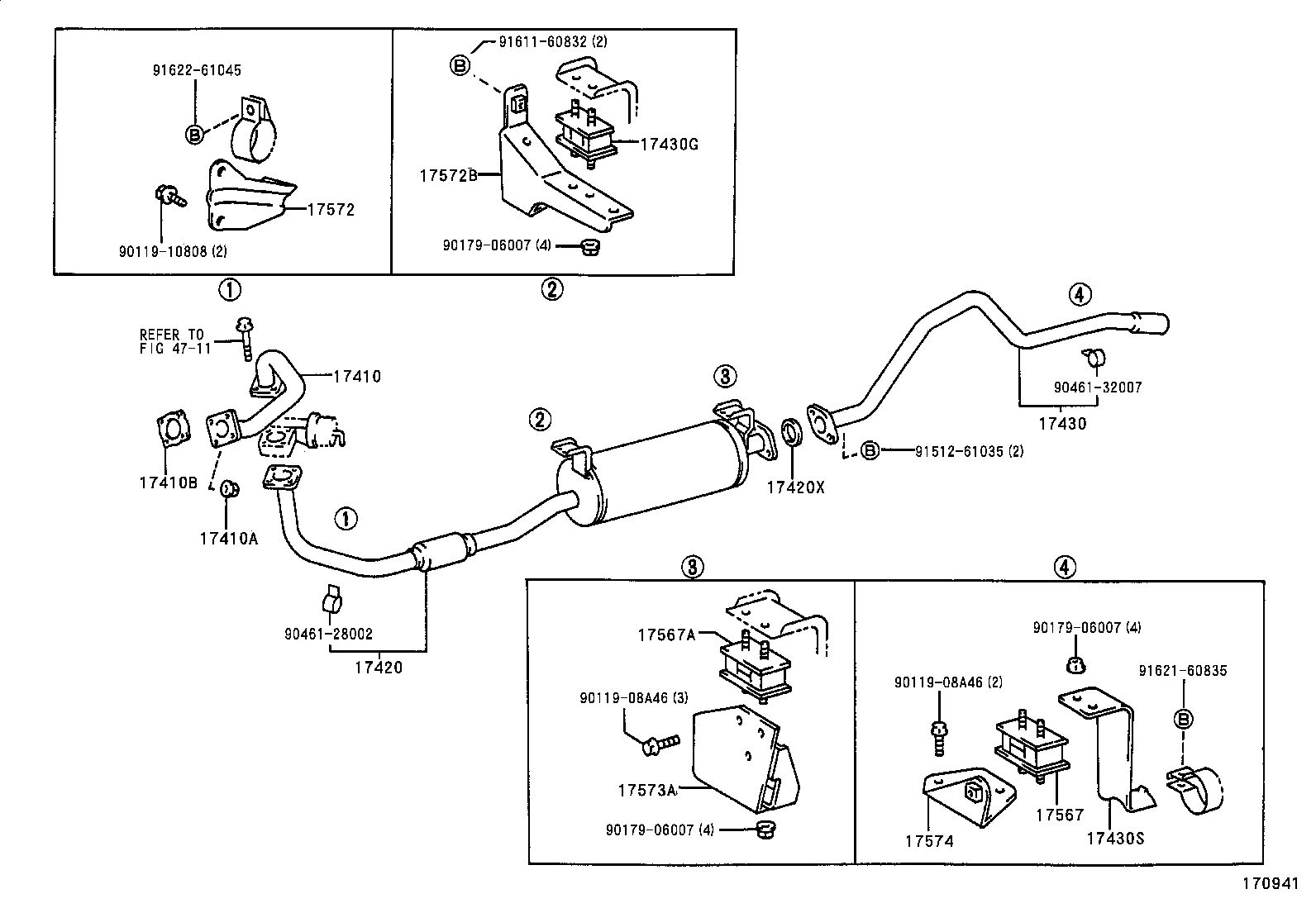

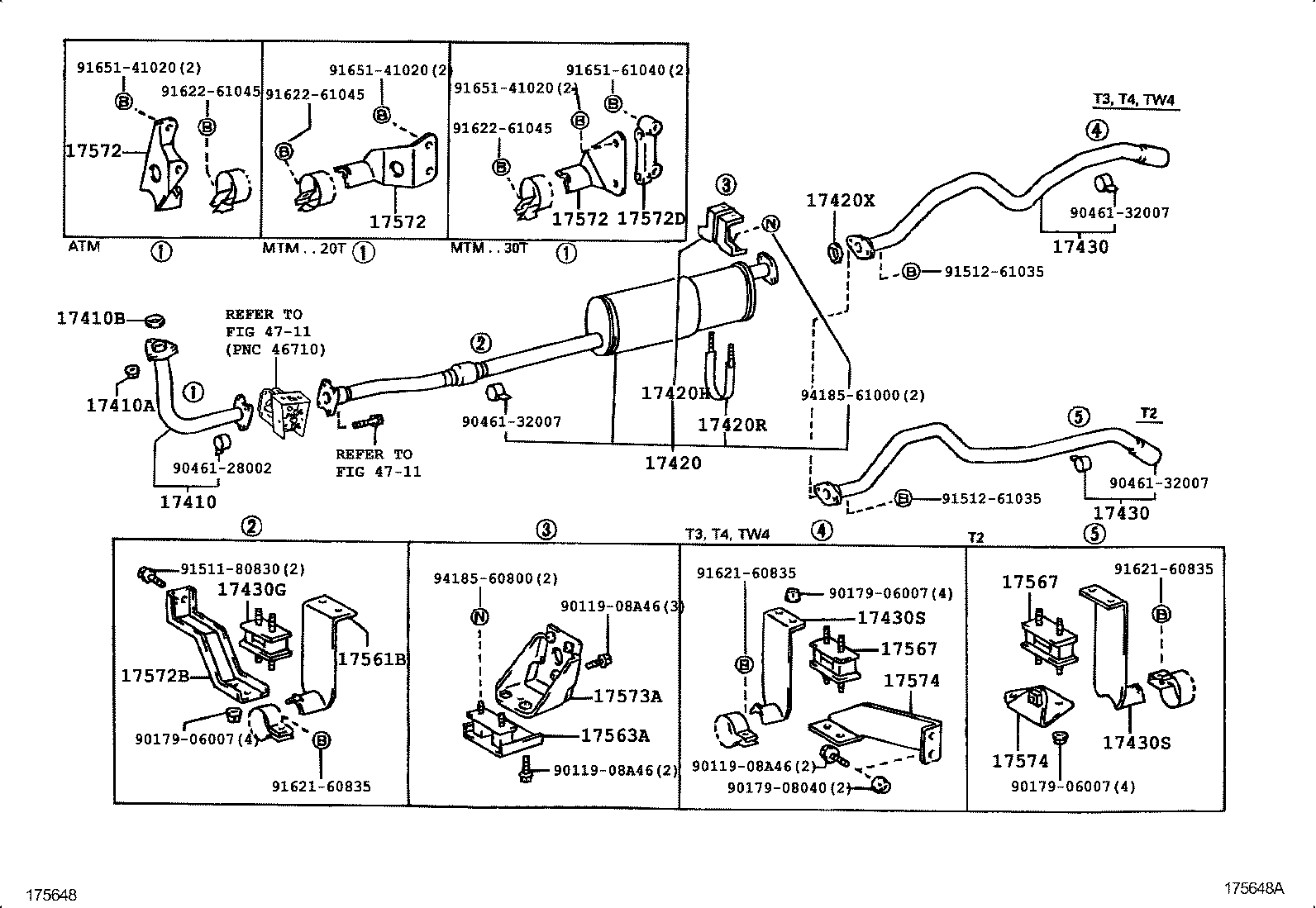

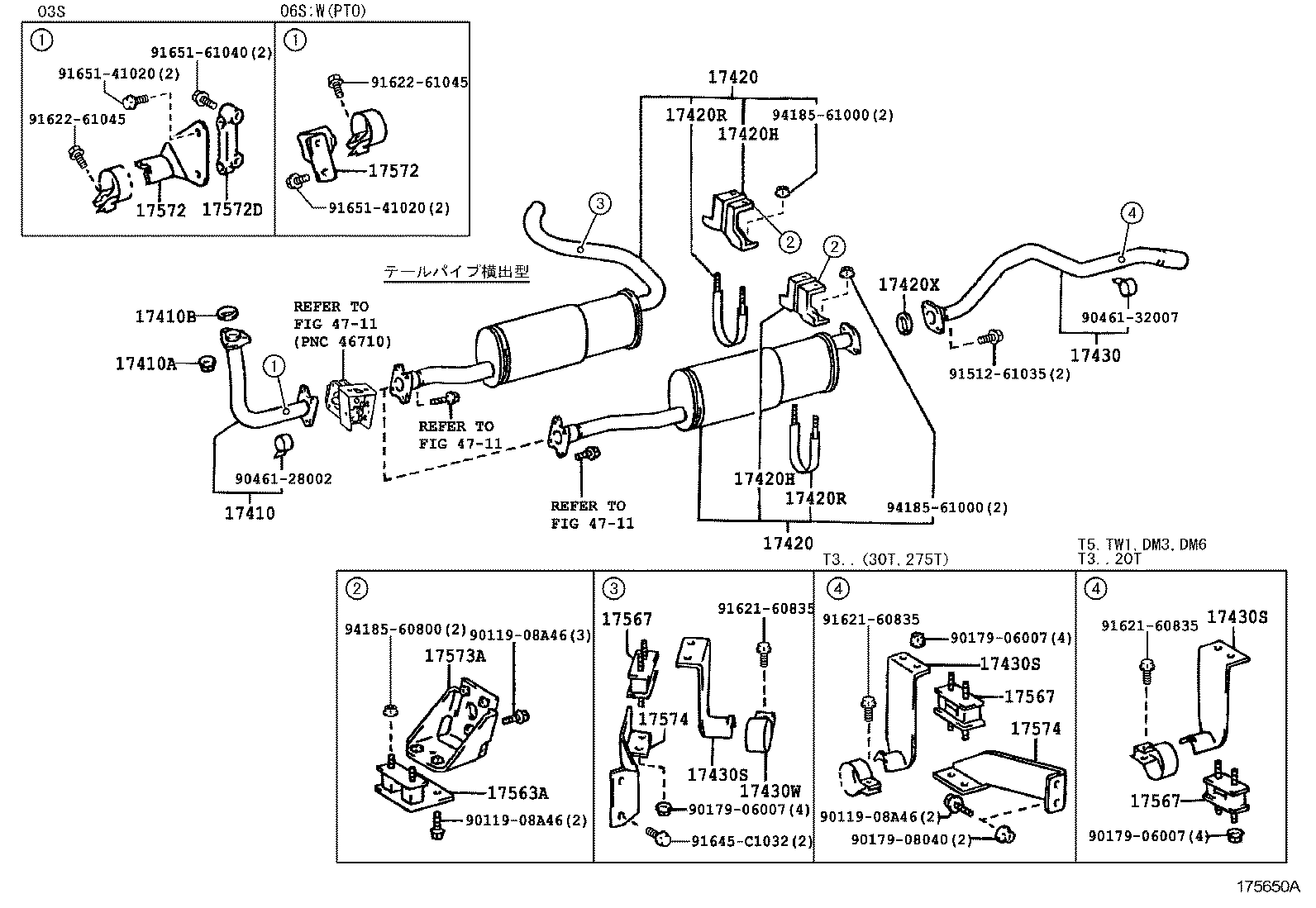

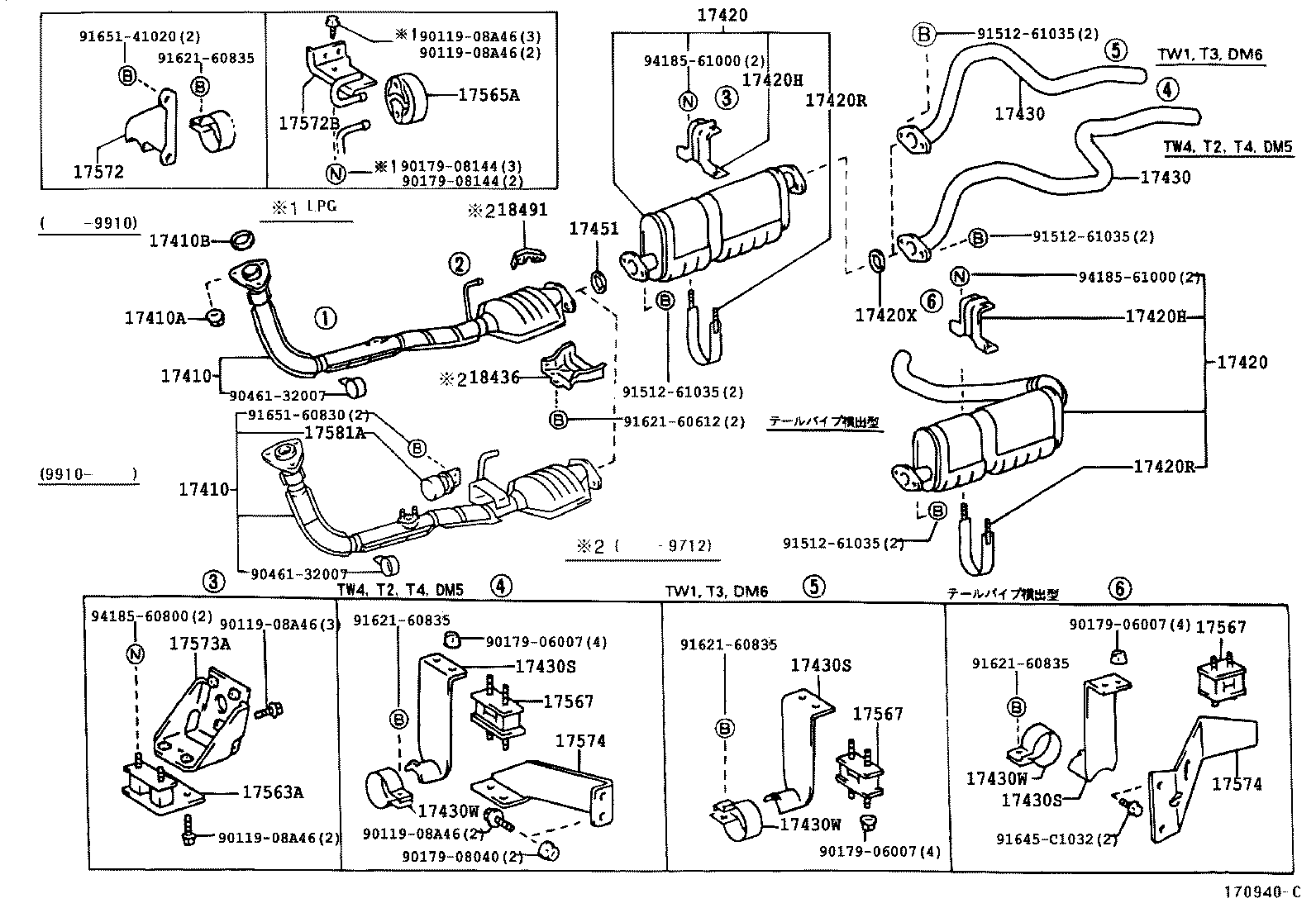

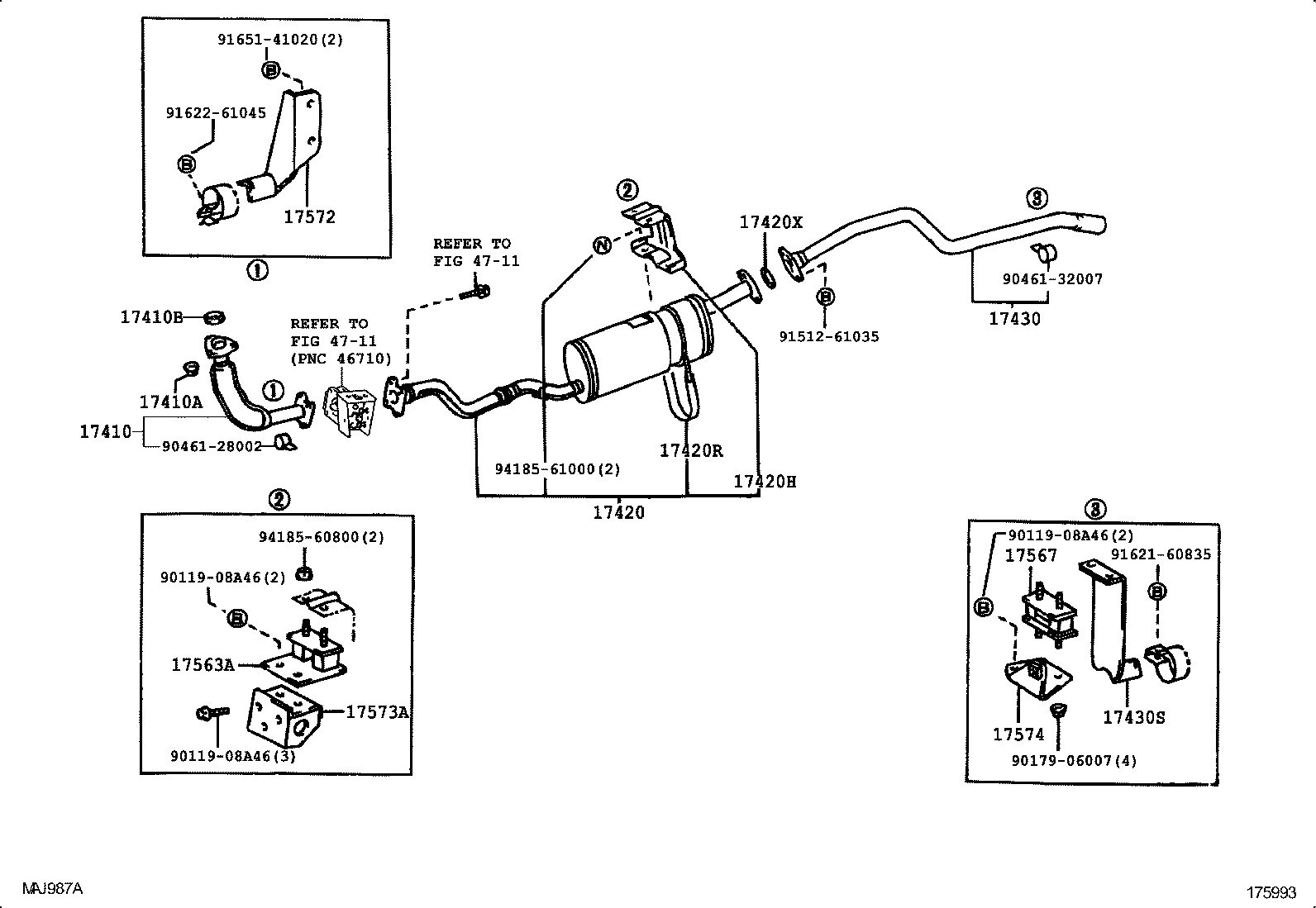

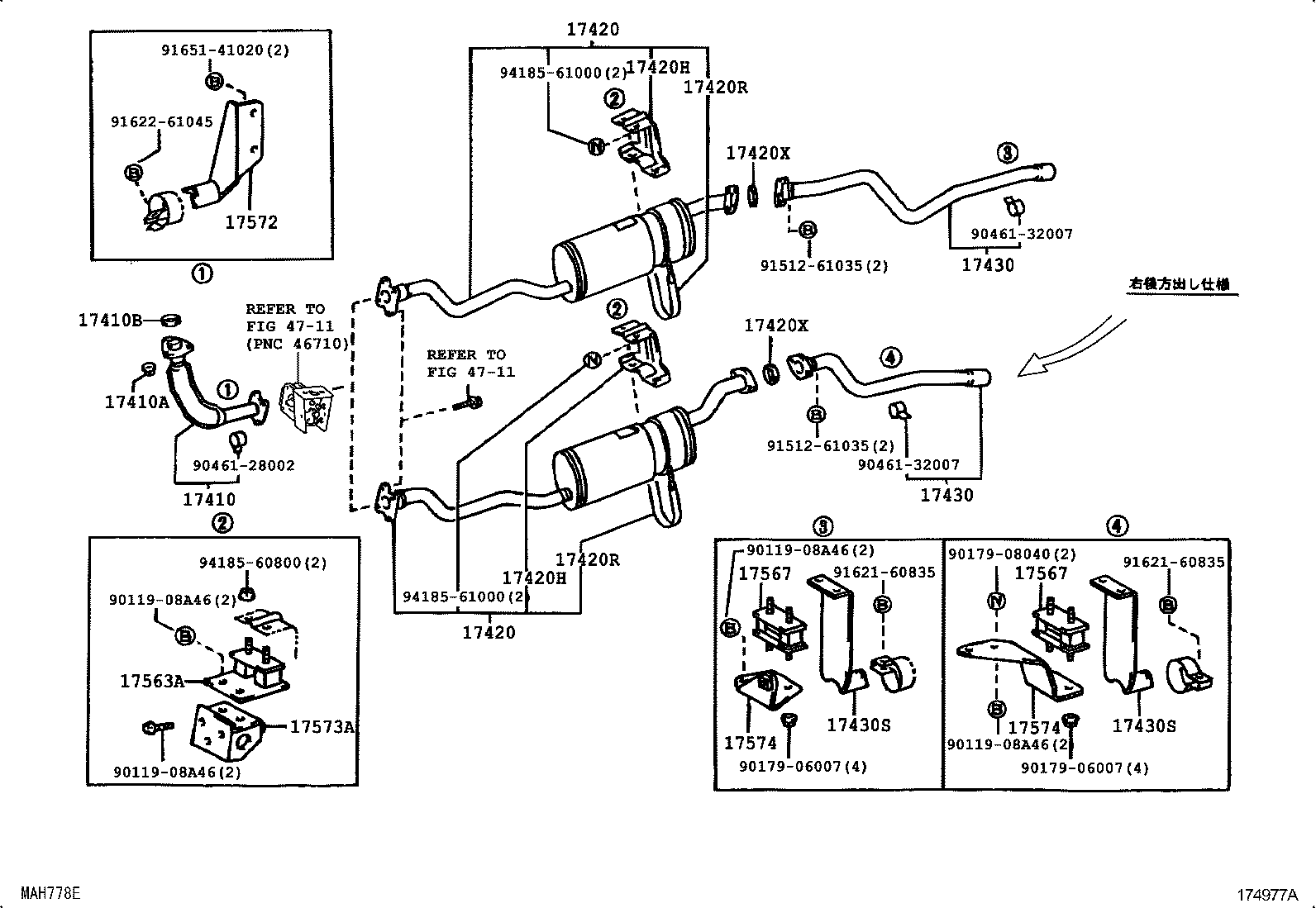

Figure 175649A 175649A 1995-05 → — Figure 175650A 175650A 1995-05 → — Figure 175991 175991 1995-05 → — Figure 175992 175992 1995-05 → — Figure 175651A 175651A 1995-05 → — Figure 175648A 175648A 1995-05 → — Figure 174977A 174977A 1995-05 → — Figure 175993 175993 1995-05 → — Figure 175994 175994 1995-05 → — Figure 171065A 171065A 1995-05 → — Figure 170940D 170940D 1995-05 → — Figure 170941 170941 1995-10 → — Figure 171481 171481 1996-05 → — Figure 175652A 175652A 1996-10 → — Figure 175995 175995 1996-10 → — Figure 170927A 170927A 1997-01 → — Figure 175653A 175653A 1996-10 → — Figure 171067 171067 1997-08 → — Figure 171068B 171068B 1997-08 → — Figure 171066 171066 1997-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420H Clamp NO.1, Exhaust Pipe Center, Center
17420R Clamp NO.2, Exhaust Pipe Center, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572D Bracket, Exhaust Pipe Support, NO.1
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17581A Damper, Exhaust Pipe
18435 Protector, Catalytic Converter
18436 Protector, Monolithic Converter, NO.1
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
