Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

69 part groups · 28 illustrations

Illustrations

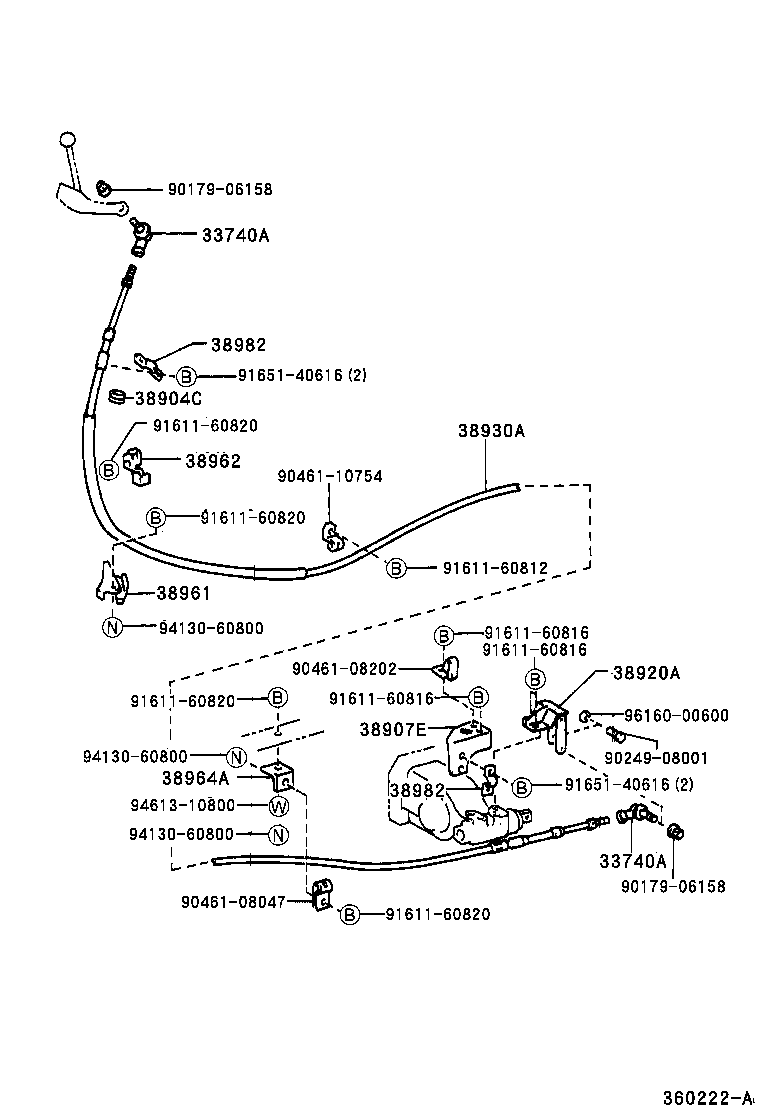

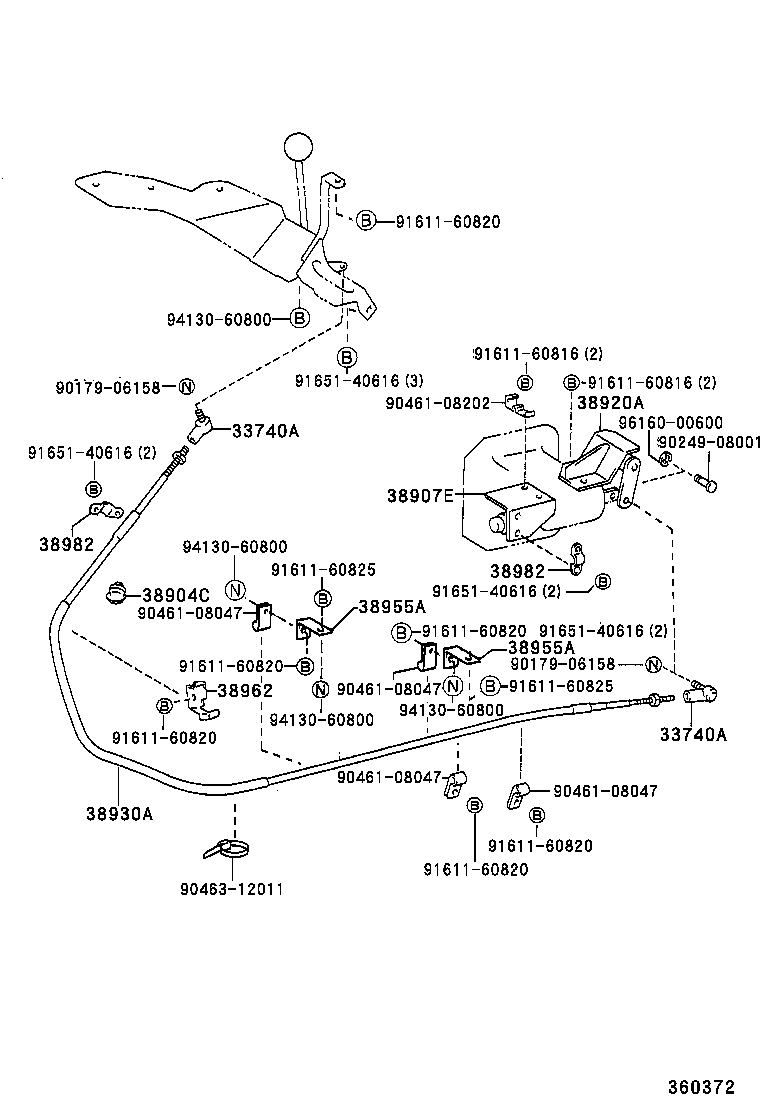

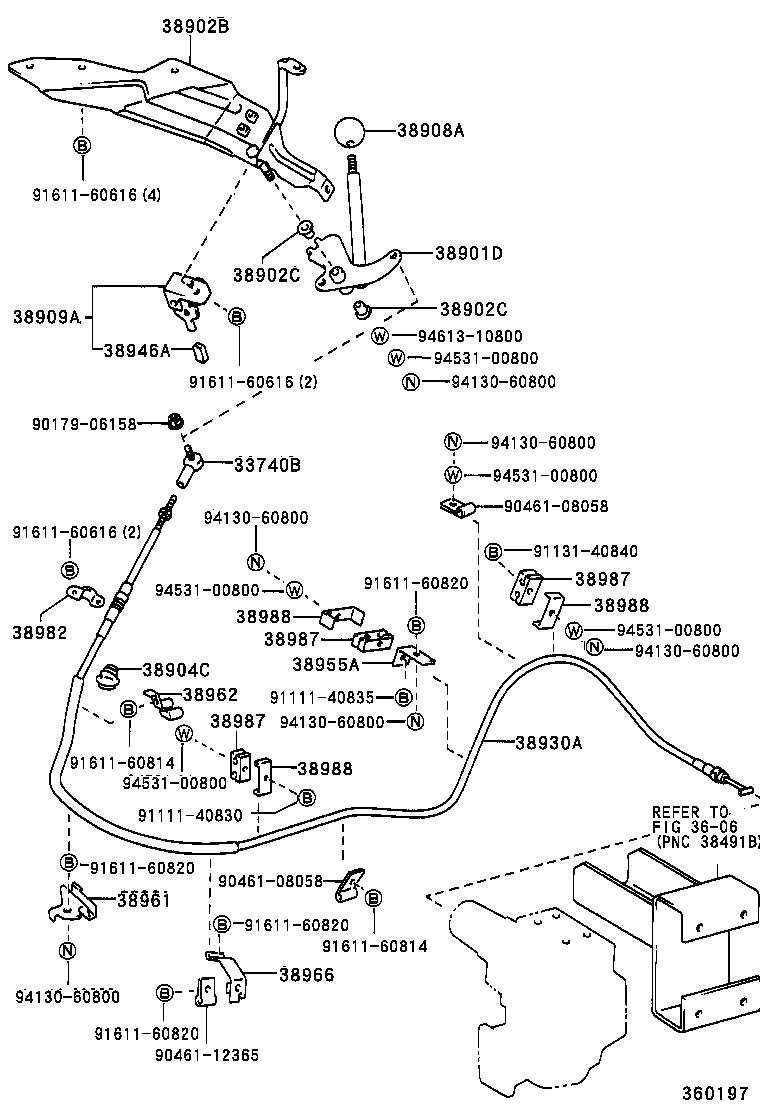

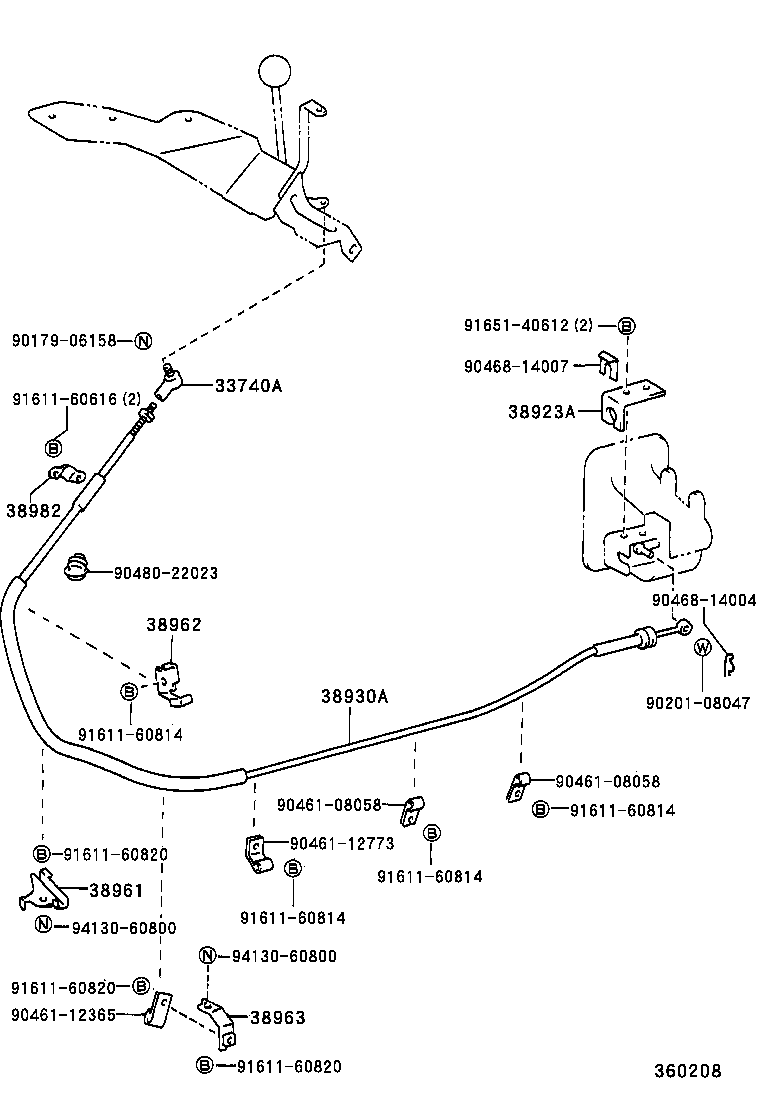

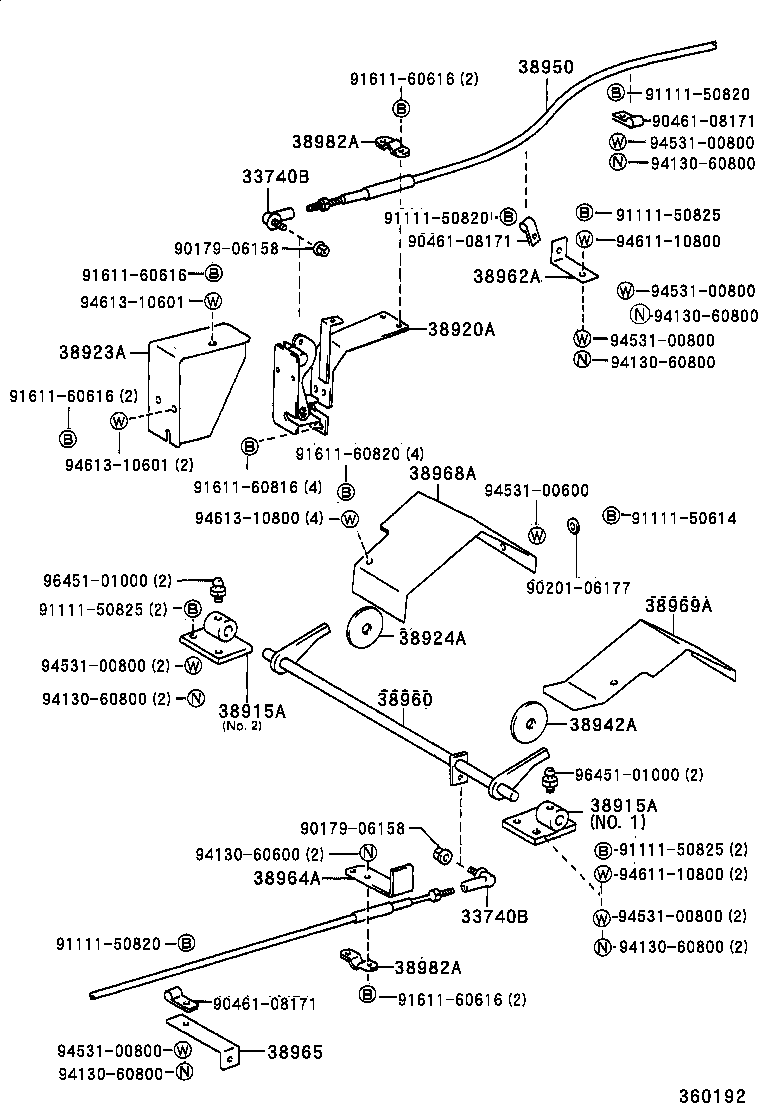

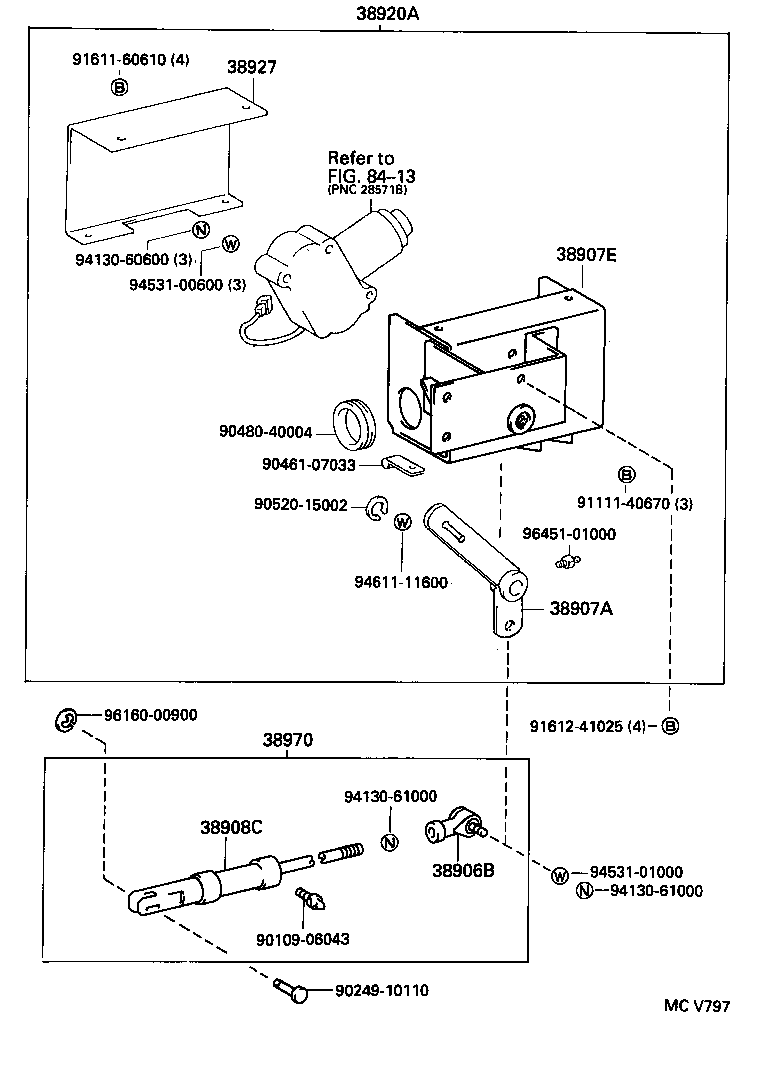

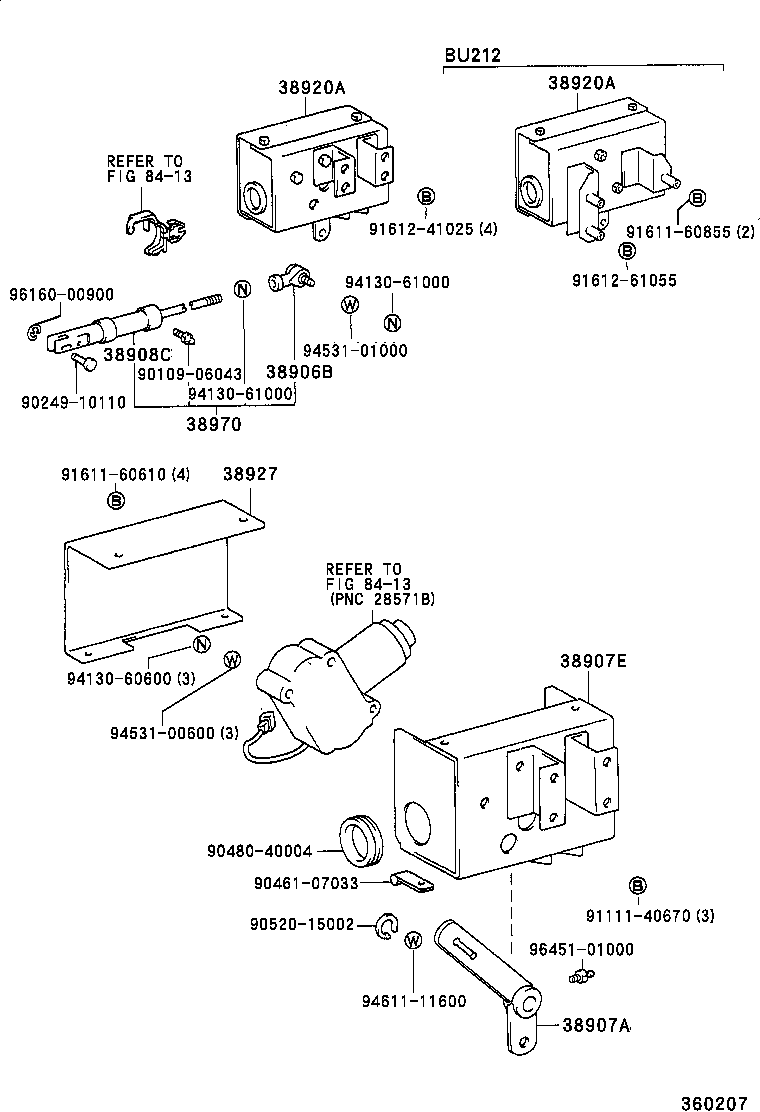

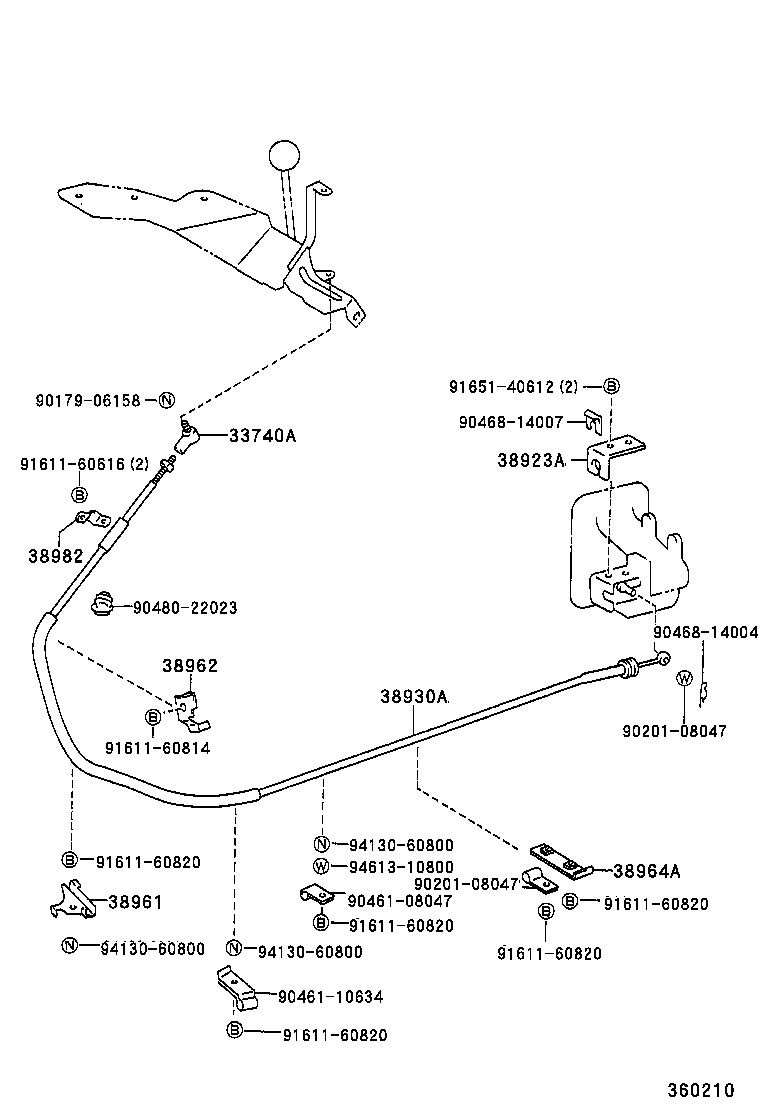

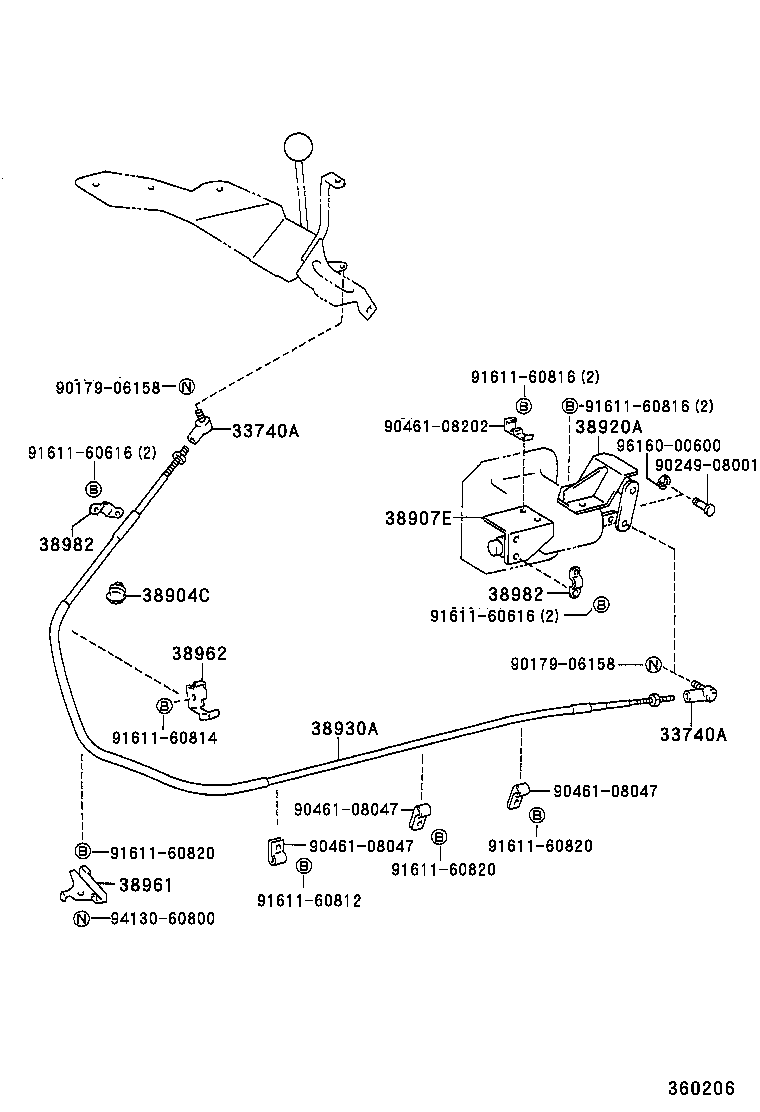

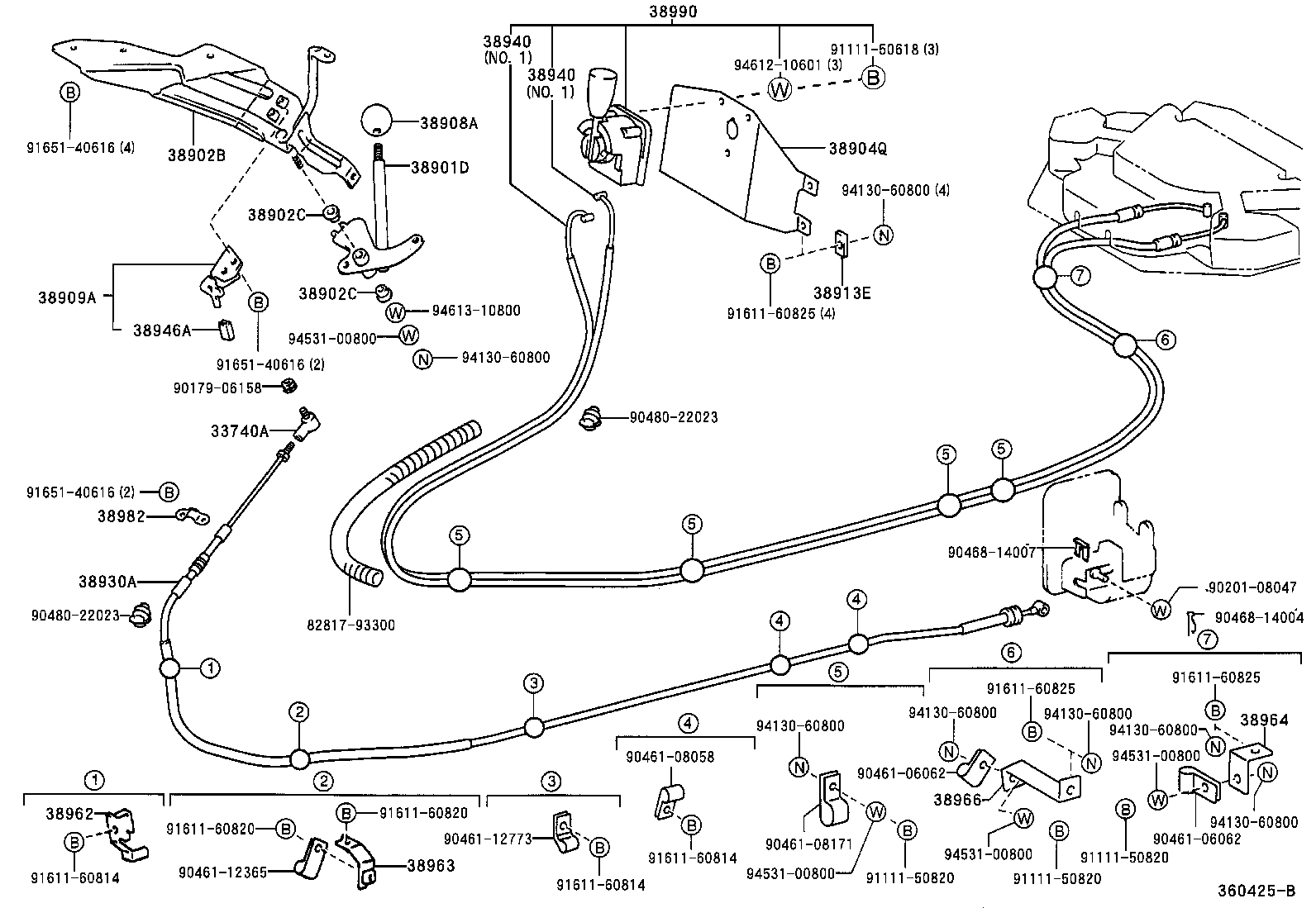

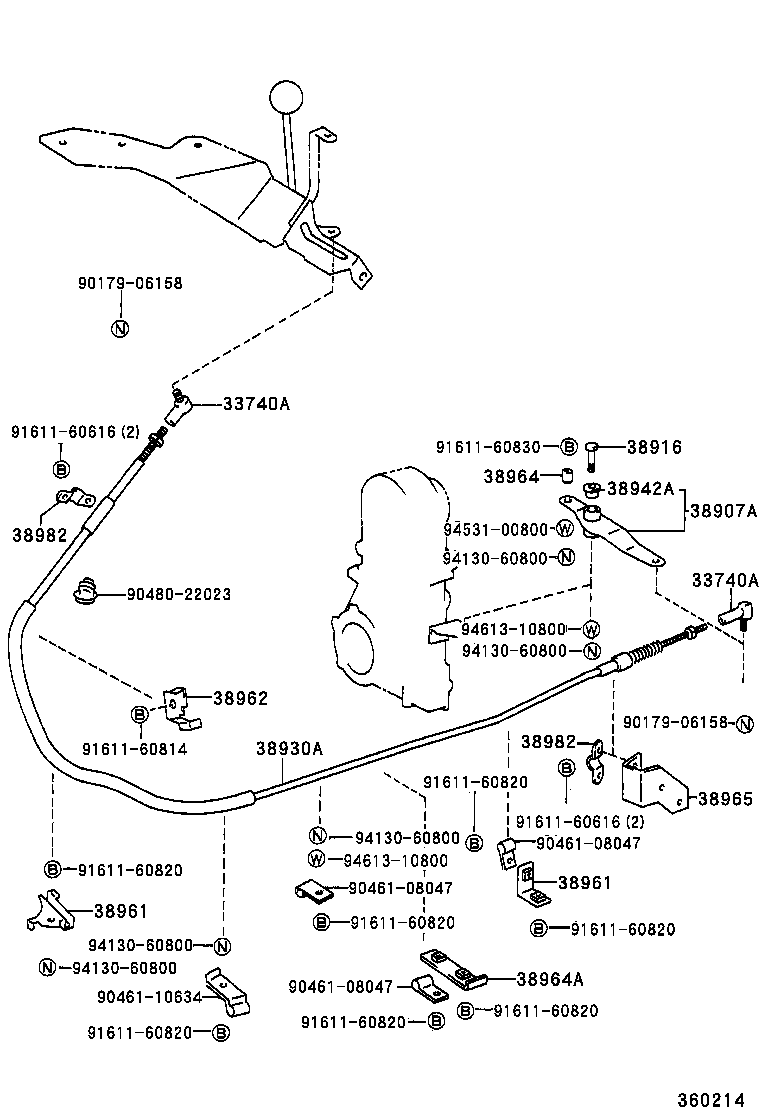

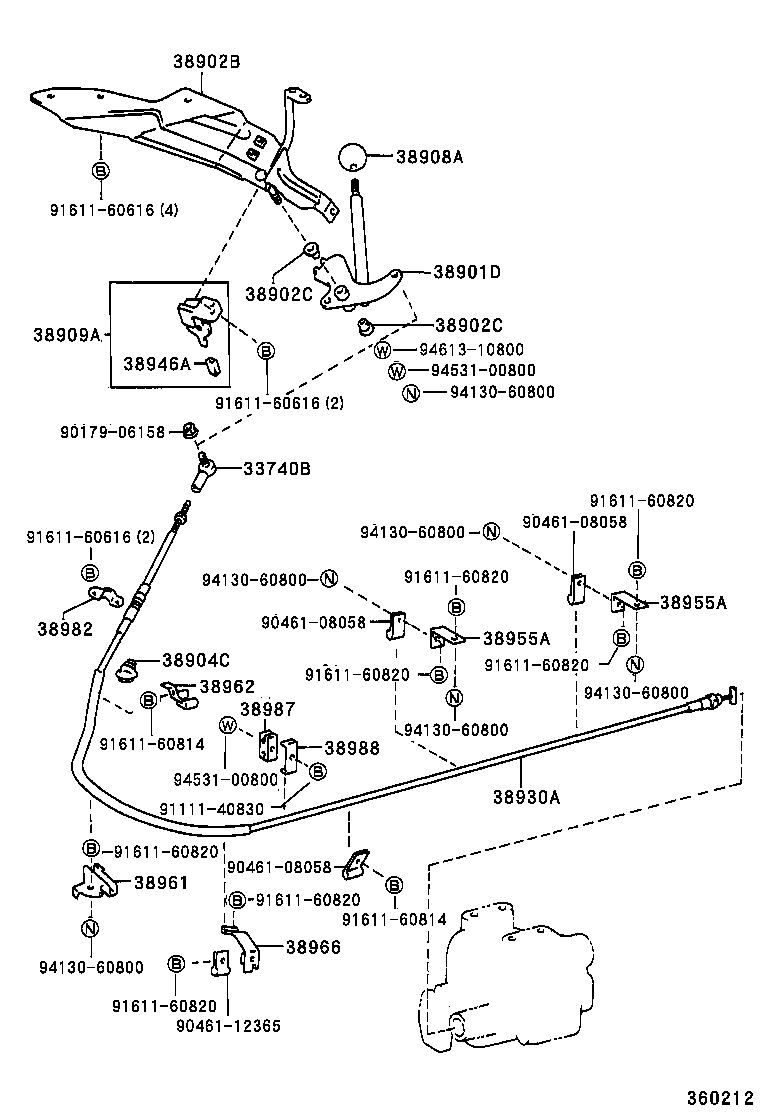

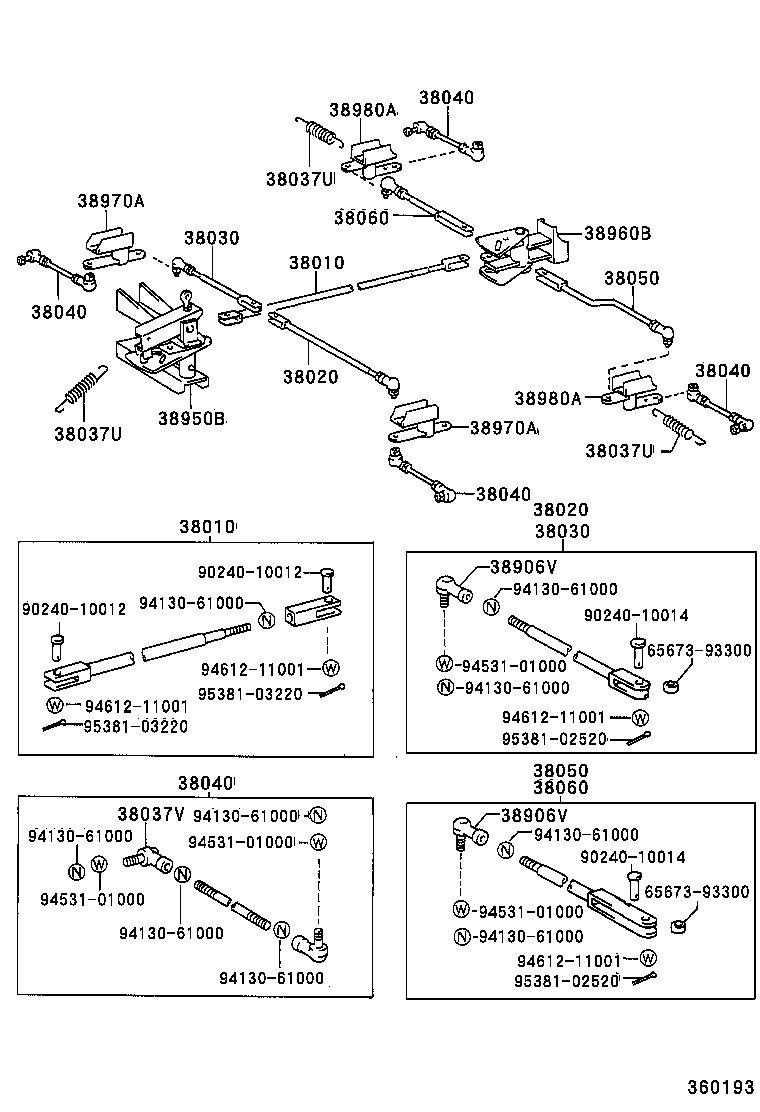

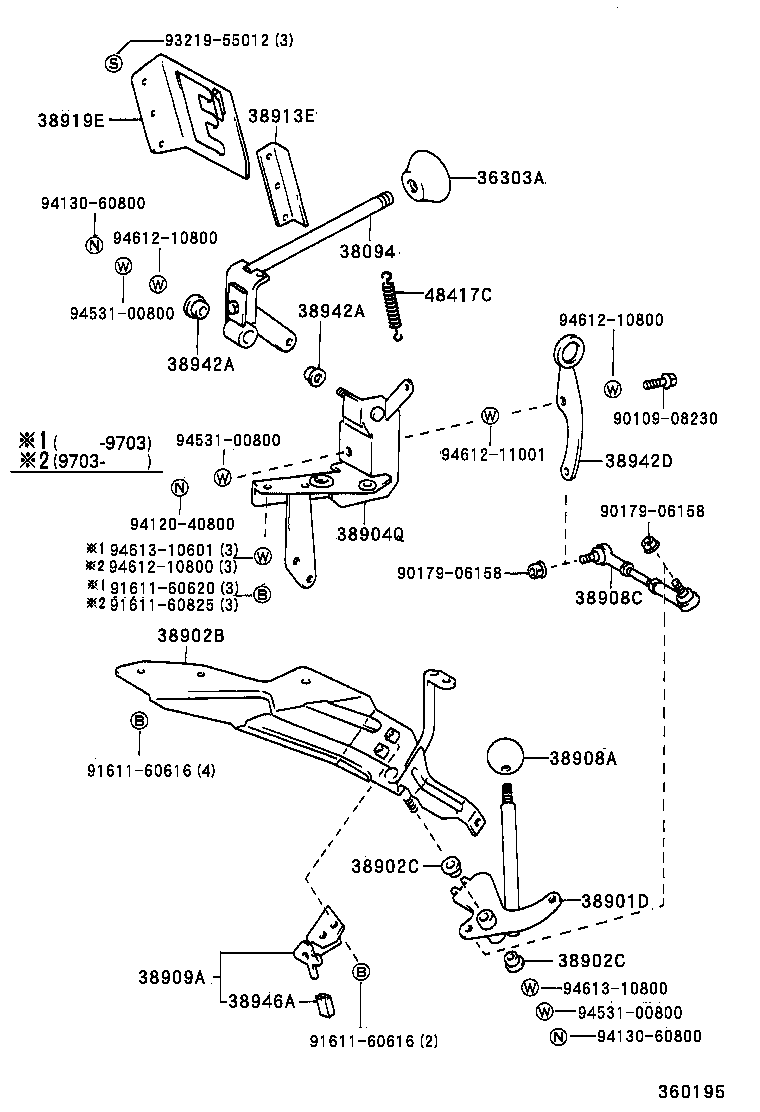

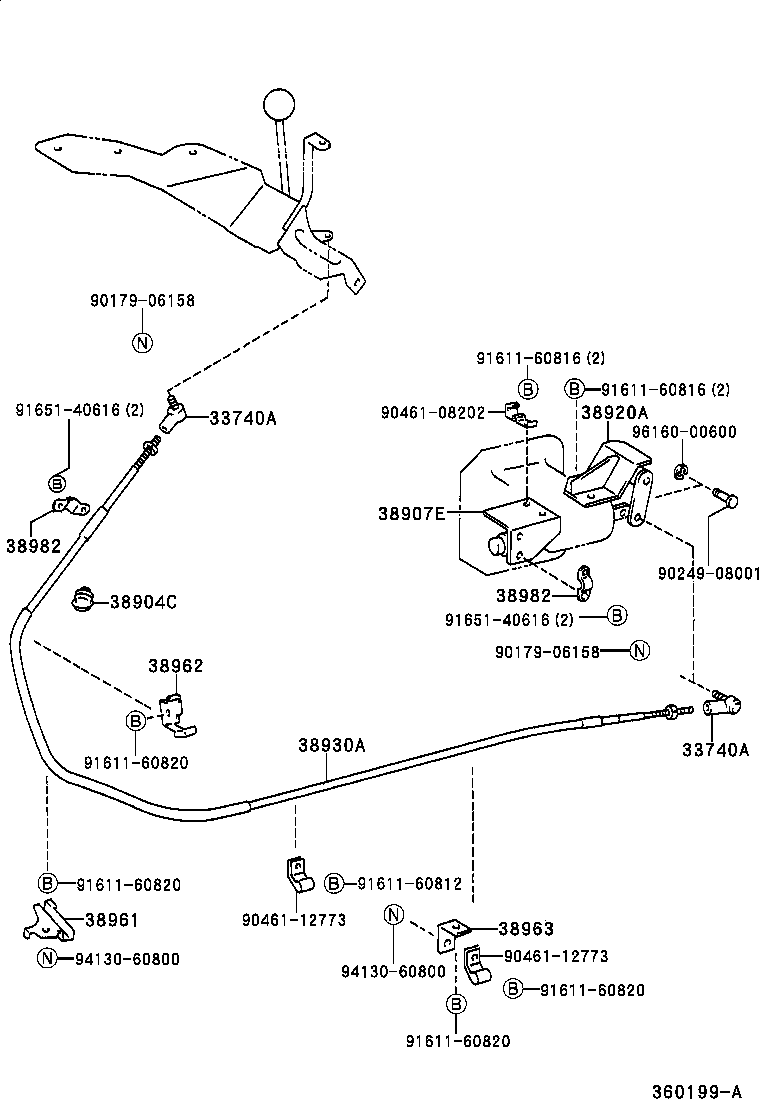

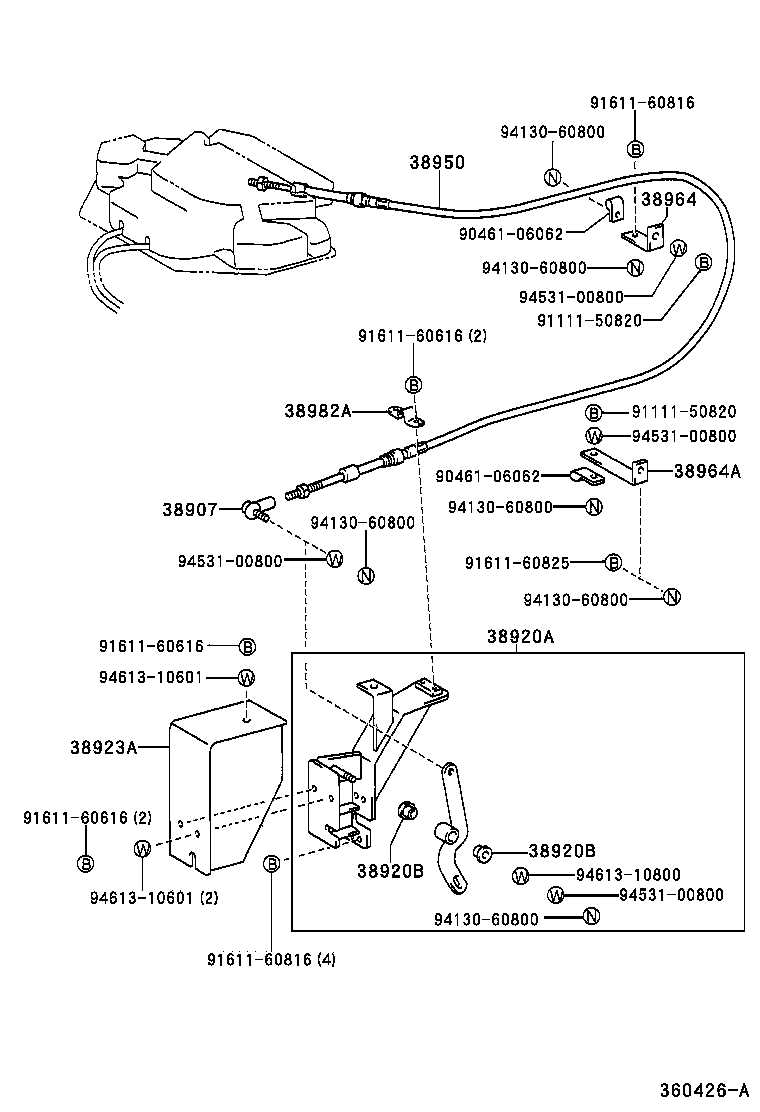

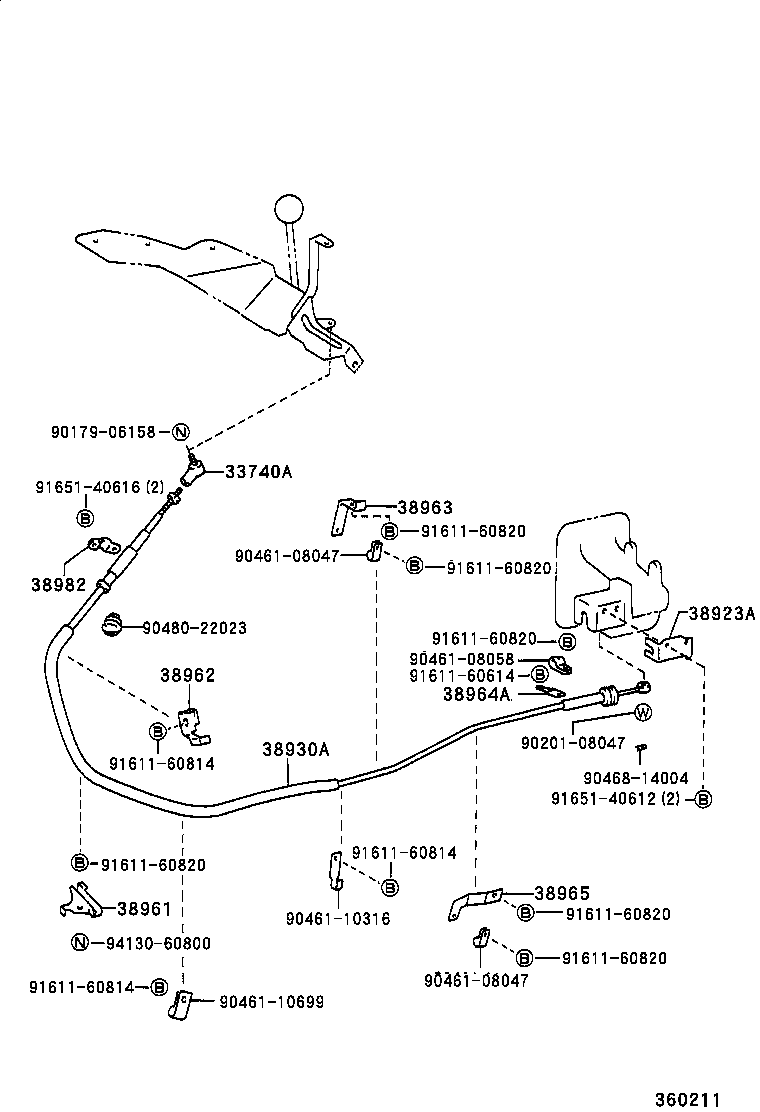

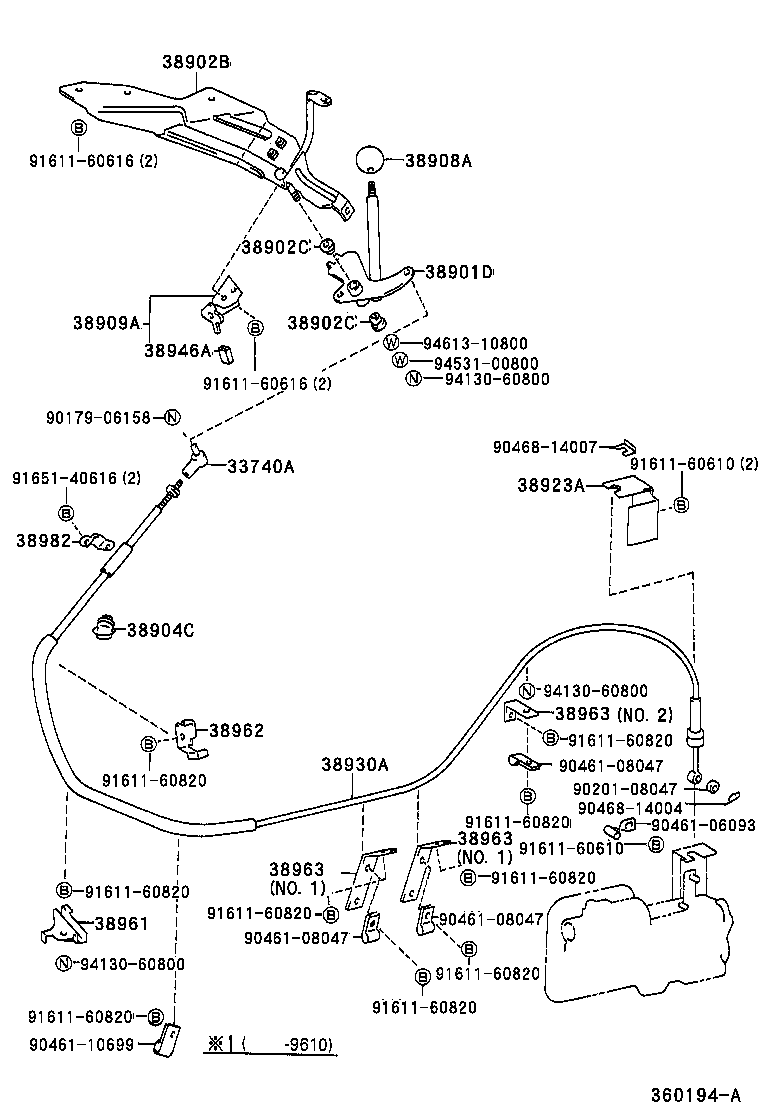

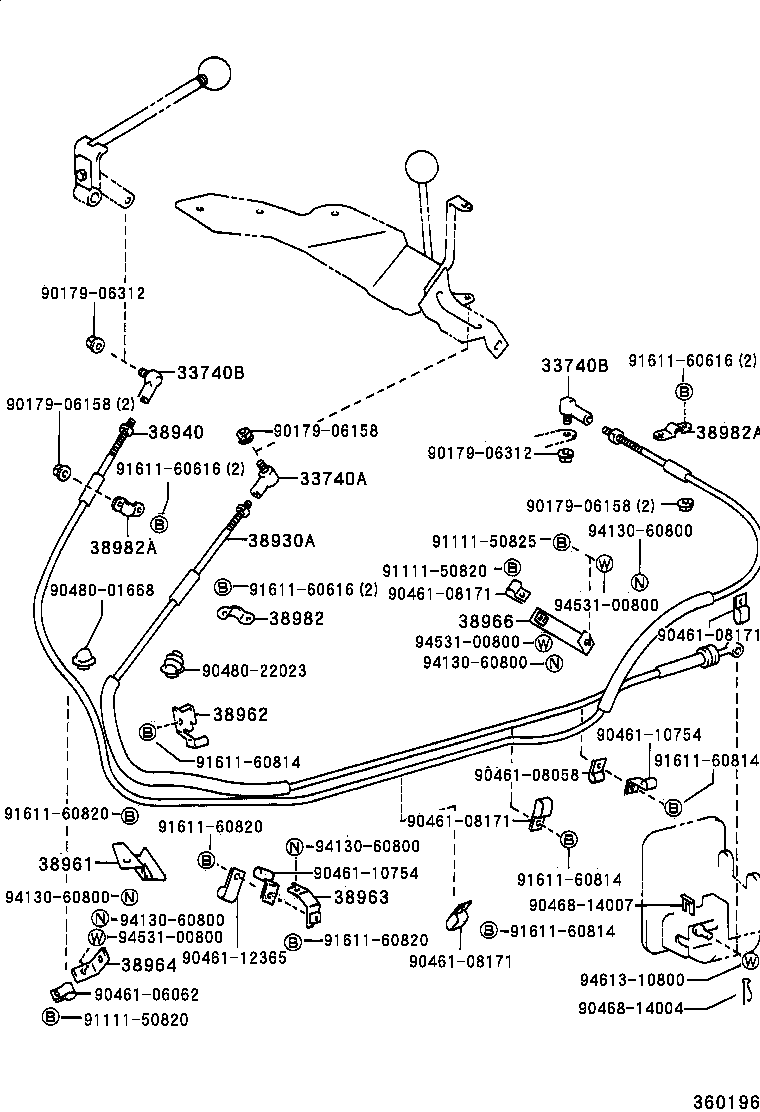

Figure 360198B 360198B 1995-05 → — Figure 360198B 360198B 1996-10 → — Figure 360198B 360198B 1996-10 → — Figure 360198B 360198B 1997-08 → — Figure 360206 360206 1995-05 → — Figure 360222A 360222A 1996-10 → — Figure 360372 360372 1997-02 → — Figure 360199A 360199A 1997-08 → — Figure 360207 360207 1995-05 → 1996-10 Figure 360207 360207 1996-10 → — Figure MCV797 MCV797 1996-10 → — Figure 360200B 360200B 1995-05 → — Figure 360208 360208 1995-05 → — Figure 360209 360209 1995-05 → — Figure 360211 360211 1996-10 → — Figure 360210 360210 1995-05 → — Figure 360213 360213 1995-07 → — Figure 360214 360214 1995-07 → — Figure 360194A 360194A 1995-05 → — Figure 360195 360195 1995-05 → 1998-07 Figure 360196 360196 1995-05 → 1998-07 Figure 360192 360192 1995-05 → 1998-07 Figure 360193 360193 1995-05 → 1998-07 Figure 360197 360197 1995-10 → 1996-10 Figure 360212 360212 1996-10 → — Figure 360425B 360425B 1998-07 → — Figure 360426A 360426A 1998-07 → — Figure 360427 360427 1998-07 → —

Part groups

PNCDescription
33740A End Assy, Push-pull Control Cable
33740B End Assy, Control
36303A Knob Sub-assy, Shift Lever (FOR POWER TAKE-OFF)
38010 Rod Assy, Select Contorol
38020 Rod Assy, Select Control, NO.2
38030 Rod Assy, Select Control, NO.3
38037U Spring, Tention (FOR SELECT CONTROL ROD)
38037V Joint Assy, Ball (FOR SELECT CONTROL ROD)
38040 Rod Assy, Select Control, NO.4
38050 Rod Assy, Select Control, NO.5
38060 Rod Assy, Select Control, NO.6
38094 Lever Sub-assy, Power Take-off Select Control
38901D Lever Sub-assy, Valve Control
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38904C Grommet, Push Pull Cable
38904Q Bracket Sub-assy, Select Control Lever
38906B Joint Assy, Ball (FOR POWER TAKE-0FF CONTROL ROD)
38906V Joint Assy, Ball (FOR SELECT CONTROL ROD)
38907 Rod Assy, Ball Joint, NO.2
38907A Lever Sub-assy, Power Take-off Control
38907E Stay Sub-assy, Power Teke-off Control
38908A Knob Sub-assy, Control Lever
38908C Rod Sub-assy, Power Take-off Control
38909A Lock Sub-assy, Valve Control
38913E Support, Valve Control Lever
38915A Boss, Valve Control Lever
38916 Pin, Control Shift
38919E Plate, Valve Control Lever Position
38920A Lever Assy, Power Take-off Control, NO.1
38920B Bush (FOR POWER TAKE-OFF CONTROL LEVER)
38923A Protector, Power Take-off Control
38924A Gide, Puwer Take-off
38927 Cover, Valve Control Lever
38930A Cable Assy, Push Pull
38940 Cable Assy, Push Pull
38942A Bush, Control Shaft
38942B Spring, Compression (FOR CONTROL SHAFT)
38942C Pin, Slotted Spring (FOR CONTROL SHAFT)
38942D Stopper, Power Take-off Select Control Lever
38946A Knob, Valve Lock Lever
38949B Cover, Control Valve
38950 Cable Assy, Push Pull
38950A Cable Assy, Push Pull, NO.3
38950B Bellcrank Assy, Select Control
38955A Bracket, Control Cable, NO.5
38960 Lever Assy, Valve Control
38960B Lever Assy, Valve Control, NO.2
38960C Bellcrank Assy, Select Control, NO.2
38961 Bracket, Cable Clamp, NO.1
38962 Bracket, Cable Clamp, NO.2
38962A Bracket, Cable Clamp, NO.7
38963 Bracket, Cable Clamp, NO.3
38964 Collar, Control Lever
38964A Bracket, Cable Clamp, NO.4
38965 Bracket, Cable Clamp, NO.5
38966 Bracket, Cable Clamp, NO.6
38968A Protector, Control Cable, NO.1
38969A Protector, Control Cable NO.2
38970 Rod Assy, Power Take-off Control
38970A Bellcrank Assy, Select Control, NO.3
38980A Bellcrank Assy, Select Control, NO.4
38982 Clamp, Push Pull Cable, NO.1
38982A Clamp, Push Pull Cable, NO.2
38987 Clamp, Cable Push Pull
38988 Holder, Clamp Cable Push Pull
38990 Lever Assy, Select Contorol
48417C Spring, Tension(FOR SPRING BRACKET)
66323A Cushion, Rubber(FOR SELECT CONTROL BELLCRANK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
