Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

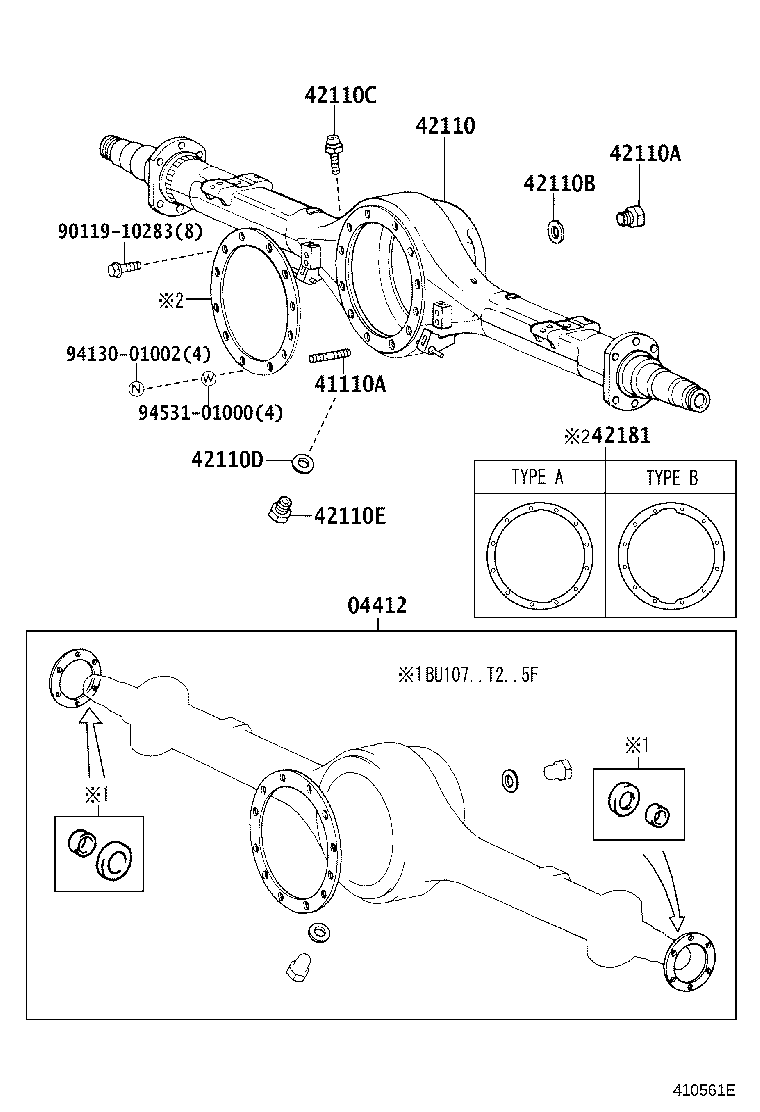

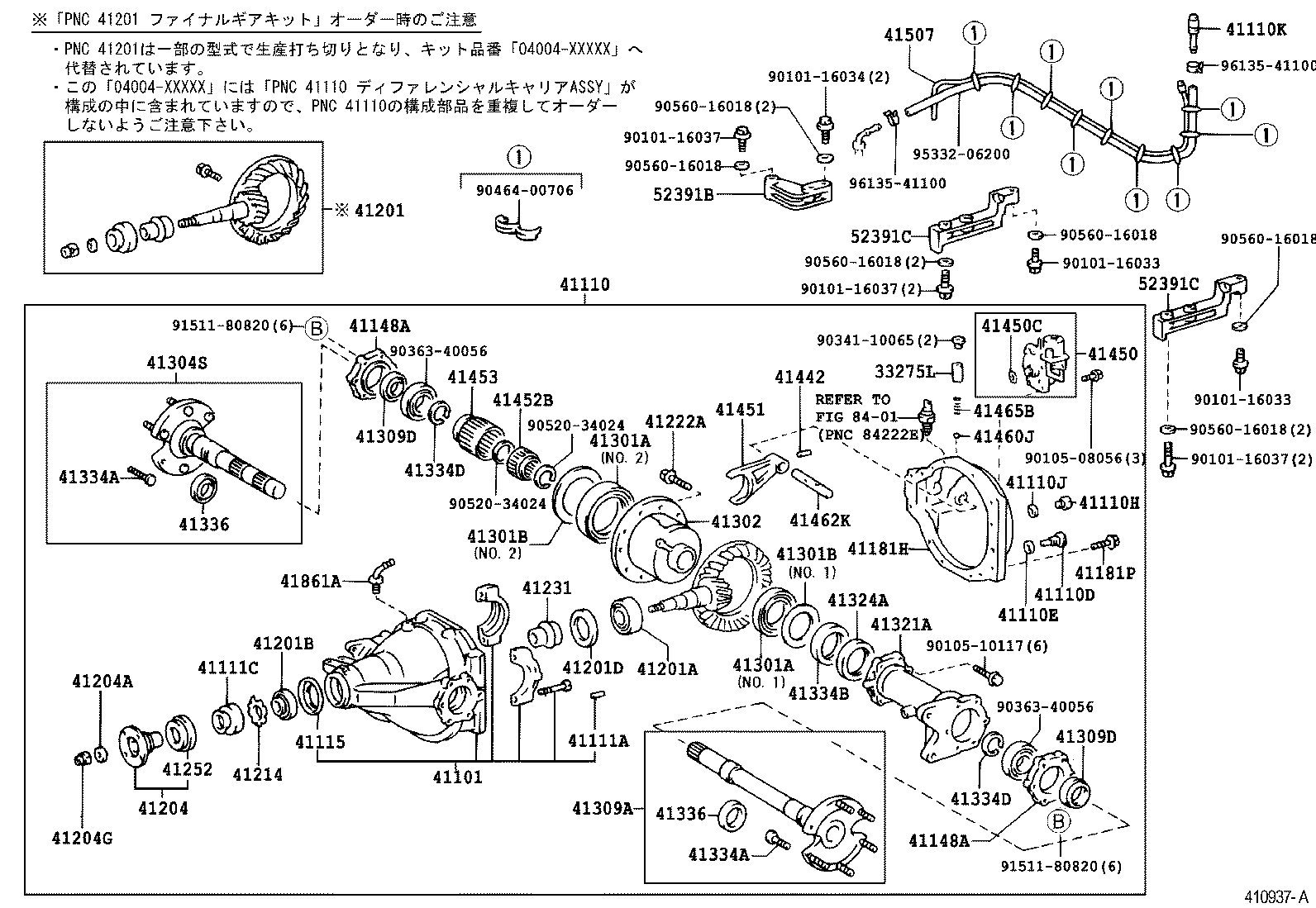

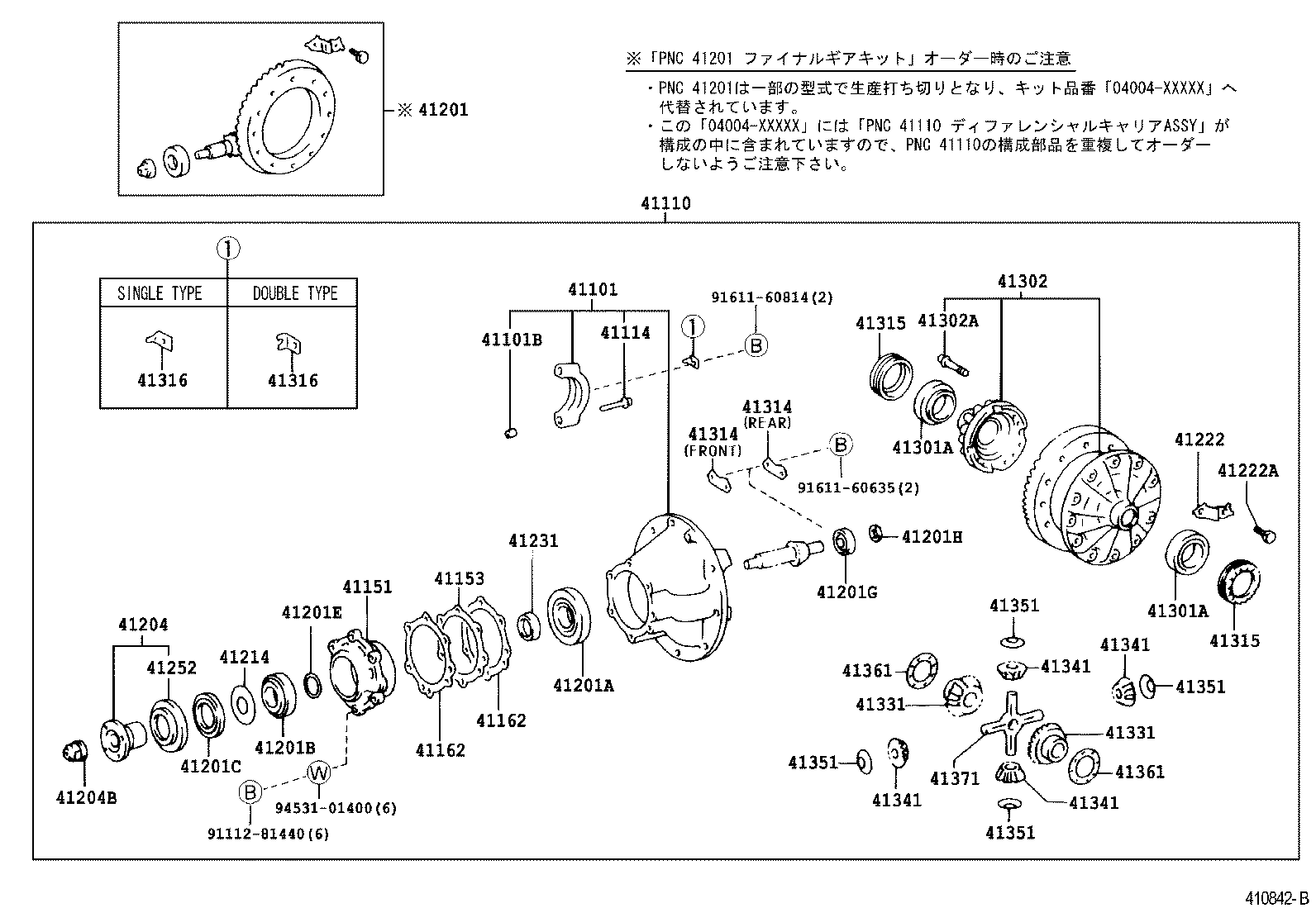

Rear Axle Housing & Differential
80 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04412 | Gasket Kit, Rear Differential Carrier |
| 33275L | Seat, Rear Differential Lock Shift Detent Ball Spring |
| 41101 | Carrier Sub-assy, Differential, Rear |
| 41101B | Pin, Ring (FOR REAR DIFFERENTIAL CARRIER) |
| 41110 | Carrier Assy, Differential, Rear |
| 41110A | Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) |
| 41110D | Plug (FOR REAR DIFFERENTIAL DRAIN) |
| 41110E | Gasket (FOR REAR DIFFERENTIAL DRAIN PLUG) |
| 41110H | Plug (FOR REAR DIFFERENTIAL FILLER) |
| 41110J | Gasket (FOR REAR DIFFERENTIAL FILLER PLUG) |
| 41110K | Plug, Breather (FOR REAR DIFFERENTIAL) |
| 41111A | Pin, Straight (FOR REAR DIFFERENTIAL CARRIER) |
| 41111C | Seal, Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41114 | Bolt, Rear Differential Bearing Cap |
| 41115 | Ring, Differential Oil Storage |
| 41148A | Retainer,Differential Bearing |
| 41151 | Cage, Differential Drive Pinion Bearing |
| 41153 | Shim, Differential Drive Pinion Cage |
| 41162 | Gasket, Differential Drive Pinion Cover |
| 41181H | Cover, Rear Differential Carrier |
| 41181P | Bolt (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) |
| 41201 | Final Gear Kit, Differential, Rear |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41201E | Shim (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) |
| 41201F | Shim (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) |
| 41201G | Bearing, Differential Drive Pinion Cylindlical Roller |
| 41201H | Ring, Drive Pinion Cylindrical Roller Bearing Locking |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204A | Washer, Plate (FOR REAR DRIVE PINION) |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41204G | Nut (FOR DRIVE PINION COMPANION FLANGE REAR) |
| 41214 | Slinger, Rear Differential Drive Pinion Oil |
| 41222 | Plate, Rear Differential Ring Gear Set Bolt Lock |
| 41222A | Bolt (FOR REAR DIFFERENTIAL RING GEAR SET) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41252 | Deflector, Dust (FOR REAR DIFFERENTIAL) |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41301B | Washer(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING) |
| 41302 | Case Sub-assy, Rear Differential |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41304S | Shaft Sub-assy, Differential Side Gear, RH |
| 41309A | Shaft Sub-assy, Rear Differential Side Gear |
| 41309D | Seal Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41314 | Retainer, Drive Pinion Bearing |
| 41315 | Nut, Rear Differential Bearing Adjusting |
| 41316 | Lock, Rear Differential Bearing Adjusting Nut |
| 41321A | Tube, Differential Extension Flange |
| 41324A | Guide, Oil Seal |
| 41331 | Gear, Rear Differential Side |
| 41334A | Bolt, Serration (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334B | Seal, Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41334D | Ring, Shaft Snap (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41336 | Cover, Dust(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41341 | Pinion, Rear Differential |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41361 | Washer, Rear Differential Side Gear Thrust, NO.1 |
| 41371 | Spider, Rear Differential |
| 41442 | Bolt OR Pin, Shift Fork Lock |
| 41450 | Actuator, Differential Lock Shift |
| 41450C | Ring, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) |
| 41451 | Fork, Rear Differential Lock Shift |
| 41452B | Piece, Differential Lock Spline |
| 41453 | Sleeve, Rear Differential Lock |
| 41460J | Ball (FOR REAR DIFFERENTIAL LOCK CYLINDER) |
| 41462K | Shaft, Rear Differential Lock Shift Fork |
| 41465B | Spring, Compression (FOR REAR DIFFERENTIAL LOCK RETAINER) |
| 41507 | Tube, Rear Differential Lock Actuator Breather |
| 41861A | Union (FOR REAR DIFFERENTIAL OIL COOLER PUMP) |
| 42110 | Housing Assy, Rear Axle |
| 42110A | Plug (FOR REAR AXLE HOUSING FILLER) |
| 42110B | Gasket (FOR REAR AXLE HOUSING FILLER PLUG) |
| 42110C | Plug, Breather (FOR REAR AXLE HOUSING) |
| 42110D | Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) |
| 42110E | Plug (FOR REAR AXLE HOUSING DRAIN) |
| 42181 | Gasket, Rear Differential Carrier |
| 52391B | Support, Differential |
| 52391C | Support, Differential, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
