Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

11 part groups · 10 illustrations

Illustrations

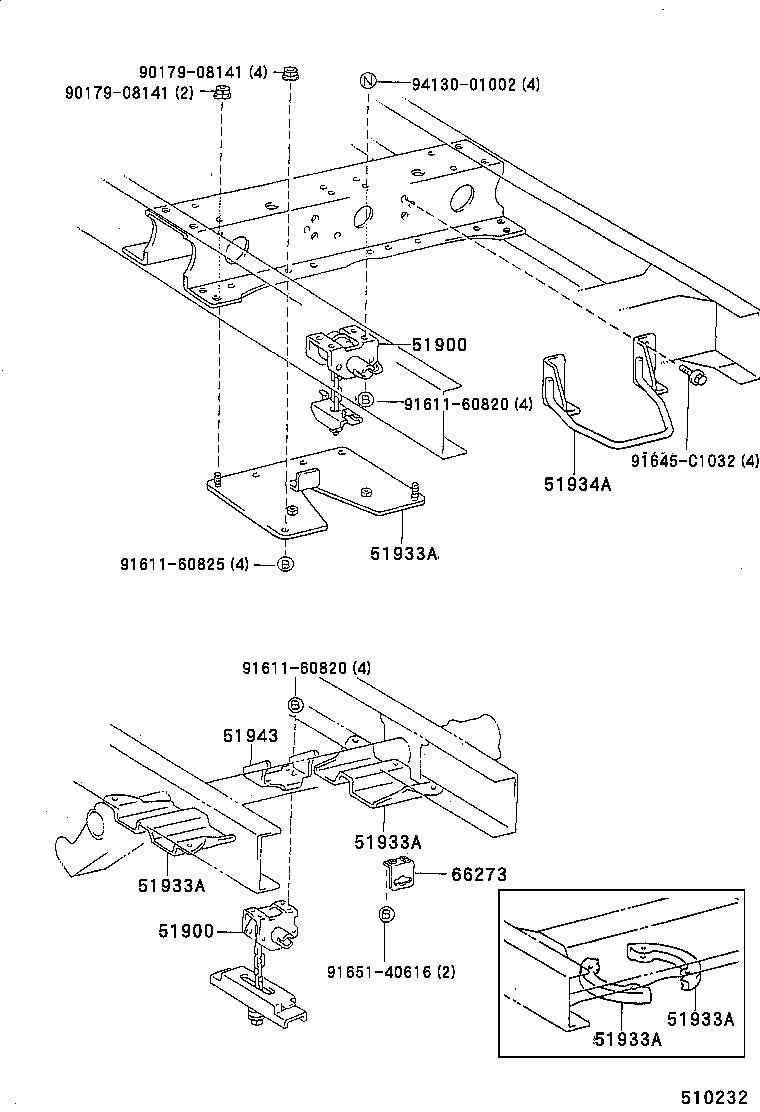

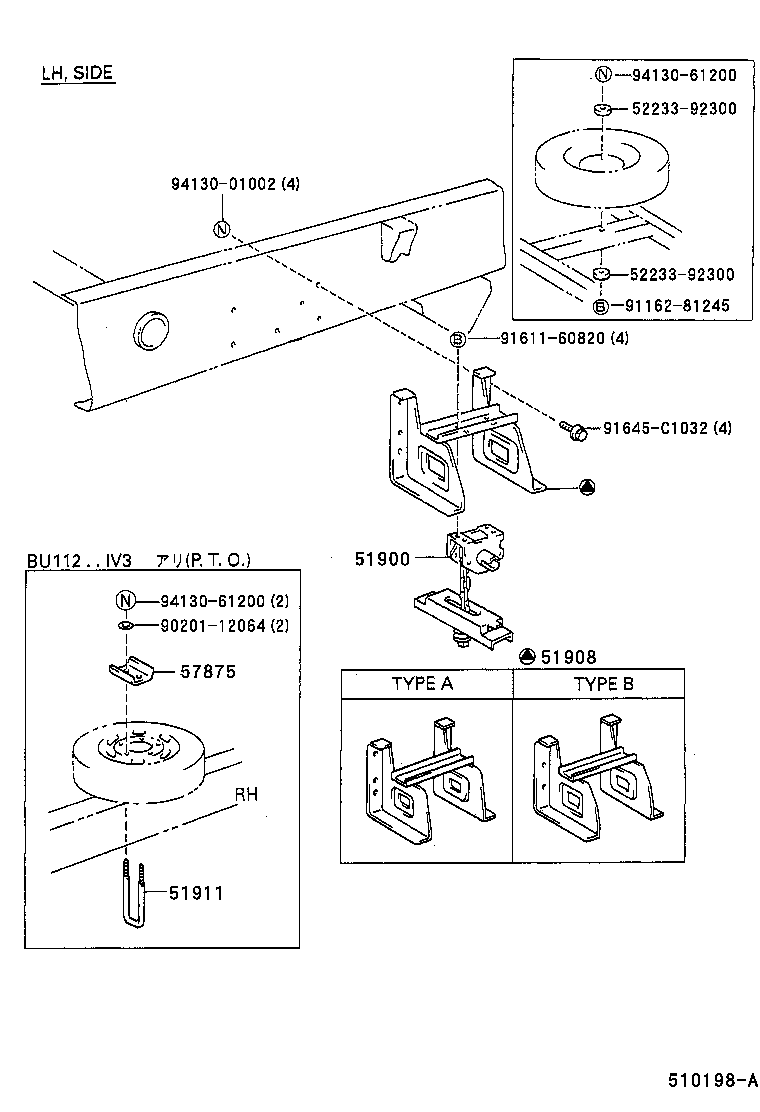

Figure MBY932A MBY932A 1995-05 → — Figure 510198A 510198A 1995-05 → — Figure 510198A 510198A 1995-05 → — Figure 510198A 510198A 1997-08 → — Figure 510199 510199 1995-05 → — Figure 510203A 510203A 1995-05 → — Figure 510232 510232 1995-05 → — Figure 510232 510232 1997-08 → — Figure MBY937B MBY937B 1995-05 → — Figure 510200D 510200D 1995-05 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51900C Nut, Spare Wheel, Hub
51907E Retainer Sub-assy, Spare Tire Carrier
51908 Bracket Sub-assy, Spare Wheel Carrier
51911 Bolt Assy, Spare Wheel Mounting
51923A Guide, Spare Whell Carrier Handle
51933A Stopper, Spare Wheel, NO.1
51934A Stopper, Spare Wheel, NO.2
51943 Bracket, Spare Wheel Carrier, NO.1
57875 Plate, U-bolt
66273 Guide, Spare Tire Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
