Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Bumper & Bumper Stay

12 part groups · 11 illustrations

Illustrations

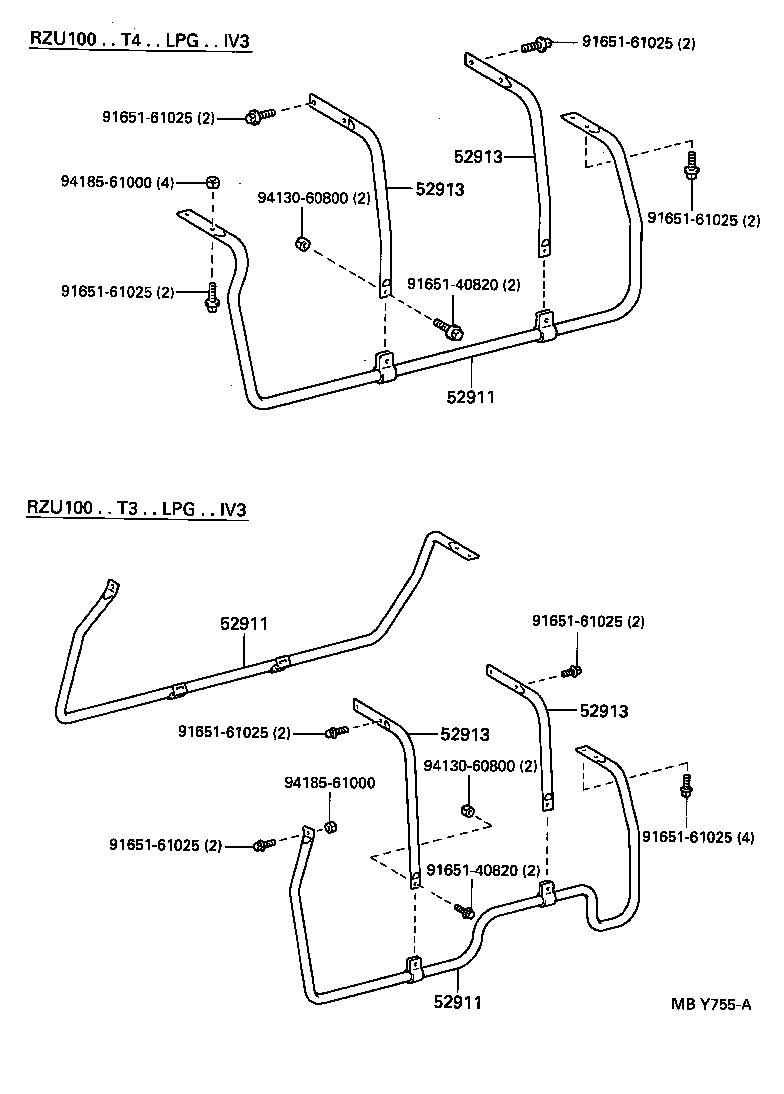

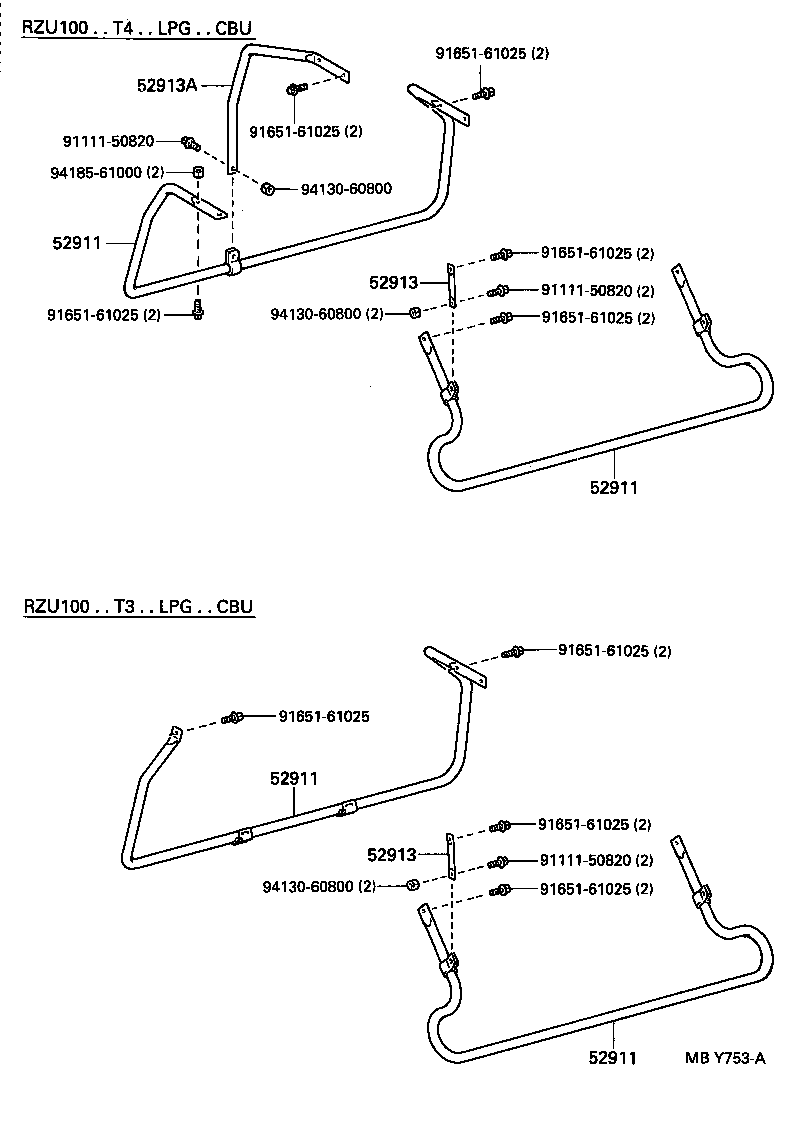

Figure 520241A 520241A 1995-05 → — Figure 520278 520278 1995-05 → — Figure MBY753A MBY753A 1995-05 → — Figure 520243 520243 1995-05 → — Figure MBY755A MBY755A 1995-05 → — Figure MBY756A MBY756A 1995-05 → — Figure 520244 520244 1995-05 → — Figure 520277A 520277A 1995-05 → — Figure 522593 522593 1997-08 → — Figure 522594 522594 1995-10 → — Figure 522595 522595 1996-10 → —

Part groups

PNCDescription
51948A Stopper, Spare Wheel
52091A Stay Sub-assy, Side Bumper, Front RH
52092A Stay Sub-assy, Side Bumper, Front LH
52093 Stay Sub-assy, Side Bumper, Rear RH
52094 Stay Sub-assy, Side Bumper, Rear LH
52901 Bumper Sub-assy, Side, RH NO.1
52902 Bumper Sub-assy, Side, LH NO.1
52911 Bar, Side Bumper
52913 Stay, Side Bumper, NO.1
52913A Stay, Side Bumper, NO.1
52913B Stay, Side Bumper
55358L Protector, Edge Side Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
