Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

53 part groups · 10 illustrations

Illustrations

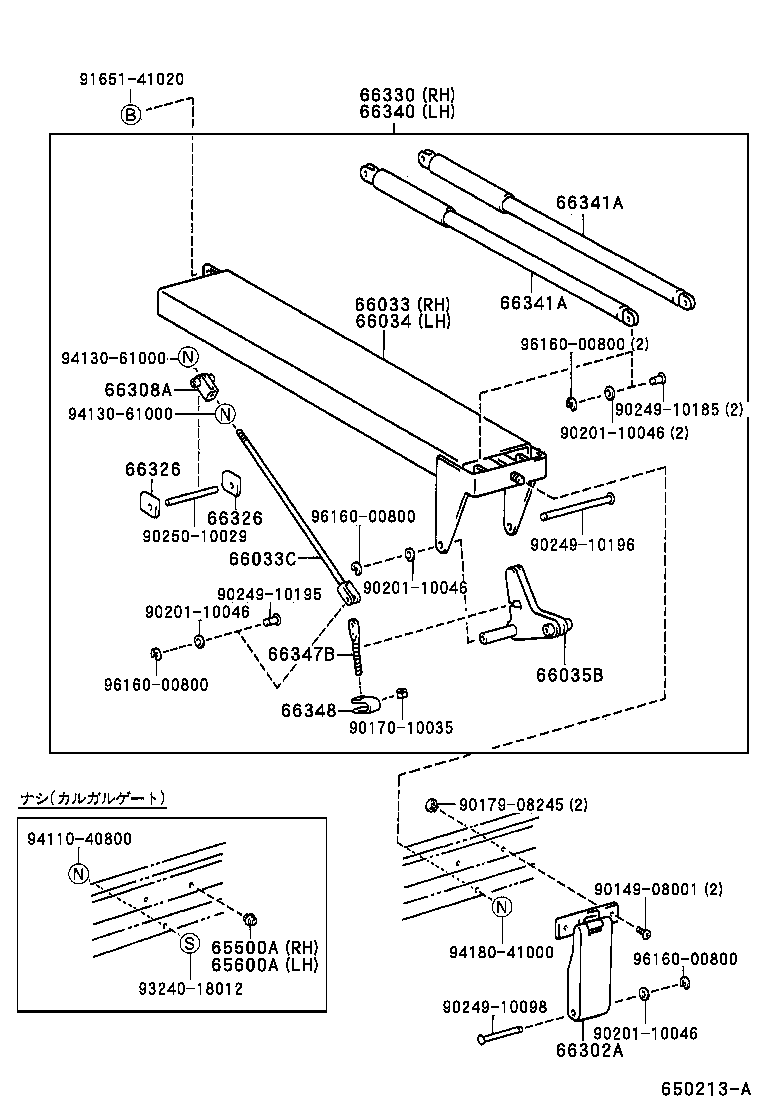

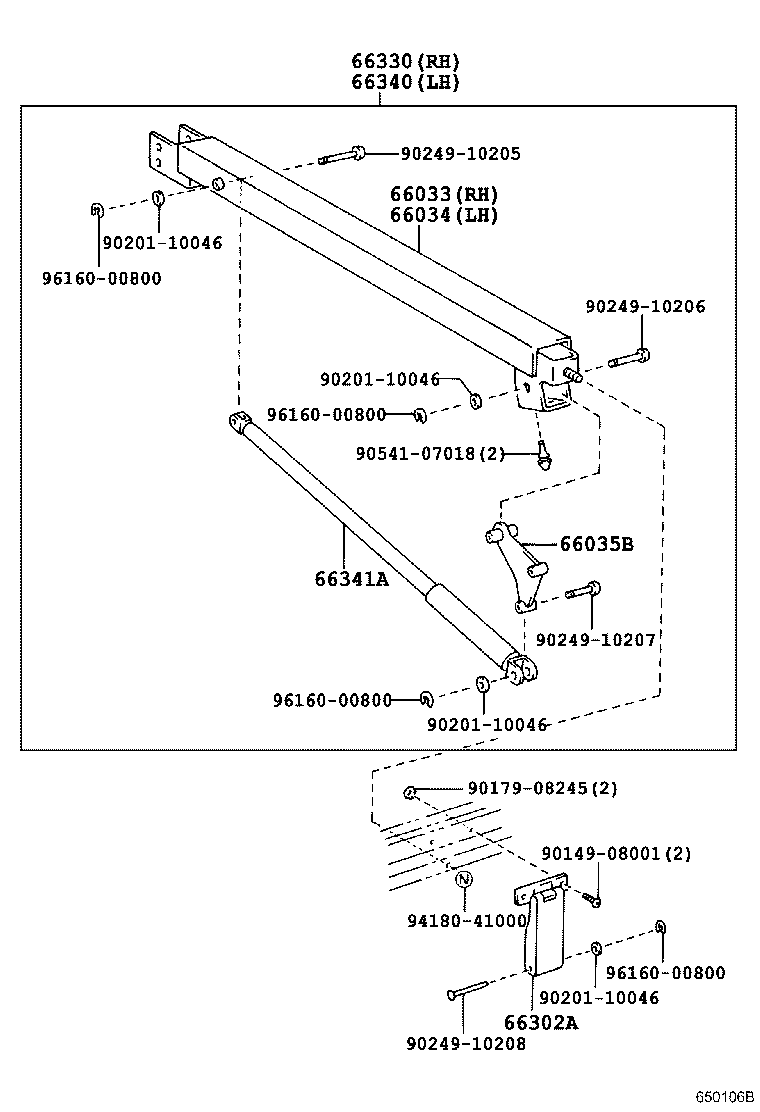

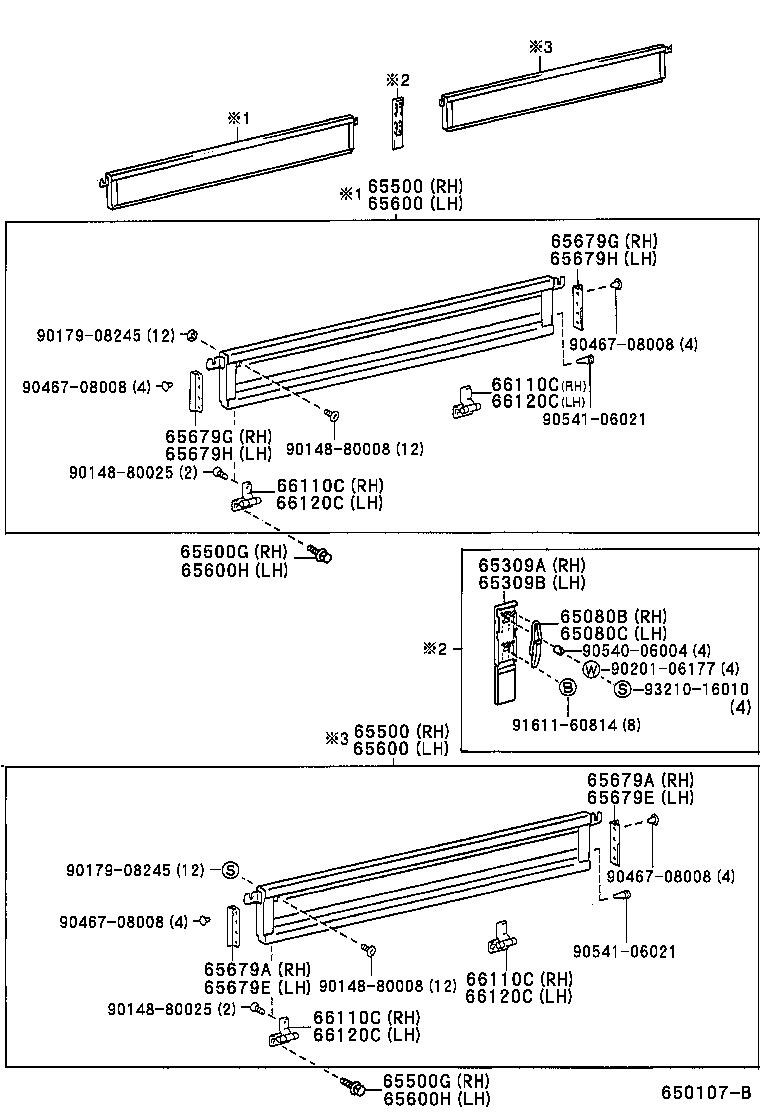

Figure 650055 650055 1995-05 → — Figure MBY912A MBY912A 1995-05 → — Figure 650213A 650213A 1995-05 → 1996-10 Figure 650213A 650213A 1995-05 → — Figure 650213A 650213A 1996-10 → — Figure 650213A 650213A 1996-10 → — Figure 650106B 650106B 1996-10 → — Figure 650107B 650107B 1995-05 → — Figure 651198 651198 1995-05 → — Figure 650057 650057 1995-05 → —

Part groups

PNCDescription
65040 Hinge Assy, Side Gate 1
65050A Hinge Assy, Side Gate 2
65080B Handle Assy, Side Gate Latch
65080C Handle Assy, Side Gate Latch
65202 Post Sub-assy, Side Gate, Rear RH
65203A Post Sub-assy, Side Gate, Rear LH
65309A Post Sub-assy, RH
65309B Post Sub-assy, LH
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65500A Plug, Hole(FOR REAR BODY SIDE PANEL)
65500G Bolt, W/Washer(FOR SIDE GATE, RH)
65500H Nut(FOR SIDE GATE, RH)
65567 Support, Side Gate
65577 Retainer, Tail Gate Latch Female
65577A Retainer, Tail Gate Female
65600 Panel Assy, Rear Body Side, LH
65600A Plug, Hole(FOR SIDE GATE, LH)
65600H Bolt, W/Washer(FOR SIDE GATE, LH)
65600J Nut(FOR SIDE GATE, LH)
65651 Panel, Wheel House
65651C Panel, Wheel House
65679A Seal, Side Gate
65679E Seal, Side Gate
65679G Seal, Side Gate
65679H Seal, Side Gate
66033 Bracket Sub-assy, Gate Helper, NO.3
66033C Rod Sub-assy, Gate Helper Tension
66034 Bracket Sub-assy, Gate Helper, NO.3 LH
66035B Bellcrank Sub-assy, Gate Helper
66110C Hinge Assy, Side Gate, NO.1 RH
66120C Hinge Assy, Side Gate, NO.1 LH
66151 Latch, Side Gate Female, RH
66152 Latch, Side Gate Female, LH
66153A Latch, Tail Gate Female, RH
66154A Latch, Tail Gate Female, LH
66187 Handle, Side Gate Latch, Center NO.2
66201B Latch Sub-assy, Tail Gate, RH
66202A Latch Sub-assy, Tail Gate, LH
66302A Link Sub-assy, Gate Helper
66308A End Sub-assy, Gate Helper Rod, NO.2
66311E Hook, Rope
66312C Hook, Rope
66326 Slider, Rod Control
66330 Helper Assy, Gate, RH
66332 Cushion, Rubber
66340 Helper Assy, Gate, LH
66341A Stay, Gate Helper
66347B Bolt, Gate Helper Bellcrank Adjust
66348 Retainer, Gate Helper Bellcrank Adjust Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
