Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

14 part groups · 11 illustrations

Illustrations

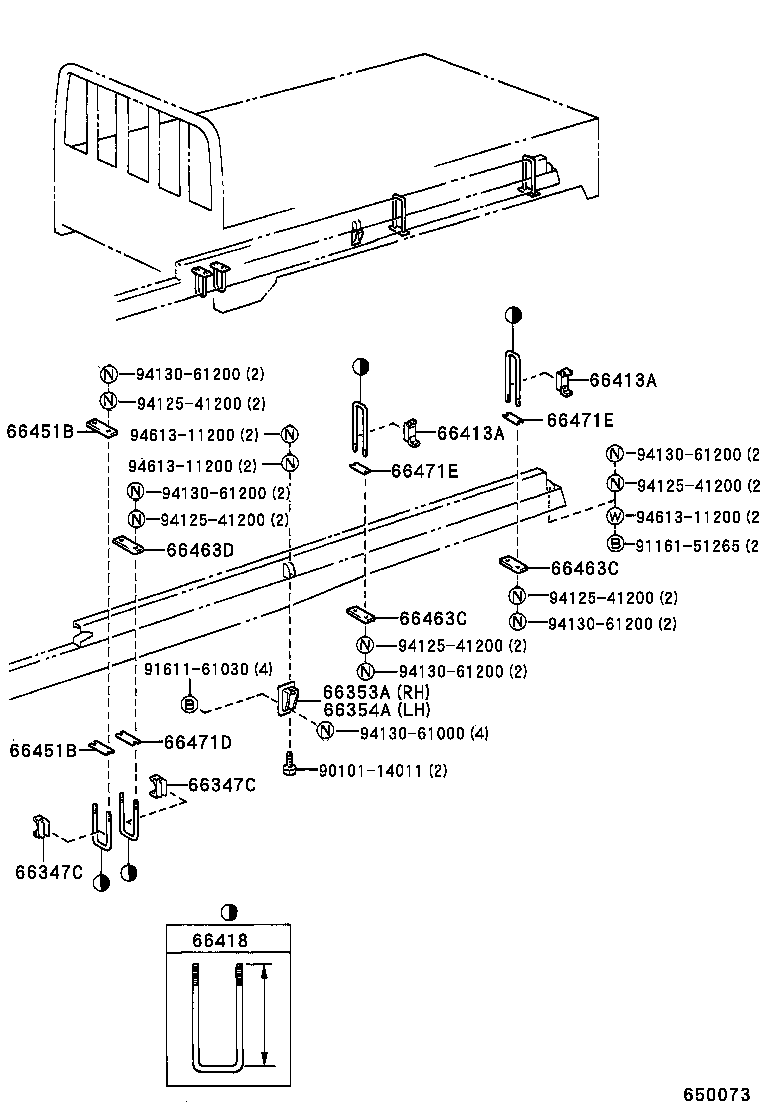

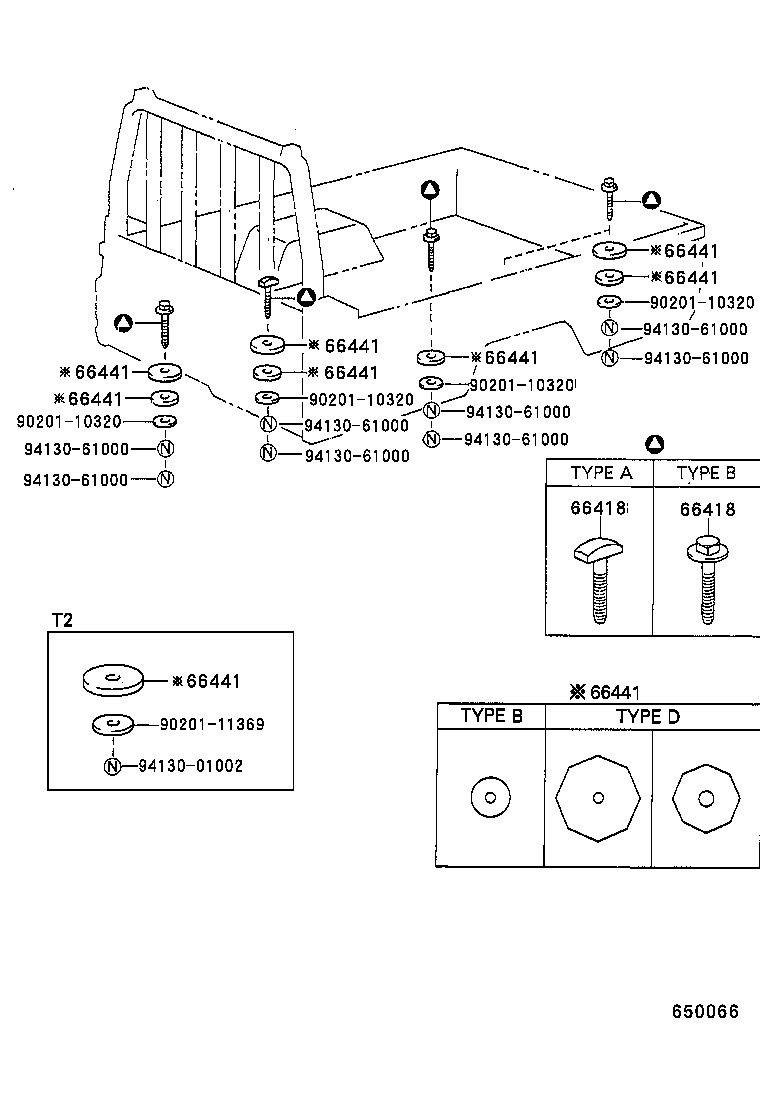

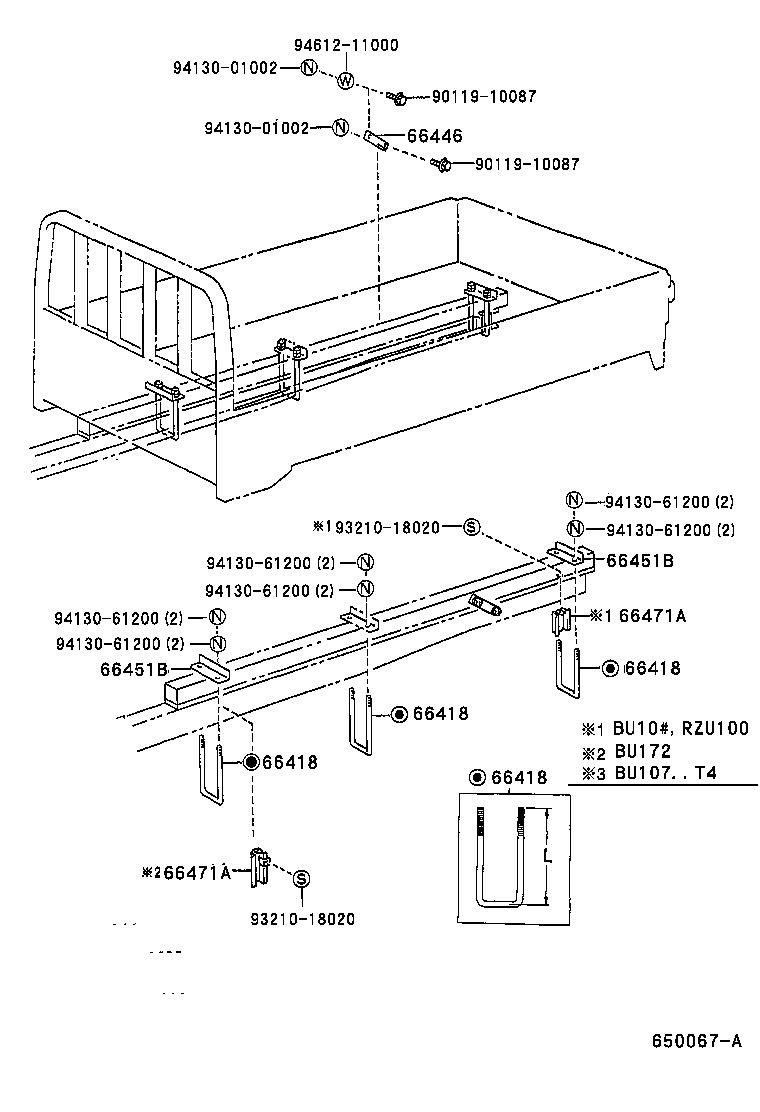

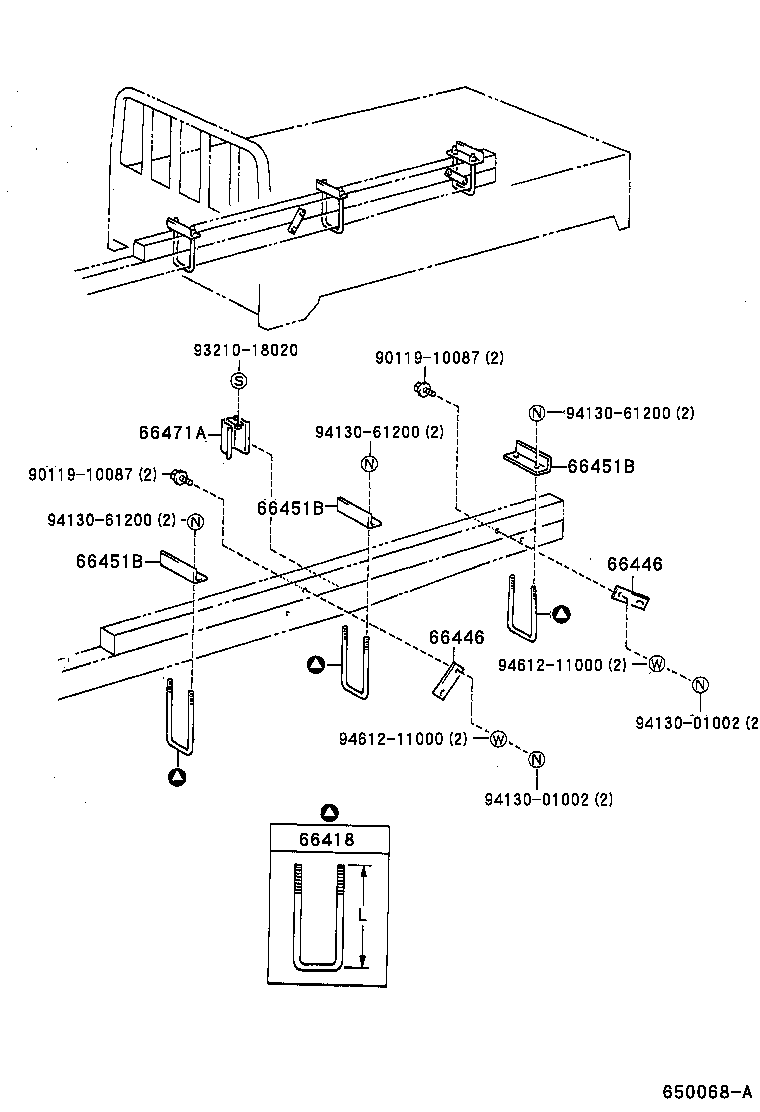

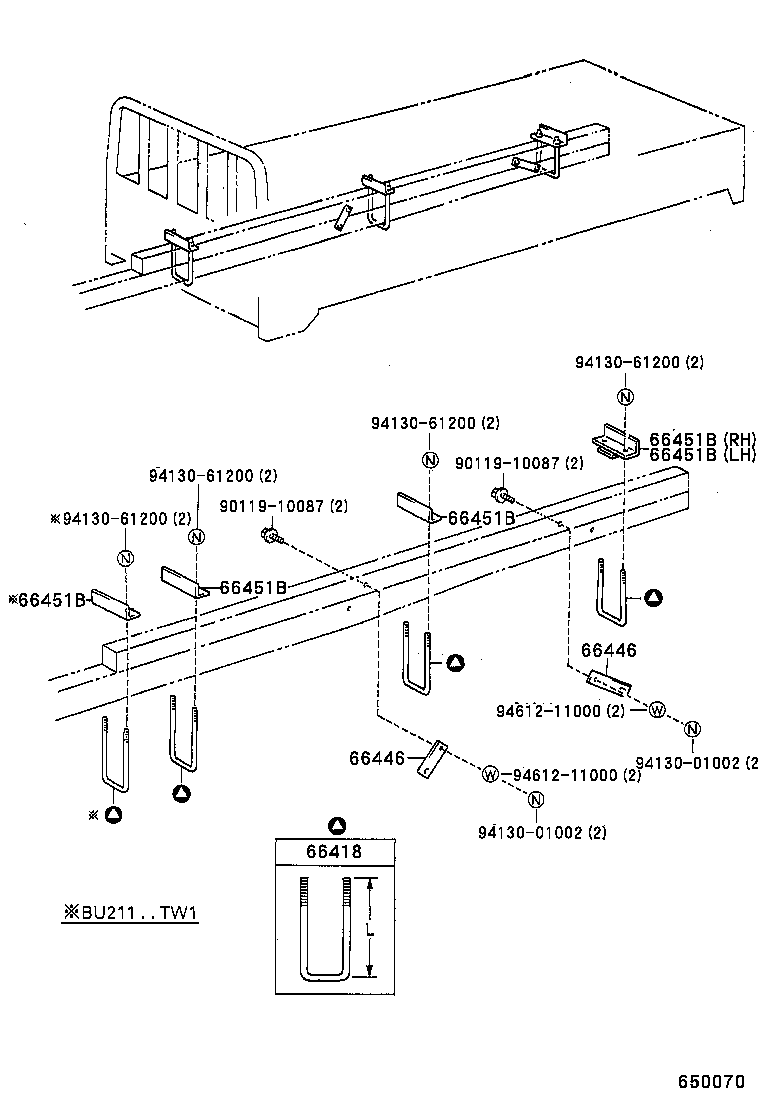

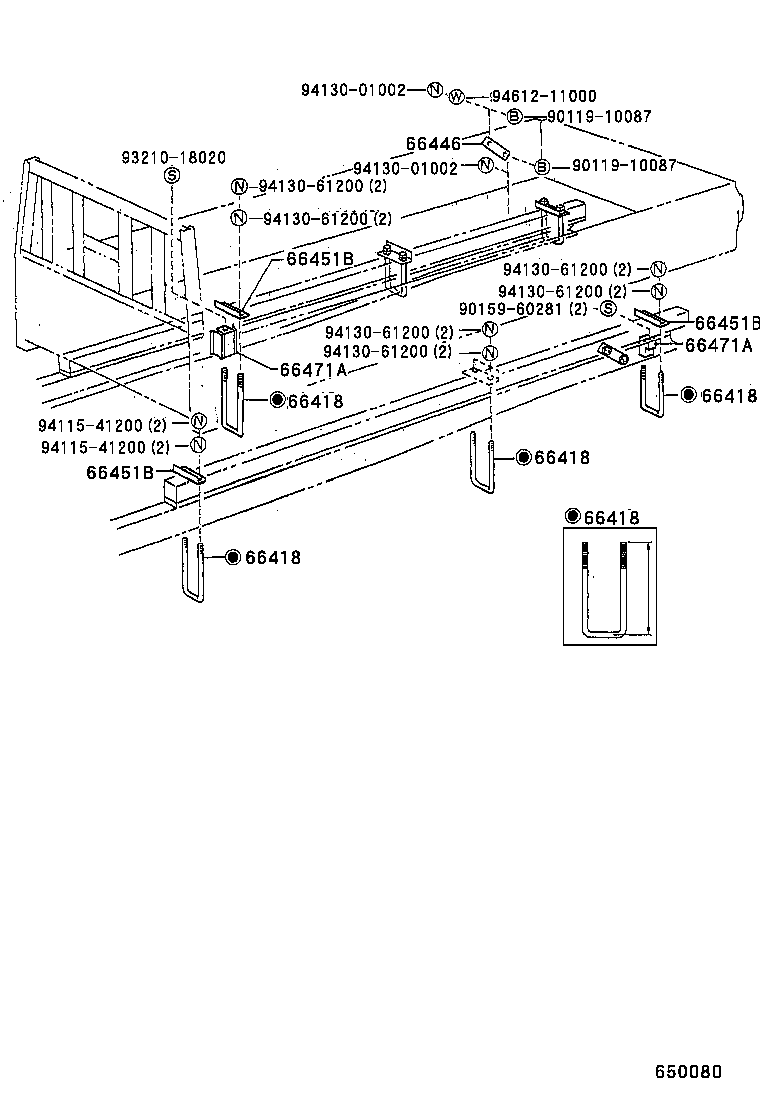

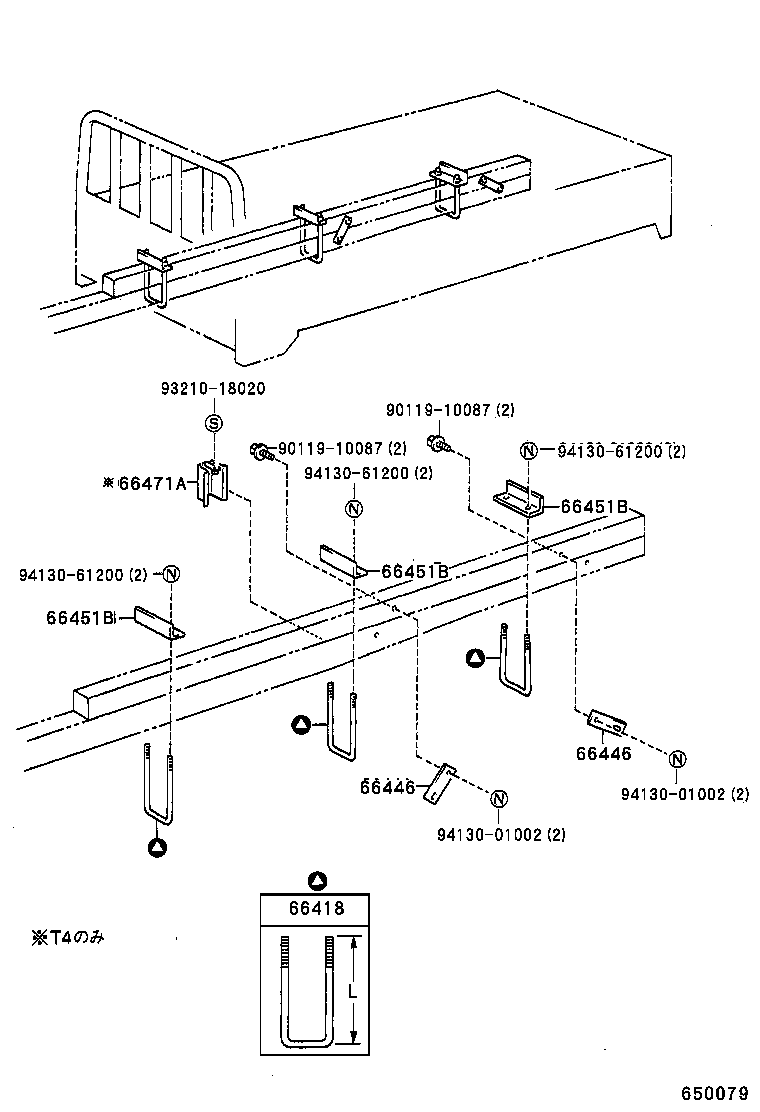

Figure 650072 650072 1995-05 → — Figure 650066 650066 1995-05 → — Figure 650067A 650067A 1995-05 → — Figure 650067A 650067A 1996-10 → — Figure 650068A 650068A 1995-05 → — Figure 650079 650079 1995-05 → — Figure 650080 650080 1995-05 → — Figure 650069 650069 1995-05 → — Figure 650070 650070 1995-05 → — Figure 650081A 650081A 1995-05 → — Figure 650073 650073 1995-10 → —

Part groups

PNCDescription
66347C Gusset, Chassis Rail
66353A Bracket, Sub Frame Anchor, RH
66354A Bracket, Sub Frame Anchor, LH
66413A Spacer, Side Rail
66418 Bolt, Mounting
66439 Shim, Support
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66463C Plate, Sub Frame Set
66463D Plate, Sub Frame
66471A Reinforcement, Frame U Bolt
66471D Reinforcement, Frame U Bolt
66471E Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
