Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

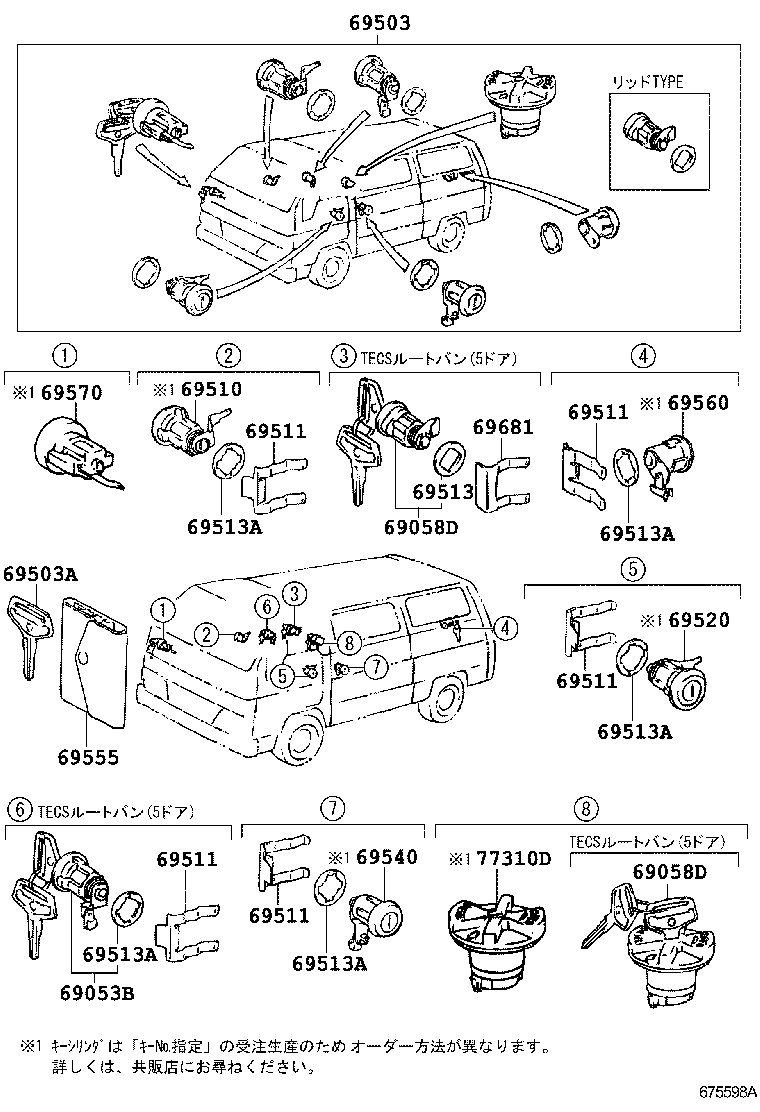

Lock Cylinder Set
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69053B | Cylinder & Key Set, Slide Door Lock, RH |
| 69058D | Cylinder & Key Set, Fuel Tank Filler |
| 69503 | Cylinder Set, Lock |
| 69503A | Key, Blank |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69511 | Retainer, Front Door Lock Cylinder |
| 69513 | Pad, Fuel Filler Lid Lock Cylinder |
| 69513A | Pad, Door Cylinder |
| 69520 | Cylinder Assy, Front Door Lock, LH |
| 69540 | Cylinder Assy, Slide Door Lock, LH |
| 69555 | Cover, Key |
| 69560 | Cylinder Assy, Back Door Lock |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 69681 | Clamp, Door Lock Cylinder & Sleeve |
| 77310D | Cap Assy, Fuel Tank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
