Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

61 part groups · 15 illustrations

Illustrations

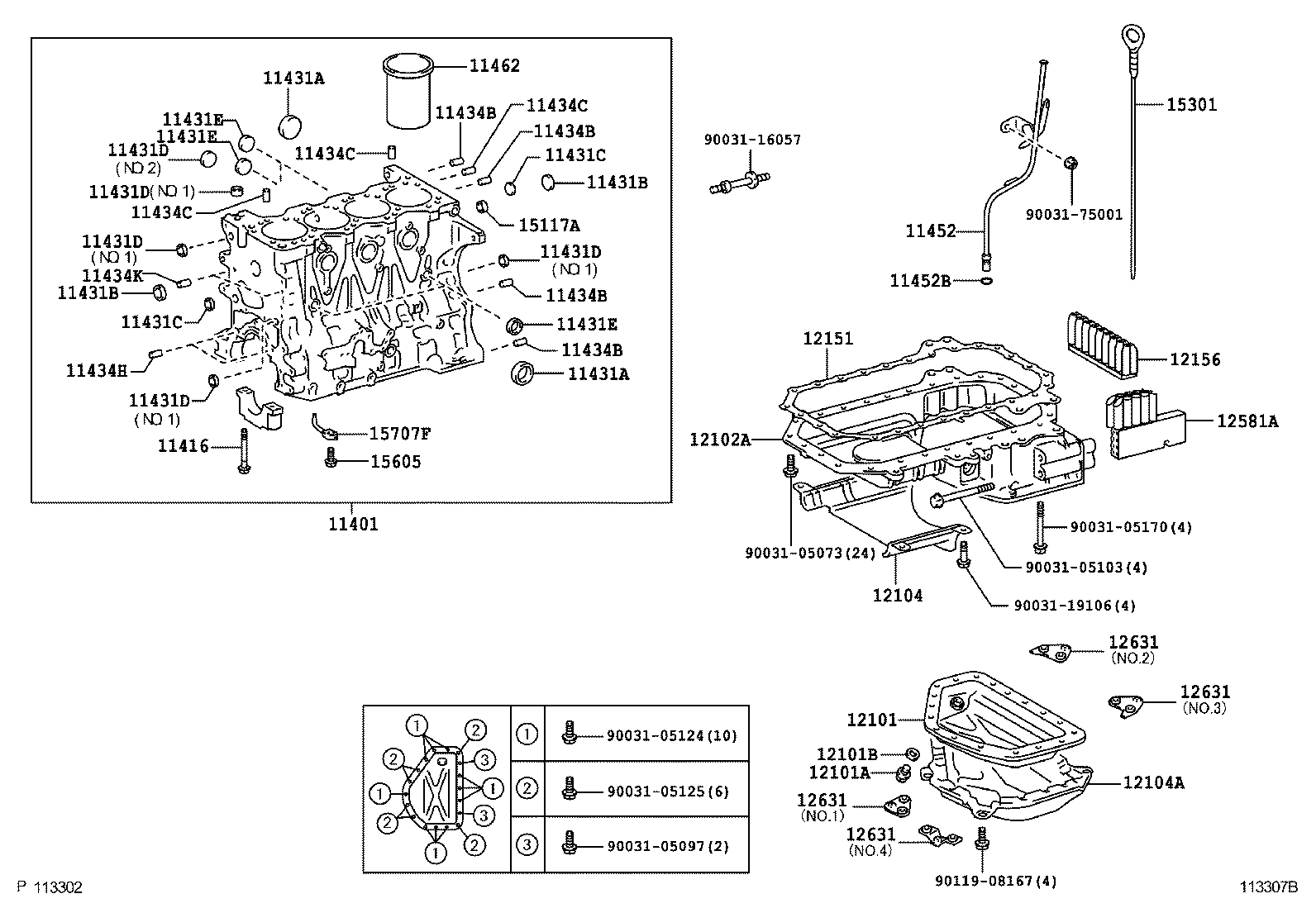

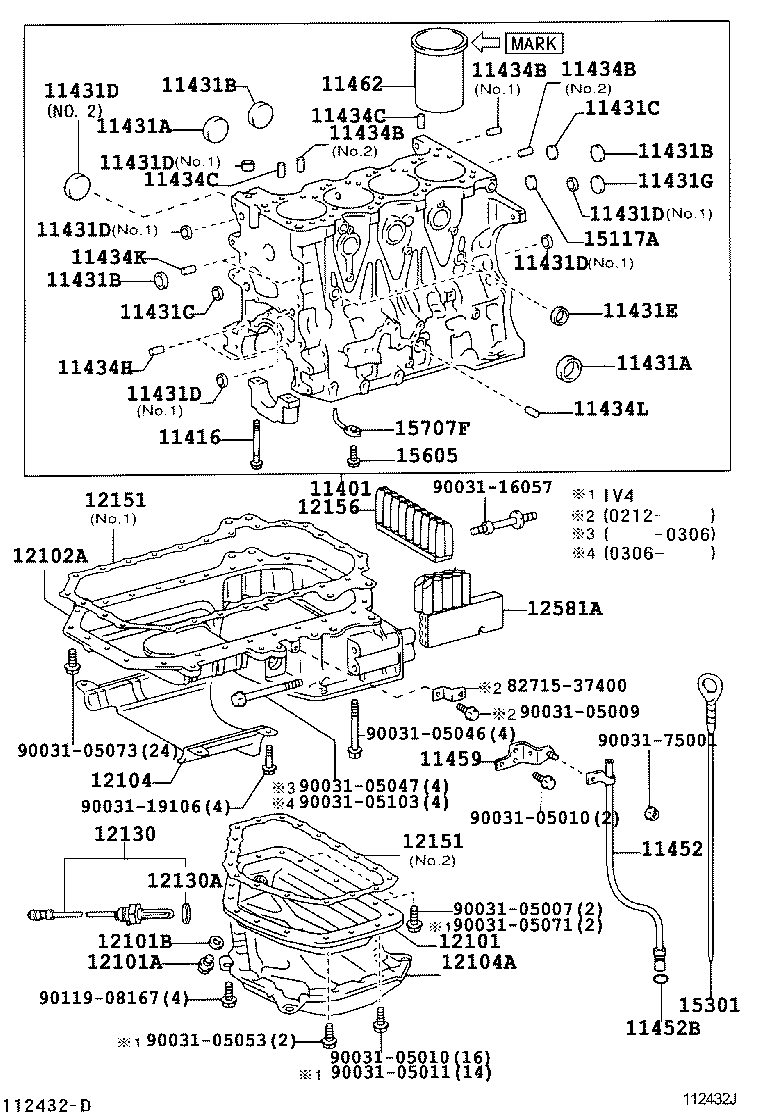

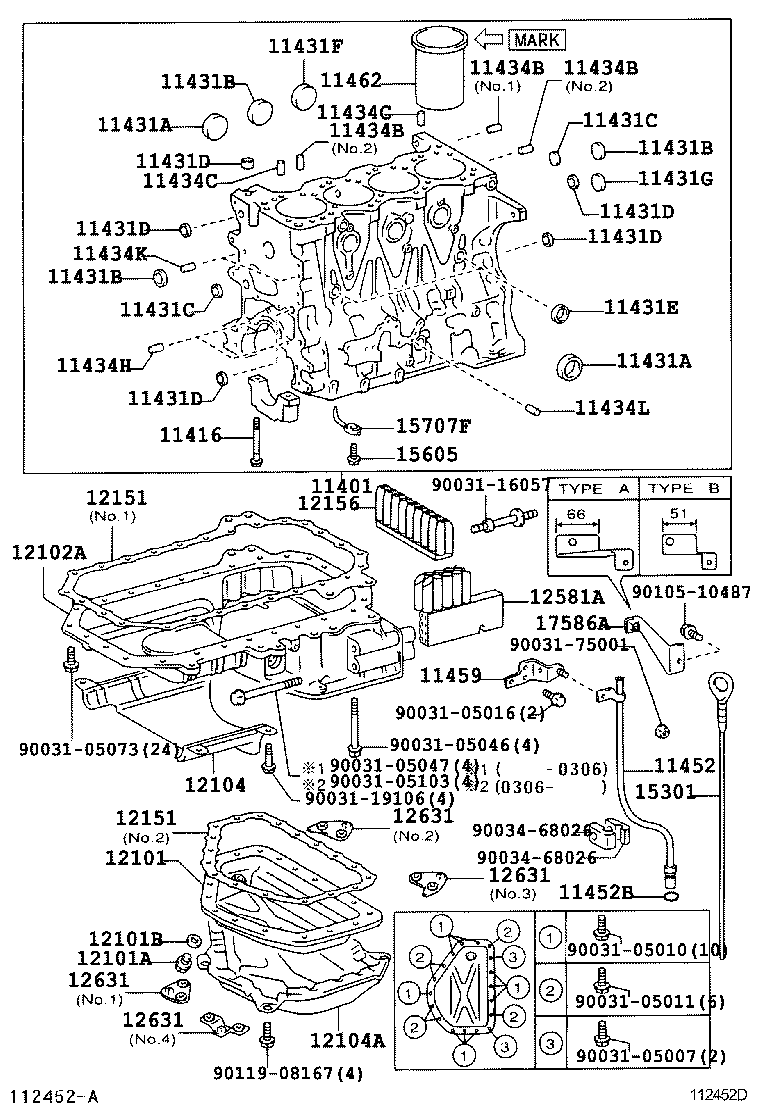

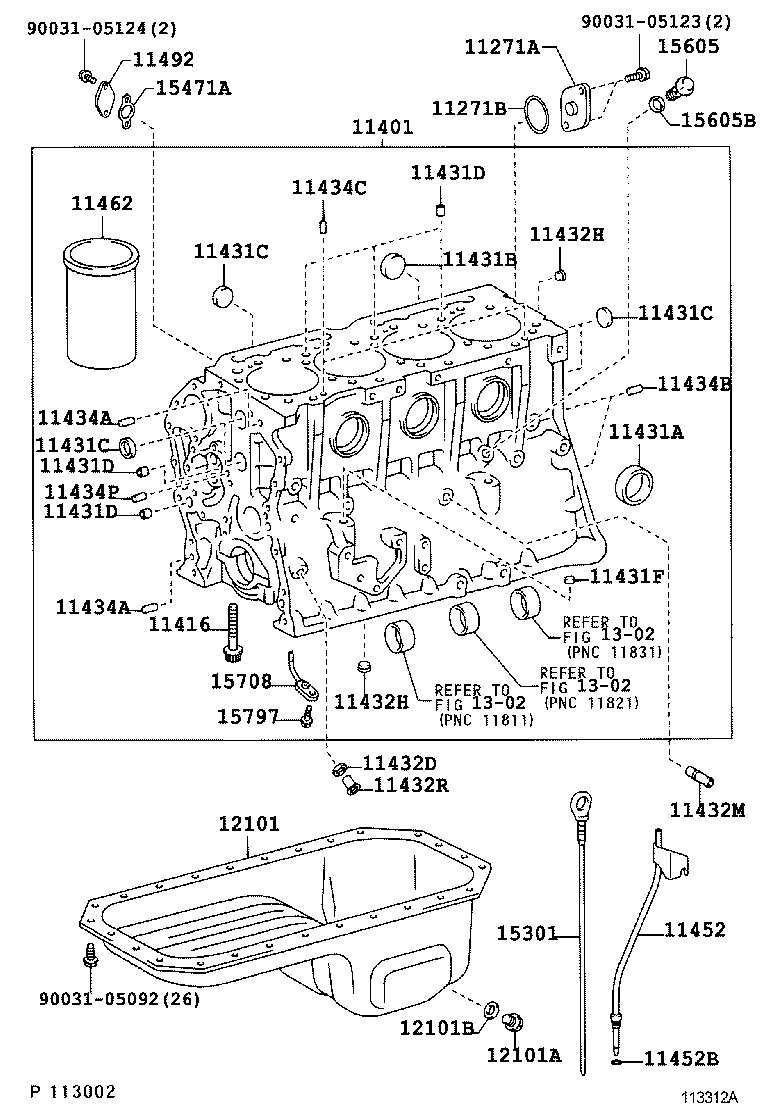

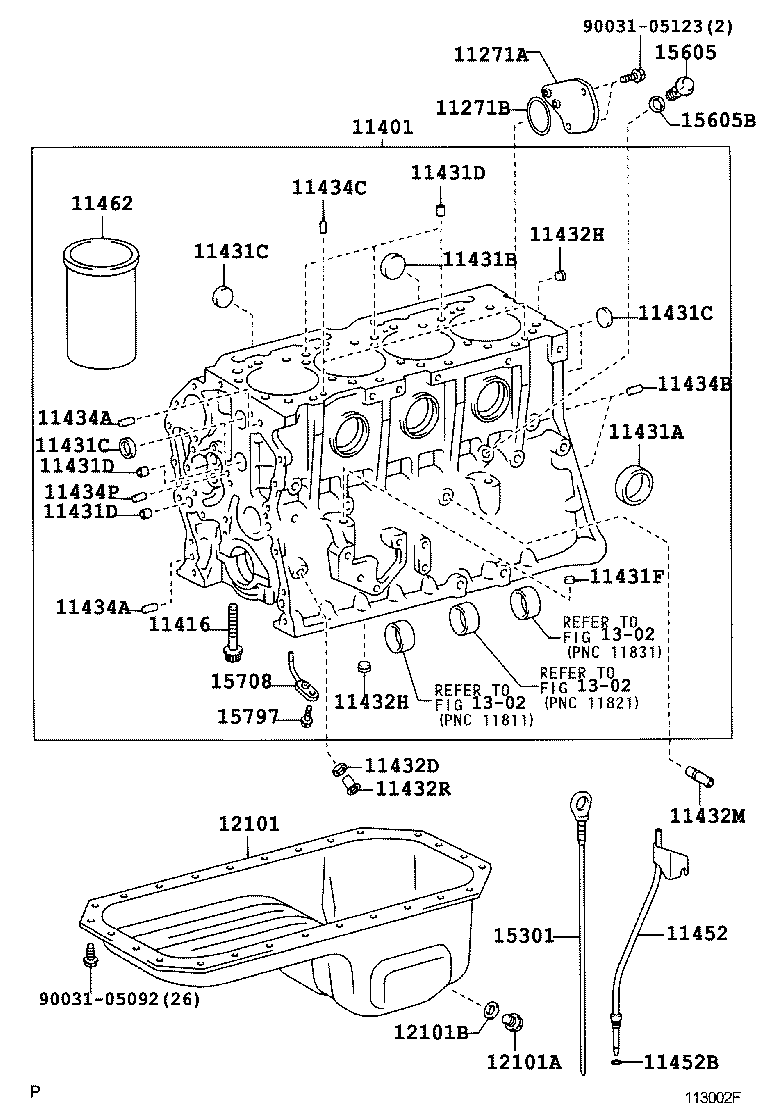

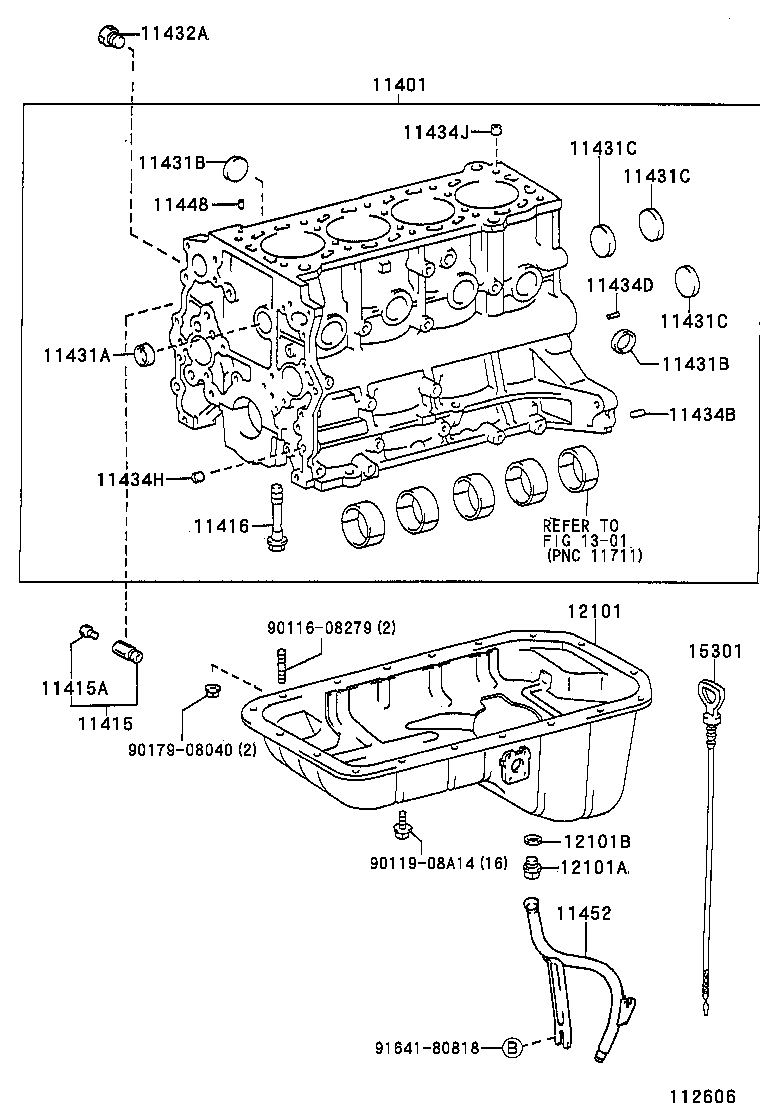

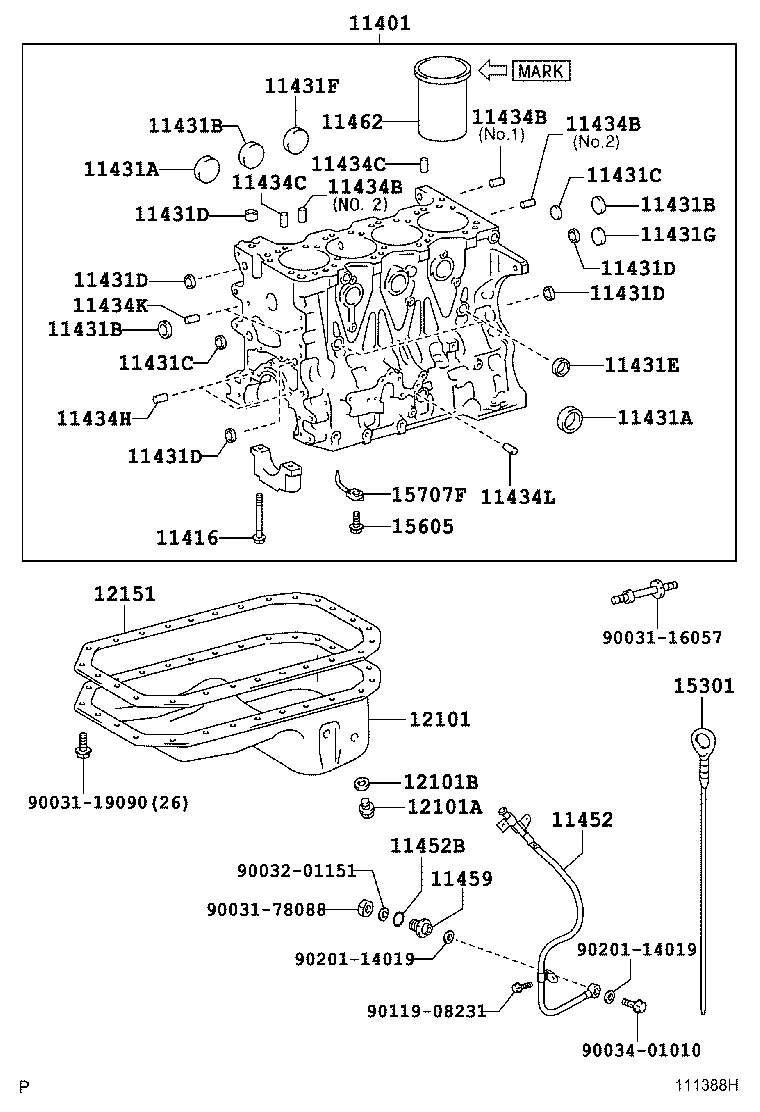

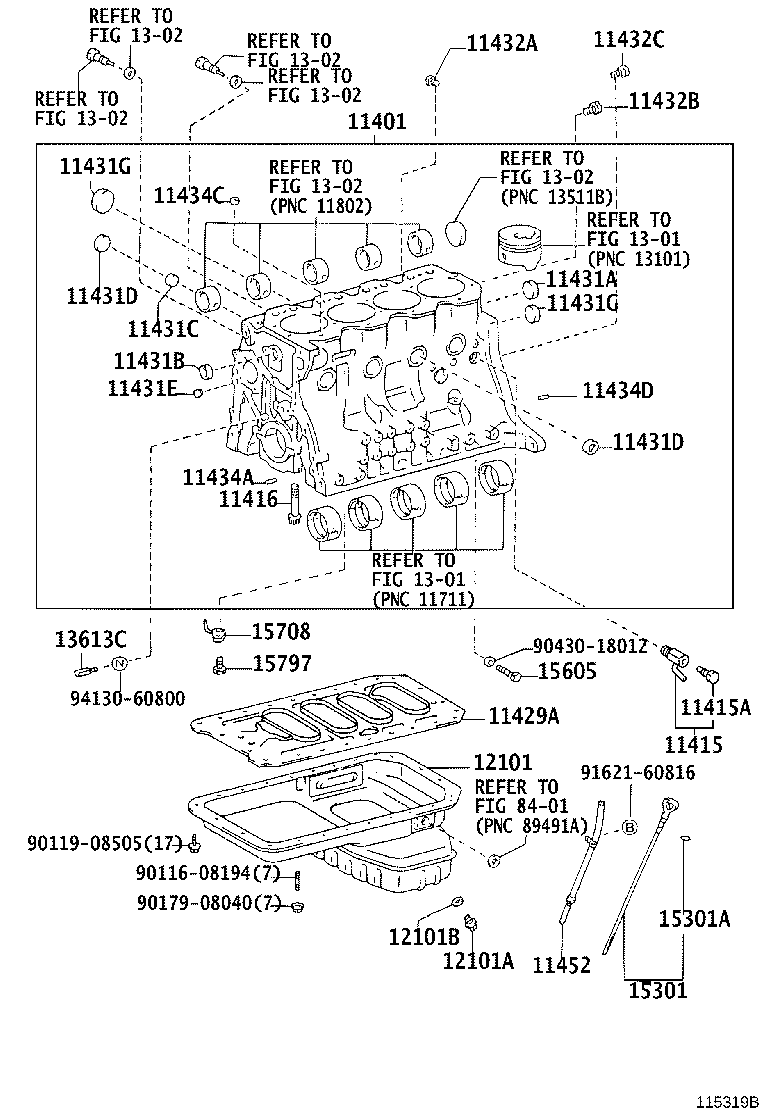

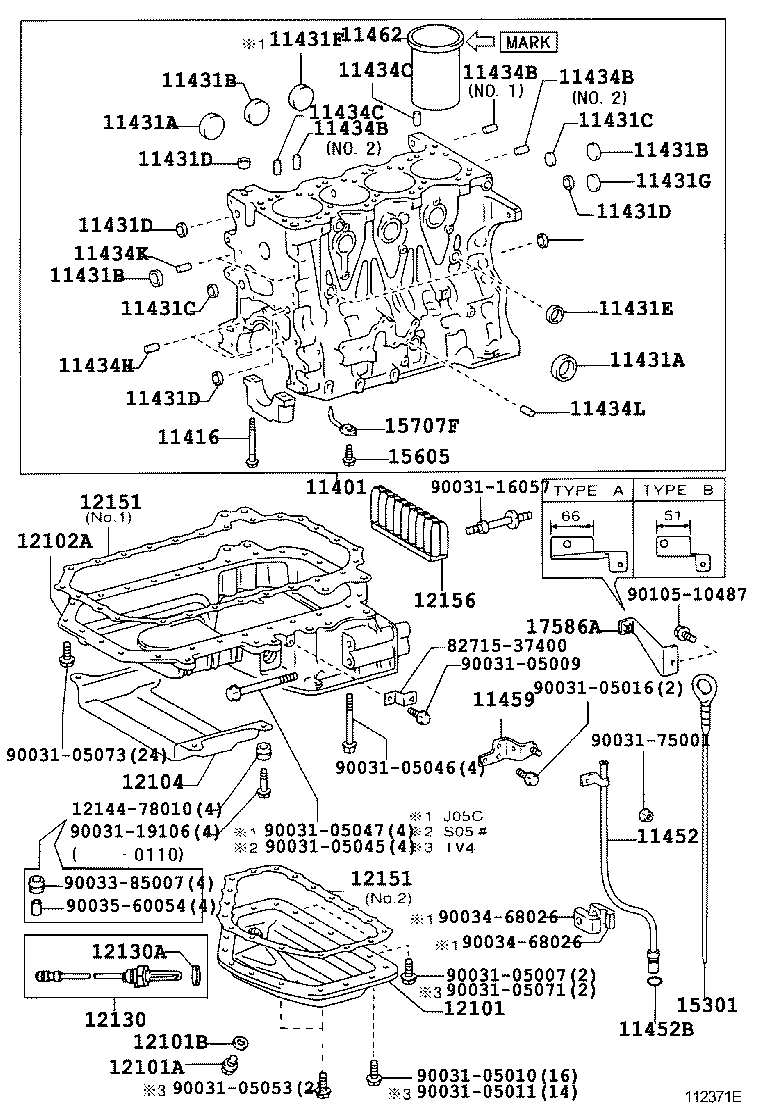

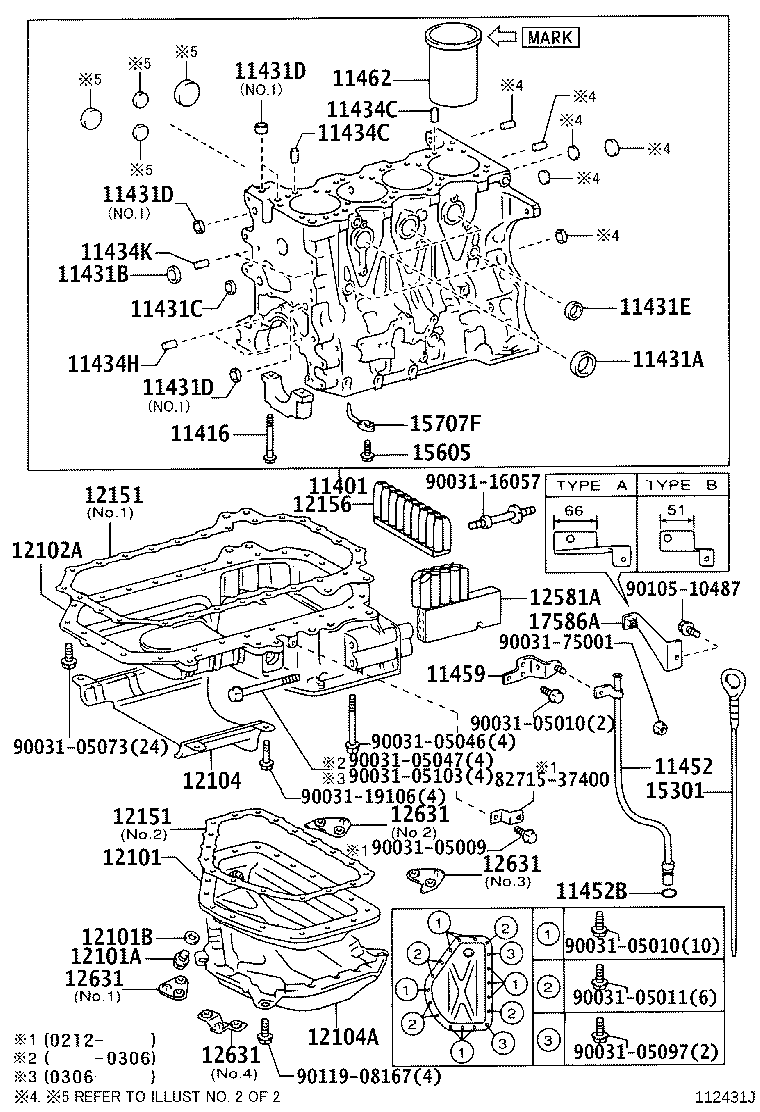

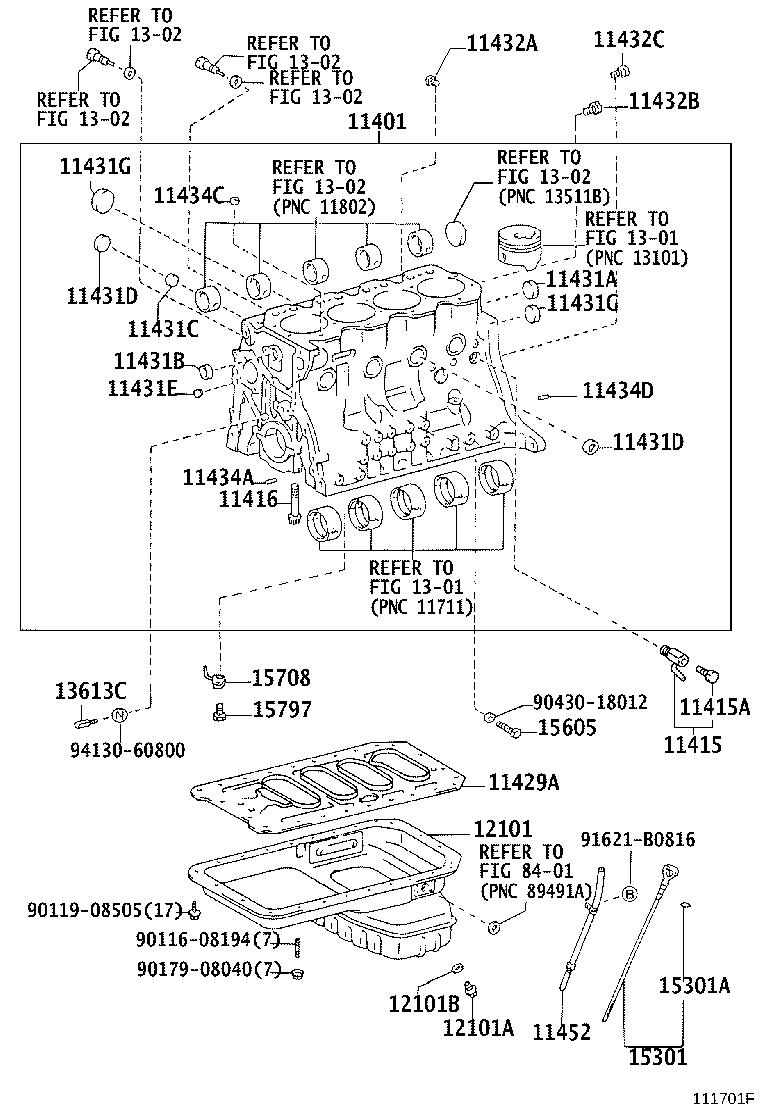

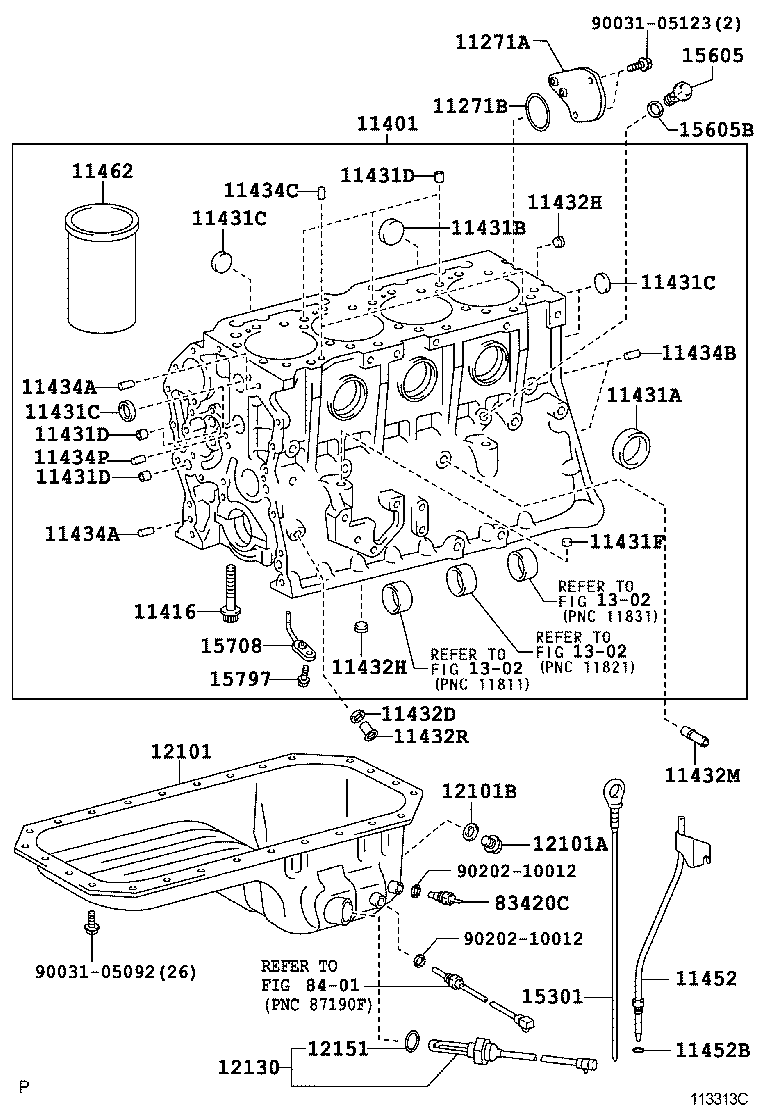

Figure 111367H 111367H 1999-05 → 2004-06 Figure 111701F 111701F 2003-06 → — Figure 112606 112606 2000-05 → — Figure 112371E 112371E 1999-05 → 2002-06 Figure 112431J 112431J 2002-06 → 2004-06 Figure 11D041 11D041 2002-06 → 2004-06 Figure 112452D 112452D 2002-06 → 2004-06 Figure 112432J 112432J 2002-06 → 2004-06 Figure 111655B 111655B 1999-07 → 2004-06 Figure 111388H 111388H 1999-06 → 2004-06 Figure 113307B 113307B 2004-06 → 2006-10 Figure 115319B 115319B 2000-05 → 2003-06 Figure 113002F 113002F 2003-10 → — Figure 113312A 113312A 2004-06 → 2006-10 Figure 113313C 113313C 2004-06 → 2006-10

Part groups

PNCDescription
11271A Cover, Cylinder Block, Rear
11271B Ring, O(FOR CYLINDER BLOCK REAR PLATE)
11401 Block Sub-assy, Cylinder
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11429A Plate, Cylinder Block Stiffening
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11431F Plug, Tight, NO.6(FOR CYLINDER BLOCK)
11431G Plug, Tight
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11432C Plug, W/Head Taper Screw, NO.3
11432D Gasket, W/Head Taper Screw Plug
11432H Plug, W/Head Taper Screw, NO.5
11432M Union(FOR CYLINDER BLOCK)
11432R Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434K Pin, Straight(FOR WATER PUMP)
11434L Pin, Straight(FOR ENGINE MOUNTING)
11434P Pin, Straight(FOR OIL PUMP SET)
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11462 Liner, Cylinder
11492 Plate, Water Seal
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12104 Cover Sub-assy, Oil Pan, NO.1
12104A Cover Sub-assy, Oil Pan, NO.2
12130 Heater Assy, Oil Pan
12130A Washer, Plate(FOR OIL PAN HEARTER)
12151 Gasket, Oil Pan
12156 Insulator, Oil Pan
12581A Insulator, Cylinder Block, NO.1
12631 Bracket, Engine Cover
13613C Nozzle, Oil
15117A Bushing, Oil Pump Cover
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15471A Gasket(FOR CLYINDER BLOCK)
15605 Valve Sub-assy, Oil Check
15605B Gasket(FOR OIL CHECK VALVE)
15707F Pipe Sub-assy, Oil
15708 Nozzle Sub-assy, Oil, NO.1
15797 Bolt, Oil Nozzle Union
17586A Bracket, Heat Insulator
83420C Gage Assy, Water Temperature Sender
89427J Switch, Water Temperture
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
