Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

48 part groups · 52 illustrations

Illustrations

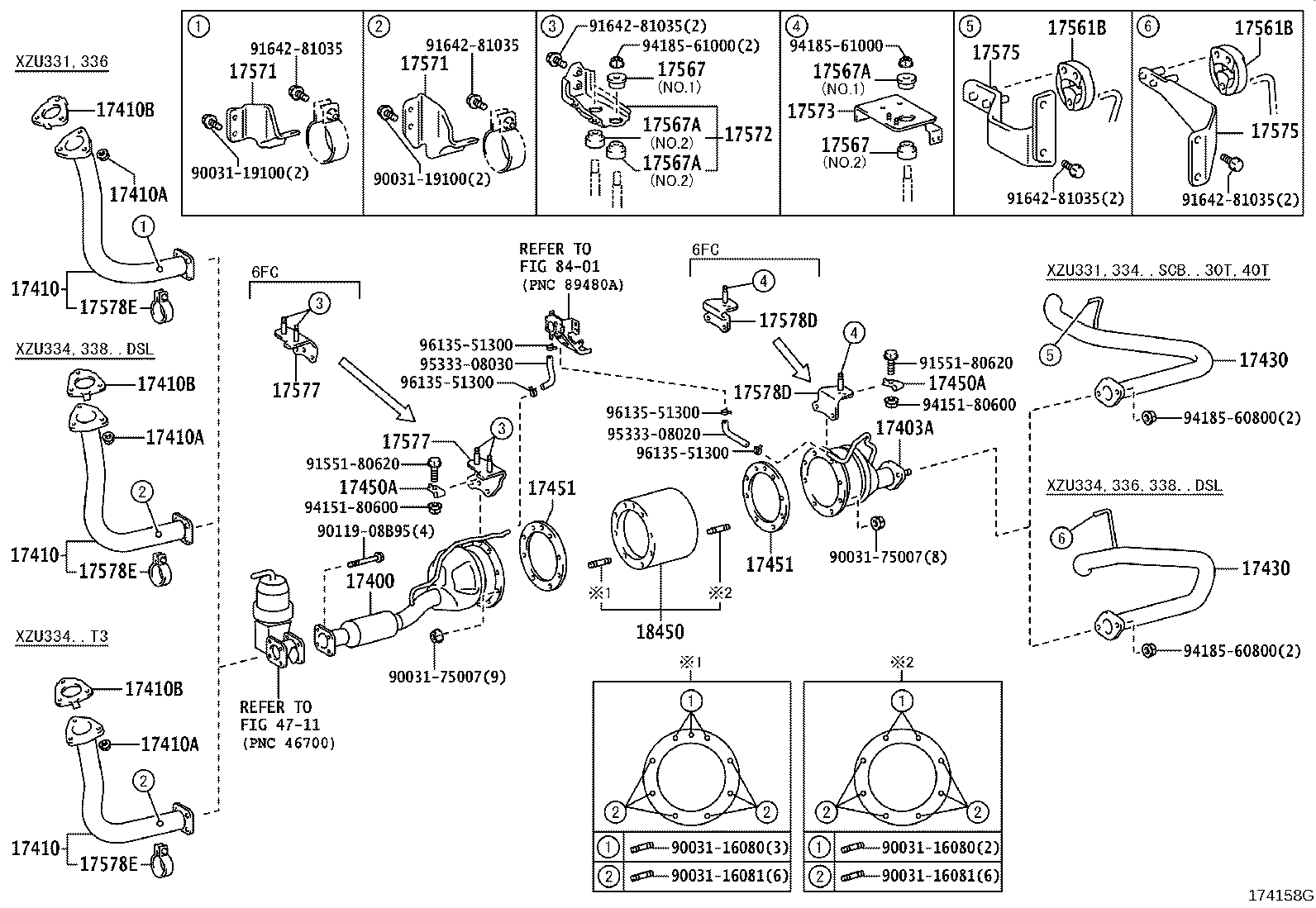

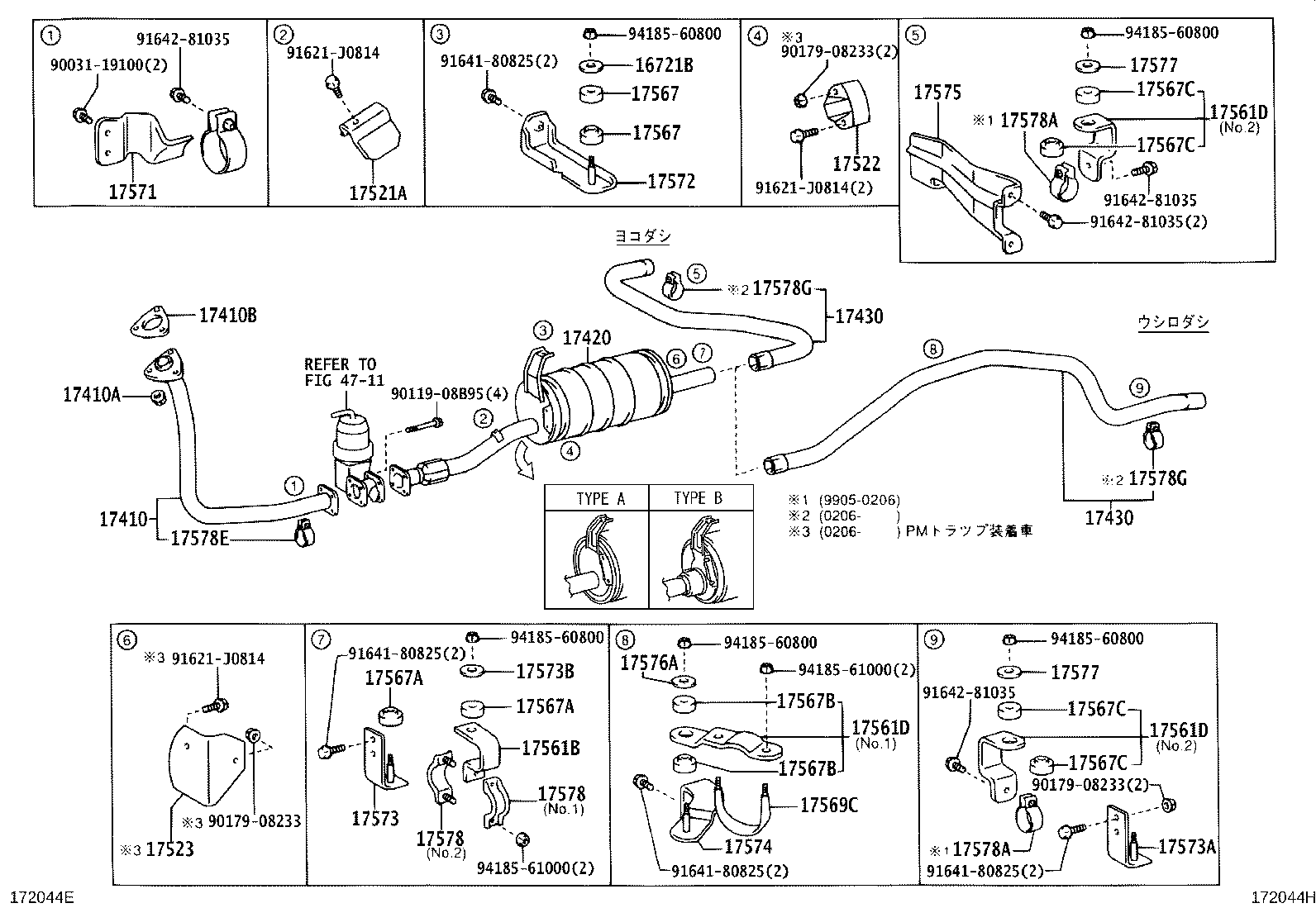

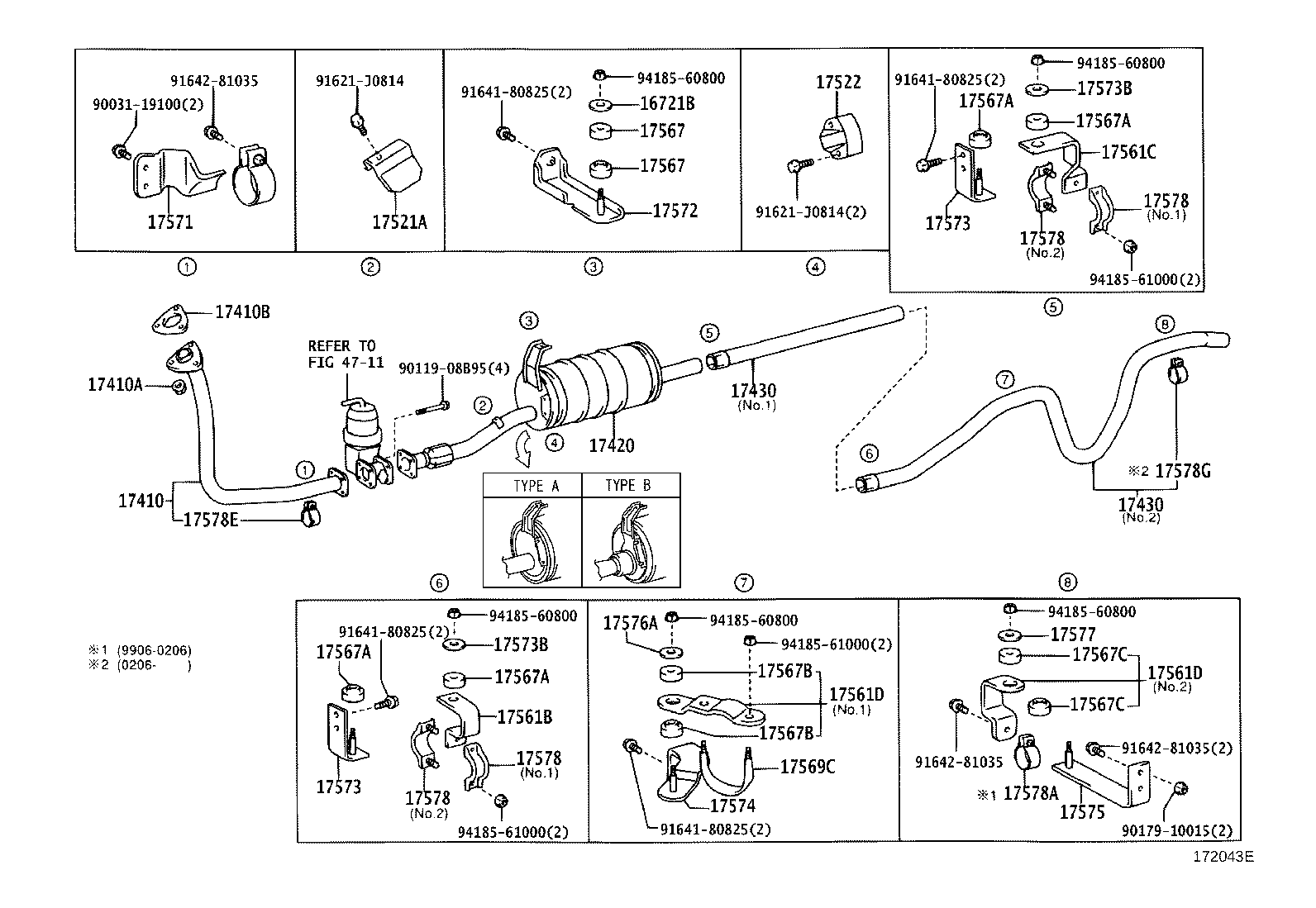

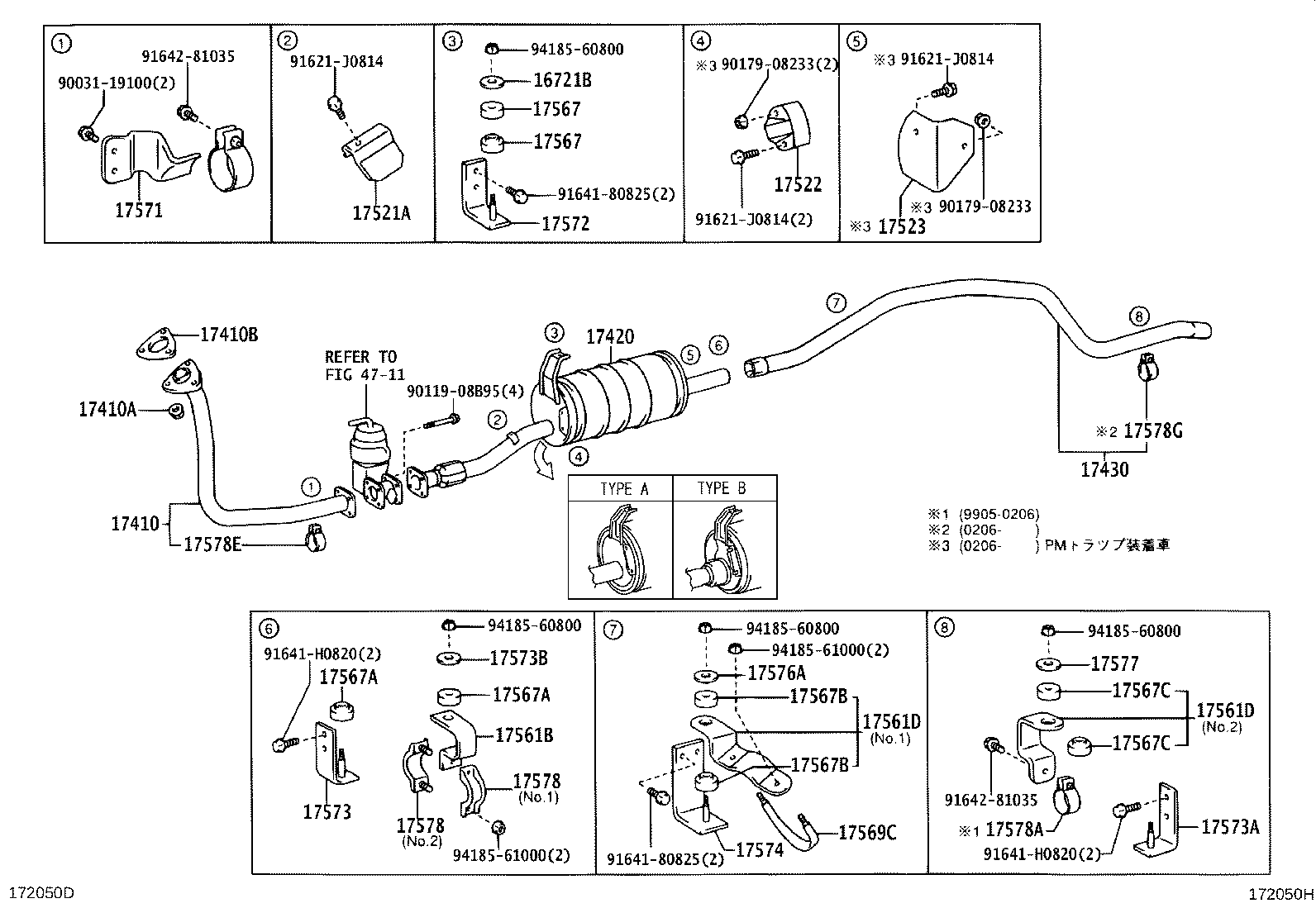

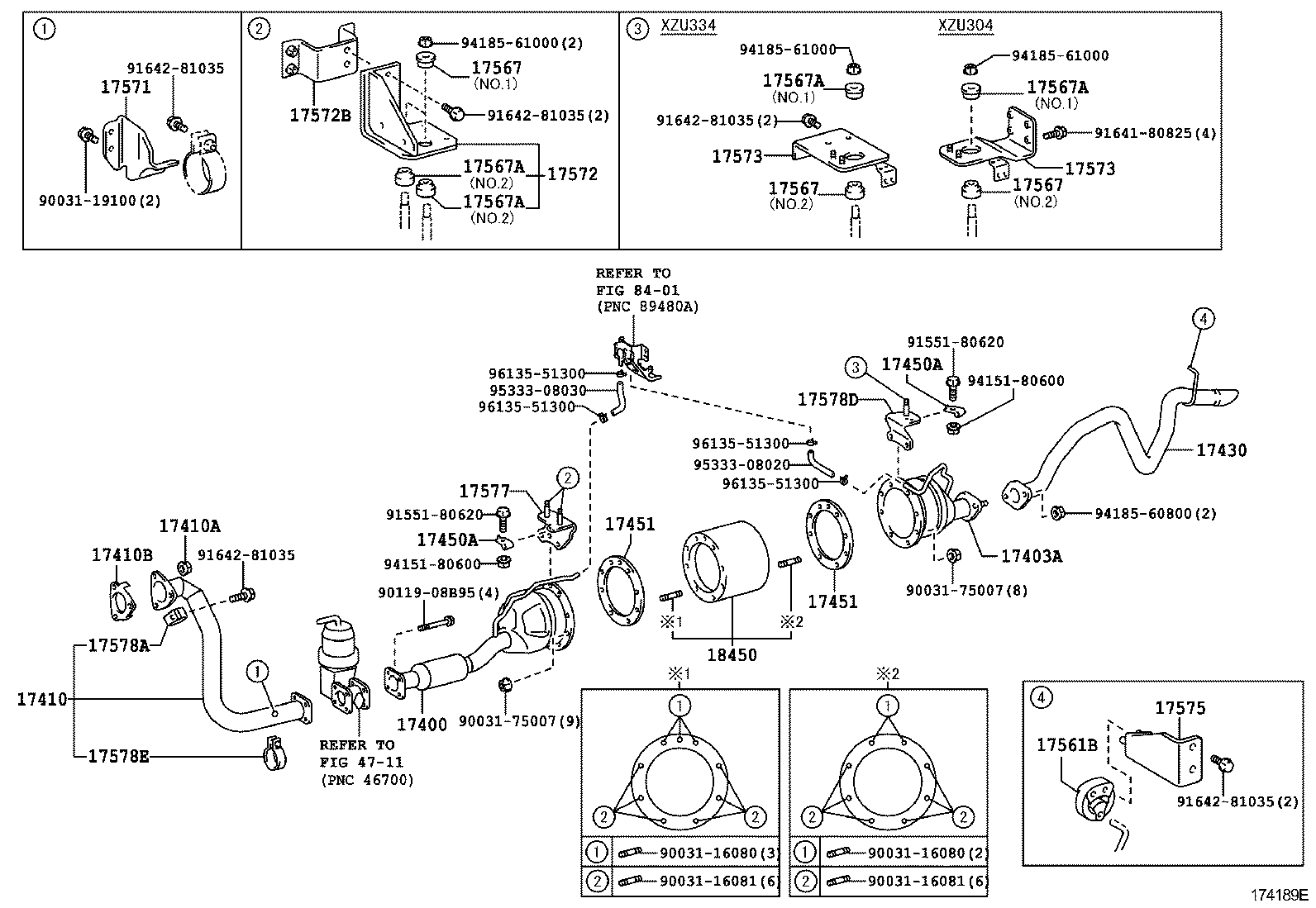

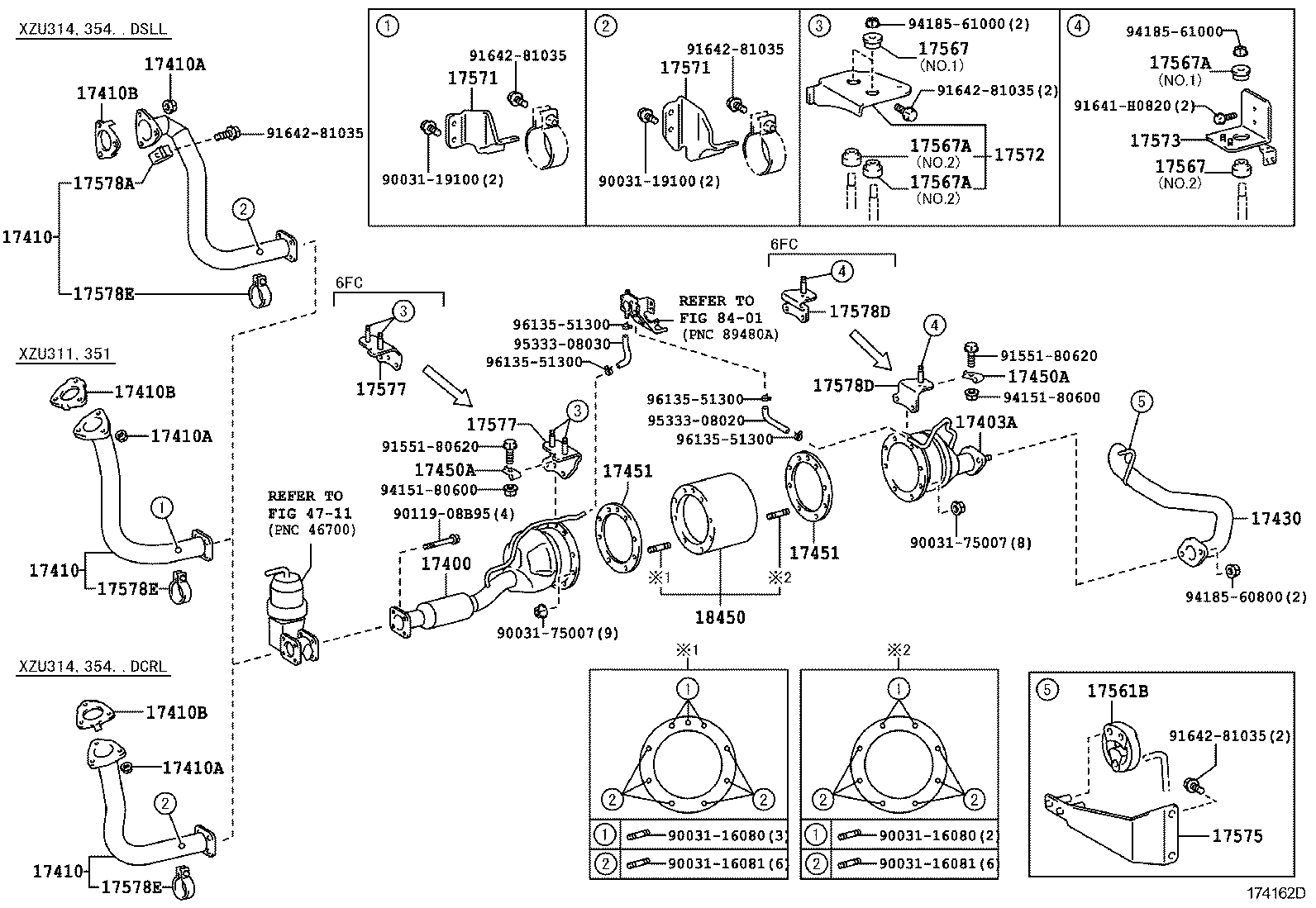

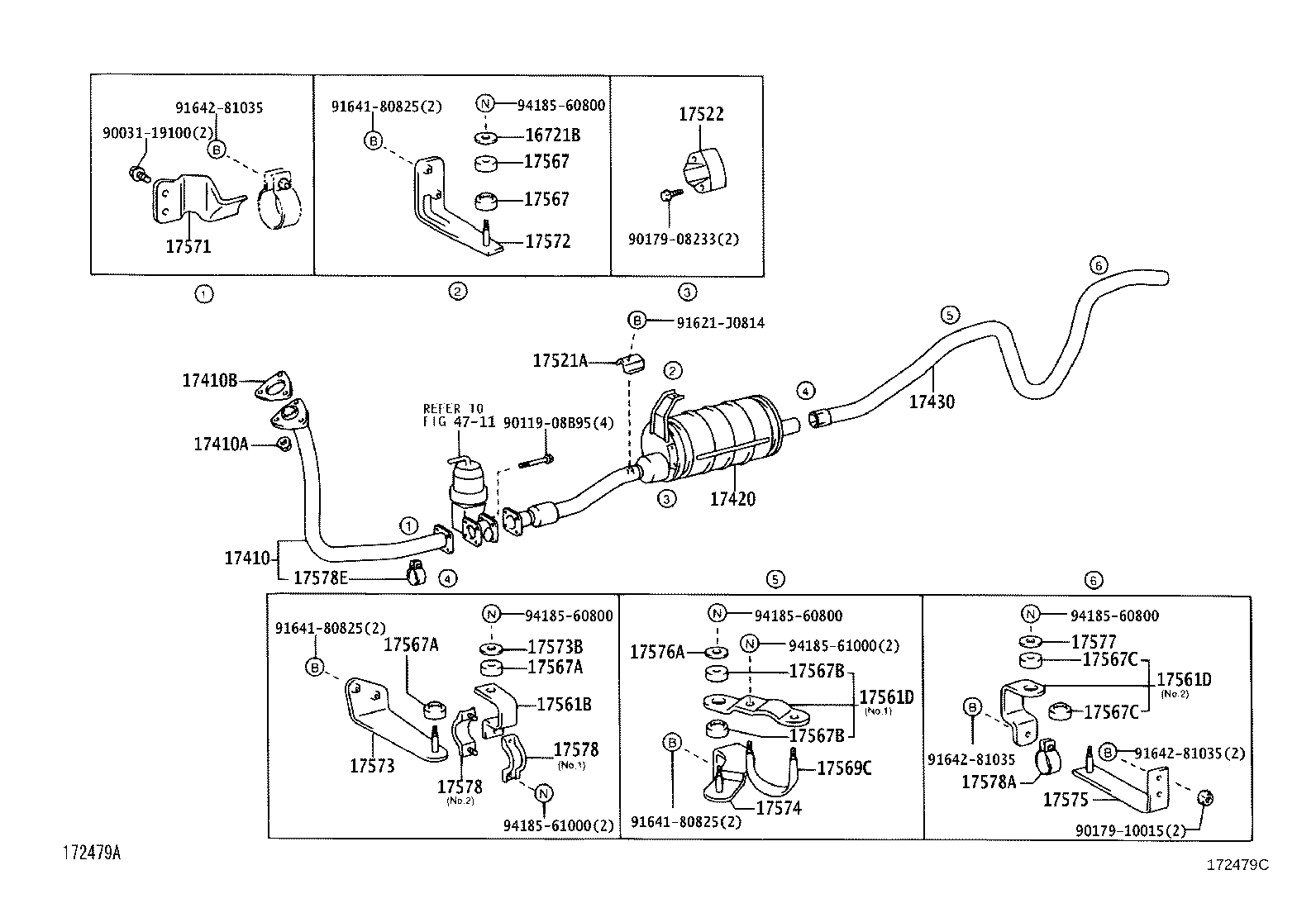

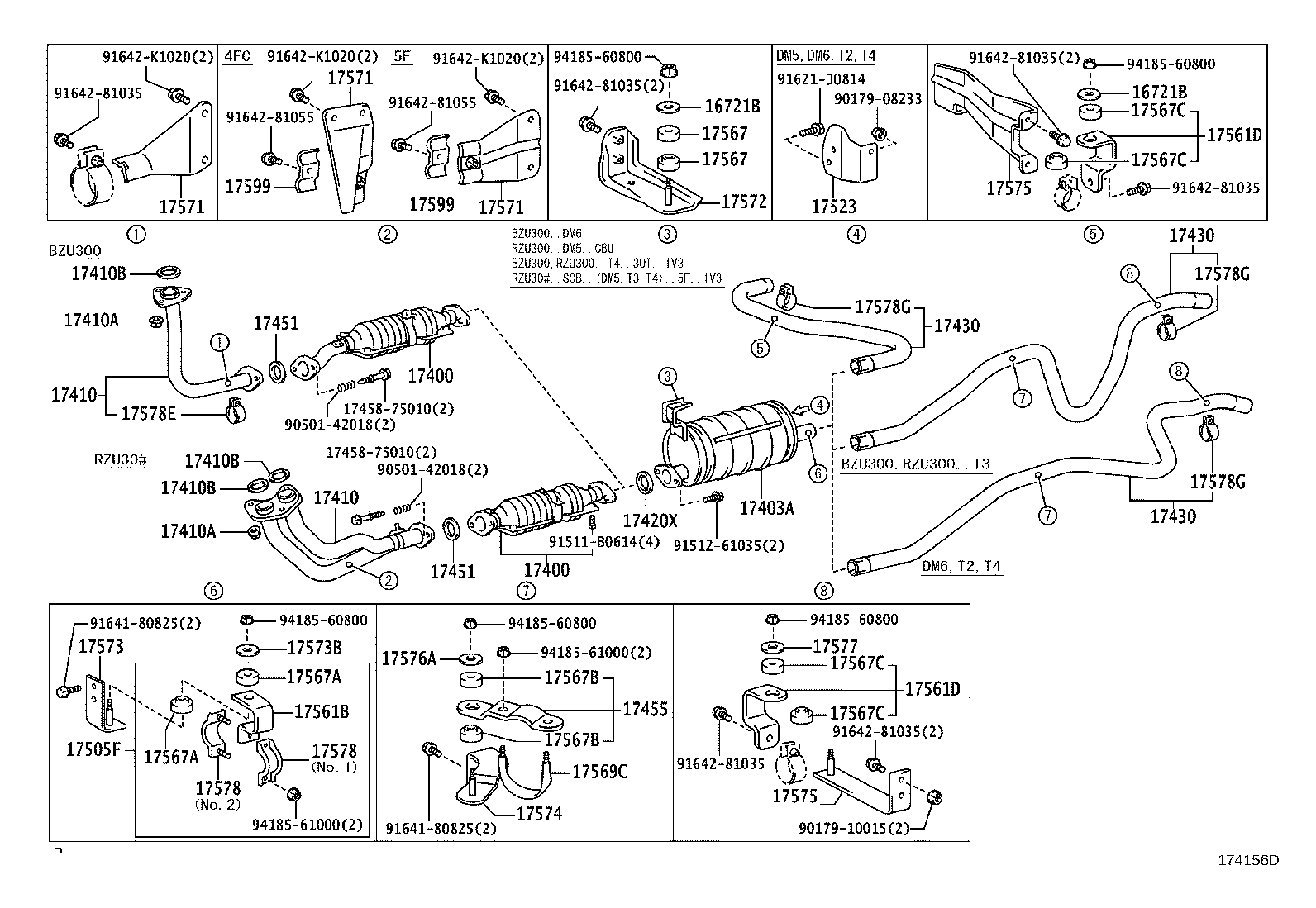

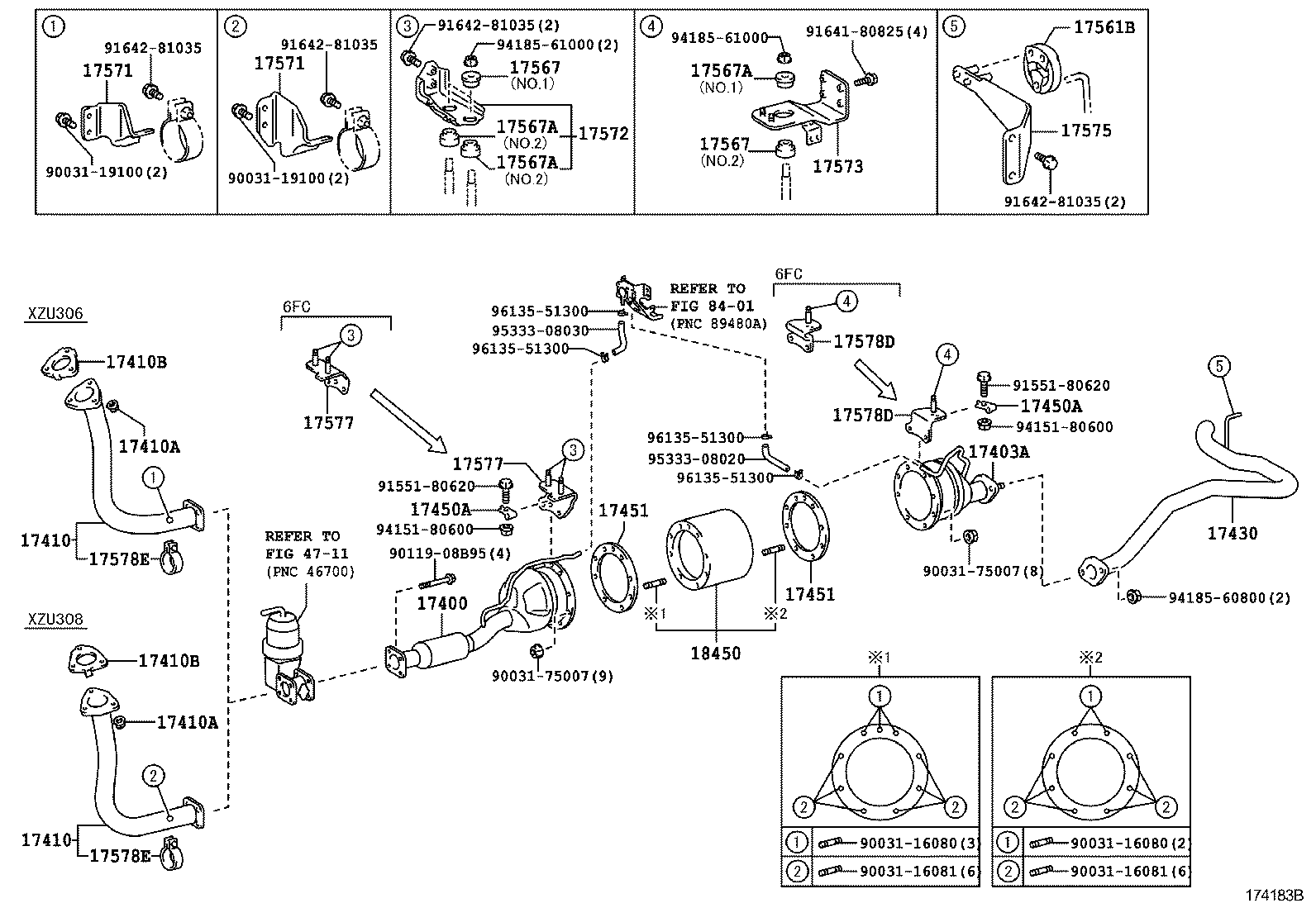

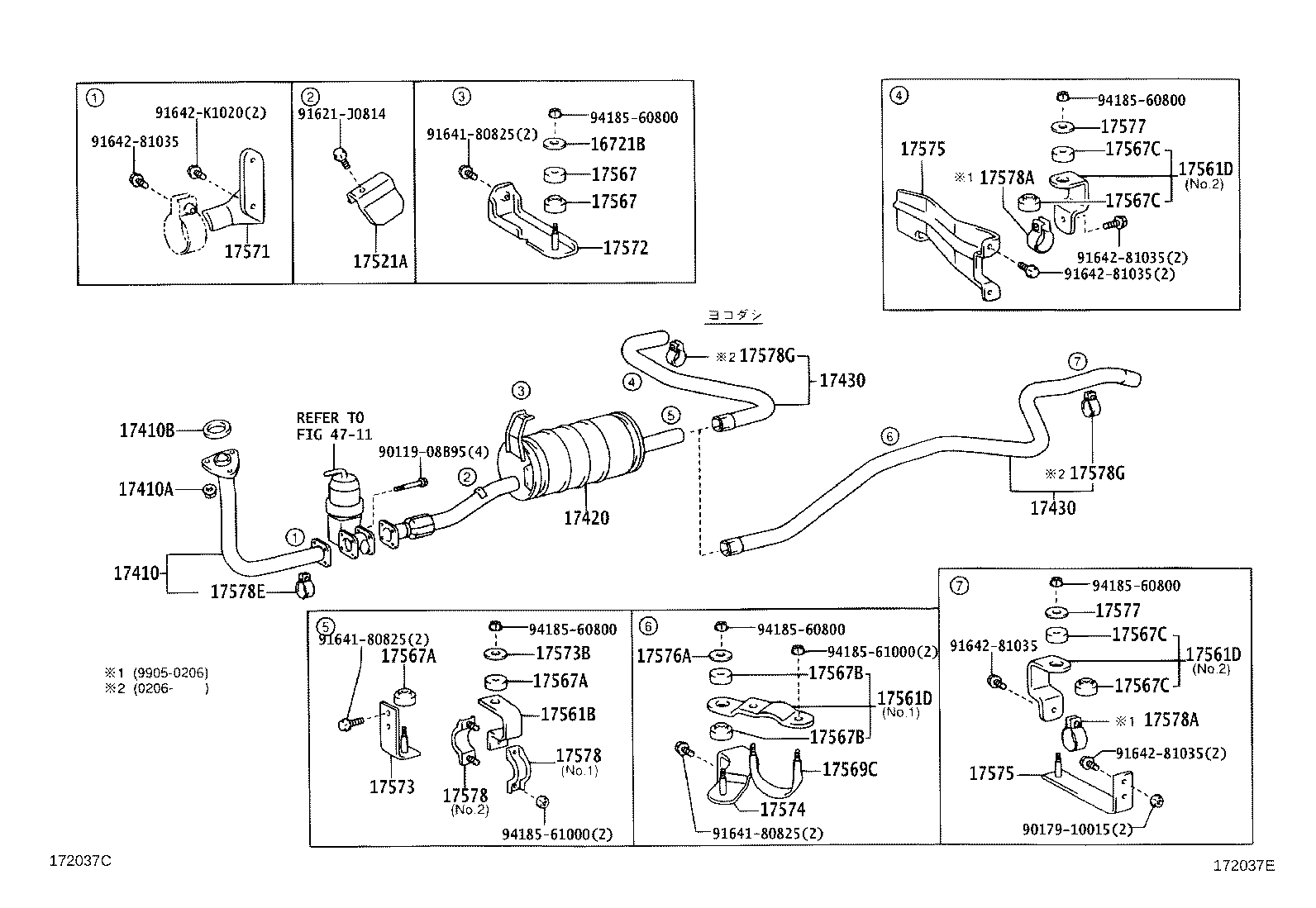

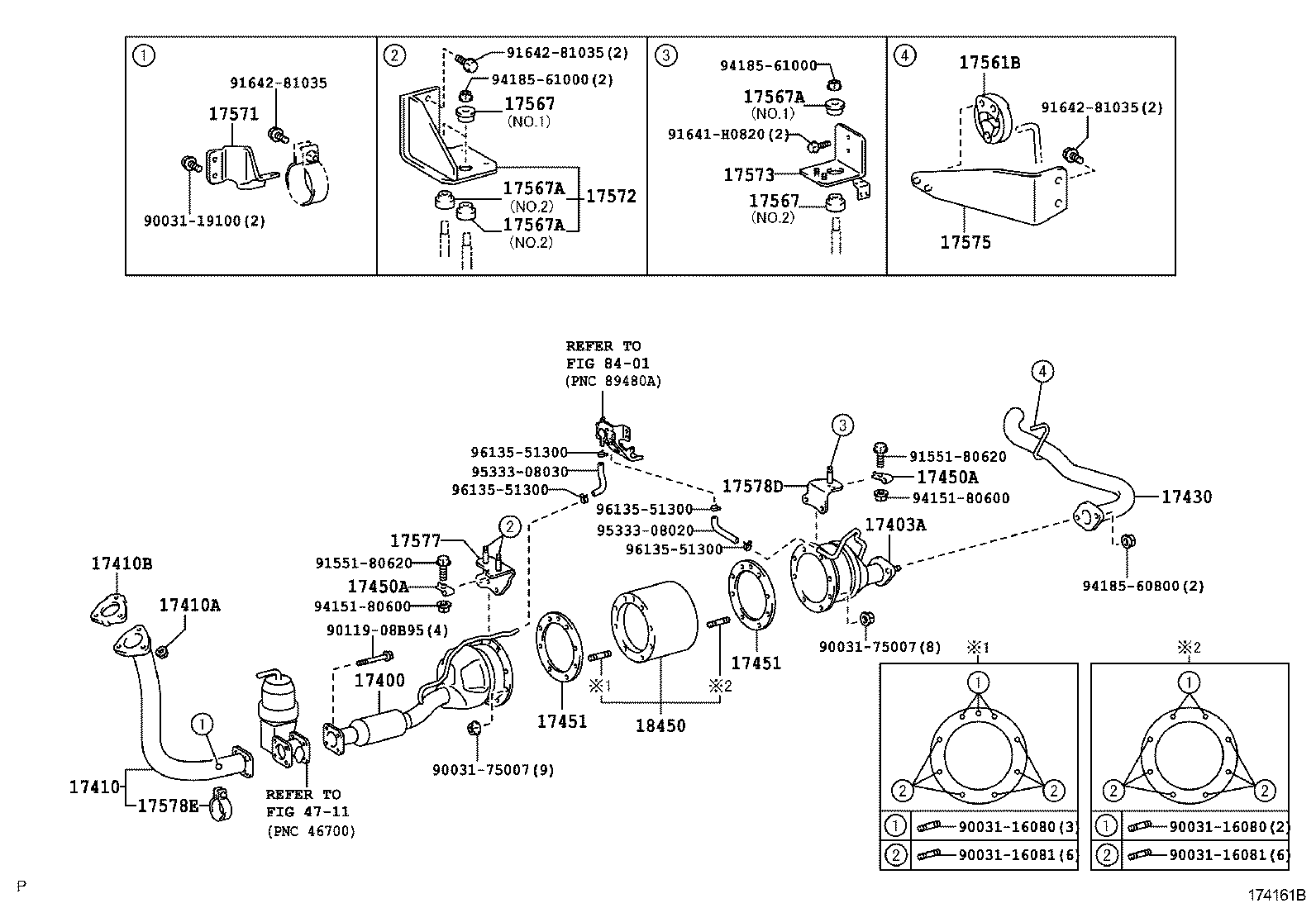

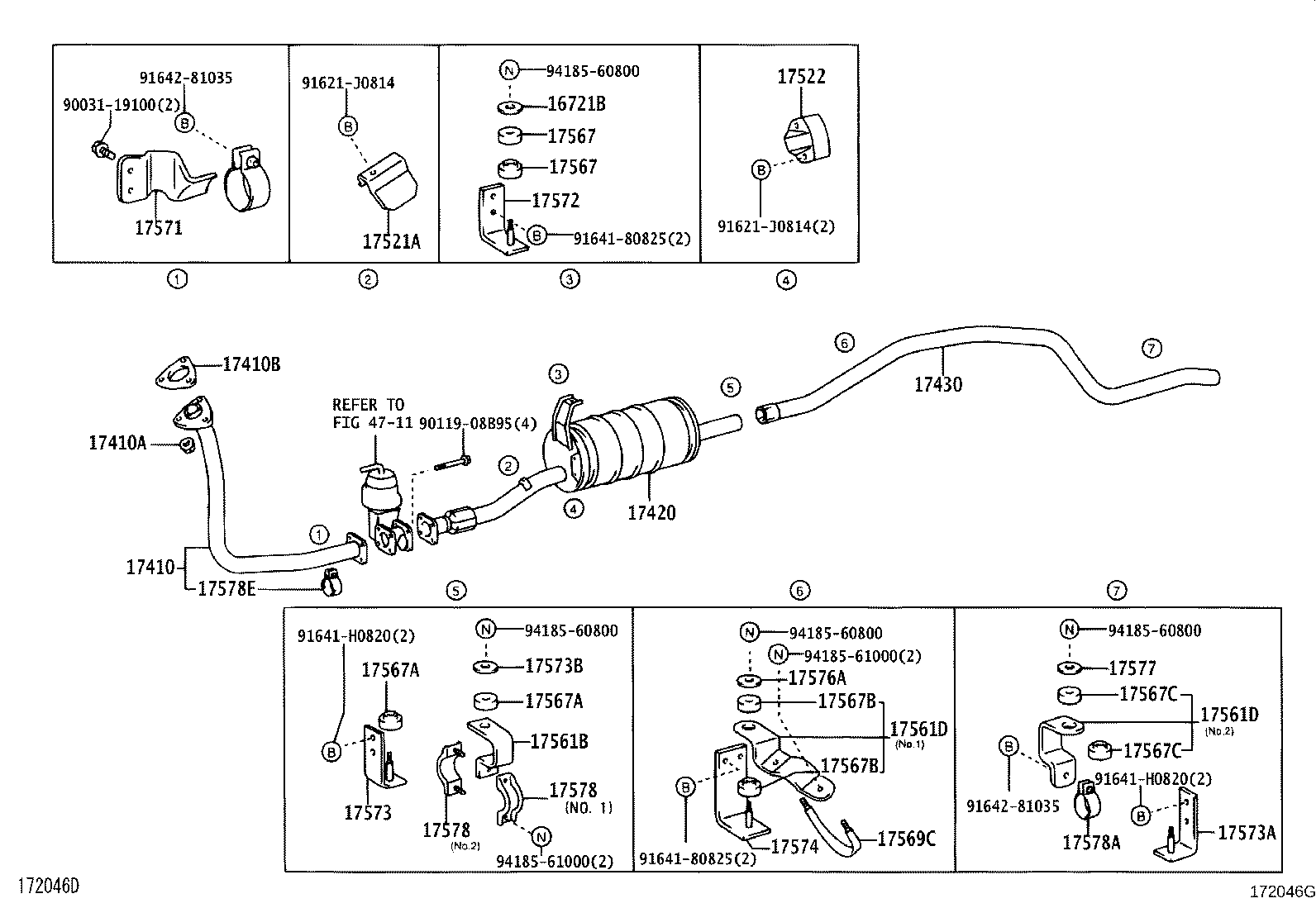

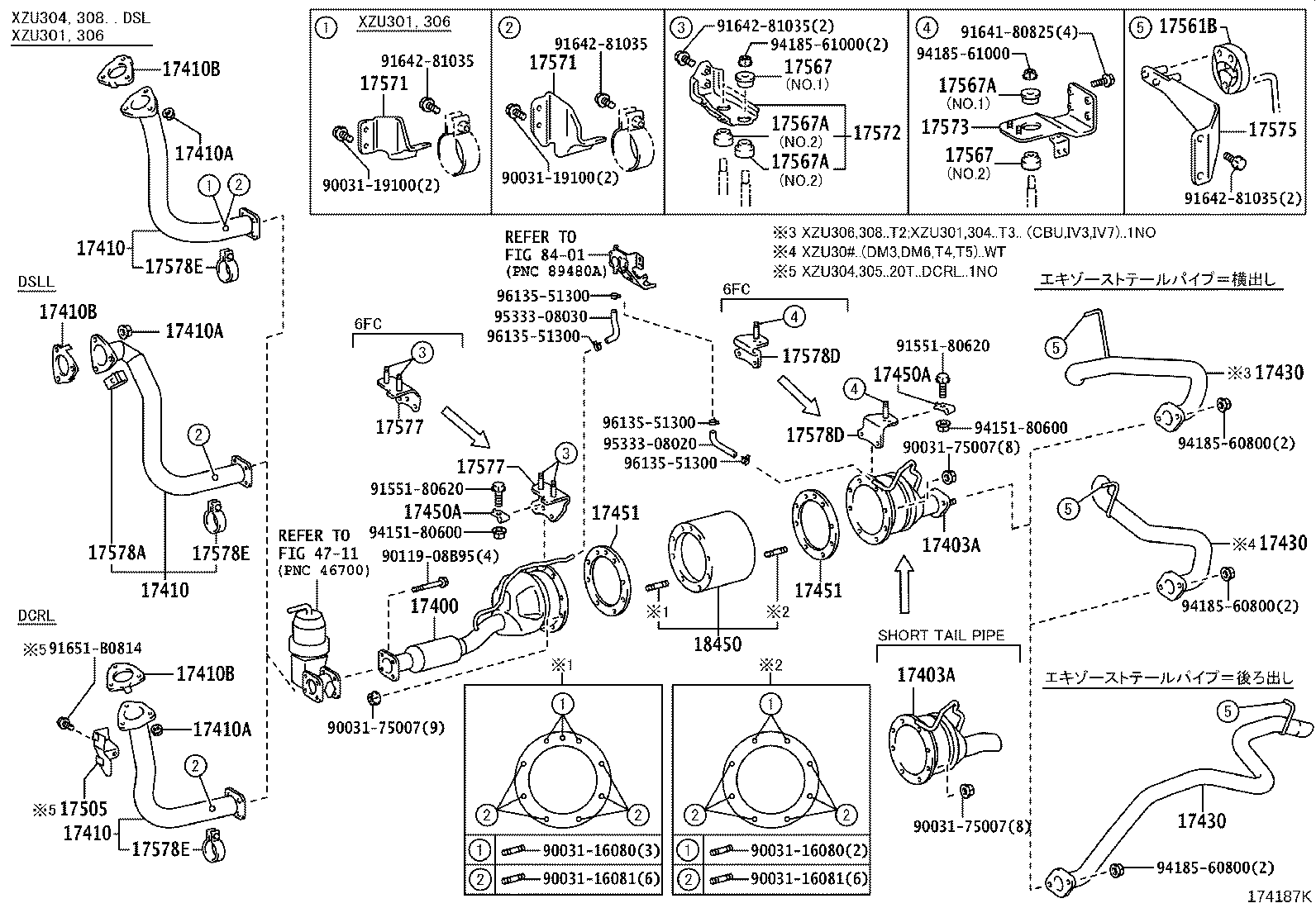

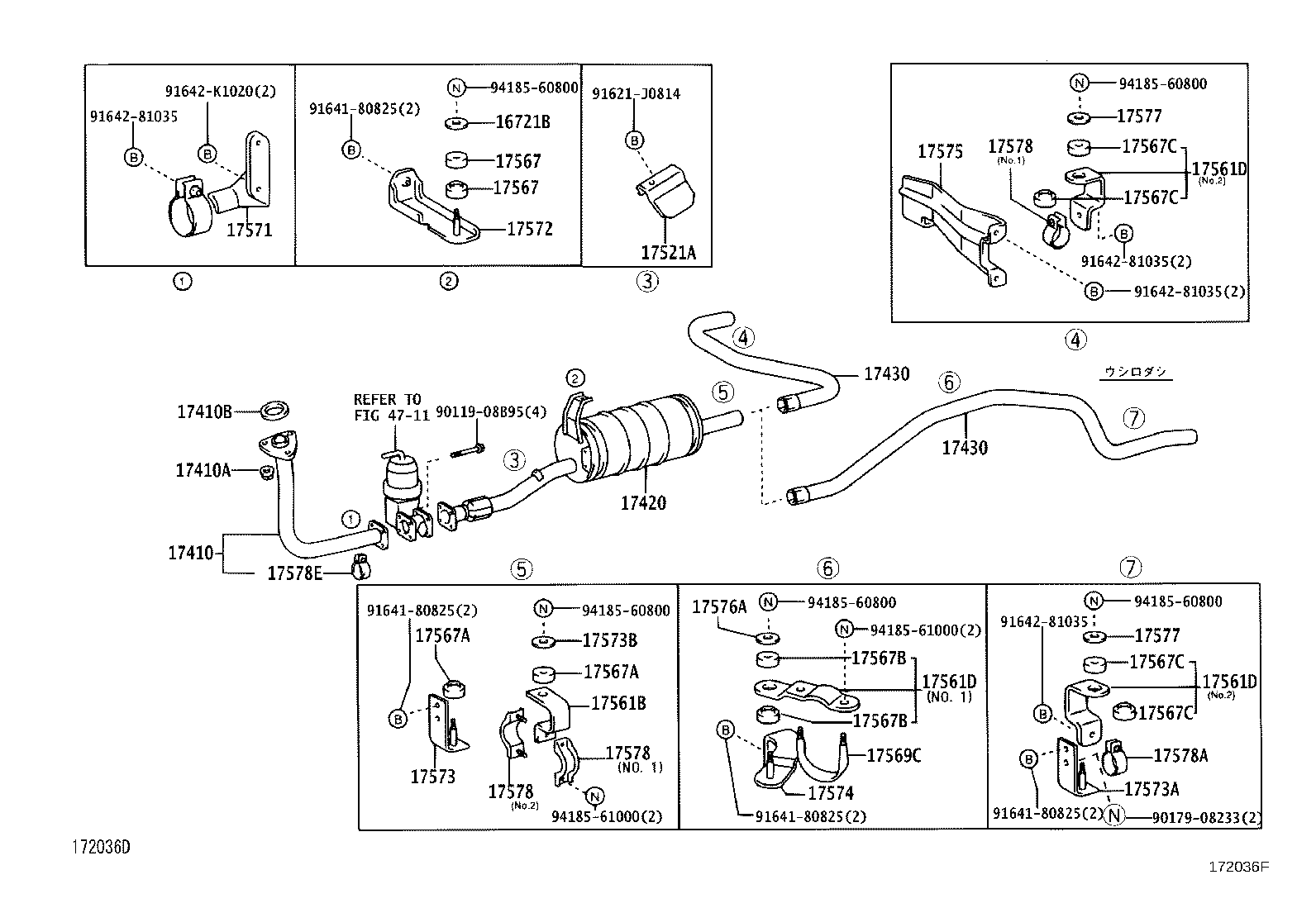

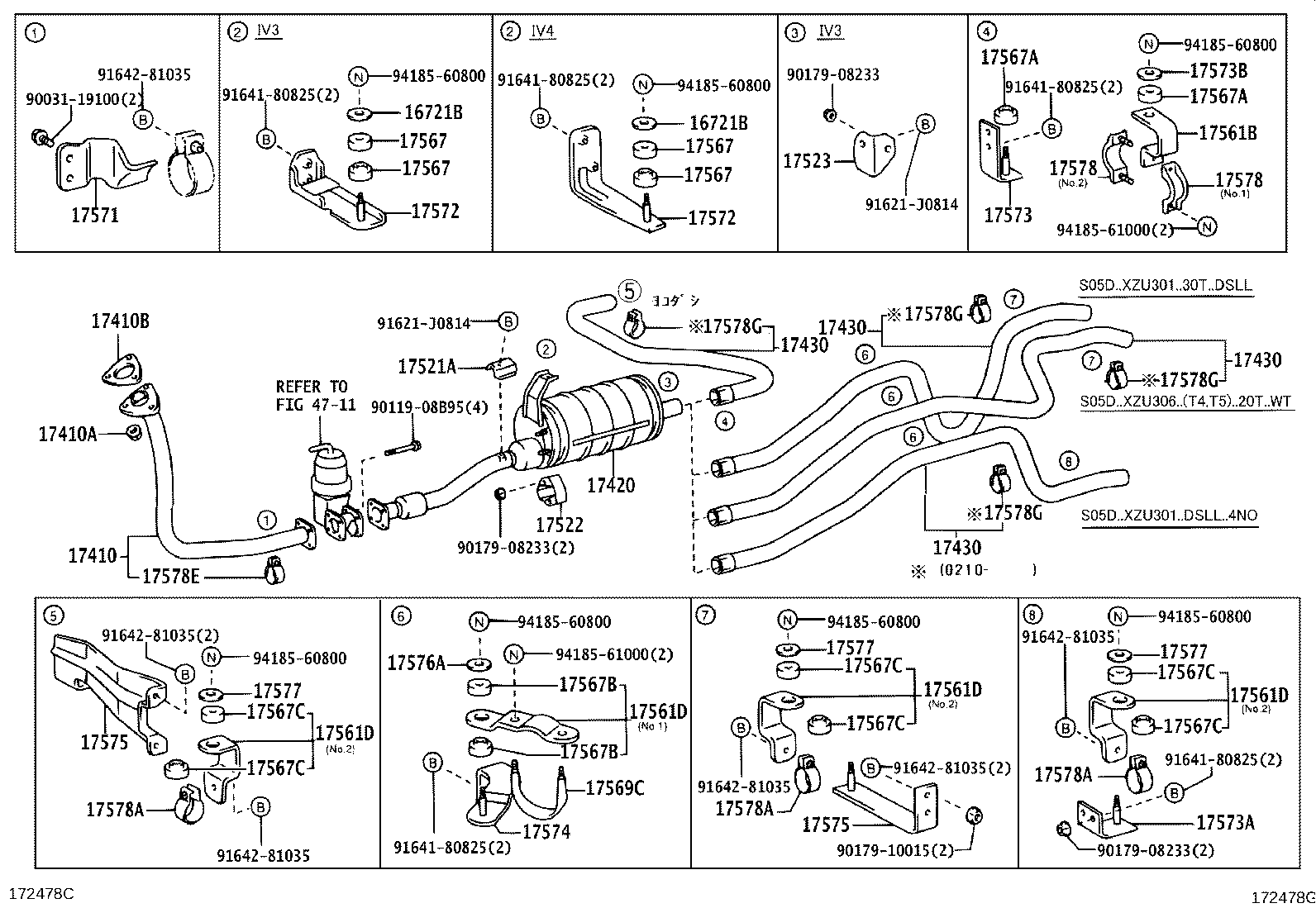

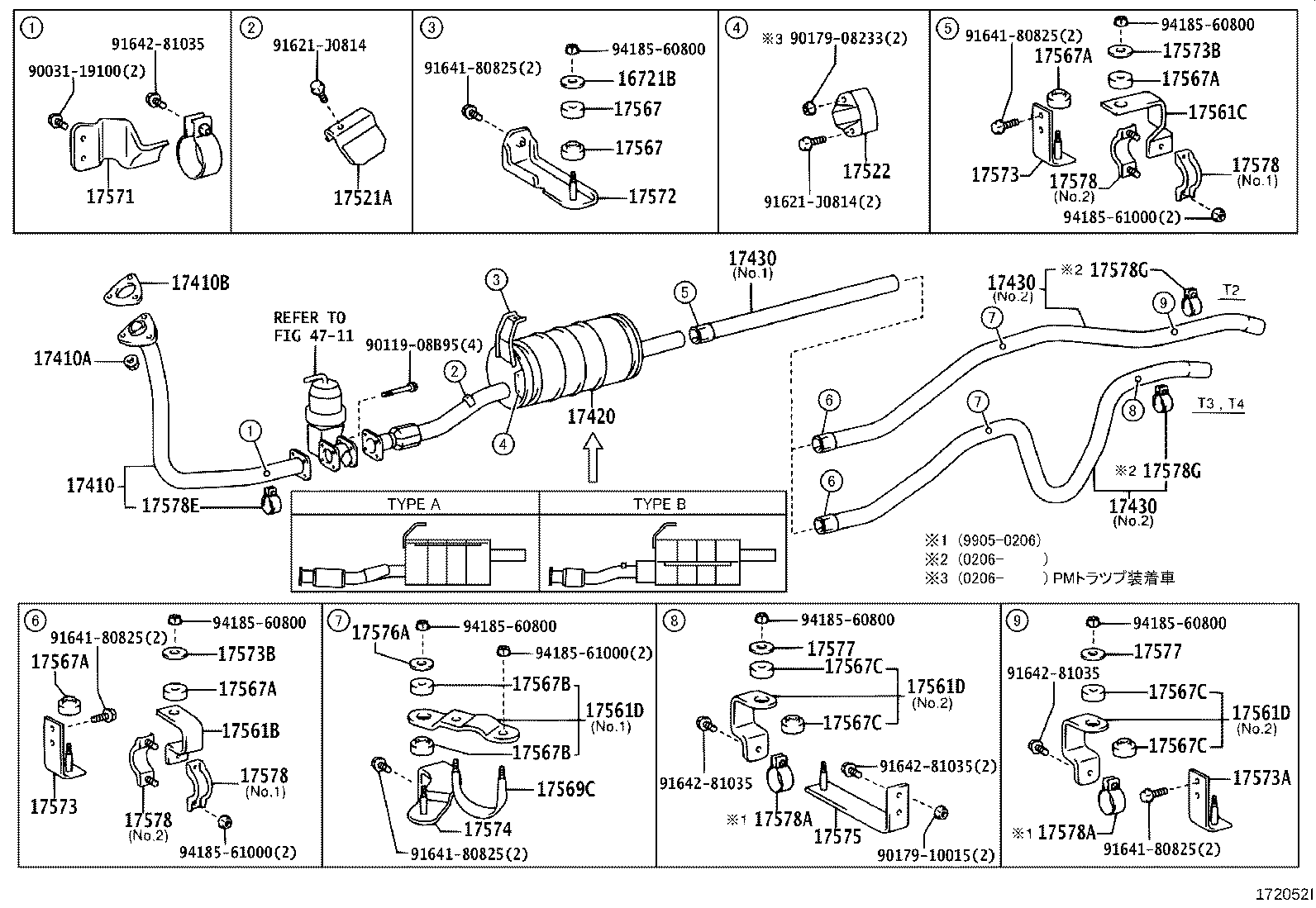

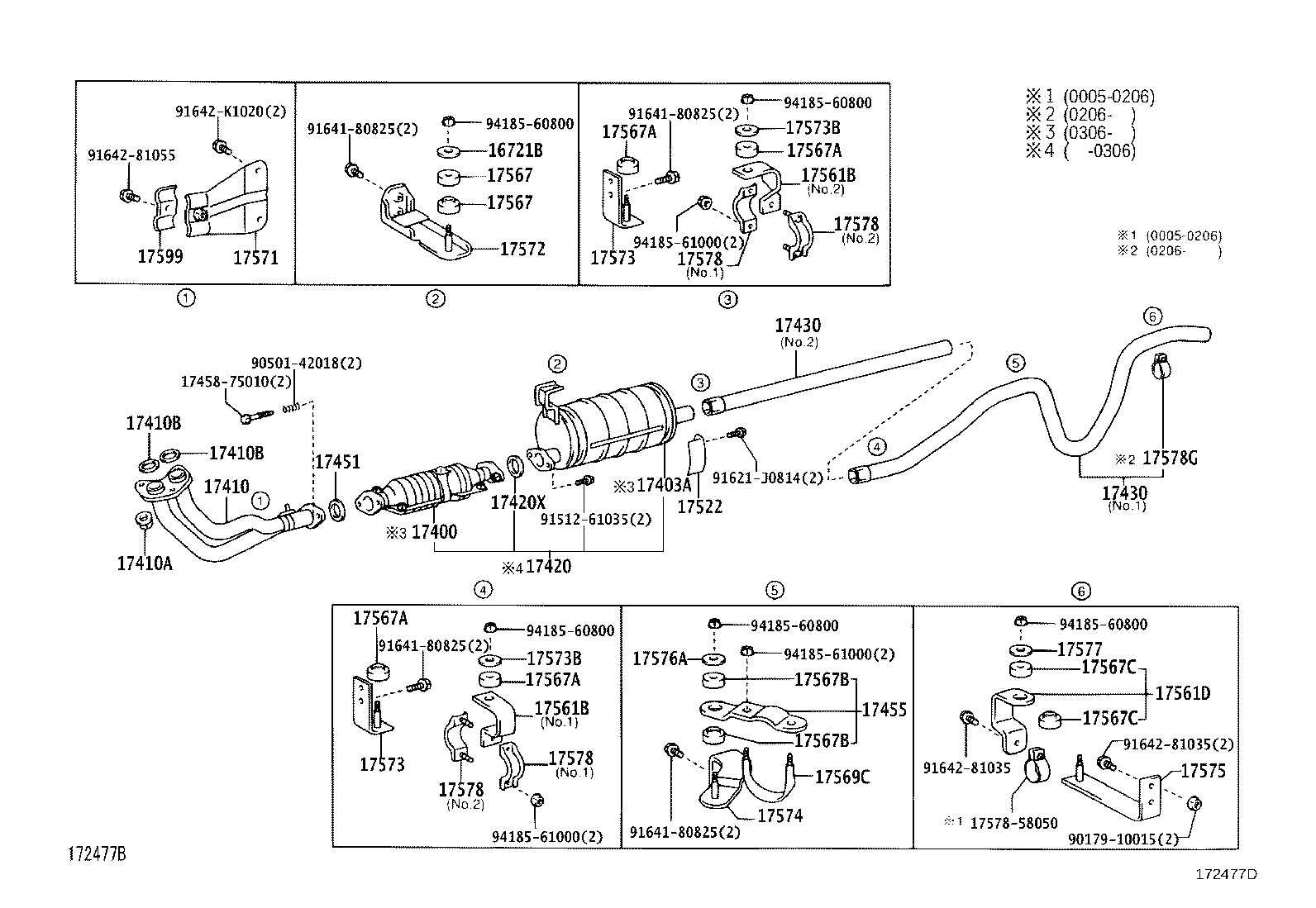

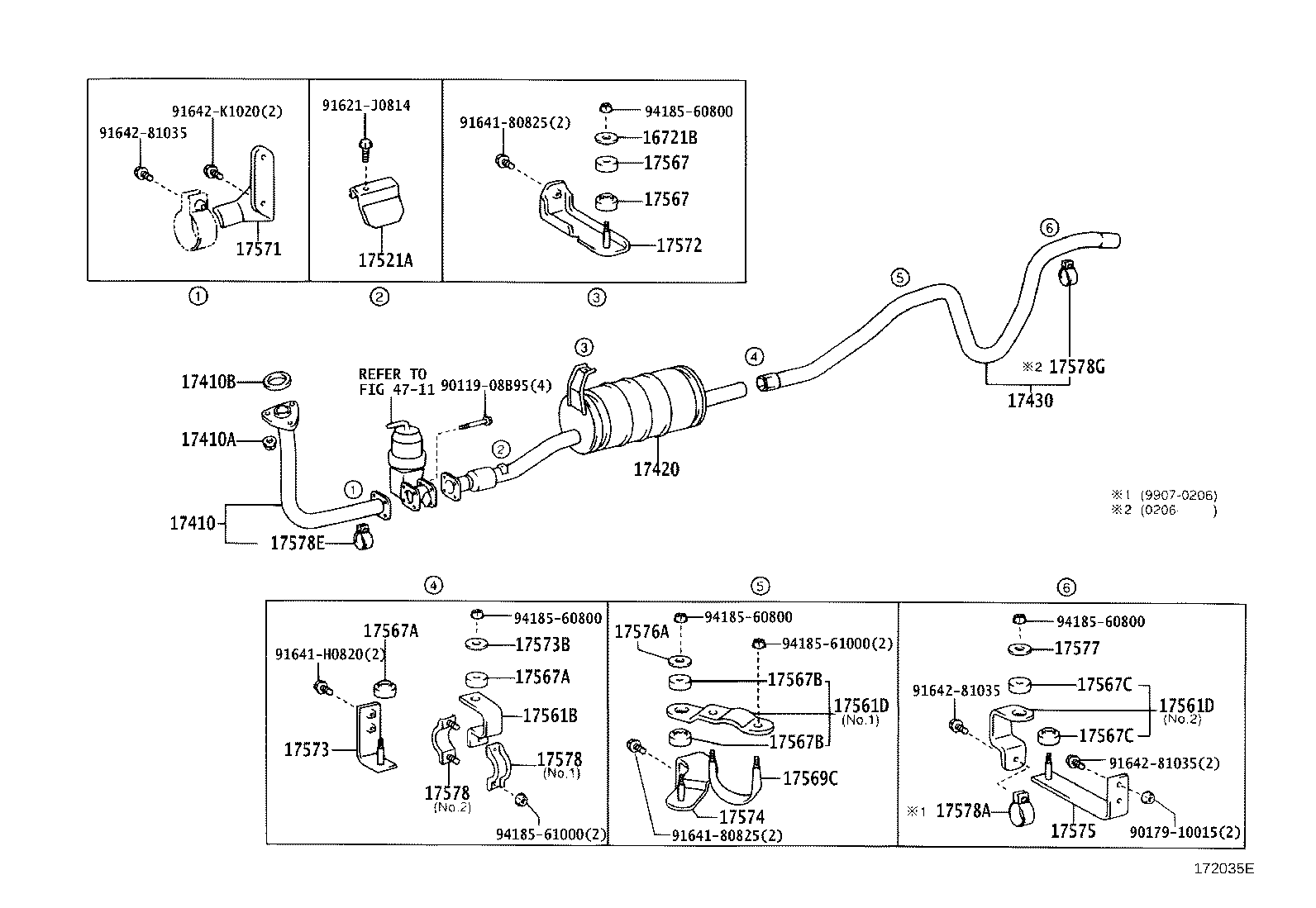

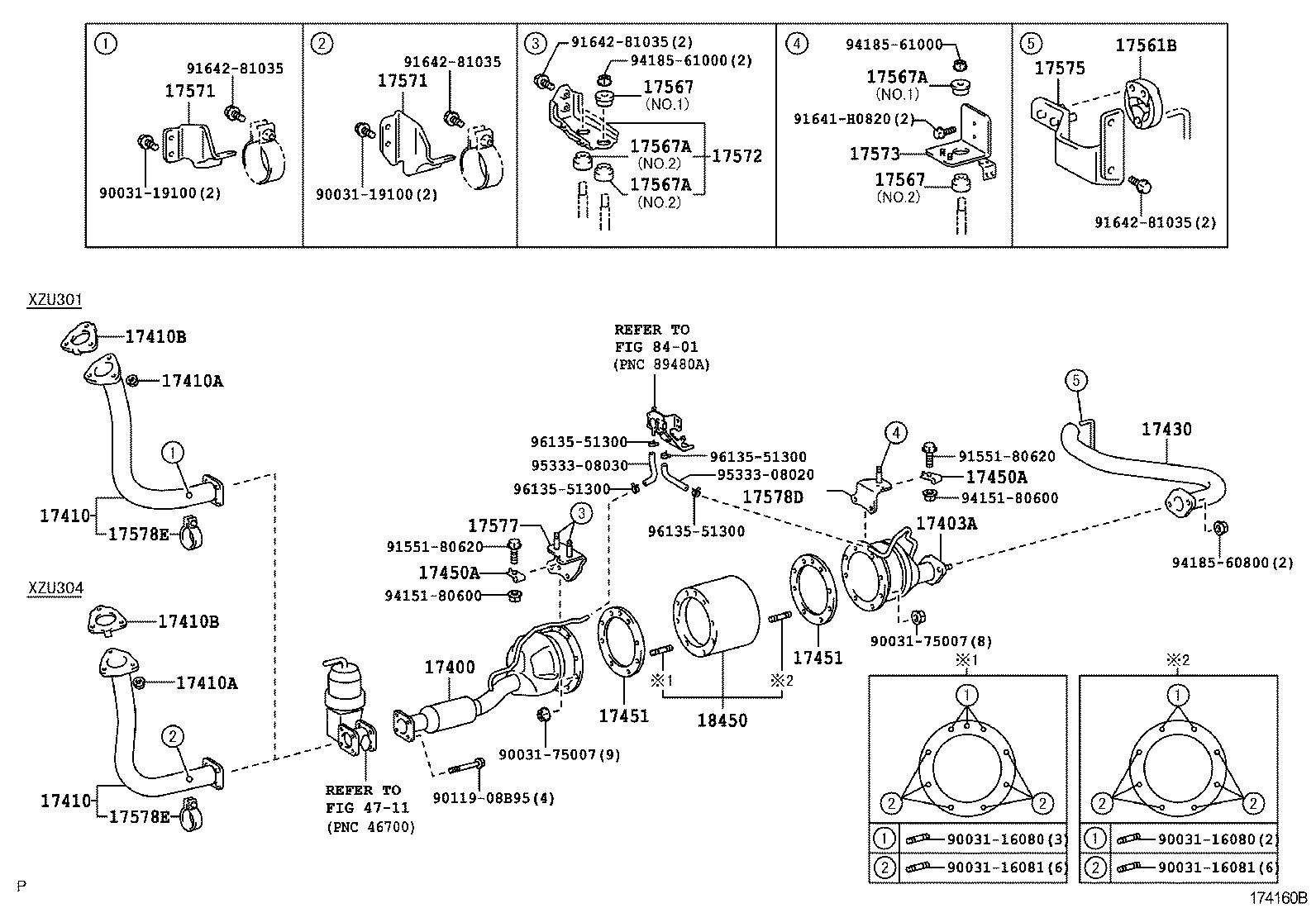

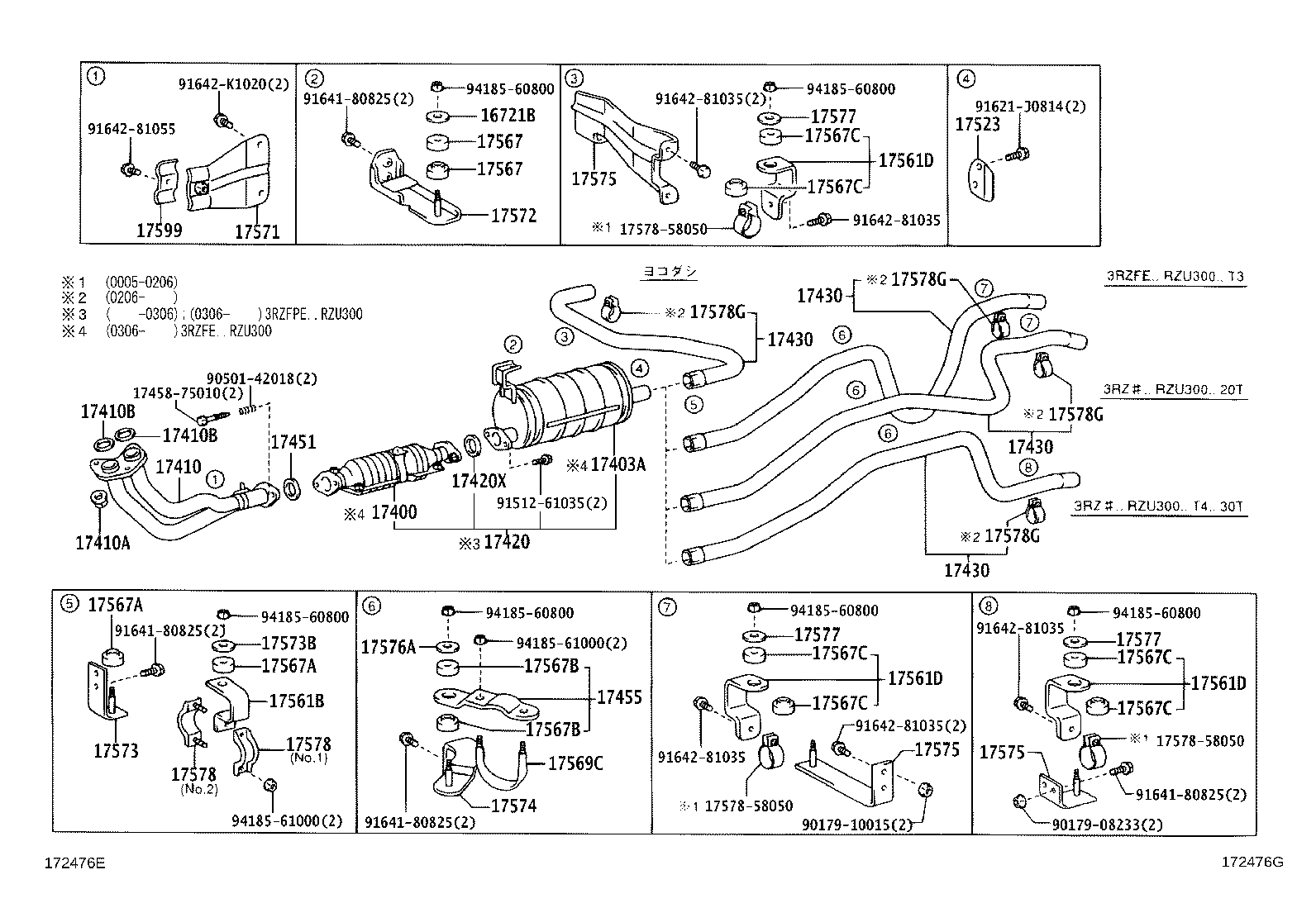

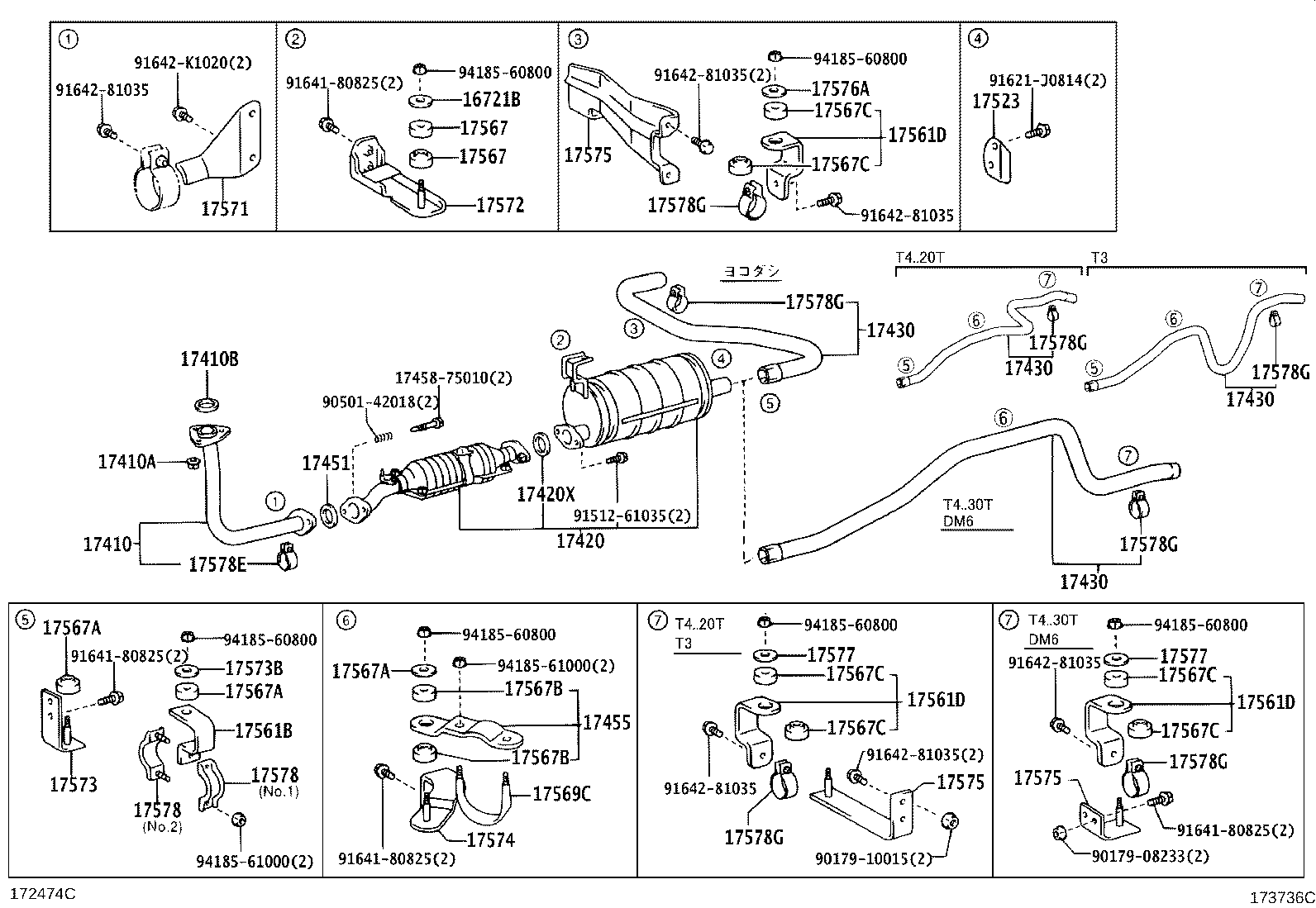

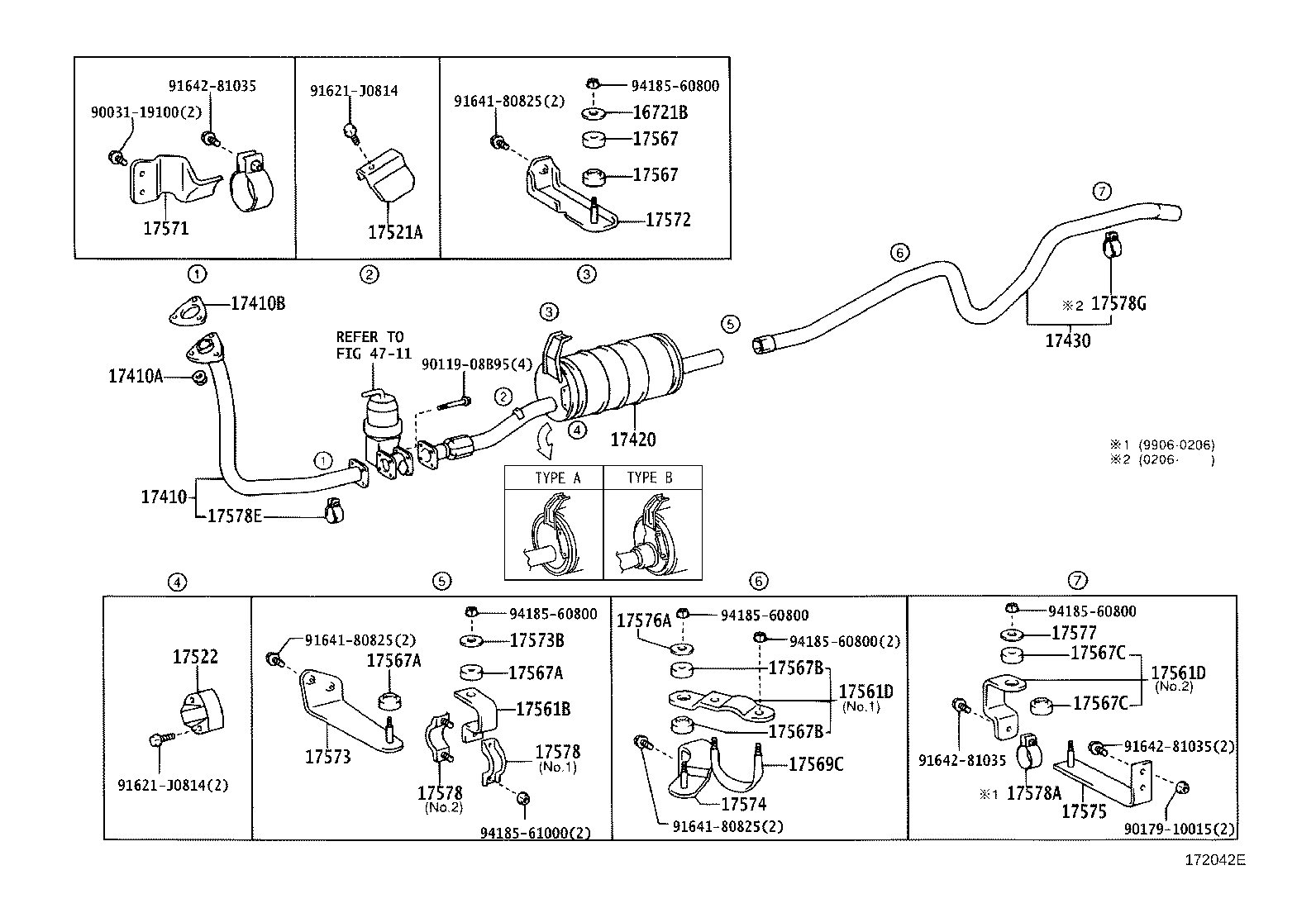

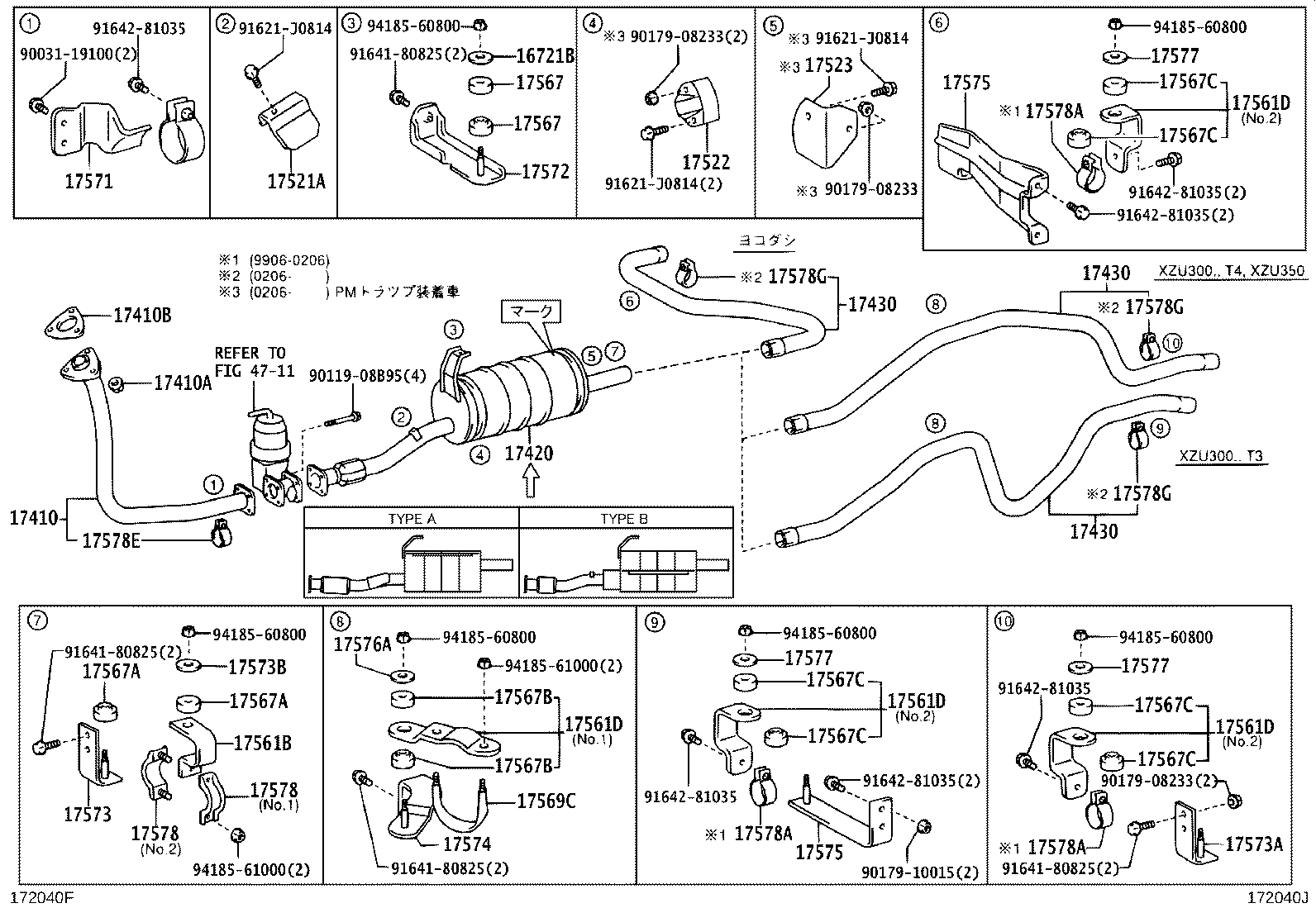

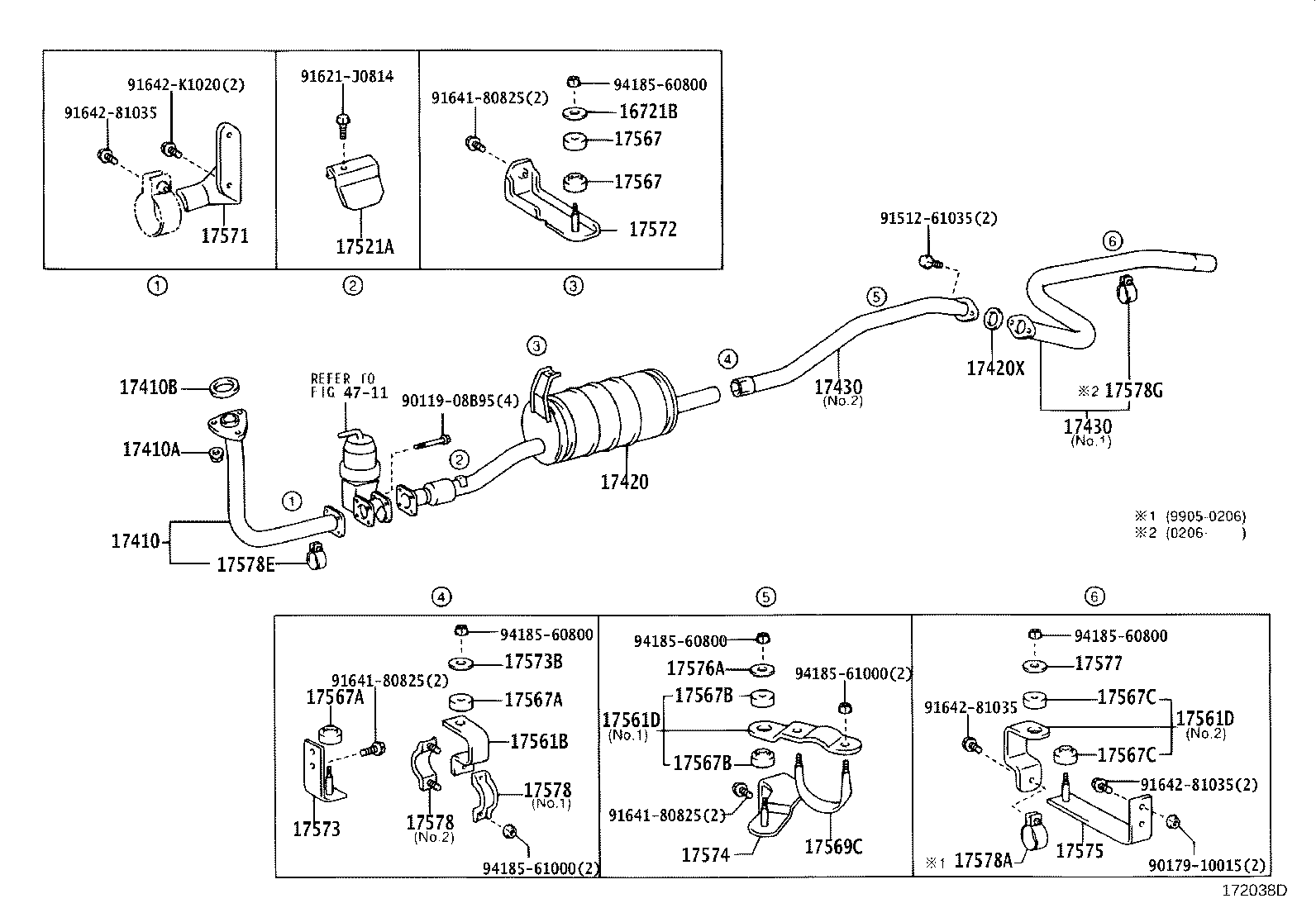

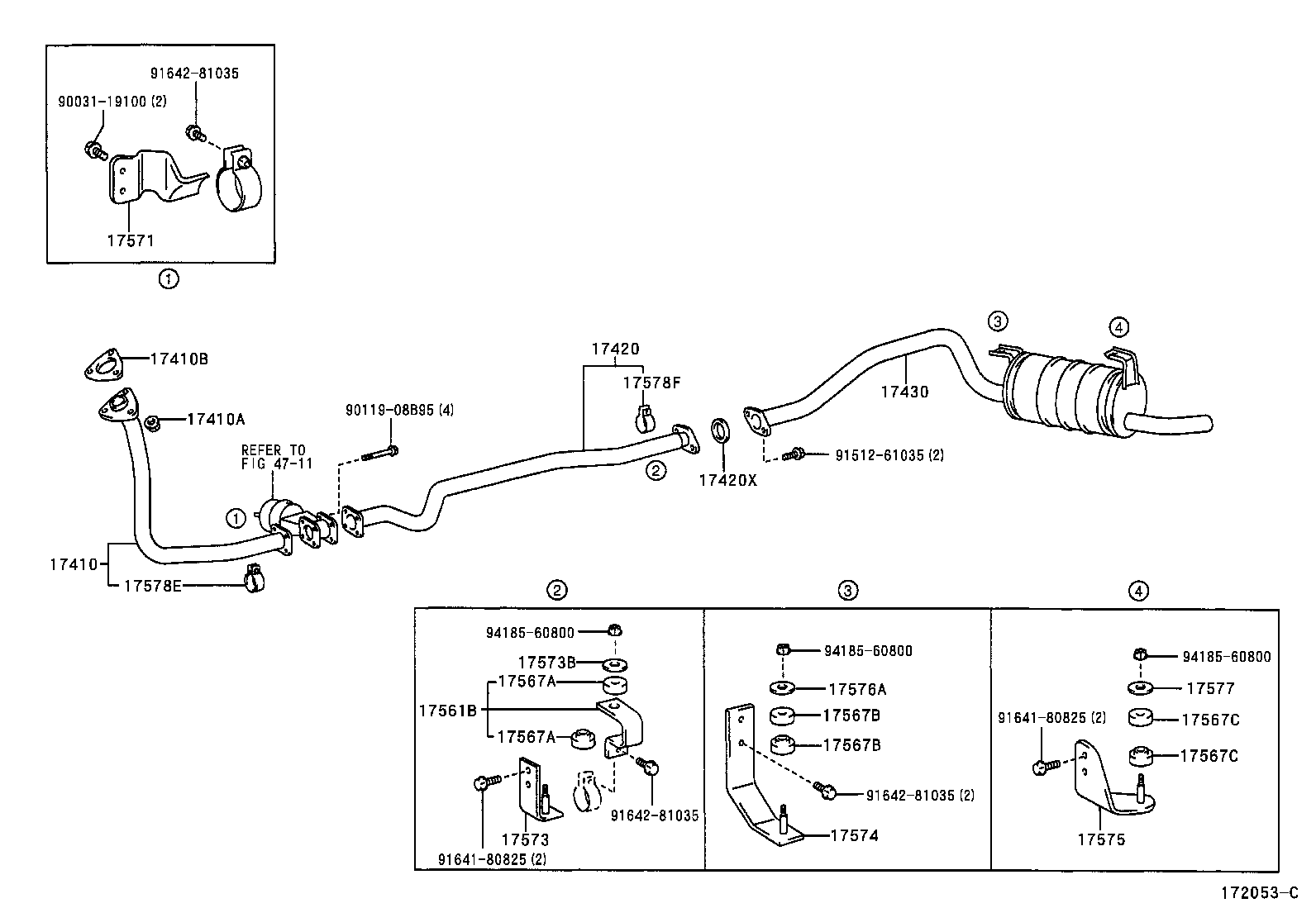

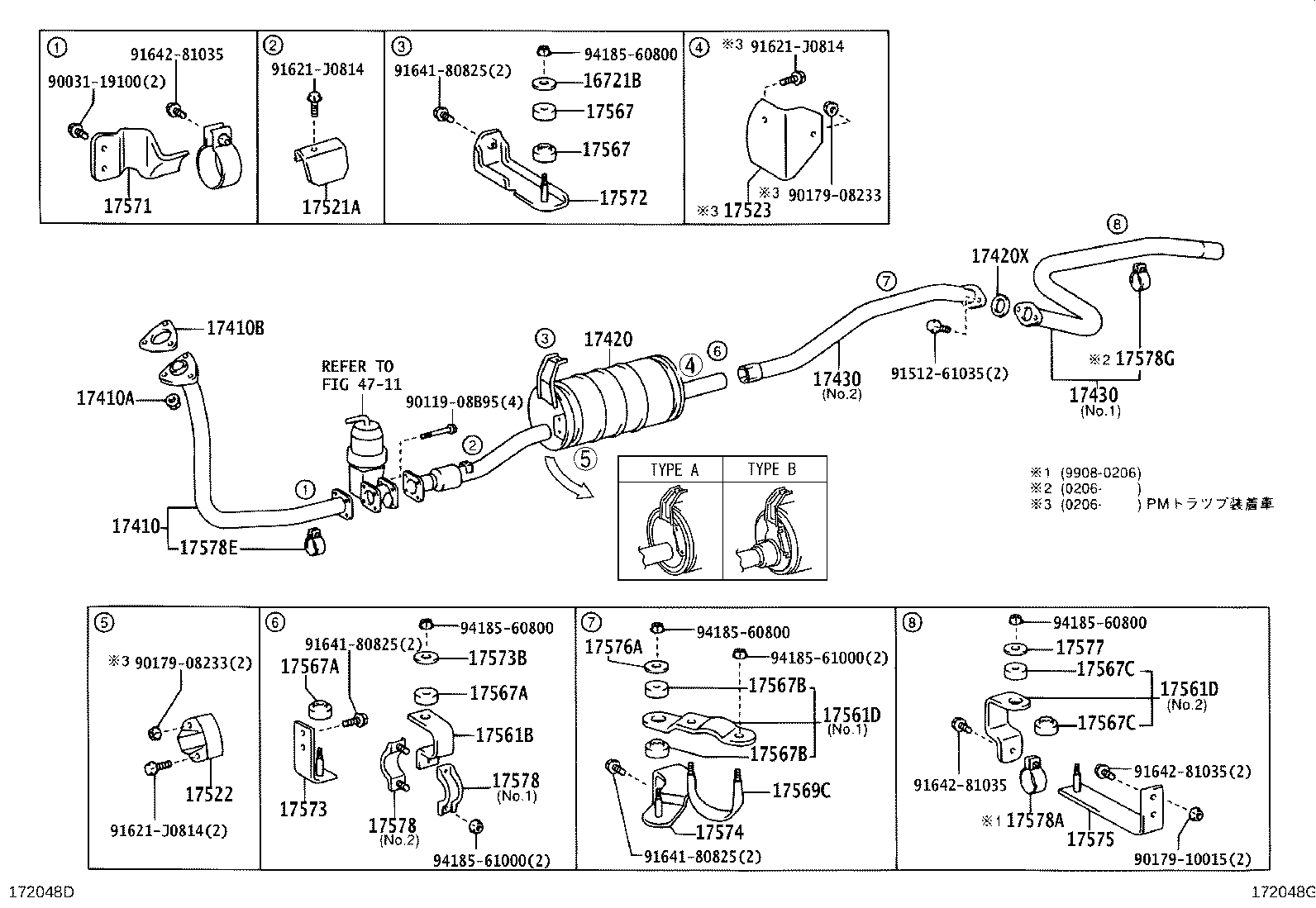

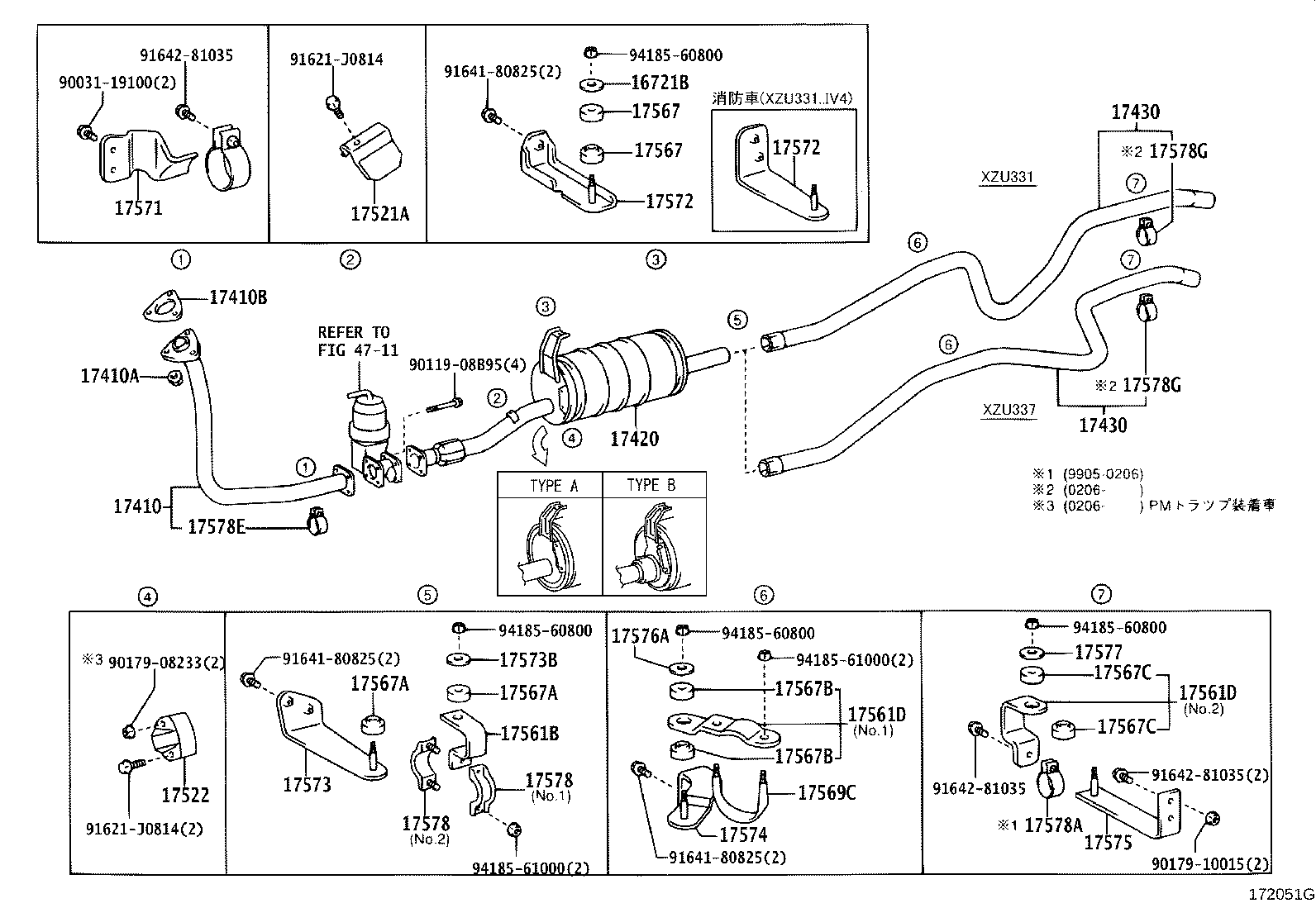

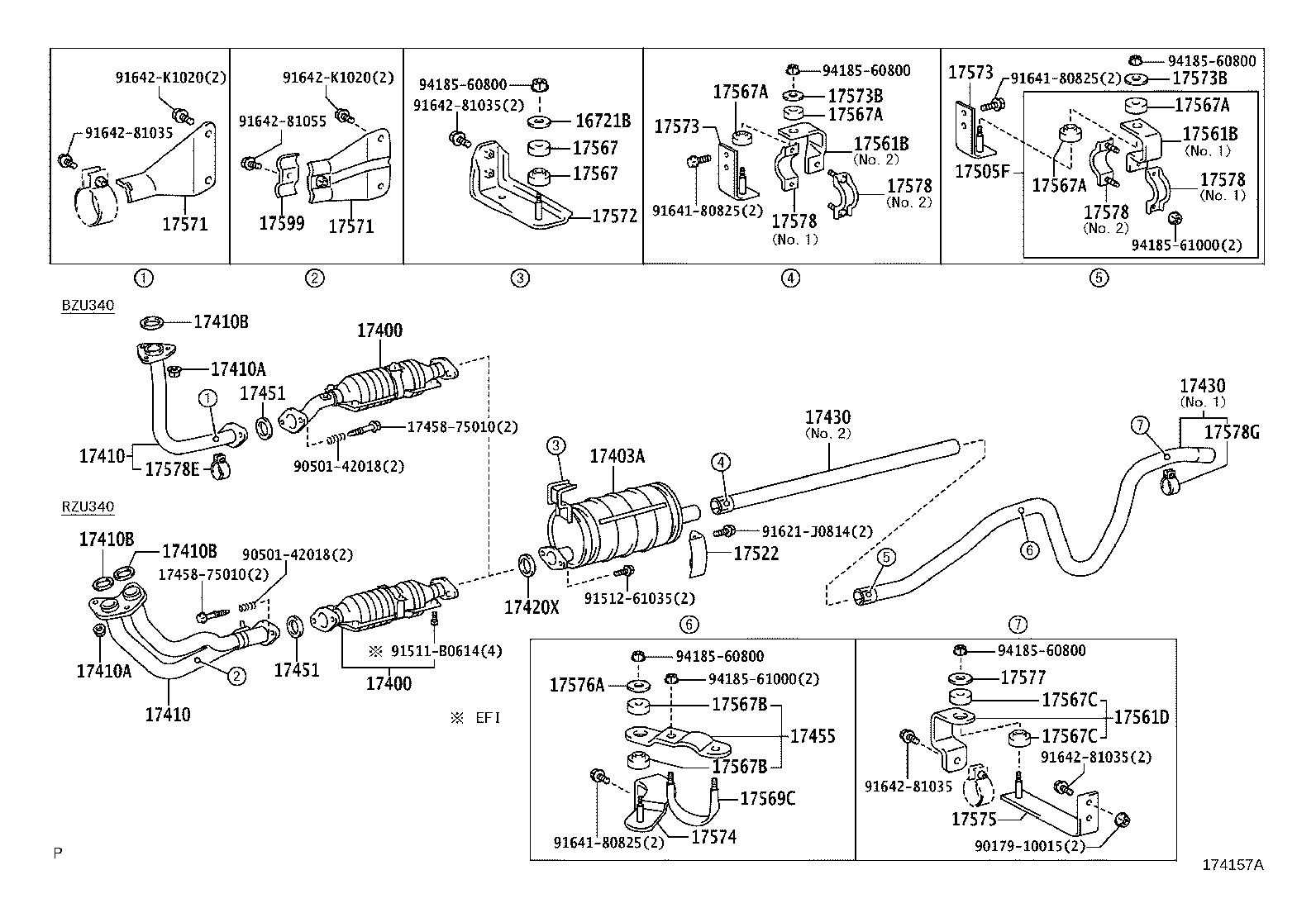

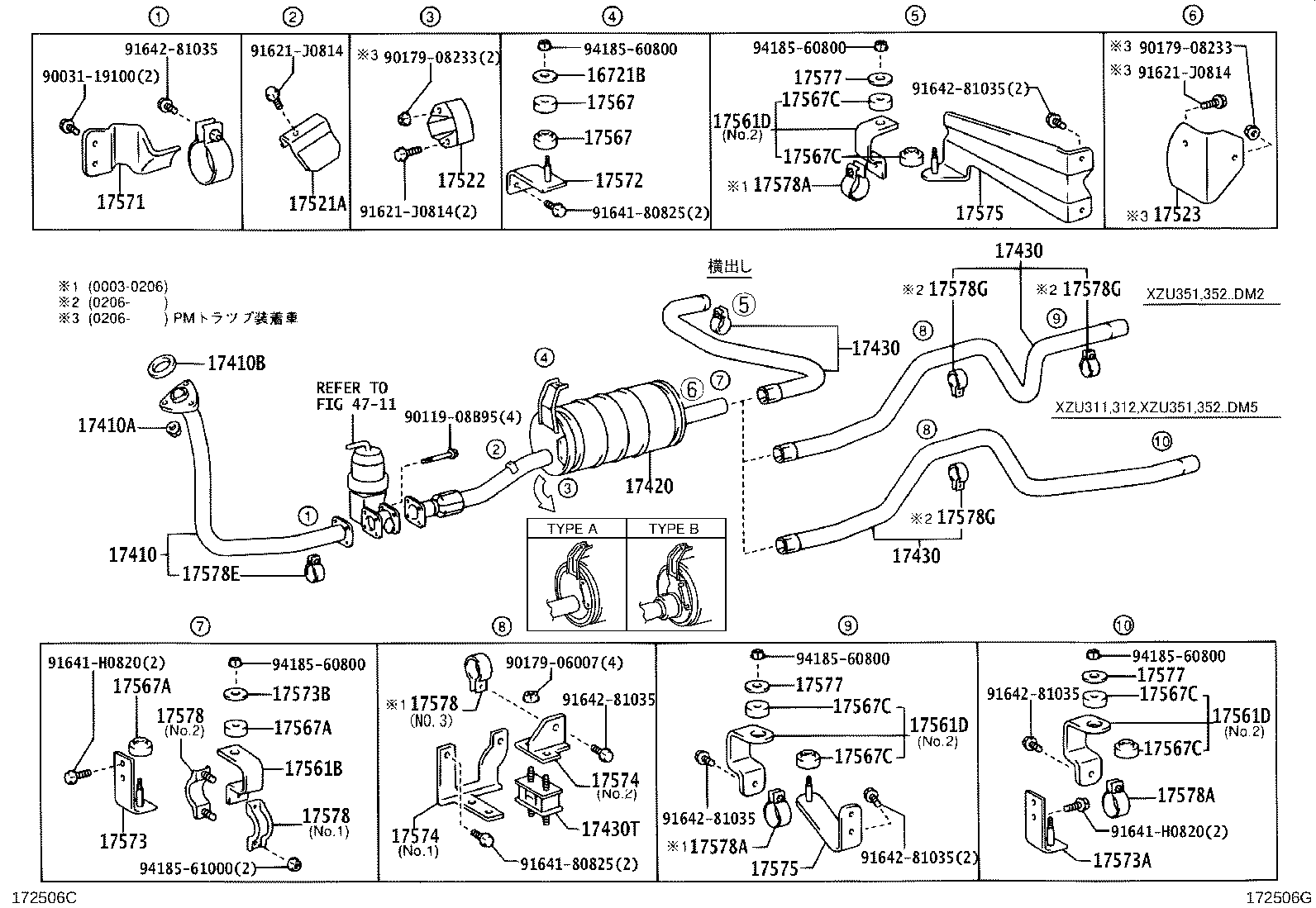

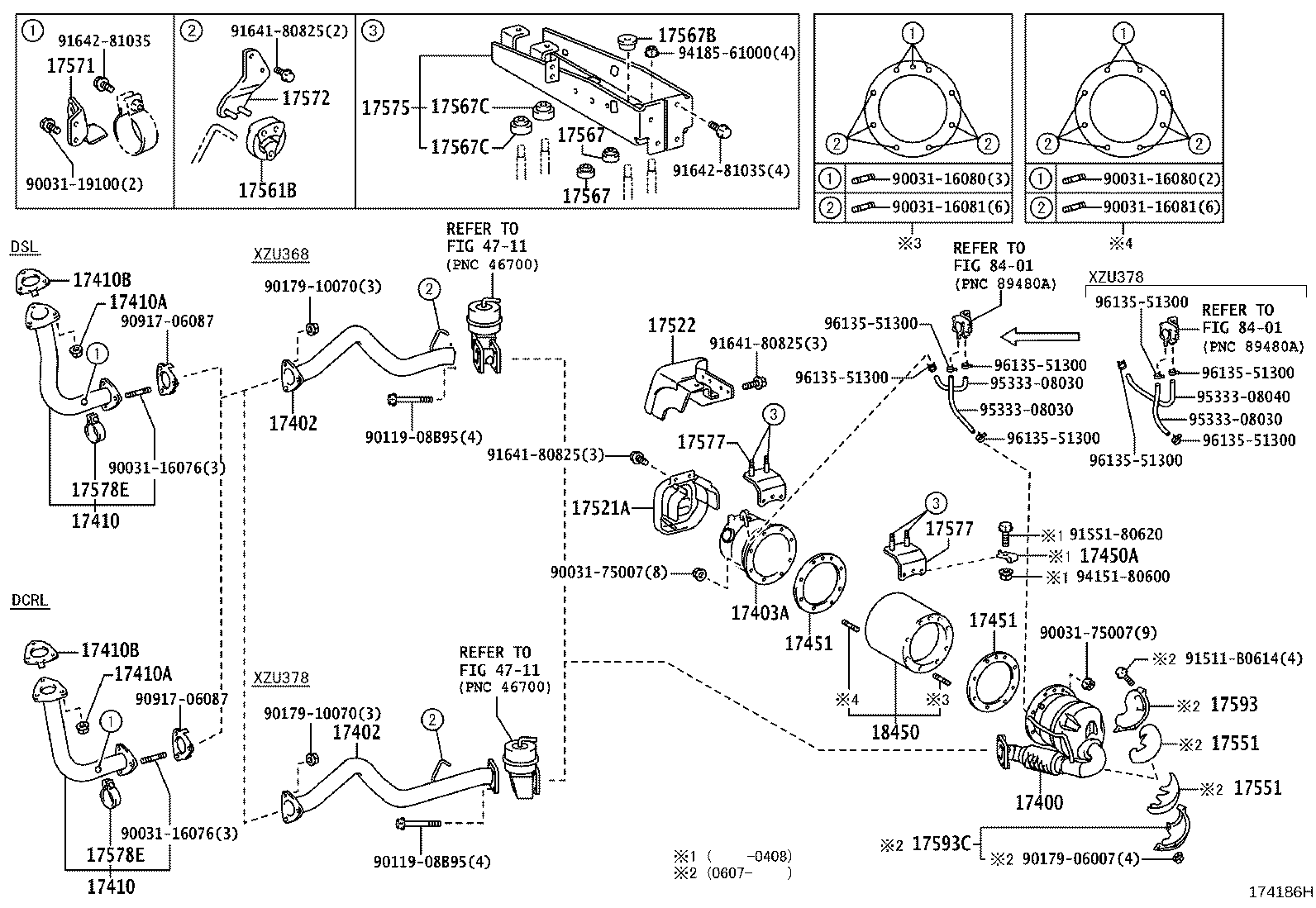

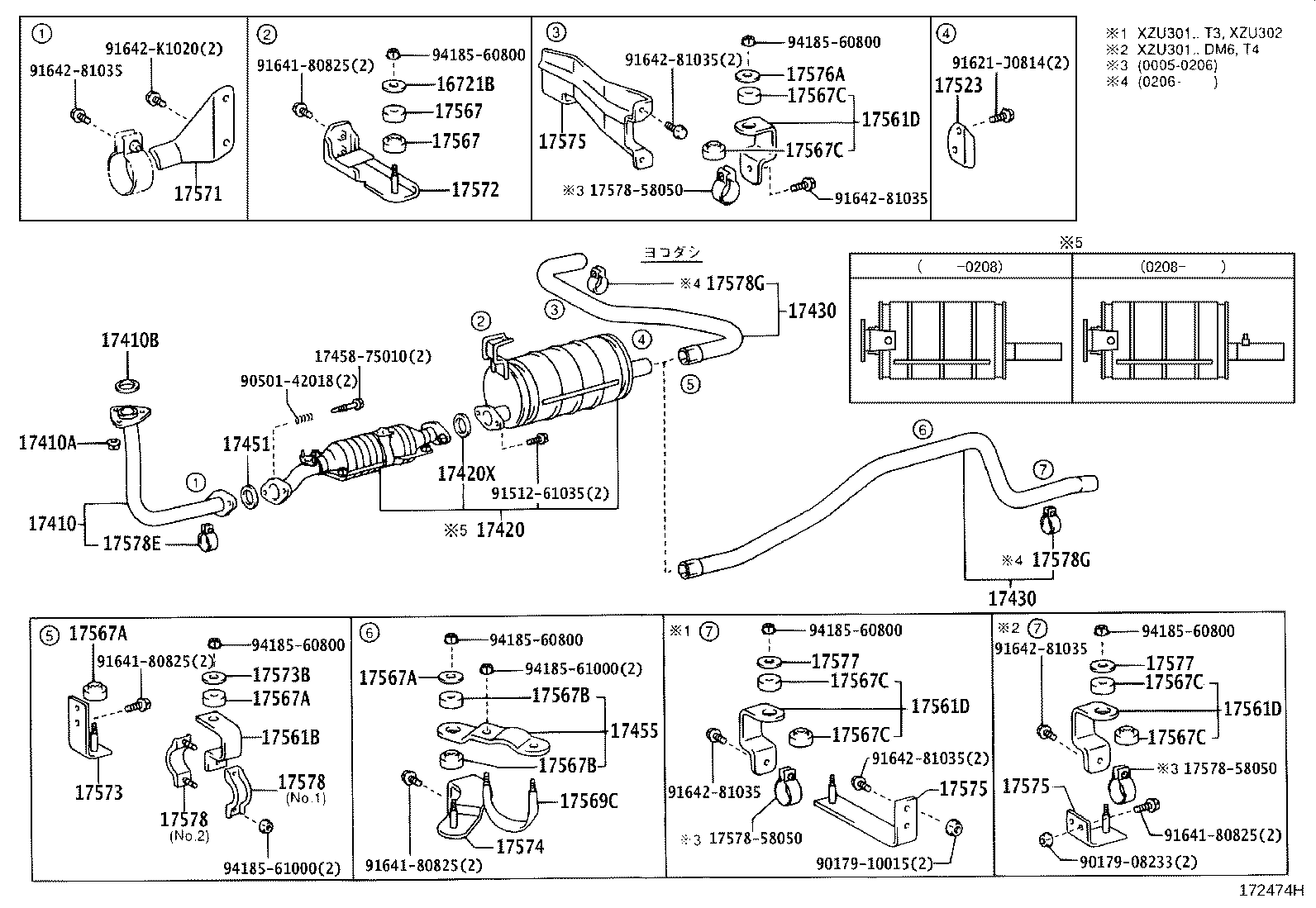

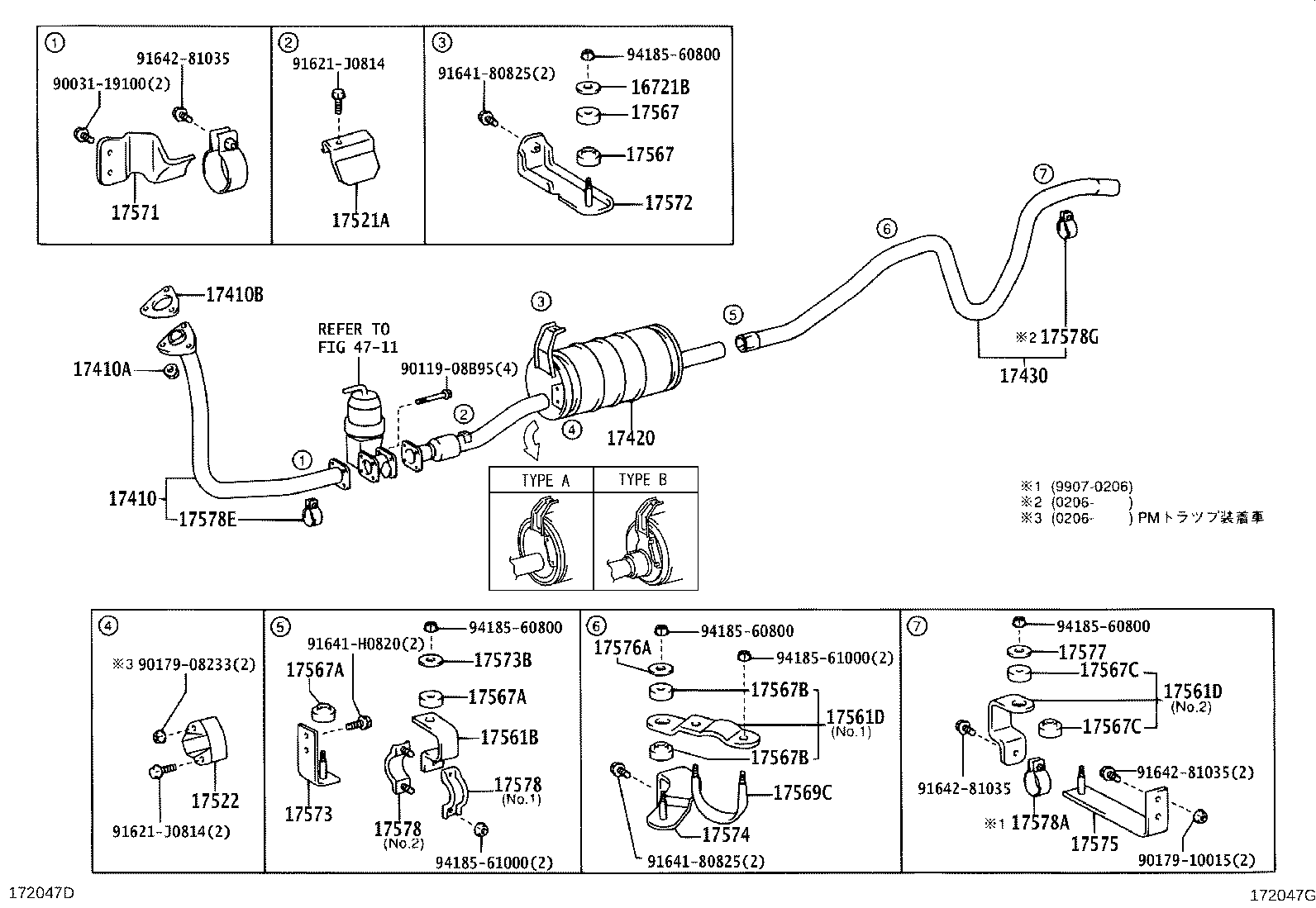

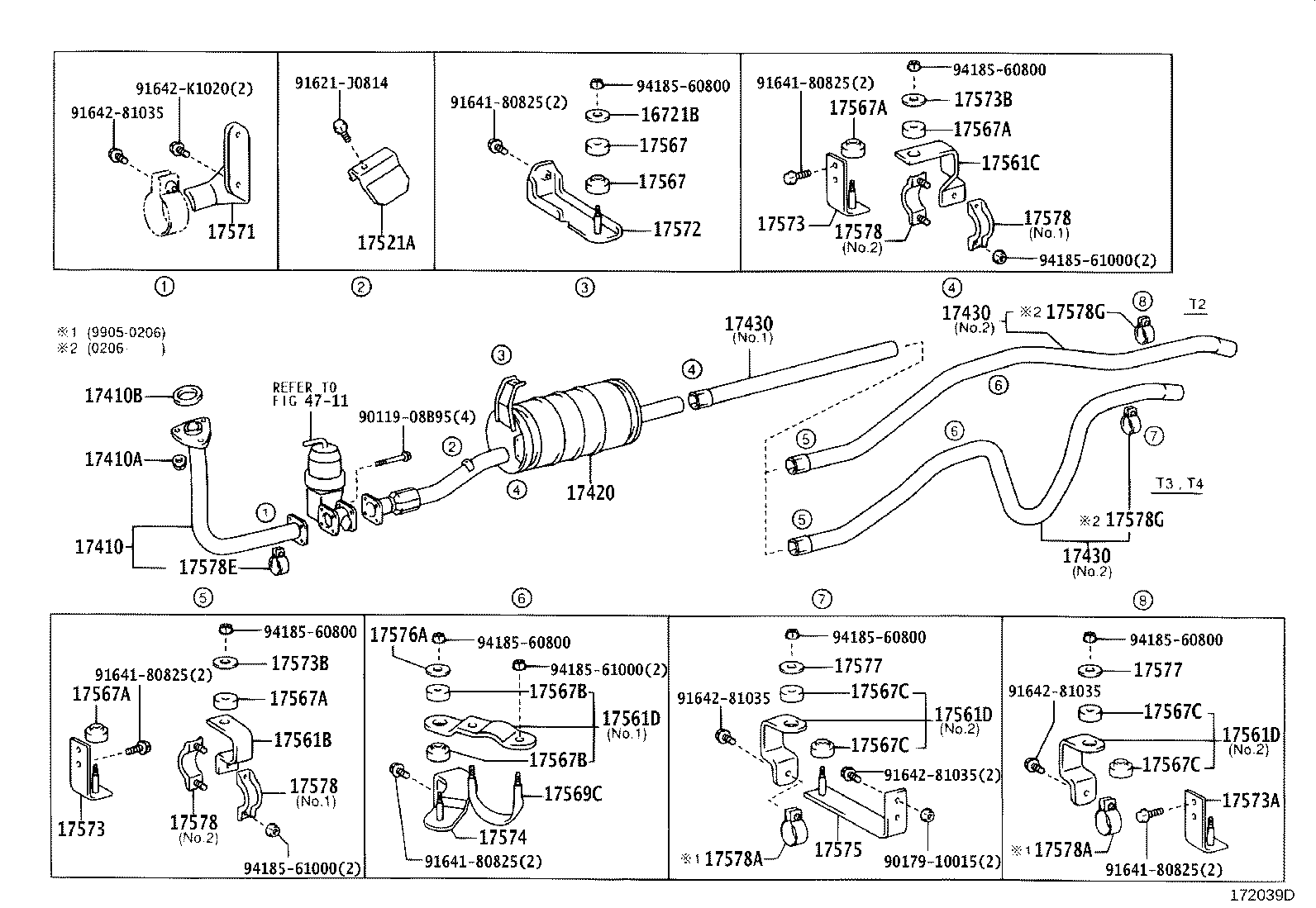

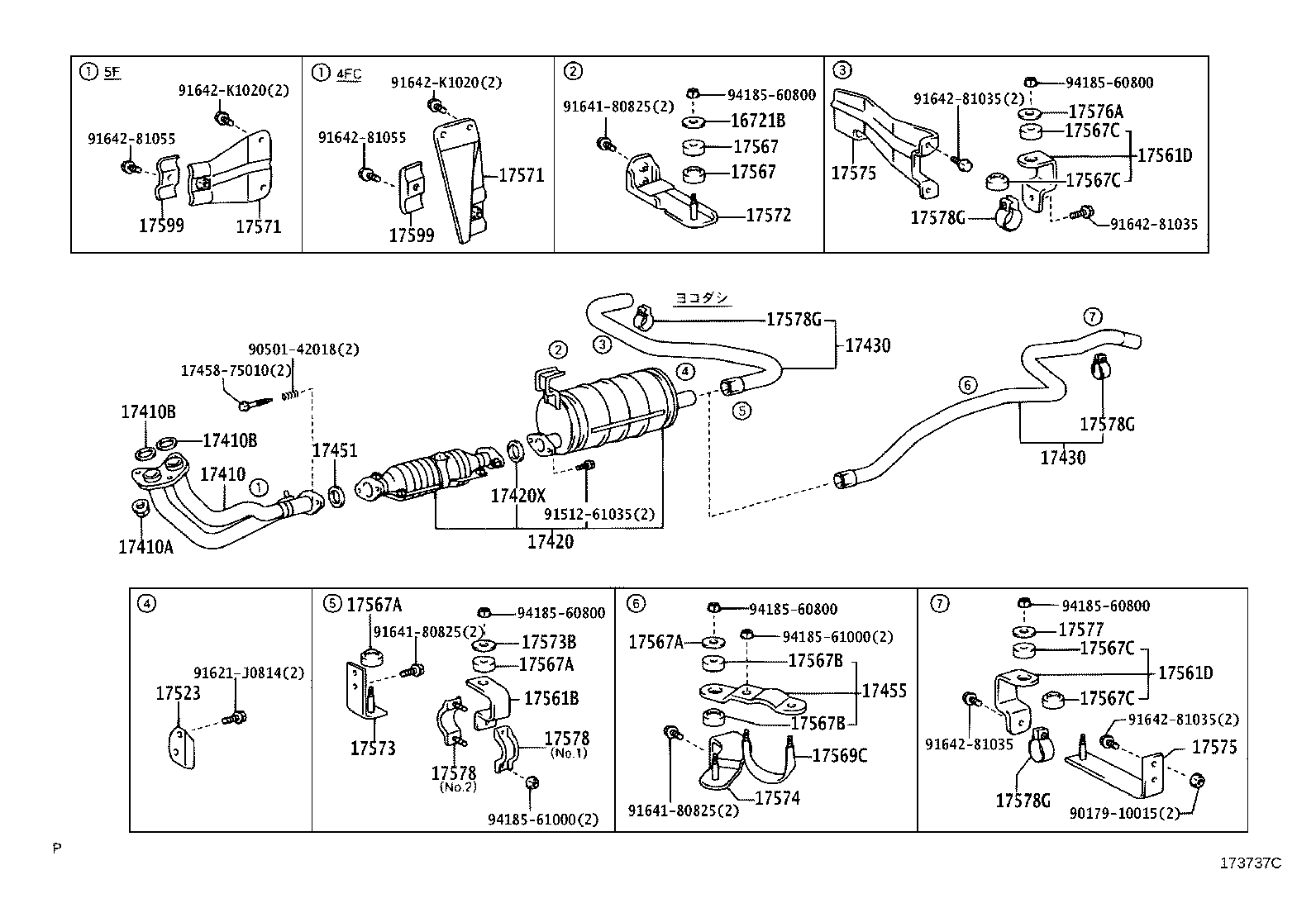

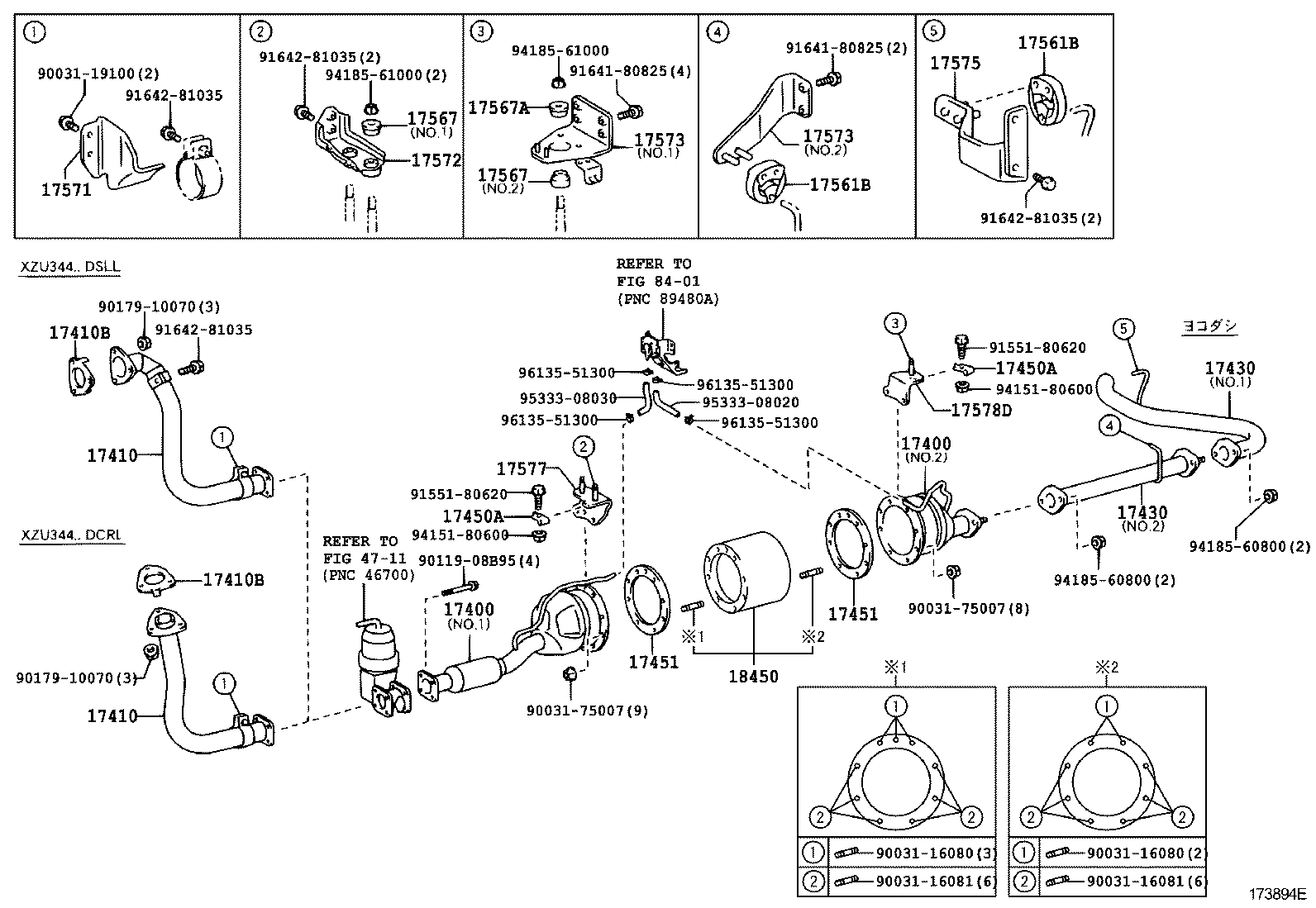

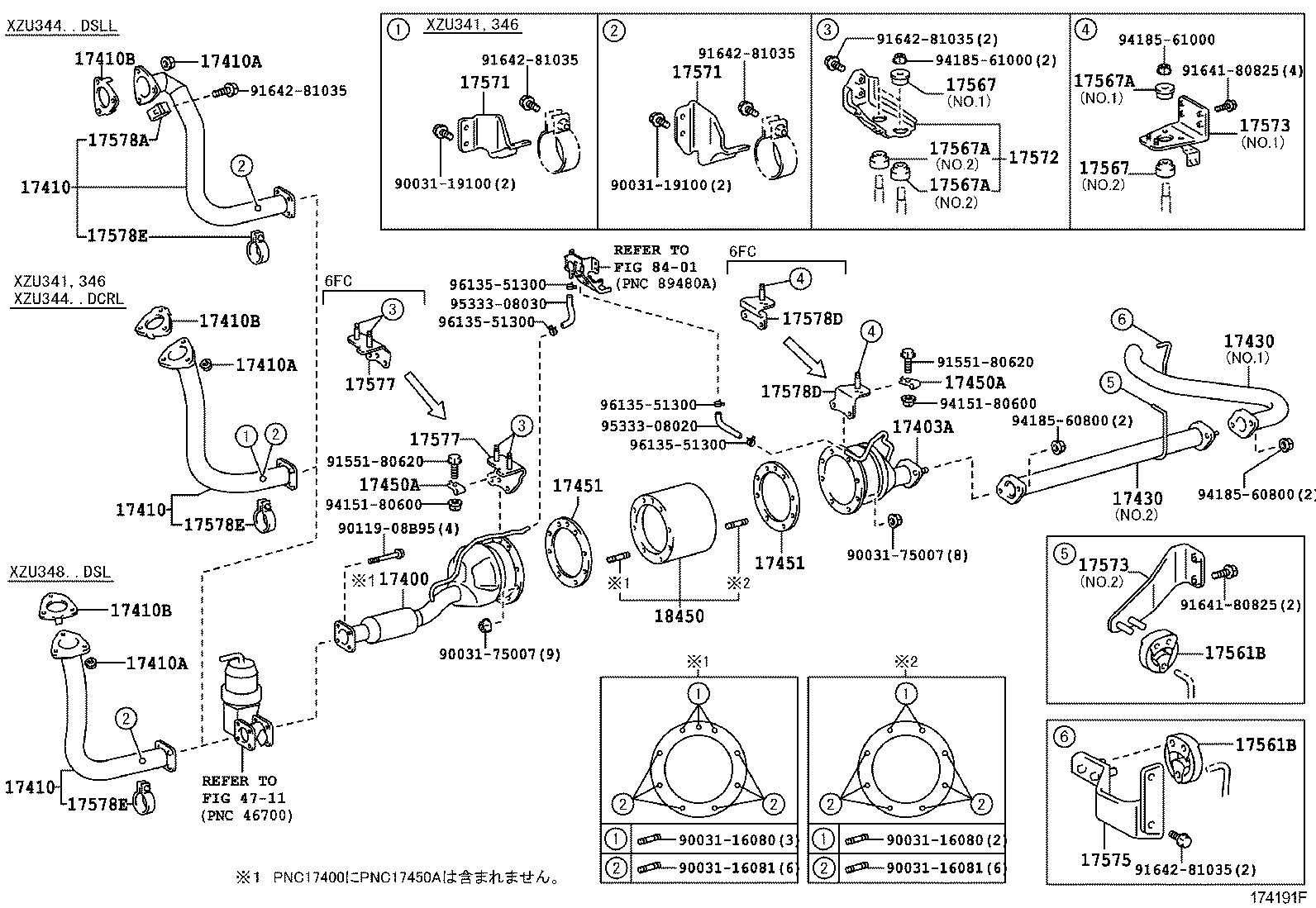

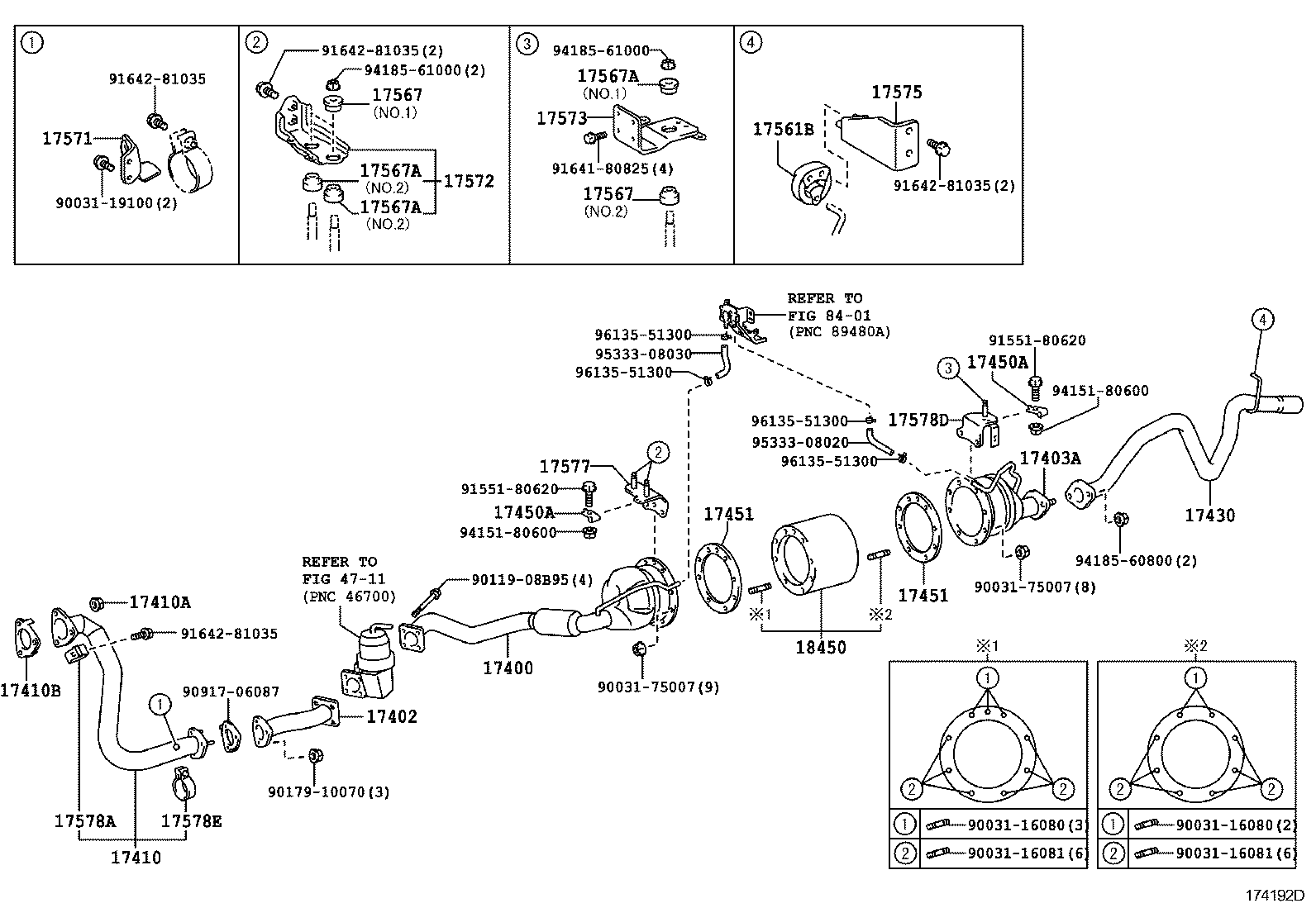

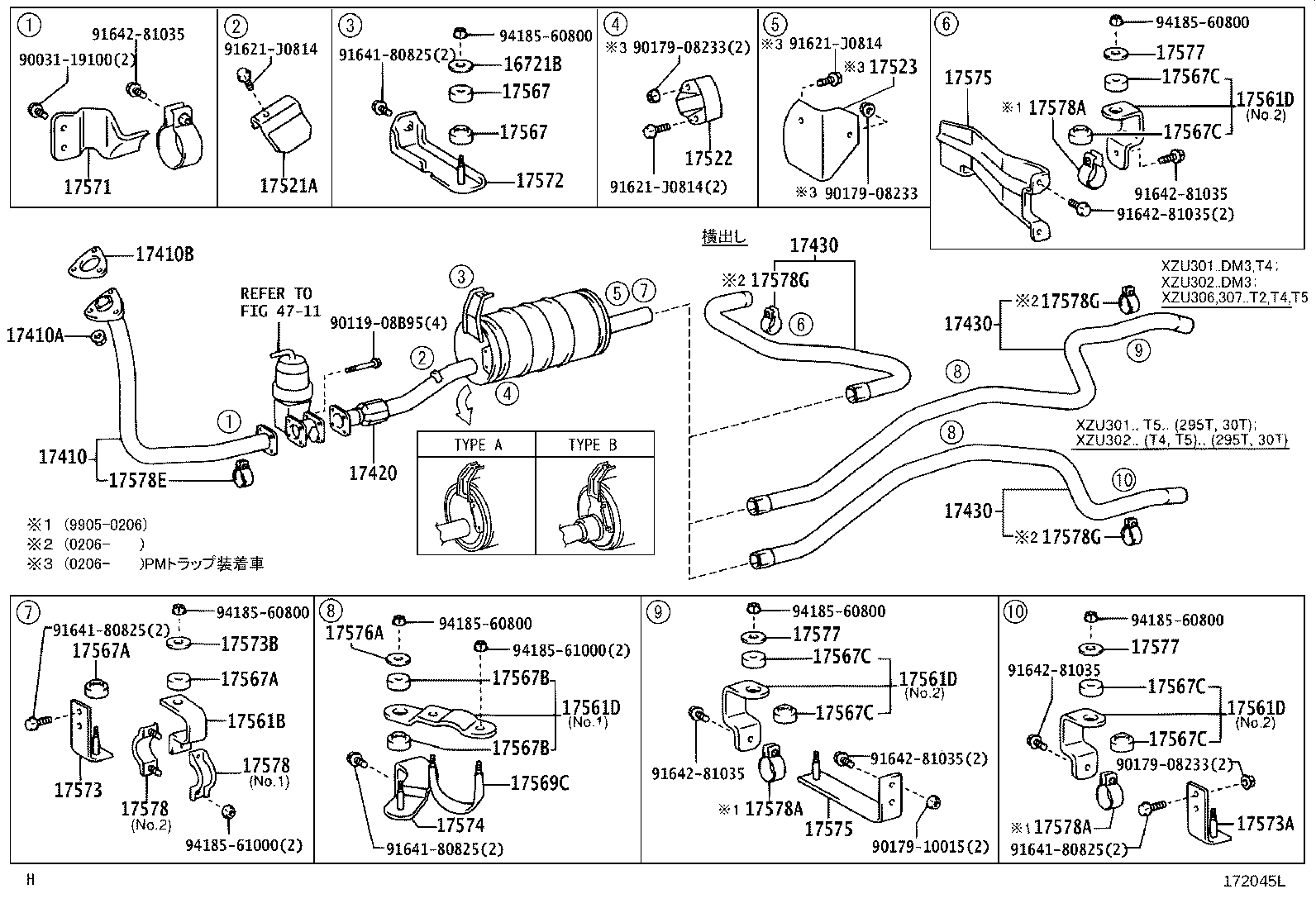

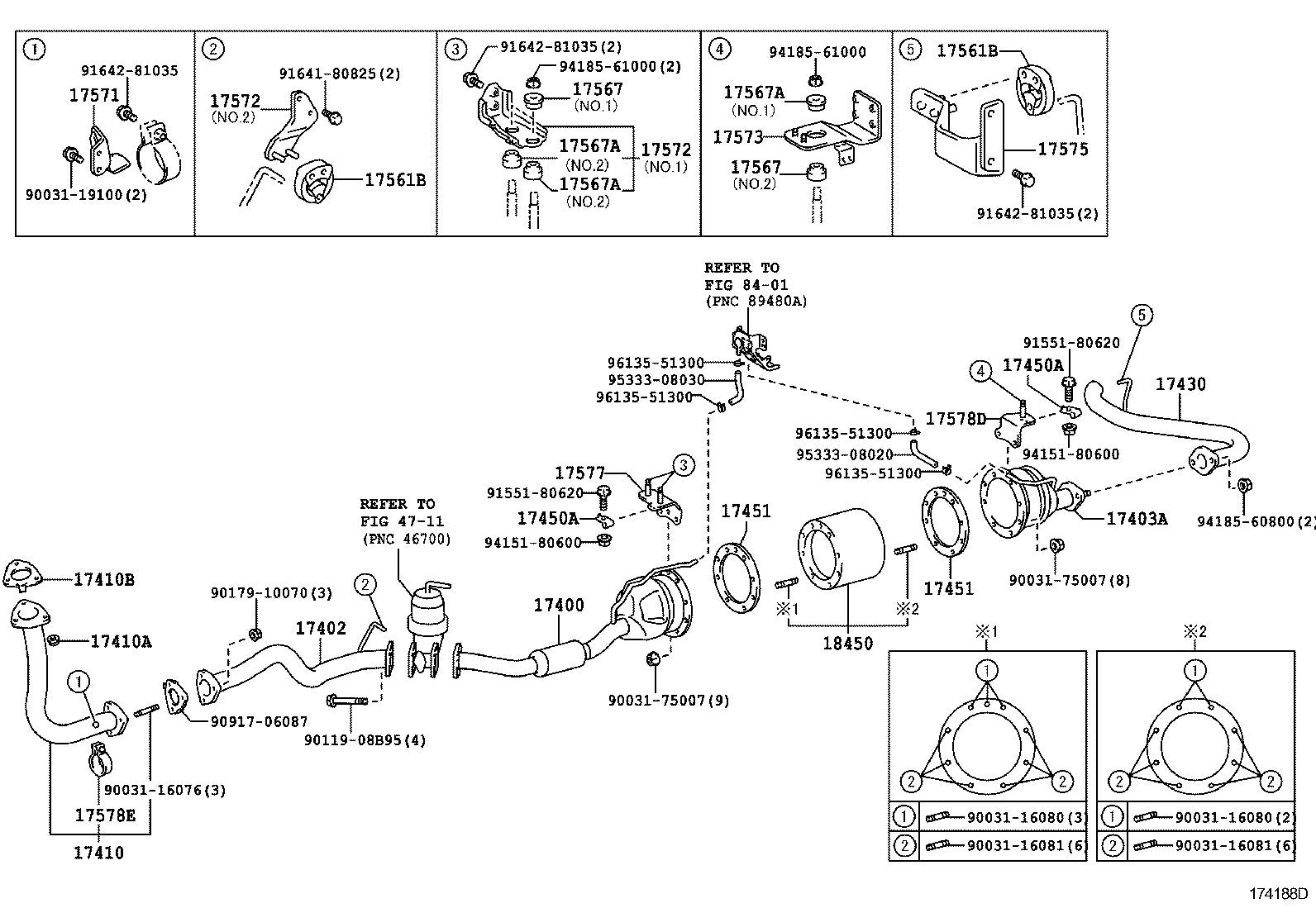

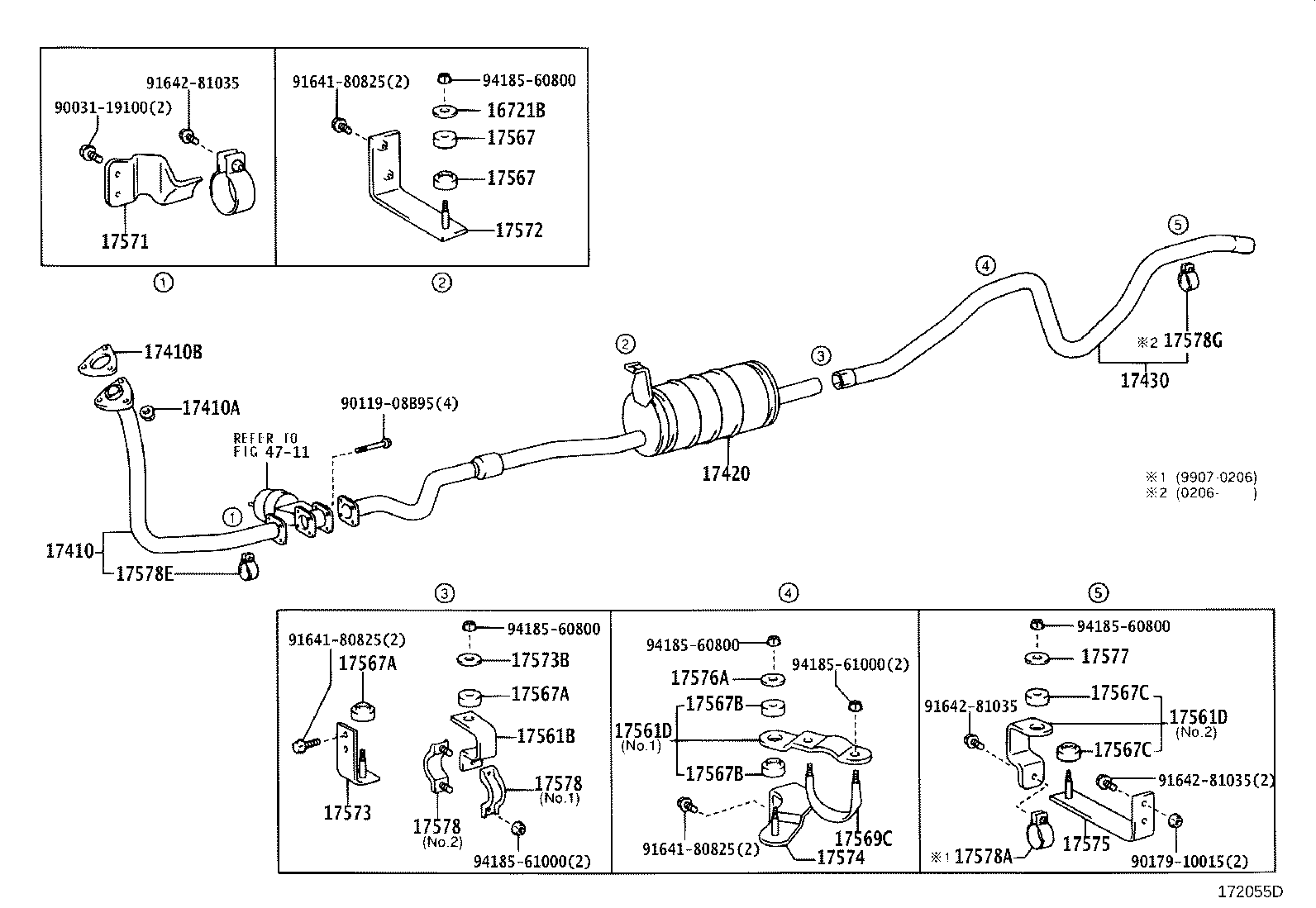

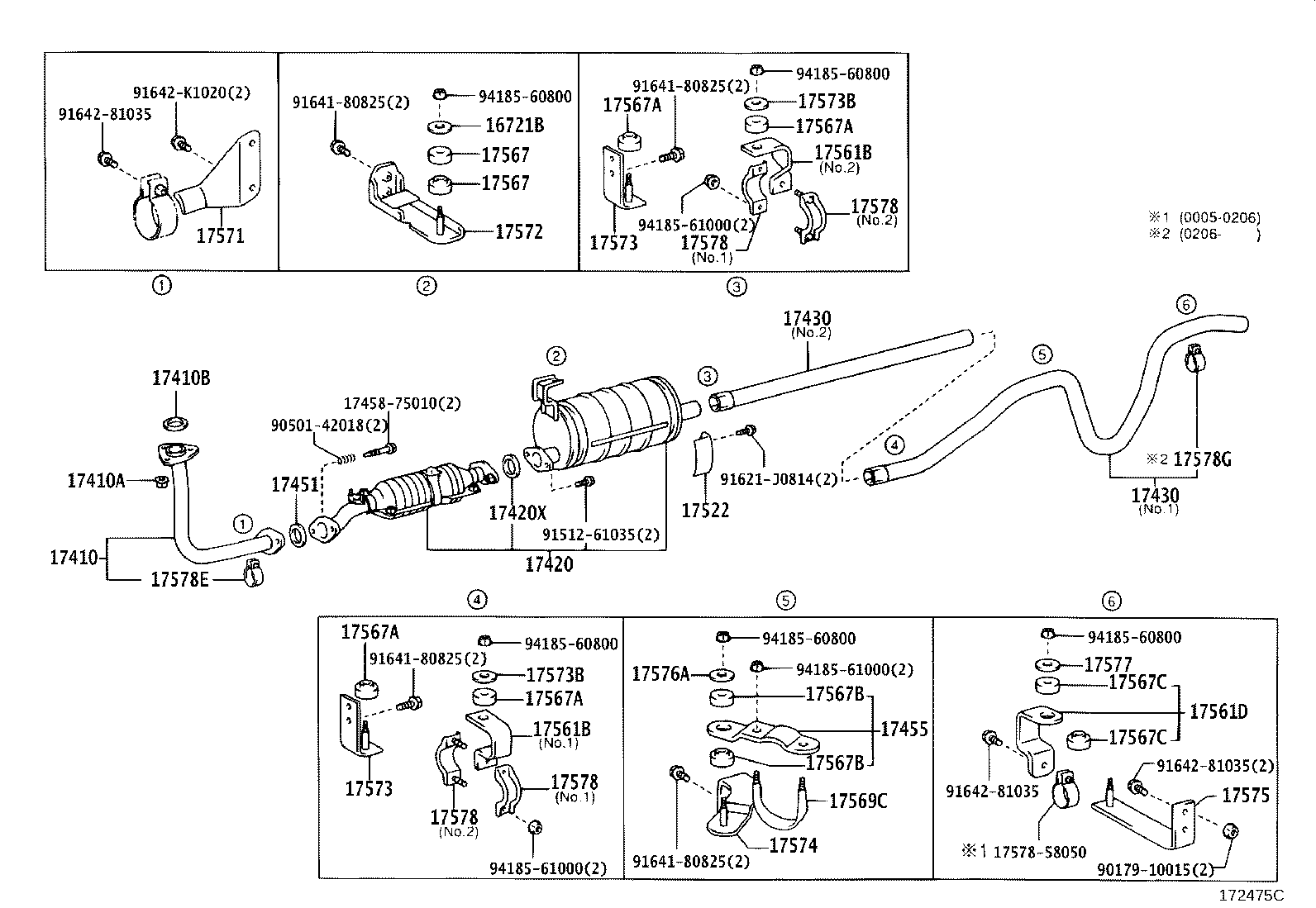

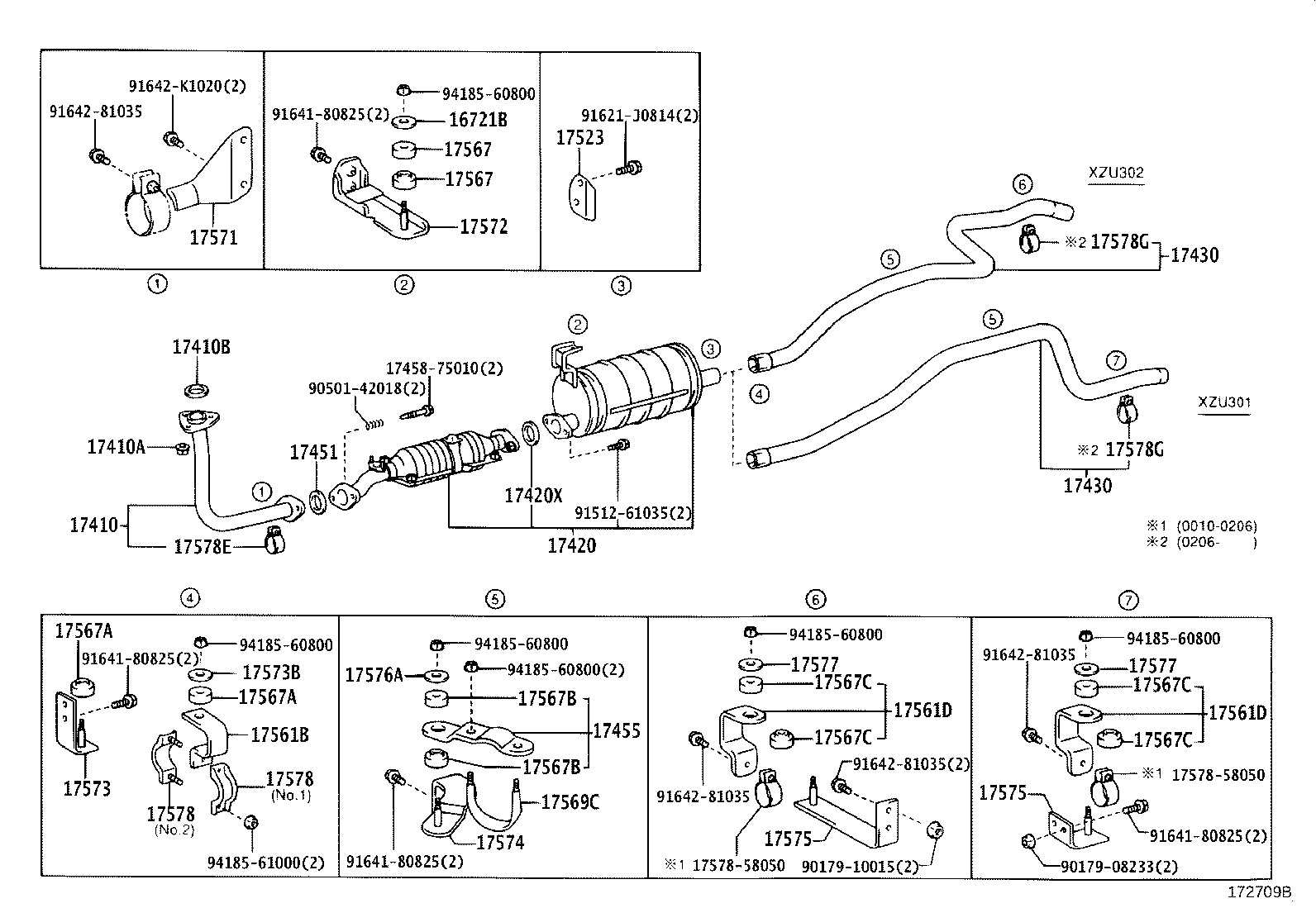

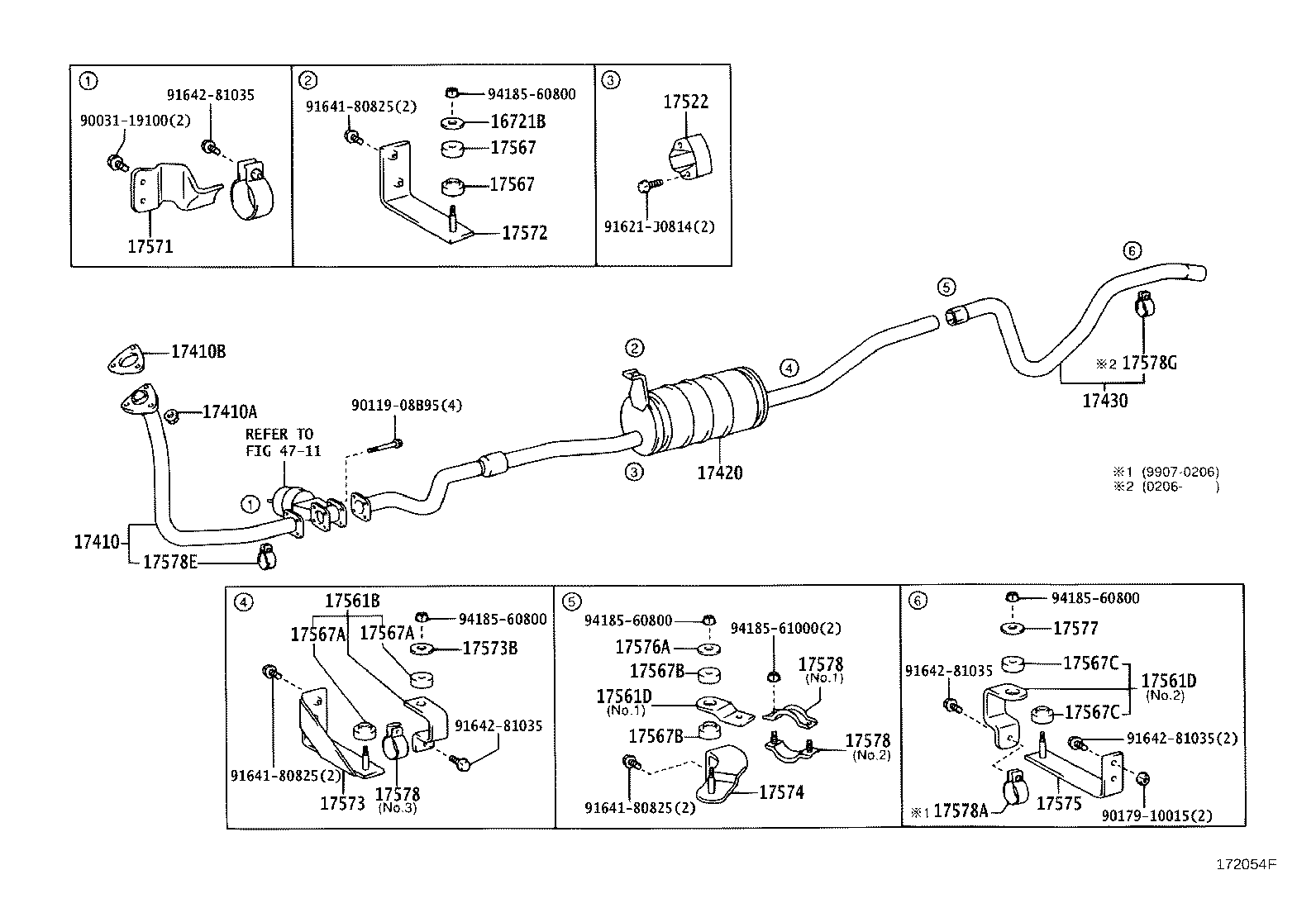

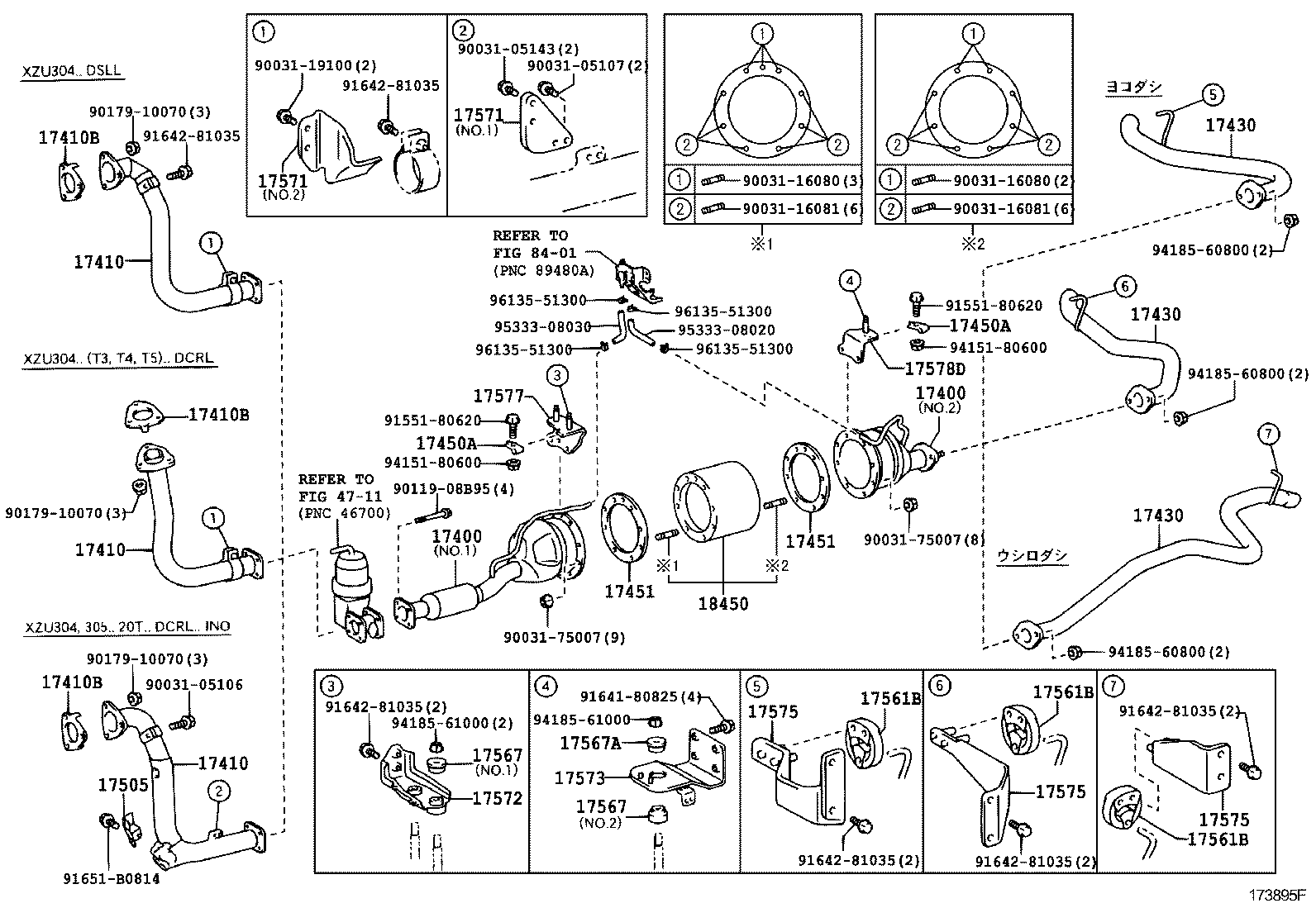

Figure 172049H 172049H 1999-05 → 2000-03 Figure 172036F 172036F 1999-05 → 2002-06 Figure 172046G 172046G 1999-06 → 2002-06 Figure 172035E 172035E 1999-07 → 2004-06 Figure 172037E 172037E 1999-05 → 2004-06 Figure 172037E 172037E 2000-05 → 2004-06 Figure 172038D 172038D 1999-05 → 2004-06 Figure 172039D 172039D 1999-05 → 2004-06 Figure 172045L 172045L 1999-05 → 2004-06 Figure 172044H 172044H 1999-05 → 2004-06 Figure 172047G 172047G 1999-05 → 2004-06 Figure 172048G 172048G 1999-05 → 2004-06 Figure 172050H 172050H 1999-05 → 2004-06 Figure 172051G 172051G 1999-05 → 2004-06 Figure 172052I 172052I 1999-05 → 2004-06 Figure 172474H 172474H 2000-05 → 2003-06 Figure 172478G 172478G 2000-05 → 2002-06 Figure 172478G 172478G 2002-10 → 2004-06 Figure 172709B 172709B 2000-10 → 2003-06 Figure 172475C 172475C 2000-05 → 2003-06 Figure 172475C 172475C 2003-06 → 2004-06 Figure 172477D 172477D 2000-05 → 2004-06 Figure 172476G 172476G 2000-05 → 2004-06 Figure 173736C 173736C 2003-06 → 2004-06 Figure 173737C 173737C 2003-06 → 2004-06 Figure 172040J 172040J 1999-06 → 2004-06 Figure 172042E 172042E 1999-06 → 2004-06 Figure 172043E 172043E 1999-06 → 2004-06 Figure 172053C 172053C 1999-07 → 2004-06 Figure 172054F 172054F 1999-07 → 2004-06 Figure 172055D 172055D 1999-07 → 2004-06 Figure 172506G 172506G 2000-03 → 2004-06 Figure 172506G 172506G 2000-03 → — Figure 172506G 172506G 2000-03 → — Figure 172479C 172479C 2000-05 → 2004-06 Figure 173895F 173895F 2003-10 → 2004-06 Figure 173895F 173895F 2004-06 → — Figure 173894E 173894E 2003-10 → — Figure 174156D 174156D 2004-06 → — Figure 174157A 174157A 2004-06 → — Figure 174158G 174158G 2004-06 → — Figure 174160B 174160B 2004-06 → — Figure 174161B 174161B 2004-06 → — Figure 174183B 174183B 2004-06 → — Figure 174162D 174162D 2004-06 → — Figure 174186H 174186H 2004-06 → — Figure 174187K 174187K 2004-06 → — Figure 174187K 174187K 2004-06 → — Figure 174188D 174188D 2004-06 → — Figure 174189E 174189E 2004-06 → — Figure 174192D 174192D 2004-06 → — Figure 174191F 174191F 2004-06 → —

Part groups

PNCDescription
16721B Plate, Holder
17400 Converter Assy, W/Catalyst
17402 Pipe Sub-assy, Exhaust, Front NO.2
17403A Pipe Sub-assy, Exhaust, Center NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17450A Clamp, Exhaust Pipe, NO.5
17451 Gasket, Exhaust Pipe
17455 Bracket, Exhaust Pipe
17505 Insulator Sub-assy, Exhaust Pipe Heat NO.1
17505F Support Sub-assy, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17523 Protector, Exhaust Pipe, Upper NO.3
17551 Insulator, Exhaust Pipe Heat, NO.1
17561B Support, Exhaust Pipe, NO.1
17561C Support, Exhaust Pipe, NO.1
17561D Support, Exhaust Pipe, NO.1
17567 Cushion, Exhaust Pipe Support
17567A Cushion, Exhaust Pipe Support, NO.2
17567B Cushion, Exhaust Pipe Support, NO.3
17567C Cushion, Exhaust Pipe Support, NO.4
17569C Bolt, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17573 Bracket, Exhaust Pipe NO.1 Support, Lower
17573A Bracket, Exhaust Pipe Support, NO.3
17573B Bracket, Exhaust Pipe Support, NO.5
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
17578 Clamp, Pipe
17578A Clamp, Muffler
17578D Bracket, Exhaust Pipe Support, NO.8
17578E Clamp, Pipe(FOR FRONT EXHAUST PIPE)
17578F Clamp, Pipe(FOR CENTER PIPE)
17578G Clamp, Pipe(FOR TAILPIPE)
17593 Protector, Exhaust Pipe, NO.1
17593C Protector, Exhaust Pipe, Lower NO.1
17599 Holder, Exhaust Pipe Support Stopper
18450 Converter Assy, Monolithic
