Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

53 part groups · 12 illustrations

Illustrations

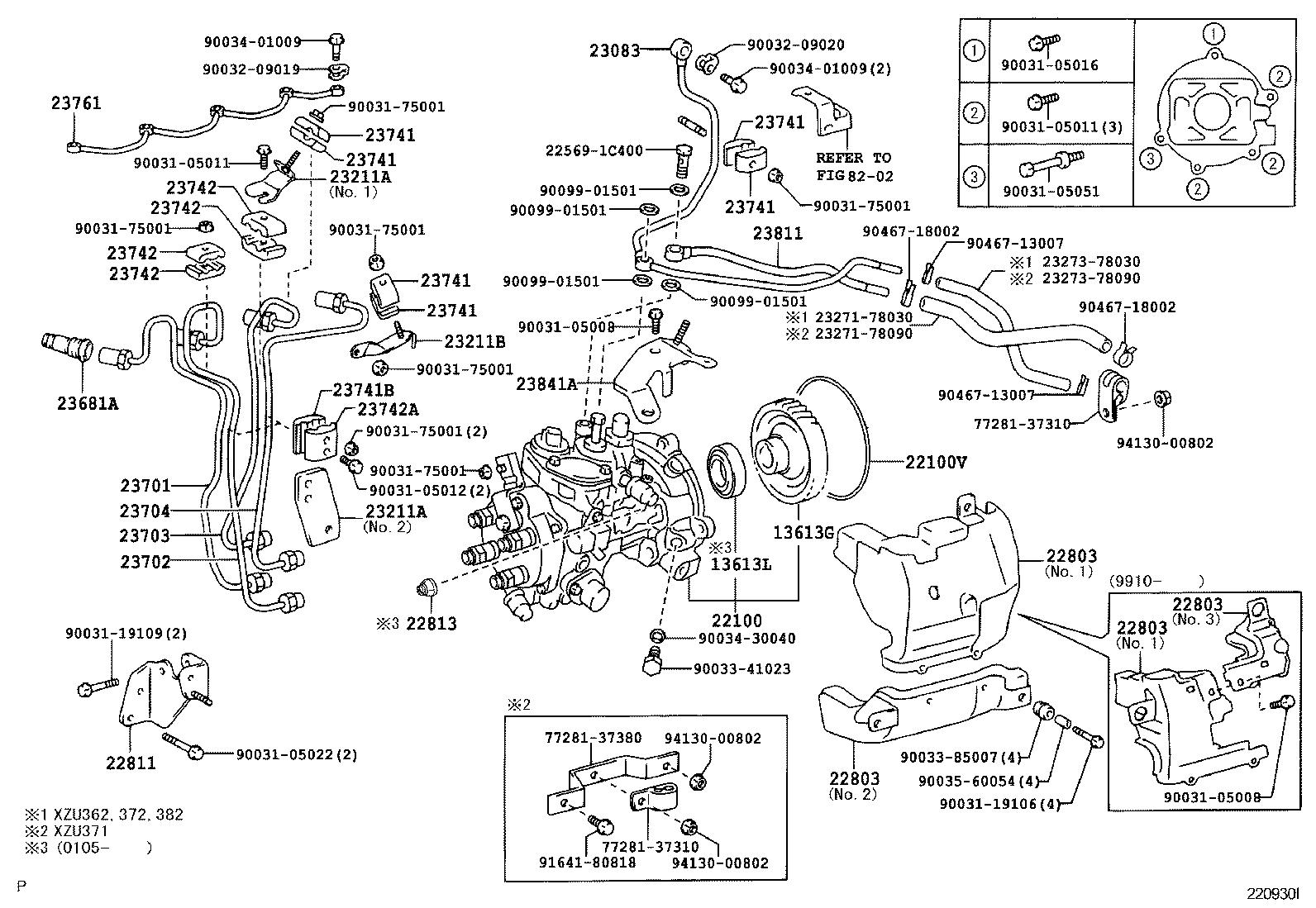

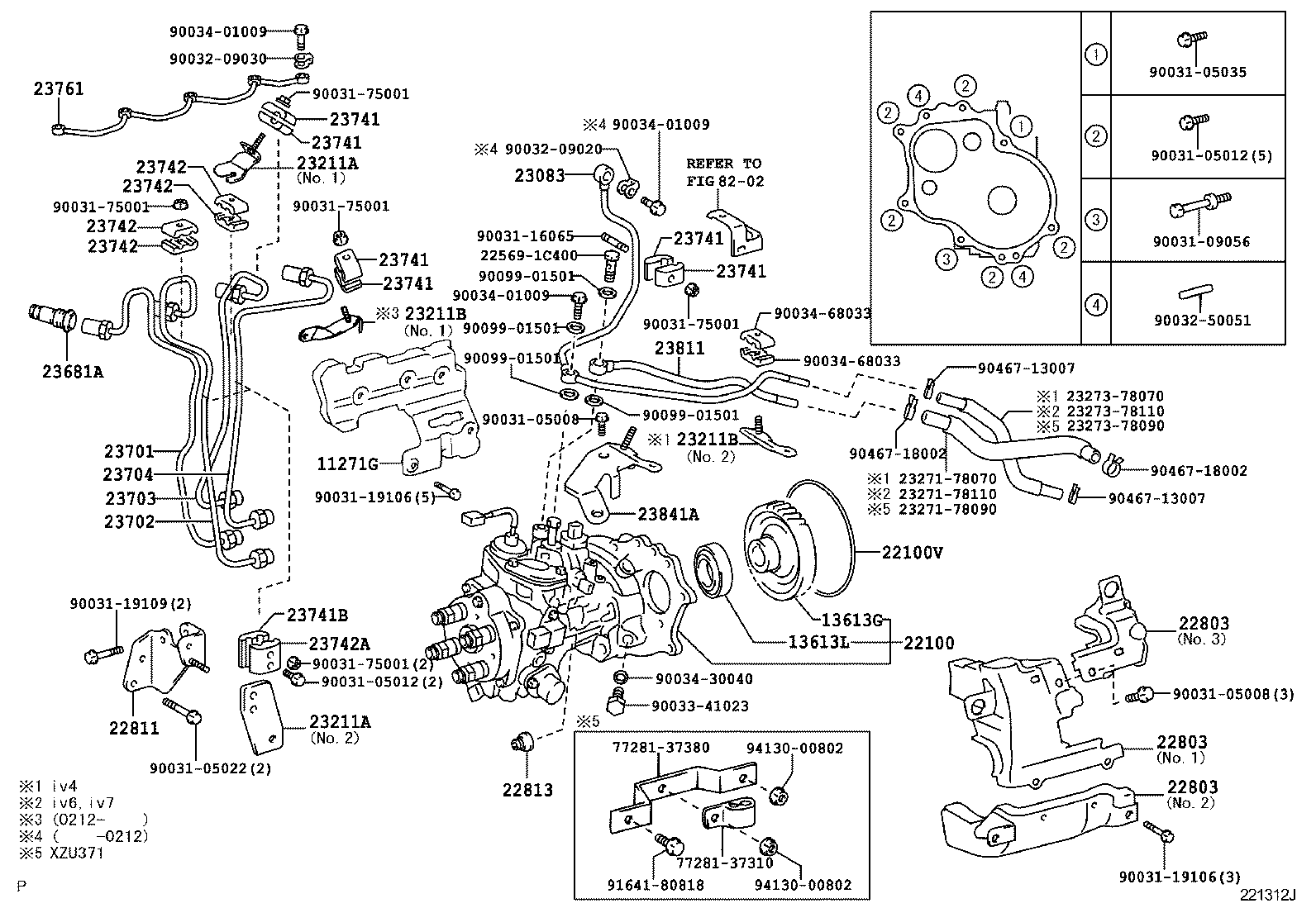

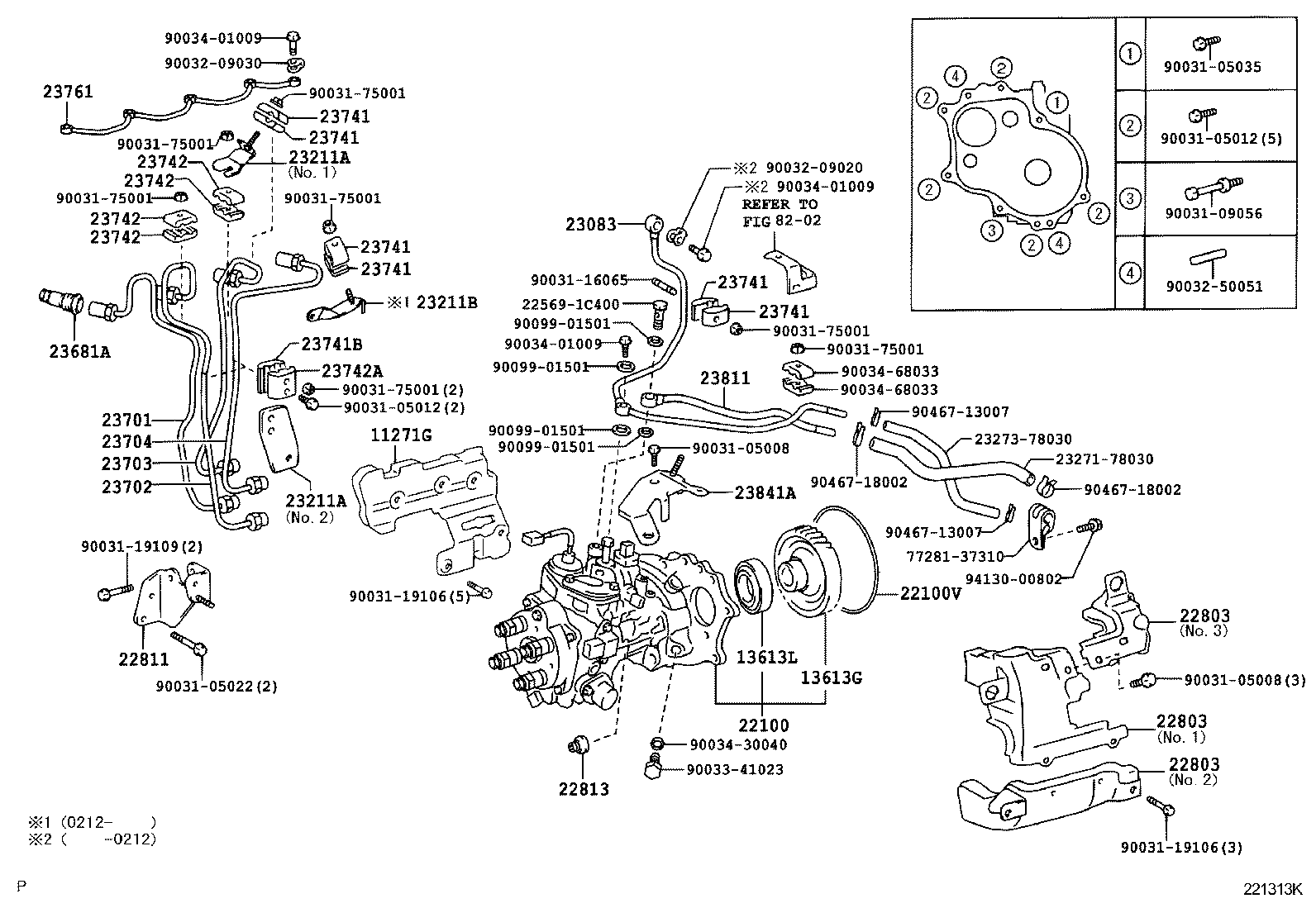

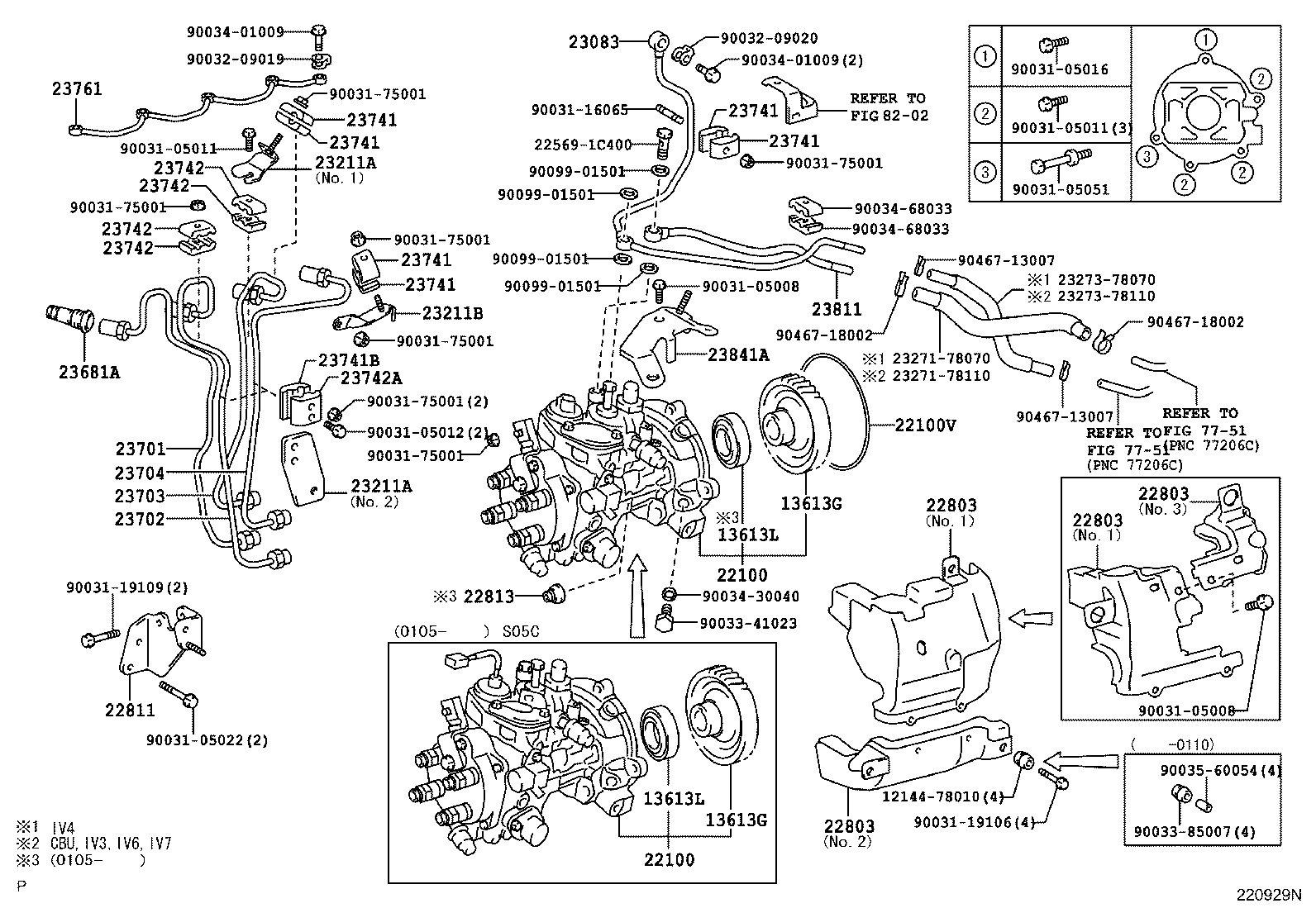

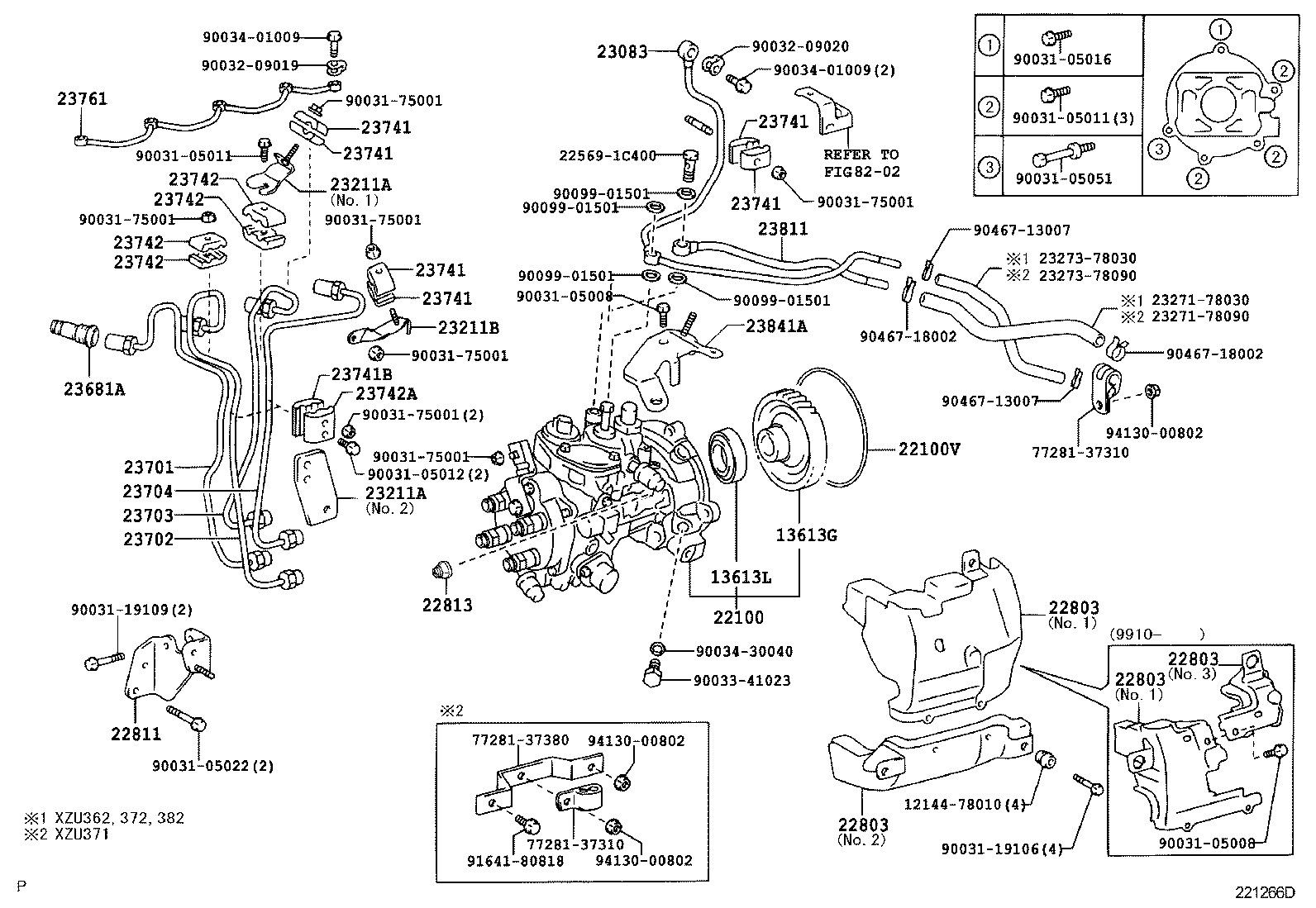

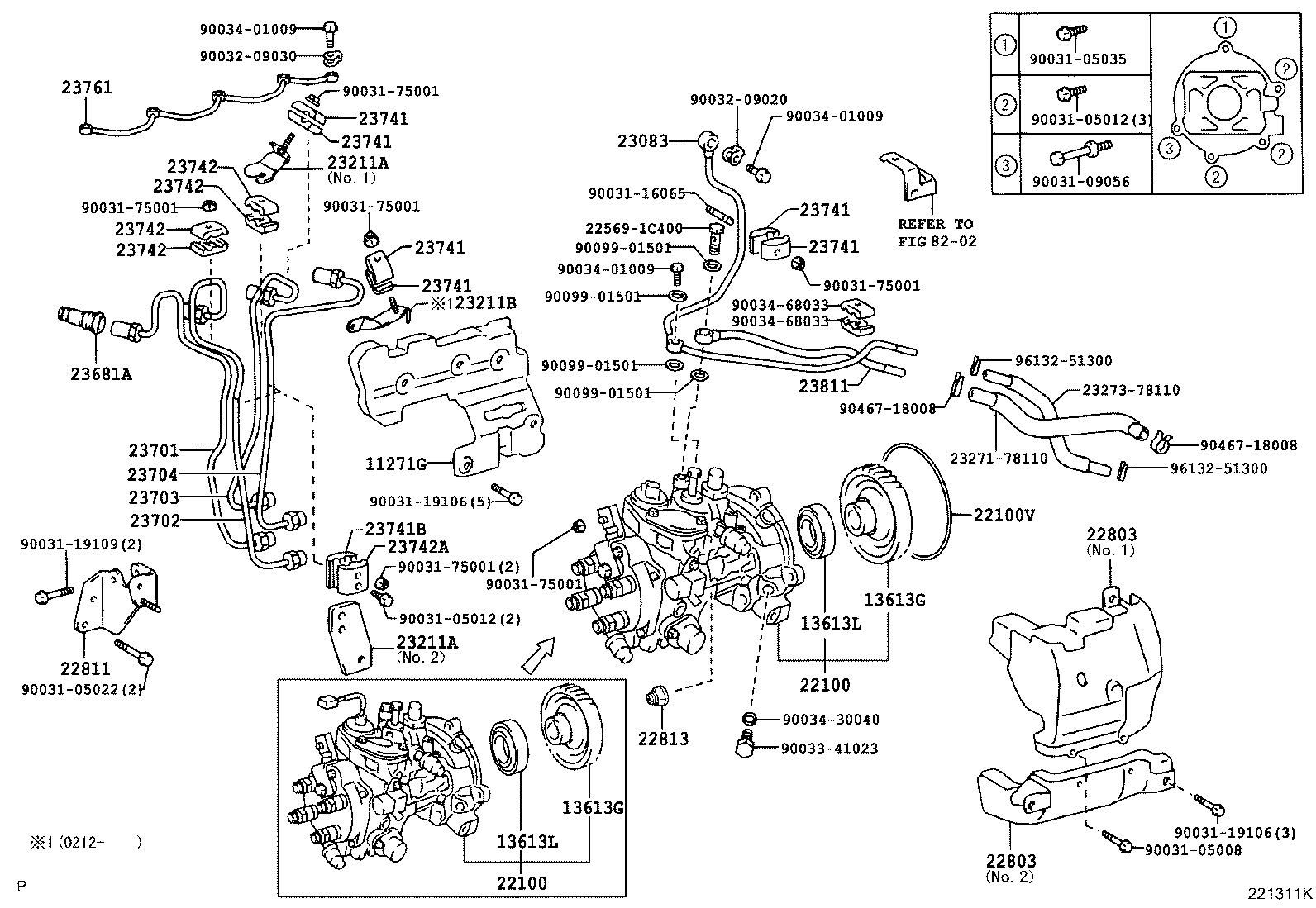

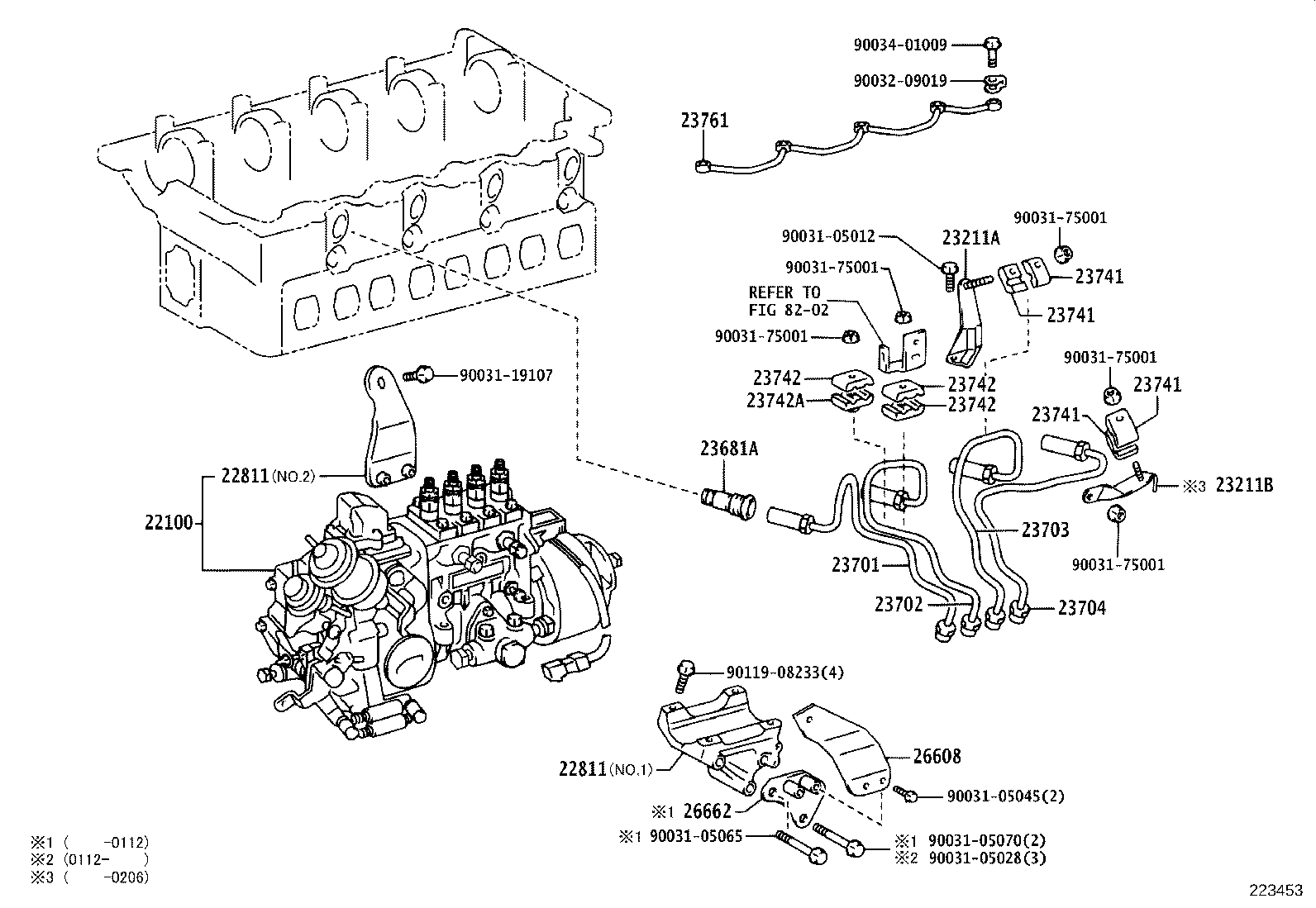

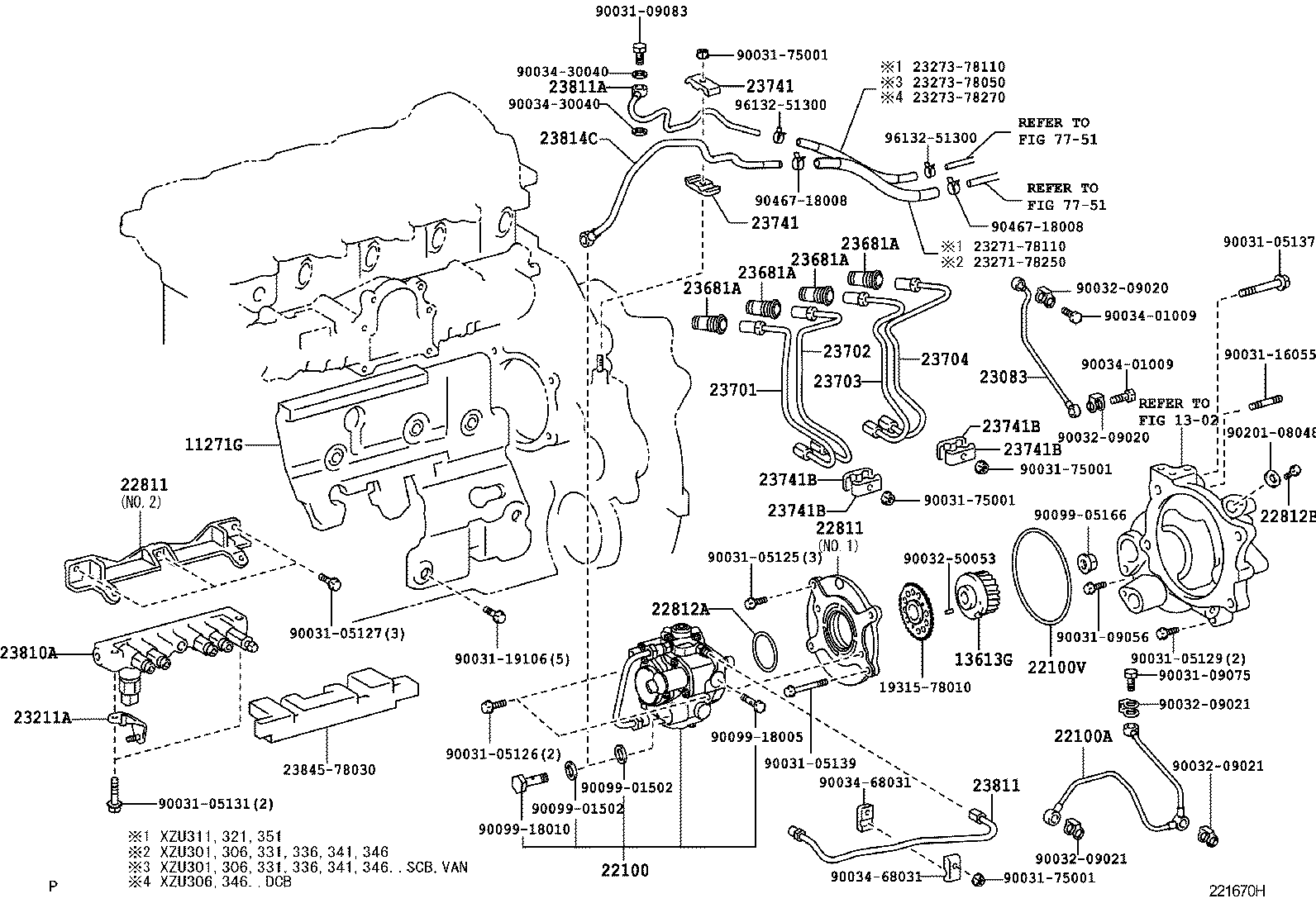

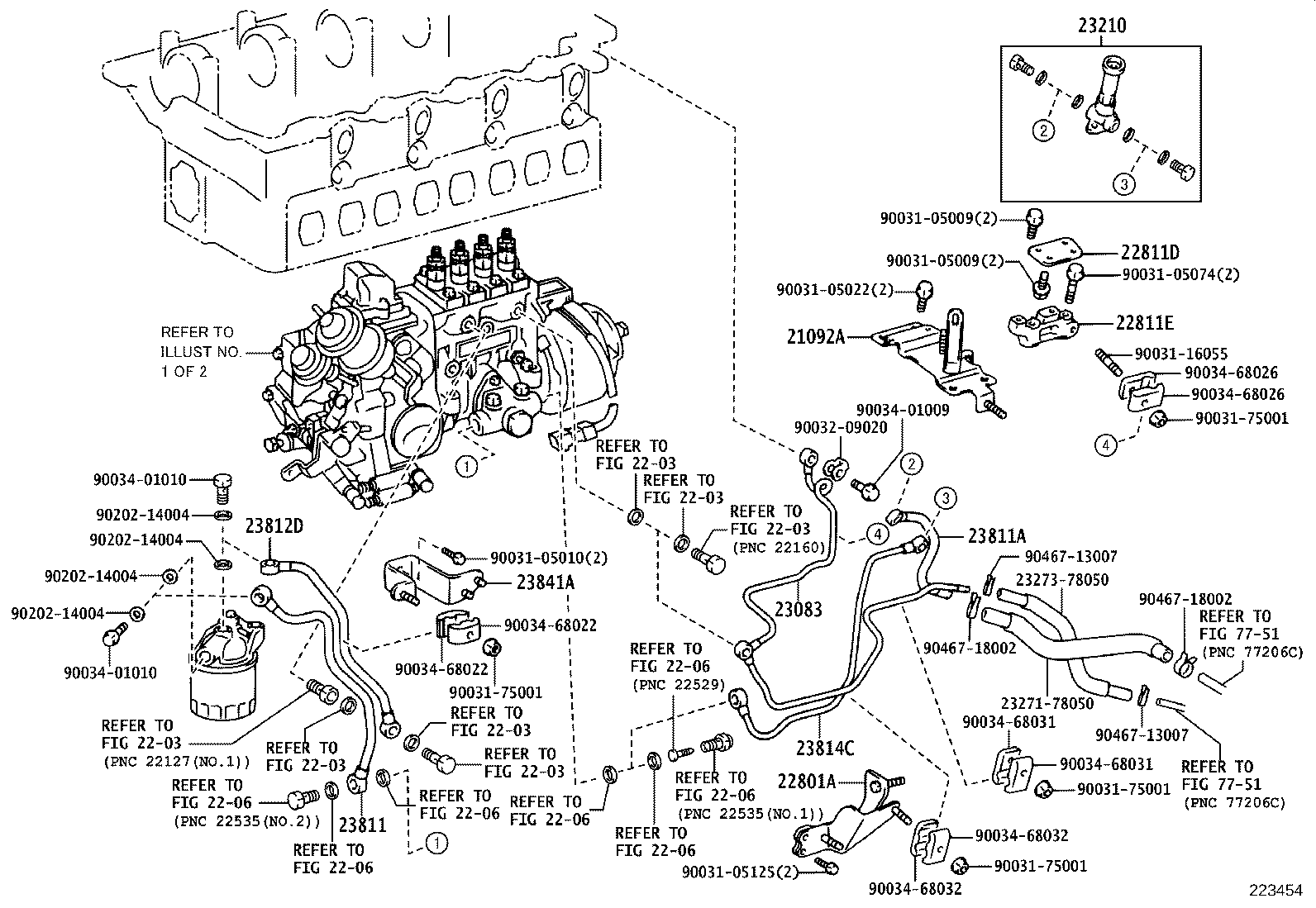

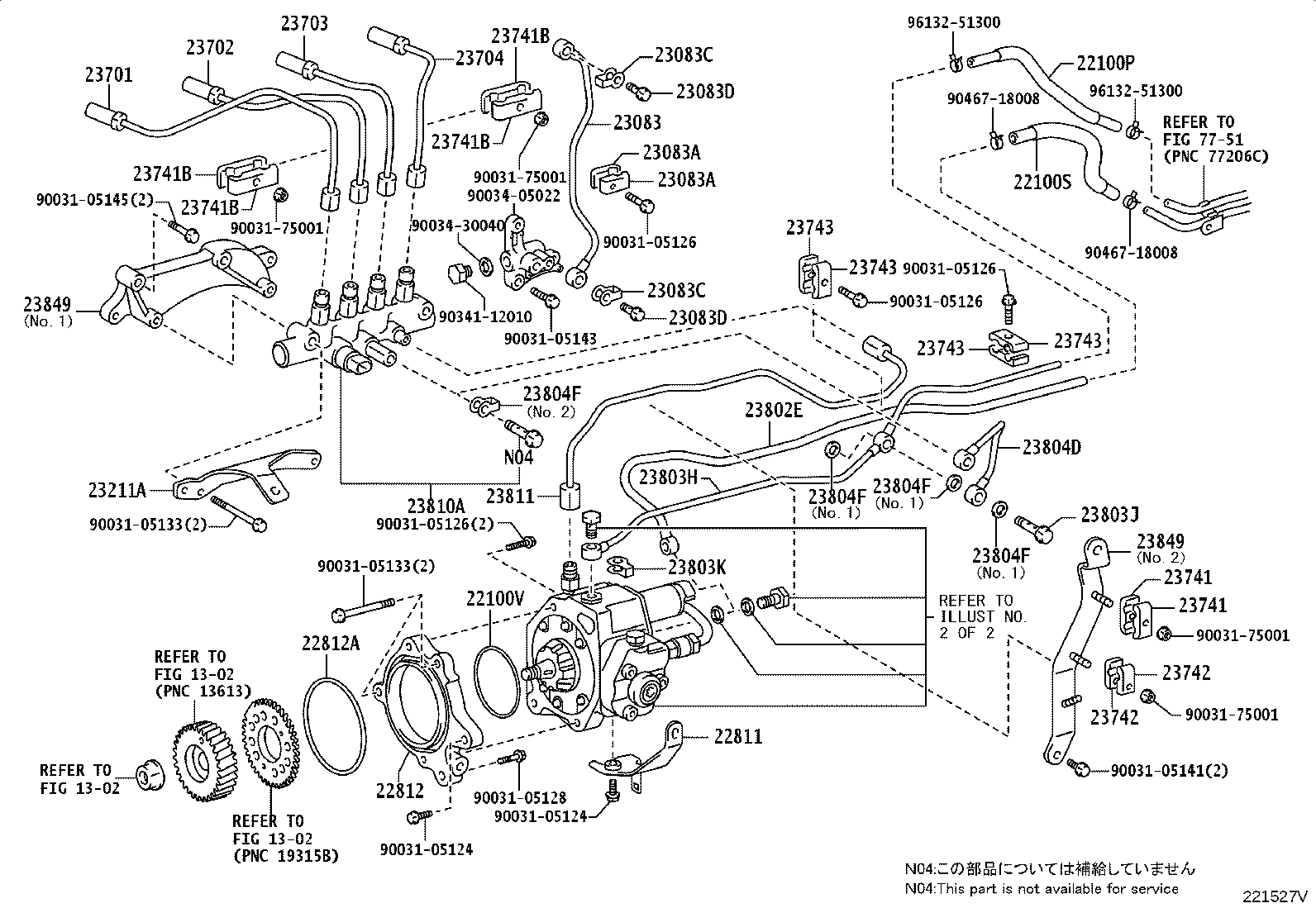

Figure 220757E 220757E 1999-05 → — Figure 223453 223453 1999-05 → 2004-06 Figure 223454 223454 1999-05 → 2004-06 Figure 220929N 220929N 1999-05 → 2002-06 Figure 220930I 220930I 1999-05 → 2001-10 Figure 221266D 221266D 2001-10 → 2002-06 Figure 221311K 221311K 2002-06 → 2004-06 Figure 221312J 221312J 2002-06 → 2004-06 Figure 221313K 221313K 2002-06 → 2004-06 Figure 221670H 221670H 2004-06 → 2006-10 Figure 221527V 221527V 2003-10 → — Figure 224117A 224117A 2003-10 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
11271G Cover, Cylinder Block Side
13613G Gear, Injection Pump Drive
13613L Bearing, Ball(FOR INJECTION PUMP DRIVE GEAR)
21092A Bracket Sub-assy, Solenoid Valve
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100P Hose, Fuel(FOR FUEL PIPE TO FUEL TUBE)
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22100V Ring, O(FOR INJECTION PUMP)
22801A Bracket Sub-assy, Injection Pump
22803 Cover Sub-assy, Fuel Injection Pump
22811 Stay, Injection Pump, NO.1
22811D Stay, Injection Pump, NO.2
22811E Stay, Injection Pump, NO.3
22812 Retainer, Injection Pump
22812A Ring, O
22812B Plug, W/Head Straight Screw(FOR INJECTION PUMP RETAINER)
22813 Protector, Injection Pump, NO.1
22821 Gasket, Injection Pump
23083 Pipe Sub-assy, Nozzle Leakage, NO.3
23083A Clamp, Nozzle Leakage
23083C Gasket(NOZZLE LEKAGE PIPE NO.3)
23083D Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3)
23210 Pump Assy, Fuel(FOR DIESEL)
23211A Bracket(FOR INJECTION PIPE NO.3)
23211B Bracket(FOR INJECTION PIPE NO.4)
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23761 Pipe, Nozzle Leakage, NO.1
23802E Pipe Sub-assy, Fuel
23803H Pipe Sub-assy, Fuel Return
23803J Bolt, Union(FOR FUEL RETURN PIPE)
23803K Gasket(FOR FUEL RETURN PIPE)
23804D Pipe Sub-assy, Fuel, NO.4
23804F Gasket(FOR FUEL PIPE NO.4)
23810A Rail Assy, Common
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23811A Pipe, Fuel, NO.2(FOR FUEL FILTER TO INJECTION PUMP)
23812D Pipe, Fuel, NO.2
23814C Pipe, Fuel Delivery
23841A Clamp, Fuel Pipe, NO.1(FOR INJECTION PUMP)
23849 Support, Fuel
26608 Bracket Sub-assy, Accelerator Wire
26662 Bracket, Accelerator Wire
