Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

22 part groups · 28 illustrations

Illustrations

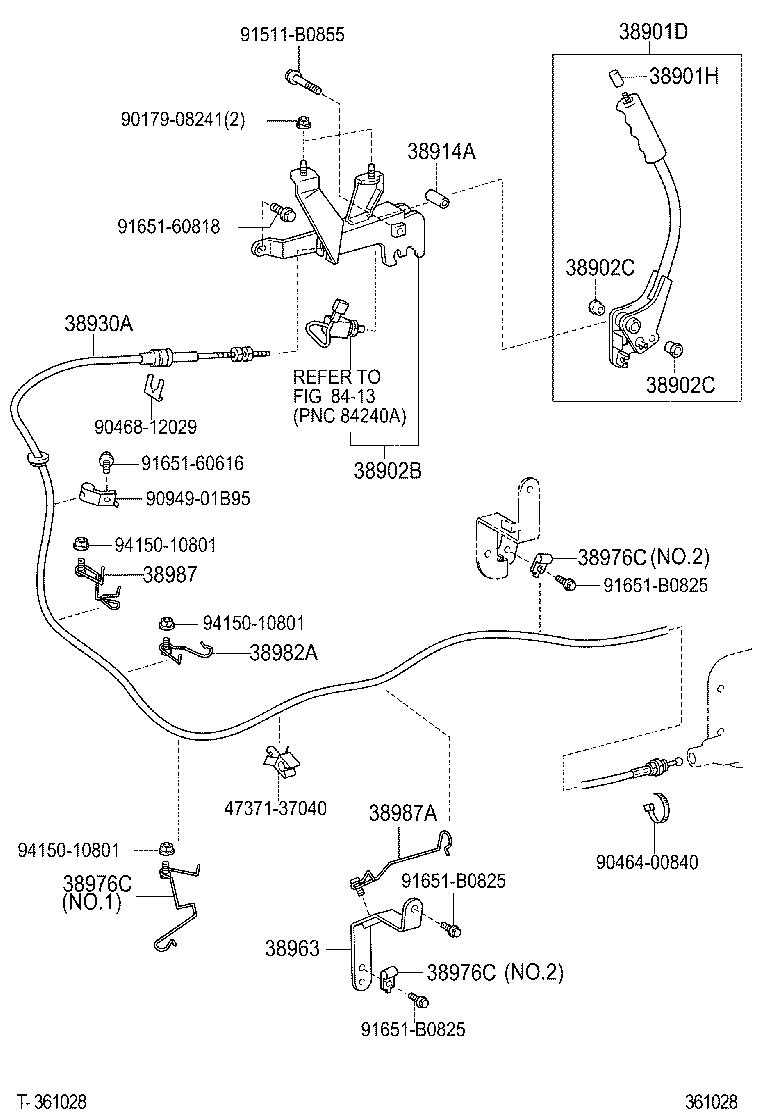

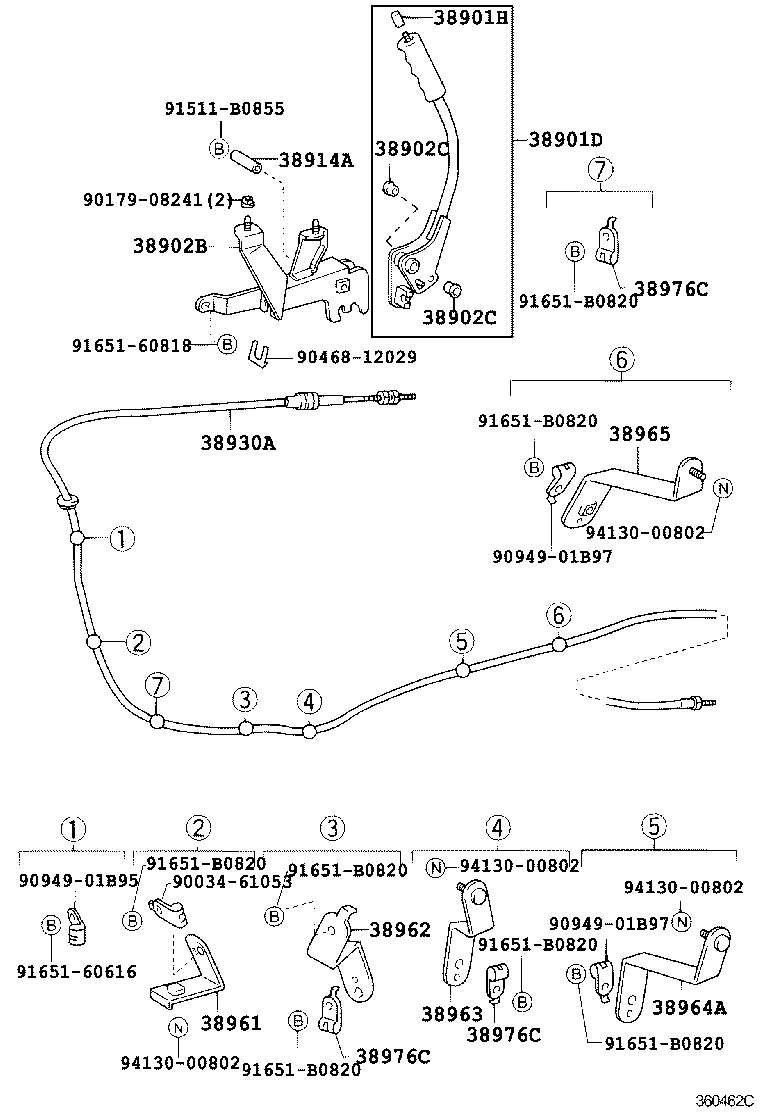

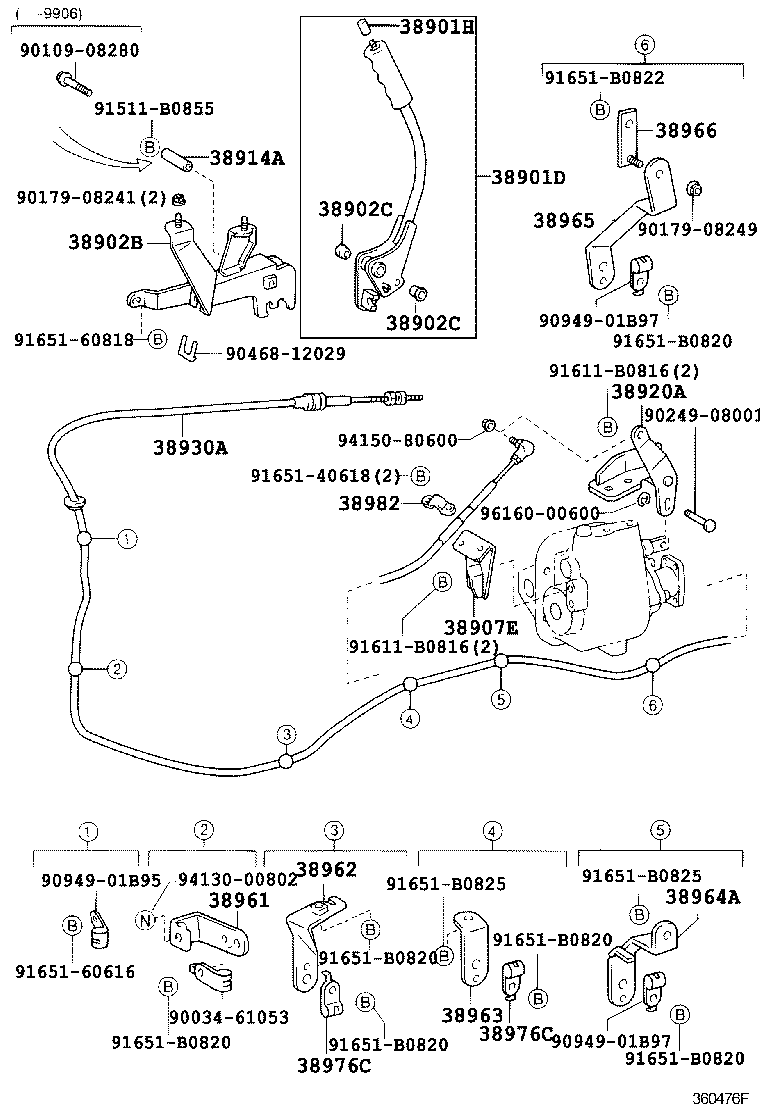

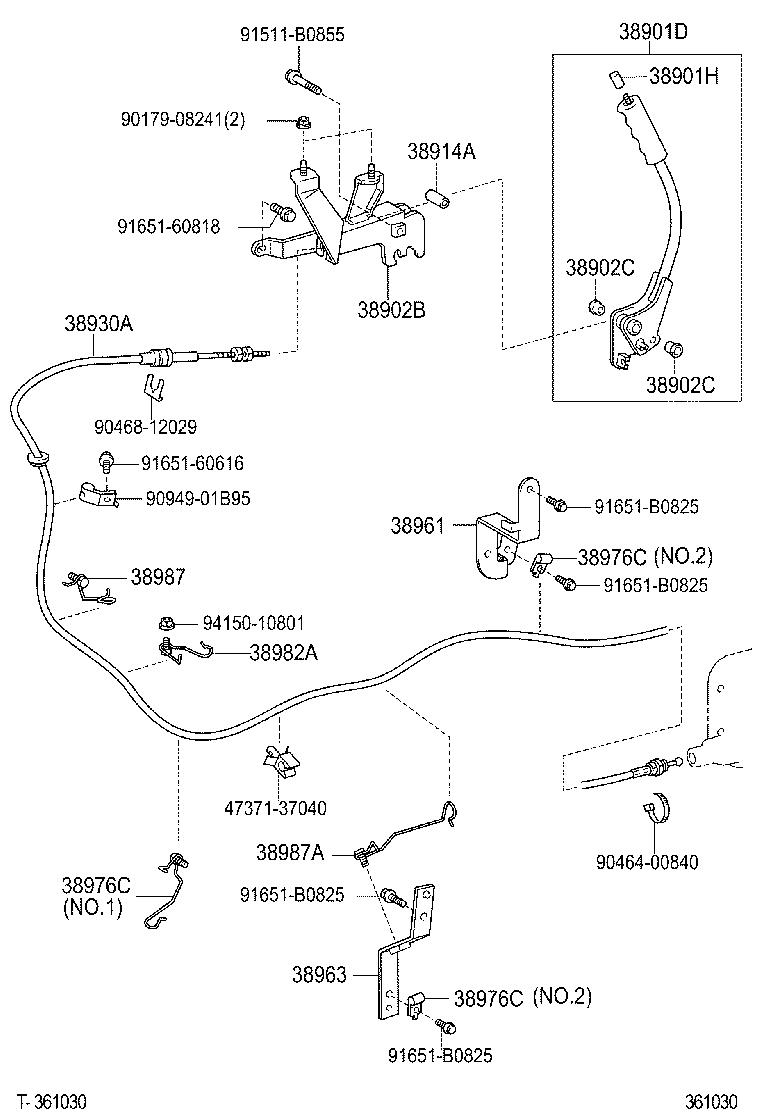

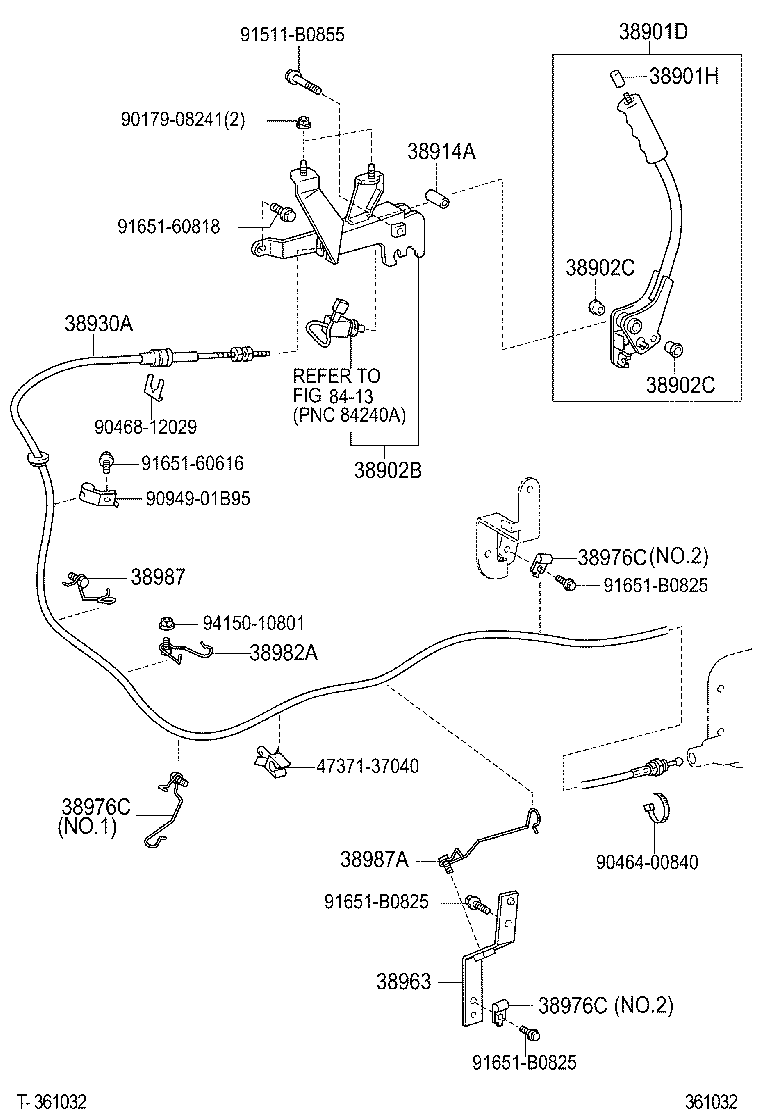

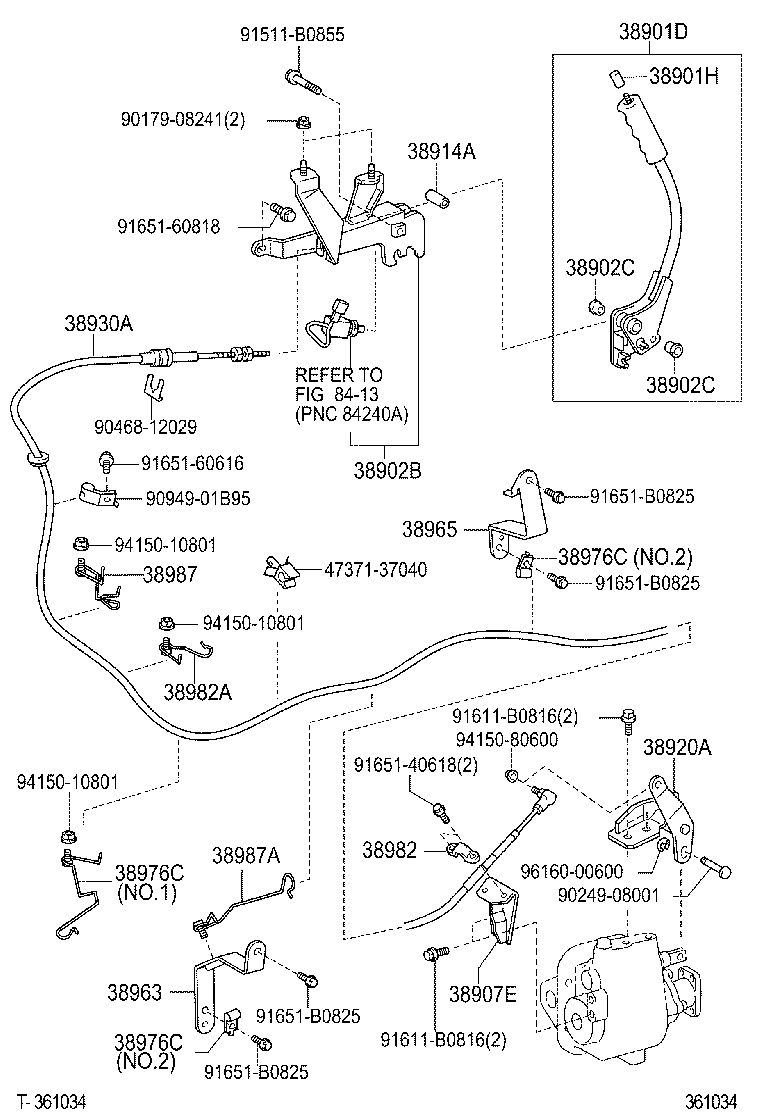

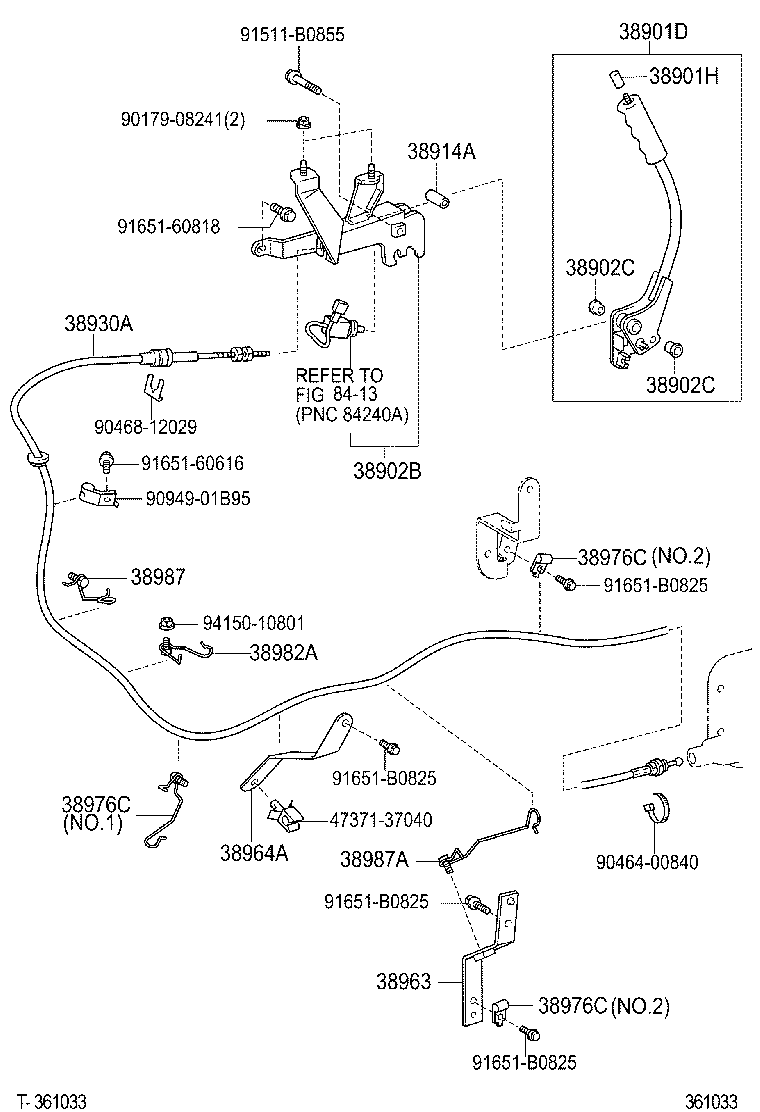

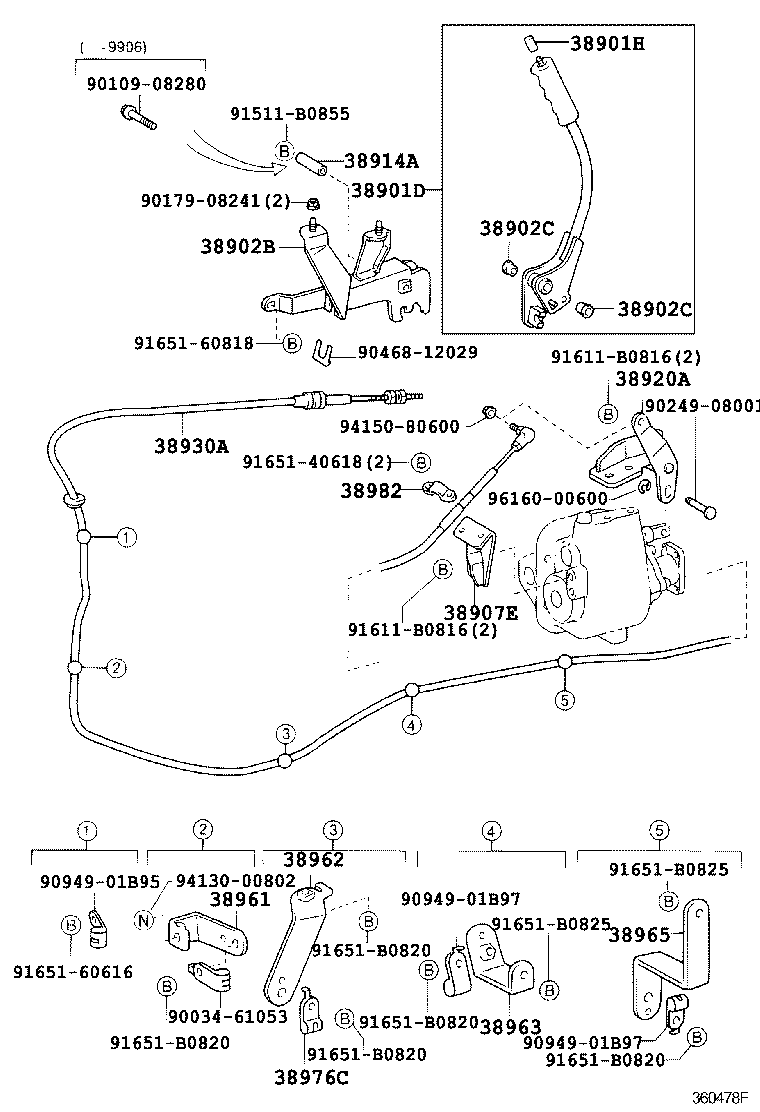

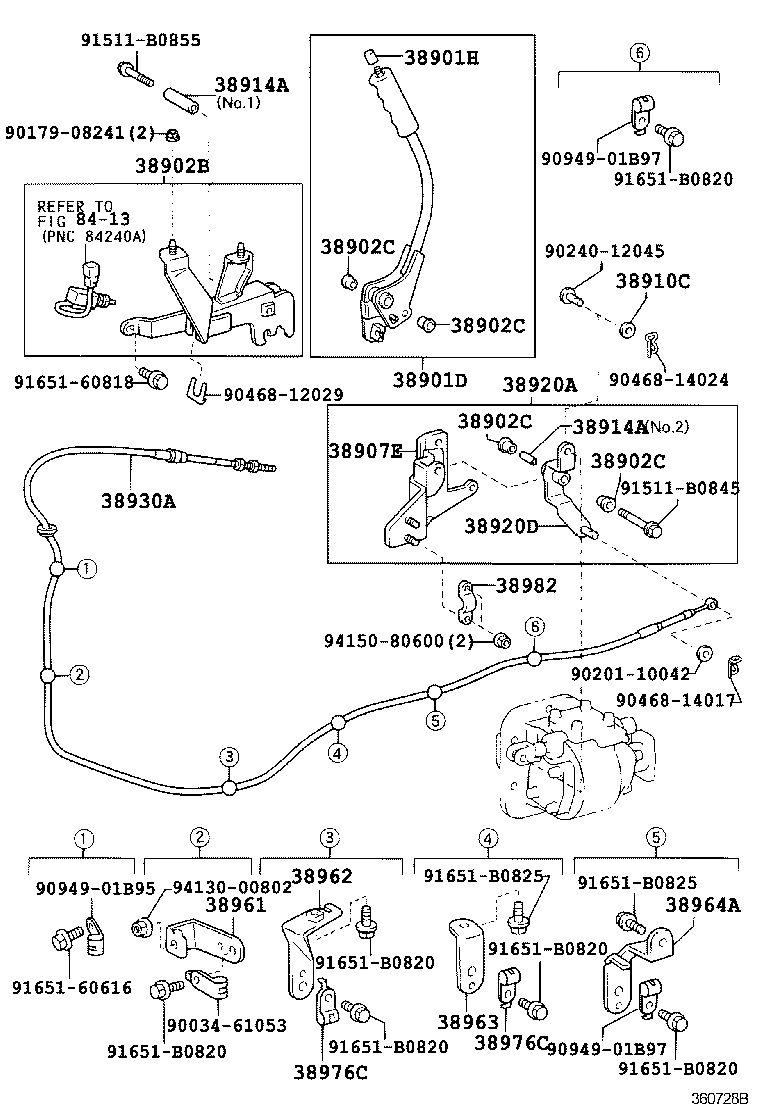

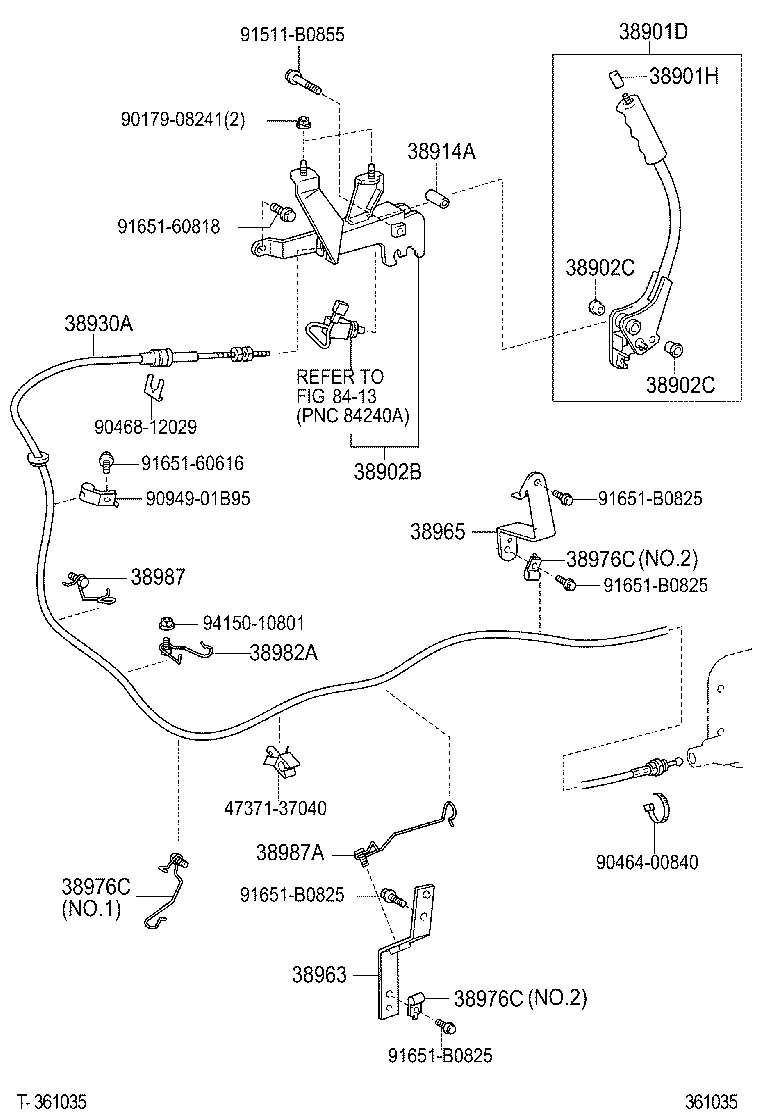

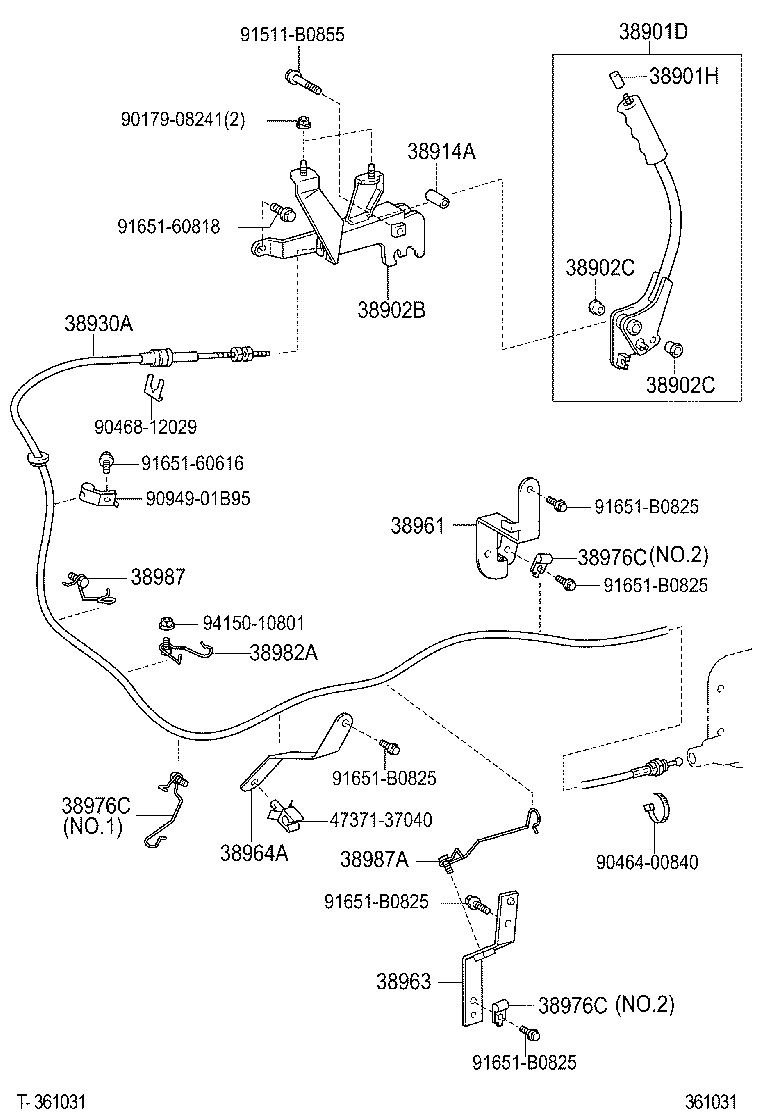

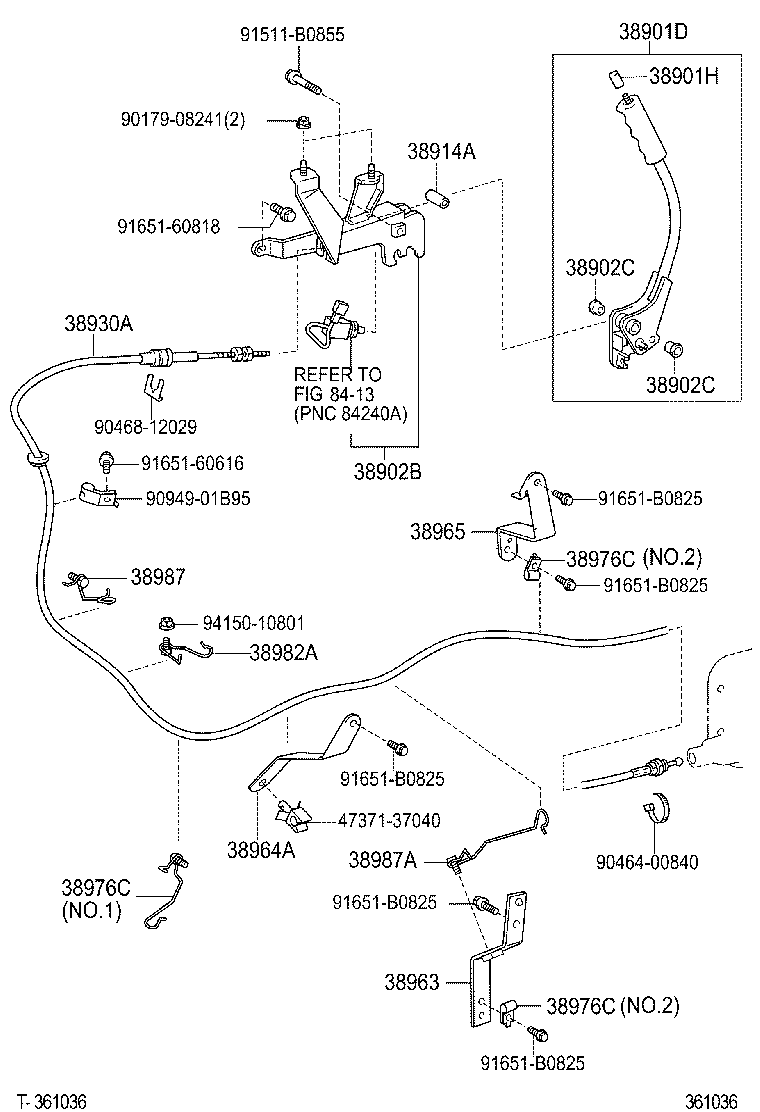

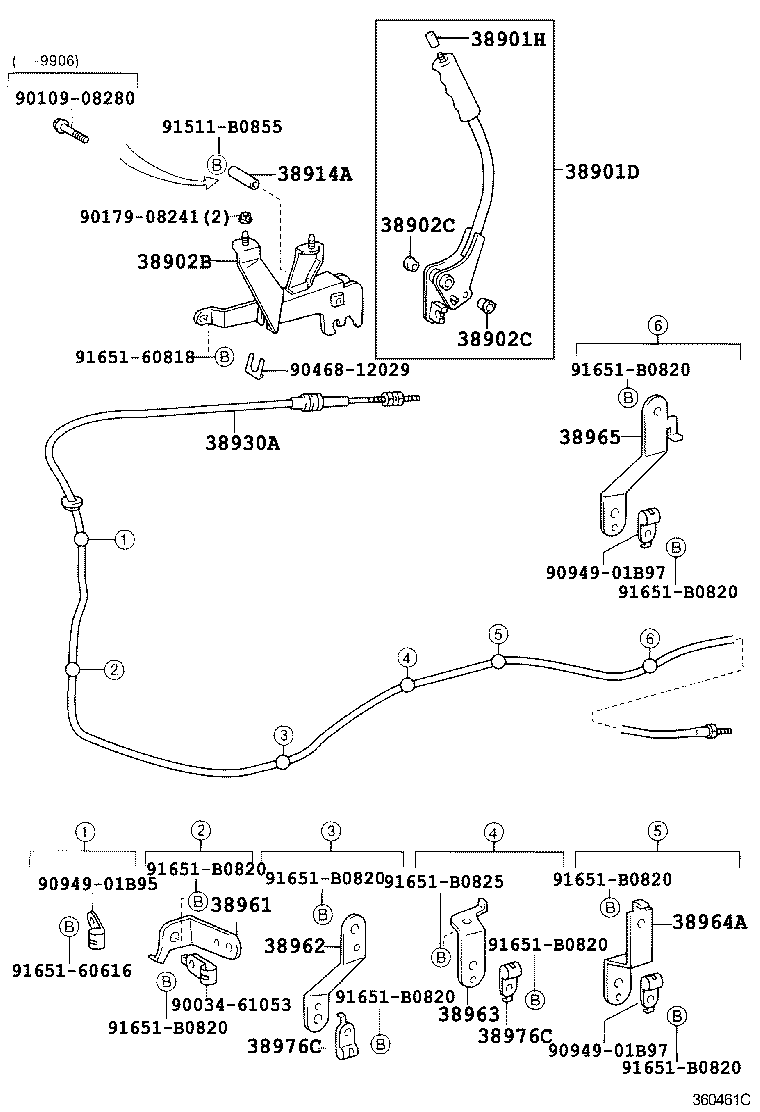

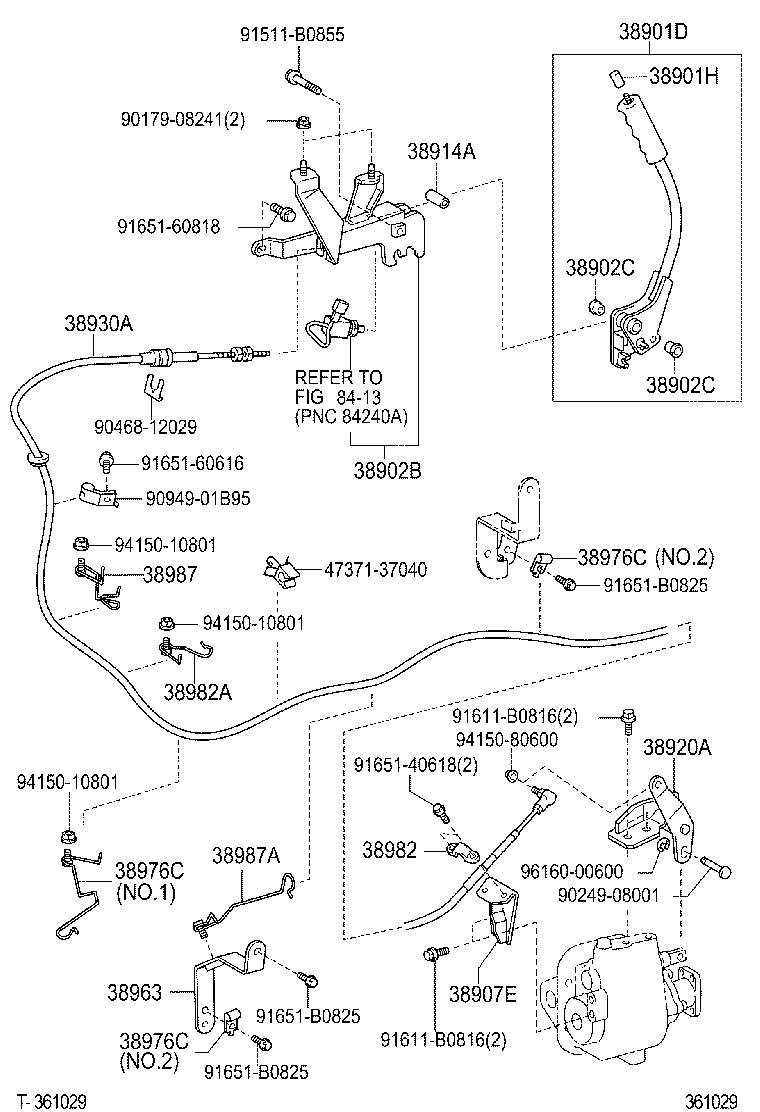

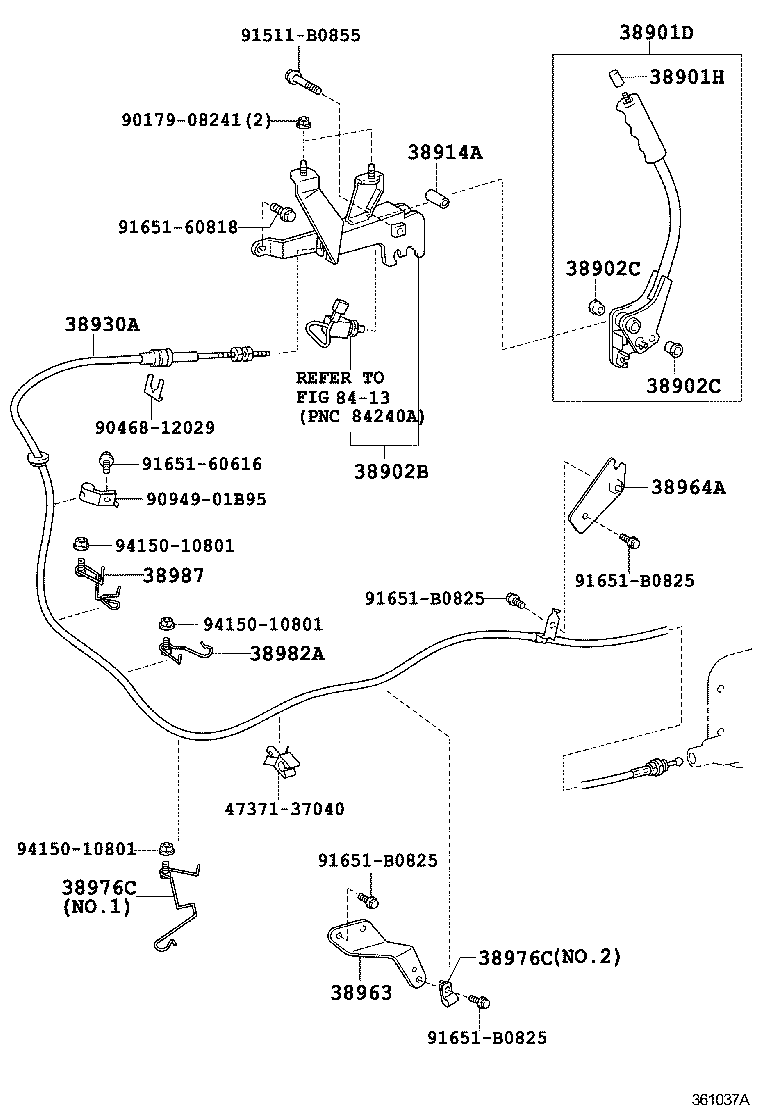

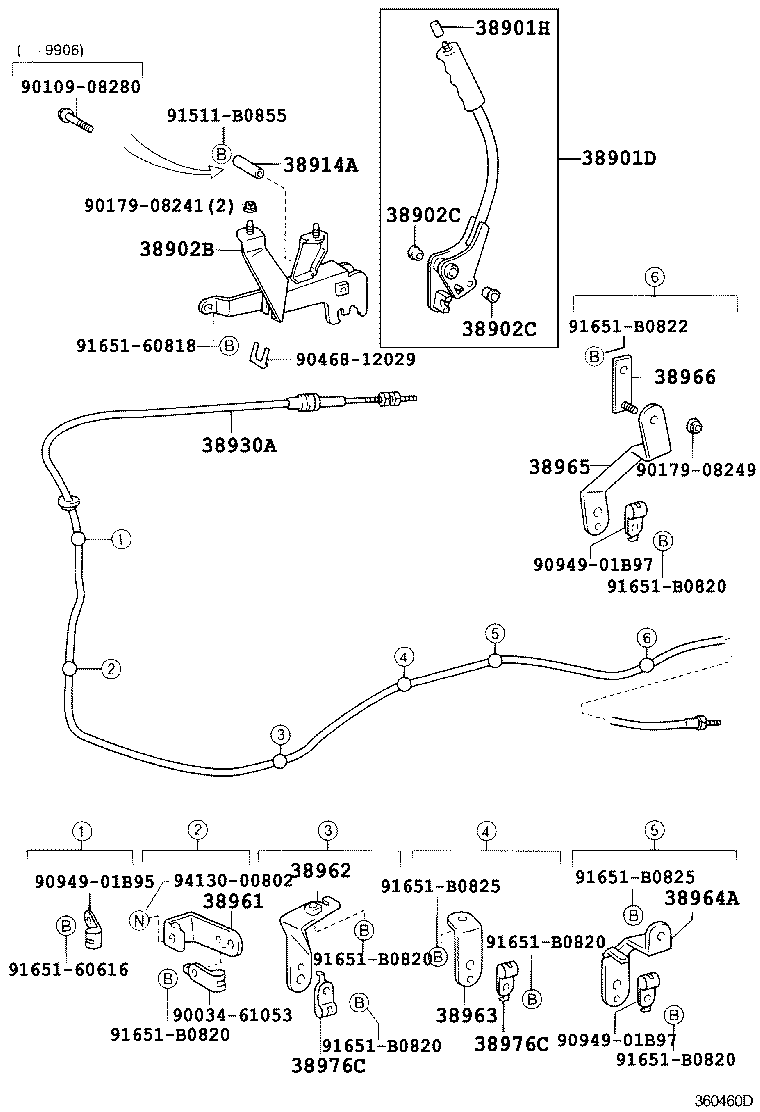

Figure 360477B 360477B 1999-05 → 2004-06 Figure 360477B 360477B 1999-05 → 2004-06 Figure 360459C 360459C 1999-07 → 2004-06 Figure 360460D 360460D 1999-05 → 2004-06 Figure 360460D 360460D 1999-05 → 2004-06 Figure 360460D 360460D 1999-05 → 2004-06 Figure 360476F 360476F 1999-05 → 2004-06 Figure 360728B 360728B 2002-06 → 2004-06 Figure 360573A 360573A 1999-05 → 2004-06 Figure 360573A 360573A 1999-05 → 2004-06 Figure 360478F 360478F 1999-05 → 2004-06 Figure 360461C 360461C 1999-05 → 2004-06 Figure 360462C 360462C 1999-07 → 2004-06 Figure 361026 361026 2004-06 → — Figure 361027 361027 2004-06 → — Figure 361027 361027 2004-06 → — Figure 361027 361027 2004-06 → — Figure 361028 361028 2004-06 → — Figure 361029 361029 2004-06 → — Figure 361030 361030 2004-06 → — Figure 361031 361031 2004-06 → — Figure 361032 361032 2004-06 → — Figure 361033 361033 2004-06 → — Figure 361034 361034 2004-06 → — Figure 361035 361035 2004-06 → — Figure 361036 361036 2004-06 → — Figure 361037A 361037A 2004-06 → — Figure 361122A 361122A 2005-05 → —

Part groups

PNCDescription
38901D Lever Sub-assy, Valve Control
38901H Knob, Valve Control Lever
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38907E Stay Sub-assy, Power Teke-off Control
38910C Spacer, Control Lever
38914A Pipe, Valve Control Lever
38920A Lever Assy, Power Take-off Control, NO.1
38920D Lever Assy, Power Take-off Control, NO.2
38930A Cable Assy, Push Pull
38961 Bracket, Cable Clamp, NO.1
38962 Bracket, Cable Clamp, NO.2
38962A Bracket, Cable Clamp, NO.7
38963 Bracket, Cable Clamp, NO.3
38964A Bracket, Cable Clamp, NO.4
38965 Bracket, Cable Clamp, NO.5
38966 Bracket, Cable Clamp, NO.6
38976C Clamp, Push Pull Cable
38982 Clamp, Push Pull Cable, NO.1
38982A Clamp, Push Pull Cable, NO.2
38987 Clamp, Cable Push Pull
38987A Clamp, Push Pull Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
