Brake Booster & Vacuum Tube

64 part groups · 60 illustrations

Illustrations

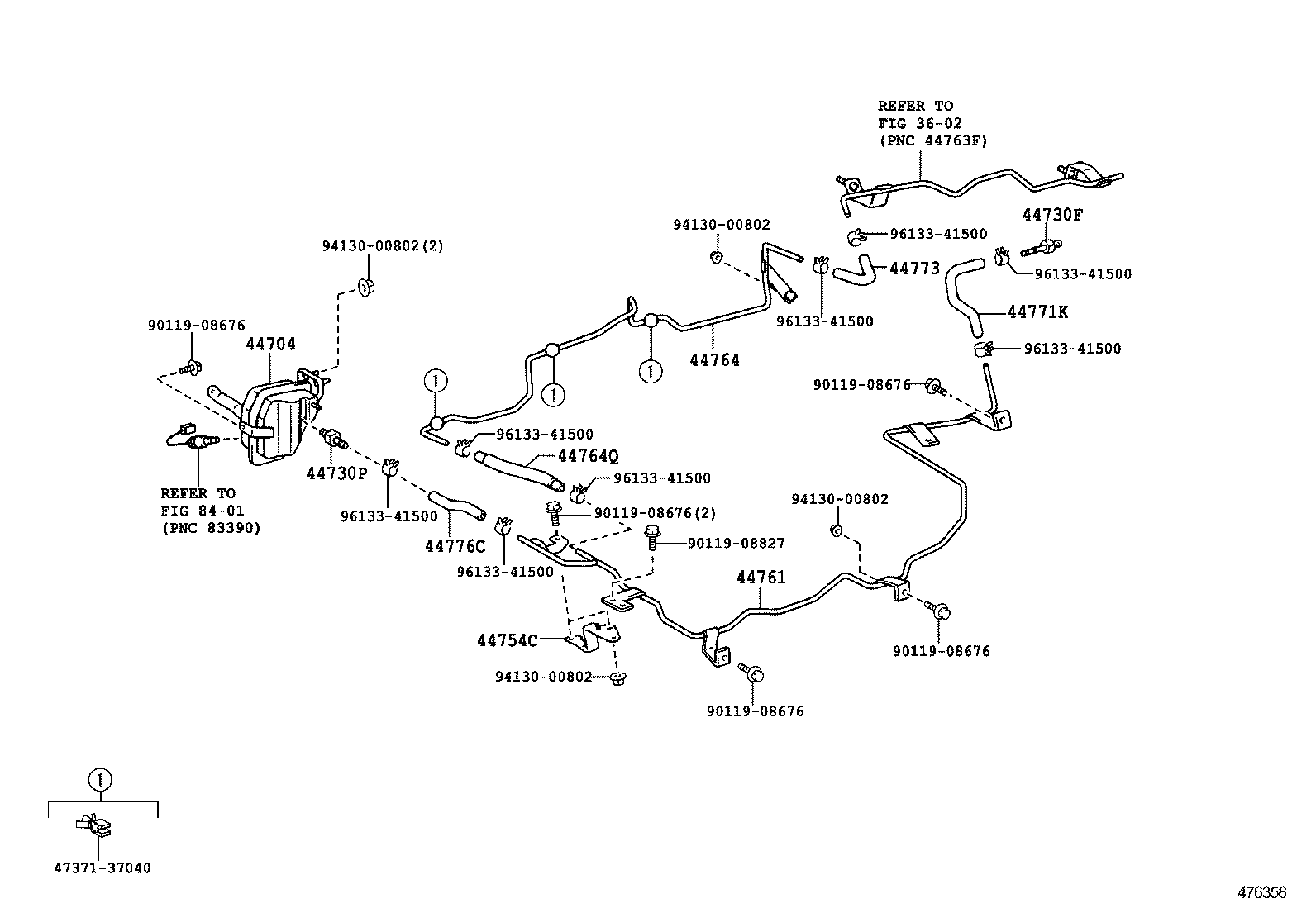

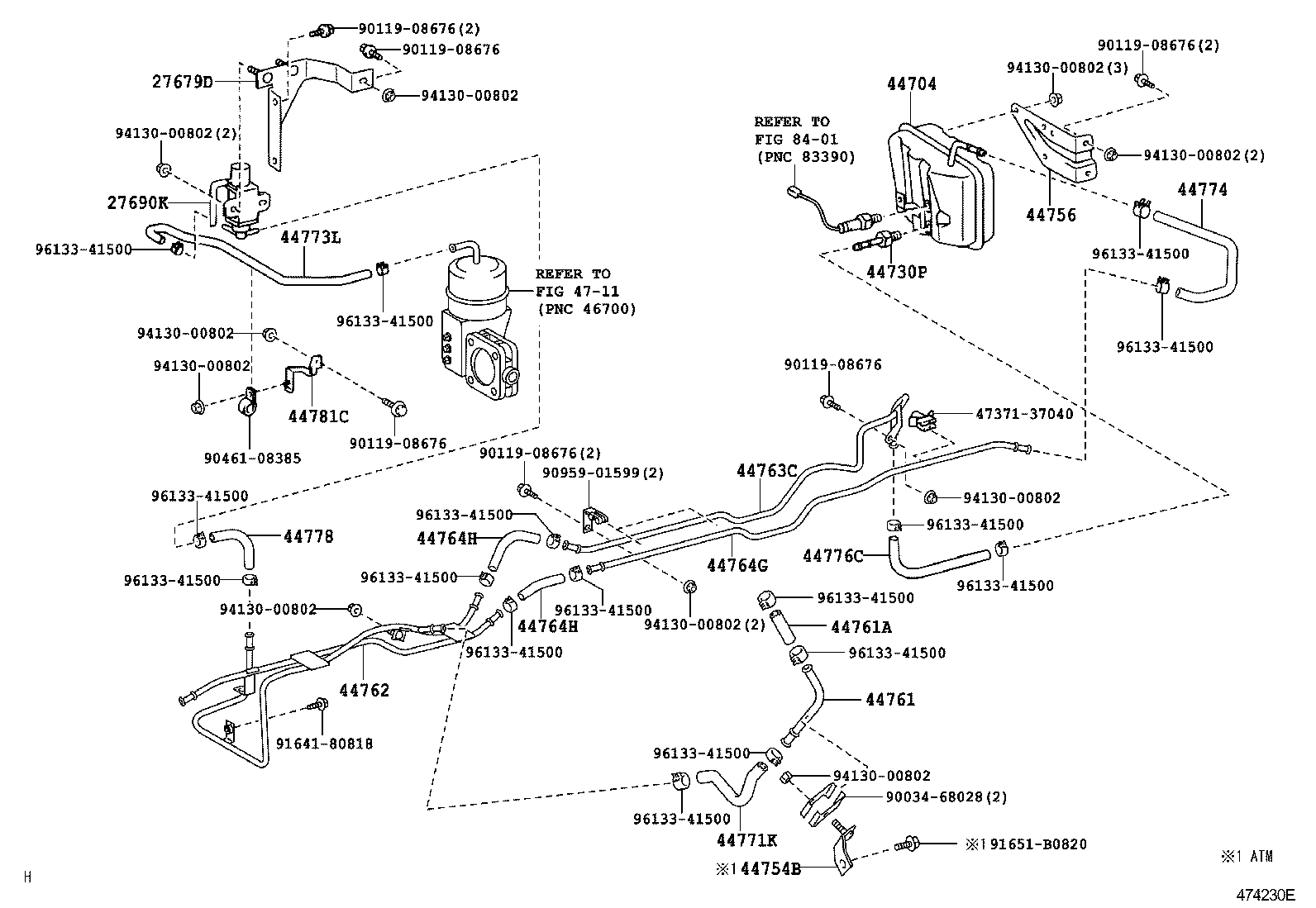

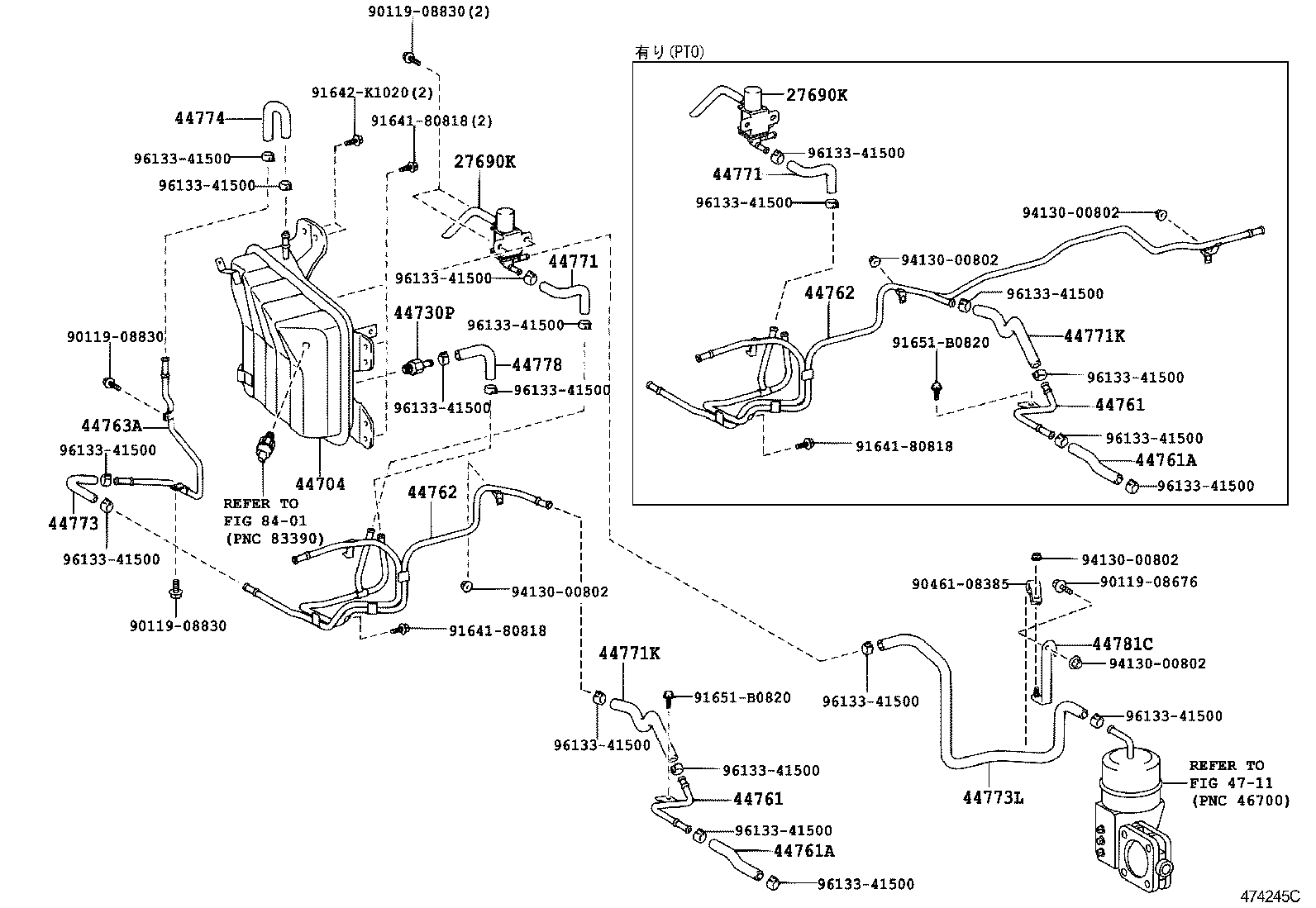

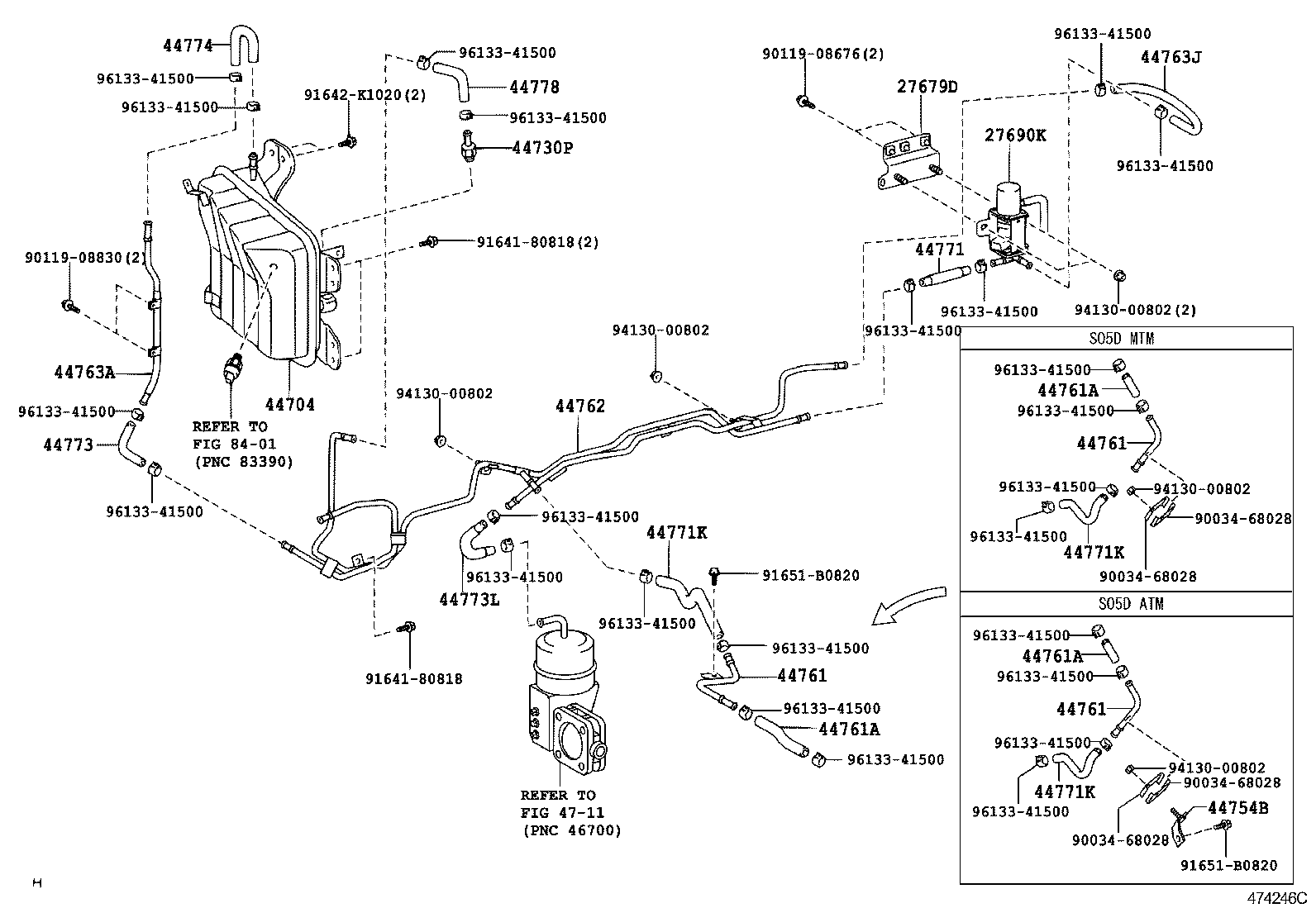

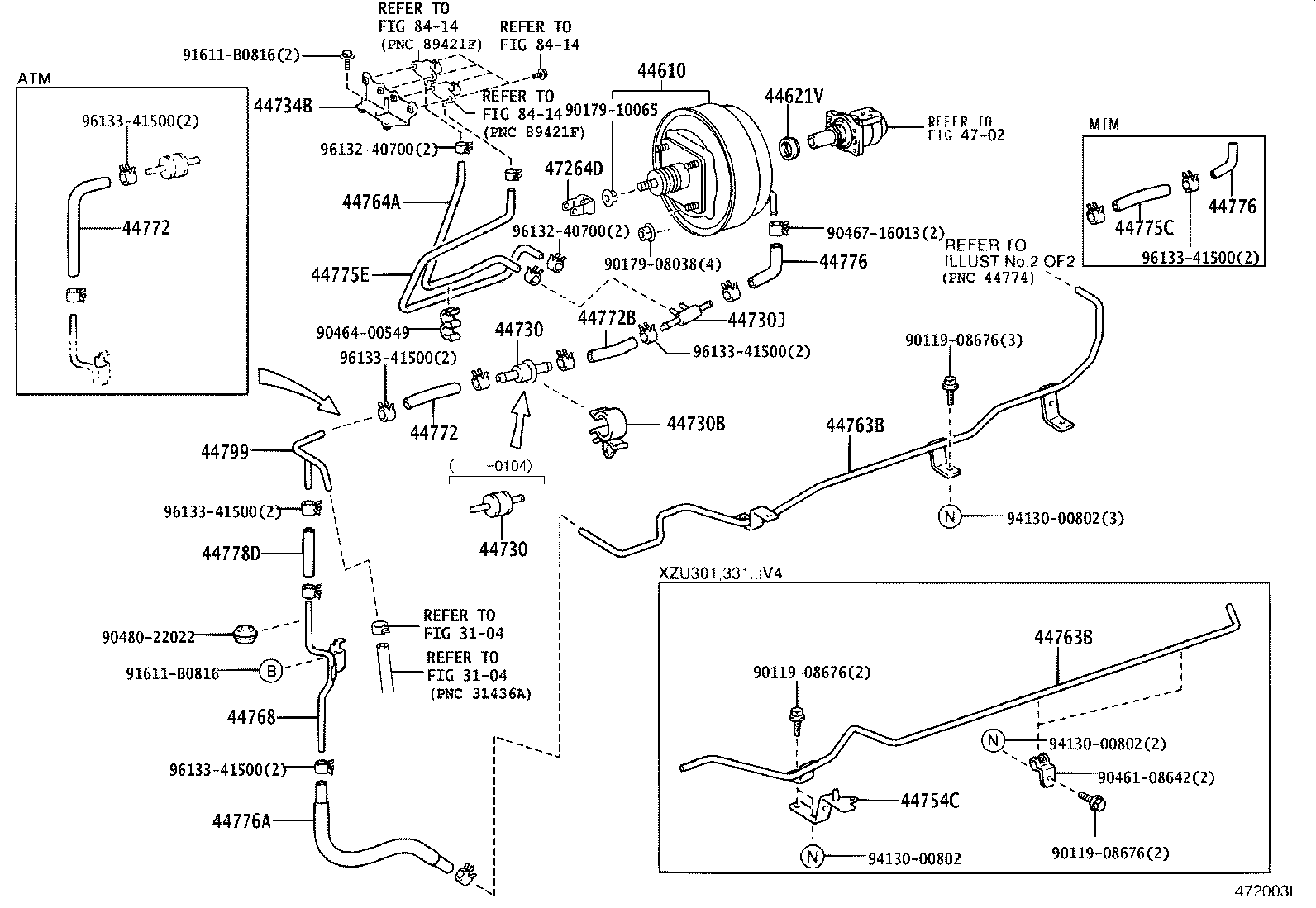

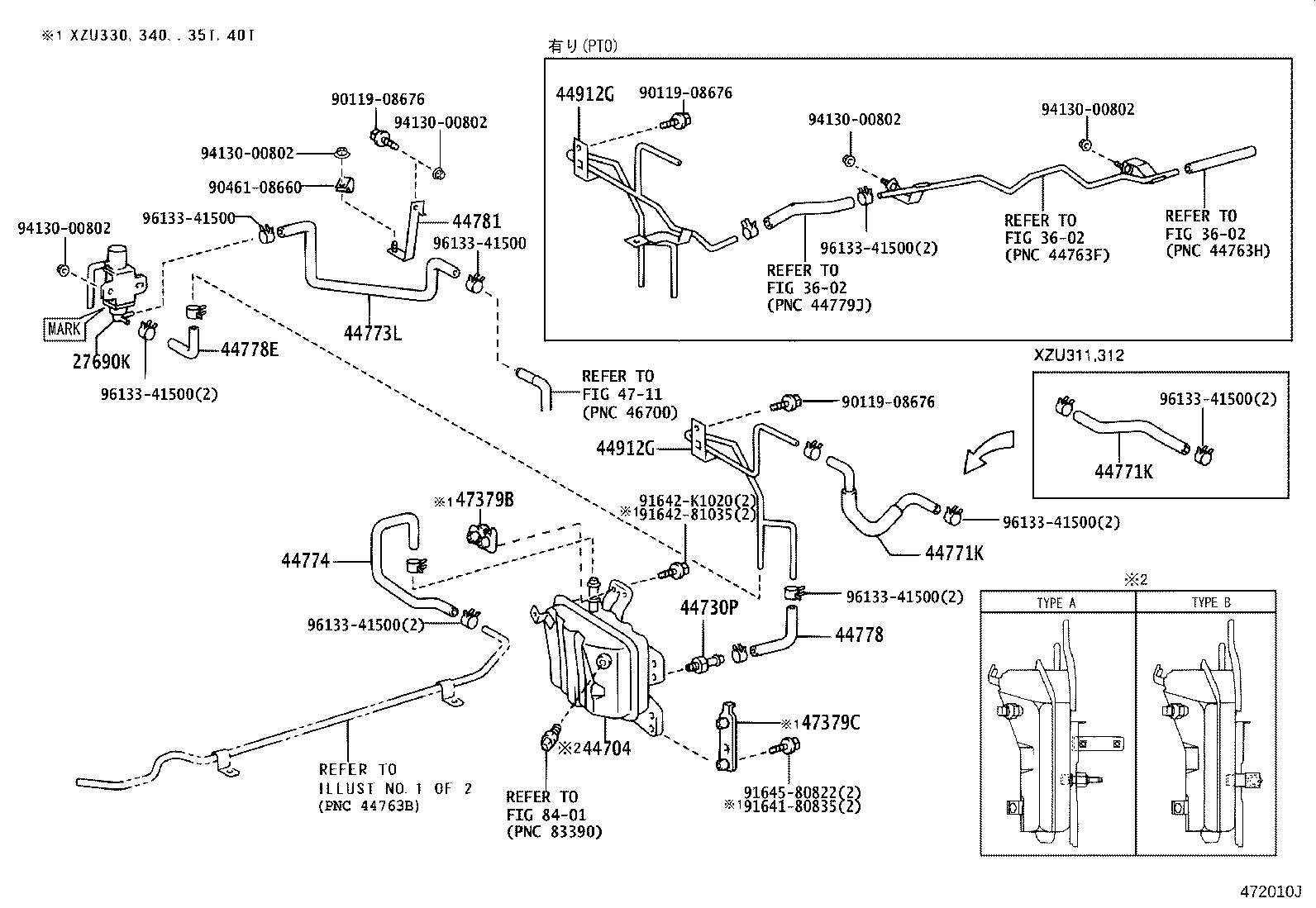

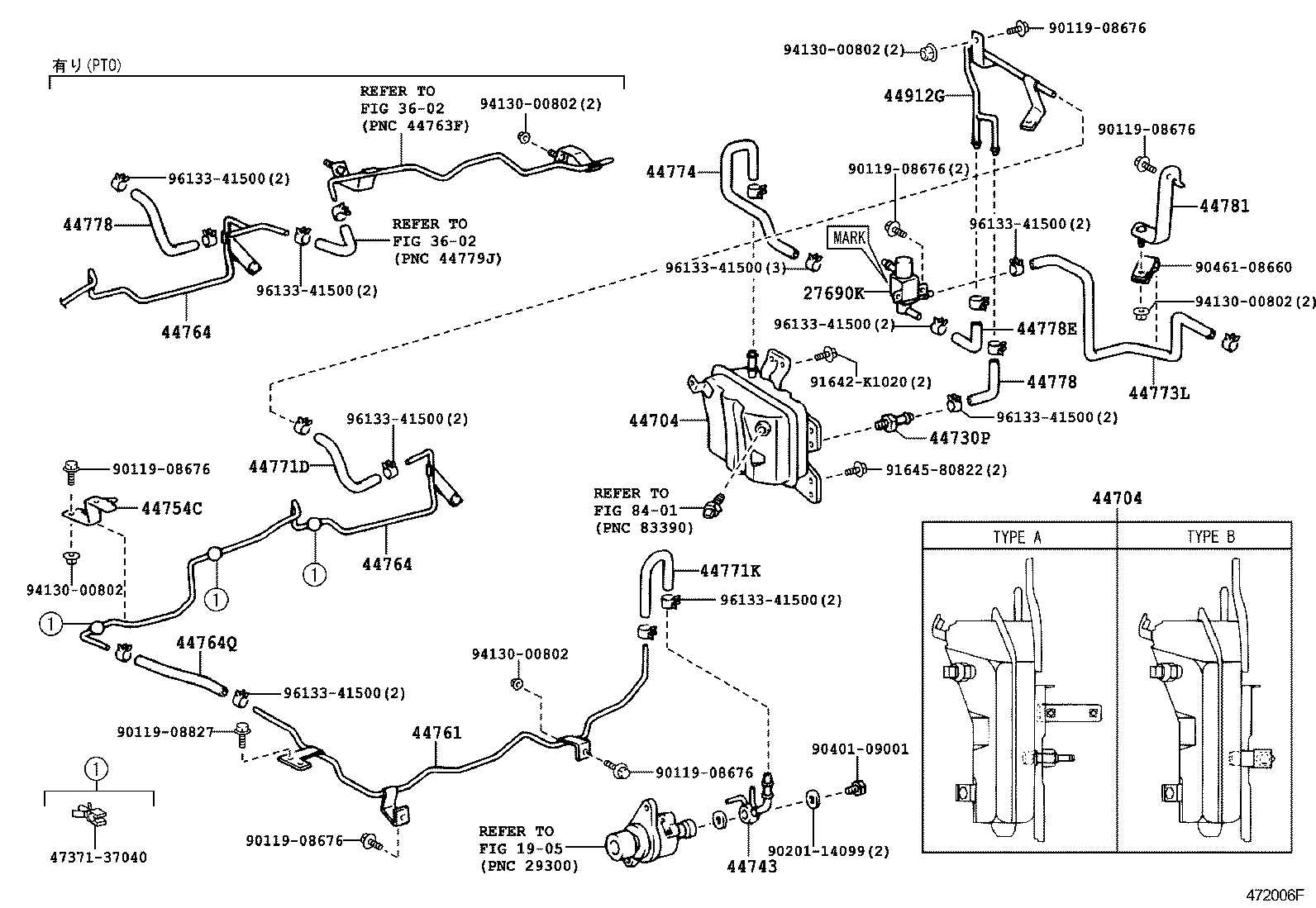

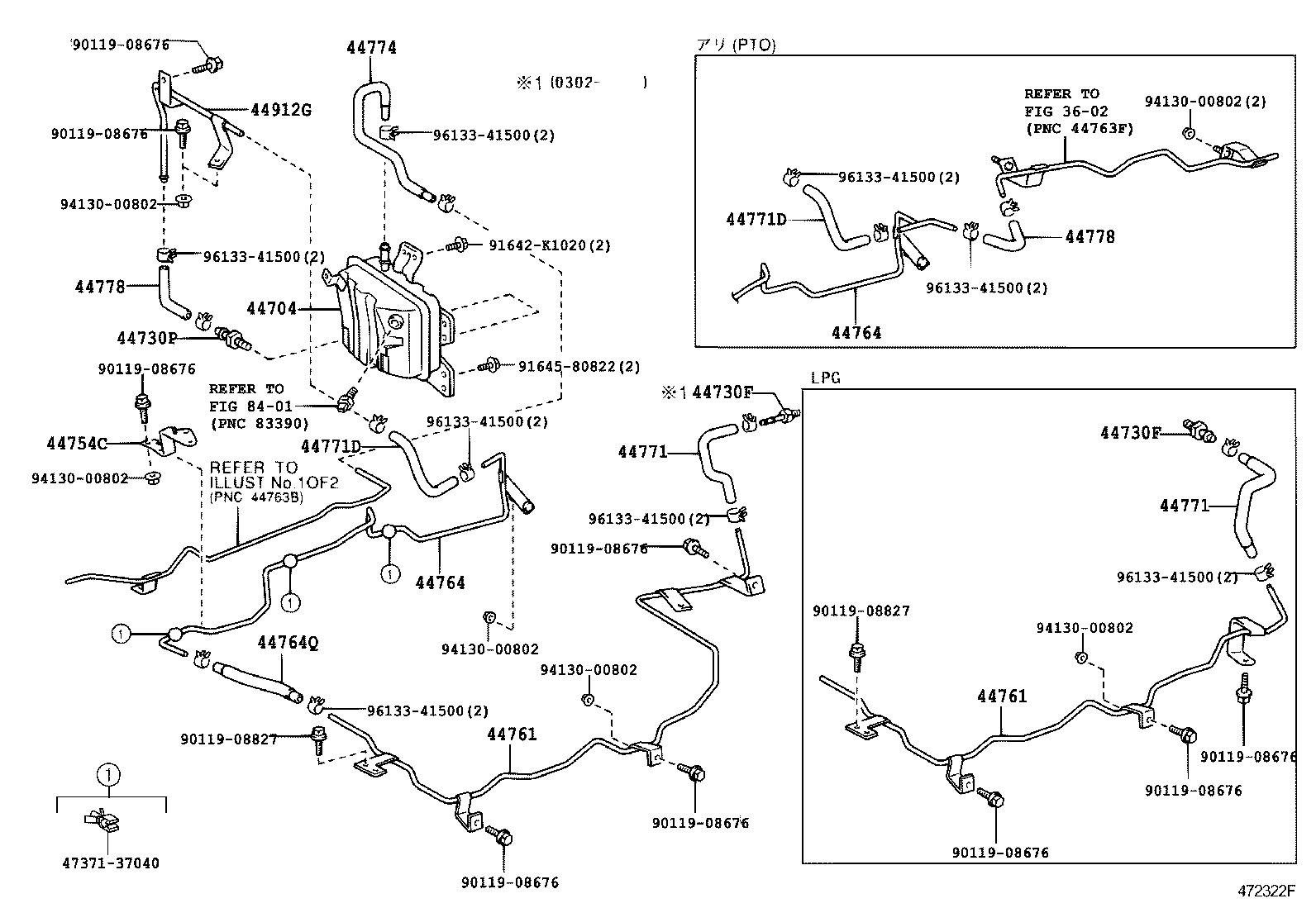

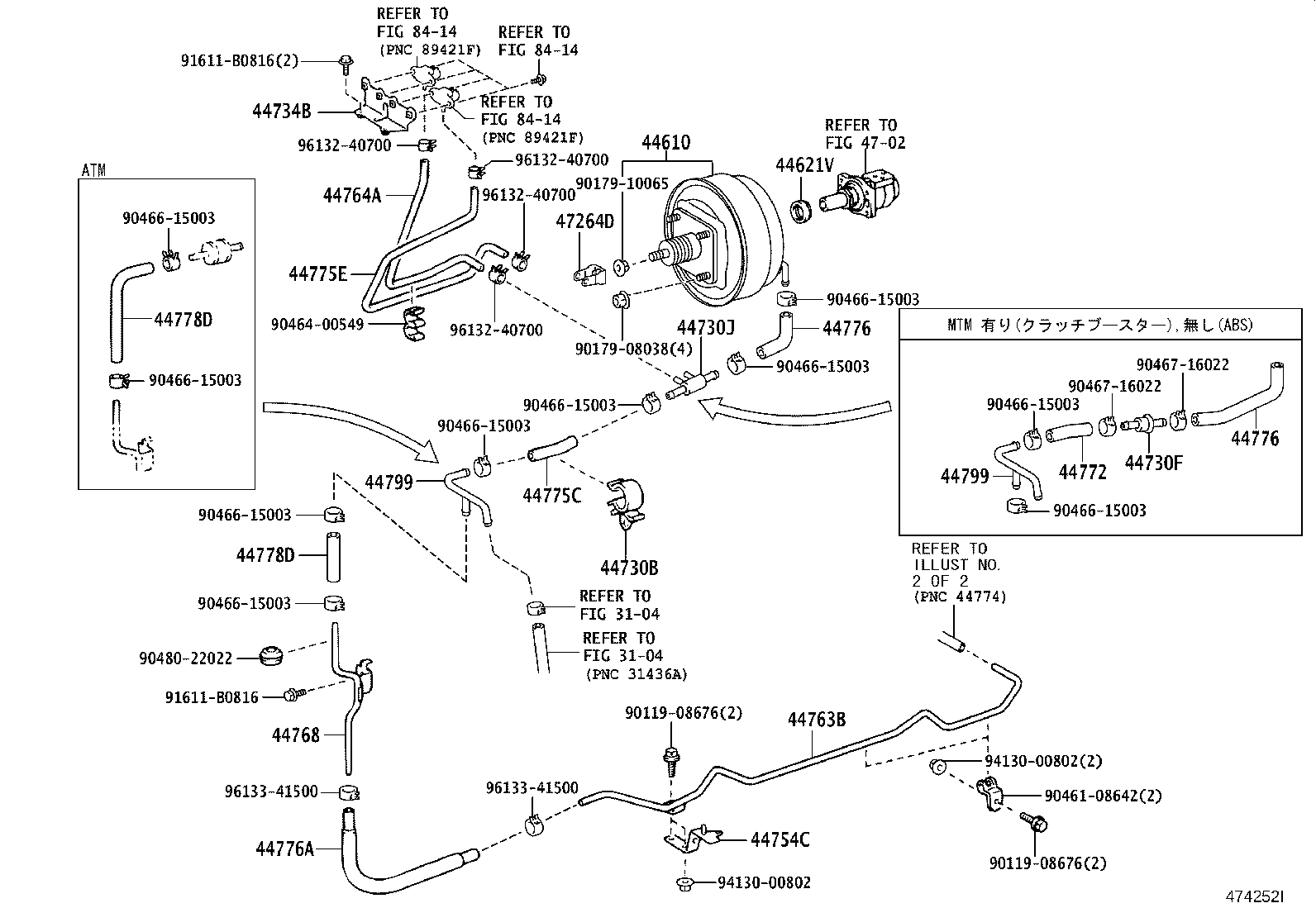

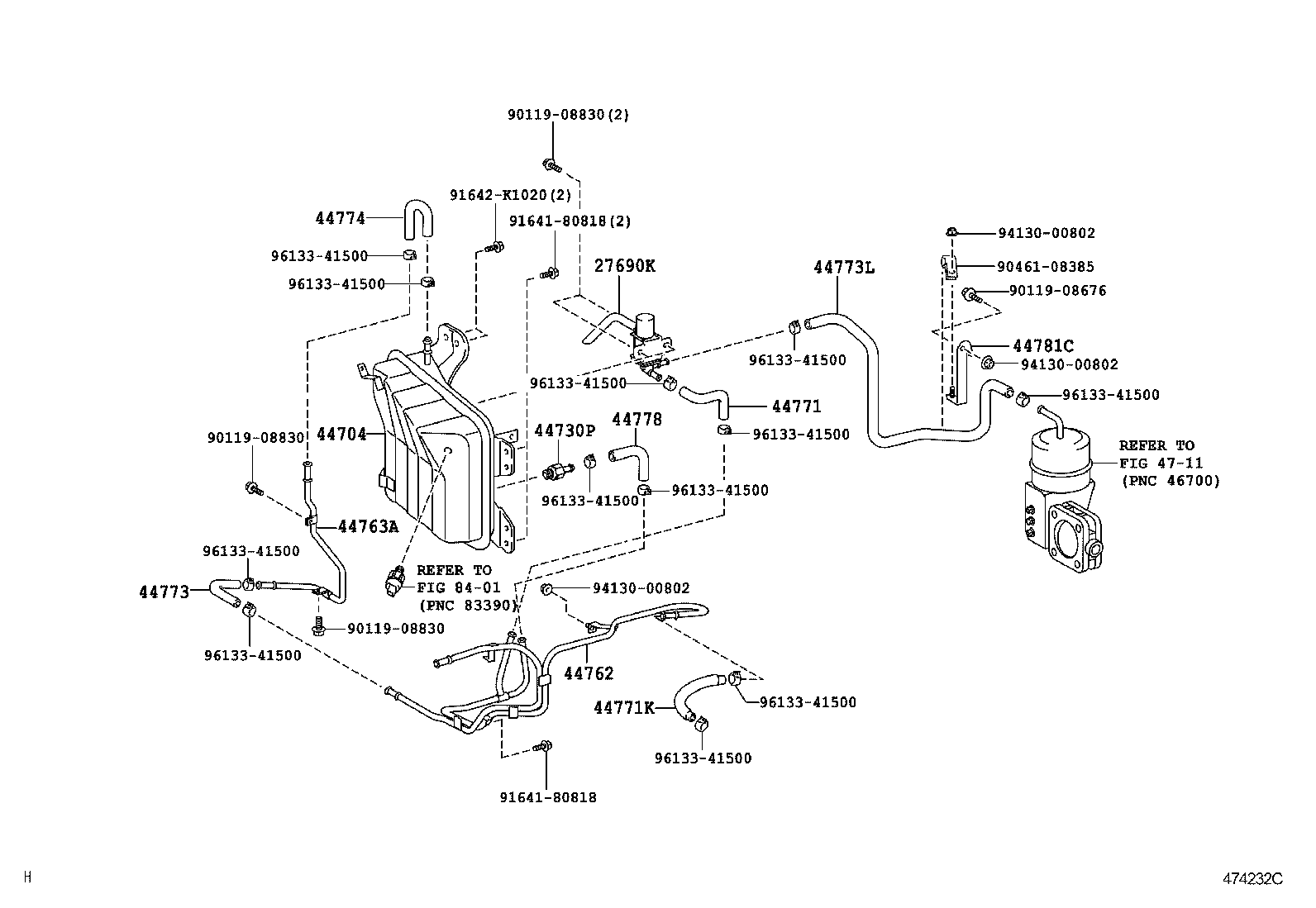

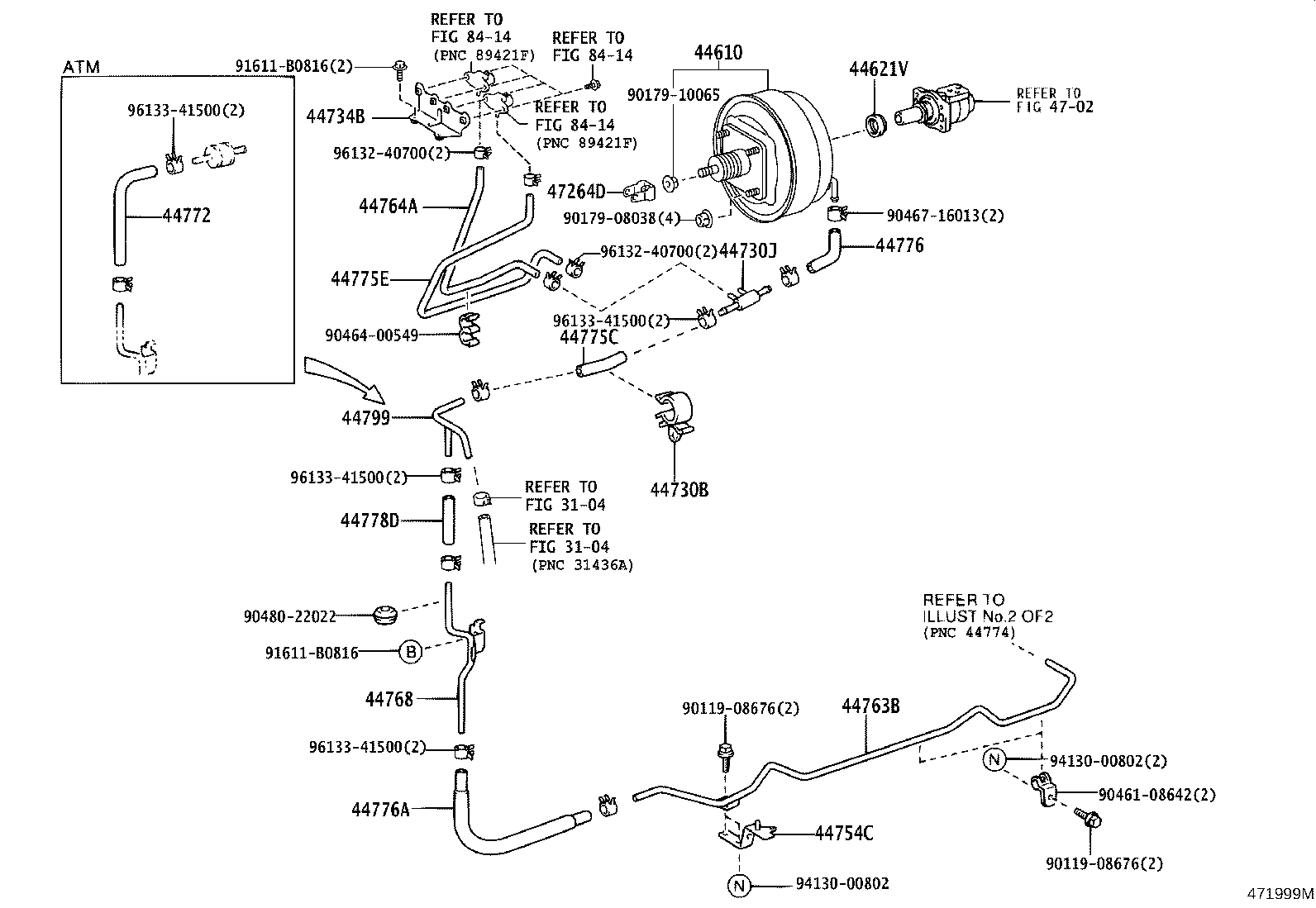

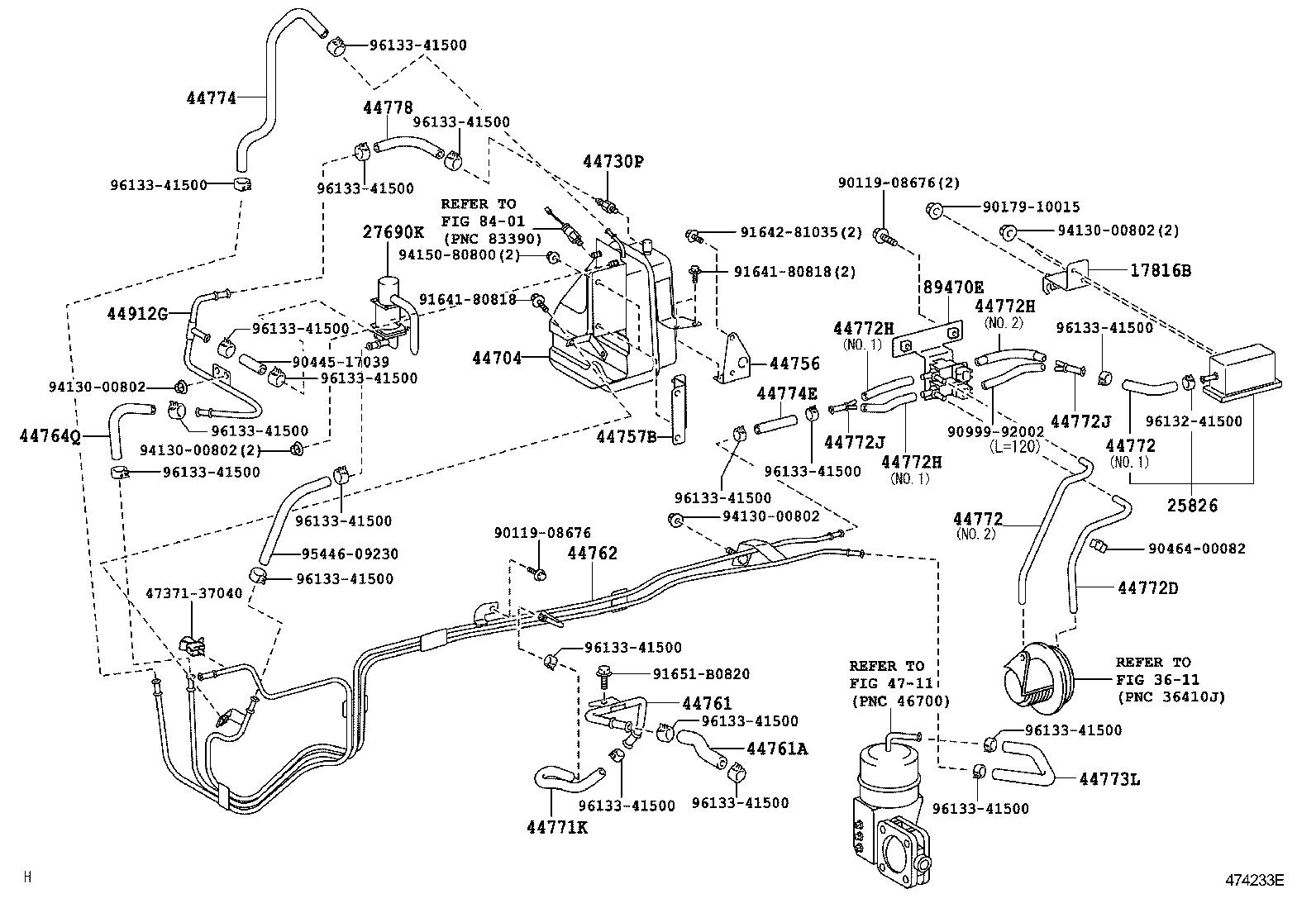

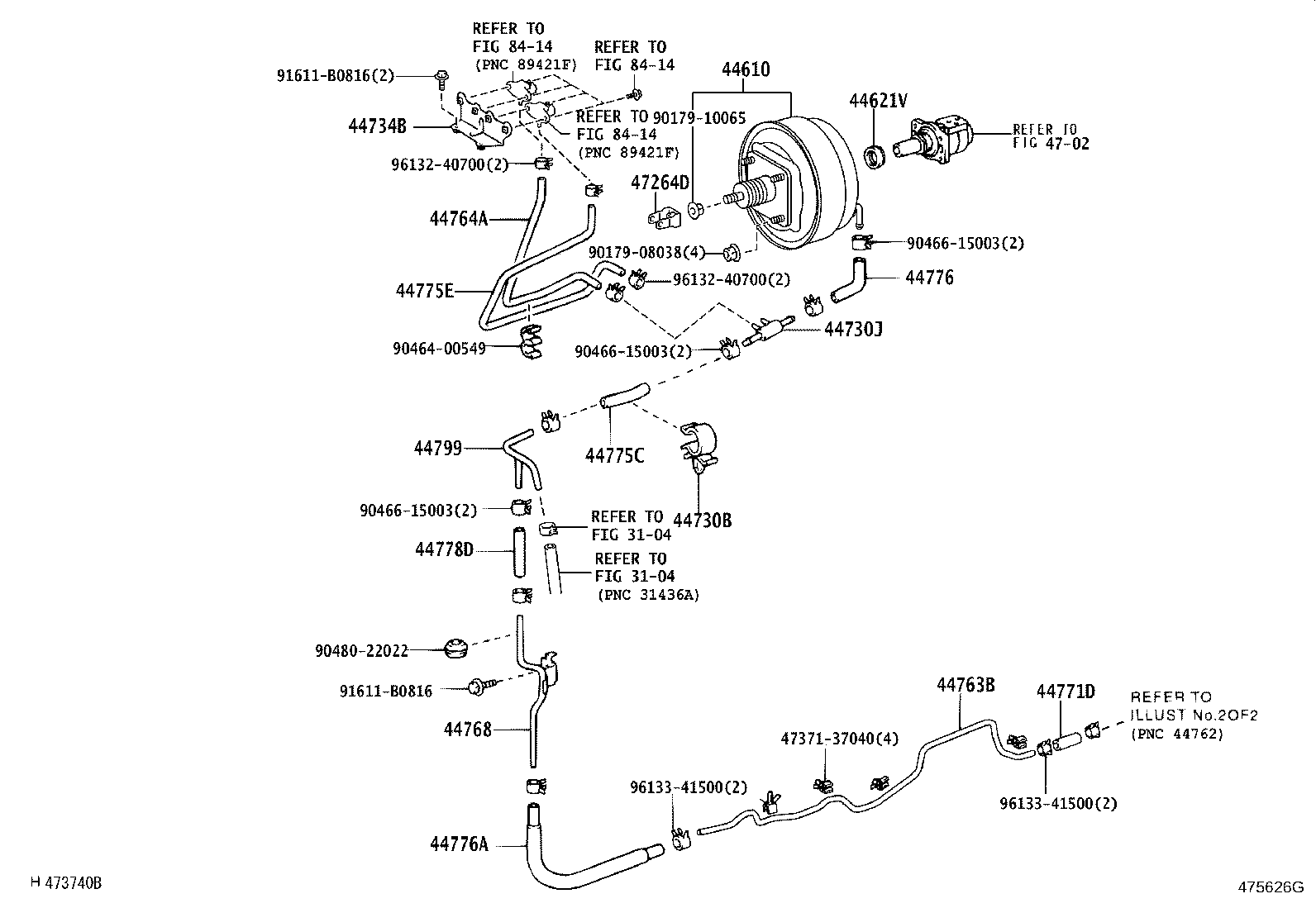

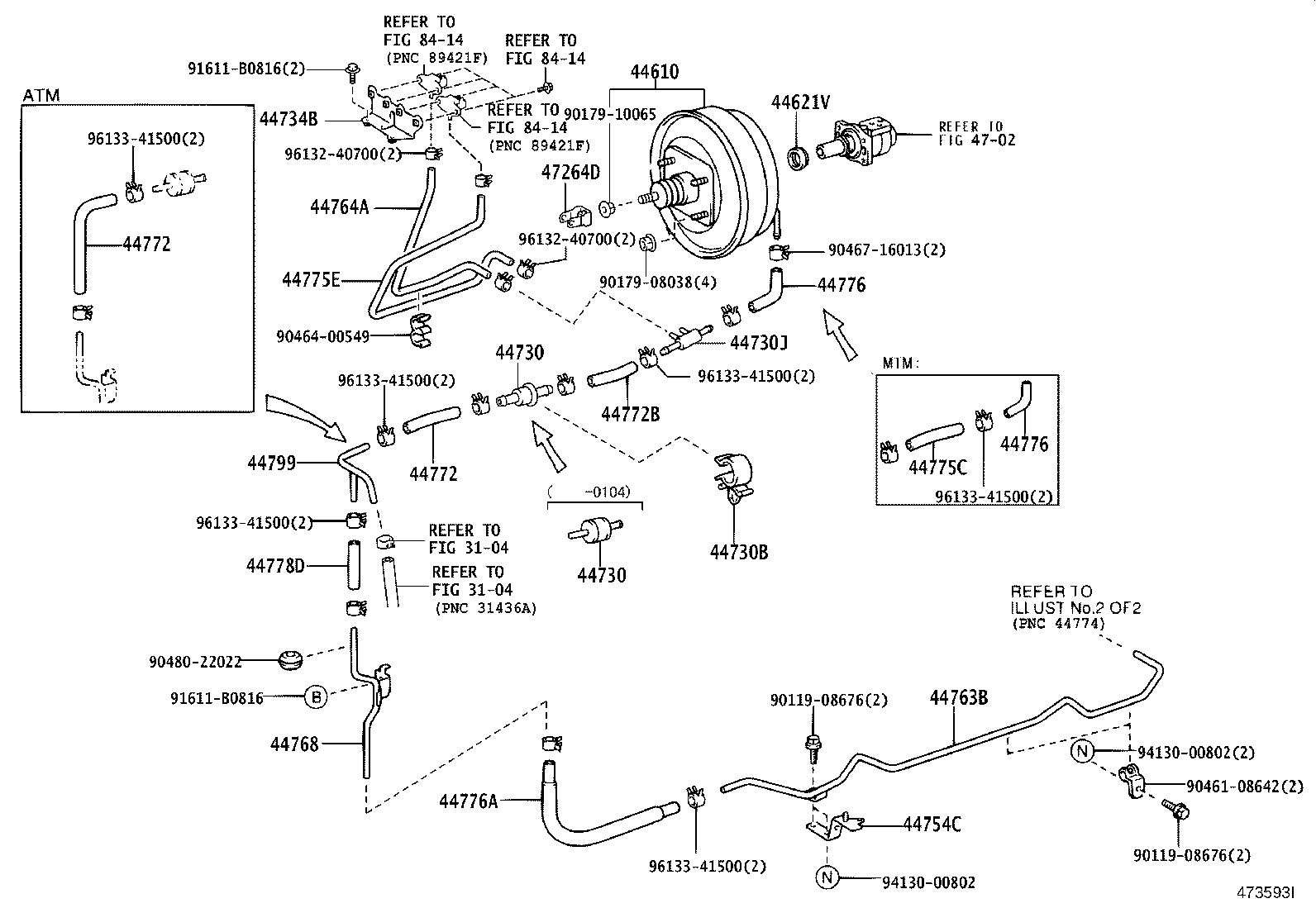

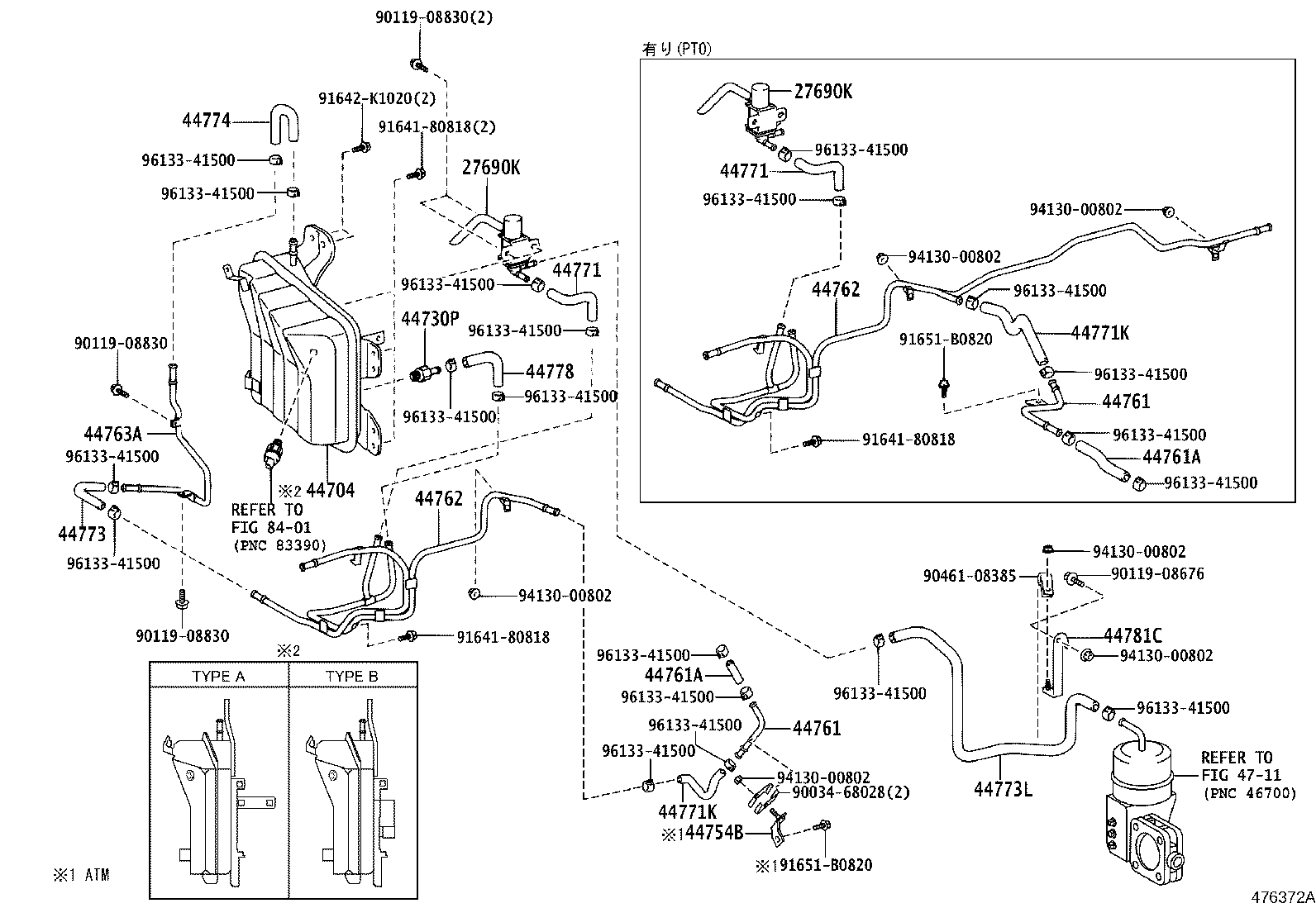

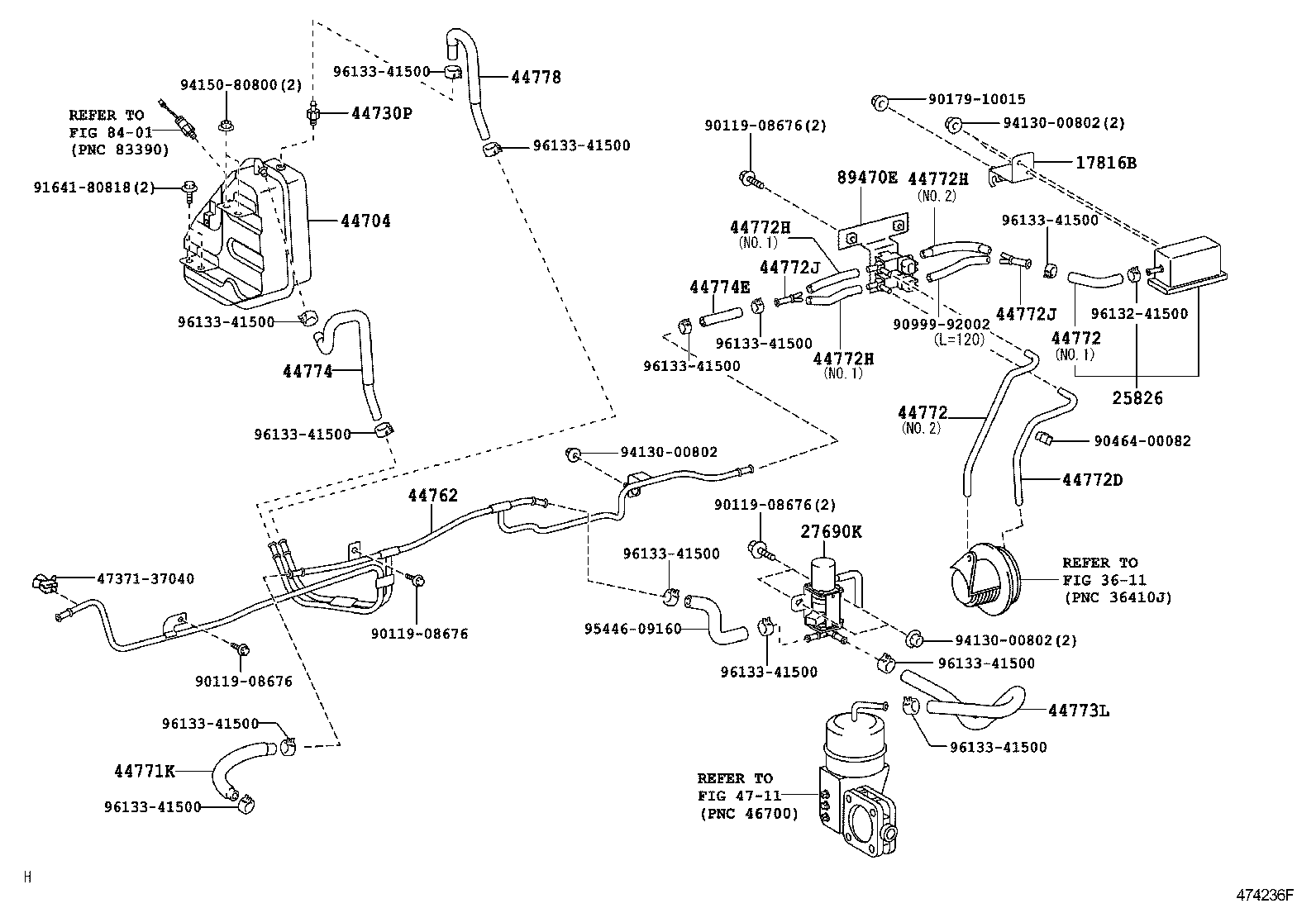

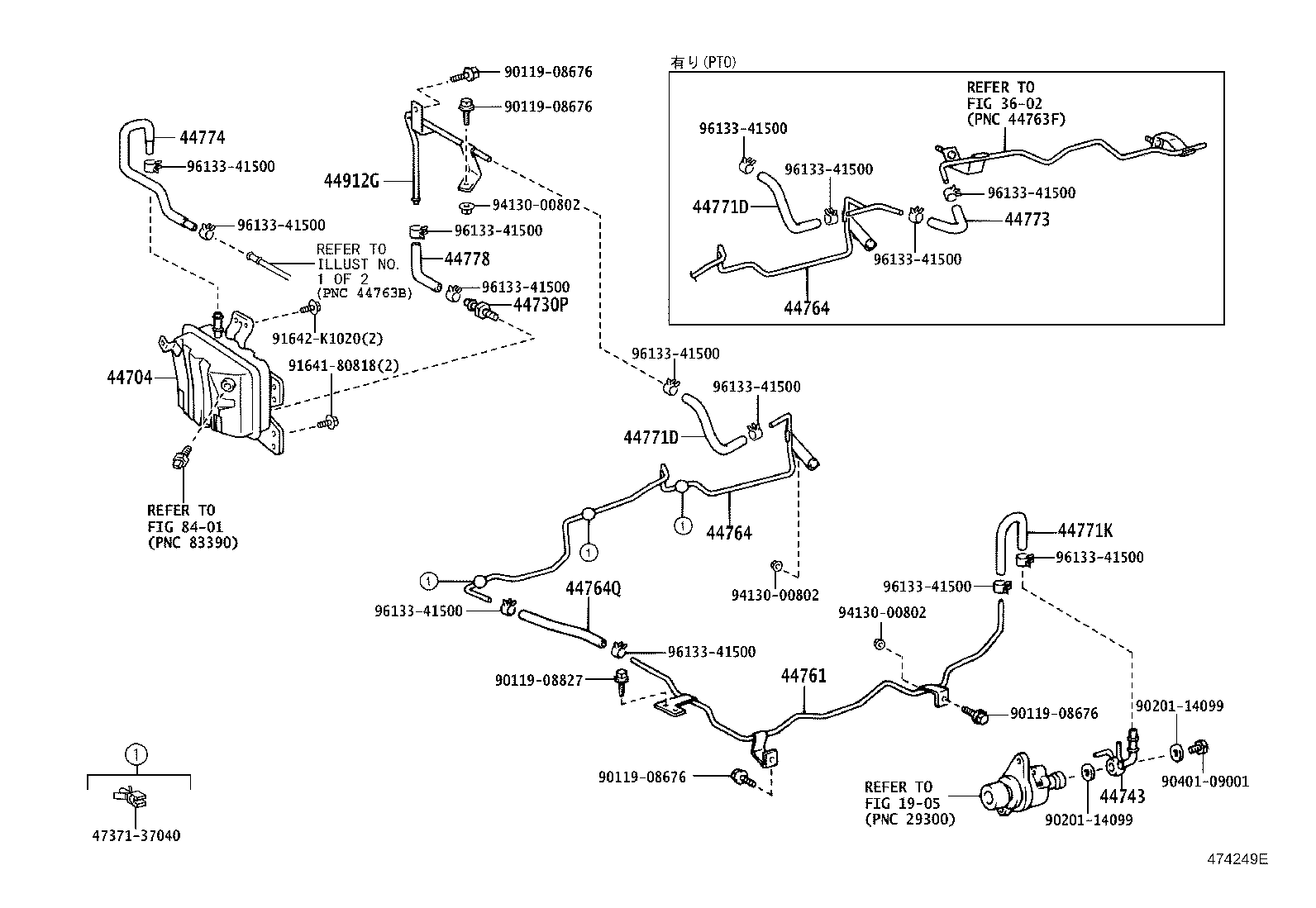

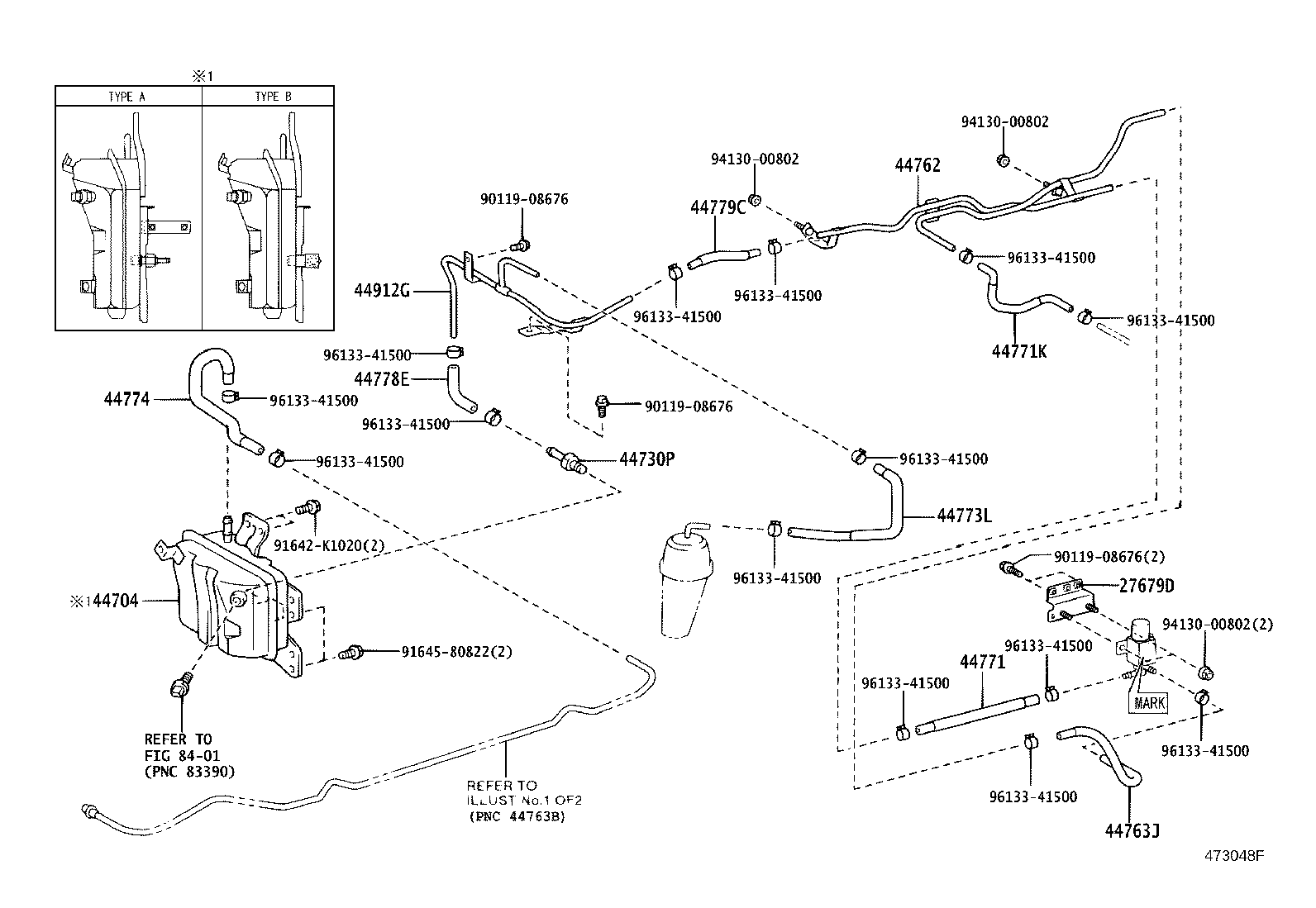

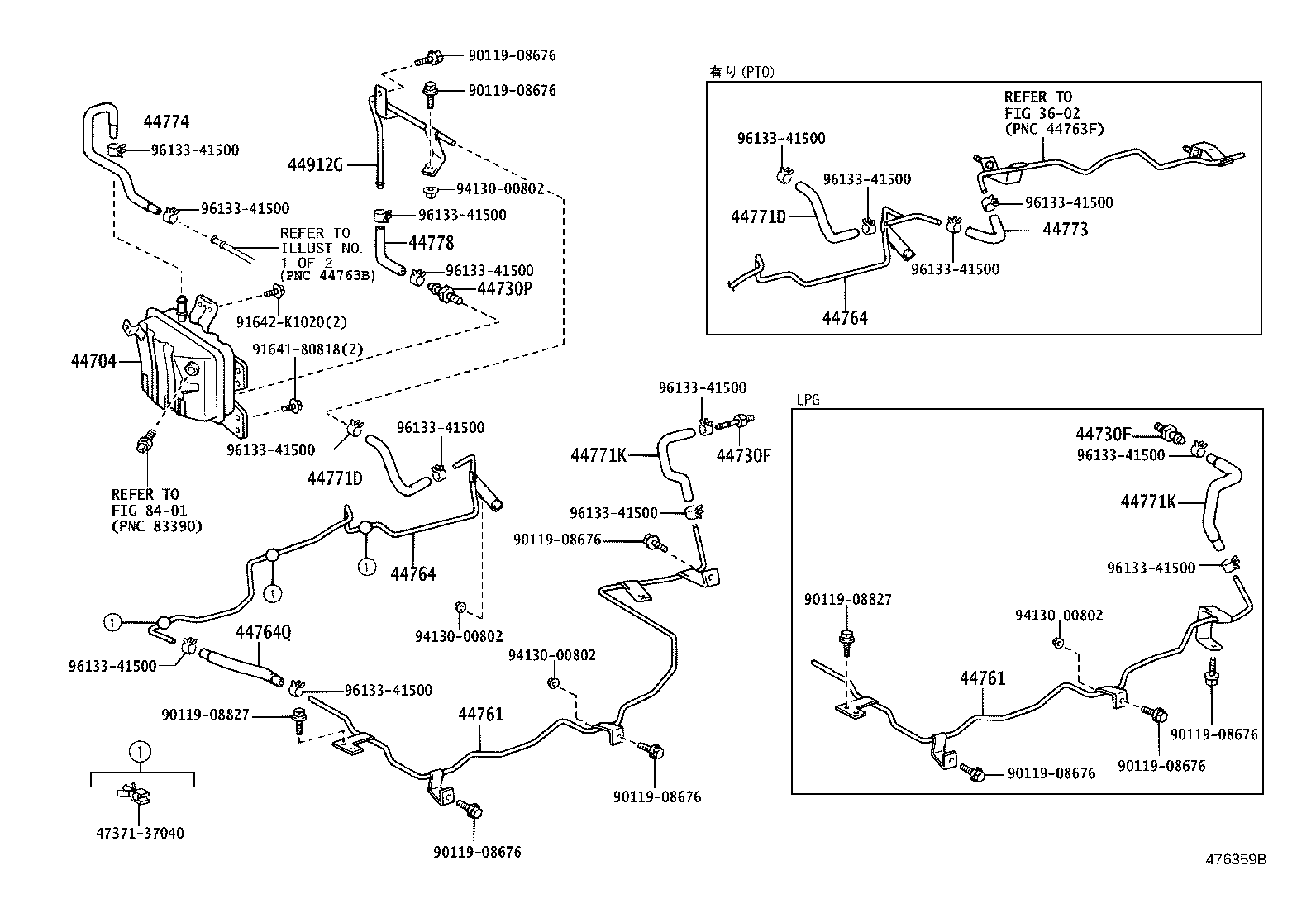

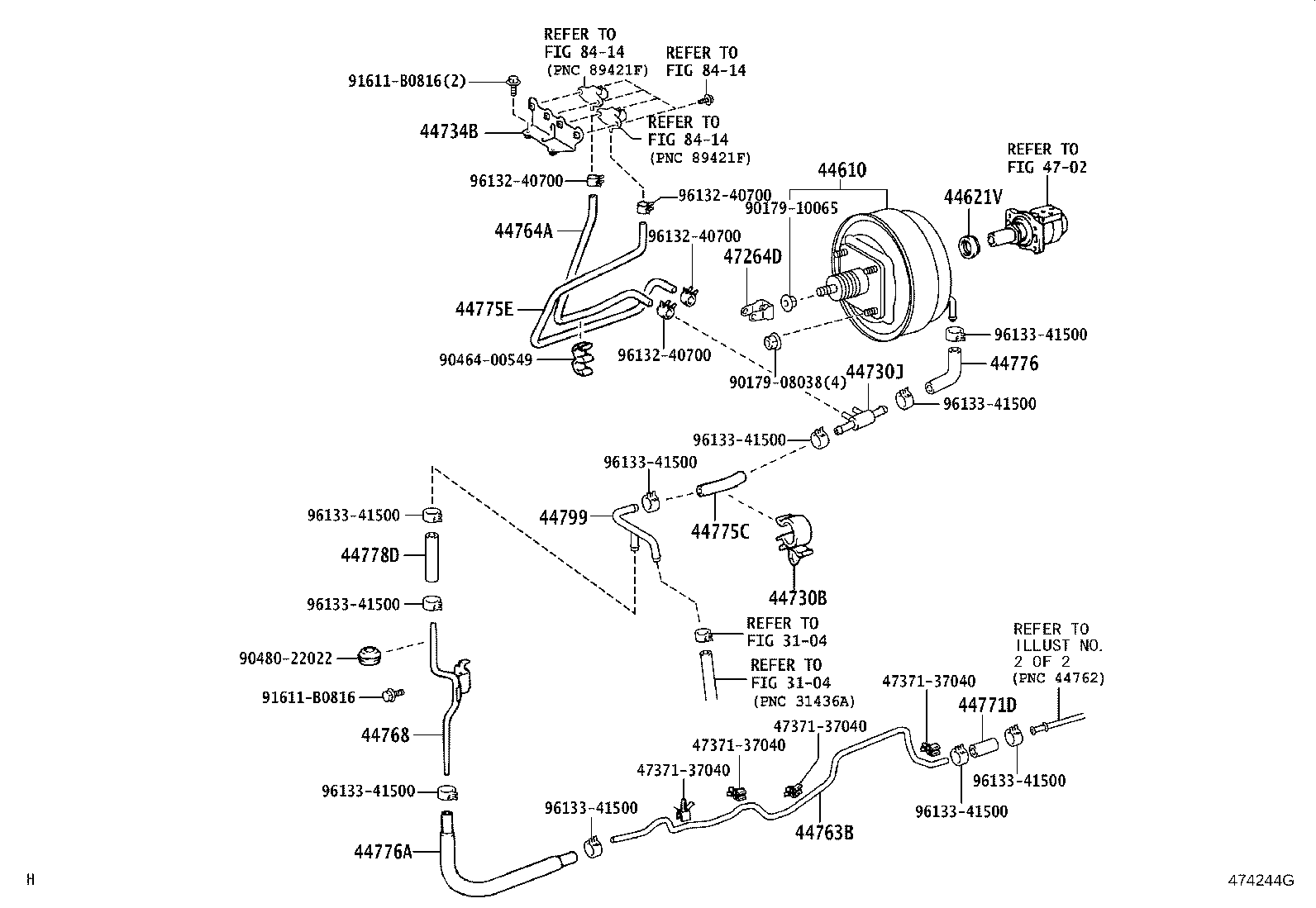

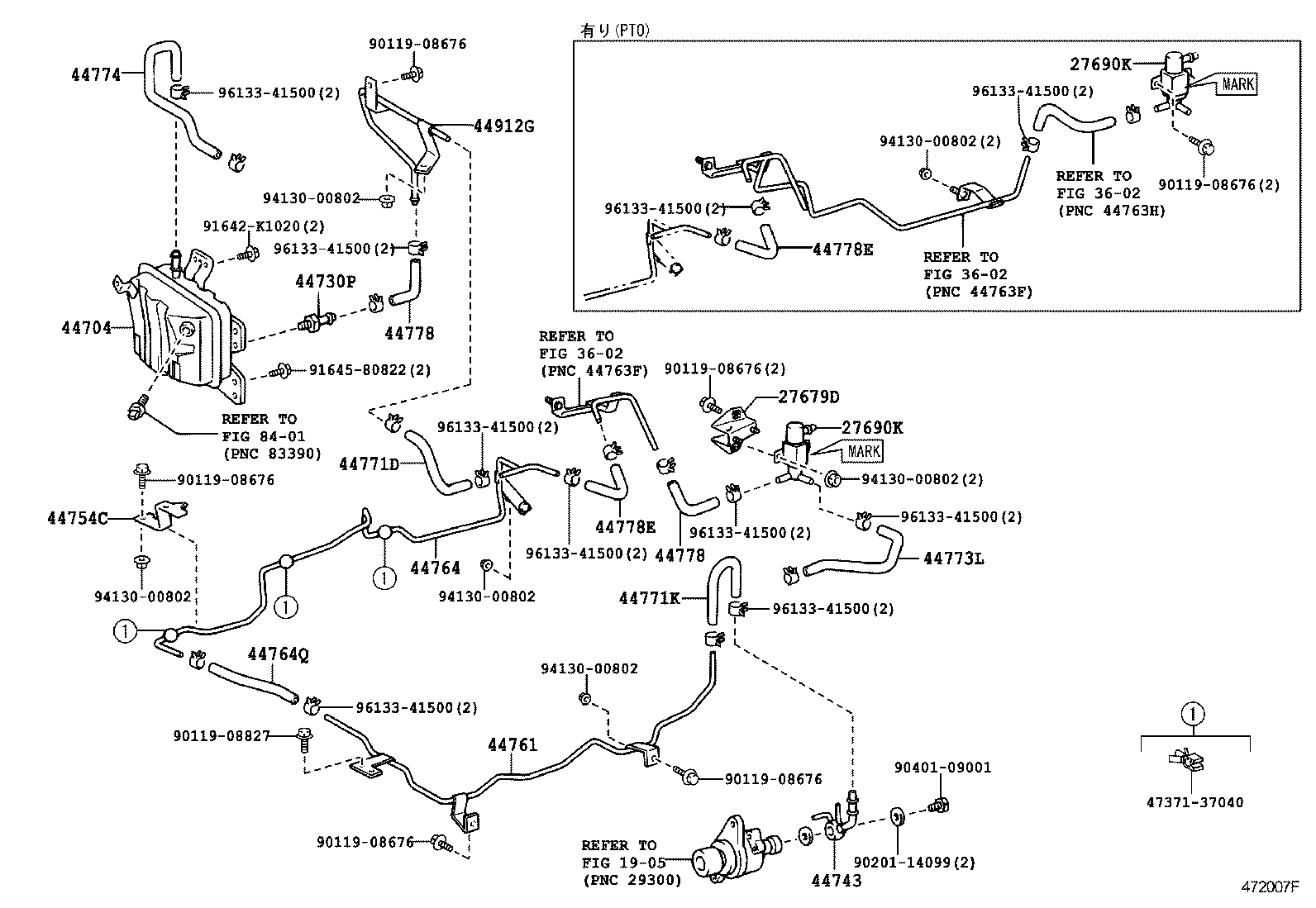

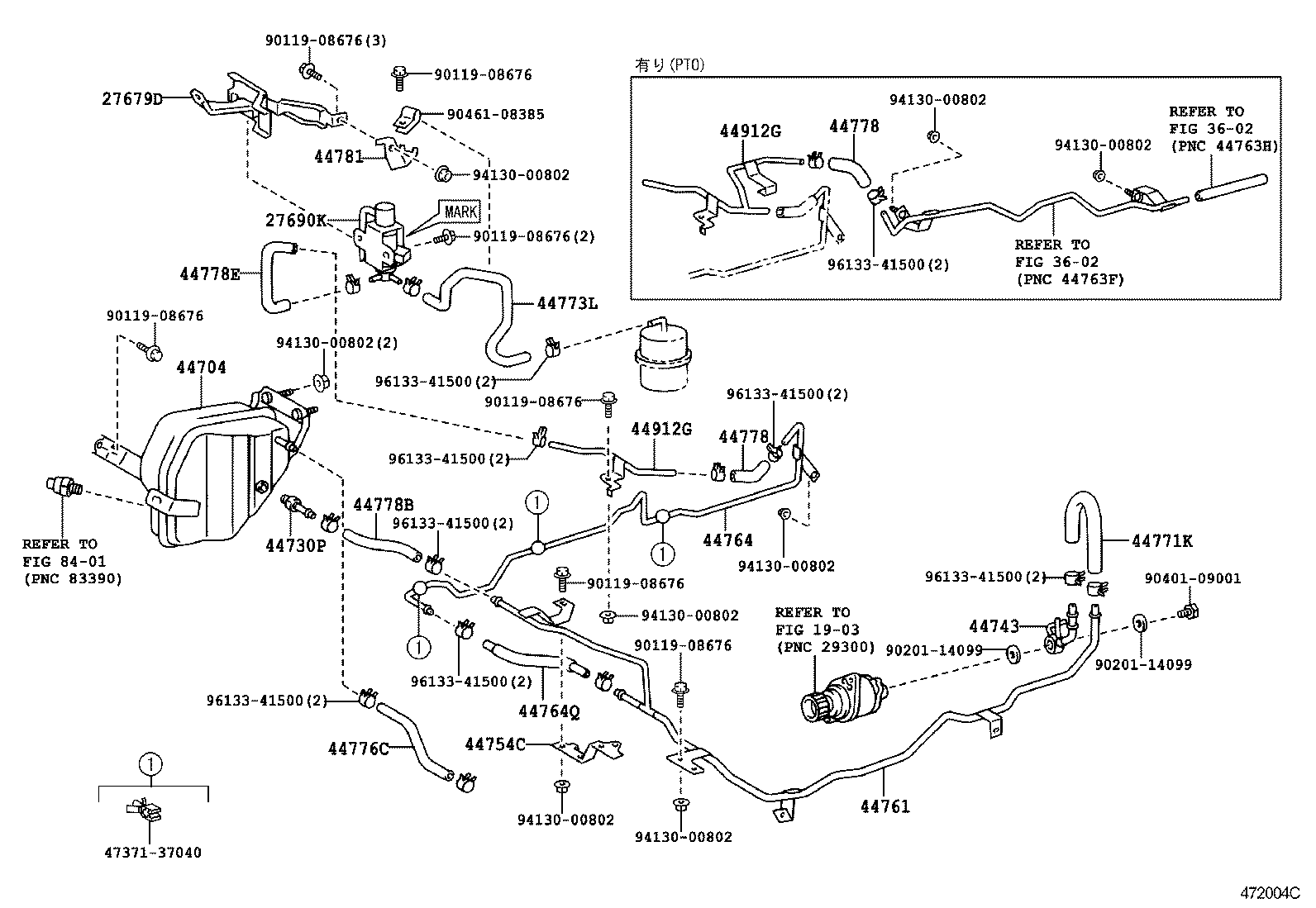

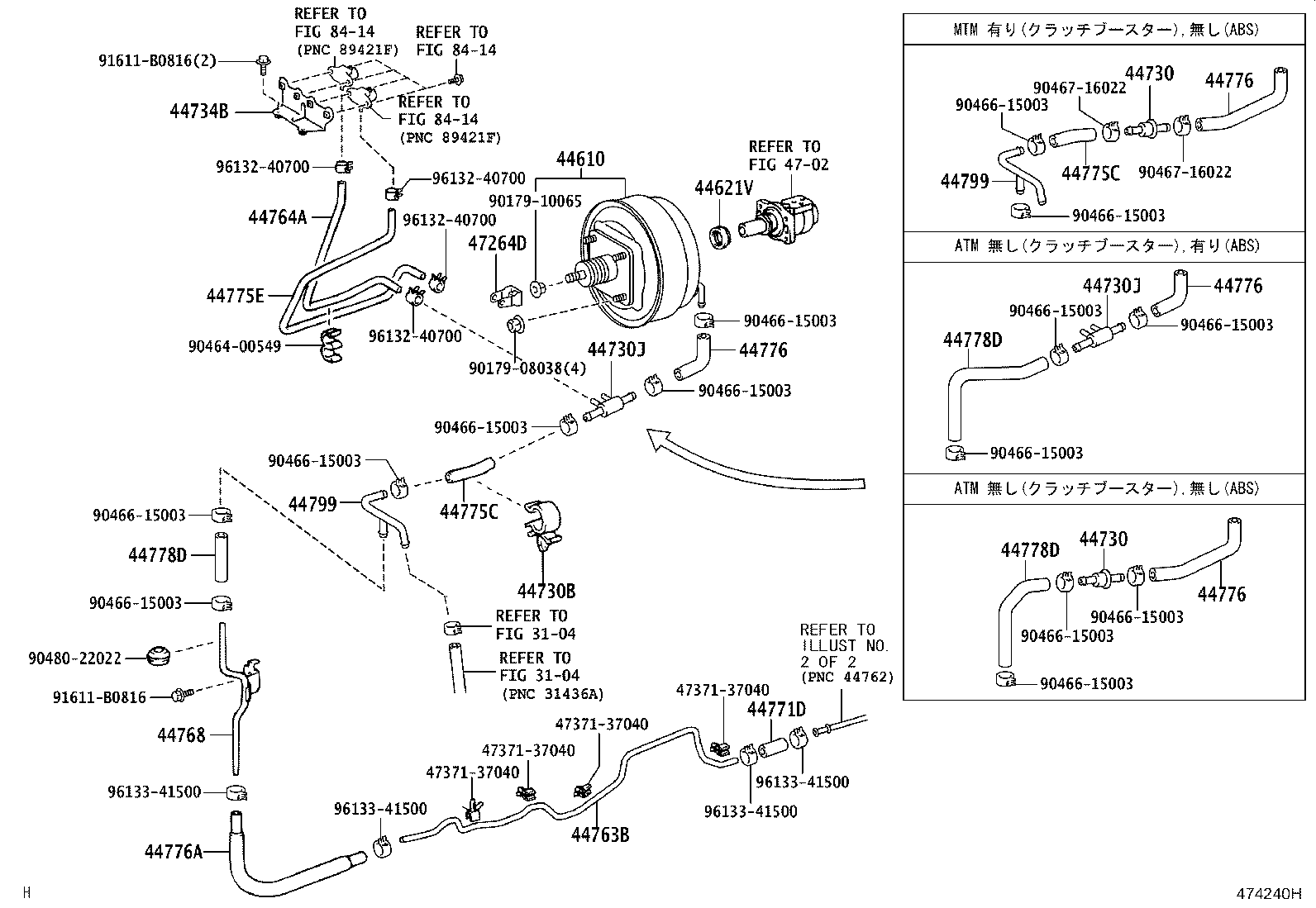

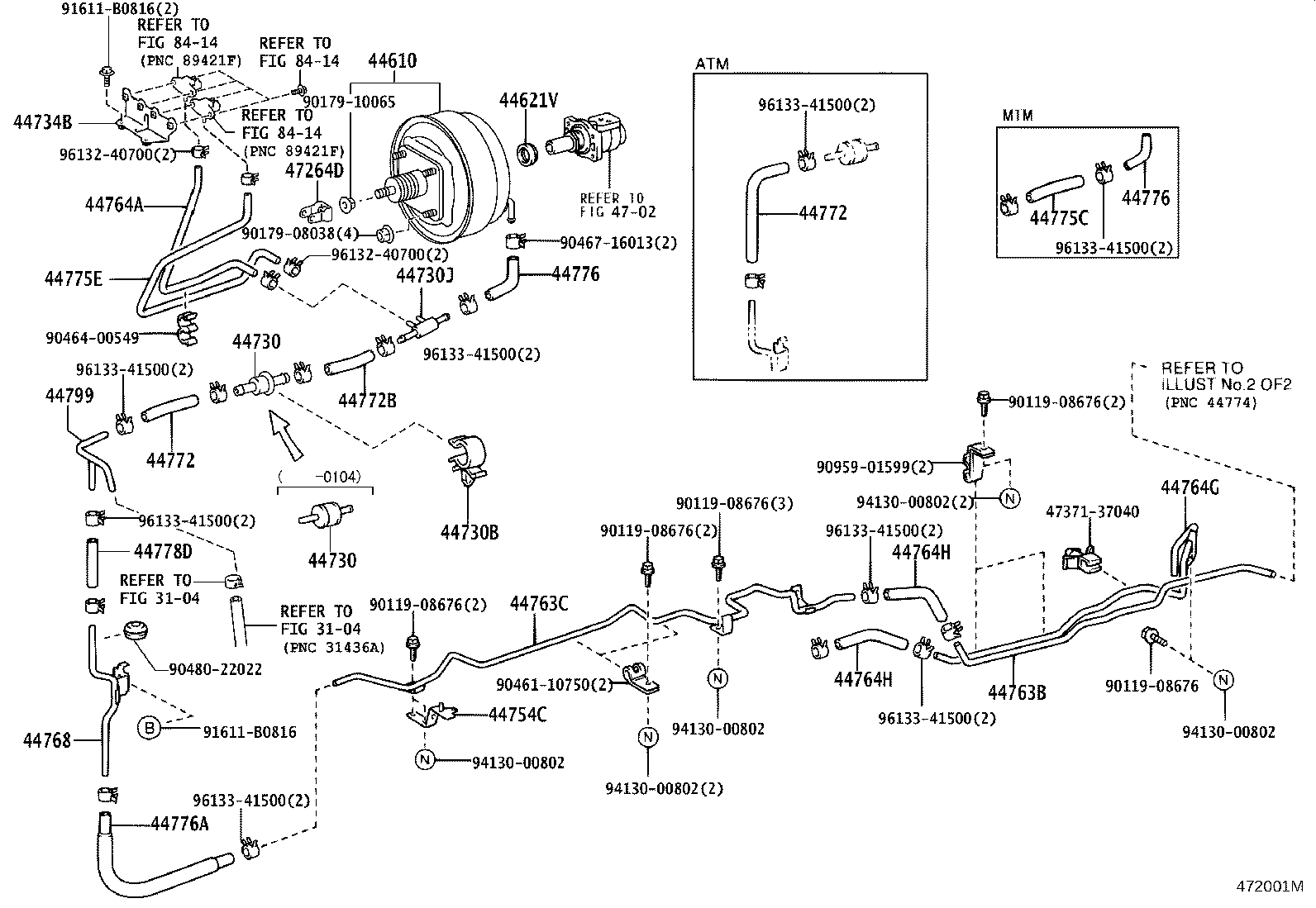

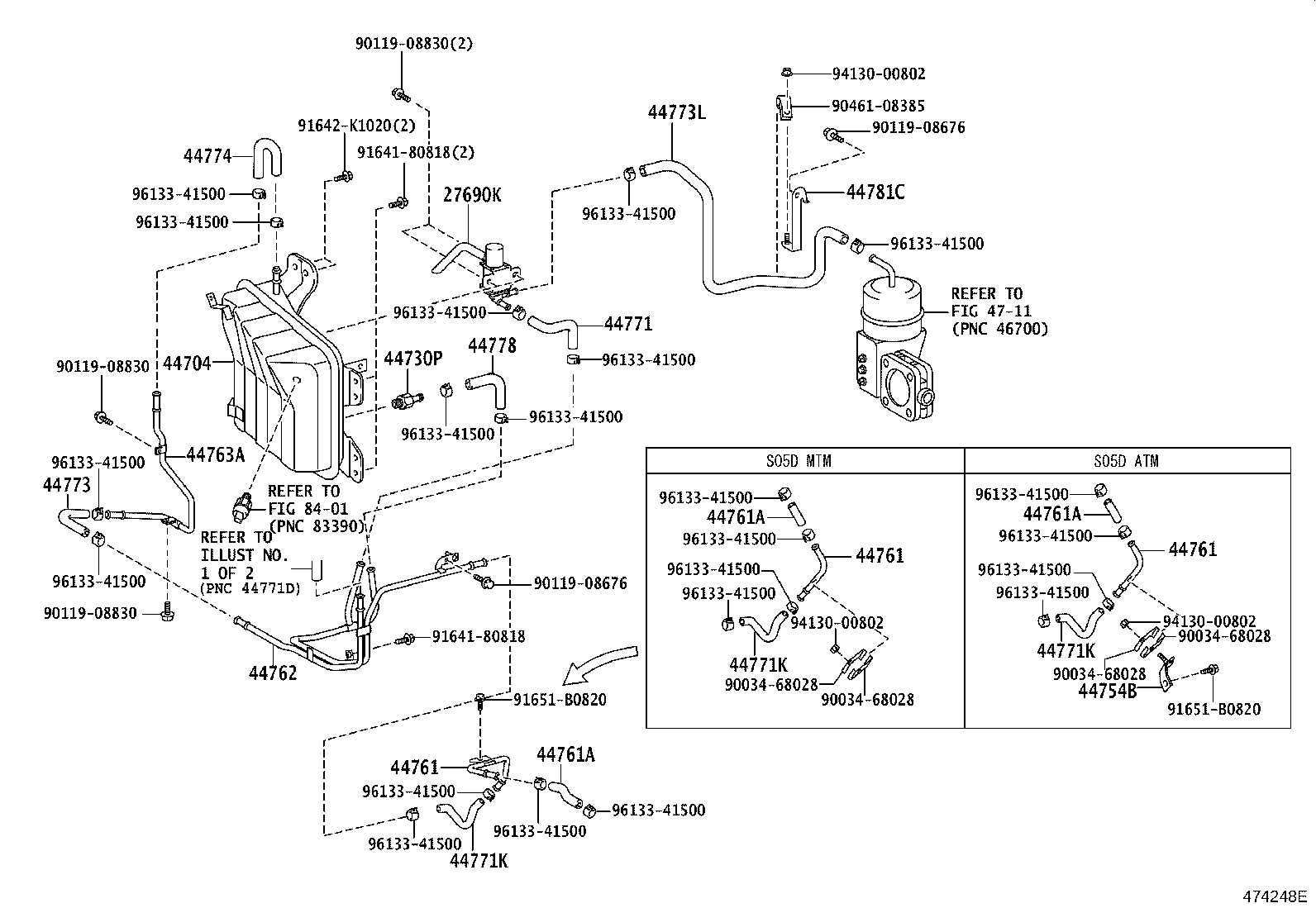

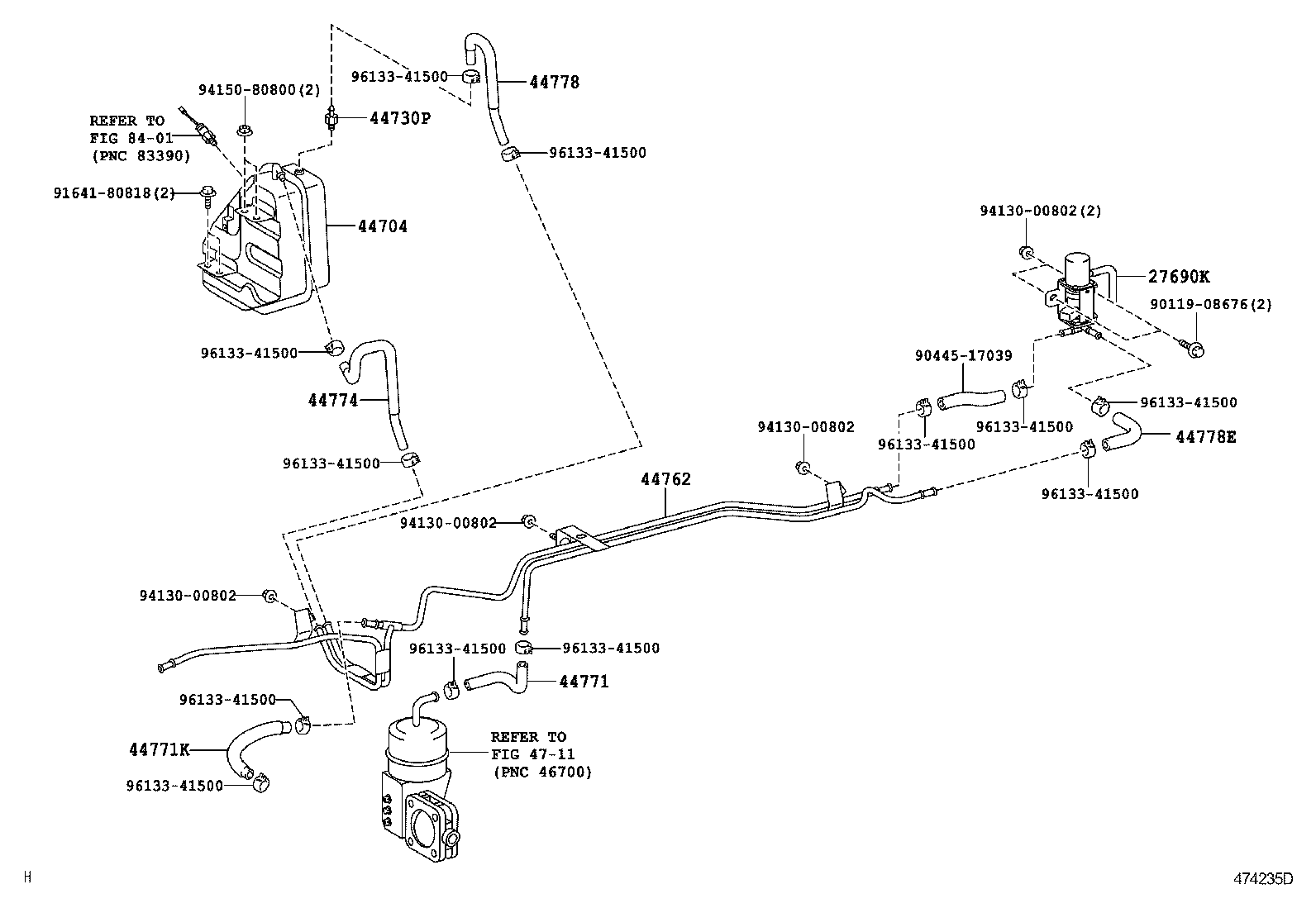

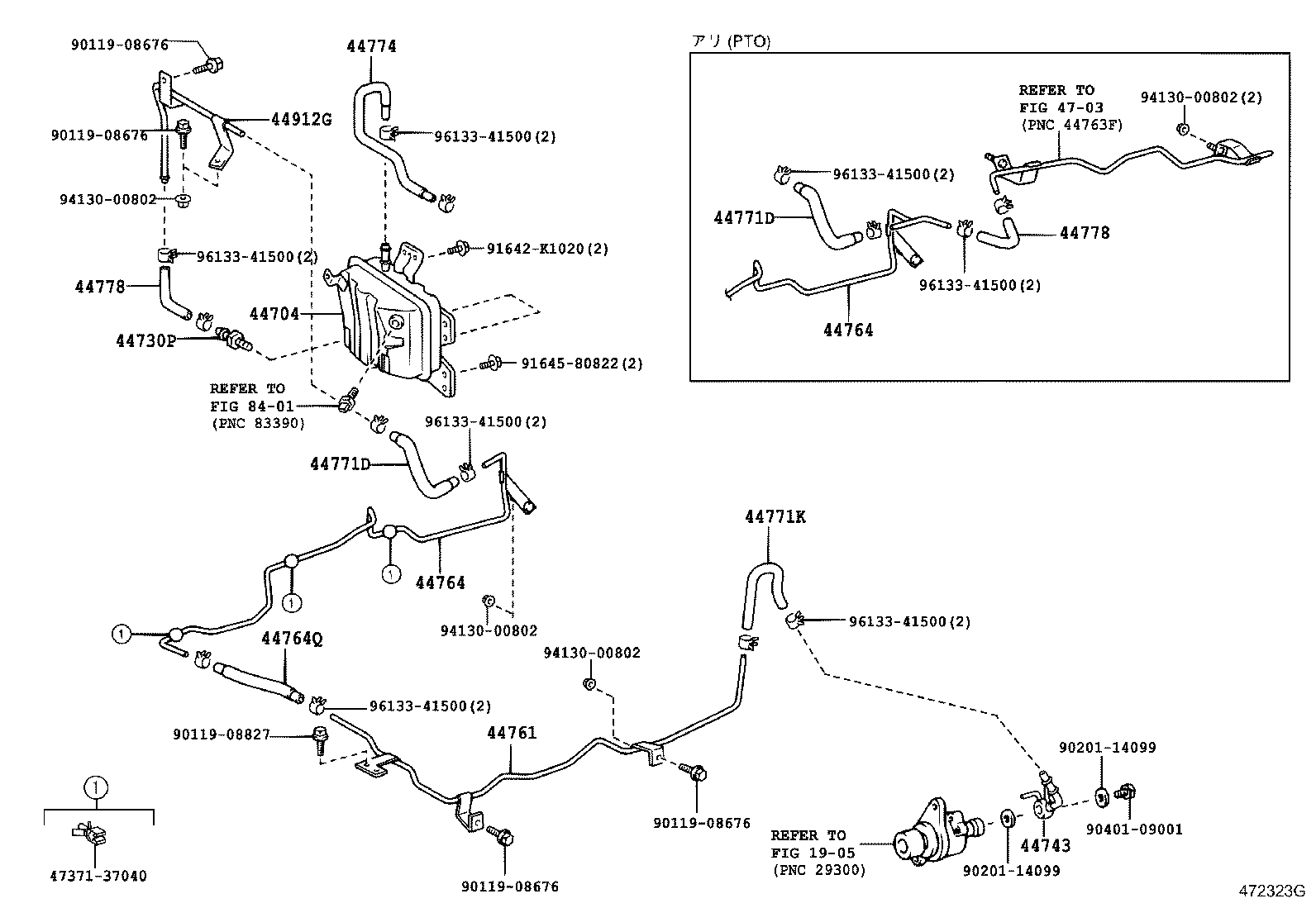

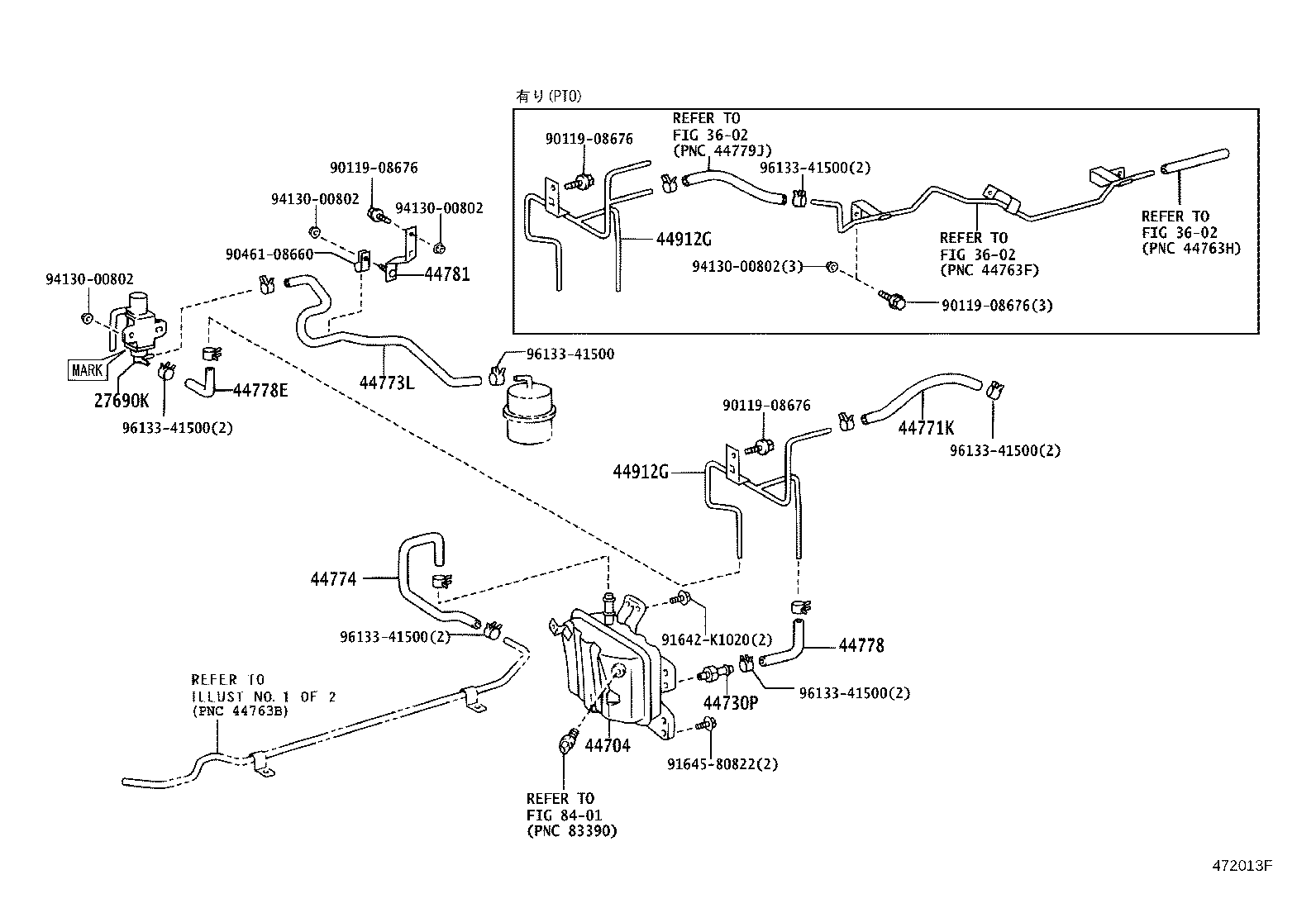

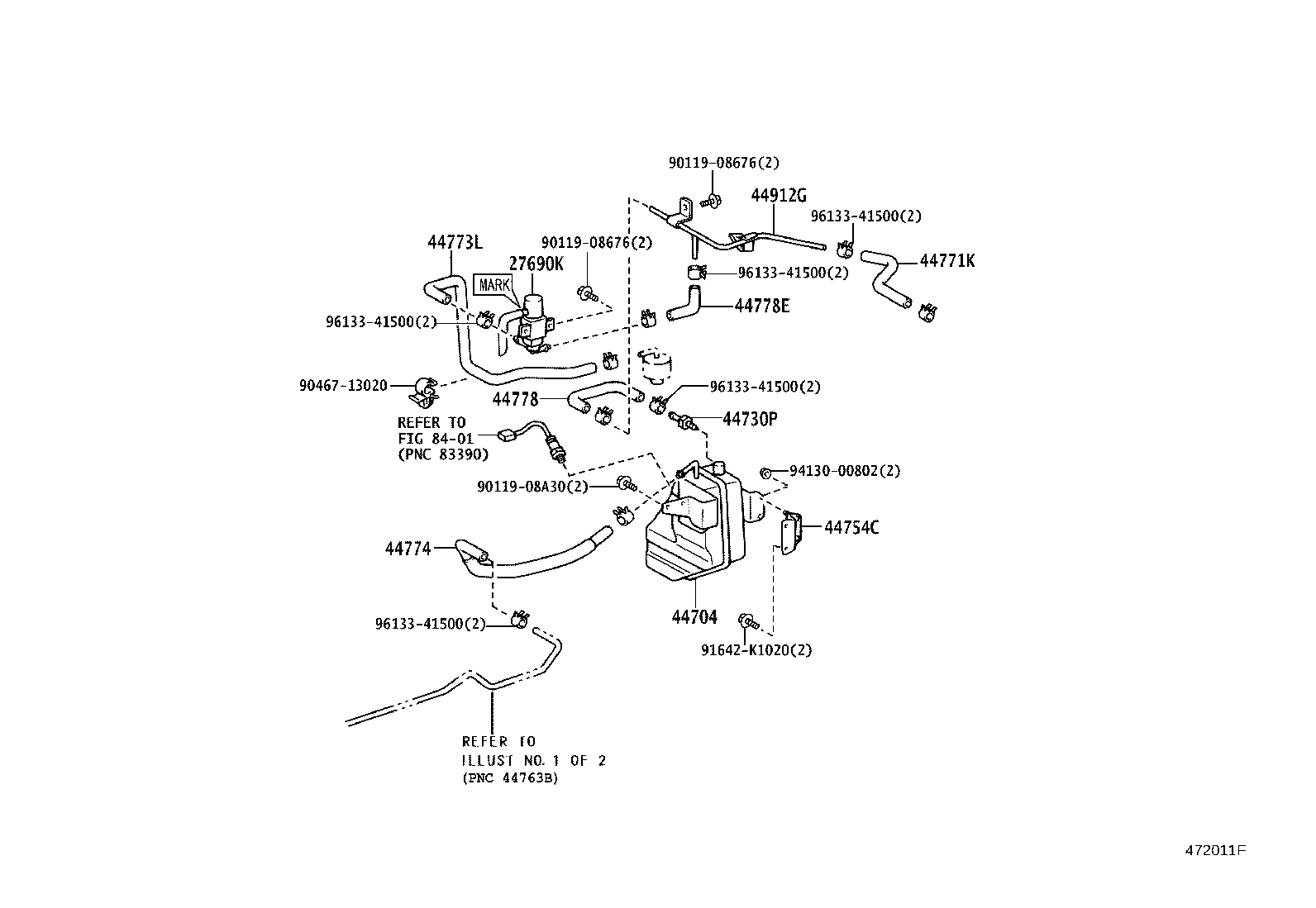

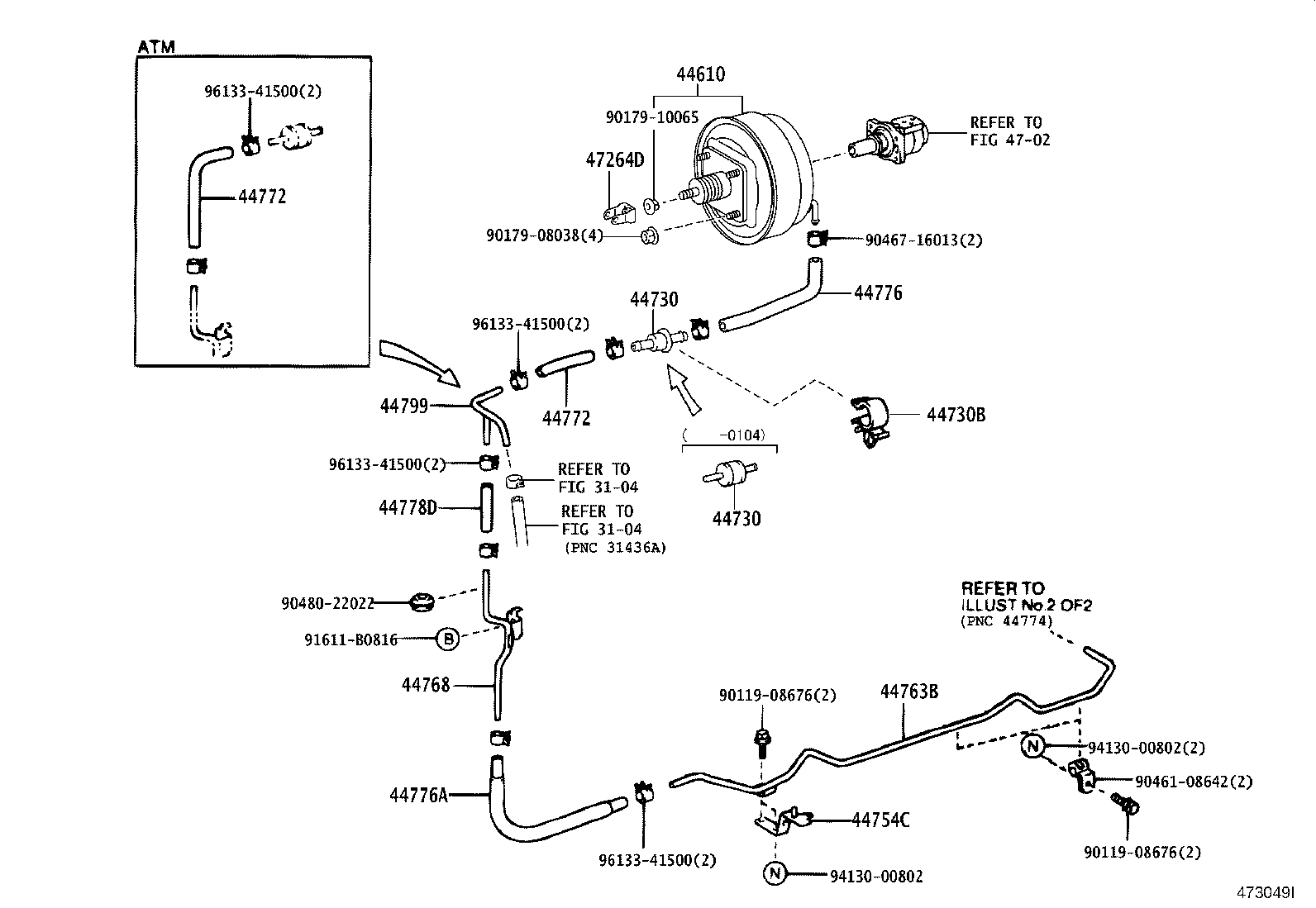

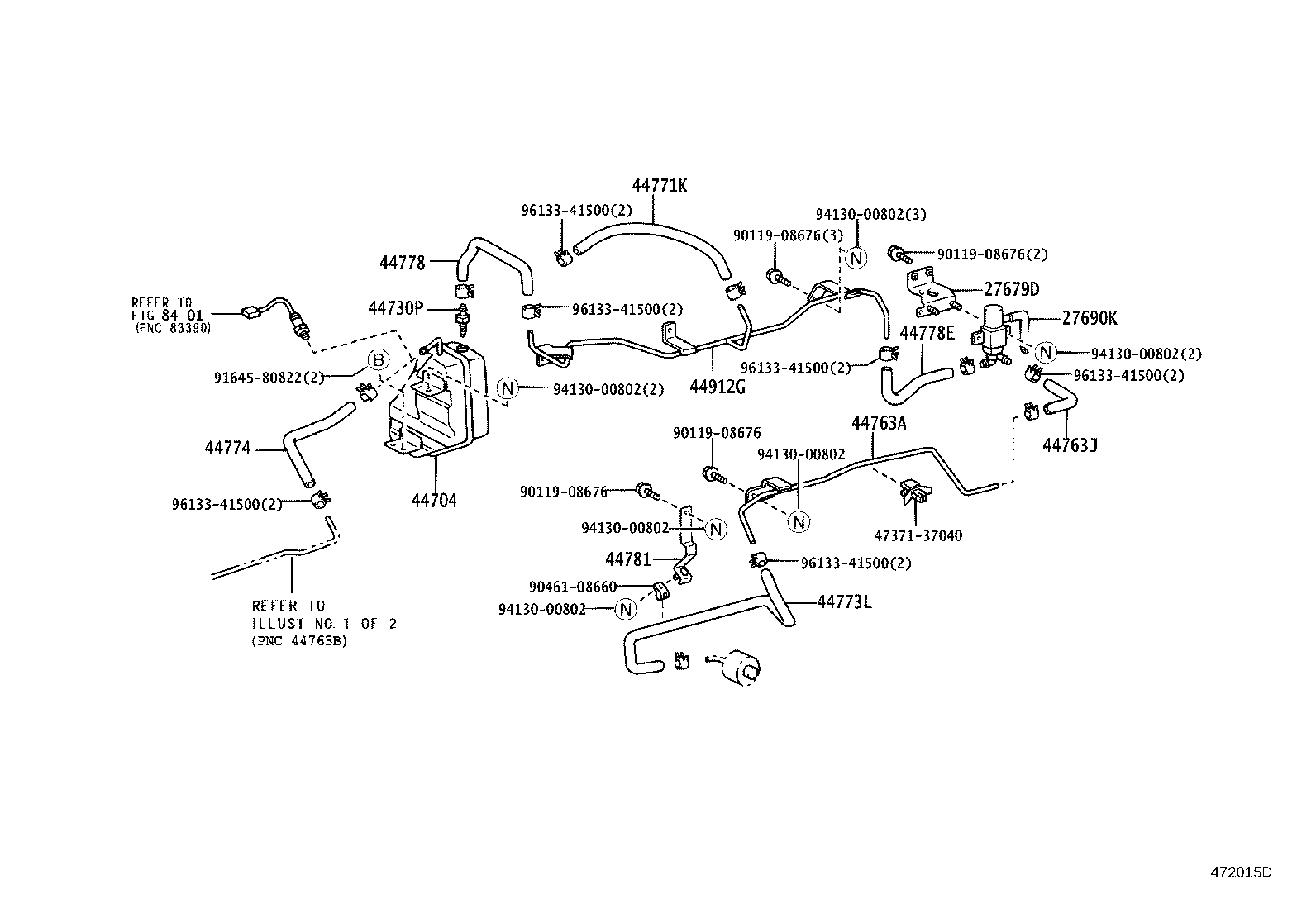

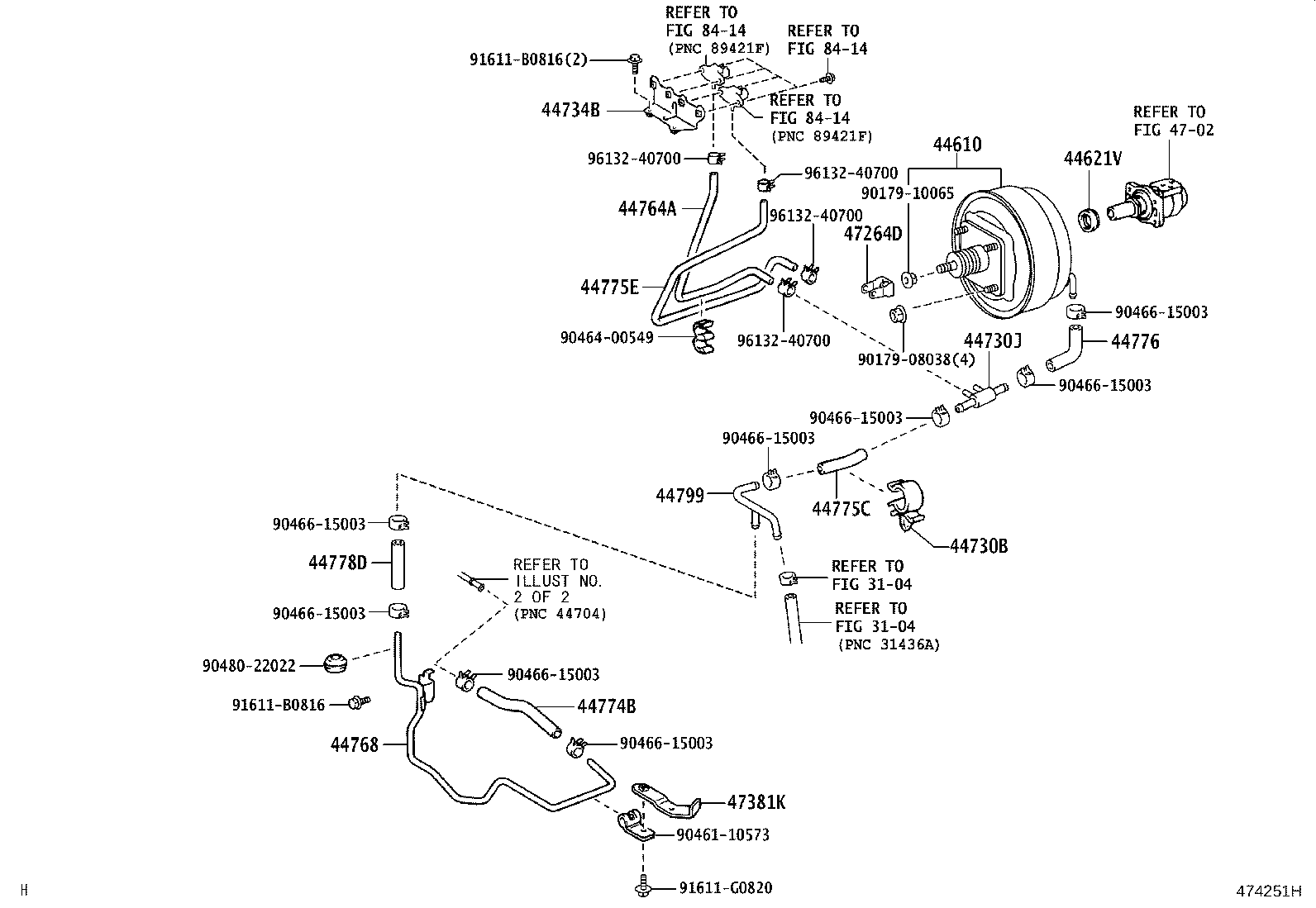

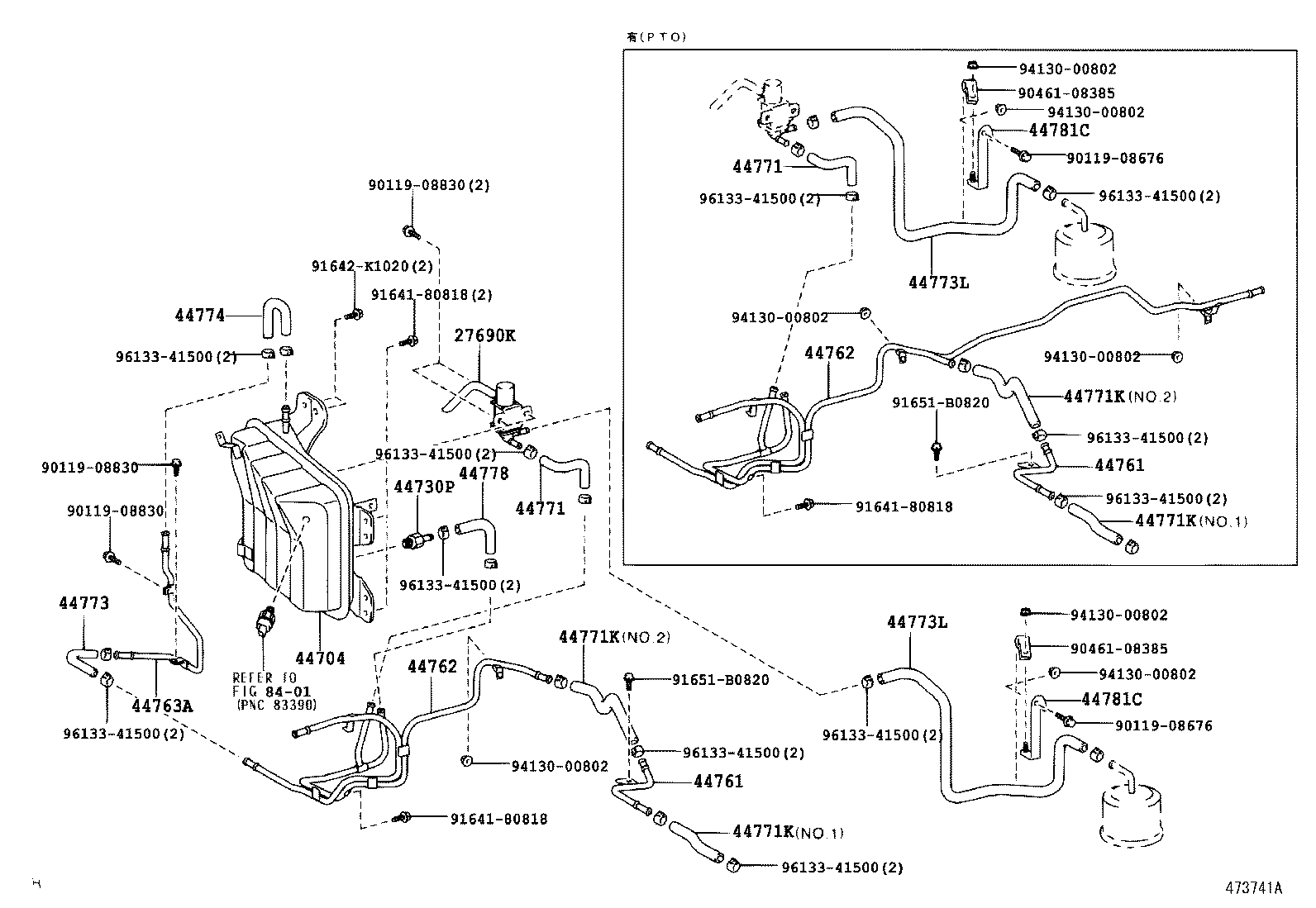

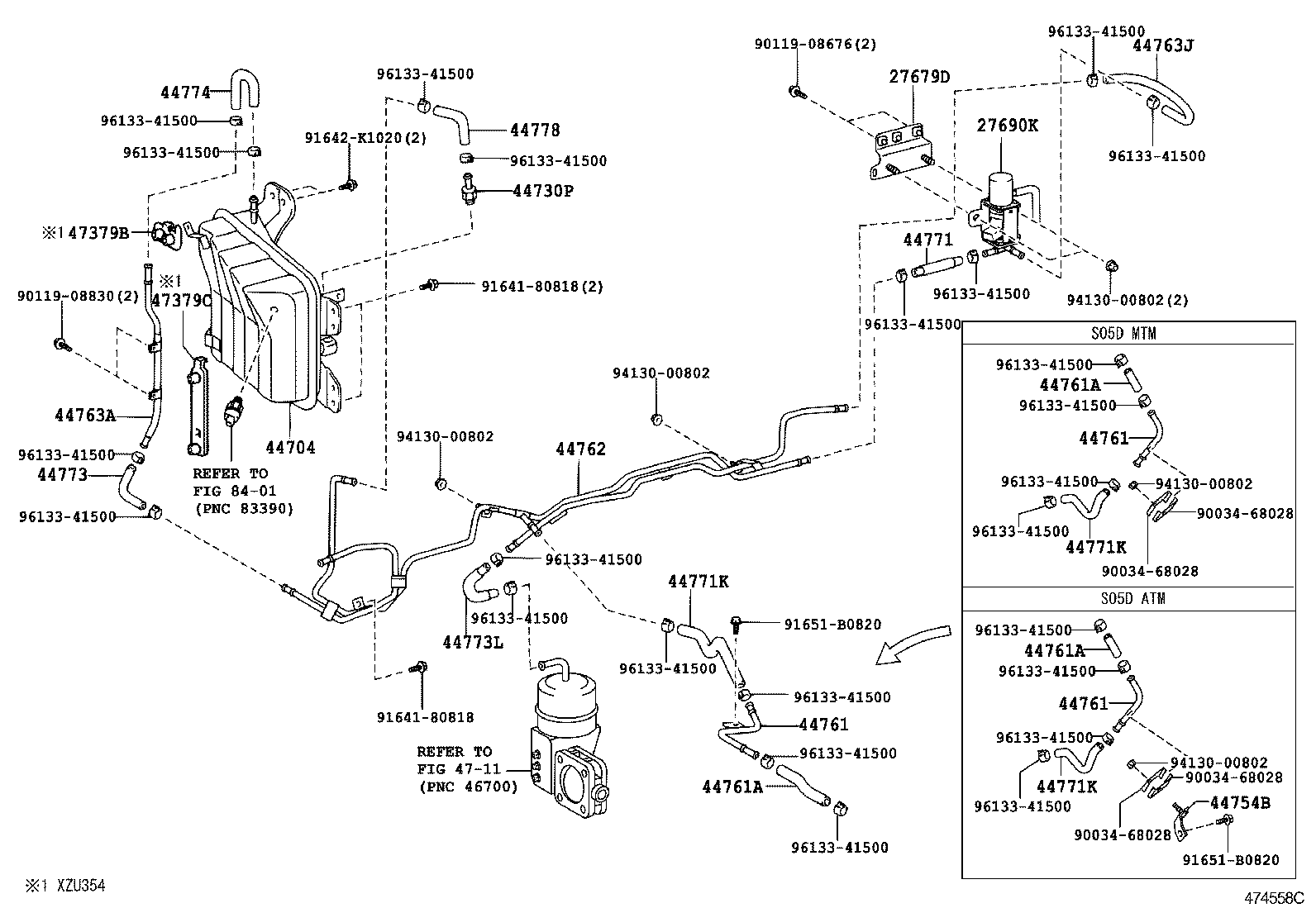

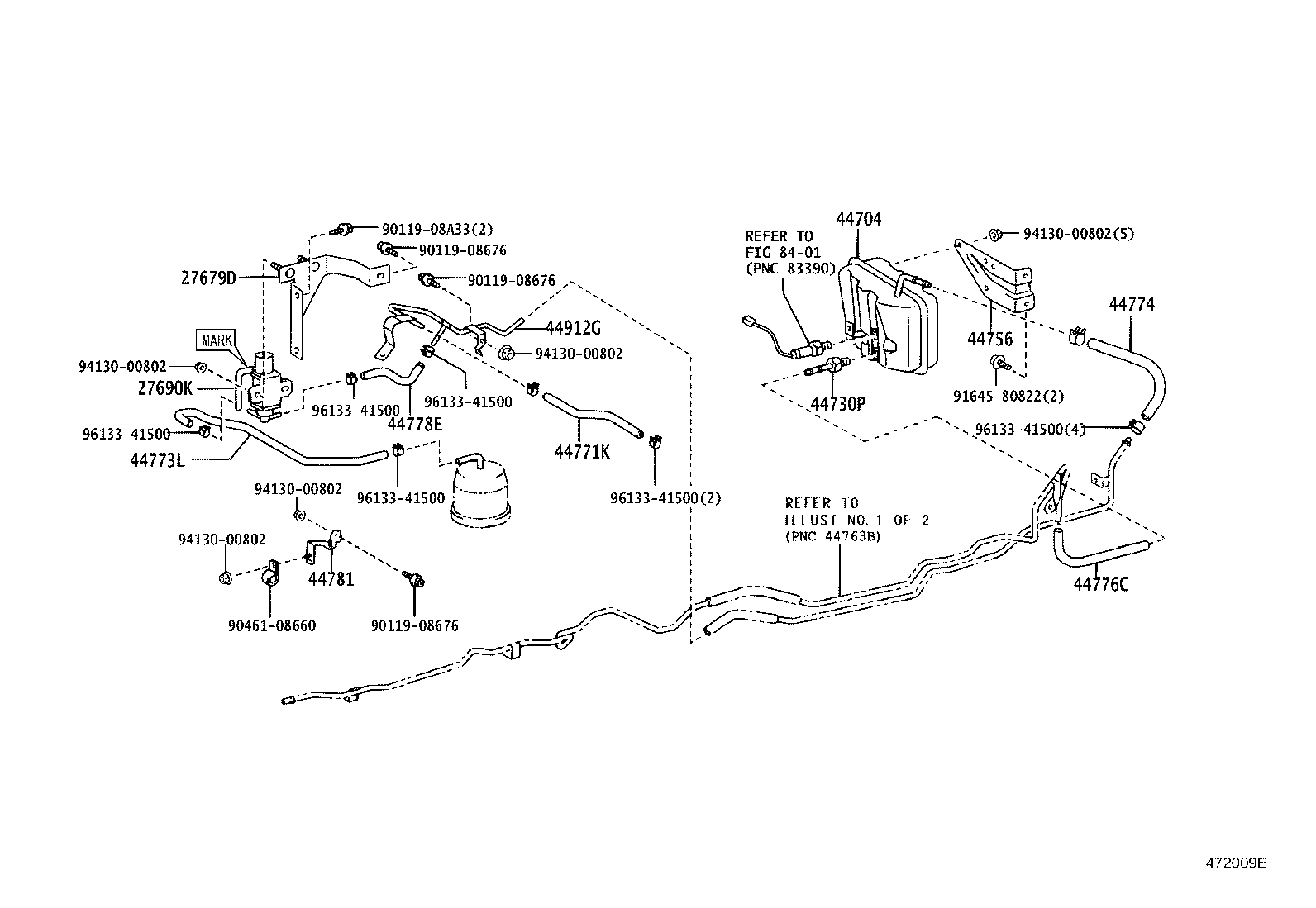

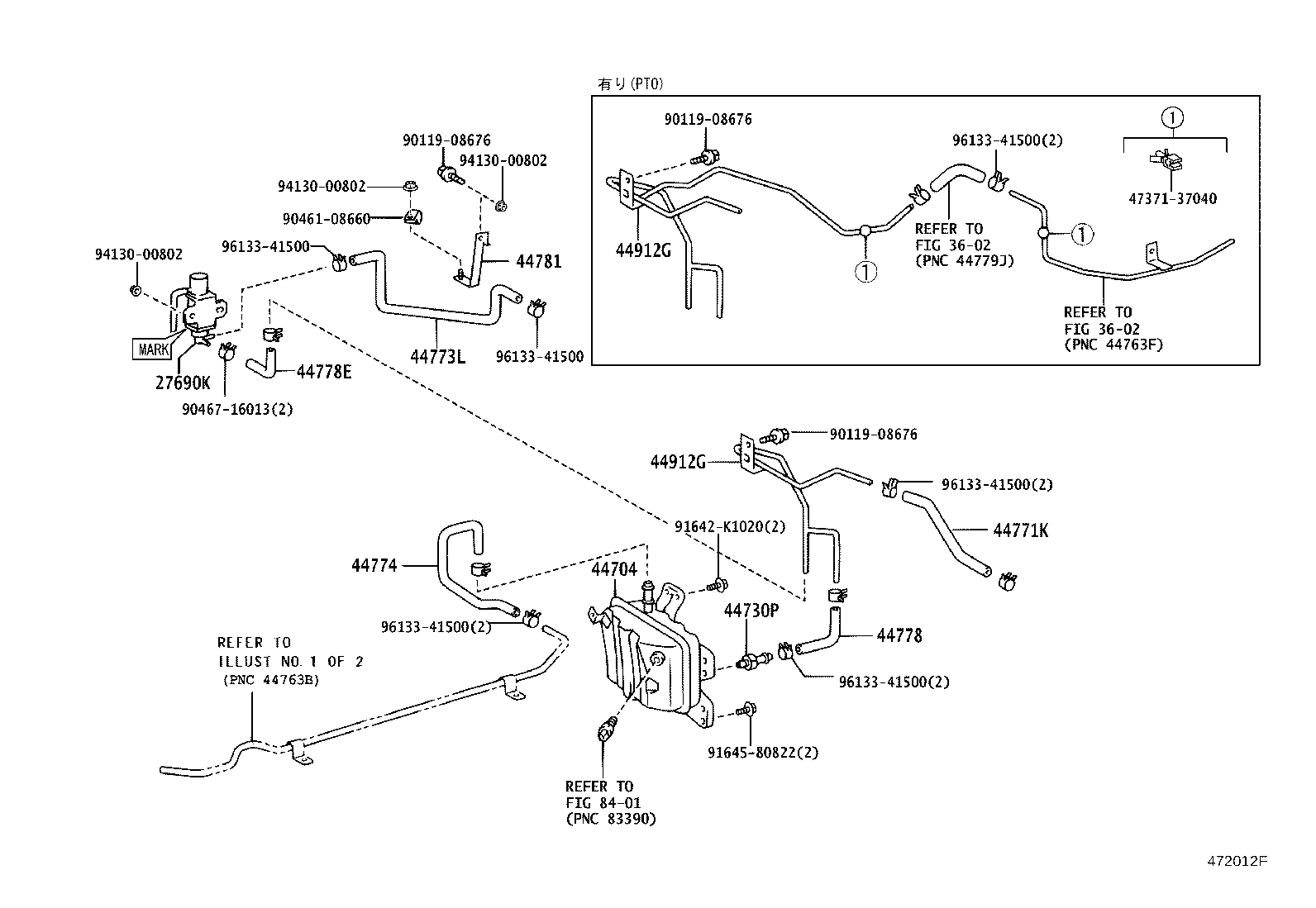

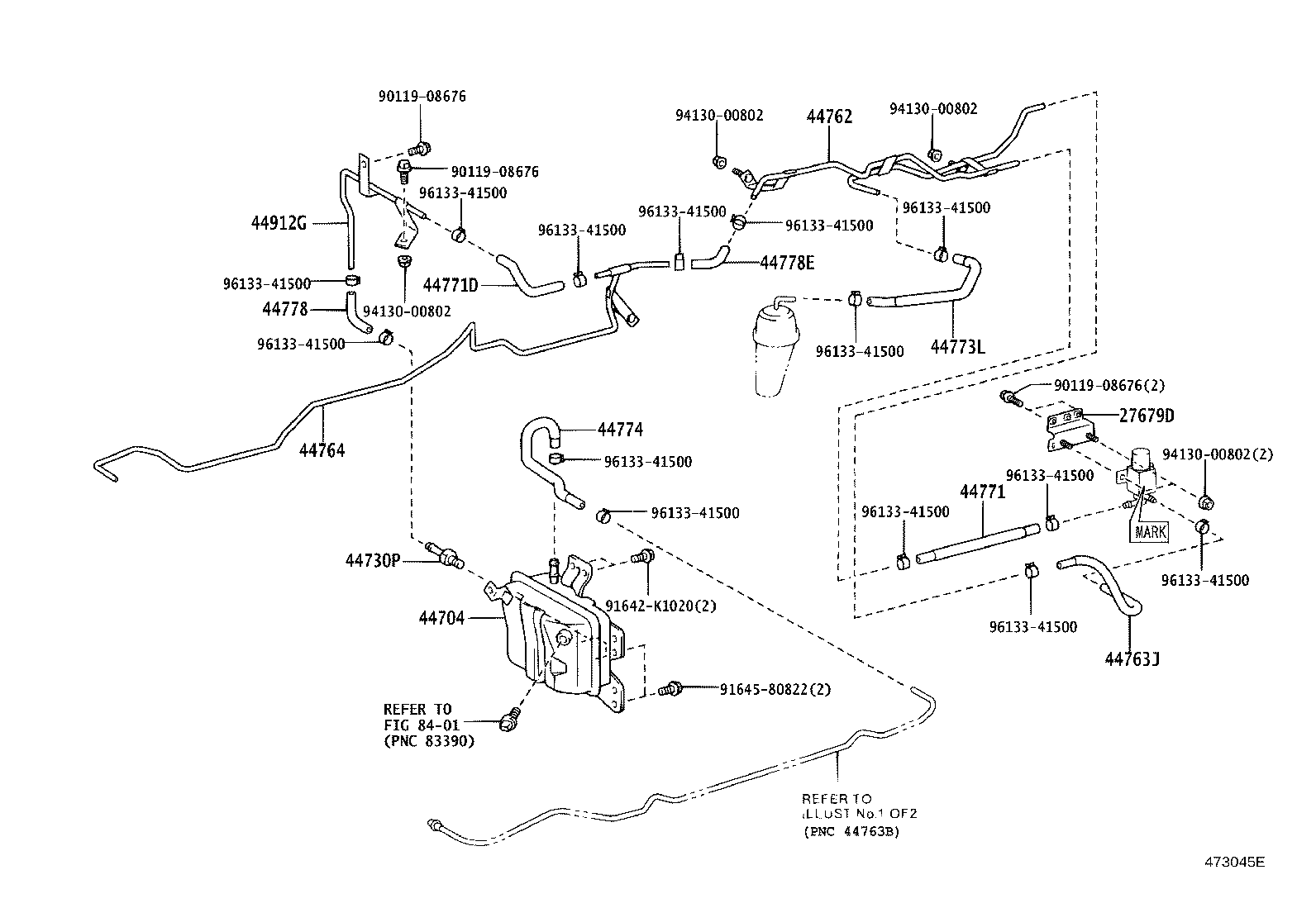

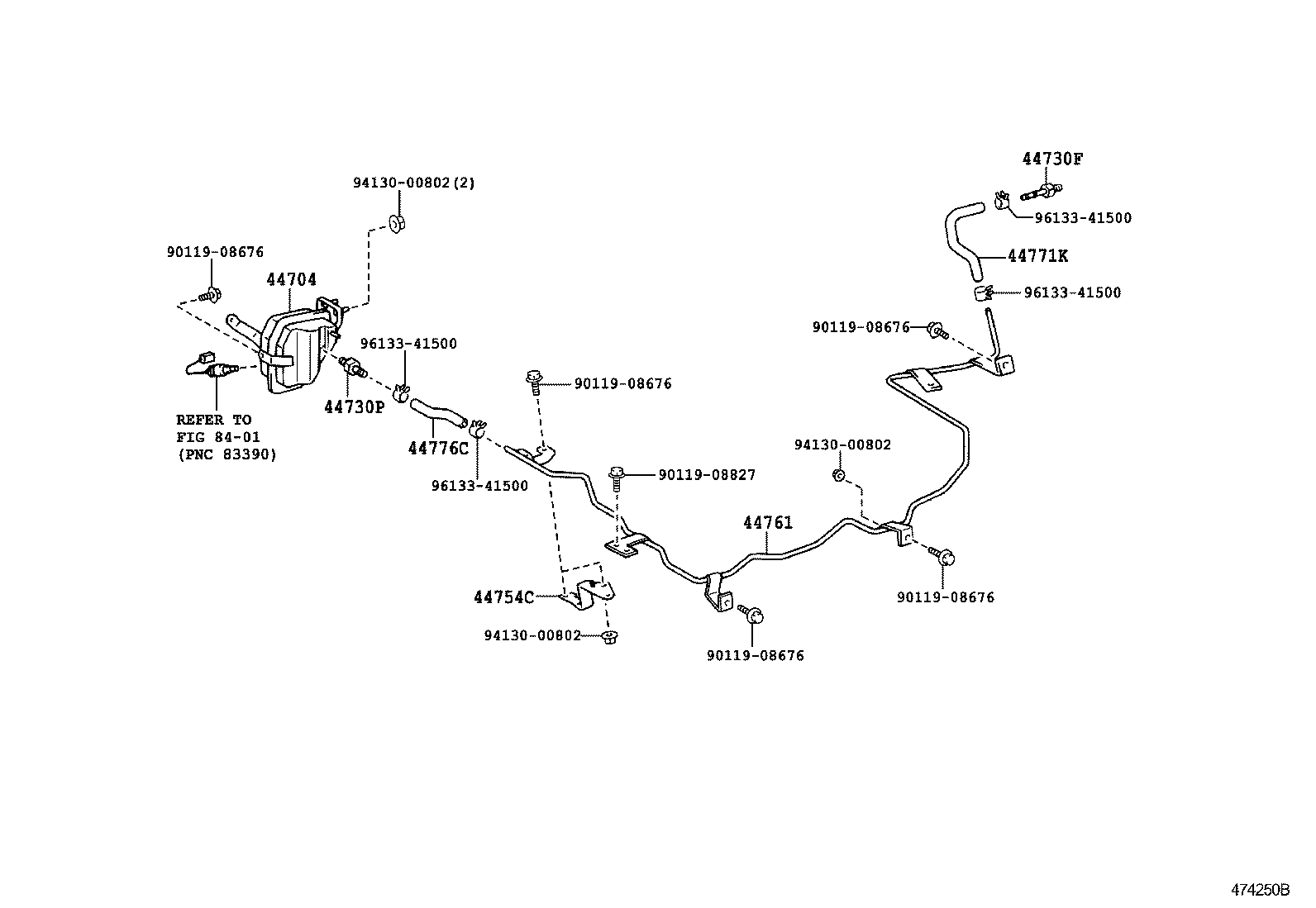

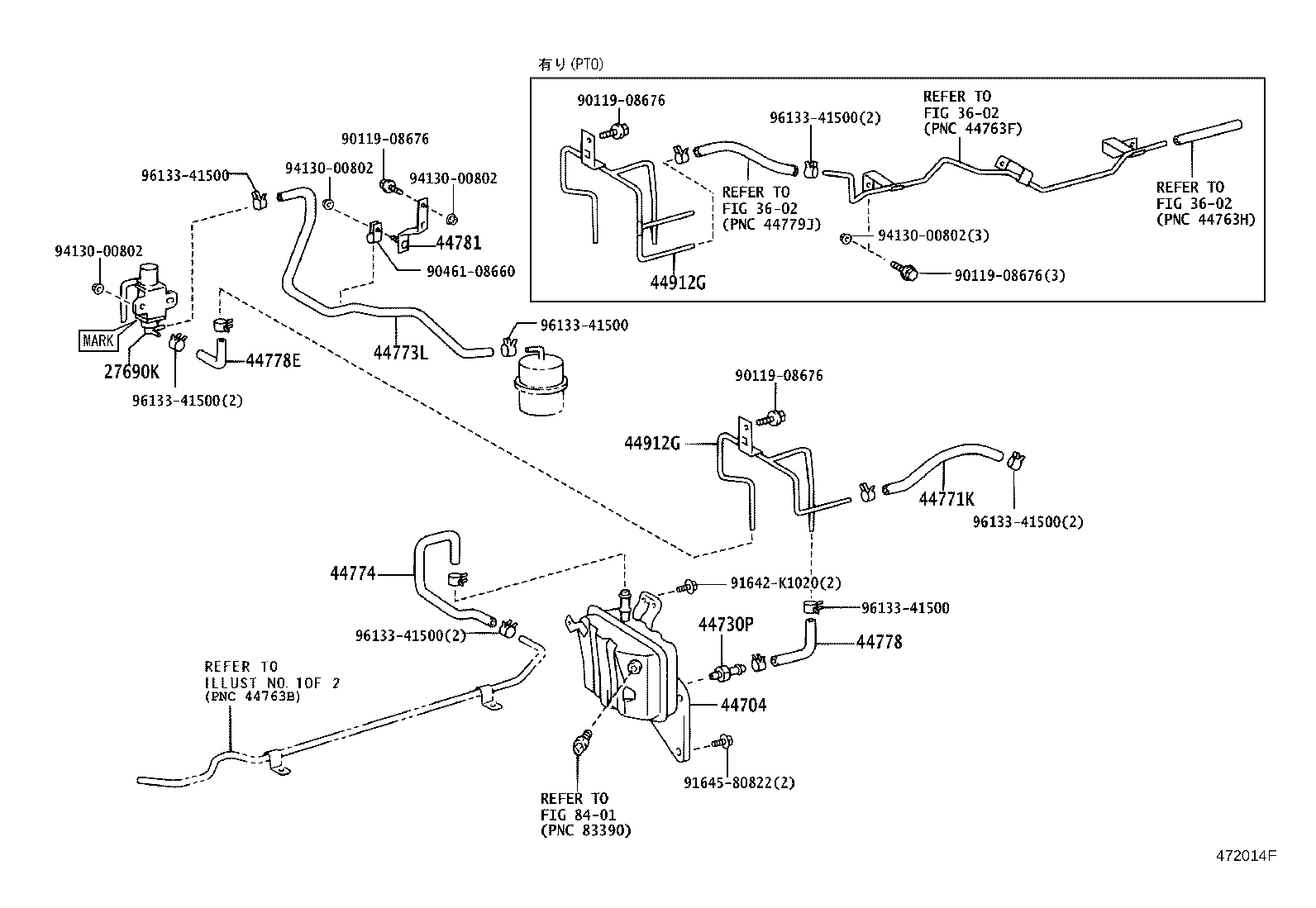

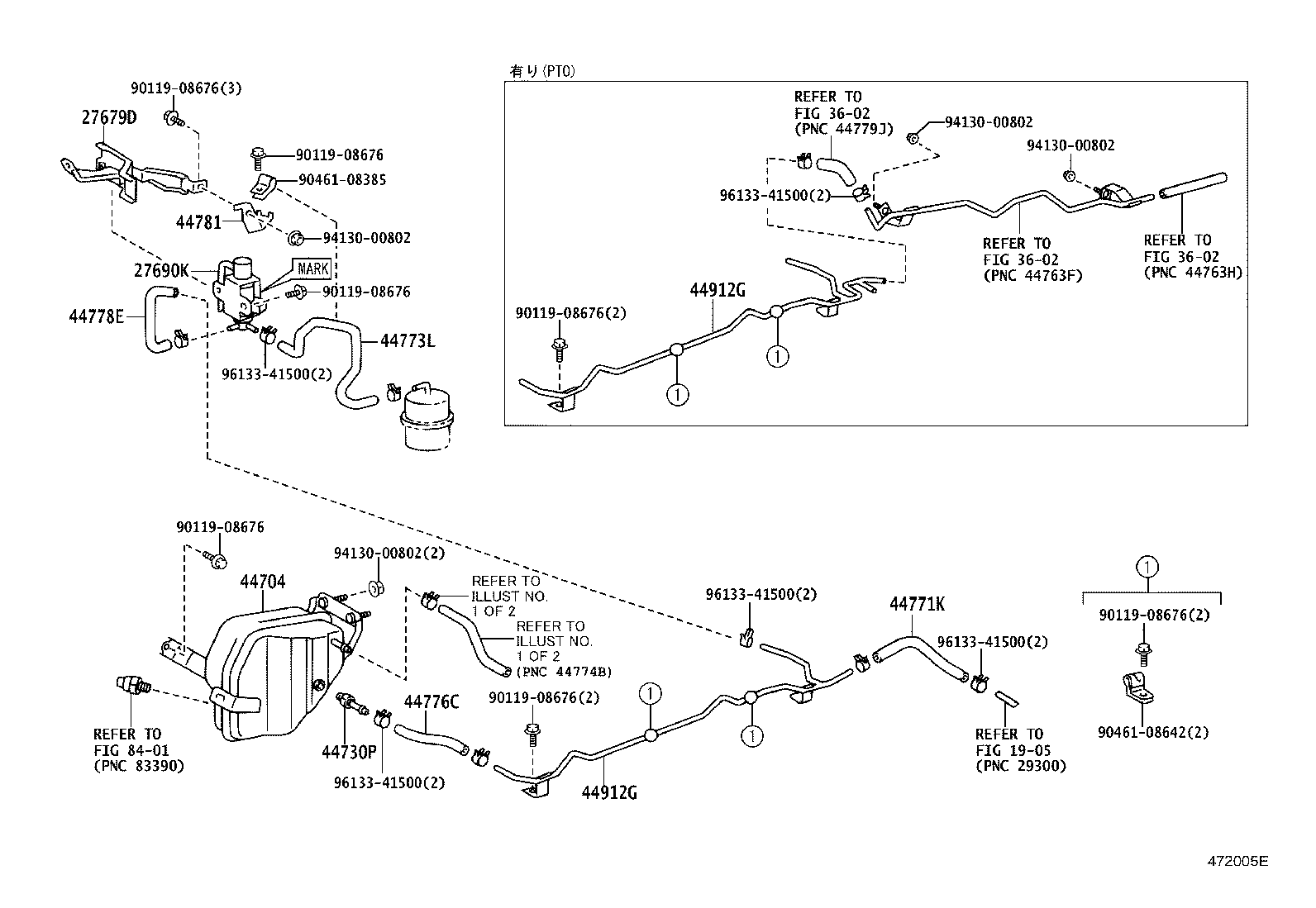

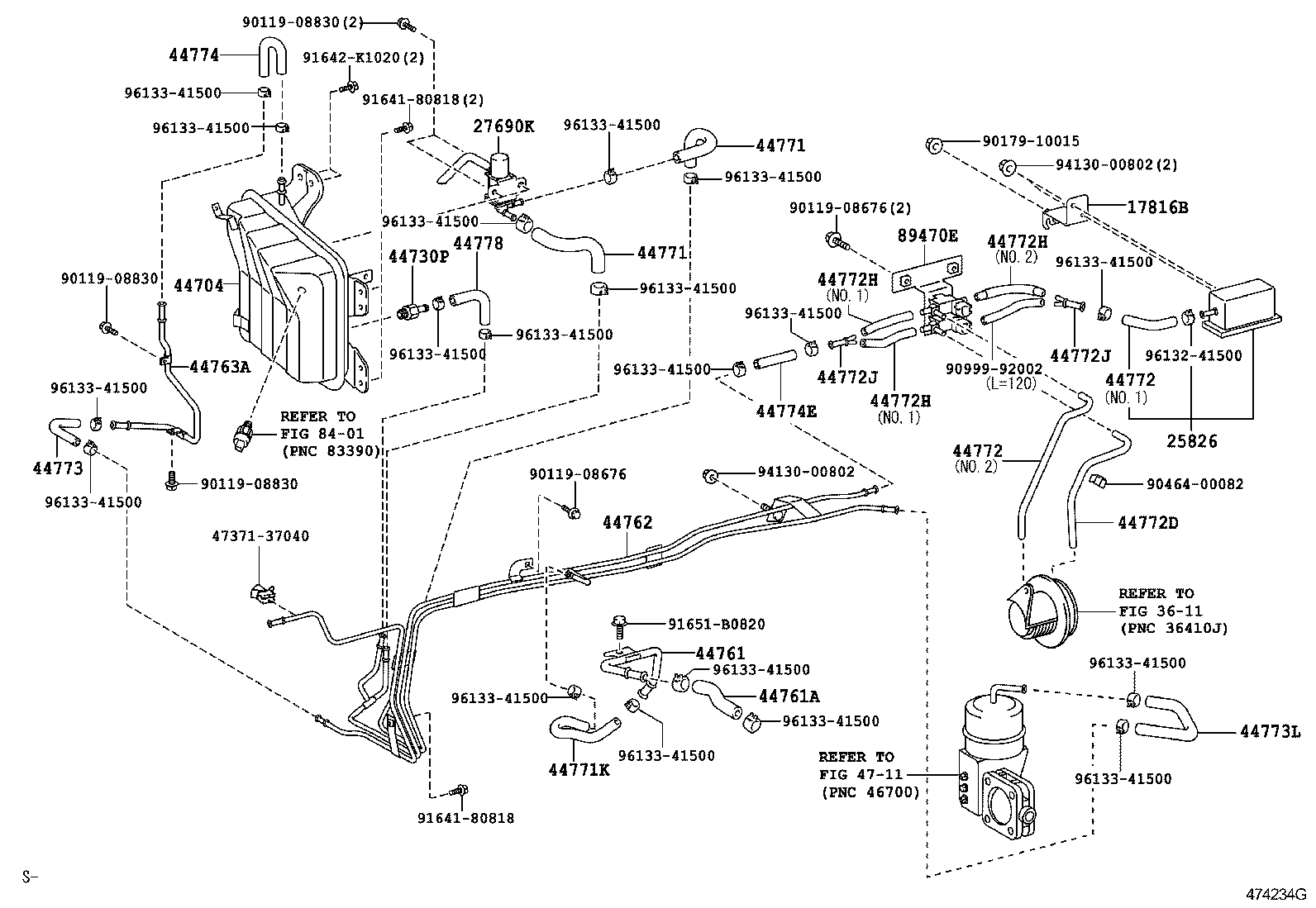

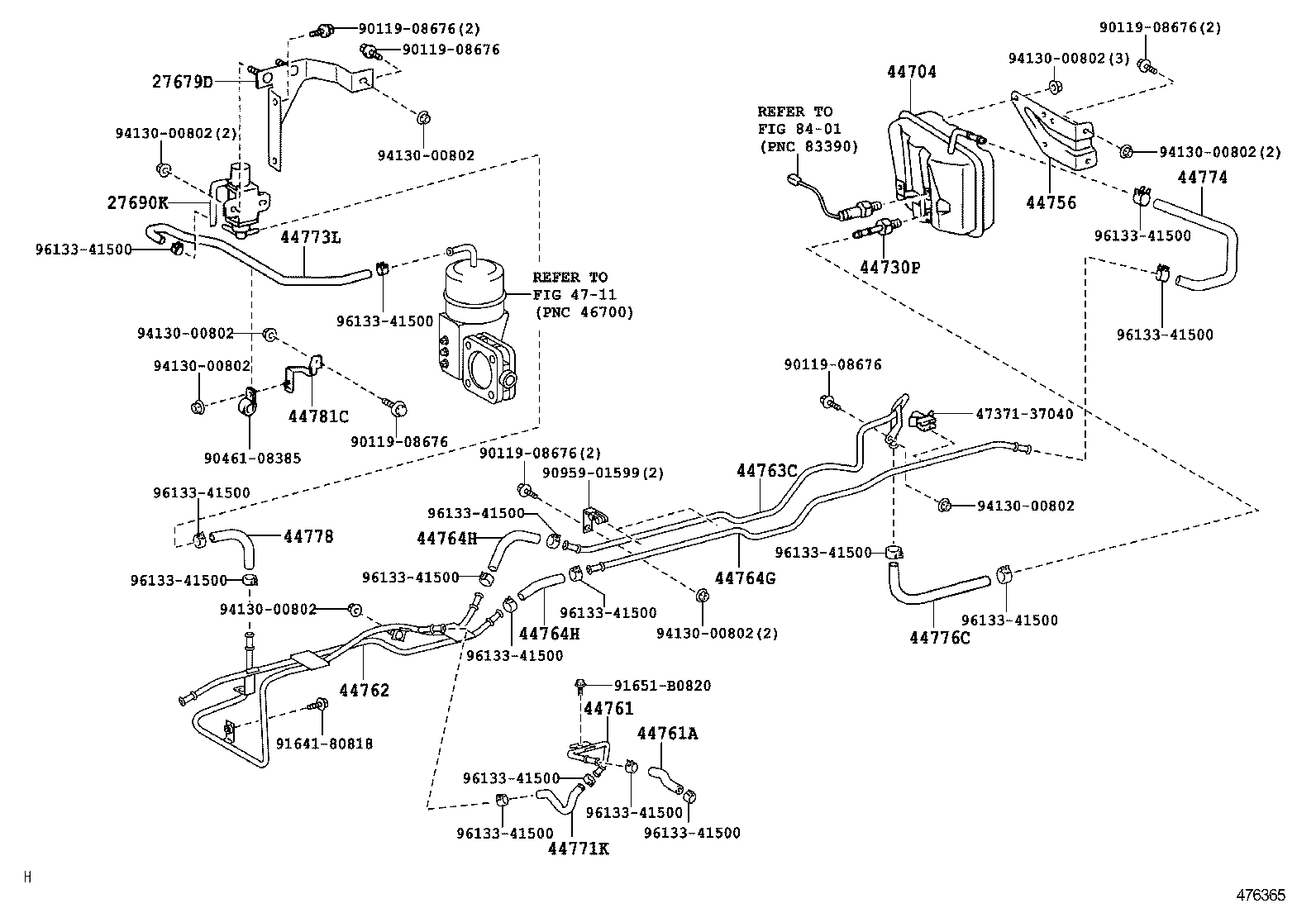

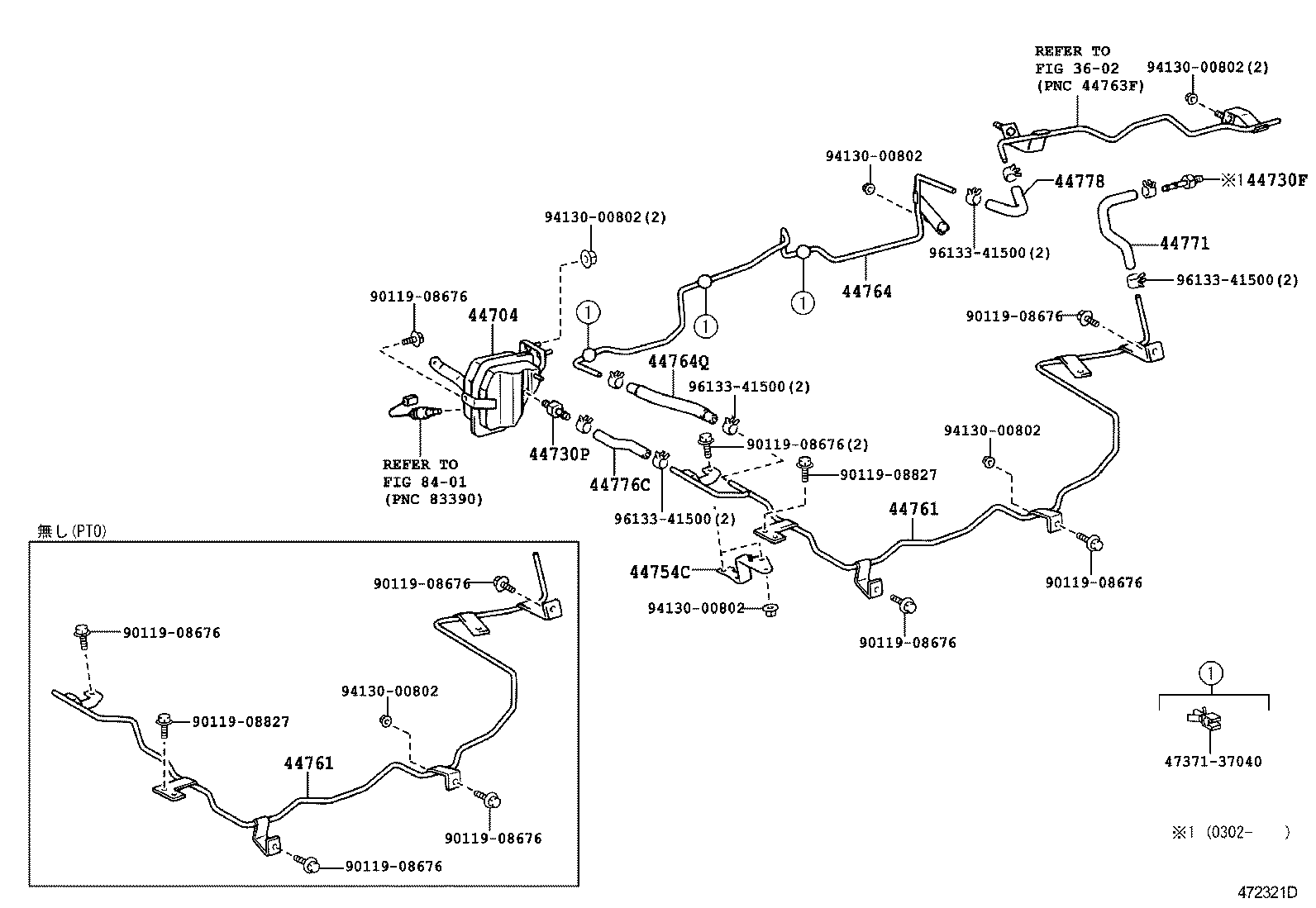

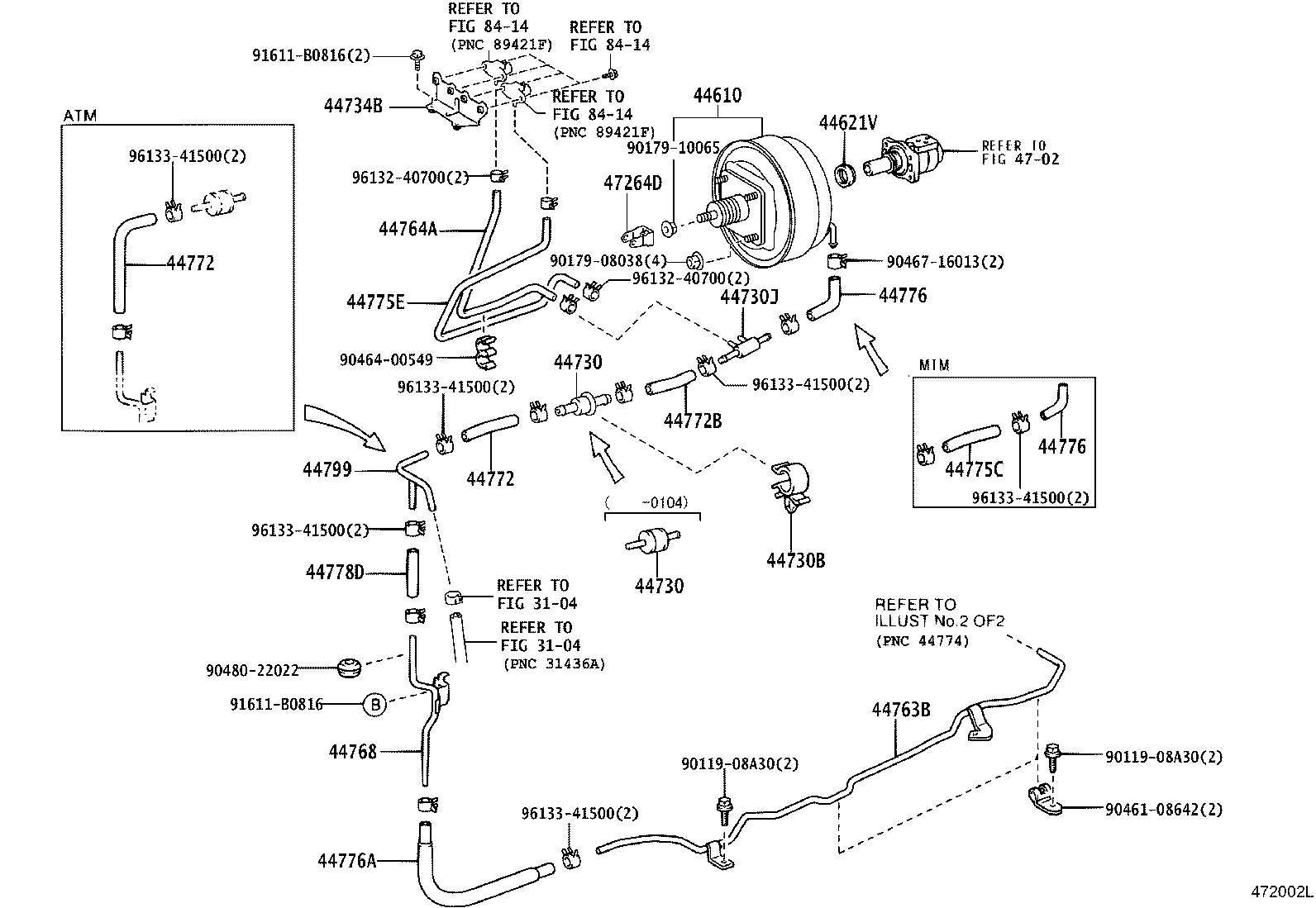

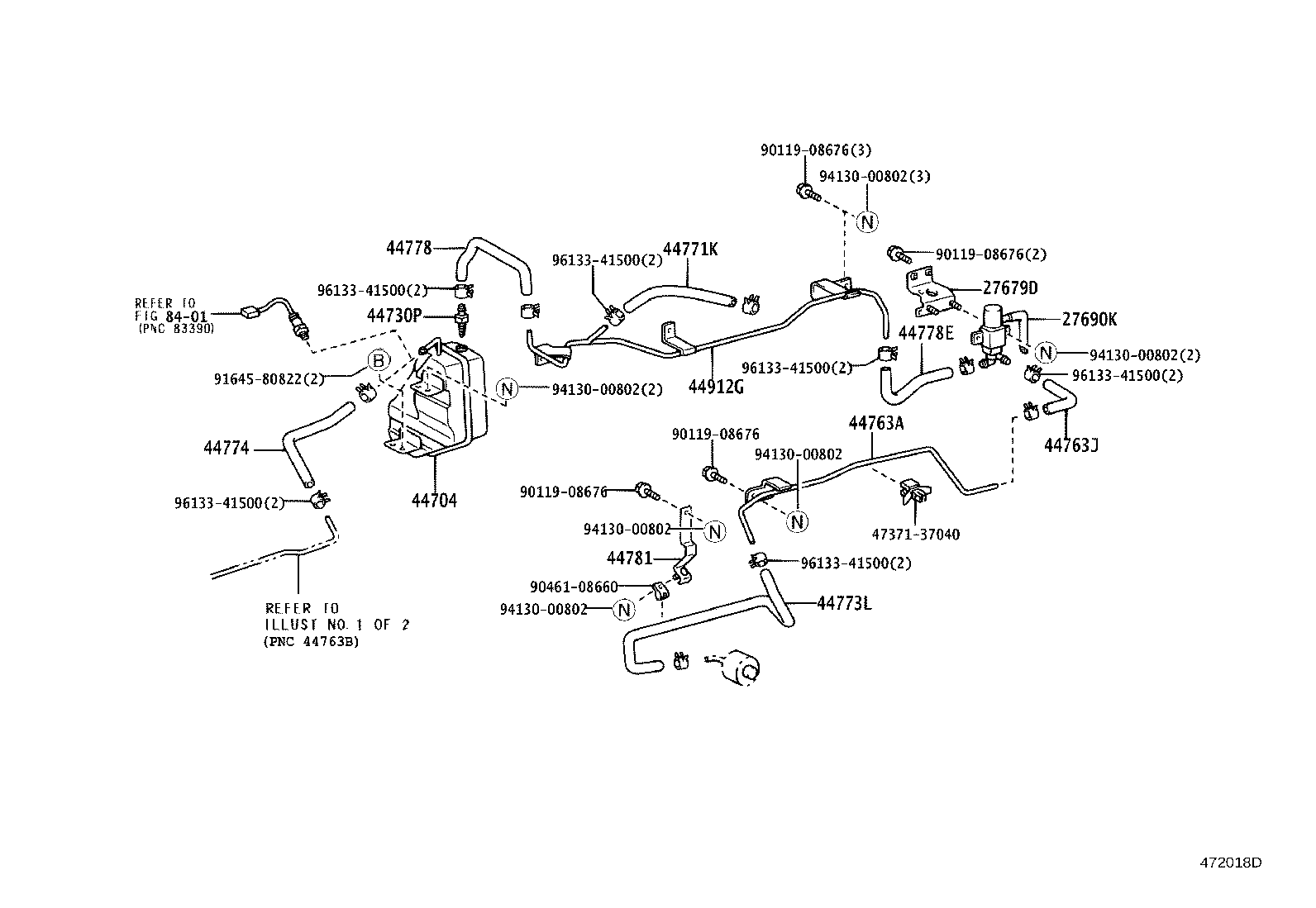

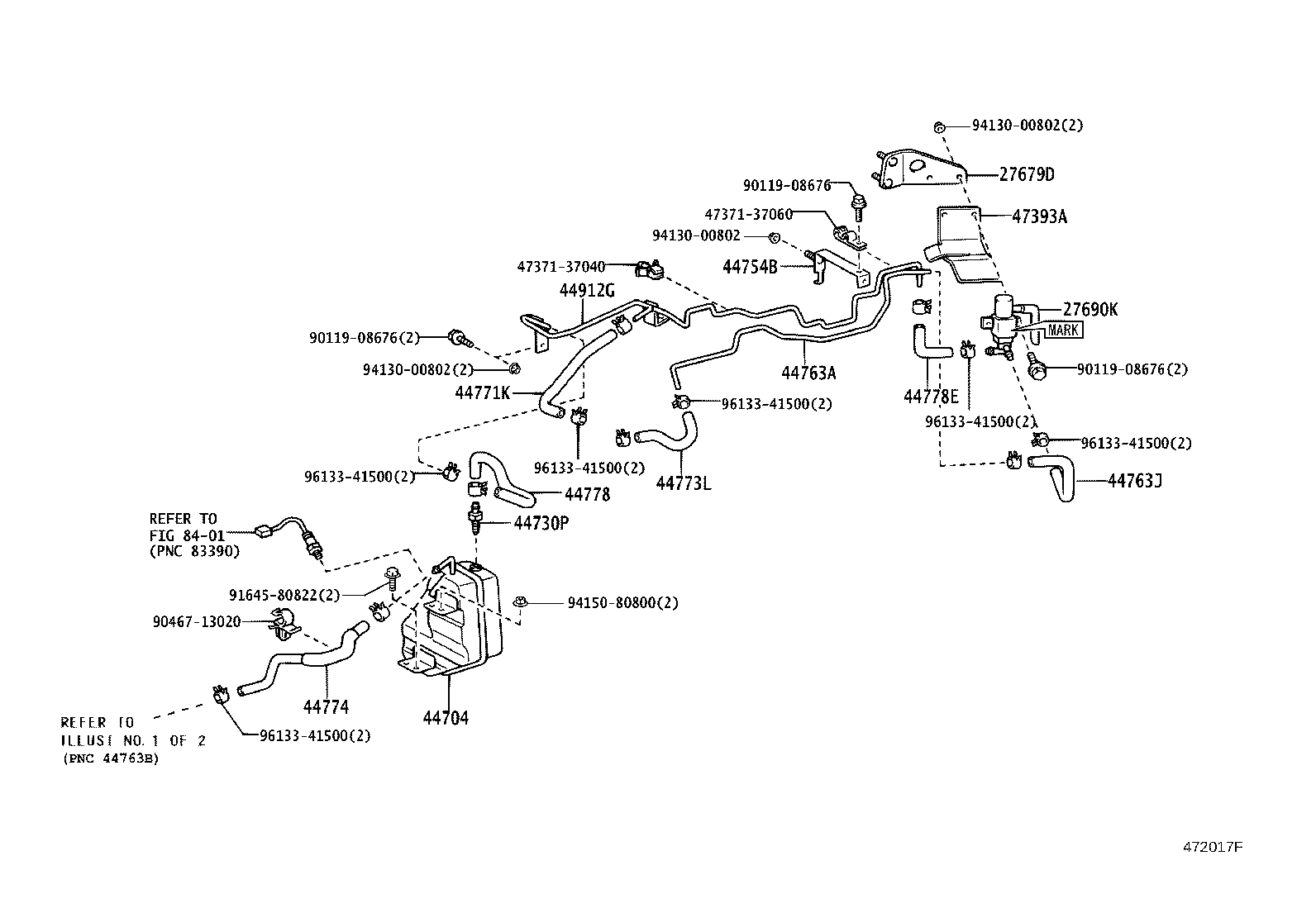

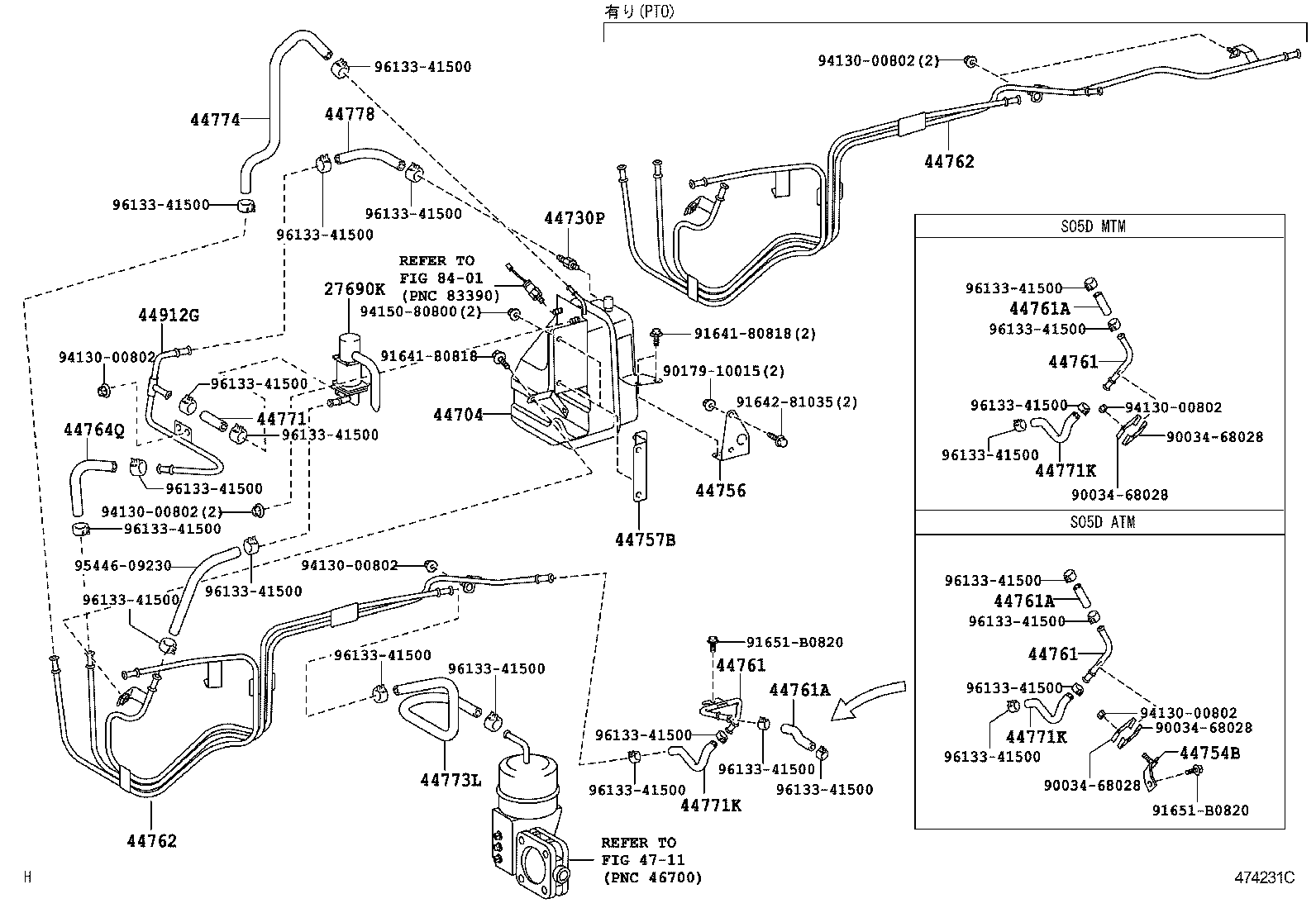

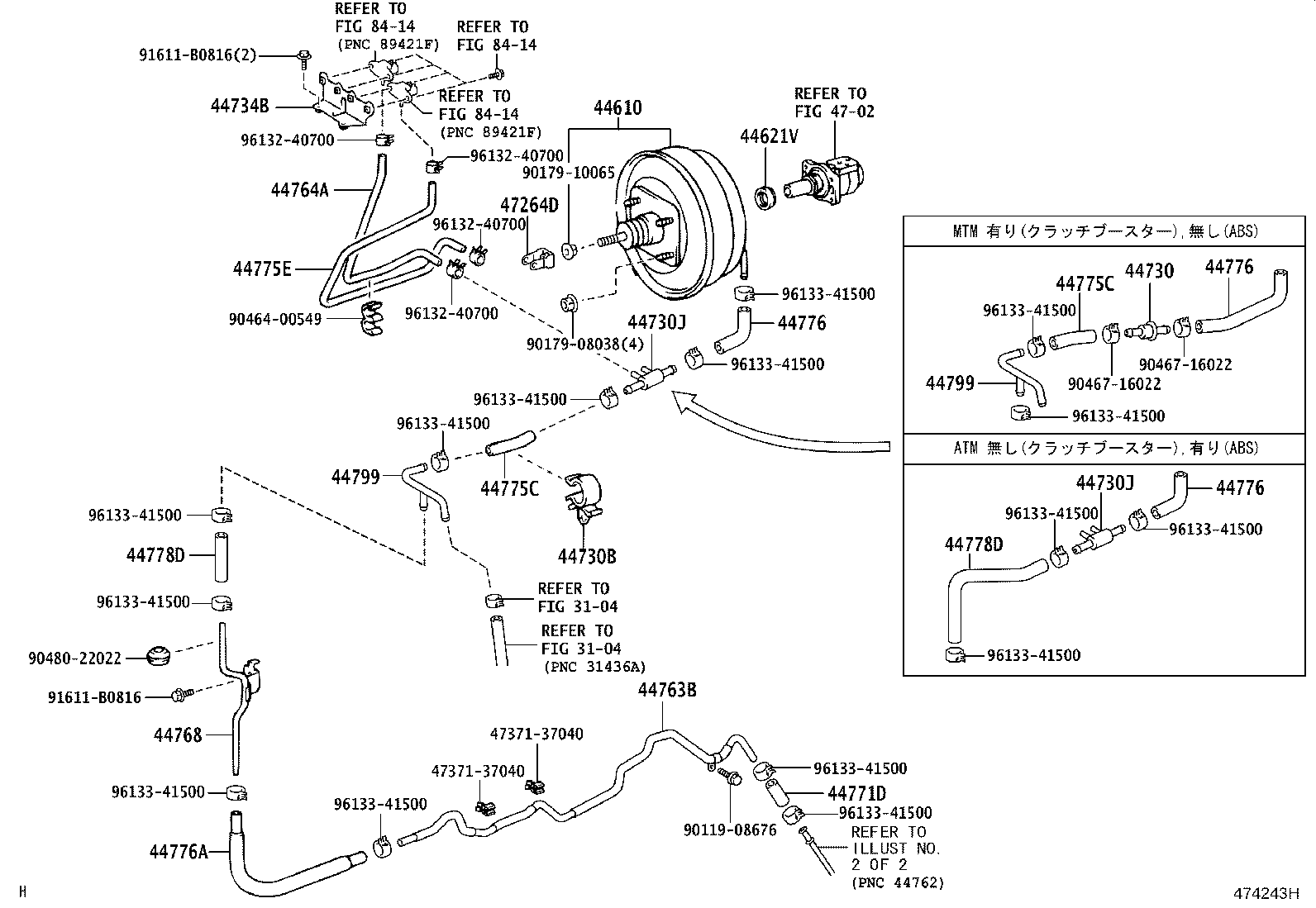

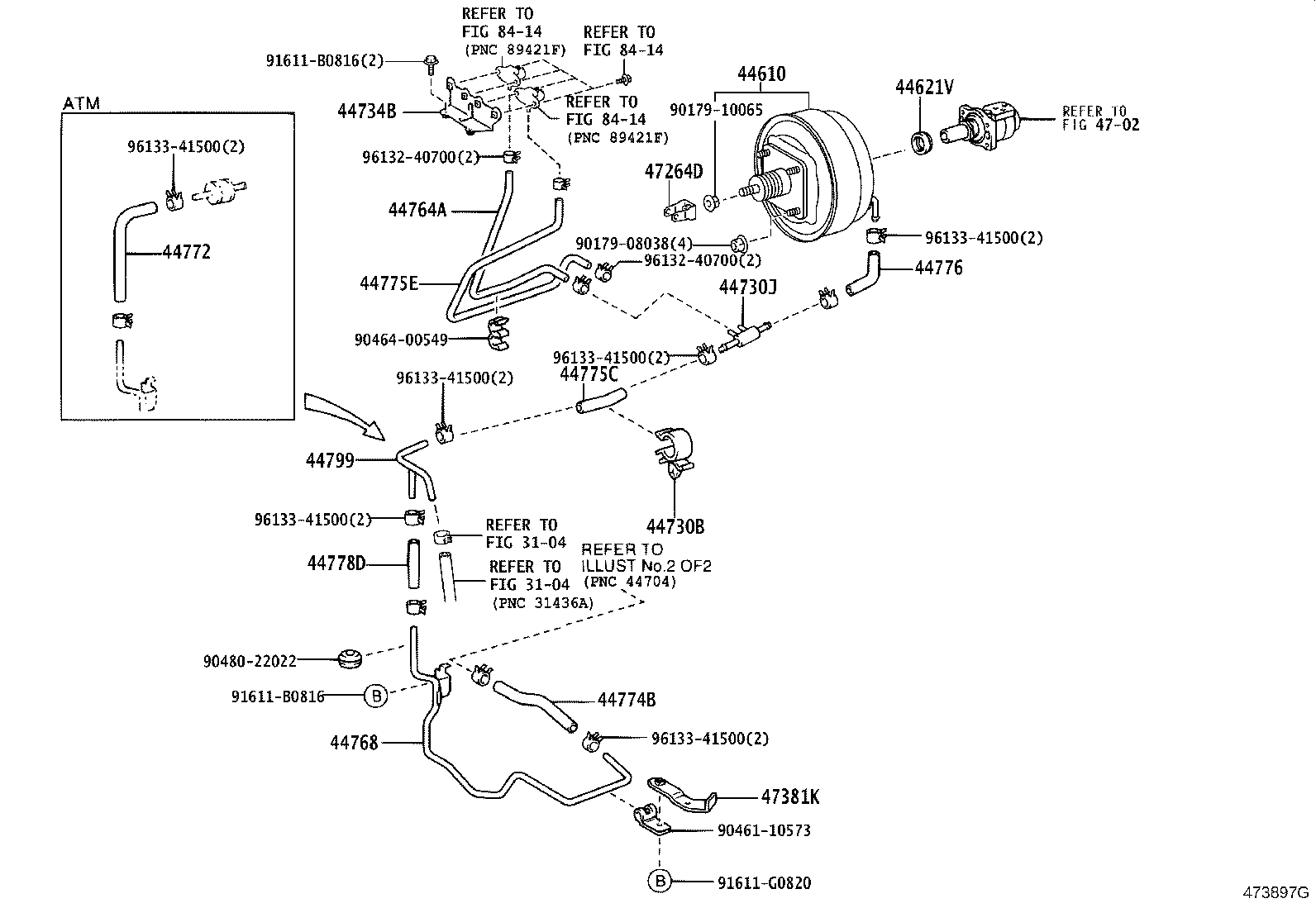

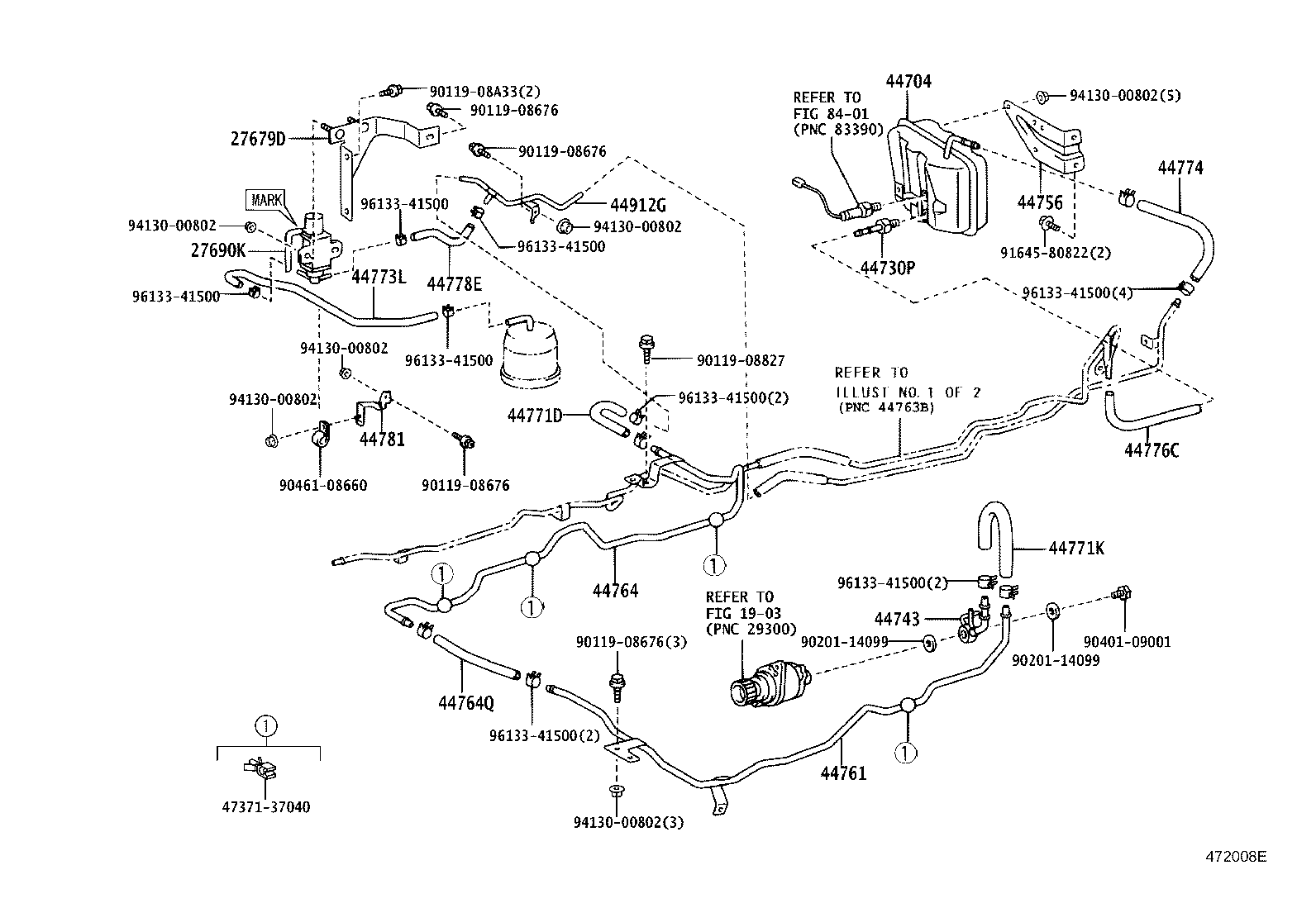

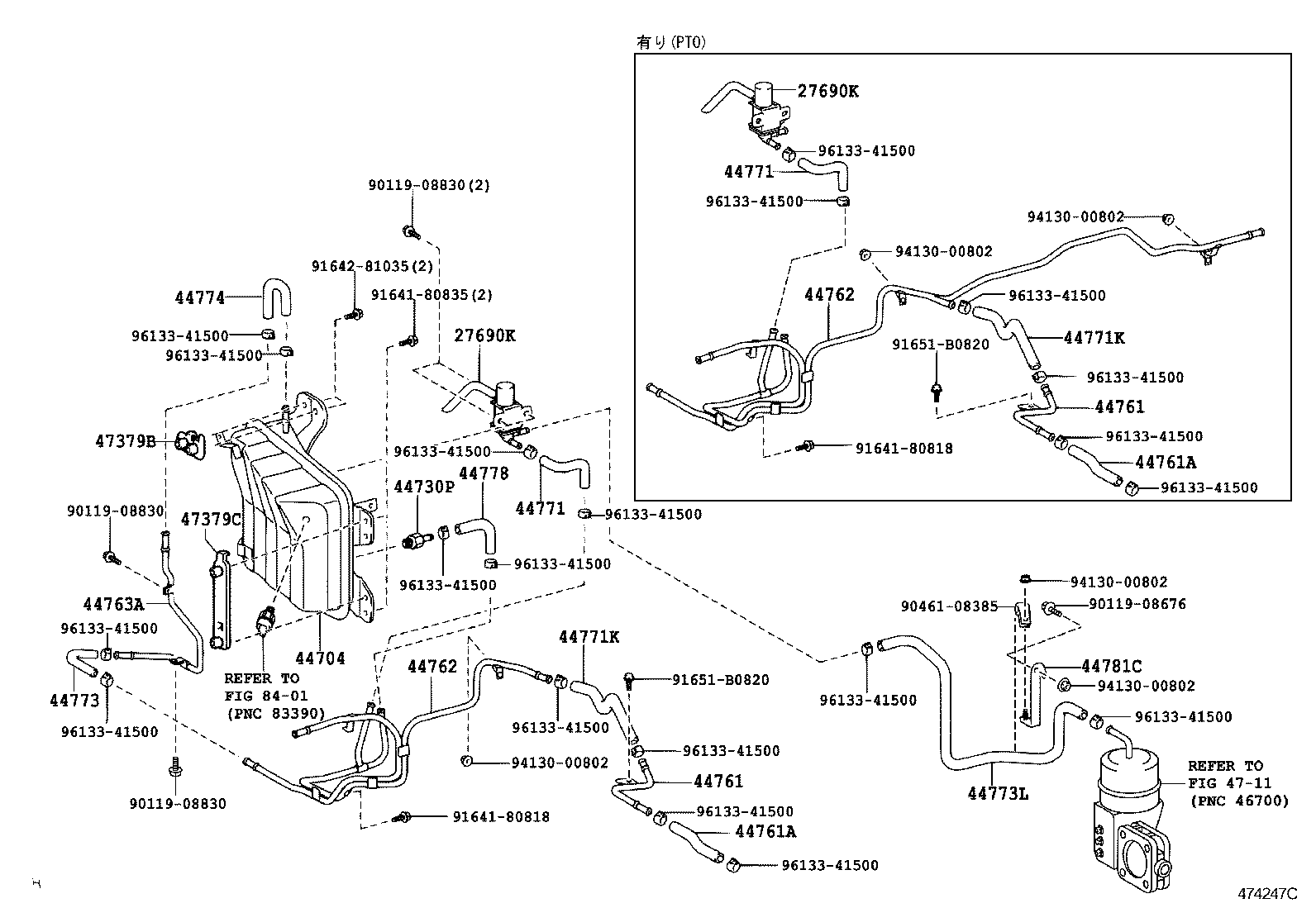

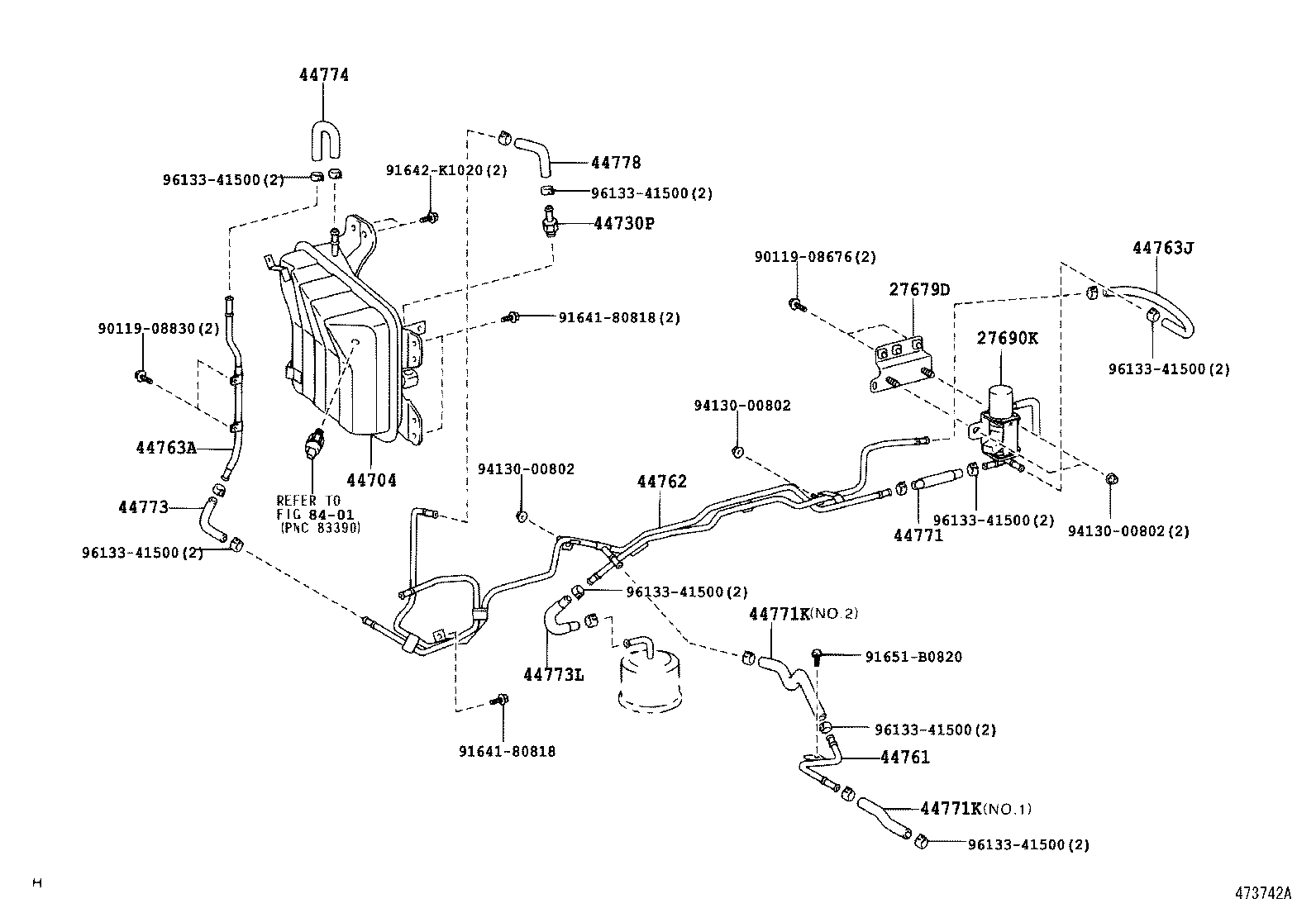

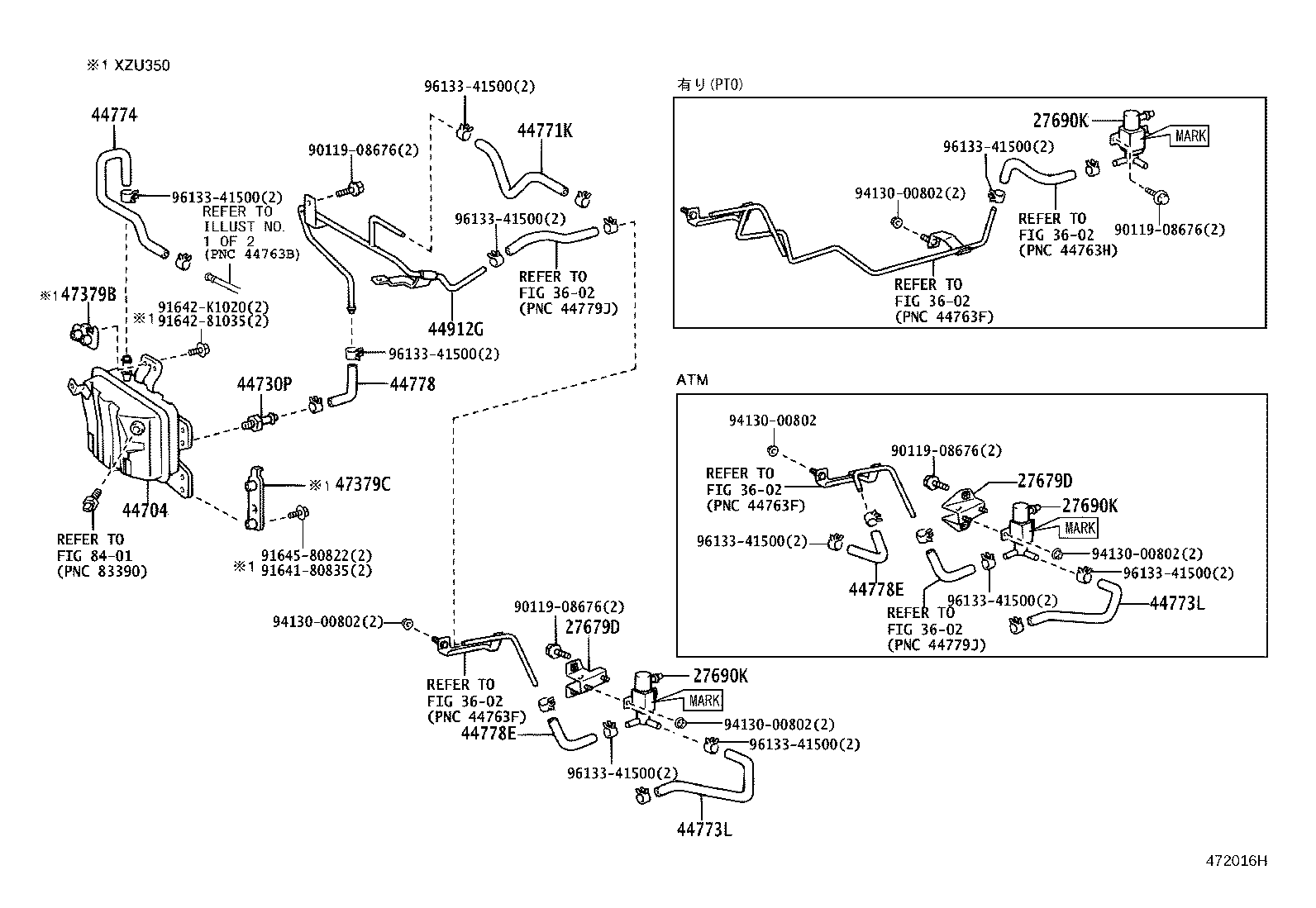

Figure 471998L 471998L 1999-05 → 2002-06 Figure 473897G 473897G 2002-06 → 2004-06 Figure 473593I 473593I 1999-05 → 2002-06 Figure 471999M 471999M 2002-06 → 2004-06 Figure 472001M 472001M 1999-05 → 2004-06 Figure 472002L 472002L 1999-05 → 2004-06 Figure 472003L 472003L 1999-07 → 2004-06 Figure 472003L 472003L 1999-08 → 2004-06 Figure 473049I 473049I 2002-06 → 2004-06 Figure 475626G 475626G 2003-10 → 2004-06 Figure 474240H 474240H 2004-06 → — Figure 474243H 474243H 2004-06 → — Figure 474244G 474244G 2004-06 → — Figure 474251H 474251H 2004-06 → — Figure 474252I 474252I 2004-06 → — Figure 472004C 472004C 1999-05 → 2004-06 Figure 472004C 472004C 2000-05 → 2004-06 Figure 472004C 472004C 2000-05 → 2004-06 Figure 472005E 472005E 1999-05 → 2004-06 Figure 472011F 472011F 1999-08 → 2004-06 Figure 472321D 472321D 2000-05 → 2004-06 Figure 472006F 472006F 1999-05 → 2004-06 Figure 472007F 472007F 1999-07 → 2004-06 Figure 472008E 472008E 1999-05 → 2004-06 Figure 472009E 472009E 1999-08 → 2004-06 Figure 472010J 472010J 1999-05 → 2004-06 Figure 472010J 472010J 1999-07 → 2004-06 Figure 472322F 472322F 2000-05 → 2004-06 Figure 472323G 472323G 2000-05 → 2004-06 Figure 472012F 472012F 1999-05 → 2004-06 Figure 472013F 472013F 1999-07 → 2004-06 Figure 472014F 472014F 1999-07 → 2004-06 Figure 472015D 472015D 1999-08 → 2004-06 Figure 472016H 472016H 1999-05 → 2004-06 Figure 472016H 472016H 1999-06 → 2004-06 Figure 472017F 472017F 1999-08 → 2004-06 Figure 472018D 472018D 1999-08 → 2004-06 Figure 473045E 473045E 2002-06 → 2004-06 Figure 473048F 473048F 2000-05 → 2004-06 Figure 473048F 473048F 2000-05 → 2004-06 Figure 473741A 473741A 2003-10 → 2004-06 Figure 473742A 473742A 2003-10 → 2004-06 Figure 474245C 474245C 2004-06 → — Figure 476372A 476372A 2004-06 → — Figure 474558C 474558C 2004-06 → — Figure 474246C 474246C 2004-06 → — Figure 474247C 474247C 2004-06 → — Figure 474248E 474248E 2004-06 → — Figure 474232C 474232C 2004-06 → — Figure 474230E 474230E 2004-06 → — Figure 476365 476365 2004-06 → — Figure 474231C 474231C 2004-06 → — Figure 474233E 474233E 2004-06 → — Figure 474234G 474234G 2004-06 → — Figure 474235D 474235D 2004-06 → — Figure 474236F 474236F 2004-06 → — Figure 474249E 474249E 2004-06 → — Figure 476359B 476359B 2004-06 → — Figure 474250B 474250B 2004-06 → — Figure 476358 476358 2004-06 → —

Part groups

PNCDescription
17816B Bracket, Air Filter, NO.1
25826 Filter, NO.1
27679D Bracket, Exhaust Brake Solenoid
27690K Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE)
44610 Booster Assy, Brake
44621V Seal, Booster Body
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730B Clamp, Vacuum Hose
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730J Way(FOR BOOSTER VACUUM)
44730P Valve Assy, Vacuum Check, NO.1
44734B Bracket, Booster Support
44743 Union(FOR VACUUM PUMP)
44754B Bracket, Vacuum Tube
44754C Bracket, Vacuum Tube, NO.1
44756 Bracket, Vacuum Reservoir
44757B Bracket, Vacuum Tank Clamp, NO.2
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44761A Hose, Vacuum Pump
44762 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
44763B Tube, Tube Connector TO Tube Connector
44763C Tube, Hose TO Hose, NO.2
44763J Hose, Solenoid TO Vacuum Tube
44764 Tube, Booster Vacuum
44764A Hose, Booster Vacuum
44764G Tube, Connector TO Brake Booster
44764H Hose(FOR CONNECTOR TO BRAKE BOOSTER TUBE)
44764Q Hose(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
44768 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771D Hose, Vacuum Tube Connector
44771K Hose, Vacuum Tube TO Vacuum Pump
44772 Hose, Check Valve TO Connector Tube
44772B Hose, Check Valve TO Brake Booster
44772D Hose, Check Valve TO Actuator
44772H Hose, Check Valve TO 3 Way
44772J Way, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE)
44773 Hose, Vacuum, NO.2
44773L Hose, Solenoid TO Exhaust Retarder
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44775C Hose, Connector TO Way
44775E Hose, Way TO Connector
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44776C Hose, Vacuum Reservoir TO Connector
44778 Hose, Connector TO Check Valve
44778B Hose, Way TO Check Valve
44778D Hose, Vacuum Tube TO Connector Tube
44778E Hose, Connector Tube TO Solenoid
44779C Hose, Connector Tube TO Solenoid
44781 Bracket, Hose
44781C Bracket, Hose Clamp, NO.2
44799 Way, Brake Vacuum Hose
44912G Tube, 3 Way TO Magnetic Valve
47264D Clevis, Brake Master Cylinder Push Rod
47379B Spacer, Brake Tube, NO.1
47379C Spacer, Brake Tube, NO.2
47381K Bracket, Brake Booster Tube Clamp
47393A Insulator, Brake Tube Heat
89470E Valve Assy, Vacuum Switching W/Bracket, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
