Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

81 part groups · 79 illustrations

Illustrations

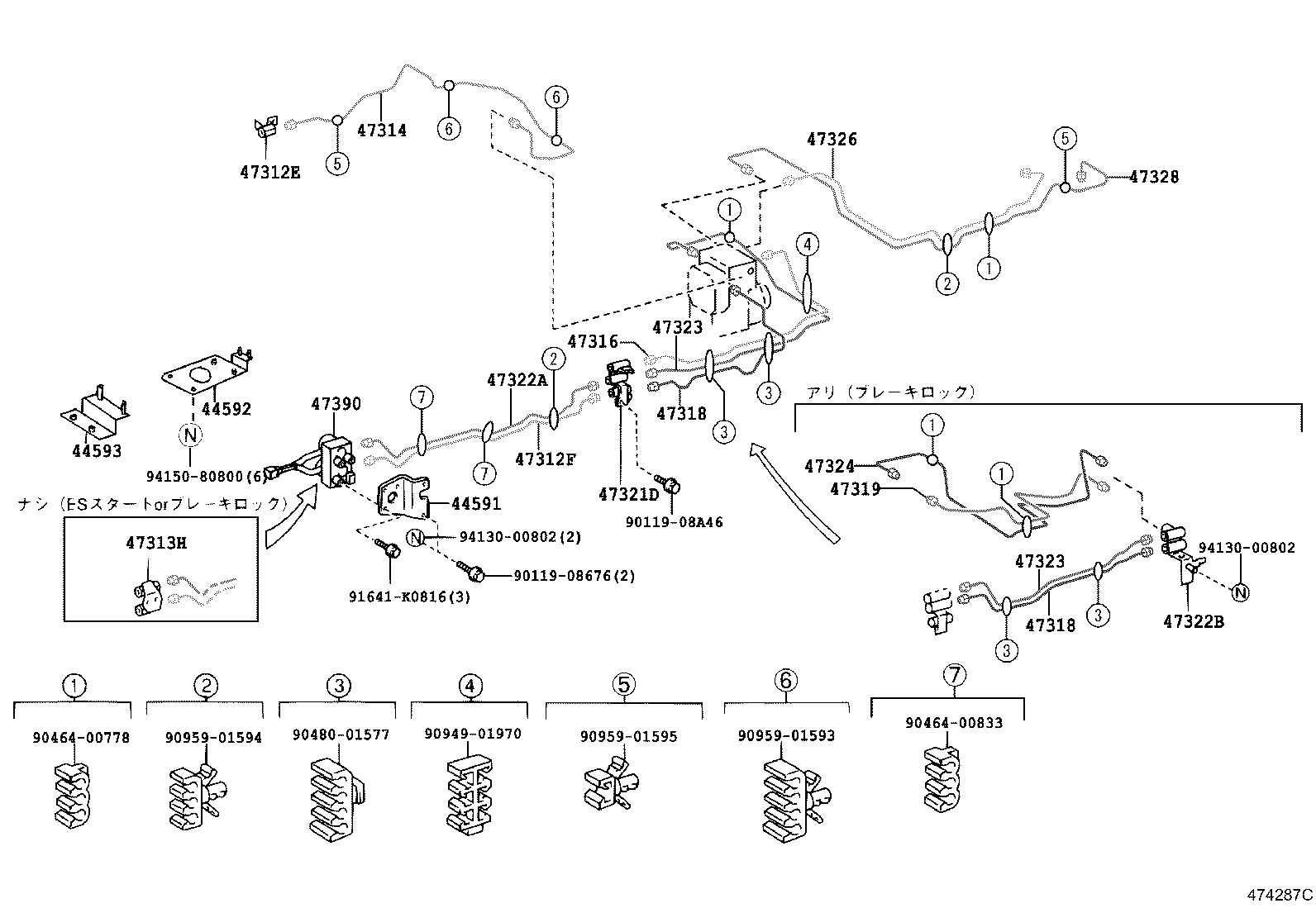

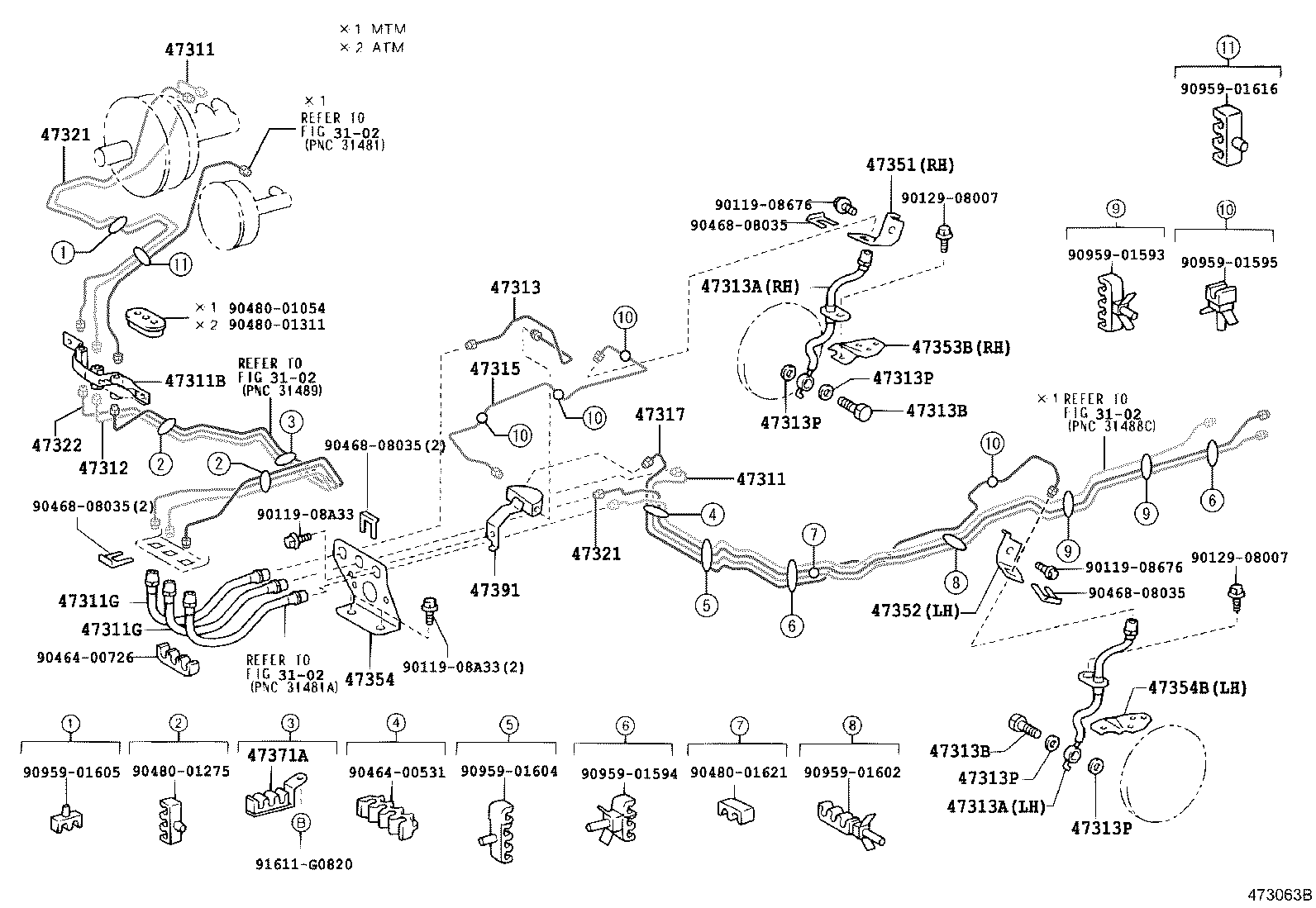

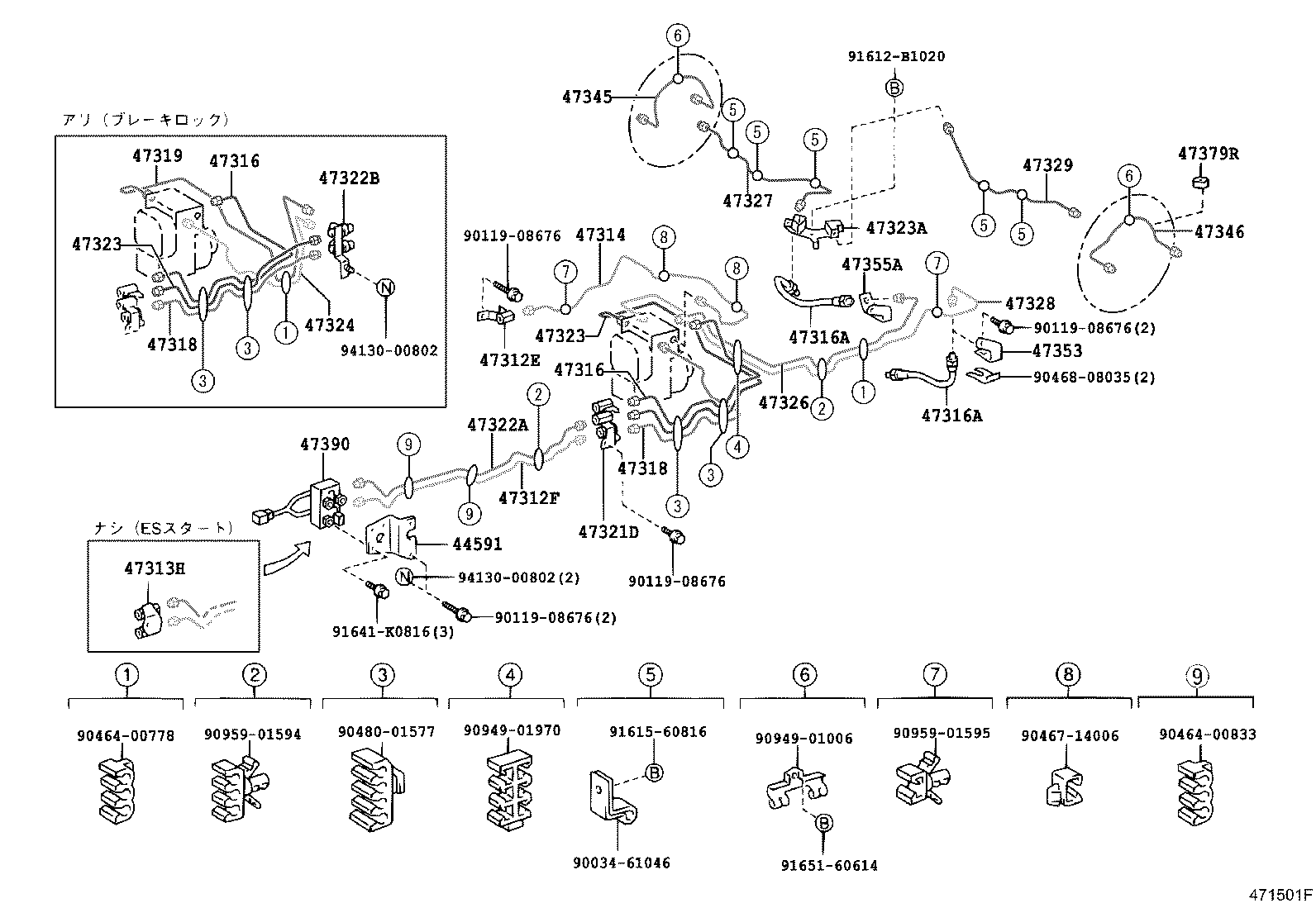

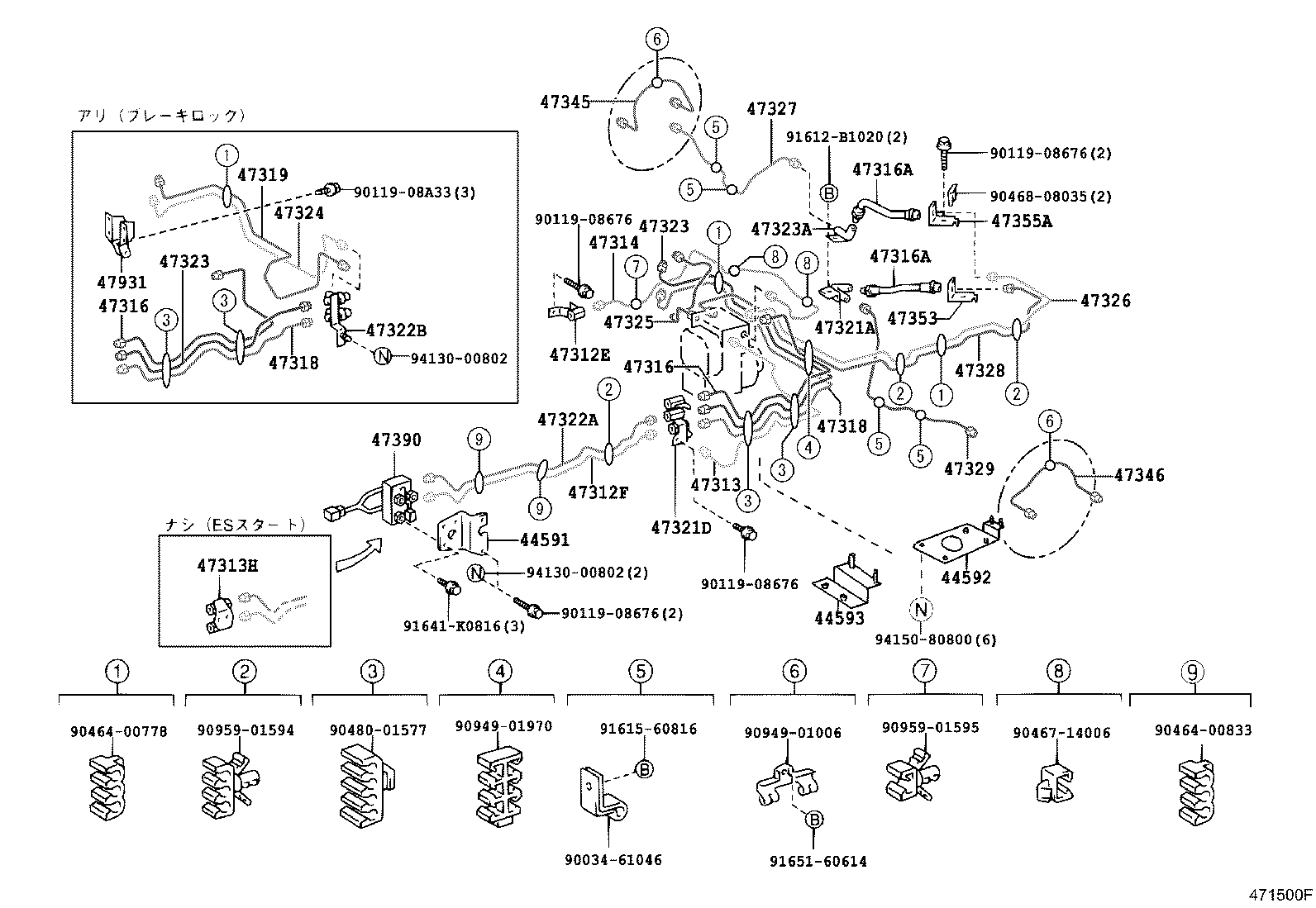

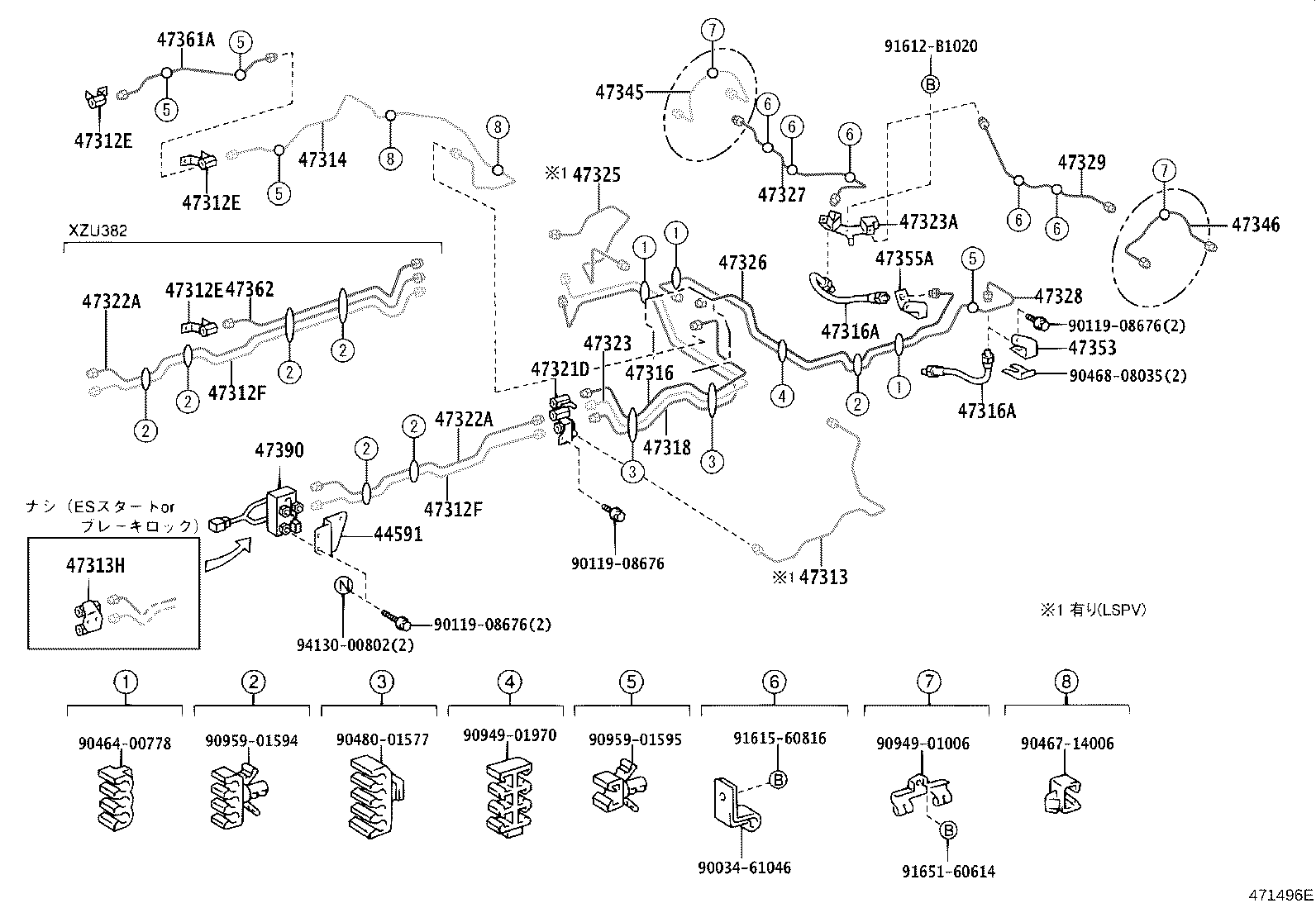

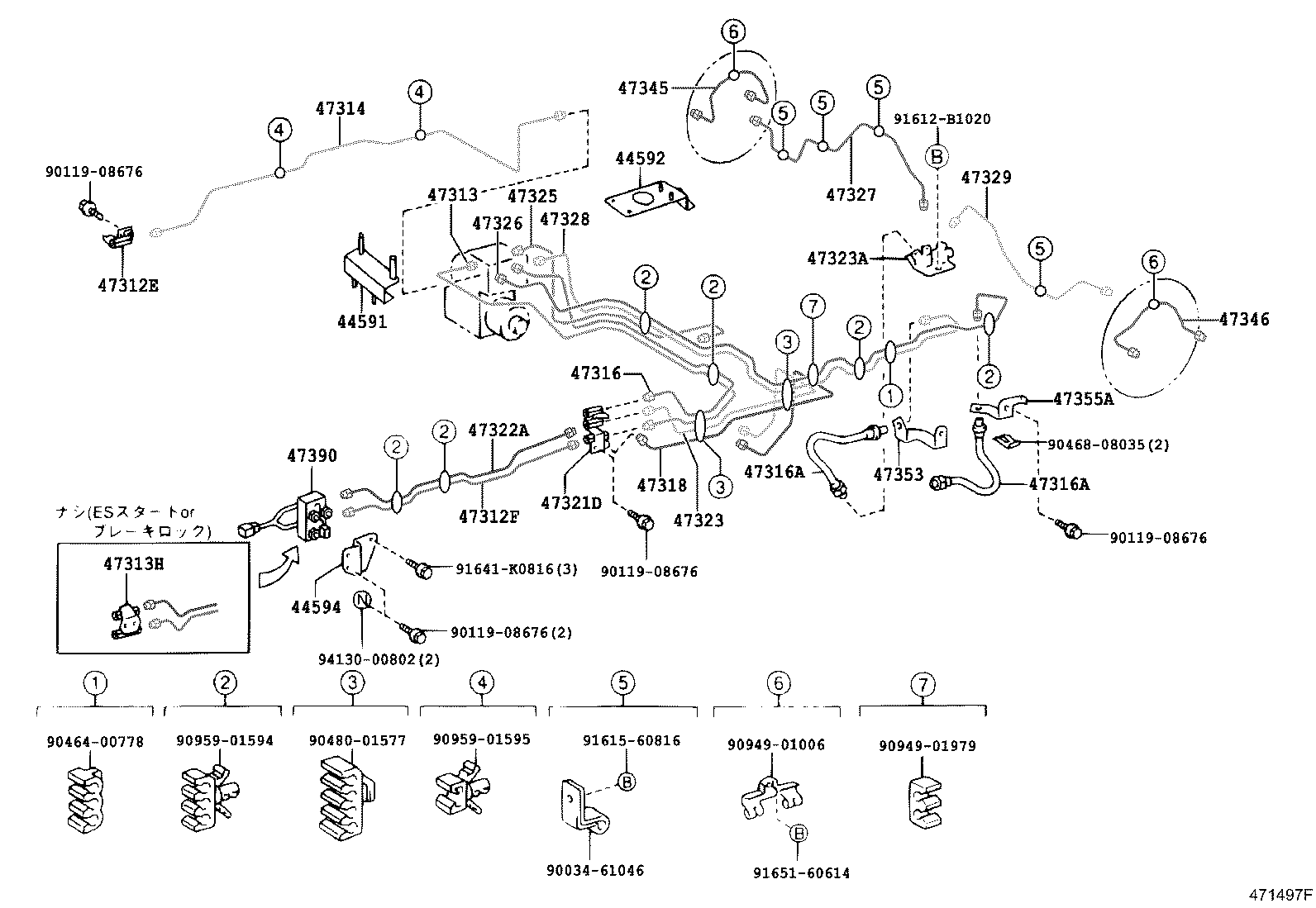

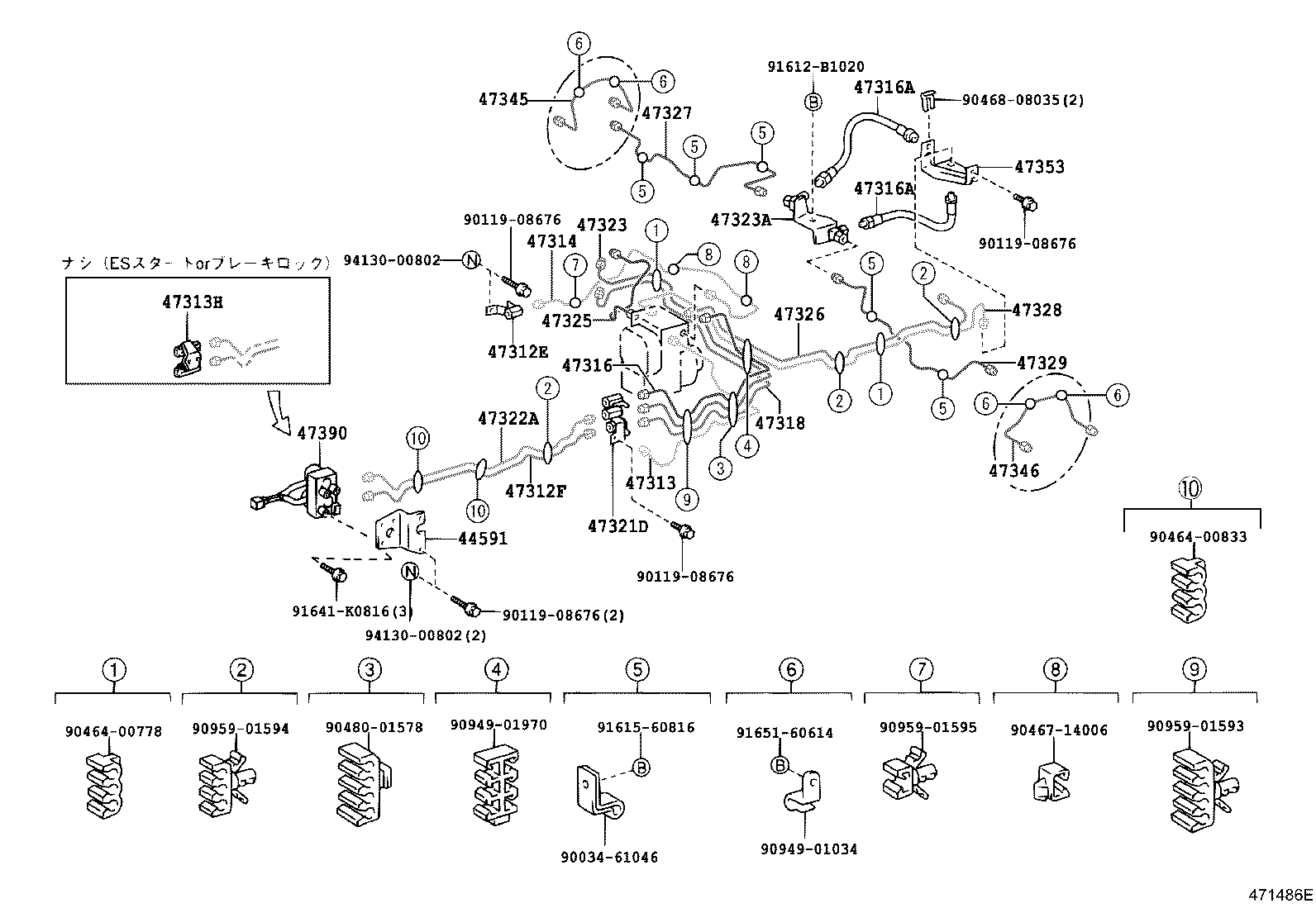

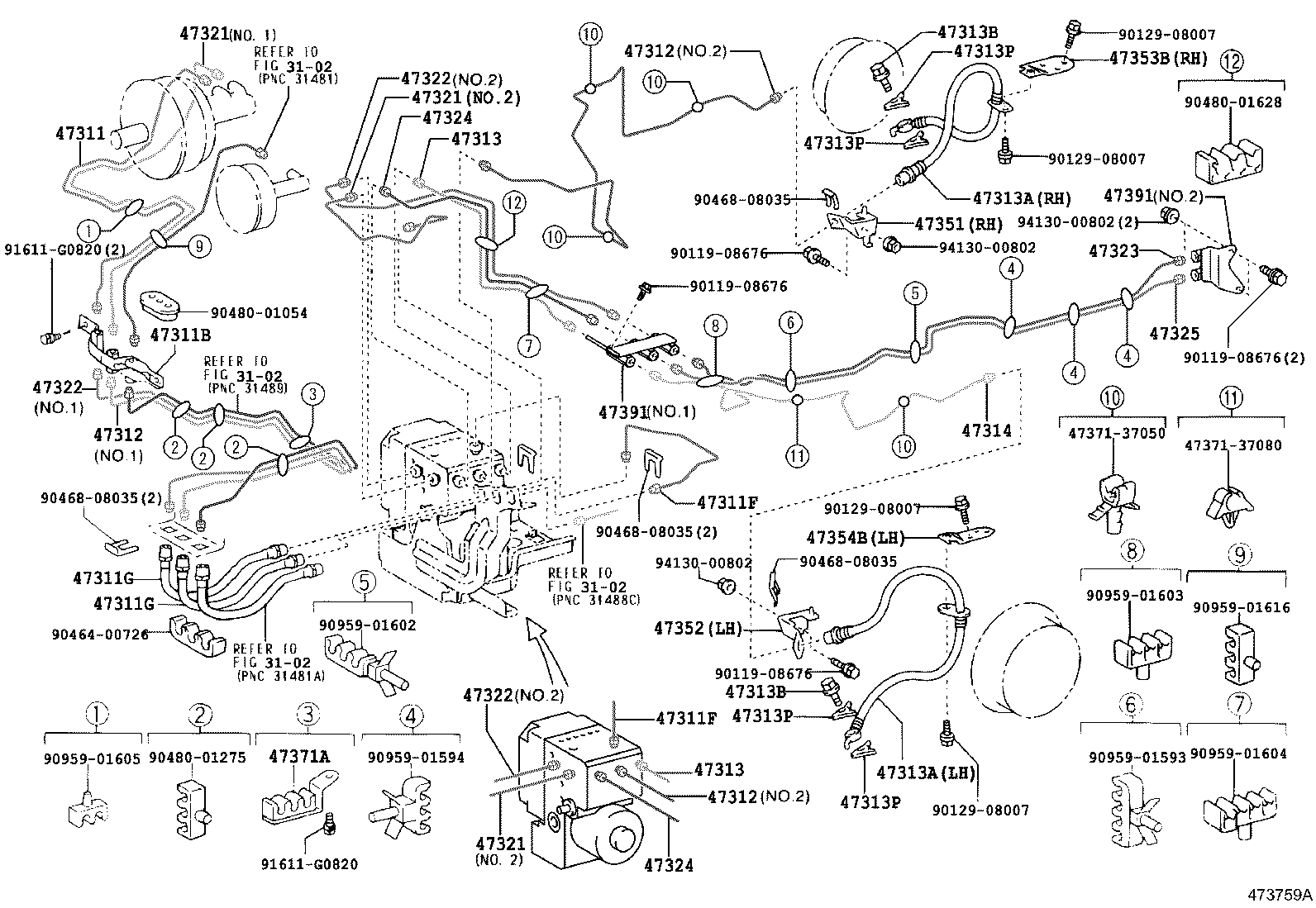

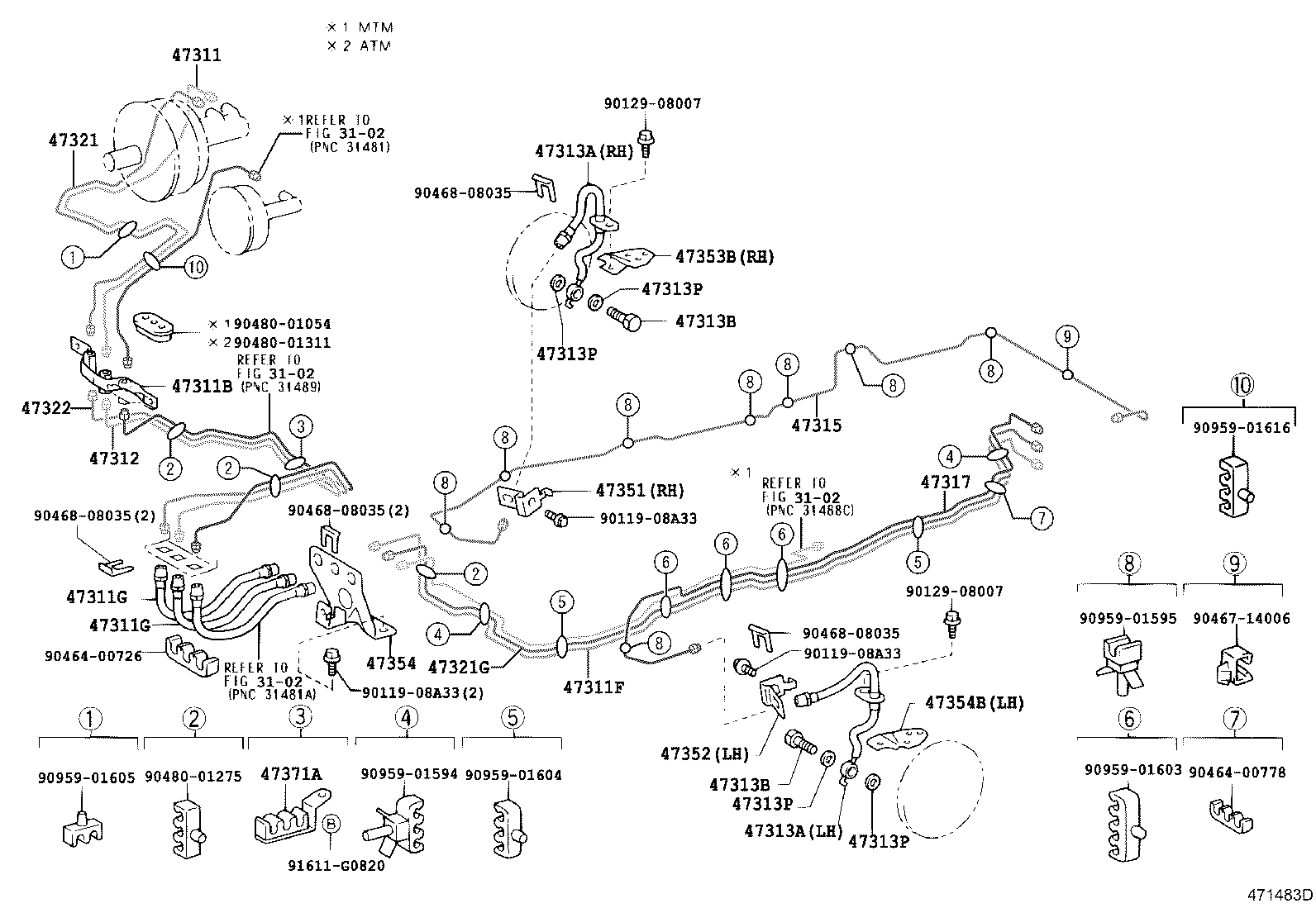

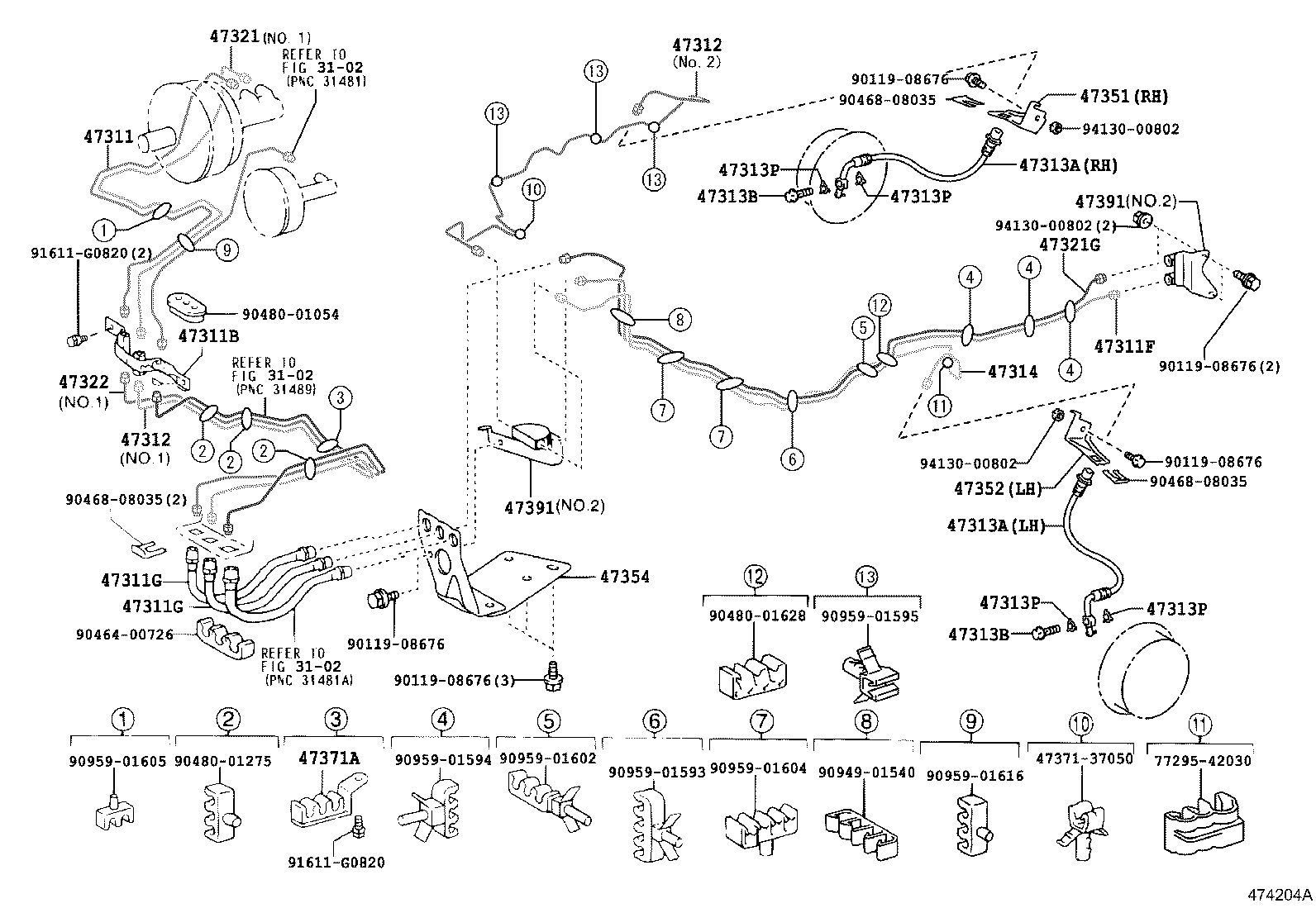

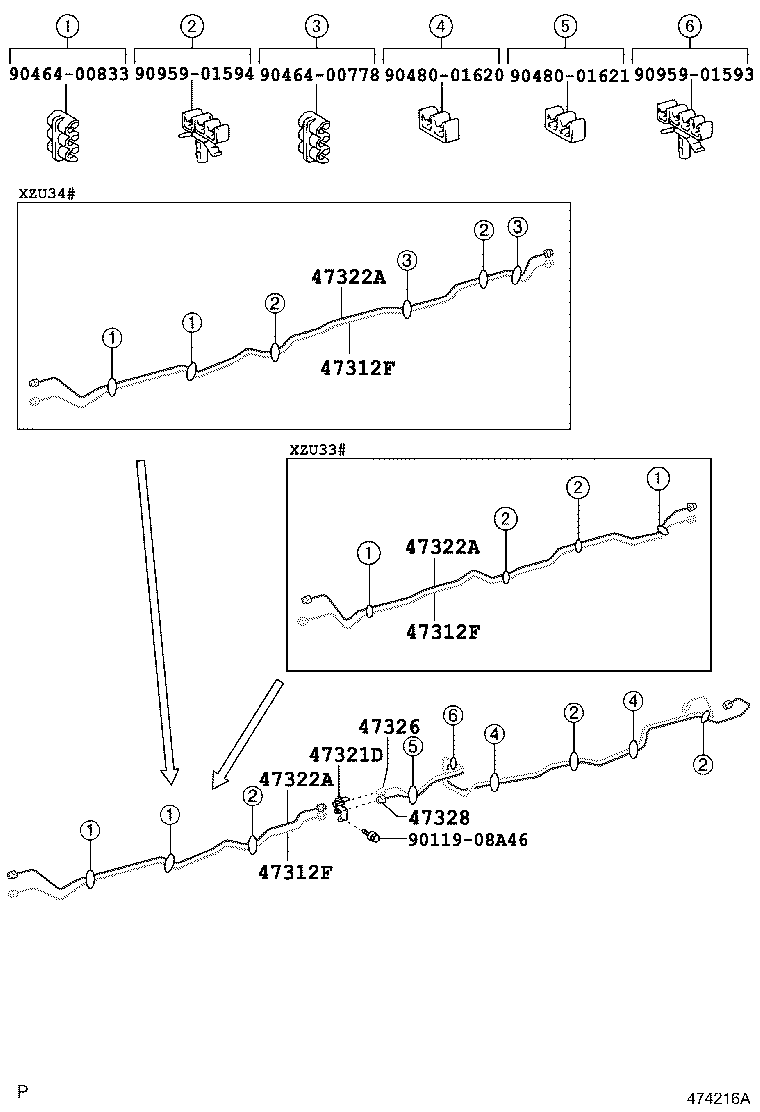

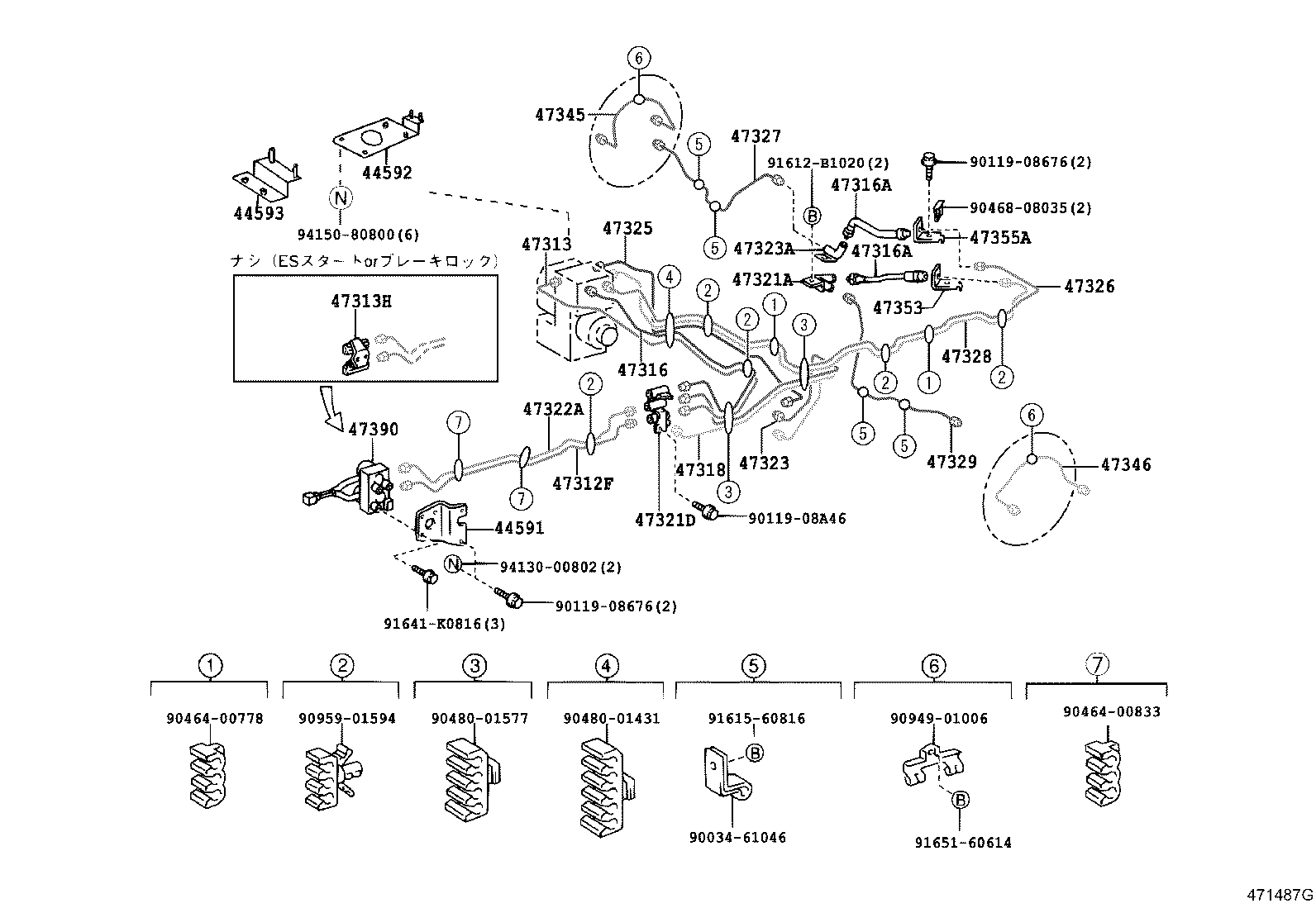

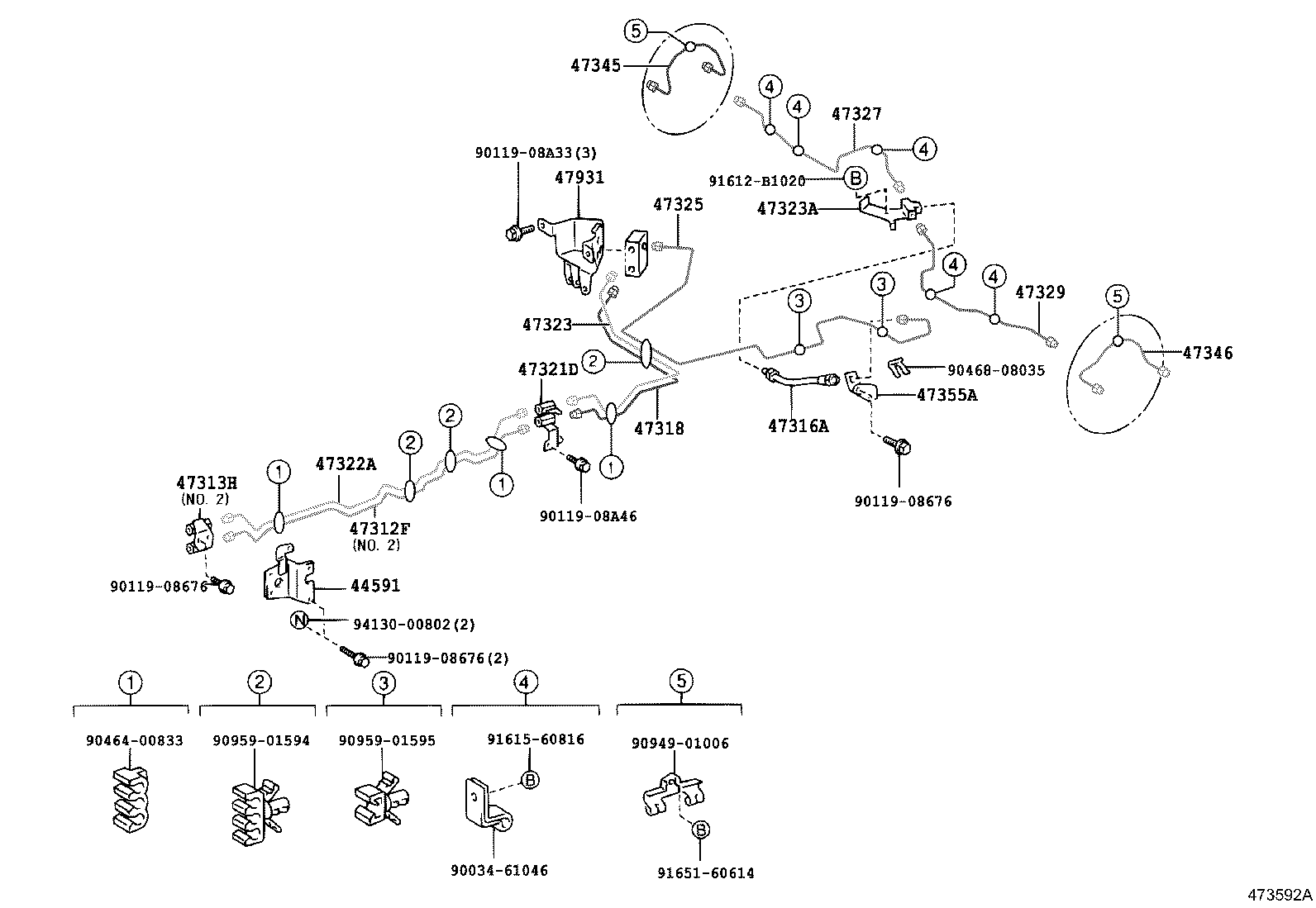

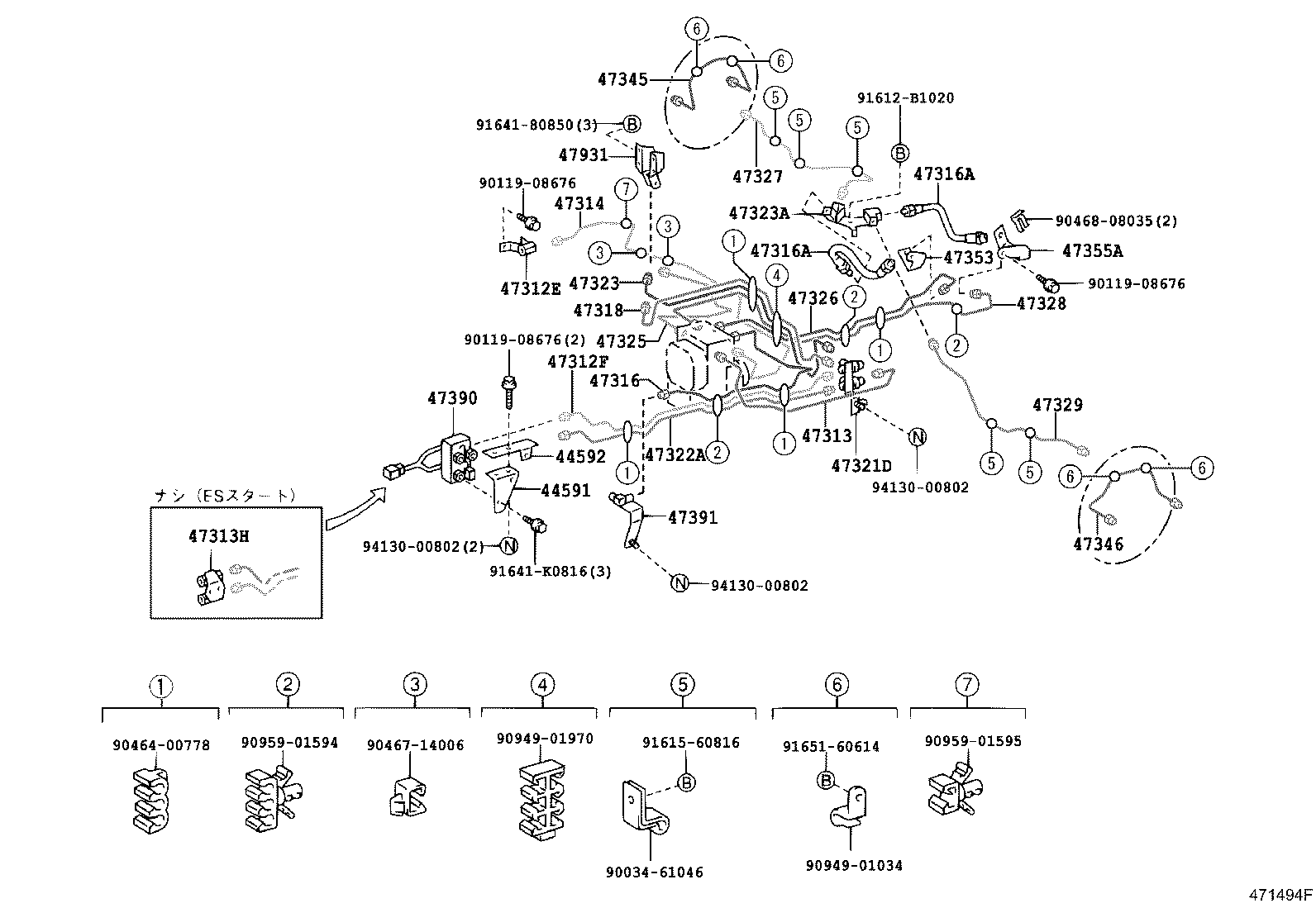

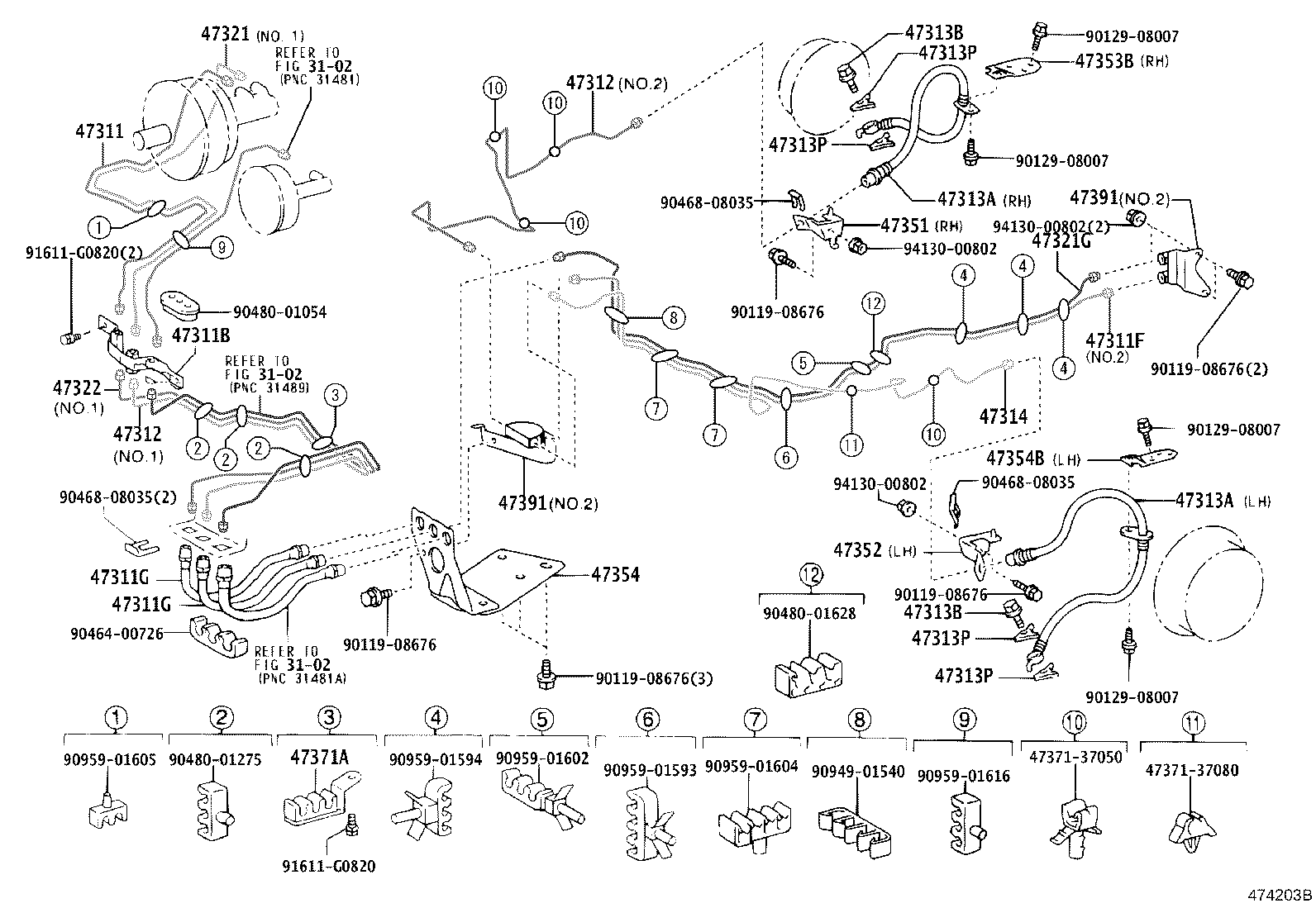

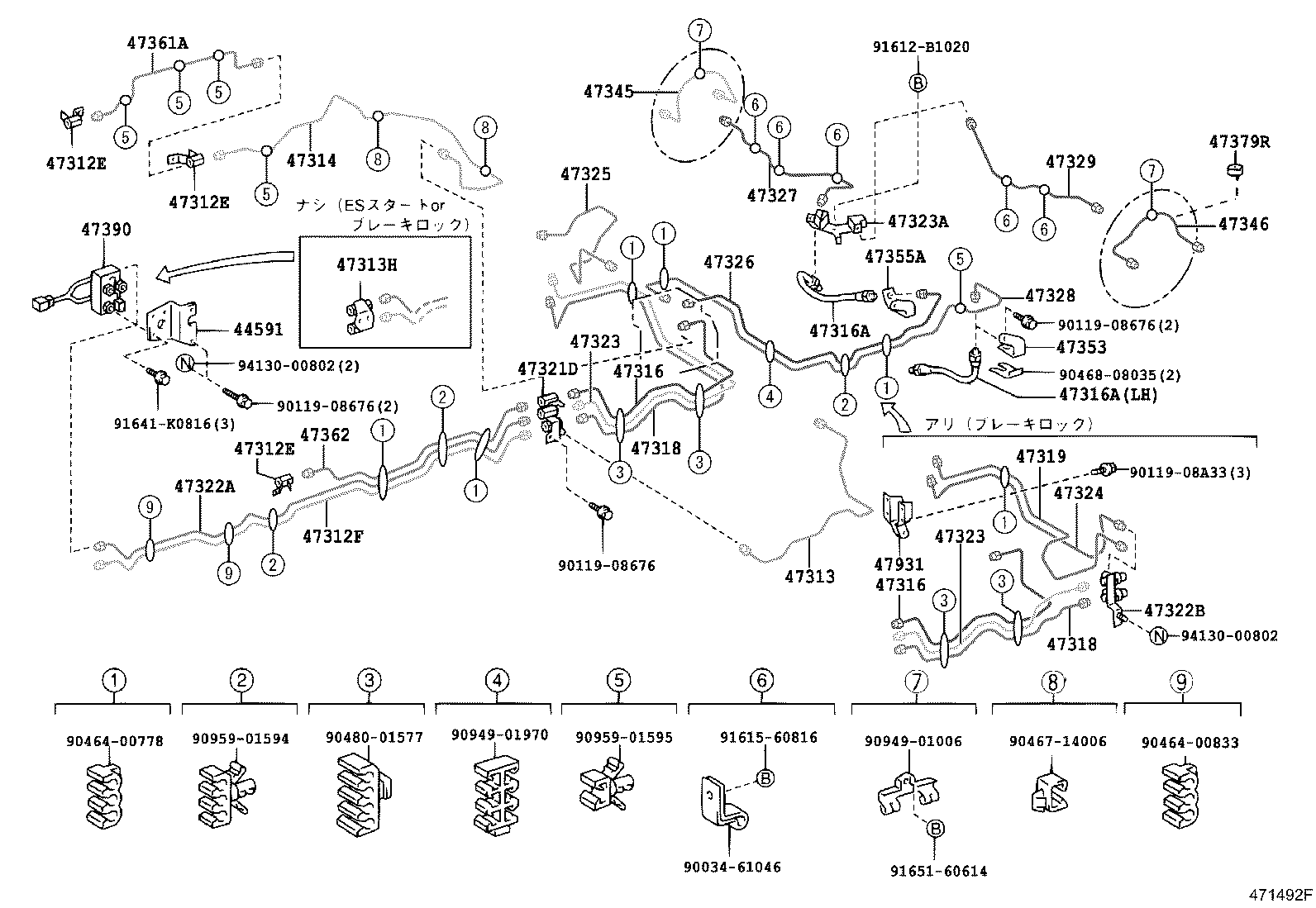

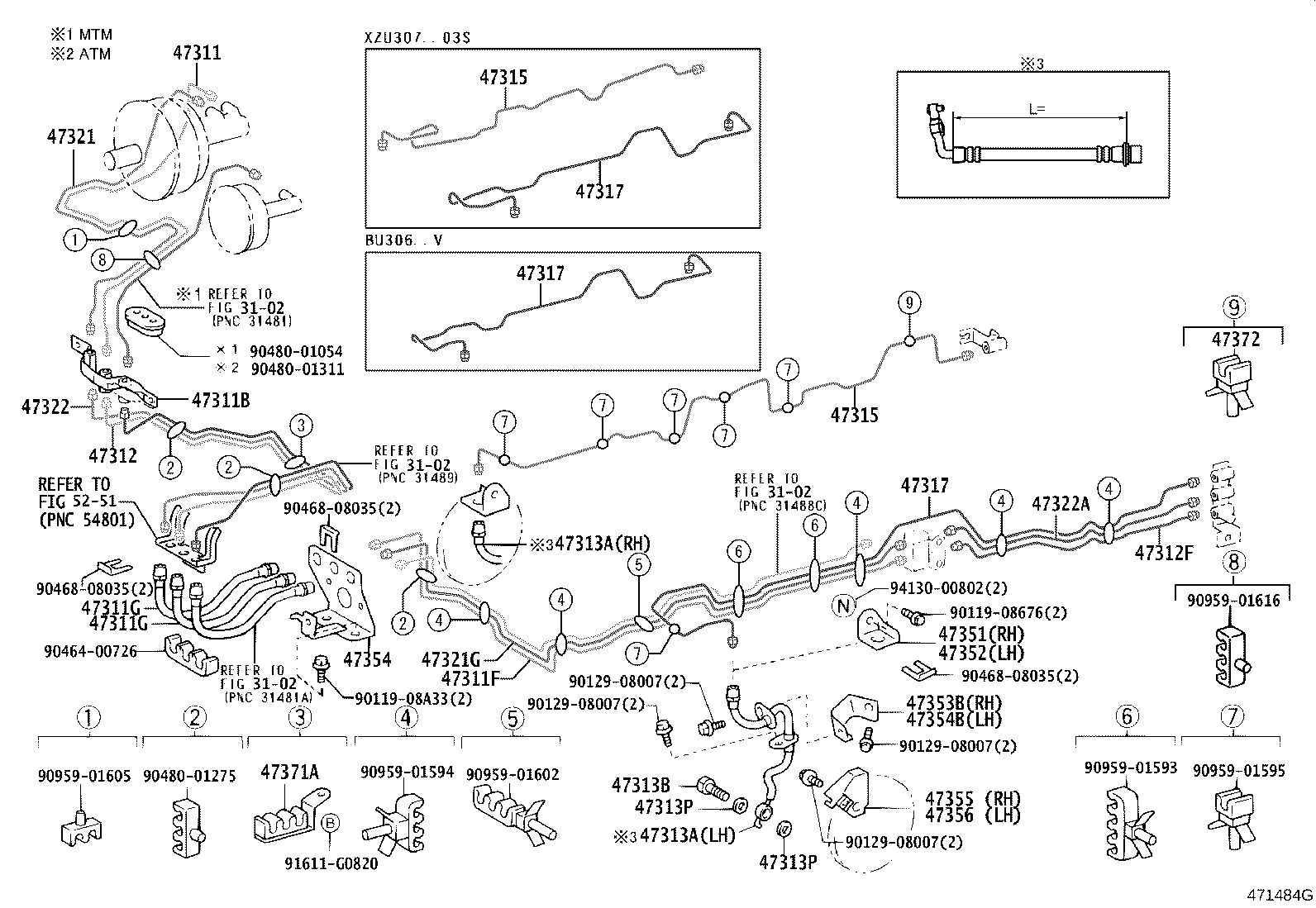

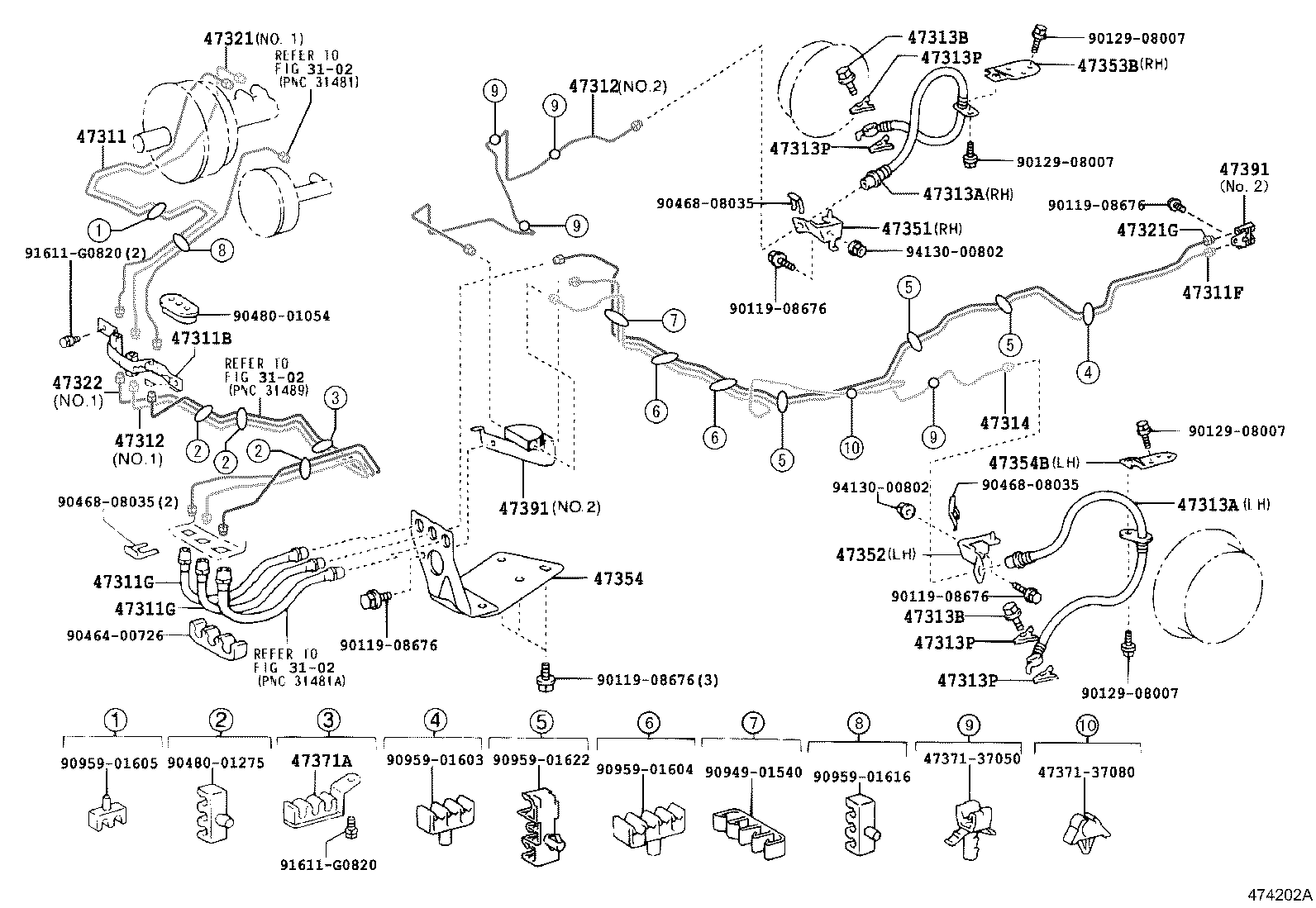

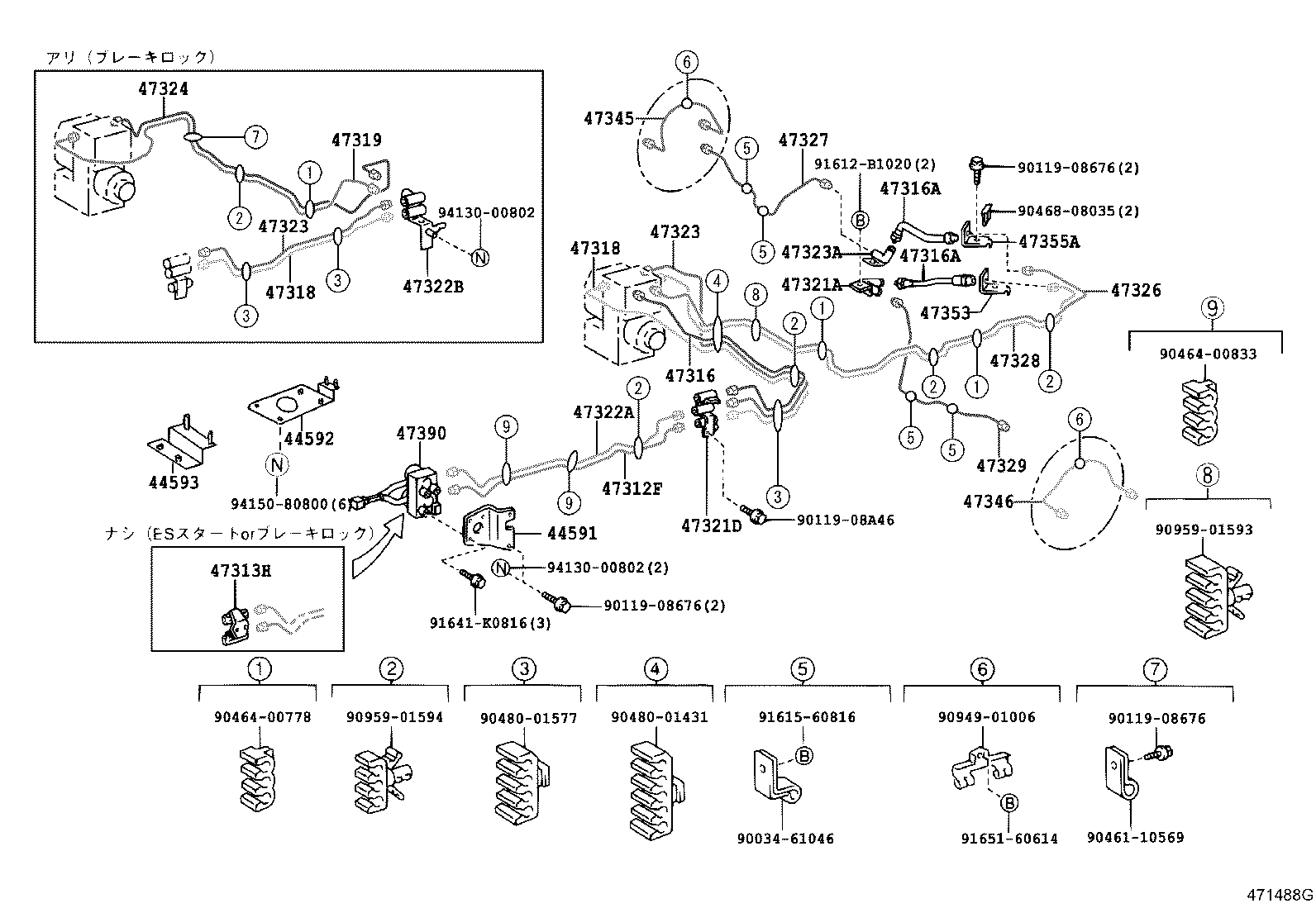

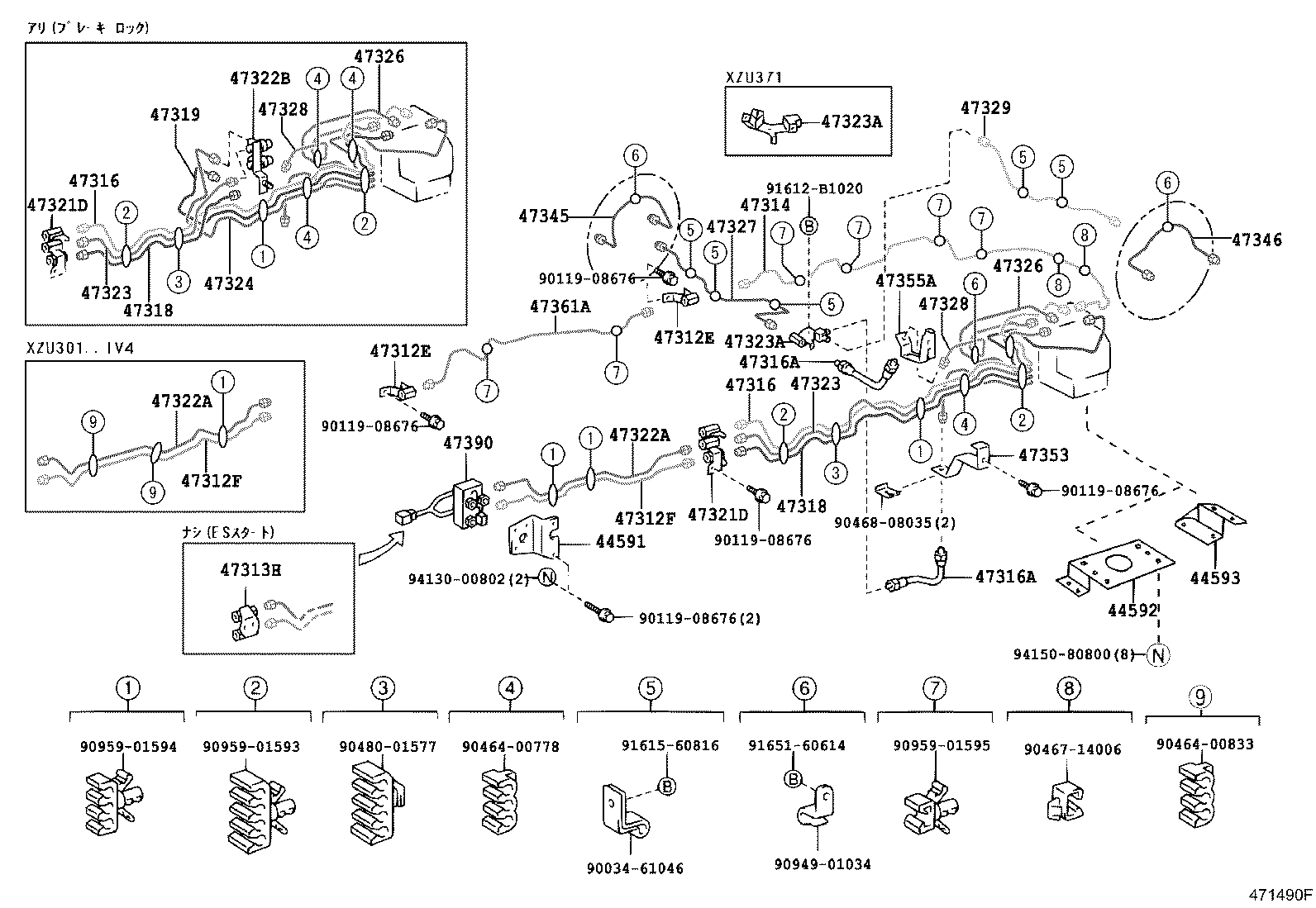

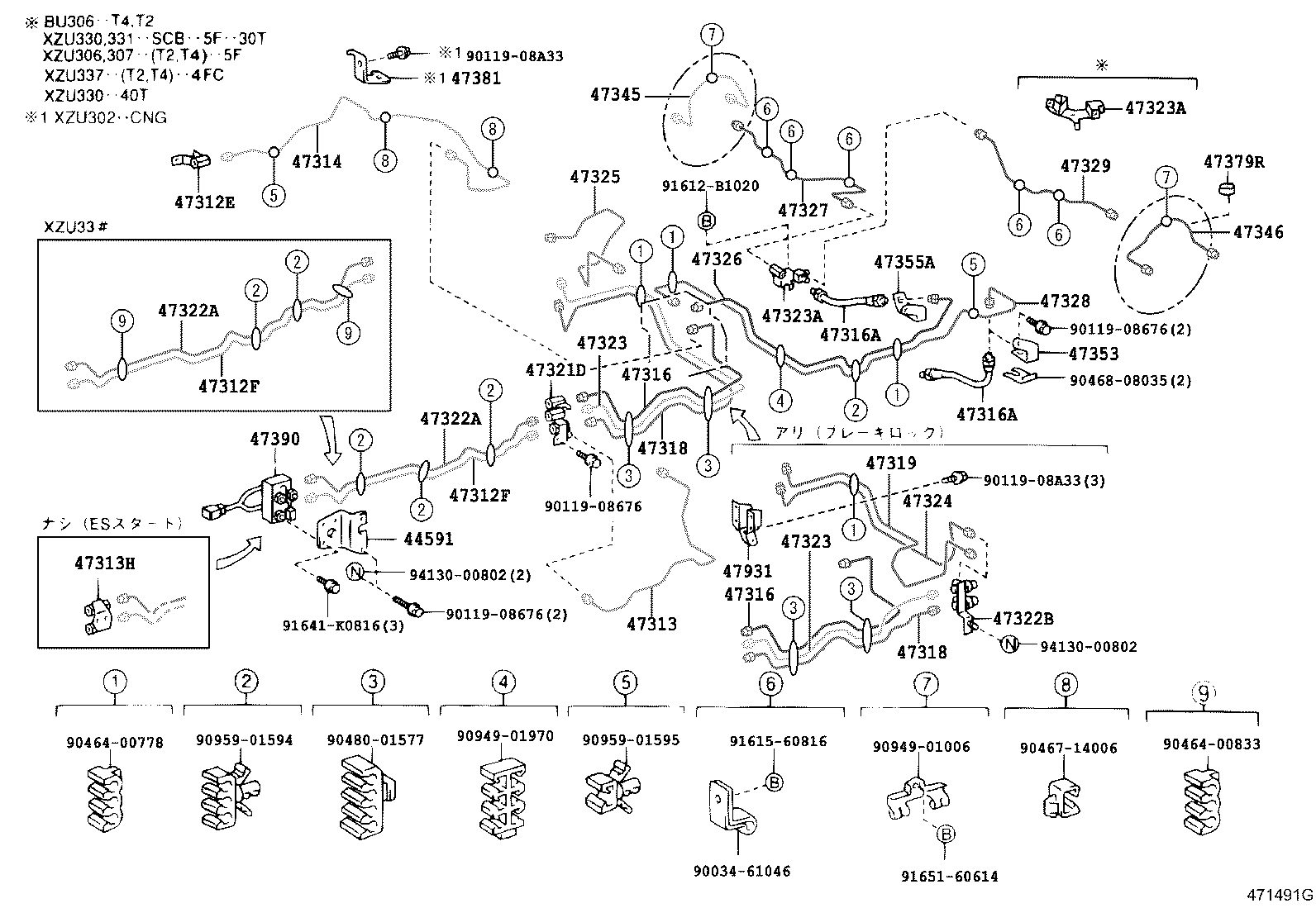

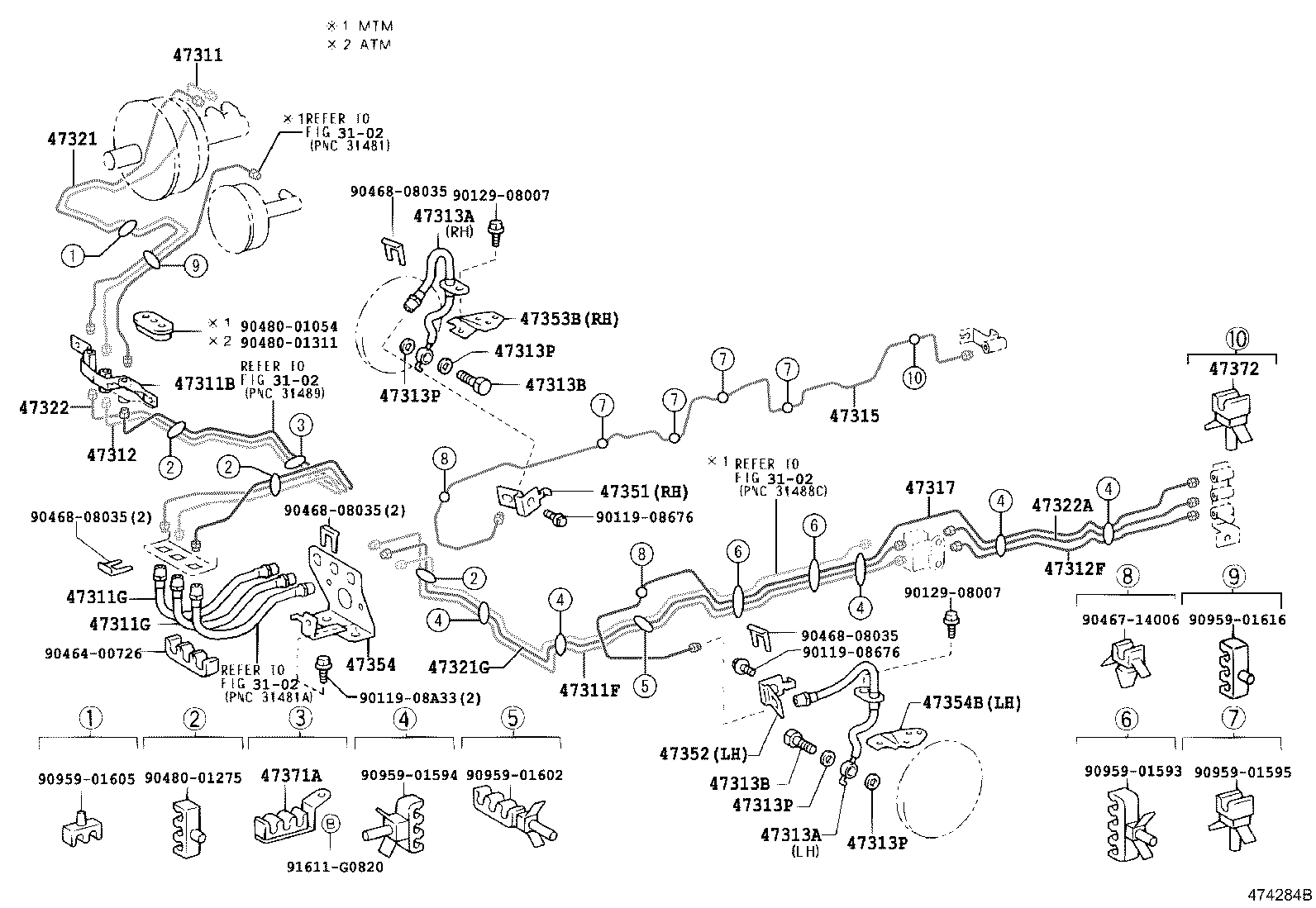

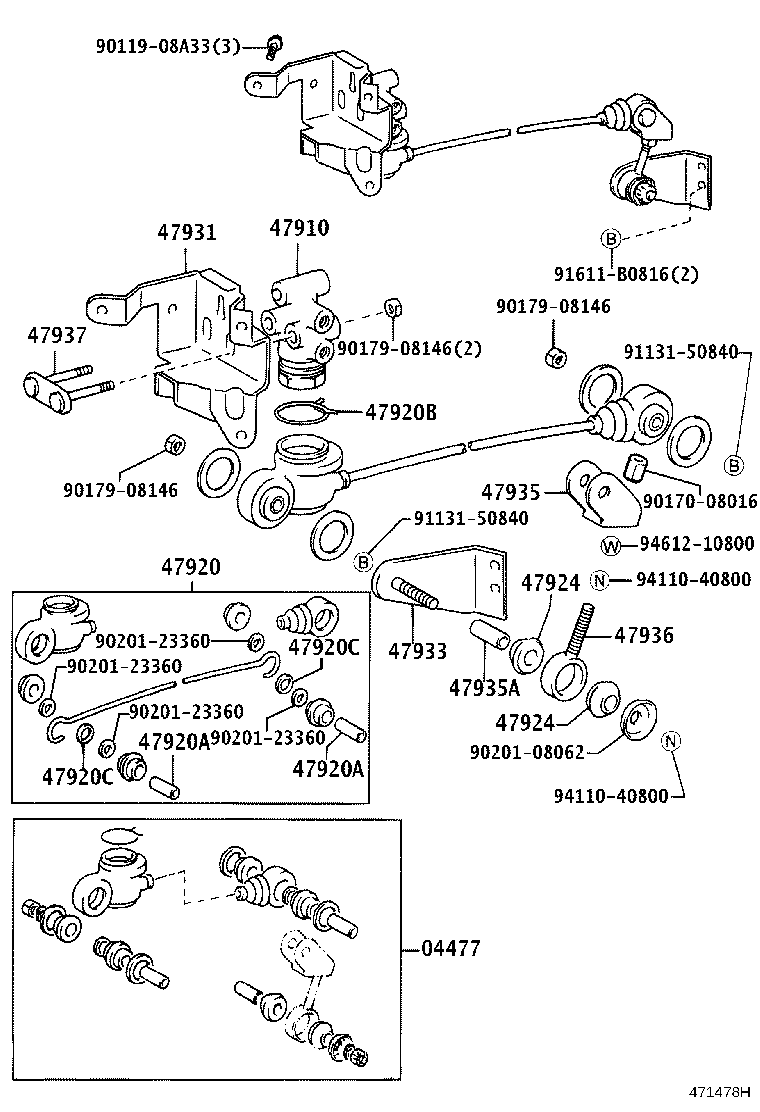

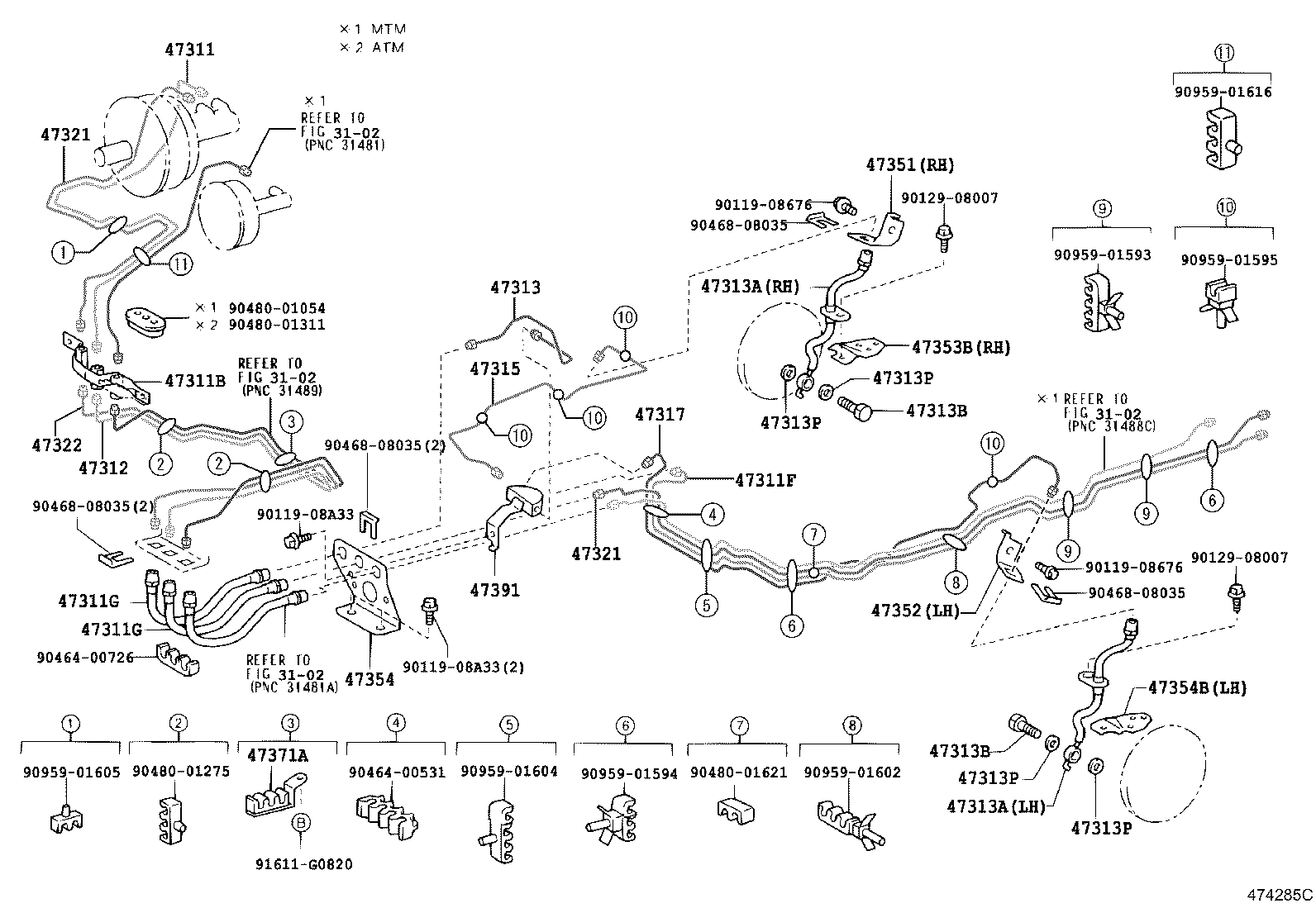

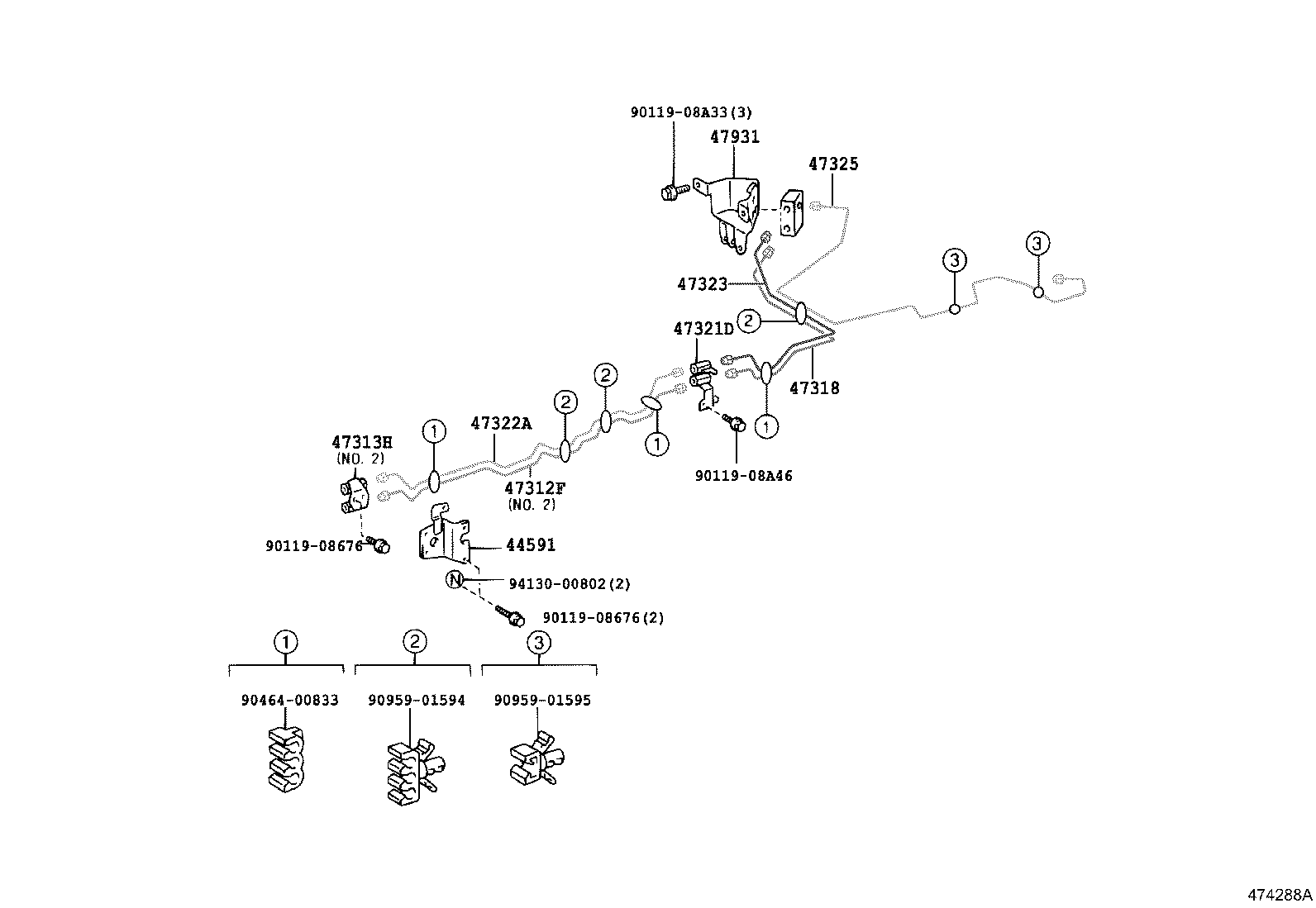

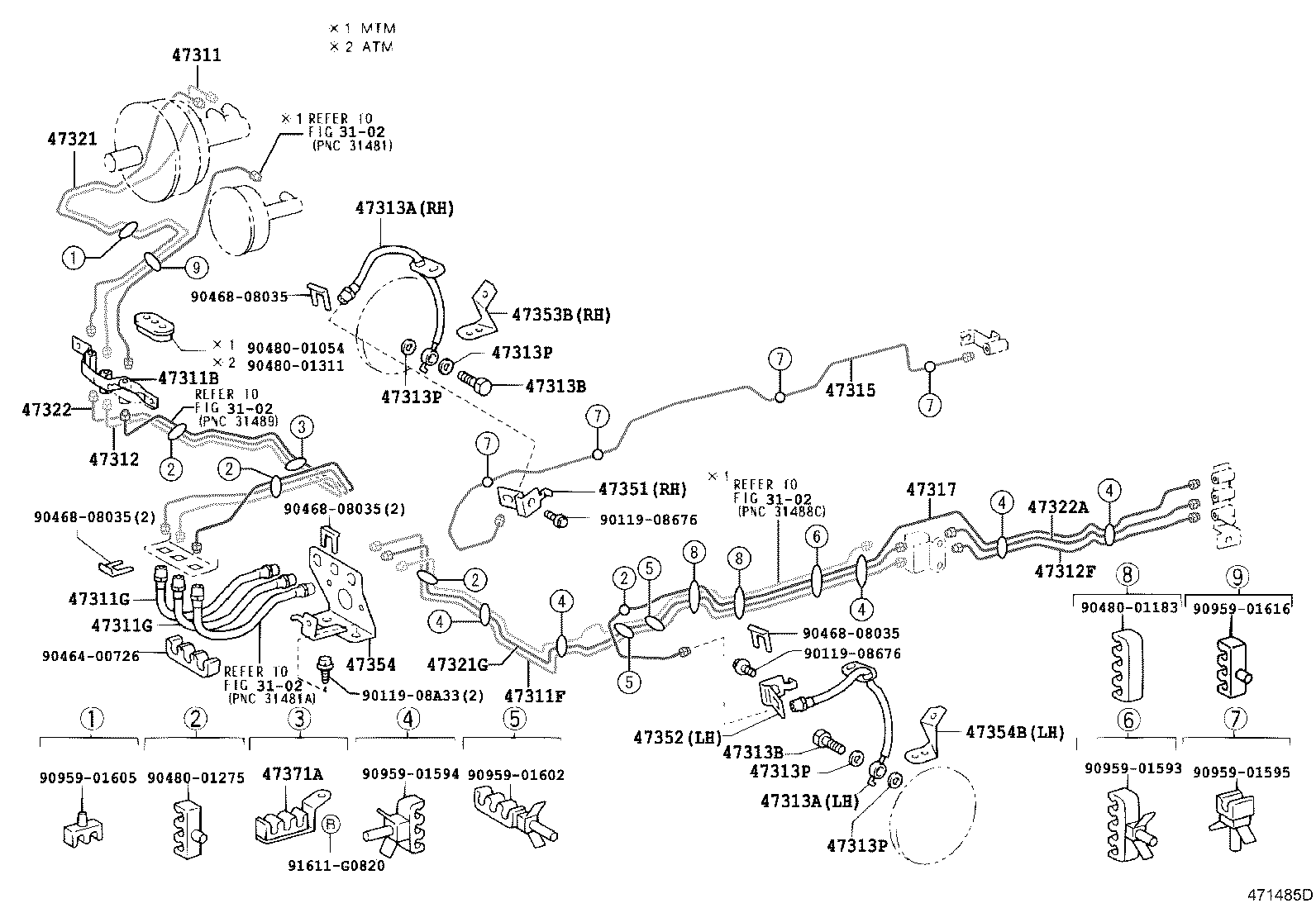

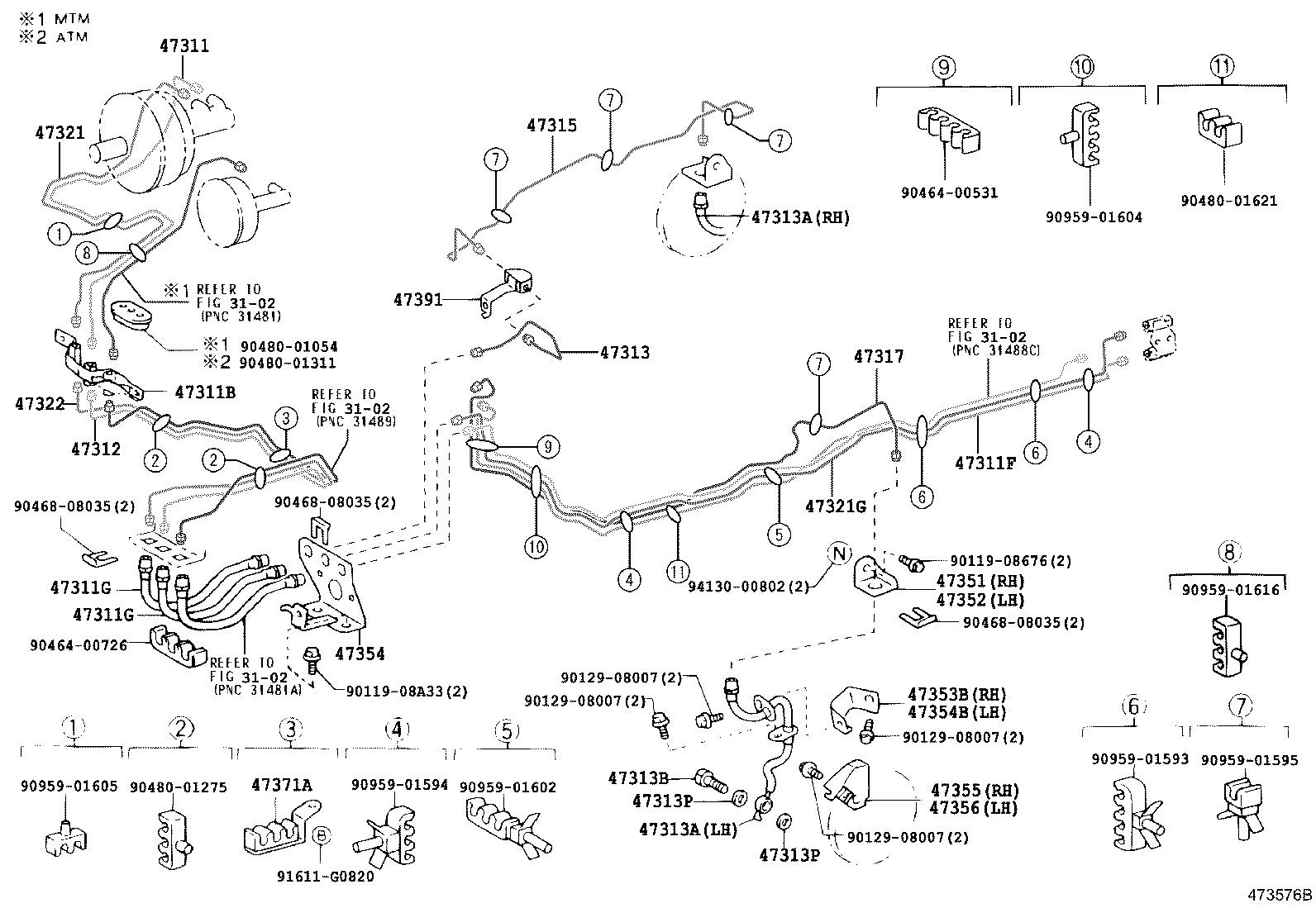

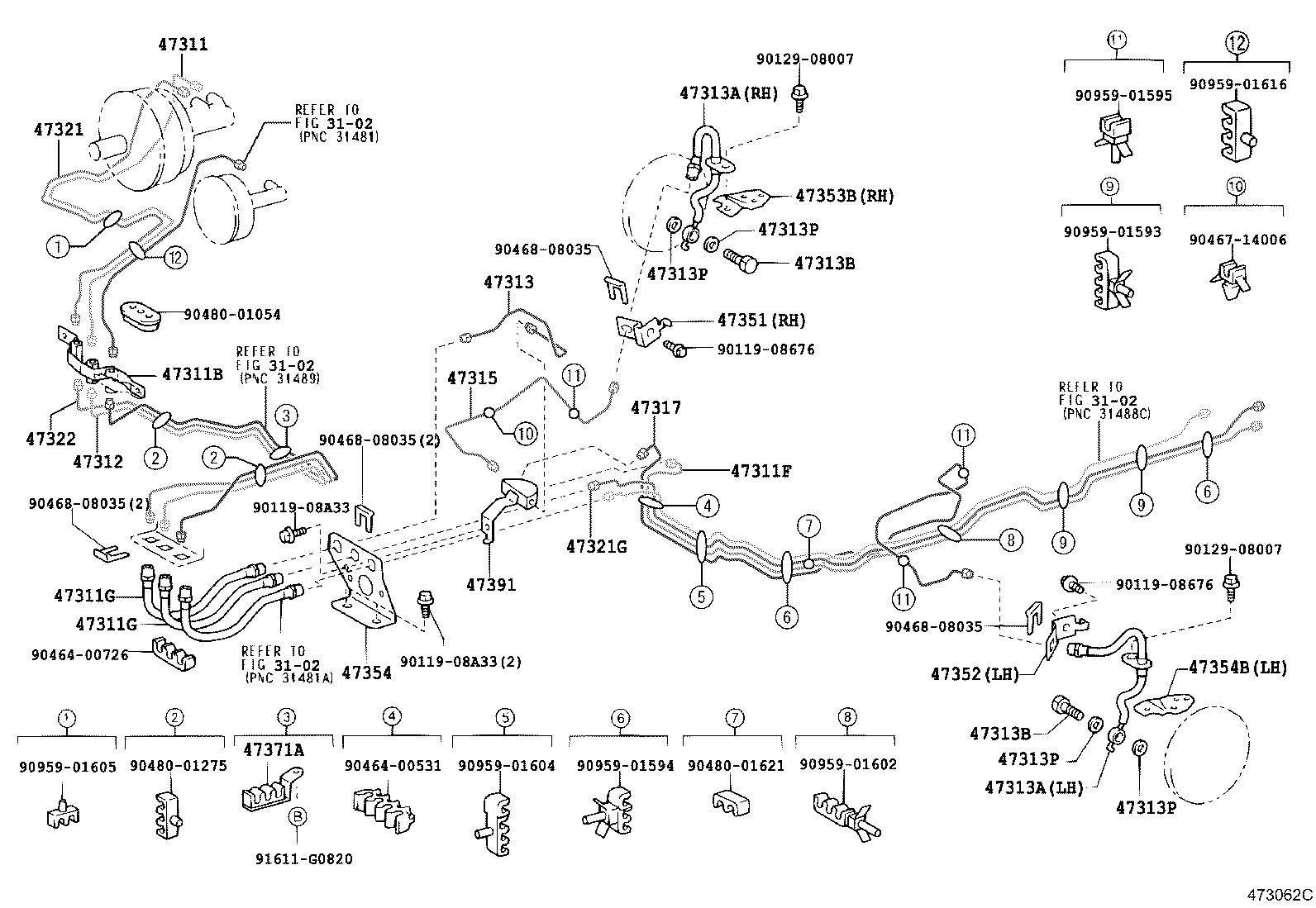

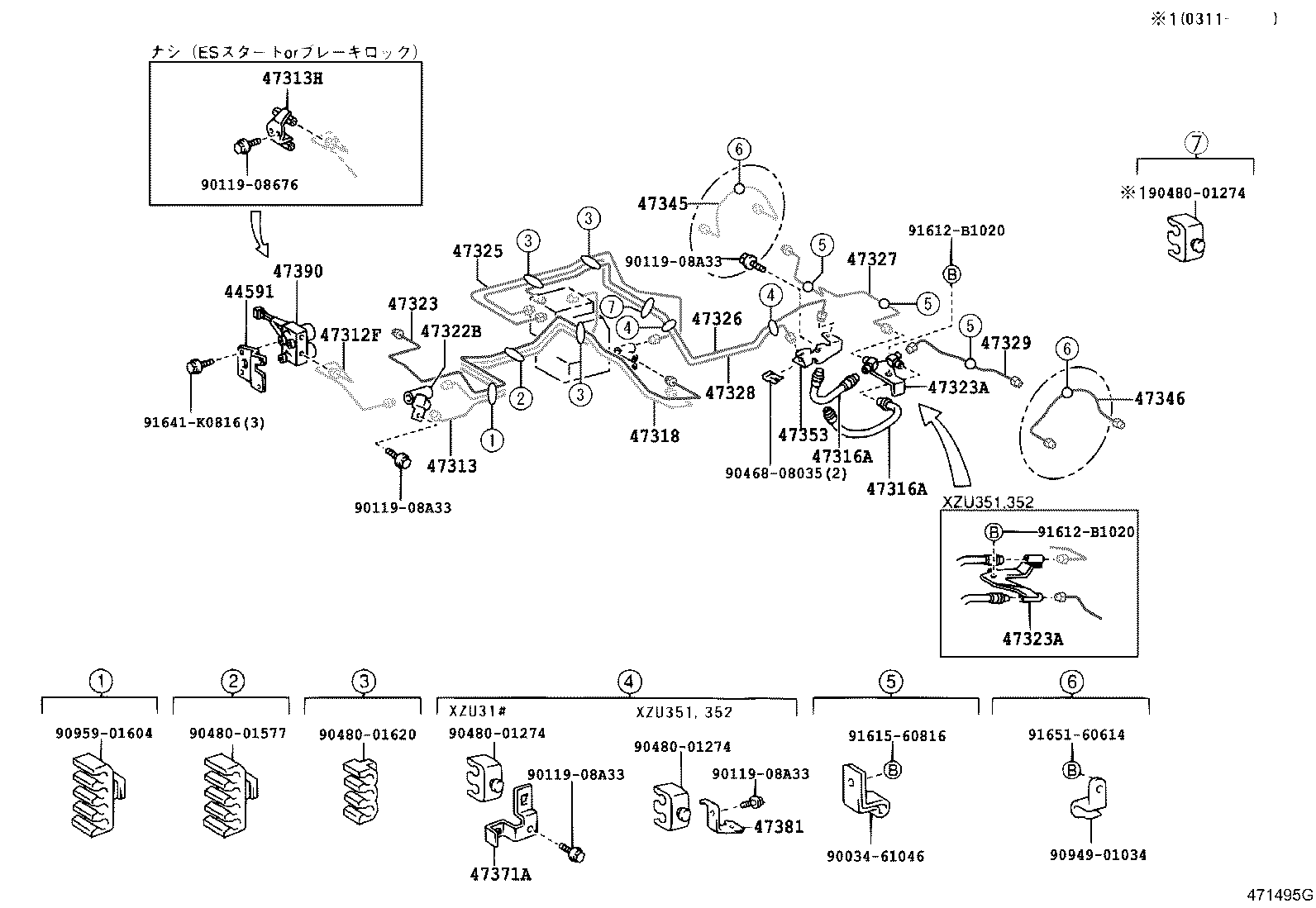

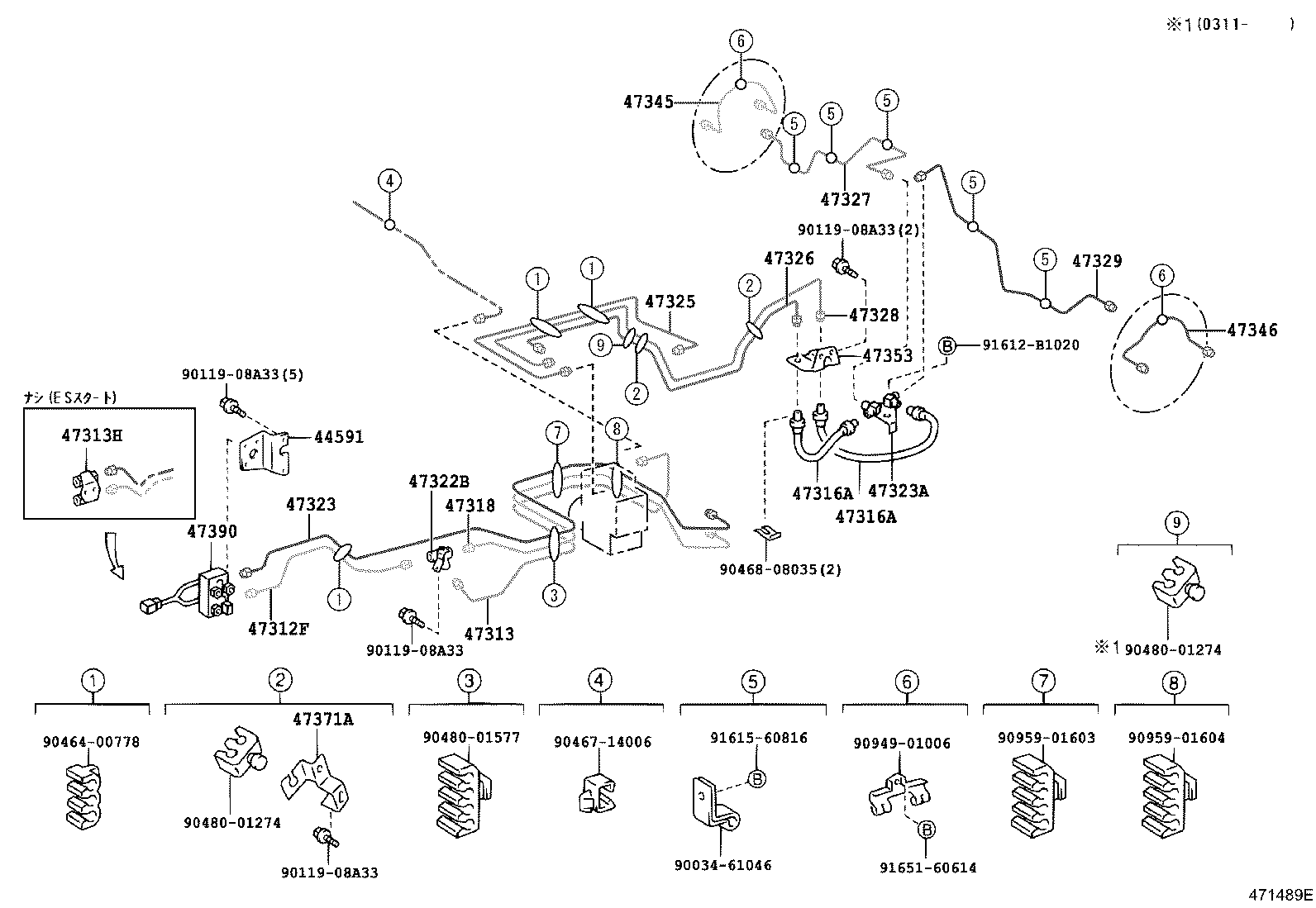

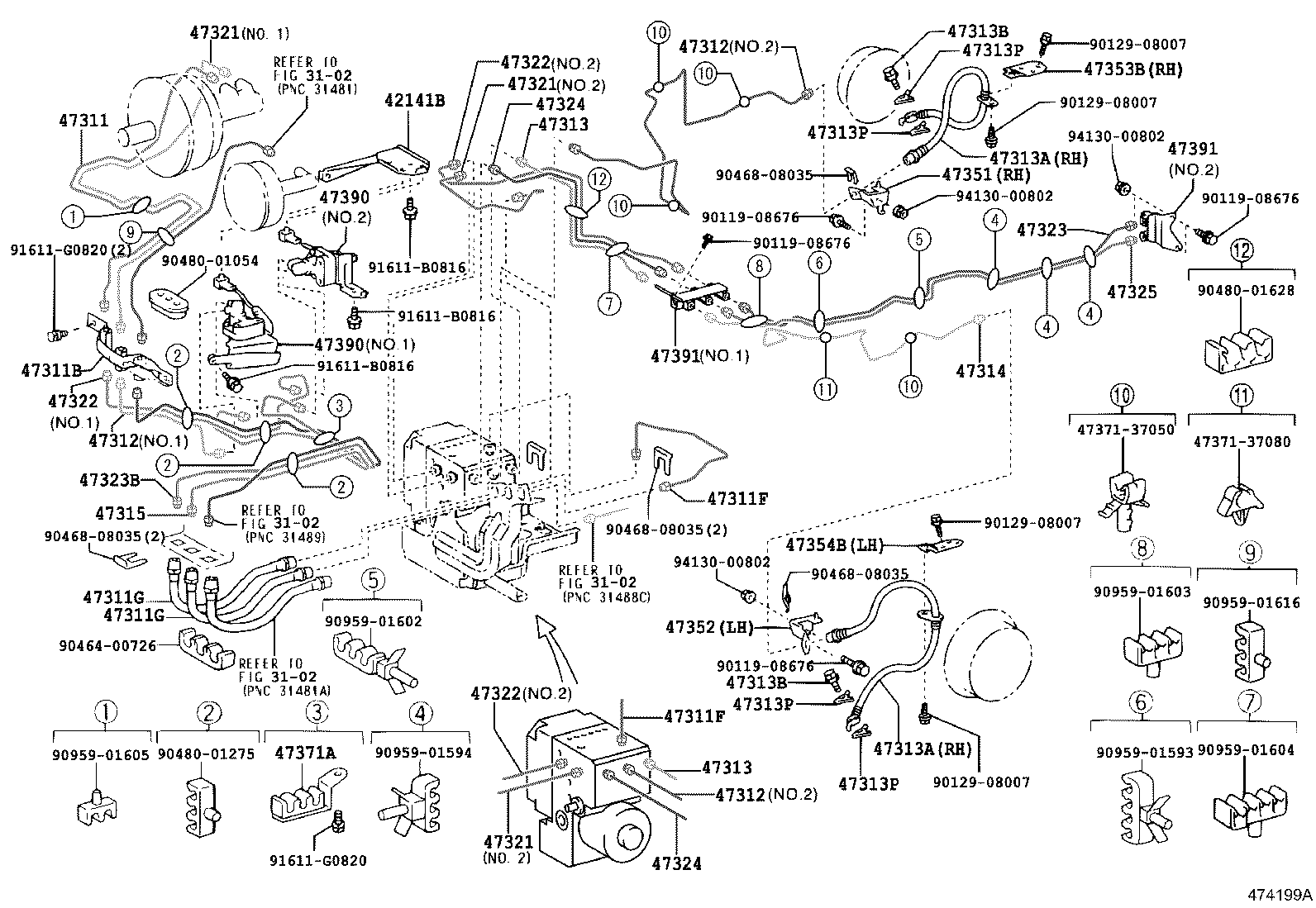

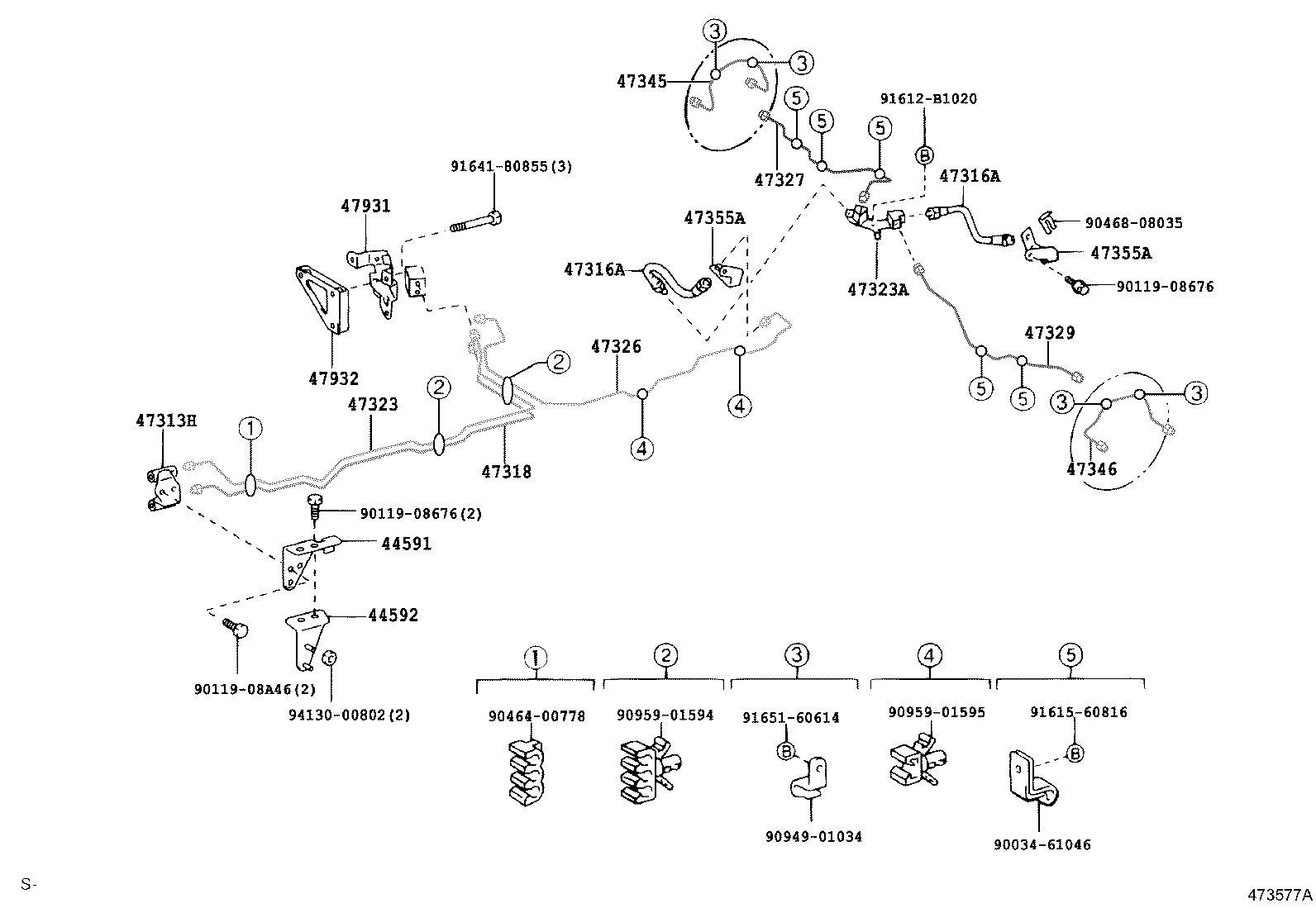

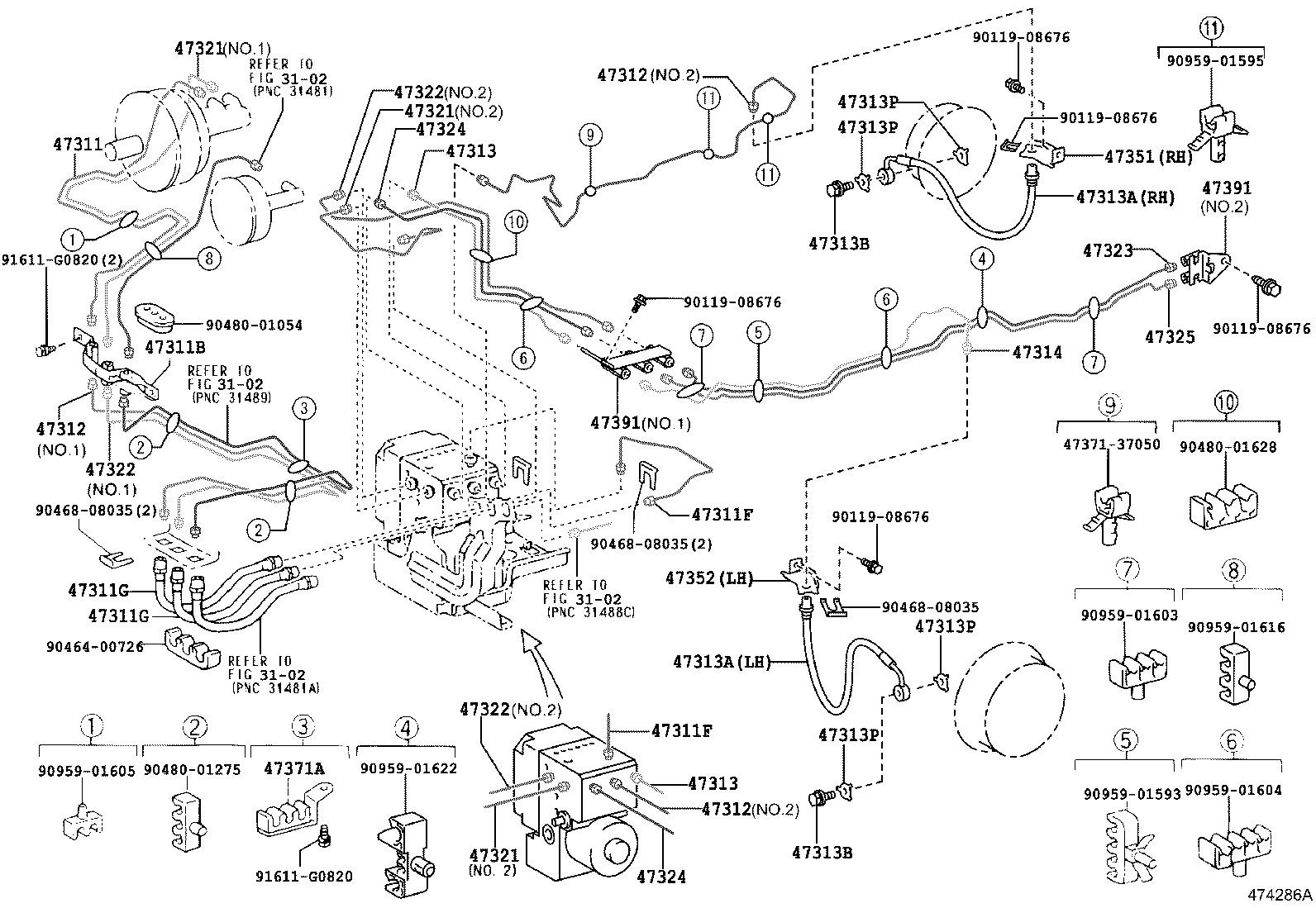

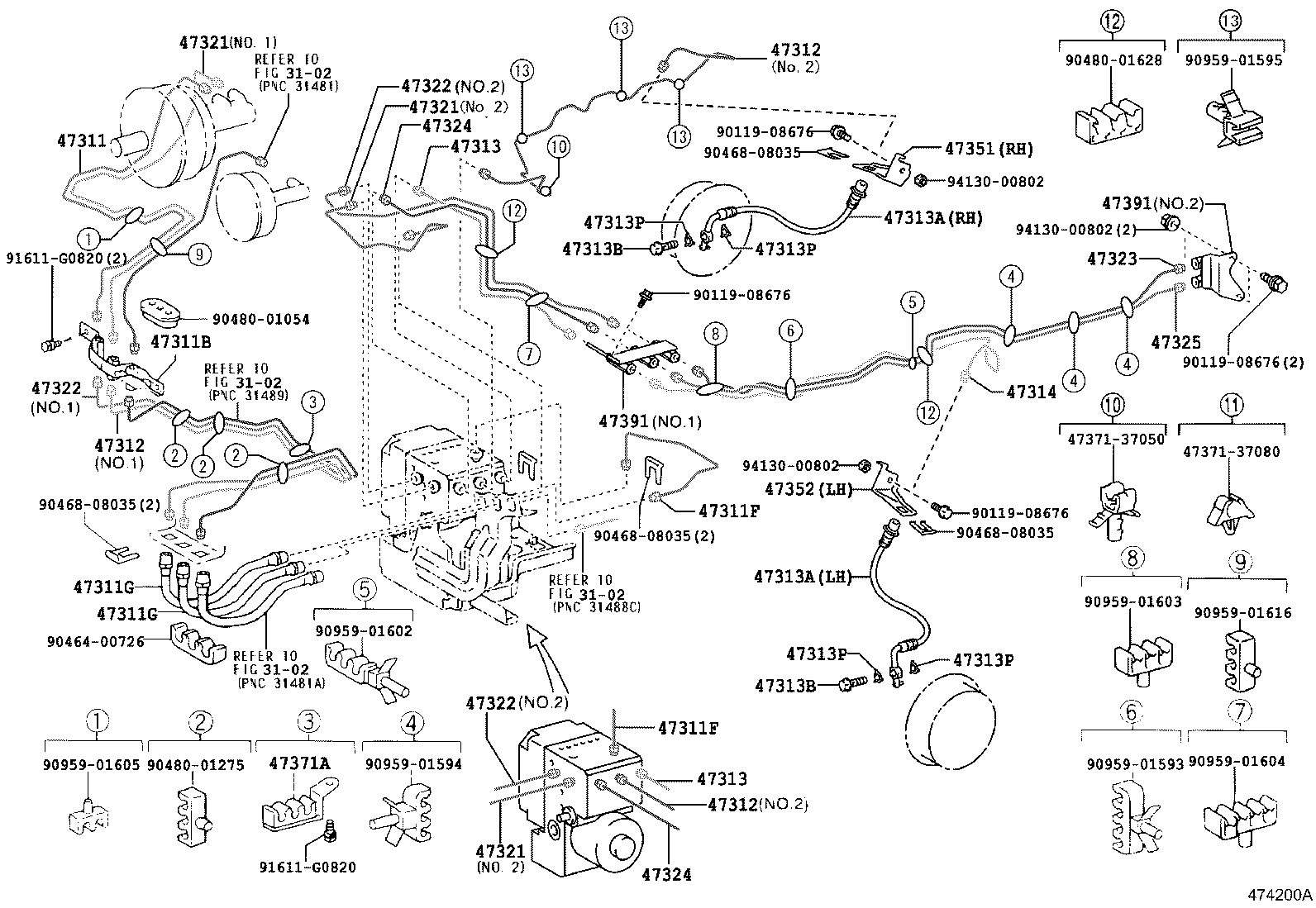

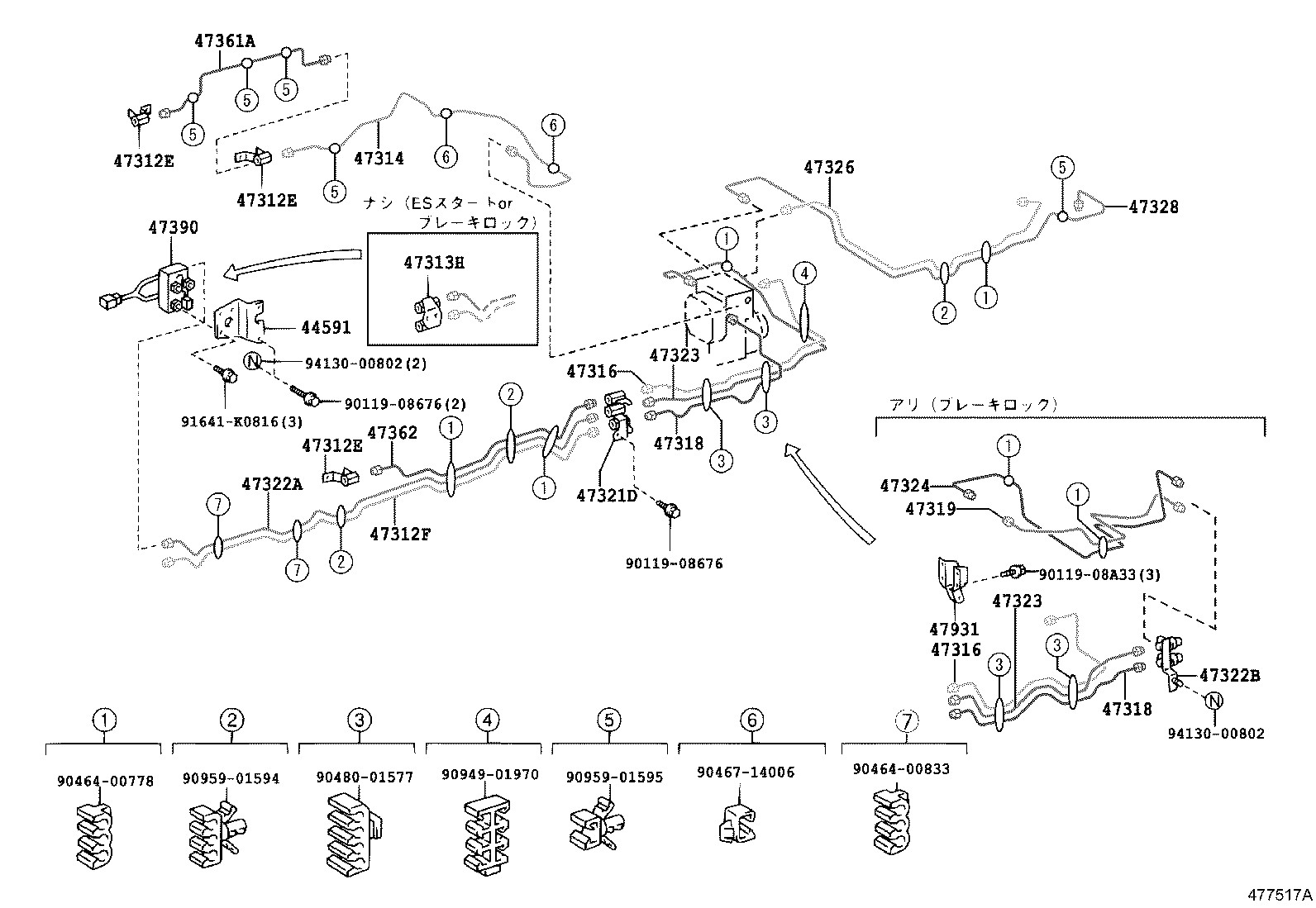

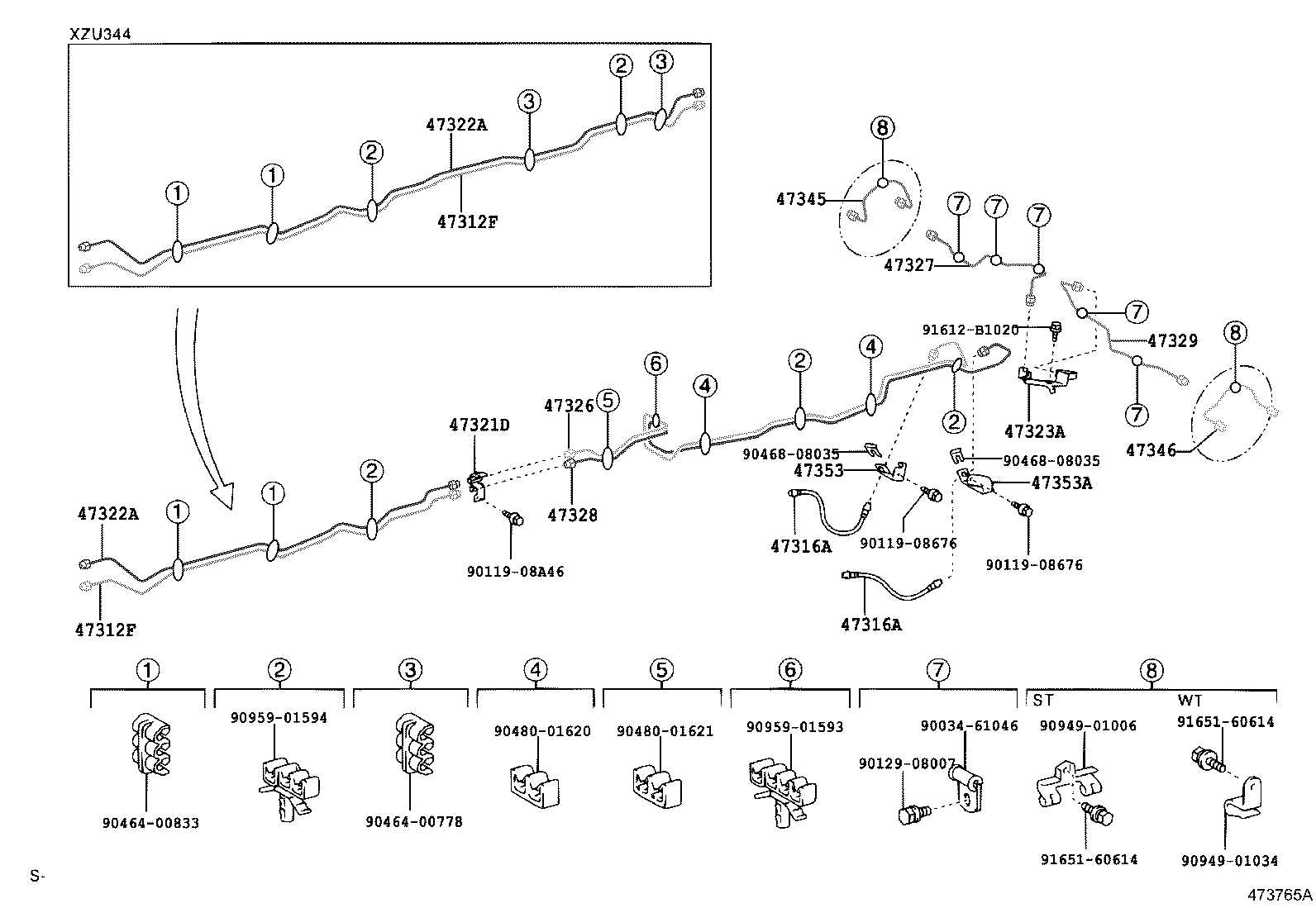

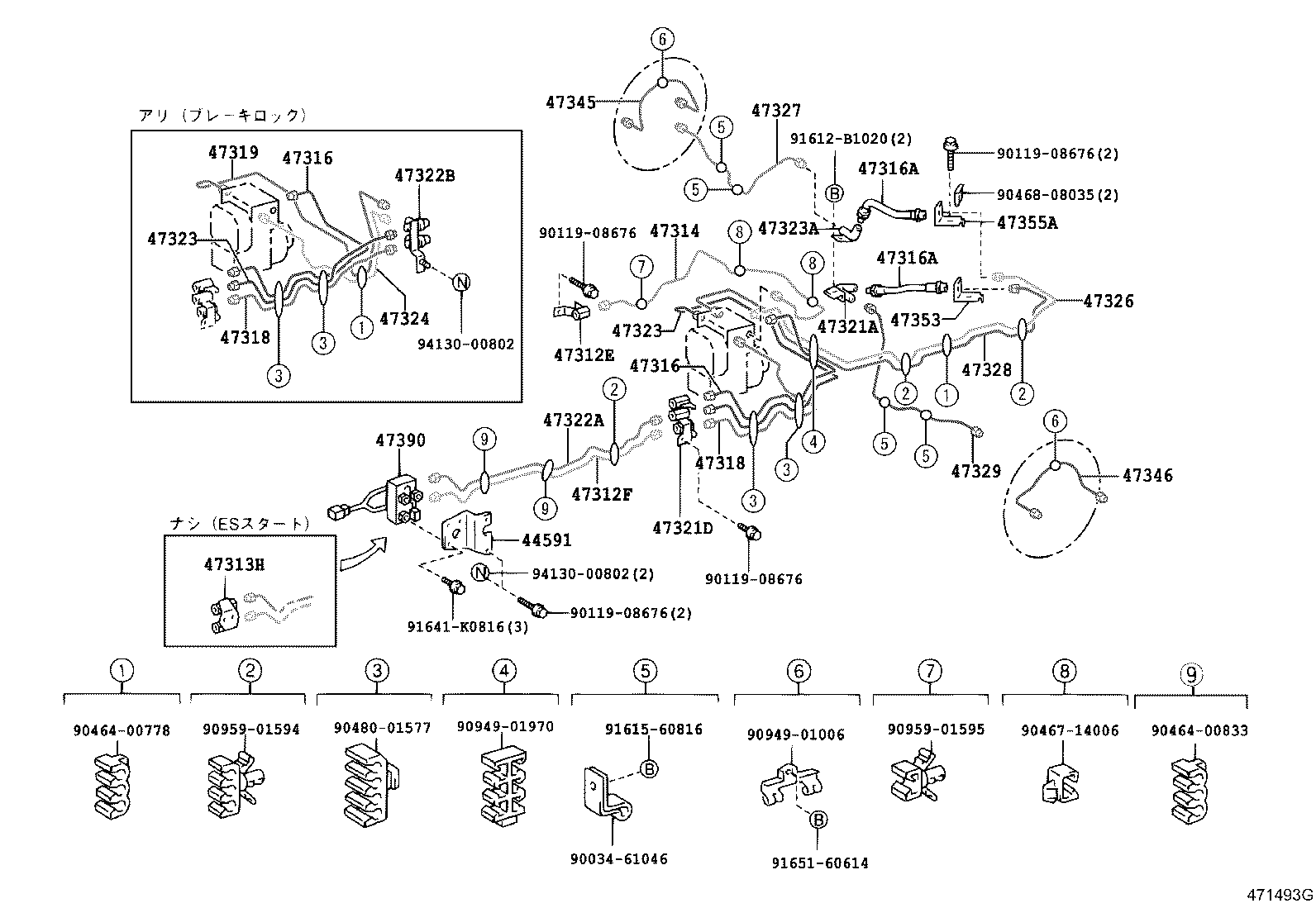

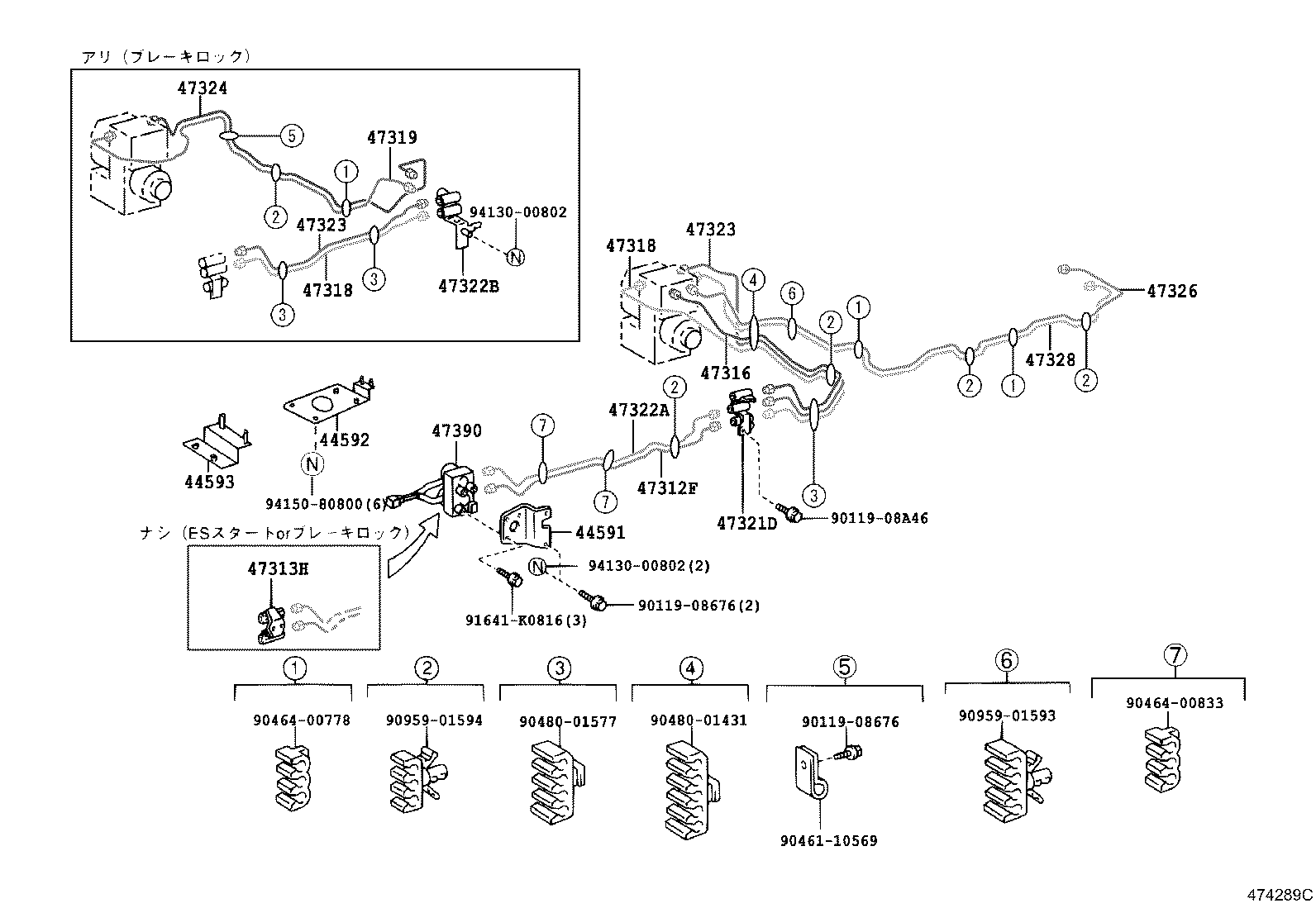

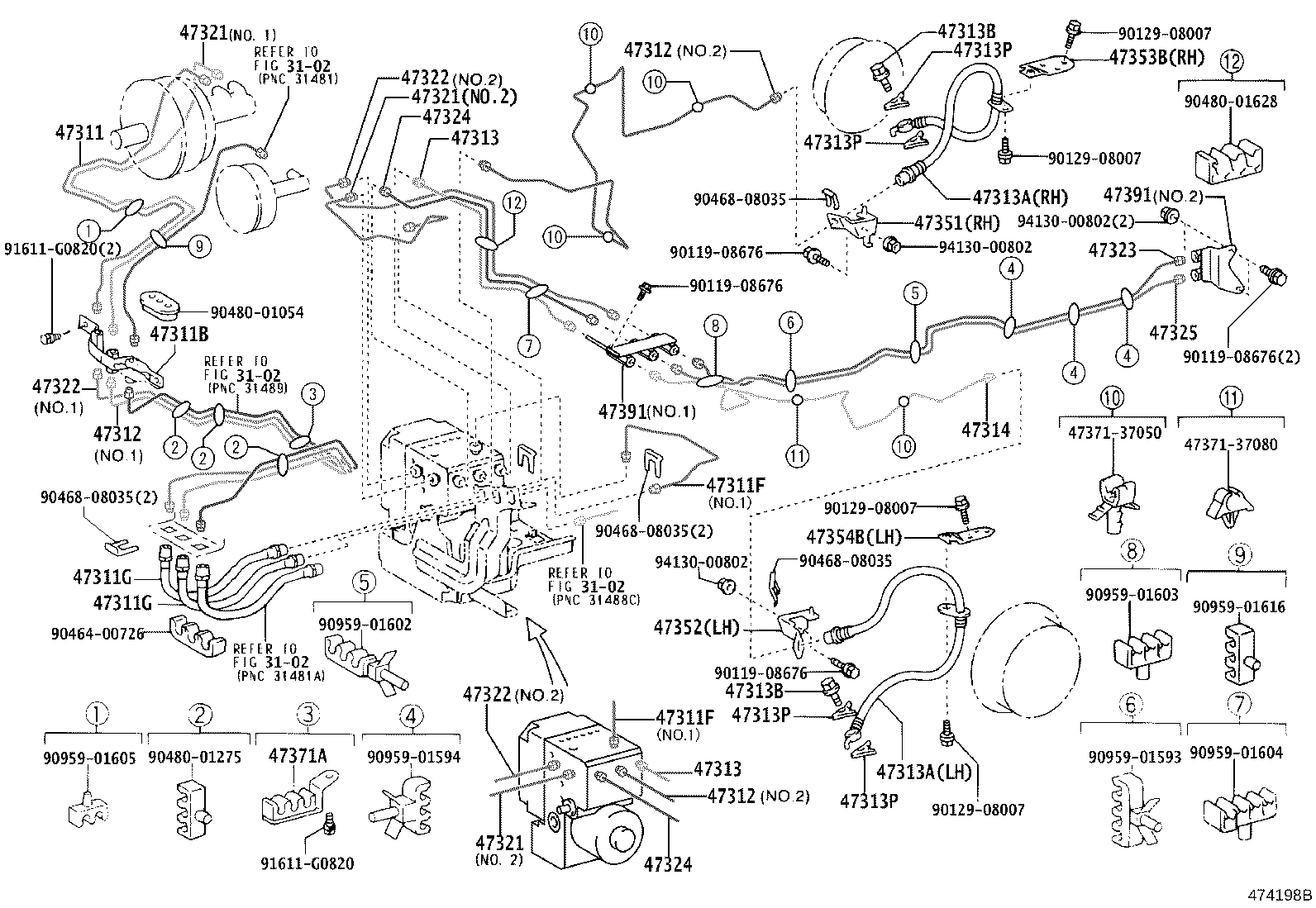

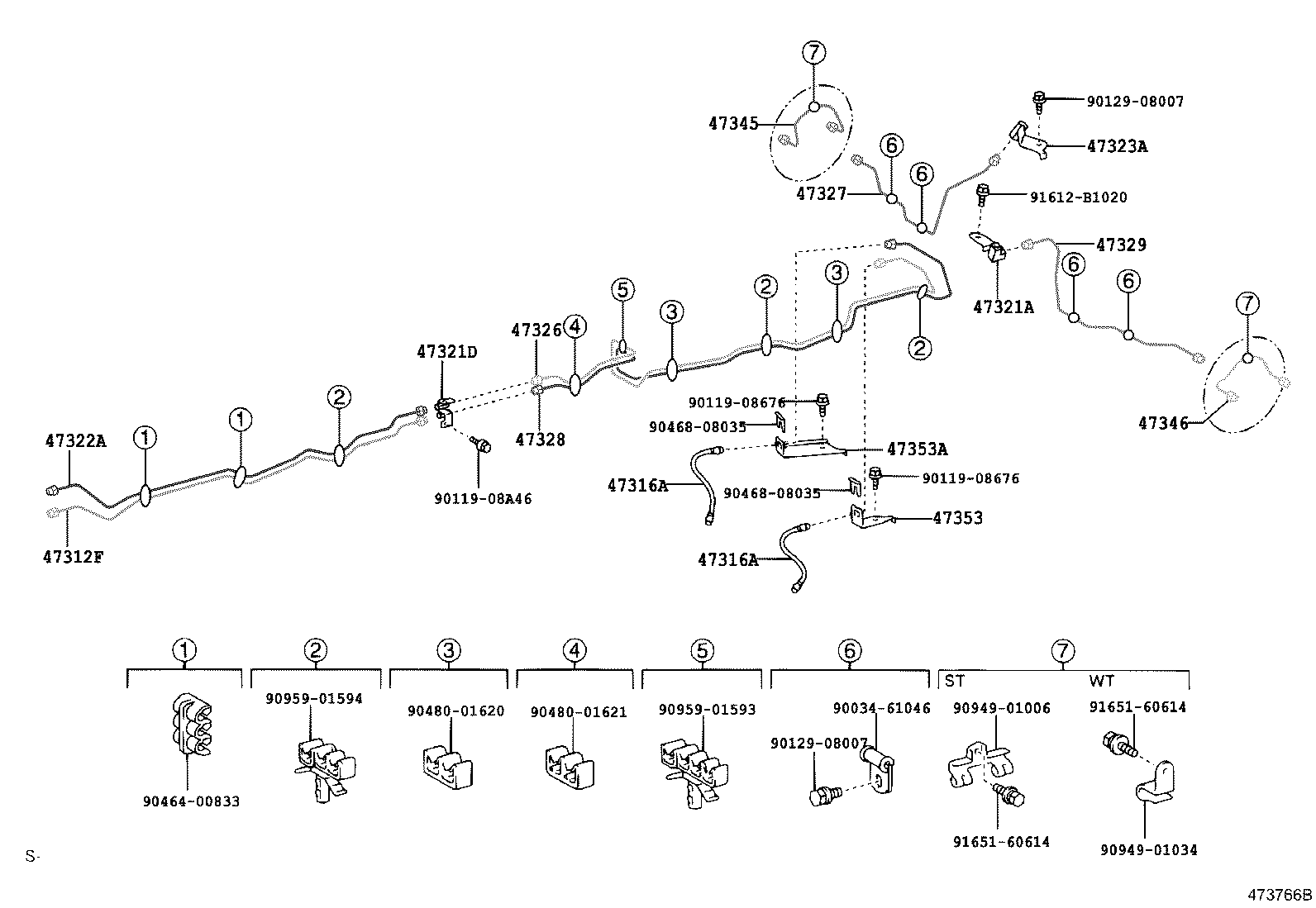

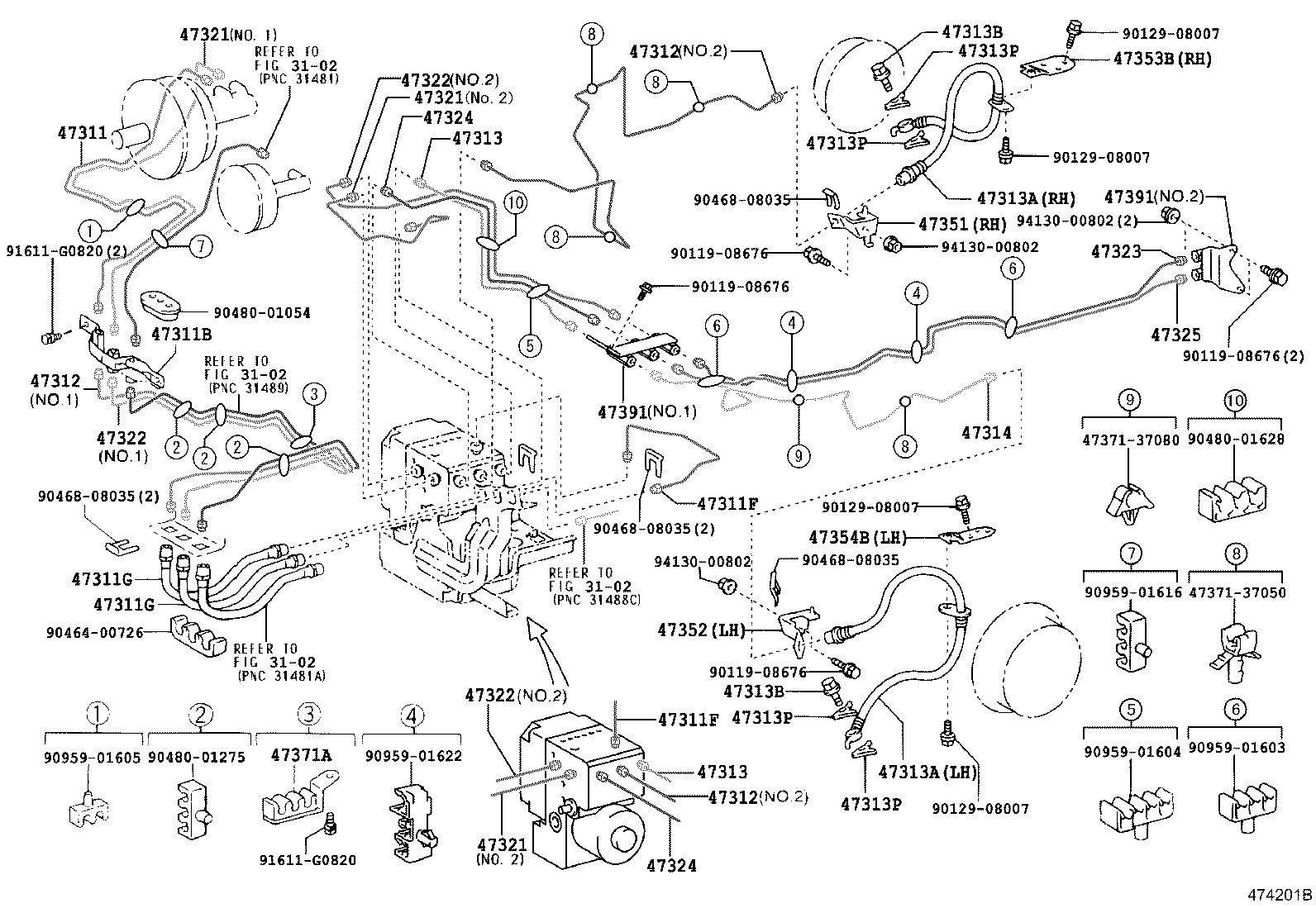

Figure 471477F 471477F 1999-05 → 2004-06 Figure 471483D 471483D 1999-05 → 2004-06 Figure 471484G 471484G 1999-05 → 2004-06 Figure 471484G 471484G 2000-05 → 2004-06 Figure 471485D 471485D 1999-07 → 2004-06 Figure 473062C 473062C 2002-06 → 2004-06 Figure 473063B 473063B 2002-06 → 2004-06 Figure 473576B 473576B 2003-06 → 2004-06 Figure 473759A 473759A 2003-10 → 2004-06 Figure 473760D 473760D 2003-10 → 2004-06 Figure 471486E 471486E 1999-05 → 2004-06 Figure 471487G 471487G 1999-05 → 2004-06 Figure 471488G 471488G 1999-05 → 2004-06 Figure 471489E 471489E 1999-05 → 2004-06 Figure 471490F 471490F 1999-08 → 2004-06 Figure 471491G 471491G 1999-05 → 2004-06 Figure 471491G 471491G 1999-05 → 2004-06 Figure 471491G 471491G 1999-06 → 2004-06 Figure 471491G 471491G 2002-10 → 2004-06 Figure 471491G 471491G 2002-10 → 2004-06 Figure 471492F 471492F 1999-05 → 2004-06 Figure 471493G 471493G 1999-05 → 2004-06 Figure 471493G 471493G 2002-10 → 2004-06 Figure 471493G 471493G 2002-10 → 2004-06 Figure 471500F 471500F 1999-05 → 2004-06 Figure 471500F 471500F 1999-07 → 2004-06 Figure 471500F 471500F 2000-05 → 2004-06 Figure 471501F 471501F 1999-06 → 2004-06 Figure 471494F 471494F 1999-05 → 2004-06 Figure 471495G 471495G 1999-05 → 2004-06 Figure 471496E 471496E 1999-07 → 2004-06 Figure 471497F 471497F 1999-07 → 2004-06 Figure 473592A 473592A 2002-06 → 2004-06 Figure 473577A 473577A 2003-06 → 2004-06 Figure 473765A 473765A 2003-10 → 2004-06 Figure 473766B 473766B 2003-10 → 2004-06 Figure 471498D 471498D 1999-05 → 2004-06 Figure 473799 473799 2003-10 → 2004-06 Figure 471478H 471478H 1999-05 → 2004-06 Figure 471478H 471478H 1999-05 → 2004-06 Figure 471478H 471478H 1999-05 → 2004-06 Figure 471478H 471478H 1999-05 → 2004-06 Figure 474198B 474198B 2004-06 → — Figure 474199A 474199A 2004-06 → — Figure 474200A 474200A 2004-06 → — Figure 474201B 474201B 2004-06 → — Figure 474202A 474202A 2004-06 → — Figure 474203B 474203B 2004-06 → — Figure 474204A 474204A 2004-06 → — Figure 474284B 474284B 2004-06 → — Figure 474285C 474285C 2004-06 → — Figure 474286A 474286A 2004-06 → — Figure 474216A 474216A 2004-06 → — Figure 474217A 474217A 2004-06 → — Figure 474218A 474218A 2004-06 → — Figure 474287C 474287C 2004-06 → — Figure 474289C 474289C 2004-06 → — Figure 477517A 477517A 2004-06 → — Figure 474288A 474288A 2004-06 → — Figure 474221B 474221B 2004-06 → — Figure 474219A 474219A 2004-06 → — Figure 474220A 474220A 2004-06 → — Figure 474225C 474225C 2004-06 → — Figure 474226C 474226C 2004-06 → — Figure 474227A 474227A 2004-06 → — Figure 479064A 479064A 2004-06 → — Figure 474229A 474229A 2004-06 → — Figure 474253A 474253A 2004-06 → — Figure 474237A 474237A 2004-06 → — Figure 474254A 474254A 2004-06 → — Figure 474255A 474255A 2004-06 → — Figure 474256B 474256B 2004-06 → — Figure 474238A 474238A 2004-06 → — Figure 474239A 474239A 2004-06 → — Figure 474290A 474290A 2004-06 → — Figure 474258A 474258A 2004-06 → — Figure 474259 474259 2004-06 → — Figure 474257A 474257A 2004-06 → — Figure 474257A 474257A 2004-06 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
42141B Attachment, Skid Control Wire, NO.1
44540 Actuator Assy, Abs & Traction
44590 Bracket Assy, Brake Actuator
44591 Bracket, Brake Actuator, NO.1
44592 Bracket, Brake Actuator, NO.2
44593 Bracket, Brake Actuator, NO.3
44594 Bracket, Brake Actuator, NO.4
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311F Tube, Front Brake, Frame NO.1
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47312F Tube, Front Brake, Frame, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313H Way, NO.3(FOR FRONT BRAKE TUBE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318F Hose, Flexible(FOR REAR RH)
47319 Tube, Front Brake, NO.9
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321A Way(FOR REAR BRAKE TUBE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47321G Tube, Rear Brake, Frame NO.1
47322 Tube, Rear Brake, NO.2
47322A Tube, Rear Brake, Frame NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47323A Way, NO.3(FOR REAR BRAKE TUBE)
47323B Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47342 Tube, Wheel Cylinder, Front RH NO.2
47344 Tube, Wheel Cylinder, Front LH NO.2
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47353A Bracket, Flexible Hose, Front RH NO.2
47353B Bracket, Flexible Hose, NO.3
47354 Bracket, Front Flexible Hose
47354B Bracket, Flexible Hose, NO.4
47355 Bracket, Flexible Hose, NO.2(FOR FRONT)
47355A Bracket, Flexible Hose, NO.5
47356 Bracket, Flexible Hose, NO.6
47361A Tube, Front Brake, NO.10
47362 Tube, Front Brake, NO.11
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47379F Damper, Tube(FOR FRONT)
47379R Damper, Tube(FOR REAR)
47381 Bracket, Brake Tube Clamp NO.1
47390 Valve Assy, Hill Holder Brake Lock
47391 Way, Brake Tube
47910 Valve Assy, Load Sensing Proportioning

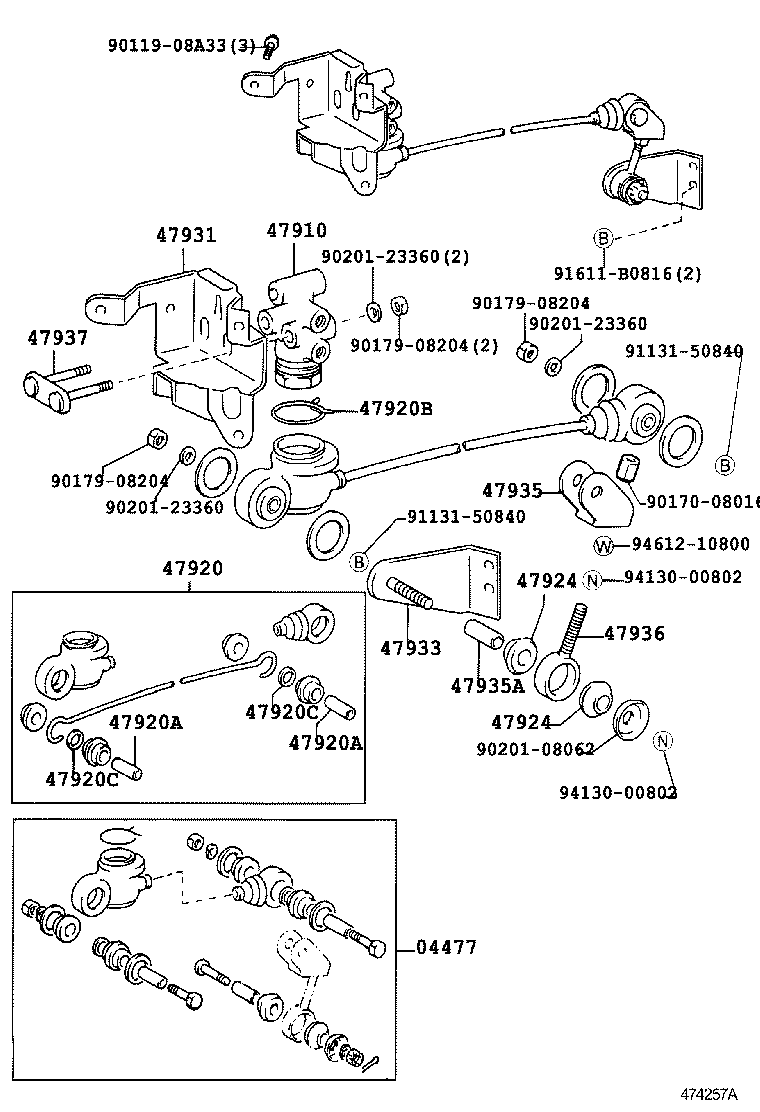

47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47924 Bush, Load Sensing Valve
47931 Bracket, Load Sensing Valve
47932 Bracket, Load Sensing Valve, NO.2
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
