Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

60 part groups · 48 illustrations

Illustrations

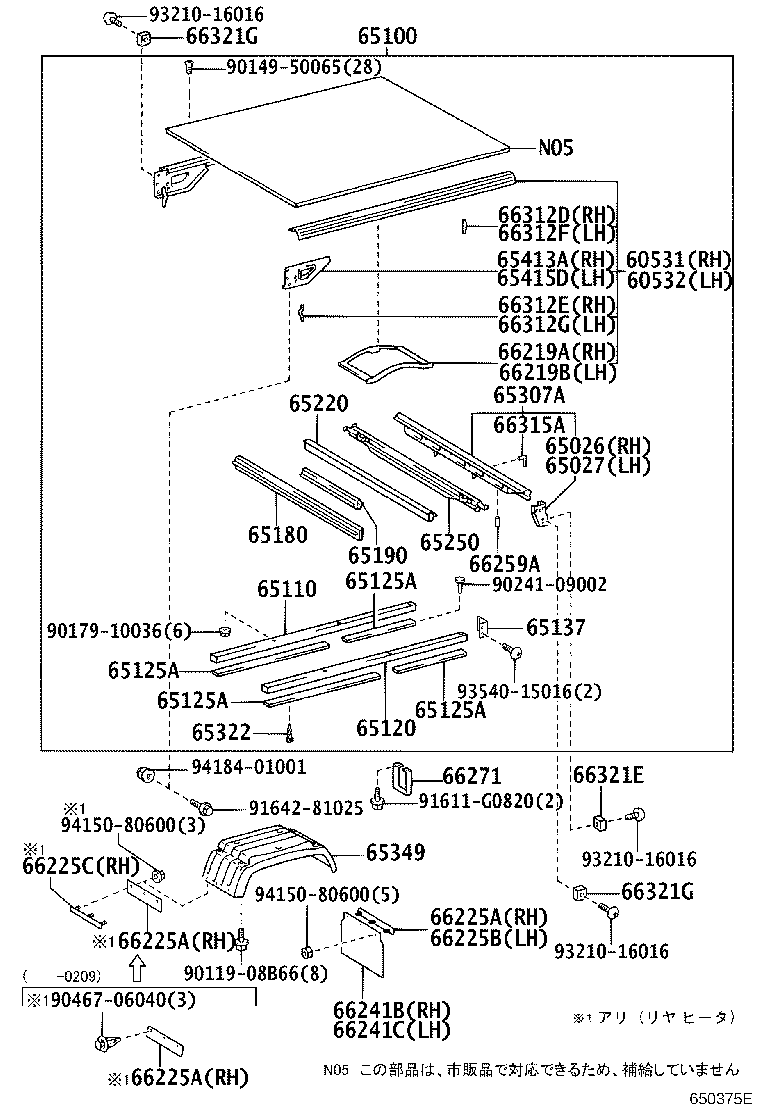

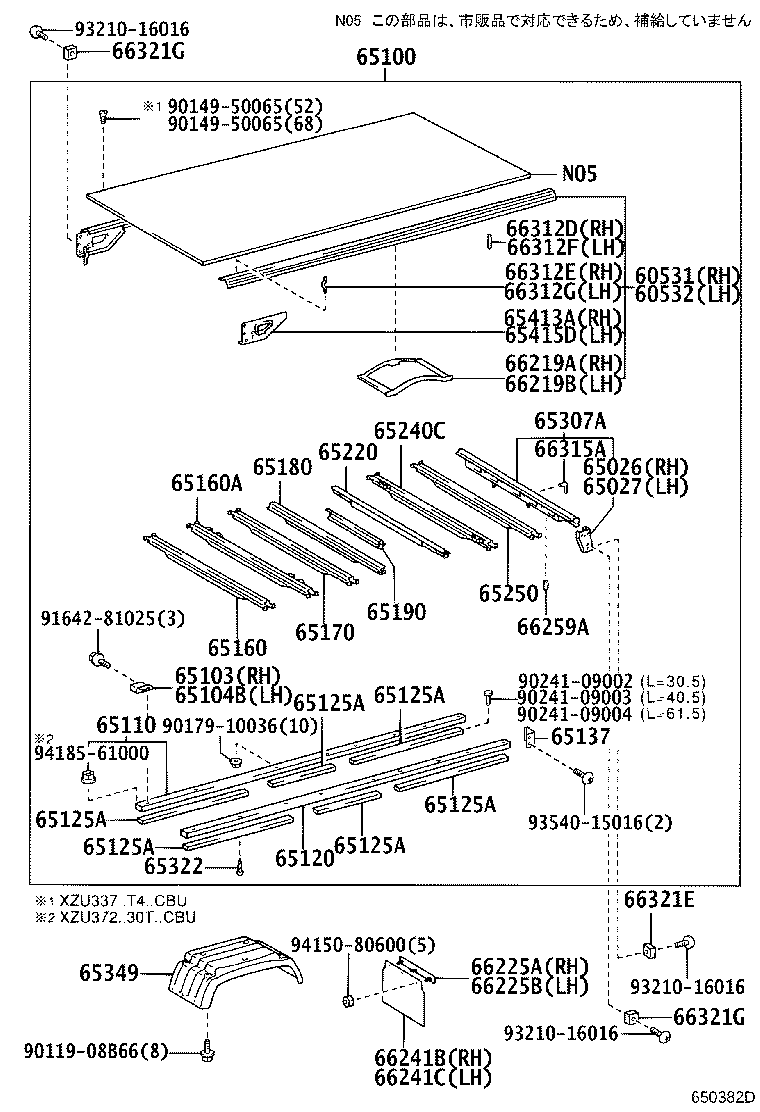

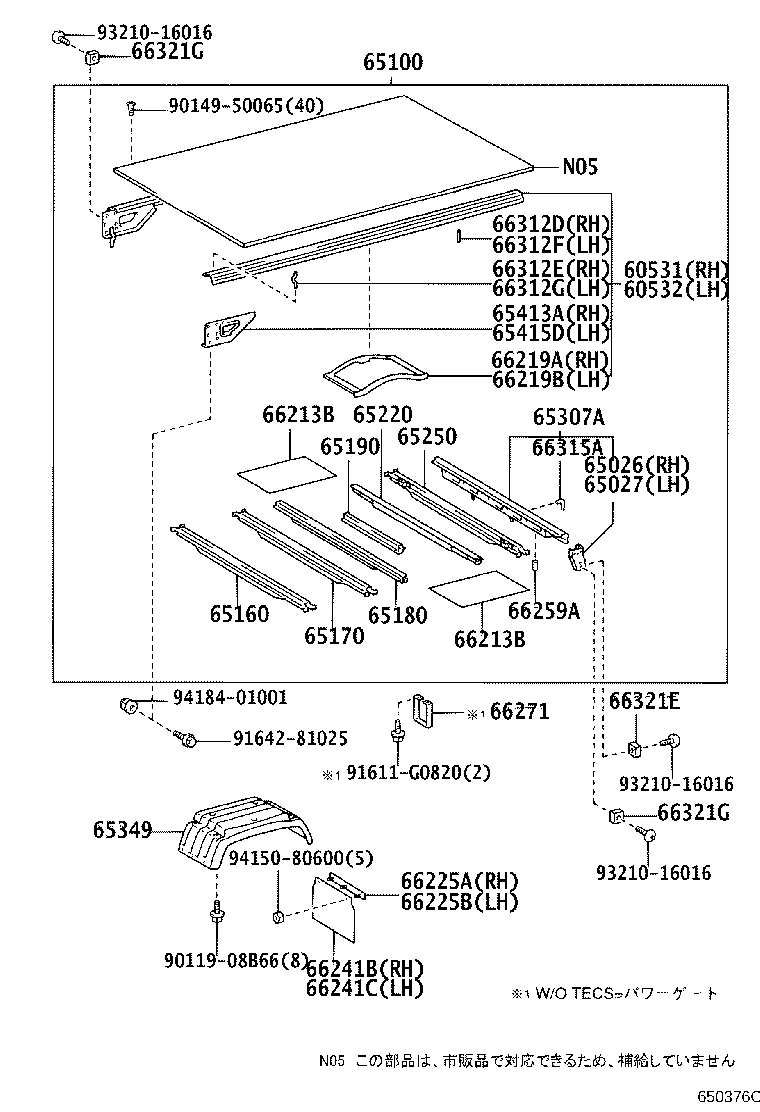

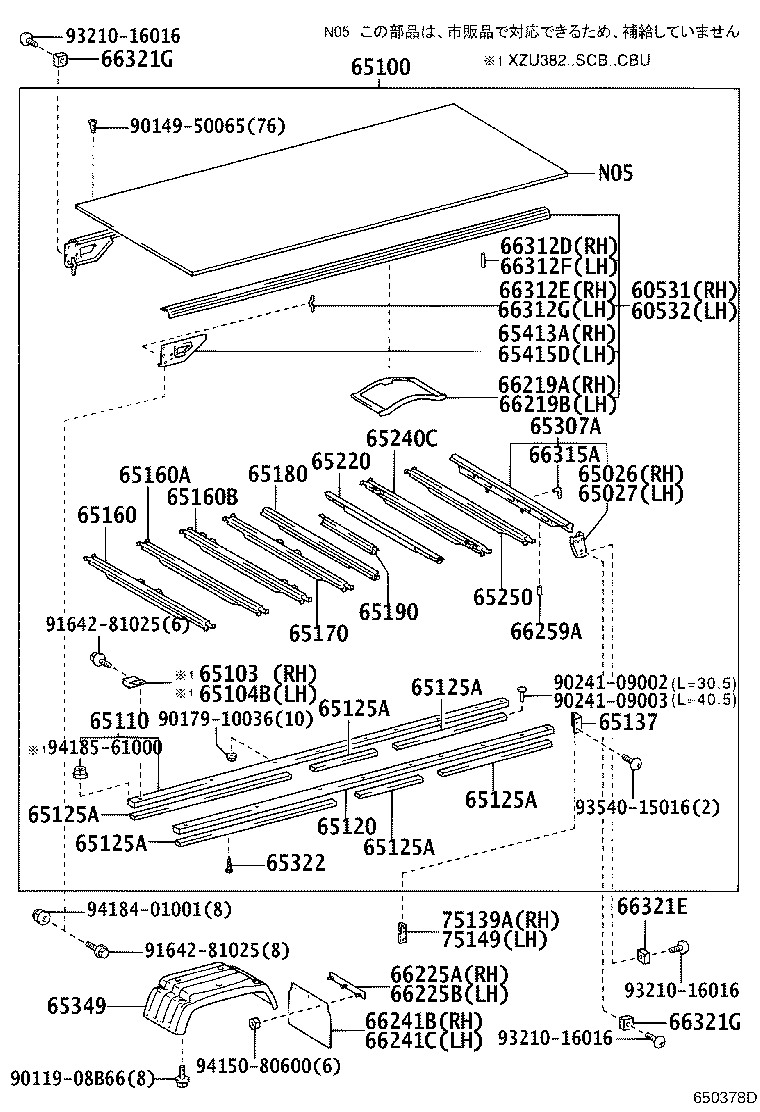

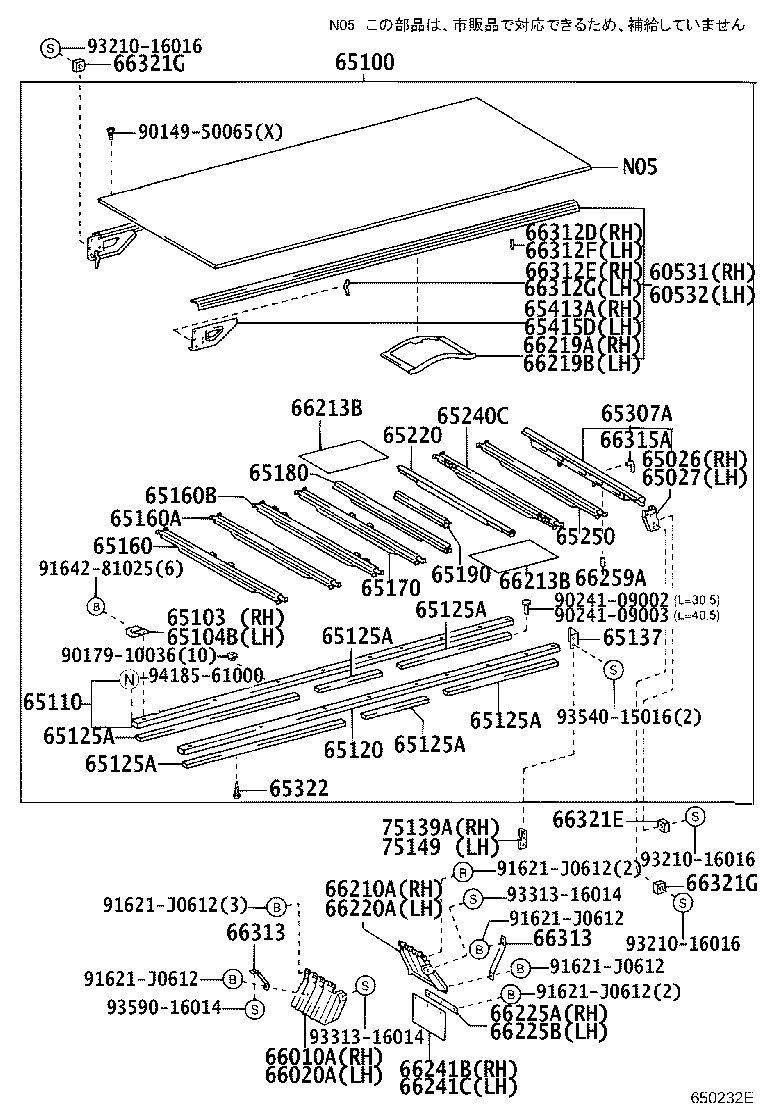

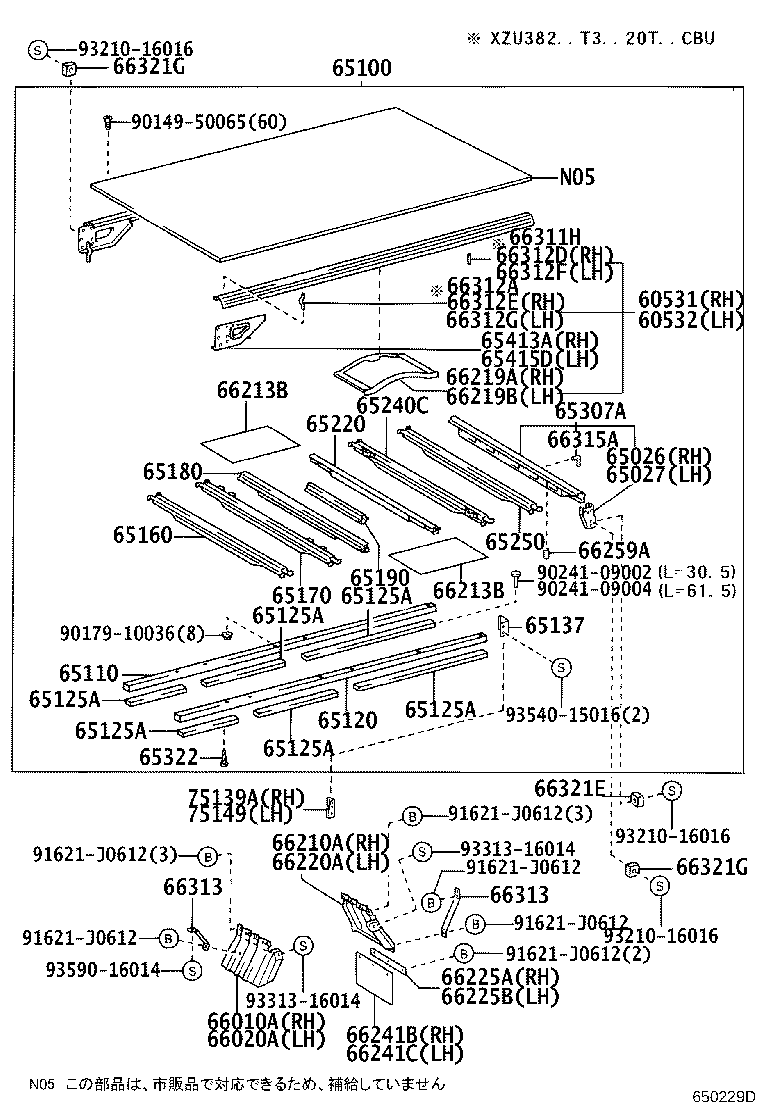

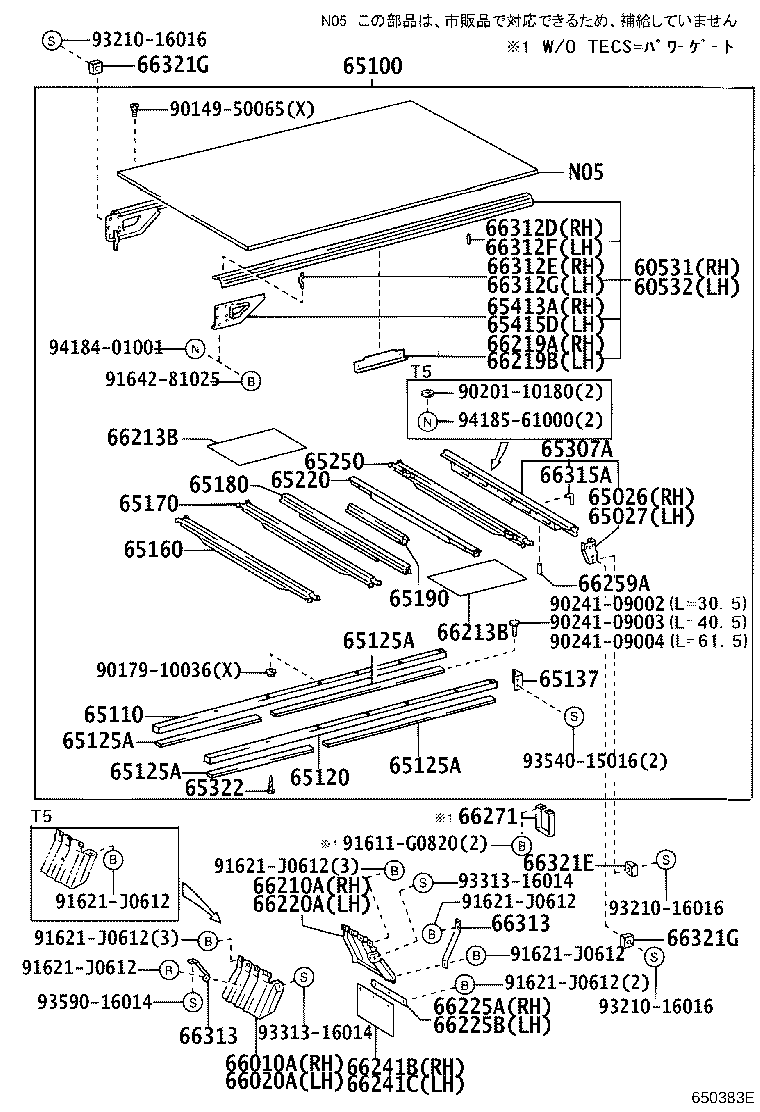

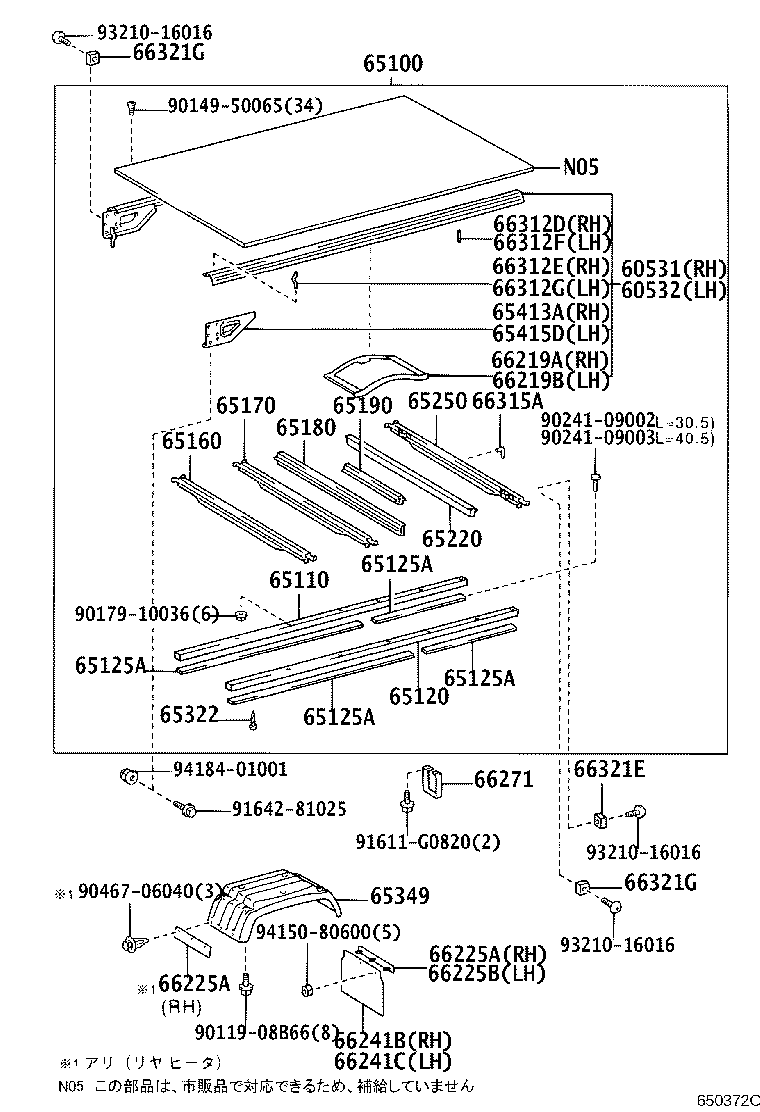

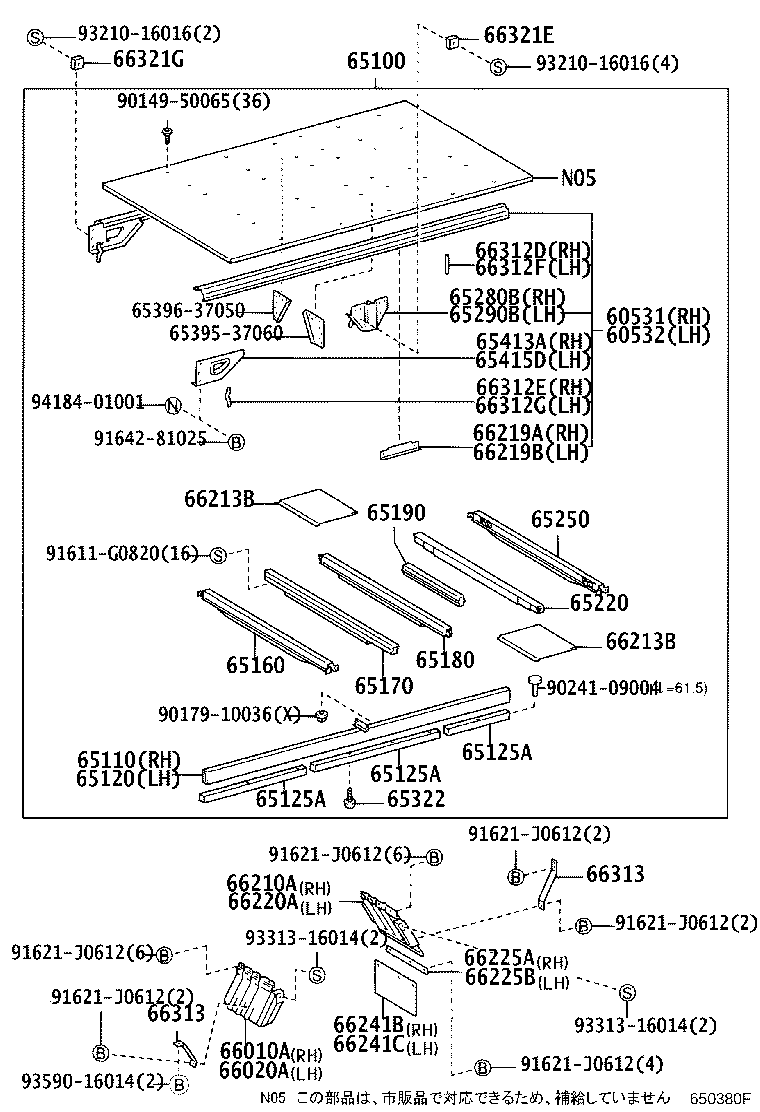

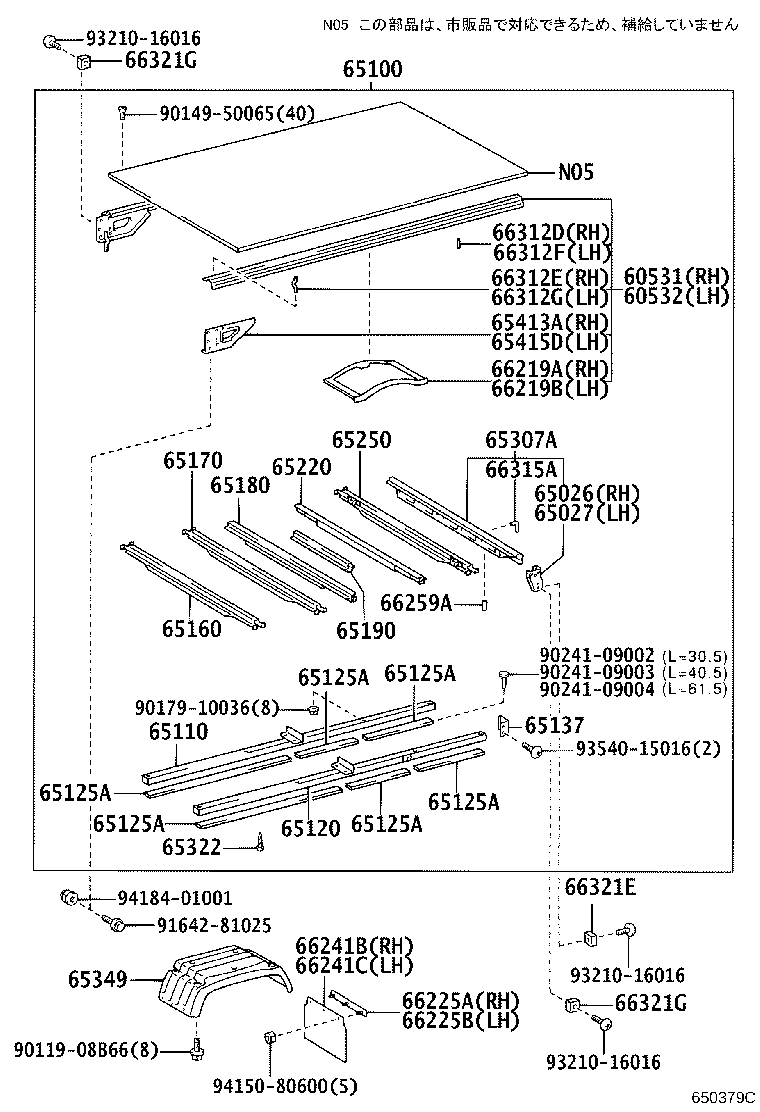

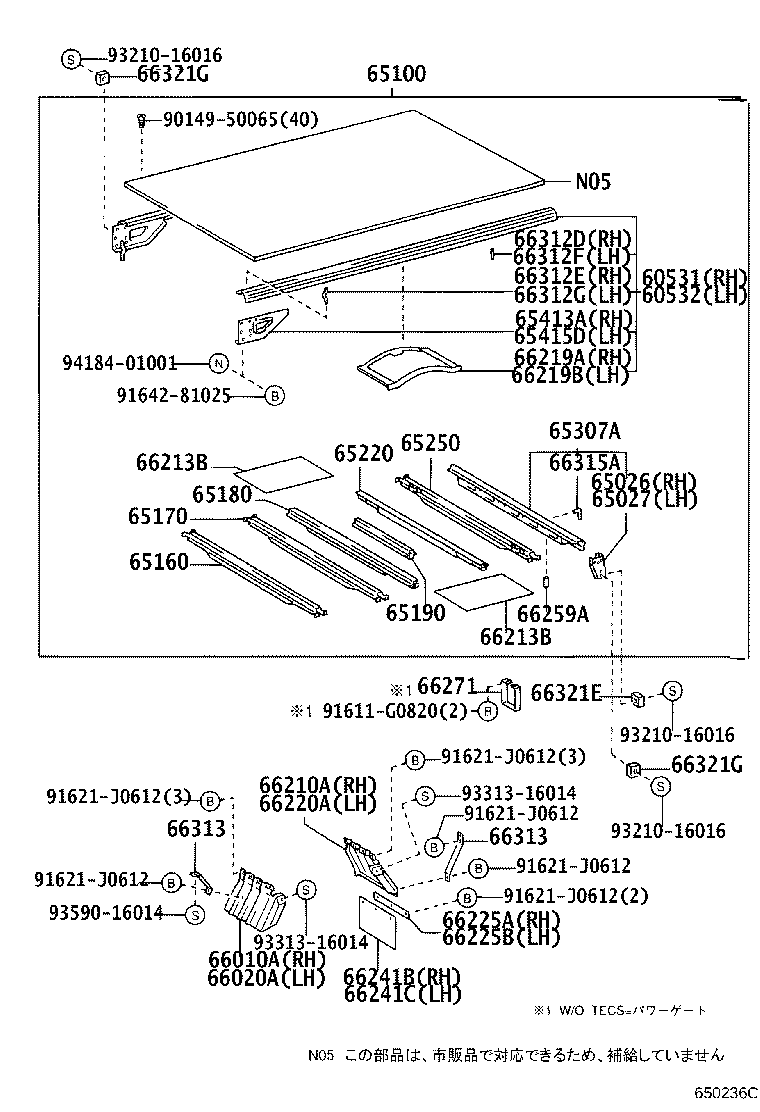

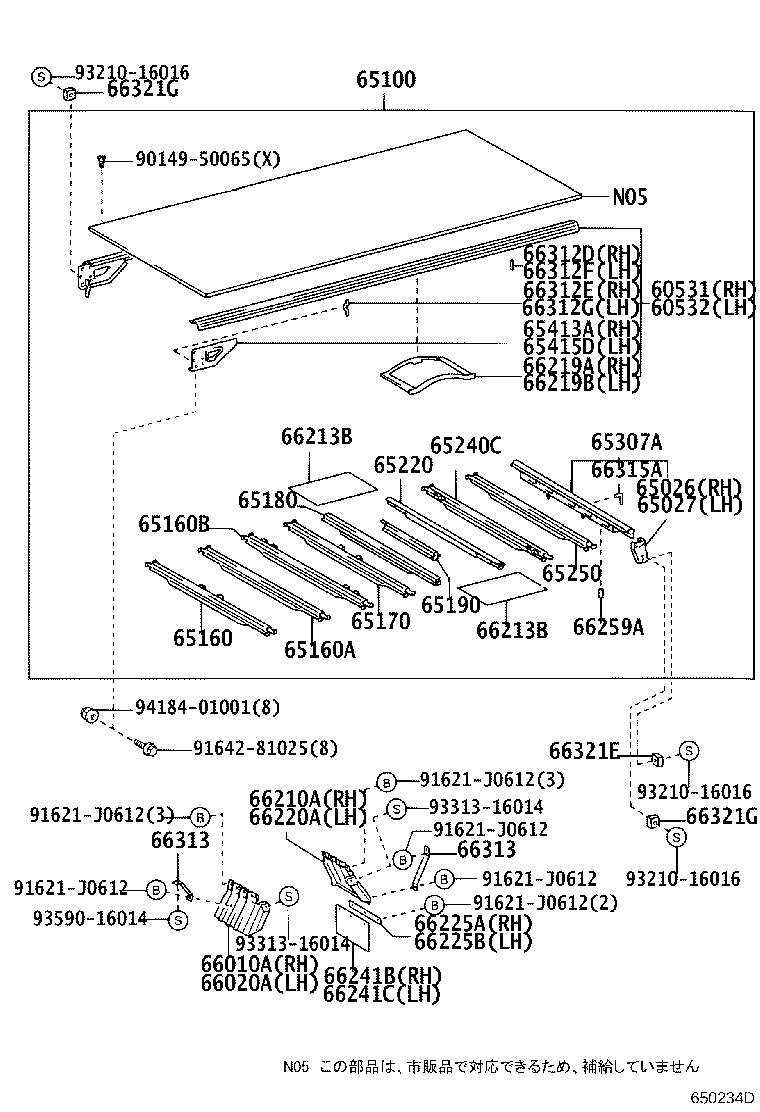

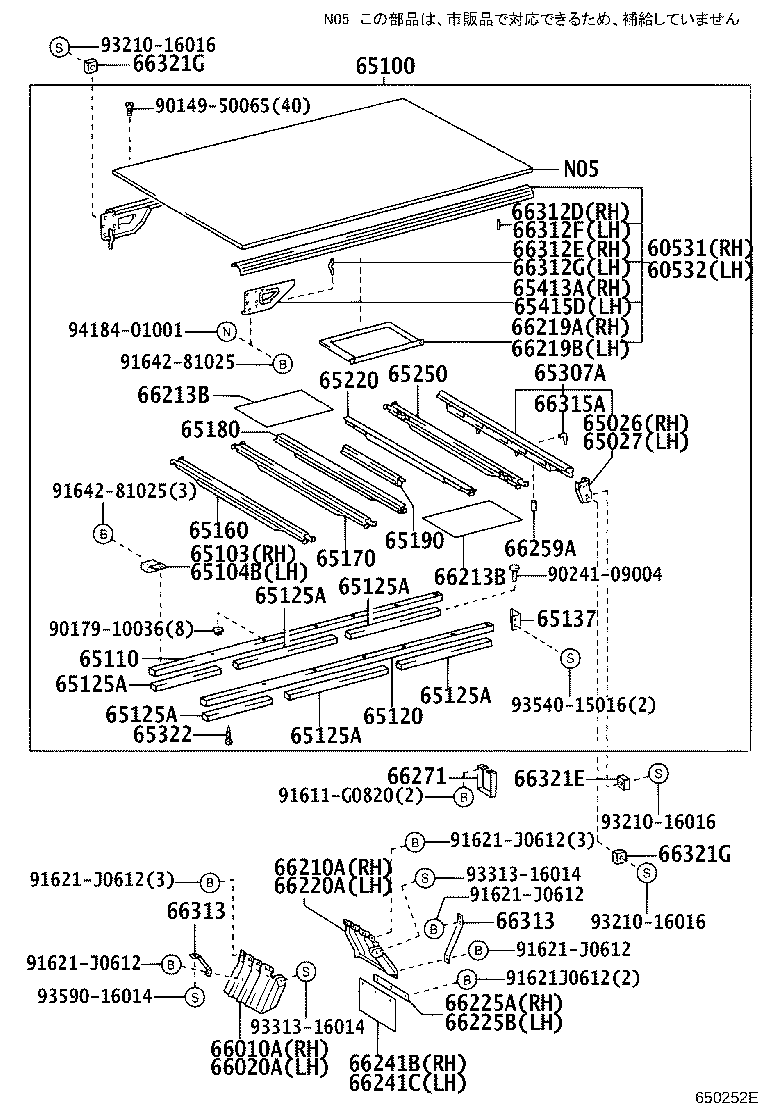

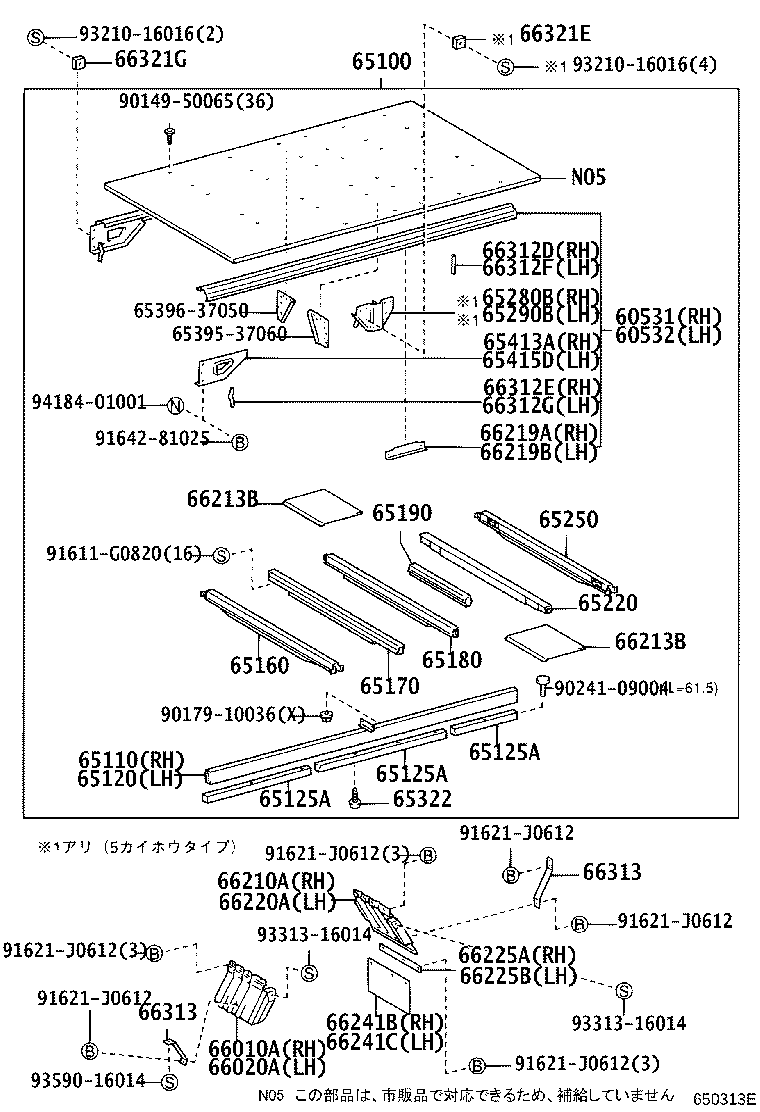

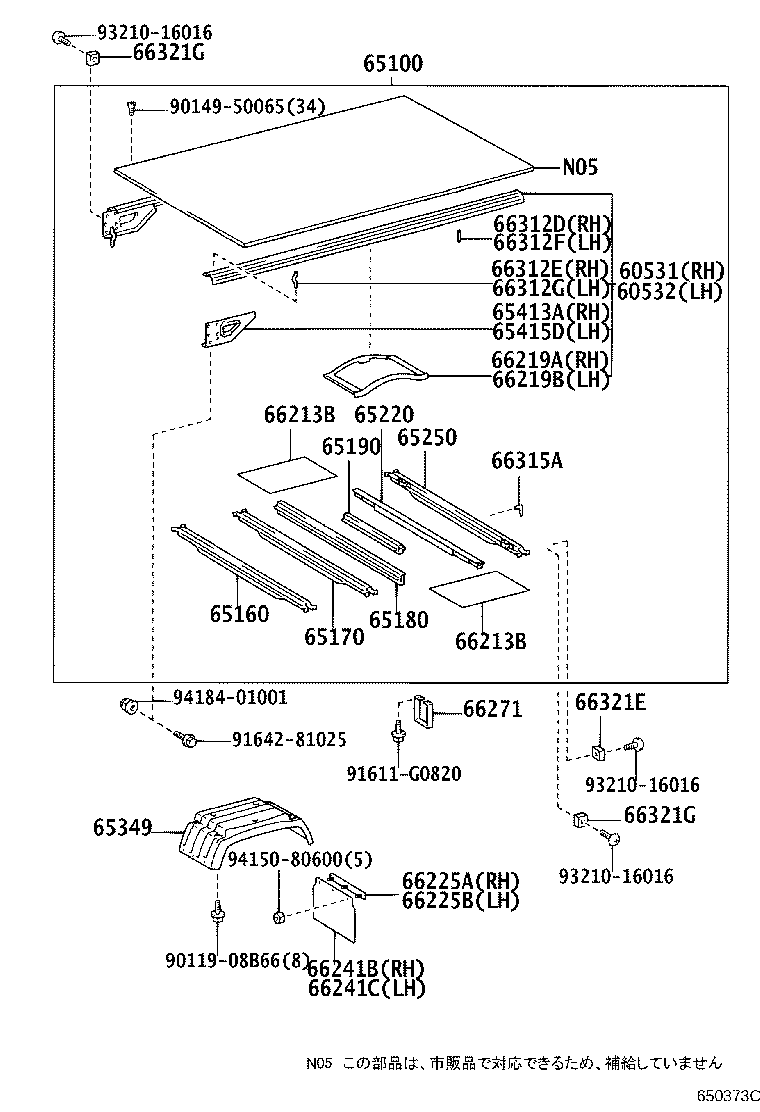

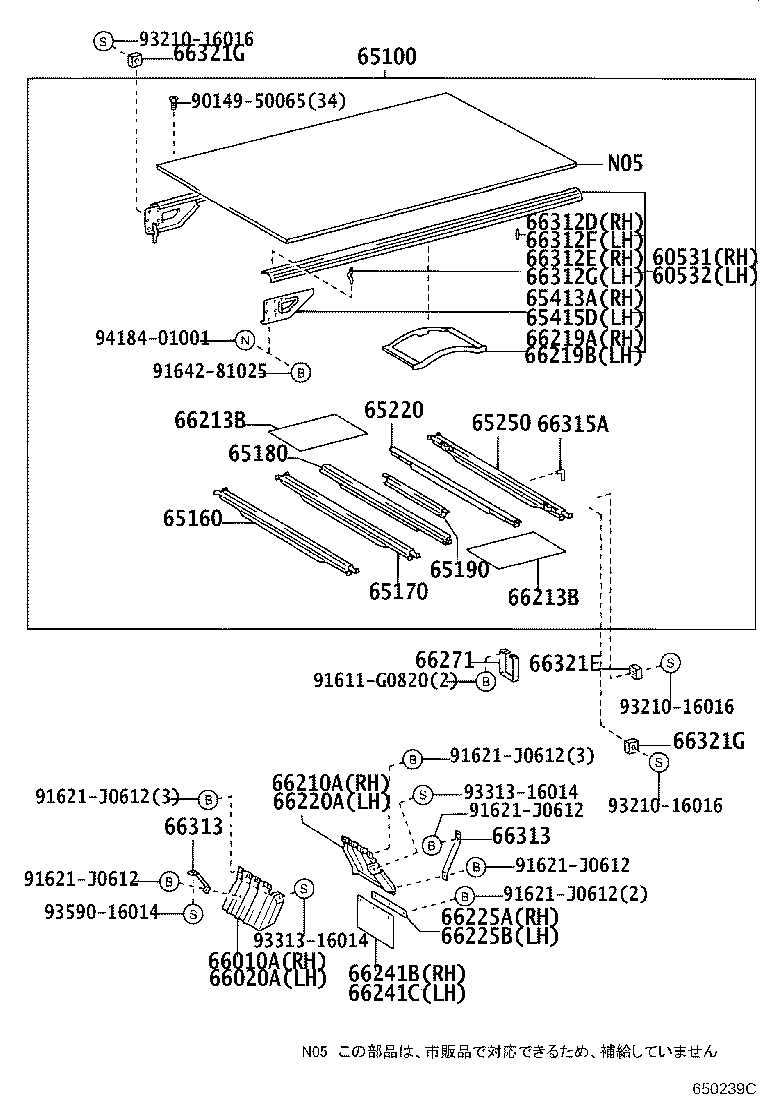

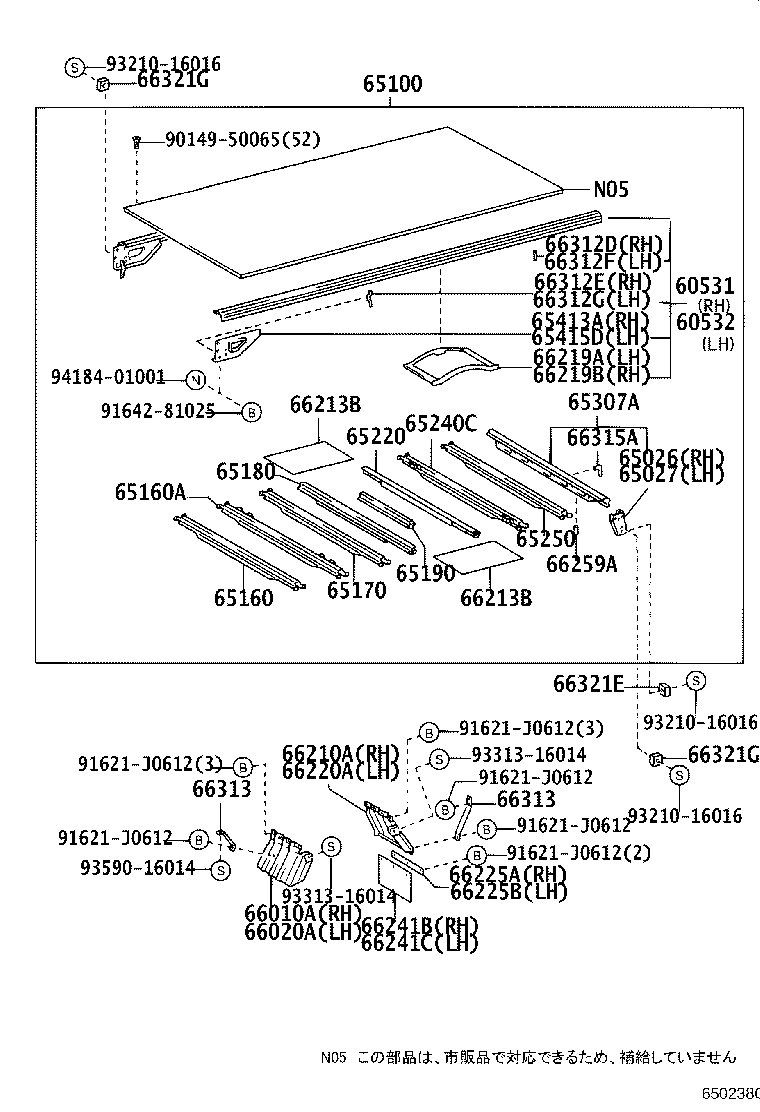

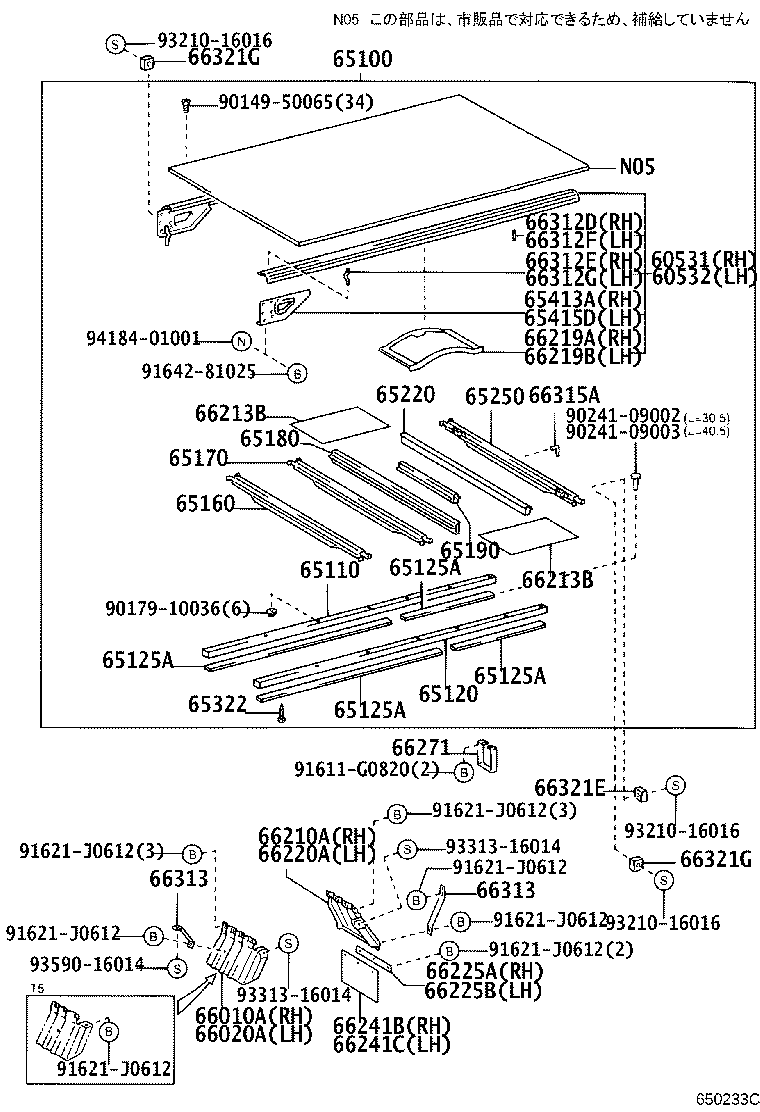

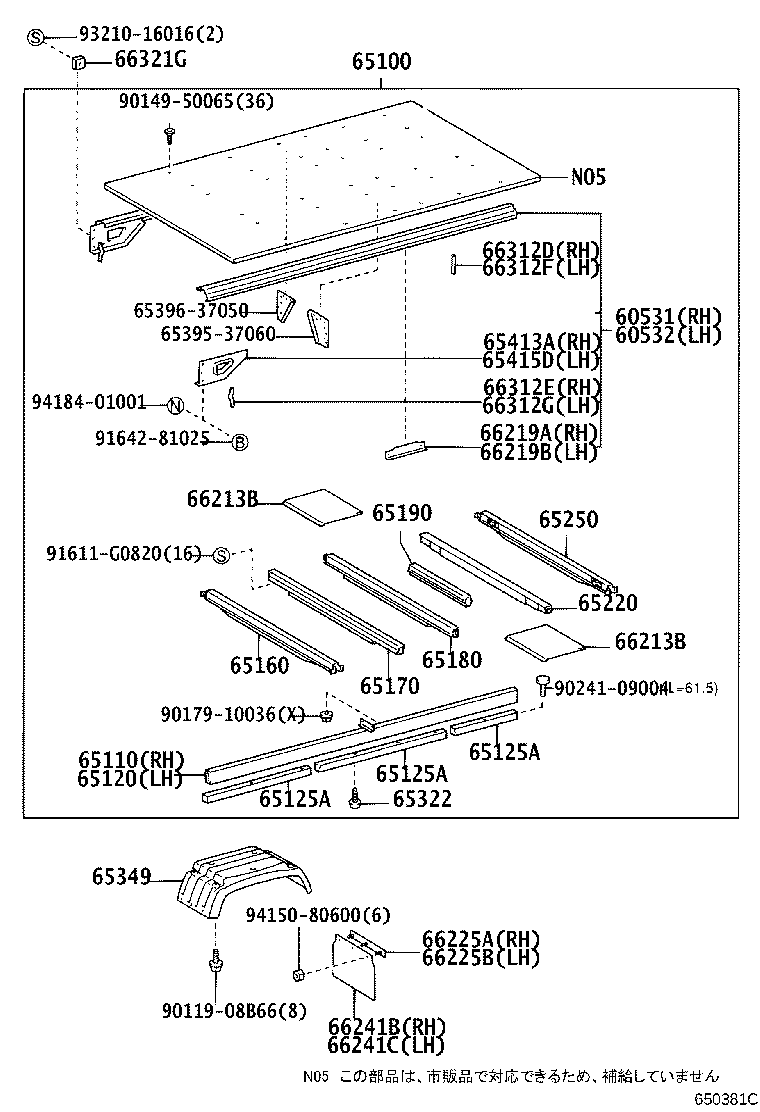

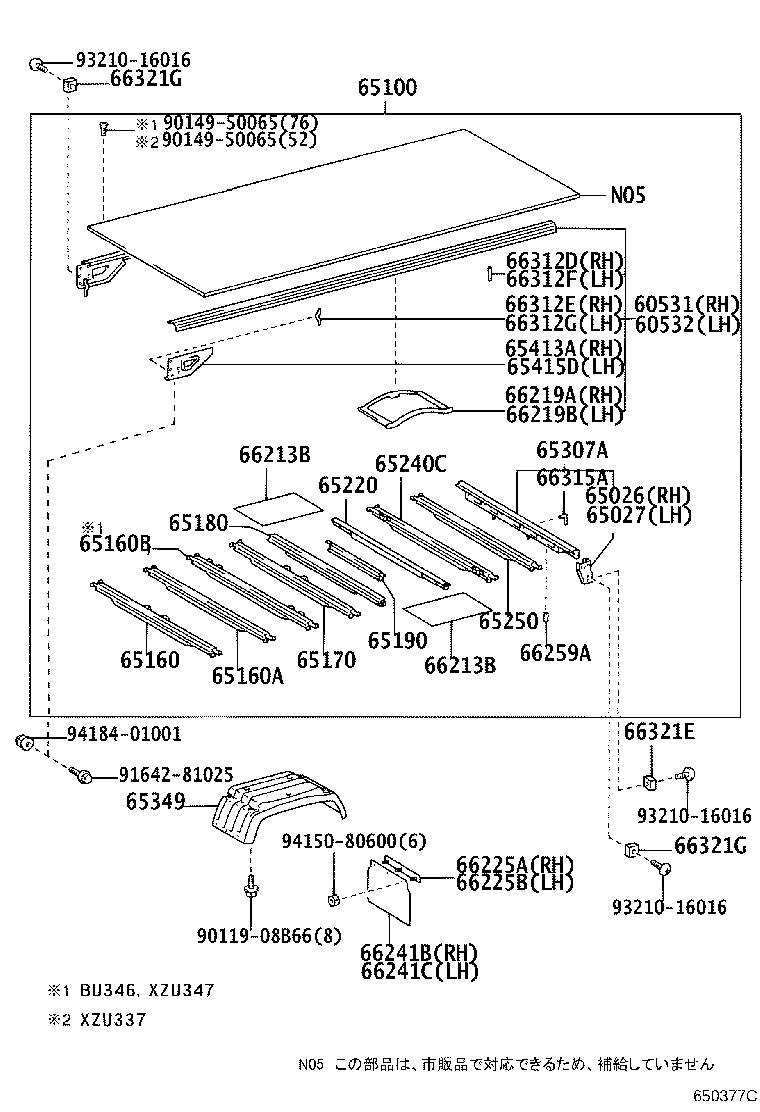

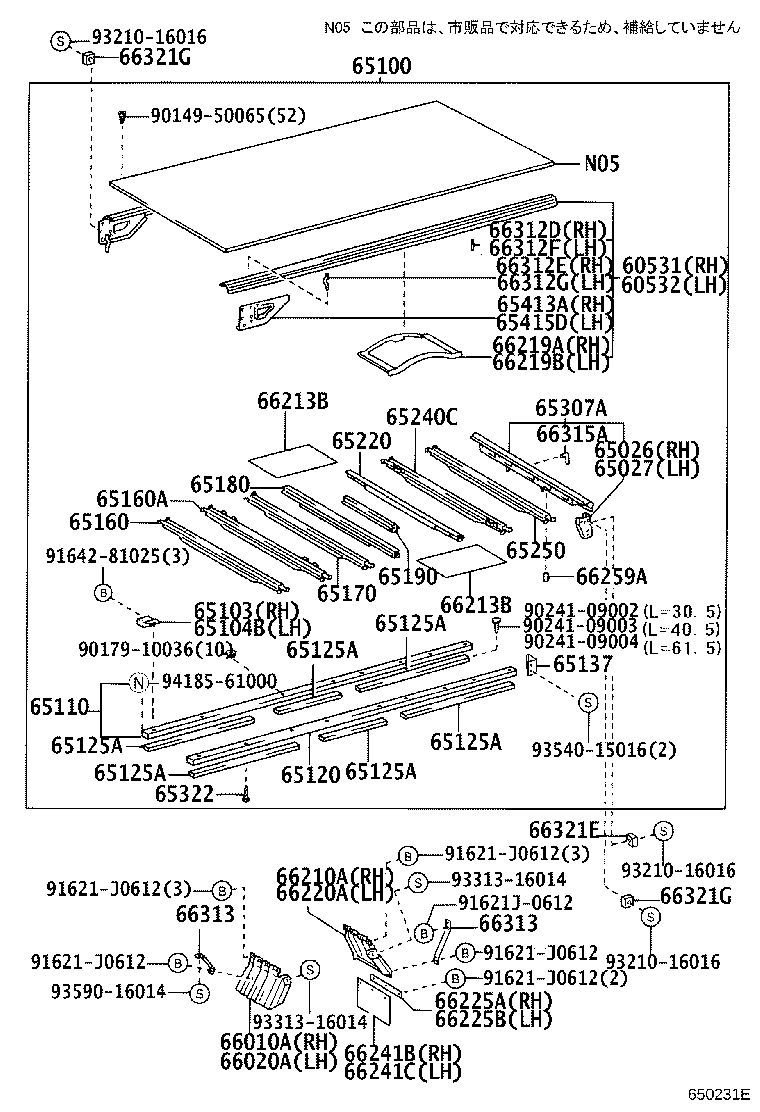

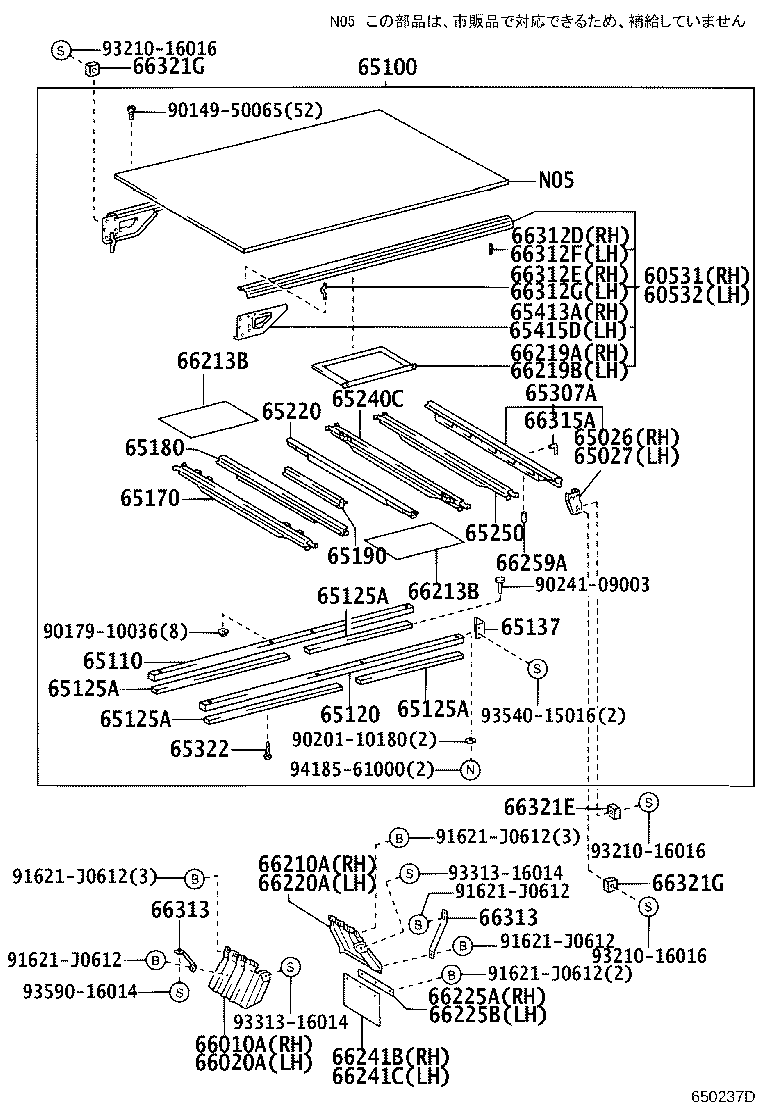

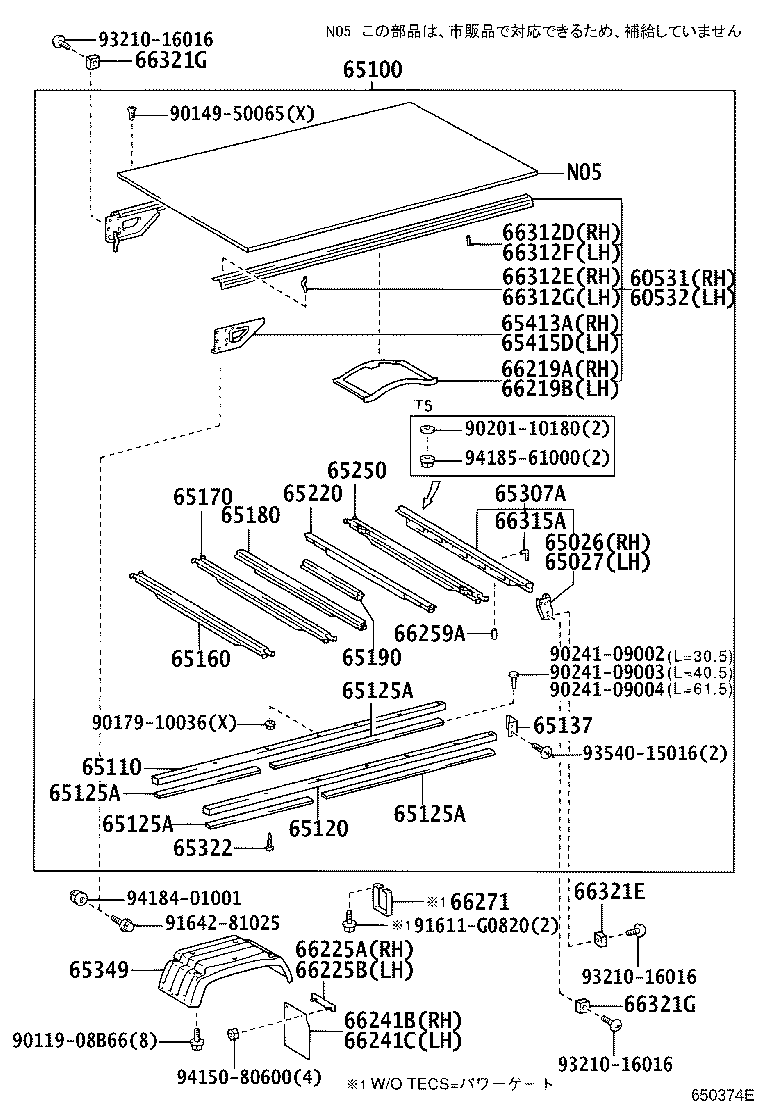

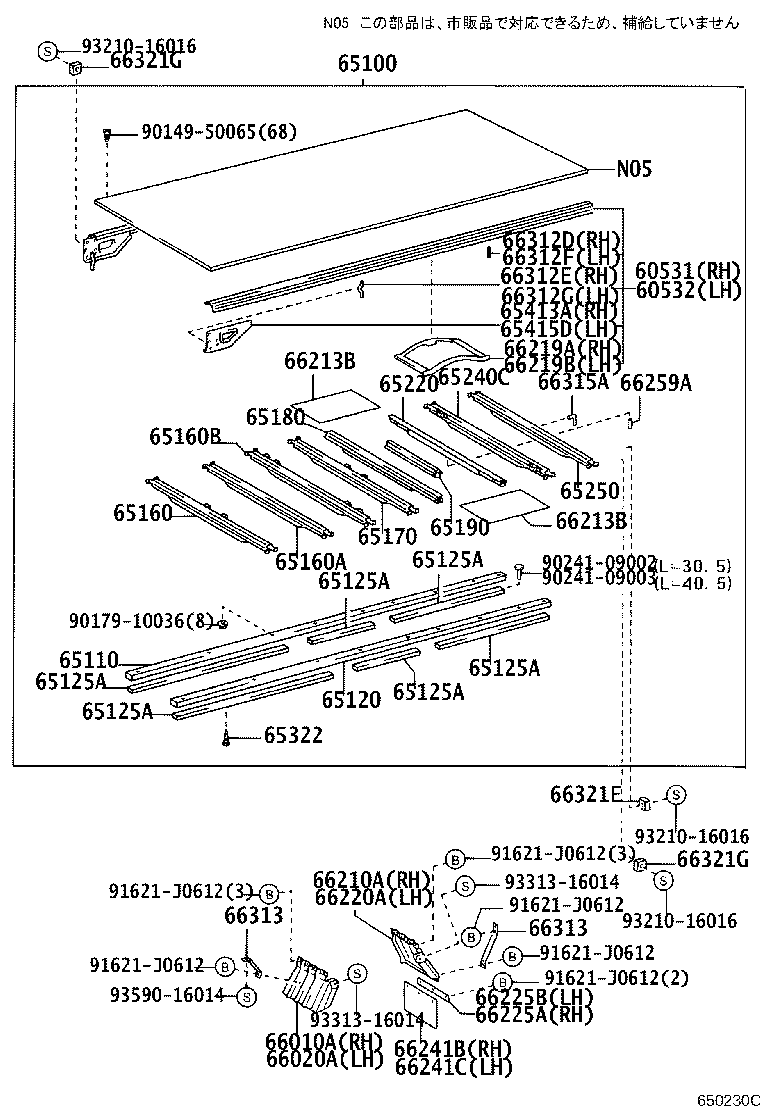

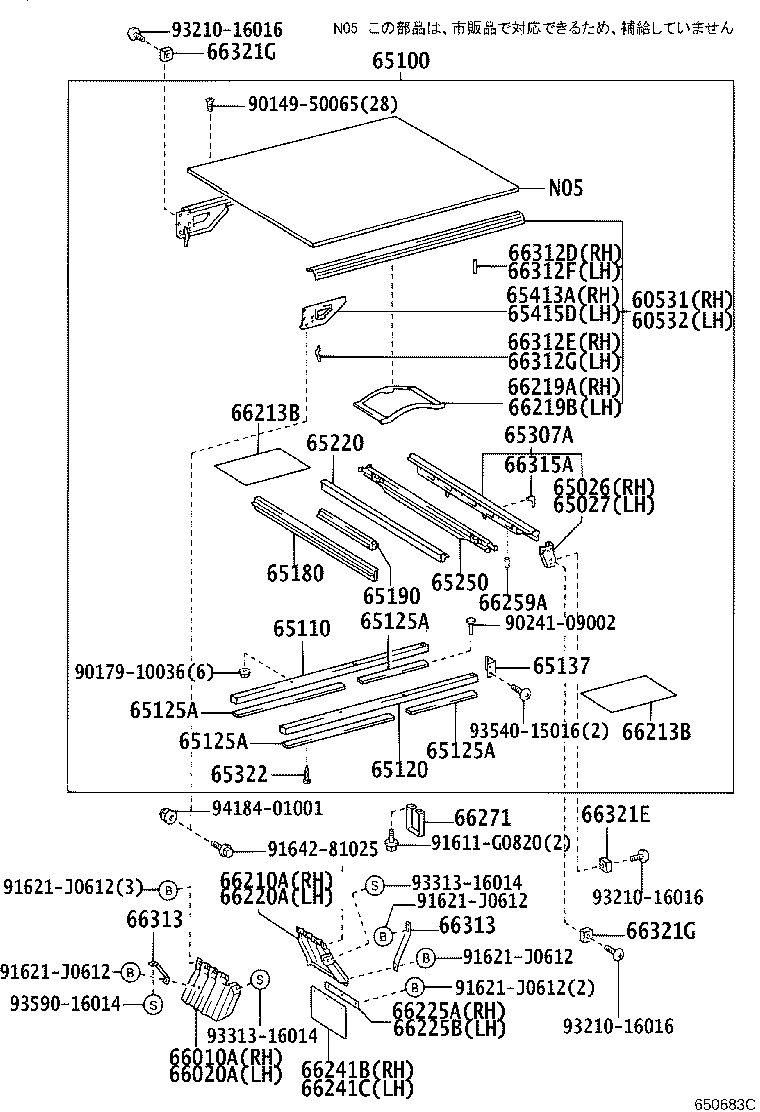

Figure 650251F 650251F 1999-05 → 2002-06 Figure 650383E 650383E 1999-05 → 2002-06 Figure 650233C 650233C 1999-05 → 2002-06 Figure 650239C 650239C 1999-05 → 2002-06 Figure 650234D 650234D 1999-05 → 2002-06 Figure 650232E 650232E 1999-05 → 2002-06 Figure 650236C 650236C 1999-05 → 2002-06 Figure 650231E 650231E 1999-05 → 2002-06 Figure 650238C 650238C 1999-05 → 2002-06 Figure 650229D 650229D 1999-05 → 2002-06 Figure 650230C 650230C 1999-05 → 2002-06 Figure 650252E 650252E 1999-07 → 2002-06 Figure 650237D 650237D 1999-08 → 2002-06 Figure 650683C 650683C 1999-05 → 2002-06 Figure 650313E 650313E 2000-05 → 2002-06 Figure 650380F 650380F 2002-06 → 2003-06 Figure 650380F 650380F 2003-06 → 2004-06 Figure 650372C 650372C 2002-06 → 2004-06 Figure 650373C 650373C 2002-06 → 2004-06 Figure 650374E 650374E 2002-06 → 2004-06 Figure 650375E 650375E 2002-06 → 2004-06 Figure 650376C 650376C 2002-06 → 2004-06 Figure 650377C 650377C 2002-06 → 2004-06 Figure 650378D 650378D 2002-06 → 2004-06 Figure 650378D 650378D 2003-06 → 2004-06 Figure 650379C 650379C 2002-06 → 2004-06 Figure 650381C 650381C 2002-06 → 2004-06 Figure 650381C 650381C 2003-06 → 2004-06 Figure 650382D 650382D 2002-06 → 2004-06 Figure 650384B 650384B 2002-06 → 2004-06 Figure 650385C 650385C 2002-06 → 2004-06 Figure 650386D 650386D 2002-06 → 2004-06 Figure 650387C 650387C 2002-06 → 2004-06 Figure 650460C 650460C 2003-10 → 2004-06 Figure 650235C 650235C 1999-07 → — Figure 650260C 650260C 1999-07 → — Figure 650600D 650600D 2004-06 → — Figure 650614D 650614D 2004-06 → — Figure 650599B 650599B 2004-06 → — Figure 651293B 651293B 2004-06 → — Figure 650613E 650613E 2004-06 → — Figure 650602E 650602E 2004-06 → — Figure 650608C 650608C 2004-06 → — Figure 650603D 650603D 2004-06 → — Figure 650604C 650604C 2004-06 → — Figure 650605E 650605E 2004-06 → — Figure 650612D 650612D 2004-06 → — Figure 650606D 650606D 2004-06 → —

Part groups

PNCDescription
60531 Frame Sub-assy, Floor Side, RH
60532 Frame Sub-assy, Floor Side, LH
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65103 Bracket Sub-assy, Mounting, NO.1
65104B Bracket Sub-assy, Mounting, NO.1 LH
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65125A Shim, Main Sill, Lower NO.1
65137 Cover, Main Sill End
65150 Sill Assy, Cross, NO.1
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65160B Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65220 Sill Assy, Cross, NO.4
65230 Sill Assy, Cross, NO.8
65240 Crossmember, Rear Body Floor, Tail
65240C Sill Assy, Cross, NO.9
65250 Sill Assy, Cross, NO.2
65280B Bracket Assy, Center Post, RH
65290B Bracket Assy, Center Post, LH
65307A Frame Sub-assy, Floor, Rear
65311 Panel, Floor, Center
65322 Nail
65349 Fender, Floor Side
65413A Bracket, Guard Frame, RH
65415D Bracket, Guard Frame, LH
66010A Fender Assy, Rear NO.2 RH
66020A Fender Assy, Rear NO.2 LH
66110D Hinge Assy, Tail Gate
66210A Fender Assy, Rear NO.1 RH
66213B Plate, Rear Fender, Upper
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66220A Fender Assy, Rear NO.1 LH
66225A Support, Baffle Rubber
66225B Support, Buffle Rubber
66225C Support, Baffle Rubber
66241B Baffle, Rubber
66241C Buffle, Rubber
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66272 Stay, Rear Body Step
66311H Hook, Rope
66312A Hook, Rope, NO.2
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312G Hook, Rope, NO.2
66313 Support, Rear Fender
66315A Hook, Rope
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
66323 Spacer, Gage Rubber Bumper
75139A Bracket, Reflex Reflector, RH
75149 Bracket, Reflex Reflector, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
