Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

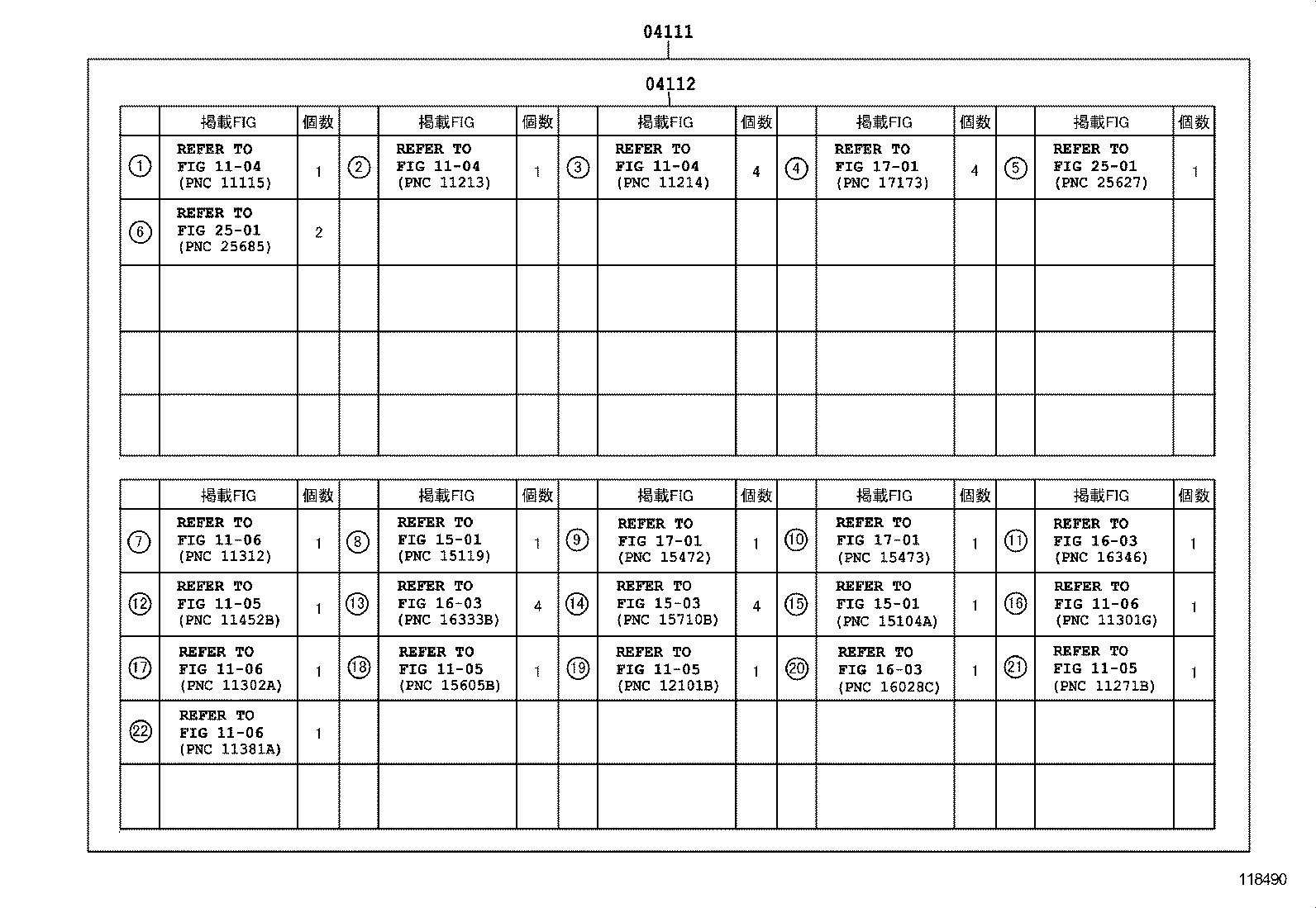

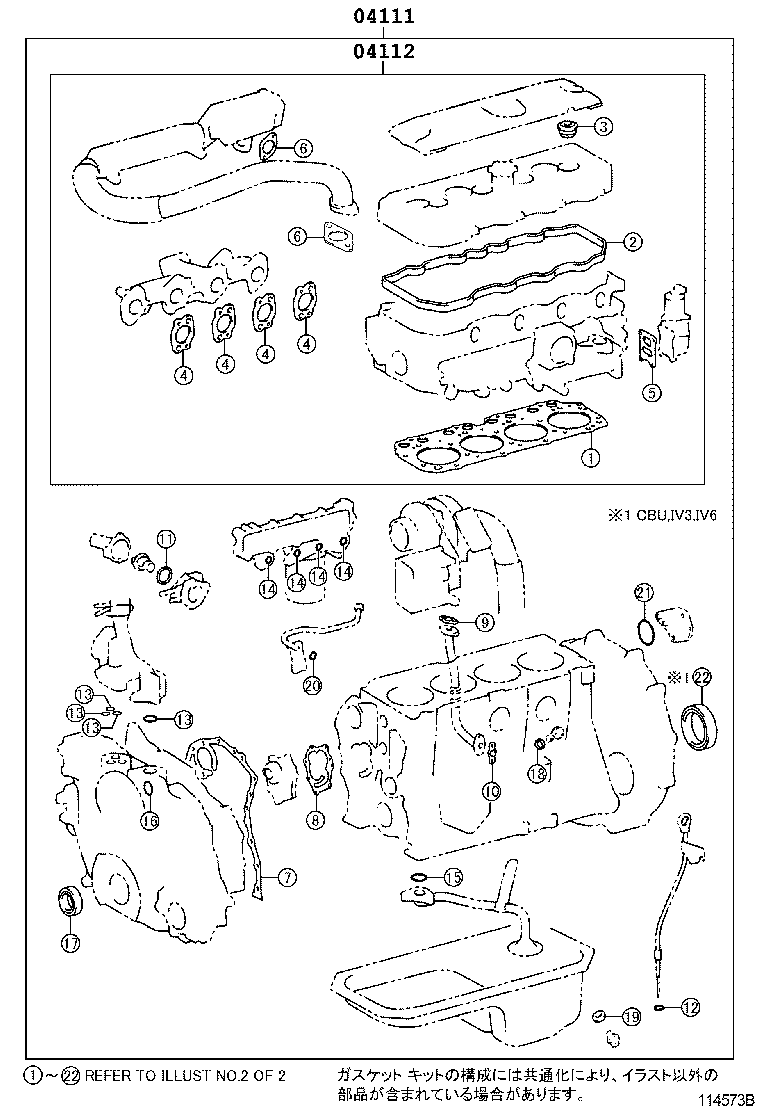

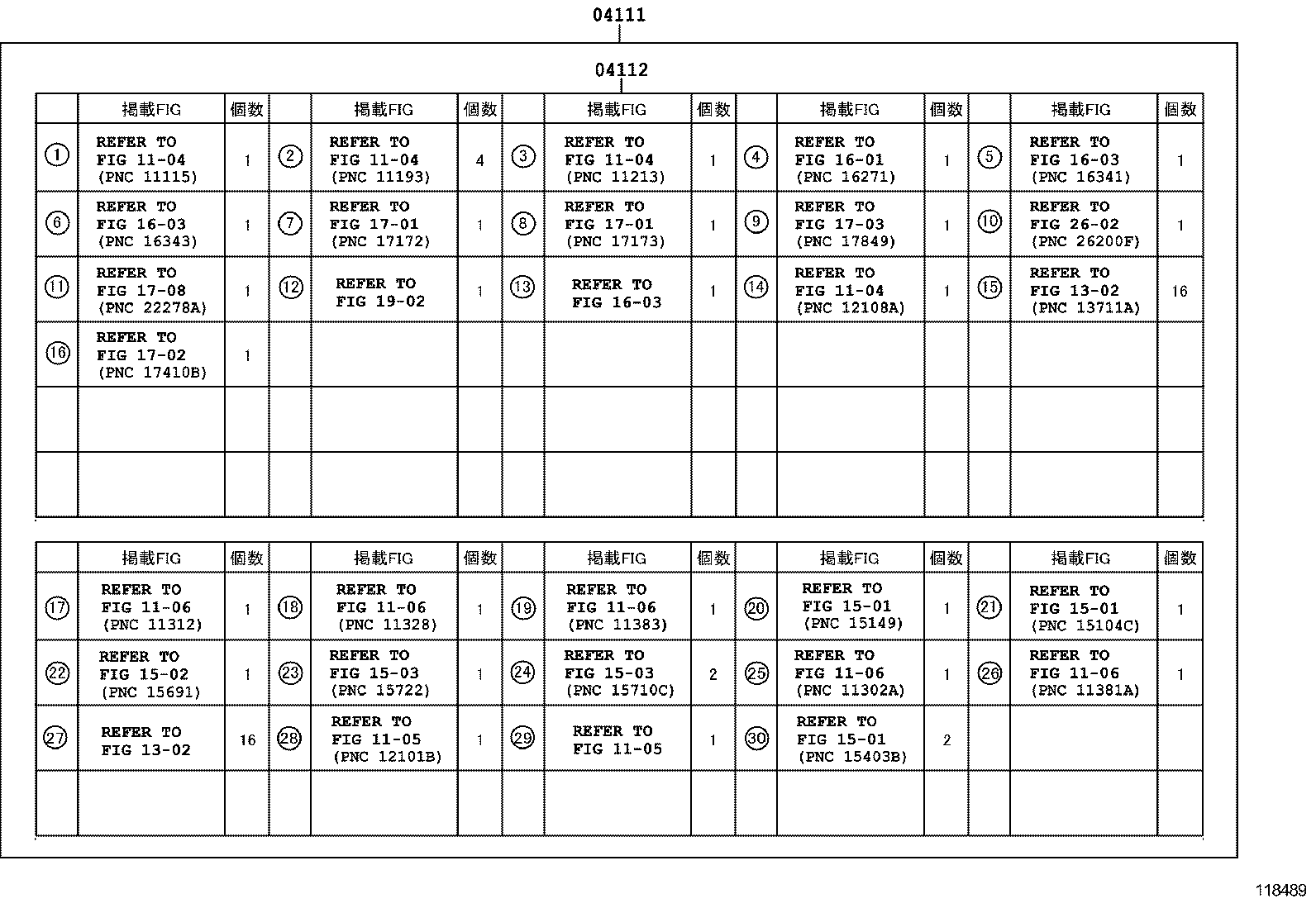

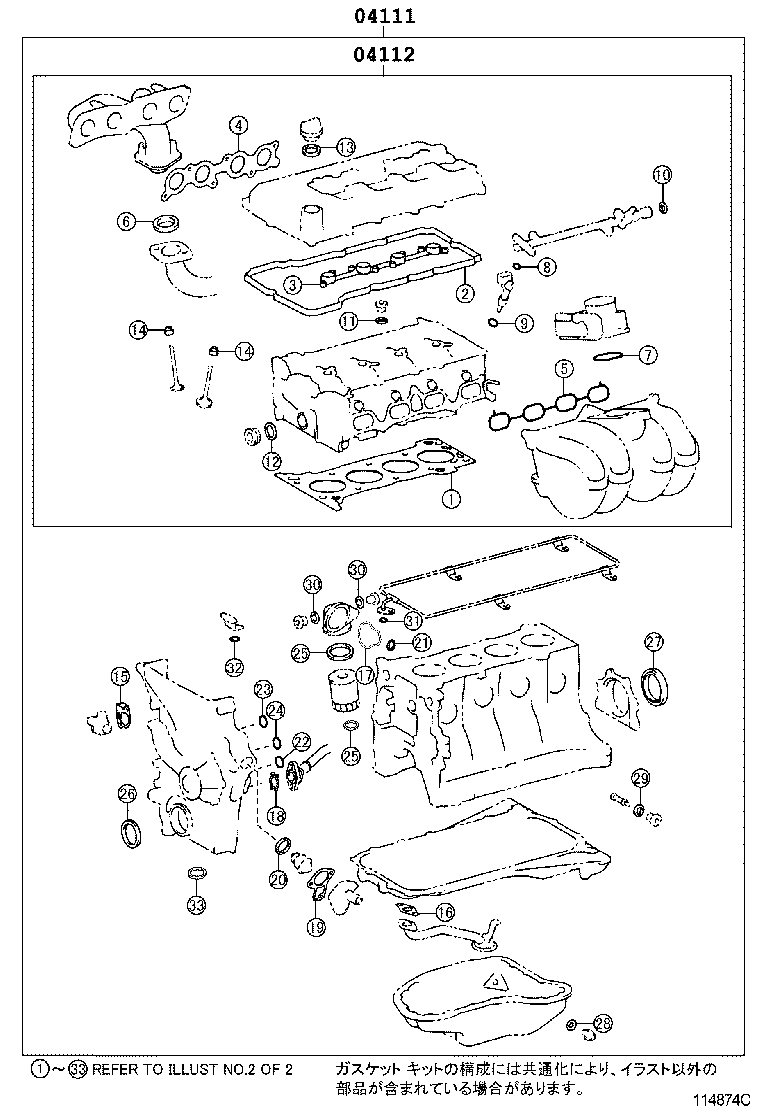

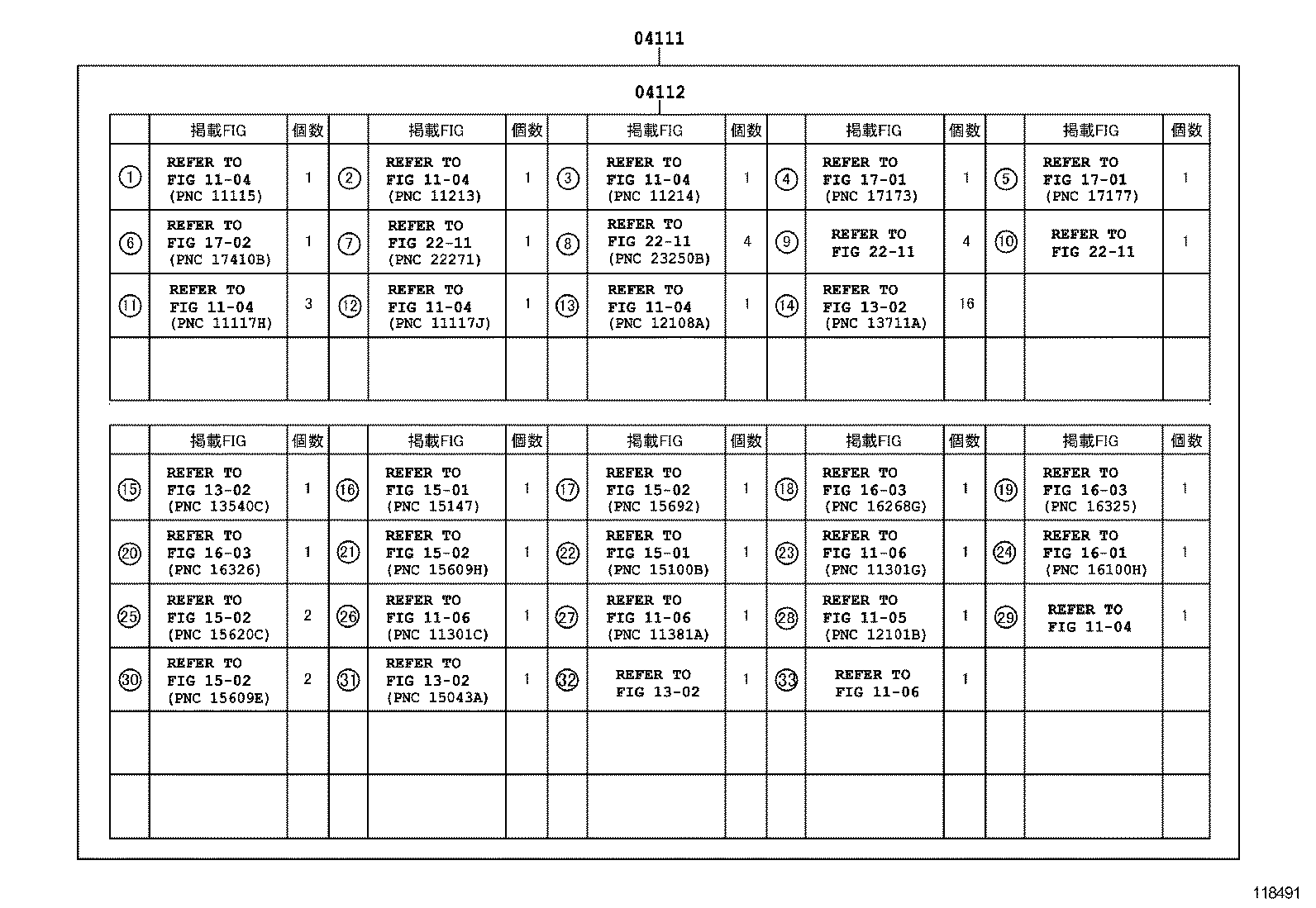

Figure 114869D 114869D 2007-05 → — Figure 118489 118489 2007-05 → — Figure 114874C 114874C 2007-05 → — Figure 118491 118491 2007-05 → — Figure 114573B 114573B 2006-10 → — Figure 118490 118490 2006-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
