Toyota Dyna/Toyoace

2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

24 part groups · 11 illustrations

Illustrations

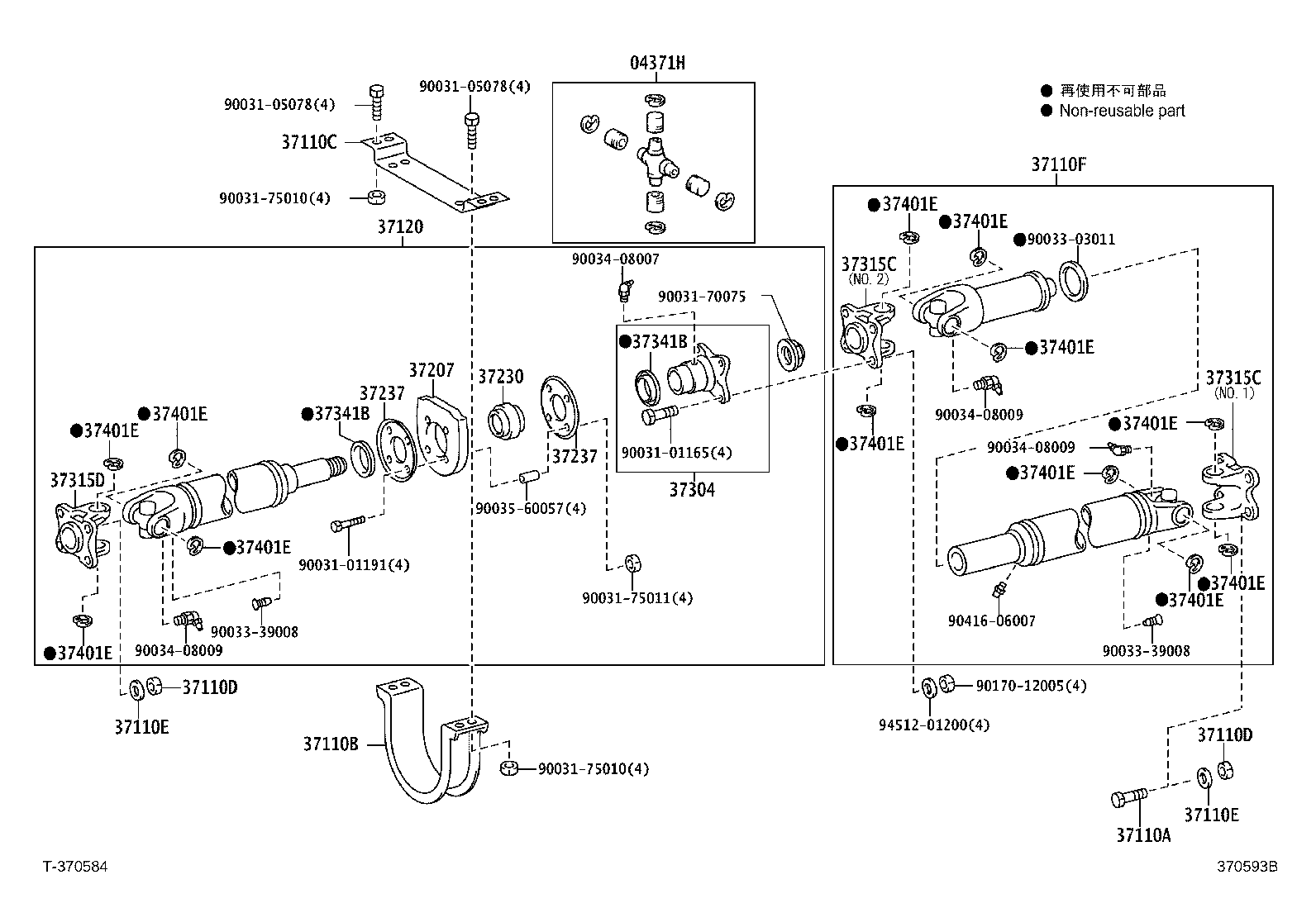

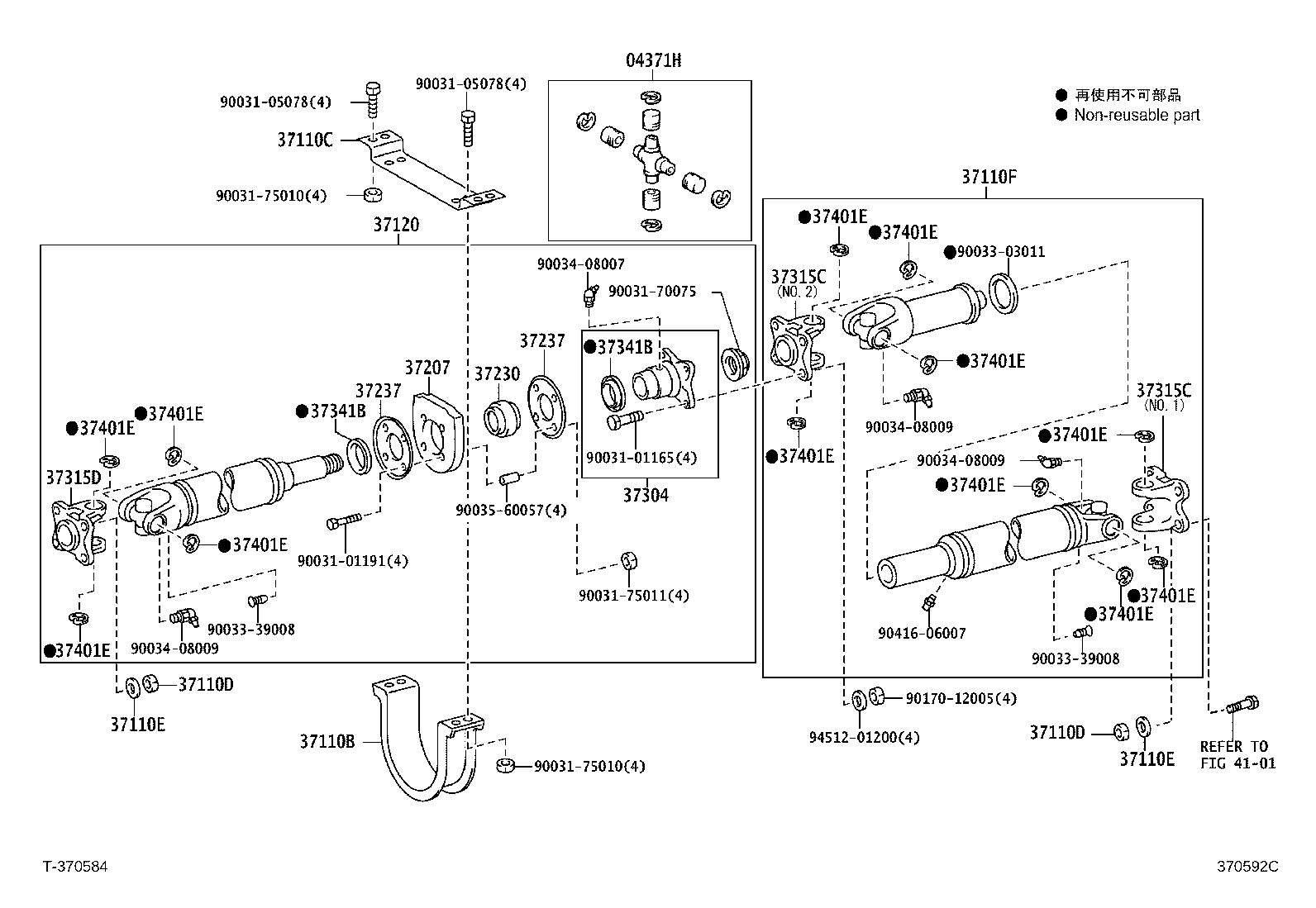

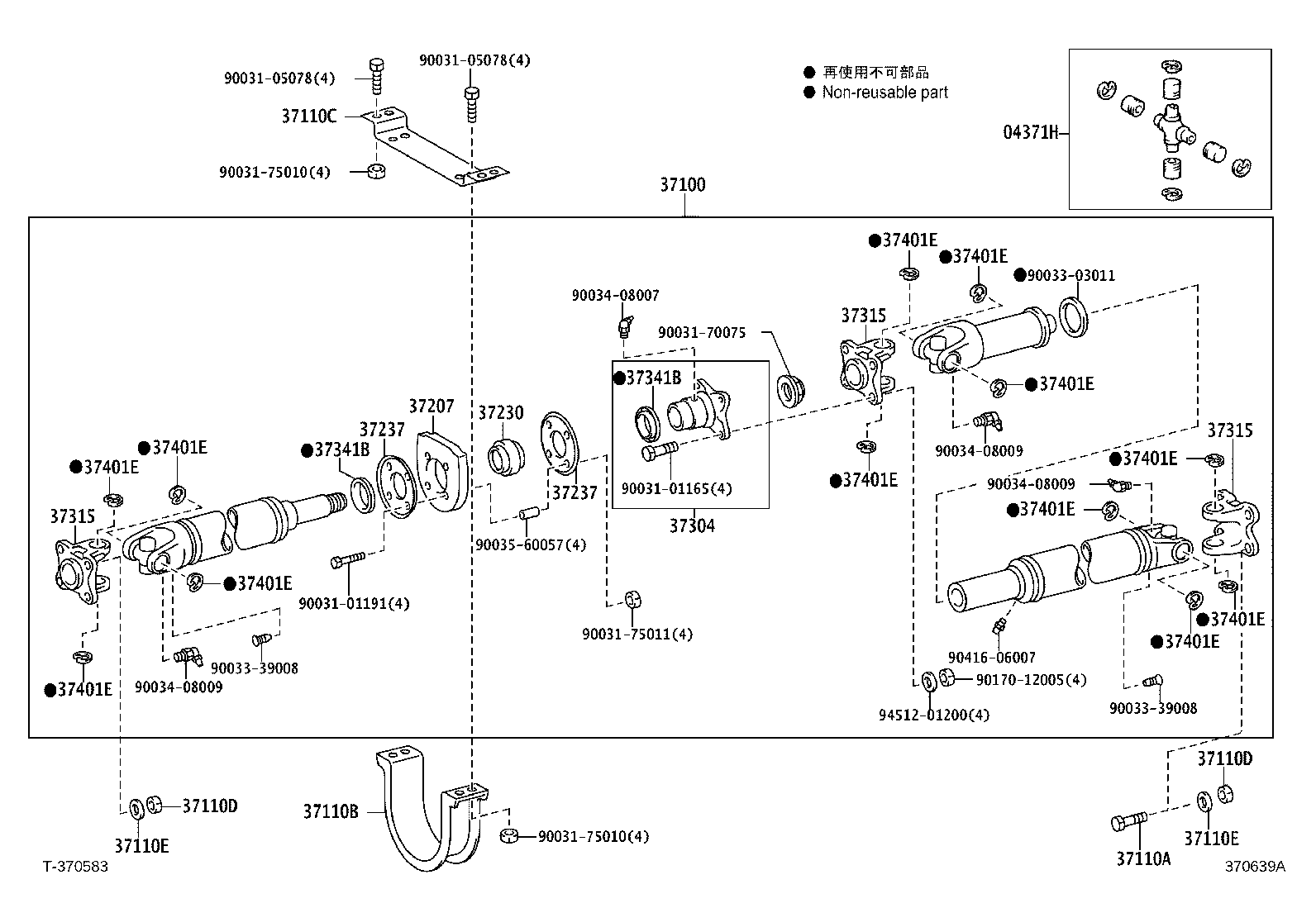

Figure 370589A 370589A 2006-10 → — Figure 370589A 370589A 2006-10 → — Figure 370590D 370590D 2006-10 → — Figure 370590D 370590D 2006-10 → — Figure 370590D 370590D 2006-10 → — Figure 370592C 370592C 2006-10 → — Figure 370593B 370593B 2006-10 → — Figure 370639A 370639A 2007-05 → — Figure 370595A 370595A 2006-10 → — Figure 370591C 370591C 2006-10 → — Figure 370594C 370594C 2006-10 → —

Part groups

PNCDescription
04371G Spider Kit, Front Propeller Shaft Universal Joint
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37100 Shaft Assy, Propeller W/Center Bearing
37110A Bolt (FOR PROPELLER SHAFT)
37110B Guard, Propeller Shaft
37110C Bracket, Propeller Shaft Guard
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37110F Shaft Assy, Propeller, Rear
37120 Shaft Assy, Propeller Intermediate
37140 Shaft Assy, Propeller, Front
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37140B Nut (F0R FRONT PROPELLER SHAFT)
37140C Washer (F0R FRONT PROPELLER SHAFT)
37207 Cushion Sub-assy, Center Support Bearing, NO.1
37230 Bearing Assy, Center Support, NO.1
37237 Plate, Center Support Bearing, NO.1
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37315C Yoke, NO.1, Rear Propeller Shaft Universal Joint Flange
37315D Yoke, NO.2, Rear Propeller Shaft Universal Joint Flange
37341B Deflector, Propeller Shaft Dust, NO.5
37401D Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
