Toyota Dyna/Toyoace
2006-10 → 2011-06 · chassis BZU3##,TRU3##,500,XZU3##,5## · catalogue 751180 · Japan
Discontinued model
Data version 2012-01

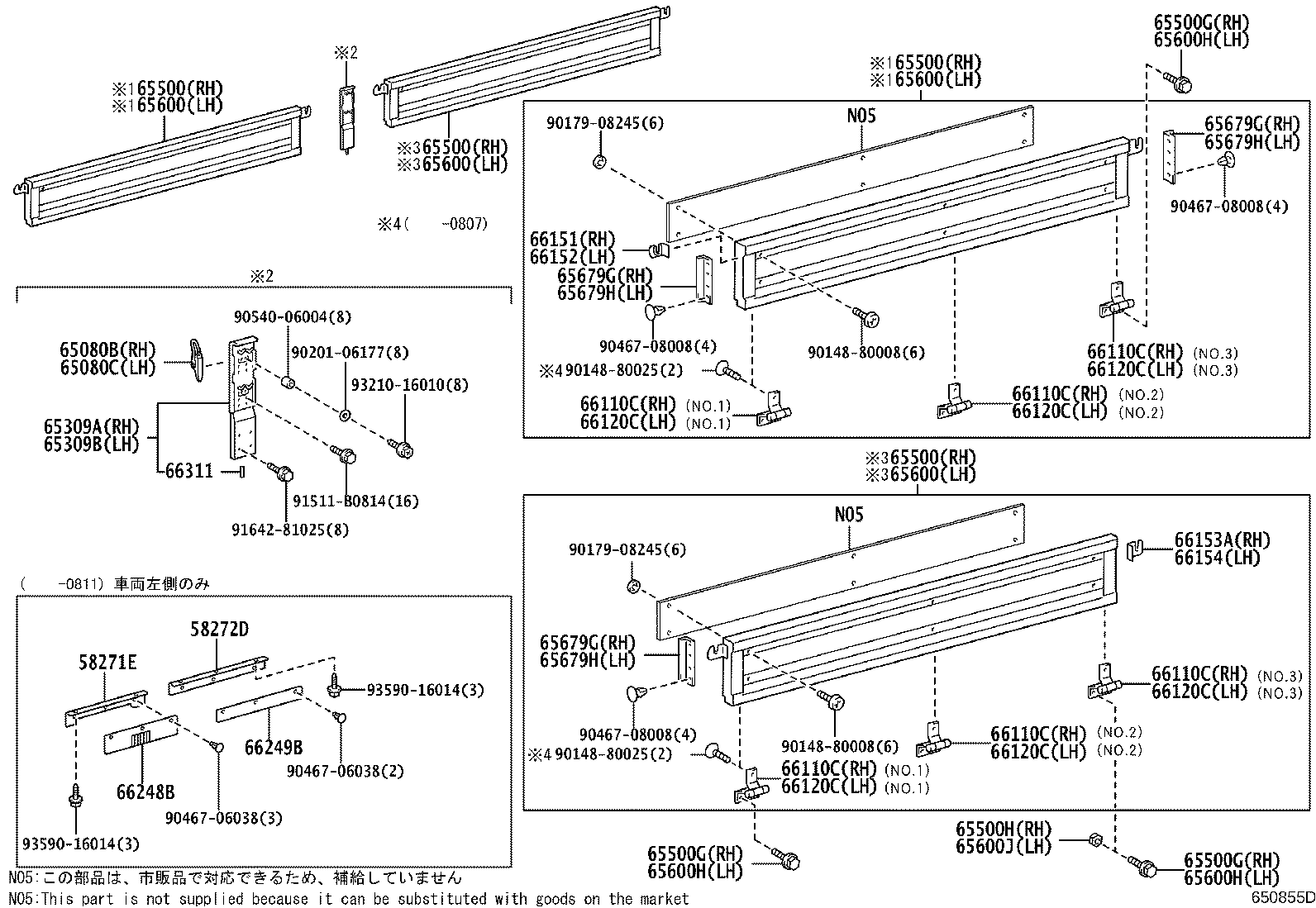

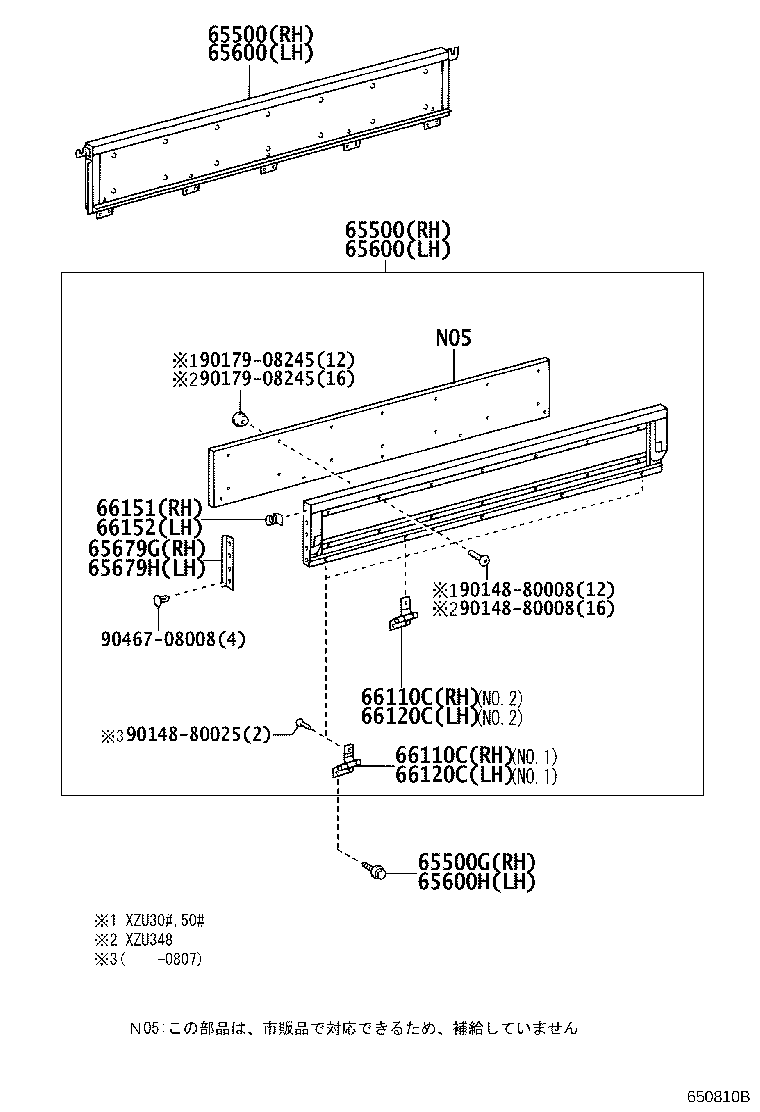

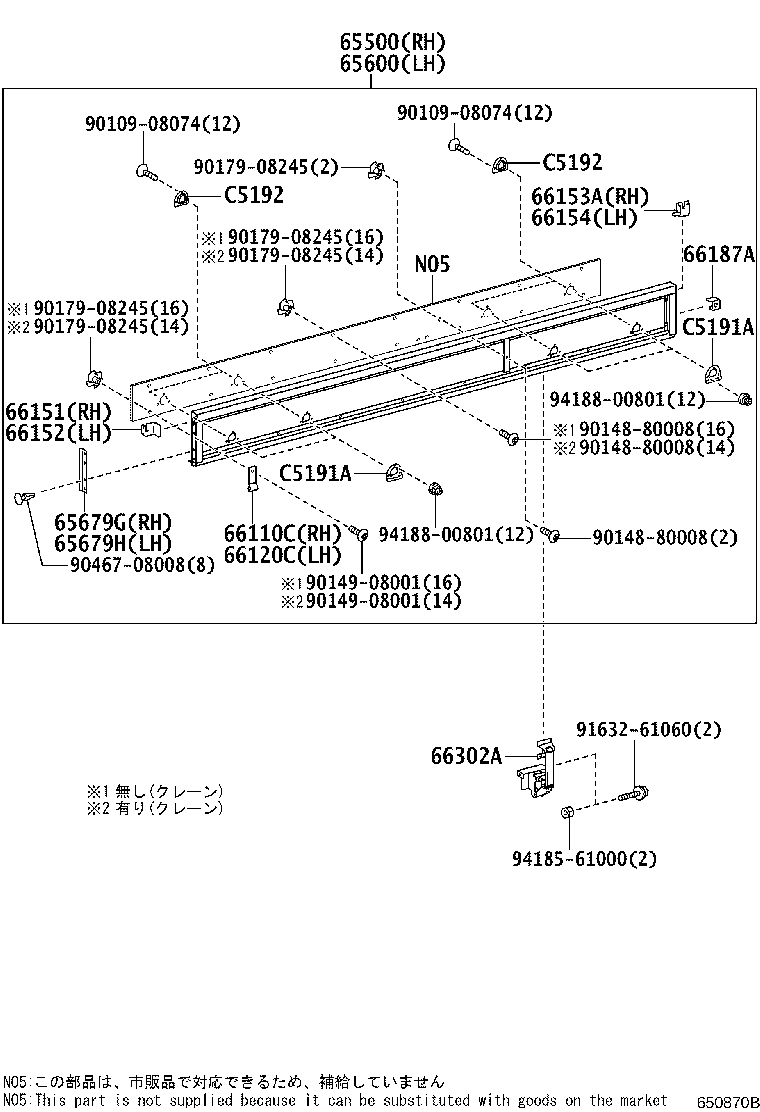

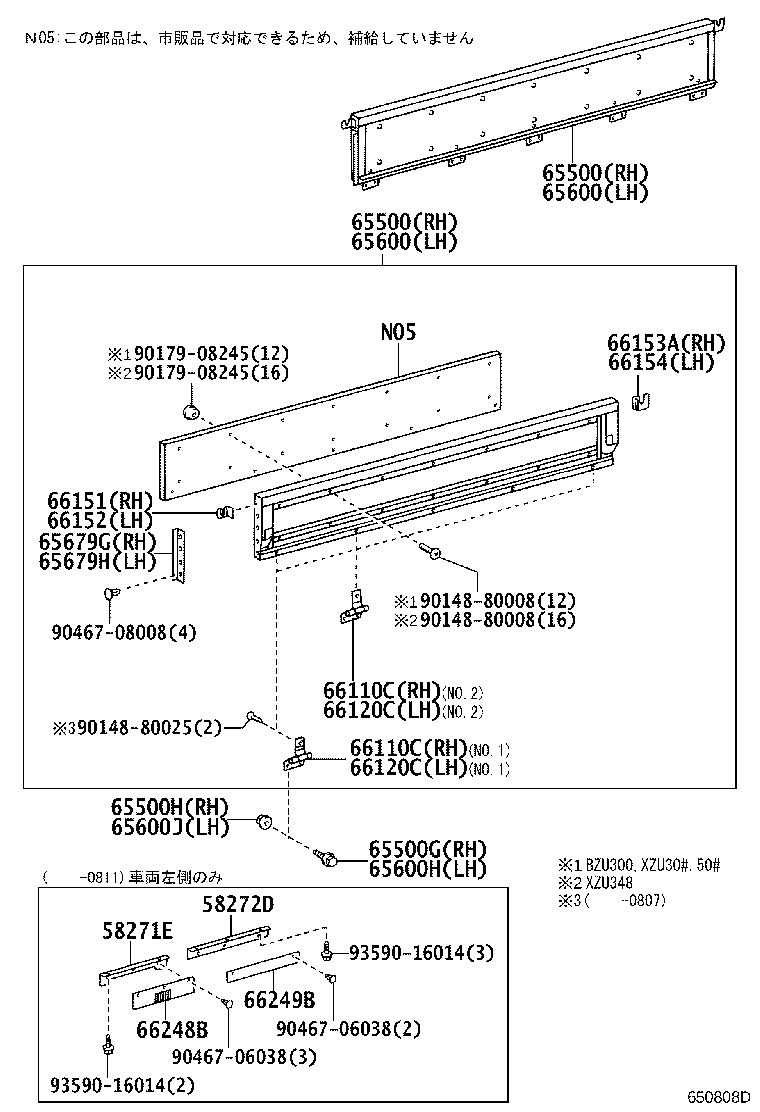

Rear Body Side Panel
39 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 58271E | Plate, Floor Side, NO.1 |
| 58272D | Plate, Floor Side, NO.2 |
| 65080B | Handle Assy, Side Gate Latch |
| 65080C | Handle Assy, Side Gate Latch |
| 65309A | Post Sub-assy, RH |
| 65309B | Post Sub-assy, LH |
| 65500 | Panel Assy, Rear Body Side, RH |
| 65500G | Bolt, W/Washer(FOR SIDE GATE, RH) |
| 65500H | Nut(FOR SIDE GATE, RH) |
| 65600 | Panel Assy, Rear Body Side, LH |
| 65600H | Bolt, W/Washer(FOR SIDE GATE, LH) |
| 65600J | Nut(FOR SIDE GATE, LH) |
| 65679G | Seal, Side Gate |
| 65679H | Seal, Side Gate |
| 66033 | Bracket Sub-assy, Gate Helper, NO.3 |
| 66033C | Rod Sub-assy, Gate Helper Tension |
| 66034 | Bracket Sub-assy, Gate Helper, NO.3 LH |
| 66035B | Bellcrank Sub-assy, Gate Helper |
| 66110C | Hinge Assy, Side Gate, NO.1 RH |
| 66120C | Hinge Assy, Side Gate, NO.1 LH |
| 66151 | Latch, Side Gate Female, RH |
| 66152 | Latch, Side Gate Female, LH |
| 66153A | Latch, Tail Gate Female, RH |
| 66154 | Latch, Tail Gate Female, LH |
| 66187 | Handle, Side Gate Latch, Center NO.2 |
| 66187A | Latch, Side Gate Support |
| 66248B | Protector, Rear Body Side Panel, RH |
| 66249B | Protector, Rear Body Side Panel, LH |
| 66302A | Link Sub-assy, Gate Helper |
| 66308A | End Sub-assy, Gate Helper Rod, NO.2 |
| 66311 | Hook, Rope |
| 66326 | Slider, Rod Control |

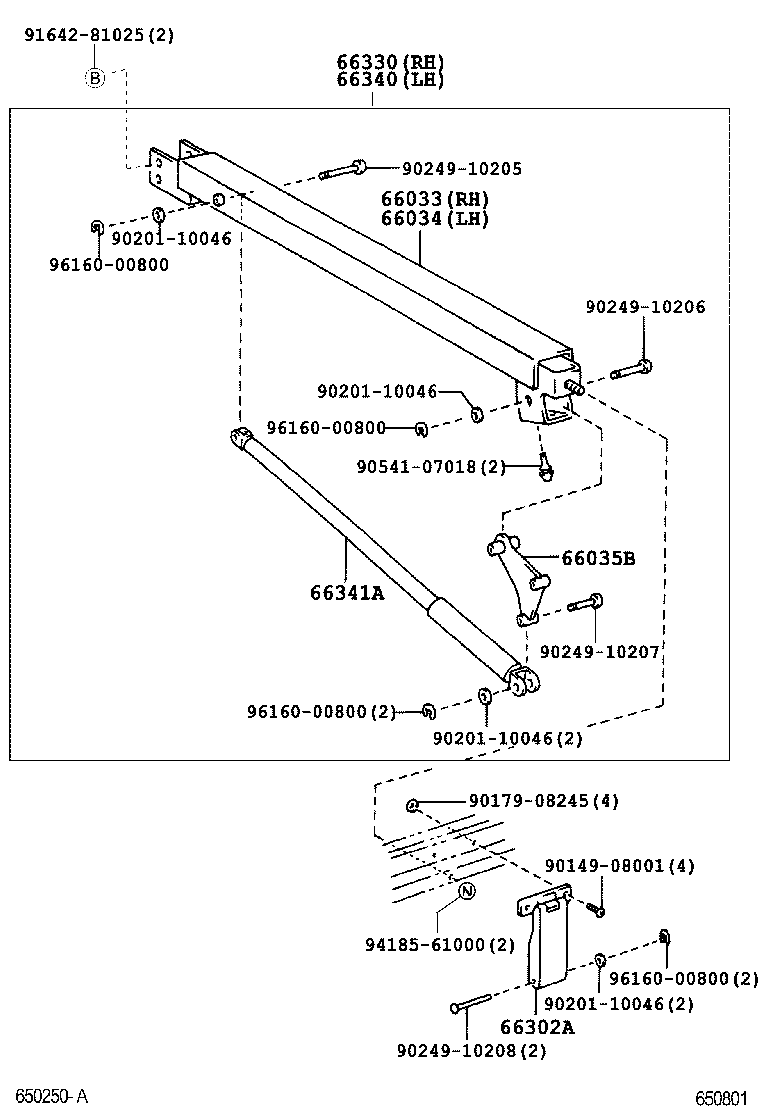

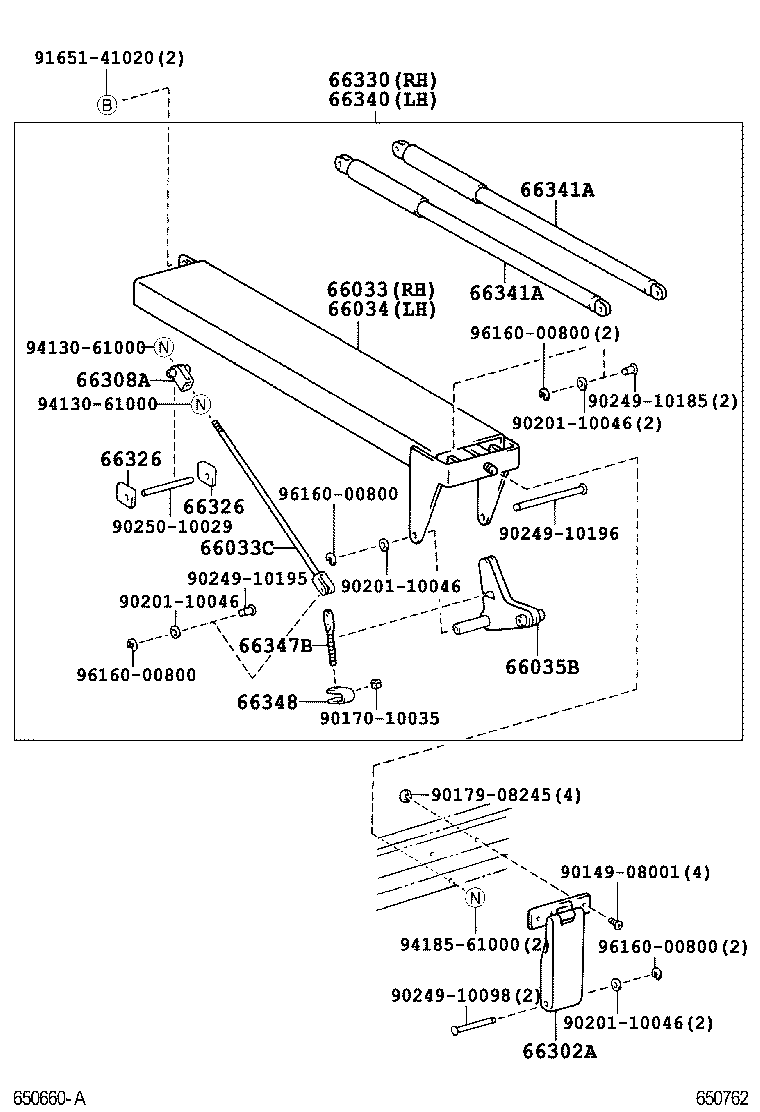

| 66330 | Helper Assy, Gate, RH |
| 66340 | Helper Assy, Gate, LH |
| 66341A | Stay, Gate Helper |
| 66347B | Bolt, Gate Helper Bellcrank Adjust |
| 66348 | Retainer, Gate Helper Bellcrank Adjust Bolt |
| C5191A | Plate, Gate Rope Through, Outer |
| C5192 | Plate, Gate Rope Through, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
