Toyota Dyna/Toyoace
2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan
Supported model
Data version 2019-05

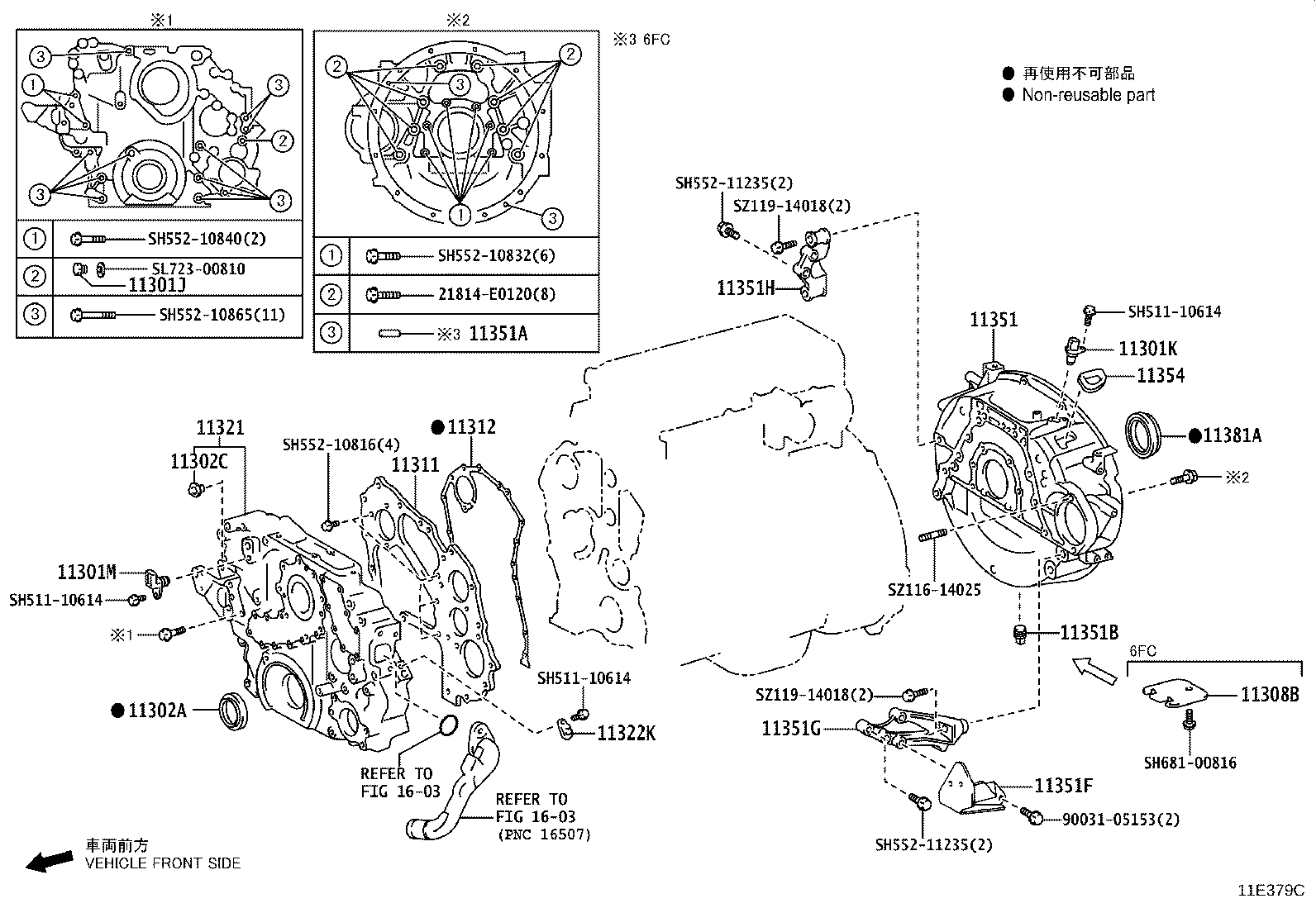

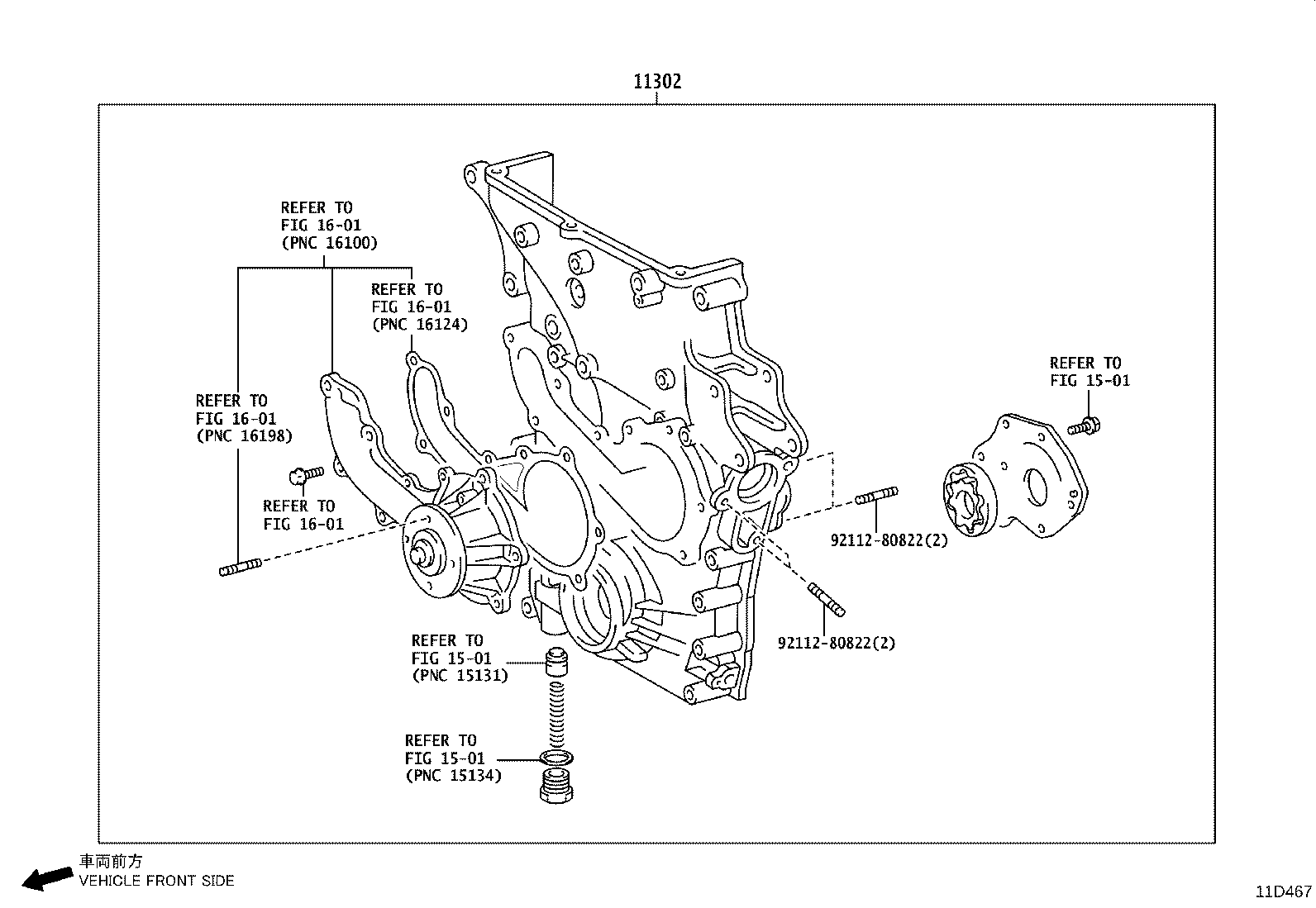

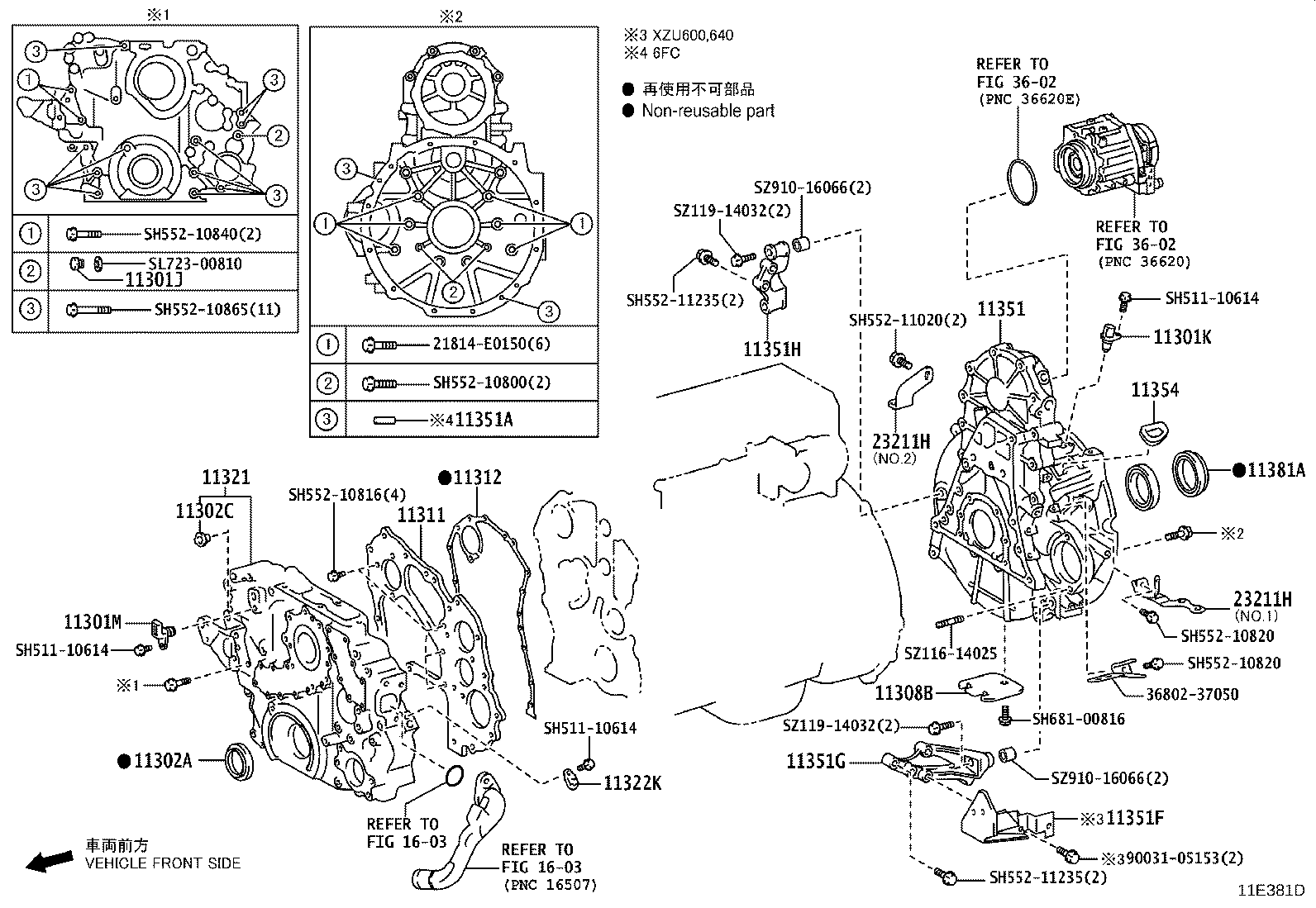

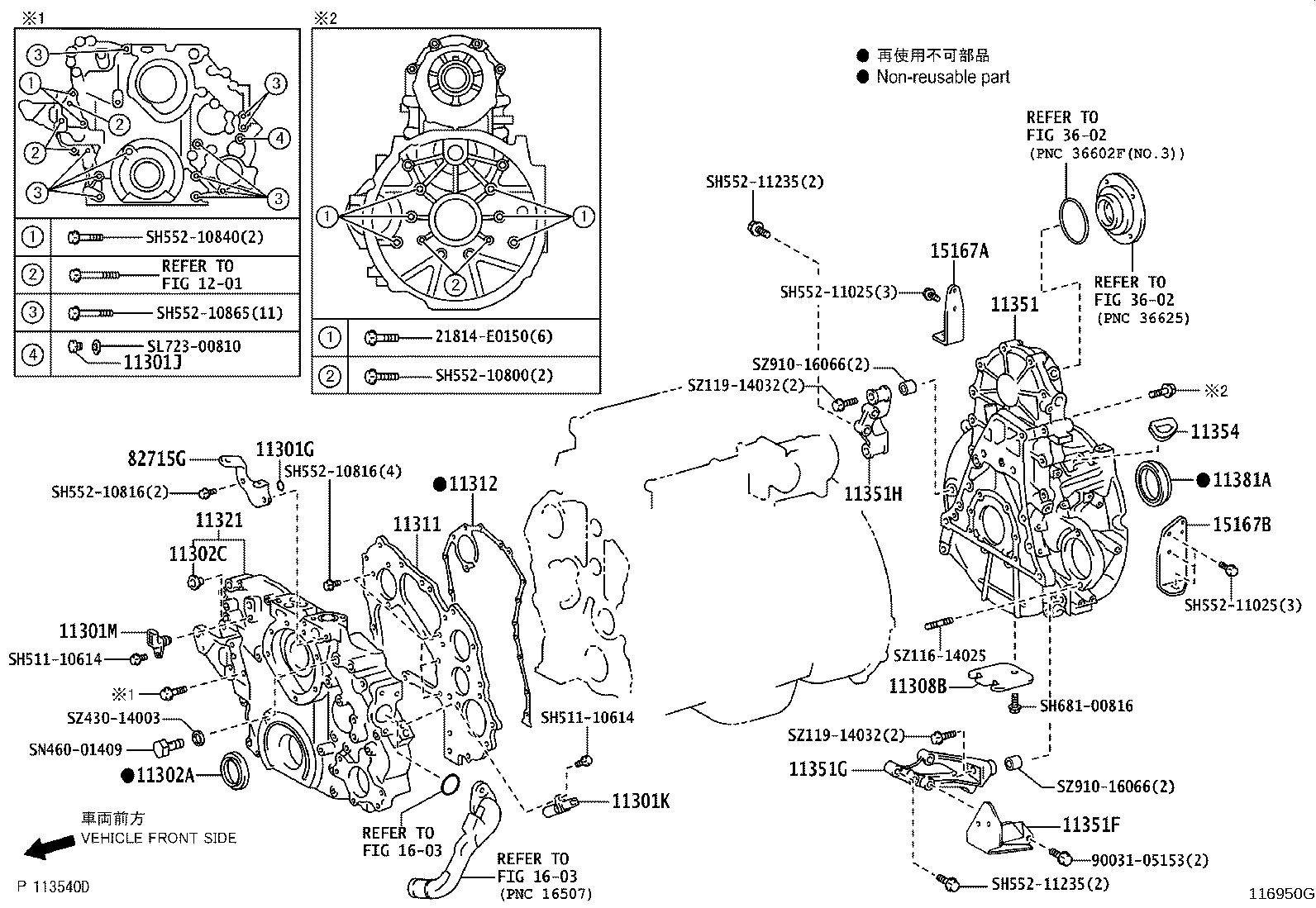

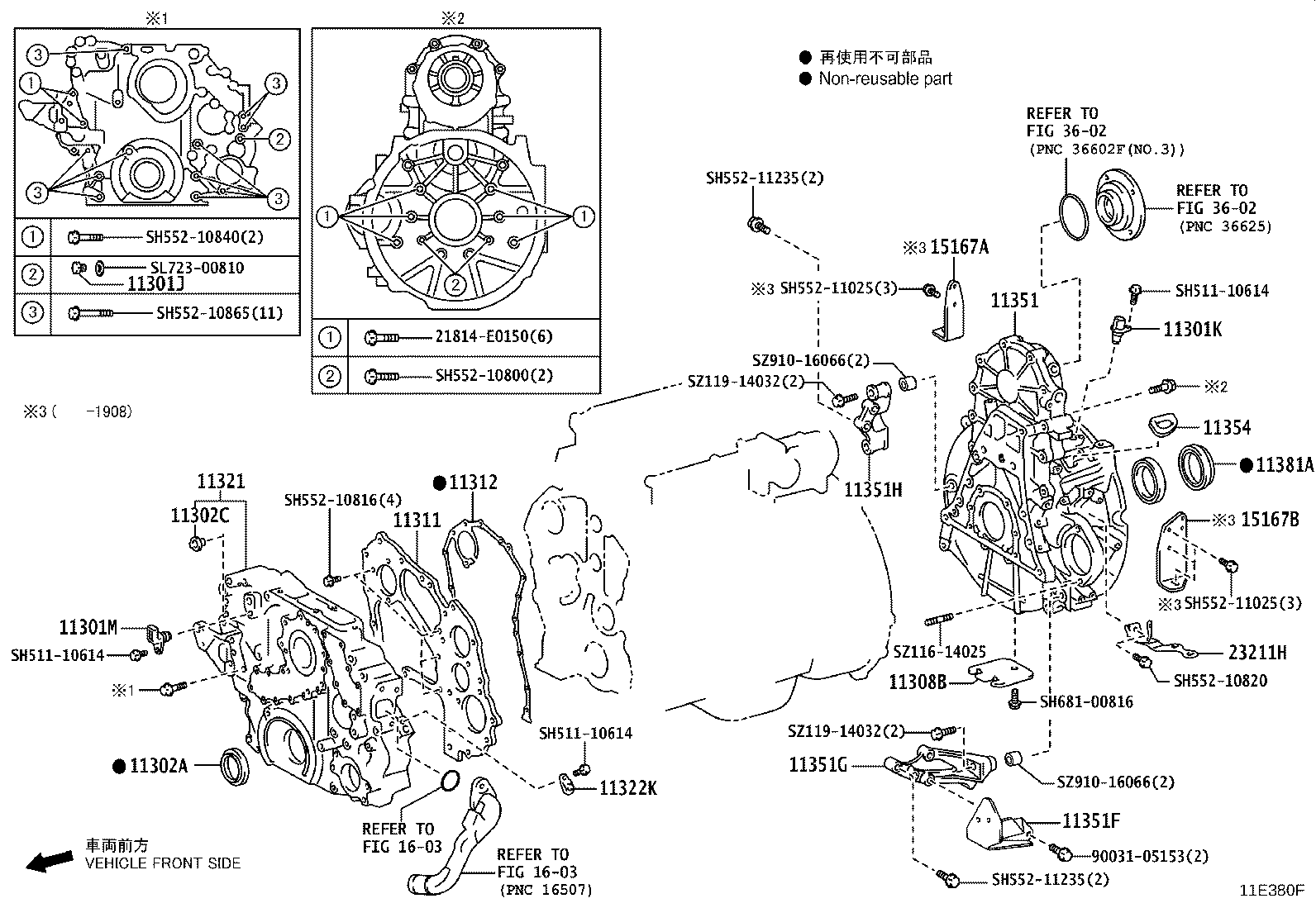

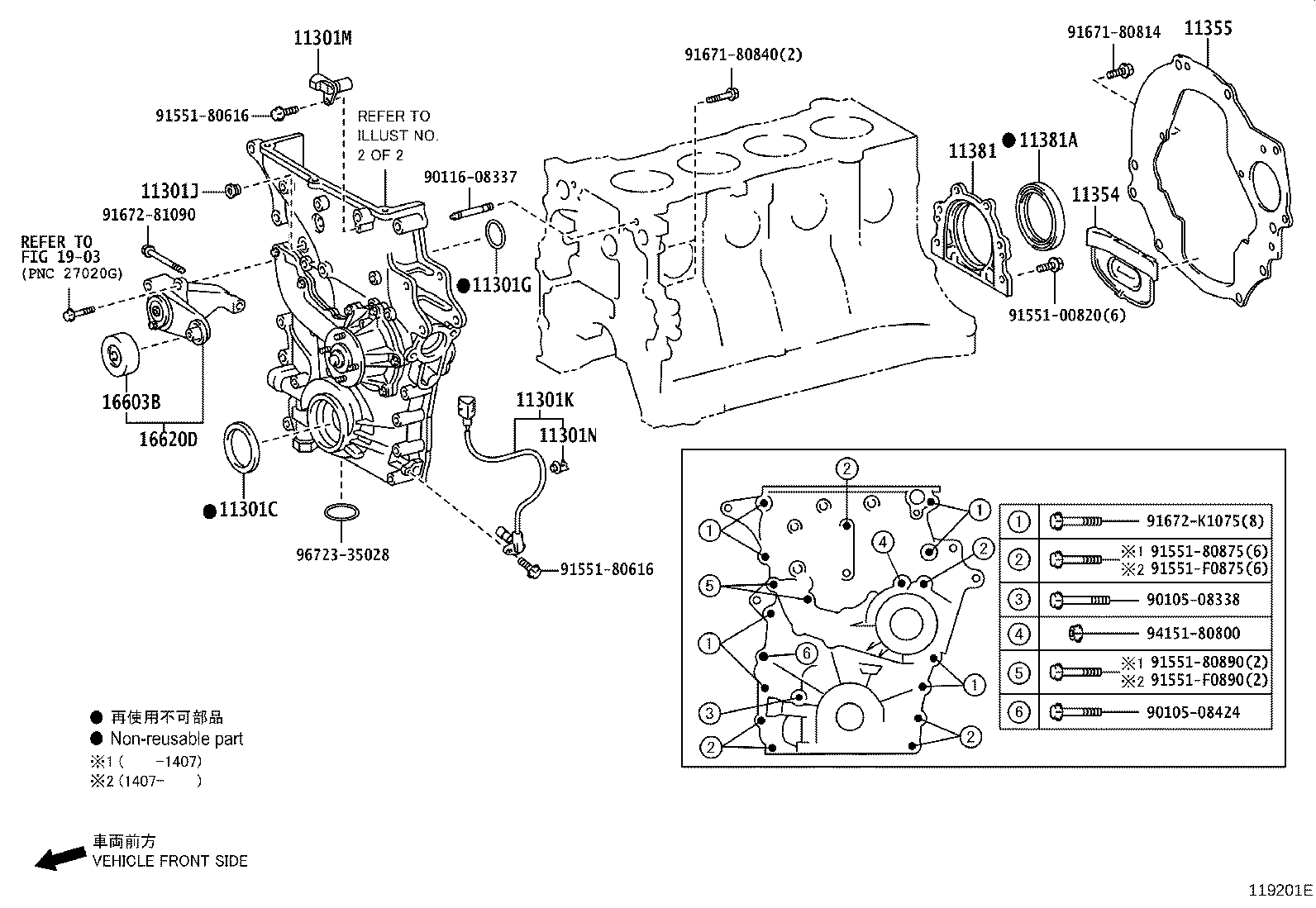

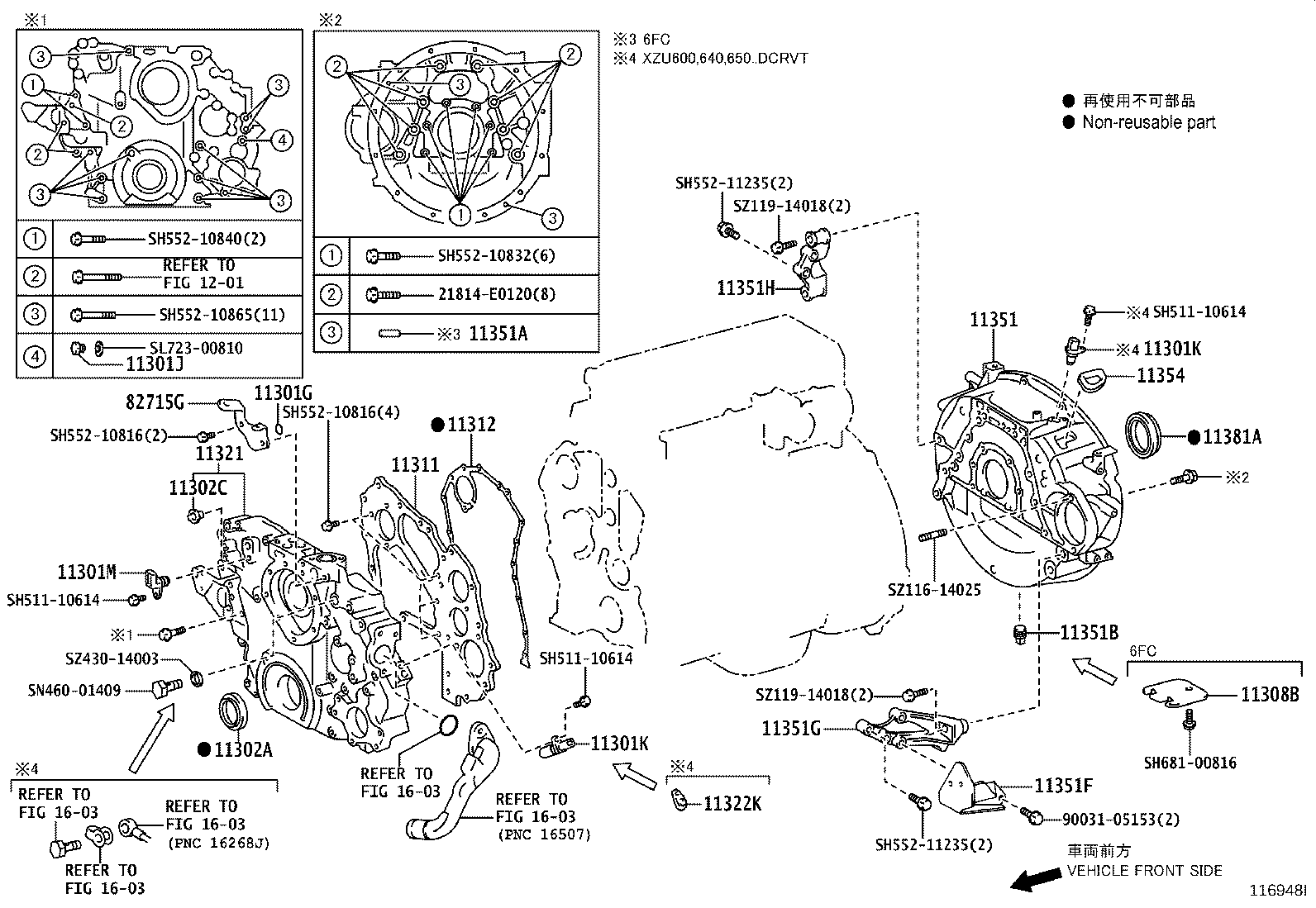

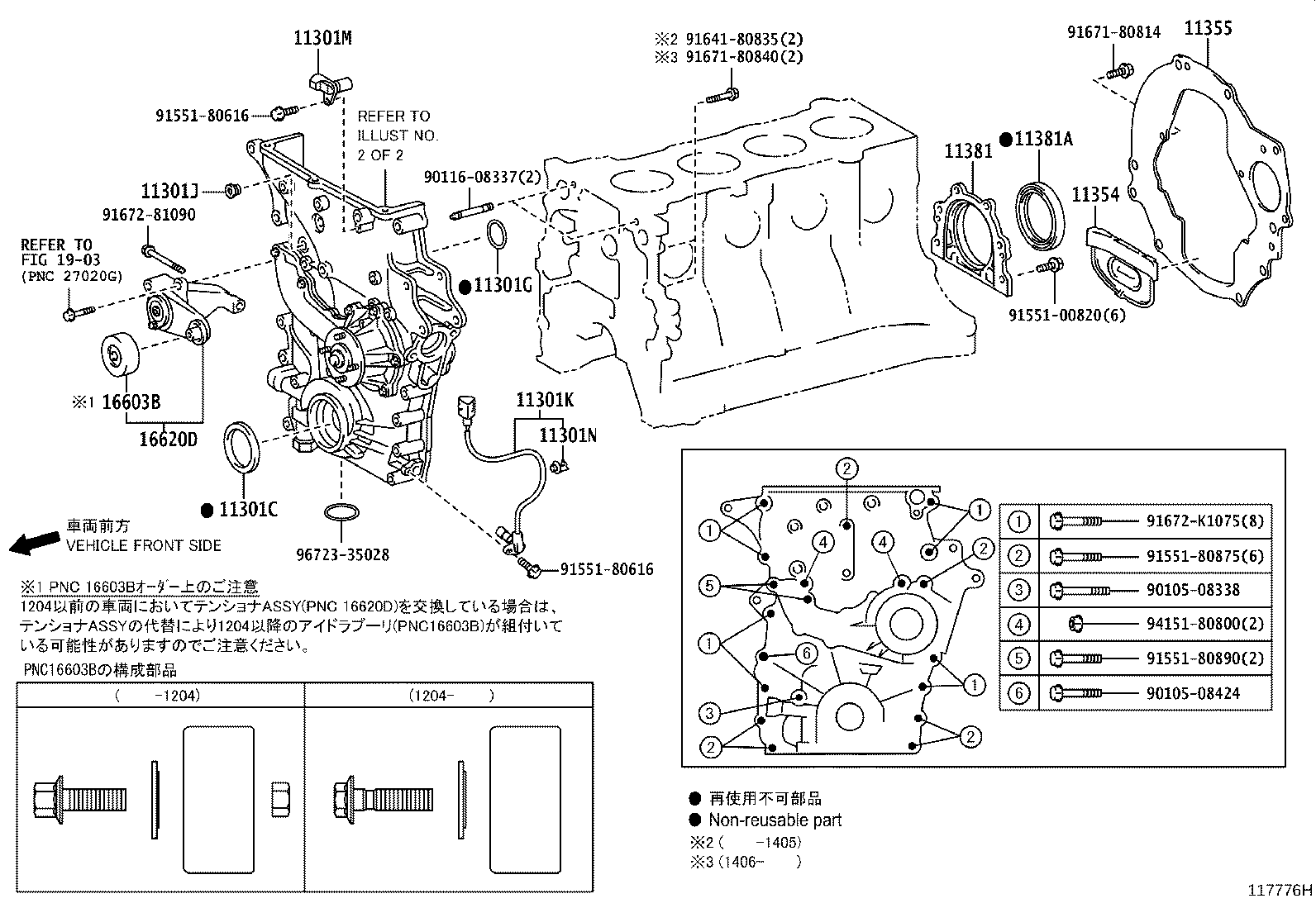

Timing Gear Cover & Rear End Plate

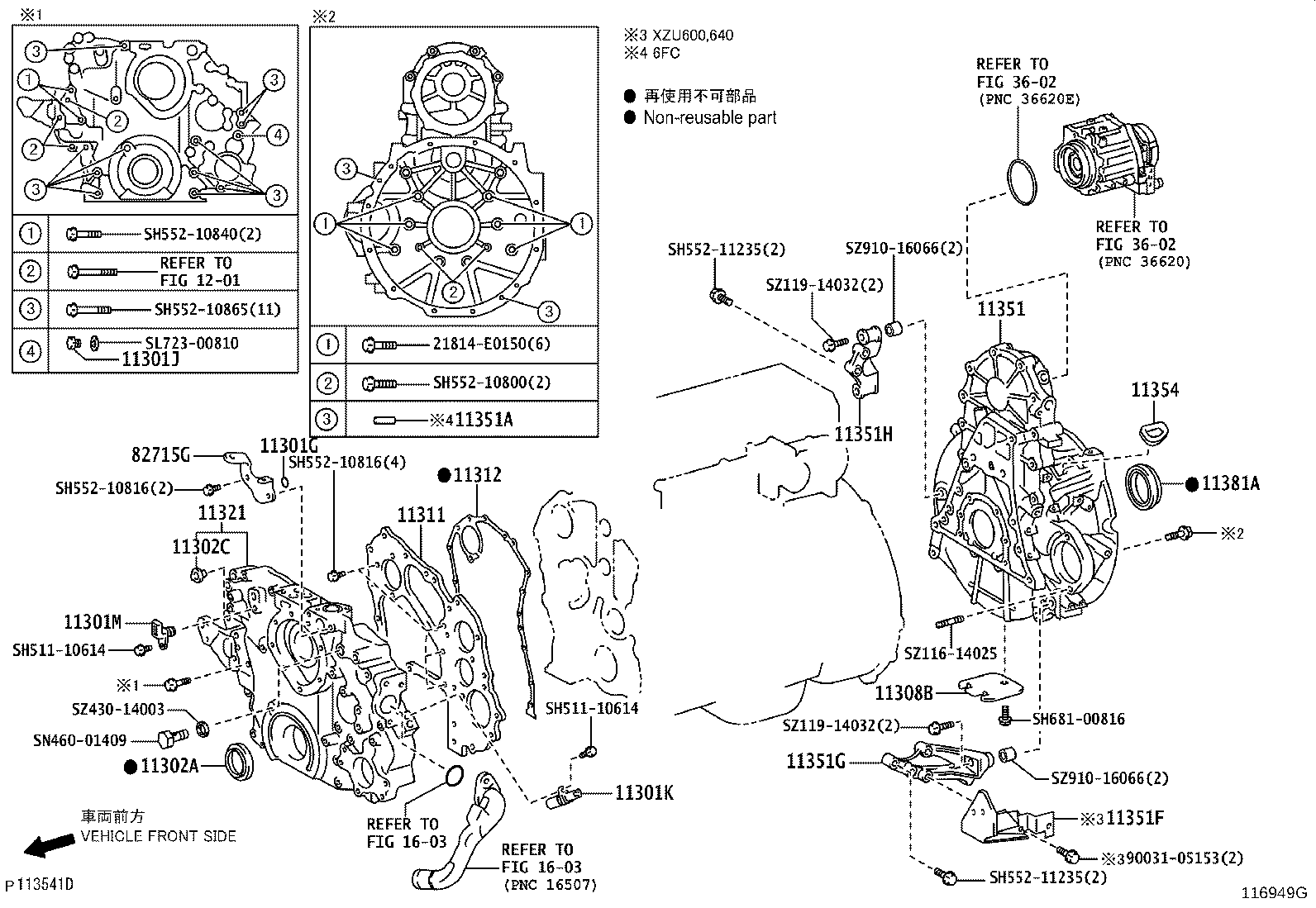

38 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301 | Case Sub-assy, Timing Gear |
| 11301A | Pin, Straight(FOR TIMING GEAR CASE) |
| 11301B | Bolt,Stud(FOR TIMING GEAR CASE) |
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301G | Ring, O(FOR TIMING GEAR CASE, UPPER) |
| 11301J | Plug, W/Head Straight Screw(FOR TIMING GEAR CASE) |
| 11301K | Sensor, Crank Position |
| 11301M | Sensor, Cam Position |
| 11301N | Clamp |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11302C | Spacer(FOR TIMING GEAR COVER) |
| 11308B | Cover(FOR FLYWHEEL HOUSING) |
| 11311 | Plate, Front End |
| 11312 | Gasket, Front End Plate |
| 11320A | Cover Assy, Timing Gear, NO.2 |
| 11321 | Case, Timing Gear |
| 11322K | Plug, Hole |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11336A | Insulator, Timing Gear Cover |
| 11345 | Bearing, Injection Pump Gear Thrust |
| 11351 | Housing, Flywheel |
| 11351A | Pin, Straight(FOR FLYWHEEL HOUSING) |
| 11351B | Plug, Hole(FOR FLYWHEEL HOUSING) |
| 11351F | Plate, Stiffener, LH(FOR FLYWHEEL HOUSING) |
| 11351G | Stay, LH(FOR FLYWHEEL HOUSING) |
| 11351H | Stay, RH(FOR FLYWHEEL HOUSING) |
| 11354 | Seal, Flywheel Housing Dust |
| 11355 | Plate, Rear End |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
| 15167A | Bracket, Oil Pump, RH |
| 15167B | Bracket, Oil Pump, LH |
| 16603B | Pulley Sub-assy, Idler |
| 16620D | Tensioner Assy, V-ribbed Belt |
| 23211H | Bracket |
| 82715G | Bracket, Wiring Harness Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
