Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

3 part groups · 6 illustrations

Illustrations

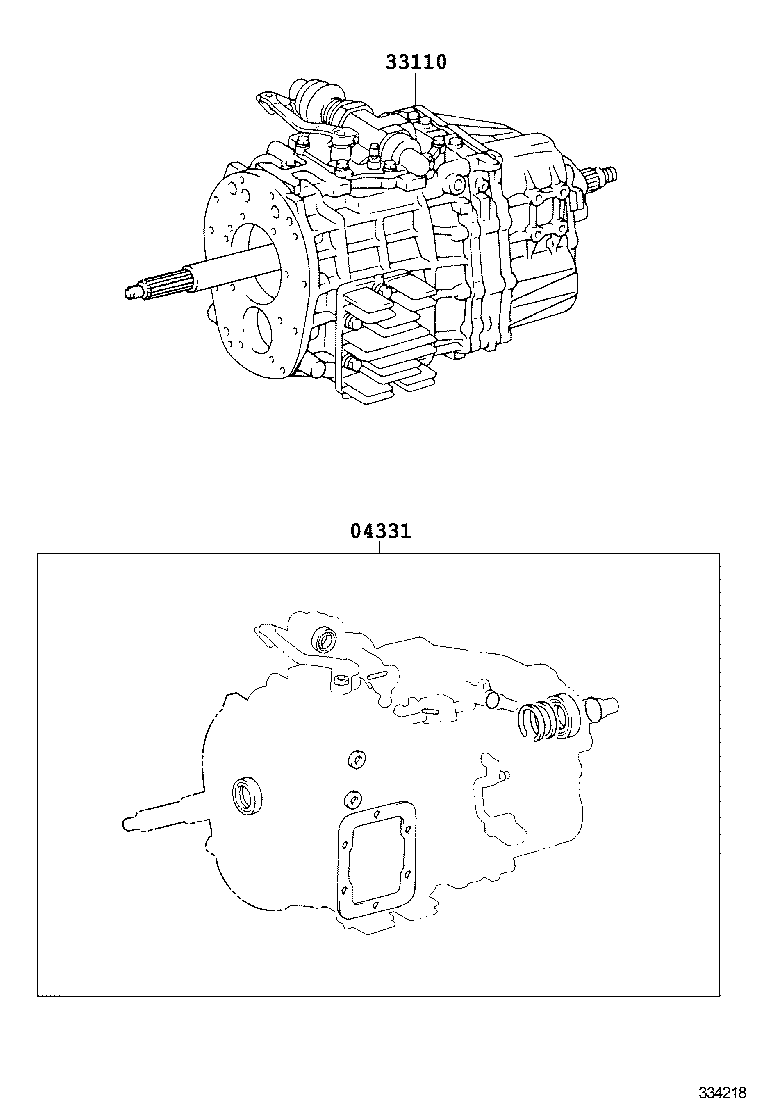

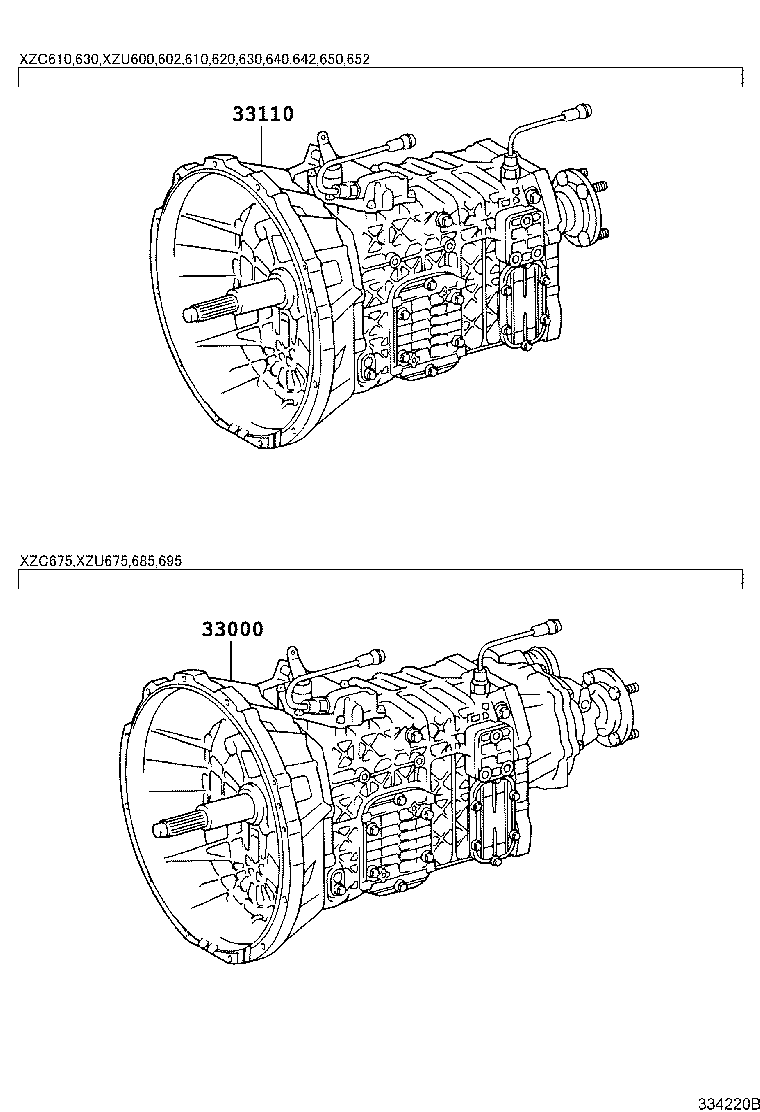

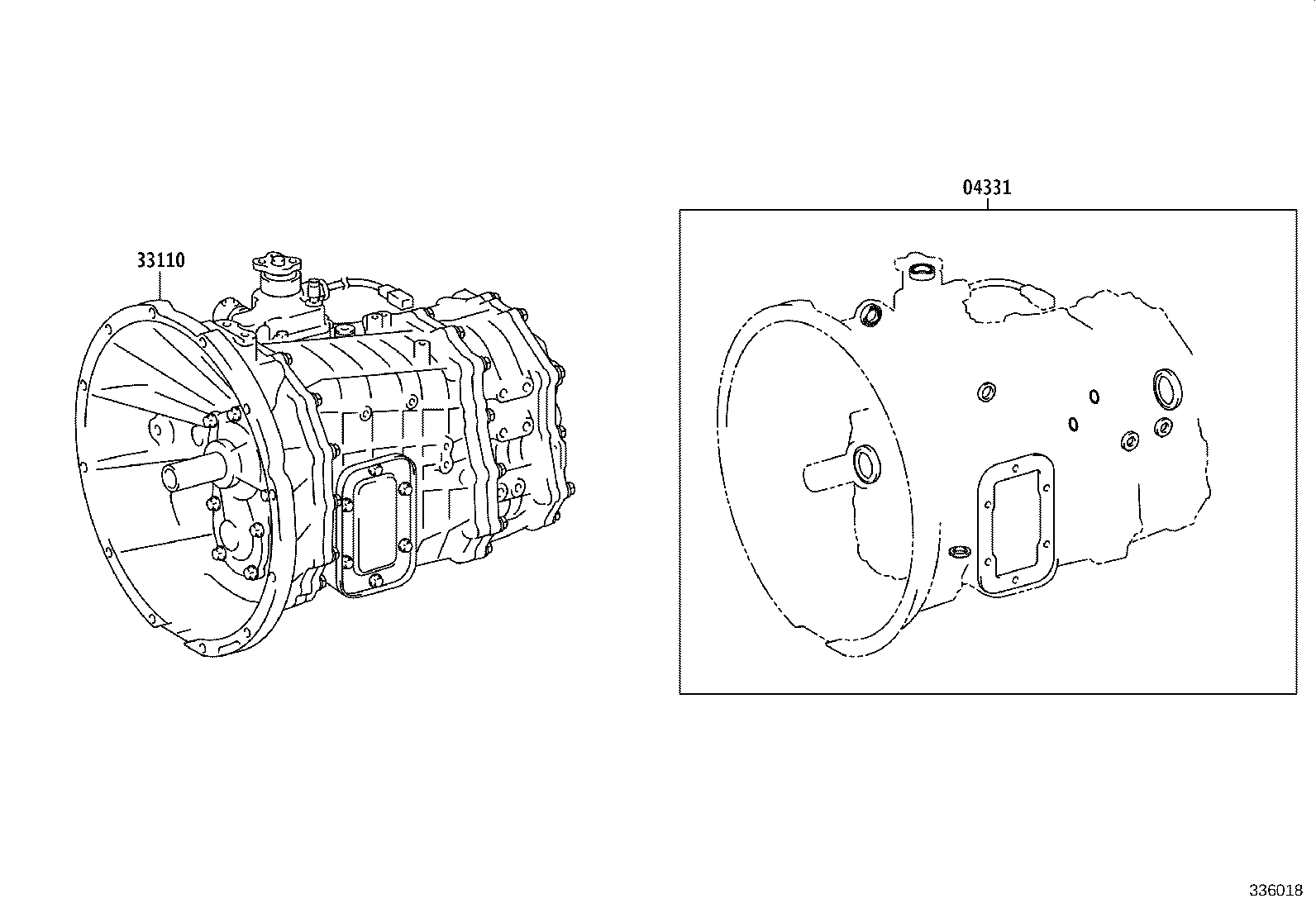

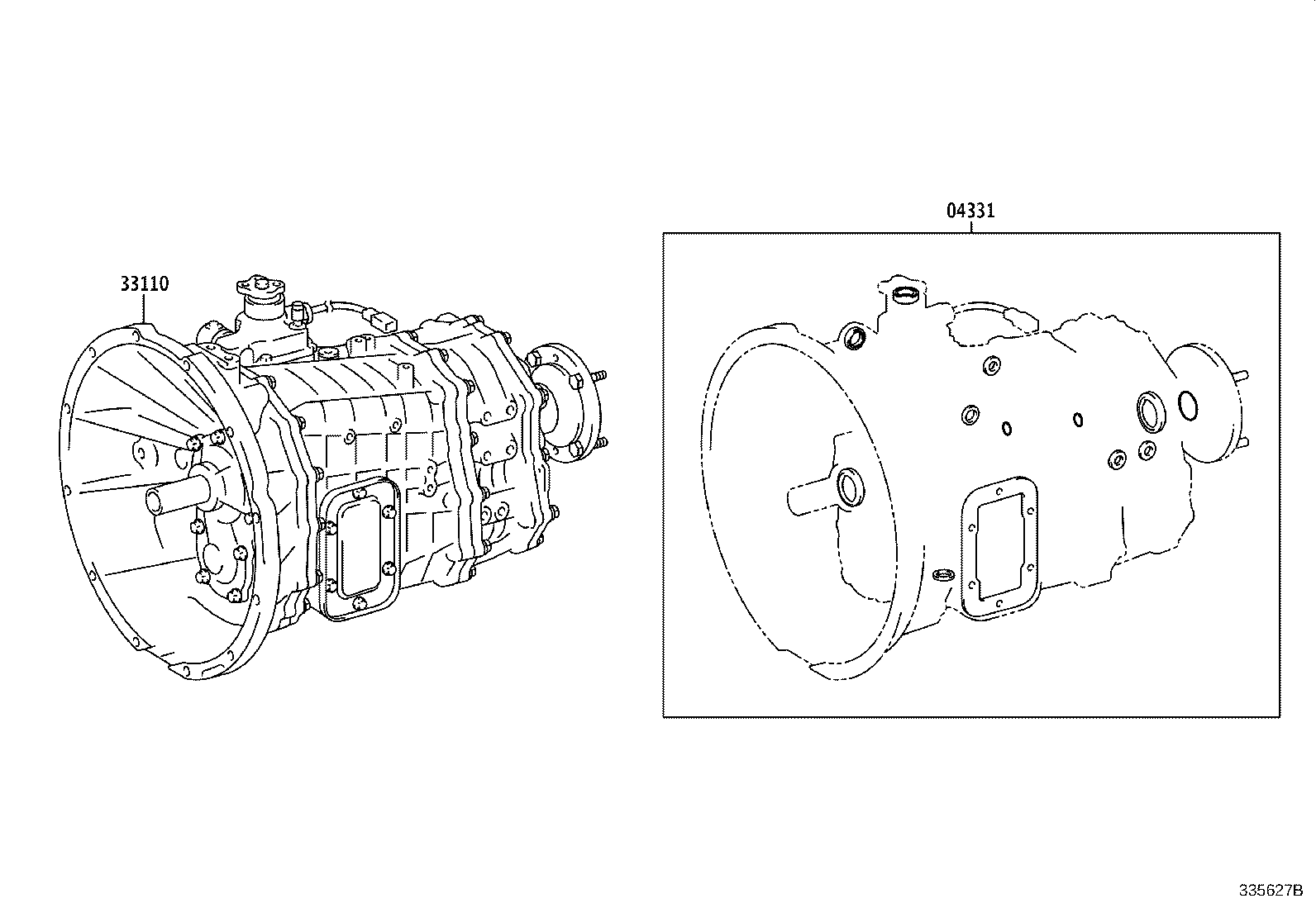

Figure 334217 334217 2011-07 → — Figure 334218 334218 2011-07 → — Figure 334219 334219 2011-07 → — Figure 334220B 334220B 2011-07 → — Figure 335627B 335627B 2017-05 → — Figure 336018 336018 2019-05 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33000 Transmission Assy W/Transfer
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
