Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

29 part groups · 16 illustrations

Illustrations

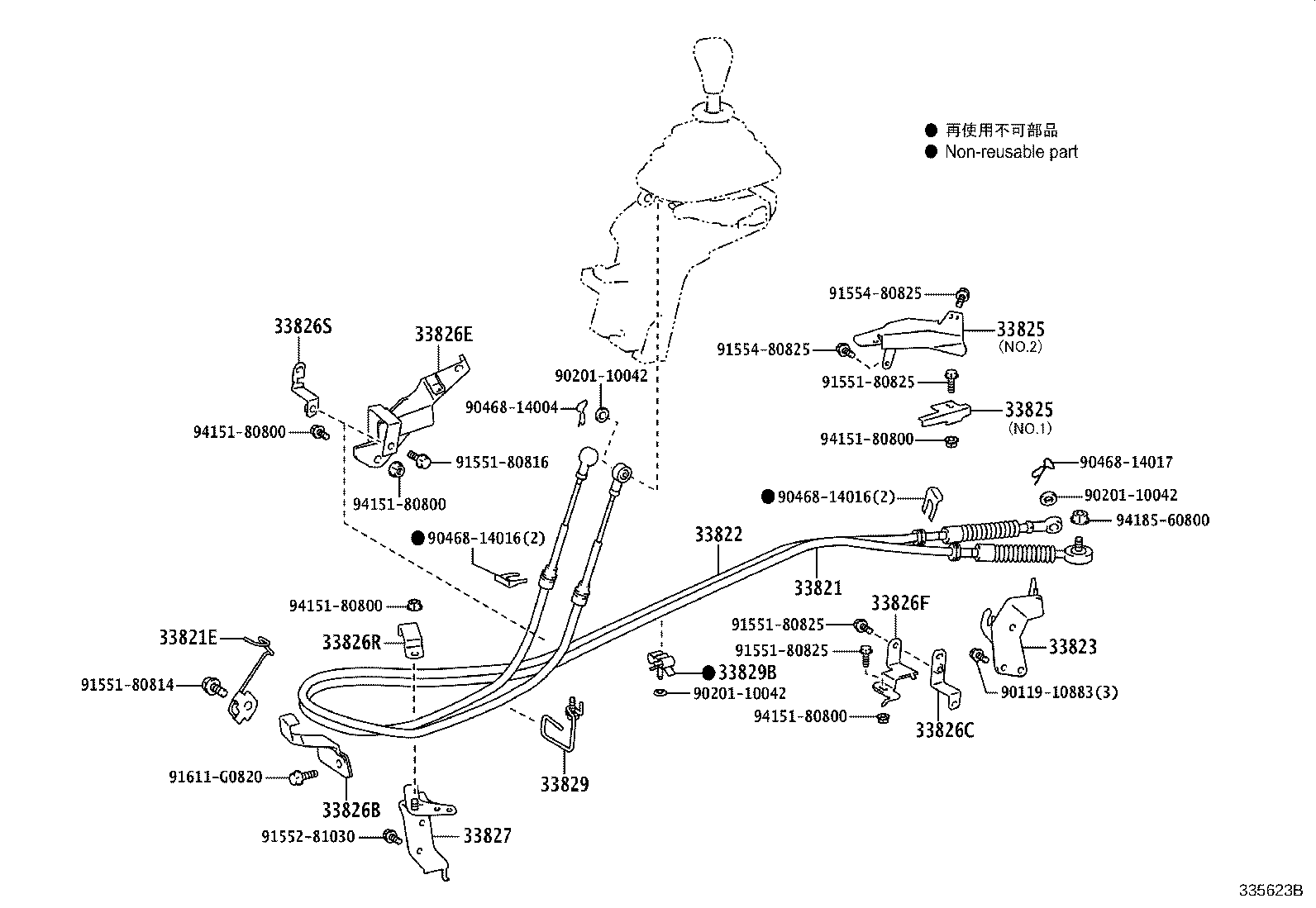

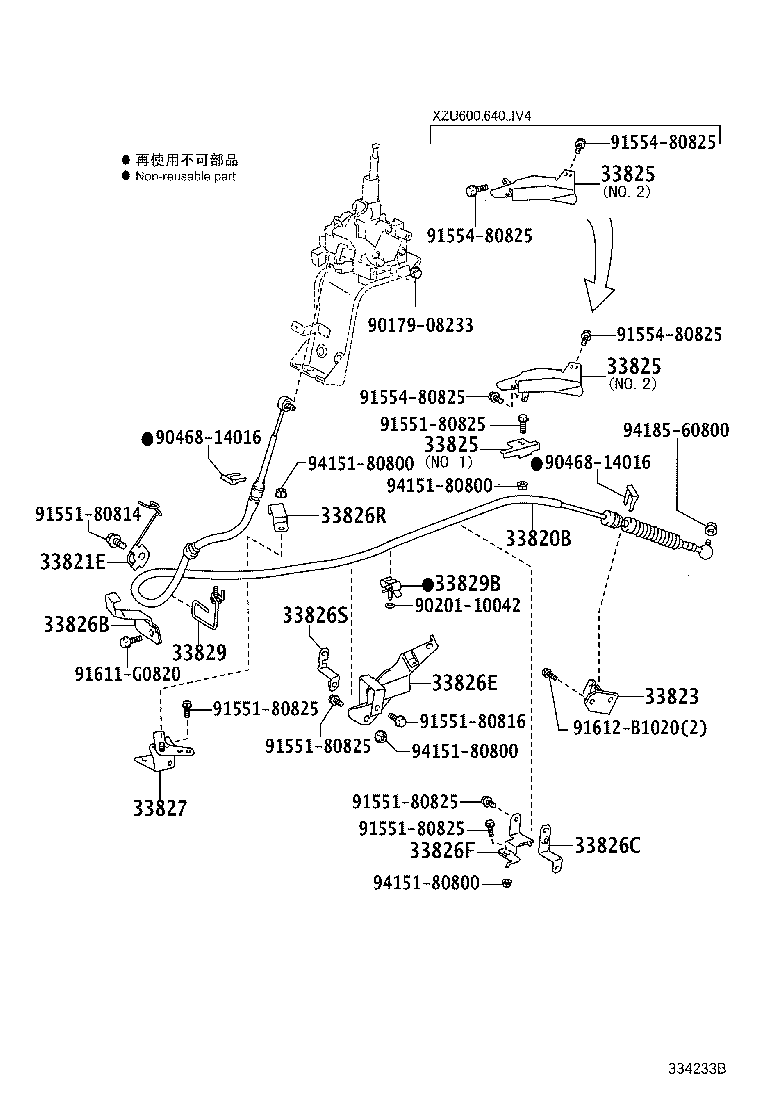

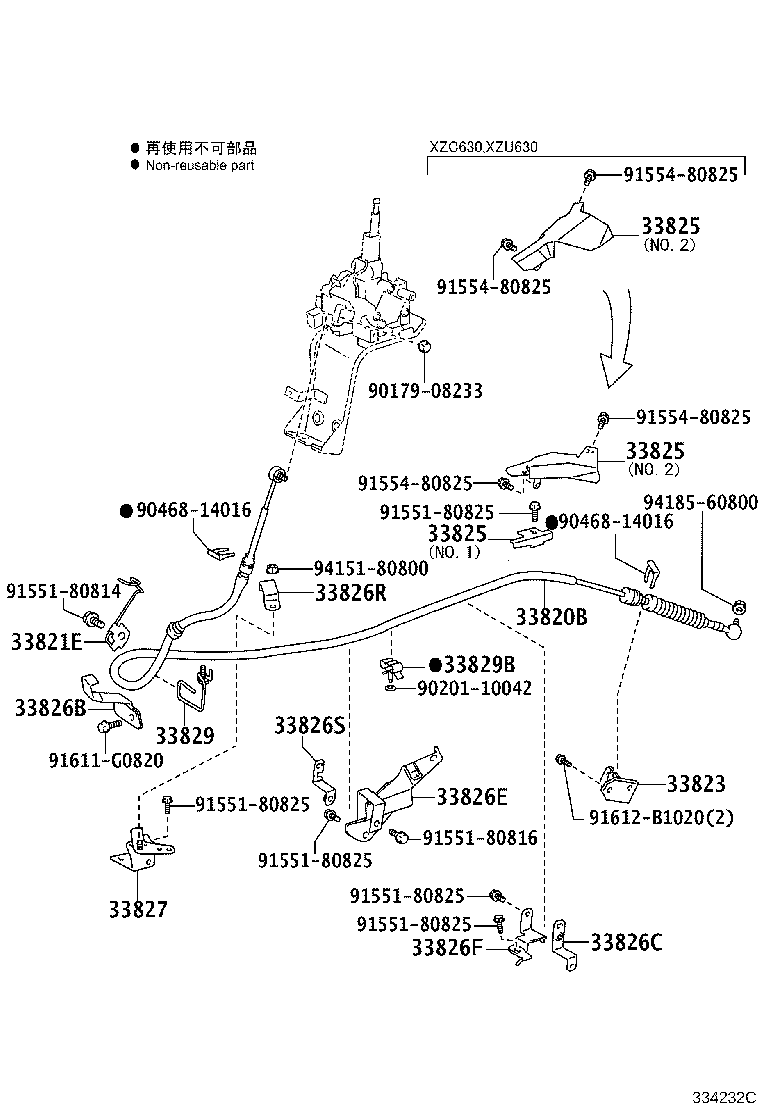

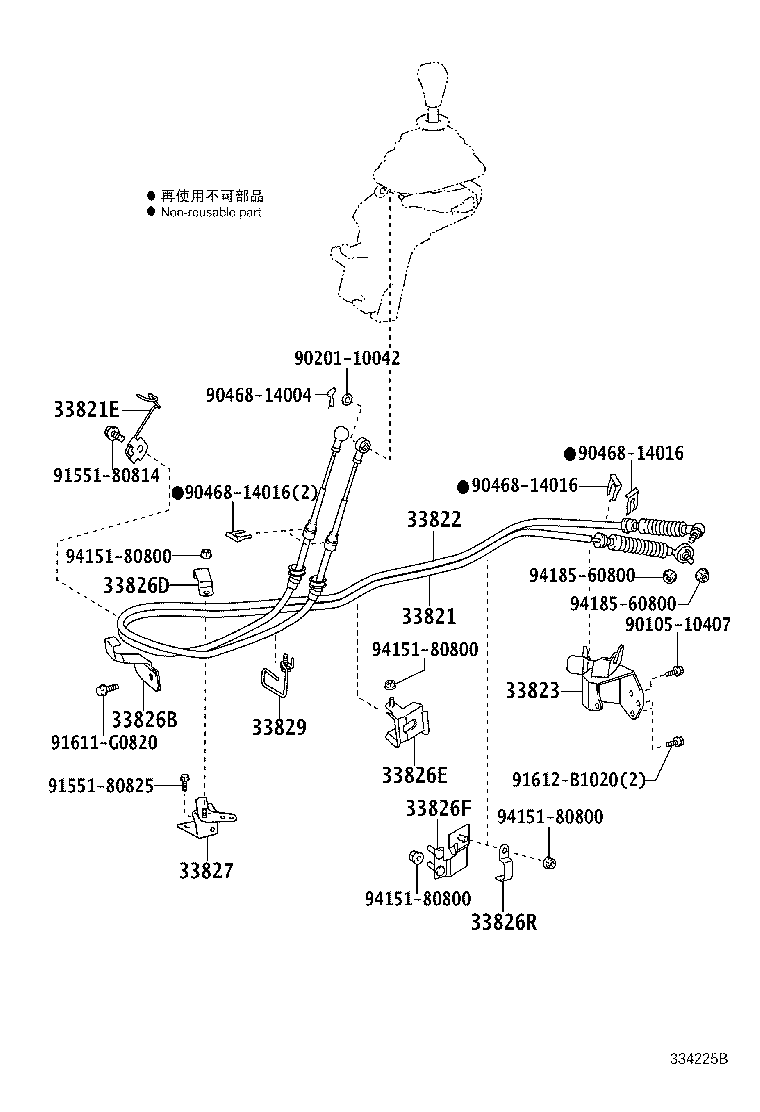

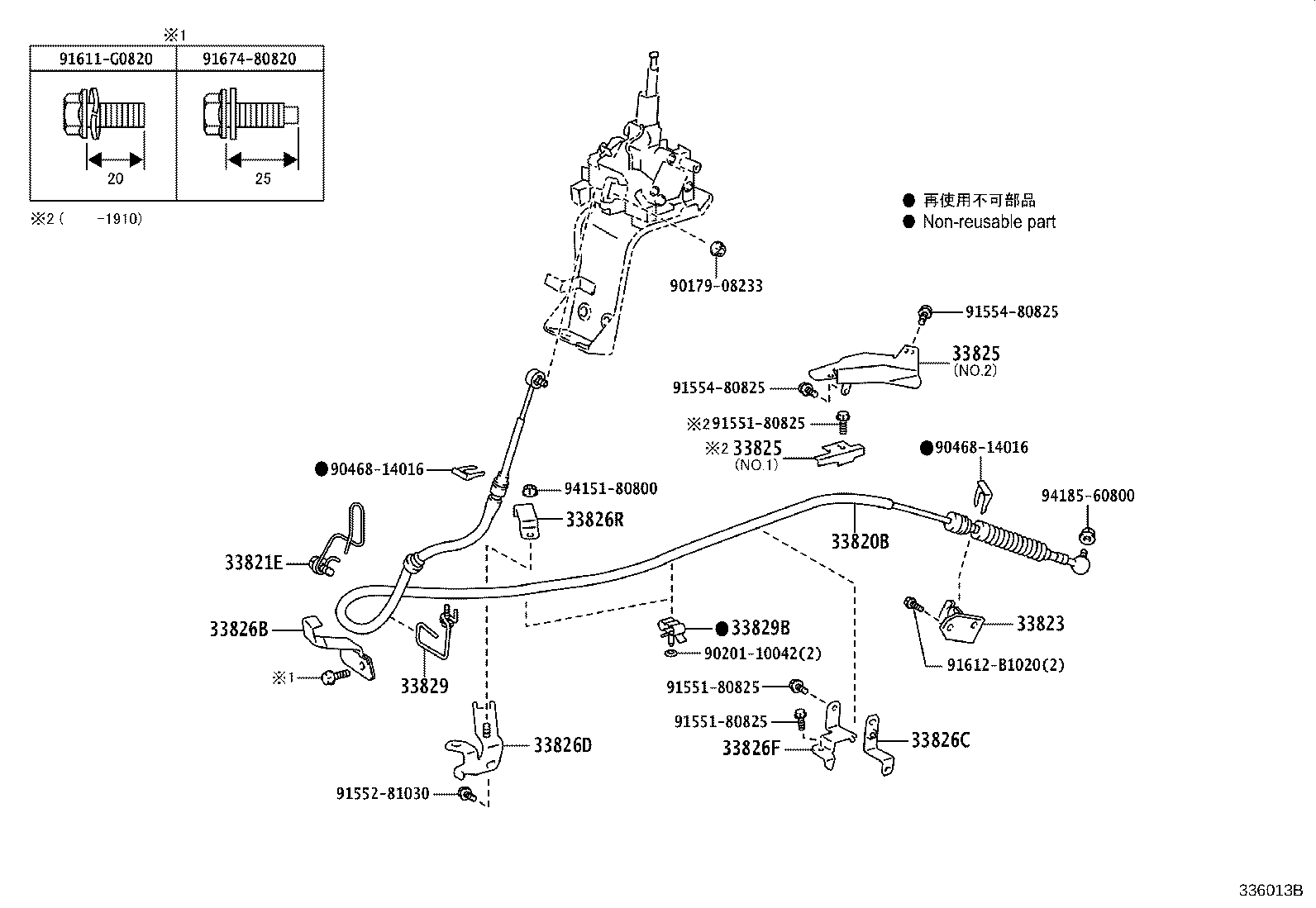

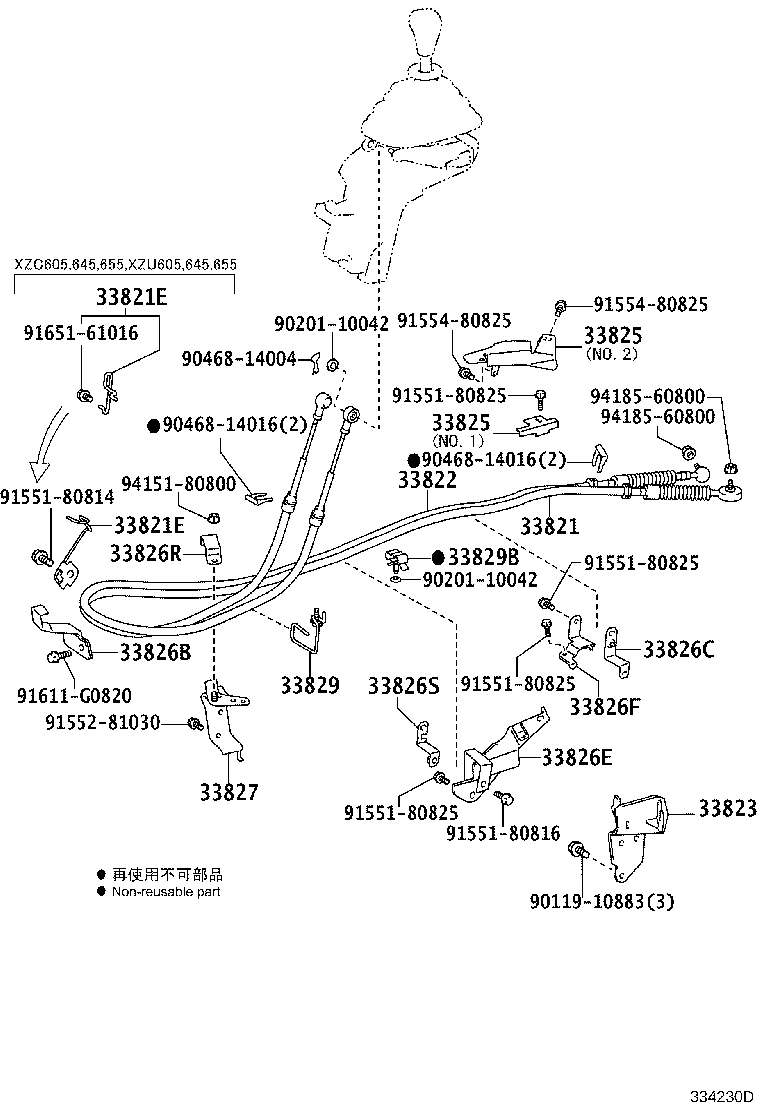

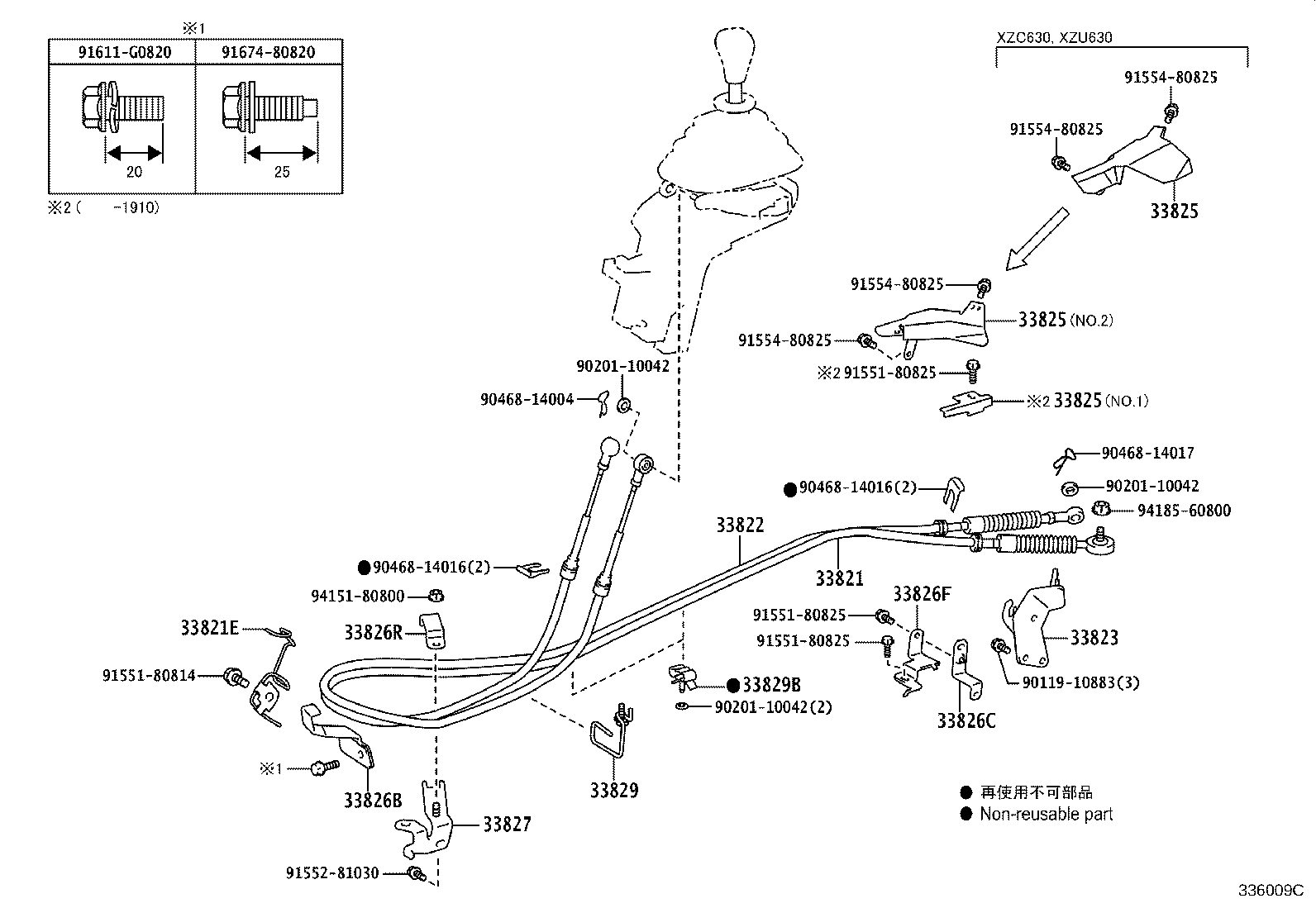

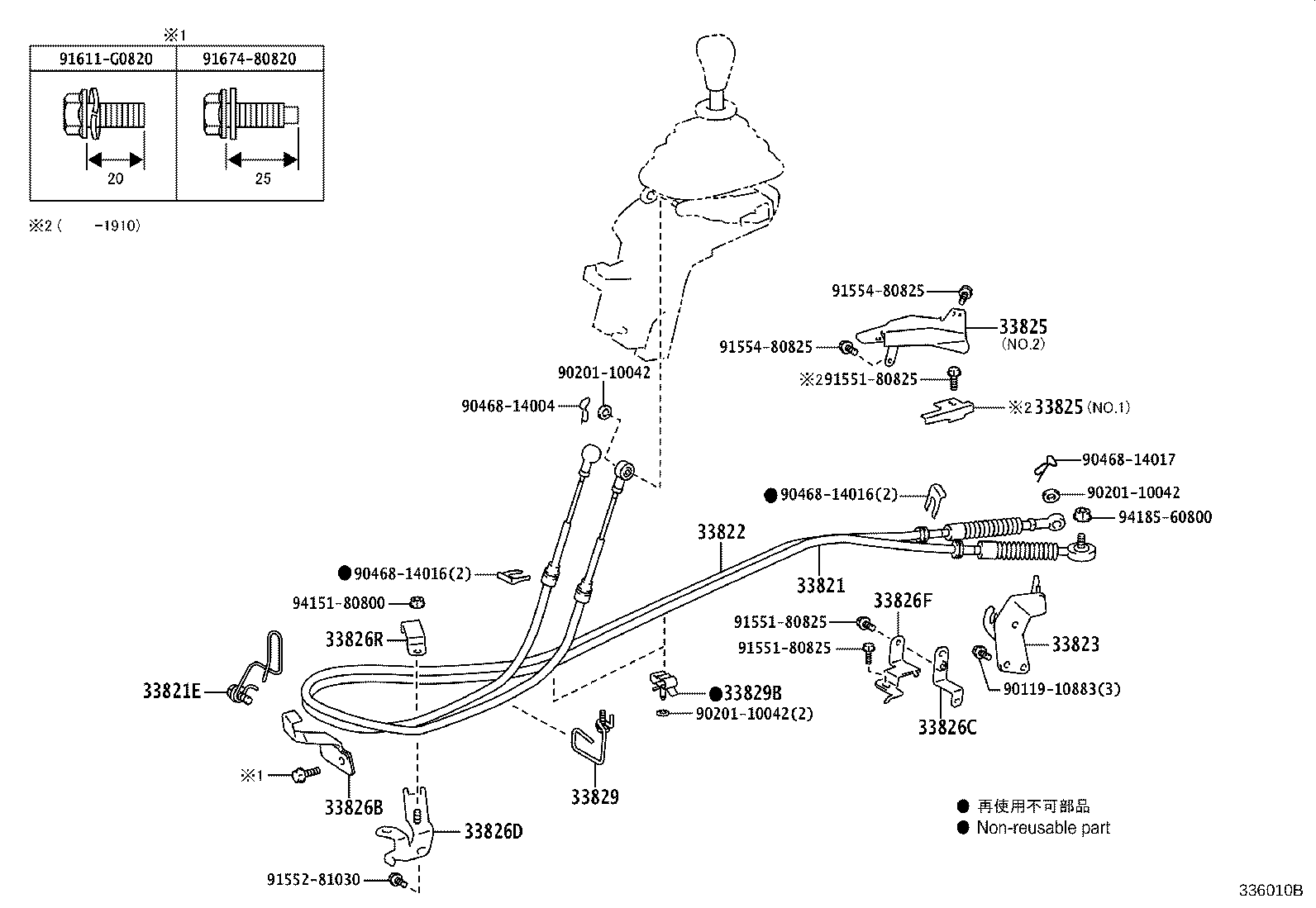

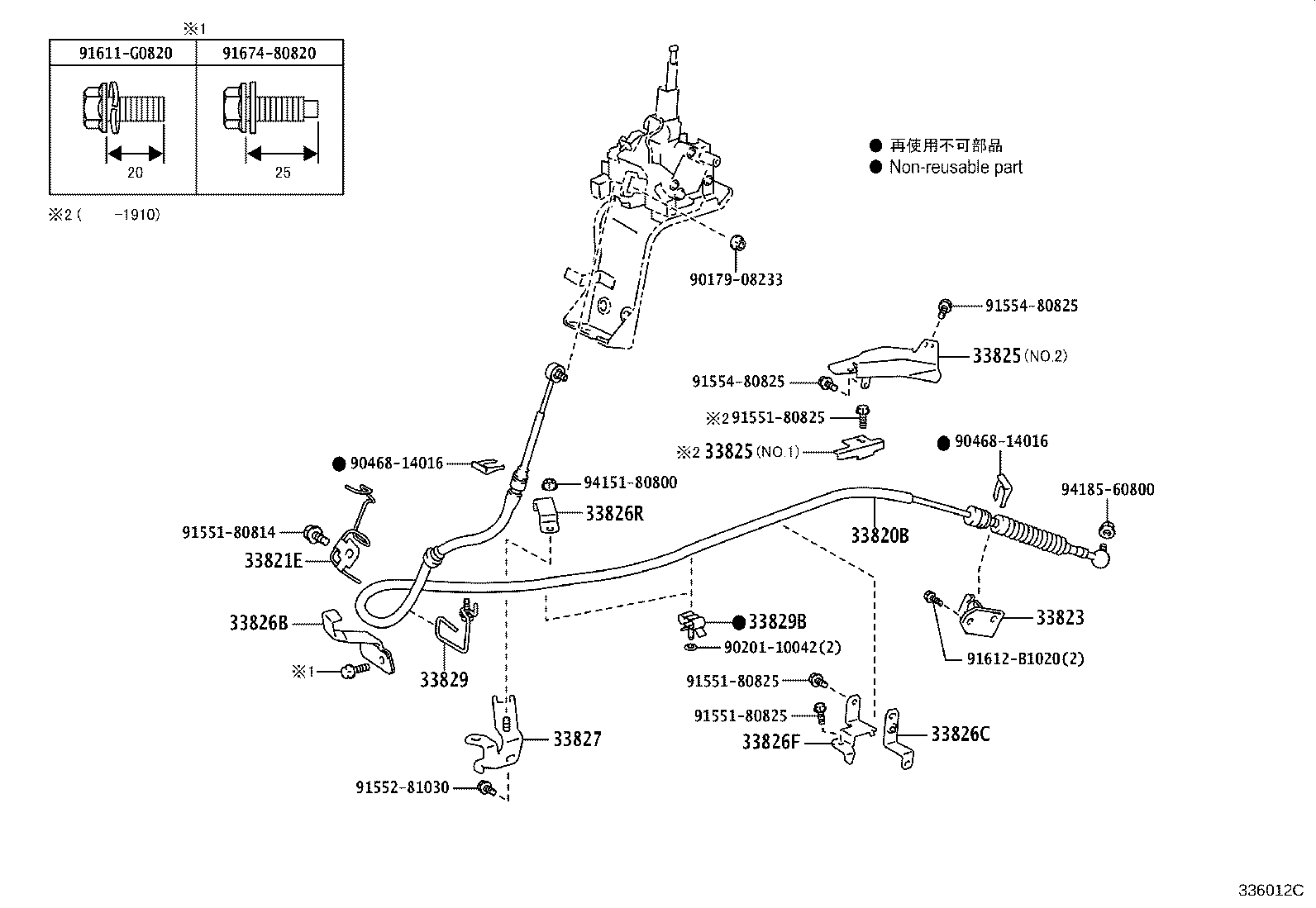

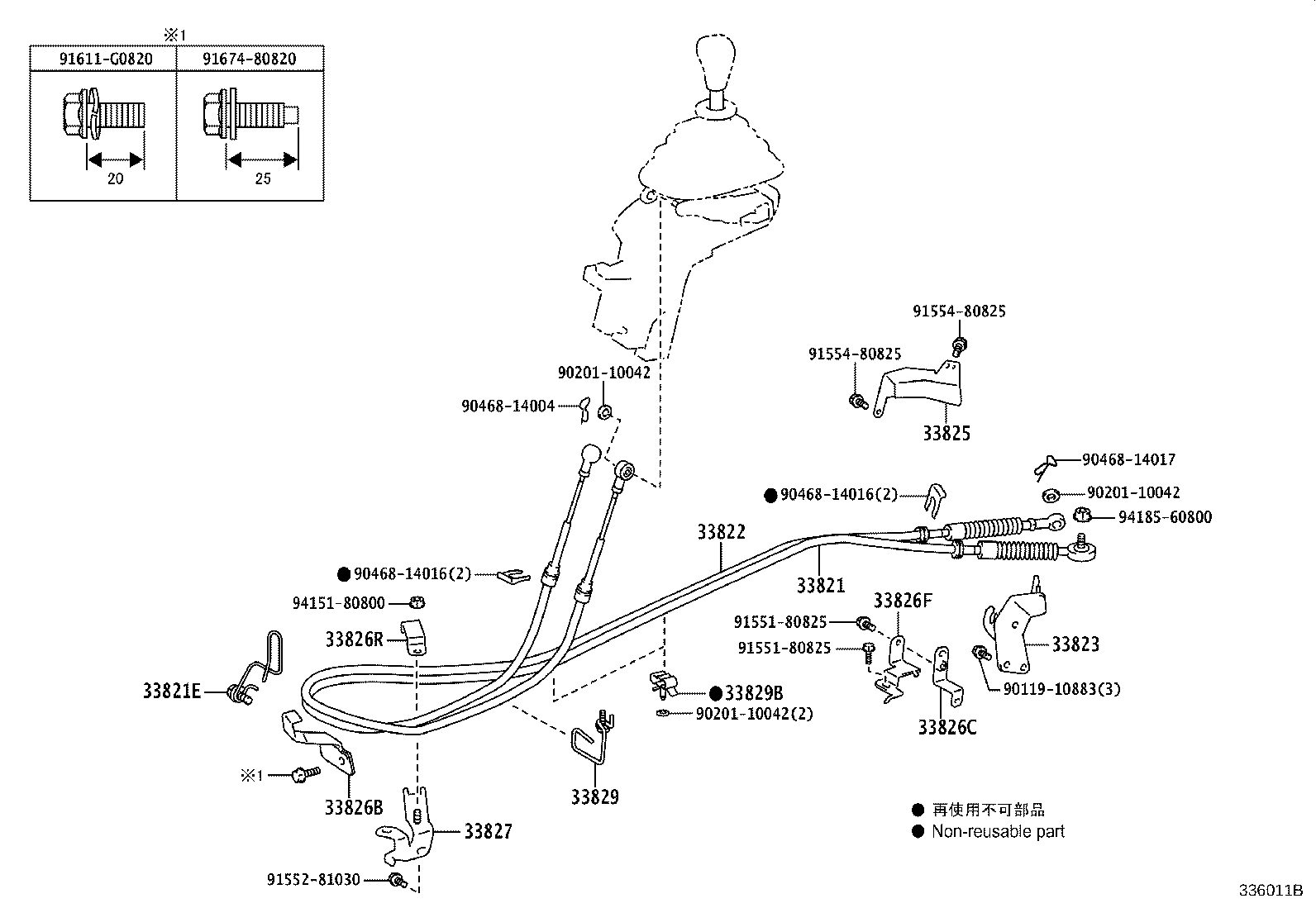

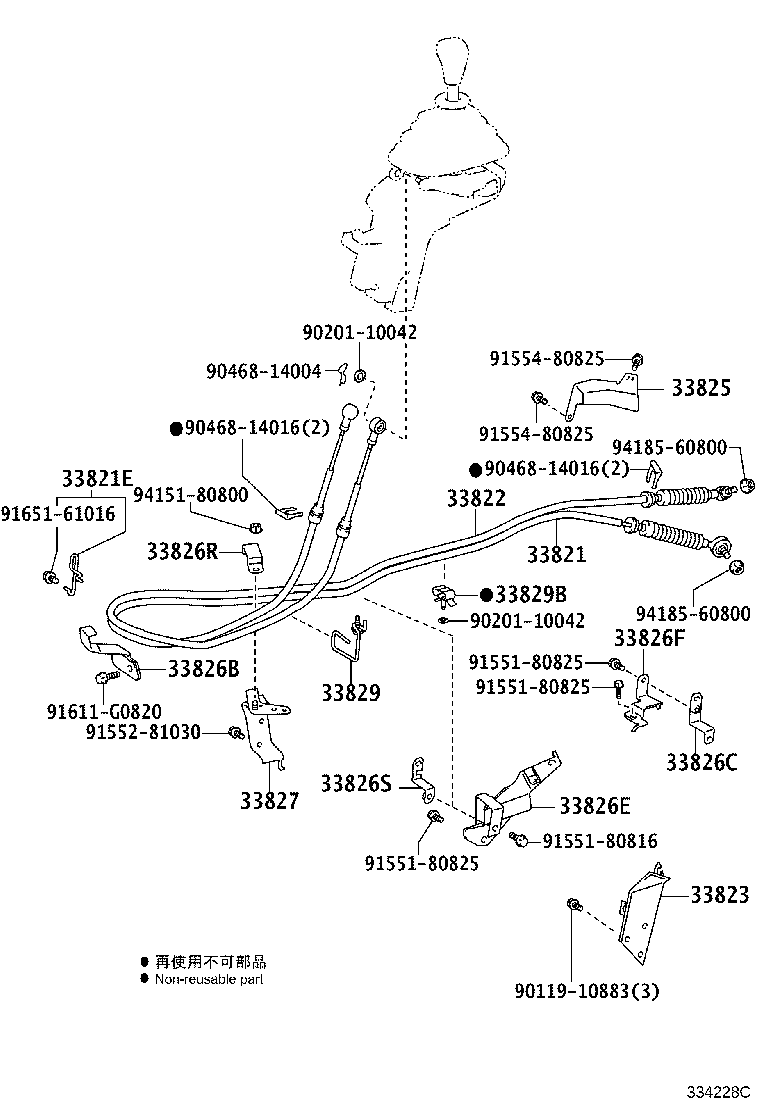

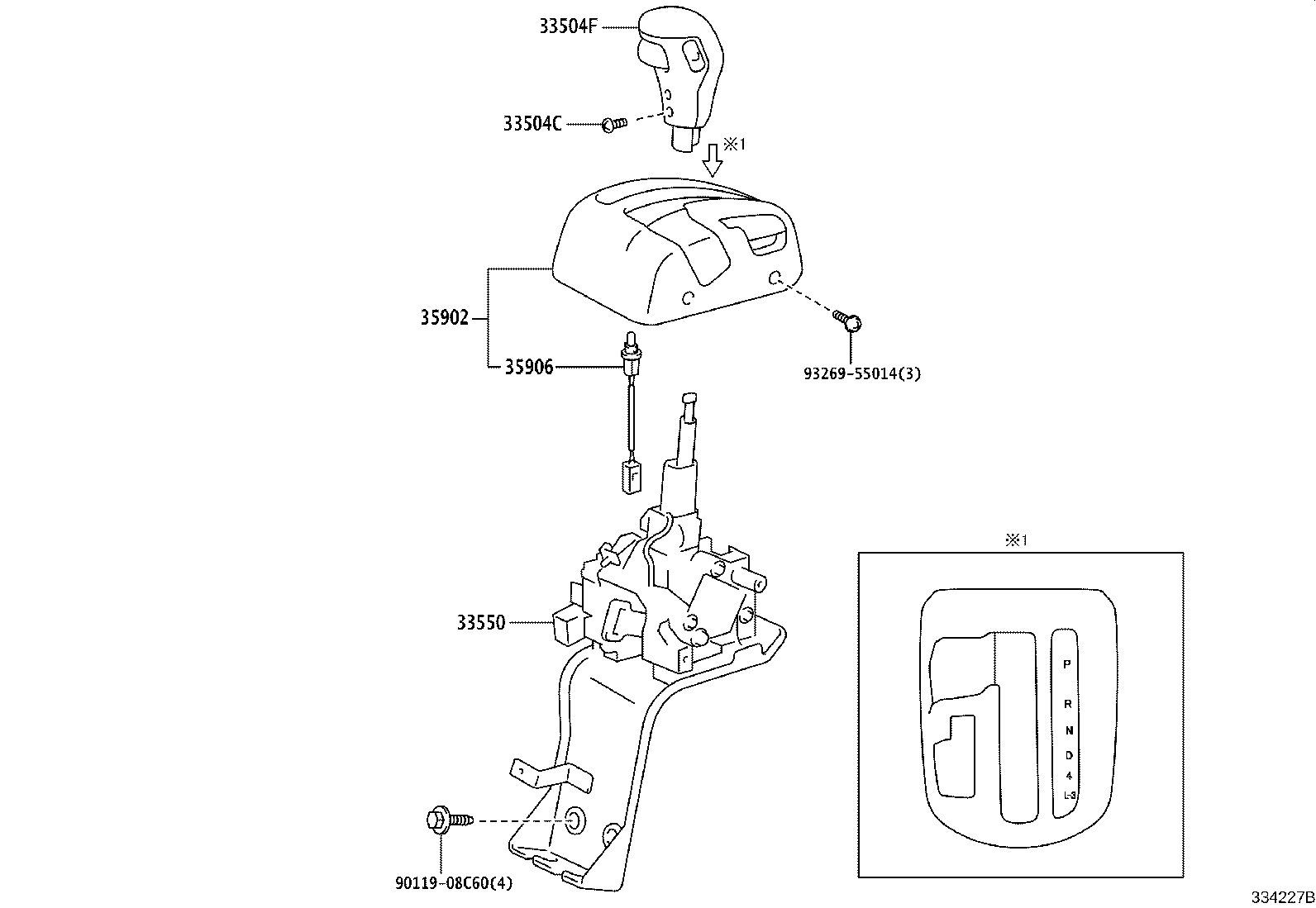

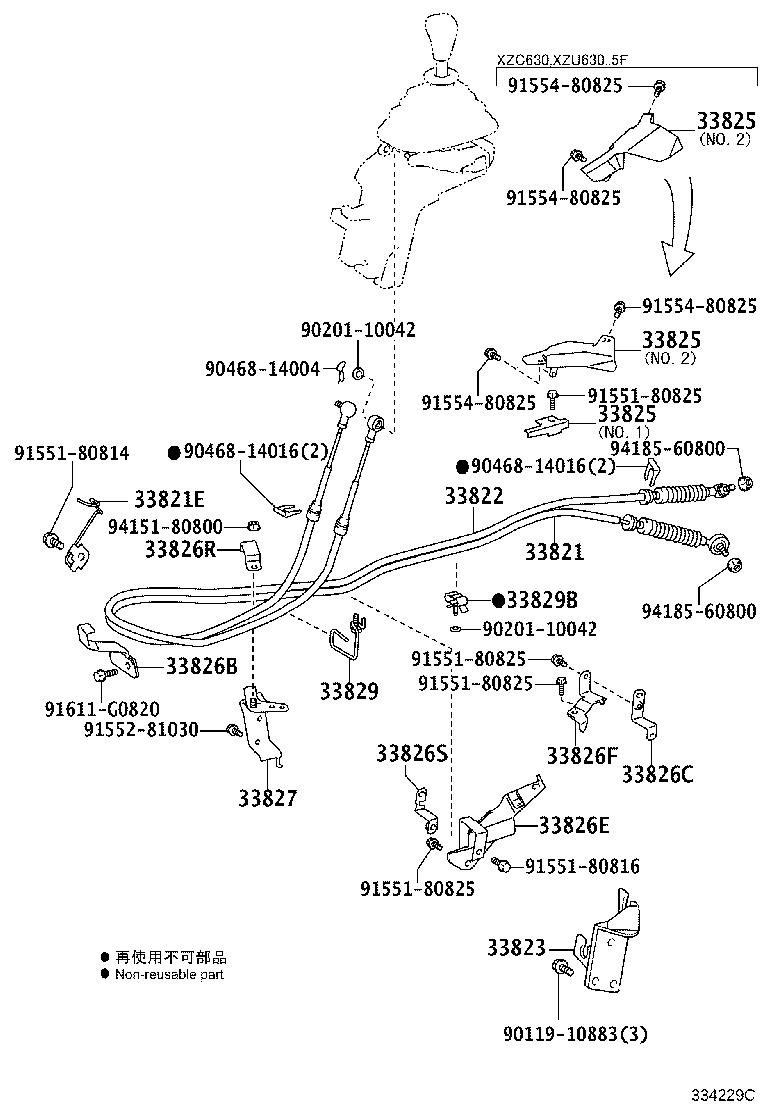

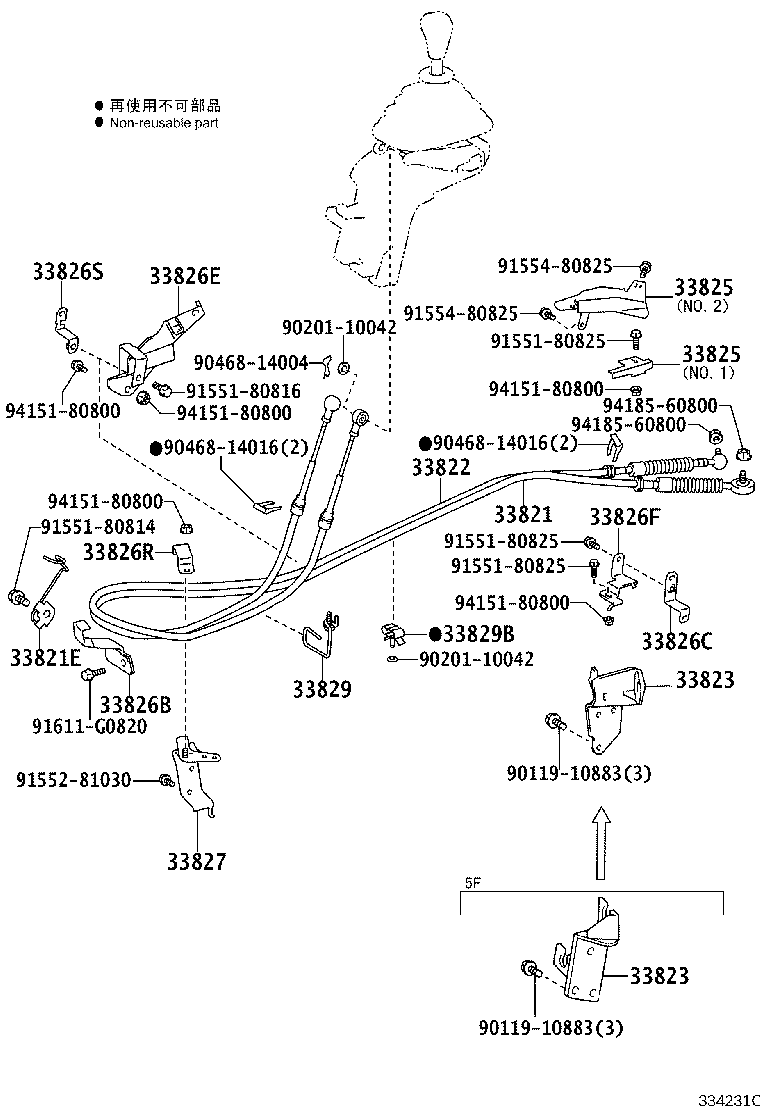

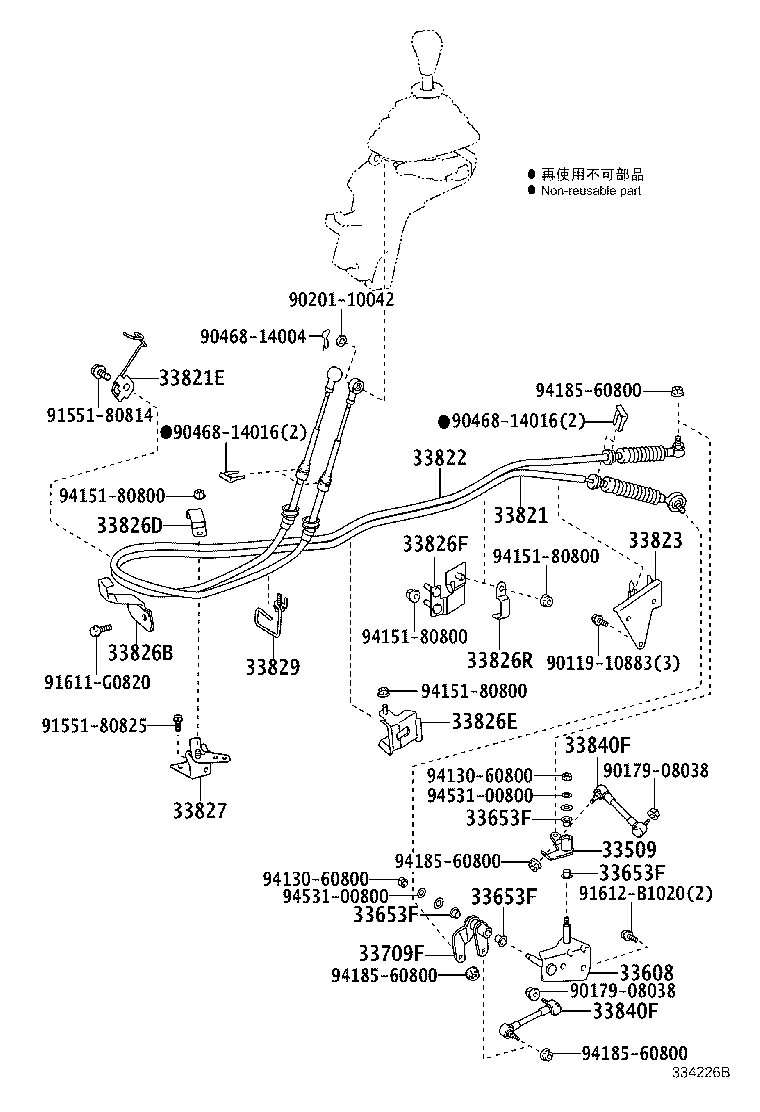

Figure 334839 334839 2011-07 → — Figure 334227B 334227B 2011-07 → — Figure 334230D 334230D 2011-07 → — Figure 334231C 334231C 2011-07 → — Figure 334229C 334229C 2011-07 → — Figure 334228C 334228C 2011-07 → — Figure 334233B 334233B 2011-07 → — Figure 334232C 334232C 2011-07 → — Figure 334226B 334226B 2011-07 → — Figure 334225B 334225B 2011-07 → — Figure 335623B 335623B 2017-05 → — Figure 336009C 336009C 2019-05 → — Figure 336010B 336010B 2019-05 → — Figure 336011B 336011B 2019-05 → — Figure 336012C 336012C 2019-05 → — Figure 336013B 336013B 2019-05 → —

Part groups

PNCDescription
33504C Screw (FOR SHIFT LEVER KNOB SETTING)
33504F Knob Sub-assy, Shift Lever
33509 Crank Sub-assy, Selecting Bell, NO.1
33520A Shaft Assy, Floor Shift Control
33550 Floor Shift Assy, Transmission
33555 Boot, Shift Lever
33571F Bracket, Control Shaft, Lower NO.2
33608 Support Sub-assy, Selecting Bellcrank
33653F Bush
33709F Shaft Sub-assy, Cross, NO.1 (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33821 Cable Transmission Control Shift (FOR FLOOR SHIFT)
33821E Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33822 Cable Transmission Control Select (FOR FLOOR SHIFT)
33823 Bracket, Transmission Control Cable, NO.1
33825 Insulator, Transmission Control Cable
33826B Bracket, Transmission Control Cable, NO.3
33826C Bracket, Transmission Control Cable, NO.4
33826D Bracket, Transmission Control Cable, NO.5
33826E Bracket, Transmission Control Cable, NO.6
33826F Bracket, Transmission Control Cable, NO.7
33826R Bracket, Transmission Control Cable, NO.8
33826S Bracket, Transmission Control Cable, NO.9
33827 Bracket, Transmission Control Cable, NO.3
33829 Support, Transmission Control Cable
33829B Clamp, Transmission Control Cable
33840F Rod Assy, Gear Shifting, NO.3
35902 Cover Sub-assy, Position Indicator Housing
35906 Wire Sub-assy, Indicator Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
