Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

17 part groups · 3 illustrations

Illustrations

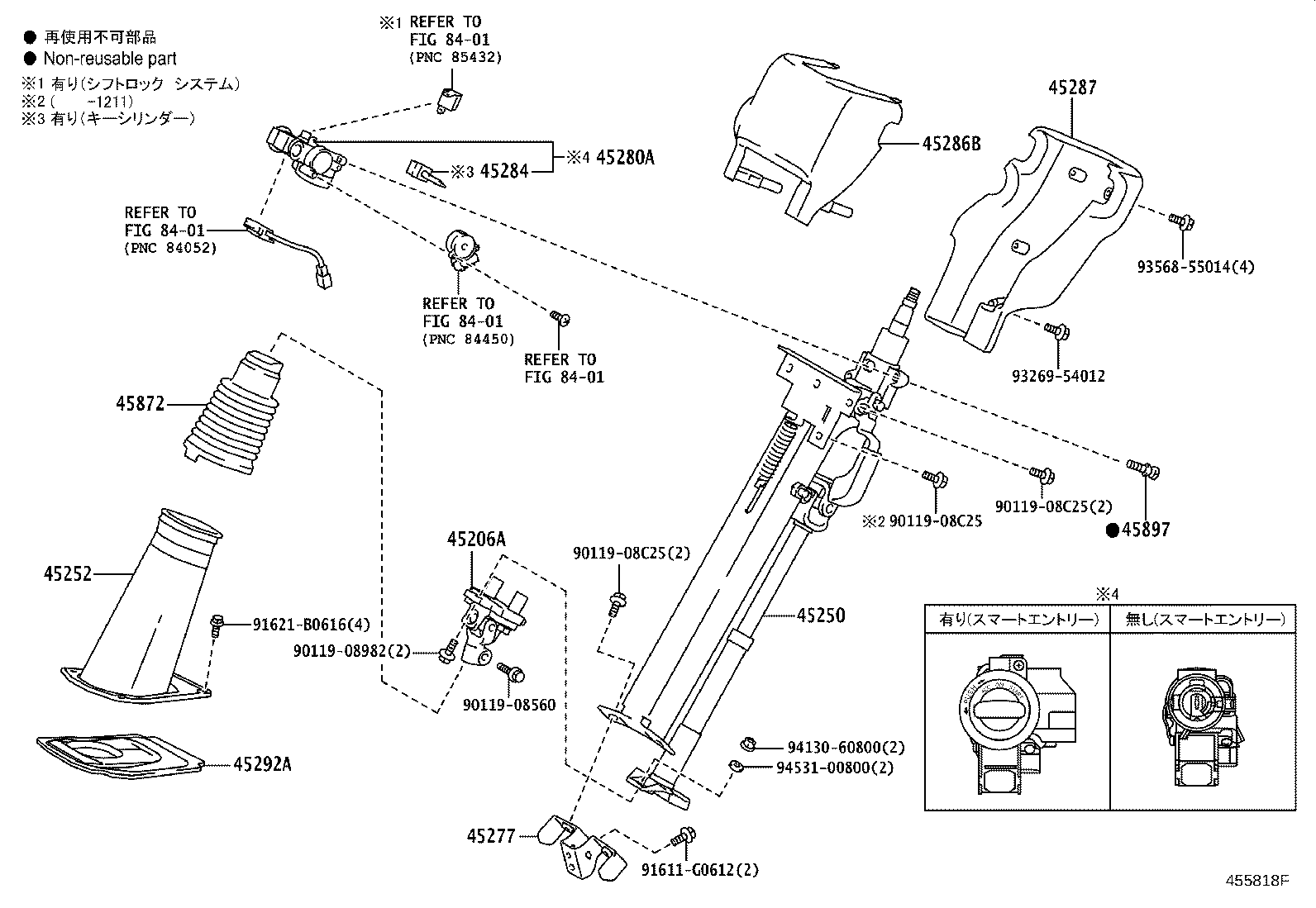

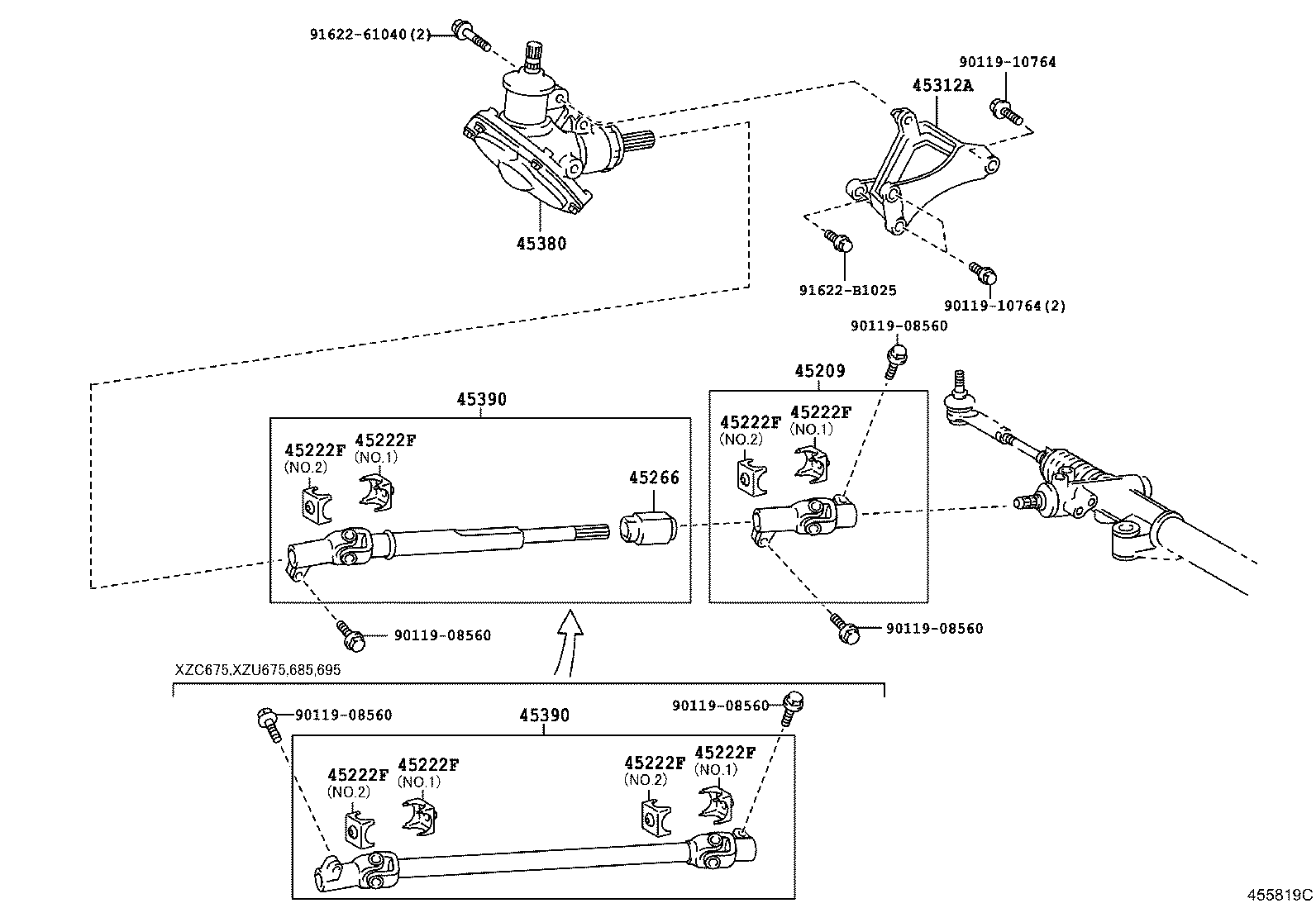

Figure 455817F 455817F 2011-07 → — Figure 455818F 455818F 2011-07 → — Figure 455819C 455819C 2011-07 → —

Part groups

PNCDescription
45206A Yoke Sub-assy, Steering Sliding W/Coupling
45209 Yoke Sub-assy, Steering Sliding
45222F Cover, Dust
45250 Column Assy, Steering
45252 Tube, Steering Column, Lower
45266 Cover, Steering Intermediate Shaft Dust
45277 Plate, Steering Column Upper Attachment
45280A Bracket Assy, Steering Column, Upper
45284 Shaft, Steering Lock Cam
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45292A Cover, Main Shaft Lower Dust
45312A Bracket, Steering Bevel Gear Housing
45380 Gear Assy, Steering Bevel
45390 Shaft Assy, Steering Torque
45872 Cover, Steering Column Tube
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
