Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

5 part groups · 5 illustrations

Illustrations

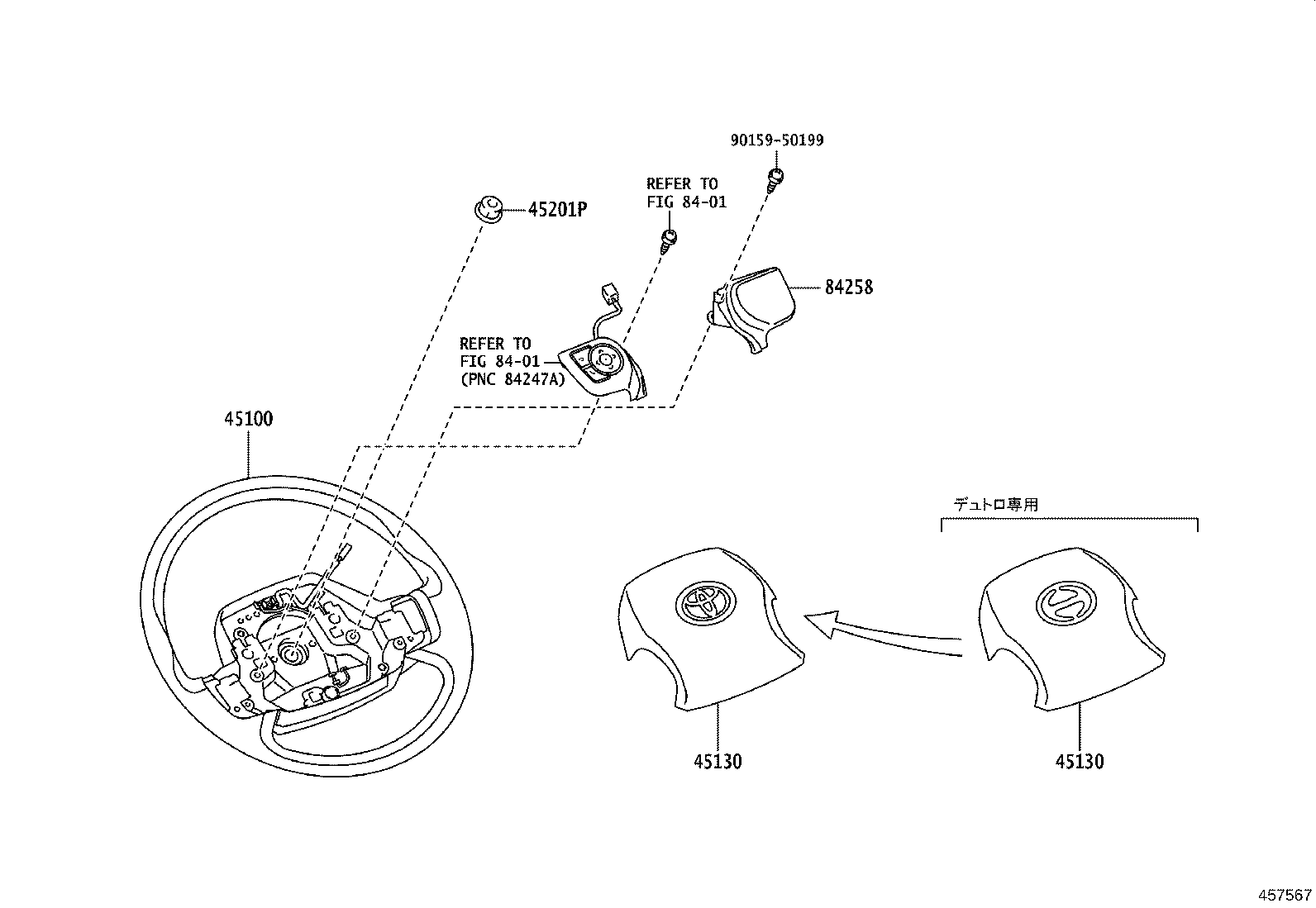

Figure 455834 455834 2011-07 → 2015-05 Figure 455835A 455835A 2011-07 → 2015-05 Figure 457198 457198 2015-05 → — Figure 457199 457199 2015-05 → — Figure 457567 457567 2019-05 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45130 Button Assy, Horn
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
84258 Cover, Steering Pad, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
