Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Bumper & Bumper Stay

6 part groups · 6 illustrations

Illustrations

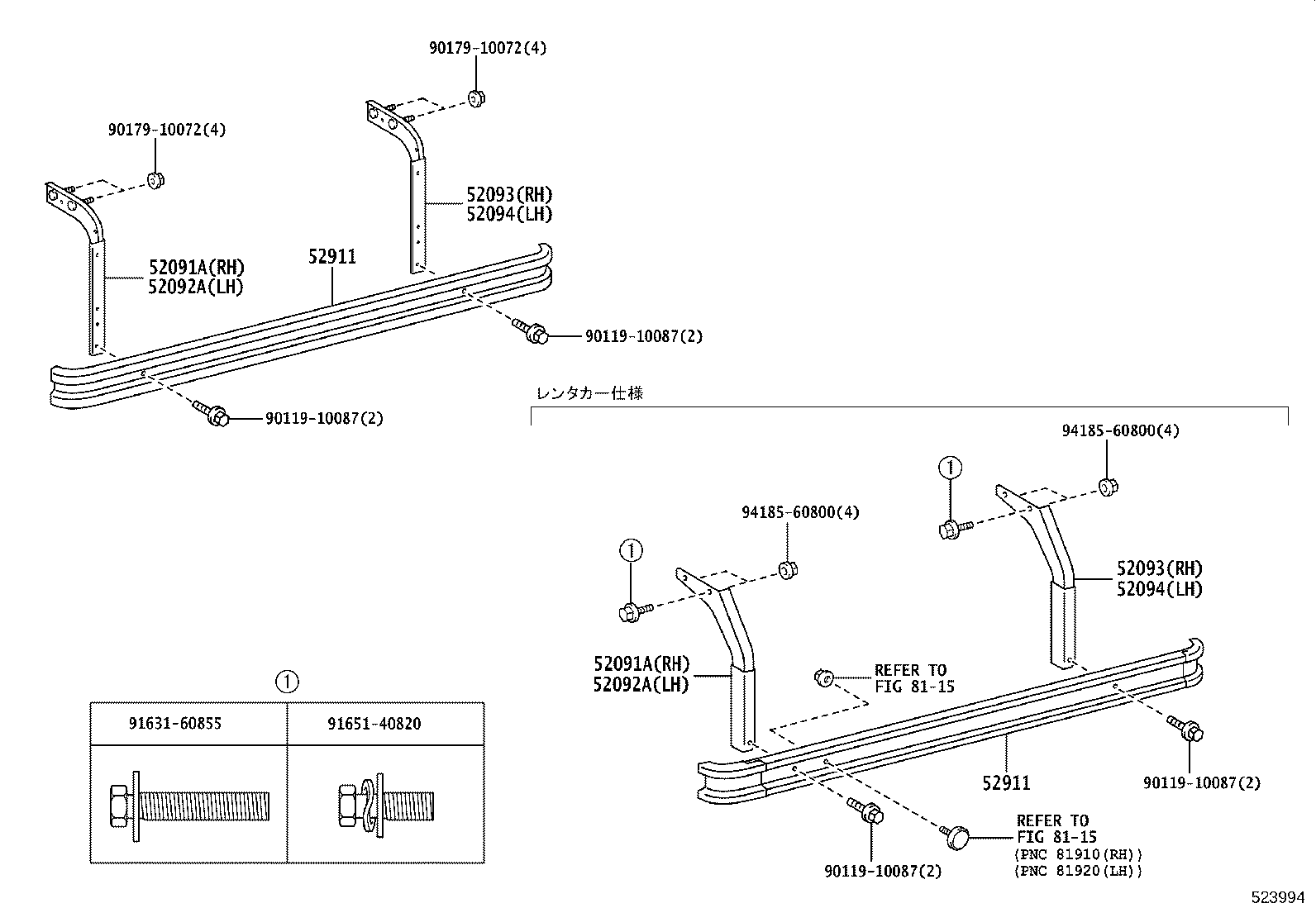

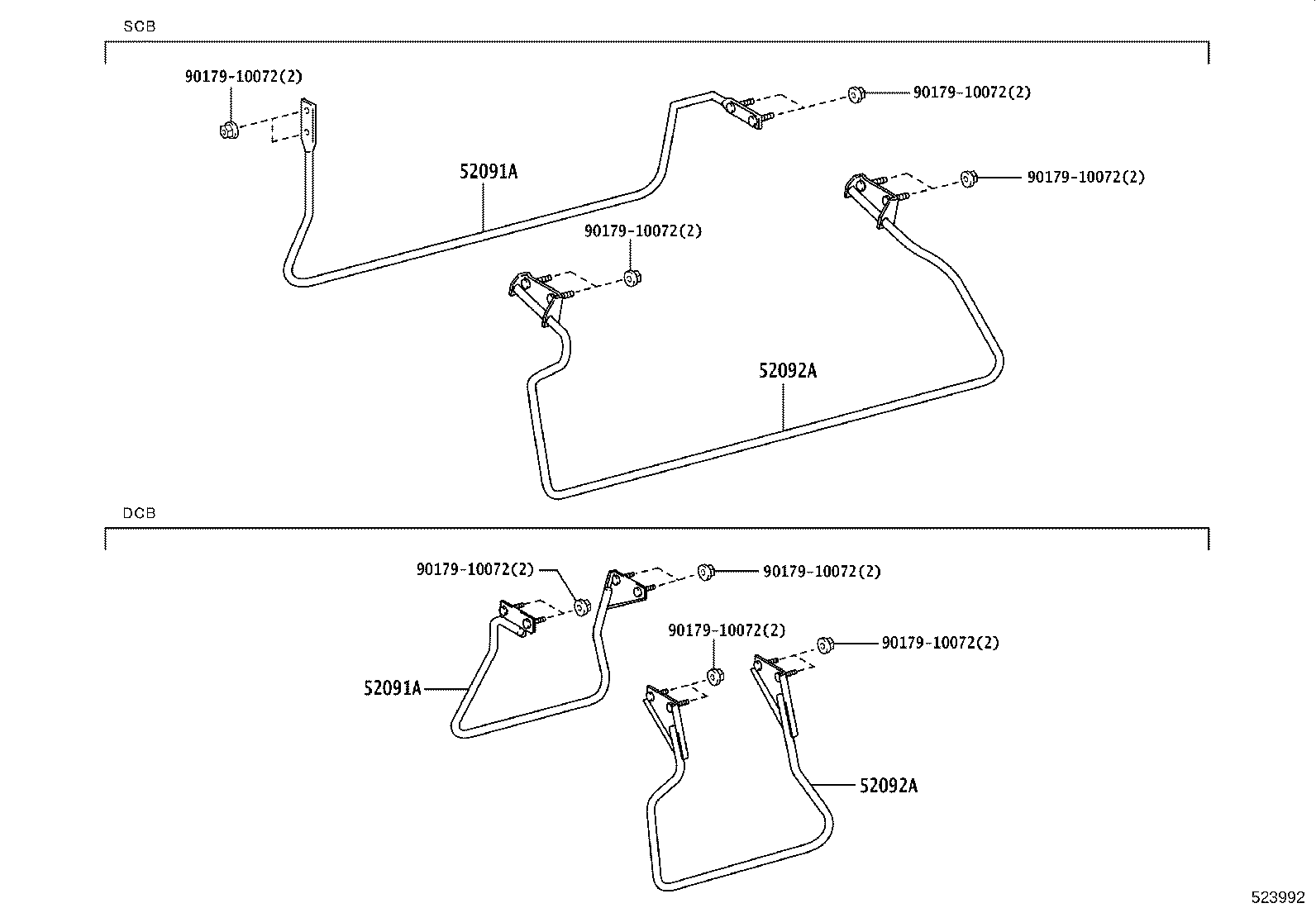

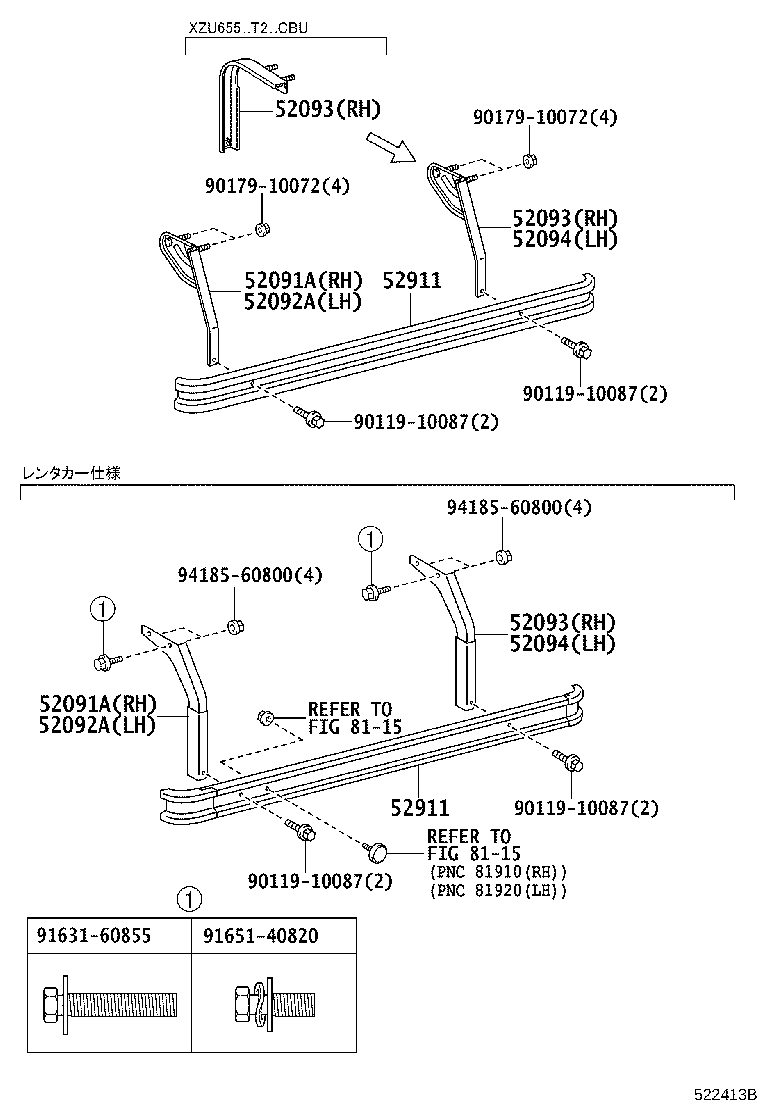

Figure 522412 522412 2011-07 → — Figure 522411 522411 2011-07 → — Figure 522413B 522413B 2011-07 → — Figure 522413B 522413B 2011-07 → — Figure 523992 523992 2019-05 → — Figure 523994 523994 2019-05 → —

Part groups

PNCDescription
52091A Stay Sub-assy, Side Bumper, Front RH
52092A Stay Sub-assy, Side Bumper, Front LH
52093 Stay Sub-assy, Side Bumper, Rear RH
52094 Stay Sub-assy, Side Bumper, Rear LH
52911 Bar, Side Bumper
52913A Stay, Side Bumper, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
