Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 3 illustrations

Illustrations

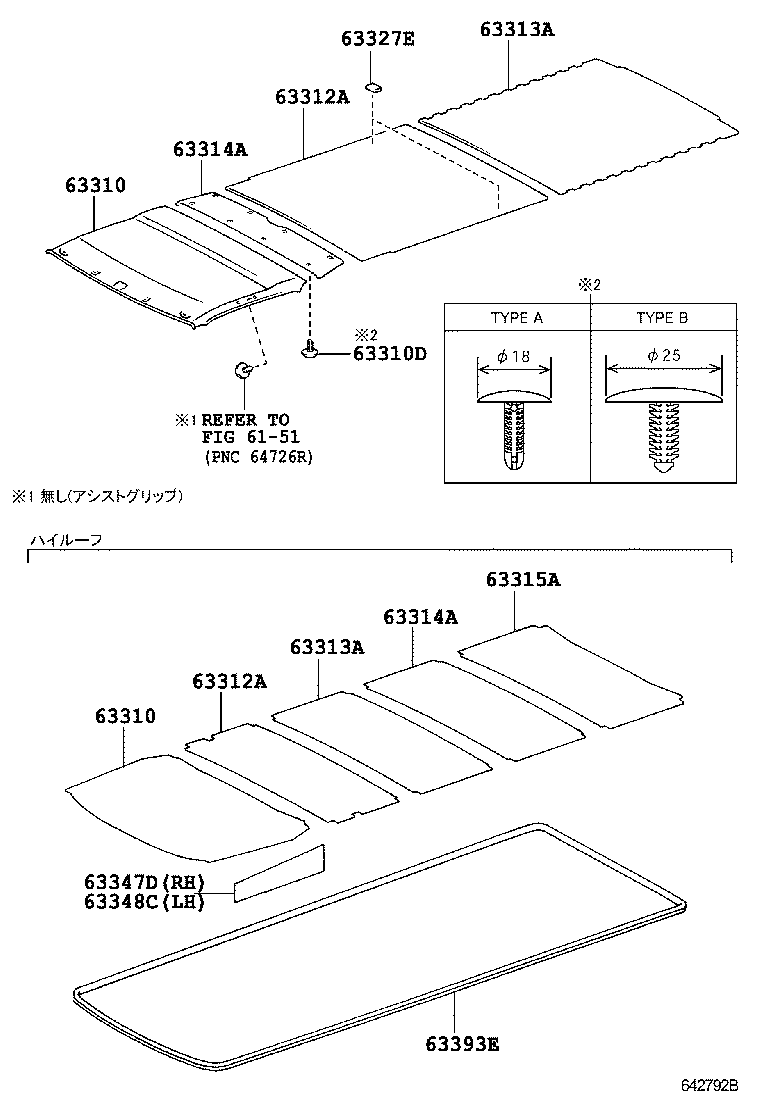

Figure 642793A 642793A 2011-07 → — Figure 642791B 642791B 2011-07 → — Figure 642792B 642792B 2011-07 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63312A Headlining, Roof, NO.2
63313A Headlining, Roof, NO.3
63314A Headlining, Roof, NO.4
63315A Headlining, Roof, NO.5
63327E Fastener, Roof Headlining, NO.1
63339A Cover, Roof Headlining Service Hole
63342A Silencer, Roof, NO.2
63343 Pad, Roof Silencer, NO.3
63345B Pad, Roof Silencer, Center
63347D Pad, Roof Side Rail Silencer, RH
63348C Pad, Roof Side Rail Silencer, LH
63393E Trim, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
