Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

18 part groups · 4 illustrations

Illustrations

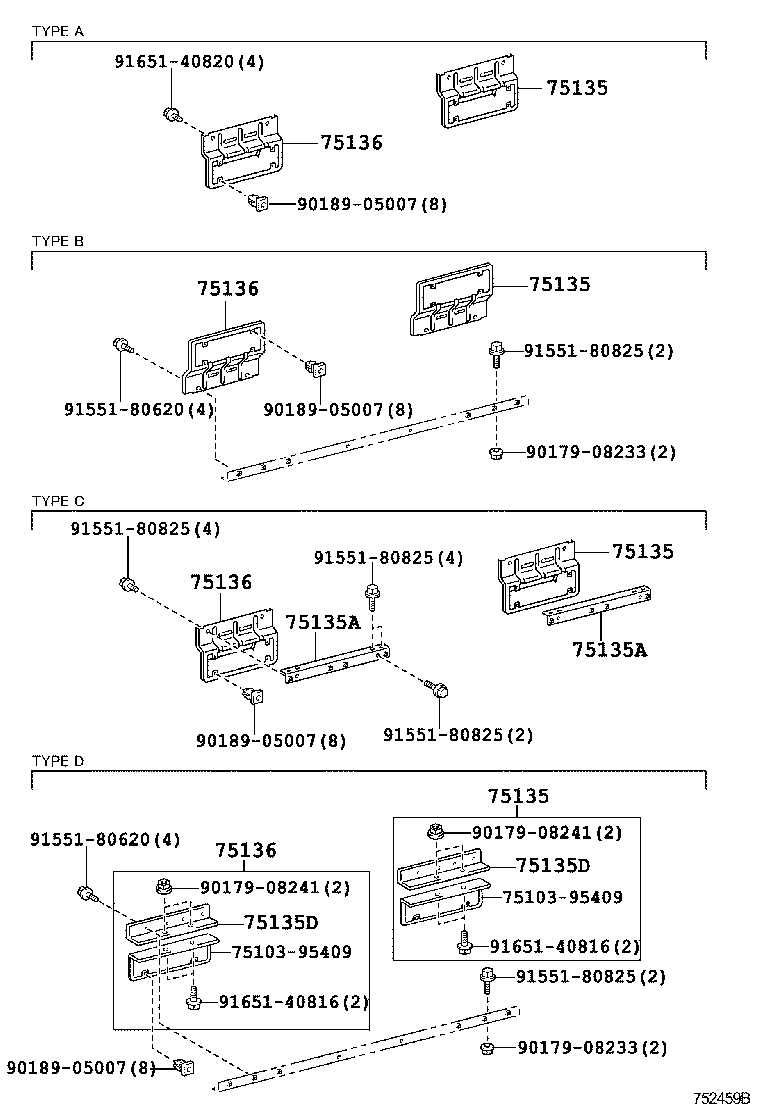

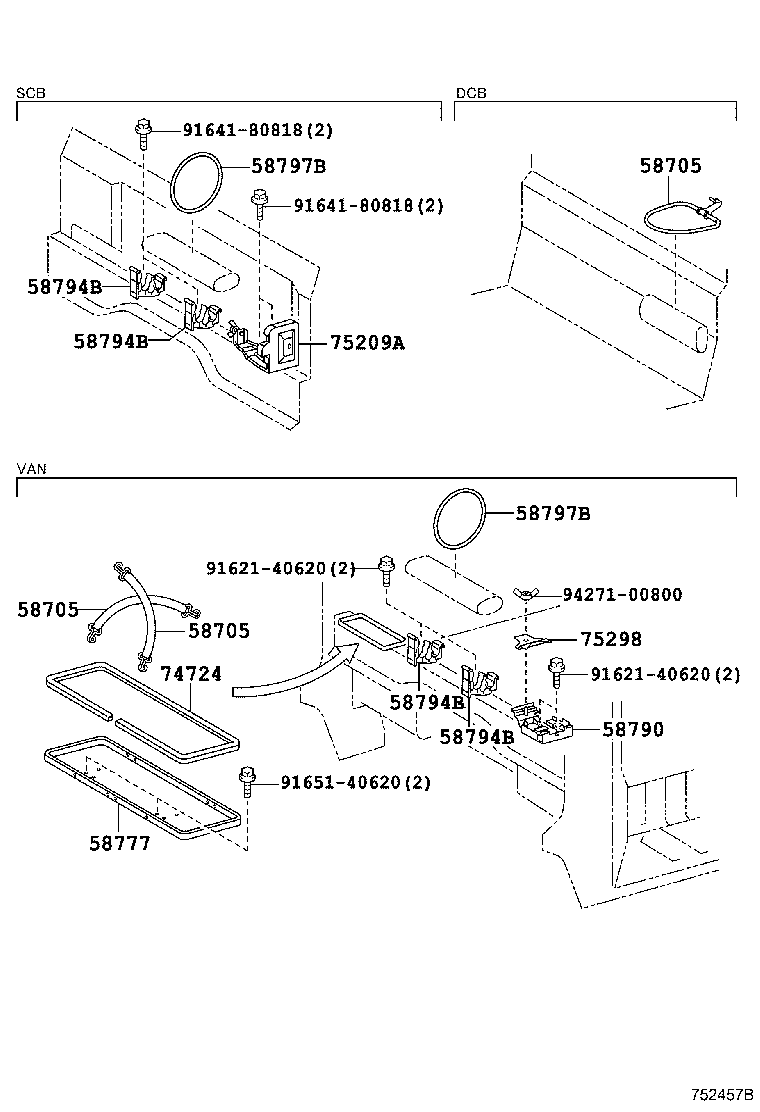

Figure 753822A 753822A 2011-07 → — Figure 752457B 752457B 2011-07 → — Figure 752458E 752458E 2011-07 → — Figure 752459B 752459B 2011-07 → —

Part groups

PNCDescription
47379 Spacer, Brake Tube, NO.1
47379A Spacer, Brake Tube, NO.2
58705 Band Sub-assy, Tool Bag
58777 Platform, Tool Bag Rest
58790 Carrier Assy, Jack
58794B Support, Jack Handle
58797B Band, Jack Clamp
74724 Trim, Tool Back Platform
75102 Bracket Sub-assy, Rear License Plate
75135 Bracket, Combination Rear Lamp, RH
75135A Stay, Combination Rear Lamp Bracket
75135D Bracket, Combination Rear Lamp
75136 Bracket, Combination Rear Lamp, LH
75204B Stay Sub-assy, Tool Box
75209A Base Sub Assy, Jack Holder
75210A Box Assy, Tool
75247B Support, Tool Box
75298 Plate, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
