Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

10 part groups · 3 illustrations

Illustrations

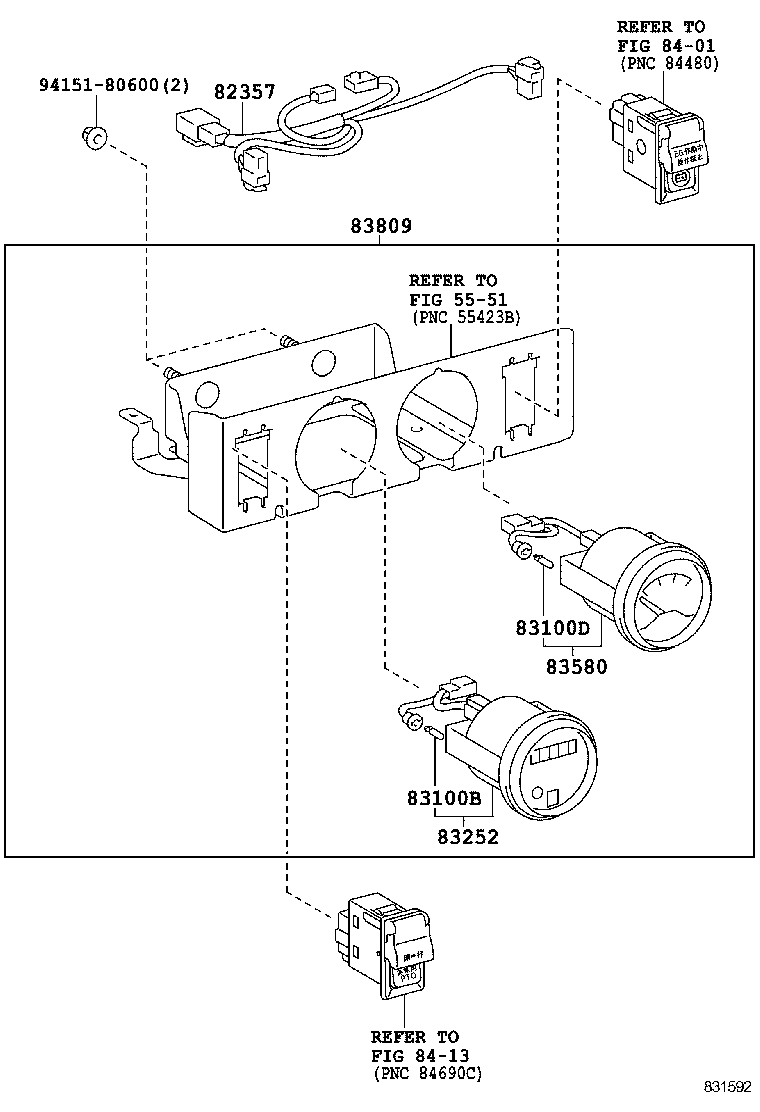

Figure 831590A 831590A 2011-07 → — Figure 831591 831591 2011-07 → — Figure 831592 831592 2011-07 → —

Part groups

PNCDescription
82357 Wire, Oil Temparature Gage
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83100D Bulb, Combination Meter, NO.2
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83210 Tachograph Assy
83252 Meter, Hour
83580 Gage Assy, Oil Temperature Receiver
83809 Meter Sub-assy, Combination
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
