Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Control

6 part groups · 5 illustrations

Illustrations

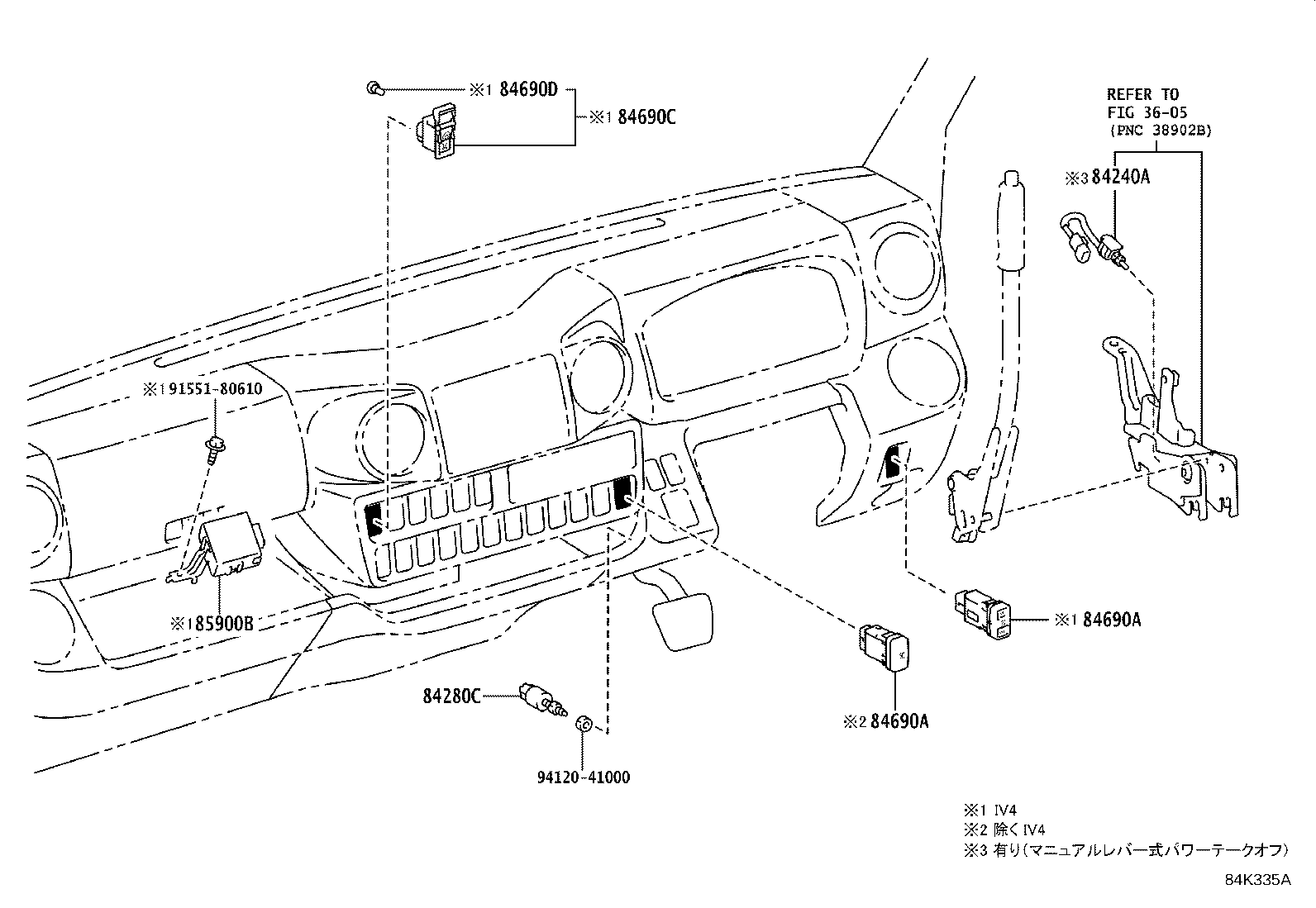

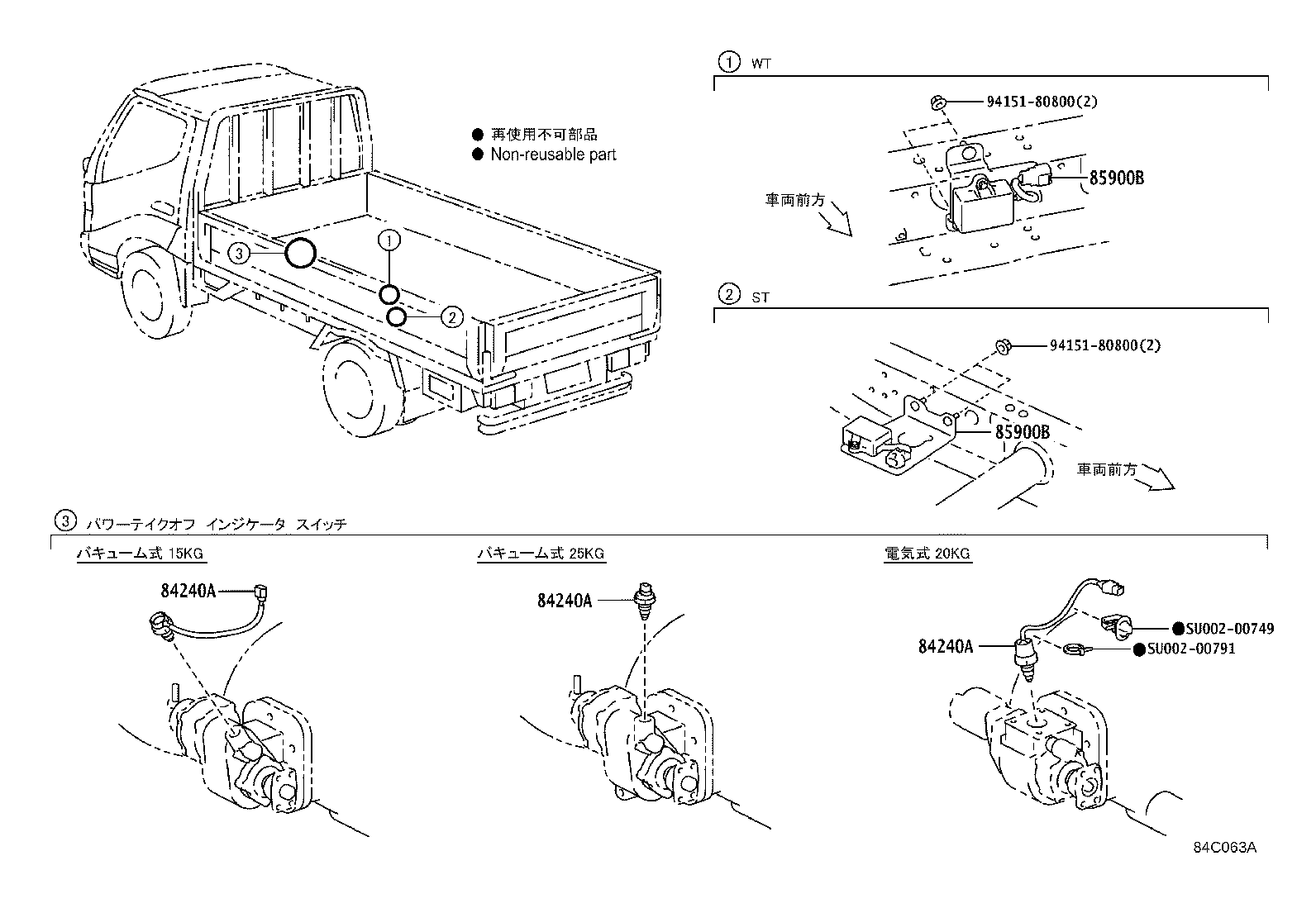

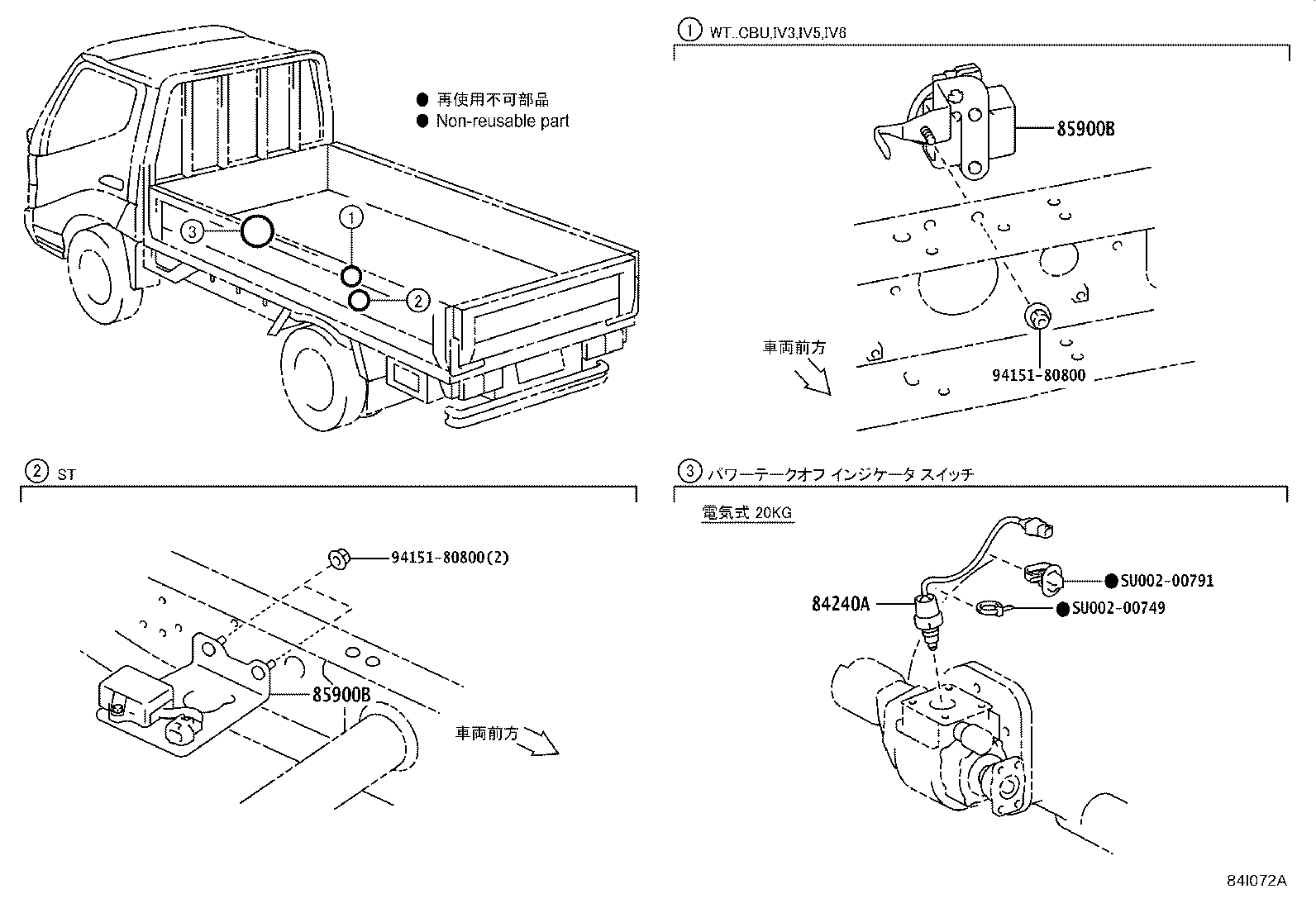

Figure 84C062A 84C062A 2011-07 → — Figure 84K335A 84K335A 2019-05 → — Figure 84C063A 84C063A 2011-07 → 2017-05 Figure 84C063A 84C063A 2011-07 → — Figure 84I072A 84I072A 2017-05 → —

Part groups

PNCDescription
84240A Switch Assy, Power Take-off Indicator
84280C Switch Assy, Power Take-off Clutch
84690A Switch Assy, Power Take-off Indicator
84690C Switch Assy, Power Take-off Indicator, NO.2
84690D Bulb, Power Take Off Indicator, NO.2
85900B Relay Assy, Control Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
