Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

13 part groups · 29 illustrations

Illustrations

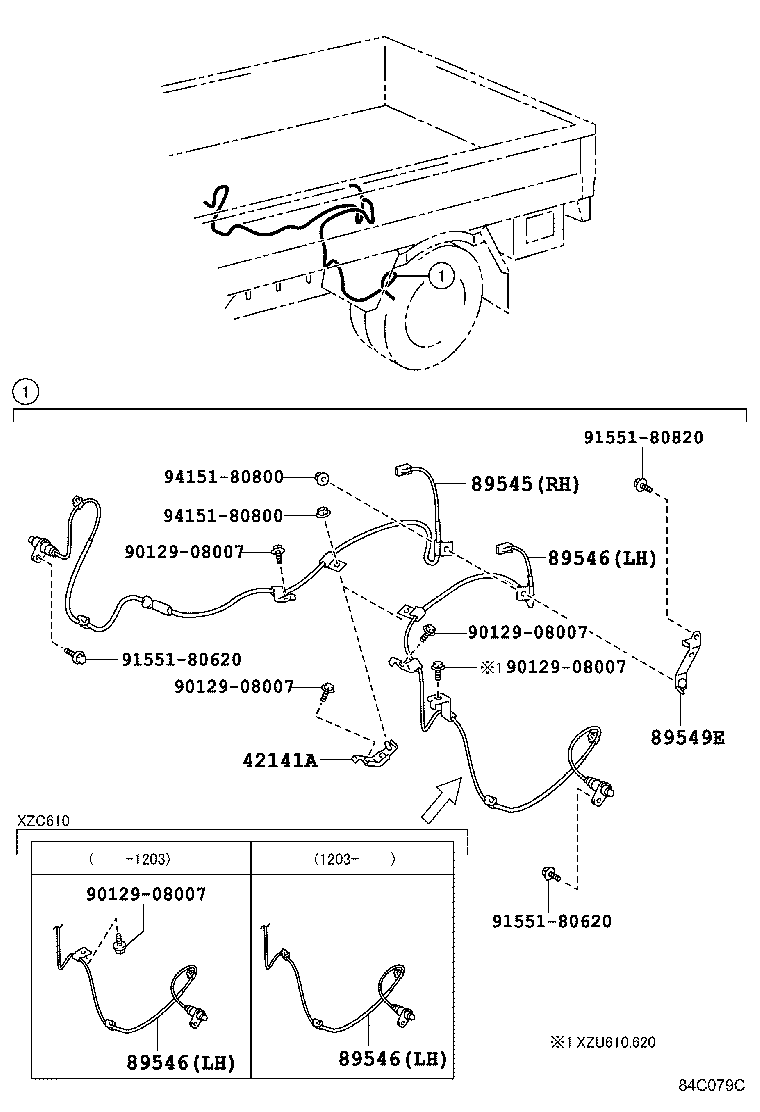

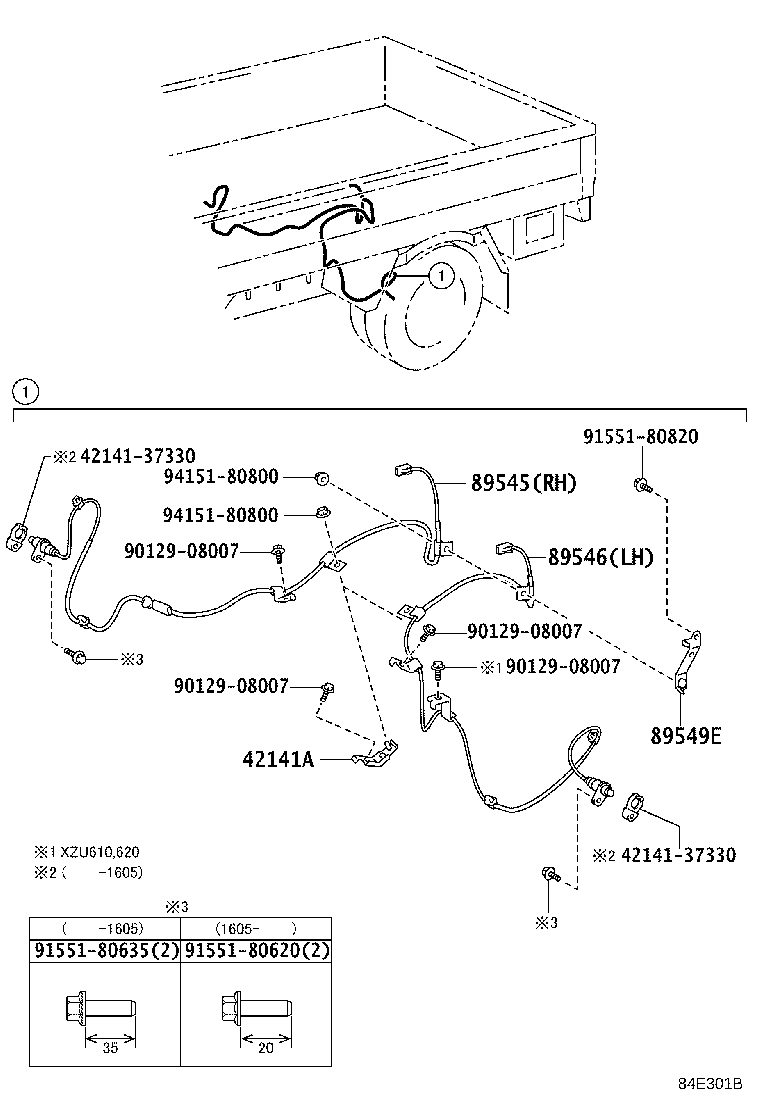

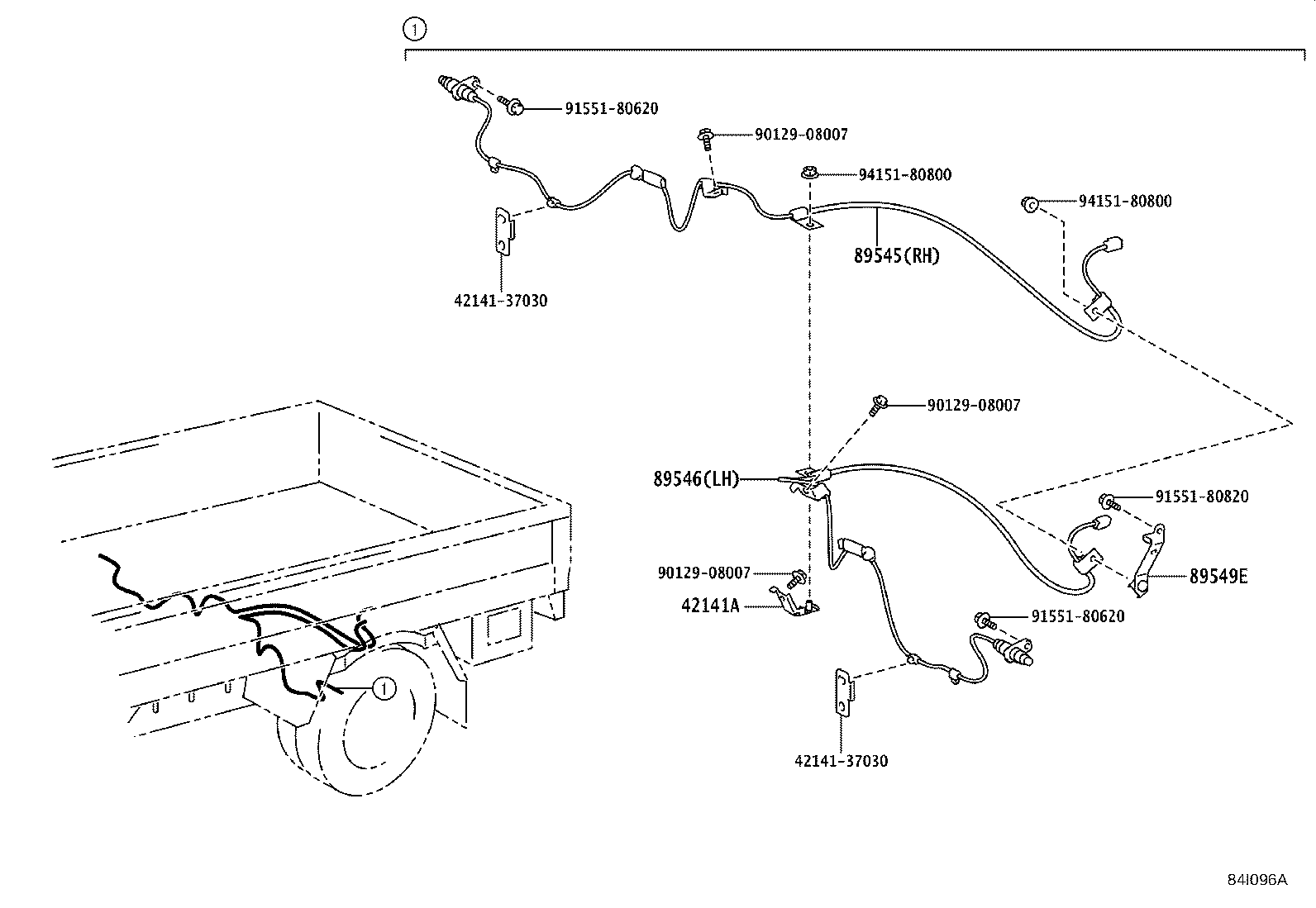

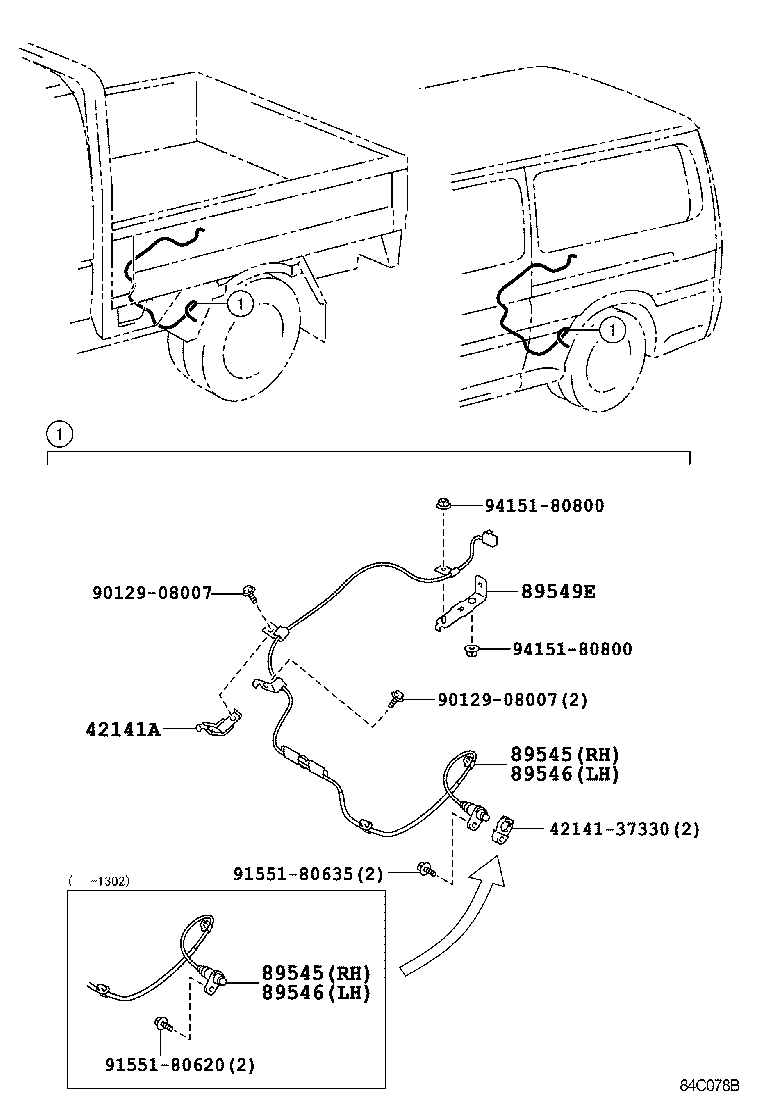

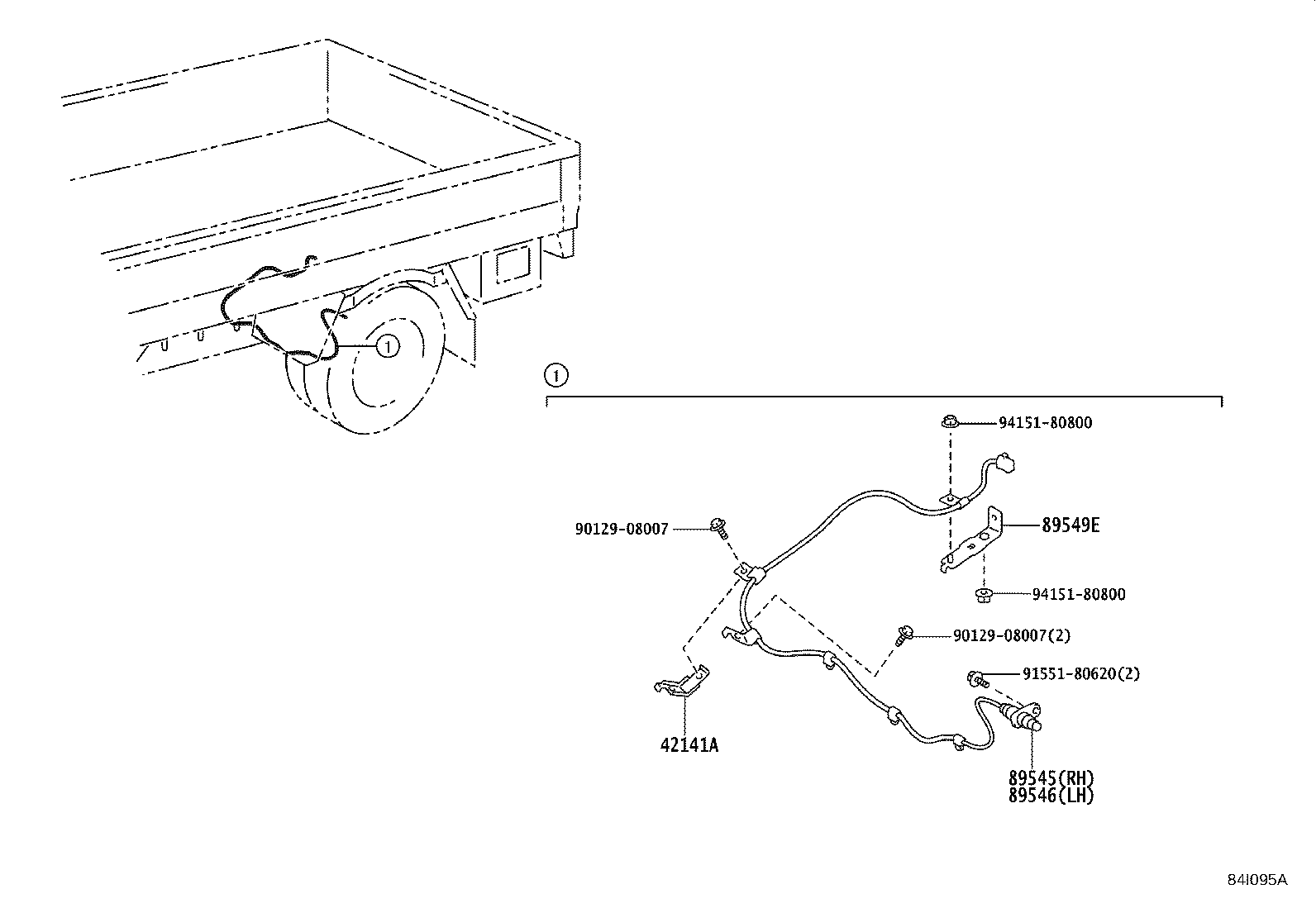

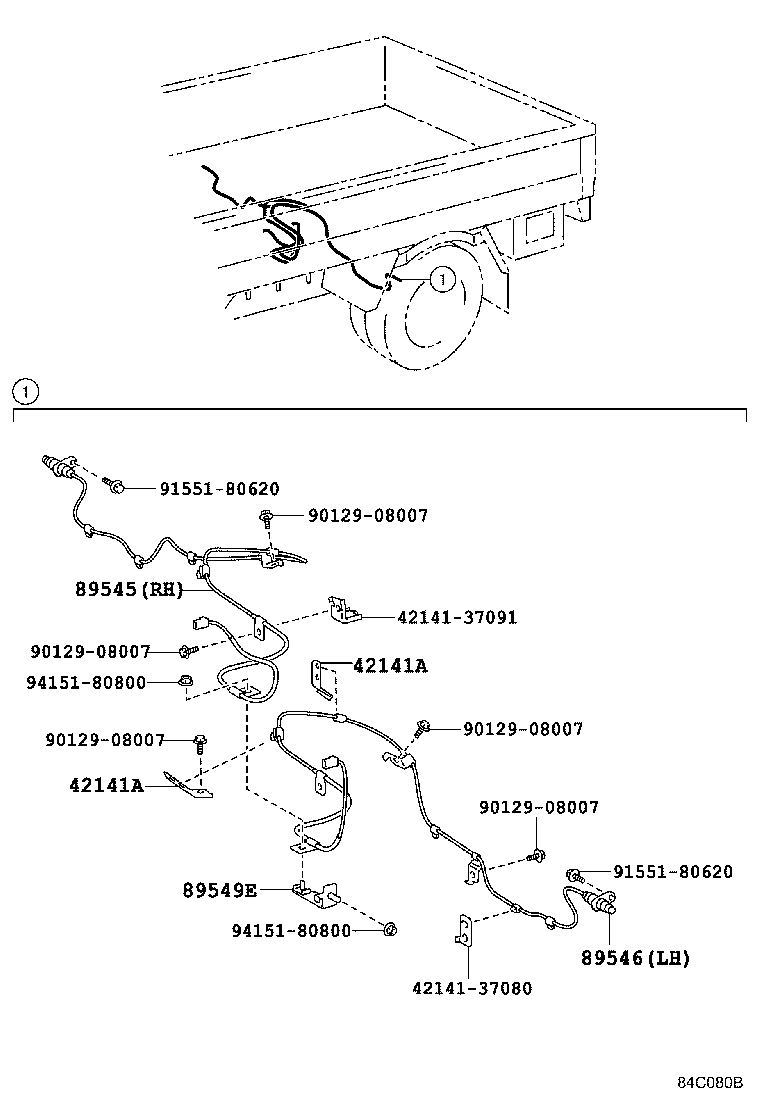

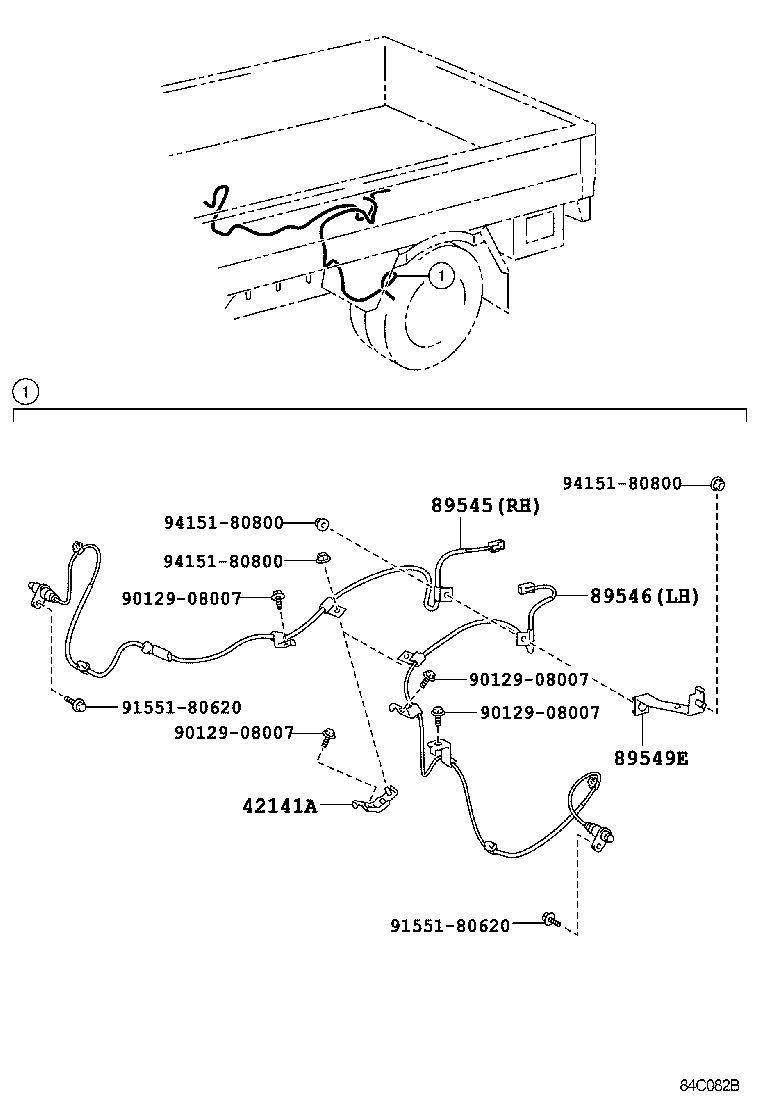

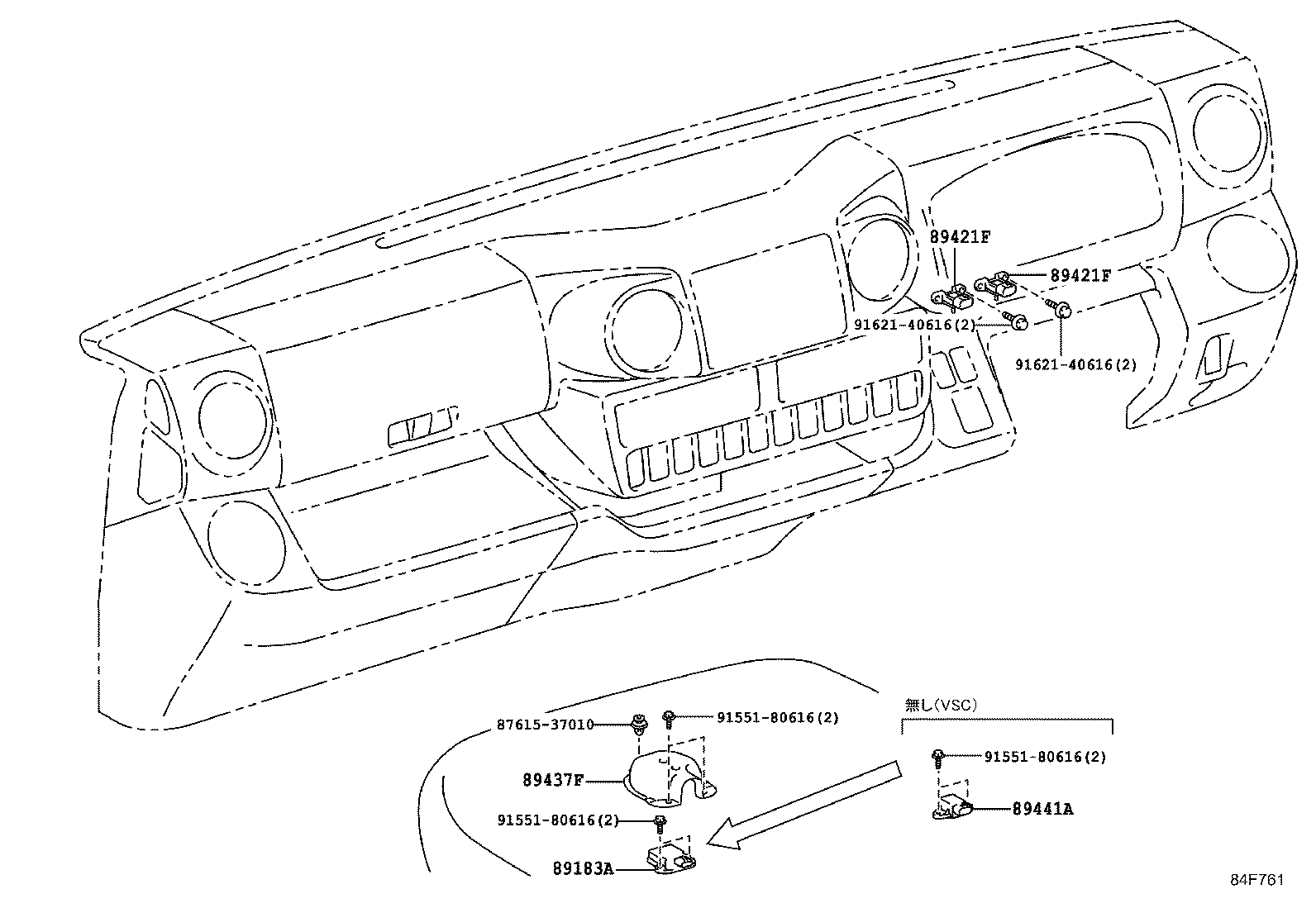

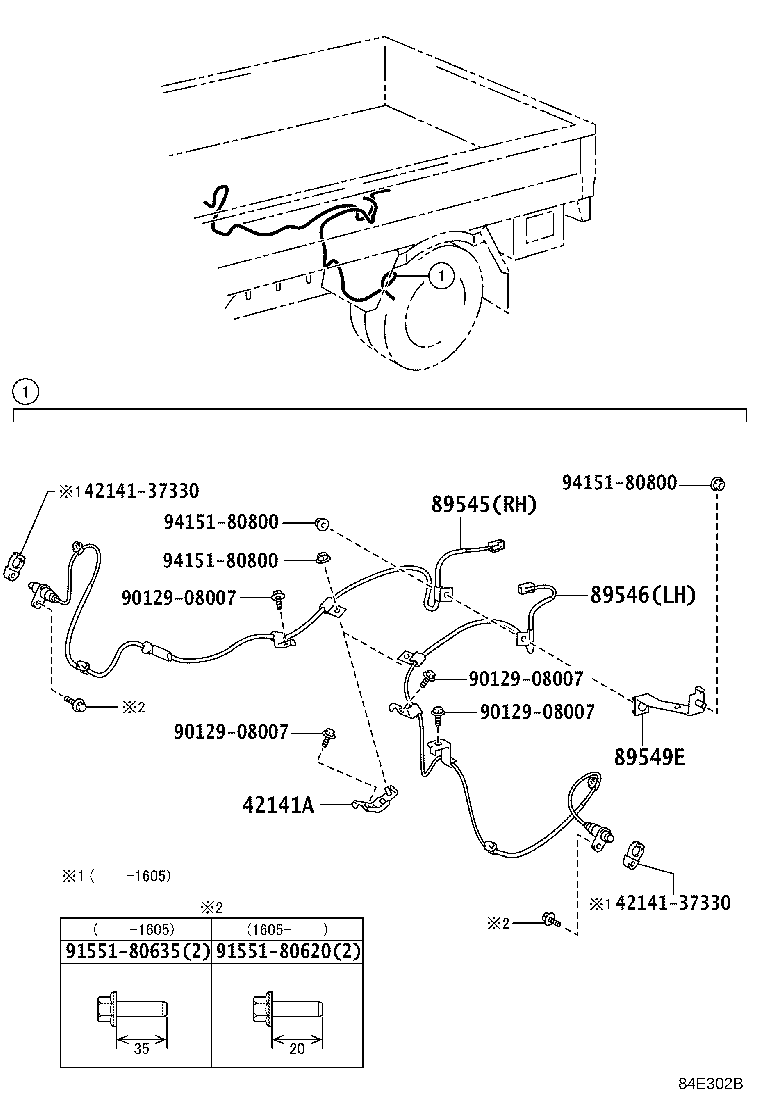

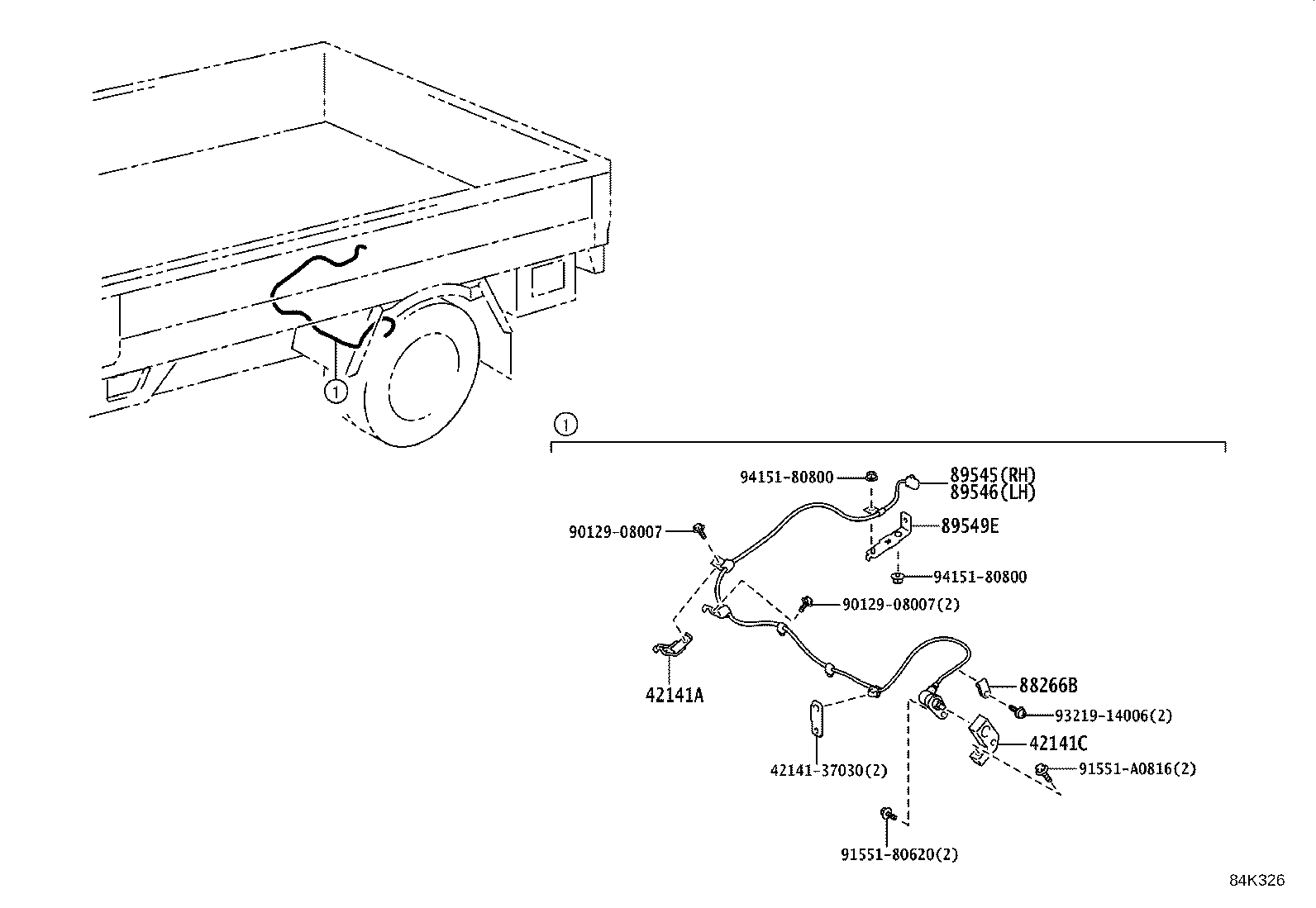

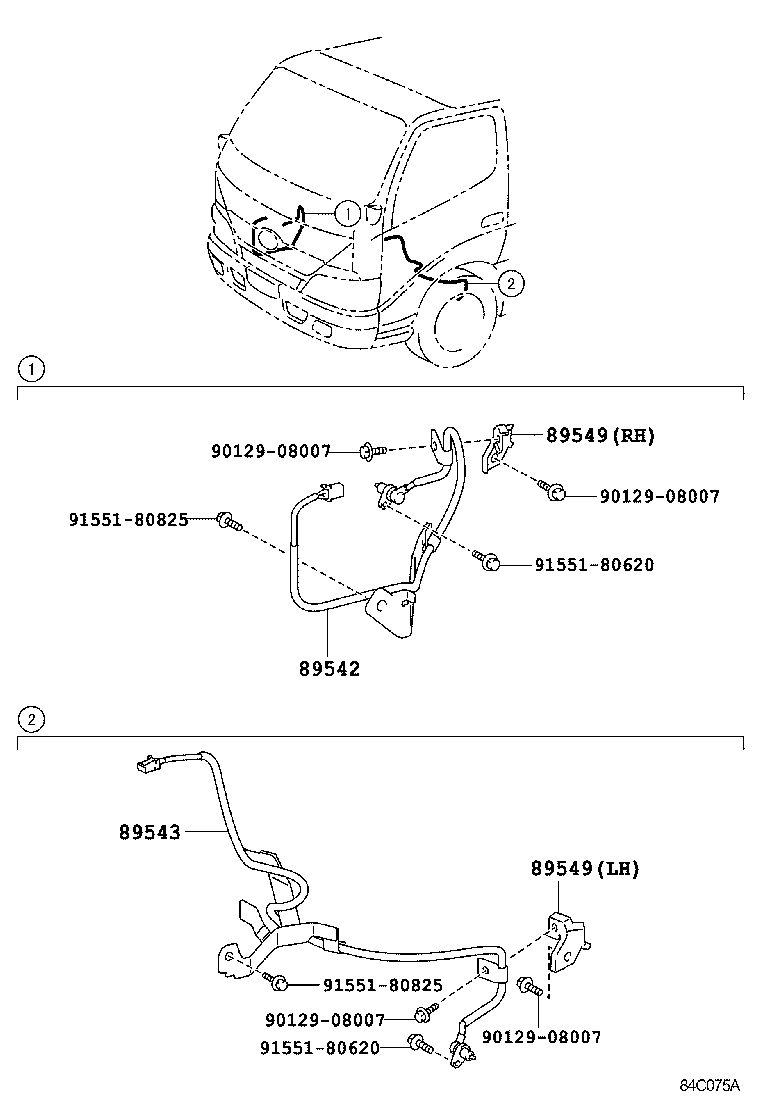

Figure 84C072 84C072 2011-07 → 2015-05 Figure 84F761 84F761 2015-05 → — Figure 84C073A 84C073A 2011-07 → — Figure 84C074B 84C074B 2011-07 → — Figure 84C075A 84C075A 2011-07 → — Figure 84C076A 84C076A 2011-07 → — Figure 84C077A 84C077A 2011-07 → — Figure 84C077A 84C077A 2019-05 → — Figure 84C078B 84C078B 2011-07 → 2016-05 Figure 84C078B 84C078B 2011-07 → 2017-05 Figure 84C078B 84C078B 2011-07 → 2018-05 Figure 84C078B 84C078B 2011-07 → — Figure 84C078B 84C078B 2011-07 → — Figure 84C078B 84C078B 2019-05 → — Figure 84C079C 84C079C 2011-07 → 2013-02 Figure 84E301B 84E301B 2013-02 → 2016-05 Figure 84E301B 84E301B 2013-02 → — Figure 84E301B 84E301B 2019-05 → — Figure 84C080B 84C080B 2011-07 → — Figure 84C081B 84C081B 2011-07 → — Figure 84C082B 84C082B 2011-07 → 2013-02 Figure 84E302B 84E302B 2013-02 → — Figure 84I095A 84I095A 2016-05 → — Figure 84I095A 84I095A 2017-05 → — Figure 84I095A 84I095A 2018-05 → — Figure 84I095A 84I095A 2019-05 → — Figure 84I095A 84I095A 2019-05 → — Figure 84I096A 84I096A 2016-05 → — Figure 84K326 84K326 2019-05 → —

Part groups

PNCDescription
42141A Attachment, Skid Control Wire, NO.1
42141C Attachment, Skid Control Wire, NO.1
88266B Clamp, Skid Control Sensor, NO.1
89183A Sensor, Yawrate
89421F Sensor, Vacuum (FOR SKID CONTROL)
89437F Cover, Sensor
89441A Sensor, Deceleration
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549 Bracket, Skid Control Computer
89549E Bracket, Speed Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
