Toyota Dyna/Toyoace

2011-07 → present · chassis BZU600,TRC600,TRU600,XZC6##,XZU6## · catalogue 751190 · Japan

Supported model Data version 2019-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

22 part groups · 10 illustrations

Illustrations

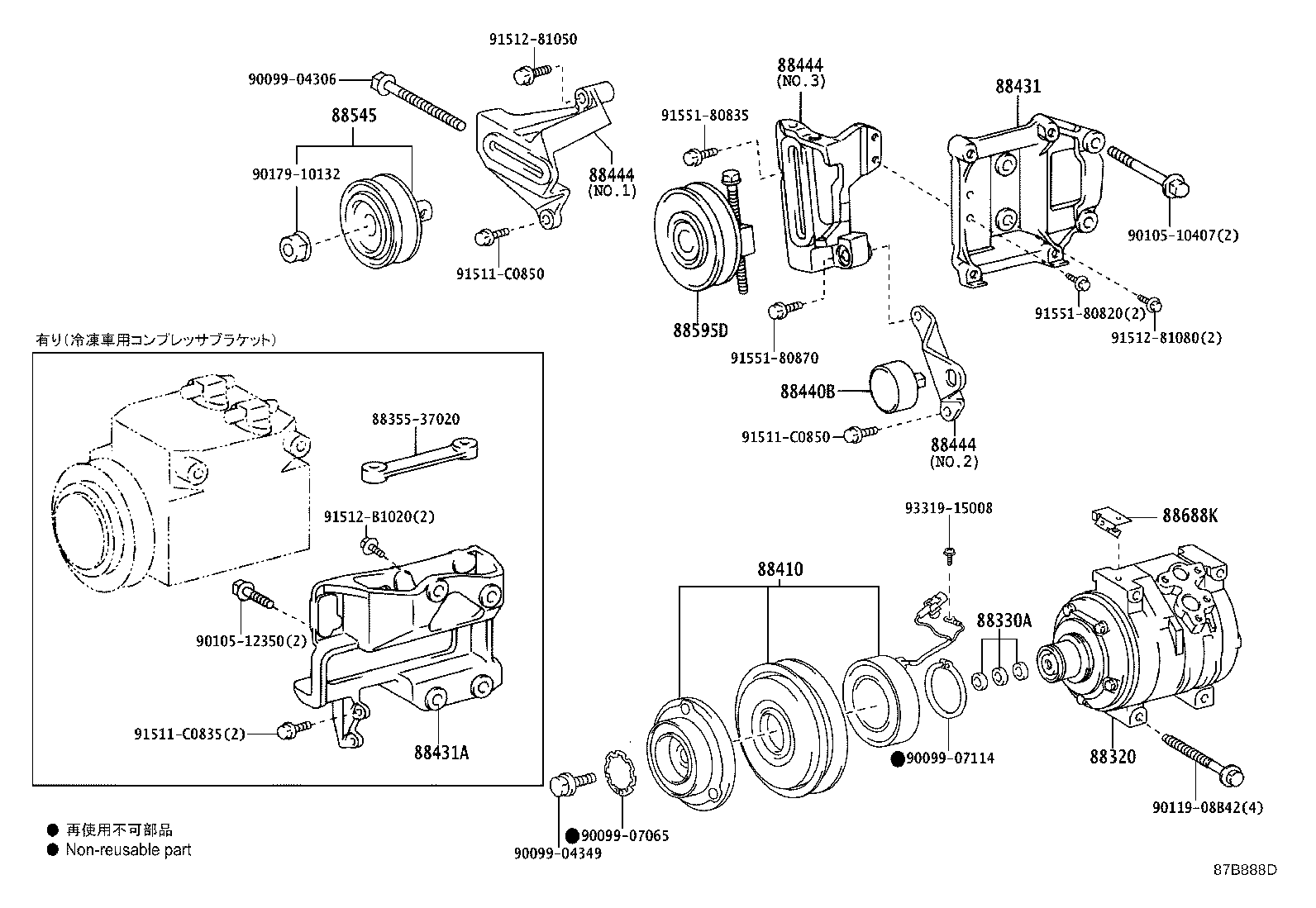

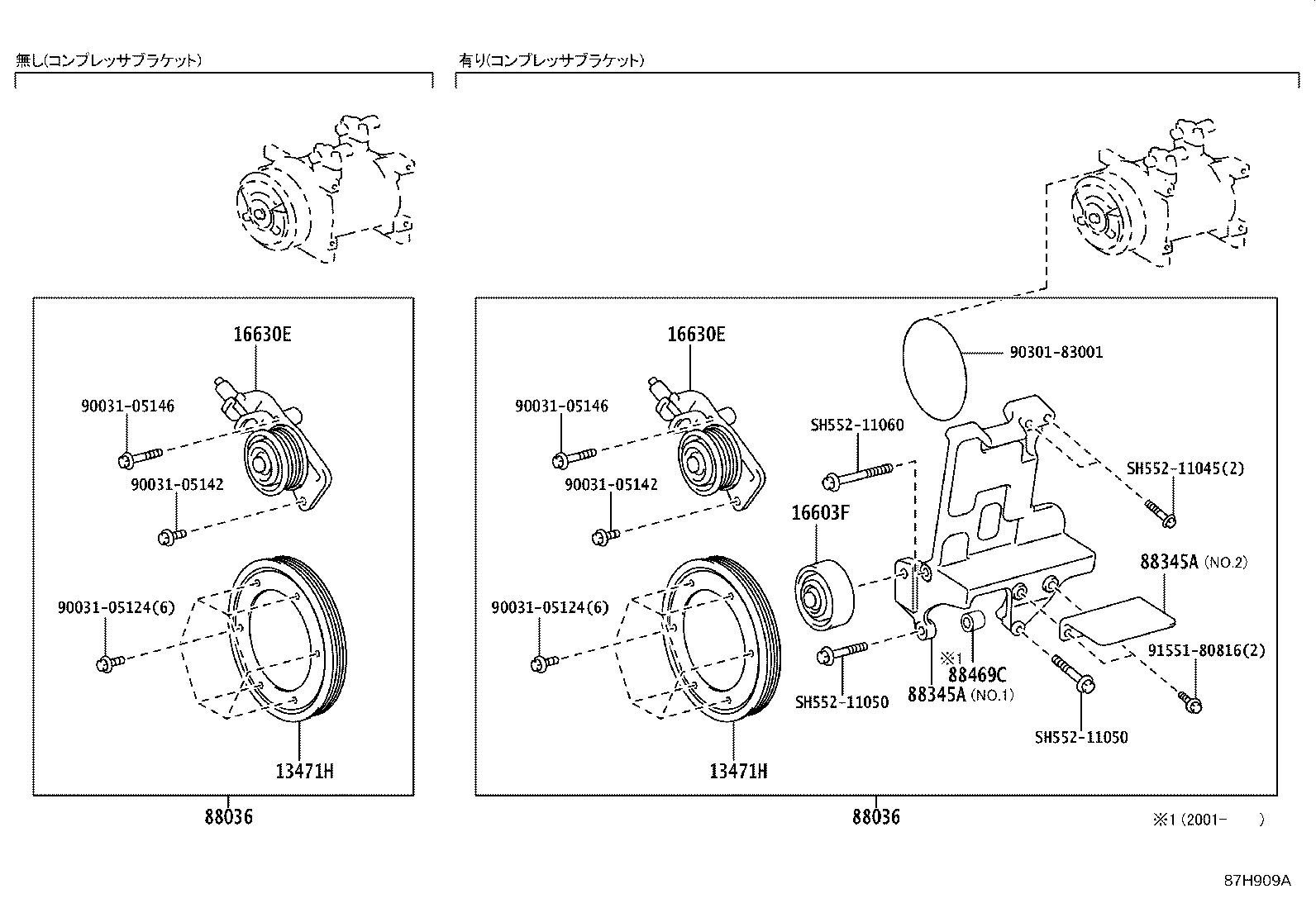

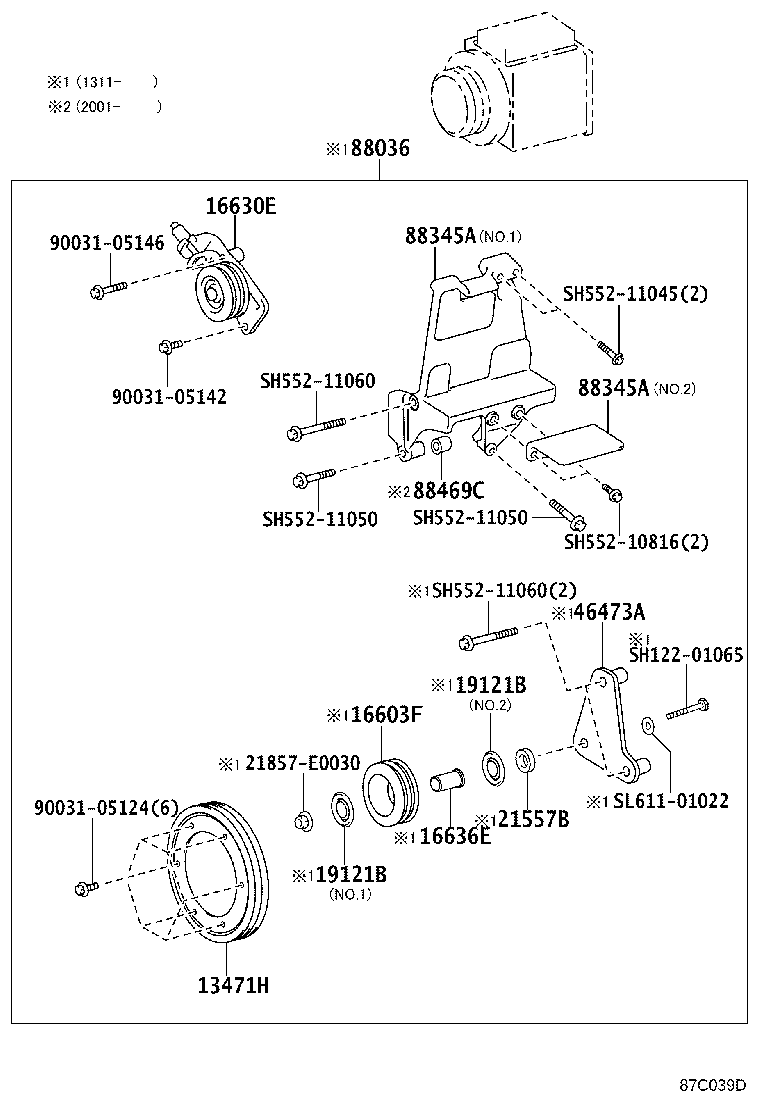

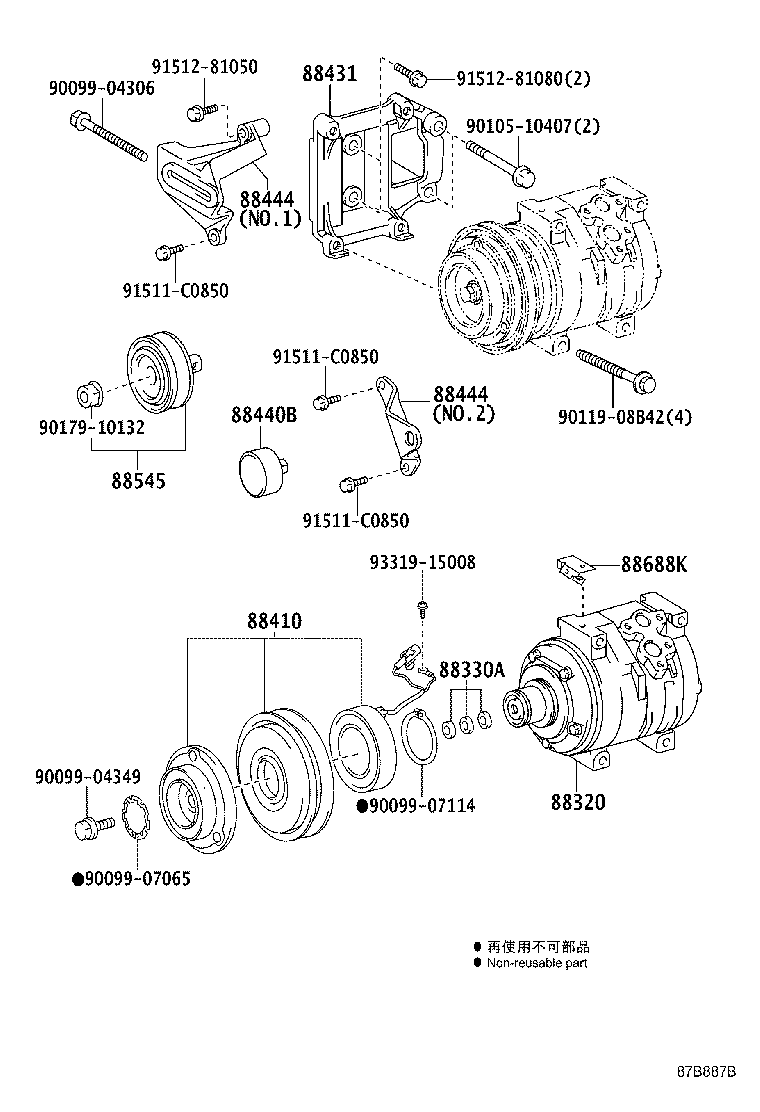

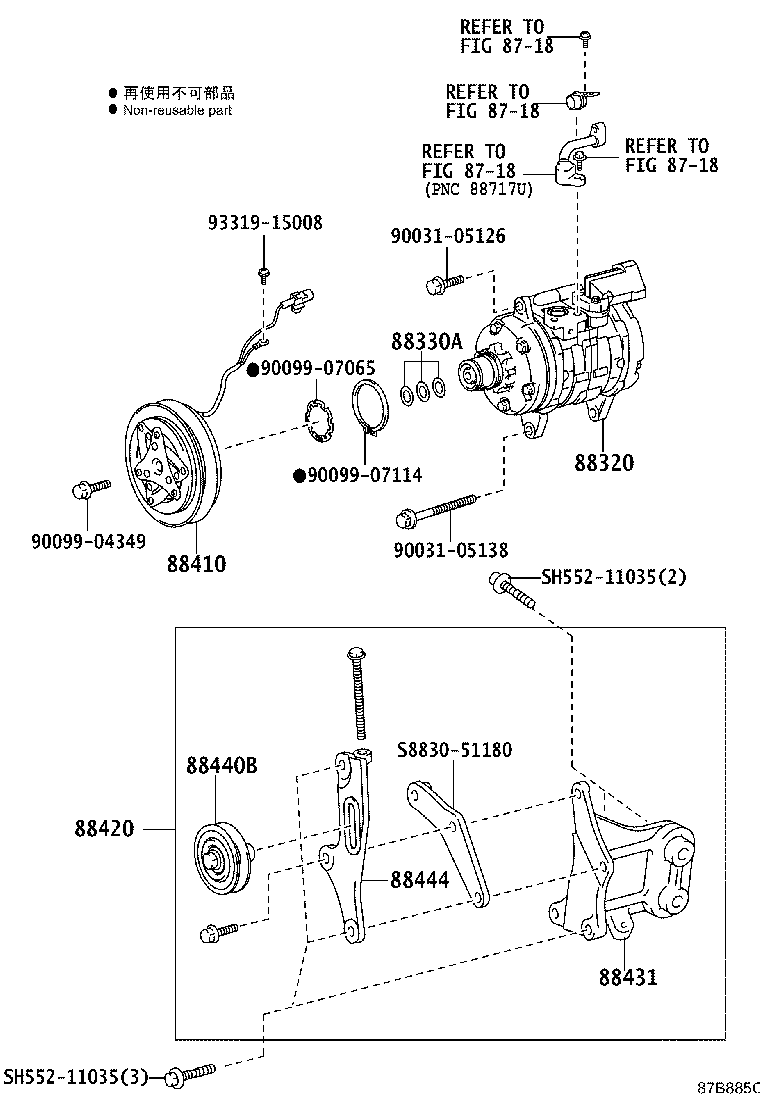

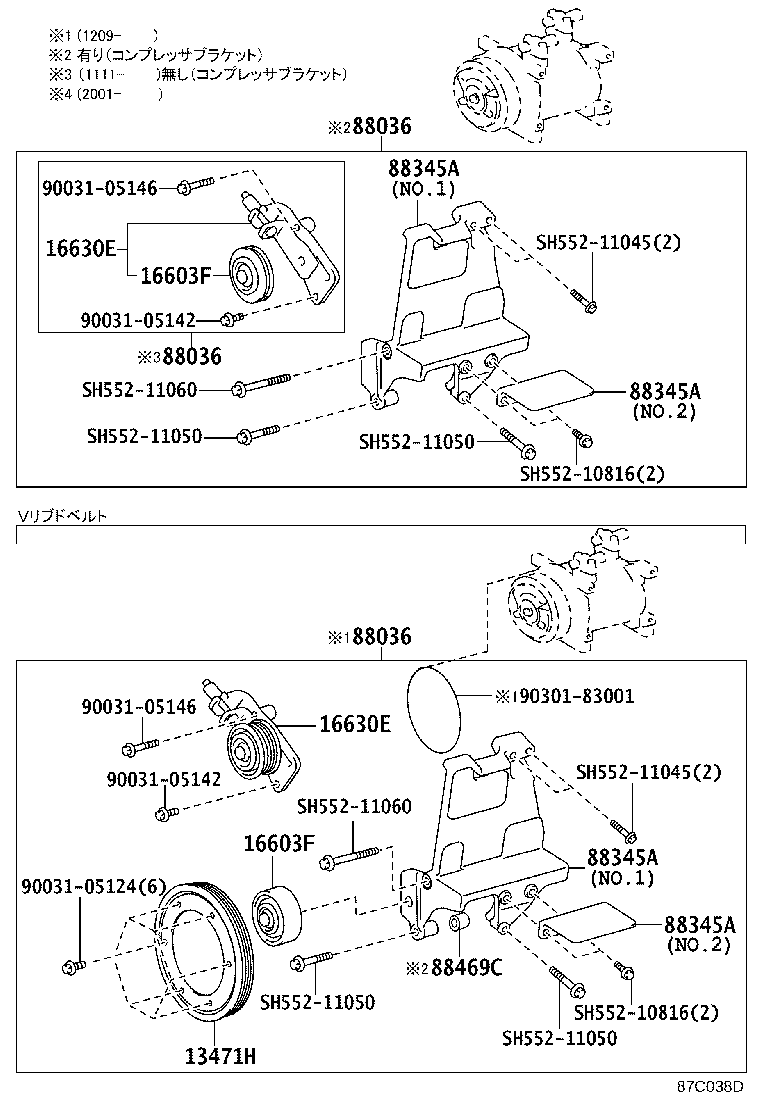

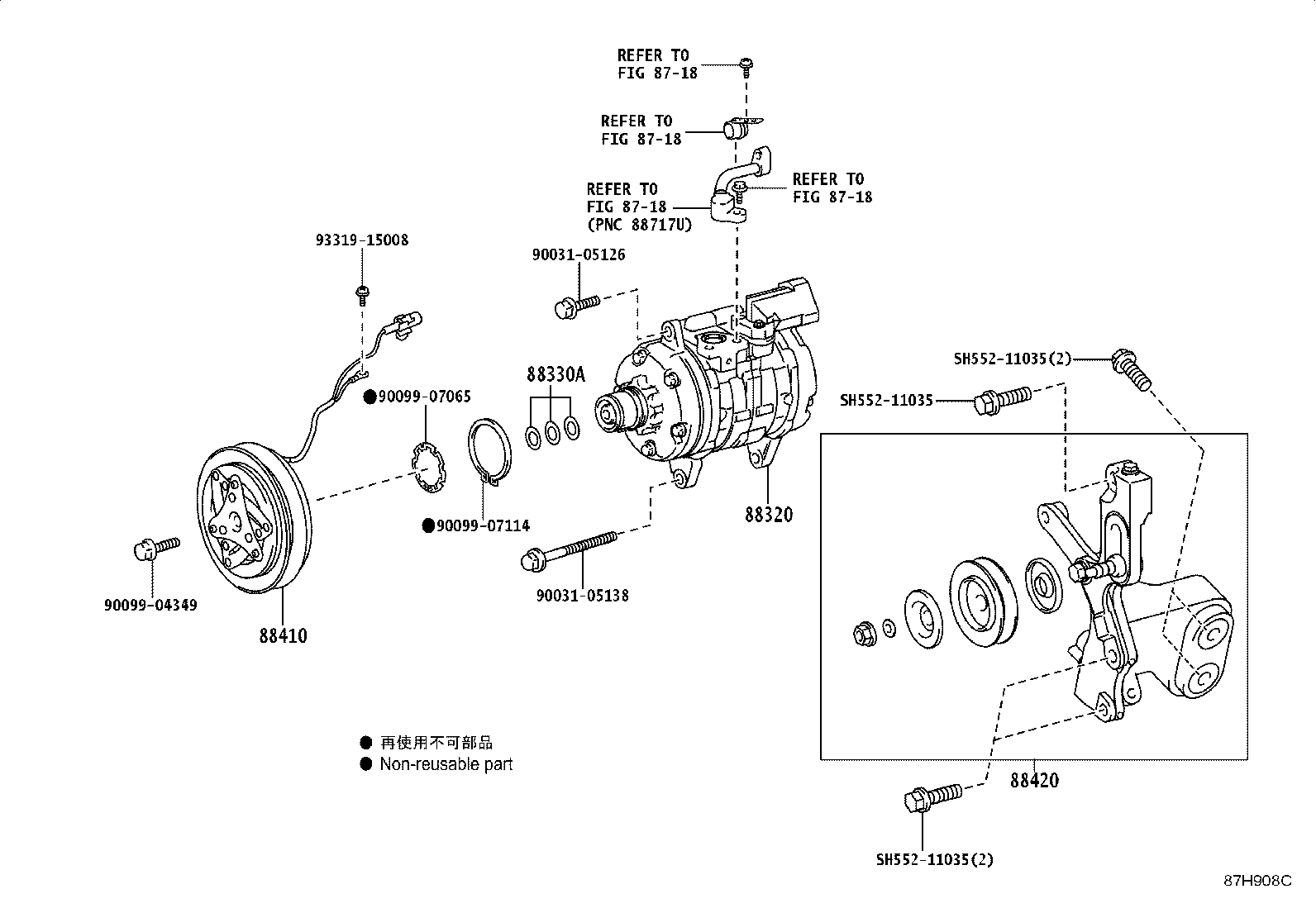

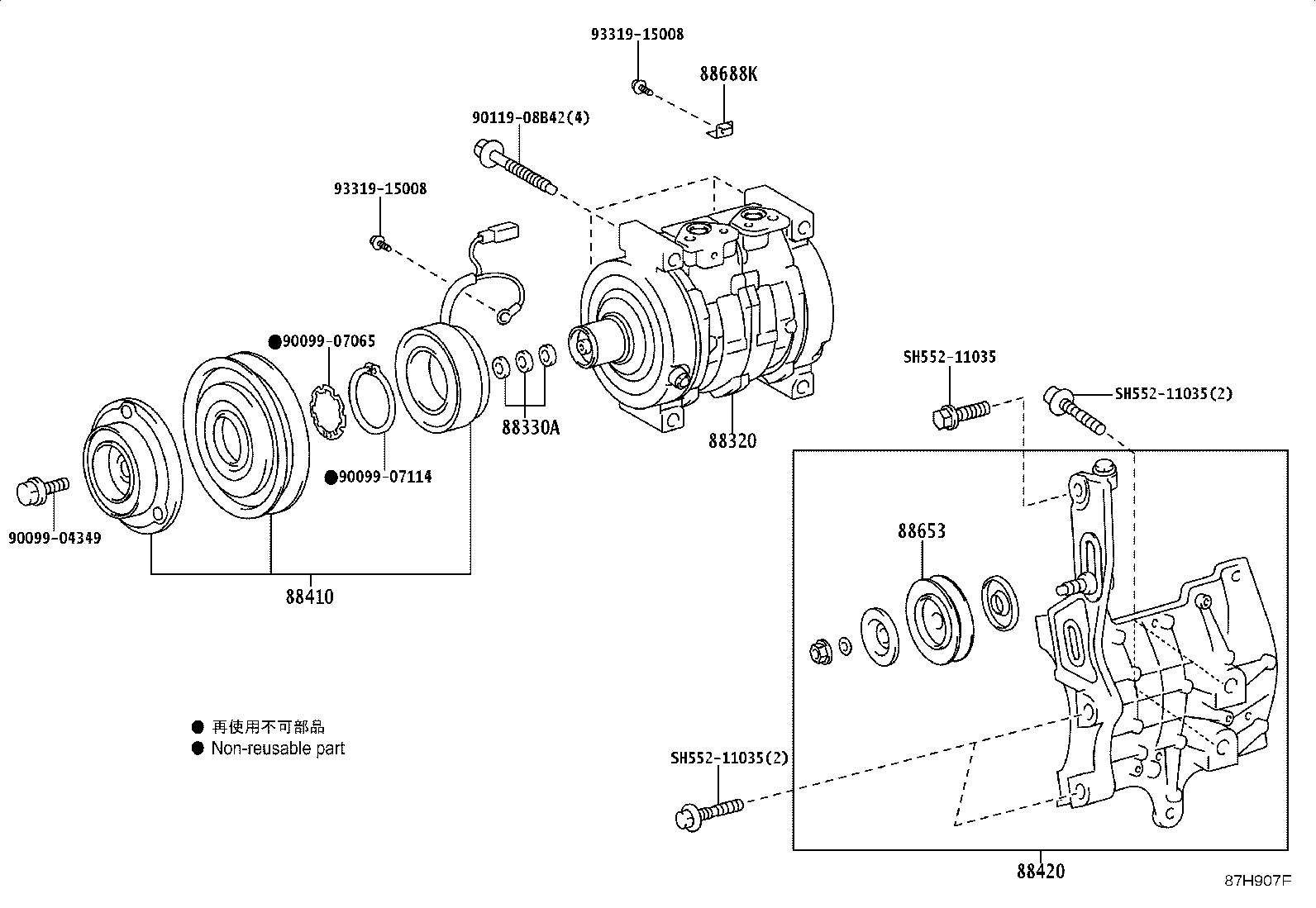

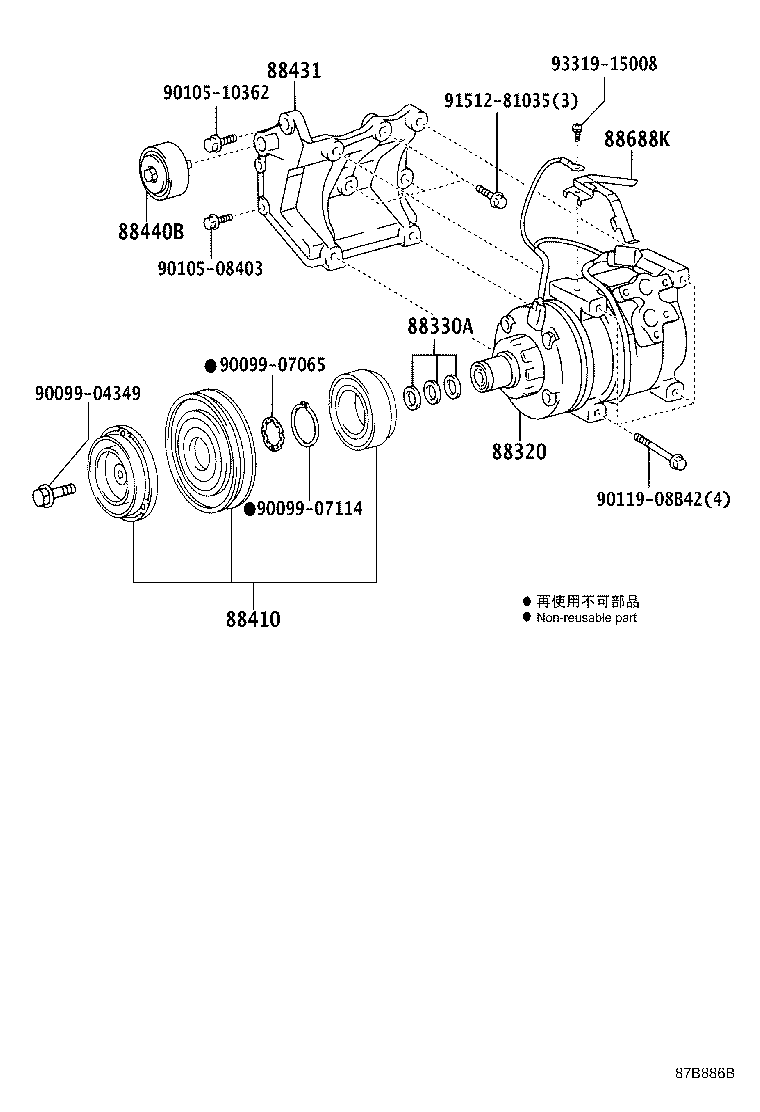

Figure 87B884D 87B884D 2011-07 → — Figure 87B885C 87B885C 2011-07 → — Figure 87H907F 87H907F 2019-05 → — Figure 87H908D 87H908D 2019-05 → — Figure 87B886B 87B886B 2011-07 → — Figure 87B887B 87B887B 2011-07 → — Figure 87B888D 87B888D 2011-07 → — Figure 87C039D 87C039D 2011-07 → — Figure 87C038D 87C038D 2011-07 → — Figure 87H909A 87H909A 2019-05 → —

Part groups

PNCDescription
13471H Pulley, Crankshaft
16603F Pulley Sub-assy, Idler
16630E Pulley Assy, Idler
16636E Shaft, Idler Pulley
19121B Cover, Dust Proof
21557B Spacer, NO.1
46473A Bracket, Pulley
88036 Compressor Mounting Set
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88345A Bracket, Compressor Mounting
88410 Clutch Assy, Magnet
88420 Pulley Assy, Idle, W/Bracket
88431 Bracket, Compressor Mounting, NO.1
88431A Bracket, Compressor Mounting, NO.2
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88469C Spacer
88545 Pulley Assy, Idle
88595D Pulley Assy, Idle
88653 Pulley Assy, Idler (FOR COOLER)
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
