Toyota Dyna

2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Case & Gear

66 part groups · 17 illustrations

Illustrations

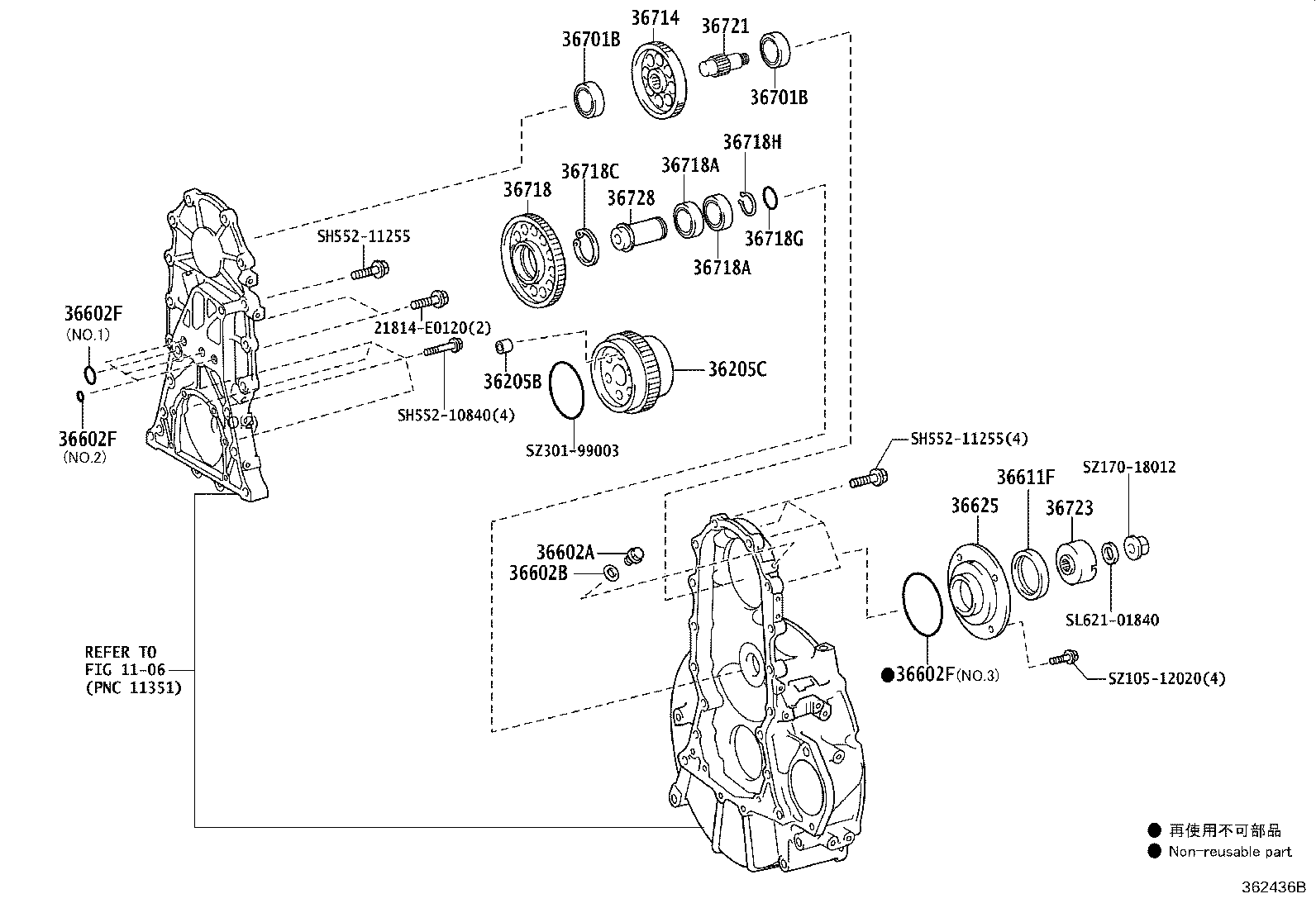

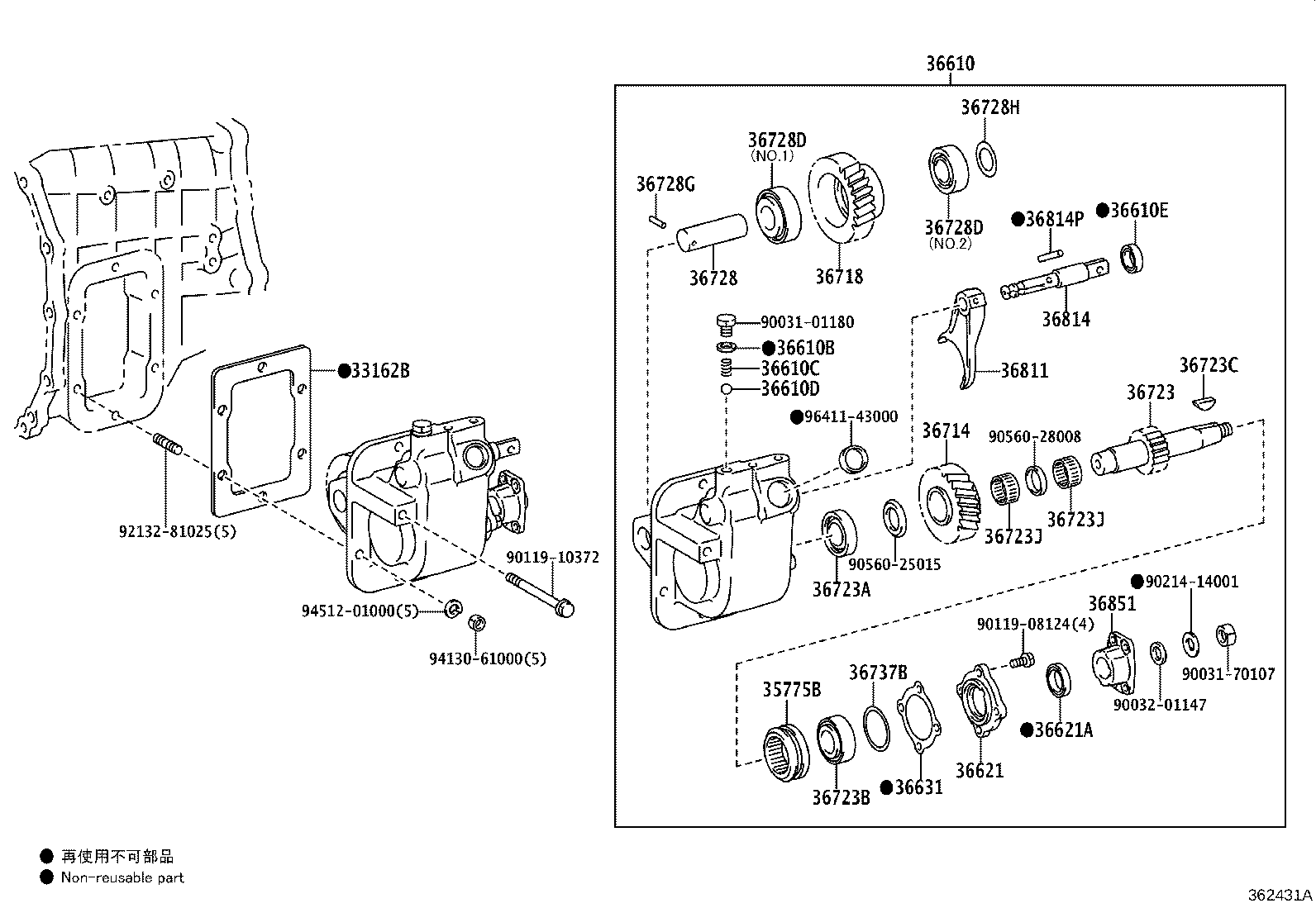

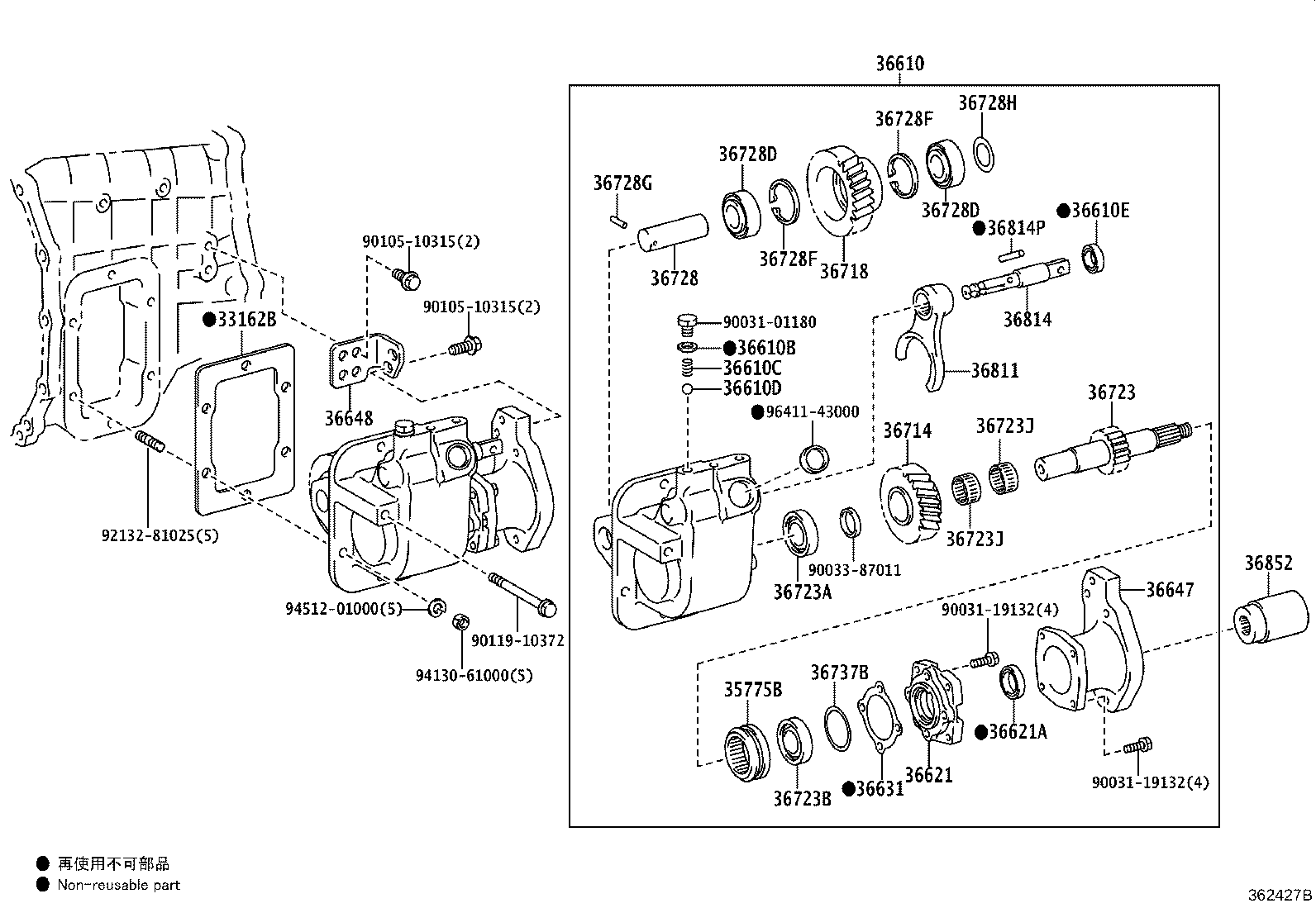

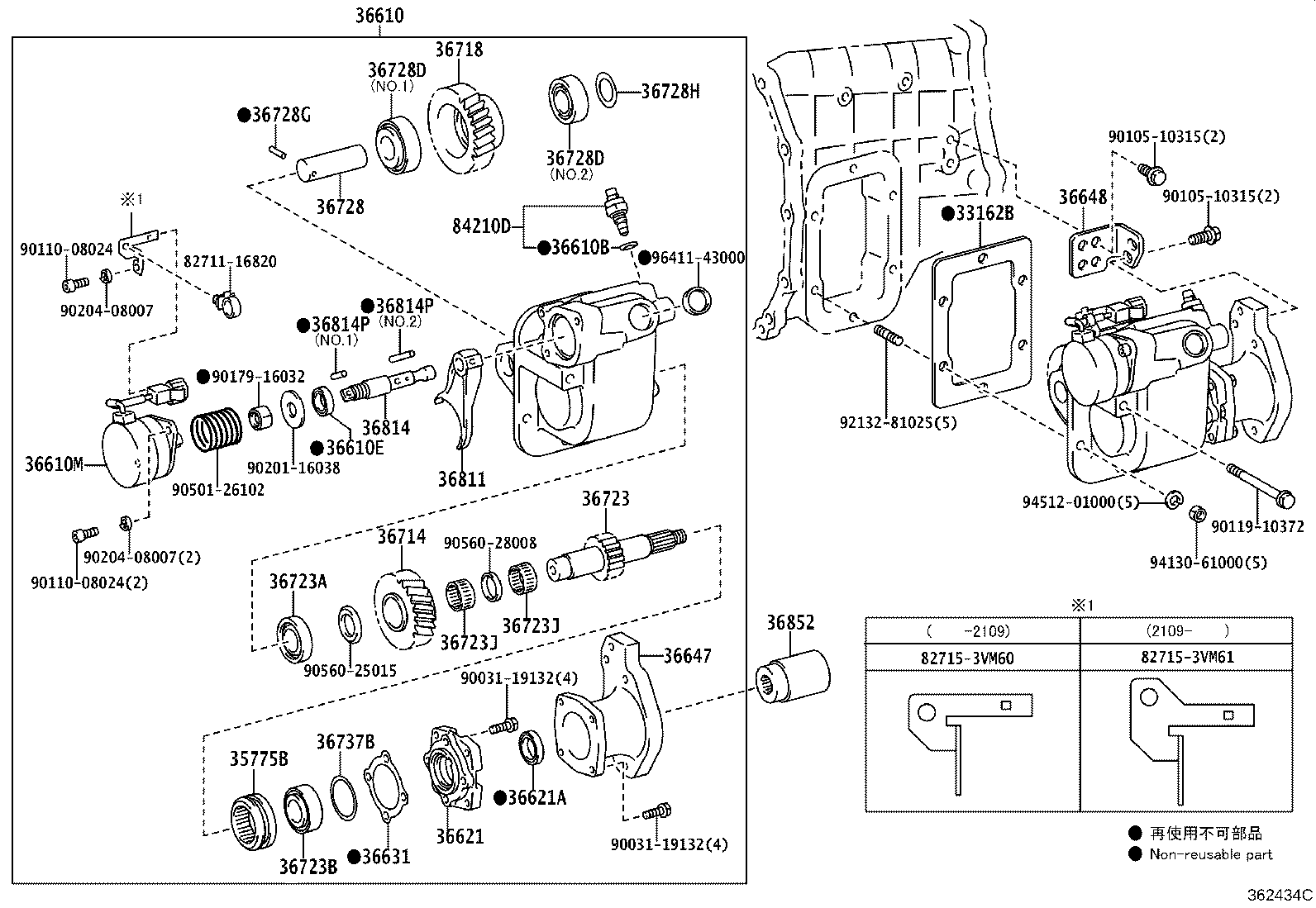

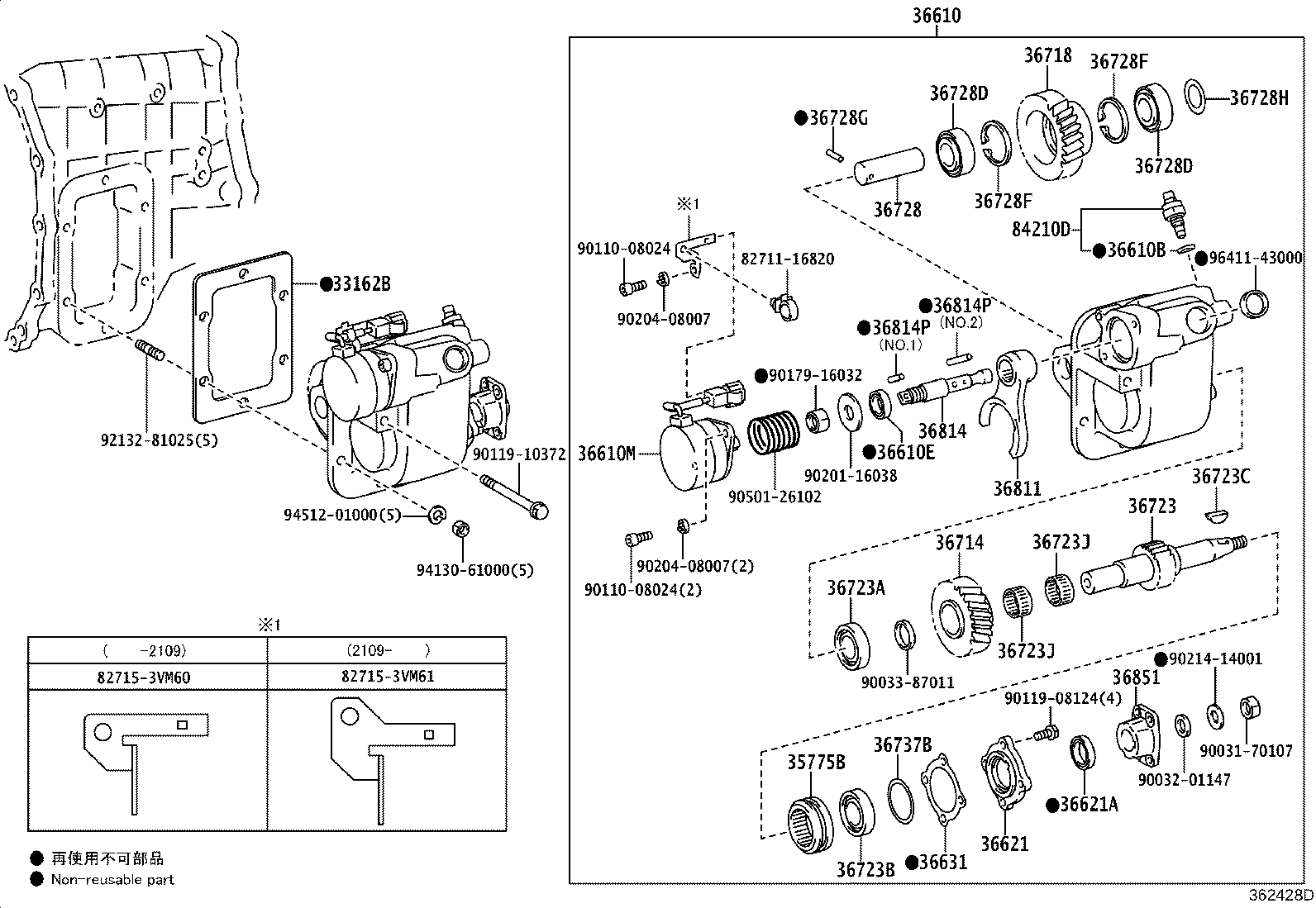

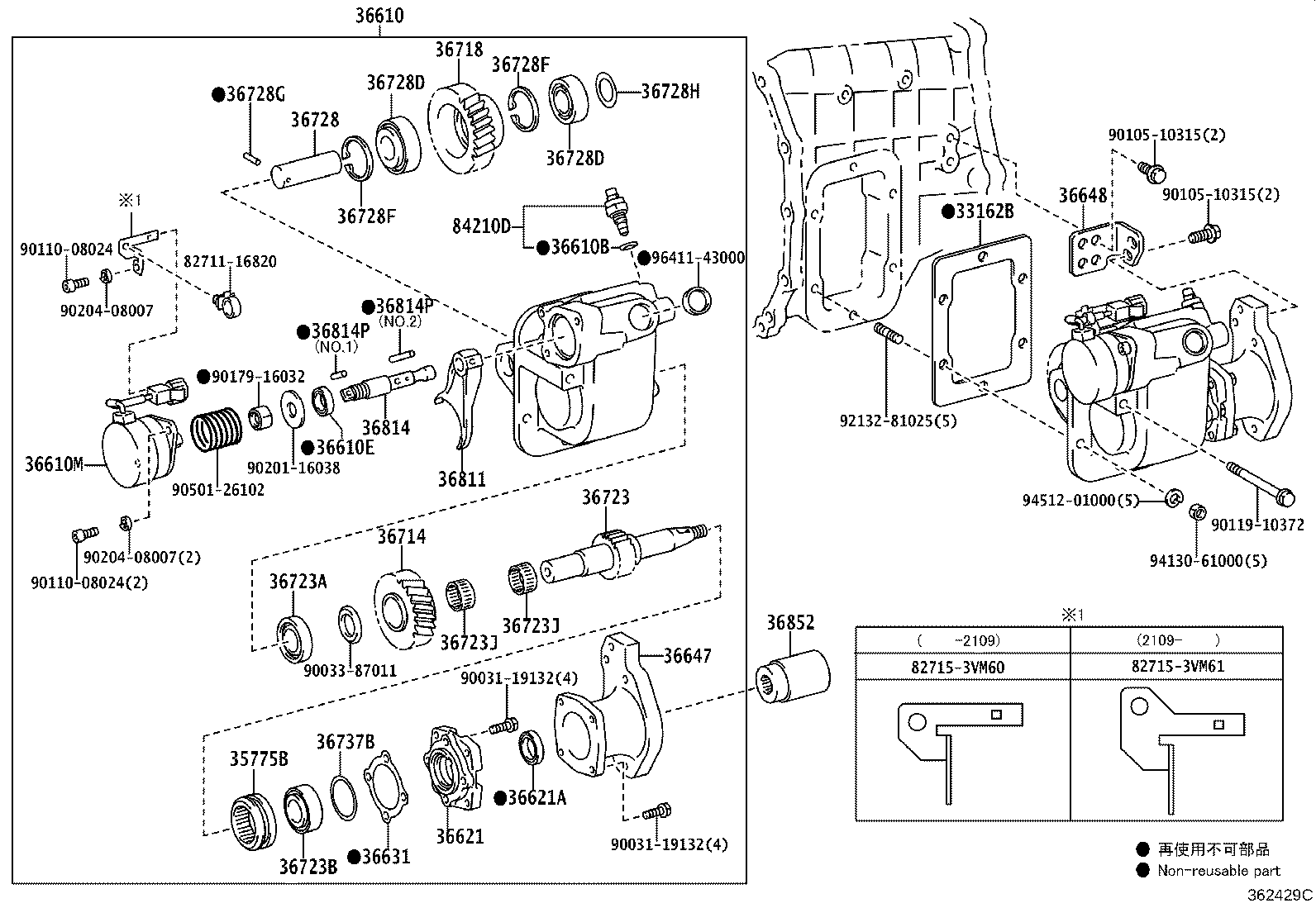

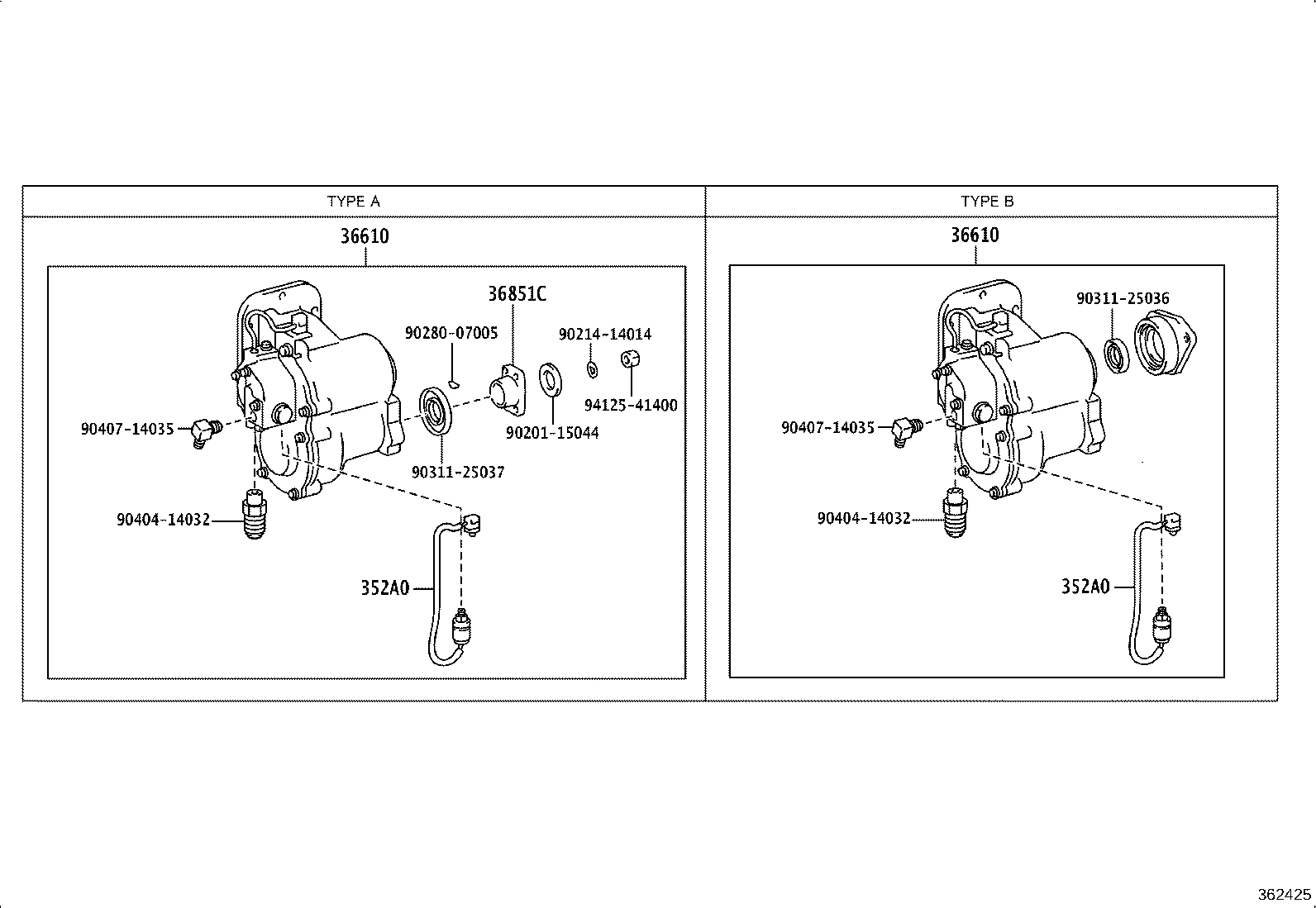

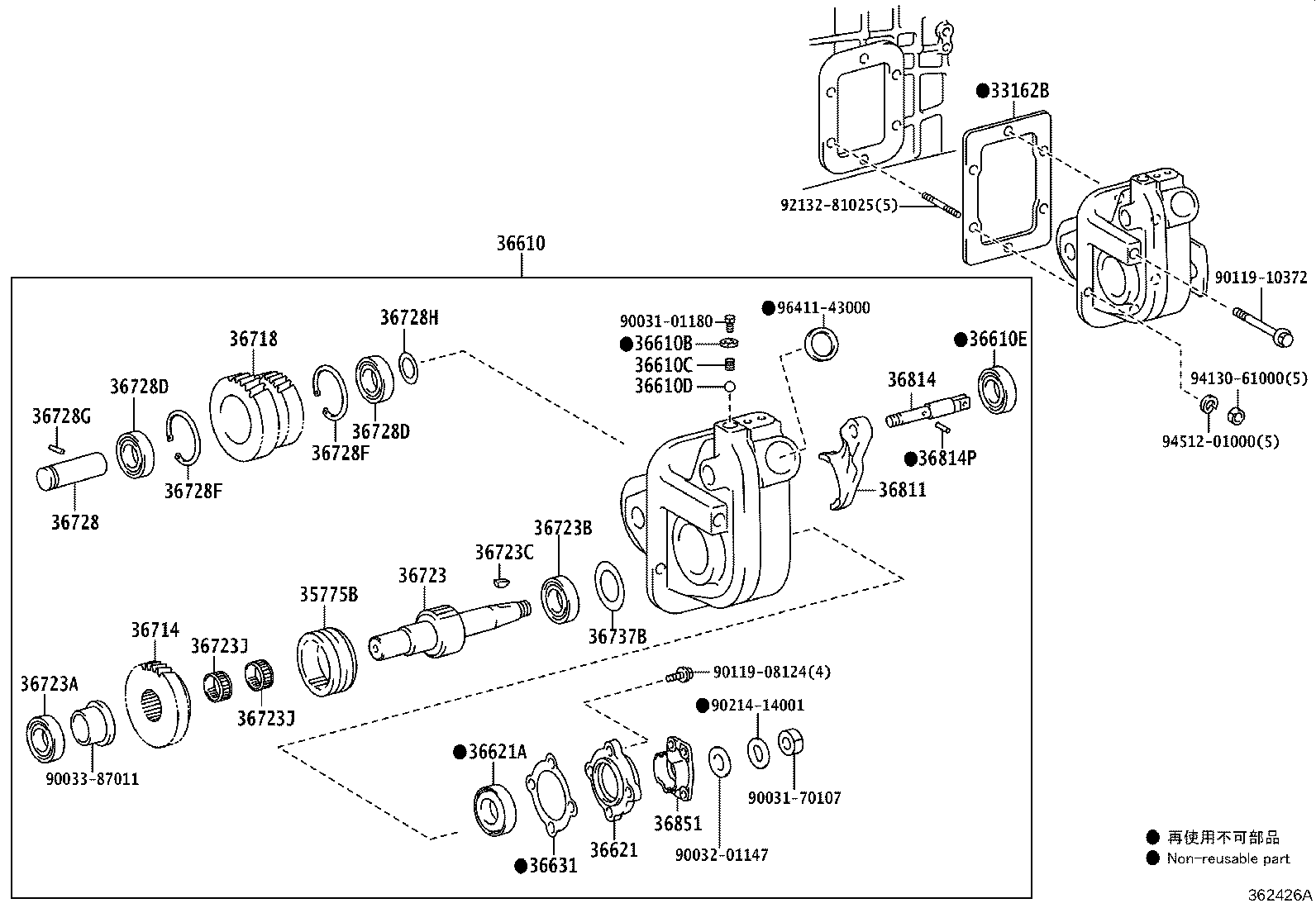

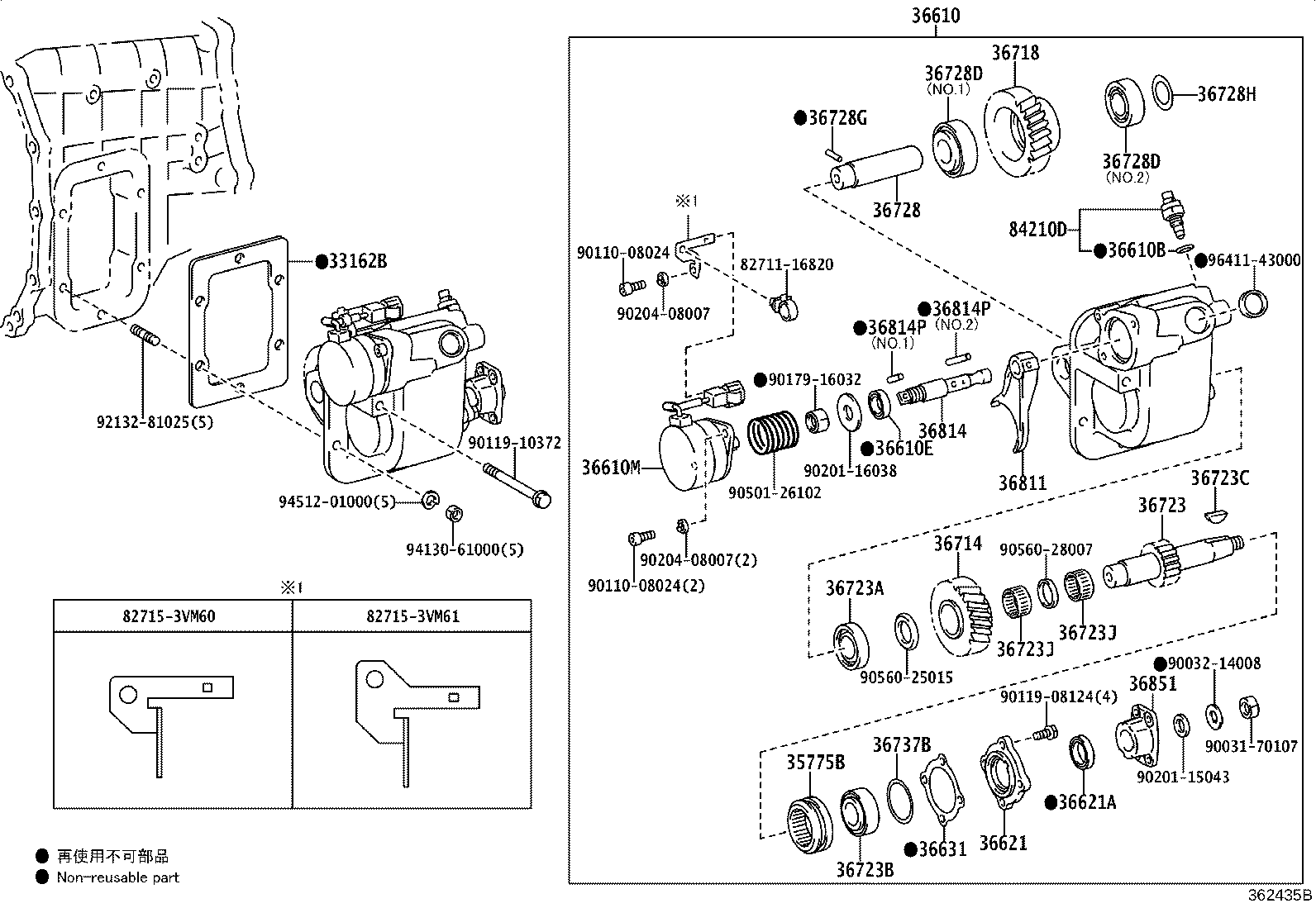

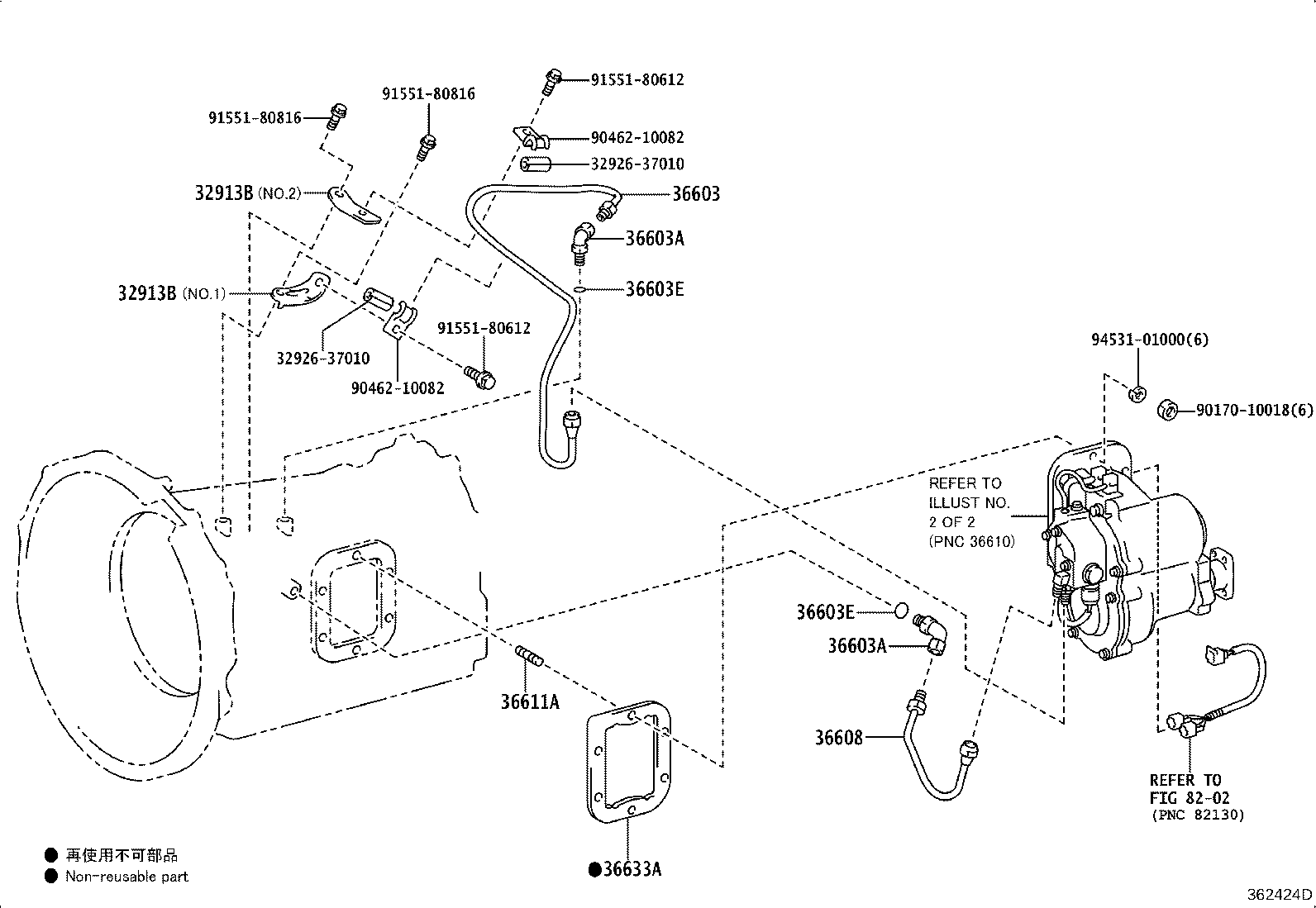

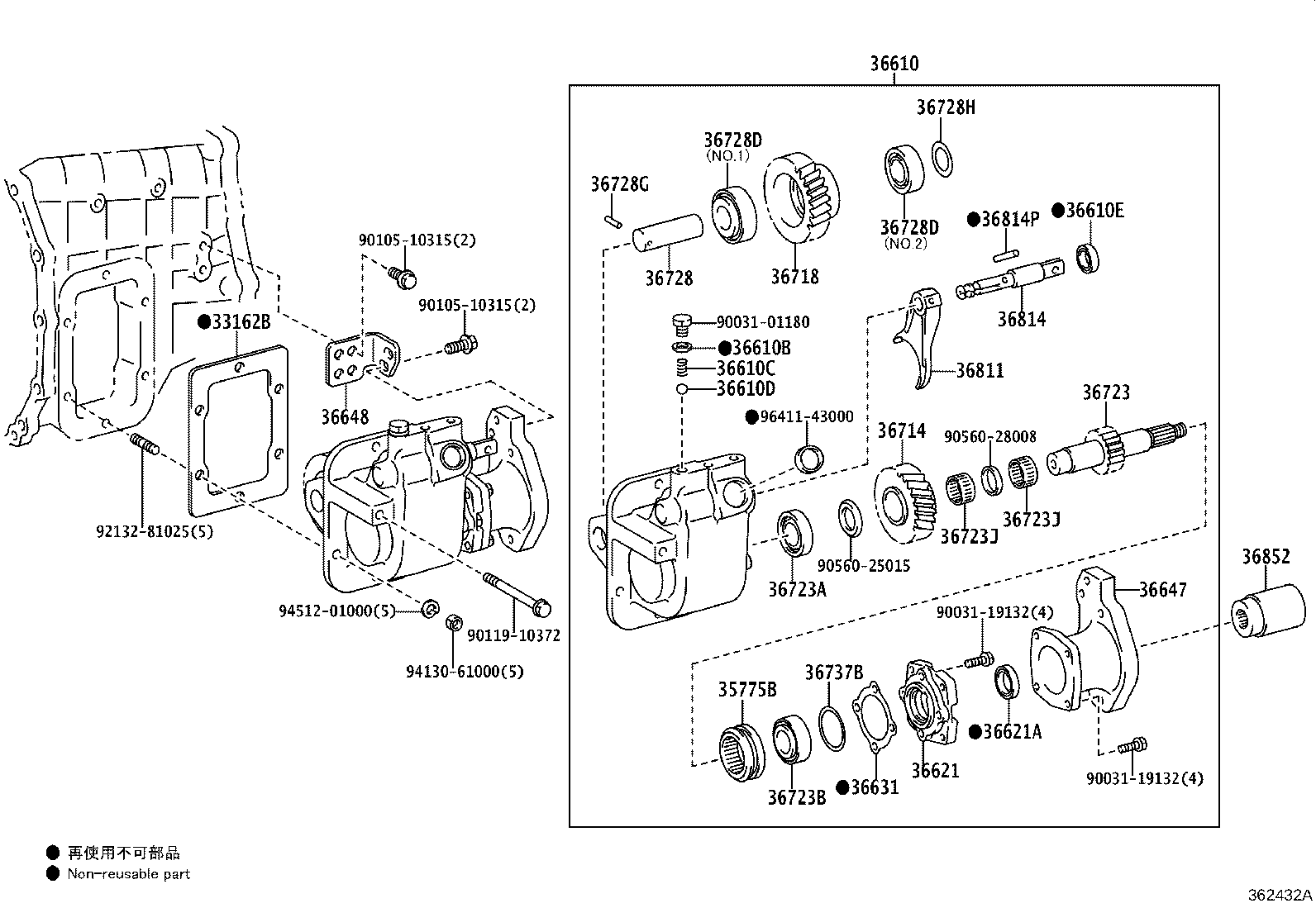

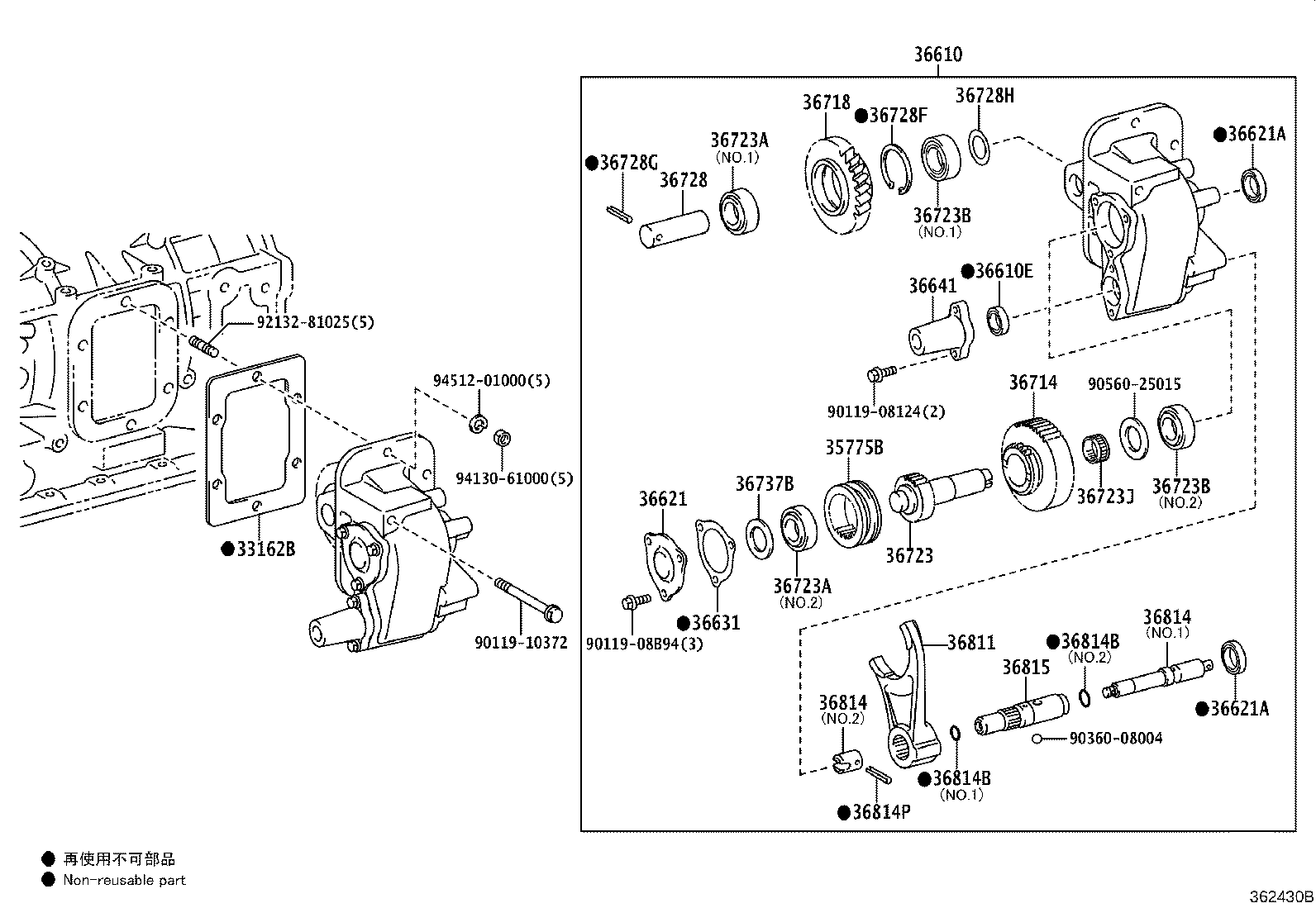

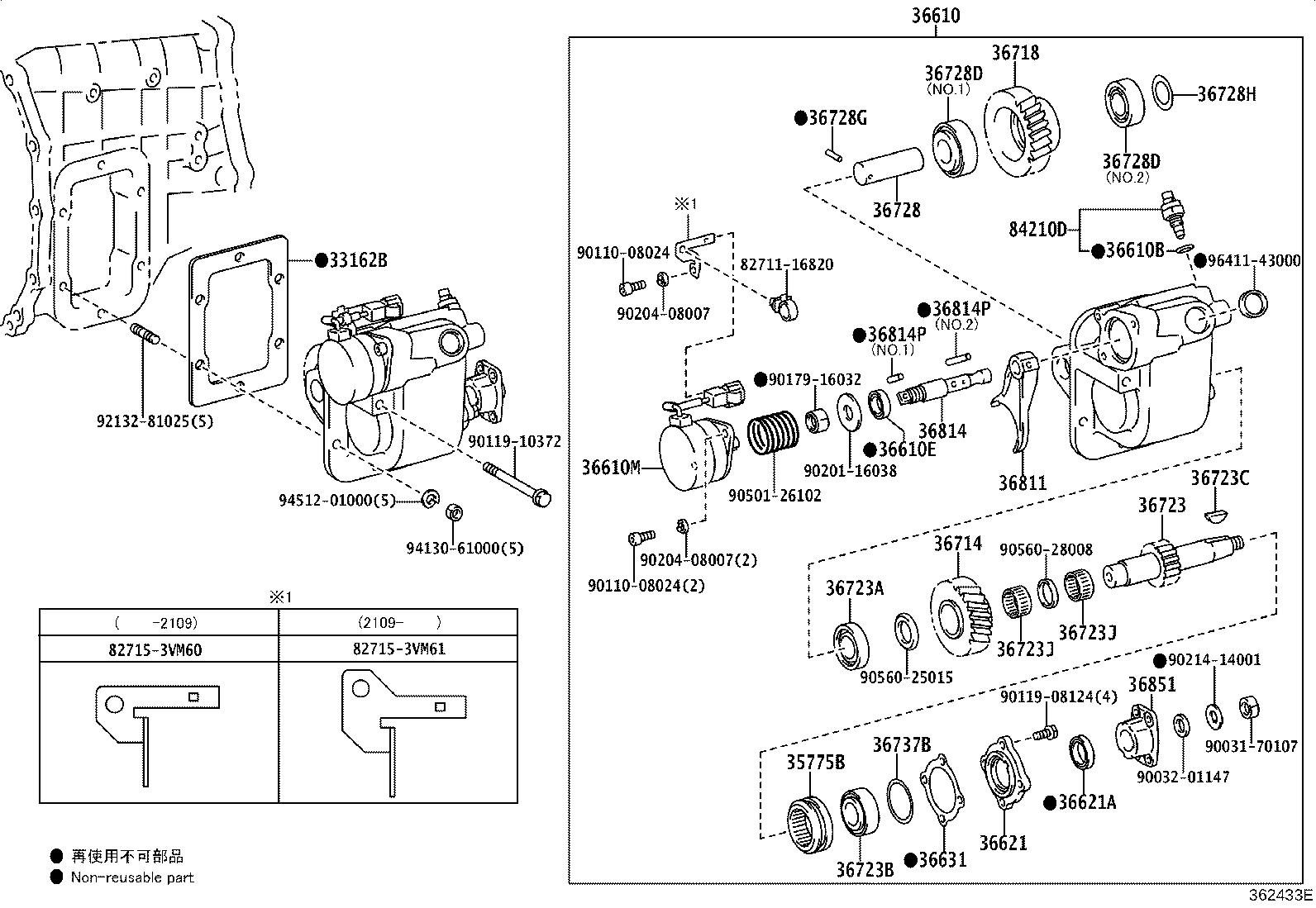

Figure 362423D 362423D 2021-03 → — Figure 362436B 362436B 2021-03 → — Figure 362424D 362424D 2021-03 → — Figure 362425 362425 2021-03 → — Figure 362426A 362426A 2021-03 → — Figure 362427B 362427B 2021-03 → — Figure 362428D 362428D 2021-03 → — Figure 362429C 362429C 2021-03 → — Figure 362430B 362430B 2021-03 → — Figure 362430B 362430B 2021-03 → — Figure 362431A 362431A 2021-03 → — Figure 362432A 362432A 2021-03 → — Figure 362433E 362433E 2021-03 → — Figure 362434C 362434C 2021-03 → — Figure 362434C 362434C 2021-03 → — Figure 362434C 362434C 2021-03 → — Figure 362435B 362435B 2021-03 → —

Part groups

PNCDescription
12270E Separator Assy, Oil
23950 Valve Assy, Solenoid(FOR POWER TAKE-OFF)
32913B Bracket, Transmission Oil Cooler, NO.2
33162B Gasket, Power Take-off Cover
352A0 Switch Assy, Transmission Oil Pressure
35775B Sleeve, Output Shaft
36205B Collar(FOR SPROCKET TRANSFER DRIVE)
36205C Gear Sub-assy, Power Take-off Drive
36602A Plug (FOR CENTER POWER TAKE-OFF CASE)
36602B Gasket (FOR CENTER POWER TAKE-OFF CASE)
36602F Ring, O(FOR CENTER POWER TAKE-OFF CASE)
36603 Tube Sub-assy, Power Take-off Lubrication
36603A Elbow (FOR POWER TAKE-OFF LUBRICATION TUBE)
36603E Ring, O (FOR POWER TAKE-OFF LUBRICATION TUBE)
36608 Tube Sub-assy, Power Take Off Line Pressure
36610 Power Take-off Assy
36610B Gasket, Seat (FOR POWER TAKE-OFF)
36610C Spring, Gear Shift Fork Lock Ball (FOR POWER TAKE-OFF)
36610D Ball, Gear Shift Fork Lock (FOR POWER TAKE-OFF)
36610E Seal, Oil (FOR POWER TAKE-OFF)
36610M Solenoid Assy, Power Take-off
36611A Bolt, Stud (FOR POWER TAKE-OFF CASE)
36611F Seal, Oil (FOR POWER TAKE-OFF CASE)
36620 Power Take-off Assy, Center
36620B Plug(FOR POWER TAKE-OFF)
36620D Shroud Sub-assy, Fan(FOR POWER TAKE-OFF)
36620E Ring,O (FOR POWER TAKE-OFF)
36621 Retainer, Power Take-off Bearing
36621A Seal, Oil (FOR POWER TAKE-OFF BEARING RETAINER)
36625 Cover, Power Take-off Bearing
36631 Gasket, Power Take-off Bearing Retainer
36633A Gasket, Power Take-off Cover
36641 Cap, Power Take-off Shift Shaft
36647 Adapter, Power Take-off Pump
36648 Bracket, Power Take-off Pump Adapter
36683 Tube, Power Take-off Lubrication
36701B Bearing (FOR POWER TAKE-OFF INPUT GEAR)
36714 Gear, Power Take-off Output
36718 Gear, Power Take-off Idler
36718A Bearing(FOR POWER TAKE-OFF IDLER GEAR FRONT)
36718C Ring, Hole Snap(FOR POWER TAKE-OFF IDLER GEAR)
36718G Ring, O(FOR POWER TAKE-OFF IDLE GEAR)
36718H Ring, Shaft Snap(FOR POWER TAKE-OFF IDLE GEAR)
36721 Shaft, Power Take-off Input Gear
36723 Shaft, Power Take-off Output, NO.1
36723A Bearing (FOR OUTPUT SHAFT FRONT)
36723B Bearing (FOR OUTPUT SHAFT REAR)
36723C Key, Woodruff (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723J Bearing (FOR POWER TAKE-OFF OUTPUT SHAFT)
36728 Shaft, Power Take-off Idler
36728D Bearing (FOR POWER TAKE-OFF IDLER SHAFT)
36728F Ring, Shaft Snap (FOR POWER TAKE-OFF IDLER SHAFT)
36728G Pin (FOR POWER TAKE-OFF IDLER SHAFT)
36728H Shim (FOR POWER TAKE-OFF IDLER SHAFT)
36737B Shim (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
36802 Bracket Sub-assy, Power Take-off Cable
36811 Fork, Powr Take-off Shift, NO.1
36814 Shaft, Powr Take-off Fork, NO.1
36814B Ring, O (FOR FRONT POWER TAKE-OFF SHAFT)
36814P Pin (FOR POWER TAKE-OFF SHIFT SHAFT)
36815 Shaft, Power Take-off Fork, NO.2
36851 Retainer, Power Take-off Joint
36851C Flange, Power Take-off Output Shaft
36852 Coupling, Power Take-off Output Shaft
38928D Bracket, Power Take-off Protector NO.1
84210D Switch Assy, Back-up Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
