Toyota Dyna
2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan
Supported model
Data version 2021-03
Frame

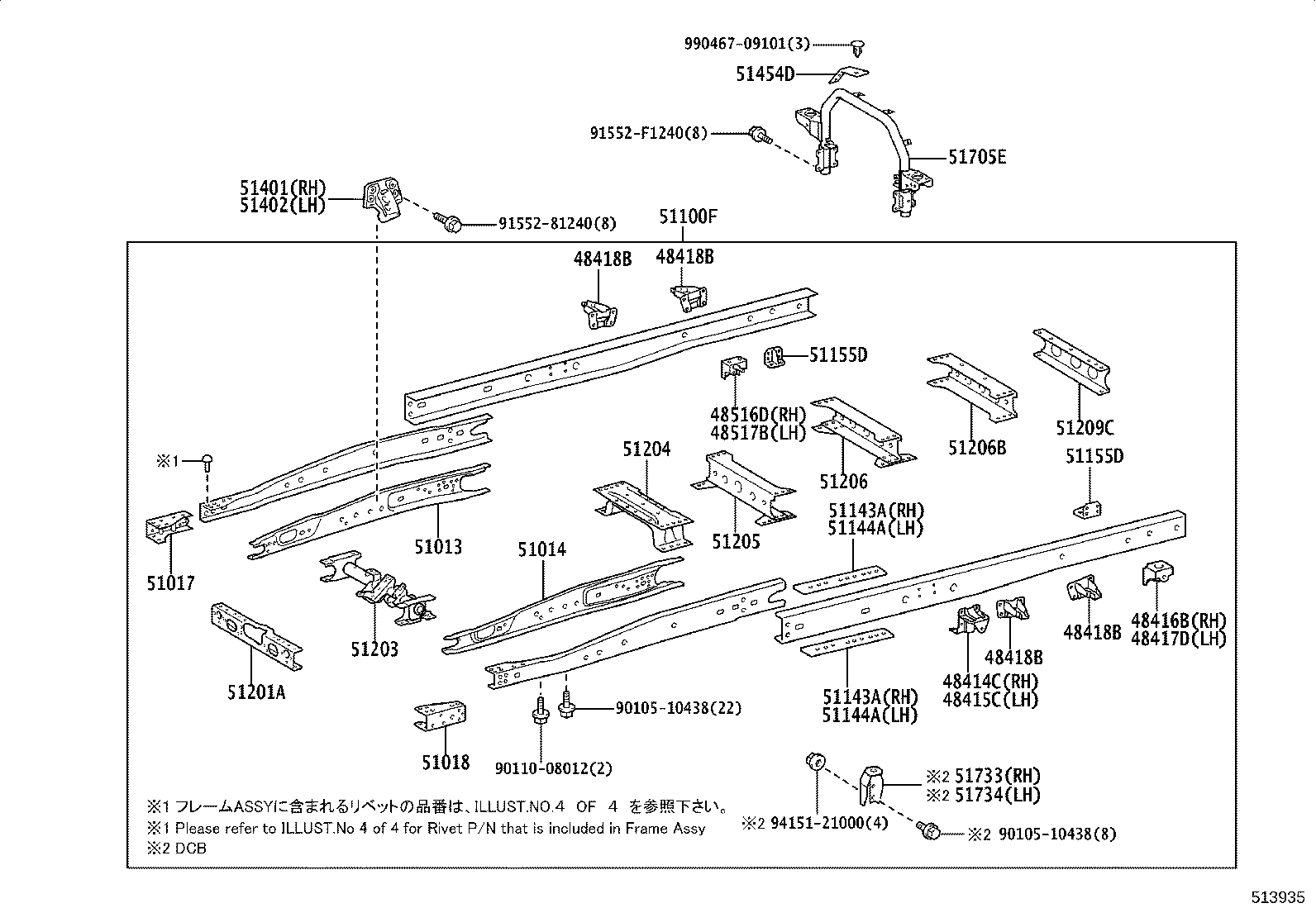

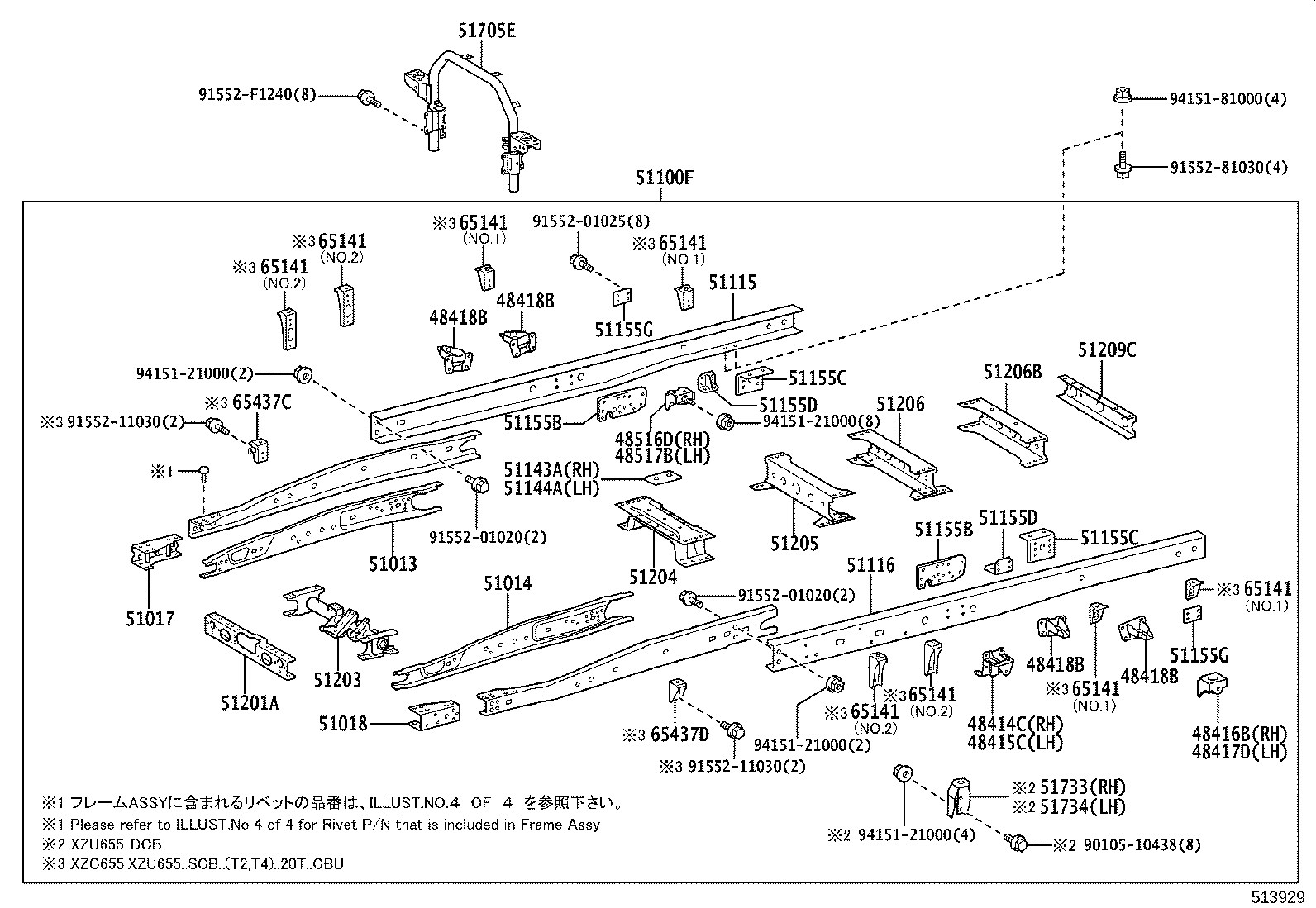

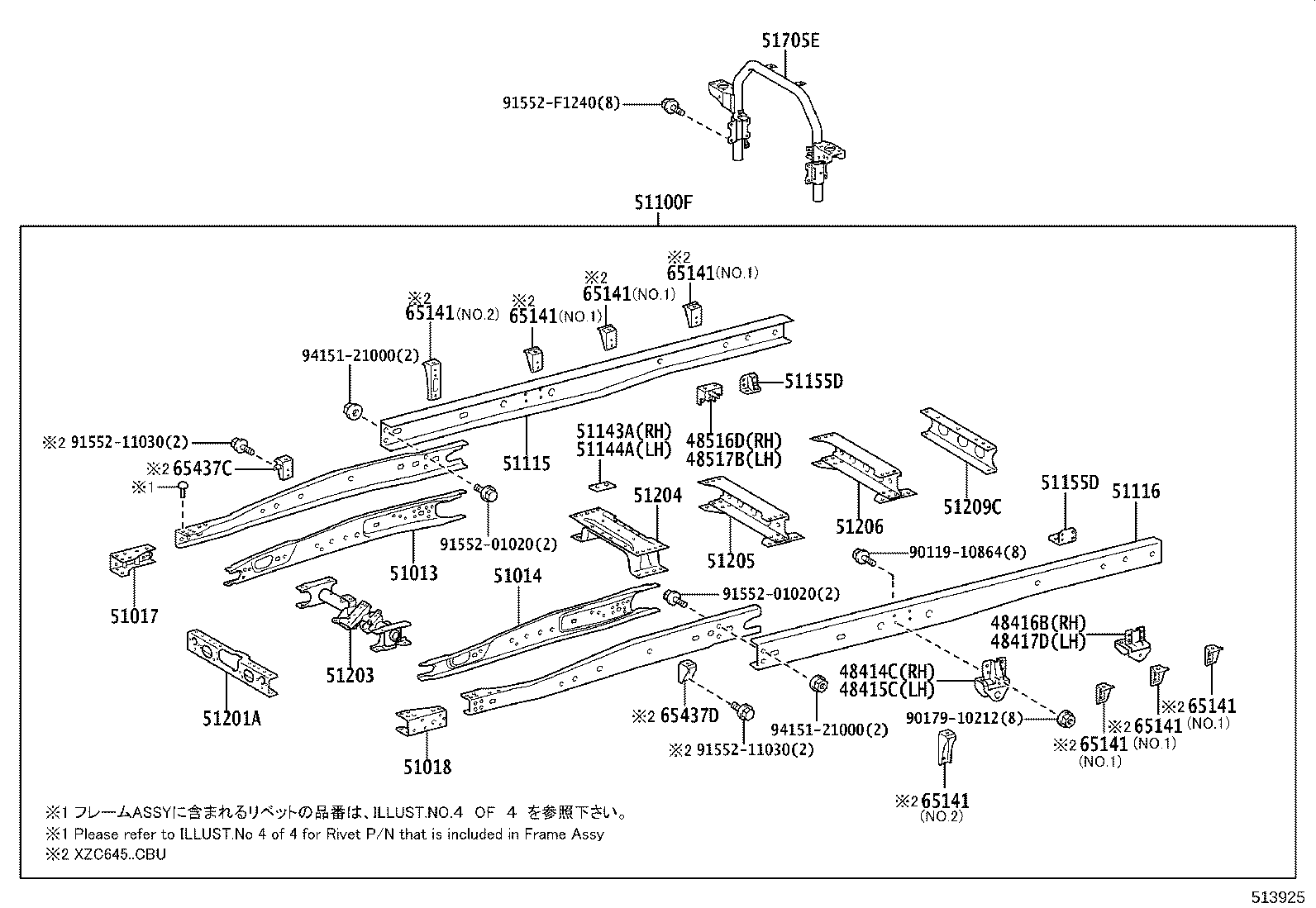

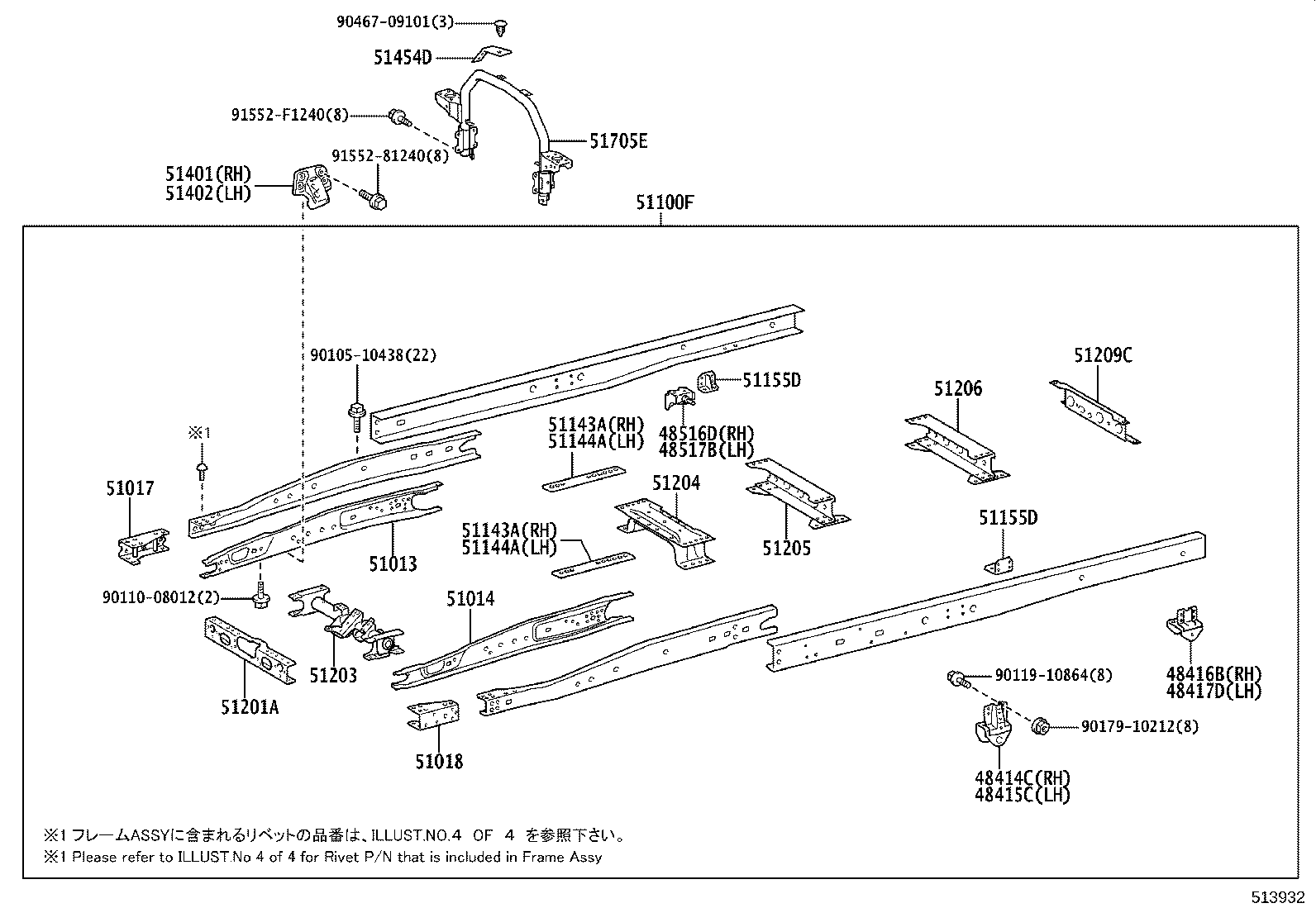

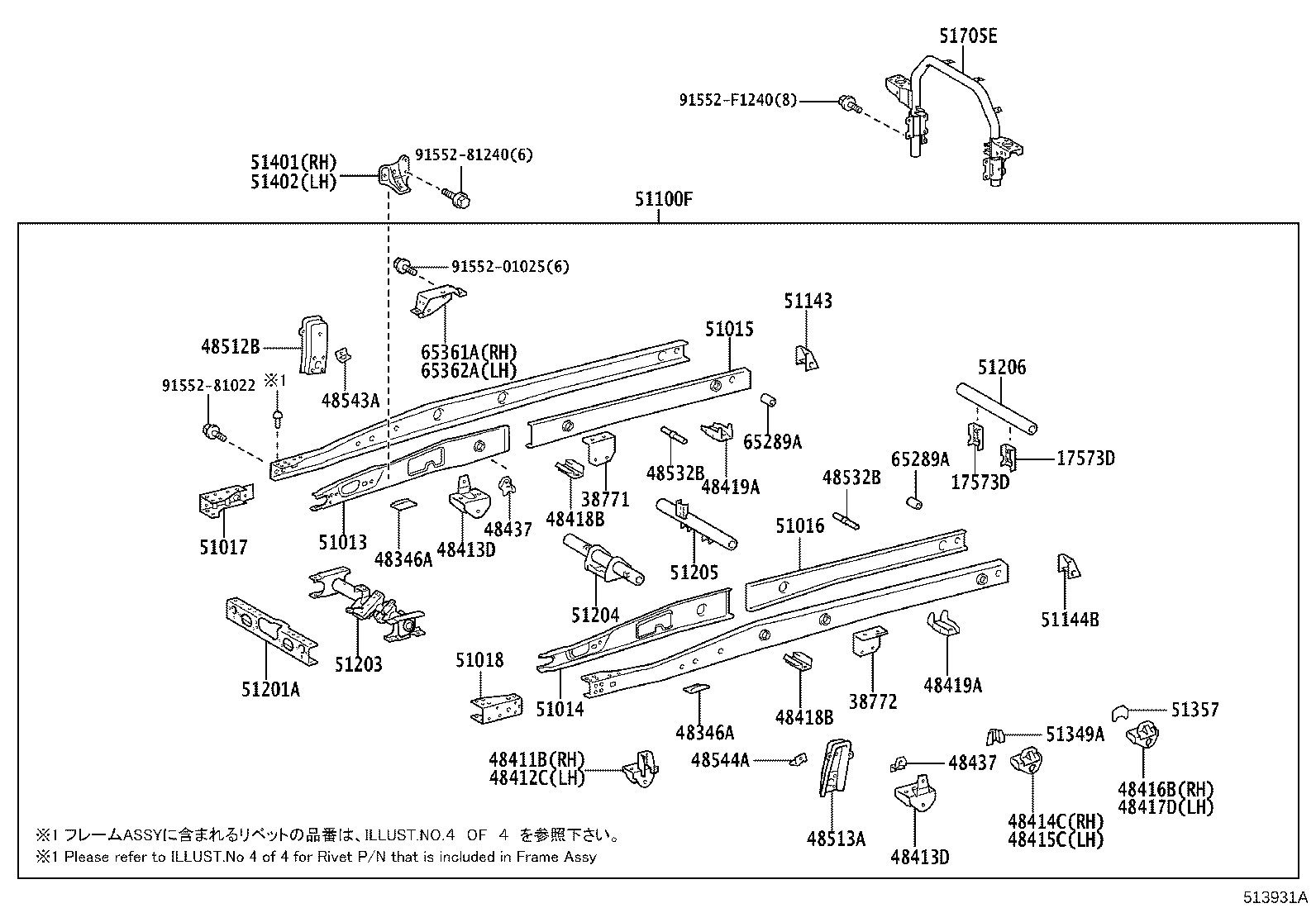

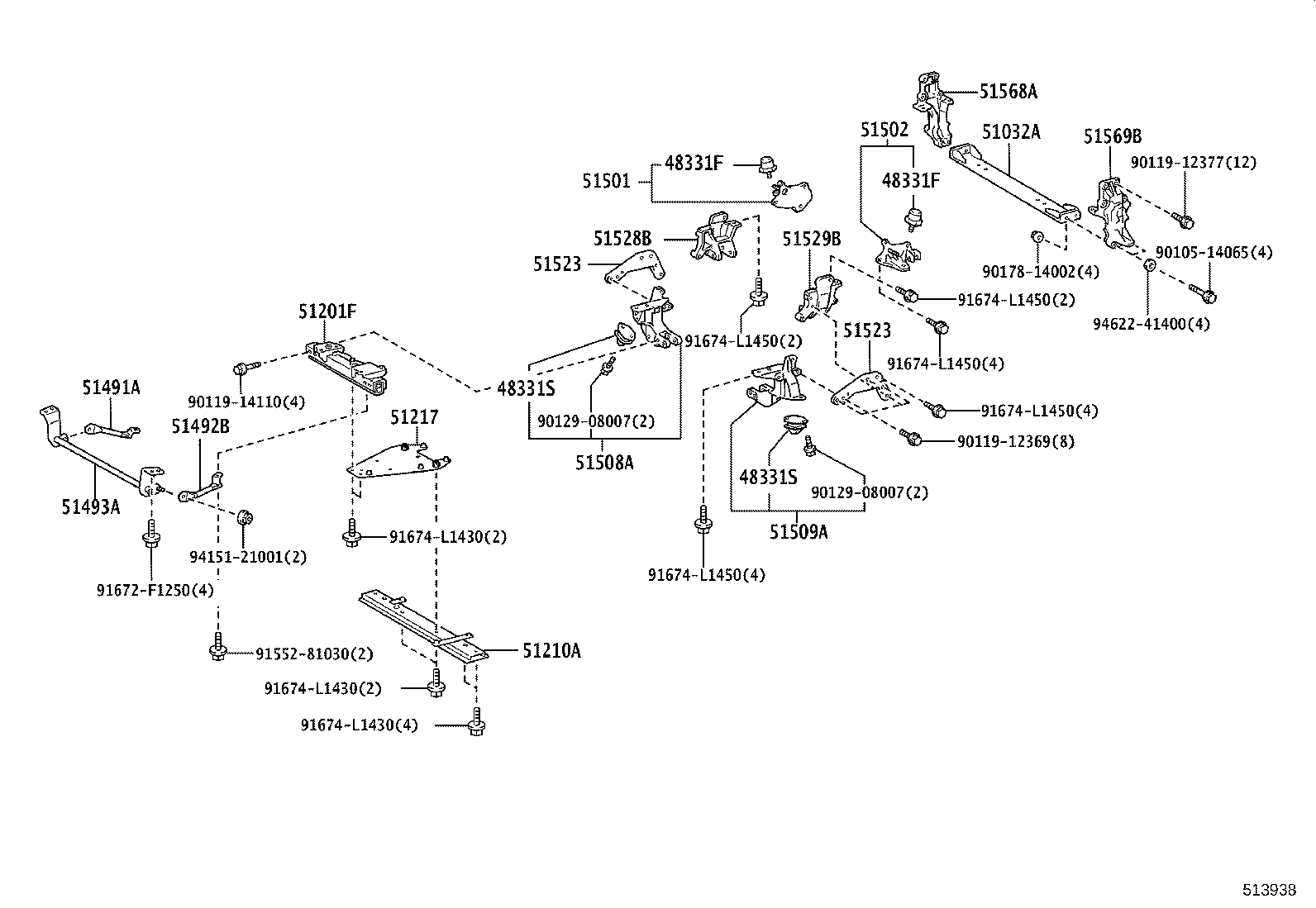

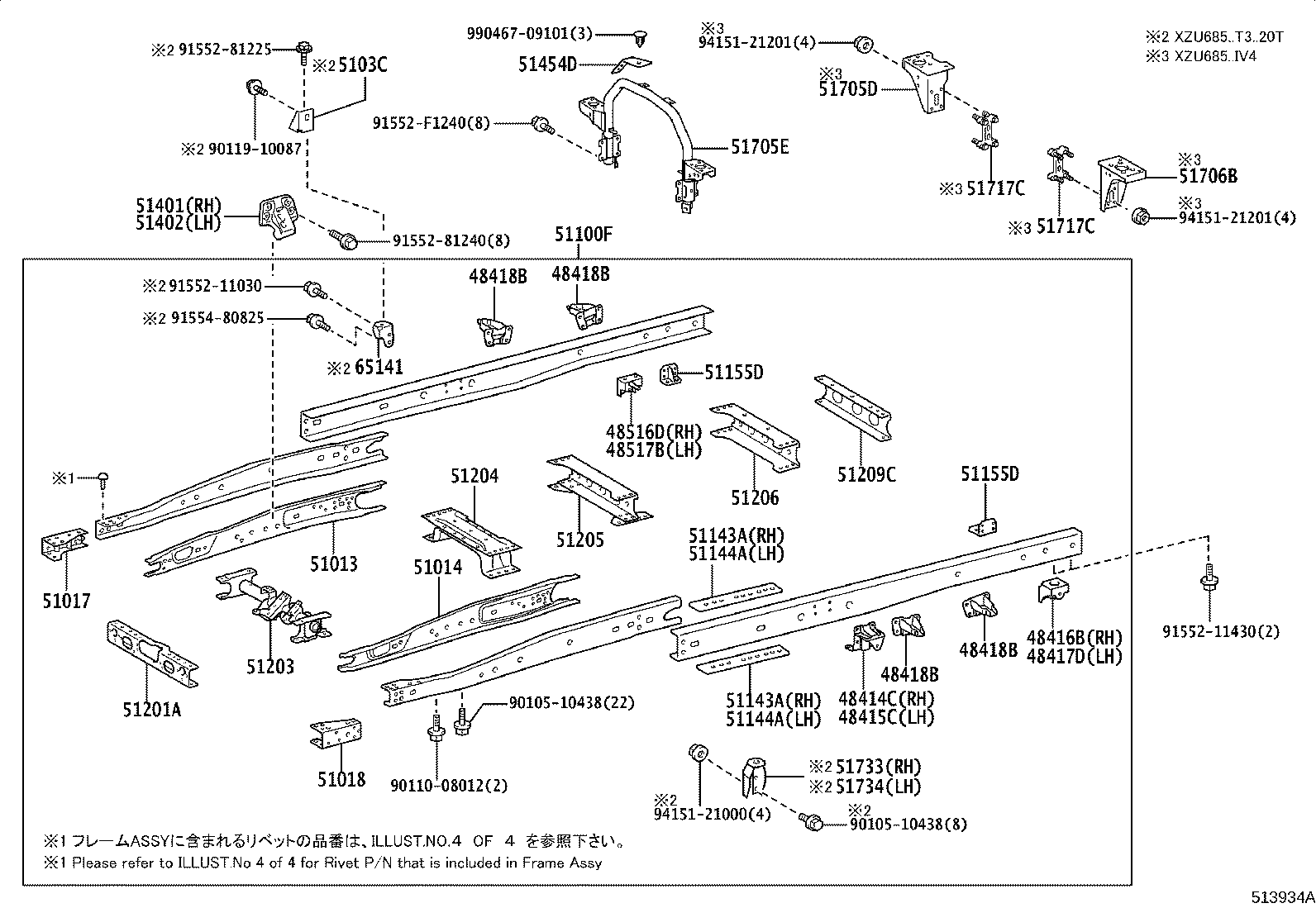

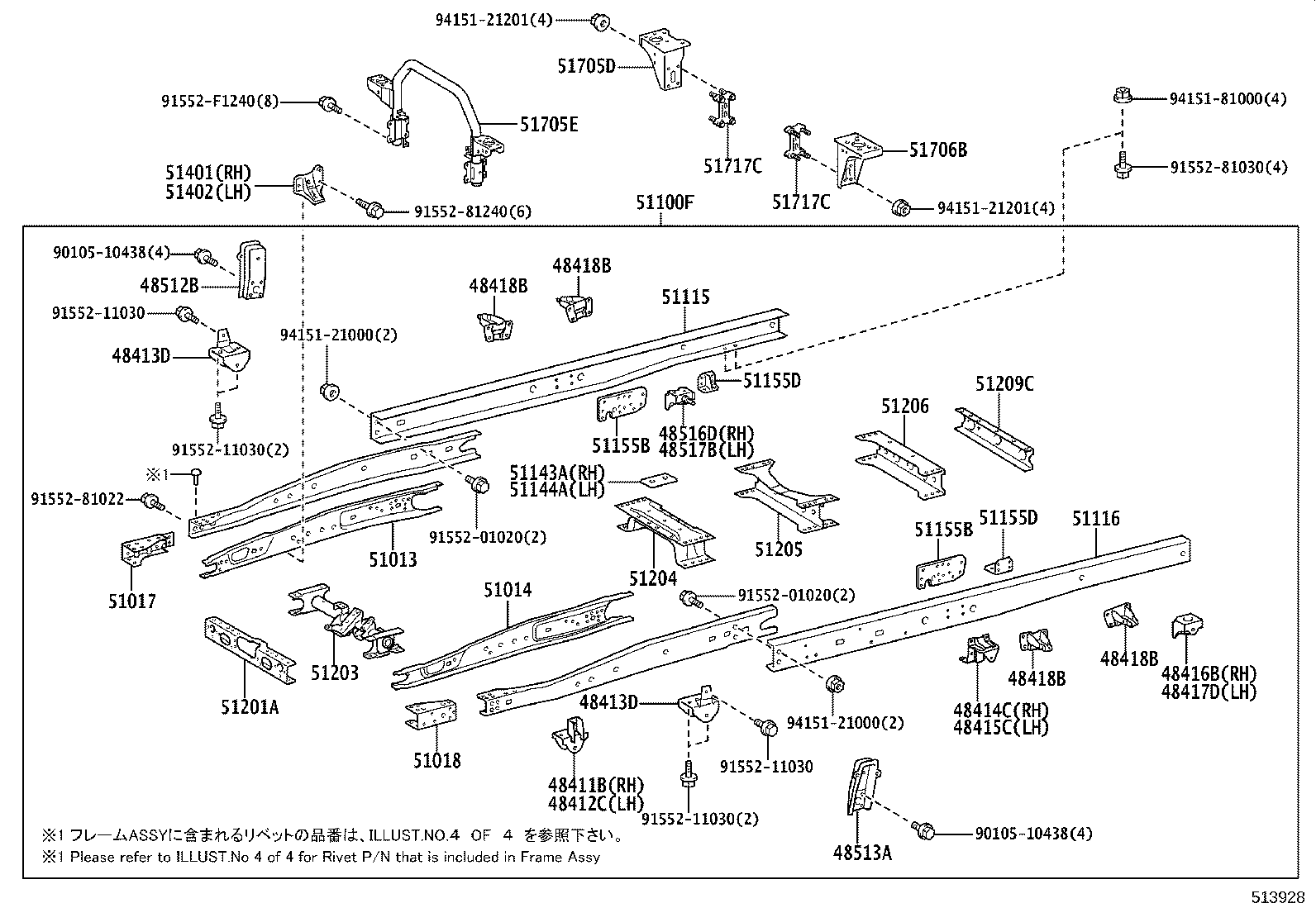

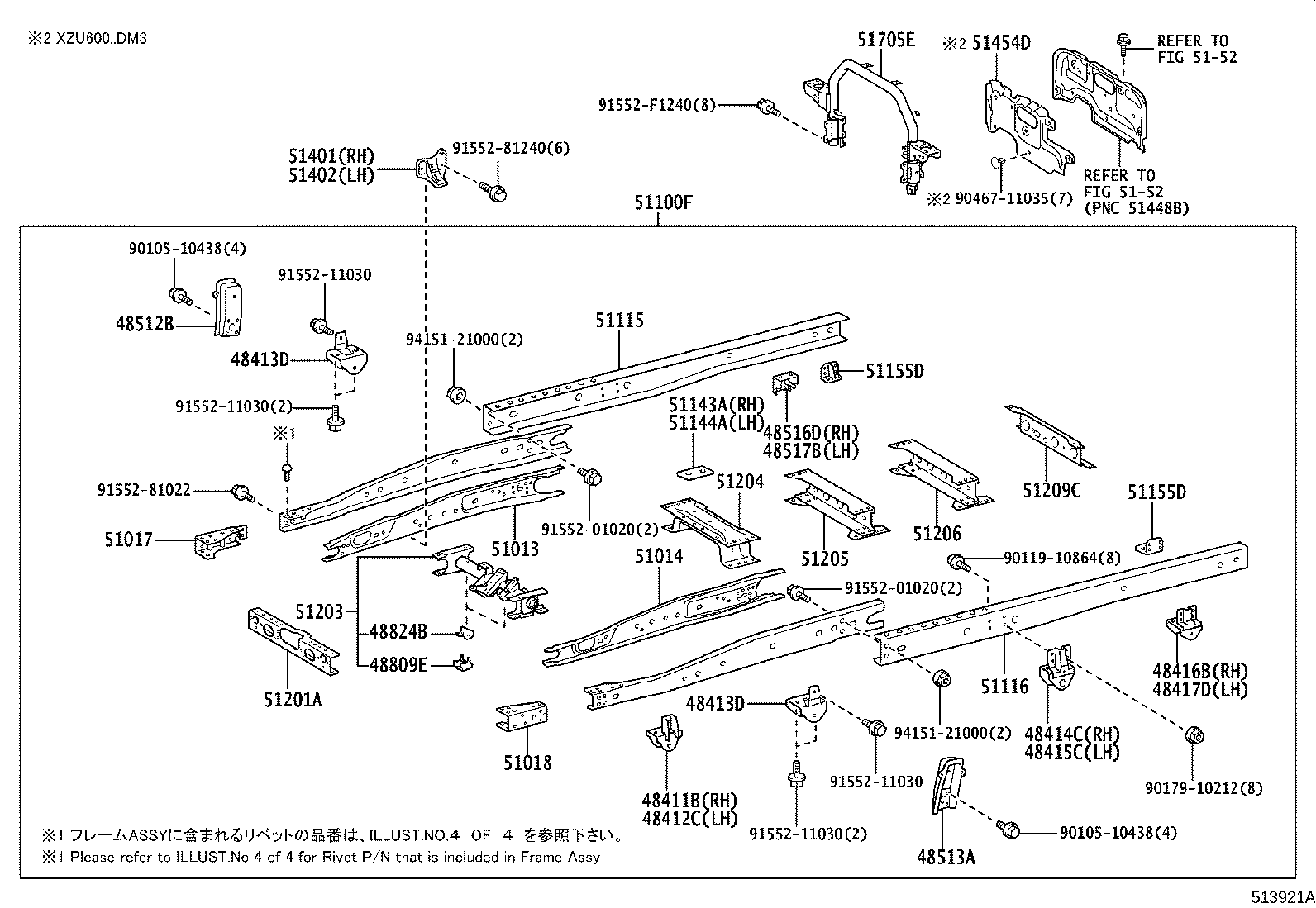

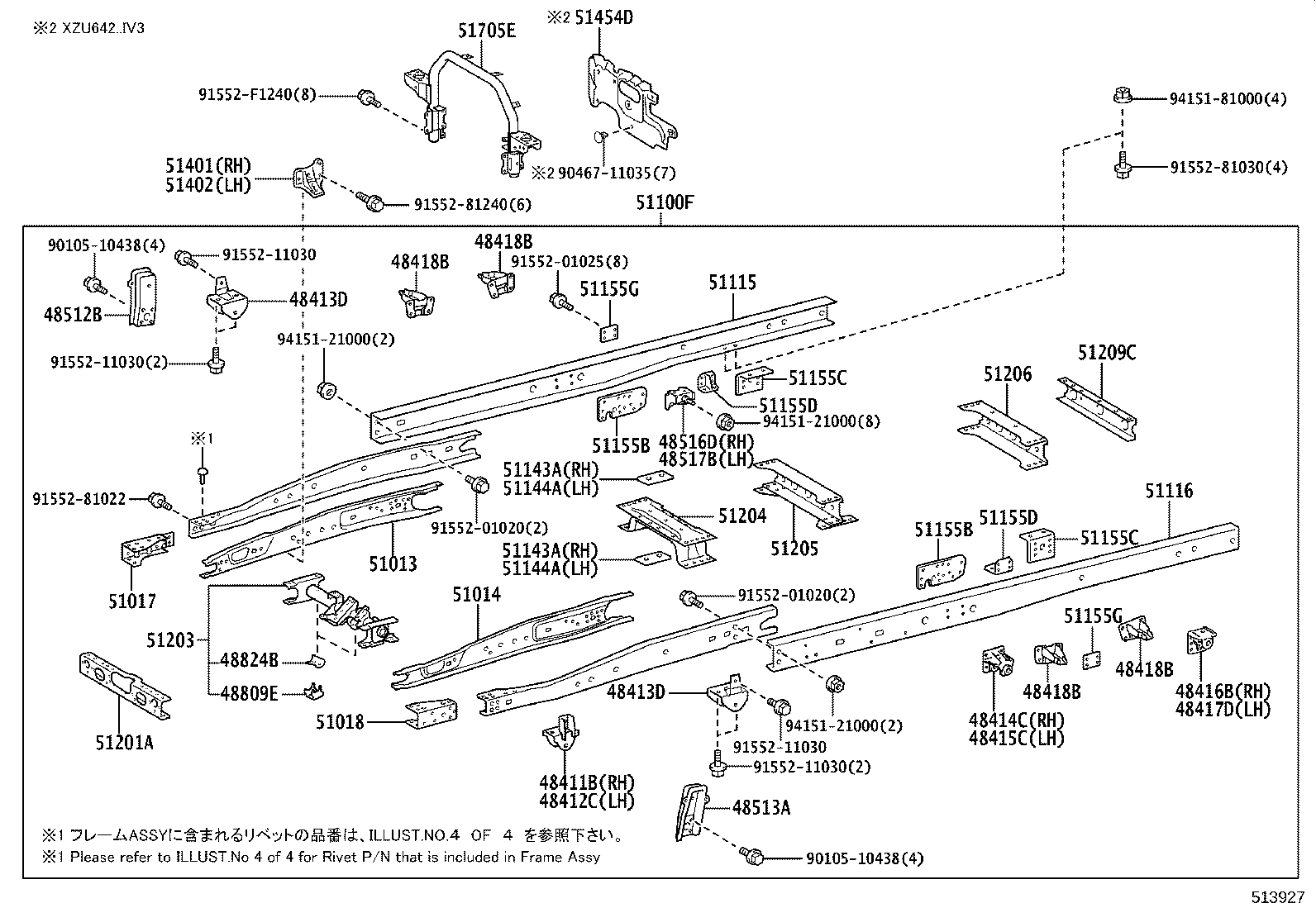

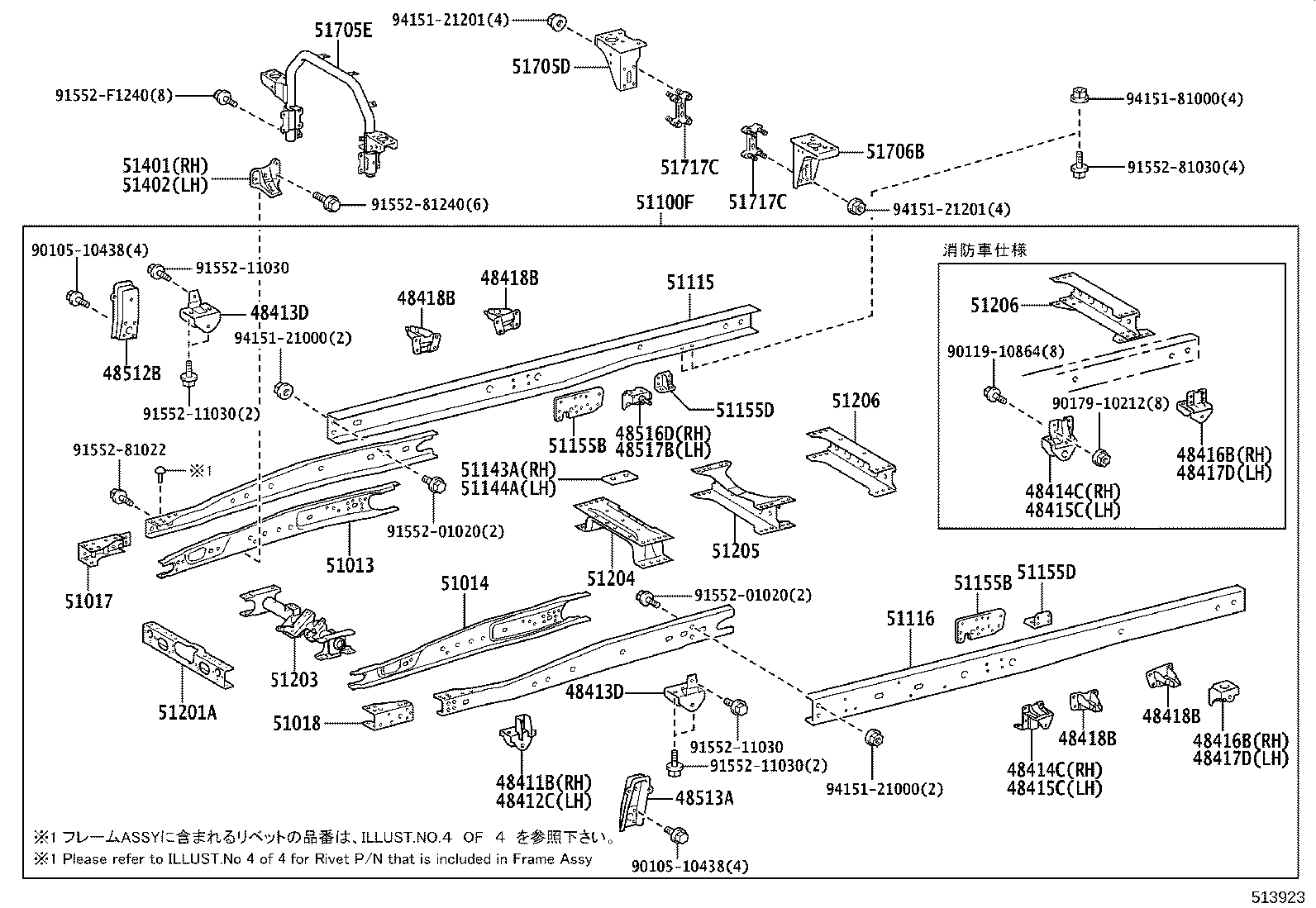

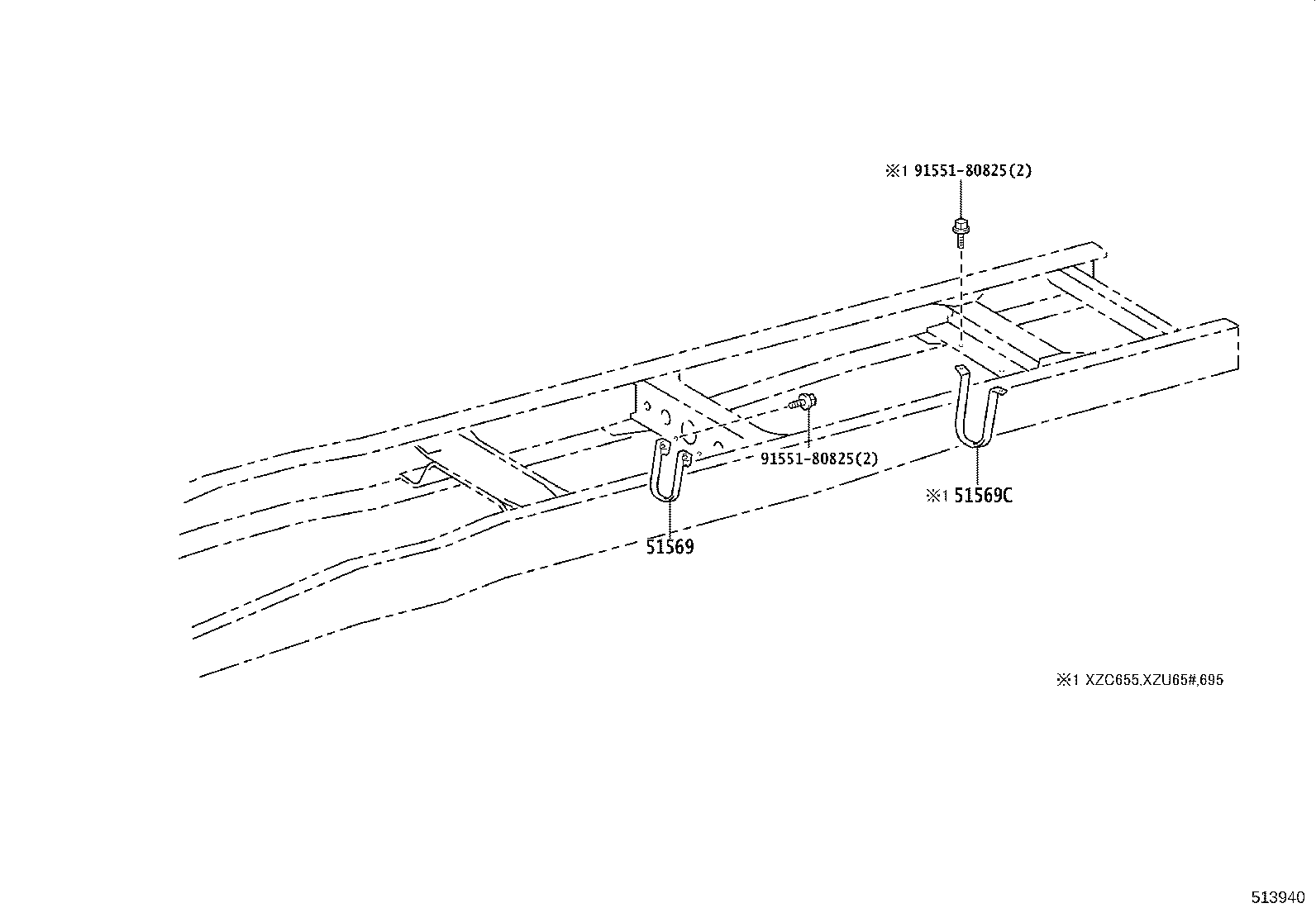

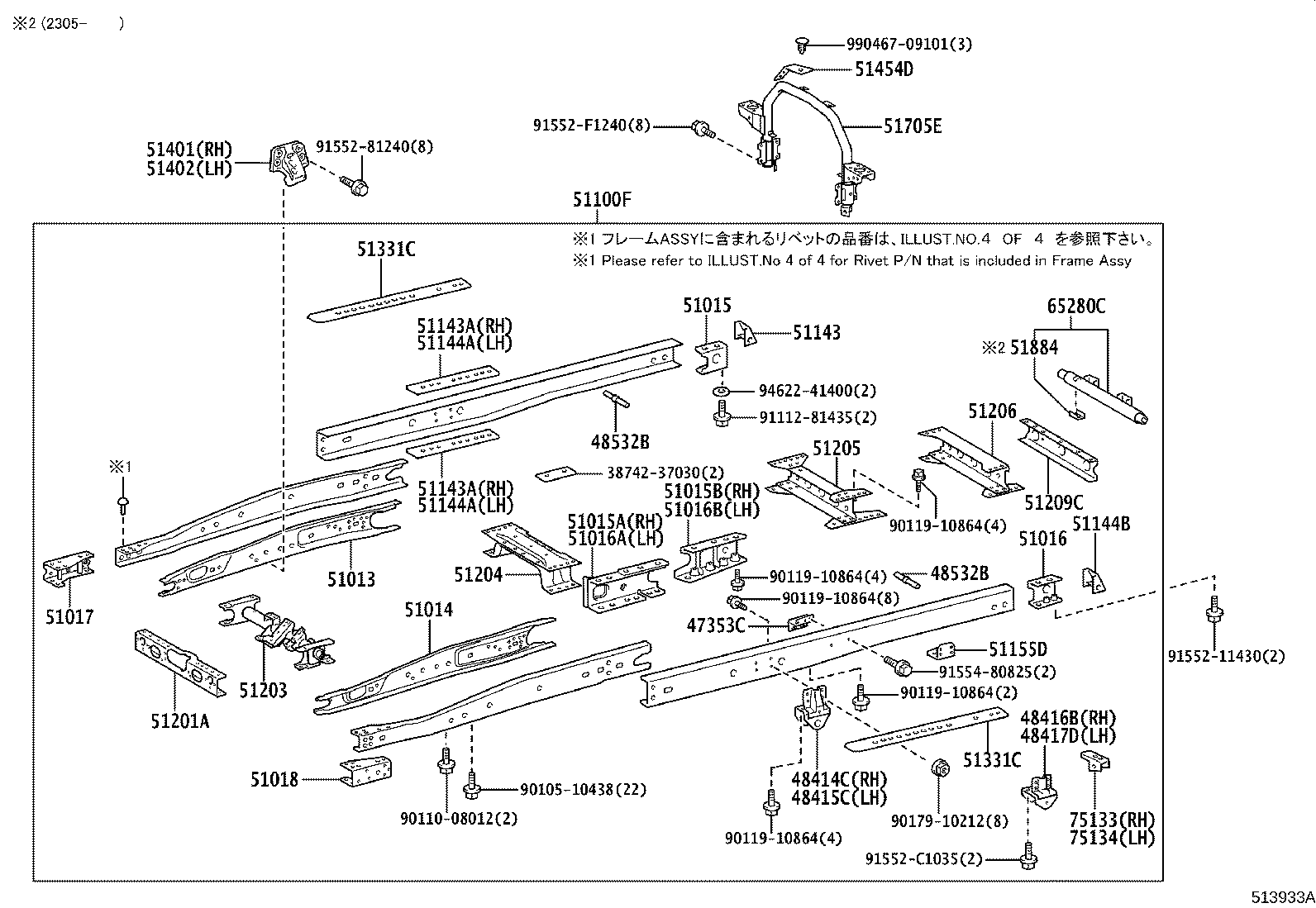

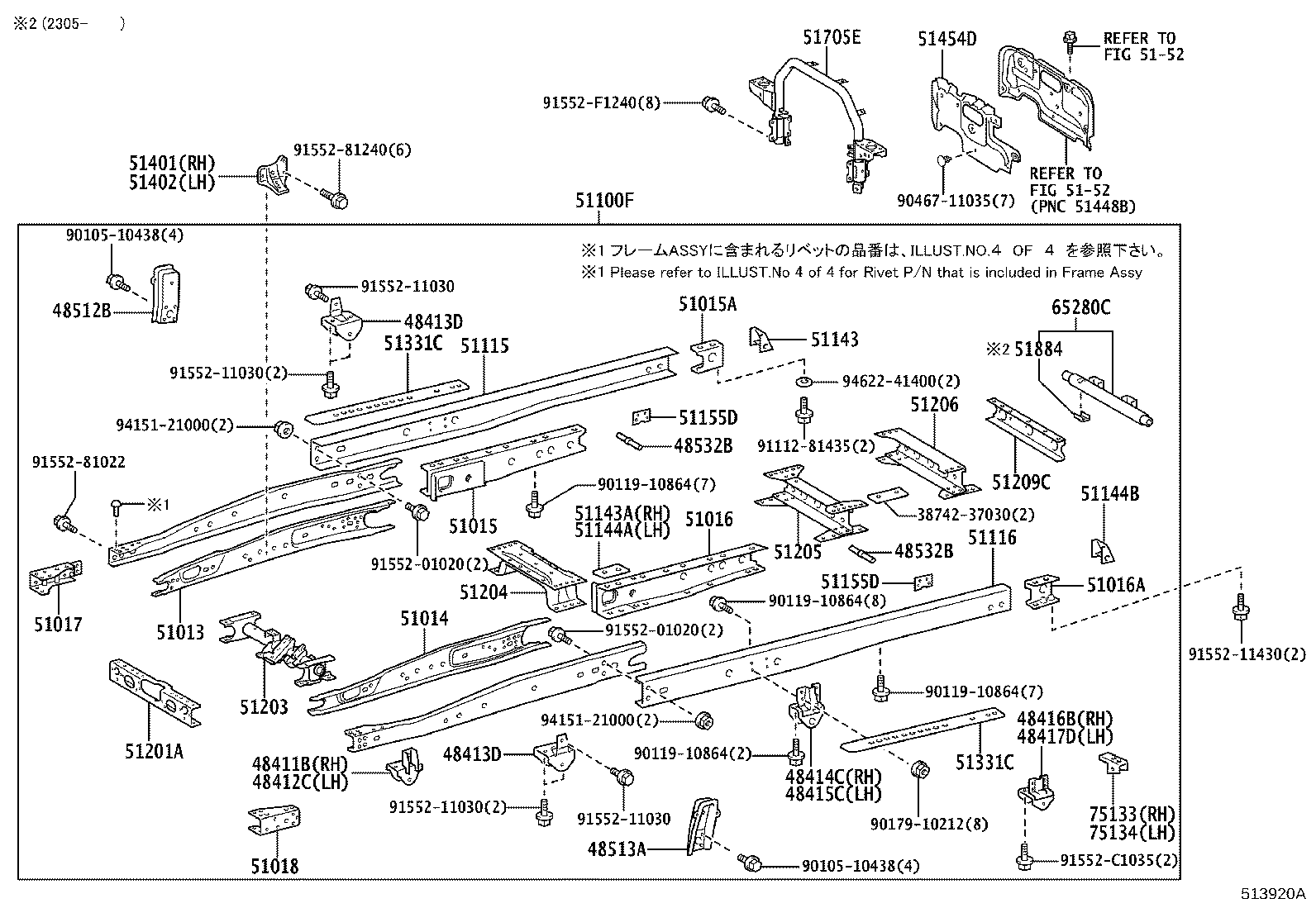

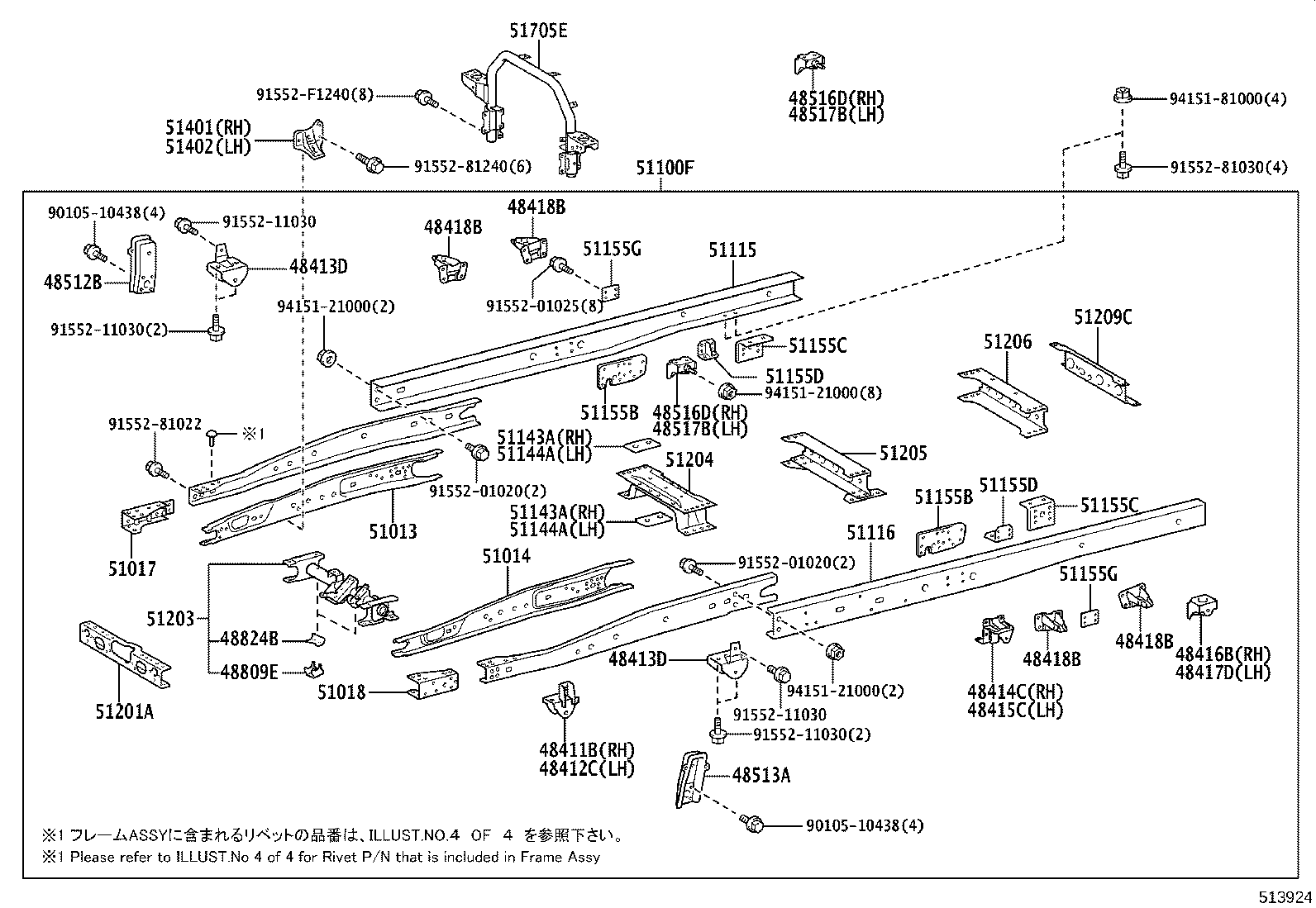

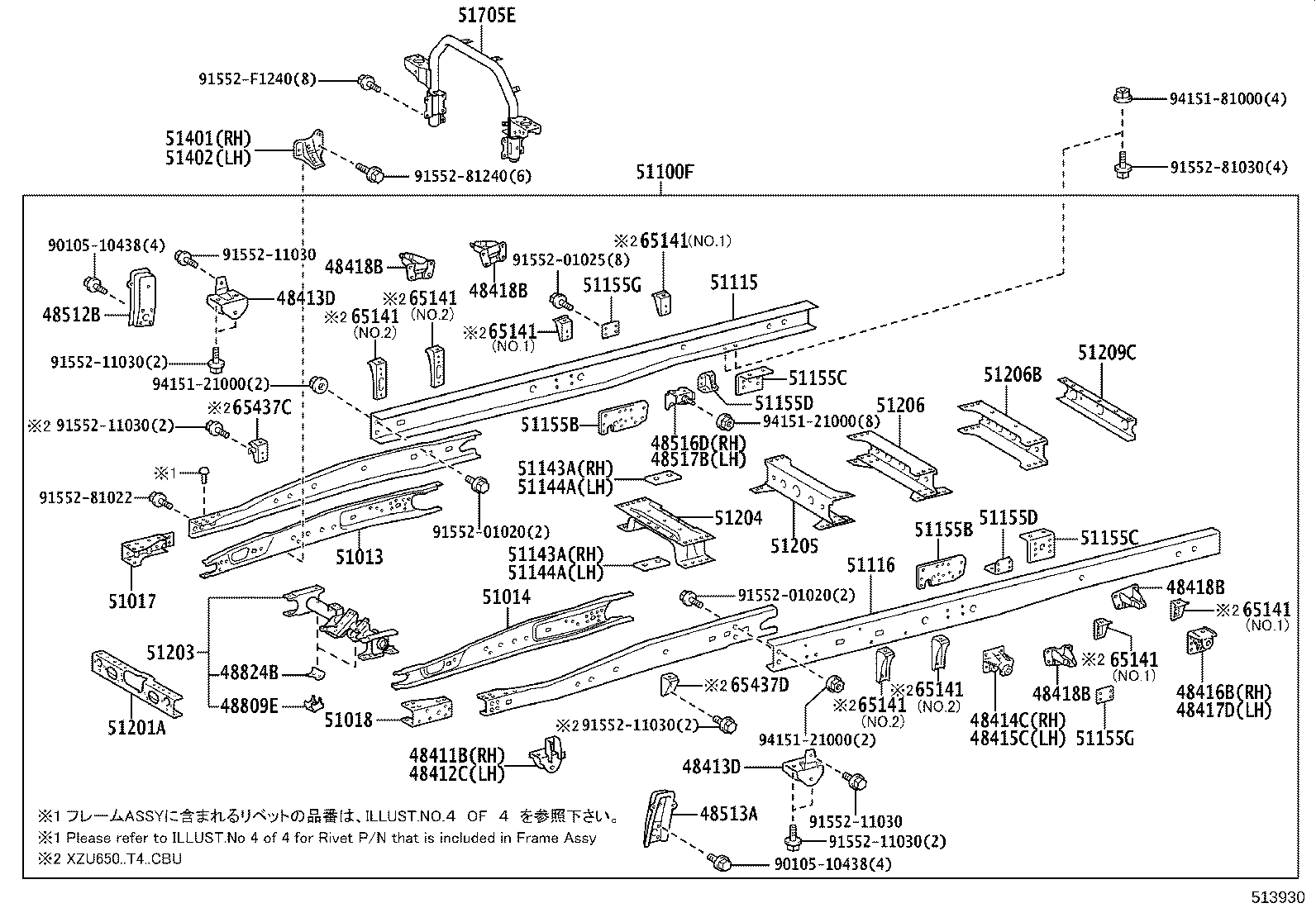

103 part groups · 20 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 17573D | Bracket, Exhaust Pipe Support, NO.3 |
| 38771 | Stay, Trunnion Bracket, RH |
| 38772 | Stay, Trunnion Bracket, LH |
| 47353C | Bracket, Flexible Hose, NO.3 |
| 48331F | Bumper, Front Spring |
| 48331S | Bumper, Front Spring NO.1 |
| 48346A | Stopper, Bumper, FR |
| 48411B | Bracket, Spring, NO.1 RH |
| 48412C | Bracket, Spring, NO.1 LH |
| 48413D | Bracket, Spring, NO.2 |
| 48414C | Bracket, Spring, NO.3 RH |
| 48415C | Bracket, Spring, NO.3 LH |
| 48416B | Bracket, Spring, NO.4 RH |
| 48417D | Bracket, Spring, NO.4 LH |
| 48418B | Bracket, Spring, NO.6 |
| 48419A | Bracket, Spring, NO.7 |
| 48437 | Attachment, Spring Bracket |
| 48512B | Bracket, Front Shock Absorber, Upper RH |
| 48513A | Bracket, Front Shock Absorber, Upper LH |
| 48516D | Bracket Sub-assy, Rear Shock Absorber, Upper RH |
| 48517B | Bracket Sub-assy, Rear Shock Absorber, Upr LH |
| 48532B | Pin, Rear Shock Absorber Upper Pivot |
| 48543A | Reinforcement, Front Absorber Bracket, RH |
| 48544A | Reinforcement, Front Absorber Bracket, LH |
| 48809E | Bracket Sub-assy, Stabilizer |
| 48824B | Bracket, Stabilizer |
| 51013 | Channel Sub-assy, Side Rail, Inner Front RH |
| 51014 | Channel Sub-assy, Side Rail, Inner Front LH |
| 51015 | Channel Sub-assy, Side Rail, Inner Rear RH, NO.1 |
| 51015A | Channel Sub-assy, Side Rail, Inner Rear RH, NO.2 |
| 51015B | Channel Sub-assy, Side Rail, Inner Rear RH, NO.3 |
| 51016 | Channel Sub-assy, Side Rail, Inner Rear LH, NO.1 |
| 51016A | Channel Sub-assy, Side Rail, Inner Rear LH, NO.2 |
| 51016B | Channel Sub-assy, Side Rail, Inner Rear LH, NO.3 |
| 51017 | Reinforcement Sub-assy, Side Rail, NO.1 RH |
| 51018 | Reinforcement Sub-assy, Side Rail, NO.1 LH |
| 51032A | Member Sub-assy, Anchor Arm Support |
| 5103C | Plate Sub-assy, Side Rail Extension, RH |
| 51065 | Support Sub-assy, Steering Gear Box |
| 51100F | Frame Sub-assy |
| 51101A | Rail Sub-assy, Front Frame Side, RH |
| 51102A | Rail Sub-assy, Front Frame Side, LH |
| 51107A | Reinforcement Sub-assy, Side Rail, Rear RH |
| 51108A | Reinforcement Sub-assy, Side Rail, Rear LH |
| 51115 | Rail, Frame Side, Rear RH |
| 51116 | Rail, Frame Side, Rear LH |
| 51143 | Reinforcement, Side Rail, Rear RH |
| 51143A | Reinforcement, Side Rail, Front RH |
| 51144A | Reinforcement, Side Rail, Front LH |
| 51144B | Reinforcement, Side Rail, Rear LH |
| 51155B | Stiffener, Frame Side Rail, Rear NO.2 |
| 51155C | Stiffener, Frame Side Rail, Rear NO.3 |
| 51155D | Stiffener, Frame Side Rail, Rear NO.1 |
| 51155G | Stiffener, Frame Side Rail, Rear NO.4 |
| 51201A | Crossmember Sub-assy, Frame, Front |
| 51201F | Crossmember Sub-assy, Front Suspension |
| 51203 | Crossmember Sub-assy, Frame, NO.2 |
| 51204 | Crossmember Sub-assy, Frame, NO.3 |
| 51205 | Crossmember Sub-assy, Frame, NO.4 |
| 51206 | Crossmember Sub-assy, Frame, NO.5 |
| 51206B | Crossmember Sub-assy, Frame, NO.6 |
| 51209C | Crossmember Sub-assy, Frame, Rear |
| 51210A | Member Assy, Front Suspension |
| 51217 | Reinforcement, Front Crossmember, Lower RH |
| 51331C | Gusset, Frame NO.3 Crossmember |
| 51349A | Reinforcement, Rear Spring Front Bracket, NO.2 |
| 51357 | Reinforcement, Rear Spring Rear Bracket, RH |
| 51401 | Bracket Sub-assy, Engine Front Mounting, RH |
| 51402 | Bracket Sub-assy, Engine Front Mounting, LH |
| 51454D | Silencer, Engine Rear Cover |
| 51491A | Bar, Under Guard, Front NO.1 |
| 51492B | Bar, Under Guard, Front NO.2 |
| 51493A | Bracket, Under Guard, Front NO.1 |
| 51501 | Support Sub-assy, Suspension Arm, RH |
| 51502 | Support Sub-assy, Suspension Arm, LH |
| 51508A | Bracket Sub-assy, Lower Arm, RH |
| 51508D | Support Sub-assy, Stabilizer, RH |
| 51509 | Support Sub-assy, Stabilizer |
| 51509A | Bracket Sub-assy, Lower Arm, LH |
| 51523 | Reinforcement, Upper Control Arm Support, RH |
| 51528B | Bracket, Lower Arm Support, Rear RH |
| 51529B | Bracket, Lower Arm Support, Rear LH |
| 51568A | Support, Anchor Arm, Lower RH |
| 51569 | Guard, Propeller Shaft |
| 51569B | Support, Anchor Arm, Lower LH |
| 51569C | Guard, Propeller Shaft |
| 51677 | Bracket, Steering Gear Box |
| 51705D | Bracket Sub-assy, Cab Rear Mounting, RH |
| 51705E | Bracket Sub-assy, Cab Rear Mounting |
| 51706B | Bracket Sub-assy, Cab Mounting, NO.3 LH |
| 51717C | Plate, Body Support Bracket |
| 51733 | Bracket, Cab Rear Mounting, NO.2 RH |
| 51734 | Bracket, Cab Rear Mounting, NO.2 LH |
| 51884 | Support, Vessel Hinge Shaft |
| 65141 | Support, Main Sill |
| 65280C | Shaft Assy, Vessel Hinge |
| 65289A | Support, Vessel Hinge |
| 65361A | Stay, Vessel Lock, RH |
| 65362A | Stay, Vessel Lock, LH |
| 65437C | Support, Rear Body Guard Frame, RH |
| 65437D | Support, Rear Body Guard Frame, LH |
| 75133 | Base, Combination Rear Lamp Bracket, RH |
| 75134 | Base, Combination Rear Lamp Bracket, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
