Toyota Dyna

2021-03 → present · chassis XZC6##,XZU6## · catalogue 7511A0 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

40 part groups · 26 illustrations

Illustrations

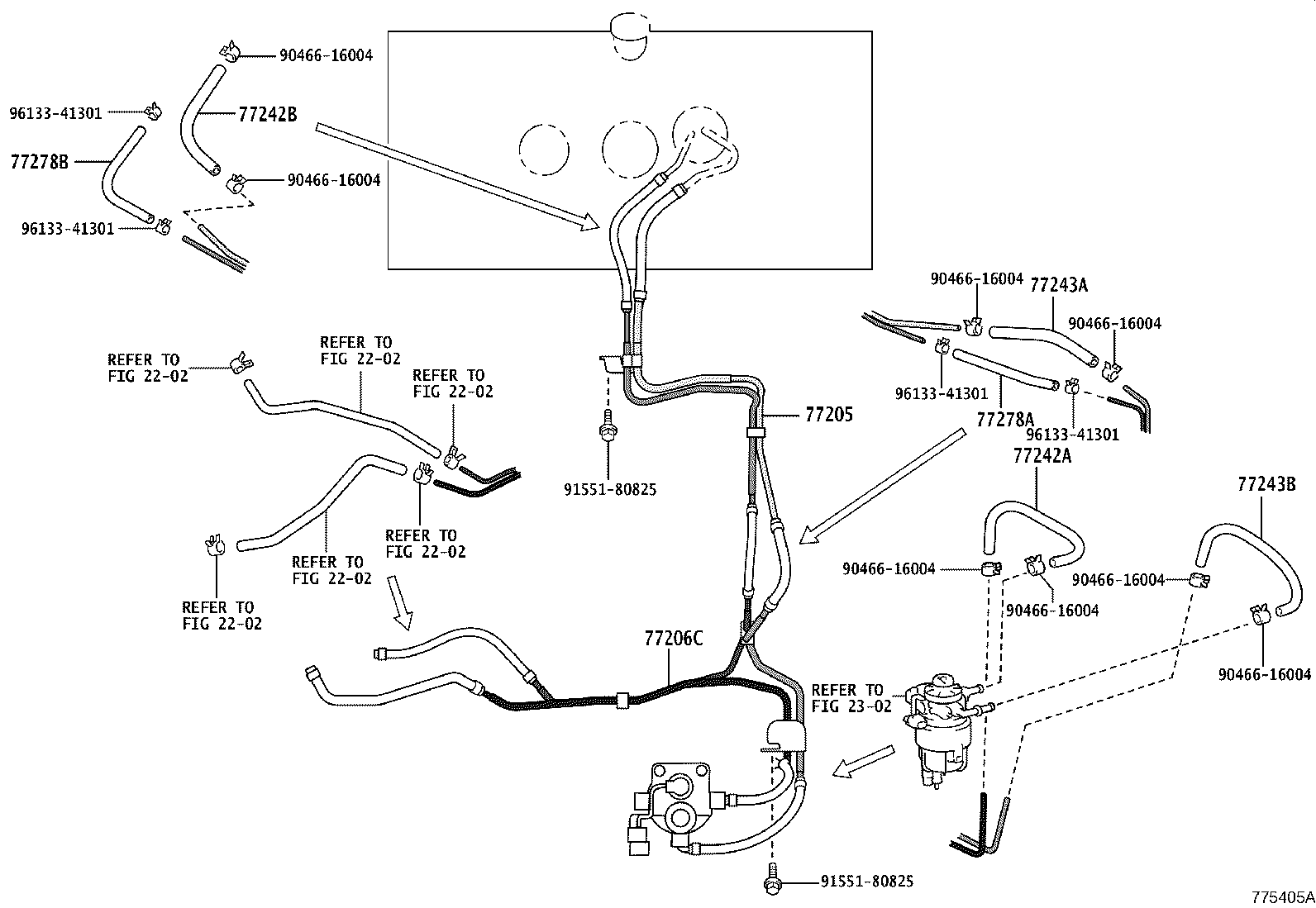

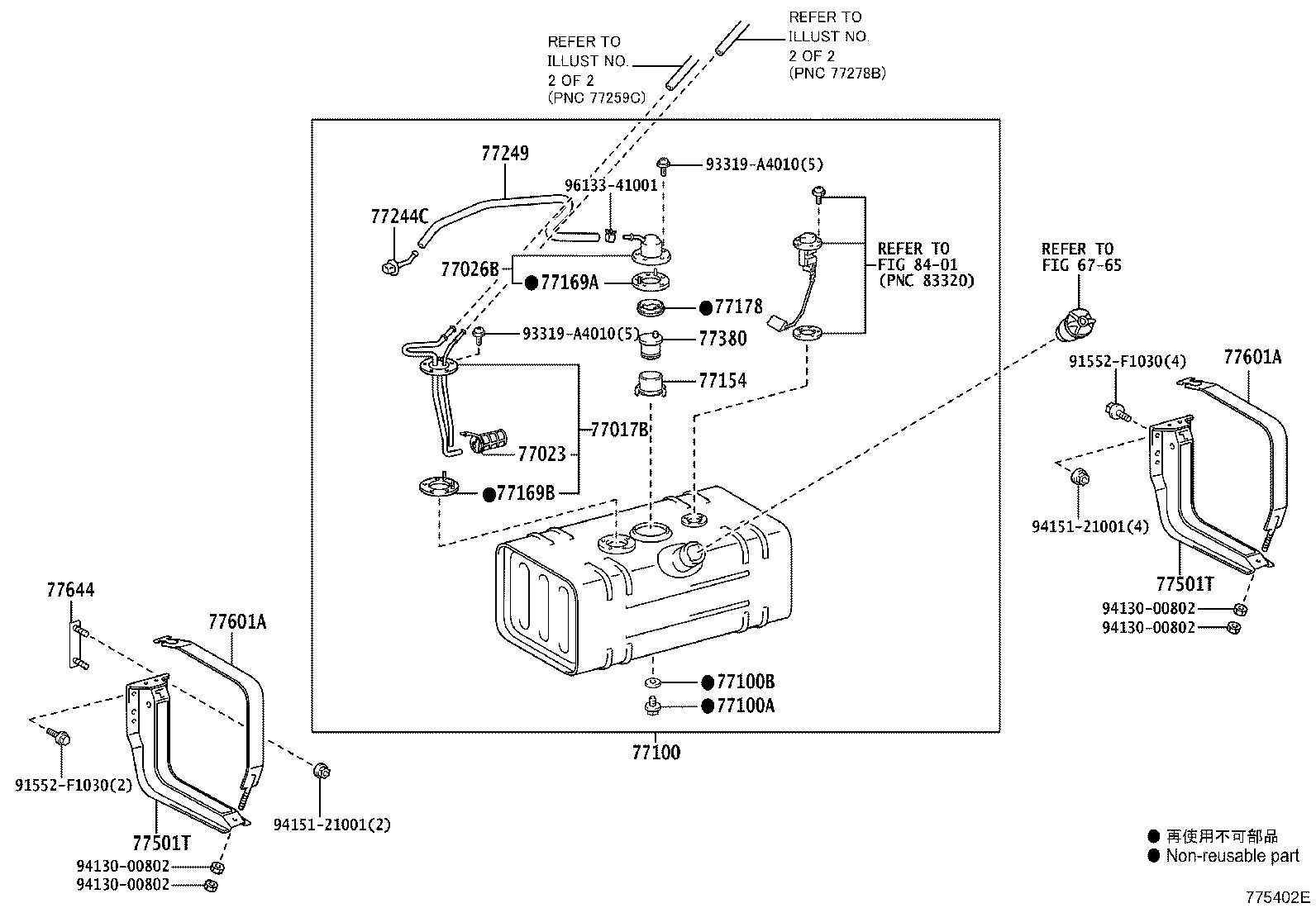

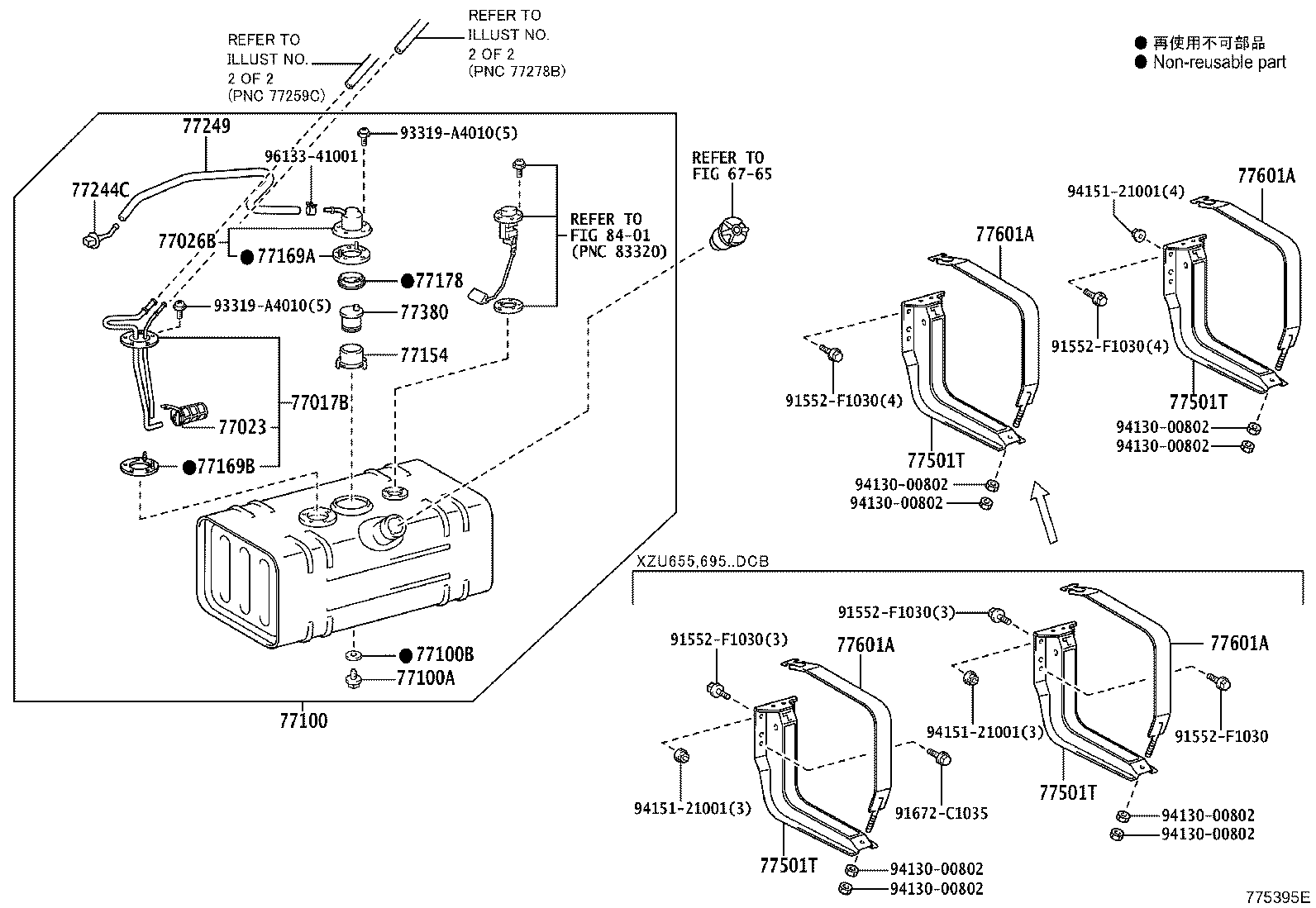

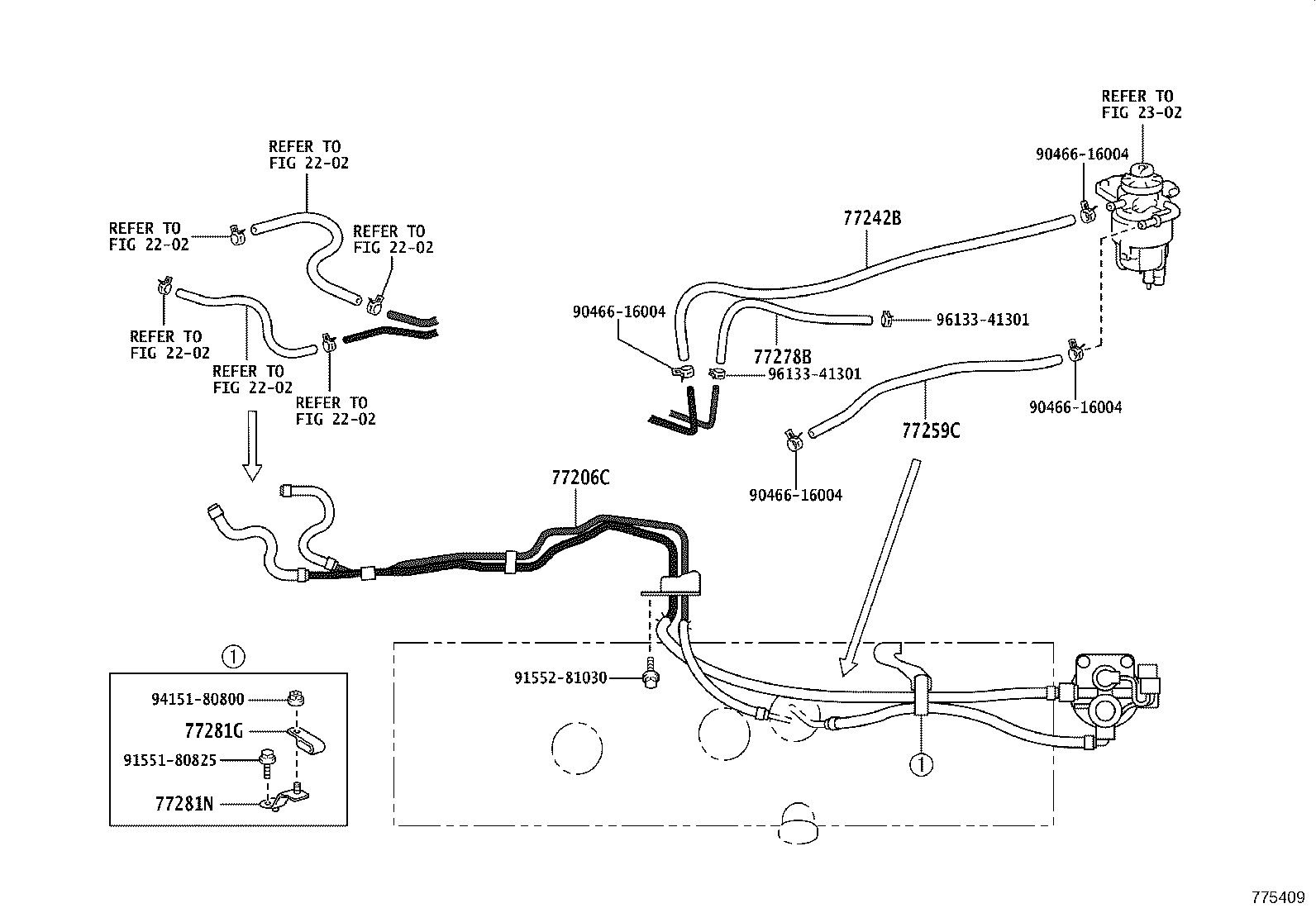

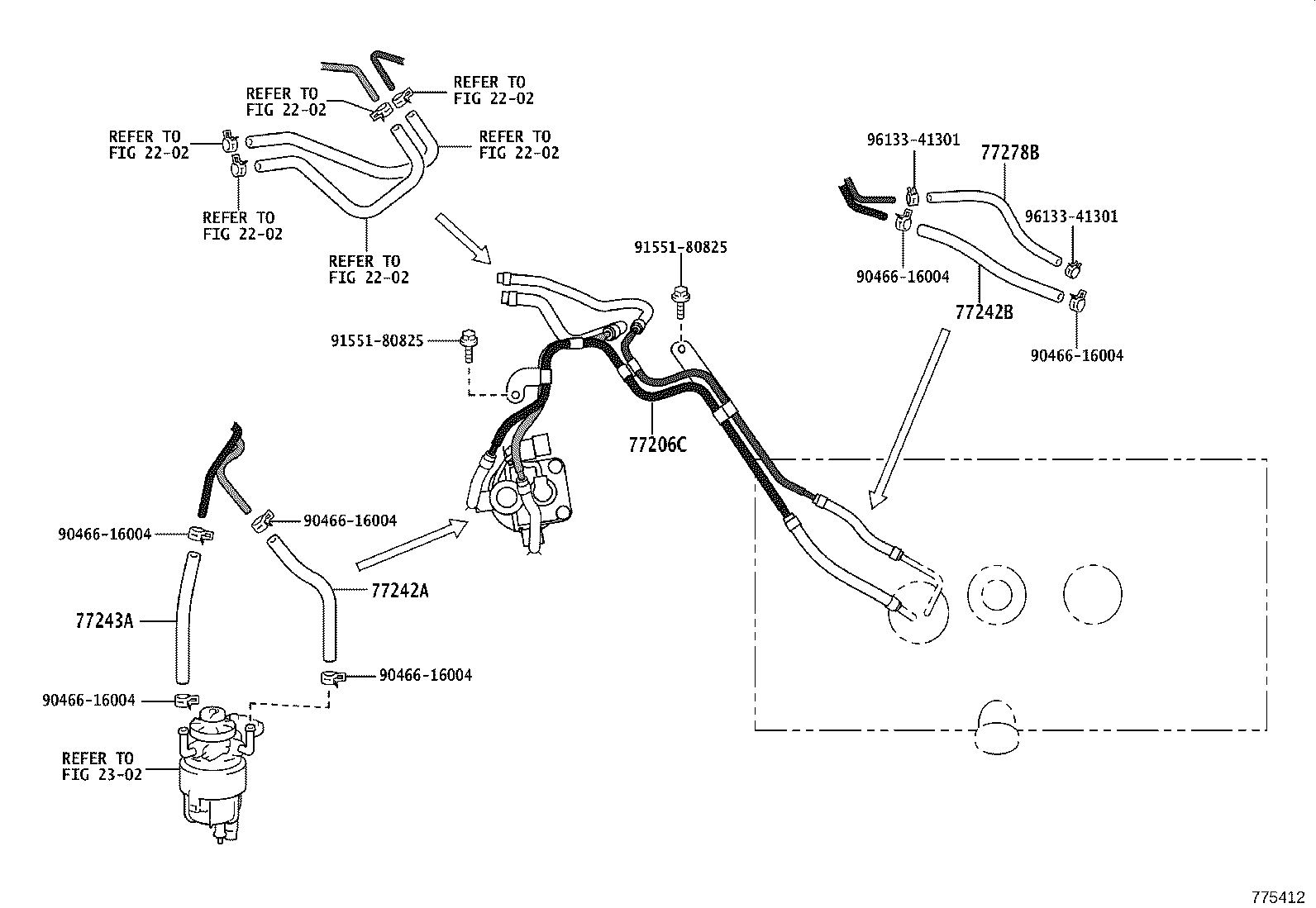

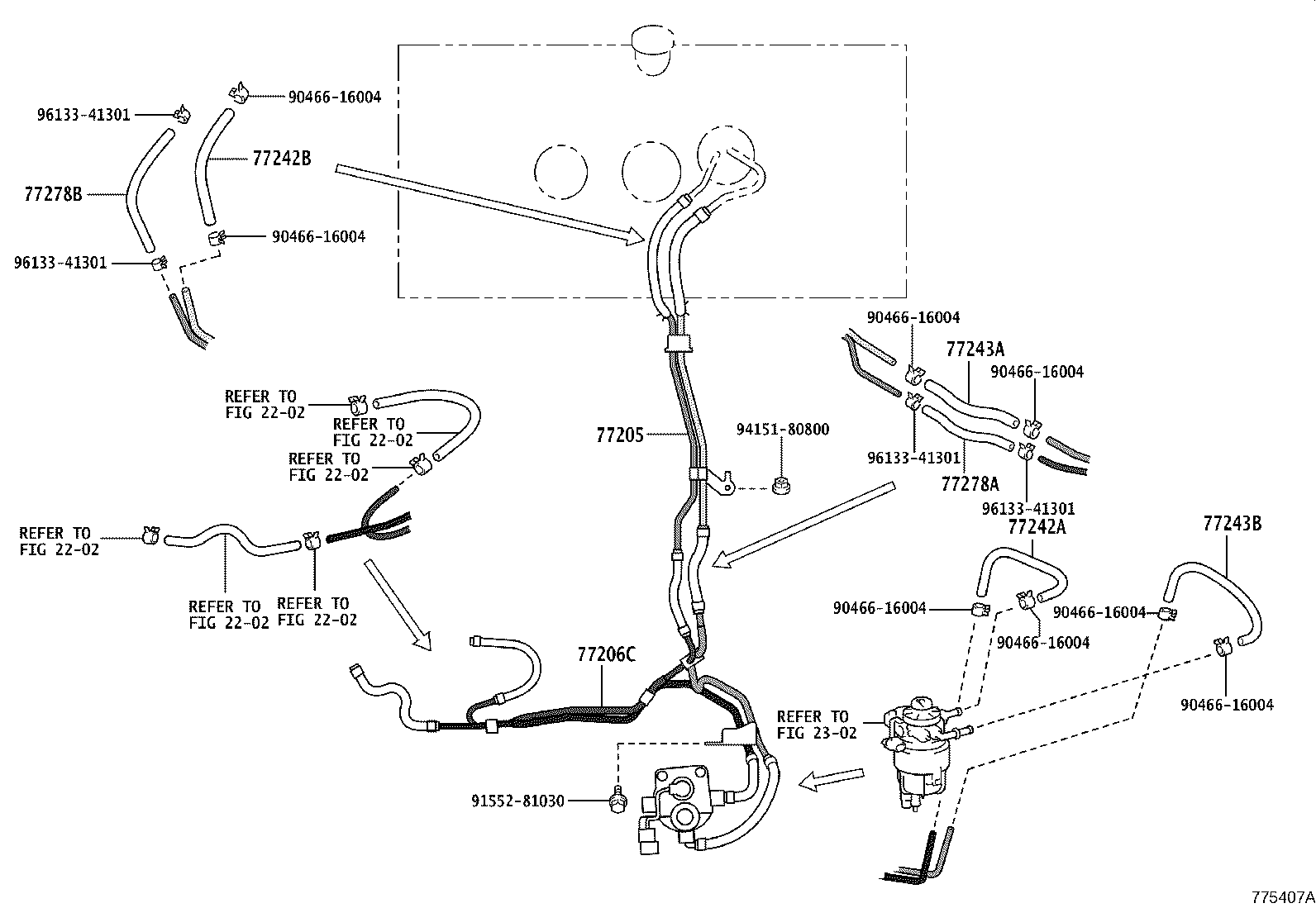

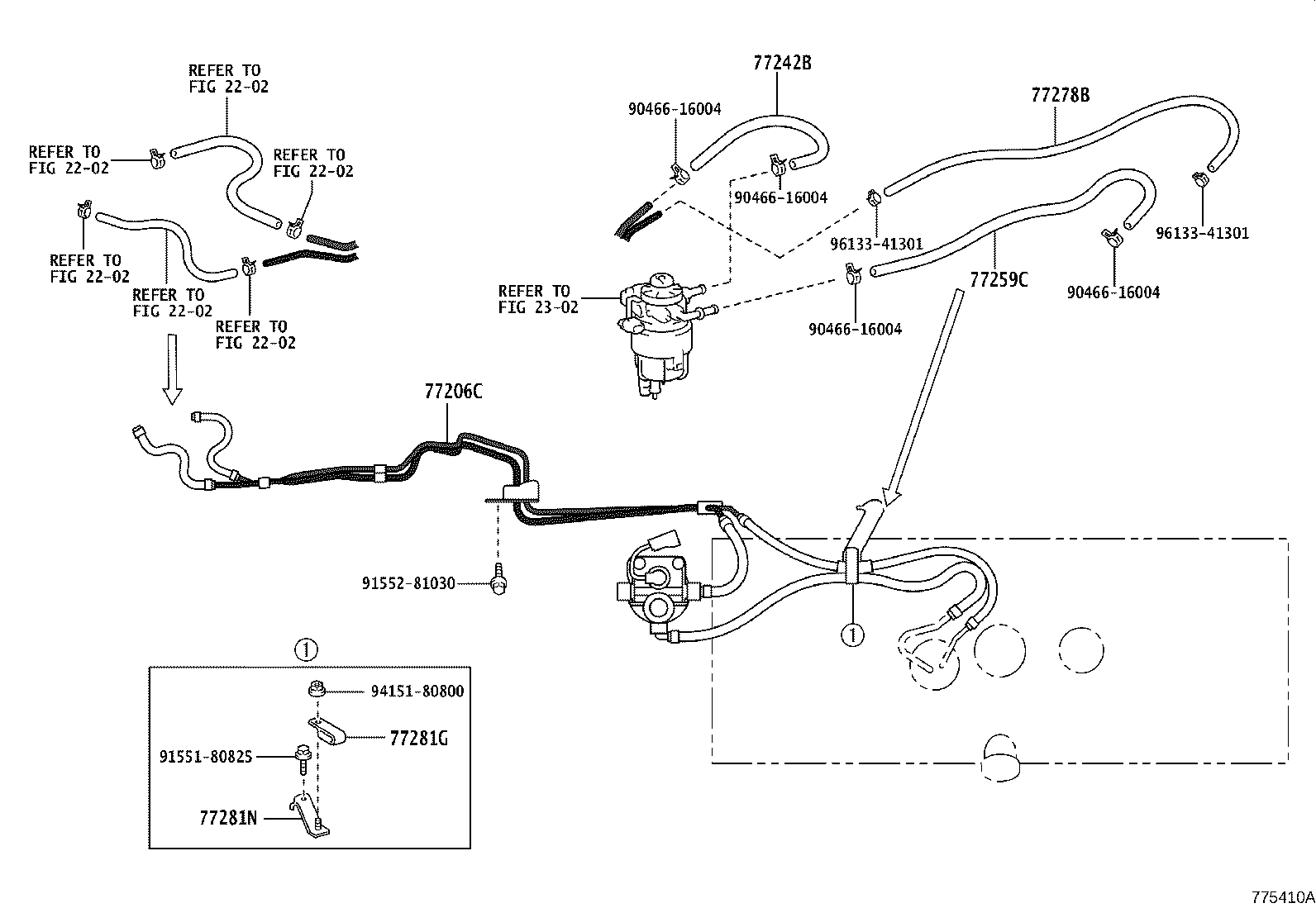

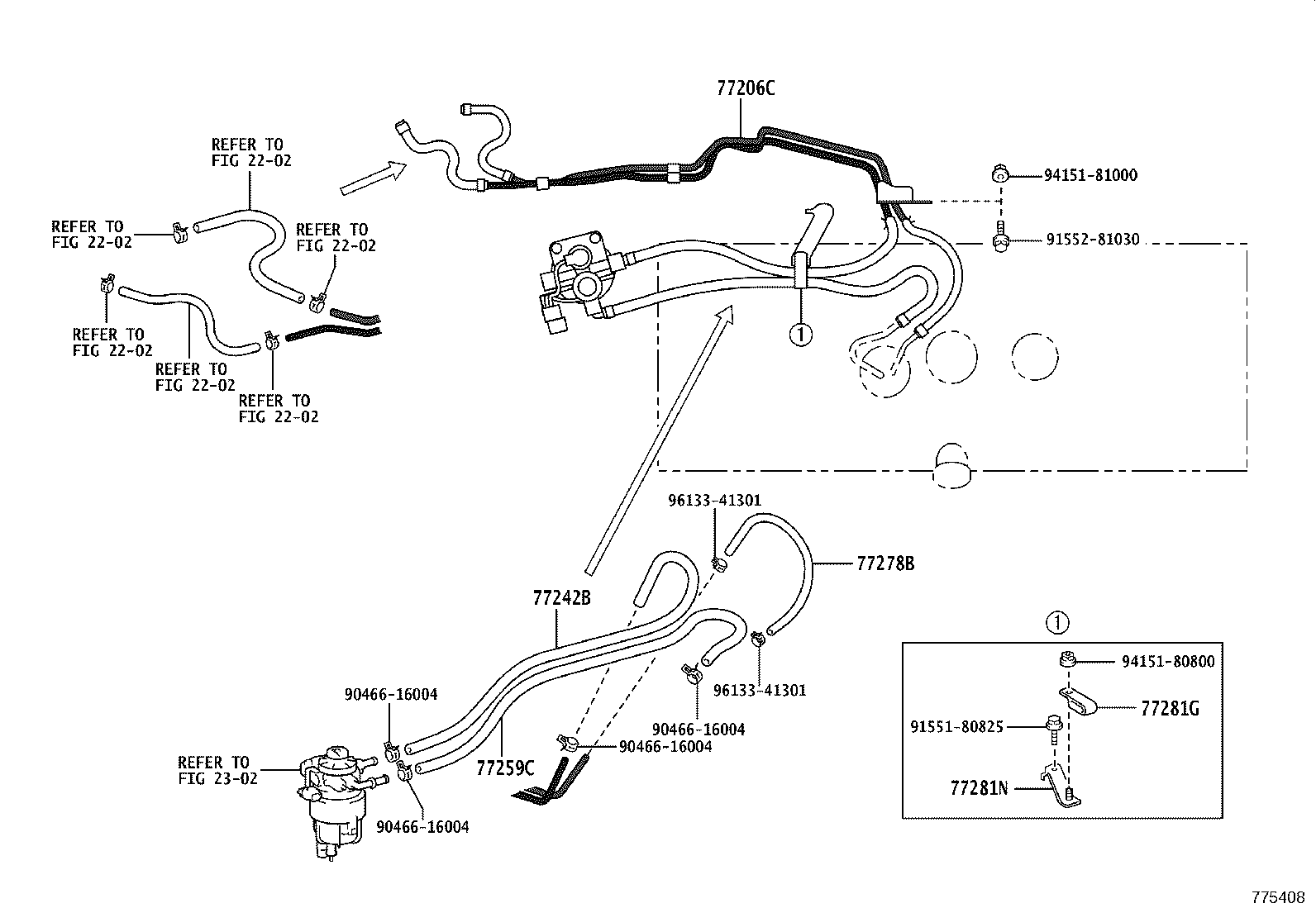

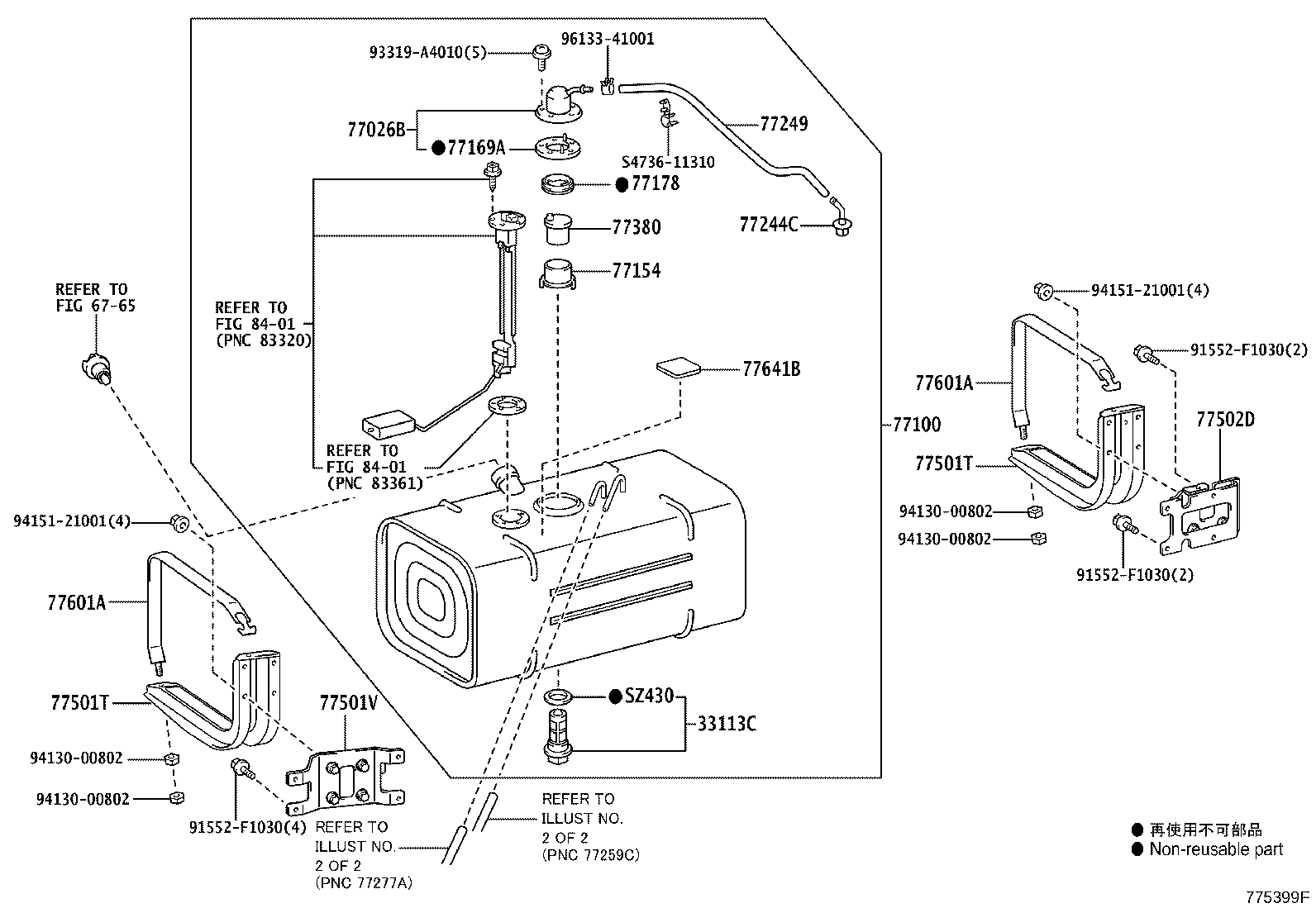

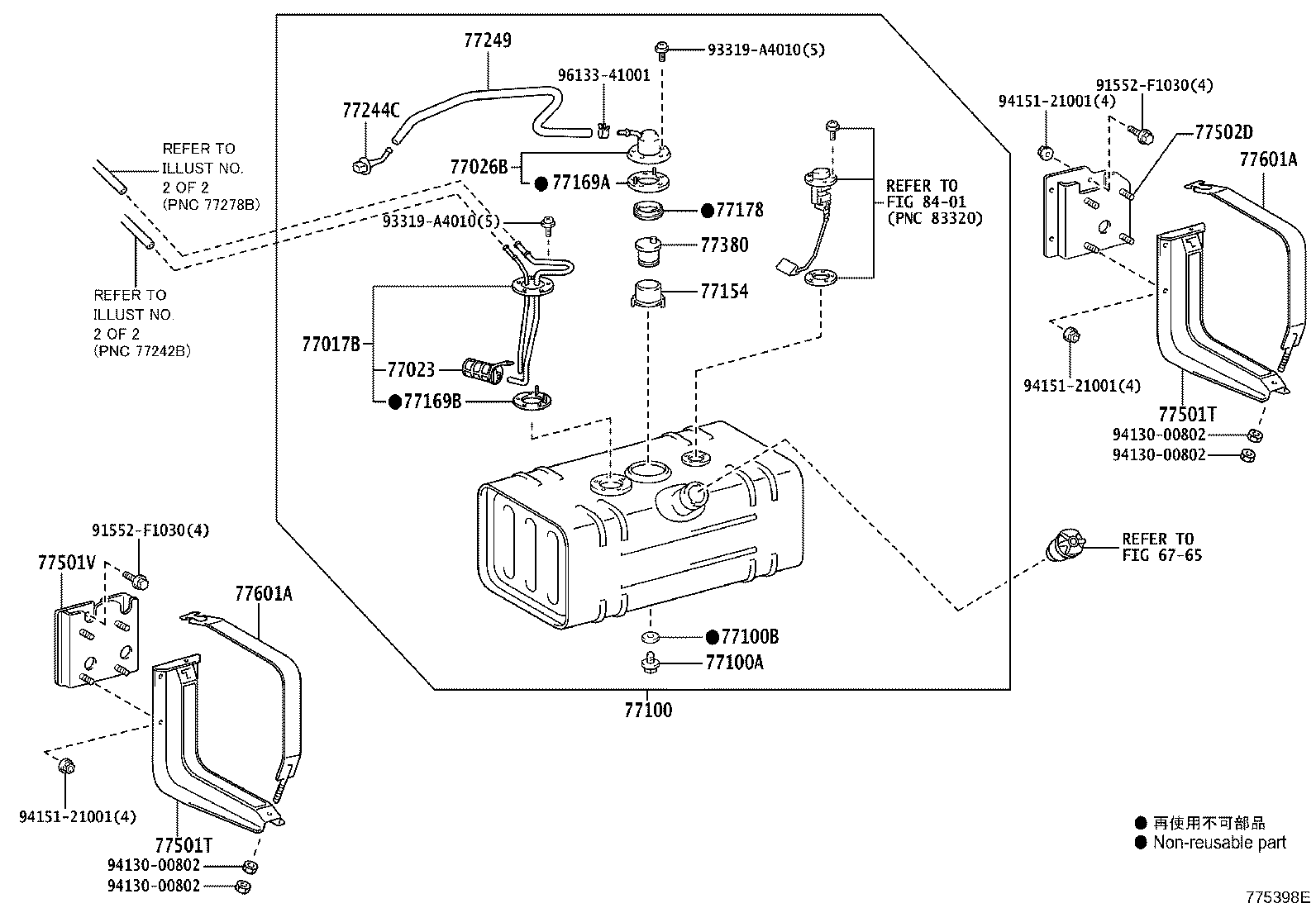

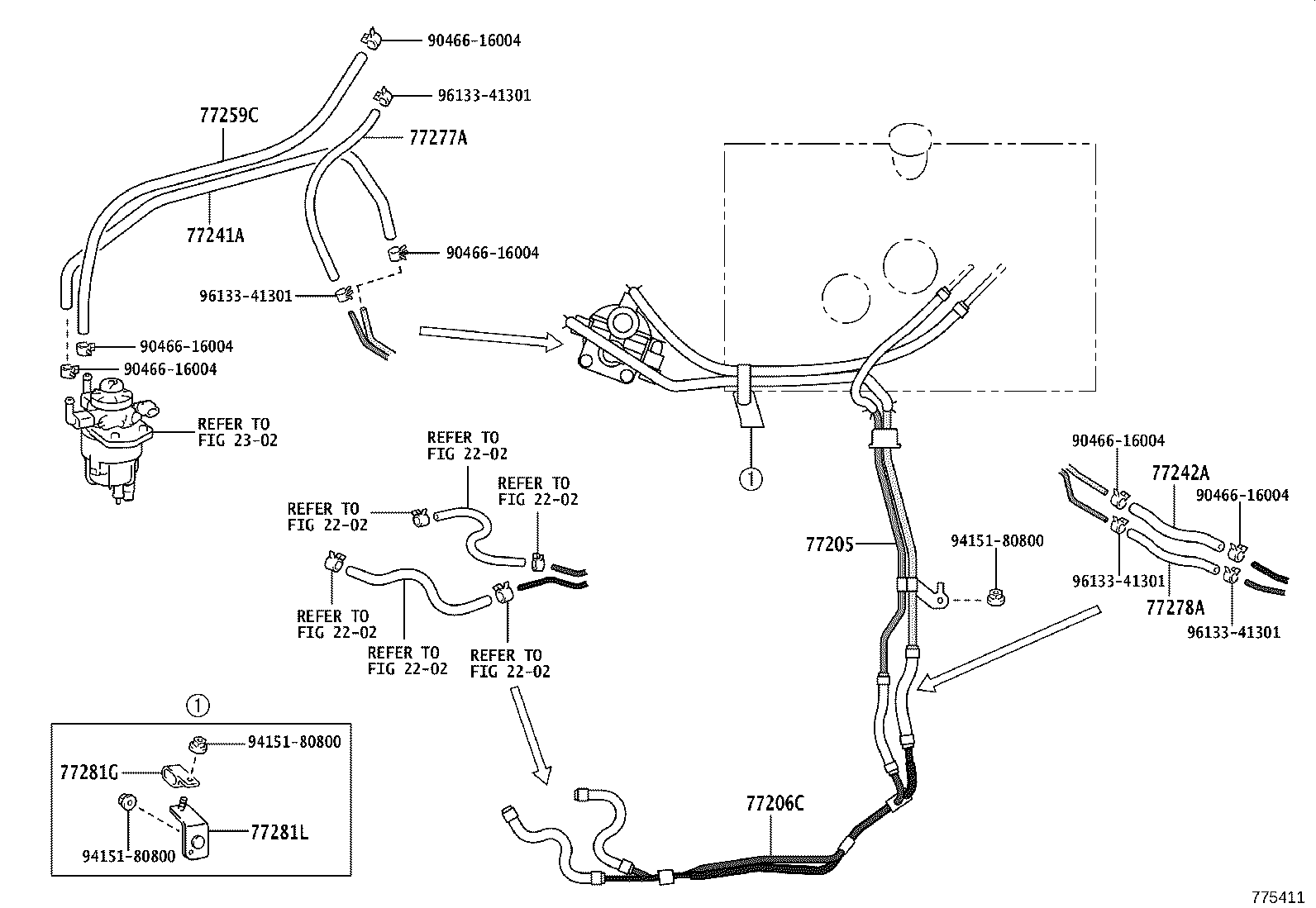

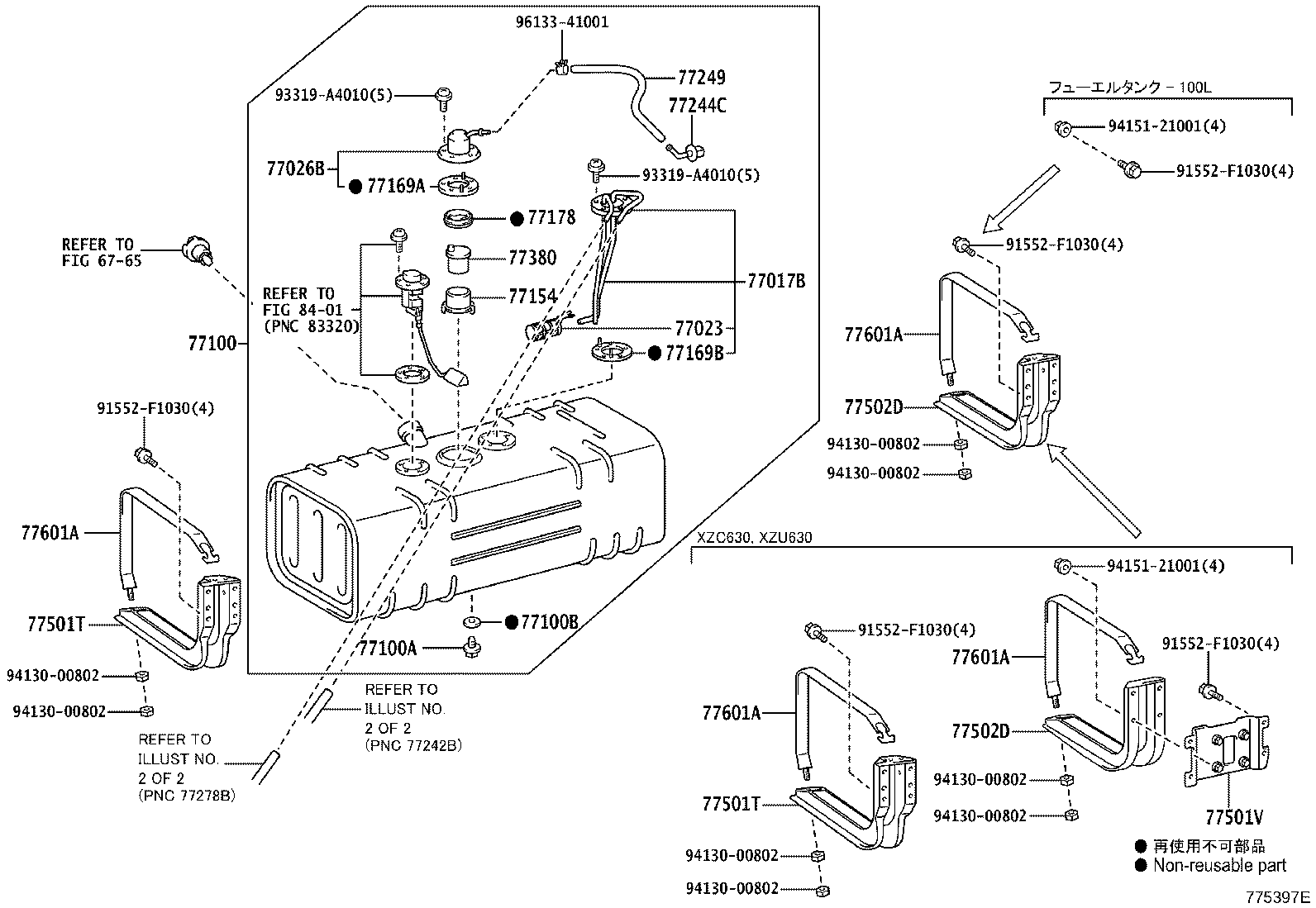

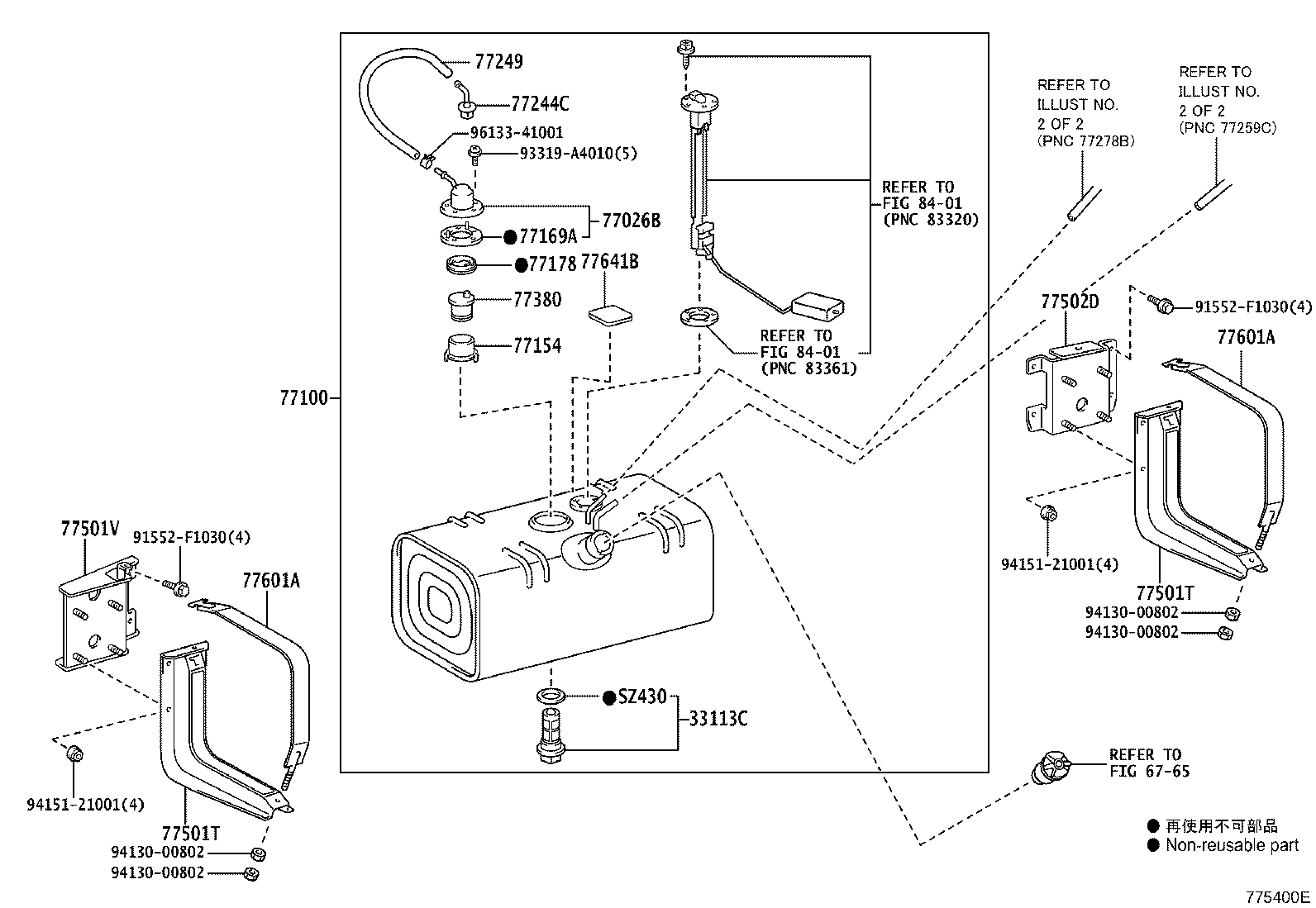

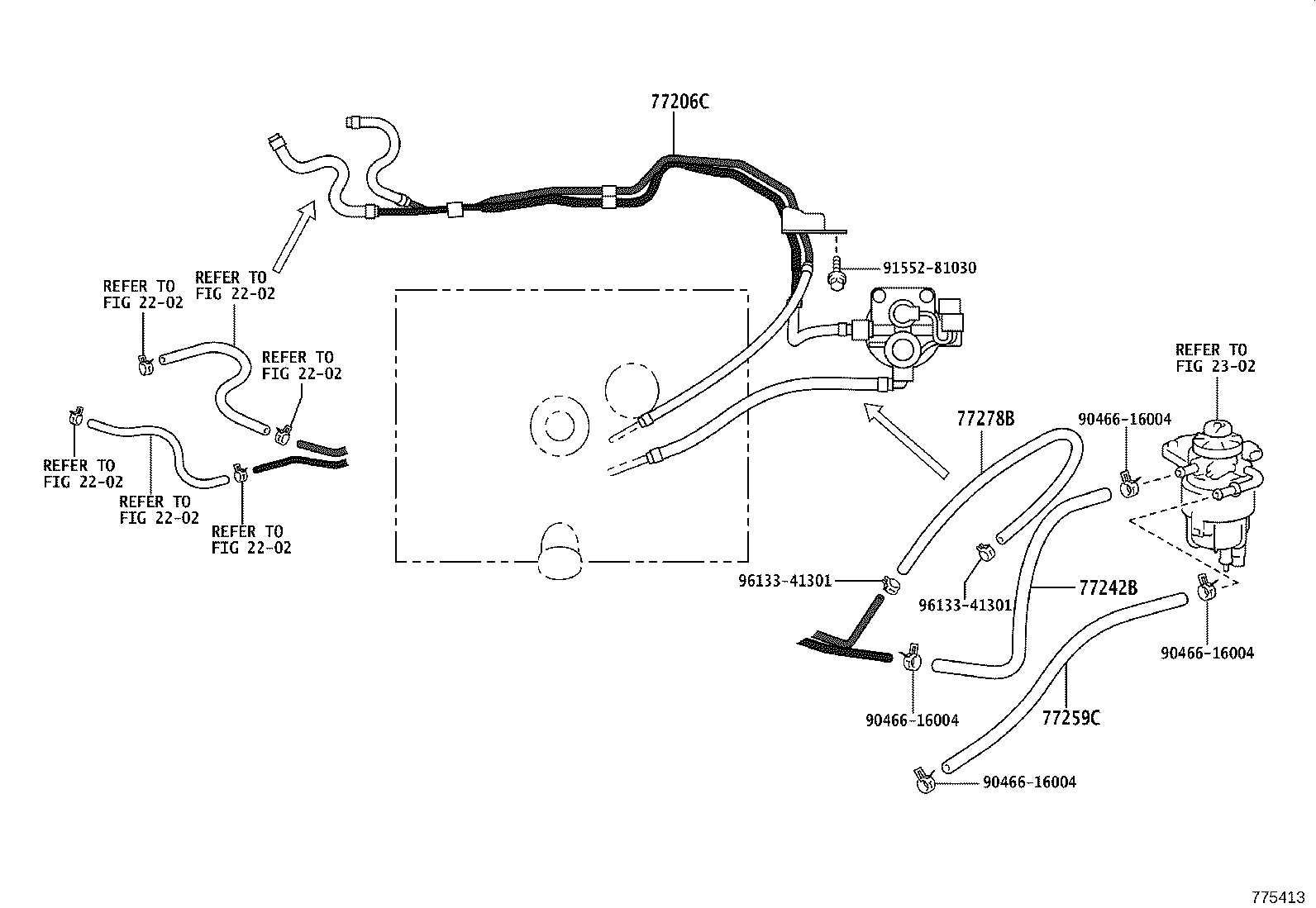

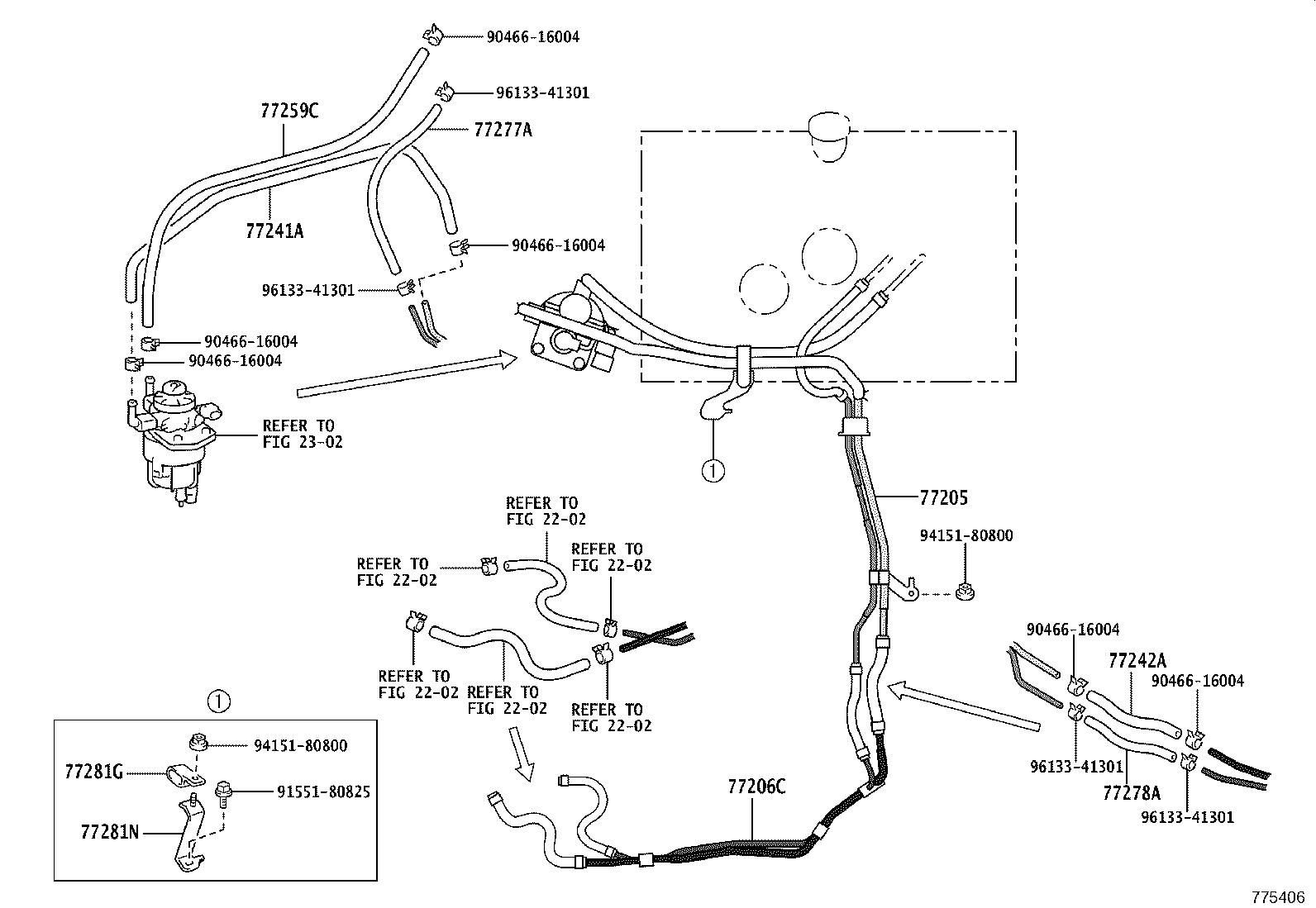

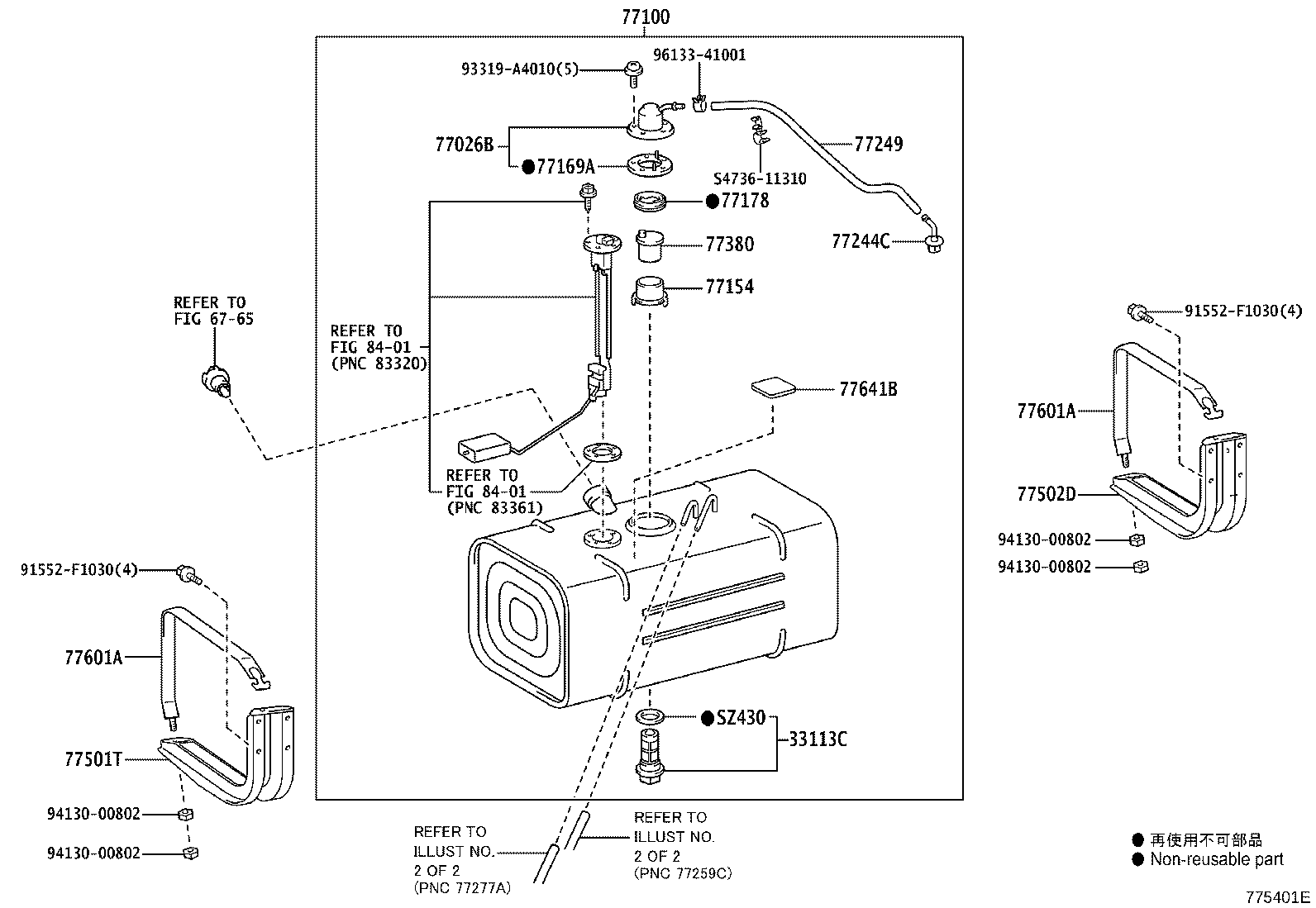

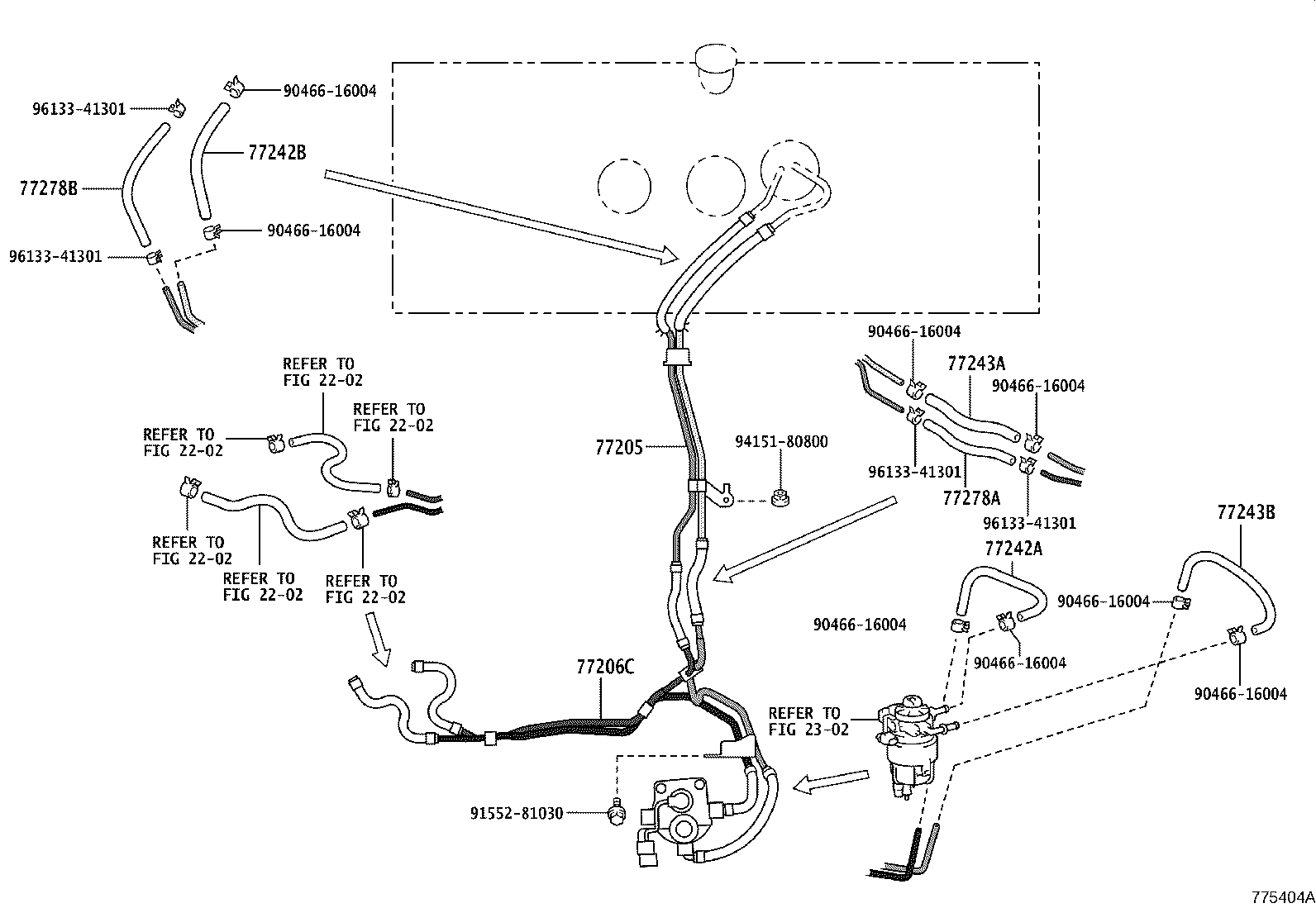

Figure 775394E 775394E 2021-03 → — Figure 775395E 775395E 2021-03 → — Figure 775395E 775395E 2021-03 → — Figure 775397E 775397E 2021-03 → — Figure 775397E 775397E 2021-03 → — Figure 775398E 775398E 2021-03 → — Figure 775399F 775399F 2021-03 → — Figure 775399F 775399F 2022-05 → — Figure 775400E 775400E 2021-03 → — Figure 775401E 775401E 2021-03 → — Figure 775402E 775402E 2021-03 → — Figure 775404A 775404A 2021-03 → — Figure 775404A 775404A 2021-03 → — Figure 775404A 775404A 2022-05 → — Figure 775405A 775405A 2021-03 → — Figure 775406 775406 2021-03 → — Figure 775407A 775407A 2021-03 → — Figure 775408 775408 2021-03 → — Figure 775408 775408 2021-03 → — Figure 775408 775408 2021-03 → — Figure 775409 775409 2021-03 → — Figure 775410A 775410A 2021-03 → — Figure 775411 775411 2021-03 → — Figure 775411 775411 2023-05 → — Figure 775412 775412 2021-03 → — Figure 775413 775413 2021-03 → —

Part groups

PNCDescription
33113C Plug, Drain
77017B Tube Sub-assy, Fuel Tank Vent
77023 Filter Sub-assy, Fuel Suction Tube
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77154 Plate, Fuel Tank Evap/Vent Tube Support
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77178 Gasket, Fuel Tank Filler Pipe, Lower
77205 Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77243A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
77243B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77244C Joint, Fuel Tube, NO.2
77249 Hose, Fuel Emission
77259C Hose, Fuel
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77281G Clamp, Fuel Hose
77281L Clamp, Fuel Hose
77281N Clamp, Fuel Hose
77380 Valve Assy, Fuel Cut Off
77501T Bracket Sub-assy, Fuel Tank
77501V Bracket Sub-assy, Fuel Tank, NO.2
77502D Bracket Sub-assy, Fuel Tank, Rear
77601A Band Sub-assy, Fuel Tank, NO.1
77603A Band Sub-assy, Fuel Tank, NO.2
77611A Pin (FOR FUEL TANK BAND)
77633 Stay, Fuel Tank
77641B Cover, Fuel Tank
77644 Bolt, Fuel Tank
77651B Cushion, Fuel Tank
77701U Hose, Fuel (FOR CHECK VALVE)
SZ430 Washer, Soft, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
