Toyota Dyna/Toyoace HV
2003-10 → 2011-06 · chassis XKU3##,XKU508 · catalogue 753110 · Japan
Discontinued model
Data version 2012-01

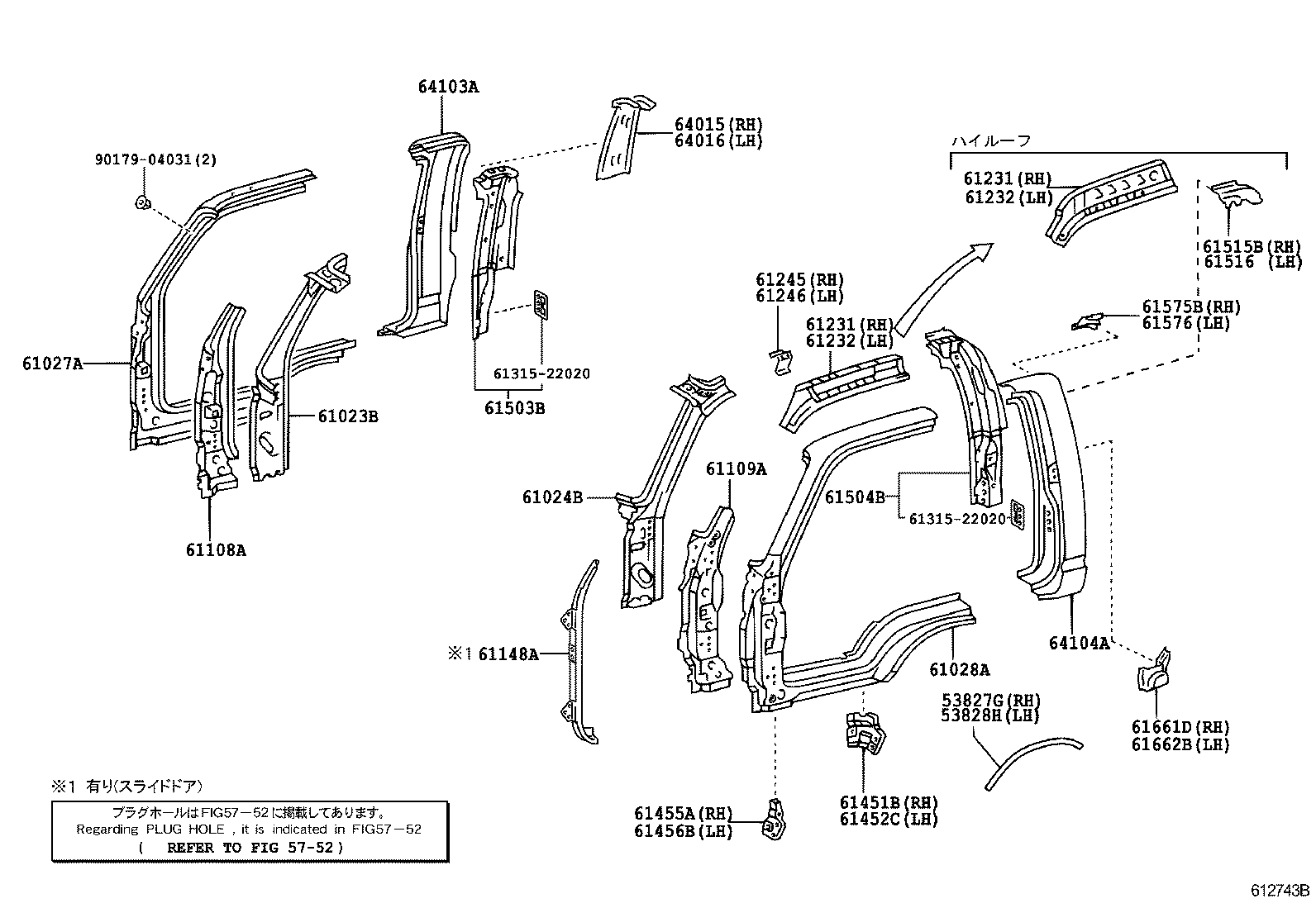

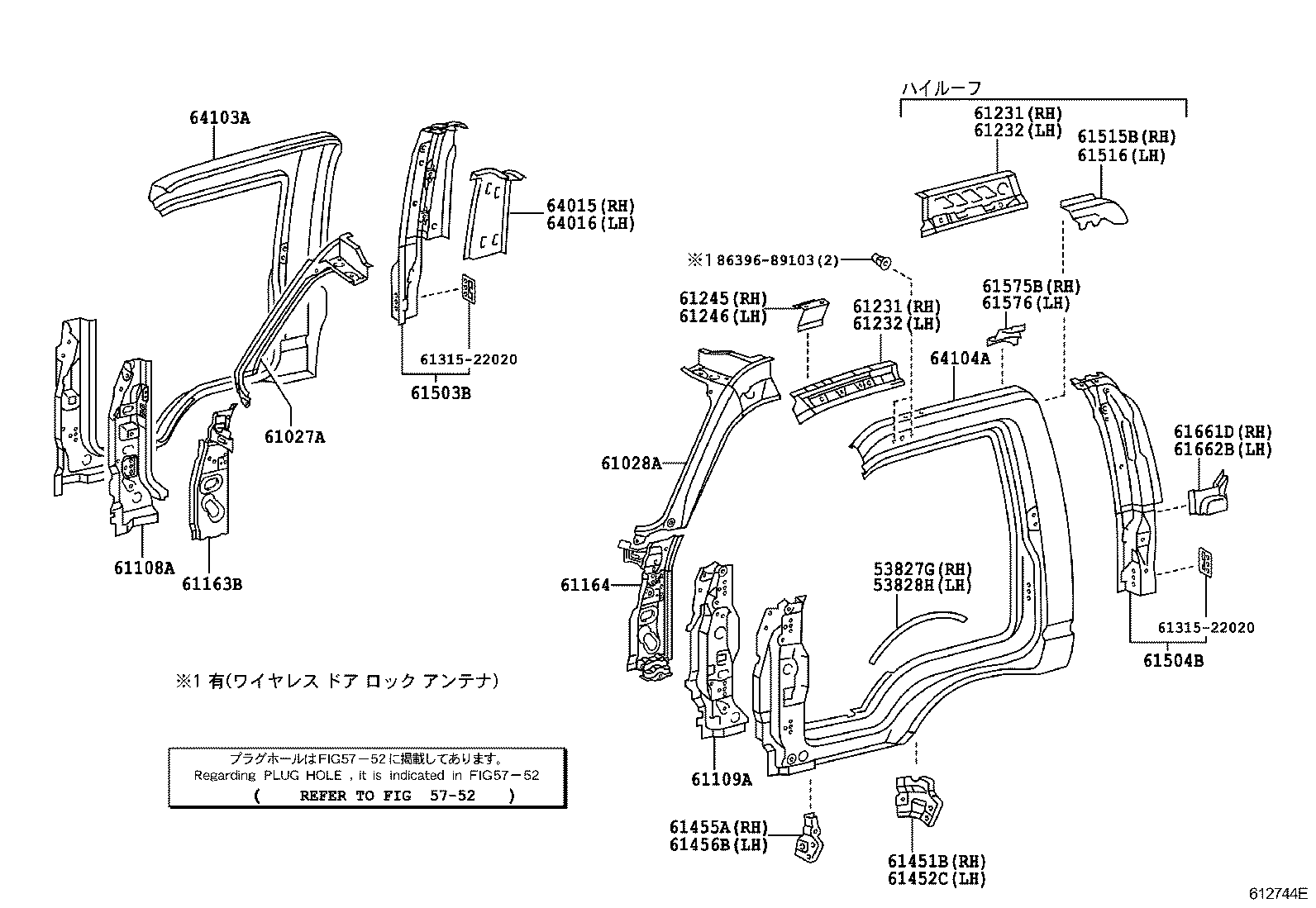

Side Member
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53827G | Protector, Front Fender Side Panel, RH |
| 53828H | Protector, Front Fender Side Panel, LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61027A | Pillar Sub-assy, Front Body, Outer RH |
| 61028A | Pillar Sub-assy, Front Body, Outer LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61148A | Extension, Front Body Pillar, Upper Outer LH |
| 61163B | Pillar, Front Body, Lower Inner RH |
| 61164 | Pillar, Front Body, Inner LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61245 | Reinforcement, Roof Side Rail, Outer RH |
| 61246 | Reinforcement, Roof Side Rail, Outer LH |
| 61395 | Seal, Center Body Pillar, RH |
| 61396B | Seal, Center Body Pillar, LH |
| 61451B | Plate, Step, Lower RH |
| 61452C | Plate, Step, Lower LH |
| 61455A | Retainer, Front Step, RH |
| 61456B | Retainer, Front Step, LH |
| 61503B | Reinforcement Sub-assy, Quarter Lock Pillar, RH |
| 61504B | Reinforcement Sub-assy, Quarter Lock Pillar, LH |
| 61515B | Extension, Quarter Lock Pillar, RH |
| 61516 | Extension, Quarter Lock Pillar, LH |
| 61575B | Plate, Cab Rear Pillar, Upper RH |
| 61576 | Plate, Cab Rear Pillar, Upper LH |
| 61661D | Extension, Quarter Panel TO Upper Back, RH |
| 61662B | Extension, Quarter Panel TO Upper Back, LH |
| 64015 | Panel Sub-assy, Back Corner, Inner RH |
| 64016 | Panel Sub-assy, Back Corner, Inner LH |
| 64103A | Panel Sub-assy, Back Corner, Outer RH |
| 64104A | Panel Sub-assy, Back Corner, Outer LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
