Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

50 part groups · 16 illustrations

Illustrations

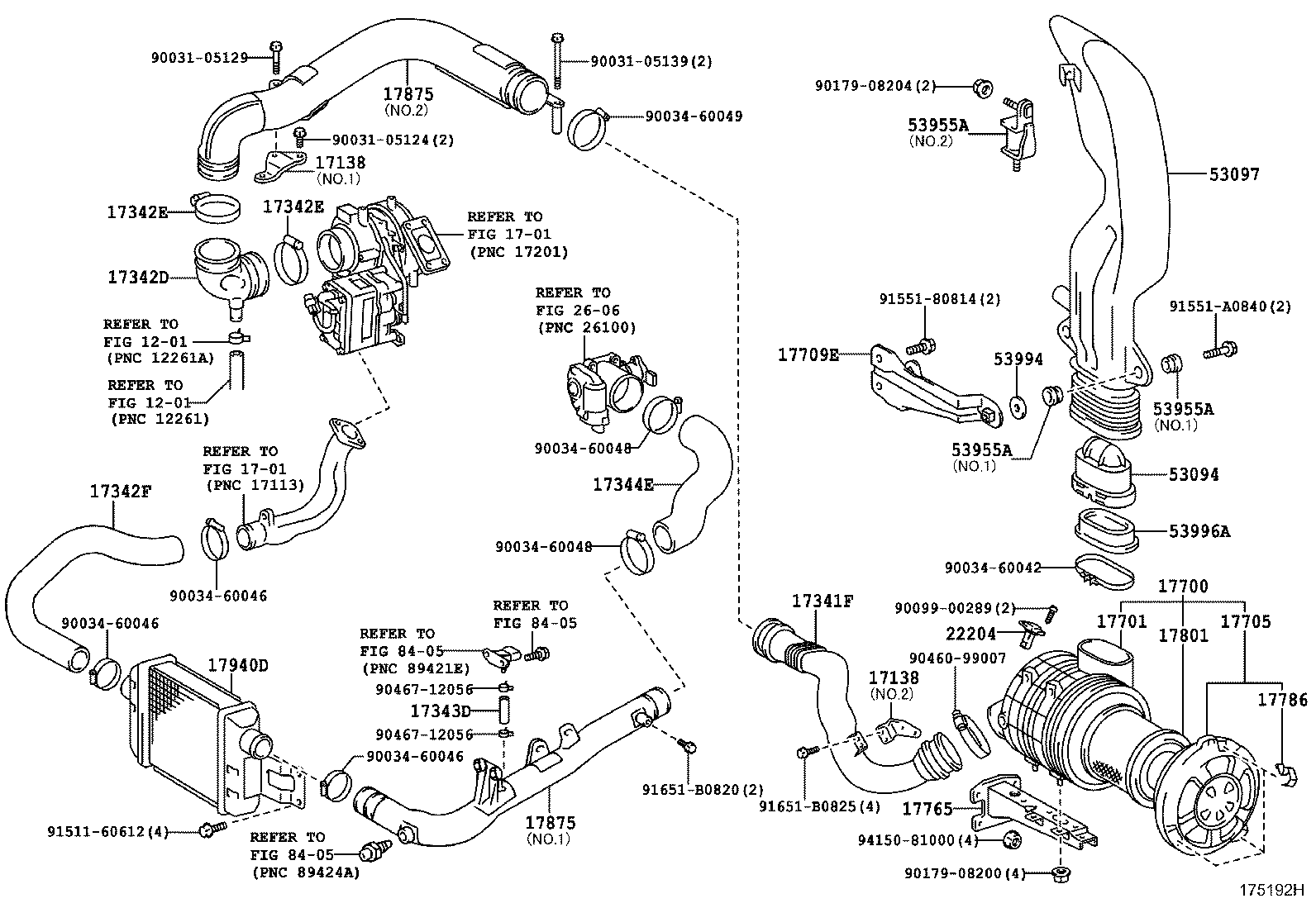

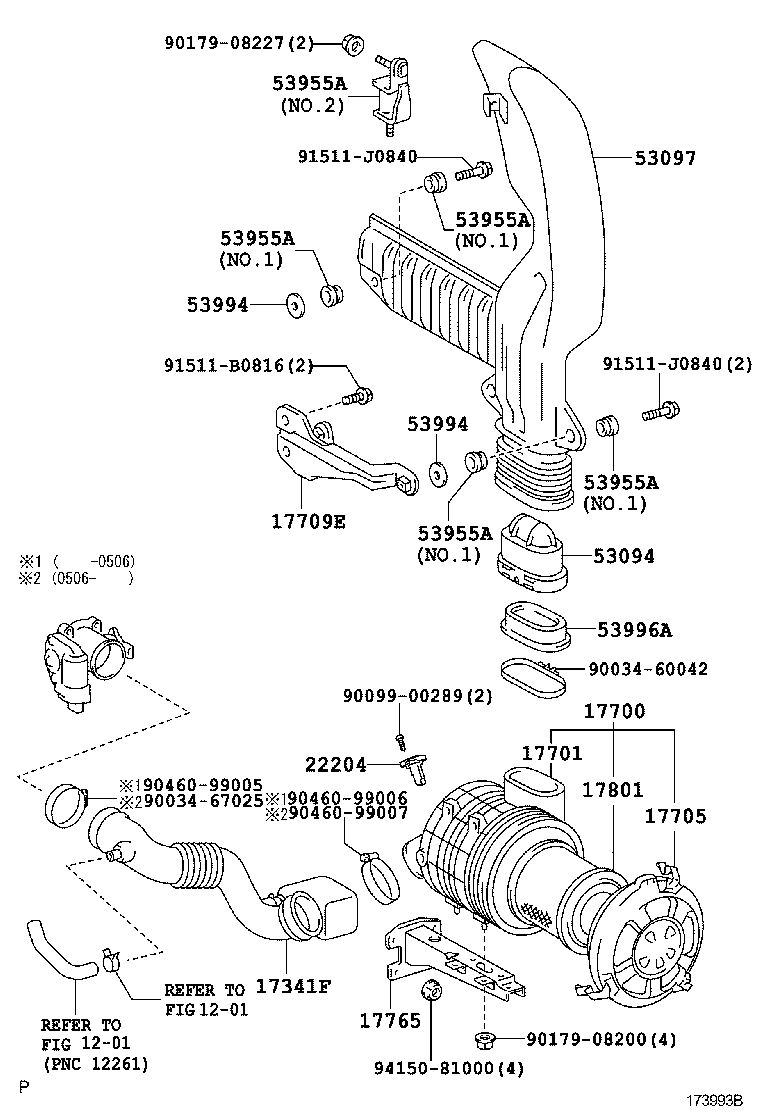

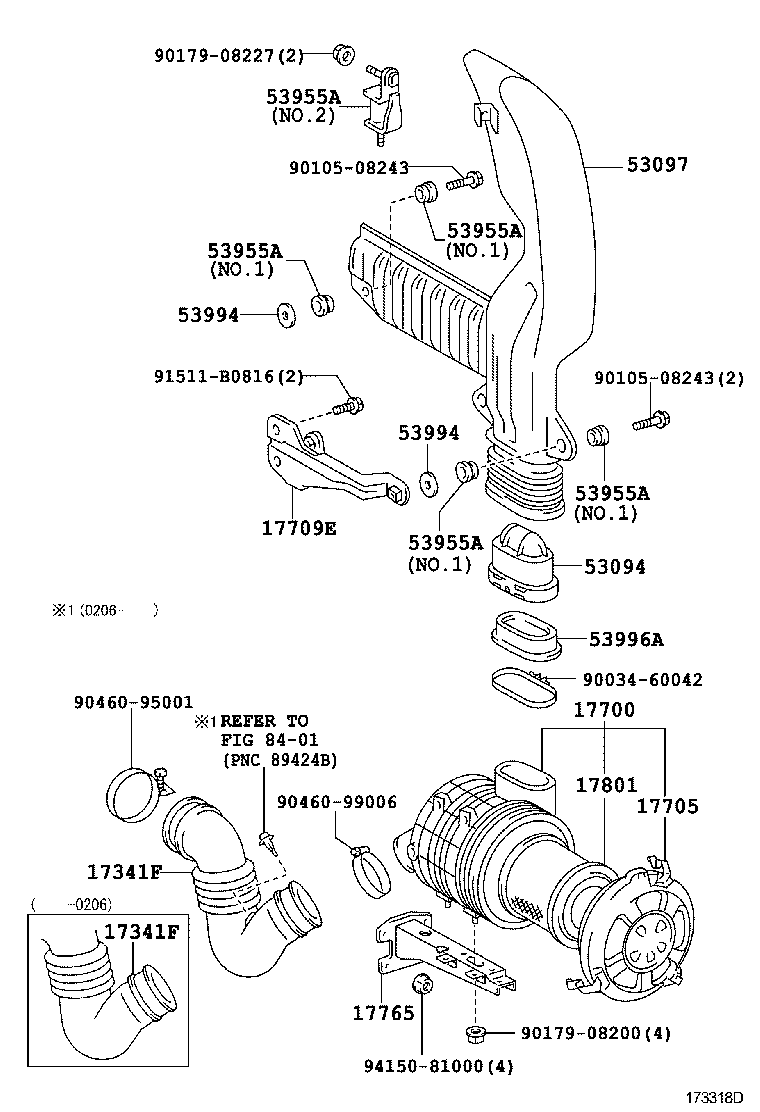

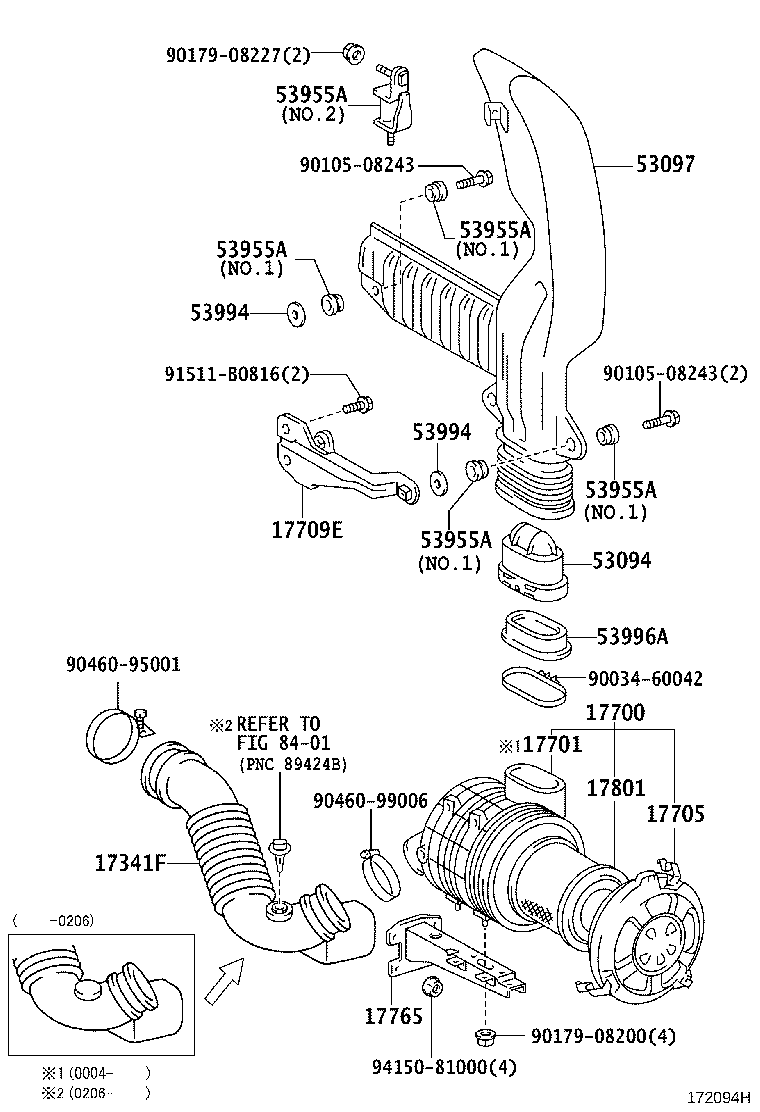

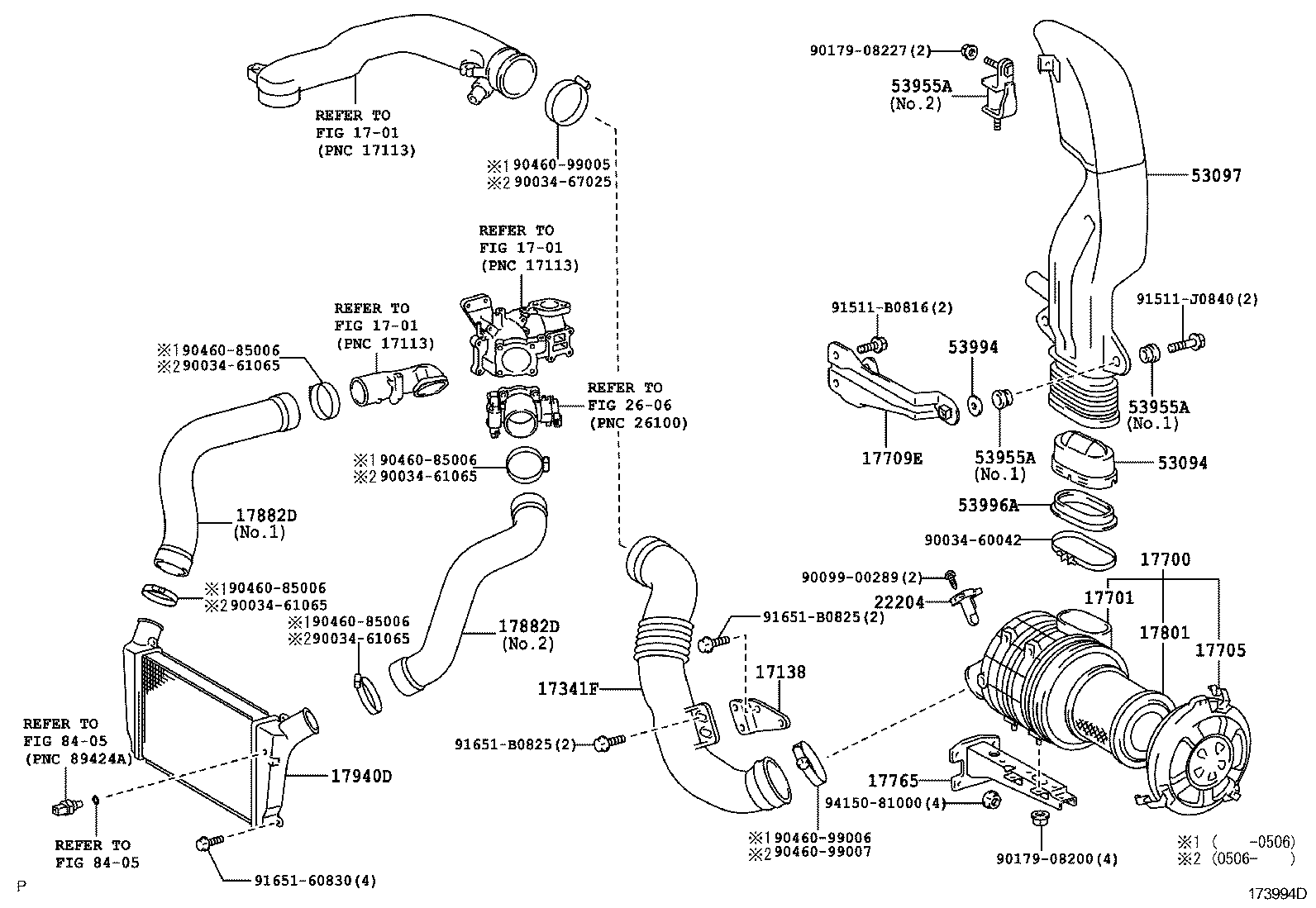

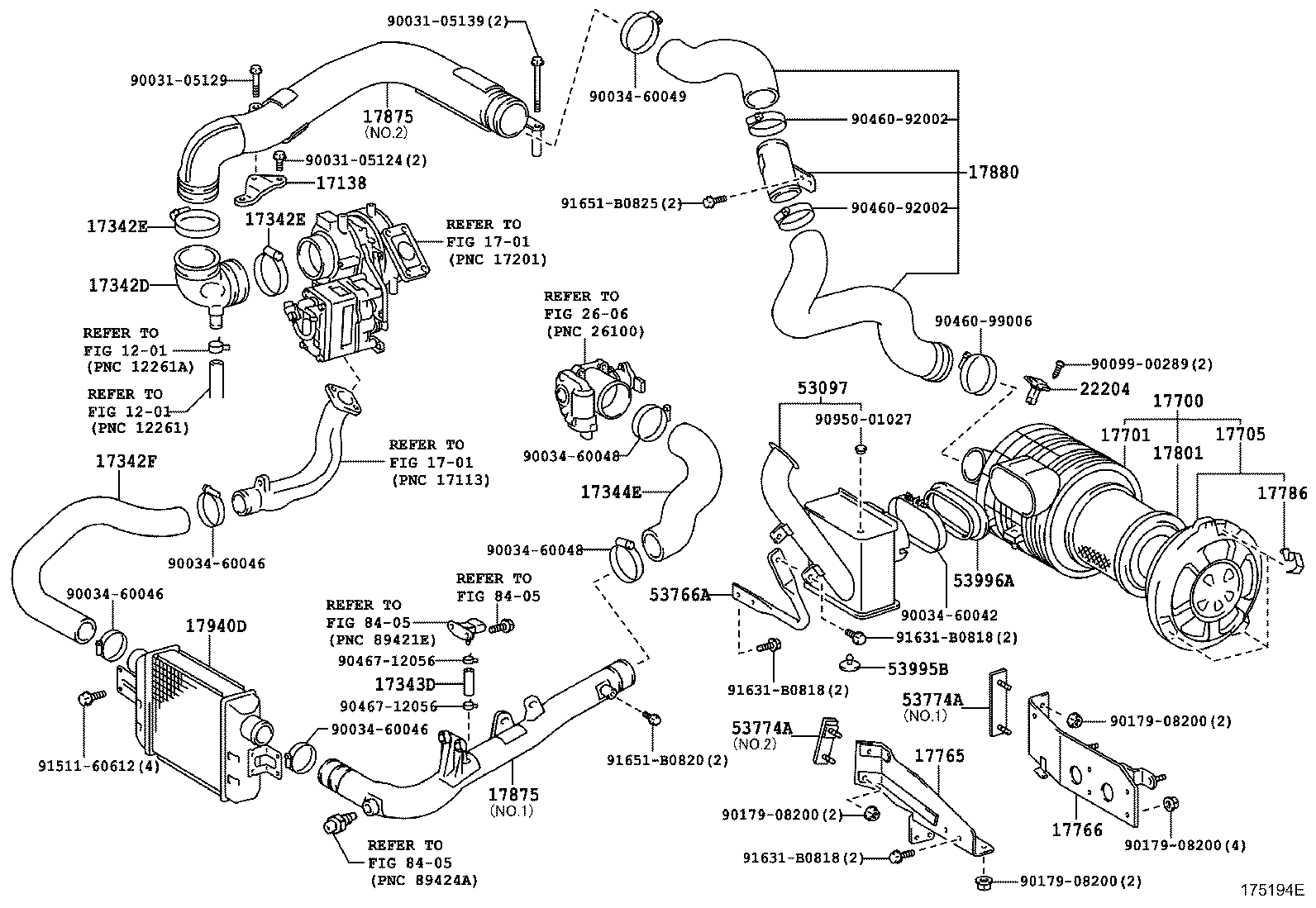

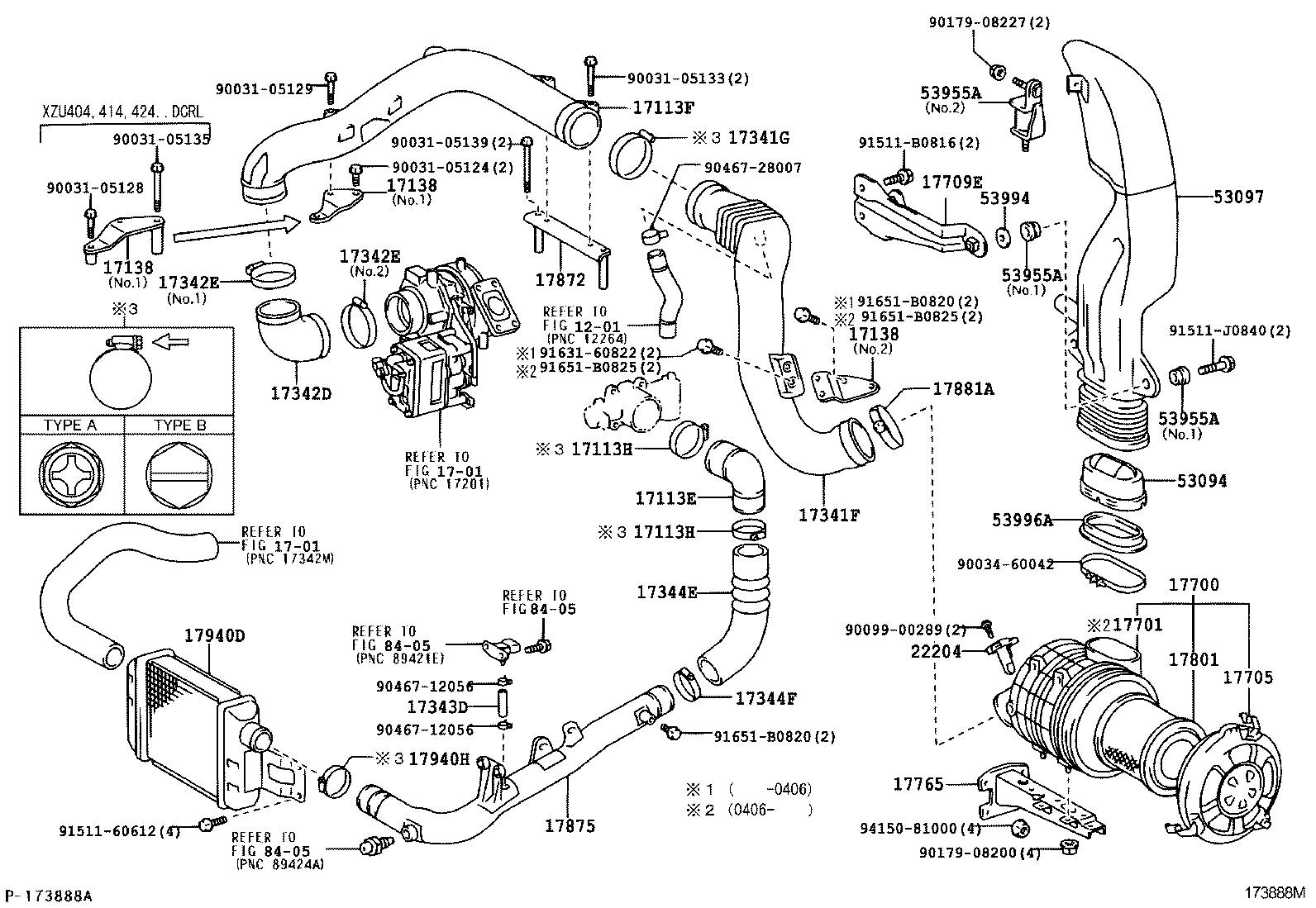

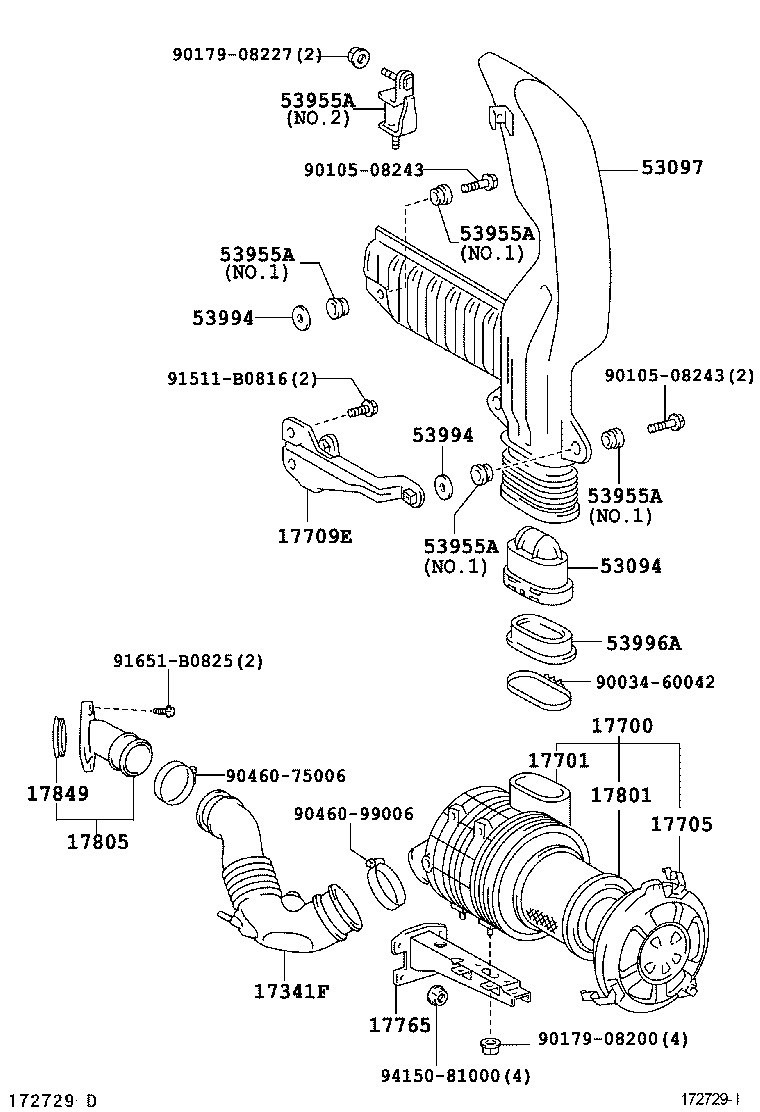

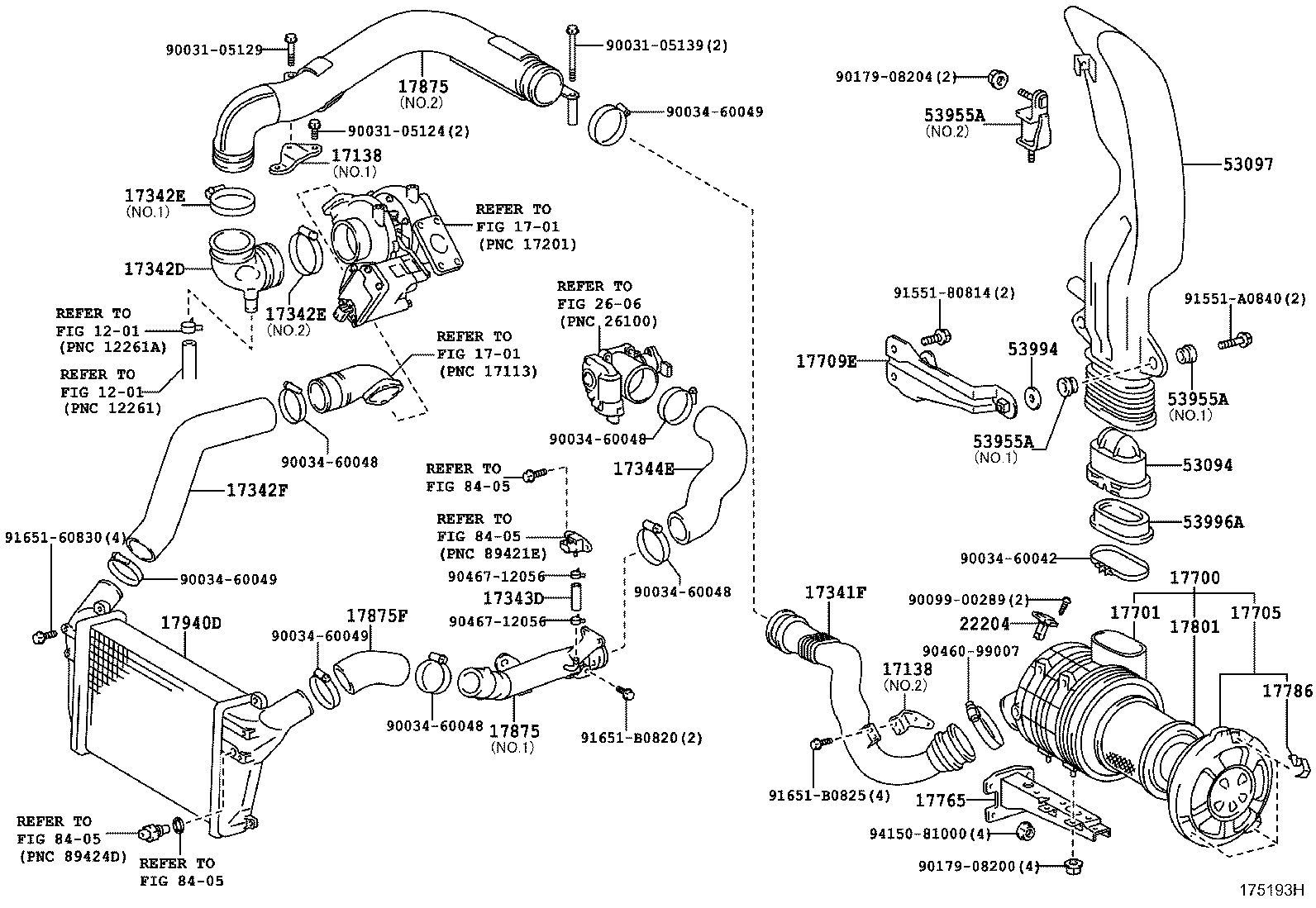

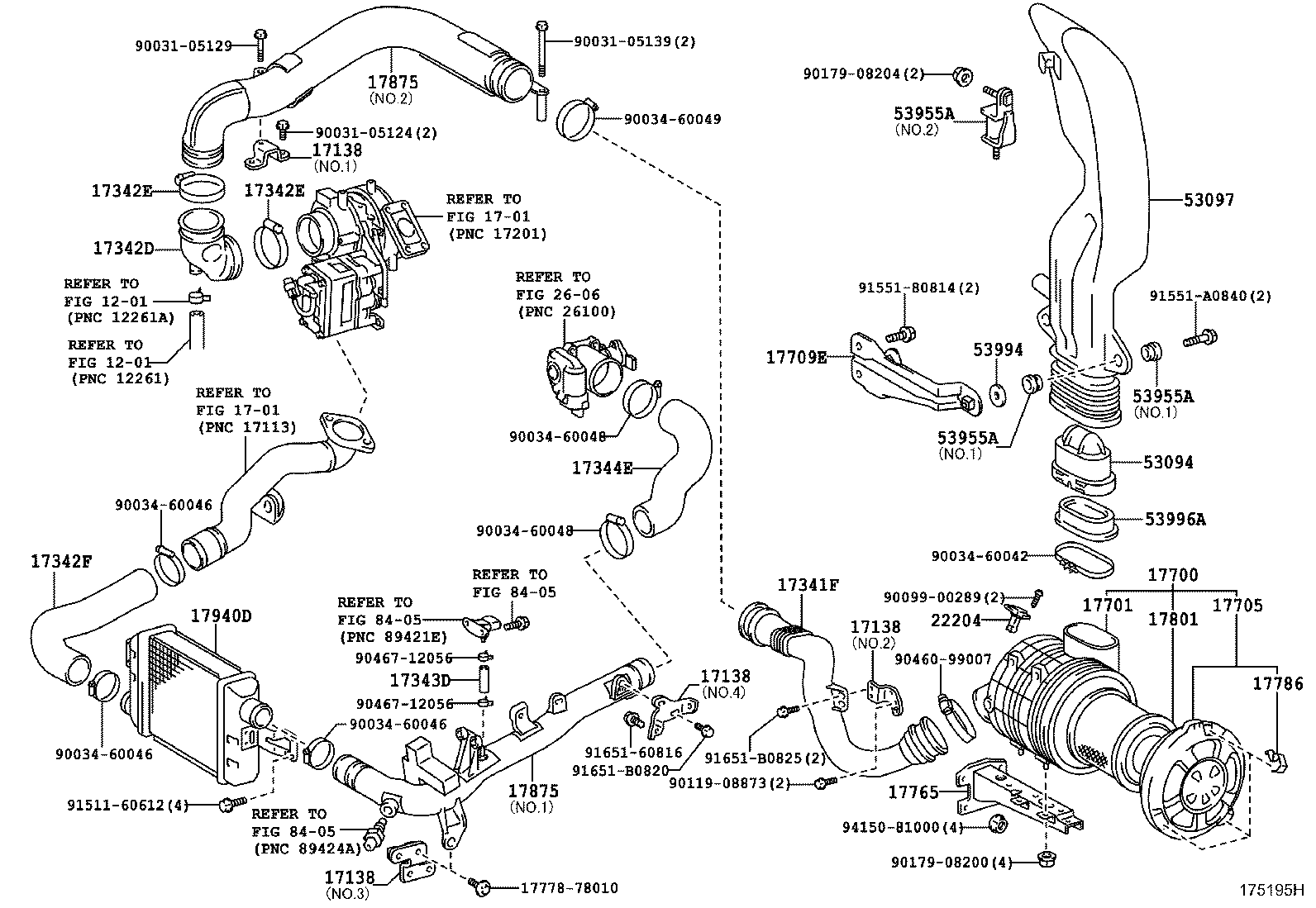

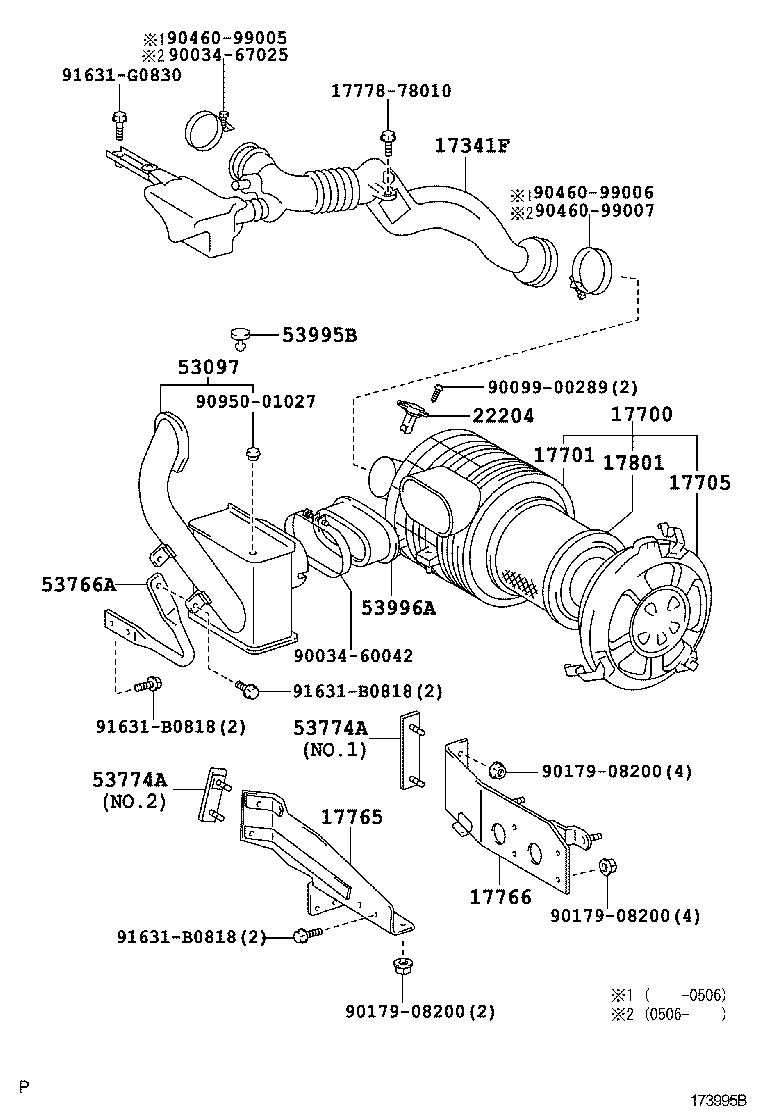

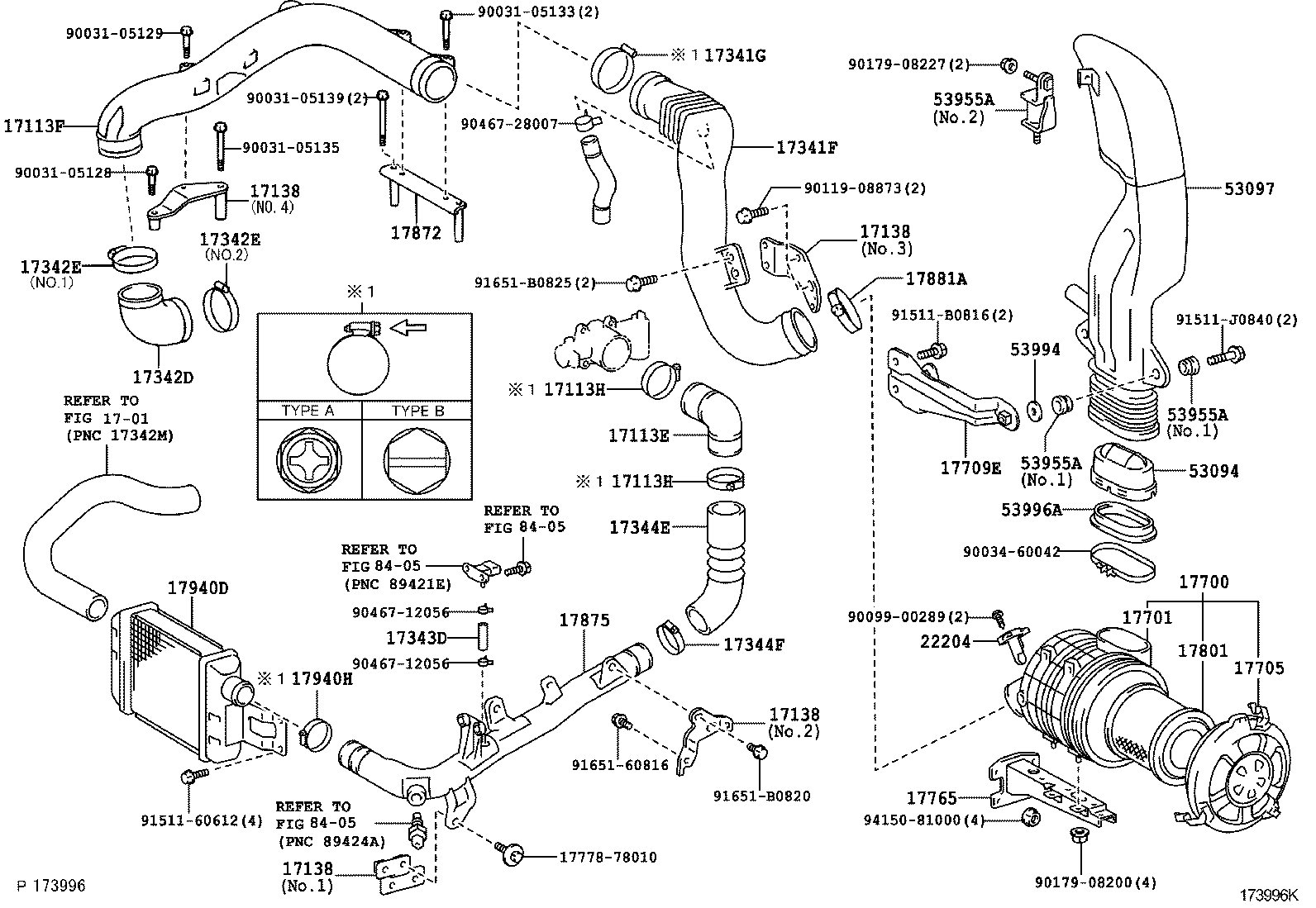

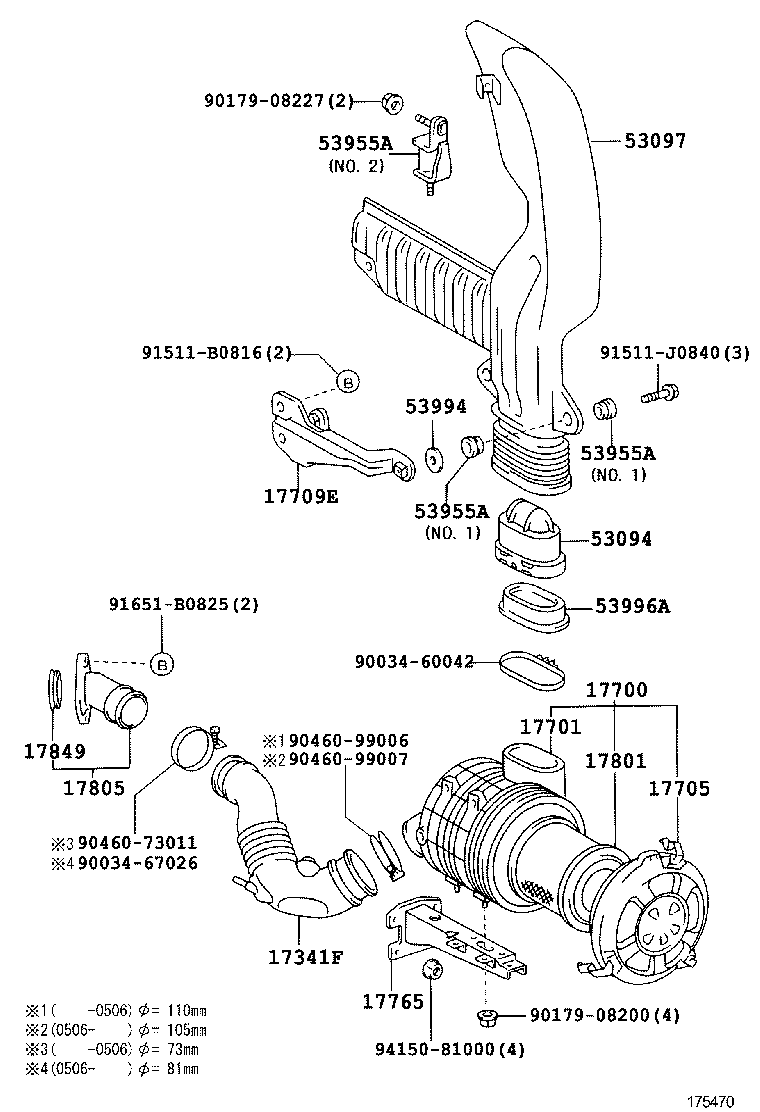

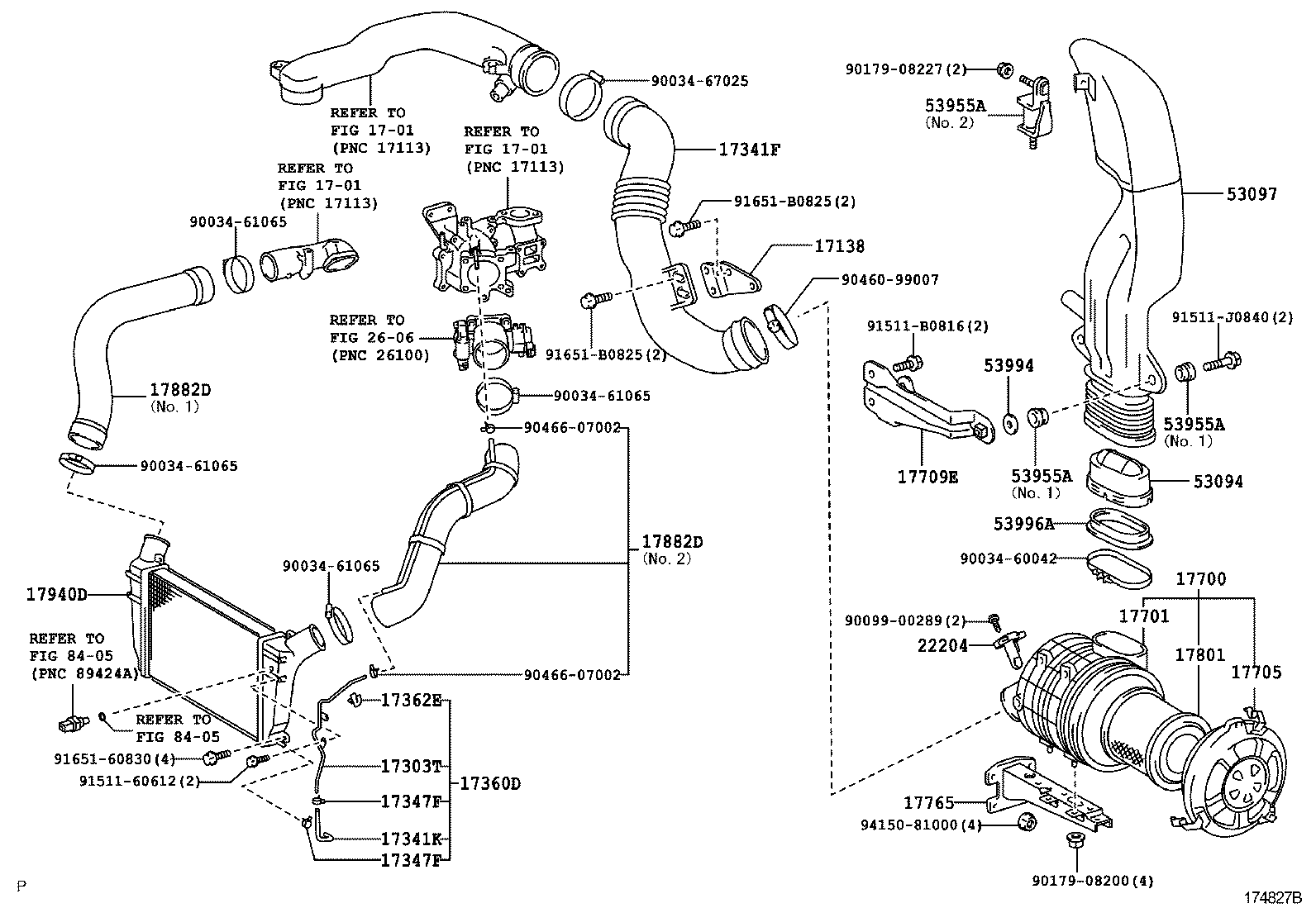

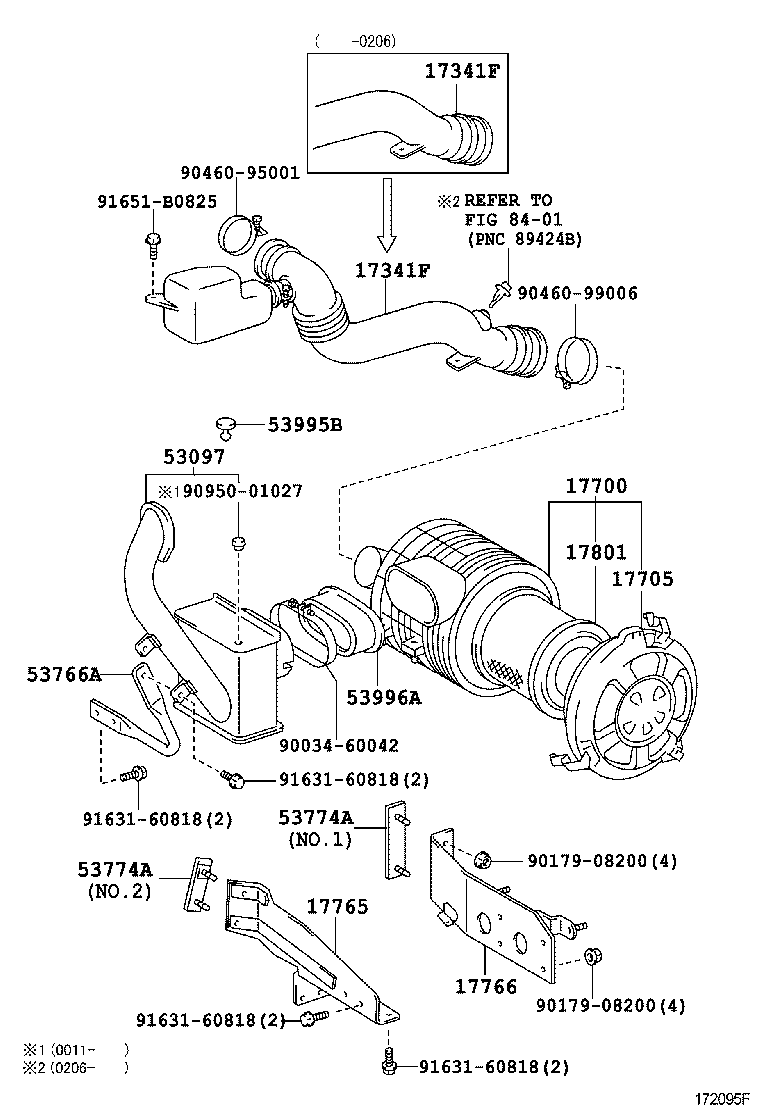

Figure 172065I 172065I 1999-08 → 2004-08 Figure 175470 175470 2003-06 → — Figure 172094H 172094H 1999-05 → 2004-06 Figure 173993B 173993B 2004-06 → — Figure 173994D 173994D 2004-06 → 2005-11 Figure 174827B 174827B 2005-11 → — Figure 173318D 173318D 1999-08 → 2004-06 Figure 172095F 172095F 1999-08 → 2004-06 Figure 173995B 173995B 2004-06 → — Figure 172729I 172729I 2000-11 → — Figure 173888M 173888M 2003-10 → — Figure 173996K 173996K 2004-06 → 2006-10 Figure 175192H 175192H 2006-10 → — Figure 175193H 175193H 2006-10 → — Figure 175194E 175194E 2006-10 → — Figure 175195H 175195H 2006-10 → —

Part groups

PNCDescription
17113E Pipe, Intake, NO.1
17113F Pipe, Intake, NO.2
17113H Clamp, Intake Pipe
17115A Pipe, Intake, NO.2
17116A Pipe, Intake, NO.3
17138 Stay, Intake Pipe OR Hose
17303T Pipe Sub-assy, Air
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17347F Clamp OR Clip(FOR AIR HOSE)
17360D Pipe Assy, Air
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709E Bracket, Air Cleaner Inlet, NO.2
17765 Stay, Air Cleaner, NO.1
17766 Stay, Air Cleaner, NO.2
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805C Pipe Sub-assy, Air Cleaner, NO.1
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805N Bush(FOR AIR CONNECTOR)
17849 Gasket, Intake Air Connector
17872 Bracket, Intake Air Connector
17875 Pipe, Intake Air Connector
17875F Hose, NO.3(FOR INTAKE AIR CONNECTOR, PIPE)
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882D Hose, Cool Air Intake
17940D Intercooler Assy
17940H Clamp, Hose(FOR INTERCOOLER)
22204 Meter Sub-assy, Intake Air Flow
53094 Inlet, Air Cleaner Pipe, NO.3
53097 Inlet Sub-assy
53766A Bracket, Air Cleaner Inlet Pipe
53774A Bracket, Air Cleaner Mounting, NO.2
53955A Cushion, Air Cleaner Inlet NO.1
53994 Retainer, Air Cleaner Inlet Pipe
53995B Plug, Air Cleaner Inlet
53996A Packing, Air Cleaner Inlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
