Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

18 part groups · 13 illustrations

Illustrations

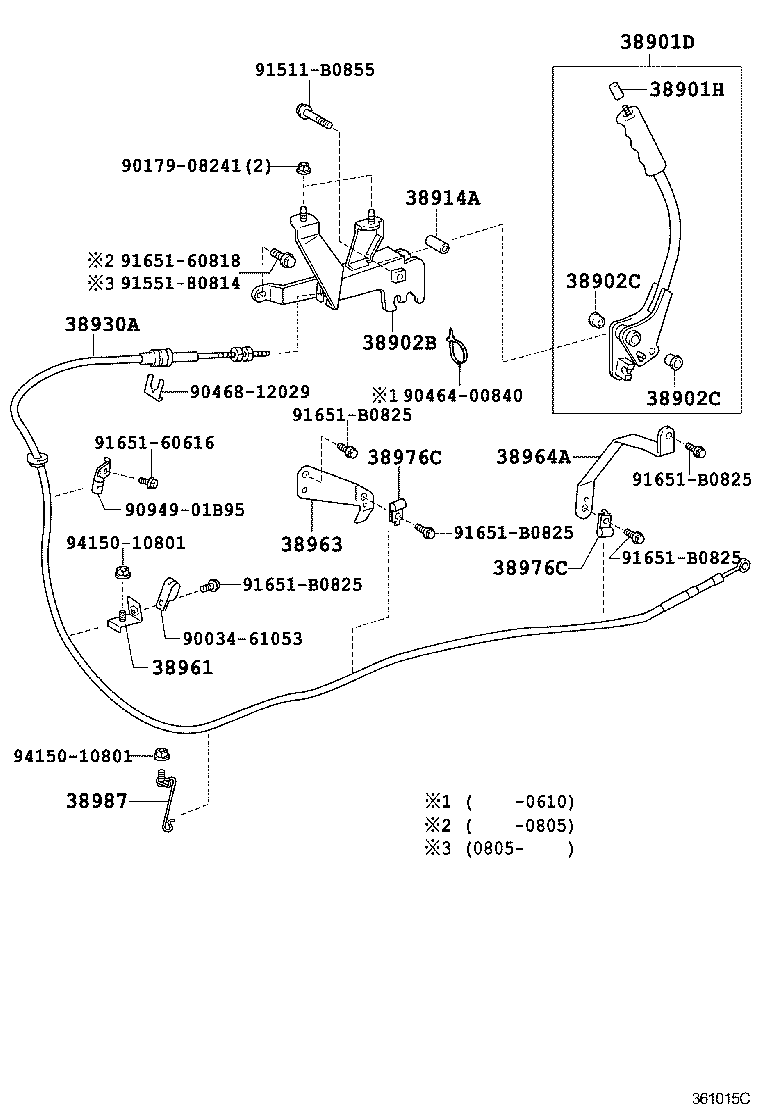

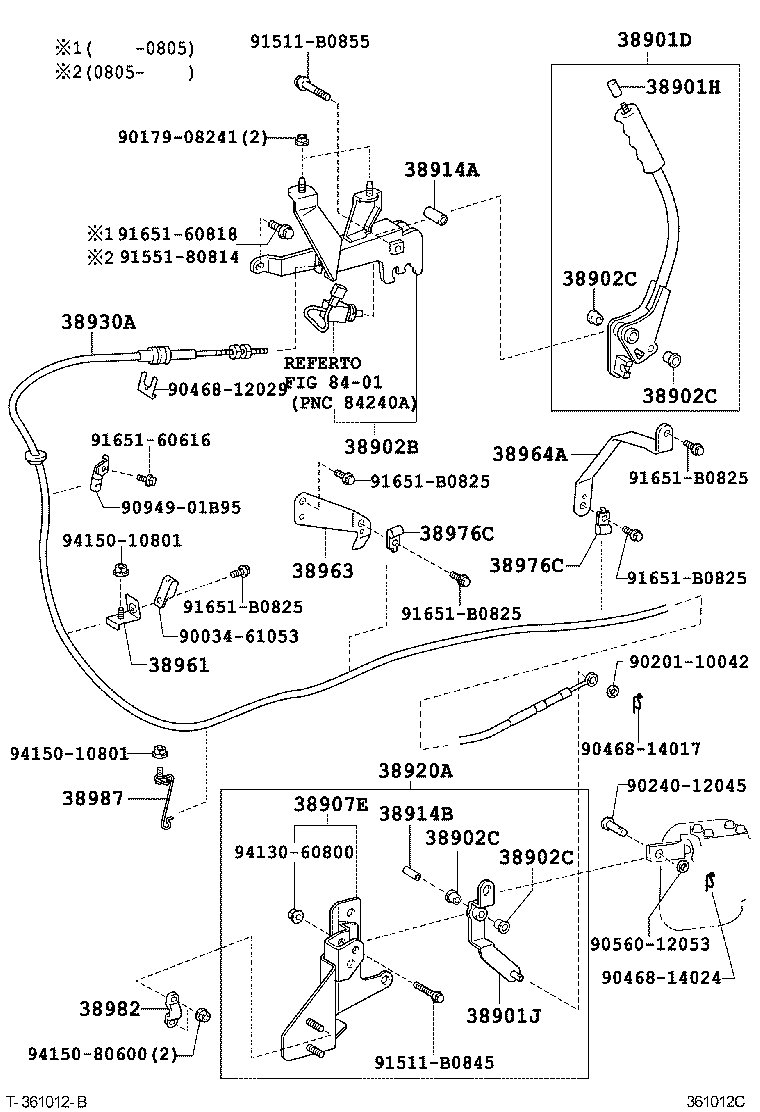

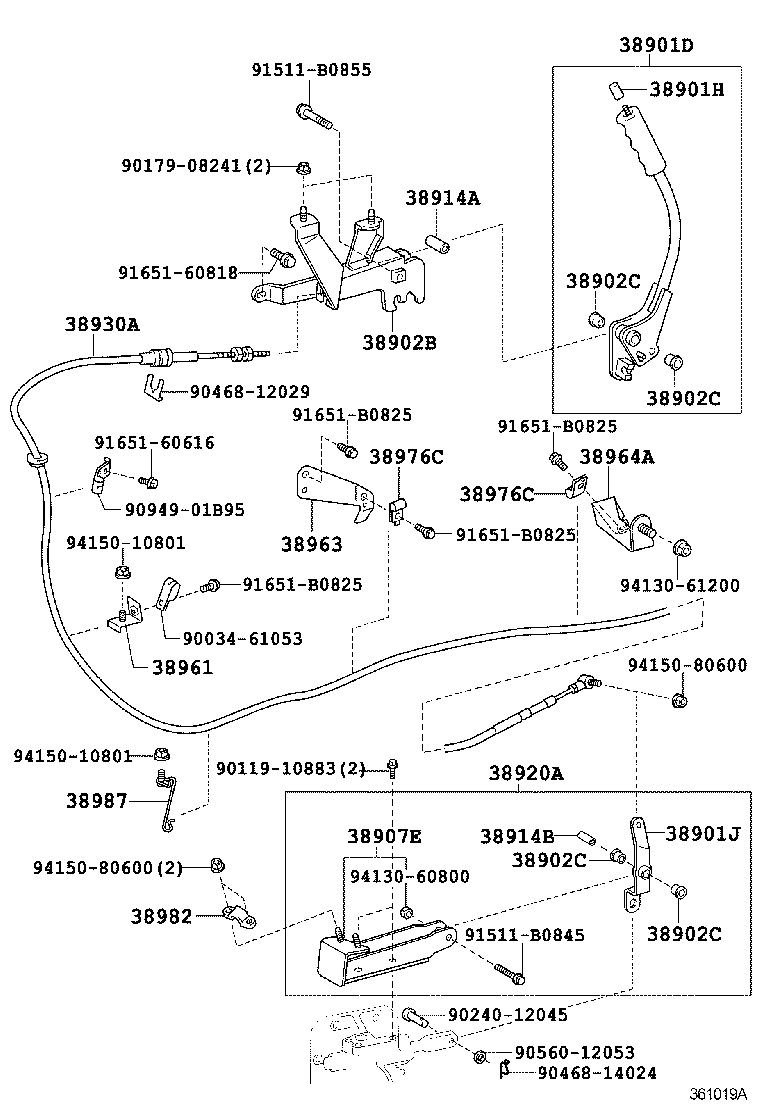

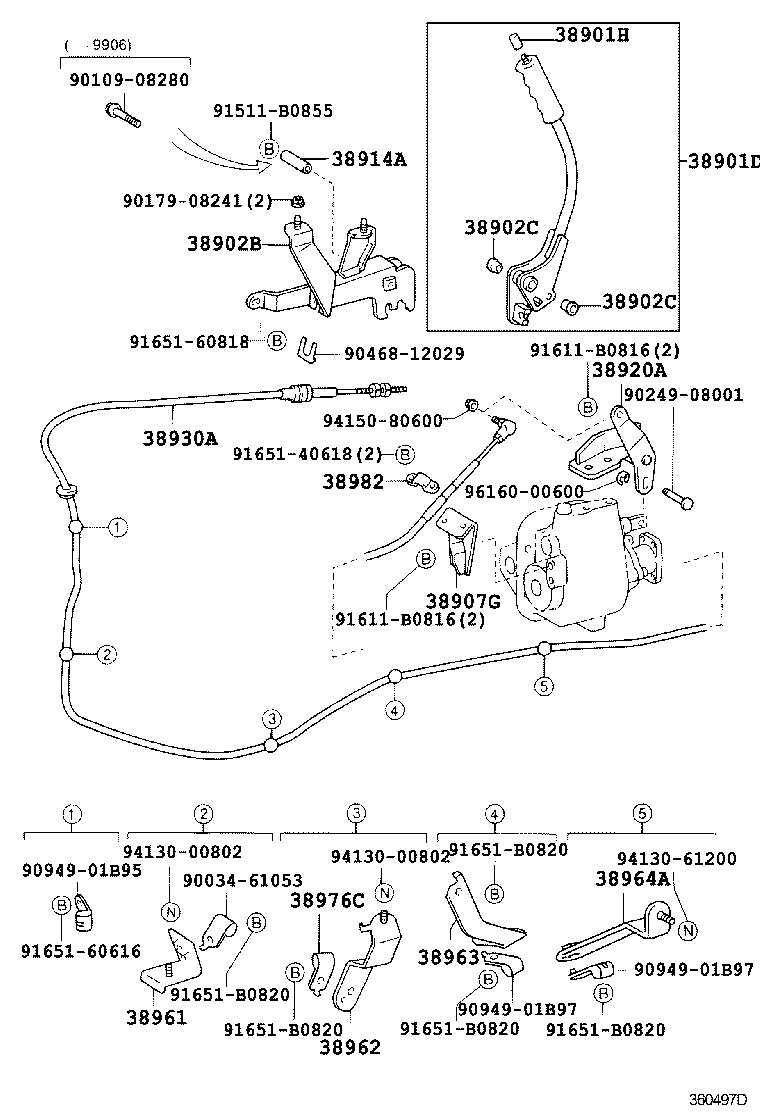

Figure 360495E 360495E 1999-05 → 2004-06 Figure 360495E 360495E 1999-05 → 2004-06 Figure 360497D 360497D 1999-05 → 2004-06 Figure 361012C 361012C 2004-06 → — Figure 361012C 361012C 2006-10 → — Figure 361015C 361015C 2004-06 → — Figure 361015C 361015C 2006-10 → — Figure 361024B 361024B 2004-06 → 2006-10 Figure 361024B 361024B 2004-06 → 2006-10 Figure 361024B 361024B 2006-10 → — Figure 361024B 361024B 2006-10 → — Figure 361019A 361019A 2004-06 → 2006-10 Figure 361285B 361285B 2006-10 → —

Part groups

PNCDescription
38901D Lever Sub-assy, Valve Control
38901H Knob, Valve Control Lever
38901J Lever Sub-assy, Valve Control
38902B Bracket Sub-assy, Valve Control Lever
38902C Bush (FOR VALVE CONTROL LEVER)
38907E Stay Sub-assy, Power Teke-off Control
38907G Stay Power Take-off Control Cable
38914A Pipe, Valve Control Lever
38914B Pipe, Valve Control Lever, NO.2
38920A Lever Assy, Power Take-off Control, NO.1
38930A Cable Assy, Push Pull
38961 Bracket, Cable Clamp, NO.1
38962 Bracket, Cable Clamp, NO.2
38963 Bracket, Cable Clamp, NO.3
38964A Bracket, Cable Clamp, NO.4
38976C Clamp, Push Pull Cable
38982 Clamp, Push Pull Cable, NO.1
38987 Clamp, Cable Push Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
