Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

48 part groups · 27 illustrations

Illustrations

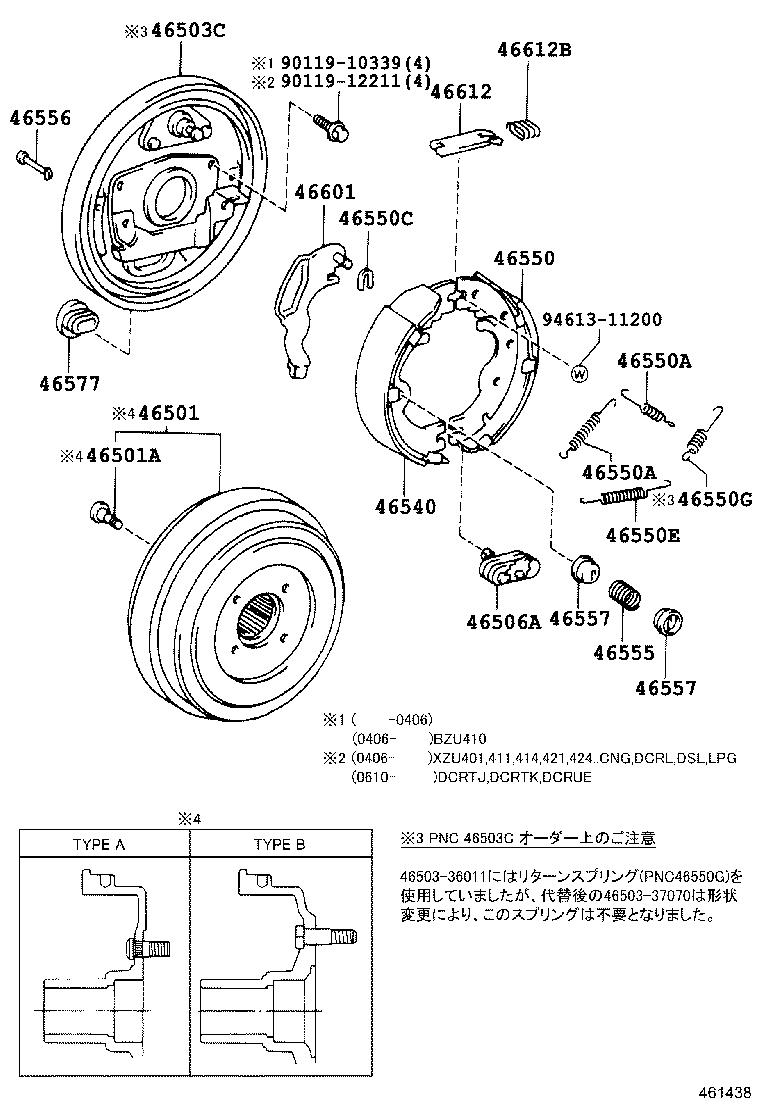

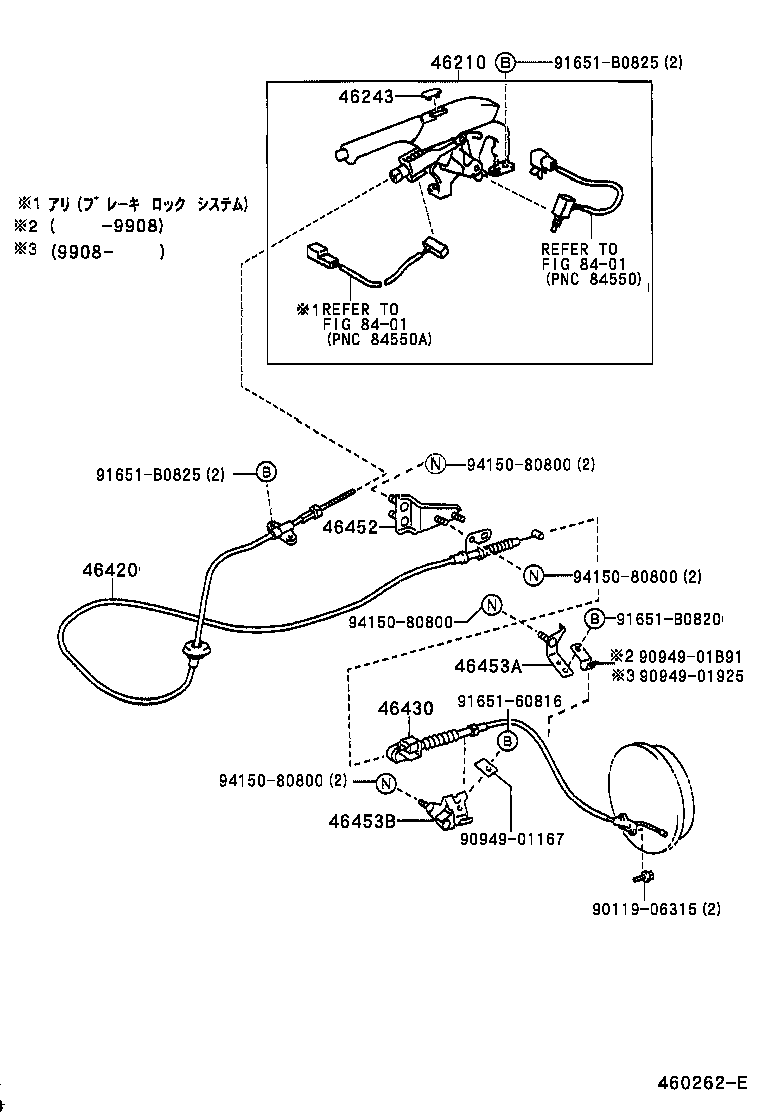

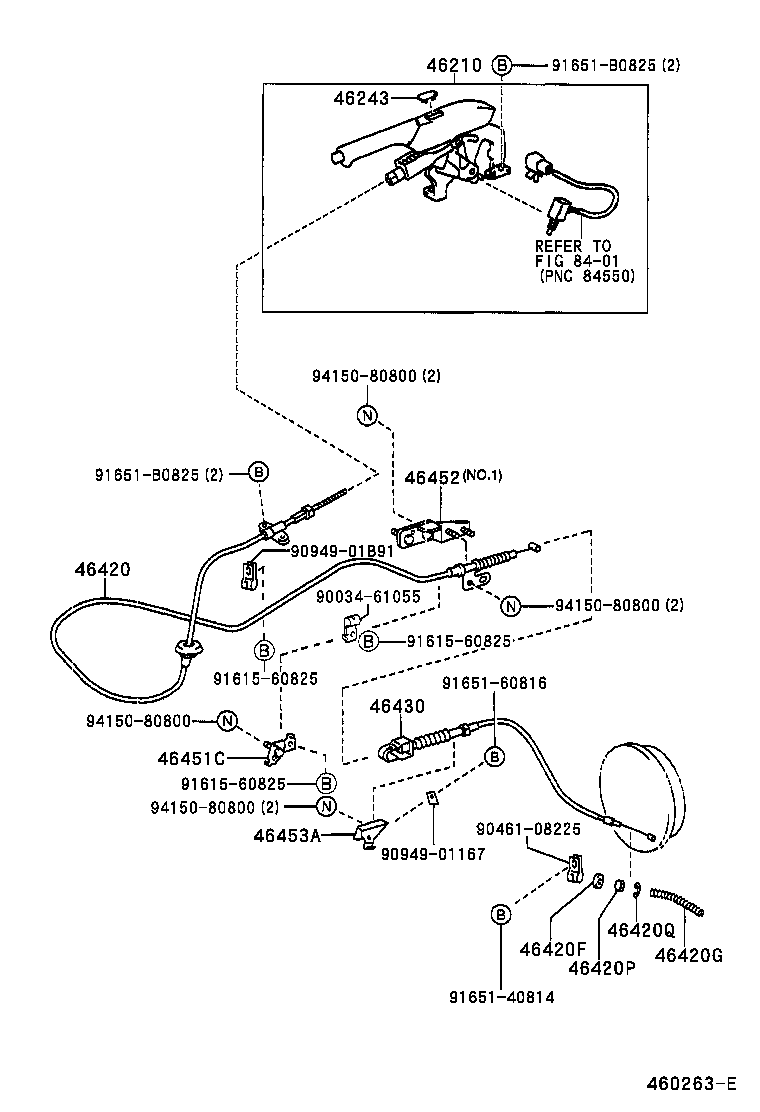

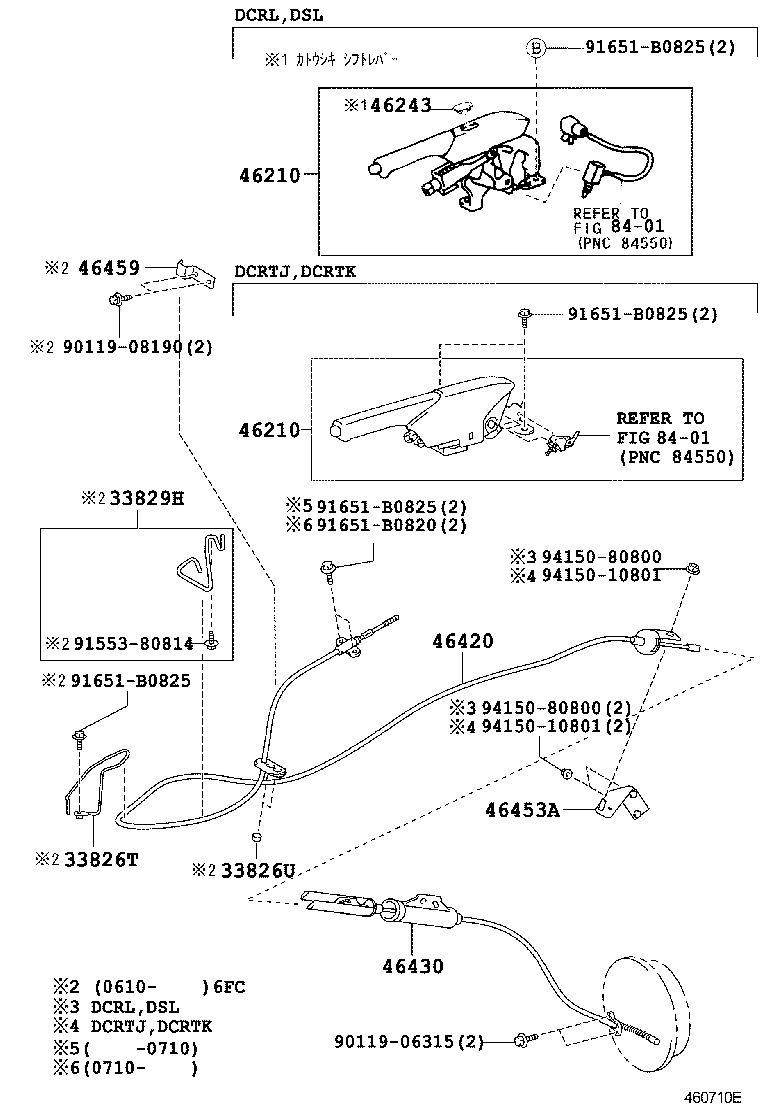

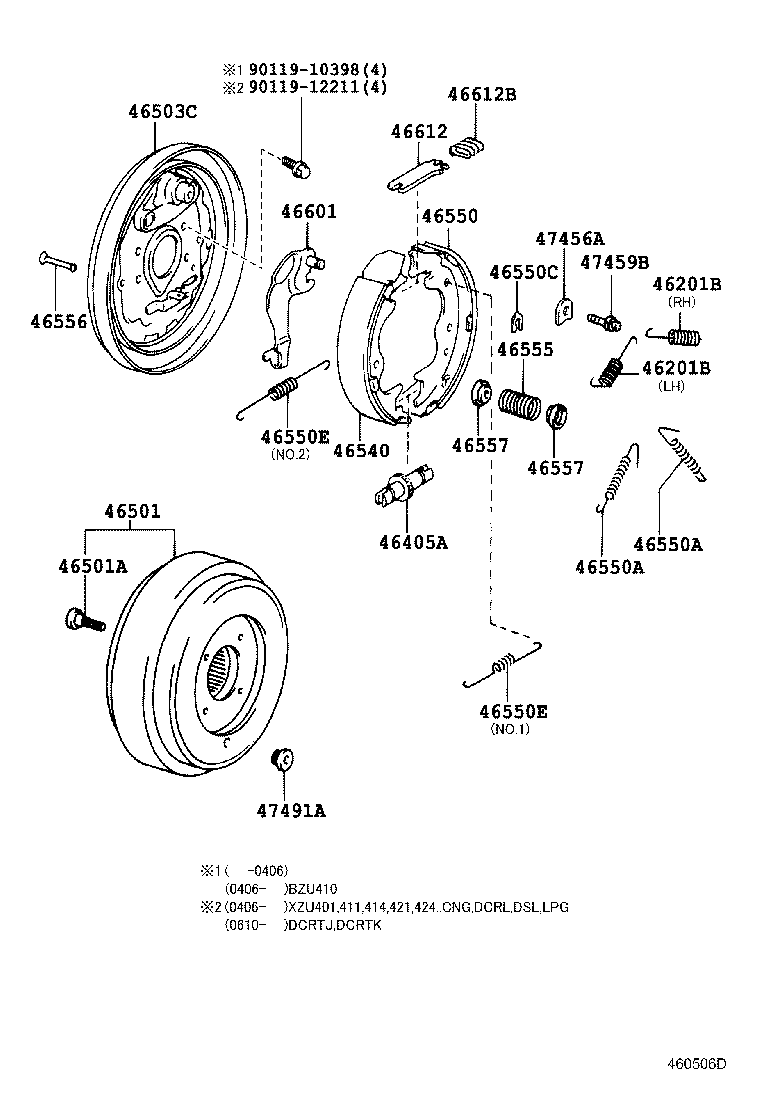

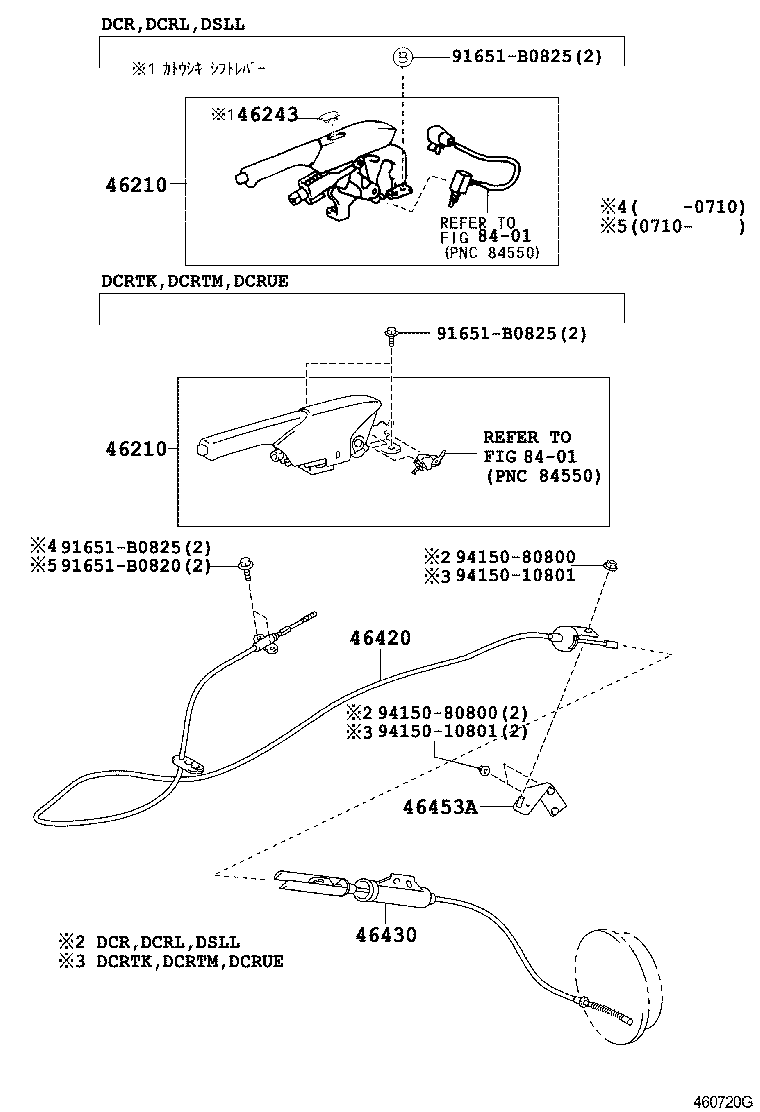

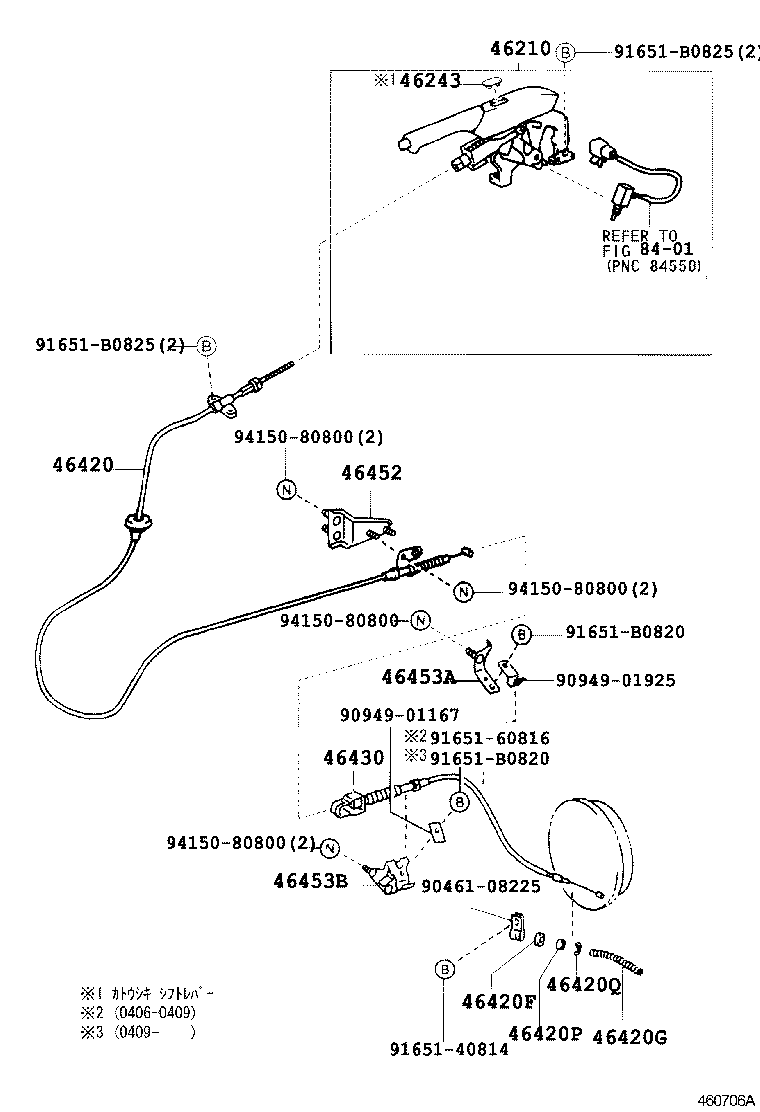

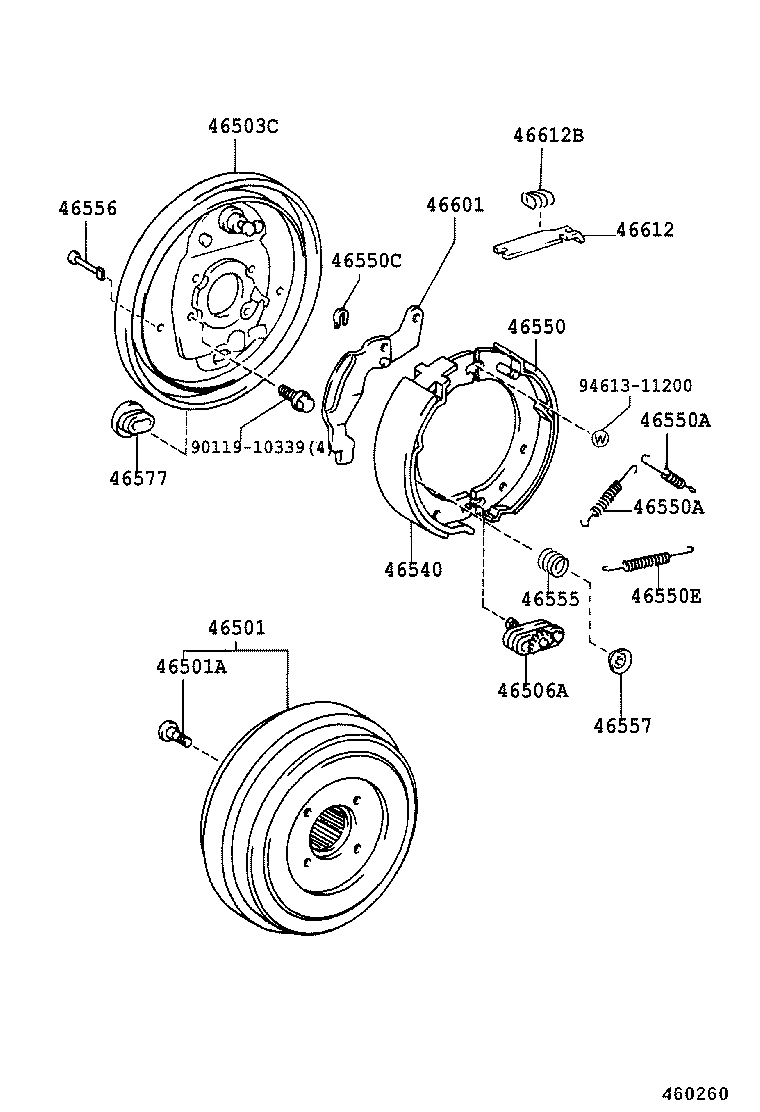

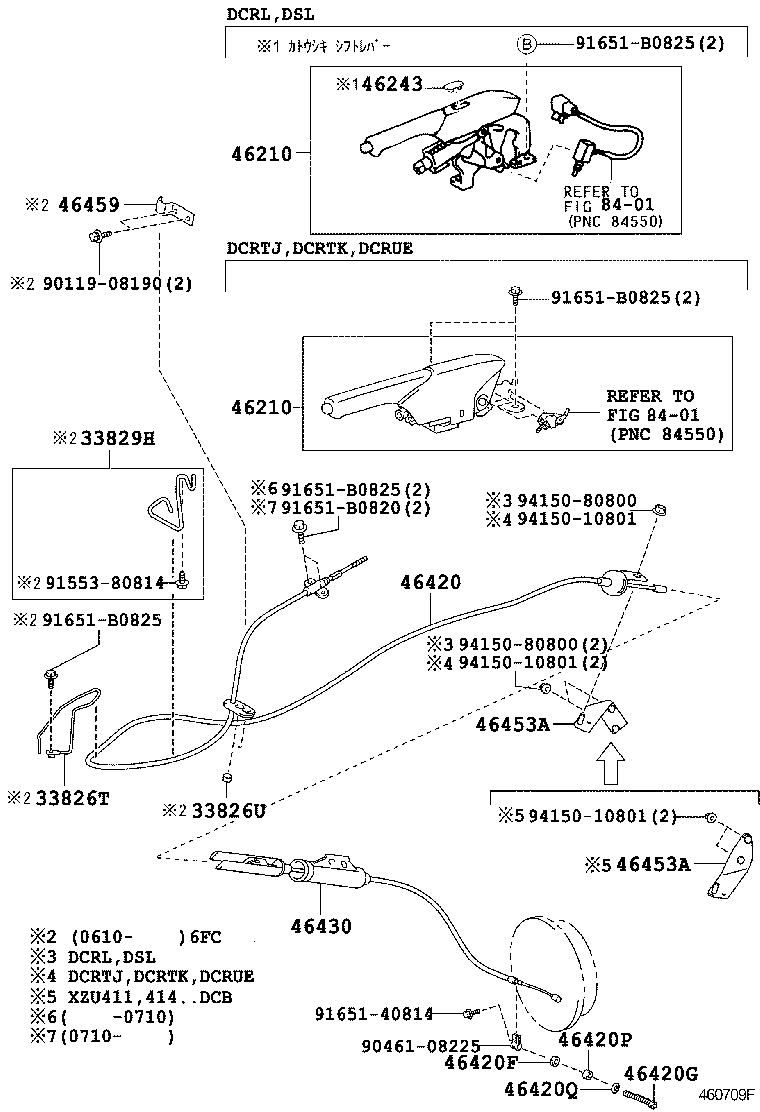

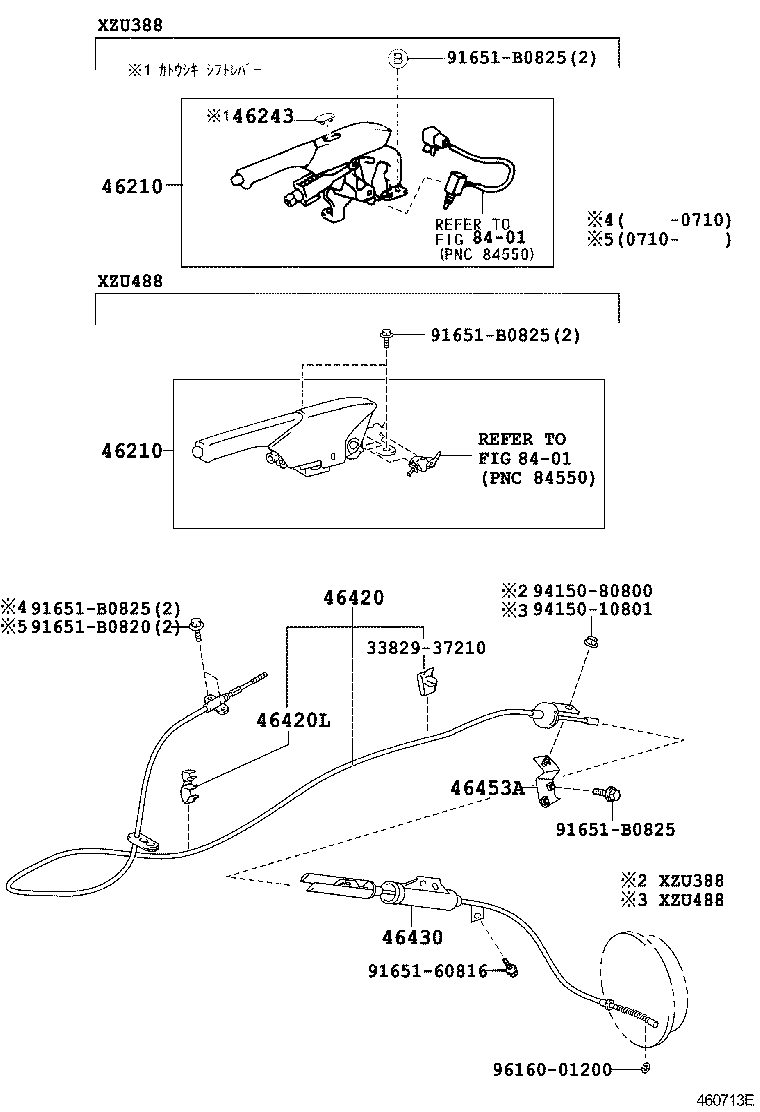

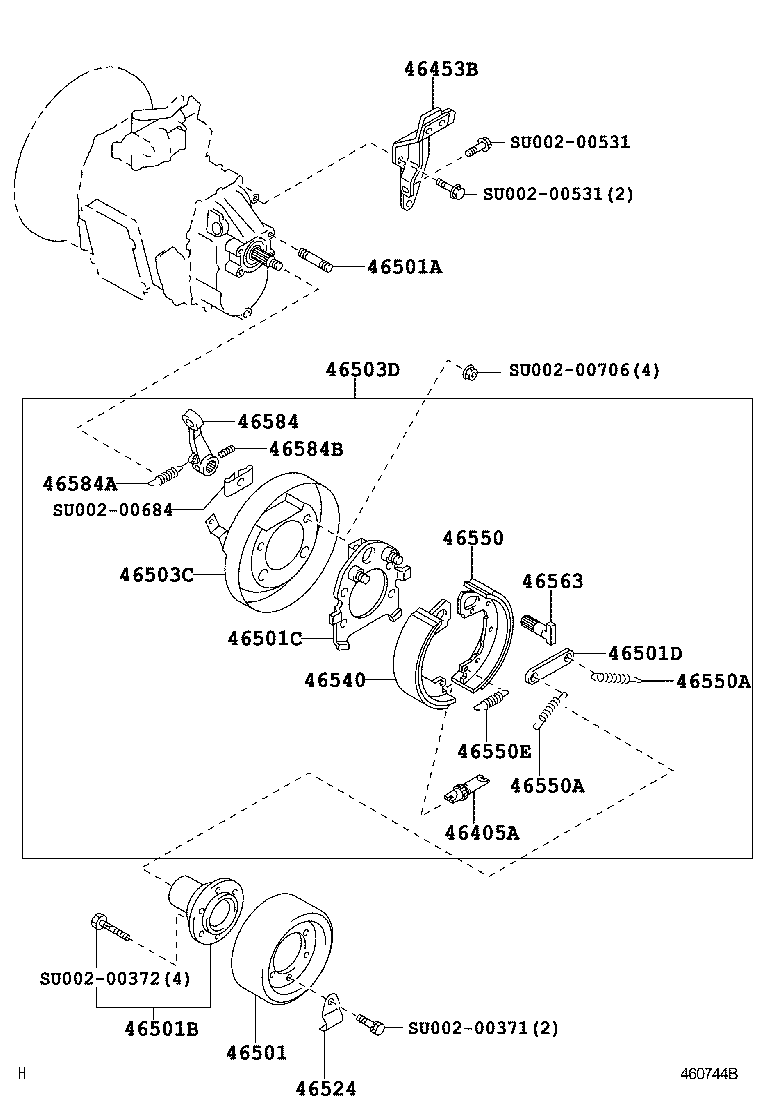

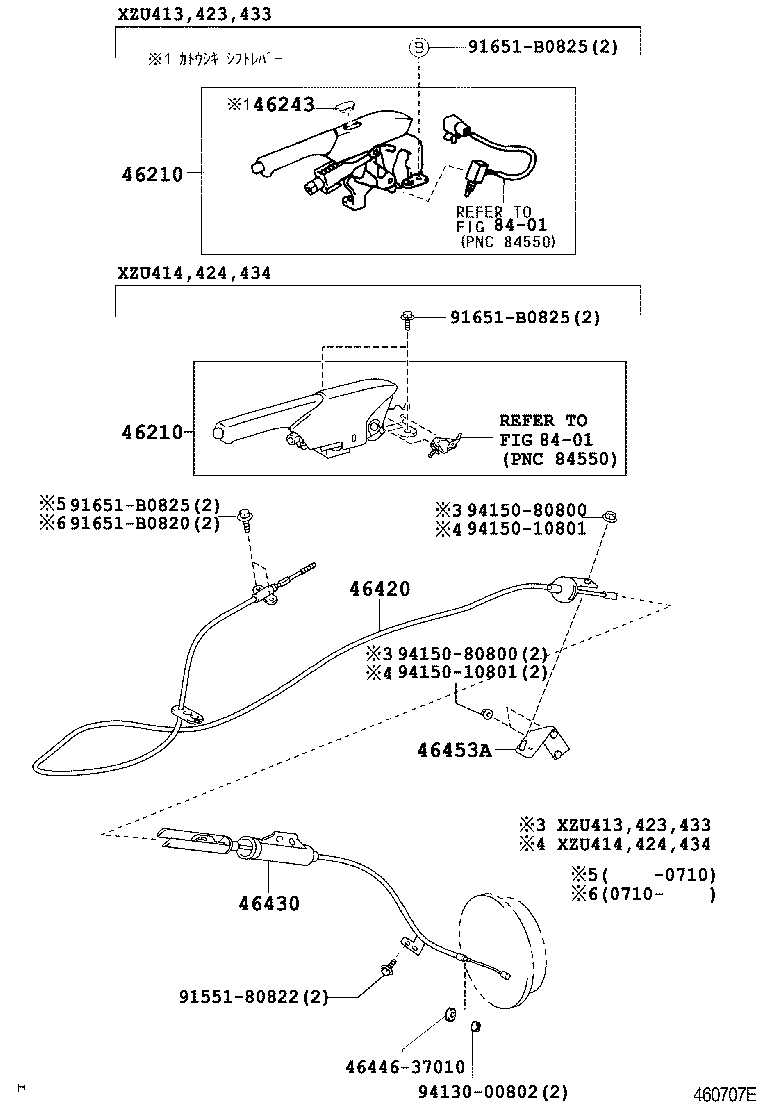

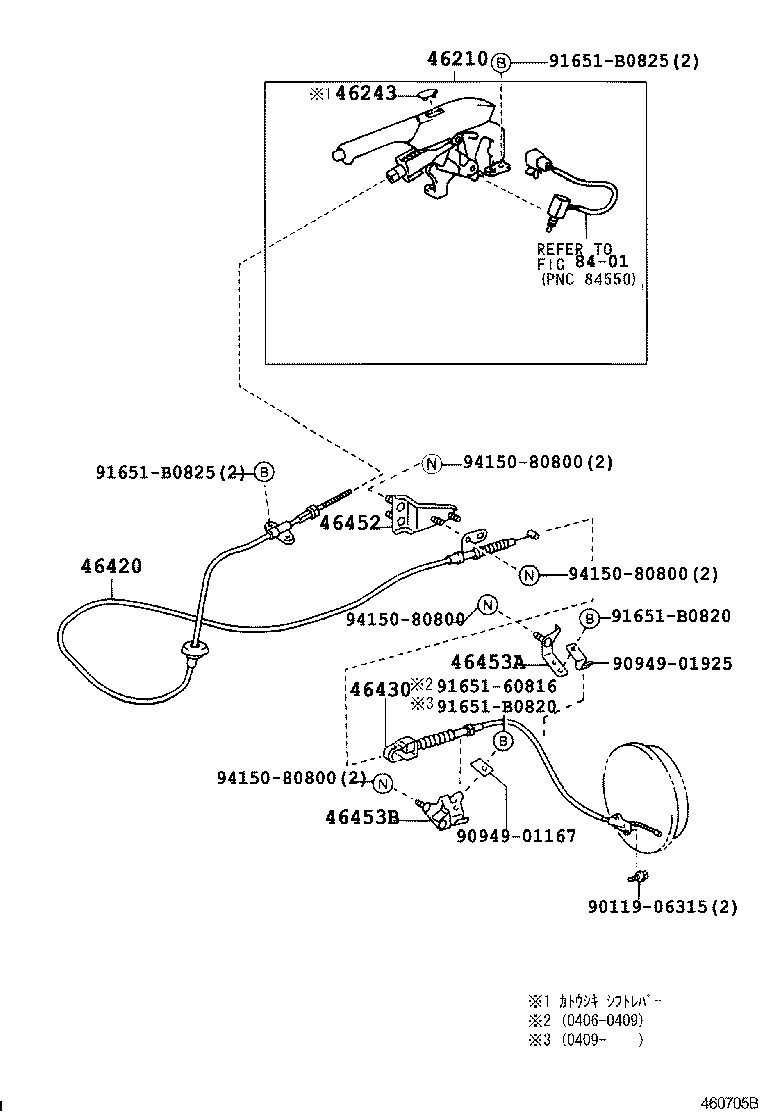

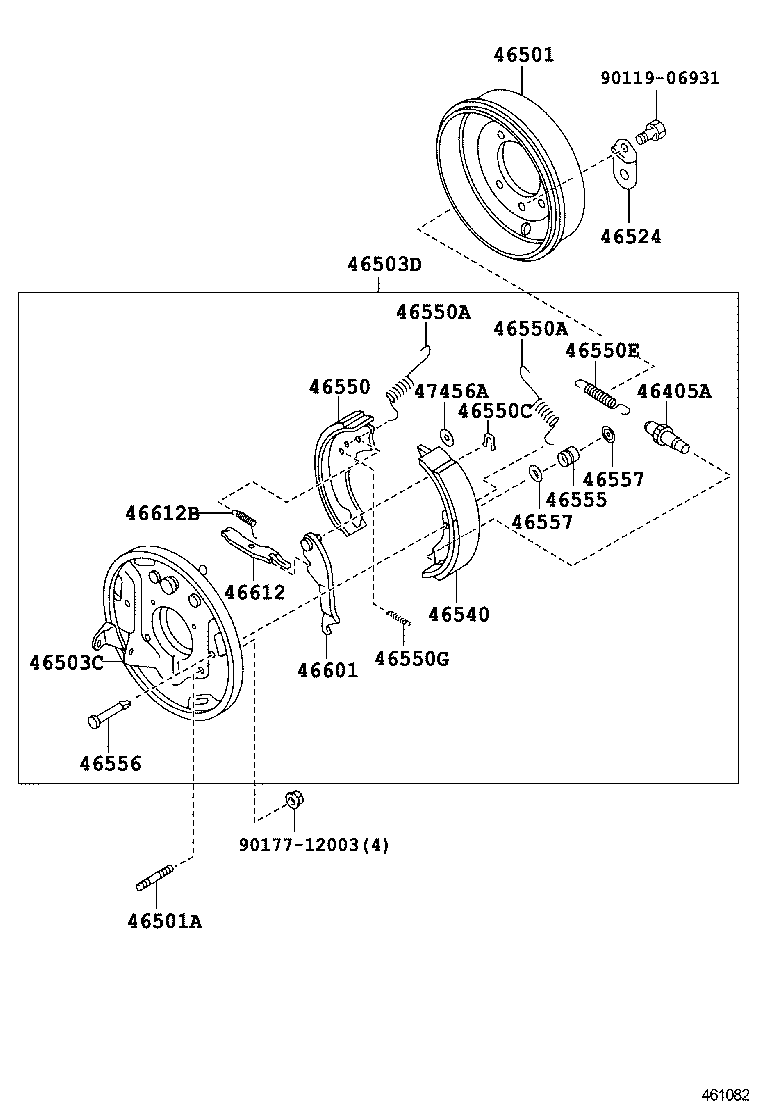

Figure 460261E 460261E 1999-05 → 2004-06 Figure 460262E 460262E 1999-05 → 2004-06 Figure 460263E 460263E 1999-08 → 2004-06 Figure 460568 460568 2003-10 → 2004-06 Figure 460706A 460706A 2004-06 → — Figure 460705B 460705B 2004-06 → — Figure 460713E 460713E 2004-06 → — Figure 460720G 460720G 2004-06 → — Figure 460720G 460720G 2006-10 → — Figure 460709F 460709F 2004-06 → — Figure 460709F 460709F 2006-10 → — Figure 460710E 460710E 2004-06 → — Figure 460710E 460710E 2006-10 → — Figure 460707E 460707E 2004-06 → — Figure 460707E 460707E 2006-10 → — Figure 460260 460260 1999-08 → 2004-06 Figure 461082 461082 2003-10 → 2004-06 Figure 461438 461438 1999-05 → 2004-06 Figure 461438 461438 2004-06 → — Figure 461438 461438 2006-10 → — Figure 460506D 460506D 1999-05 → 2004-06 Figure 460506D 460506D 2004-06 → — Figure 460506D 460506D 2006-10 → — Figure 460748F 460748F 2004-06 → — Figure 460748F 460748F 2006-10 → — Figure 460744B 460744B 2004-06 → — Figure 460744B 460744B 2006-10 → —

Part groups

PNCDescription
33826T Bracket, Transmission Control Cable, NO.2
33826U Bracket, Transmission Control Cable, NO.3
33829H Clamp, Transmission Control Cable
46201B Spring, Tension
46210 Lever Assy, Parking Brake
46243 Cover, Parking Brake Lever
46405A Screw Set, Shoe Adjusting, RH
46420 Cable Assy, Parking Brake, NO.2
46420F Seal, Dust(FOR PARKING BRAKE CABLE)
46420G Spring(FOR PARKING CABLE INNER WIRE SET)
46420L Clamp, NO.5(FOR PARKING BRAKE CABLE)
46420P Spacer, Parking Brake
46420Q Ring, E(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46451C Bracket, Parking Brake Cable Support, NO.1
46452 Bracket, Parking Brake Cable Support, NO.2
46453A Bracket, Cable Support, NO.3
46453B Bracket, Cable Support, NO.3
46459 Guide, Cable
46501 Drum Sub-assy, Parking Brake
46501A Bolt, Serration(FOR PARKING BRAKE DRUM)
46501B Flange, Parking Brake
46501C Plate, Parking Brake Support
46501D Brace, Parking Brake
46503C Plate Sub-assy, Parking Brake
46503D Center Brake Assy
46506A Adjuster Sub-assy, Parking Brake Shoe
46524 Cover, Parking Brake Dust
46540 Shoe Assy, Parking Brake, RH OR Center NO.1
46550 Shoe Assy, Parking Brake, RH OR Center NO.2
46550A Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C Washer, Type C(FOR PARKING BRAKE SHOE)
46550E Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN)
46555 Spring, Brake Shoe Hold Down
46556 Pin, Shoe Hold Down Spring
46557 Cup, Brake Shoe Hold Down
46563 Cam, Parking Brake, NO.1
46577 Cover, Adjusting Cam Hole
46584 Lever, Parking Brake Cam
46584A Spring, Parking Brake Cam Lever
46584B Pin, Parking Brake Cam Lever Knock
46601 Lever Sub-assy, Parking Brake Shoe
46612 Strut, Parking Brake Shoe Lever
46612B Spring, Compression(FOR PARKING BRAKE SHOE STRUT)
47456A Plate, Shoe Guide(FOR PARKING BRAKE)
47459B Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
47491A Plug, Shoe Adjusting Hole(FOR PARKING BRAKE SHOE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
