Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

78 part groups · 16 illustrations

Illustrations

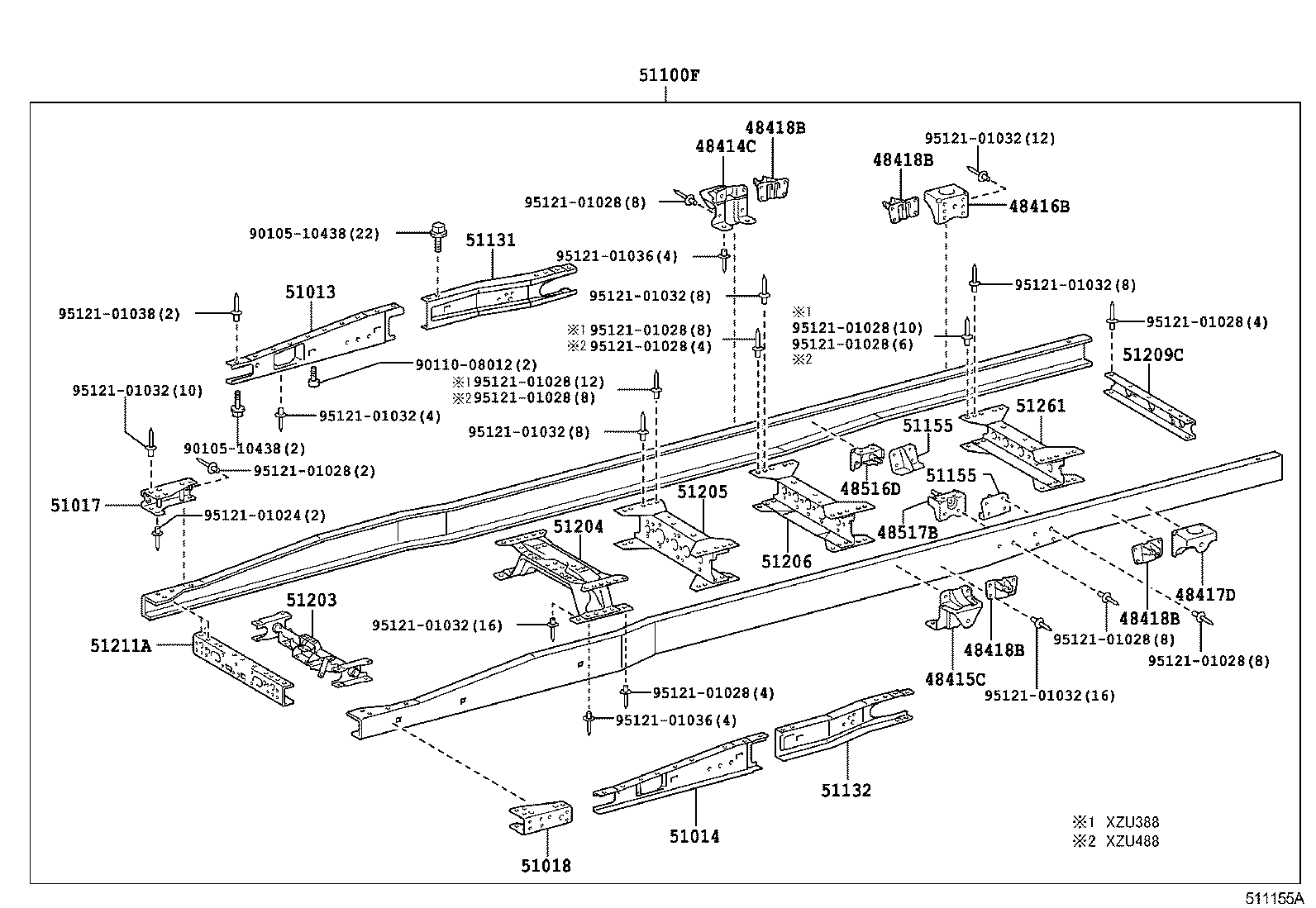

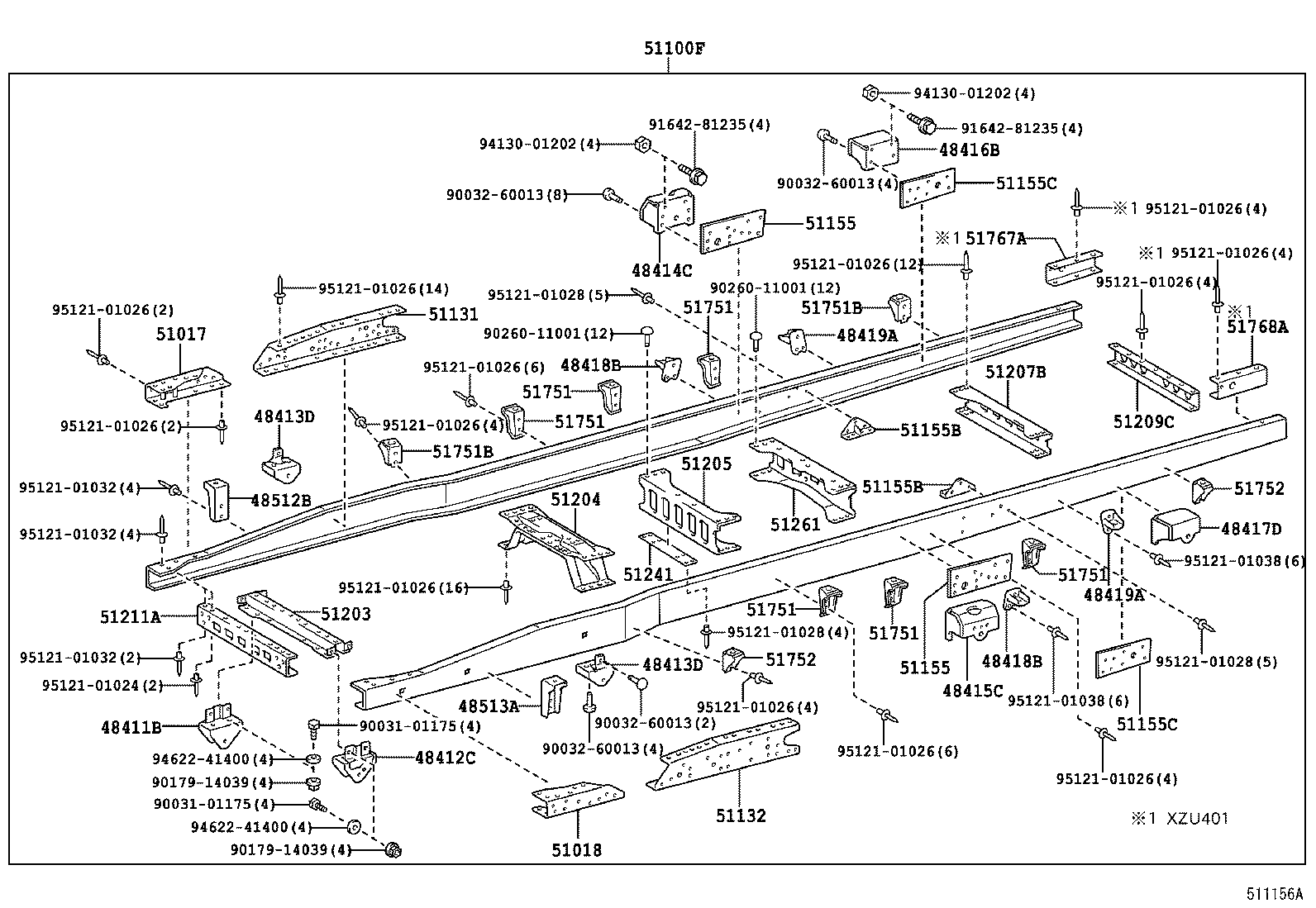

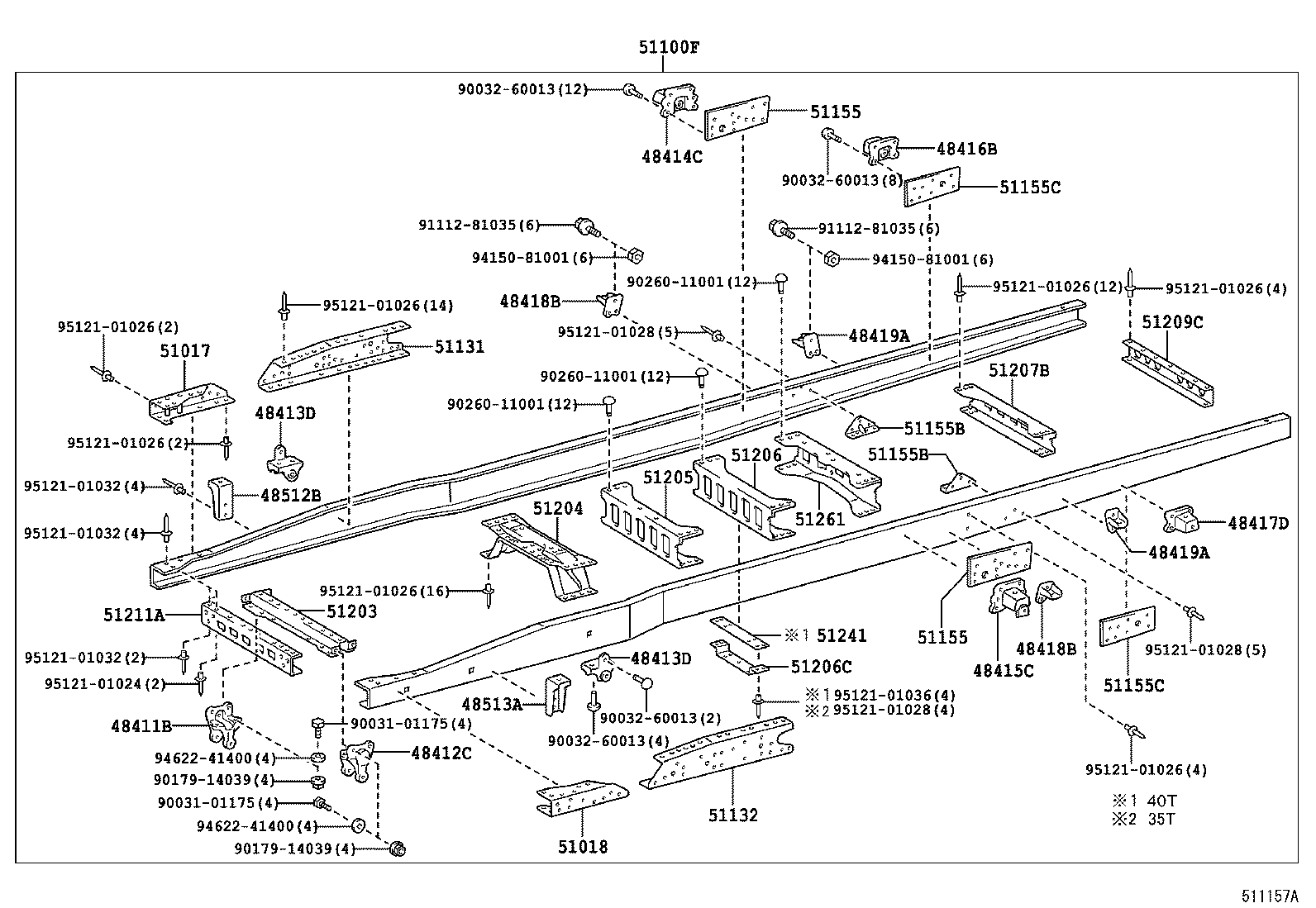

510469A 1999-05 → 2004-06

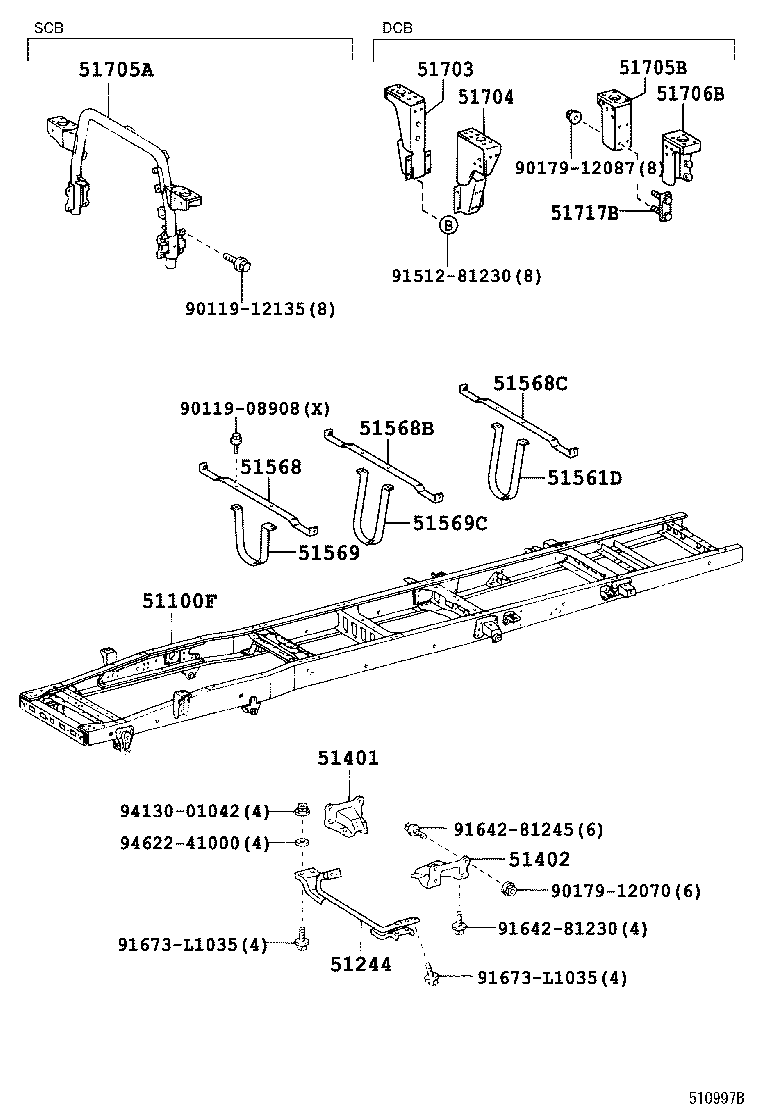

510997B 2003-06 → 2004-06

510997B 2004-06 → —

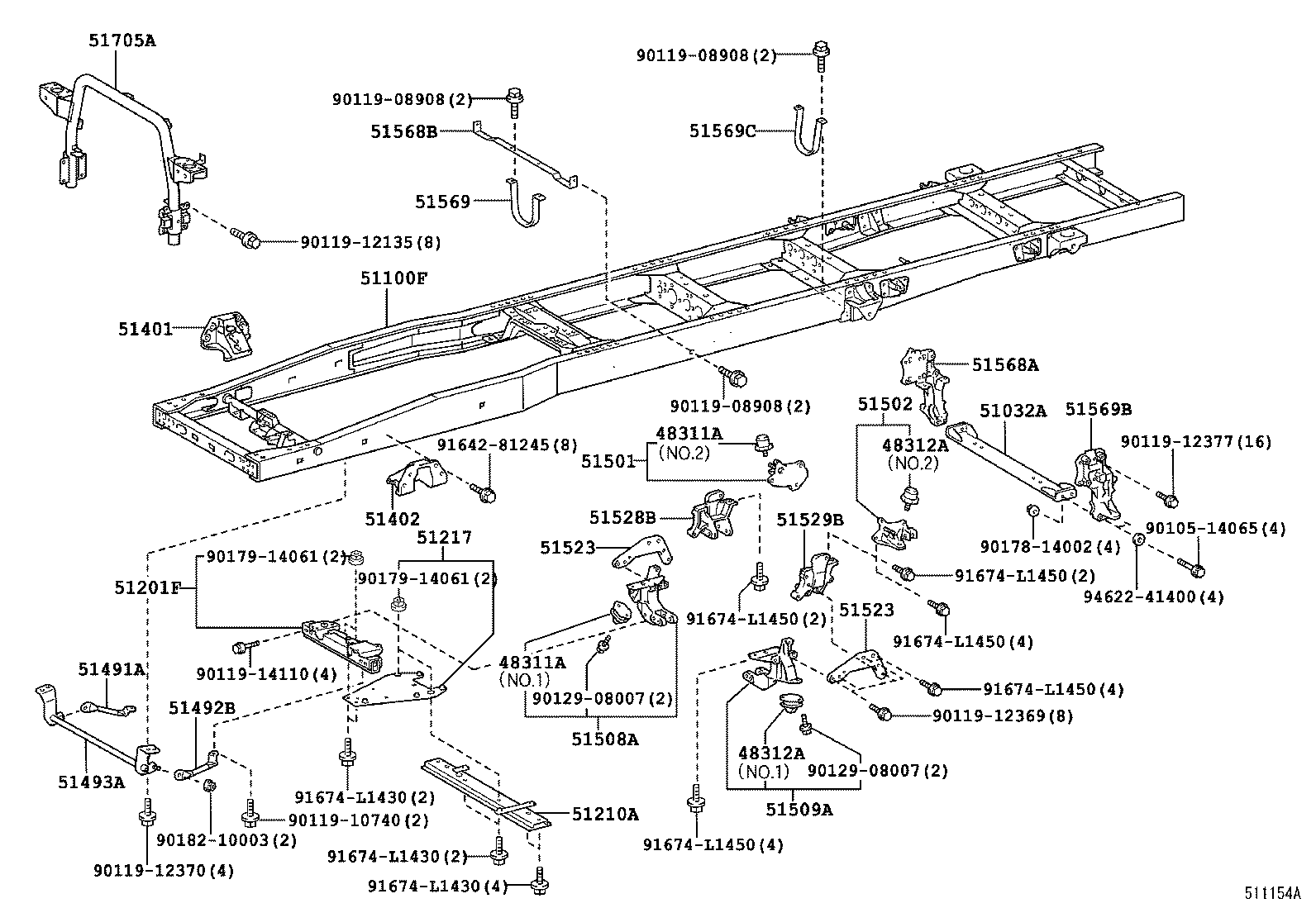

511154A 2004-06 → —

510470H 1999-05 → 2004-06

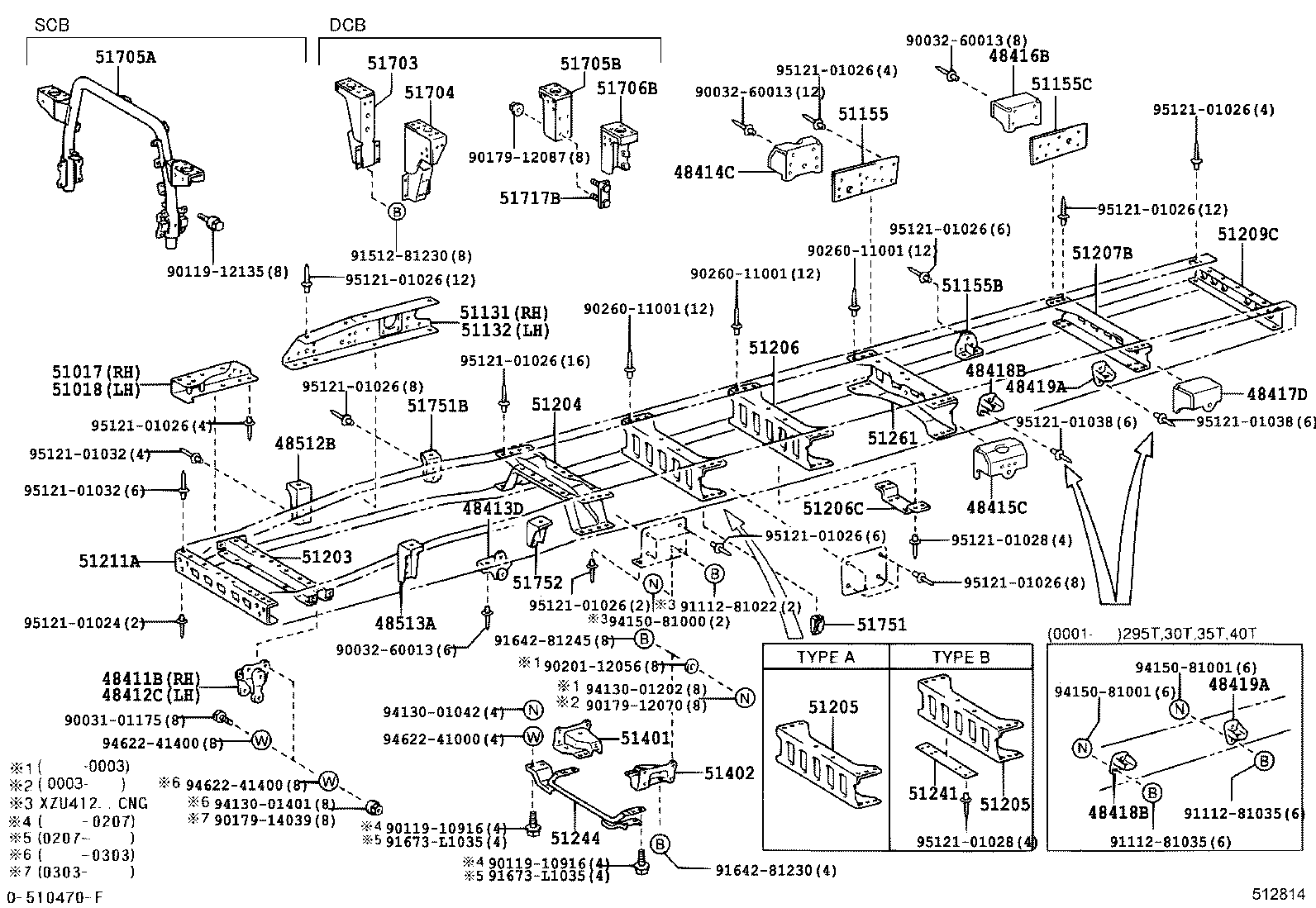

512814 1999-05 → 2004-06

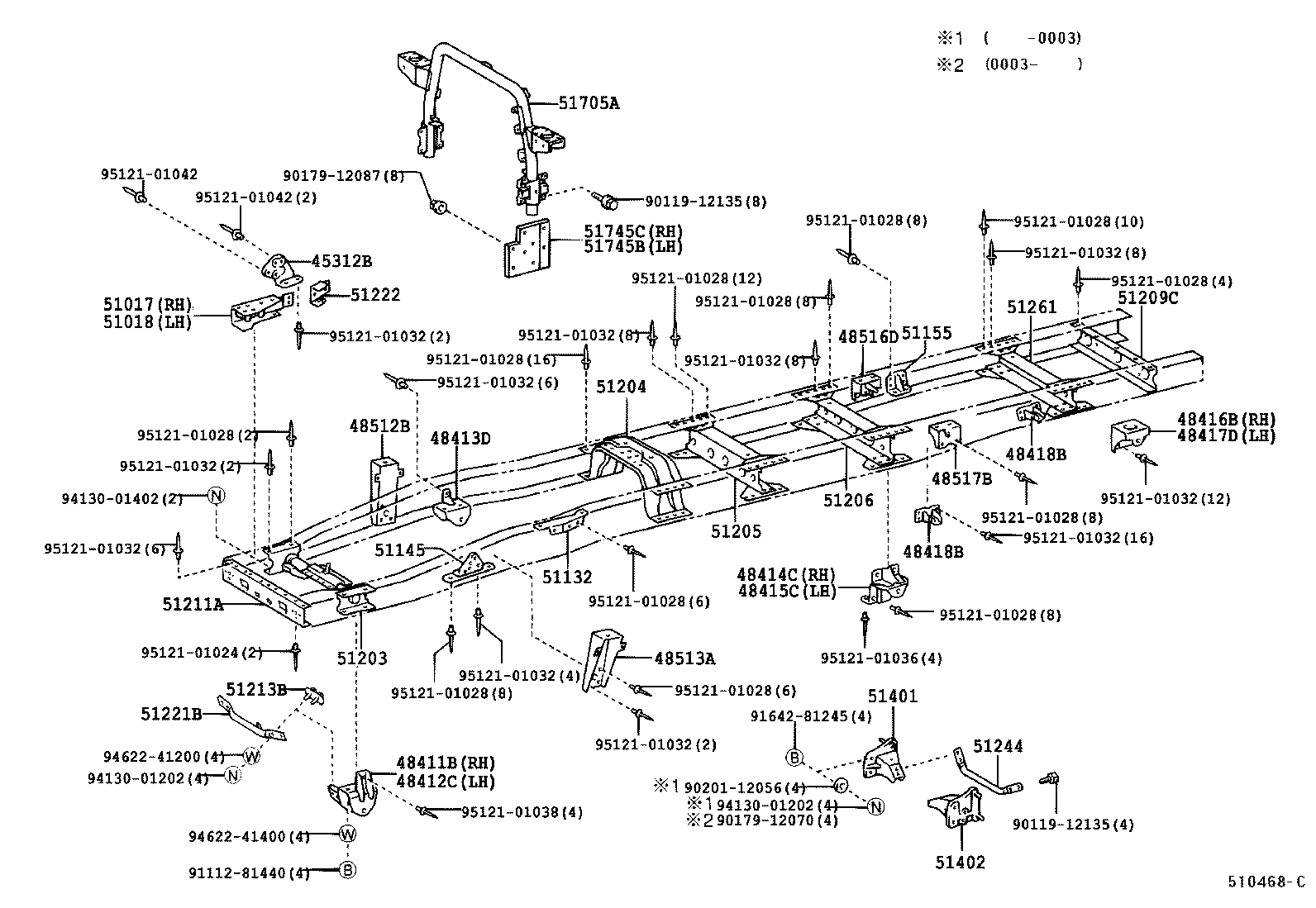

510468C 1999-08 → 2004-06

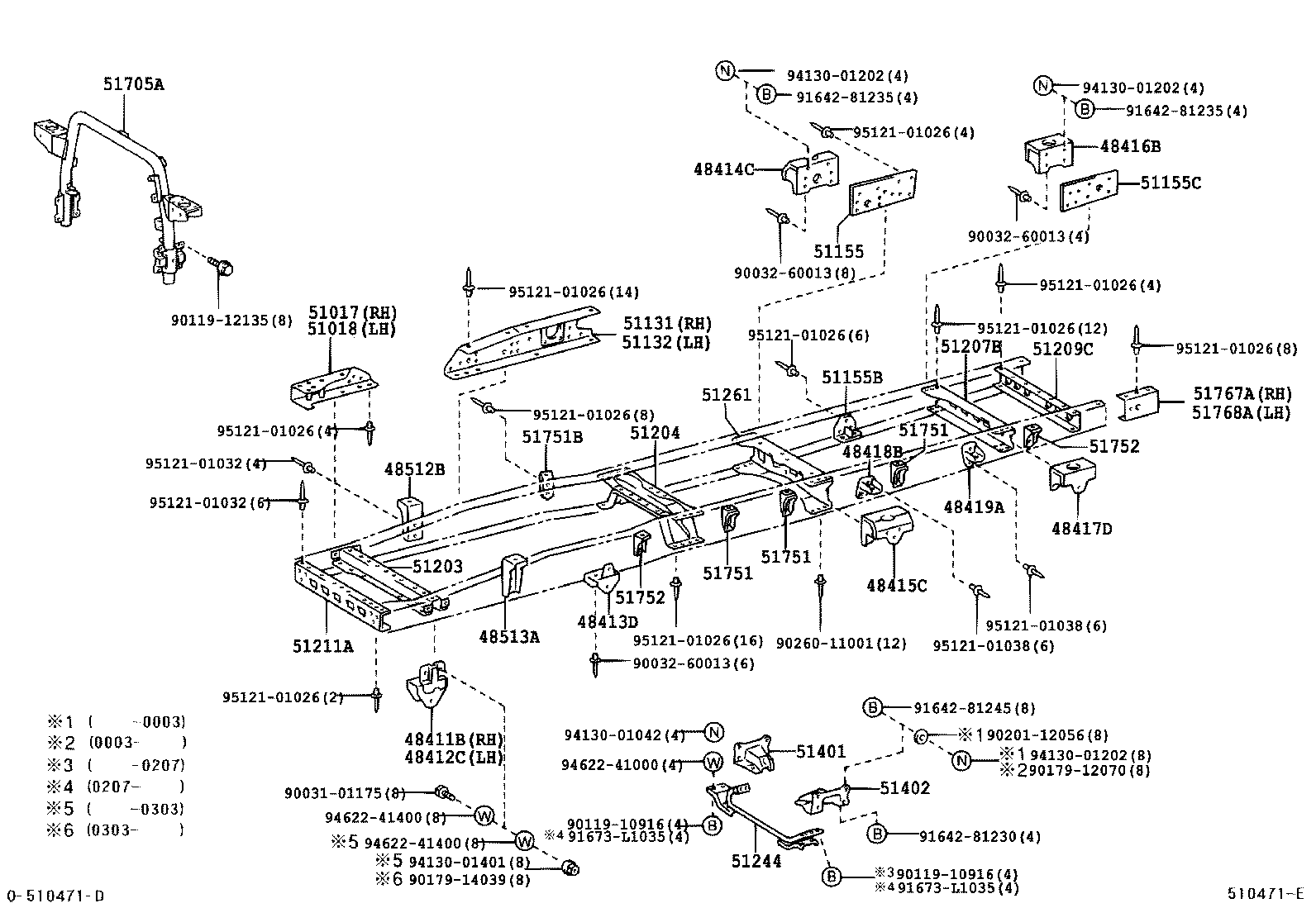

510471E 1999-05 → 2004-06

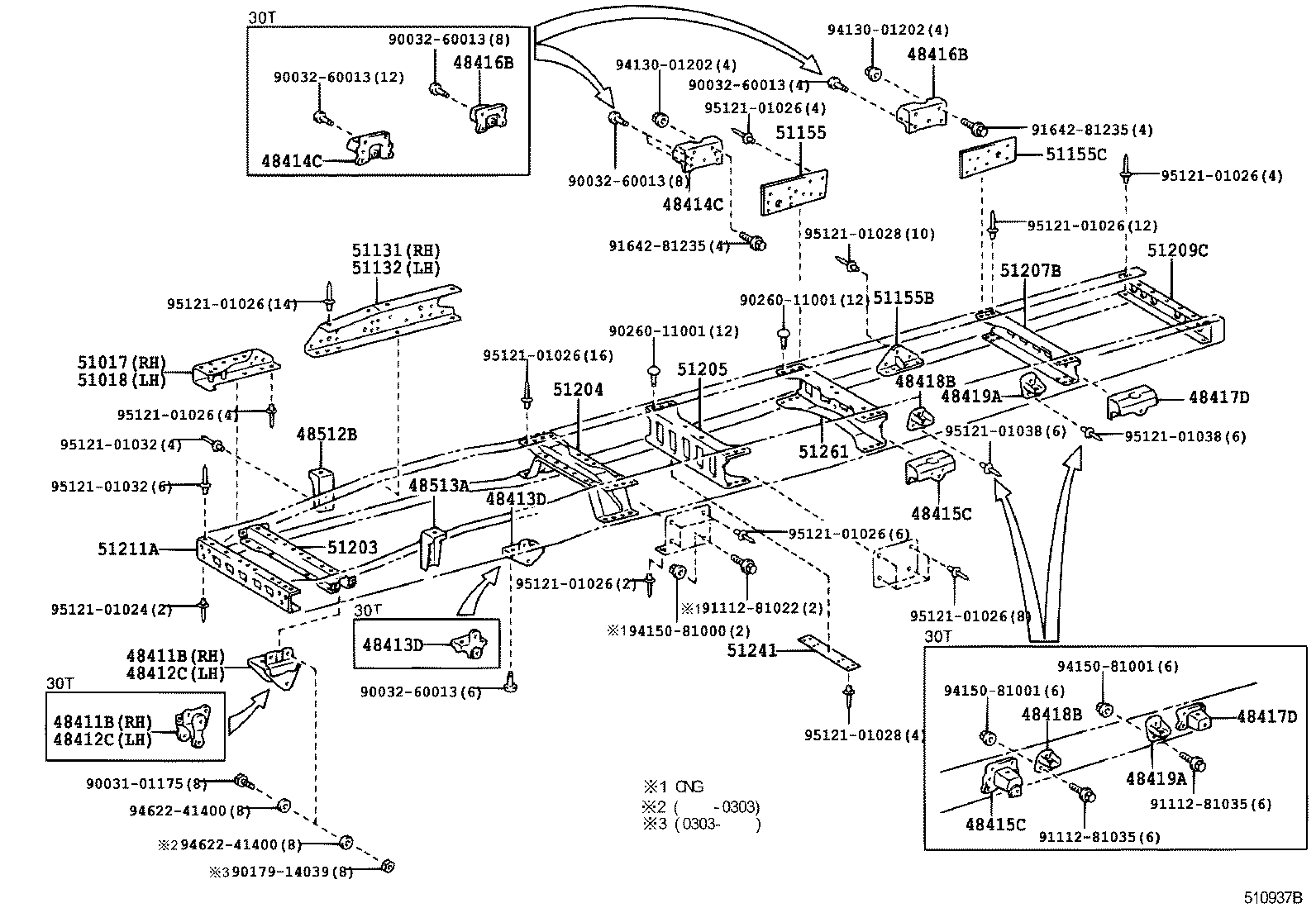

510937B 2003-06 → —

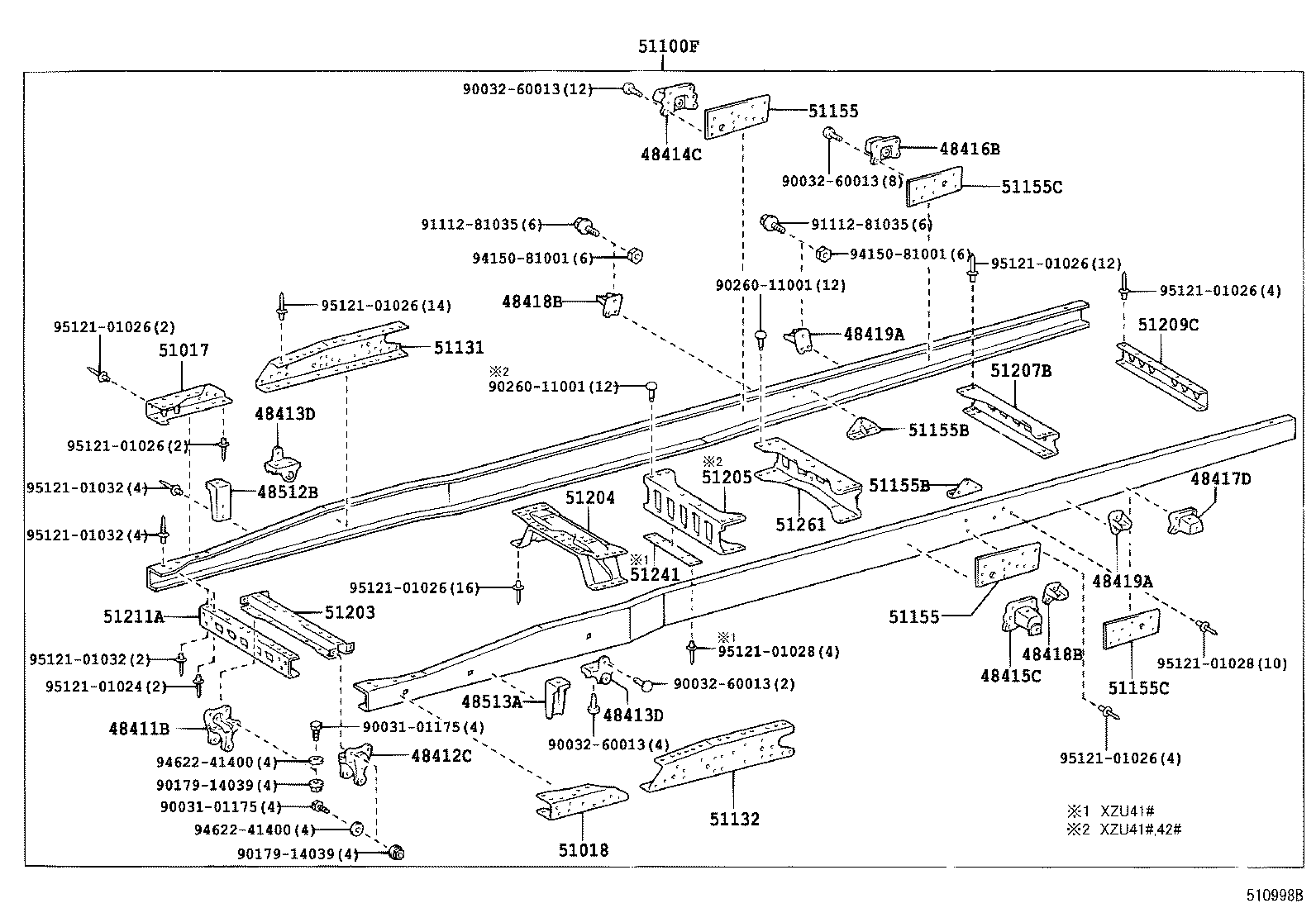

510998B 2003-10 → 2004-06

510998B 2004-06 → —

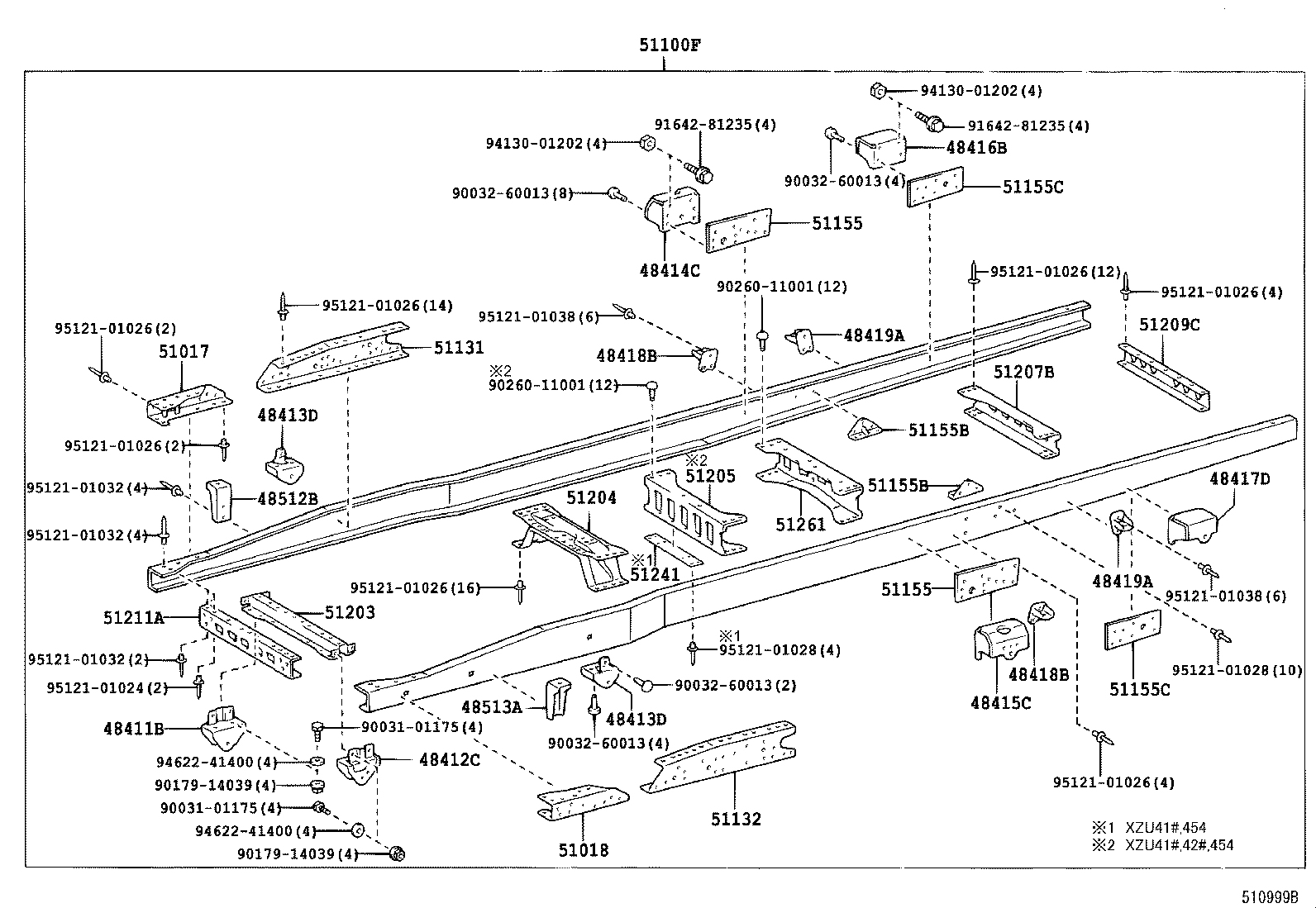

510999B 2003-10 → 2004-06

Part groups

PNC	Description
45312B	Bracket, Steering Gear Housing
48311A	Bracket, Hollow Spring, RH
48312A	Bracket, Hollow Spring, LH
48411B	Bracket, Spring, NO.1 RH
48412C	Bracket, Spring, NO.1 LH
48413D	Bracket, Spring, NO.2
48414C	Bracket, Spring, NO.3 RH
48415C	Bracket, Spring, NO.3 LH
48416B	Bracket, Spring, NO.4 RH
48417D	Bracket, Spring, NO.4 LH
48418B	Bracket, Spring, NO.6
48419A	Bracket, Spring, NO.7
48512B	Bracket, Front Shock Absorber, Upper RH
48513A	Bracket, Front Shock Absorber, Upper LH
48516D	Bracket Sub-assy, Rear Shock Absorber, Upper RH
48517B	Bracket Sub-assy, Rear Shock Absorber, Upr LH
51013	Channel Sub-assy, Side Rail, Inner Front RH
51014	Channel Sub-assy, Side Rail, Inner Front LH
51017	Reinforcement Sub-assy, Side Rail, NO.1 RH
51018	Reinforcement Sub-assy, Side Rail, NO.1 LH
51032A	Member Sub-assy, Anchor Arm Support
51100F	Frame Sub-assy
51131	Rail, Front Frame, RH
51132	Rail, Front Frame, LH
51145	Stiffener, Frame Side Rail
51155	Stiffener, Frame Side Rail, Rear RH
51155B	Stiffener, Frame Side Rail, Rear NO.2
51155C	Stiffener, Frame Side Rail, Rear NO.3
51201F	Crossmember Sub-assy, Front Suspension
51203	Crossmember Sub-assy, Frame, NO.2
51204	Crossmember Sub-assy, Frame, NO.3
51205	Crossmember Sub-assy, Frame, NO.4
51206	Crossmember Sub-assy, Frame, NO.5
51206C	Crossmember Sub-assy, Frame, NO.5
51207B	Crossmember Sub-assy, Frame, NO.7
51209C	Crossmember Sub-assy, Frame, Rear
51210A	Member Assy, Front Suspension
51211A	Crossmember, Frame, Front
51213B	Plate, Frame Crossmember, Front
51217	Reinforcement, Front Crossmember, Lower RH
51221B	Crossmember, Front Suspension
51222	Reinforcement, Frame NO.2 Crossmember
51241	Bracket, Center Bearing Support
51244	Member, Engine Front Support
51261	Crossmember, Frame, NO.6
51401	Bracket Sub-assy, Engine Front Mounting, RH
51402	Bracket Sub-assy, Engine Front Mounting, LH
51491A	Bar, Under Guard, Front NO.1
51492B	Bar, Under Guard, Front NO.2
51493A	Bracket, Under Guard, Front NO.1
51501	Support Sub-assy, Suspension Arm, RH
51502	Support Sub-assy, Suspension Arm, LH
51508A	Bracket Sub-assy, Lower Arm, RH
51509A	Bracket Sub-assy, Lower Arm, LH
51523	Reinforcement, Upper Control Arm Support, RH
51528B	Bracket, Lower Arm Support, Rear RH
51529B	Bracket, Lower Arm Support, Rear LH
51561D	Guard, Propeller Shaft
51568	Bracket, Propeller Shaft Guard
51568A	Support, Anchor Arm, Lower RH
51568B	Bracket, Propeller Shaft Guard
51568C	Bracket, Propeller Shaft Guard
51569	Guard, Propeller Shaft
51569B	Support, Anchor Arm, Lower LH
51569C	Guard, Propeller Shaft
51703	Bracket Sub-assy, Cab Mounting, NO.2, RH
51704	Bracket Sub-assy, Cab Mounting, NO.2 LH
51705A	Bracket Sub-assy, Cab Mounting, NO.3
51705B	Bracket Sub-assy, Cab Mounting, NO.3 RH
51706B	Bracket Sub-assy, Cab Mounting, NO.3 LH
51717B	Plate, Body Mounting Bracket, RH
51745B	Bracket, Rear Body Mounting, NO.3 LH
51745C	Gusset, Cab Mounting, NO.3 RH
51751	Bracket, Body Support, NO.1
51751B	Bracket, Body Support, NO.1 RH
51752	Bracket, Body Support, NO.1 LH
51767A	Bracket, Frame Body Mounting, NO.8 RH
51768A	Bracket, Frame Body Mounting, NO.8 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
