Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

9 part groups · 17 illustrations

Illustrations

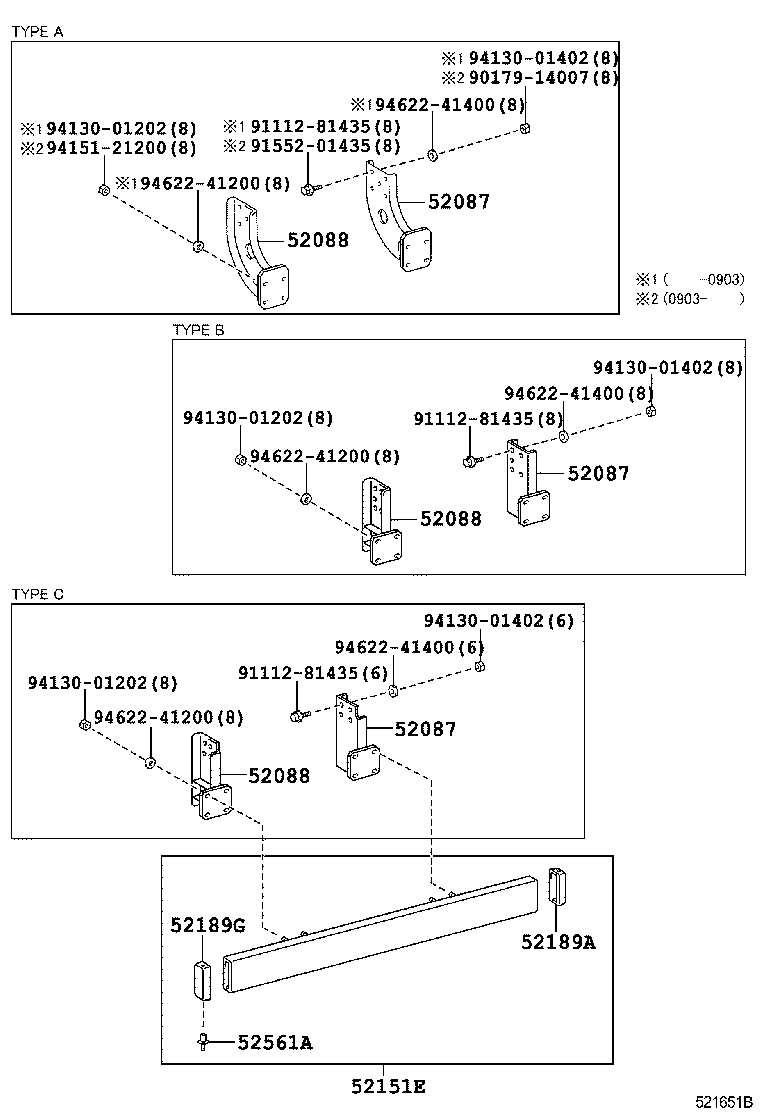

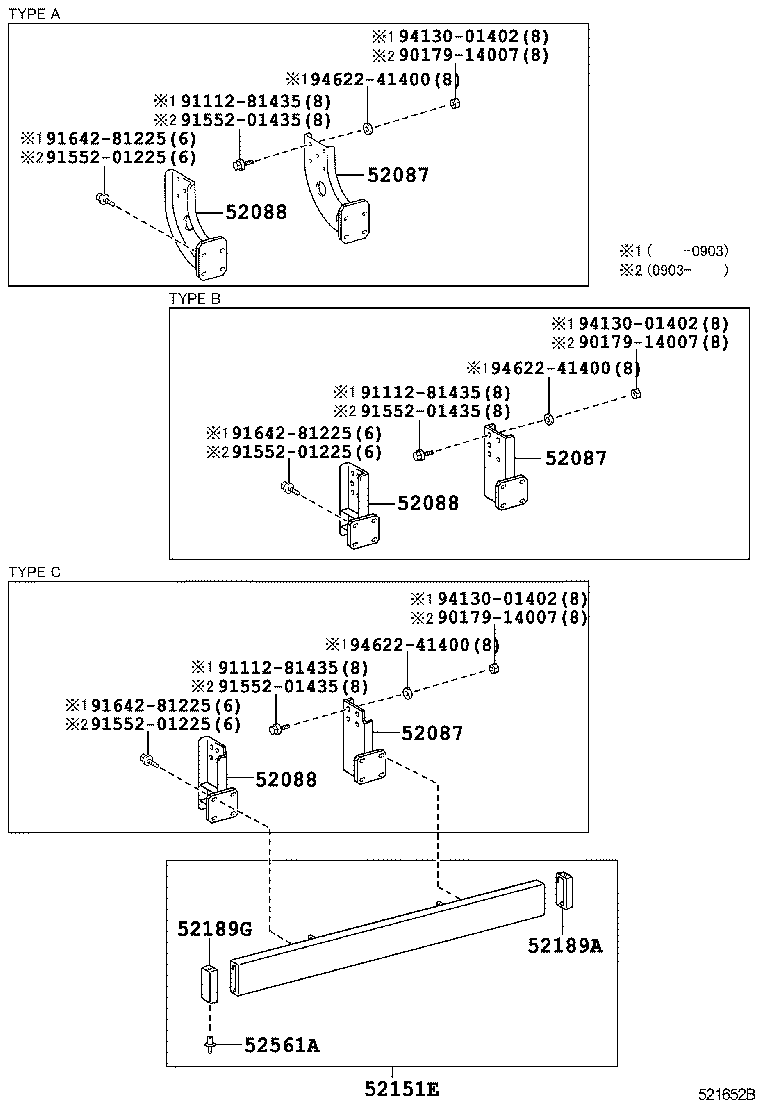

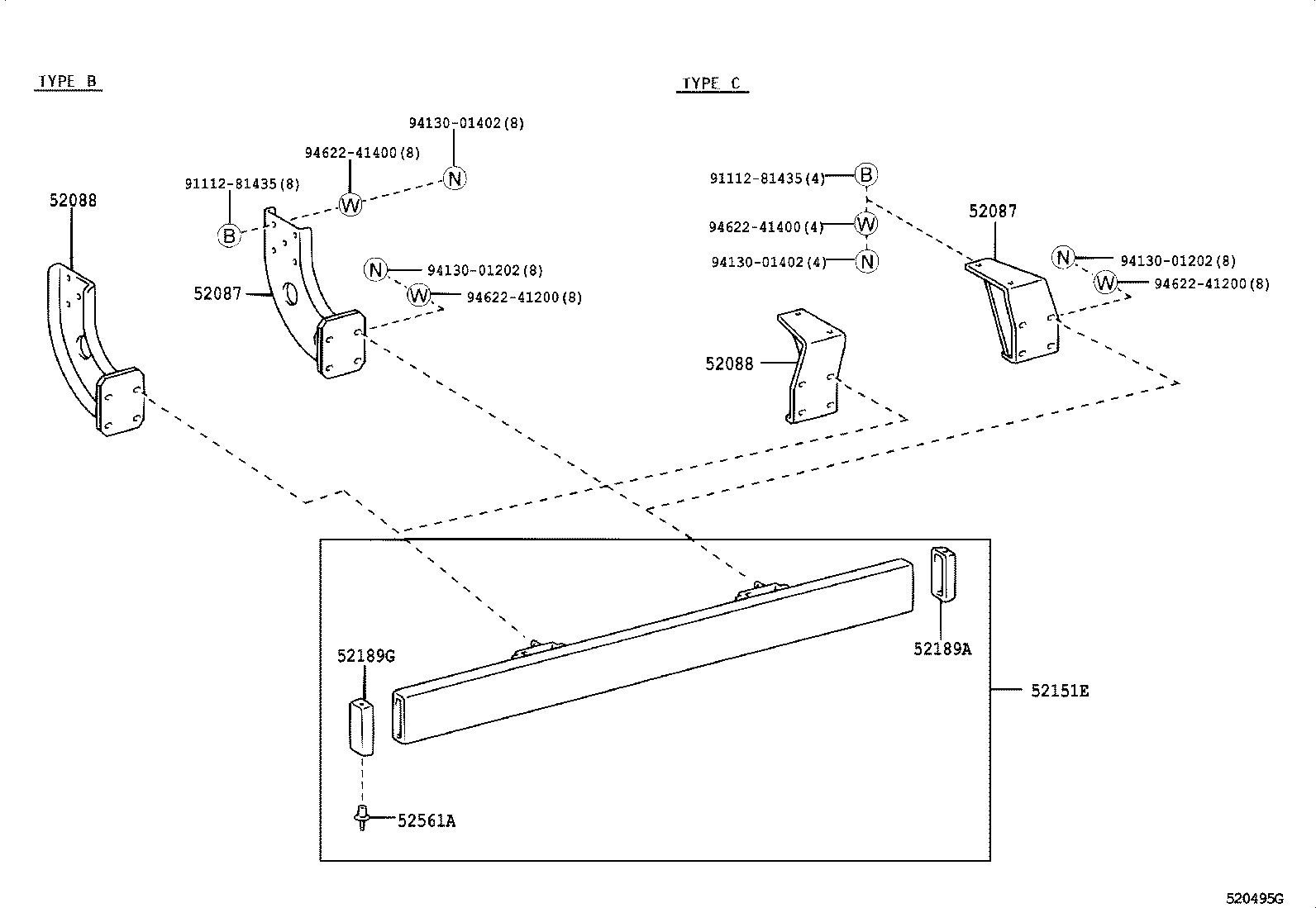

Figure 520497G 520497G 1999-05 → 2005-05 Figure 520497G 520497G 2002-06 → 2005-05 Figure 520497G 520497G 2003-06 → 2005-05 Figure 520495G 520495G 1999-05 → 2005-05 Figure 520493D 520493D 1999-08 → 2004-06 Figure 520493D 520493D 2004-06 → 2005-05 Figure 520494E 520494E 1999-05 → 2004-06 Figure 520494E 520494E 2004-06 → 2006-10 Figure 520581B 520581B 1999-05 → — Figure 520581B 520581B 2006-10 → — Figure 521651B 521651B 2005-05 → — Figure 521651B 521651B 2005-05 → — Figure 521651B 521651B 2006-10 → — Figure 521651B 521651B 2006-10 → — Figure 521652B 521652B 2006-10 → — Figure 521652B 521652B 2006-10 → — Figure 522119A 522119A 2006-10 → —

Part groups

PNCDescription
52087 Stay Sub-assy, Rear Bumper Side, RH
52088 Stay Sub-assy, Rear Bumper Side, LH
52151E Bar, Rear Bumper
52189A Protector, Rear Bumper Arm Edge, RH
52189G Protector, Rear Bumper Arm Edge, LH
52561A Clip(FOR REAR BUMPER RETAINER)
65267B Bracket Sub-assy, Tail Gate Bumper Stop, RH
65268B Bracket Sub-assy, Tail Gate Bumper Stop, LH
66321H Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
