Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

5 part groups · 9 illustrations

Illustrations

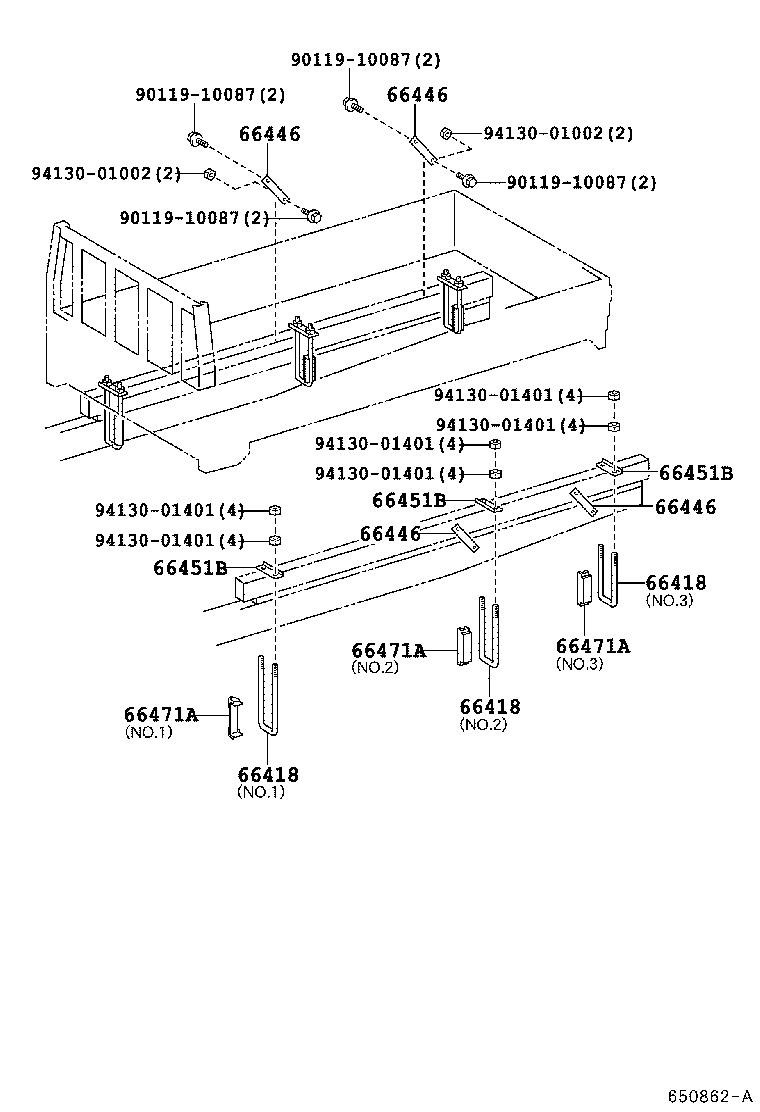

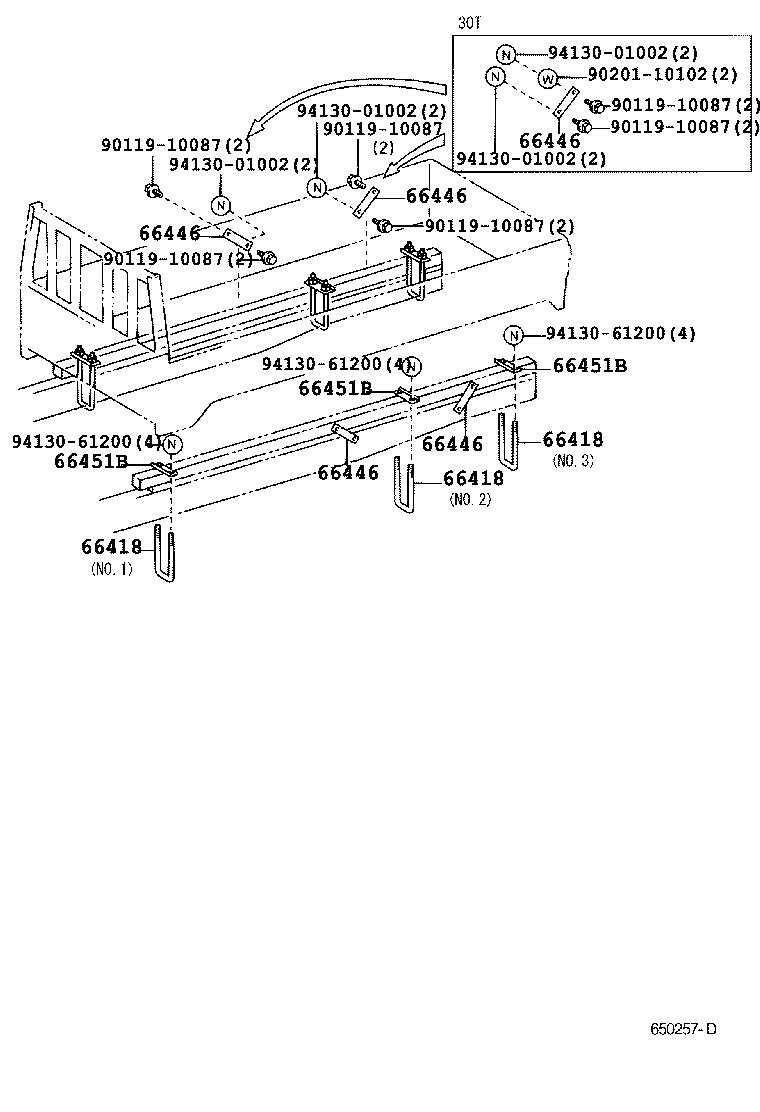

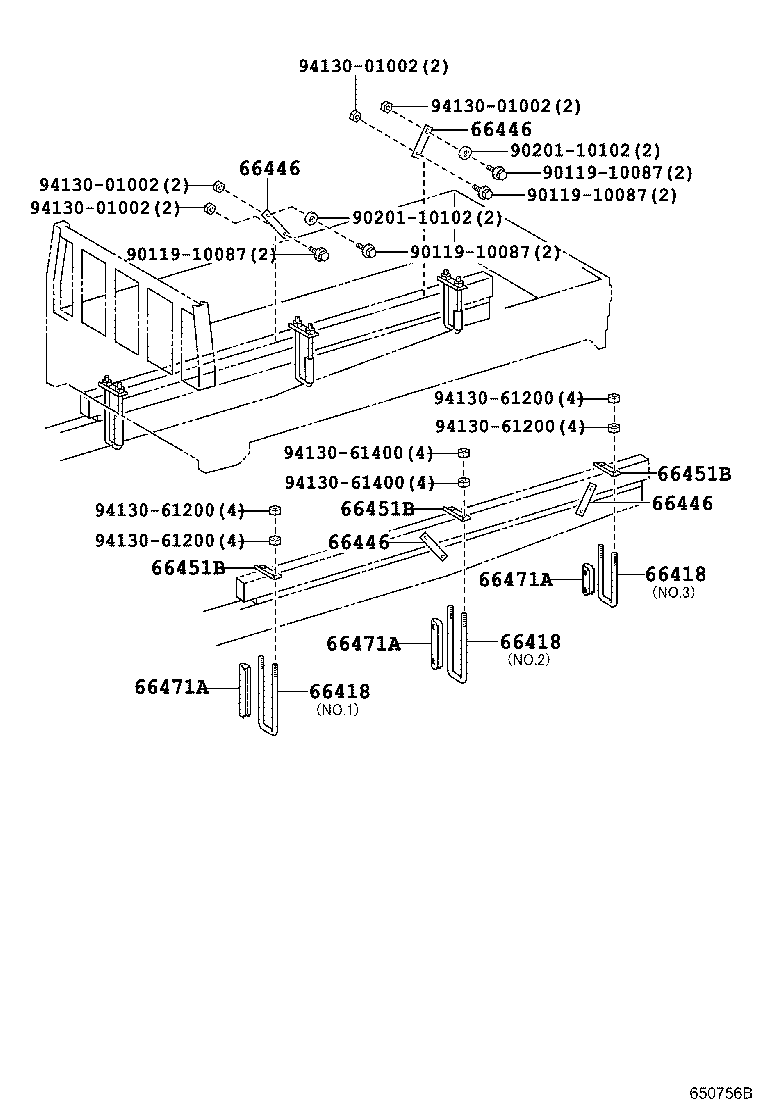

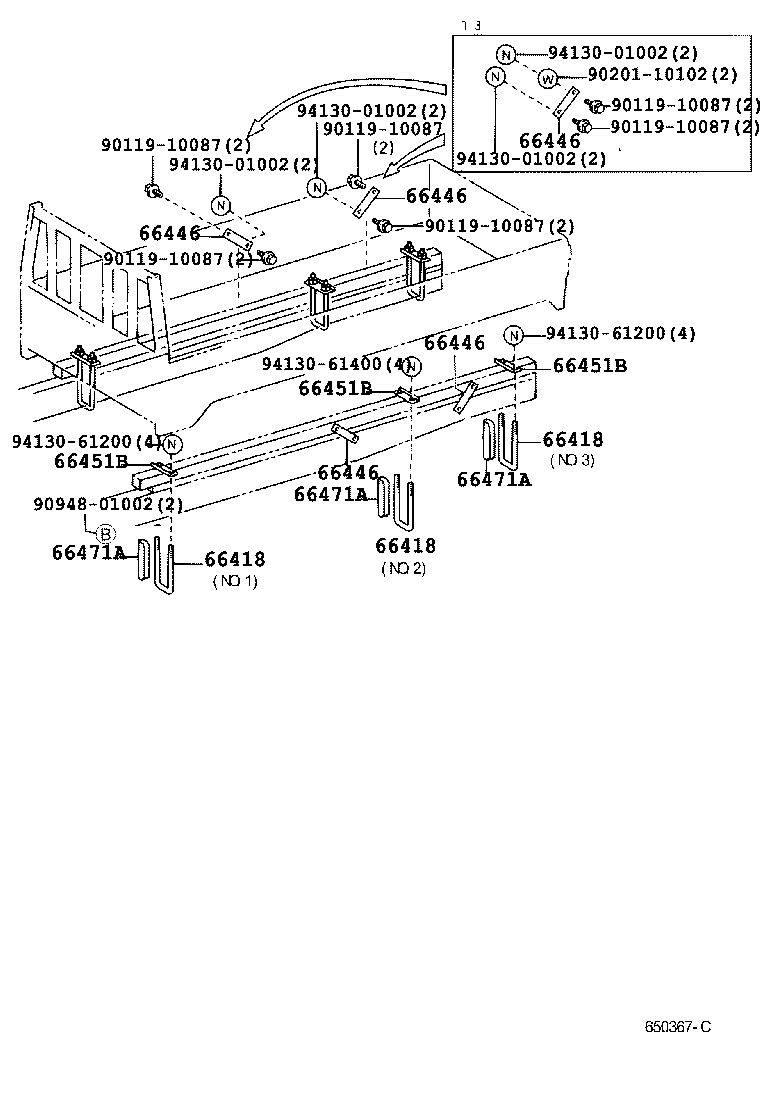

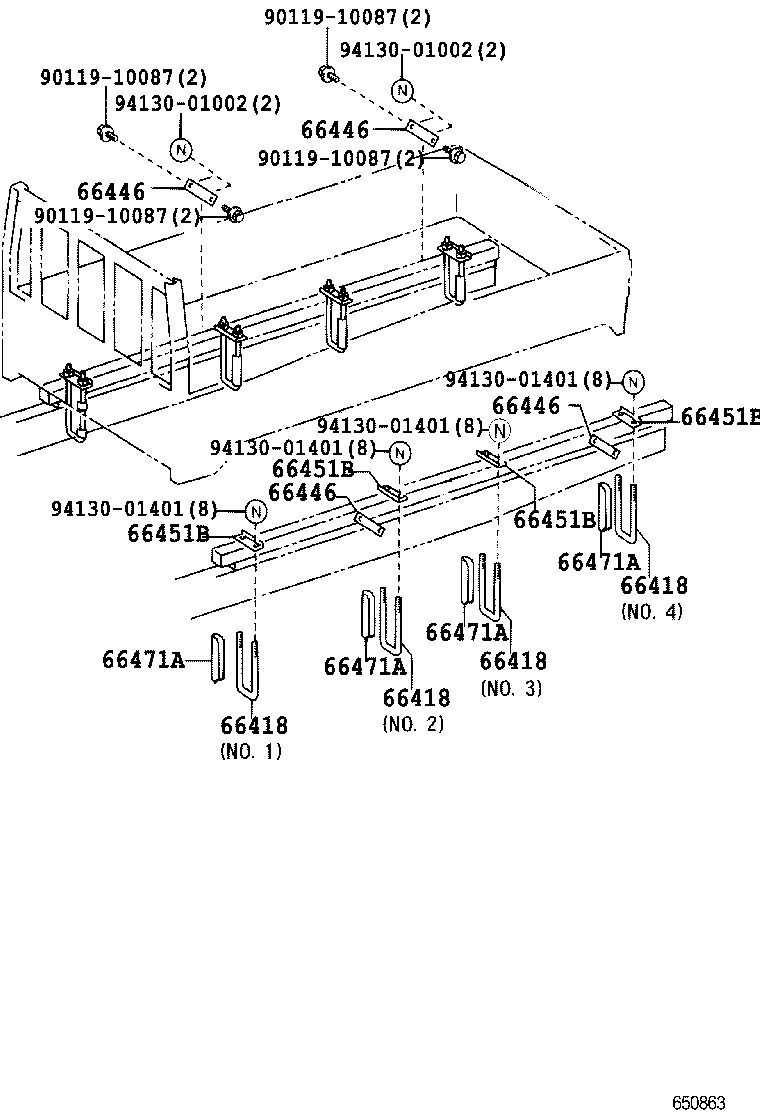

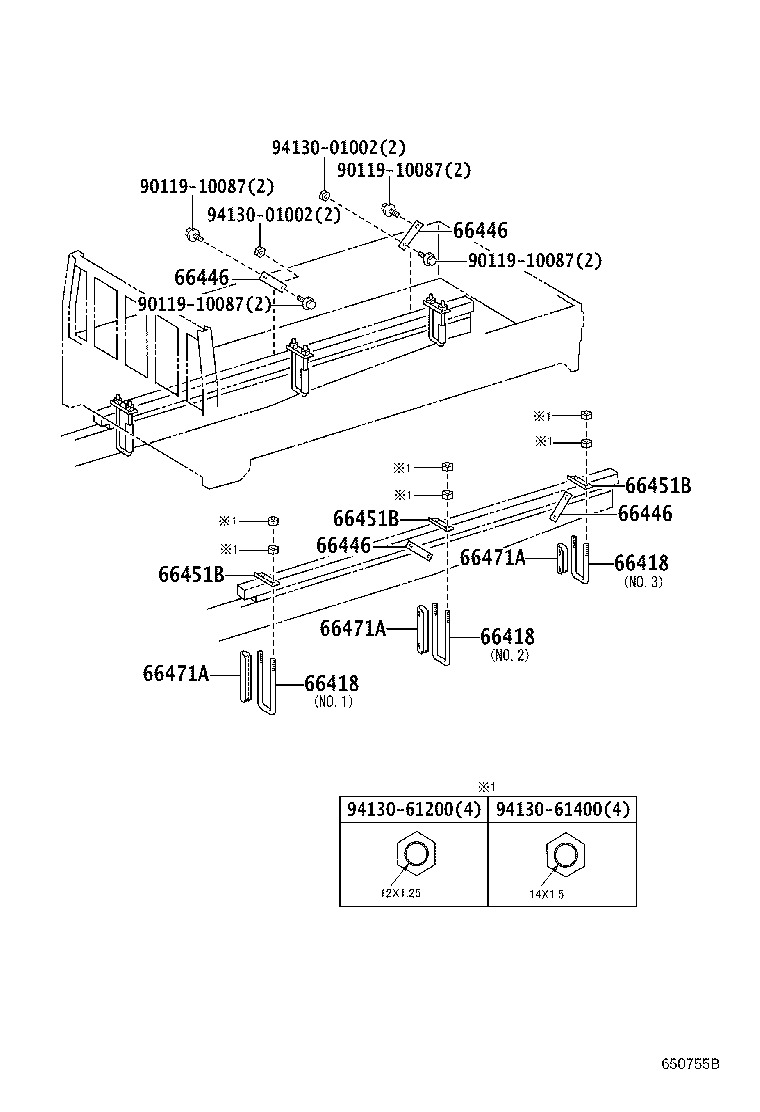

Figure 650221B 650221B 1999-05 → — Figure 650755B 650755B 1999-05 → — Figure 650756B 650756B 1999-05 → — Figure 650570A 650570A 1999-05 → — Figure 650864 650864 1999-05 → — Figure 650863 650863 1999-05 → — Figure 650257D 650257D 1999-05 → — Figure 650367C 650367C 2002-06 → — Figure 650862A 650862A 2007-05 → —

Part groups

PNCDescription
66418 Bolt, Mounting
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66471A Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
