Toyota Dyna/Toyoace

1999-05 → 2011-06 · chassis BU4##,BZU410,XZU3##,4## · catalogue 771130 · Japan

Discontinued model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

72 part groups · 21 illustrations

Illustrations

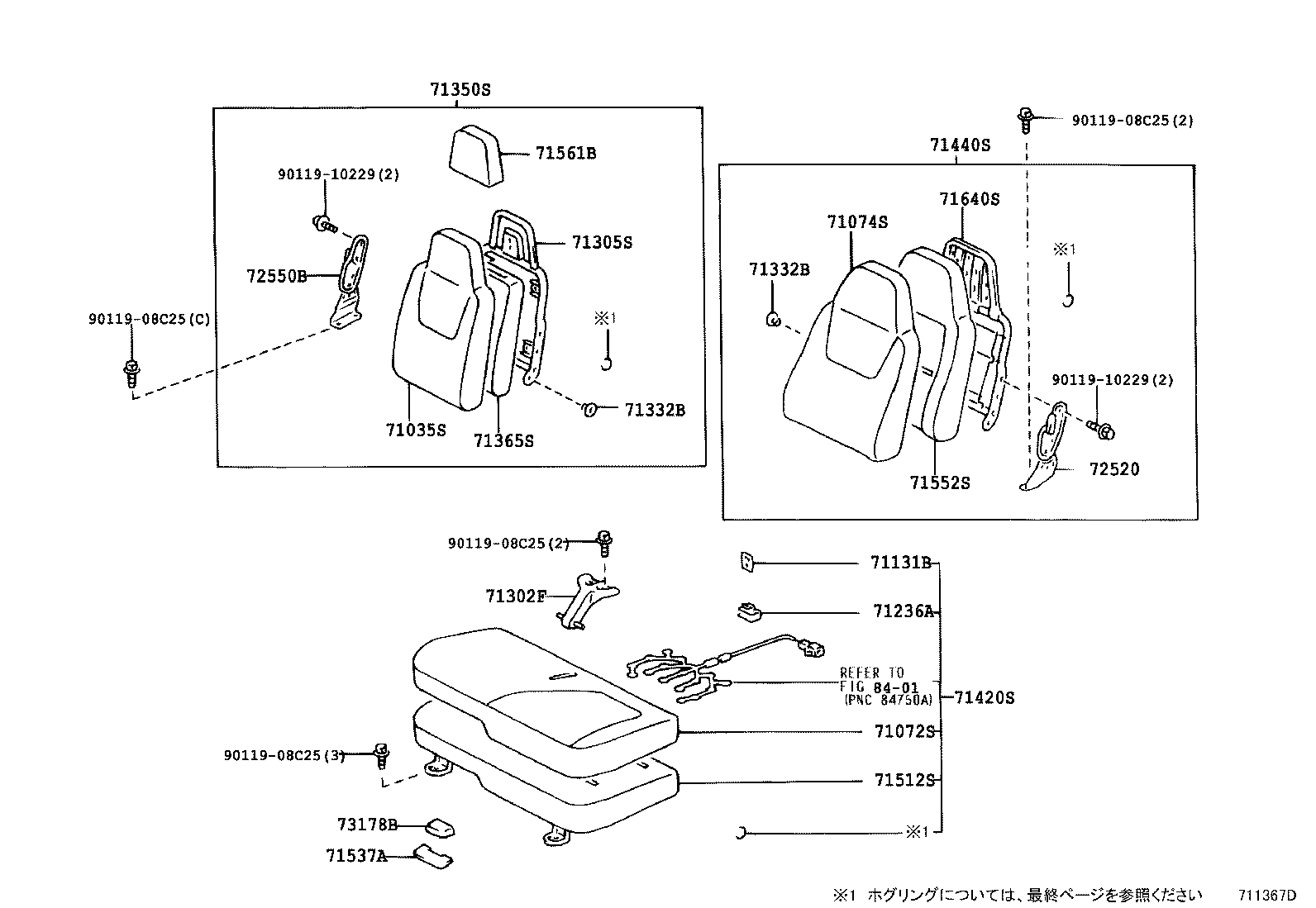

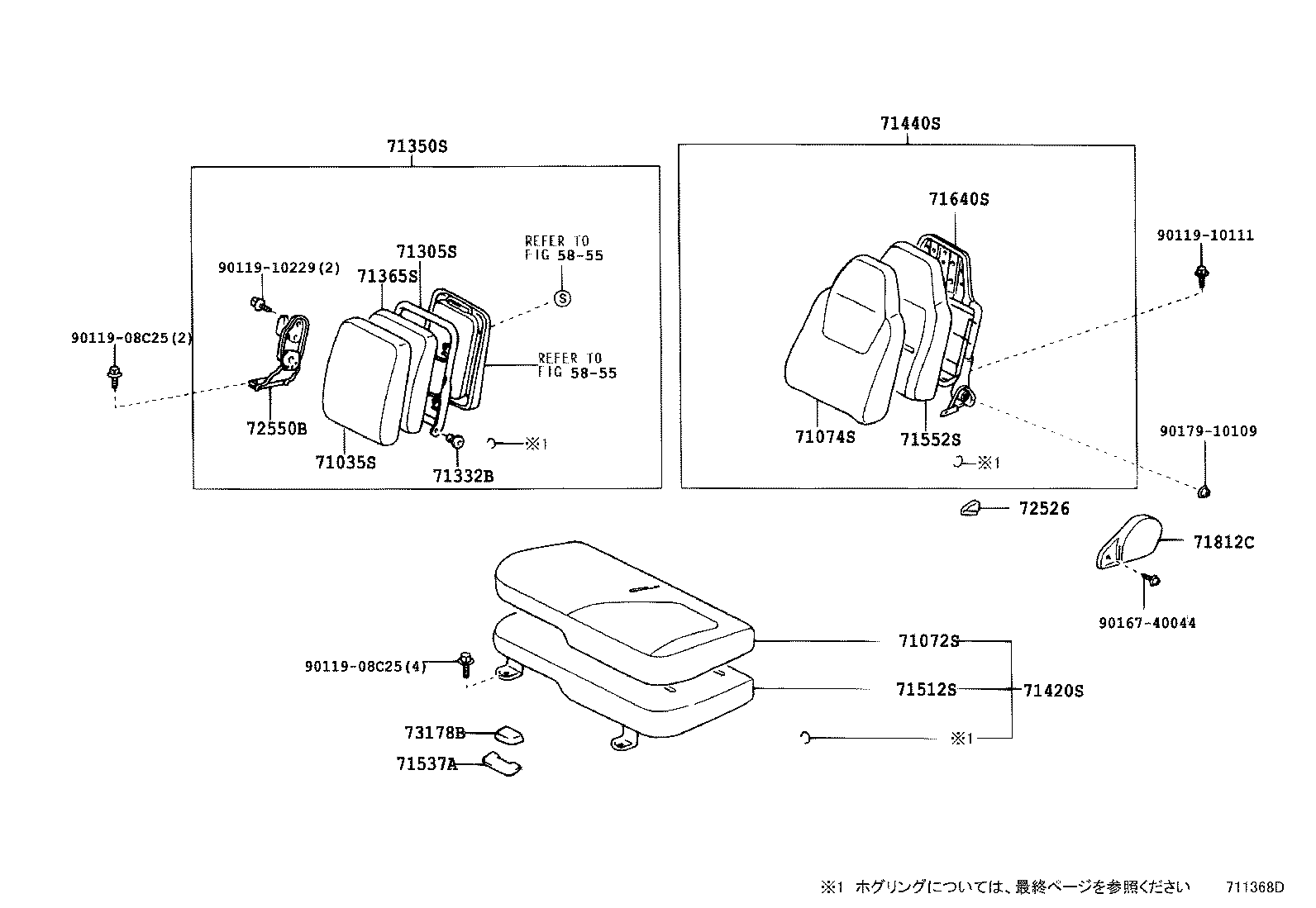

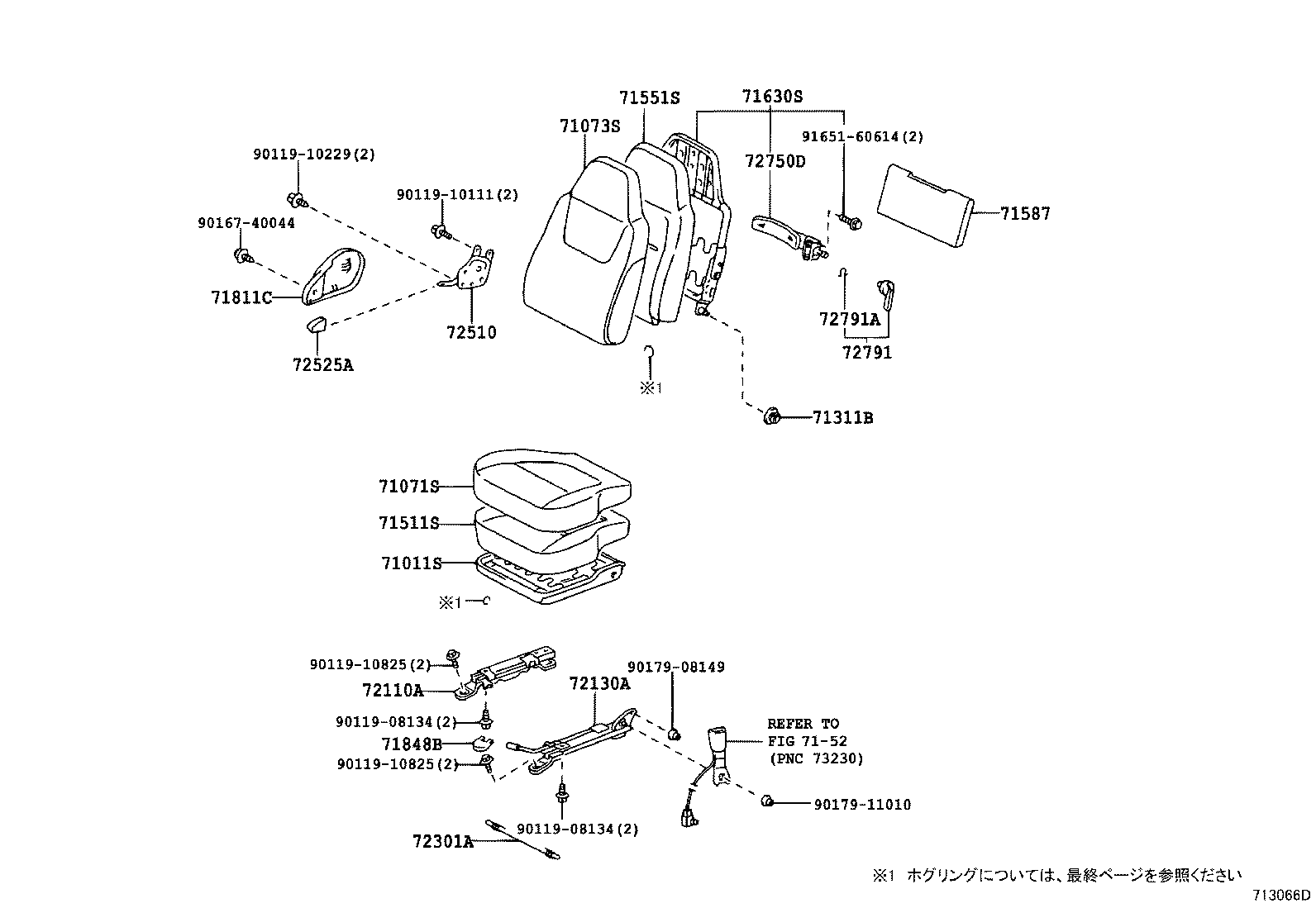

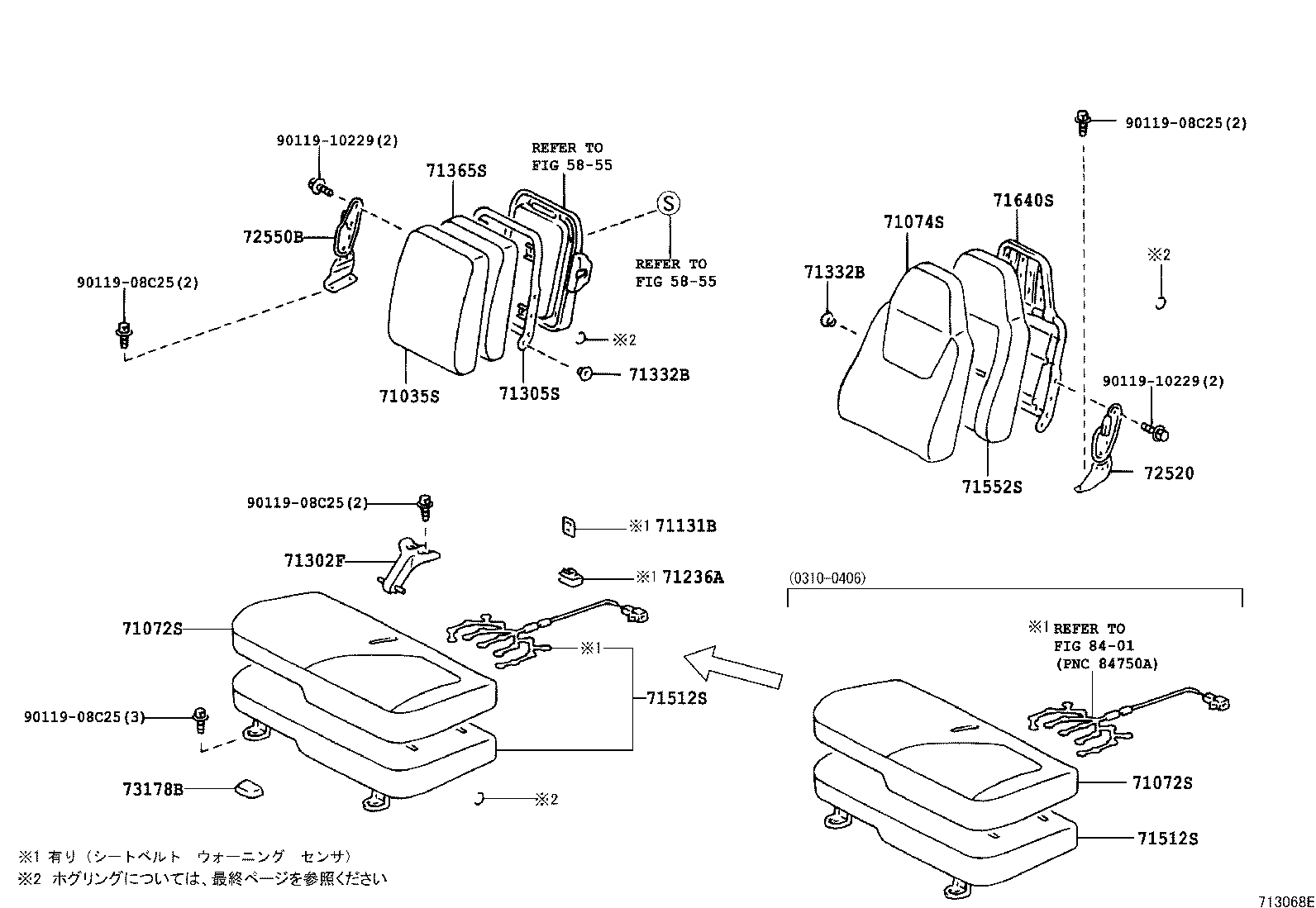

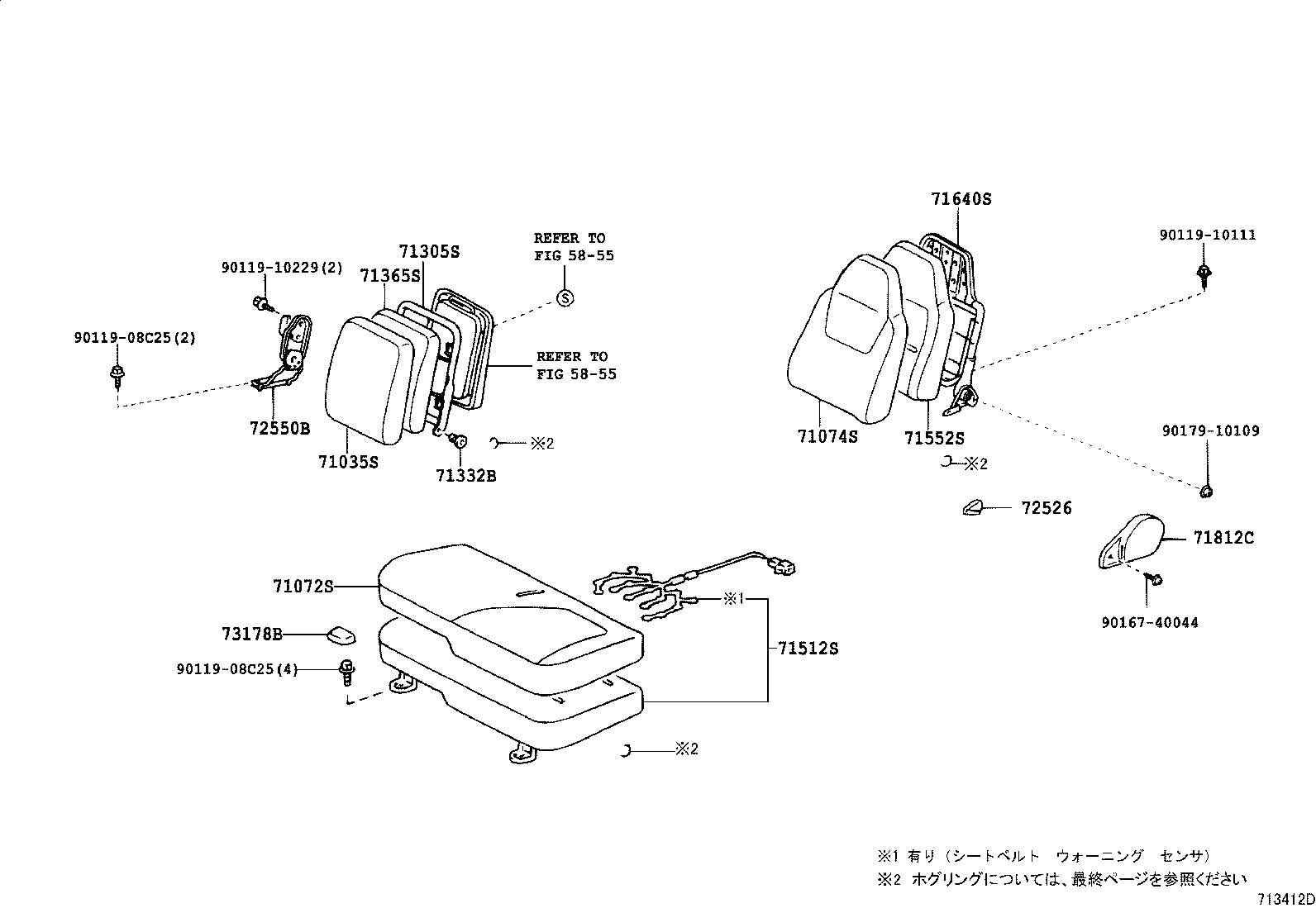

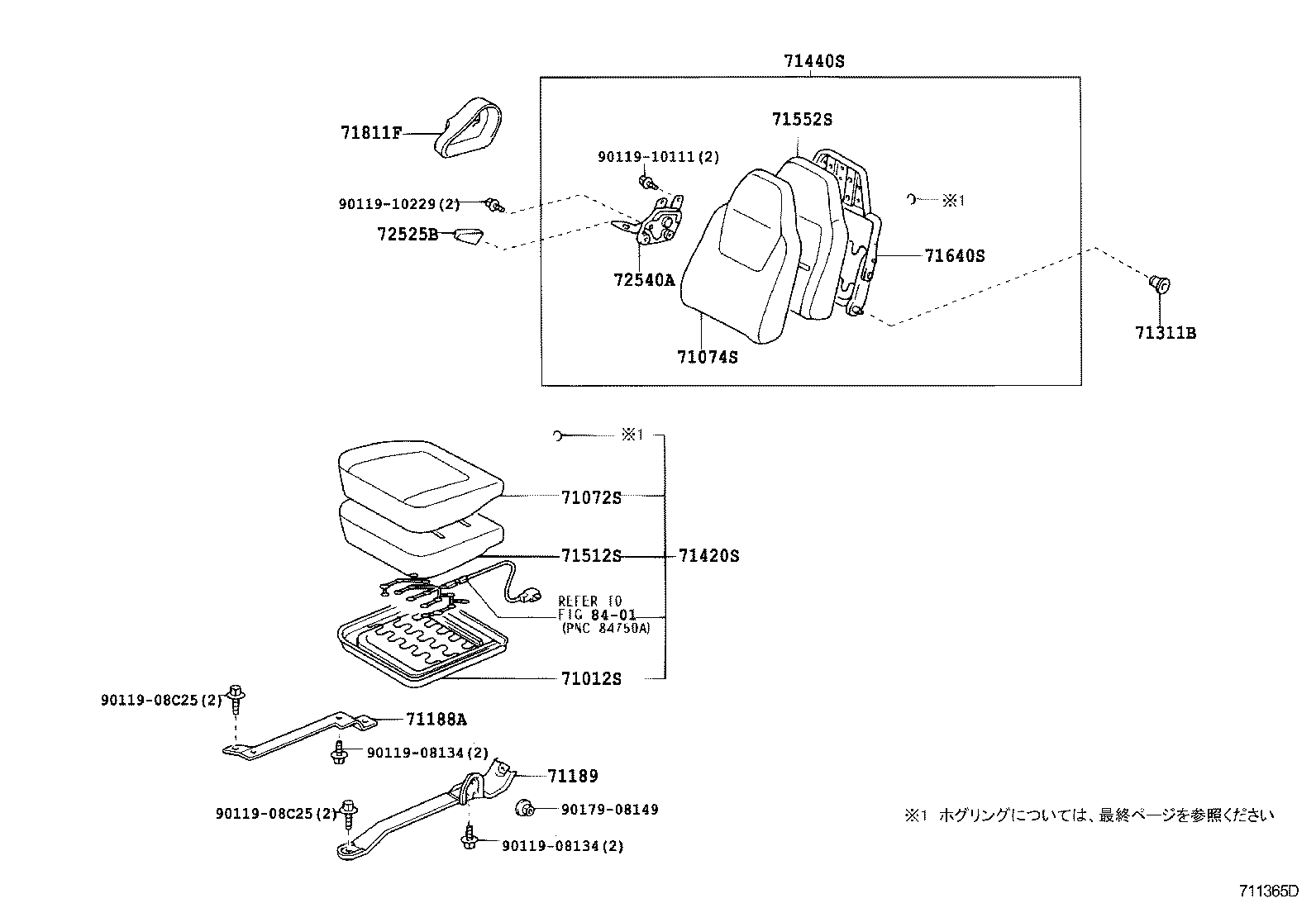

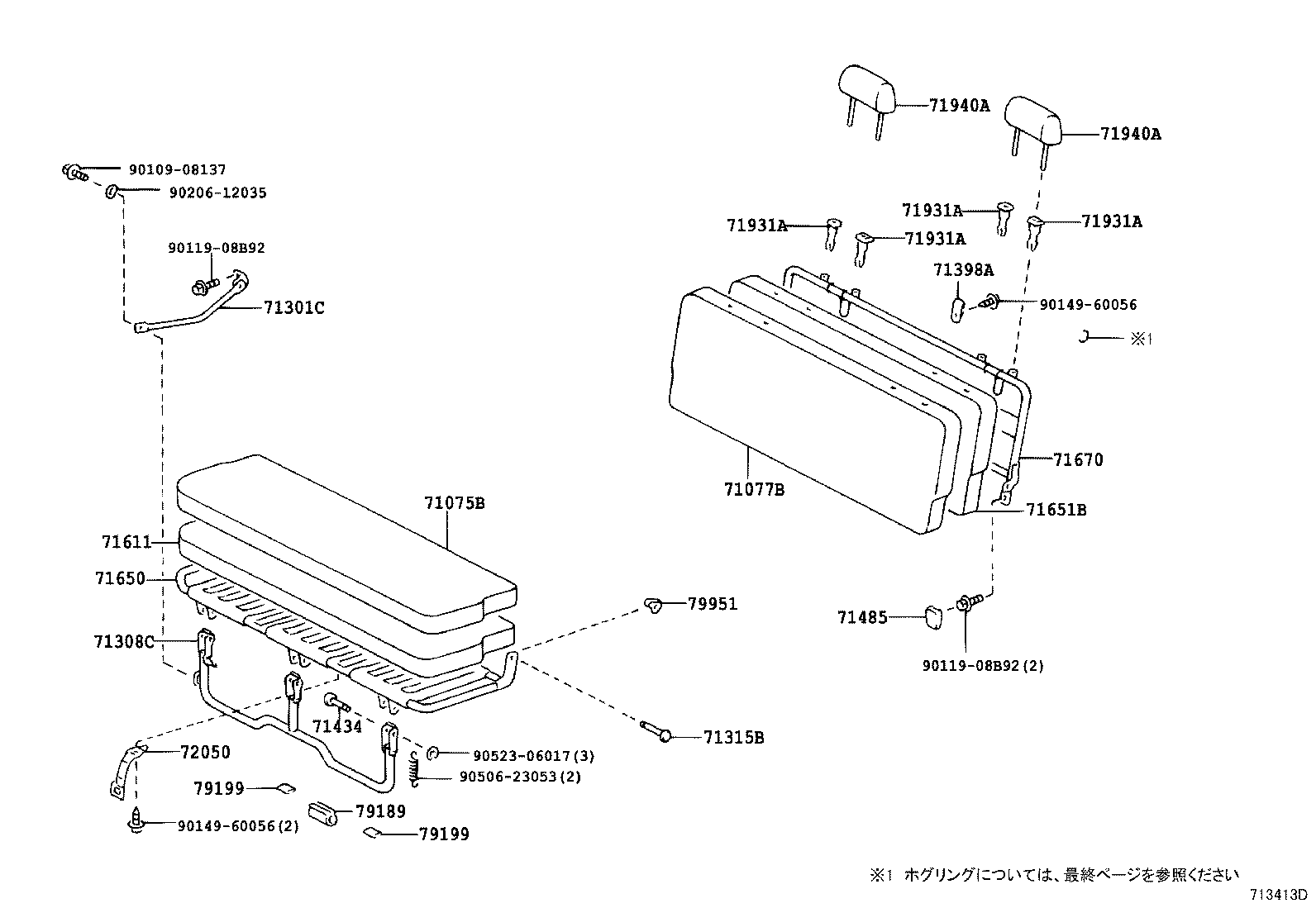

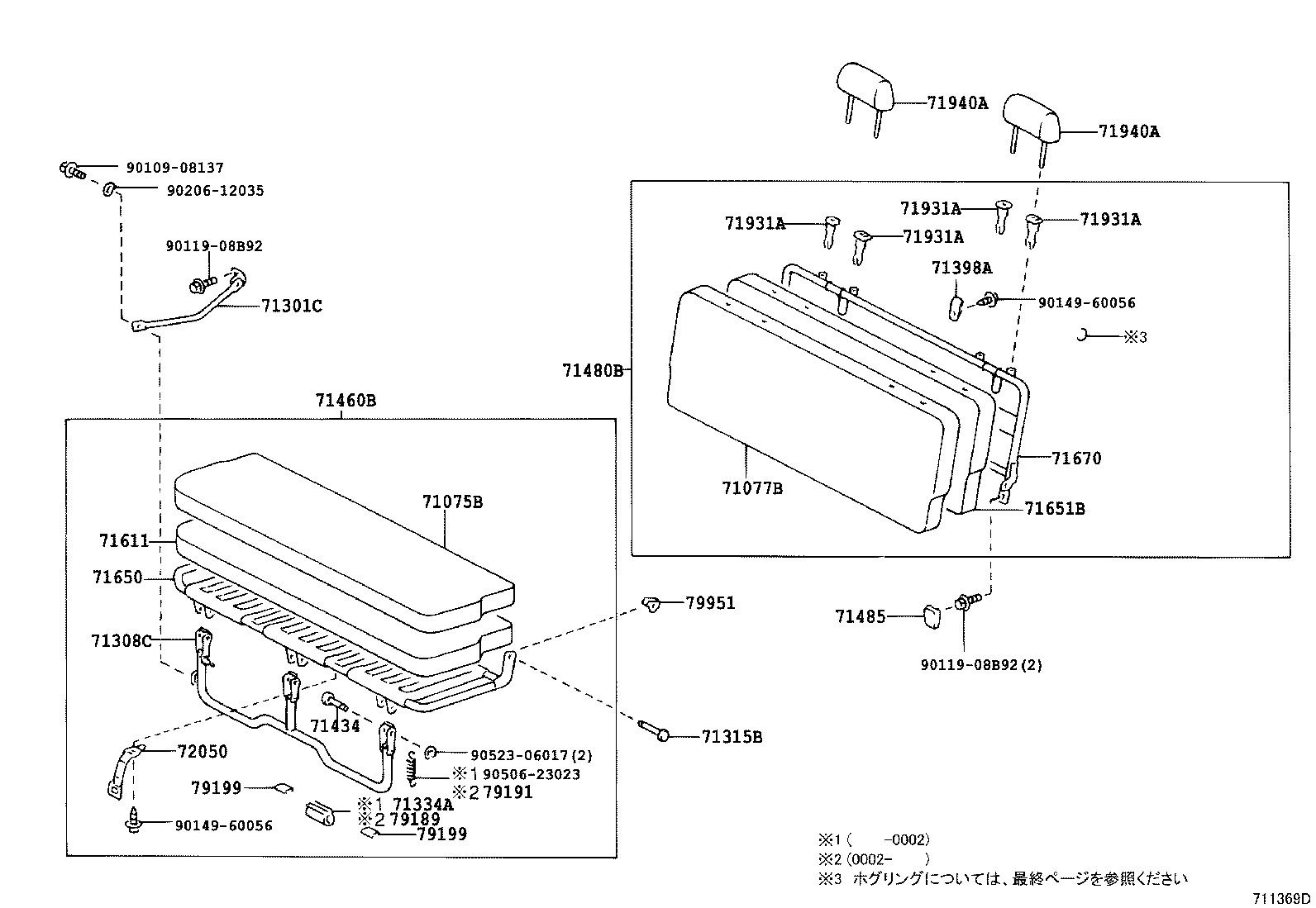

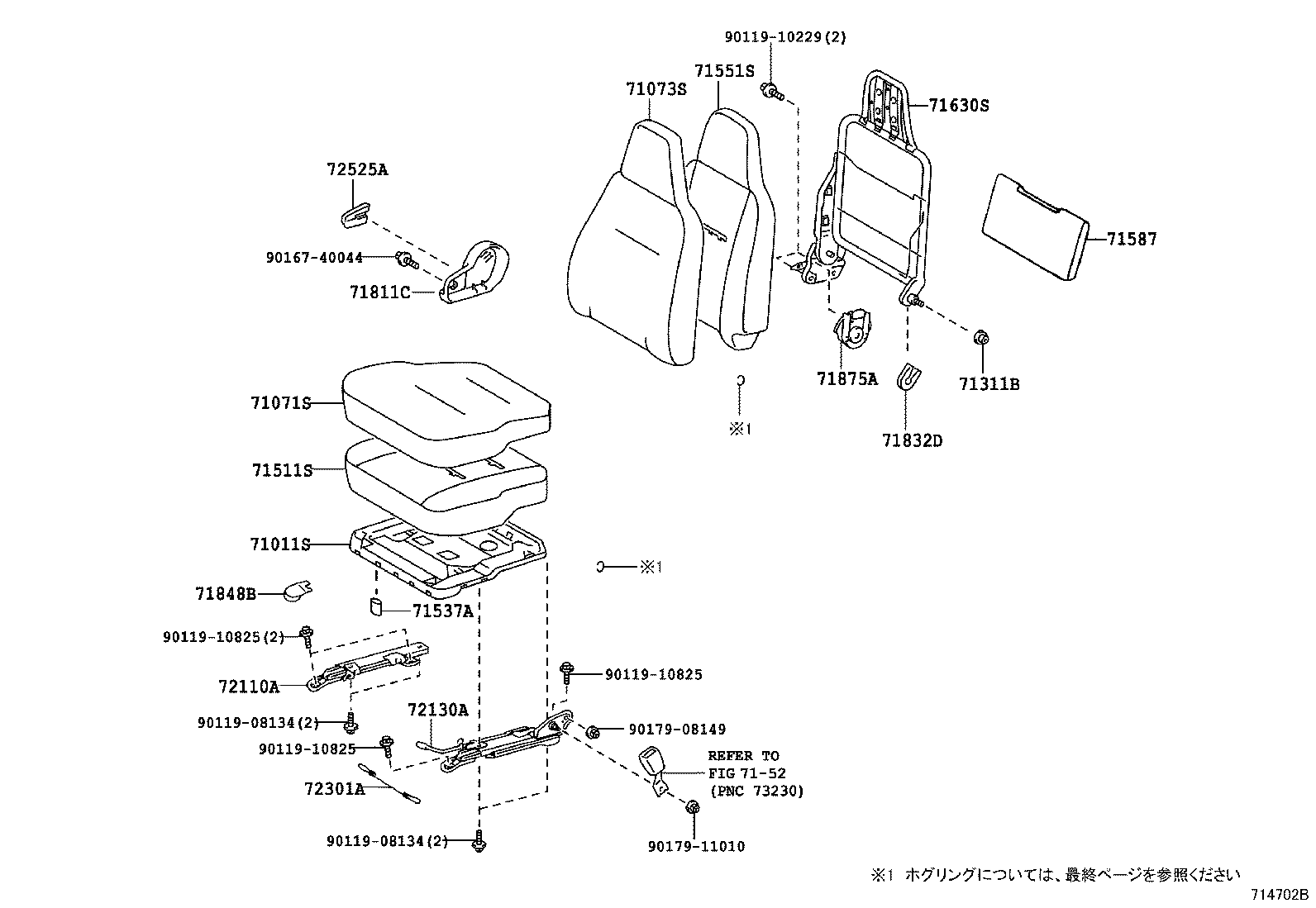

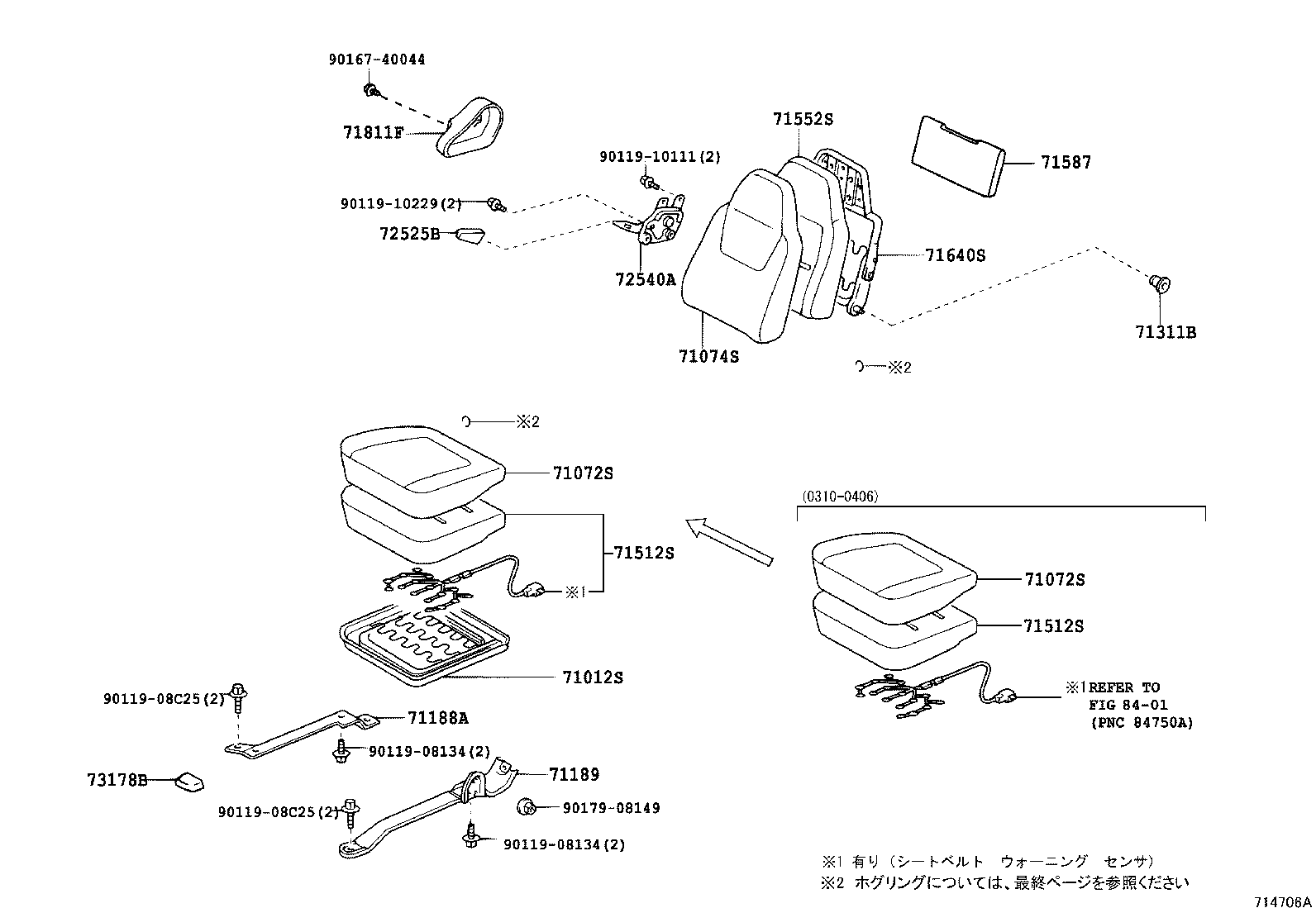

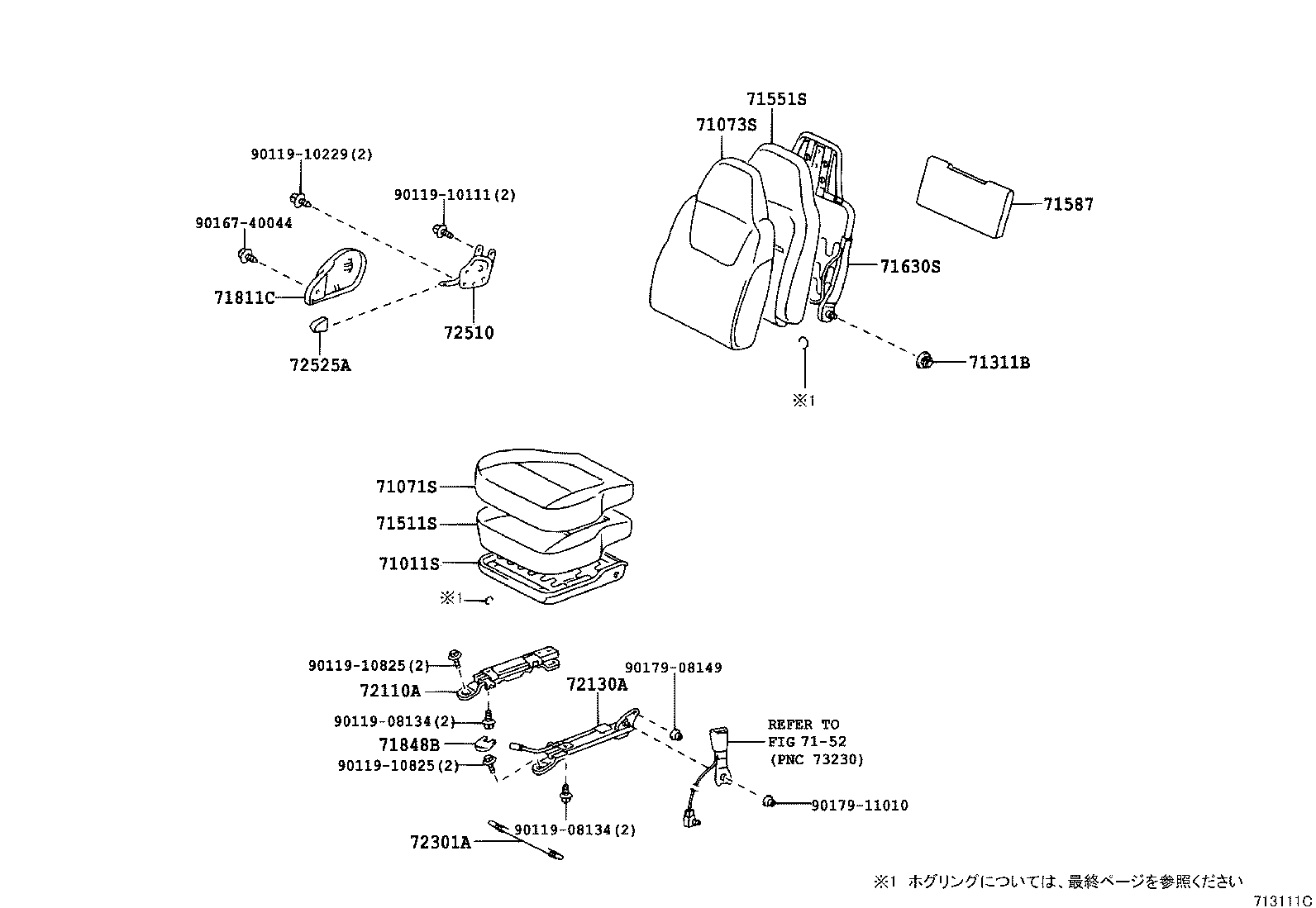

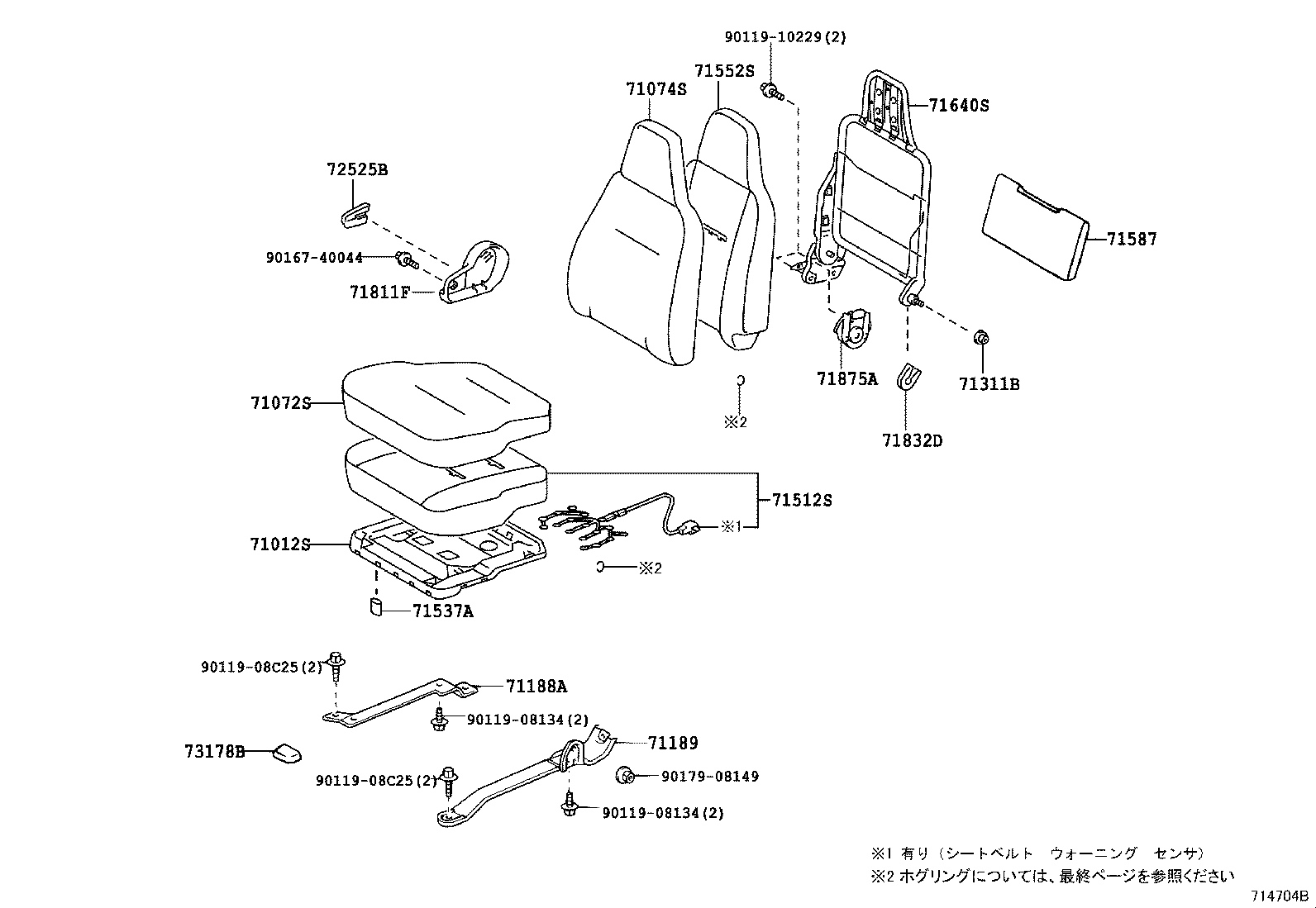

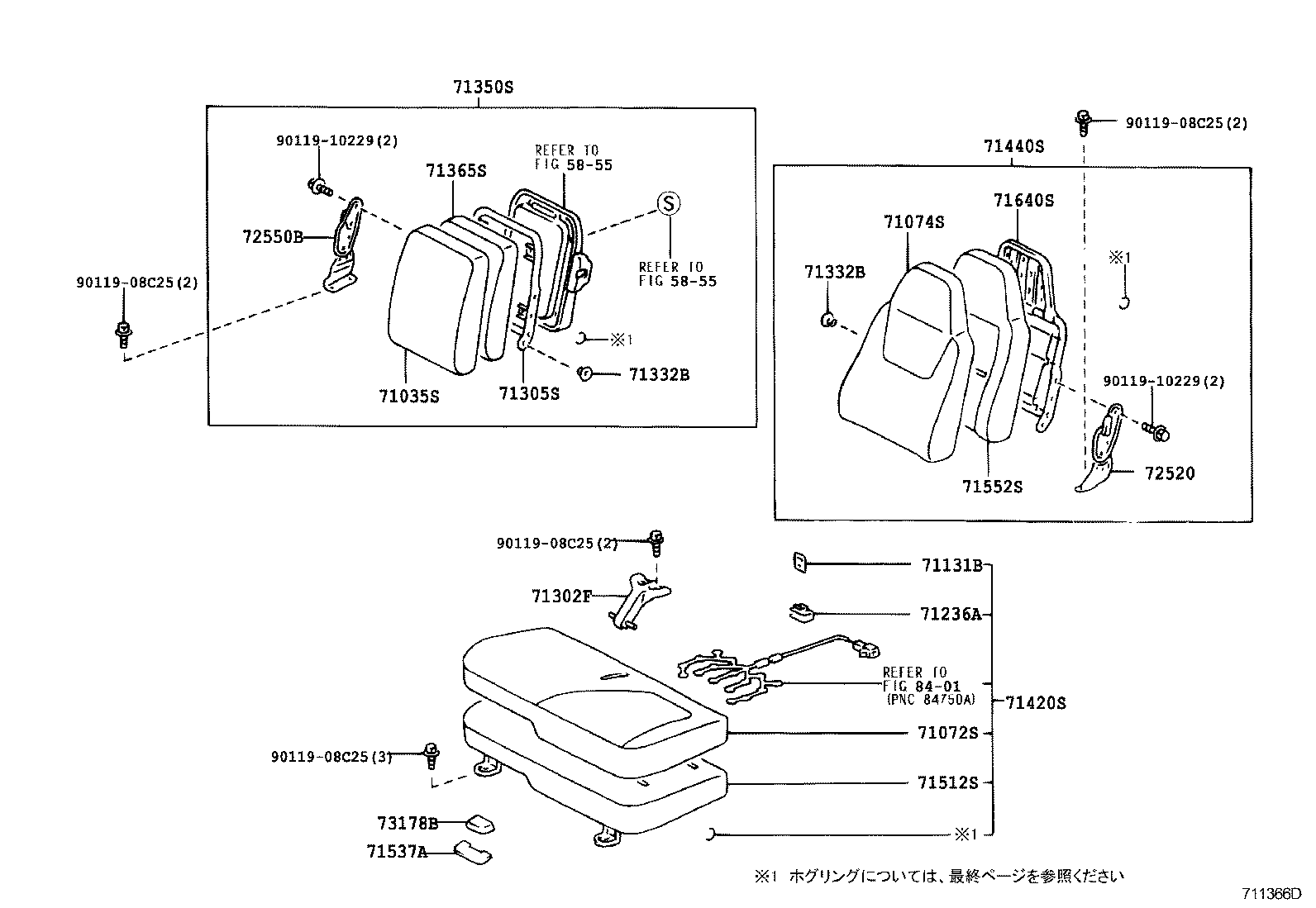

Figure 711364E 711364E 1999-05 → 2004-06 Figure 711365D 711365D 1999-05 → 2004-06 Figure 711366D 711366D 1999-05 → 2004-06 Figure 711367D 711367D 1999-05 → 2004-06 Figure 711368E 711368E 1999-05 → 2004-06 Figure 714706A 714706A 2003-10 → 2004-06 Figure 714706A 714706A 2004-06 → 2006-10 Figure 711369D 711369D 1999-05 → 2004-06 Figure 713111C 713111C 2003-10 → 2004-06 Figure 713111C 713111C 2004-06 → — Figure 713066D 713066D 2003-10 → 2004-06 Figure 713066D 713066D 2004-06 → — Figure 714702B 714702B 2006-10 → — Figure 714702B 714702B 2009-05 → — Figure 714704B 714704B 2006-10 → — Figure 714704B 714704B 2009-05 → — Figure 713068E 713068E 2003-10 → 2004-06 Figure 713068E 713068E 2004-06 → — Figure 713412E 713412E 2004-06 → — Figure 713413D 713413D 2004-06 → — Figure 718165A 718165A 1999-05 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71131B Plate, Front Seat Cushion, NO.1
71188A Leg, Front Seat, RH
71189 Leg, Front Seat, LH
71236A Clamp, Rear Seat Cushion Spring
71301C Link Sub-assy, Rear Seat Cushion
71302F Hinge Sub-assy, Front LH Seatback, LH
71305S Frame Sub-assy, Center Seatback
71308C Leg Sub-assy, Rear Seat, Front
71311B Bush (FOR FRONT SEAT HINGE PIN)
71315B Pin, Rear Seat Hinge
71332B Spacer, Rear Seatback Hinge
71334A Stopper, Rear Seat Leg
71350S Back Assy, Front Seat, Center
71365S Pad, Center Seatback
71398A Holder, Rear Seatback
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71434 Pin, Rear Seat Cushion Leg, Rear
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71485 Cover, Rear Seat Hinge
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71561B Pad, Front Seatback, Upper
71587 Protector, Front Seatback Edge
71611 Pad, Rear Seat Cushion
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71811C Cover, Reclining Adjuster, RH
71811F Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71832D Cover, Front Seat Hinge, LH
71848B Cap, Seat Adjuster Cover, RH
71875A Cover, Reclining Adjuster Inside, RH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72050 Belt Assy, Rear Seat Hook
72110A Track Assy, Front Seat, Outer RH
72130A Track Assy, Front Seat, Inner RH
72301A Wire Sub-assy, Seat Track Equalizing, RH
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72540A Adjuster Assy, Reclining Seat, Inner LH
72550B Adjuster Assy, Reclining Seat, Center RH
72750D Adjuster Assy, Lumbar Support, RH
72791 Lever, Lumbar Support
72791A Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
73178B Cap, Seat Belt Anchor Cover
79189 Stopper, NO.1 Seat Leg
79191 Spring, NO.1 Seat Cushion, NO.1
79199 Holder, NO.1 Seat Leg Stopper
79951 Cover, NO.1 Seat Cushion
